Article

Homopolymer and ABC Triblock Copolymer Mixtures for Thermoresponsive Gel Formulations

by
Anna P. Constantinou
1,
Nikitas Provatakis
2,
Qian Li
1 and
Theoni K. Georgiou
1,*
1
Department of Materials, Imperial College London, London SW7 2AZ, UK
2
Department of Bioengineering, Imperial College London, London SW7 2AZ, UK
*
Author to whom correspondence should be addressed.
Gels 2021, 7(3), 116; https://doi.org/10.3390/gels7030116
Submission received: 13 July 2021 / Revised: 4 August 2021 / Accepted: 6 August 2021 / Published: 9 August 2021
(This article belongs to the Special Issue Polymer Gels)
Browse Figures
Versions Notes

Abstract

:
Our group has recently invented a novel series of thermoresponsive ABC triblock terpolymers based on oligo(ethylene glycol) methyl ether methacrylate with average Mn 300 g mol−1 (OEGMA300, A unit), n-butyl methacrylate (BuMA, B unit) and di(ethylene glycol) methyl ether methacrylate (DEGMA, C unit) with excellent thermogelling properties. In this study, we investigate how the addition of OEGMA300x homopolymers of varying molar mass (MM) affects the gelation characteristics of the best performing ABC triblock terpolymer. Interestingly, the gelation is not disrupted by the addition of the homopolymers, with the gelation temperature (Tgel) remaining stable at around 30 °C, depending on the MM and content in OEGMA300x homopolymer. Moreover, stronger gels are formed when higher MM OEGMA300x homopolymers are added, presumably due to the homopolymer chains acting as bridges between the micelles formed by the triblock terpolymer, thus, favouring gelation. In summary, novel formulations based on mixtures of triblock copolymer and homopolymers are presented, which can provide a cost-effective alternative for use in biomedical applications, compared to the use of the triblock copolymer only.

1. Introduction

Stimulus-responsive polymers are polymers that respond to an external stimulus [1,2]. When this stimulus is temperature, the polymers are called thermoresponsive or temperature-responsive [3,4,5,6,7]. In some cases, when the temperature is varied, a polymer network is formed, which is called thermoresponsive gel. Of particular interest in the biomedical field are the lower-critical solution temperature (LCST) polymers, and, especially, the LCST thermoresponsive gels, which exist in a solution state at low temperature, but assemble into a physical three-dimensional (3D) network as the temperature rises [8,9,10,11,12]. This transition, known as sol–gel transition, should ideally occur between room temperature and body temperature to ensure that: (i) gelation will occur quickly at body temperature e.g., post injection, and (ii) gelation will not occur at room temperatures; thus, the sample can be easily injected. Thermoresponsive gels have received much attention and have been investigated as injectable gels in tissue engineering [3,12,13,14,15] and in drug delivery [16,17,18,19], and as 3D (bio-)printable materials [20,21,22,23,24,25].
Several studies have investigated the effect of additives on the thermoresponsive properties of the polymers, with major focus on Pluronic® F127 (poloxamer 407) [26,27]. Pluronic® polymers are ABA triblock copolymers, where A and B consist of ethylene glycol (EG) and propylene glycol (PG), respectively [12]. Several Pluronic® polymers are commercially available differing in the total molar mass (MM) and the ratio of EG/PG. Pluronic® F127 has an EG content of approximately 70% and a total MM of approximately 12600 g mol−1, and it has gained much attention due to its interesting thermogelling properties and commercial availability [12]. Polymeric additives in solutions of Pluronic® F127, such as alginate [28,29,30], poly(ethylene glycol) (PEG) [27,31,32,33,34,35], poly(acrylic acid) (PAA) [27,36], and carbopols, i.e., crosslinked PAA [37], poly(vinyl alcohol) [27,38], and hyaluronic acid [39,40], have been investigated. Poloxamers as polymeric additives in solutions of Pluronic® F127 have also been studied [19,41,42,43,44,45,46,47,48]. For example, mixtures of Pluronic® F127 and Pluronic® F68, EG content 80% and total MM 8350 g mol−1 [12], were tested for suitability in drug delivery [19,27,44,46,47,48,49,50]. In two of these studies, increasing the content in Pluronic® F68 while keeping the content in Pluronic® F127 constant lowered the gelation time at body temperature and drug diffusion kinetics were improved when this formulation was applied in drug delivery [46,47]. However, when the total polymer concentration was kept constant and the concentration of the two polymers was varied, it was observed that increasing the content in Pluronic® F68 increased the gelation temperature (Tgel) [49]. Finally, in other studies, the effect of the incorporation of solid lipid nanoparticles and carbopols in mixtures of Pluronic® F127 with poloxamers on the gelation has also been investigated [41,42,43].
A few studies on mixtures of thermoresponsive polymers other than poloxamers have also been reported in the literature [51,52,53,54,55]. In two of the studies, mixtures of AB and BAB diblock and triblock copolymers, with A and B being based on EG and lactic acid, respectively, were investigated for thermoreversible gelation [52,53]. In these studies, the two polymers contained complementary chiral blocks of lactic acid; thus, gelation was favoured by stereocomplexation between the enantiomers [52,53]. Interestingly, when water-soluble and a water-insoluble poly(lactic acid-co-glycolic acid)-b-poly(ethylene glycol)-b-poly(lactic acid-co-glycolic acid) (PLGA–PEG–PLGA) triblock copolymers were mixed, this produced a new system that presented a wider gelation area than the one shown by the soluble copolymer itself [54]. In another study, mixtures of two triblock terpolymers, which independently exhibited thermoreversible gelation, were studied [51]. The polymers consisted of N-isopropylacrylamide (A unit), n-butyl acrylate (B unit), and N, N-dimethylacrylamide (C unit), and their structure was (A-co-B)-b-C-b-(A-co-B) and (A-co-B)-b-C-b-A. As suspected, the former gels formed at lower temperatures than the latter, which is attributed to the presence of additional hydrophobic n-butyl acrylate units in the third block. Interestingly, it has been clearly demonstrated that the Tgel increases linearly as the content in the (A-co-B)-b-C-b-A increases [51].
The studies discussed clearly demonstrate that the incorporation of additives in solutions of thermoresponsive gels can significantly impact the gelation parameters by affecting the underlying gelation mechanism. This suggests that there is scope in researching/developing additive incorporation as a potential method for optimising the Tgel and the gelation boundaries. In addition, most of the studies are focused on exploring the effects of incorporating polymeric additives in poloxamer solutions. However, many possibilities can be explored, and trends on how polymeric additives can impact the gelation of thermoresponsive polymers may be established.
Our group has recently reported a novel combination of methacrylate repeated units, which produces thermoresponsive polymers with a sharp sol–gel transition [56,57,58]. More specifically, the polymers consist of (i) the hydrophilic oligo (ethylene glycol) methyl ether methacrylate with average MM 300 g mol−1 (OEGMA300, A unit), which is also thermoresponsive at approximately 70 °C, depending on the MM [59], (ii) the hydrophobic n-butyl methacrylate (BuMA, B unit), and (iii) the hydrophilic and thermoresponsive (CP approximately 30 °C) [59] di(ethylene glycol) methyl ether methacrylate (DEGMA, C unit). Both ABC triblock copolymers of varying compositions and tetrablock terpolymers of varying architecture were investigated [57,58], with an ABC triblock terpolymer with OEGMA300-BuMA-DEGMA content at 40/35/25 w/w% showing promising thermogelation properties, with the gels being formed at concentrations as low as 2 w/w% [57]. Therefore, it is valuable to investigate the impact of polymeric additives on the gelation properties of this novel polymer.
To accomplish this task, we have performed a systematic investigation on mixtures of polymers by keeping the total polymer concentration constant at 20 w/w% in phosphate buffered saline (PBS), while varying the concentration ratio of the two polymers between 3:1, 1:1, and 1:3. A series of OEGMA300 homopolymers have been used as polymeric additives to investigate their impact on gelation properties: (i) OEGMA30010, (ii) OEGMA30031, (iii) OEGMA30043, and (iv) OEGMA30075. To analyse the impact of homopolymer additives on gelation and identify trends, we report the detailed phase diagrams and rheological properties of the mixtures at various concentrations and discuss the findings.

2. Results and Discussion

As previously mentioned, five in-house synthesised PEG-based methacrylate polymers were used; specifically, one amphiphilic triblock terpolymer (OEGMA300x-b-BuMAy-b-DEGMAz, P1) and four OEGMA300 homopolymers of various MM values (poly(OEGMA300), P2 to P5) (Figure 1 and Table 1 (refer to Figure S1 for the GPC traces of the final polymers after precipitation)).

2.1. Homopolymers as Additives in Thermogelling Triblock Copolymer Solutions—Visual Phase Transitions

To provide a basis of comparison, and to study how the phase transitions of the gelling agent are modified by the addition of homopolymers, it is necessary to construct the phase diagrams of the triblock copolymer in PBS without any additives (Figure 2 (top)). The following phases are reported: (a) runny solution state in white, (b) viscous solution state in red, (c) stable gel in blue, and (d) phase separation into solid and liquid in green. As demonstrated, the triblock copolymer presents a gelation area, which is approximately indicated by a black dashed line, close to body temperature. As has been well-documented, the gelation temperature (Tgel) is tuned by the polymer concentration, i.e., Tgel decreases as the concentration increases [3], and this is also observed for OEGMA30015-b-BuMA26-b-DEGMA13, with gelation being observed at the lowest concentration tested in this study, i.e., 5 w/w% in PBS. More specifically, OEGMA30015-b-BuMA26-b-DEGMA13 shows a smooth decrease in Tgel from 34 to 30 °C as the concentration increases from 5 to 20 w/w%; thus, it is still a solution at room temperature. The gels destabilise when the temperature increases, either by precipitation (i.e., complete phase separation to solid and liquid) or gel syneresis (i.e., slight exclusion of solvent from the gel). This behaviour is advantageous as it shows that its gelation properties can be finely tuned to meet the properties of the targeted application.
To investigate the effect of OEGMA300 homopolymers on the thermogelling properties of OEGMA30015-b-BuMA26-b-DEGMA13 (Polymer 1), mixtures of OEGMA300x with x varying from 10, 31, 43, and 75 with the triblock copolymer were investigated (Figure 2 (bottom) and Table 2). For this, the Polymer 1/OEGMA300x ratio was targeted at 3:1, 1:1, and 1:3, with the total polymer concentration being kept constant at 20 w/w%.
It is worth noting that gelation is observed in all the mixtures, with both transparent and cloudy gels being formed. It is generally observed that the incorporation of OEGMA300x keeps the Tgel stable at values close to the Tgel of 20 w/w% triblock copolymer solution (equal to 30 °C), regardless of the content or MM of OEGMA300x. This suggests that OEGMA300x polymers might act as bridges for connecting the micelles formed by the amphiphilic triblock terpolymer, thus favouring gelation. This is in contrast with what has been observed for Pluronic® F127, whose gelation is disrupted when PEG is added [32,33]. This is advantageous, as cost-effective formulations may be produced when OEGMA30015-b-BuMA26-b-DEGMA13 is mixed with OEGMA300x, due to the easier and cheaper production of the homopolymer, i.e., one synthetic step and one monomer needed for its synthesis.
Gel syneresis, followed by precipitation, is observed when the mixtures are heated above their gelation points. Interestingly, when the content in the triblock copolymer increases and, thus, the content in OEGMA300x decreases, the precipitation temperature (Tprec) increases, thus indicating an increased stability of those gel formulations. It is also worth noting that, when the concentration of OEGMA30010 is kept at low values (5 w/w%), the transitions of the mixture (15 w/w% P1 and 5 w/w% OEGMA30010) are almost identical to the ones observed when 15 w/w% P1 was tested. This indicates that, when the content in low MM OEGMA300 is kept at low values, the visual phase transitions are not affected.

2.2. Homopolymers as Additives in Thermogelling Triblock Copolymer Solutions—Rheological Properties

To confirm the trends observed by visual tests, and to investigate the effect of the additives on the gel strength, rheological studies were also performed, and the results are present in Figure 3 and Figure S3. As can be seen in all the cases, a stable gel was formed, i.e., G’ > G’’, as the temperature increased to around 30 to 32 °C, which agrees with the results obtained by visual tests. As the temperature increases further, the strength of the gel increases, as the transparent gels become cloudy. A second crossover is observed at temperatures close to the ones at which gel syneresis and precipitation are detected visually. In some cases, where the concentration of P1 in the mixture is at 15 w/w% (P1:OEGMA300x = 3:1), a second crossover (G’ > G’’) is observed by rheology, while, by visual tests, gel syneresis is observed, followed by precipitation at higher temperatures. At this point, it should be reminded that gel syneresis is a phenomenon first reported by Graham, and it is defined as the disturbance of the gel due to internat stresses, leading to slight exclusion of solvent [60,61]. On the other hand, precipitation is phase separation, which, in this study, is recorded as the start point of precipitation, and might proceed as the temperature increases further, until complete phase separation, i.e., solid polymer and liquid solvent, takes place. It is speculated that, upon shear stress, rearrangement of the polymer chains might take place; thus, the polymer network is reformed by rheology. This is observed at high contents in P1, as the concentrated solutions (15 and 20 w/w%) of the triblock terpolymer in PBS only present gel syneresis upon temperature increase, with no precipitation being detected, i.e., the gel does not progressively exclude more solvent. This double crossover has been previously observed by our group on OEGMA300x-b-BuMAy-b-DEGMAz-b-OEGMA300x tetrablock terpolymer [58].
The MM of the OEGMA300x homopolymers plays a critical role in the stability of the gels, as the higher the MM, the higher the maximum storage modulus of the gels (Figure 4 from black (OEGMA30010) to red/green (OEGMA30031/OEGMA30047) to blue (OEGMA30075)). This can be explained, as the increase in MM might facilitate the formation of stronger entanglements between the well-hydrated coronas of the micelles, and, thus, favours the formation of a stronger gel network, i.e., interconnected micelles. However, the higher the MM, precipitation, i.e., complete phase separation, is favoured more, as indicated by the sudden drop in the magnitude of the moduli (Figure 3 (top to bottom)). This confirms the results obtained by visual tests, in which the addition of low MM OEGMA300x at low concentrations does not affect the gelation properties of the triblock terpolymer significantly, while, when high MM OEGMA300x are used as additives, gel destabilisation, and, thus, precipitation, is favoured.
When the ratio of P1 to OEGMA300x is varied from 1:3, 1:1, to 3:1, the maximum storage modulus increases (Figure 4). This is expected. As the concentration of the gelling agent increases, the number of micelles increases; thus, more junction points are formed within the gel structure, leading to a stronger gel. This is a well-established phenomenon, and it has been previously observed in solutions consisting of a single gelling agent, such as methacrylate polymers [57,62] and poly(N-isopropylacrylamide)-based polymers [63,64].

3. Conclusions

In this study, the thermogelling properties of polymeric mixtures are investigated and compared to the corresponding polymer solutions without any polymeric additives. The thermogelling agent used is an ABC triblock terpolymer, namely, OEGMA30015-b-BuMA26-b-DEGMA13 (P1), while OEGMA300x homopolymers of various MMs were used as additives: OEGMA30010 (P2), OEGMA30031 (P3), OEGMA30043 (P4), and OEGMA30075 (P5). The mixtures were investigated at a total polymer concentration of 20 w/w% in PBS, and concentration ratio of P1 to OEGMA300x equal to 1:1, 3:1, and 1:3. It is demonstrated that the gelation properties of the triblock terpolymer are preserved when OEGMA300x homopolymers are added. Interestingly, the Tgel is balanced at around 30 to 32 °C, which is the Tgel of 20 w/w% solution of the gelling agent, in the absence of additives. It is also shown that the addition of low MM OEGMA300x homopolymers does not significantly affect the gelation properties of the pristine triblock terpolymer, while using higher MM OEGMA300x homopolymers produces stronger gels, as the polymer chains of the homopolymers might act as bridges connecting the micelles. This study demonstrates that alternative cost-effective formulations can be produced, with the MM of the OEGMA300x homopolymer playing a critical role in the stability and strength of the gels.

4. Materials and Methods

4.1. Materials

Sigma Aldrich Ltd., Saint Louis, MO, USA, was the provider phosphate buffered saline (PBS) tablets, while phosphate buffer saline (PBS 10 solution) was purchased from Fischer Scientific UK Ltd., Loughborough, UK. The methacrylate polymers, i.e., the four OEGMA300 homopolymers of varying MM values, and the thermogelling triblock terpolymer, OEGMA300x-b-BuMAy-b-DEGMAz were in-house synthesised, via group transfer polymerisation (GTP), with their detailed synthesis reported elsewhere [57,59]. The structural properties of the in-house synthesised polymers have been determined via gel permeation chromatography (GPC) and proton nuclear magnetic resonance (1H NMR) spectroscopy, but discussion of the synthesis is out of the scope of this study.

4.2. Methods

4.2.1. Sample Preparation for Visual Tests and Rheological Measurements

Concentrated (20 w/w%) stock solutions of the polymers in PBS were prepared, and they were used to prepare the mixtures, as described below. The triblock copolymer solutions (additive 1) were mixed with solutions of OEGMA300 homopolymers of various MM values (additive 2, Polymers 2 to 5), while keeping the total polymer concentration constant at 20 w/w%. The mixtures were prepared with concentration ratio of additive 1:additive 2 equal to 1:3, 1:1, and 3:1, e.g., 5 w/w% additive 1 and 15 w/w% additive 2 for ratio 1:3. Solutions of the triblock copolymer in PBS were also prepared for comparison purposes at concentrations equal to 5, 10, 15, and 20 w/w%.

4.2.2. Visual Tests

An IKA RCT basic stirrer hotplate, an IKA ETS-D5 temperature controller, and a continuously stirred water bath were used to optically determine the changes of the aqueous polymer solutions. The visual tests were performed in the 20 to 80 °C range, and a visual change was recorded every 1 °C. The observations were determined by visual inspection, i.e., by eye, and notes were taken. The gelation temperature, Tgel, was of foremost interest, and it was determined by the tube inversion method, i.e., no sample flow was detected upon tube inversion, indicating the formation of a stable gel. Several additional phases were detected and recorded, as follows: (i) runny solutions (clear, slightly cloudy, and cloudy), (ii) viscous solution (transparent and cloudy), (iii) stable gel (transparent and cloudy), and (iv) phase separation into insoluble solid and supernatant liquid (gel syneresis and precipitation). For more details regarding these transitions, please refer to Figure 7 (bottom right) in our previous publication [65].

4.2.3. Rheology

The rheological properties of the polymer solutions were recorded using a TA Discovery HR-1 hybrid rheometer (TA Instruments, U.K.). The experiments were performed using a 40 mm Peltier steel plate (996921) and a solvent trap. The samples were subjected in temperature ramp measurements, during which the angular frequency (ω) and strain (γ) were kept constant at 1 rad s−1 and 1%, respectively. These values were chosen according to preliminary studies. The strain was kept at low values to ensure that it was within the linear viscoelastic area of the gel, i.e., if the strain is high enough, it can break the physical bonds of the polymer network. The value of angular viscosity was chosen to be at 1 rad s−1 to ensure that the sample behaves as a liquid at room temperature, while forming a gel at higher temperatures. The gel point by rheology was determined as the temperature at which the storage modulus (elastic modulus, G’) exceeded the loss modulus (viscous modulus, G”).

5. Patents

The novel combination of repeated units in OEGMA300x-b-BuMAy-b-DEGMAz has been patented by A.P.C. and T.K.G. [56].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/gels7030116/s1, Figure S1: GPC traces of the final polymers after precipitation. OEGMA300 homopolymers of varying degrees of polymerisation are shown in blue—OEGMA30010 in dark blue, OEGMA30031 in blue, OEGMA30043 in light blue, and OEGMA30075 in faded blue. The triblock terpolymer is shown in dark red line. Figure S2: Phase diagram of the mixture of OEGMA30015-b-BuMA26-b-DEGMA13 with OEGMA30010 in phosphate buffered saline (PBS) with transitions showing up to 80 °C. Figure S3: Temperature ramp rheological measurement on the mixture of OEGMA30015-b-BuMA26-b-DEGMA13 with OEGMA30010 at a ratio of 3:1 in phosphate buffered saline (PBS) with transitions showing up to 80 °C—storage modulus in blue squares and loss modulus in black triangles.

Author Contributions

Conceptualization, A.P.C. and T.K.G.; methodology, A.P.C., N.P. and Q.L.; formal analysis, A.P.C.; investigation, A.P.C. and N.P.; data curation, A.P.C. and N.P.; writing—original draft preparation, A.P.C.; writing—review and editing, A.P.C.; visualization, A.P.C.; supervision, A.P.C. and T.K.G.; project administration, T.K.G.; funding acquisition, T.K.G.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by A.P.C.’s Doctoral Prize Fellowship by the Engineering and Physical Sciences Research Council (EPSRC, EP/M506345/1) and the EPSRC Impact Acceleration Grant EP/R511547/1 awarded to T.K.G’s group.

Acknowledgments

A.P.C. acknowledges the EPSRC for the Doctoral Prize Fellowship.

Conflicts of Interest

A.P.C. and T.K.G. report that part of this work, regarding the novel chemistry of the materials and their promising thermoresponsive properties have been patented [56].

References

  1. Pasparakis, G.; Vamvakaki, M. Multiresponsive polymers: Nano-sized assemblies, stimuli-sensitive gels and smart surfaces. Polym. Chem. 2011, 2, 1234–1248. [Google Scholar] [CrossRef]
  2. Manouras, T.; Vamvakaki, M. Field responsive materials: Photo-, electro-, magnetic- and ultrasound-sensitive polymers. Polym. Chem. 2017, 8, 74–96. [Google Scholar] [CrossRef]
  3. Constantinou, A.P.; Georgiou, T.K. Tuning the gelation of thermoresponsive gels. Eur. Polym. J. 2016, 78, 366–375. [Google Scholar] [CrossRef]
  4. Klouda, L.; Mikos, A.G. Thermoresponsive hydrogels in biomedical applications. Eur. J. Pharm. Biopharm. 2008, 68, 34–45. [Google Scholar] [CrossRef] [Green Version]
  5. Klouda, L. Thermoresponsive hydrogels in biomedical applications: A seven-year update. Eur. J. Pharm. Biopharm. 2015, 97, 338–349. [Google Scholar] [CrossRef] [PubMed]
  6. Constantinou, A.P.; Georgiou, T.K. Thermoresponsive multiblock copolymers: Chemistry, properties and applications. In Temperature-Responsive Polymers: Chemistry, Properties, and Applications; Khutoryanskiy, V.V., Georgiou, T.K., Eds.; John Wiley & Son Ltd.: Chichester, UK, 2018; pp. 35–65. [Google Scholar]
  7. Nele, V.; Wojciechowski, J.P.; Armstrong, J.P.K.; Stevens, M.M. Tailoring gelation mechanisms for advanced hydrogel applications. Adv. Funct. Mater. 2020, 30, 2002759. [Google Scholar] [CrossRef]
  8. Southall, N.T.; Dill, K.A.; Haymet, A.D.J. A view of the hydrophobic effect. J. Phys. Chem. B 2002, 106, 521–533. [Google Scholar] [CrossRef]
  9. Foster, J.C.; Akar, I.; Grocott, M.C.; Pearce, A.K.; Mathers, R.T.; O’Reilly, R.K. 100th anniversary of macromolecular science viewpoint: The role of hydrophobicity in polymer phenomena. ACS Macro Lett. 2020, 9, 1700–1707. [Google Scholar] [CrossRef] [PubMed]
  10. Palmese, L.L.; Thapa, R.K.; Sullivan, M.O.; Kiick, K.L. Hybrid hydrogels for biomedical applications. Curr. Opin. Chem. Eng. 2019, 24, 143–157. [Google Scholar] [CrossRef] [PubMed]
  11. Cook, M.T.; Haddow, P.; Kirton, S.B.; McAuley, W.J. Polymers exhibiting lower critical solution temperatures as a route to thermoreversible gelators for healthcare. Adv. Funct. Mater. 2021, 31, 2008123. [Google Scholar] [CrossRef]
  12. Constantinou, A.P.; Georgiou, T.K. Pre-clinical and clinical applications of thermoreversible hydrogels in biomedical engineering: A review. Polym. Int. 2021. [Google Scholar] [CrossRef]
  13. Place, E.S.; George, J.H.; Williams, C.K.; Stevens, M.M. Synthetic polymer scaffolds for tissue engineering. Chem. Soc. Rev. 2009, 38, 1139–1151. [Google Scholar] [CrossRef]
  14. Gutowska, A.; Jeong, B.; Jasionowski, M. Injectable gels for tissue engineering. Anat. Rec. 2001, 263, 342–349. [Google Scholar] [CrossRef]
  15. Ruel-Gariépy, E.; Leroux, J. In situ-forming hydrogels—review of temperature-sensitive systems. Eur. J. Pharm. Biopharm. 2004, 58, 409–426. [Google Scholar] [CrossRef] [PubMed]
  16. Bobbala, S.; Tamboli, V.; McDowell, A.; Mitra, A.K.; Hook, S. Novel injectable pentablock copolymer based thermoresponsive hydrogels for sustained release vaccines. AAPS J. 2016, 18, 261–269. [Google Scholar] [CrossRef] [Green Version]
  17. Xie, B.; Jin, L.; Luo, Z.; Yu, J.; Shi, S.; Zhang, Z.; Shen, M.; Chen, H.; Li, X.; Song, Z. An injectable thermosensitive polymeric hydrogel for sustained release of Avastin1 to treat posterior segment disease. Int. J. Pharm. 2015, 490, 375–383. [Google Scholar] [CrossRef]
  18. Xi, L.; Wang, T.; Zhao, F.; Zheng, Q.; Li, X.; Luo, J.; Liu, J.; Quan, D.; Ge, J. Evaluation of an injectable thermosensitive hydrogel as drug delivery implant for ocular glaucoma surgery. PLoS ONE 2014, 9, e100632. [Google Scholar] [CrossRef]
  19. Xuan, J.-J.; Balakrishnan, P.; Oh, D.H.; Yeo, W.H.; Park, S.M.; Yong, C.S.; Choi, H.-G. Rheological characterization and in vivo evaluation of thermosensitive poloxamer-based hydrogel for intramuscular injection of piroxicam. Int. J. Pharm. 2010, 395, 317–323. [Google Scholar] [CrossRef]
  20. Feilden, E.; Ferraro, C.; Zhang, Q.; García-Tuñón, E.; D’Elia, E.; Giuliani, F.; Vandeperre, L.; Saiz, E. 3D printing bioinspired ceramic composites. Sci. Rep. 2017, 7, 13759. [Google Scholar] [CrossRef]
  21. Rocha, V.G.; García-Tuñón, E.; Botas, C.; Markoulidis, F.; Feilden, E.; D’Elia, E.; Ni, N.; Shaffer, M.; Saiz, E. Multimaterial 3D printing of graphene-based electrodes for electrochemical energy storage using thermoresponsive inks. ACS Appl. Mater. Interfaces 2017, 9, 37136–37145. [Google Scholar] [CrossRef] [PubMed]
  22. Feilden, E.; Blanca, E.G.; Giuliani, F.; Saiz, E.; Vandeperre, L. Robocasting of structural ceramic parts with hydrogel inks. J. Eur. Ceram. Soc. 2016, 36, 2525–2533. [Google Scholar] [CrossRef]
  23. Zhang, M.; Vora, A.; Han, W.; Wojtecki, R.J.; Maune, H.; Le, A.B.A.; Thompson, L.E.; McClelland, G.M.; Ribet, F.; Engler, A.C.; et al. Dual-responsive hydrogels for direct-write 3D printing. Macromolecules 2015, 48, 6482–6488. [Google Scholar] [CrossRef]
  24. Bakirci, E.; Toprakhisar, B.; Zeybek, M.C.; Ince, G.O.; Koc, B. Cell sheet based bioink for 3D bioprinting applications. Biofabrication 2017, 9, 024105. [Google Scholar] [CrossRef]
  25. Müller, M.; Becher, J.; Schnabelrauch, M.; Zenobi-Wong, M. Nanostructured pluronic hydrogels as bioinks for 3D Bioprinting. Biofabrication 2015, 7, 035006. [Google Scholar] [CrossRef] [PubMed]
  26. Abou-Shamat, M.; Calvo-Castro, J.; Stair, J.L.; Cook, M.T. Modifying the properties of thermogelling poloxamer 407 solutions through covalent modification and the use of polymer additives. Macromol. Chem. Phys. 2019, 220, 1900173. [Google Scholar] [CrossRef]
  27. Abou-Shamat, M.; Stair, J.L.; Kirton, S.B.; Calvo-Castro, J.; Cook, M.T. A design-of-experiments approach to developing thermoresponsive gelators from complex polymer mixtures. Mol. Syst. Des. Eng. 2020, 5, 1538–1546. [Google Scholar] [CrossRef]
  28. Grassi, G.; Crevatin, A.; Farra, R.; Guarnieri, G.; Pascotto, A.; Rehimers, B.; Lapasin, R.; Grassi, M. Rheological properties of aqueous pluronic–alginate systems containing liposomes. J. Colloid Interface Sci. 2006, 301, 282–290. [Google Scholar] [CrossRef]
  29. Lin, H.; Sung, K.C.; Vong, W. In situ gelling of alginate/pluronic solutions for ophthalmic delivery of pilocarpine. Biomacromolecules 2004, 5, 2358–2365. [Google Scholar] [CrossRef]
  30. Chen, C.; Fang, C.; Al-Suwayeh, S.A.; Leu, Y.; Fang, J. Transdermal delivery of selegiline from alginate–pluronic composite thermogels. Int. J. Pharm. 2011, 415, 119–128. [Google Scholar] [CrossRef]
  31. Malmsten, M.; Lindman, B. Effects of homopolymers on the gel formation in aqueous block copolymer solutions. Macromolecules 1993, 26, 1282–1286. [Google Scholar] [CrossRef]
  32. Ricardo, N.M.P.S.; Ricardo, N.M.P.S.; Costa, F.D.M.L.L.; Bezerra, F.W.A.; Chaibundit, C.; Hermida-Merino, D.; Greenland, B.W.; Burattini, S.; Hamley, I.W.; Keith, N.S.; et al. Effect of water-soluble polymers, polyethylene glycol and poly (vinylpyrrolidone), on the gelation of aqueous micellar solutions of pluronic copolymer F127. J. Colloid Interface Sci. 2012, 368, 336–341. [Google Scholar] [CrossRef] [Green Version]
  33. Pragatheeswaran, A.M.; Chen, S.B. Effect of chain length of PEO on the gelation and micellization of the pluronic F127 copolymer aqueous system. Langmuir 2013, 29, 9694–9701. [Google Scholar] [CrossRef] [PubMed]
  34. Gilbert, J.C.; Richardson, J.L.; Davies, M.C.; Palin, K.J.; Hadgraft, J. The effect of solutes and polymers on the gelation properties of pluronic F-127 solutions for controlled drug delivery. J. Control. Release 1987, 5, 113–118. [Google Scholar] [CrossRef]
  35. Colly, A.; Marquette, C.; Courtial, E. Poloxamer/poly (ethylene glycol) self-healing hydrogel for high-precision freeform reversible embedding of suspended hydrogel. Langmuir 2021, 37, 4154–4162. [Google Scholar] [CrossRef] [PubMed]
  36. Pragatheeswaran, A.M.; Chen, S.B. The influence of poly (acrylic acid) on micellization and gelation characteristics of aqueous pluronic F127 copolymer system. Colloid. Polym. Sci. 2016, 294, 107–117. [Google Scholar] [CrossRef]
  37. Jones, D.S.; Bruschi, M.L.; de Freitas, O.; Gremião, M.P.D.; Lara, E.H.G.; Andrews, G.P. Rheological, mechanical and mucoadhesive properties of thermoresponsive, bioadhesive binary mixtures composed of poloxamer 407 and carbopol 974P designed as platforms for implantable drug delivery systems for use in the oral cavity. Int. J. Pharm. 2009, 372, 49–58. [Google Scholar] [CrossRef] [PubMed]
  38. Bercea, M.; Darie, R.N.; Niţă, L.E.; Morariu, S. Temperature responsive gels based on pluronic F127 and poly (vinyl alcohol). Ind Eng. Chem. Res. 2011, 50, 4199–4206. [Google Scholar] [CrossRef]
  39. Mayol, L.; Quaglia, F.; Borzacchiello, A.; Ambrosio, L.; Rotonda, M.I.L. A novel poloxamers/hyaluronic acid in situ forming hydrogel for drug delivery: Rheological, mucoadhesive and in vitro release properties. Eur. J. Pharm. Biopharm. 2008, 70, 199–206. [Google Scholar] [CrossRef] [PubMed]
  40. Nascimento, M.H.M.; Franco, M.K.K.D.; Yokaichyia, F.; de Paula, E.; Lombello, C.B.; de Araujo, D.R. Hyaluronic acid in pluronic F-127/F-108 hydrogels for postoperative pain in arthroplasties: Influence on physico-chemical properties and structural requirements for sustained drug-release. Int. J. Biol. Macromol. 2018, 111, 1245–1254. [Google Scholar] [CrossRef]
  41. Din, F.U.; Mustapha, O.; Kim, D.W.; Rashid, R.; Park, J.H.; Choi, J.Y.; Ku, S.K.; Yong, C.S.; Kim, J.O.; Choi, H. Novel dual-reverse thermosensitive solid lipid nanoparticle-loaded hydrogel for rectal administration of flurbiprofen with improved bioavailability and reduced initial burst effect. Eur. J. Pharm. Biopharm. 2015, 94, 64–72. [Google Scholar] [CrossRef]
  42. Majithiya, R.J.; Ghosh, P.K.; Umrethia, M.L.; Murthy, R.S.R. Thermoreversible-mucoadhesive gel for nasal delivery of sumatriptan. AAPS PharmSciTech 2006, 7, E80–E86. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ryu, J.; Chung, S.; Lee, M.; Kim, C.; Shim, C.K. Increased bioavailability of propranolol in rats by retaining thermally gelling liquid suppositories in the rectum. J. Control. Release 1999, 59, 163–172. [Google Scholar] [CrossRef]
  44. Baldassari, S.; Solari, A.; Zuccari, G.; Drava, G.; Pastorino, S.; Fucile, C.; Marini, V.; Daga, A.; Pattarozzi, A.; Ratto, A.; et al. Development of an injectable slow-release metformin formulation and evaluation of its potential antitumor effects. Sci. Rep. 2018, 8, 3929. [Google Scholar] [CrossRef] [PubMed]
  45. Yu, Z.; Guo, F.; Guo, Y.; Zhang, Z.; Wu, F.; Luo, X. Optimization and evaluation of astragalus polysaccharide injectable thermoresponsive in-situ gels. PLoS ONE 2017, 12, e0173949. [Google Scholar] [CrossRef]
  46. Xuan, J.; Yan, Y.; Oh, D.H.; Choi, Y.K.; Yong, C.S.; Choi, H. Development of thermo-sensitive injectable hydrogel with sustained release of doxorubicin: Rheological characterization and in vivo evaluation in rats. Drug Deliv. 2011, 18, 305–311. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Choi, H.; Jung, J.; Ryu, J.; Yoon, S.; Oh, Y.; Kim, C. Development of in situ-gelling and mucoadhesive acetaminophen liquid suppository. Int. J. Pharm. 1998, 165, 33–44. [Google Scholar] [CrossRef]
  48. Mao, Y.; Li, X.; Chen, G.; Wang, S. Thermosensitive hydrogel system with paclitaxel liposomes used in localized drug delivery system for in situ treatment of tumor: Better antitumor efficacy and lower toxicity. J. Pharm. Sci. 2016, 105, 194–204. [Google Scholar] [CrossRef] [PubMed]
  49. Al Khateb, K.; Ozhmukhametova, E.K.; Mussin, M.N.; Seilkhanov, S.K.; Rakhypbekov, T.K.; Lau, W.M.; Khutoryanskiy, V.V. In situ gelling systems based on pluronic F127/pluronic F68 formulations for ocular drug delivery. Int. J. Pharm. 2016, 502, 70–79. [Google Scholar] [CrossRef] [PubMed]
  50. Kim, E.; Gao, Z.; Park, J.; Li, H.; Han, K. rhEGF/HP-Β-CD complex in poloxamer gel for ophthalmic delivery. Int. J. Pharm. 2002, 233, 159–167. [Google Scholar] [CrossRef]
  51. Onoda, M.; Ueki, T.; Tamate, R.; Akimoto, A.M.; Hall, C.C.; Lodge, T.P.; Yoshida, R. Precisely tunable sol–gel transition temperature by blending thermoresponsive ABC triblock terpolymers. ACS Macro Lett. 2018, 7, 950–955. [Google Scholar] [CrossRef]
  52. Mao, H.; Pan, P.; Shan, G.; Bao, Y. In situ formation and gelation mechanism of thermoresponsive stereocomplexed hydrogels upon mixing diblock and triblock poly (lactic acid)/poly (ethylene glycol) copolymers. J. Phys. Chem. B 2015, 119, 6471–6480. [Google Scholar] [CrossRef]
  53. Mao, H.; Wang, C.; Chang, X.; Cao, H.; Shan, G.; Bao, Y.; Pan, P. Poly (lactic acid)/poly (ethylene glycol) stereocomplexed physical hydrogels showing thermally-induced gel–sol–gel multiple phase transitions. Mater. Chem. Front. 2018, 2, 313–322. [Google Scholar] [CrossRef]
  54. Li, K.; Yu, L.; Liu, X.; Chen, C.; Chen, Q.; Ding, J. A long-acting formulation of a polypeptide drug exenatide in treatment of diabetes using an injectable block copolymer hydrogel. Biomaterials 2013, 34, 2834–2842. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, B.; Xie, S.; Lodge, T.P.; Bates, F.S. Phase behavior of diblock copolymer–homopolymer ternary blends with a compositionally asymmetric diblock copolymer. Macromolecules 2021, 54, 460–472. [Google Scholar] [CrossRef]
  56. Georgiou, T.; Constantinou, A. Polymers. 2020, PCT/GB20 19/052686. Available online: https://patentimages.storage.googleapis.com/cd/31/58/ef3390d5313a8b/WO2020065295A1.pdf (accessed on 2 May 2021).
  57. Constantinou, A.P.; Zhan, B.; Georgiou, T.K. Tuning the gelation of thermoresponsive gels based on triblock terpolymers. Macromolecules 2021, 54, 1943–1960. [Google Scholar] [CrossRef]
  58. Constantinou, A.P.; Zhang, K.; Somuncuoğlu, B.; Feng, B.; Georgiou, T.K. PEG-based methacrylate tetrablock terpolymers: How does the architecture control the gelation? Macromolecules 2021, 54, 6511–6524. [Google Scholar] [CrossRef]
  59. Li, Q.; Constantinou, A.P.; Georgiou, T.K. A library of thermoresponsive PEG-based methacrylate homopolymers: How do the molar mass and number of ethylene glycol groups affect the cloud point? J. Polym. Sci. 2021, 59, 230–239. [Google Scholar] [CrossRef]
  60. Kunitz, M. Syneresis and swelling of gelatin. J. Gen. Physiol. 1928, 12, 289–312. [Google Scholar] [CrossRef] [Green Version]
  61. Van Dijk, H.J.M.; Walstra, P.; Schenk, J. Theoretical and experimental study of one-dimensional syneresis of a protein gel. Chem. Eng. J. 1984, 28, B43–B50. [Google Scholar] [CrossRef]
  62. Constantinou, A.P.; Patias, G.; Somuncuoğlu, B.; Brock, T.; Lester, D.W.; Haddleton, D.M.; Georgiou, T.K. Homo-and co-polymerisation of di (propylene glycol) methyl ether methacrylate–a new monomer. Polym. Chem. 2021, 12, 3522–3532. [Google Scholar] [CrossRef]
  63. Haddow, P.; McAuley, W.J.; Kirton, S.B.; Cook, M.T. Poly (N-isopropyl acrylamide)–poly (ethylene glycol)–poly (N-isopropyl acrylamide) as a thermoreversible gelator for topical administration. Mater. Adv. 2020, 1, 371–386. [Google Scholar] [CrossRef]
  64. Kirkland, S.E.; Hensarling, R.M.; McConaughy, S.D.; Guo, Y.; Jarrett, W.L.; McCormick, C.L. Thermoreversible hydrogels from RAFT-synthesized BAB triblock copolymers: Steps toward biomimetic matrices for tissue regeneration. Biomacromolecules 2008, 9, 481–486. [Google Scholar] [CrossRef] [PubMed]
  65. Constantinou, A.P.; Zhao, H.; McGilvery, C.M.; Porter, A.E.; Georgiou, T.K. A Comprehensive systematic study on thermoresponsive gels: Beyond the common architectures of linear terpolymers. Polymers 2017, 9, 31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Gels 07 00116 g001 550

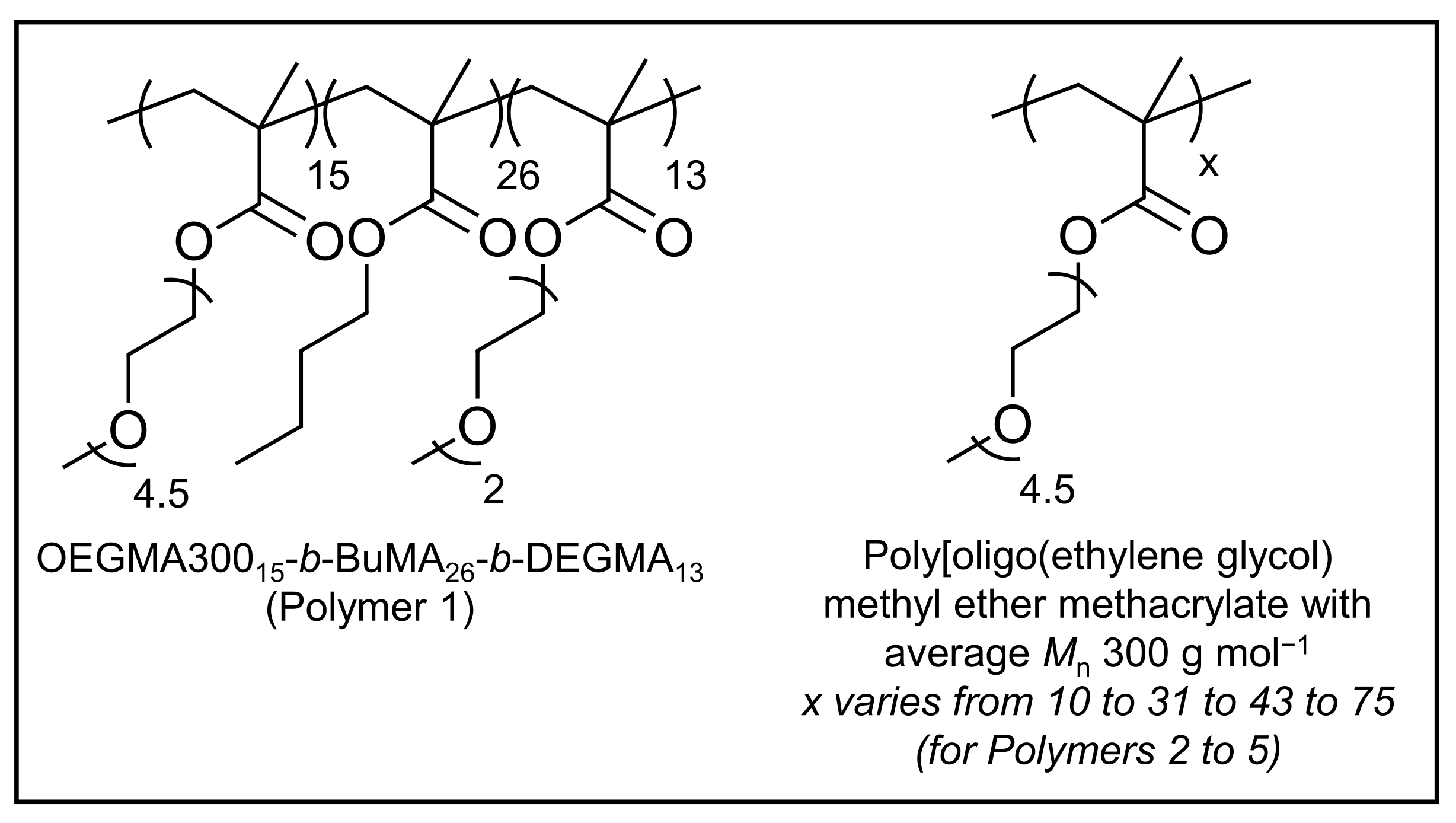

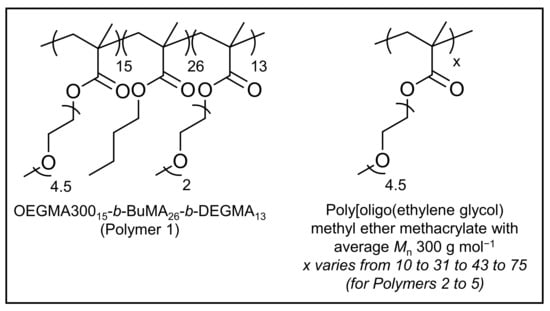

Figure 1. Chemical structures of the polymers; OEGMA300, BuMA, and DEGMA stand for oligo(ethylene glycol) methyl ether methacrylate with average Mn 300 g mol−1, n-butyl methacrylate, and di(ethylene glycol) methyl ether methacrylate, respectively.
Figure 1. Chemical structures of the polymers; OEGMA300, BuMA, and DEGMA stand for oligo(ethylene glycol) methyl ether methacrylate with average Mn 300 g mol−1, n-butyl methacrylate, and di(ethylene glycol) methyl ether methacrylate, respectively.
Gels 07 00116 g001
Gels 07 00116 g002 550

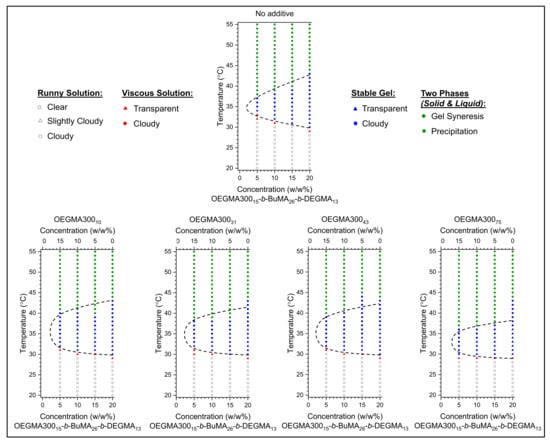

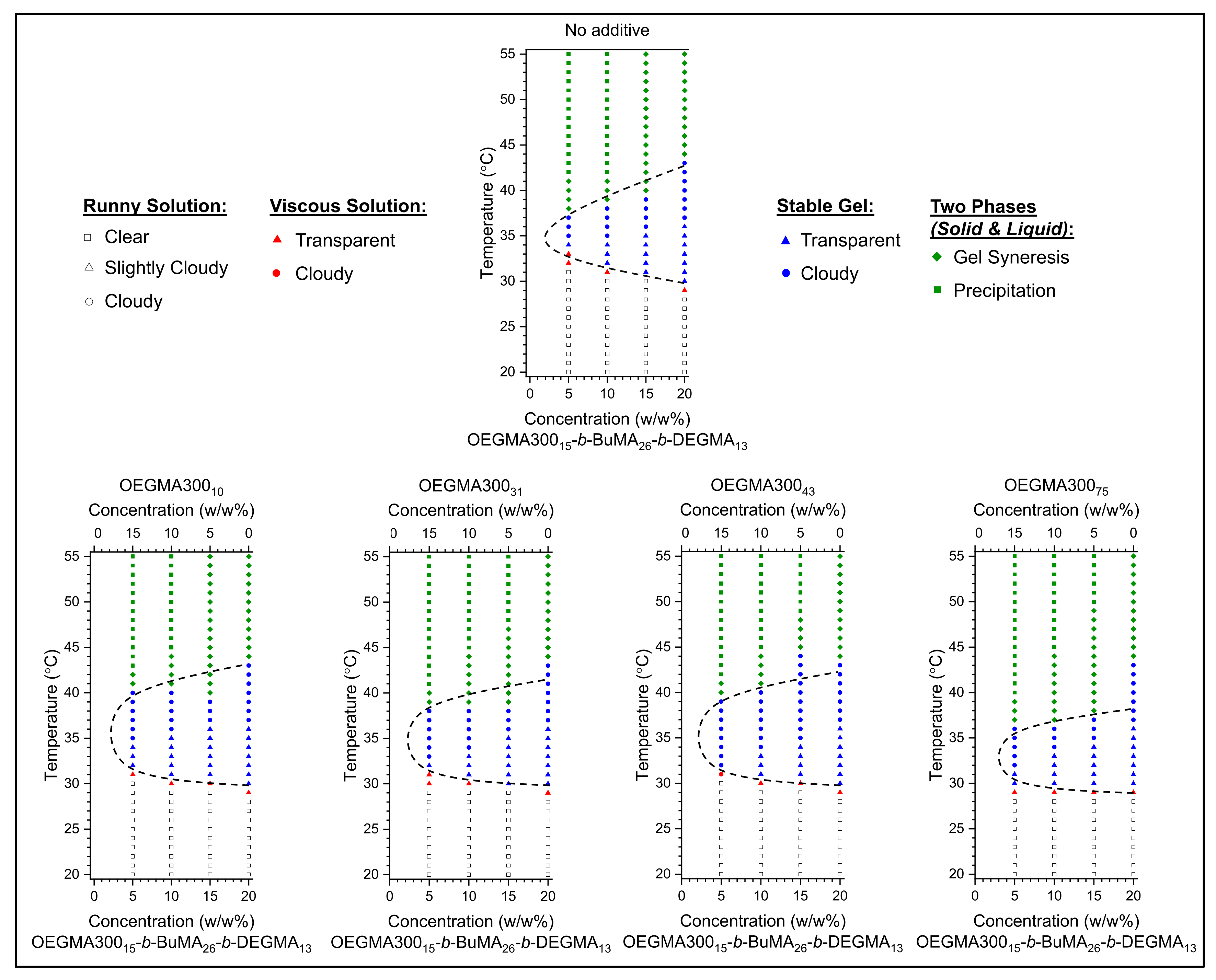

Figure 2. Phase diagrams in phosphate buffered saline (PBS) of mixtures of OEGMA30015-b-BuMA26-b-DEGMA13 (P1) without any additives (top), or by adding OEGMA300x homopolymers of various degrees of polymerisation (bottom); when x = 10 (P2), x = 31 (P3), x = 43 (P4), and x = 75 (P5) from left to right. The mixtures were prepared at total polymer concentration 20 w/w% and a ratio of P1/OEGMA300x equal to 1:3, 1:1, and 3:1. The following transitions are reported: (a) runny solution in white, (b) viscous solution in red, (c) stable gel in blue), and (d) phase separation in green. The gelation area is approximately indicated by a black dashed line.
Figure 2. Phase diagrams in phosphate buffered saline (PBS) of mixtures of OEGMA30015-b-BuMA26-b-DEGMA13 (P1) without any additives (top), or by adding OEGMA300x homopolymers of various degrees of polymerisation (bottom); when x = 10 (P2), x = 31 (P3), x = 43 (P4), and x = 75 (P5) from left to right. The mixtures were prepared at total polymer concentration 20 w/w% and a ratio of P1/OEGMA300x equal to 1:3, 1:1, and 3:1. The following transitions are reported: (a) runny solution in white, (b) viscous solution in red, (c) stable gel in blue), and (d) phase separation in green. The gelation area is approximately indicated by a black dashed line.
Gels 07 00116 g002
Gels 07 00116 g003 550

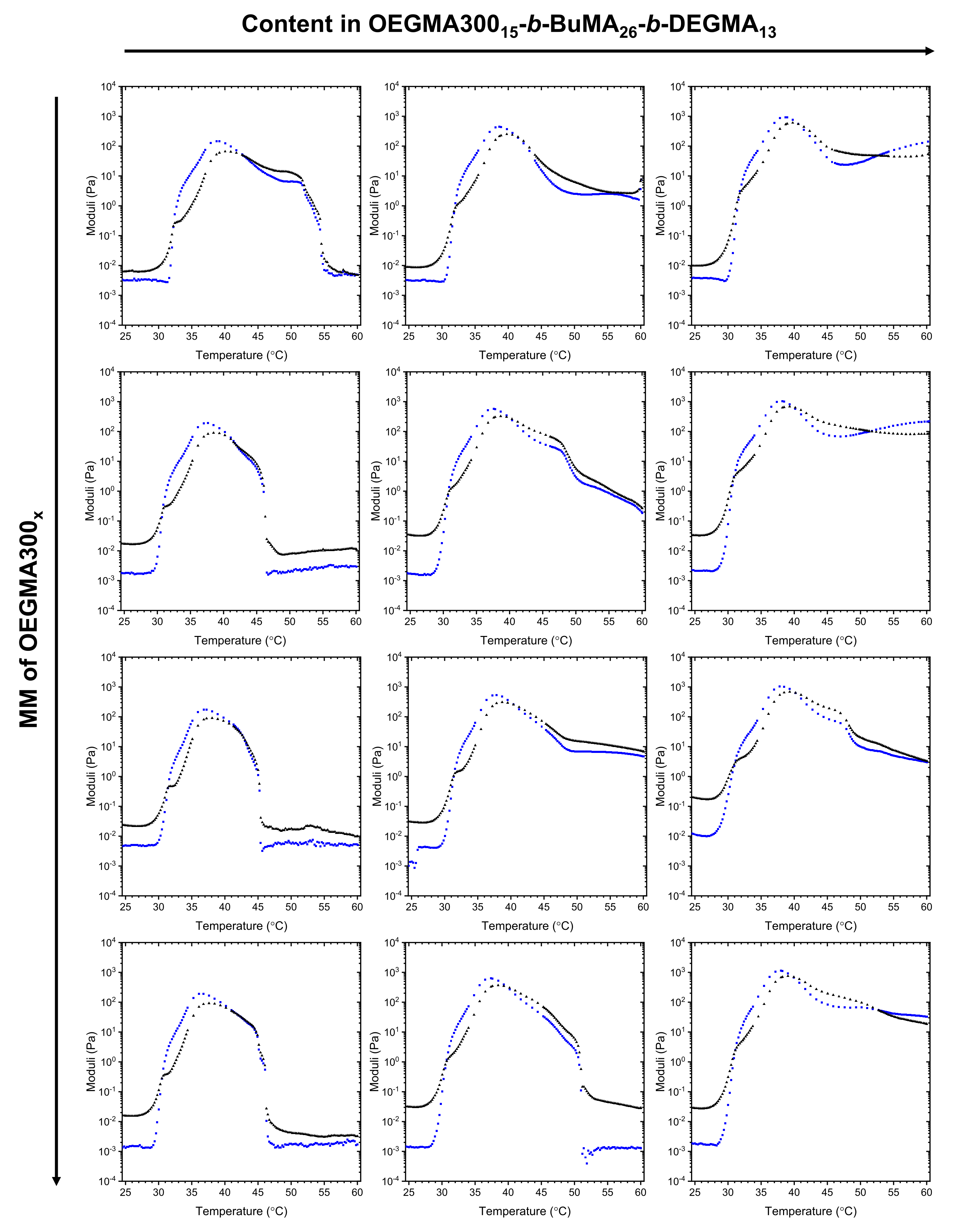

Figure 3. Storage modulus (G’, in blue squares) and loss modulus (G´´, in black triangles) as a function of temperature. The formulations consisted of 20 w/w% total polymer concentration in phosphate buffered saline, and the ratio of P1/OEGMA300x was kept equal to 1:3, 1:1, and 3:1; this is shown from left to right. The MM of OEGMA300x homopolymers was also varied from 10, 31, 43, to 75, shown from top to bottom.
Figure 3. Storage modulus (G’, in blue squares) and loss modulus (G´´, in black triangles) as a function of temperature. The formulations consisted of 20 w/w% total polymer concentration in phosphate buffered saline, and the ratio of P1/OEGMA300x was kept equal to 1:3, 1:1, and 3:1; this is shown from left to right. The MM of OEGMA300x homopolymers was also varied from 10, 31, 43, to 75, shown from top to bottom.
Gels 07 00116 g003
Gels 07 00116 g004 550

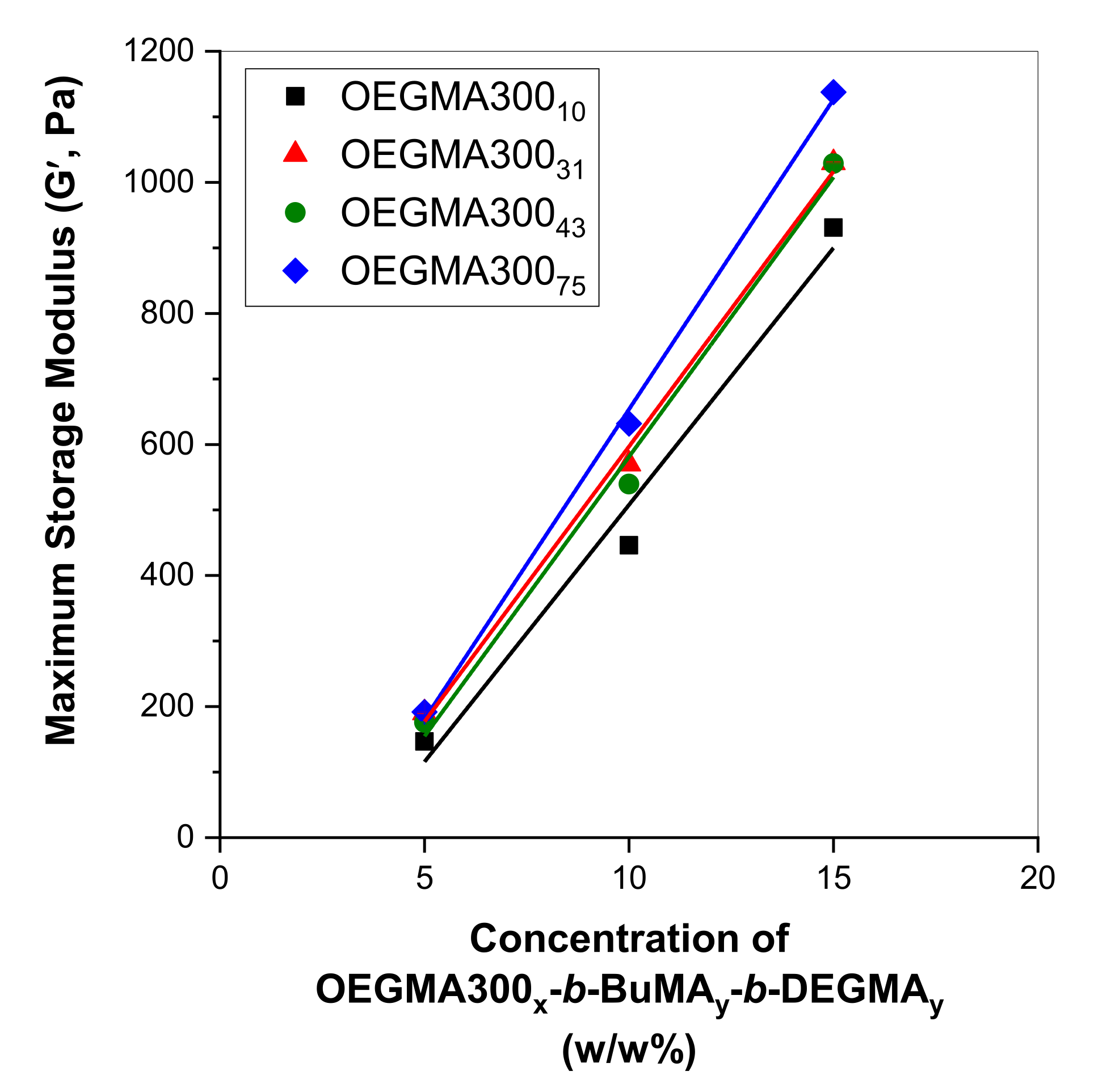

Figure 4. Maximum storage modulus (G´) as a function of the concentration of the triblock terpolymer, in mixtures with OEGMA300x homopolymers. The total concentration was kept at 20 w/w% in phosphate buffered saline (PBS). The degree of polymerisation of the OEGMA300x homopolymers was varied from 10 (black squares), to 31 (red triangles), to 43 (green circles), to 75 (blue rhombi). The data were fit with linear function.
Figure 4. Maximum storage modulus (G´) as a function of the concentration of the triblock terpolymer, in mixtures with OEGMA300x homopolymers. The total concentration was kept at 20 w/w% in phosphate buffered saline (PBS). The degree of polymerisation of the OEGMA300x homopolymers was varied from 10 (black squares), to 31 (red triangles), to 43 (green circles), to 75 (blue rhombi). The data were fit with linear function.
Gels 07 00116 g004
Table
Table 1. Experimental polymer structures, experimental molar mass (number—average molar mass, Mn), and dispersity indices, where available.
Table 1. Experimental polymer structures, experimental molar mass (number—average molar mass, Mn), and dispersity indices, where available.
No.Experimental Polymer Structure *Mn (g mol−1)Ð
1OEGMA30015-b-BuMA26-b-DEGMA1310,4001.15
2OEGMA3001030001.19
3OEGMA3003194401.17
4OEGMA3004313,0001.18
5OEGMA3007522,4001.23
* The experimental polymer structures denote the experimental degrees of polymerisation, as calculated by using the experimental molar mass and composition values, resulted by gel permeation chromatography (GPC) (in tetrahydrofuran using poly(methyl methacrylate) standard samples) and proton nuclear magnetic resonance (1H NMR) spectroscopy, respectively.
Table
Table 2. Important phase transitions recorded by visual tests in phosphate buffered saline (PBS): gelation temperature (Tgel) and temperatures at which gel syneresis (Tsyn) and precipitation (Tprec) were observed.
Table 2. Important phase transitions recorded by visual tests in phosphate buffered saline (PBS): gelation temperature (Tgel) and temperatures at which gel syneresis (Tsyn) and precipitation (Tprec) were observed.
Content in P1
(w/w%)		Content in OEGMA300x
(w/w%)		Tgel
(±2 °C)		Tsyn
(±2 °C)		Tprec
(±2 °C)
50343842
100323942
1503140----*
2003044----*
OEGMA30010 (P2)
515324143
1010314145
155314072
OEGMA30031 (P3)
515323941
1010313945
155303948
OEGMA30043 (P4)
515324042
1010314145
155314549
OEGMA30075 (P5)
515303740
1010303745
155303850
* No precipitation was observed up to the highest temperature tested, i.e., 80 °C.
