Poly (Amidehydrazide) Hydrogel Particles for Removal of Cu²⁺ and Cd²⁺ Ions from Water

Abstract

Poly(amidoamine)s (PAMAM) are very effective in the removal of heavy metal ions from water due to their abundant amine and amide functional groups, which have a high binding ability to heavy metal ions. We synthesized a new class of hyperbranched poly(amidehydrazide) (PAMH) hydrogel particles from dihydrazides and N,N′-methylenebisacrylamide (MBA) monomer by using the A2 + B4 polycondensation reaction in an inverse suspension polymerization process. In Cd²⁺ and Cu²⁺ ion sorption tests, the synthesized dihydrazide-based PAMH hydrogel particles exhibited sorption capacities of 85 mg/g for copper and 47 mg/g for cadmium. Interestingly, the PAMH showed only a 10% decrease in sorption ability in an acidic condition (pH = 4) compared to the diamine-based hyperbranched PAMAM, which showed a ~90% decrease in sorption ability at pH of 4. In addition, PAMH hydrogel particles remove trace amounts of copper (0.67 ppm) and cadmium (0.5 ppm) in water, below the detection limit.

1. Introduction

Water contamination by heavy metal ions has been a long-standing concern since the industrial revolution. Although global attention and efforts to deal with metal contamination have reduced acute heavy metal poisoning accidents, chronic contamination is still ongoing. For example, the usage and disposal of mercury have been constrained since the Minamata accident in 1959, but cases of bioaccumulation of mercury in fish are often found in the oceans [1]. Other examples include the copper contamination of household drinking water in Australia, reported in 2016 [2], and the high level of copper found in the river water of Bangladesh in 2011 [3]. Additionally, cadmium contamination of reservoirs in Poland and of river sediments in India was reported in 2016 [4] and 2018 [5], respectively. As heavy metal contamination remains an ongoing problem, many studies on the removal of heavy metal ions from water have been carried out in recent years [6,7,8,9,10,11,12]. Adsorption is a promising method of removing heavy metal ions from water on the basis of its energy-efficiency in the removal of pollutants [13]. Among the materials that are employed for adsorption, polymer gel adsorbents such as chitosan, alginate, agarose, polyethyleneimine (PEI), and poly(amidoamine) (PAMAM) have been actively investigated due to their high sorption performance, stemming from their functional group-rich nature [14,15,16,17,18,19,20,21,22,23,24,25,26,27]. Among these materials, dendritic PAMAM shows a high sorption capacity because abundant amine and amide groups with dendritic structures facilitate the binding of heavy metal ions. However, the process used to prepare a PAMAM dendrimer is time-consuming. To address this problem, in 2017, our group reported a convenient, one-step method of producing hyperbranched PAMAM hydrogels [28].

Hydrazide is a molecule that has amine and amide groups in its structure, but few cases of its use as an adsorbent have been reported [29,30,31,32,33]. The hydrazide groups are usually introduced into polymer chains with additional steps such as end-group modification [31,32,33].

In this study, we synthesized poly(amidehydrazide) (PAMH) hydrogel particles from dihydrazide and MBA monomers via a one-step A2 + B4 polycondensation method [28,34]. One-pot efficient and economical synthesis is a distinctive advantage of PAMH hydrogels. The synthesis uses a click reaction with an environmentally friendly process that is easy to scale-up. Micrometer-sized hydrogel particles are synthesized by inverse suspension polycondensation through the Aza–Michael addition reaction. This method does not require any additional step to introduce dihydrazide groups into the polymer chains, and the functional group ratio can easily be tuned by adjusting the monomer feed ratio. We carried out Cd²⁺ and Cu²⁺ ion sorption tests with the synthesized dihydrazide-based PAMH hydrogel particles. The polymer exhibited a moderate sorption capacity (~85 mg/g for copper, ~47 mg/g for cadmium), but showed only a 10% decrease in sorption ability in acidic conditions, in contrast with other diamine-based PAMAM polymers (~90% decrease in sorption ability). In addition, trace amounts of copper and cadmium (0.5 ppm) reached levels below the detection limit, indicating the practical applicability of the dihydrazide-based PAMH hydrogels.

2. Results and Discussion

The schematic polymerization process is depicted in Scheme 1. The Aza–Michael addition polymerization of MBA and each dihydrazide monomers was successfully carried out by following the previously reported method [28]. Polycondensation of the B₄-type amine monomer dihydrazide with A₂-type acrylamide monomer MBA produces polymer networks. However, in this process, dihydrazide compounds are very soluble in water, while MBA is slightly soluble in water and gradually dissolves into the solution as the reaction proceeds. The solubility difference gives rise to the slow addition of MBA monomer into the solution containing dihydrazide monomers, resulting in the formation of hyperbranched polymers. However, as the polymerization proceeds, the stoichiometry of the two monomers reaches a gel point, where the formation of poly(amidehydrazide) (PAMH) hydrogels occurs. Spherical-shaped PAMH hydrogel particles are obtained by an inverse suspension polymerization process consisting of water and toluene with span 60 as a water-in-oil (W/O) surfactant. The synthesized PAMH polymers are designated as ADH-PAMH_x, SDH-PAMH_x, and MDH-PAMH_x, where x is the feed ratio of MBA to dihydrazide. For example, ADH-PAMH_1.75 means [ADH]₀:[MBA]₀ = 1:1.75.

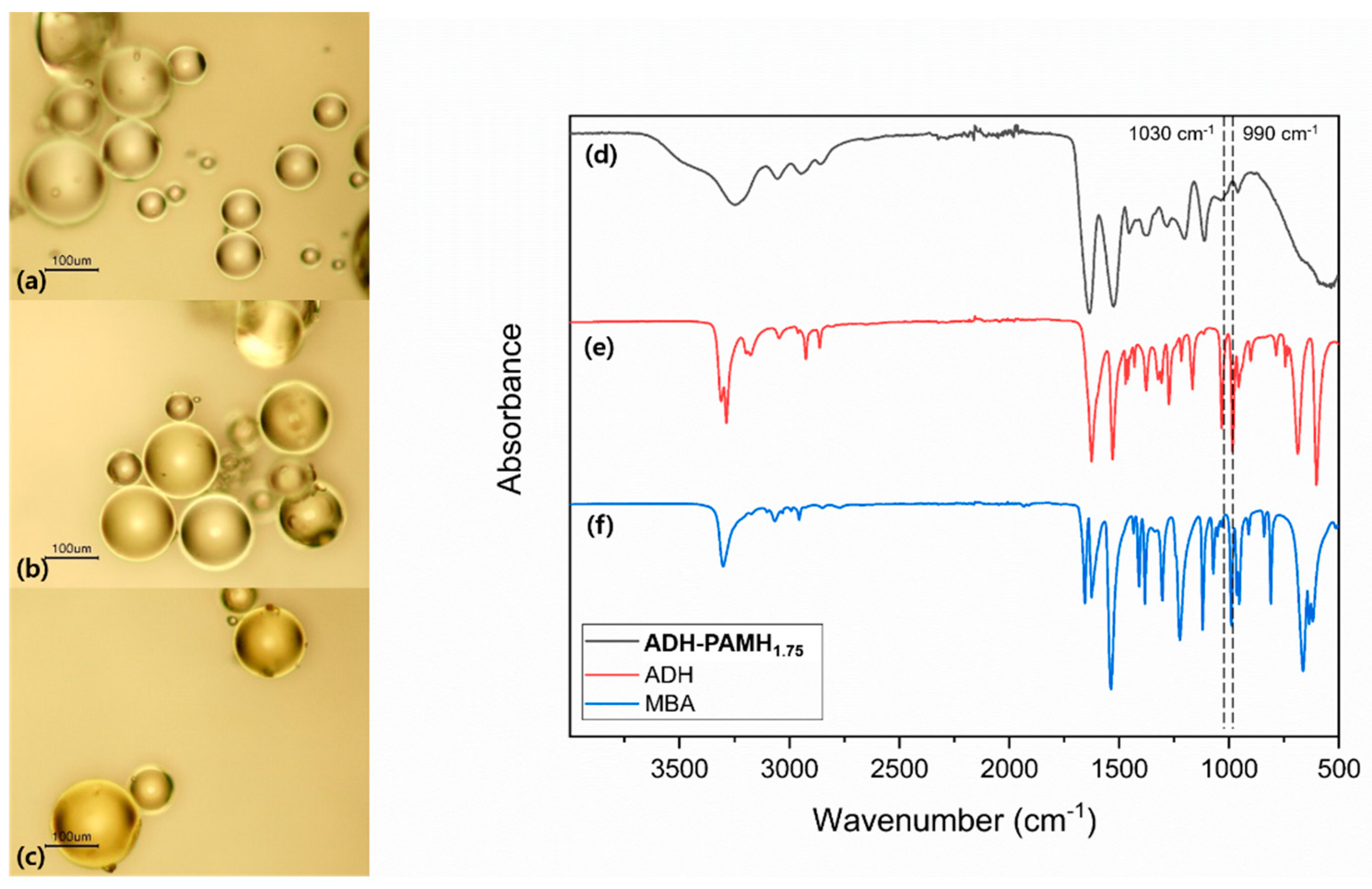

The characterization results of the synthesized polymers with optical microscopy (OM) and Fourier transform attenuated total reflection infrared spectroscopy (ATR-IR) are shown in Figure 1. Spherical shapes are confirmed with optical microscopy (Figure 1a–c), indicating that inverse suspension polymerization proceeded successfully. Particle size showed a range of from 30 μm to 250 μm for all samples (Figure S1). In addition, the synthesized PAMH polymers were analyzed with ATR-IR. Figure 1d–f are representative ATR-IR spectra of ADH-PAMH_1.75, ADH, and MBA. The 1030 cm⁻¹ N–N stretching absorption band of hydrazide appears in ADH and ADH-PAMH_1.75, but does not appear in MBA [35]. In addition, the 990 cm⁻¹ C=C bending of acrylamide appears in MBA, but does not appear in ADH-PAMH_1.75. The C=C stretching band generally appears at 3050 cm⁻¹, but the overtone of amide C=O appears and overlaps with the C=C stretching band at the same range in all samples [34]. The ATR-IR spectra of other synthesized polymers showed the same characteristic absorption bands, indicating that the polymerization proceeded as expected (Figure S2).

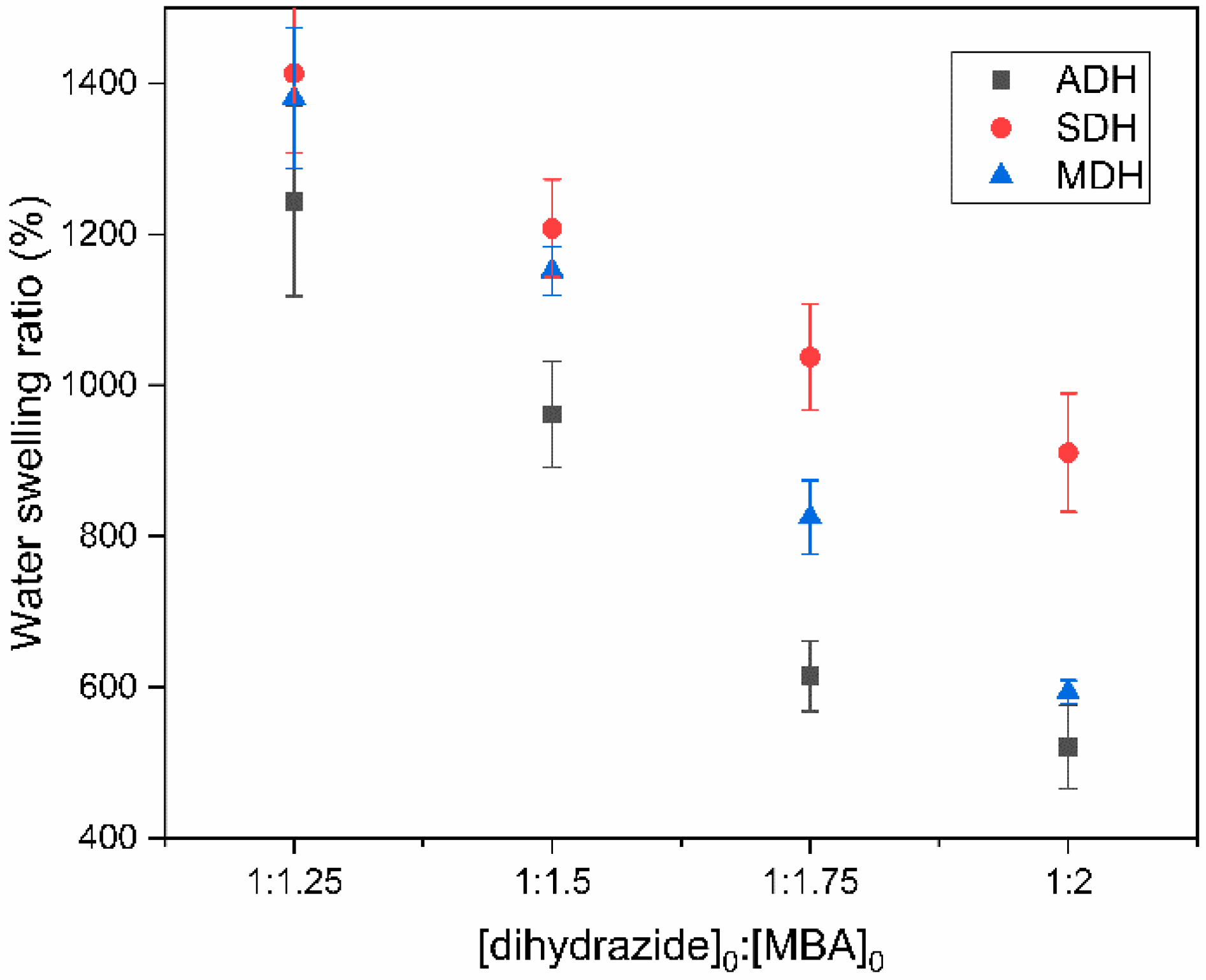

Before carrying out the heavy metal sorption test, a water-swelling test of PAMH polymer particles was carried out by measuring their weight change after soaking the PAMH polymer for one day in distilled water. Figure 2 shows a decreasing tendency of water swelling by increasing x in dihydrazide-PAMH_x. As water uptake has a strong correlation with the crosslinking density of the polymer network, the swelling test results indicate that the crosslinking density of polymer networks becomes greater with an increasing x value, as expected. The stoichiometry of the two monomers ranges from one to two (dihydrazide:MBA = 1:2). The polymerization results also support the composition of monomer-repeating units in the polymers that were controlled by the monomer feed ratio. The maximum swelling ratio is 1414% of SDH-PAMH_1.25, reflecting the hydrophilic nature of the PAMH hydrogel particles.

Cu²⁺ sorption ability was measured by following the concentration change in CuCl₂ aqueous solution after placing dihydrazide-PAMH particles into the solution for 48 h. The concentration of copper metal ions was measured by an inductively coupled plasma optical emission spectrometer (ICP-OES). The copper sorption capacities in the 1000 ppm condition were 74.7 mg/g for ADH-PAMH_1.75, 73.2 mg/g for SDH-PAMH_1.75, and 73.7 mg/g for MDH-PAMH_1.75. To identify the sorption mechanism, Langmuir, Freundlich, and Sips models were applied [10,36,37], and the corresponding R² values were 0.968 (Langmuir), 0.880 (Freundlich), and 0.983 (Sips) for ADH-PAMH_1.75 (Figure S5). The best fitting was obtained with the Sips equation, which predicts nonuniform surfaces. We believe that the complex structure of hyperbranched hydrogel particles, consisting of amide, terminal primary amines, secondary amines, and tertiary amines at the branching point, is the main reason for this result. Since heavy metal sorption occurs with different functional groups in different chemical environments, the sorption process cannot be predicted solely by the mono-layer adsorption model. Furthermore, to identify moieties involved in the polymer–metal complexation, the ATR-IR of water-swollen ADH-PAMH_1.75 and metal-absorbed ADH-PAMH_1.75 was measured and compared. Notable shifts were identified in the amine N-H stretching range (3251 cm⁻¹) and amine C-N stretching range (1120 cm⁻¹), indicating that the main site of complexation (Figure S6). Cd²⁺ sorption ability was measured by following the same process as Cd²⁺ using a CdCl₂ aqueous solution. The Cd²⁺ sorption capacities in the 1000 ppm condition were 31.2 mg/g for ADH-PAMH_1.75, 47.6 mg/g for SDH-PAMH_1.75, and 41.4 mg/g for MDH-PAMH_1.75.

Table 1. Cu(II) ion sorption abilities of various adsorbents.

Heavy Metal Ion	Adsorbents	Sorption Capacity (mg/g)	References
Cu2+	Activated carbon	23.0	[39]
	Bacteria isolated from soil	16.3	[40]
	Dried sunflower leaves	89.4	[41]
	Poly (amide-hydrazide-imide)s containing L-aspartic acid	34.3	[42]
	Aniline grafted chitosan	106.6	[43]
	PVDF-g-PAA-PAMAM membranes	101.0	[44]
	Cellulose nanofibril-polyethyleneimine	52.3	[45]
	Lignite	21.4	[46]
	ADH-PAMH1.25	85.3	This work
Cd2+	Activated carbon	33.6	[47]
	Alginate beads	31.4	[48]
	Alginate-chitosan composite	90.8	[49]
	HEMA-PGMA functionalized DETA	35.9	[50]
	Fe3O4@APS@AA-co-CA MNPs	29.6	[51]
	Poly (amide-hydrazide-imide)s containing L-aspartic acid	79.6	[42]
	Lignite	38.0	[46]
	SDH-PAMH1.25	47.6	This work

shows the sorption capacities of various adsorbents including the PAMH hydrogels synthesized in this study. PAMH hydrogel particles showed moderately comparable sorption capacities compared to the other reported adsorbents. However, PAMH hydrogels show lower Cu²⁺ and Cd²⁺ sorption capacities than the sorption capacities of diamine-based PAMAM particles [28], presumably due to the lower pKa value of the amine group of dihydrazide than that of alkyl amine [38]. It appears that the weak electron-donating power of hydrazide overwhelmed the synergistic CONH-NH₂ chelating to metal ions. Cu²⁺ sorption tests for the PAMH hydrogel particles with different monomer ratios were also conducted, and representative data of ADH-PAMH_x are shown in

Table 2. Amine, amide compositions, and Cu²⁺ sorption amount at 1000 ppm Cu²⁺ solution of ADH-PAMH_x.

	Amine (g/g)	Amide (g/g)	Cu2+ Sorption at 1000 ppm Solution (mg/g)
ADH-PAMH1.25	0.087	0.528	85.27
ADH-PAMH1.5	0.079	0.531	84.34
ADH-PAMH1.75	0.072	0.533	74.65
ADH-PAMH2	0.066	0.535	71.87

. The Cu²⁺ sorption amount increases with increasing amine content, as expected.

Interestingly, in acidic conditions (pH 4), ADH-PAMH_1.75 exhibited only a 10% decrease in Cu²⁺ sorption capacity (63.7 mg/g), while the diamine-based PAMAM hydrogel particles showed a 89% decrease in Cu²⁺ sorption capacity (24.6 mg/g) compared to the sorption capacity at a neutral condition (Figure S4). It appears that the alkyl amines (with a stronger base than hydrazides) are more susceptible to protonation than the hydrazide amines in the acidic condition, and the alkyl amine–metal interactions (coordination) are impeded more than the hydrazide–metal interactions in the acidic condition. In addition, PAMH has more amide groups than PAMAM, but the protonation of amides is less favored than the protonation of amine, and the metal–amide interaction is less affected than the metal–amine interaction at a low pH; this leads the dihydrazide-based PAMH to act as a more effective sorbent than the diamine-based PAMAM in acidic conditions.

The sorption of Cu²⁺ and Cd²⁺ on PAMH was confirmed with an energy dispersive X-ray spectroscopy (EDX) analysis. Metal-ion-absorbed PAMH particles were washed with distilled water, and then dried in a vacuum oven at 50 °C for SEM analysis. In the EDX analysis, 5–15 wt% of copper or cadmium was observed in each sample, even inside the particles. This indicated that the complexation of metal ions occurred not only on the surface but also inside the PAMH hydrogel particles (Figure S3, Table S1). The reusability of particles for heavy metal absorption was investigated with ADH-PAMH_1.75. The desorption of Cu²⁺ was easily achieved through treatment with a 0.1 N HCl solution for 24 h. At a low pH, the chelation between metal ions and nitrogen atoms is weakened, because protons occupy the amine groups. During the recycle steps, the Cu²⁺ absorption capacity declined, but recycled ADH-PAMH particles showed about 85% absorption capacity.

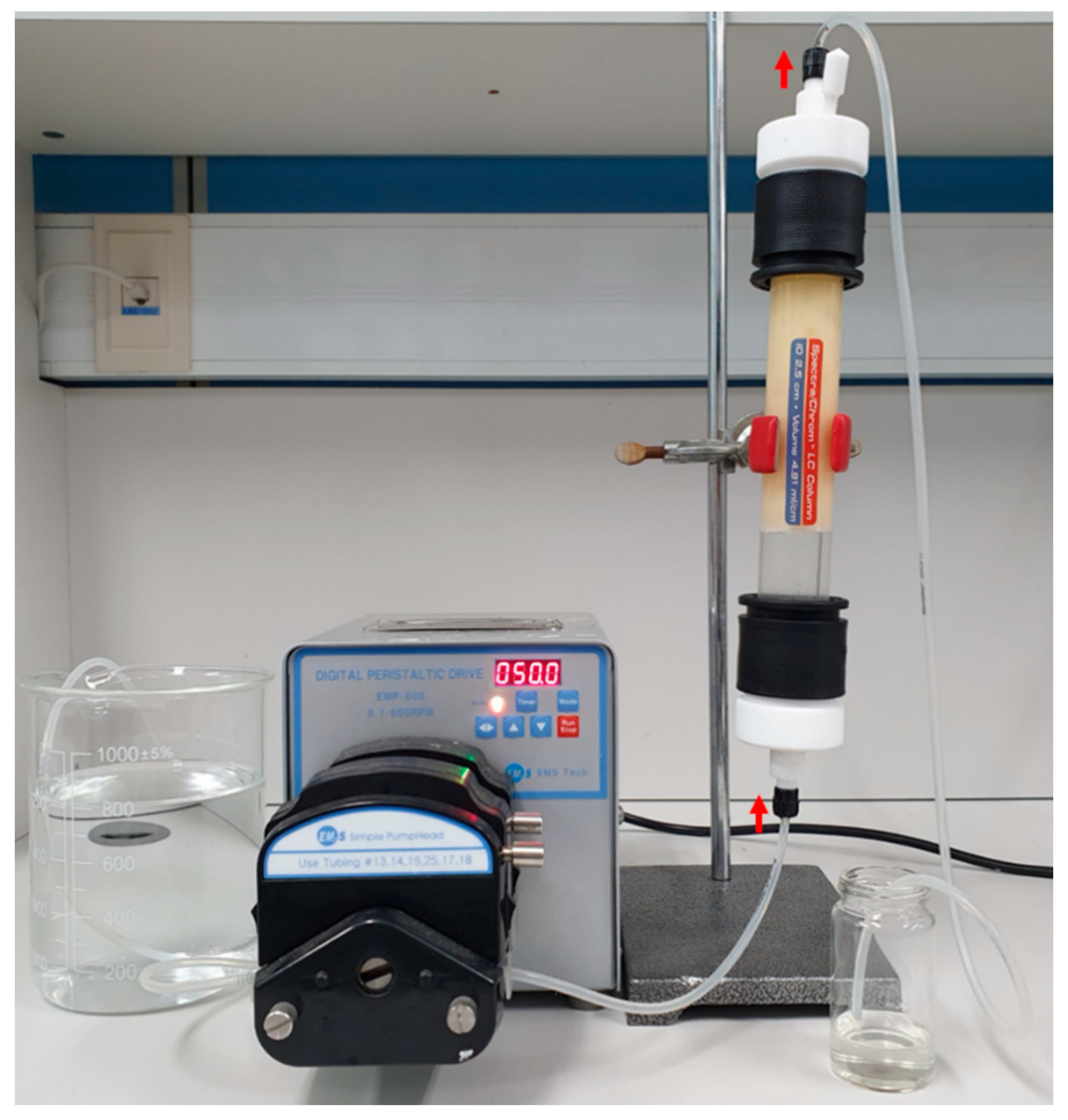

Copper and cadmium ion removal by the PAMH hydrogel particles (ADH-PAMH_1.75) packed within a glass column was studied with the continuous flow of the solution. The aqueous solutions with 0.67 ppm of Cd²⁺ and 0.5 ppm of Cu²⁺ passed through the packed column (Figure 3). The Cu²⁺ and Cd²⁺ ions were not detected in the solution after passing through the column, indicating that the Cu²⁺ and Cd²⁺ ion concentrations were reduced to below the detection limit of the ICP-OES instrument.

3. Conclusions

In this study, we synthesized a new class of hydrogel particles from dihydrazide and MBA monomers via the aza–Michael addition reaction in an inverse suspension polymerization process. This method does not require any additional steps to introduce hydrazide functional groups, unlike other hydrazide-containing adsorbents, and the composition of functional groups can easily be tuned. Cd²⁺ and Cu²⁺ ion sorption studies showed the polymer exhibited a tunable sorption ability depending on the monomer ratio, and the maximum sorption capacity was 85 mg/g for Cu²⁺ and 47.6 mg/g for Cd²⁺, which are comparable values to other reported adsorbents. The polymer showed a 10% decrease in sorption ability in acidic conditions, unlike another PAMAM polymer, which showed a ~90% decrease in sorption ability at a pH of 4, suggesting high sorption performance in acidic conditions.

4. Materials and Methods

4.1. Materials

Adipic acid dihydrazide (ADH), succinic acid dihydrazide (SDH), malonic acid dihydrazide (MDH), N,N′-methylenebis (acrylamide), Span 60^®, CuCl₂ anhydrous, CdCl₂ were purchased from Sigma-Aldrich (Boston, MA, USA), Toluene was purchased from Junsei (Tokyo, Japan). All reactants were used without further purification. Optical microscopy (OM) images were obtained on a Nikon Eclipse (ME600) (Tokyo, Japan) and field emission scanning electron microscopy (FE-SEM) images were obtained from Hitachi SU 8230 (Tokyo, Japan). Energy-dispersive X-ray analysis (EDX) was performed on a Hitachi SU 8230 (Tokyo, Japan). Metal ion concentration was measured by an inductively coupled plasma optical emission spectrometer (Agilent ICP-OES 5110, Santa Clara, CA, USA). Fourier transform attenuated total reflectance infrared spectroscopy (FT ATR-IR) spectra were obtained from a Nicolet iS50 (Thermo Scientific, Hampton, NH, USA).

4.2. Methods

4.2.1. Synthesis of Poly(Amidehydrazide) Particles

An oil phase was prepared in a 50 mL round bottom flask as the suspension stabilizer span 60 (1.0 wt% of the monomers) was dissolved in toluene (12 mL) and heated to 60 °C with vigorous agitation. Methylenebis(acrylamide) (MBA) was placed in another 50 mL round-bottom flask with aqueous NaOH solution (6 mL) to form an aqueous phase, and heated to 50 °C. A dihydrazide monomer (ADH, SDH, MDH) was added to the MBA solution. The aqueous mixture was heated at 50 °C for 5–10 min until the two monomers completely dissolved. After the aqueous solution became transparent, it was poured into the oil phase solution and then agitated at 1000 rpm at 60 °C for 12 h to conduct inverse suspension polymerization. After the polymerization, off-white polymer particles were produced, and these particles were filtered and washed several times with distilled water, acetone and methanol. The particles were dried at 60 °C with reduced pressure overnight.

4.2.2. Measurement of Metal Ion Sorption Test

Stock copper solution was prepared with the initial concentration of copper (C_i) in deionized water using CuCl₂. Dry polymer particles were placed in the copper solution and kept for 24 h to reach equilibrium at room temperature. Copper-absorbed polymer particles were removed by a 0.45 μm Nylon syringe filter, and the filtrate was collected. The concentration of copper in the filtrate (C_f) was determined using an Inductively Coupled Plasma Optical Emission Spectrometer (Agilent ICP-OES 5110, Santa Clara, CA, USA). Copper ion absorption capacity (A) was calculated from Equation (1) below. Sorption isotherms were fitted following Equations (2)–(4).

Copper ion absorption capacity:

(A) = [(C_i − C_f)V/m] (g/g)

(1)

where m (mg) is the weight of the dry sample and V (mL) is the volume of the stock copper solution. C_i and C_f (mg/mL) are the initial and filtrate copper ion concentrations, respectively. The same measuring process was conducted for the cadmium sorption test.

Langmuir equation:

$$\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}=\frac{1}{{\mathrm{q}}_{\mathrm{m}}{\mathrm{K}}_{\mathrm{L}}}+{ \mathrm{C}}_{\mathrm{e}}\left(\frac{1}{{\mathrm{q}}_{\mathrm{m}}}\right)$$

(2)

C_e, the equilibrium concentration (mg/L), q_e, equilibrium adsorption capacity (mg/g), q_m (mg/g), and K_L (L/mg) are, respectively, the capacity and binding energy of adsorption.

Freundlich equation:

$$\log {\mathrm{q}}_{\mathrm{e}} ={ \mathrm{logK}}_{\mathrm{F}} + \frac{1}{\mathrm{n}}\log {\mathrm{C}}_{\mathrm{e}}$$

(3)

C_e, the equilibrium concentration (mg/L), q_e, equilibrium adsorption capacity (mg/g), and K_F and n are Freundlich constants related to the adsorption capacity and adsorption intensity, respectively.

Sips equation:

$${\mathrm{q}}_{\mathrm{e}} = \frac{{\mathrm{q}}_{\mathrm{sat}}{\mathrm{KC}}_{\mathrm{e}}^{\mathrm{n}}{}^{}}{1 +{ \mathrm{KC}}_{\mathrm{e}}^{\mathrm{n}}}$$

(4)

C_e, the equilibrium concentration (mg/L), q_e, equilibrium adsorption capacity (mg/g), and q_sat, K, and n are Sips maximum adsorption capacity (mg/g), Sips equilibrium constant, and heterogeneity factor, respectively.

4.2.3. Measurement of Trace Amount Metal Ion Sorption Test (Packed Column Method)

A stock copper solution of 0.5 ppm was prepared with initial concentration of copper (C_i) in deionized water using CuCl₂. Dry polymer particles (~20 g) were packed in a Spectra/chrom^® LC column (Fisher Scientific, Hampton, NH, USA) and the copper solution flowed through the column at 5 mL/min by a digital peristaltic drive EMP-600 (EMS tech, Yongin, Korea). The eluates were collected every 5 min for one hour at room temperature. Copper absorbed polymer particles were removed by a 0.45 μm Nylon syringe filter, and the filtrate was collected. The concentration of copper in the eluate was determined by Inductively Coupled Plasma Optical Emission Spectrometer (Agilent ICP-OES 5110, Santa Clara, CA, USA). The same measuring process was conducted for the cadmium sorption test.

4.2.4. ATR-IR of Water-Swollen and Metal-Absorbed ADH-PAMH_1.75

To mimic the real conditions, water-swollen wet particles were compared with metal-absorbed particles. Dried ADH-PAMH_1.75 particles (20 mg) were soaked for 24 h in 10 mL of distilled water, 1000 ppm Cu²⁺ solution, and 1000 ppm Cd²⁺ solution, respectively. The polymer particles were then filtered and washed with distilled water to remove residual metal ions. ATR-IR spectroscopy was measured with Nicolet iS50 (Thermo Scientific, Hampton, NH, USA) for the filtered polymer particles before the particles dried.
