1. Introduction
The presence of pharmaceutical residues in water systems has received great attention because they have been acknowledged as emerging environmental pollutants [
1]. Pharmaceuticals such as β-blockers and anticonvulsants are found in water systems because they are very popular drugs that are used worldwide. β-Blockers such as propranolol (PRP) and atenolol (ATN) are cardioselective β1-adrenergic receptor blocking drugs used to treat hypertension, prevent angina pectoris, treat arrhythmia, and lessen the risk of heart problems after a heart attack [
2,
3]. Carbamazepine is usually used as an anticonvulsant for the treatment of epilepsy, bipolar disorder, mental illnesses, schizophrenia, depression, seizure disorders and relief of neuralgia [
4]. These drugs are partially excreted unaltered after ingestion and enter the environment through a variety of channels, including household waste, hospital discharges, and improper manufacturer disposal into wastewater treatment plants [
5,
6,
7]. On average, hospital effluents had a greater detection frequency and concentration of these drugs than residential waste [
7]. Literature reports that the removal efficiencies of ATN, CBZ and PRP by conventional wastewater treatment plants (WWTPs) are often less than 10% [
8]), this is because most of the WWTPS are not designed to eliminate pharmaceutical residues [
4,
9]. Consequently, various pharmaceuticals are released into the receiving nearby rivers, which has a potential of causing adverse health effects to aquatic and terrestrial life. It is therefore critical to efficiently remove these β blockers and anticonvulsants from the environment to guarantee safe discharge [
7].
Elimination of ATN, CBZ and PRP using adsorption technology based on the use of nanomaterials as adsorbent has received more attention in recent years [
4,
10,
11]. Nano-adsorption technology offers advantages such as cost reduction, versatility, high removal efficiency, short cleanup time and the possibility of regeneration/reuse of spent adsorbent [
12,
13]. The use of biopolymers as adsorbent materials in multidisciplinary fields is currently under study and they have received great attention as environmentally-friendly sorbents for adsorptive water treatment [
14].
Recently, research interest has shifted to the design and production of new adsorbent materials for the removal of pharmaceutical residues in water systems that can deliver cost-effective and efficient adsorption technologies. These materials should provide excellent properties such as superior adsorption capacity, recyclability, stability and separability [
15,
16,
17]. Hydrogels appear to be an effective adsorbent for the treatment of various aqueous pollutants [
14,
18]. This is due to their attractive features such as 3D network structures, high adsorption capacity, large surface area, hydrophilicity and multiple functional groups [
19]. In water treatment systems, hydrogels are very efficient for the trapping of a wide range of organic and inorganic aqueous contaminants, including metal ions, harmful dyes and lethal pharmaceutical waste [
14,
20,
21]. Different basic materials are used for the synthesis of hydrogels, including silica, glass beads, chitosan, cellulose, polyacrylic acid polyester, to name a few that are interlinked through different chemical (thermal, photo or radiation induced) or physical pathways that give rise to a three-dimensional gel network [
22]. The crosslinker also gives the parent polysaccharide resistance characteristics for lower pH solutions and higher temperature ranges. The key drawback in synthesis is the decrease in the number of sorption sites, with the rise in density of the crosslinker in crystalline domains, which then distorts the polymer matrix’s original crystal structure [
14,
23,
24].
Cellulose and chitosan are two biodegradable biomaterials used in the production of hydrogels. The incorporation of cellulose during the synthesis of hydrogels, contributes to improve the mechanical properties of the adsorbent due to its rigid molecular chains [
19,
25]. However, its poor recovery performance and low adsorption capacity limit the application of cellulose for the adsorptive removal of various pollutants [
26]. Chitosan contains amino groups that allow the adsorption to wide range of pollutants. However, chitosan is known to have very poor mechanical strength which limits its application [
19,
27]. To overcome these limitations, chitosan is usually combined with cellulose to produce an excellent hydrogel material with improved properties.
Hydrogels containing cellulose and chitosan-based products have been reported to be biocompatible, showing better adsorption capability, and significant improvement in pH sensitivity and mechanical properties [
28,
29,
30].
Therefore, the current study focuses on the synthesis, characterization, and application of magnetic cellulose-chitosan hydrogel nanocomposite for the removal of β blockers and anticonvulsants from wastewater. Magnetic nanoparticles were incorporated into a cellulose-chitosan hydrogel to improve separability and recyclability of the adsorbent from aqueous solutions. The adsorption mechanism, percentage swelling, kinetics, isotherms models and regeneration were investigated. The effect of sample pH, initial concentration, contact time and mass of adsorbents was optimized using univariate and multivariate approaches.
3. Experimental
3.1. Material and Reagents
Analytical grade chemical reagents were use unless otherwise stated and double distilled water (Direct-Q® 3UV-R purifier system Millipore Merck, Darmstadt, Germany) was used. Oxalic acid, microcrystalline cellulose (MCC), ammonium solution (NH3·H2O), chitosan (%), ferric chloride hexahydrate (FeCl3·6H2O), methanol (HPLC grade), acetonitrile (HPLC grade), ferrous chloride tetrahydrate (FeCl2·4H2O), propranolol hydrochloride (PRP, 99%), atenolol (ATN, 98%), carbamazepine (CBZ, 100%), glacial acetic acid, ethanol (EtOH) and sodium hydroxide (NaOH) were obtained from Sigma-Aldrich (St. Louis, MO, USA). Stock solutions of 1000 mg L−1 of each analyte, that is ATN, CBZ and PRP, were separately prepared by dissolving appropriate mass of target analytes in methanol. Synthetic sample mixtures composed of ATN, CBZ and PRP were freshly prepared by diluting appropriate volumes of stock solutions with ultra-pure water to a final volume of 100 mL to provide a concentration of 100 mg L−1. The stock solutions were stored in a refrigerator at 4–8 °C for further use.
3.2. Instrumentation

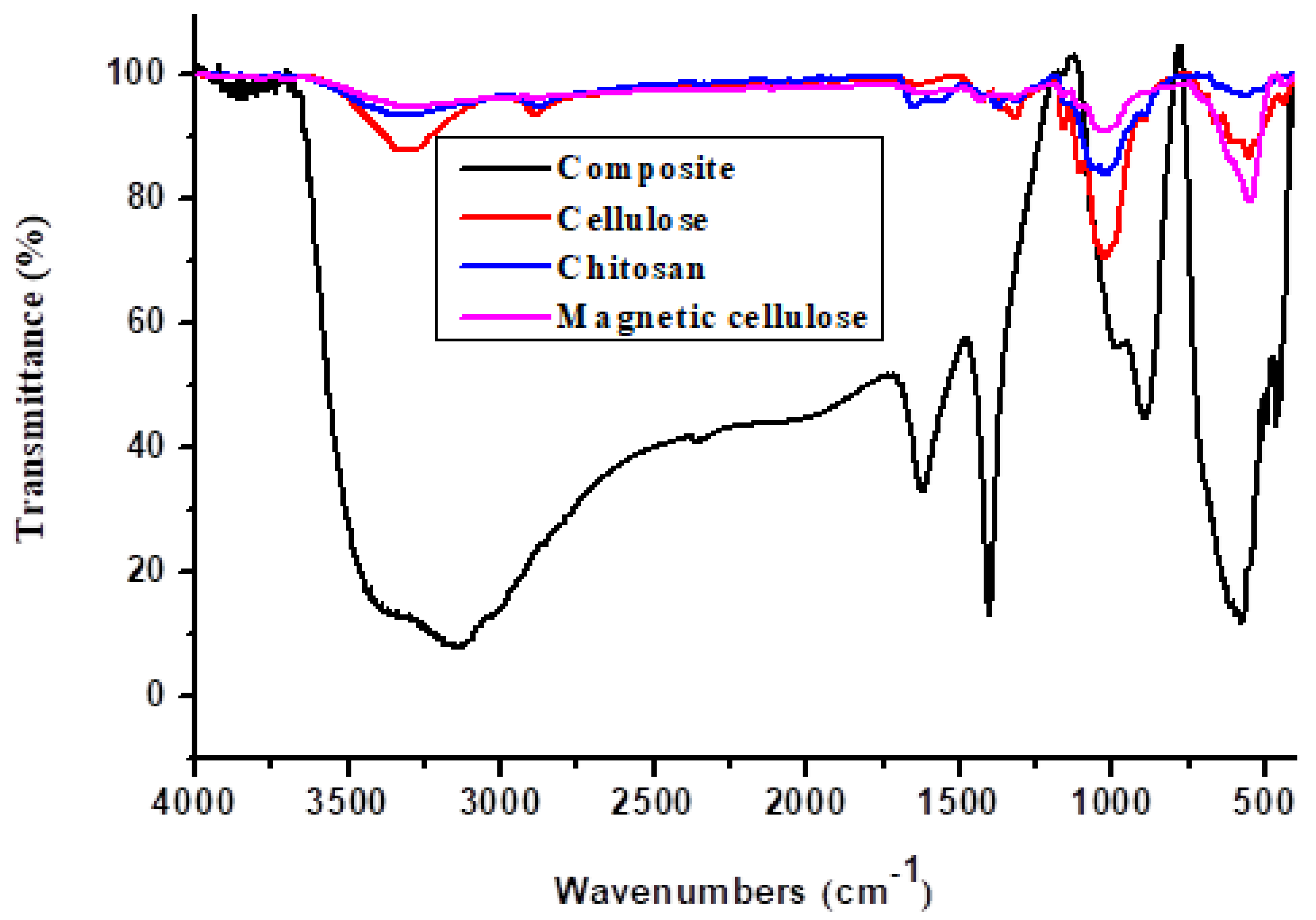

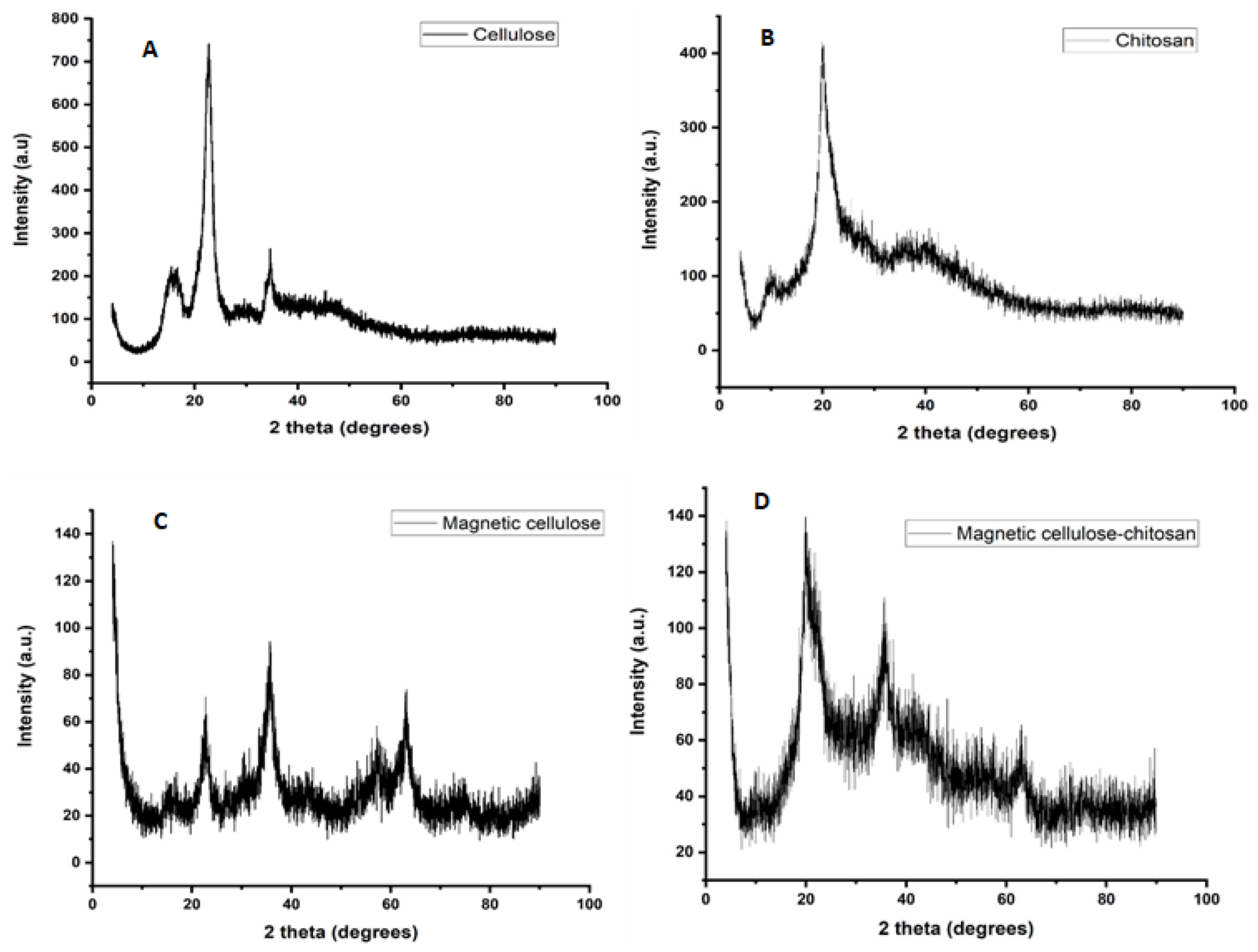

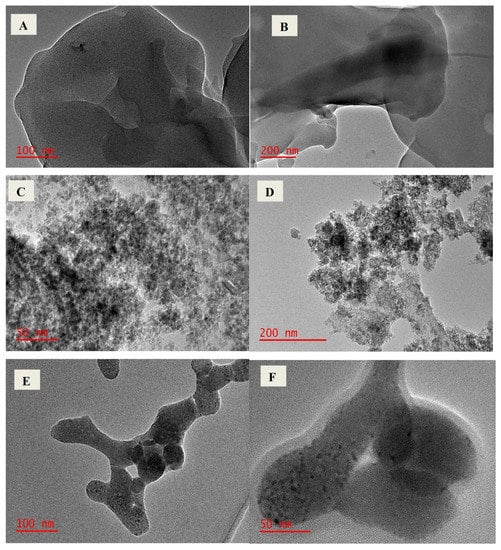

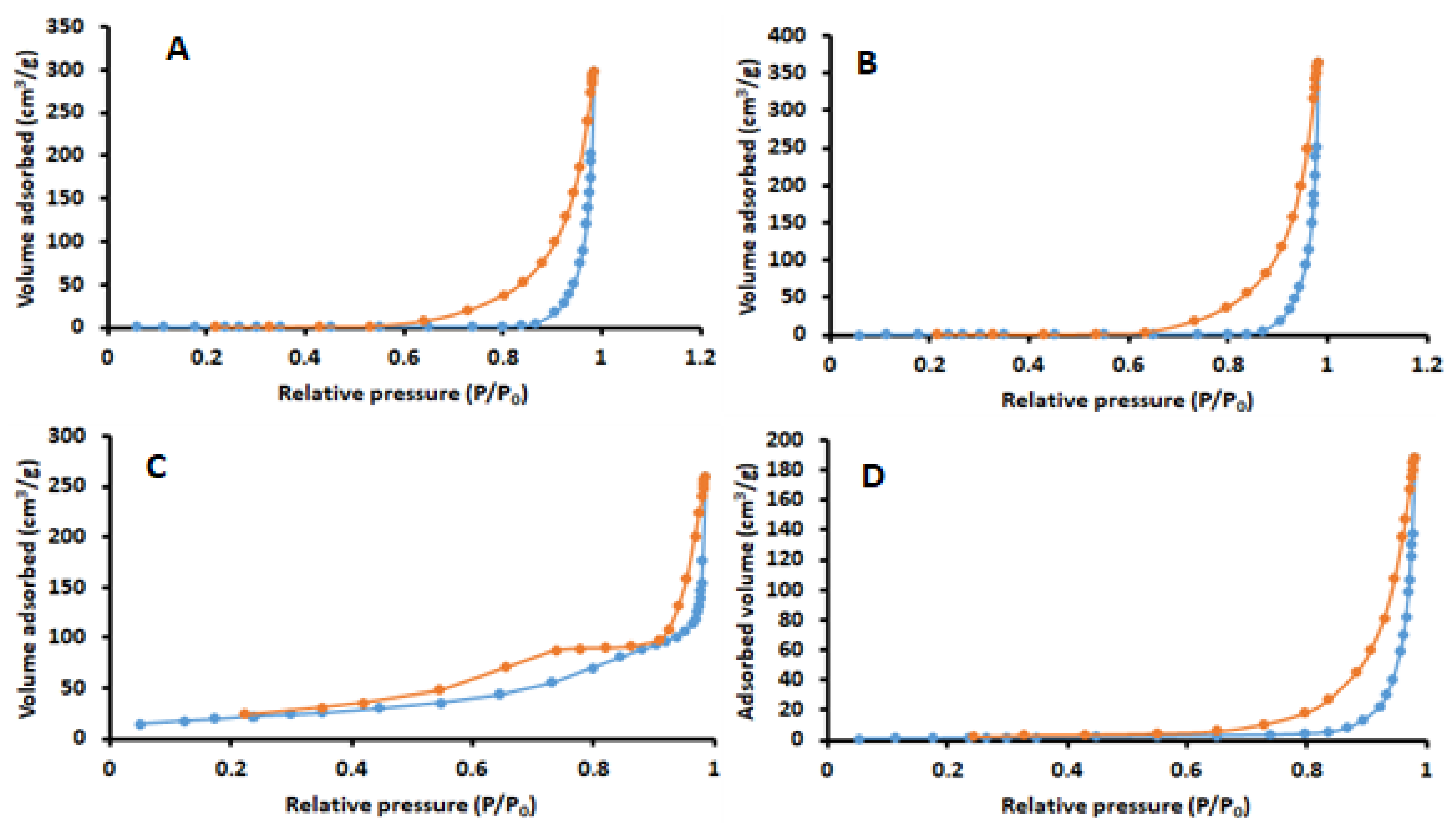

The morphology of the nano-adsorbent was analyzed by a 120 kV accelerating voltage transmission electron microscope (TEM, JEM-2100, JEOL, Tokyo, Japan) was used for sample analysis. Fourier transform infrared (FTIR) spectroscopy was used to analyze the sample spectra on a Spectrum 100 instrument (Perkin Elmer, Waltham, MA, USA). X-ray diffraction (XRD) patterns were obtained using PANAlytical XRD (PANalytical’s X’pert PRO, Almelo, The Netherlands). The adsorbent surface area and pore size distribution were recorded using an ASAP2020 porosity and surface area analyzer (Micrometrics Instruments, Norcross, GA, USA). An OHAUS starter 2100 pH meter (Pine Brook, NJ, USA) was used to record the pH of the solutions. A 5.7-L (internal dimensions: 300 × 153 × 150 mm) Scientech ultrasonic cleaner (Labotec, Midrand, South Africa) was used to promote adsorption. Vibrating sample magnetometry (VSM) (Cryogenic Ltd, London, UK) with temperature range of 1.8–320 K and magnetic field ±14 Tesla was used to measure the magnetic properties of the material.
3.3. Preparation of the Nanocomposite
3.3.1. Synthesis of the Magnetic Cellulose
The method for synthesis of magnetic microcrystalline cellulose (MCC) is a modified version of the one reported by Xiong et al. [
59]. Briefly 150 mg MCC, 0.5 g FeCl
3·6H
2O and 0.184 g FeCl
2·4H
2O were dissolved in 30 mL of ultrapure water and heated at 80 °C. Thereafter, 7.5 mL of ammonium hydroxide was added to the mixture with vigorous stirring black magnetic cellulose. The solution was vigorously stirred for further 30 min on a magnetic stirrer resulting in a magnetic composite of cellulose and iron oxide. The nanocomposite was collected using an external magnet and washed several times with deionized water. The resulting cellulose iron oxide was then oven dried at 50 °C overnight.
3.3.2. Synthesis of the Magnetic Cellulose-Chitosan Hydrogel Nanocomposite
The magnetic cellulose-chitosan hydrogel nanocomposite was synthesized and modified using the method described in the literature by Mashile et al. [
60] and Sharififard et al. [
61]. Briefly, 5 g of chitosan was added to 500 mL solution of 0.2 mol L
−1 oxalic acid under continuous stirring at 45–50 °C to form a viscous gel. The previously synthesized magnetic cellulose (5 g) was slowly applied to the chitosan gel and stirred at 45–50 °C for 2 h. A mixture of magnetic cellulose-chitosan gel was added dropwise to the 0.7 M NaOH precipitation bath to form beads. The formed beads were filtered from the NaOH bath and washed with deionized water several times until a neutral pH was achieved. Magnetic cellulose-chitosan formed beads were dried in the oven at 50 °C overnight and ground into fine powder with a mortar and pestle.
3.4. Ultrasound Assisted Batch Adsorption Studies

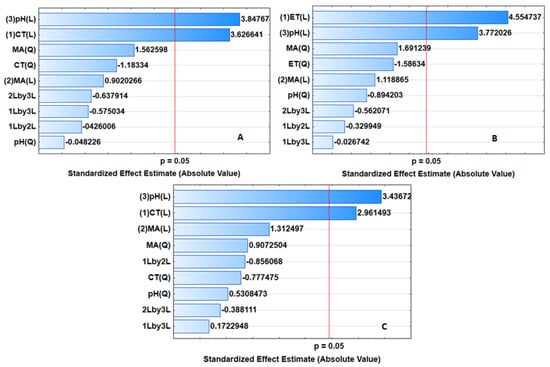

The batch adsorption experiments of ATN, CBZ and PRP from aqueous samples onto the magnetic cellulose-chitosan hydrogel nanocomposite were conducted using an ultrasonic bath. The ultrasonic power, frequency and heating system were set at 25 (±2) °C, 150 W and 50 kHz, respectively. The effect of three important independent parameters such as pH, contact time and mass of adsorbent were optimized using the central composite design (CCD). The independent variables were investigated at five levels and their actual values are presented in

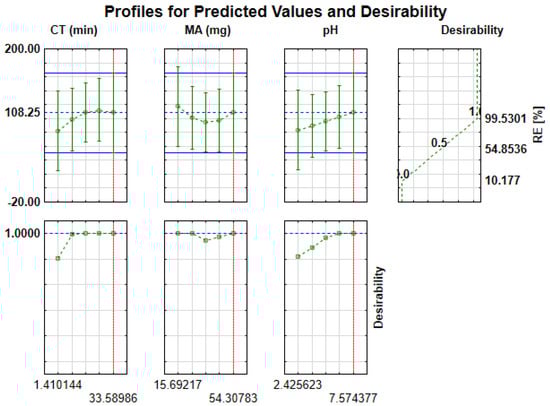

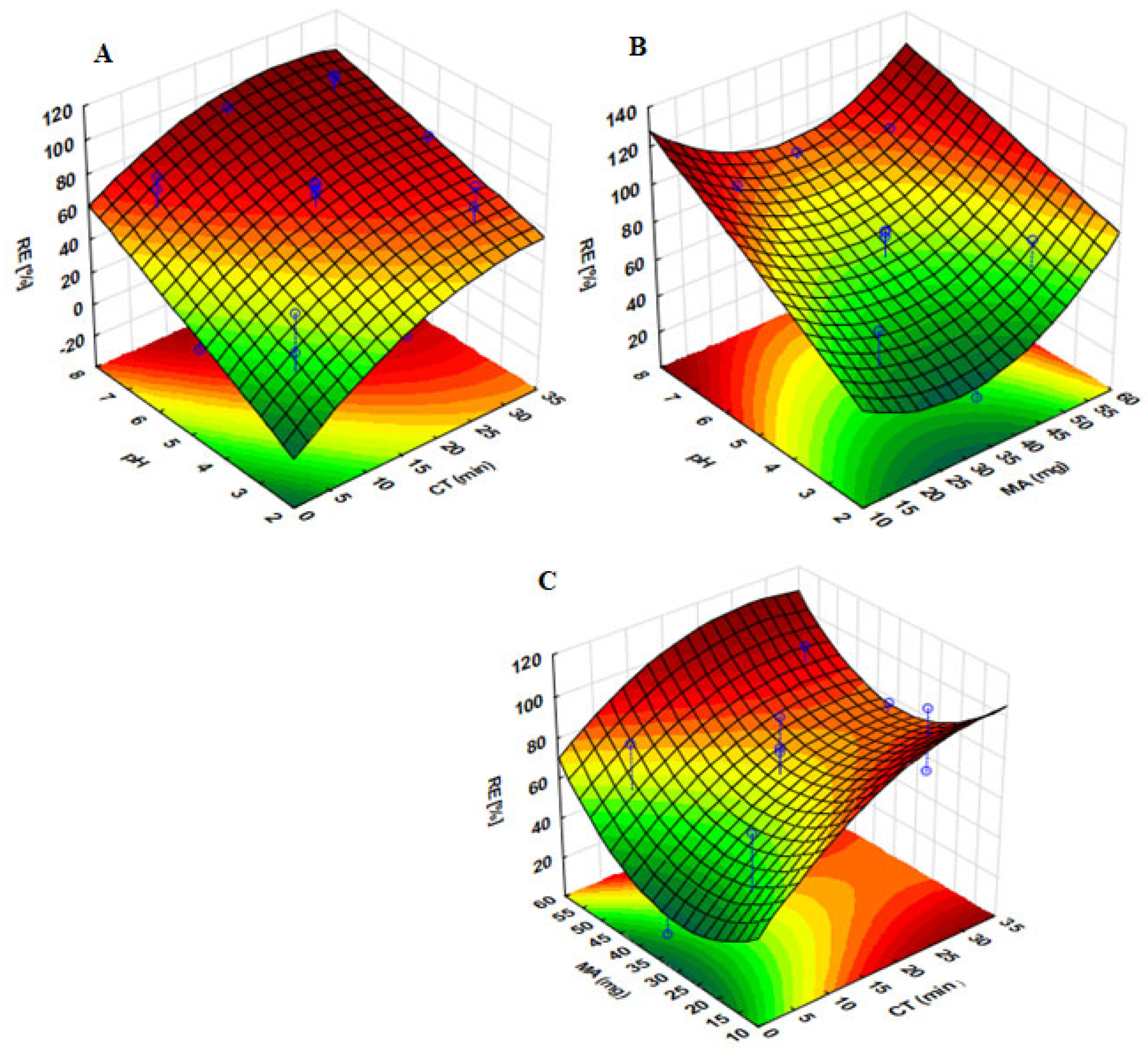

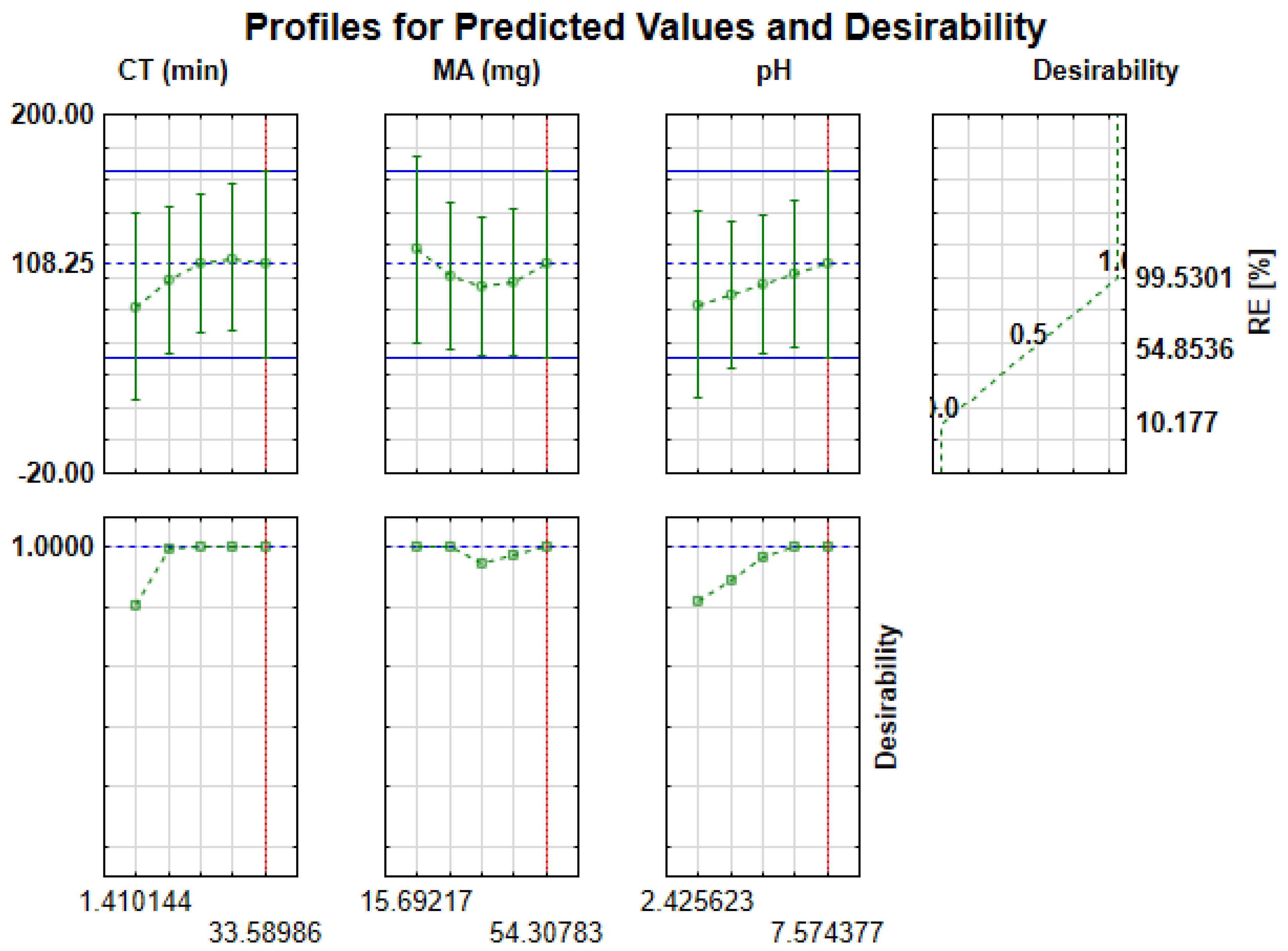

Table S2. Based on the design of experiments using CCD, the ultrasound-assisted batch adsorption was performed as follows: aliquots of 50 mL solutions (pH 2.4–7.6) containing a mixture of ATN, CBZ and PRP concentration level of 1.0 mg L
−1 were placed in 100 mL sample bottles containing masses of adsorbent ranging from 15.7–54.3 mg. The samples were sonicated for 1.4–33.6 min at 25 ± 2 °C (ambient temperature). The adsorbent was separated from the sample solution via an external magnet and filtered through a 0.22 μm PVDF membrane syringe filter. Propanol, atenolol, and carbamazepine were measured using HPLC-DAD for the initial concentration and equilibrium. All the adsorption experiments were carried out in triplicates. Percentage removal efficiency (%RE) was used as the analytical response and it was calculated using Equation (1):
where C
0 and C
e are the initial and equilibrium concentrations (mg L
−1) and the C
e concentration of the target analytes, respectively.
3.5. Adsorption Isotherms, Kinetics and Thermodynamic Experiments
To evaluate isotherms, kinetic models and thermodynamics, adsorption studies were performed. Synthetic solutions containing a mixture of atenolol, carbamazepine, and propranolol hydrochloride at different concentration were prepared ranging from 5 to 100 mg L
−1, while other variables such as contact time and mass of adsorbent were fixed at optimal conditions. Kinetics adsorption studies were performed by the introduction of 50 mL of 100 mg L
−1 atenolol, carbamazepine and propranolol hydrochloride solutions (pH 7.0) in 100 mL glass bottles containing 54 mg of magnetic cellulose-chitosan hydrogel nanocomposite. The sample solutions were agitated for 34 min by ultrasonication [
62]. The effect of temperature on adsorption was studied by using various temperature that is, 20, 30, 40, and 50 °C with pH 7 and variable initial concentration (100 mg L
−1).
3.6. Adsorption Data Analysis
3.6.1. Adsorption Isotherms
Adsorption isotherm models play an important role in describing the types of adsorbent-adsorbent interactions that take place during the adsorptive removal process [
61,
63]. Adsorption isotherms provide assumptions with respect to the heterogeneity/homogeneity and interaction of adsorbent and adsorbate [
63]. Equilibrium data was used to evaluate calculate the adsorption capacity of the adsorbent after the adsorption of propranolol hydrochloride, atenolol, and carbamazepine (Equation (2)):
where q
e (mg g
−1) is the quantity of propanol, atenolol, and carbamazepine taken up by magnetic cellulose-chitosan sorbent per gram, C
0 and C
e (µg L
−1) are the initial and equilibrium propranolol hydrochloride, atenolol, and carbamazepine concentrations, V (L) is the volume of the aqueous solution, M (g) is the mass of magnetic cellulose-chitosan. Adsorption isotherms such as Temkin, Redlich-Peterson, Langmuir and Freundlich models were used to explain the equilibrium data and their linearized equations are illustrated in
Table S3.
3.6.2. Adsorption Kinetic Models
Adsorption kinetics is one of the key factors that is used to investigate the efficiency adsorption process [
41]. Therefore, linear equations of kinetics models such as Elovich, intraparticle diffusion, pseudo-first order and pseudo-second order, were used to interpret the adsorption data. These models were used to investigate the adsorption mechanism. The linearized equation for each model is illustrated in
Table S4.
3.6.3. Thermodynamics Studies
In order to determine the essence of the adsorption, the effect of temperature on the adsorption mechanism is studied by the measurement of thermodynamic properties. The design and viability of the magnetic cellulose nanocomposite adsorption cycle of hydrochloride propranolol, atenolol and carbamazepine using three main thermodynamic parameters including standard enthalpy (ΔH°), Gibbs free energy (ΔG°) and standard entropy (ΔS°) must be determined using the following equations displayed in
Table S4. Thermosetting experiments were conducted at different temperatures, including 298, 308 and 318 K, by observing the adsorption mechanism. The equations in
Table S5 were used to calculate the parameters [
64,
65].

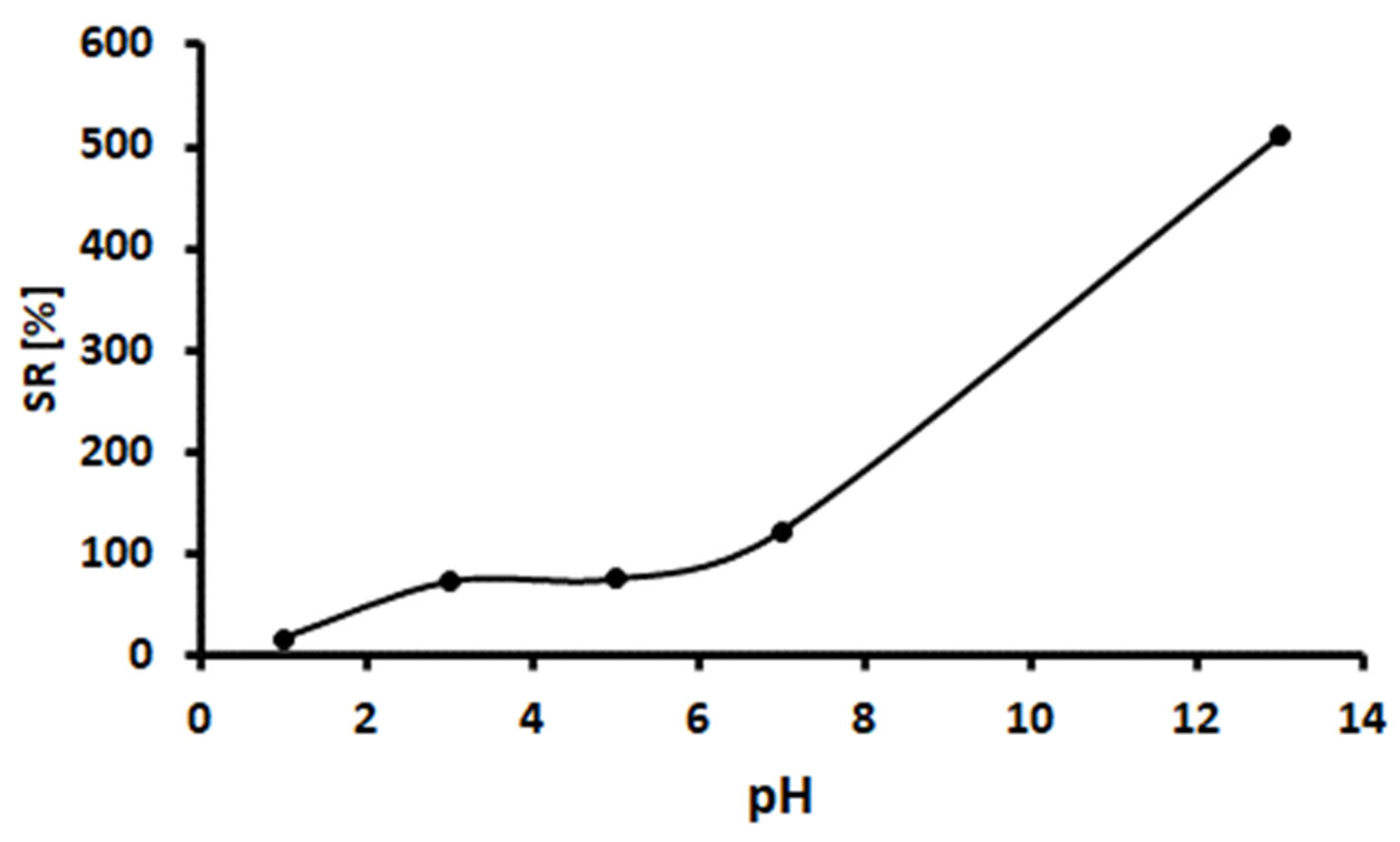

3.7. Swelling Test
The magnetic cellulose-chitosan nanocomposite hydrogel percentage swelling ratio (%SR) was determined according to the method reported in the literature [
66,
67,
68]. The experiments were carried out as follows: 54 mg of hydrogel nanocomposite was immersed in aqueous solutions at pH values ranging from 1–13 and it was incubated for 48 h [
66]. The pH of the solutions was adjusted by the addition of 0.1 mol L
−1 HCl and NaOH. Throughout the swelling process, the solution was changed periodically to ensure maximum equilibrium at the correct pH. The hydrogel percentage swelling ratio (SR%) was defined as follows:
where W
s is the weight of the swollen hydrogels after the surface water has been absorbed with a wet filter paper, and W
d is the weight of dry hydrogel under ambient conditions [
67,
69,
70].

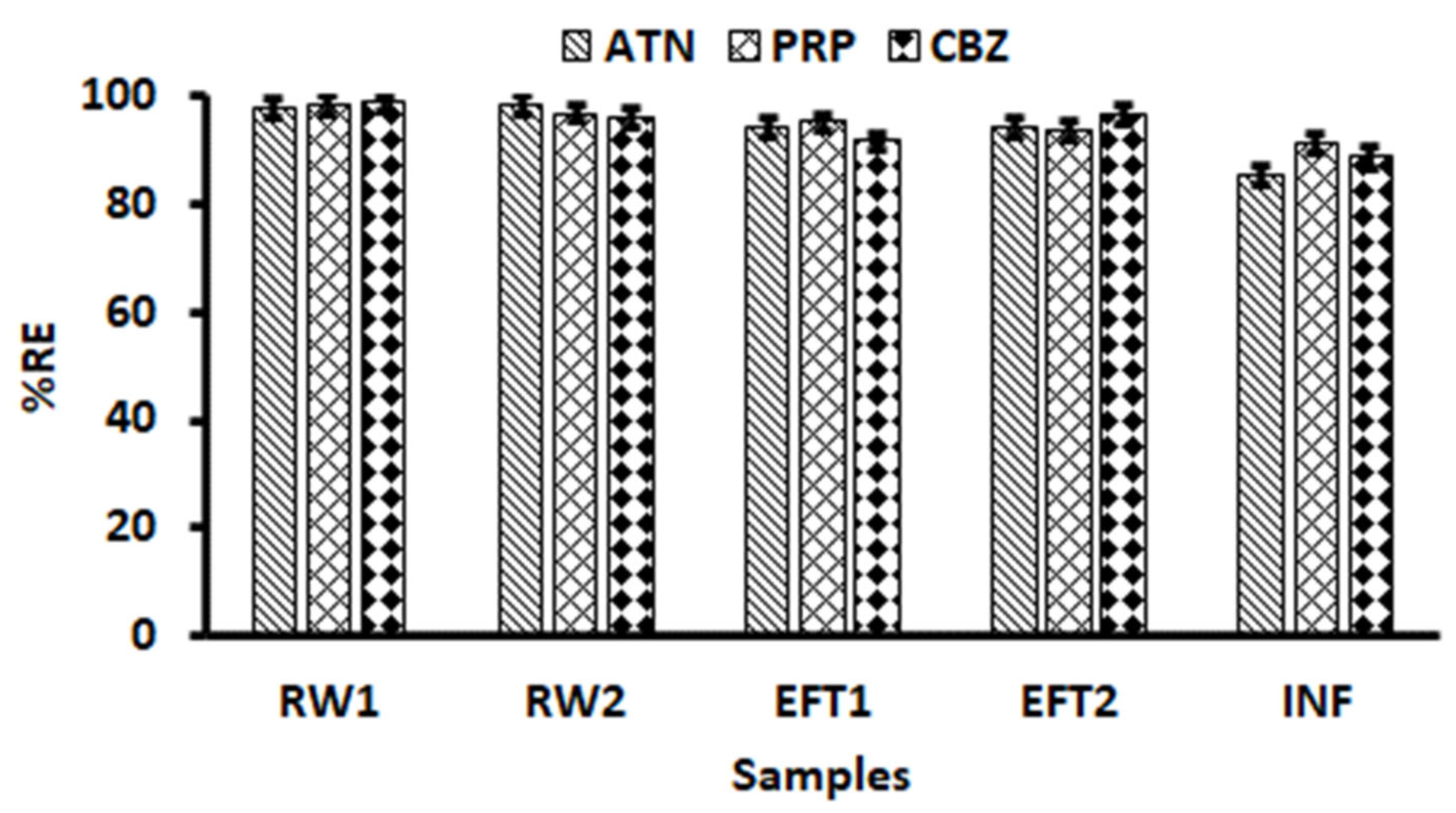

3.8. Real Water Samples
Wastewater and river water samples were collected from a wastewater treatment plant in Daspoort (WWTP, Pretoria, South Africa) and the Apies River. Samples were collected in glass bottles and stored in the refrigerator (at 4 °C) until they were used. Before the removal process, the samples were filtered to remove particulates. The optimized procedure was used to remove ATN, PRP and CBZ from real wastewater samples.

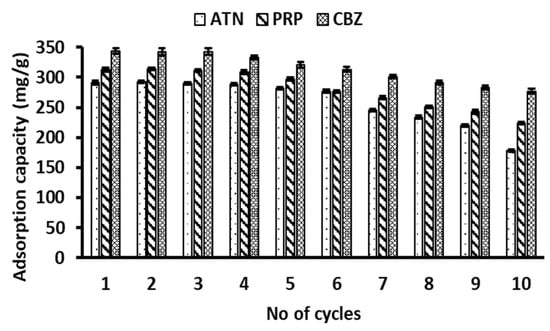

3.9. Reusability Studies
The desorption of the pollutants adsorbed on the magnetic cellulose-chitosan hydrogel nanocomposite adsorbent was evaluated using methanol as the regenerator. To describe the method briefly, the hydrogel adsorbent (54 mg) was packed in 3 mL SPE empty columns and 100 mL sample solution containing ATN, CBZ and PRP each at 200 mg/L (25 °C, pH 7 was passed though the column. After reaching adsorption equilibrium, the analytes were eluted with 99.99% methanol and then the column washed with deionized water. The hydrogel adsorbent was reused in another the adsorption-desorption experiment. The sorption-desorption tests were performed were repeated ten times.
