New Carbamates and Ureas: Comparative Ability to Gel Organic Solvents

by
Gabriela Martínez-Mejía
1,2,
Brenda Afrodita Bermeo-Solórzano
1,
Silvia González
3,
José Manuel del Río
4,
Mónica Corea
2,* and
Rogelio Jiménez-Juárez
1,*
1
Departamento de Química Orgánica, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Prolongación de Carpio y Plan de Ayala S/N, Miguel Hidalgo, C.P., Ciudad de México 11340, Mexico
2
Laboratorio de Investigación en Polímeros y Nanomateriales, Escuela Superior de Ingeniería Química e Industrias Extractivas, Instituto Politécnico Nacional, San Pedro Zacatenco, Alcaldía Gustavo A. Madero C.P., Ciudad de México 07738, Mexico
3
Departamento de Química, Universidad Técnica Particular de Loja (UTPL), Loja 1101608, Ecuador
4
Departamento de Ingeniería en Metalurgia y Materiales, Escuela Superior de Ingeniería Química e Industrias Extractivas, Instituto Politécnico Nacional, San Pedro Zacatenco, Alcaldía Gustavo A. Madero C.P., Ciudad de México 07738, Mexico
*
Authors to whom correspondence should be addressed.
Gels 2022, 8(7), 440; https://doi.org/10.3390/gels8070440
Submission received: 18 May 2022 / Revised: 23 June 2022 / Accepted: 5 July 2022 / Published: 14 July 2022
(This article belongs to the Special Issue Advance in Supramolecular Gels)
Browse Figures
Versions Notes

Abstract

:
Two series of novel amphiphilic compounds were synthesized based on carbamates and ureas structures, using a modification of the synthesis methods reported by bibliography. The compounds were tested for organic solvent removal in a model wastewater. The lipophilic group of all compounds was a hexadecyl chain, while the hydrophilic substituent was changed with the same modifications in both series. The structures were confirmed by FT-IR, NMR, molecular dynamic simulation and HR-MS and their ability to gel organic solvents were compared. The SEM images showed the ureas had a greater ability to gel organic solvents than the carbamates and formed robust supramolecular networks, with surfaces of highly interwoven fibrillar spheres. The carbamates produced corrugated and smooth surfaces. The determination of the minimum gelation concentration demonstrated that a smaller quantity of the ureas (compared to the carbamates, measured as the weight percentage) was required to gel each solvent. This advantage of the ureas was attributed to their additional N-H bond, which is the only structural difference between the two types of compounds, and their structures were corroborated by molecular dynamic simulation. The formation of weak gels was demonstrated by rheological characterization, and they demonstrated to be good candidates for the removal organic solvents.

Graphical Abstract

1. Introduction

A great problem in the world is the water pollution by organic solvents in several industries. To solve this problem, purification and reuse processes of wastewater have been developed. A way to eliminate organic solvents of wastewater is adding amphiphilic compounds (low molecular weight organogelators) able to capture and remove them by filtration [1].
The design of new low molecular weight organogelators (LMWGs) has attracted a great attention due to their wide range of applications. They are currently used in organic waste recovery and consequently environmental sanitation [2,3] as vehicles for the transport and drugs delivery in medicine [4,5,6,7,8] as scaffolds in tissue engineering for regenerative medicine [9,10], preparation of nanoparticles for nanoreactors [11,12], as well as sensors of chemical bond breakage in hydrogels [13].
The chemical structures of gelators capable of forming organogels present groups as amides [14,15,16], carbamates [17,18,19,20], amino acids [21], carbohydrates [22,23,24,25,26,27], ureas [28,29,30,31,32,33] or a combination of these functional groups [34,35,36,37,38,39,40]. For this reason, all gelators of this study are composed of a hydrophilic and hydrophobic part, resulting in amphiphilic behavior [41,42]. These amphiphilic compounds can trap polar and non-polar solvents to form supramolecular networks by means of weak non-covalent interactions donor-acceptor as gelator-gelator, gelator-solvent and solvent-solvent intermolecular interactions [43,44,45,46,47,48,49,50,51], which are carried out by hydrogen bonding, dipole-dipole interactions, van der Waals molecular interactions, molecular stacking, π-π interactions, C-H… π interactions, solvophobic effects [52] or molecular surface stress. The literature indicates that a gelator is efficient if immobilizes to the solvent at concentrations ≤2 wt.% [53].
A process of self-organization is known to be responsible for forming the supramolecular networks, which can pick up or arrest organic solvents. However, this process is still not clear. This phenomenon has been explored by few researchers and they have established some hypothesis [54,55,56]. For example, Lara Estroff and Andrew Hamilton [57,58] suggested that the organogels self-assembly process occurs in stages, beginning with the formation of a primary structure through molecular recognition, thus promoting anisotropic aggregates in one or two dimensions on a molecular scale ranging from Angstroms to nanometres. In the second stage, the morphology of the aggregates is more defined due to the formation of micelles, vectors, fibers, ribbons, leaves or other elements, depending on the molecular structure of the organogelator. The structure ranges from nanometers to micrometers. In the final stage, the tertiary structure of the gel is formed by the molecular interaction of the aggregates, with a scale ranging from microns to millimeters. Scheme gel formation and the removal of organic solvents is shown in Figure 1.
The aim of this study was to synthesize two series of novel organic compounds, which have not been reported in the literature: one of carbamates and the other of ureas, using a modification of synthesis methods reported by bibliography to increase the reaction efficiency. Five compounds were synthesized in each series, the hydrophobic part was the same (with a 16 carbons length of the hydrocarbon linear chain), while the hydrophilic substituent was changed and, the same modifications were made for the carbamates and ureas with the purpose to compare their ability to form supramolecular networks. The compounds were characterized by known methods and their supramolecular network’s ability was tested with four organic solvents (toluene, 1-4 dioxane, xylene and carbon tetrachloride). These solvents were chosen according to the latest WHO global report on contamination of organic solvent waste by the chemical industry sector reports them as persistent organic pollutants (POPs) [59].
Gel structures were examined by FT-IR and NMR, while their morphologies were observed by SEM. The stability of the organogels was evaluated by determining the breaking point, revealing that urea gels form the stronger supramolecular networks than the carbamate gels. This was attributed to the additional N-H bond in the urea compounds. The gel structures were also corroborated by molecular dynamic simulation. The removal efficiency of solvents in water was tested comparing the best carbamate with the best urea.

2. Results and Discussion

2.1. Synthesis of the New Carbamates and New Ureas

Two series of compounds were synthesized: five carbamates and five ureas which, according SciFinder they have never been reported except the 5b structure, which has not been reported to be used as gelator. The hydrophobic part of all the compounds was the same (with 16 carbons hydrocarbon linear chain) whereas the hydrophilic part was changed. The used synthesis methods were modified from those reported by bibliography, allowing to obtain 85% and 90% of yield for carbamates and ureas, respectively (see Supplementary Scheme S1 and Supplementary Scheme S2).
The carbamate and urea structures were corroborated by HR-MS and the results of the values of the experimental and calculated molecular weights are close to each other, confirming the obtaining of desired product (Tables S1 and S2, Supplementary Materials).

2.2. Gelation Test of New Carbamates and New Ureas

The ability of carbamates and ureas to self-assemble and form gels tested in presence of organic solvents (xylene, toluene and 1,4-dioxane) using the inverting tube method. The gelator was evaluated by weight rather than volume. In this way, the required minimum gelation concentration (MGC) to form supramolecular networks was determined (see Figures S44–S47, Tables S3–S5 and S7, Supplementary Materials).
The results show that the ureas have a greater capacity than the carbamates to gel organic solvents, because it was always necessary to use a larger quantity of carbamates to form the gel. This was observed for example, by comparing 3d carbamate and 5d urea as gelators with the same organic solvent (toluene). The required quantity of carbamate for this case was 6.8 wt.%, while urea was only 1.1 wt.% (Tables S3 and S4, Supplementary Materials).
A way to confirm the gel formation was analyzing the pure compounds (Figures S1–S40, Supplementary Materials) and gelators by FT-IR. The spectra of carbamates pure show an absorption band close to 1691 cm−1 attributed to the carbonyl group, while for the urea compounds this band appears at around 1620 cm−1. This is attributed to the resonance effect of the oxygen and nitrogen atoms on the double bond of the carbonyl, being this phenomenon stronger for the urea than the carbamate. Consequently, the urea bond is longer, more polarized and weaker [60], meaning it is the carbonyl undergoes stretching with a lower frequency energy (Scheme S3, Supplementary Materials).
Comparing the FT-IR spectra for the best gelator compounds, the spectrum of 3a carbamate organogel with xylene shows an intense and wide absorption band at 3350 cm−1 corresponds to the vibration of the NH stretch (Figures S42 and S43, Supplementary Materials). The spectrum of 5a urea with carbon tetrachloride shows a broad and very weak band at 3347 cm−1 to the NH stretching vibration (Figures S45 and S46, Supplementary Materials). This means that the NH groups of the ureas are more involved in the formation of bonds by hydrogen bridges than the NH groups of the carbamates [61,62]. Another relevant characteristic was the decrement in the intensity of the absorption bands of the NH and carbonyl groups when the gels were formed. This effect is greater in ureas than carbamates and it is related to the formation of molecular networks.
The materials were also characterized by 1H NMR. The spectra of pure carbamates showed chemical shifts at δ close to 4.0 ppm for Hα protons, at about 3.3 ppm for Hβ protons, except for 3e whose Hα proton resounds at 4.28 ppm due it is adjacent to the aromatic system. Only carbamates 3a, 3d and 3e showed Hβ protons. On the other hand, 3b, 3c and 3e compounds displayed additional signals owing to their aromatic protons (Table S1, Supplementary Materials).
On the other hand, the 1H NMR spectra of ureas presented chemical shifts at 3.3 ppm for the Hα protons and at 4.28 ppm for the Hβ proton of the 5e compound. The 5a, 5d and 5e ureas presented signals for the Hβ protons, while 5b, 5c and 5e showed signals for aromatic protons (Tables S2 and S6, Supplementary Materials).
The structural identity of the carbamates and of the ureas corroborated by HR-MS, where their experimental and calculated molecular weights were very close to each other (Tables S1 and S2, Supplementary Materials).
Gel morphology was analyzed by scanning electron microscopy. Results show clear differences between surfaces of the formed supramolecular networks by carbamates and ureas (see Figures S48 and S49, Supplementary Materials). Figure 2 shows SEM images of the supramolecular structures in the gels prepared from 3c carbamate in dioxane. As can be seen, entanglement network structures of different type are formed. Specifically, Figure 2 shows gels an irregular entanglement network with average of 15 µm.
SEM images of the supramolecular structures in the prepared from 5c urea in dioxane are shown in Figure 3. Structures with irregular hollow shape and average sizes close to 10 µm exhibit a mixture of shapes.
The gel formation for ureas was also corroborated by Yang et al. in 2021, where structures of urea organogels were obtained as fibers and spheres, attribute to NH groups of compounds [63].
To support the obtained NMR results of the organogels, the data of carbamates and ureas were processed by computational displacement calculations and the formed supramolecular interactions in the organogels were compared. Figure 4 presents a linear correlation plot of calculated and experimental 1H chemical shifts values of organogels to 5d urea and 3d carbamate as example. The results show that protons (1H) are significantly affected by intermolecular interactions, especially if they are compared with 13C chemical shifts [64]. These results could confirm the possible interactions of carbamates and ureas protons during the formation of the organogel (see Supplementary Figure S41). The linear correlation for all organogels is presented in Figures S50–S59 of Supplementary Materials.
The 1H chemical shifts between 4.5–6 ppm show the largest deviation to the 5d urea and 3d carbamate. The 5d urea presents a signal at 4.3 ppm (NH) attributed to the formed hydrogen bonds between the organogel and the solvent, which cause a loss of correlation between calculated and experimental data. This has been reported by Baryshnikov [65]. For 3d carbamate, this signal does not appear. For signals higher than 5 ppm attributed to the short chain attached to OH, the deviation could be to the electronegative property of oxygen atoms and a weak van der Waals interaction [66]. These findings can be supported by the structural analysis of 3d carbamate and 5d urea, which shows that the only difference between them is the additional NH bonding for the ureas. In this way, a greater amount of hydrogen bonds created to form supramolecular networks, either with the solvent or between the molecules of the compound itself, increasing its gelling efficiency [67].
The self-assembly ability of the best compounds (3d and 5d) was also proved for the removal of organic solvents in water. Mixtures of toluene, xylene and 1,4-dioxane were tested by separated in water at concentrations of 20 wt.% of solvent, while mixtures of two and three organic solvents were prepared with water, where the concentration of each solvent was 20 wt.% (see Figures S69 and S70, Supplementary Material). The organic compound (carbamate or urea) was added following the same procedure described in gelation test section. The formed organogel was separated and weighed to obtain the removal efficiency of solvents. The gel was heated and the temperature at which it broke down was also recorded. The experiments were made by triplicate and the results are shown in Table 1.
In the same way, when the mixture was made with mixture of solvents in water, the 5d urea had removal efficiencies higher than 70%, meanwhile the 3d carbamate had removal efficiencies close to 60% except to dioxane where in both cases the compounds do not remove the solvent.
The efficiency results of the organic solvents removal were confirmed by FT-IR. The spectra of the initial mixture (water-solvent) and the final mixture (after capture of the solvent) were analyzed, see Figures S60–S67, Supplementary Materials. The band around 720 cm−1 was considered to differentiate between the used organic solvents. The area under the signal curve before and after the capture was calculated to obtain the experimental capture efficiency of solvents and they were compared with the gravimetric results (Table 2).

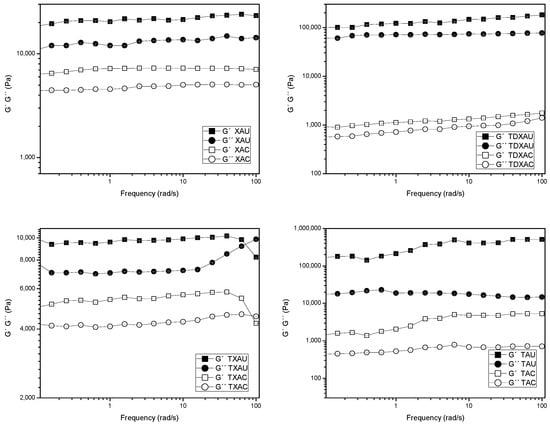

The rheological properties of the organogels were studied by oscillatory rheology at 25 °C. From the amplitude sweep experiments, storage modulus (G’) and loss modulus (G’’) were determined as a function of strain (see Figure S68, Supplementary Materials). The results show that G’ was higher than G’’ at low strain for all tested solvents systems in water. However, these modulus present higher values when the gel was made with 5d urea than those made with 3d carbamate, except to the mixture toluene-xylene-water, where both properties had the same values. Results show that the flow point is presented at low strains, typical behavior of weak gels [68,69]. However, these values are higher for gels made with urea than those made with carbamate.
It has reported to establish the gel structure, the storage modulus (G’) must dominate loss modulus (G’’) both contributions independent of frequency [70]. For this reason, G’ and G’’ for the gel were determined as a function of frequency (Figure 5) from 0.1 to 100 rad/s.
The results confirmed the elastic modulus was higher than viscose modulus at this range of frequency for all systems but, organogels 5d urea presented higher values than those with 3d carbamate. This is attributed to the formed hydrogen bonds are more important than van der Waals interactions. The materials were not affected by the frequency, which indicates that the organogels can support external forces in the range of used frequency, except to the system toluene-xylene-water. This behavior was reported by L.E. Ojeda-Serna [71], where oil-in-water organogels had an elasticity modulus higher than viscous, also attributed to van der Waals forces between alkyl chains that are related to aggregation to hydrophilic glycerol heads, which produces strong gels.
The results show that G’ and G’’ of organogels made of 5d urea and toluene and are higher than those with xylene, indicating that formed organogels with toluene are more rigid because they have more physical interactions.

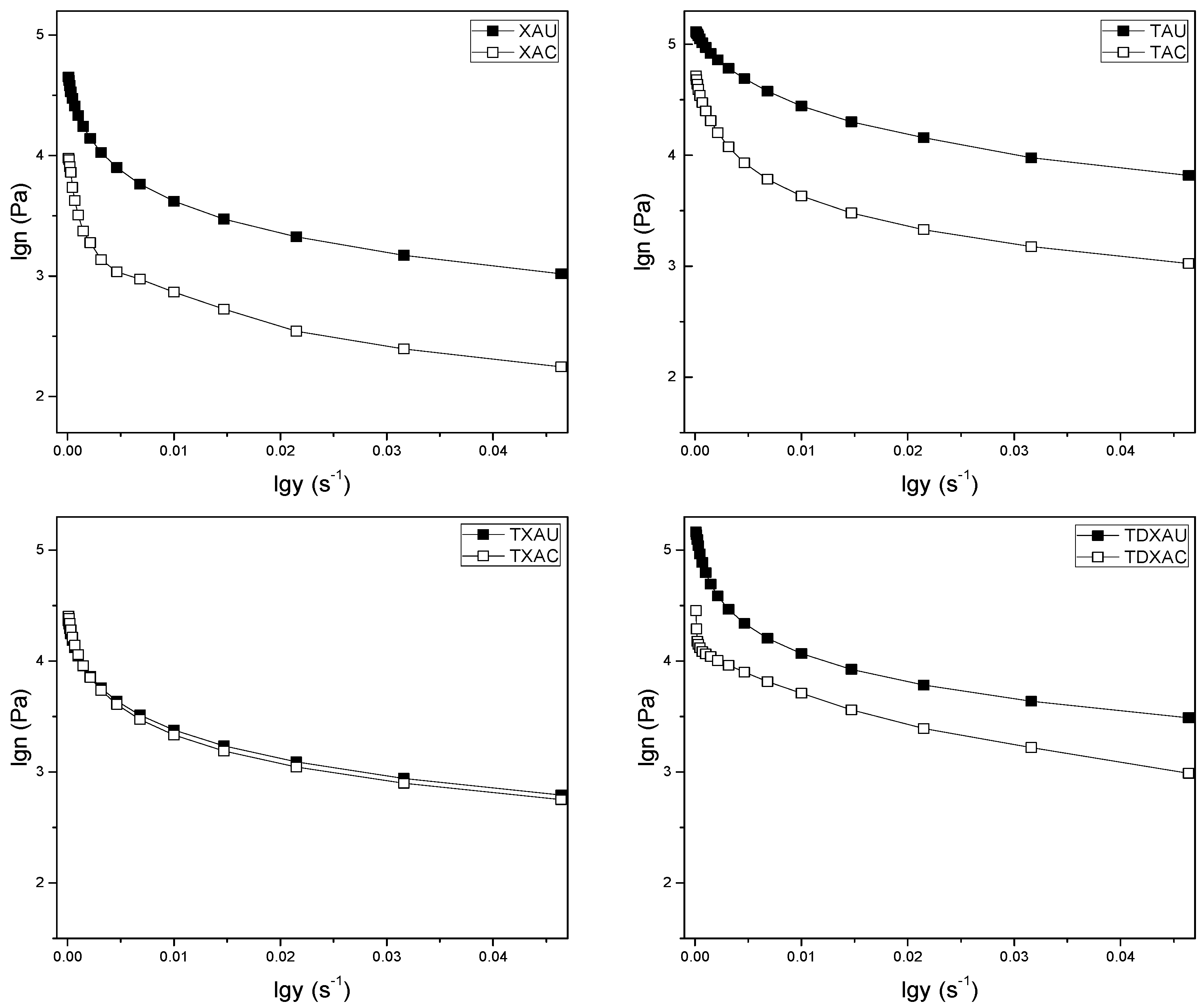

Results of apparent viscosity (η) as a function of shear rate (y) for organogels made of 5d urea and 3d carbamate with mixture of solvents in water are presented in Figure 6. All the gel samples showed a prominent shear thinning flow behavior (n < 1) characteristic of a non-Newtonian behavior, but the degree of shear thinning was highest for urea organogels. This means that urea organogels have greater resistance to gradual deformations than carbamate organogels, because they have a greater interaction with all the solvents by the presence of more hydrogen bond in their structure that was demonstrated with the capture efficiency of solvents which was higher for ureas than the carbamates.

3. Conclusions

Two series of novel amphiphilic compounds (carbamates and ureas) were synthesized using a modification of synthesis methods reported by bibliography, which increased the reaction efficiency. The lipophilic part of both series was a hexadecyl chain and the hydrophilic substituent was changed, undergoing the same modifications in the carbamates and ureas. The structures were confirmed by several techniques and their ability to gel organic solvents was evaluated and compared. The ureas showed the greatest ability to self-assemble, which was attributed to the additional N-H bond. It was observed that hydrogen bonds worked cooperatively to stabilize and strengthen the supramolecular network. The results of NMR for gel formation were confirmed by computational displacement calculations, showing that the protons (1H) are significantly affected by intermolecular interactions. The results of one solvent removal in water showed that the urea had removal efficiencies above 80%, while with a mixture of solvents they had removal efficiencies higher than 70%. The rheological properties of gels showed typical behaviors of weak gels.

4. Materials and Methods

4.1. Materials

Hexadecyl chloroformate (96%), hexadecyl isocyanate (97%), N, N-dimethylethylenediamine (99%), ethanolamine (99%), 2-aminophenol (99%), 1,2-phenylenediamine (99%), palladium on carbon (10 wt%), hydroxylamine hydrochloride (99%), and vanillin (99%) were purchased from Sigma-Aldrich (Burlington, MA, USA) and used without further purification. Dichloromethane, ethyl acetate, hexane, acetone and ethyl alcohol were reagent grade from Alveg (Tlalnepantla de Baz, Mexico).

4.2. Methods

4.2.1. Synthesis of New Carbamates and Ureas

The general procedure for synthesizing the carbamates began by dissolving alkyl or aryl amines 2 (0.8 equiv.) in dichloromethane (DCM) in a round-bottomed flask under vigorous stirring. Then, hexadecyl chloroformate 1 (1 equiv.) in dichloromethane was added dropwise during 30 min at room temperature. The reaction progress was monitored by thin layer chromatography (TLC). After two hours, the reaction mixture was extracted with 5 v/v% aqueous hydrochloric acid solution (3 × 15 mL) and water (2 × 15 mL). The organic phase was dried (Na2SO4) and filtered and the solvent was evaporated under reduced pressure. The product was purified by recrystallization or by silica gel (70–230 mesh) column chromatography. The carbamates were obtained as a white or beige solid in a yield greater than 85% (see Supplementary Materials and Scheme 1).
The ureas were synthesized and purified following a procedure similar to carbamates synthesis. Hexadecyl isocyanate 4 and the alkyl or aryl amines 2 reacted to form ureas 5. The ureas were obtained as a white solid with a yield greater than 90% (see Supplementary Materials and Scheme 2).

4.2.2. Characterization of New Carbamates and Ureas

Melting points were determined by A.KRÜSS melting point meter (Model KSPIN, Berlin, Germany). Purification of the reaction mixtures was accomplished by recrystallization or column chromatography over silica gel (Merck 70-230 Boston, MA, USA) as a solid support. The reaction progress was monitored by TLC (thin layer chromatography) on silica gel 60 F254 aluminum plates (see Supplementary Materials). Fourier transform infrared spectroscopy (FT-IR) was recorded using a double-beam Perkin-Elmer Model 1605 FT/IR spectrometer (Whaltham, MA, USA) with ATR equipment. The area under the signal curve was calculated at 720 cm−1, before and after the capture of the solvents by an Origin LabPro (Northampon MA, USA).
NMR spectra were recorded in CDCl3 or DMSO-d6 solution on a Varian (now Agilent) NMR System 500 spectrometer (Agilent Technologies, Inc., Santa Clara, CA, USA), with 300 or 500 MHz for 1H NMR and 75 or 125 MHz for 13C, respectively. Chemical shifts were reported in parts per million (ppm) relative to Me4Si as internal standard. The J -coupling constants were expressed in Hz.
High-resolution mass spectroscopy (HR-MS) was analyzed on a micrOTOF-Q II with electrospray ionization (ESI) (BrukerDaltonics, Billerica, MA, USA).

4.2.3. Gelation Test

The gelation properties were examined to each compound with four solvents. Briefly, a sample of 1 mL of solvent was put in a capped vial and weighed. The compound was added to solvent in quantities of 2 mg until saturation was reached. The mixture was heated in a thermal bath until the solid was dissolved and a clear solution was determined. The solution was cooled until gel formation and its temperature was registered. Finally, the vial was inverted to assure that there was not flow of organic solvent out of the gel [12]. The gel was weighed, and the minimum gelation concentration (MGC) was obtained. After that, the gel was heated and the temperature at which it broke down was recorded. All the experiments were performed by triplicate.

4.2.4. Scanning Electron Microscopy

A gel sample was placed on a copper sample holder. The sample was submerged in liquid nitrogen for 10 min. With this treatment, the morphology of gels was maintained. Finally, the sample was put a vacuum condition and a layer of gold-palladium was sprayed on the sample [72,73]. The samples were placed in a JEOL scanning electron microscope (model JSM 7800F, Tokio, Japan) at 1 kV.

4.2.5. Capture of Solvents in Wastewater Test

The organic solvent capture was examined for the best compounds: 3d (carbamate) and 5d (urea). Four samples of solvents-water were tested. The sample was prepared with 20 wt.% of solvent in water. Then, it was put in a capped vial and weighed. The compound addition (carbamate or urea) was made following the same procedure mentioned in the gelation test section. Finally, the formed organogel was separated and weighed. The gel was heated and the temperature at which it broke down was recorded. The experiments were made by triplicate.

4.2.6. Rheological Analysis

Rheological properties were evaluated with a Modular Compact Rheometer model MCR-502, Anton Paar (Graz, Austria) using PP25 parallel plate geometry (25 mm diameter, 0°). Samples were placed in the center of the bottom plate. The upper plate was immediately lowered to a gap of 1 mm and the measurement was performed. Amplitude sweeps (strain = 0.001–100%) were carried out to determine the linear viscoelastic region (LVR). Oscillation stress sweep was conducted at 0.01% of strain and range of frequency of 0.1–100 rad/s was applied. In the frequency sweep, the angular frequency was varied from 10−1 to 102 rad/s at constant 0.01% strain. Apparent viscosity of samples at shear rate from 1 to 50 1/s was measured as a function of applied stress to check the structural loss of the gel. All experiments were made at 25 °C by triplicate.

4.2.7. DFT Results of NMR Chemical Shift and IR Spectra

DFT calculations were performed using Gaussian 09 (Revision C.01) software (Wallington, CT, USA) and the results were visualized with GaussView 6.0 (Wallington, CT, USA). Structures were full optimized from the experimental data, using the Becke’s three-parameter (B3) hybrid exchange functional with the correlation functional of Lee Yang and Parr (LYP) [67,74]. The geometry optimizations for each species were calculated using 6-31G basis set with polarization functions in all atoms; IR frequencies were calculated using TZV basis sets of Ahlrichs and for calculate NMR chemical shifts the CC-pVDZ basis sets were employed. The reported NMR chemical shifts were calculated using GIAO-B3LYP method as implemented in Gaussian, all chemical shift values were corrected with scaling factors [67] for 1H and 13C, respectively. The optimization and computational IR spectra were calculated in vacuum and solvent effect, specifically chloroform was considered in NMR chemical shifts calculations.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gels8070440/s1, Experimental carbamate methods, Scheme S1. Synthesis of carbamates 3 starting from hexadecyl chloroformate 1 and amines 2; Figure S1. FT-IR of carbamate 3a; Figure S2. 1H NMR of carbamate 3a; Figure S3. 13C NMR of carbamate 3a; Figure S4. HR-MS of carbamate 3a; Figure S5. FT-IR of carbamate 3b; Figure S6. 1H NMR of carbamate 3b; Figure S7. 13C NMR of carbamate 3b; Figure S8. HR-MS of carbamate 3b; Figure S9. FT-IR of carbamate 3c; Figure S10. 1H NMR of carbamate 3c; Figure S11. 13C NMR of carbamate 3c; Figure S12. HR-MS of carbamate 3c; Figure S13. FT-IR of carbamate 3d; Figure S14. 1H NMR of carbamate 3d; Figure S15. 13C NMR of carbamate 3d; Figure S16. HR-MS of carbamate 3d; Figure S17. FT-IR of carbamate 3e; Figure S18. 1H NMR of carbamate 3e; Figure S19. 13C NMR of carbamate 3e; Figure S20. HR-MS of carbamate 3e; Scheme S2. Synthesis of ureas 5 starting from hexadecyl isocyanate 4 and amines 2; Figure S21. FT-IR of carbamate 5a; Figure S22. 1H NMR of urea 5a; Figure S23. 13C NMR of urea 5;a Figure S24. HR-MS of urea 5a; Figure S25. FT-IR of carbamate 5b; Figure S26. 1H NMR of urea 5b; Figure S27. 13C NMR of urea 5b, Figure S28. HR-MS of urea 5b; Figure S29. FT-IR of carbamate 5c; Figure S30. 1H NMR of urea 5c; Figure S31. 13C NMR of urea 5c; Figure S32. HR-MS of urea 5c; Figure S33. FT-IR of carbamate 5d; Figure S34. 1H NMR of urea 5d; Figure S35. 13C NMR of urea 5d; Figure S36. HR-MS of urea 5d; Figure S37. FT-IR of urea 5e; Figure S38. 1H NMR of urea 5e; Figure S39. 13C NMR of urea 5e; Figure S40. HR-MS of urea 5e; Table S1. Results of carbamates 3 in FT-IR, 1H NMR, and HR-MS; Table S2. Results of ureas 5 in FT-IR, 1H NMR, and HR-MS; Table S3. Comparative gelation properties of carbamates 3 (minimum gelation concentration, measured as the percentage of weight) with different organic solvents (CH3-(CH2)14-CH2-(OCONH)-R 1); Table S4. Comparative gelation properties of ureas 5 (minimum gelation concentration, measured as the percentage of weight) with different organic solvents (CH3-(CH2)14-CH2- (HNCONH)-R 1); Table S5. Gel formation temperatures and breaking temperatures (Tg)/(Tb) for carbamates 3a-3e and ureas 5a-5e; Table S6. Chemical shifts (δ ppm) of the N-H bonds of carbamates 3a-3e and ureas 5a5e; Table S7. Solubility parameter, molar volume and the Flory-Huggins parameter for several solvents; Figure S41. The only difference between the carbamates and the ureas is an additional NH bond in the latter 3e/5e; Figure S42. FT-IR spectrum of neat carbamate 3a; Figure S43. FT-IR spectrum of the gel formed by carbamate 3a with xylene; Figure S44. Supramolecular network formed by carbamate 3a with xylene; Figure S45. FT-IR spectrum of neat urea 5a; Figure S46. FT-IR spectra of the gel formed by urea 5a with carbon tetrachloride; Figure S47. Supramolecular networks formed by urea 5a with carbon tetrachloride; Figure S48. Photographs of the flasks and scanning electron microscopy micrographs of the gels obtained by interacting carbamates 3a-3e with different organic solvents; Figure S49. Photographs of the flasks and scanning electron microscopy micrographs of the gels obtained by interacting ureas 5a-5e with different organic solvents; Scheme S3. Resonant effect on the nitrogen and oxygen atoms on the double bond of the carbonyl; Figure S50. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with urea 5a; Figure S51. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with urea 5b; Figure S52. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with urea 5c; Figure S53. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with urea 5d; Figure S54. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with urea 5e; Figure S55. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with carbamate 3a; Figure S56. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with carbamate 3b; Figure S57. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with carbamate 3c; Figure S58. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with carbamate 3d; Figure S59. Linear correlation plots of a 13C and 1H chemical shifts values of organogel with carbamate 3e; Figure S60. FT-IR spectrum of the traces of toluene in water before and after the treatment with 3d; Figure S61. FT-IR spectrum of the traces of toluene in water before and after the treatment with 5d; Figure S62. FT-IR spectrum of the traces of xylene in water before and after the treatment with 3d; Figure S63. FT-IR spectrum of the traces of xylene in water before and after the treatment with 5d; Figure S64. FT-IR spectrum of the traces of toluene- xylene in water before and after the treatment with 3d; Figure S65. FT-IR spectrum of the traces of toluene- xylene in water before and after the treatment with 5d; Figure S66. FT-IR spectrum of the traces of dioxane-toluene- xylene in water before and after the treatment with 3d; Figure S67. FT-IR spectrum of the traces of dioxane-toluene- xylene in water before and after the treatment with 5d; Figure S68. Storage modulus (G’) and loss modulus (G’’) as a function of strain for organogels of urea 5d (G’ -■)) (G’’-●) and carbamate 3d (G’-♦) (G’’-ϒ) with mixture of solvents with water. Urea (U) and carbamate (C). Xylene-water (X-A), toluene- water (TA), toluene-xylene-water (T-X-A) and toluene-dioxane-xylene-water (T-D-X-A); Figure S69. Photographs of removal organogels solvent of carbamate 3d with mixture of solvents with water. (A). Dioxane-water, (B) toluene-water, (C) xylene-water, (D) toluene-xylene-water and (E) dioxane-toluene-xylene-water; Figure S70. Photographs of removal organogels solvent of urea 5d with mixture of solvents with water. (A). Dioxane-water, (B) toluene-water, (C) xylene-water, (D) toluene-xylene-water and (E) dioxane-toluene-xylene-water.

Author Contributions

G.M.-M. and B.A.B.-S. Methodology, investigation. S.G. Software. J.M.d.R. Formal analysis. Validation; writing; investigation M.C. and R.J.-J. The manuscript was written by G.M-M., M.C. and R.J.-J. and was reviewed by J.M.d.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funding by Instituto Politécnico Nacional (SIP Projects 20220578 and 20220592).

Data Availability Statement

Data are contained within the article or supplementary material.

Acknowledgments

Authors want to acknowledge to Centro de Nanociencias y Micro-Nanotecnologías (CNMN) from Instituto Politécnico Nacional.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mohar, M.; Das, T. Phenylalanine-based low-molecular-weight gelator for the removal of metal ions and dyes from wastewater. Soft Mater. 2019, 17, 328–341. [Google Scholar] [CrossRef]
  2. Bhattacharya, S.; Krishnan-Ghosh, Y. First report of phase selective gelation of oil from oil/water mixtures. Possible implications toward containing oil spills. Chem. Commun. 2001, 2, 185–186. [Google Scholar] [CrossRef]
  3. Baker, B.C.; Higgins, C.L.; Ravishankar, D.; Colquhoun, H.M.; Stevens, G.C.; Greco, F.; Greenland, B.W.; Hayes, W. Multifunctional, Biocompatible, Non-peptidic Hydrogels: From Water Purification to Drug Delivery. Chem. Select. 2016, 1, 1641–1649. [Google Scholar] [CrossRef]
  4. Yang, Z.; Gu, H.; Zhang, Y.; Wang, L.; Xu, B. Small molecule hydrogels based on a class of antiinflammatory agents. Chem. Commun. 2004, 4, 208–209. [Google Scholar] [CrossRef] [PubMed]
  5. Sáez, J.A.; Escuder, B.; Miravet, J.F. Supramolecular hydrogels for enzymatically triggered self-immolative drug delivery. Tetrahedron 2010, 66, 2614–2618. [Google Scholar] [CrossRef]
  6. Marlow, M.; Al-Ameedee, M.; Smith, T.; Wheeler, S.; Stocks, M.J. Linifanib-a multi-targeted receptor tyrosine kinase inhibitor and a low molecular weight gelator. Chem. Commun. 2015, 51, 6384–6387. [Google Scholar] [CrossRef] [Green Version]
  7. Sukegawa, H.; Nishimura, T.; Yoshio, M.; Kajiyama, S.; Kato, T. One-dimensional supramolecular hybrids: Self-assembled nanofibrous materials based on a sugar gelator and calcite developed along an unusual axis. Cryst. Eng. Comm. 2017, 19, 1580–1584. [Google Scholar] [CrossRef]
  8. Liao, S.W.; Rawson, J.; Omori, K.; Ishiyama, K.; Mozhdehi, D.; Oancea, A.R.; Ito, T.; Guan, Z.; Mullen, Y. Maintaining functional islets through encapsulation in an injectable saccharide-peptide hydrogel. Biomaterials 2013, 34, 3984–3991. [Google Scholar] [CrossRef] [Green Version]
  9. Nicodemus, G.D.; Bryant, S.J. Cell encapsulation in biodegradable hydrogels for tissue engineering applications. Tissue Eng.—Part B Rev. 2008, 14, 149–165. [Google Scholar] [CrossRef]
  10. Lee, K.Y.; Mooney, D.J. Chemical Review-Hydrogel. Chem. Rev. 2001, 101, 1869–1879. [Google Scholar] [CrossRef]
  11. Vemula, P.K.; Aslam, U.; Mallia, V.A.; John, G. In Situ synthesis of gold nanoparticles using molecular gels and liquid crystals from vitamin-C amphiphiles. Chem. Mater. 2007, 19, 138–140. [Google Scholar] [CrossRef]
  12. Kumar, P.; Kadam, M.M.; Gaikar, V.G. Low molecular weight organogels and their application in the synthesis of CdS nanoparticles. Ind. Eng. Chem. Res. 2012, 51, 15374–15385. [Google Scholar] [CrossRef]
  13. Fitch, K.R.; Goodwin, A.P. Mechanochemical reaction cascade for sensitive detection of covalent bond breakage in hydrogels. Chem. Mater. 2014, 26, 6771–6776. [Google Scholar] [CrossRef]
  14. Yamamoto, Y.; Oyanagi, A.; Miyawaki, A.; Tomioka, K. Enhancement of self-assembly and gelation ability of N,N’-didodecanoyl ethylenediamine organogelator by terminal functionalization. Tetrahedron Lett. 2016, 57, 5889–5892. [Google Scholar] [CrossRef]
  15. Luo, X.; Li, Z.; Xiao, W.; Wang, Q.; Zhong, J. Self-assembled organogels formed by monochain derivatives of ethylenediamine. J. Colloid Interface Sci. 2009, 336, 803–807. [Google Scholar] [CrossRef]
  16. Wang, X.; Liu, M. Vicinal solvent effect on supramolecular gelation: Alcohol controlled topochemical reaction and the toruloid nanostructure. Chem.—A Eur. J. 2014, 20, 10110–10116. [Google Scholar] [CrossRef]
  17. Demir-Ordu, Ö.; Şimşir, H.; Alper, K. Synthesis of bis[N-(p-aryl)-carbamoyloxy]alkanes as new low-molecular weight organogelators. Tetrahedron 2015, 71, 1529–1539. [Google Scholar] [CrossRef]
  18. Bacsik, Z.; Zhang, P.; Hedin, N. Ammonium-carbamate-rich organogels for the preparation of amorphous calcium carbonates. Minerals 2017, 7, 110. [Google Scholar] [CrossRef] [Green Version]
  19. Lascialfari, L.; Pescitelli, G.; Brandi, A.; Mannini, M.; Berti, D.; Cicchi, S. Urea vs. carbamate groups: A comparative study in a chiral C 2 symmetric organogelator. Soft Matter 2015, 11, 8333–8341. [Google Scholar] [CrossRef]
  20. Hou, X.; Butz, J.; Chen, J.; Wang, Z.D.; Zhao, J.X.; Shiu, T.; Chu, Q.R. Low molecular weight organogelators derived from threefold symmetric tricarbamates. Tetrahedron Lett. 2017, 58, 101–105. [Google Scholar] [CrossRef] [Green Version]
  21. Sone, E.D.; Stupp, S.I. Bioinspired Magnetite Mineralization of Peptide À Amphiphile Nanofibers. Chem. Mater. 2011, 23, 2005–2007. [Google Scholar] [CrossRef]
  22. Mathiselvam, M.; Loganathan, D.; Varghese, B. Synthesis and characterization of thiourea- and urea-linked glycolipids as low-molecular-weight hydrogelators. RSC Adv. 2013, 3, 14528–14542. [Google Scholar] [CrossRef]
  23. Goyal, N.; Cheuk, S.; Wang, G. Synthesis and characterization of d-glucosamine-derived low molecular weight gelators. Tetrahedron 2010, 66, 5962–5971. [Google Scholar] [CrossRef]
  24. Wang, G.; Goyal, N.; Mangunuru, H.P.R.; Yang, H.; Cheuk, S.; Reddy, P.V.N. Preparation and self-assembly study of amphiphilic and bispolar diacetylene-containing glycolipids. J. Org. Chem. 2015, 80, 733–743. [Google Scholar] [CrossRef]
  25. Minakuchi, N.; Hoe, K.; Yamaki, D.; Ten-No, S.; Nakashima, K.; Goto, M.; Mizuhata, M.; Maruyama, T. Versatile supramolecular gelators that can harden water, organic solvents and ionic liquids. Langmuir 2012, 28, 9259–9266. [Google Scholar] [CrossRef] [PubMed]
  26. Nanofibers, C. Nanotube Formation from Renewable Resources. Adv. Mater. 2001, 13, 715–718. [Google Scholar]
  27. Kamiya, S.; Minamikawa, H.; Jung, J.H.; Yang, B.; Masuda, M.; Shimizu, T. Molecular Structure of Glucopyranosylamide Lipid and Nanotube Morphology. Langmuir 2005, 21, 743–750. [Google Scholar] [CrossRef]
  28. Ressouche, E.; Pensec, S.; Isare, B.; Ducouret, G.; Bouteiller, L. Rational Design of Urea-Based Two-Component Organogelators. ACS Macro Lett. 2016, 5, 244–247. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Foster, J.A.; Edkins, R.M.; Cameron, G.J.; Colgin, N.; Fucke, K.; Ridgeway, S.; Crawford, A.G.; Marder, T.B.; Beeby, A.; Cobb, S.L.; et al. Blending gelators to tune gel structure and probe anion-induced disassembly. Chem.—A Eur. J. 2014, 20, 279–291. [Google Scholar] [CrossRef] [Green Version]
  30. Tsuge, A.; Fujiwara, T.; Yakeya, D.; Kawasaki, H.; Moriguchi, T.; Araki, K. Organogelators based on metacyclophane skeleton having urea units in the bridge. Tetrahedron 2015, 71, 9429–9432. [Google Scholar] [CrossRef]
  31. Yamanaka, M. Development of C 3 -Symmetric Tris- Urea Low-Molecular-Weight Gelators. Chem. Rec. 2016, 16, 768–782. [Google Scholar] [CrossRef] [PubMed]
  32. Wezenberg, S.J.; Croisetu, C.M.; Stuart, M.C.A.; Feringa, B.L. Reversible gel-sol photoswitching with an overcrowded alkene-based bis-urea supergelator. Chem. Sci. 2016, 7, 4341–4346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Kim, J.U.; Schollmeyer, D.; Brehmer, M.; Zentel, R. Simple chiral urea gelators, (R)- and (S)-2-heptylurea: Their gelling ability enhanced by chirality. J. Colloid Interface Sci. 2011, 357, 428–433. [Google Scholar] [CrossRef] [PubMed]
  34. Fages, F.; Vögtle, F.; Zinic, M. Systematic design of amide- and urea-type gelators with tailored properties. Top. Curr. Chem. 2005, 256, 77–131. [Google Scholar]
  35. Hardy, J.G.; Hirst, A.R.; Ashworth, I.; Brennan, C.; Smith, D.K. Exploring molecular recognition pathways within a family of gelators with different hydrogen bonding motifs. Tetrahedron 2007, 63, 7397–7406. [Google Scholar] [CrossRef] [Green Version]
  36. Hu, L.; Zhang, Y.; Ramström, O. Gelation-driven Dynamic Systemic Resolution: In situ Generation and Self-Selection of an Organogelator. Sci. Rep. 2015, 5, 1–6. [Google Scholar] [CrossRef] [Green Version]
  37. Smith, M.M.; Edwards, V.; Smith, D.K. Self-organisation effects in dynamic nanoscale gels self-assembled from simple mixtures of commercially available molecular-scale components. Chem. Sci. 2013, 4, 671–676. [Google Scholar] [CrossRef]
  38. Ohsedo, Y.; Miyamoto, M.; Watanabe, H.; Oono, M.; Tanaka, A. Alkylhydrazide derivatives as new organogelators and their potential ability to gel electrolytes. Bull. Chem. Soc. Jpn. 2013, 86, 671–673. [Google Scholar] [CrossRef] [Green Version]
  39. Zhao, C.; Wang, H.; Bai, B.; Qu, S.; Song, J.; Ran, X.; Zhang, Y.; Li, M. Organogels from unsymmetrical π -conjugated 1,3,4-oxadiazole derivatives. New J. Chem. 2013, 37, 1454–1460. [Google Scholar] [CrossRef]
  40. Hoque, J.; Akkapeddi, P.; Yarlagadda, V.; Uppu, D.S.S.M.; Kumar, P.; Haldar, J. Cleavable cationic antibacterial amphiphiles: Synthesis, mechanism of action, and cytotoxicities. Langmuir 2012, 28, 12225–12234. [Google Scholar] [CrossRef]
  41. Guo, M.; Cao, X.; Meijer, E.W.; Dankers, P.Y.W. Core-Shell Capsules Based on Supramolecular Hydrogels Show Shell-Related Erosion and Release Due to Confinement. Macromol. Biosci. 2013, 13, 77–83. [Google Scholar] [CrossRef] [PubMed]
  42. Ohkawabata, S.; Kanemaru, M.; Kuawahara, S.Y.; Yamamoto, K.; Kadokawa, J.I. Synthesis of 6-O-hexadecyl-and 6-O-octylsucroses and their self-assembling properties under aqueous conditions. J. Carbohydr. Chem. 2012, 31, 659–672. [Google Scholar] [CrossRef]
  43. Shimizu, T.; Masuda, M.; Minamikawa, H. Supramolecular nanotube architectures based on amphiphilic molecules. Chem. Rev. 2005, 105, 1401–1443. [Google Scholar] [CrossRef]
  44. Sangeetha, N.M.; Maitra, U. Supramolecular gels: Functions and use. Chem. Soc. Rev. 2005, 34, 821–836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Balamurugan, R.; Zhang, Y.S.; Fitriyani, S.; Liu, J.H. Click chemistry-assisted, bis-cholesteryl-appended, isosorbide-based, dual-responsive organogelators and their self-assemblies. Soft Matter 2016, 12, 5214–5223. [Google Scholar] [CrossRef] [PubMed]
  46. Curcio, P.; Allix, F.; Pickaert, G.; Jamart-grøgoire, B.A. Favorable narrow, δh Hansen-parameter domain for gelation of low- molecular-weight amino acid derivatives. Chem.—Eur. J. 2011, 17, 13603–13612. [Google Scholar] [CrossRef]
  47. Zhu, G.; Dordick, J.S. Solvent effect on organogel formation by low molecular weight molecules. Chem. Mater. 2006, 18, 5988–5995. [Google Scholar] [CrossRef]
  48. Abraham, M.H.; Taft, R.W. Linear solvation energy relationships. 23. A comprehensive collection of the solvatochromic parameters. J. Org. Chem. 1983, 48, 2877–2887. [Google Scholar]
  49. Wang, R.; Geiger, C.; Chen, L.; Swanson, B.; Whitten, D.G. Direct observation of sol—Gel conversion: The role of the solvent in organogel formation. J. Am. Chem. Soc. 2000, 122, 2399–2400. [Google Scholar] [CrossRef]
  50. Sakurai, K.; Jeong, Y.; Koumoto, K.; Friggeri, A.; Gronwald, O.; Sakurai, S.; Okamoto, S.; Inoue, K. Supramolecular structure of a sugar-appended organogelator explored with synchrotron X-ray small-angle scattering. Langmuir 2003, 19, 8211–8217. [Google Scholar] [CrossRef]
  51. Keller, A. Aspects of polymer gels. Faraday Discuss. 1995, 101, 1–49. [Google Scholar] [CrossRef]
  52. Hoek, E. Introductory lecture. In Proceedings of the 6th ISRM Congress of the International Society for Rock Mechanics, Montreal, QC, Canada, 30 August–3 September; 1987; Volume 1987, pp. 1357–1362. [Google Scholar]
  53. Yang, L.; Adam, C.; Cockroft, S.L. Quantifying solvophobic effects in nonpolar cohesive interactions. J. Am. Chem. Soc. 2015, 137, 10084–10087. [Google Scholar] [CrossRef] [PubMed]
  54. Abdallah, D.J.; Weiss, R.G. n-Alkanes gel n-alkanes (and many other organic liquids). Langmuir 2000, 16, 352–355. [Google Scholar] [CrossRef]
  55. Seiffert, S.; Sprakel, J. Physical chemistry of supramolecular polymer networks. Chem. Soc. Rev. 2012, 41, 909–930. [Google Scholar] [CrossRef]
  56. Ahmadi, M.; Hawke, L.G.D.; Goldansaz, H.; Van Ruymbeke, E. Dynamics of entangled linear supramolecular chains with sticky side groups: Influence of hindered fluctuations. Macromolecules 2015, 48, 7300–7310. [Google Scholar] [CrossRef]
  57. Zhou, X.; Jin, Q.; Zhang, L.; Shen, Z.; Jiang, L.; Liu, M. Self-assembly of hierarchical chiral nanostructures based on metal-benzimidazole interactions: Chiral nanofibers, nanotubes, and microtubular flowers. Small 2016, 12, 4743–4752. [Google Scholar] [CrossRef]
  58. Estroff, L.A.; Hamilton, A.D. Water gelation by small organic molecules. Chem. Rev. 2014, 104, 1201–1217. [Google Scholar] [CrossRef]
  59. World Health Organization (WHO). Recommended Health-Based Limits in Occupational Exposure to Selected Organic Solvents; WHO: Geneva, Switzerland, 1981; pp. 1–84. [Google Scholar]
  60. Fedorov, A.V.; Cable, J.R.; Carey, J.R.; Zwier, S. Infrared spectroscopy of H-bonded bridges stretched across the cis-amide group: II. Ammonia and mixed ammonia/water bridges. J. Phys. Chem. A 2001, 105, 8162–8175. [Google Scholar] [CrossRef]
  61. Xue, P.; Lu, R.; Li, D.; Jin, M.; Tan, C.; Bao, C.; Wang, Z.; Zhao, Y. Novel CuS nanofibers using organogel as a template: Controlled by binding sites. Langmuir 2004, 20, 11234–11239. [Google Scholar] [CrossRef]
  62. Aggeli, A.; Nyrkova, I.A.; Bell, M.; Harding, R.; Carrick, L.; McLeish, T.C.B.; Semenov, A.N.; Boden, N. Hierarchical self-assembly of chiral rod-like molecules as a model for peptide β-sheet tapes, ribbons, fibrils, and fibers. Proc. Natl. Acad. Sci. USA 2001, 98, 1–6. [Google Scholar] [CrossRef] [Green Version]
  63. Yang, H.-K.; Zhang, C.; He, X.-N.; Wang, P.-Y. Effects of alkyl chain lengths on 12-hydroxystearic acid derivatives based supramolecular organogels. Colloids Surf. A 2021, 616, 126319. [Google Scholar] [CrossRef]
  64. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  65. Baryshnikov, G.V.; Valiev, R.R.; Li, Q.; Li, C.; Xie, Y.; Ågren, H. Computational study of aromaticity, 1H NMR spectra and intermolecular interactions of twisted thia-norhexaphyrin and its multiply annulated polypyrrolic derivatives. Phys. Chem. Chem. Phys. 2019, 21, 25334–25343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Piana, F.; Case, D.H.; Ramalhete, S.M.; Pileio, G.; Facciotti, M.; Day, G.M.; Khimyak, Y.Z.; Angulo, J.; Brown, R.C.D.; Gale, P.A. Substituent interference on supramolecular assembly in urea gelators: Synthesis, structure prediction and NMR. Soft Matter 2016, 12, 4034–4043. [Google Scholar] [CrossRef] [Green Version]
  67. Yesiltepe, Y.; Nuñez, J.R.; Colby, S.M.; Thomas, D.G.; Borkum, M.I.; Reardon, P.N.; Washton, N.M.; Metz, T.O.; Teeguarden, J.G.; Govind, N.; et al. An automated framework for NMR chemical shift calculations of small organic molecules. J. Cheminform. 2018, 10, 1–16. [Google Scholar] [CrossRef]
  68. Martínez-Mejía, G.; Vázquez-Torres, N.A.; Castell-Rodríguez, A.; del Río, J.M.; Corea, M.; Jiménez-Juárez, R. Synthesis of new chitosan-glutaraldehyde scaffolds for tissue engineering using Schiff reactions. Colloids Surf. A Physicochem. Eng. Asp. 2019, 579, 123658. [Google Scholar] [CrossRef]
  69. De Godoi, K.R.R.; Basso, R.C.; Ming, C.C.; da Silva, V.M.; da Cunha, R.L.; Barrera-Arellano, D.; Ribeiro, A.P.B. Physicochemicaland rheological properties of soybean organogels: Interactions between different structuring agents. Food Res. Int. 2019, 124, 108475. [Google Scholar] [CrossRef]
  70. Gökçe, E.H.; Yurdasiper, A.; Korkmaz, E.; Özer, Ö. A novel preparation method for organogels: High-speed homogenization and micro-irradiation. AAPS PharmSciTech. 2013, 14, 391–397. [Google Scholar] [CrossRef] [Green Version]
  71. Ojeda-Serna, I.E.; Rocha-Guzmán, N.E.; Gallegos-Infante, J.A.; Cháirez-Ramírez, M.H.; Rosas-Flores, W.; Pérez-Martínez, J.D.; Moreno-Jiménez, M.R.; González-Laredo, R.F. Water-in-oil organogel based emulsions as a tool for increasing bioaccessibility and cell permeability of poorly water-soluble nutraceuticals. Food Res. Int. 2019, 120, 415–424. [Google Scholar] [CrossRef]
  72. Michler, G.H. Preparation of Surfaces in Electron Microscopy of Polymers; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  73. Aston, R.; Sewell, K.; Klein, T.; Lawrie, G.; Grondahl, L. Evaluation of the impact of freezing preparation techniques on the characterization of alginate hydrogels by cryo-SEM. Eur. Polym. J. 2016, 82, 1–15. [Google Scholar] [CrossRef] [Green Version]
  74. Becke, A.D. A new mixing of Hartree–Fock and local density-functional theories. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
Gels 08 00440 g001 550

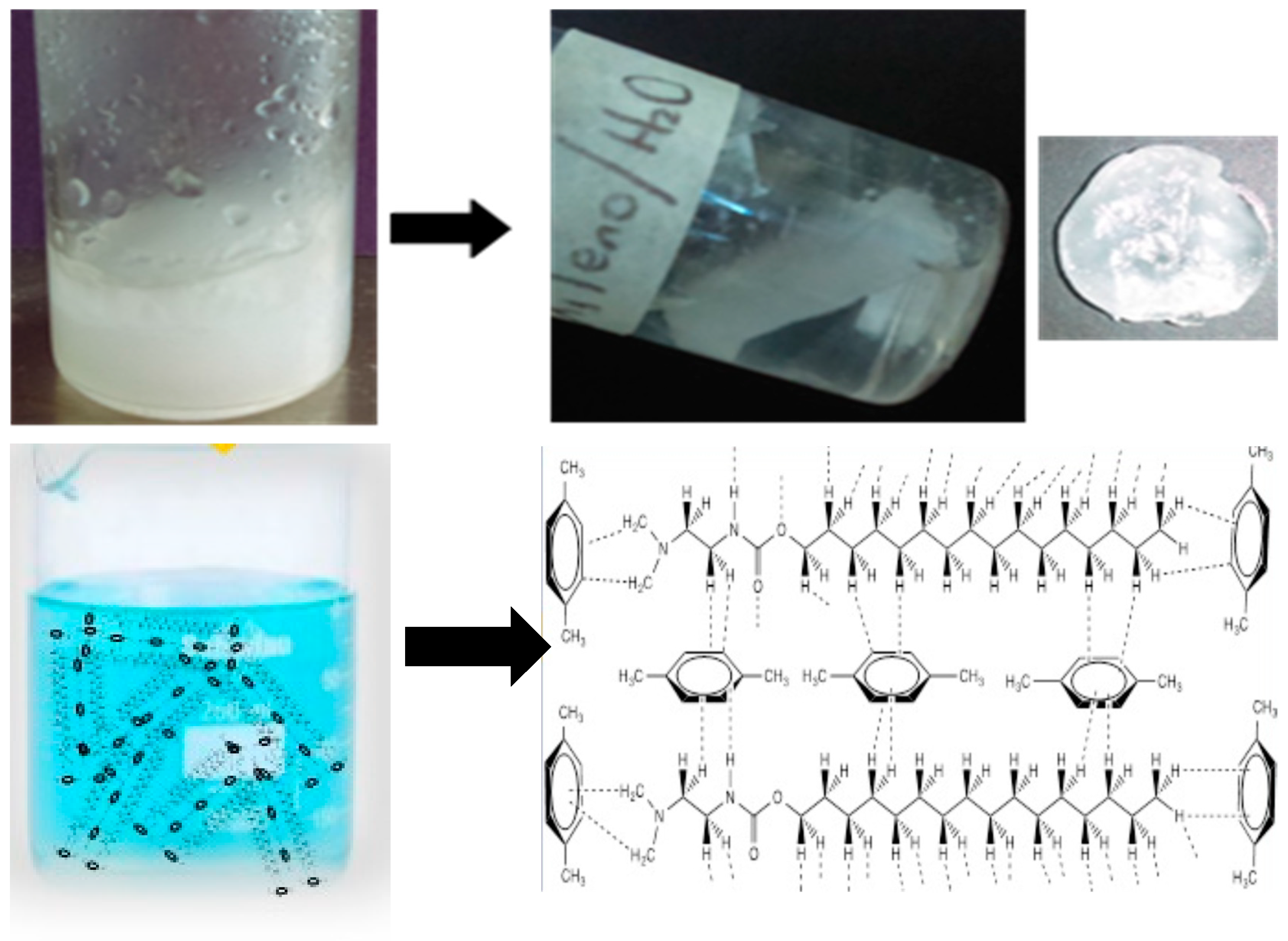

Figure 1. Scheme of formation of the gel and the subsequent removal of organic solvents.
Figure 1. Scheme of formation of the gel and the subsequent removal of organic solvents.
Gels 08 00440 g001
Gels 08 00440 g002 550

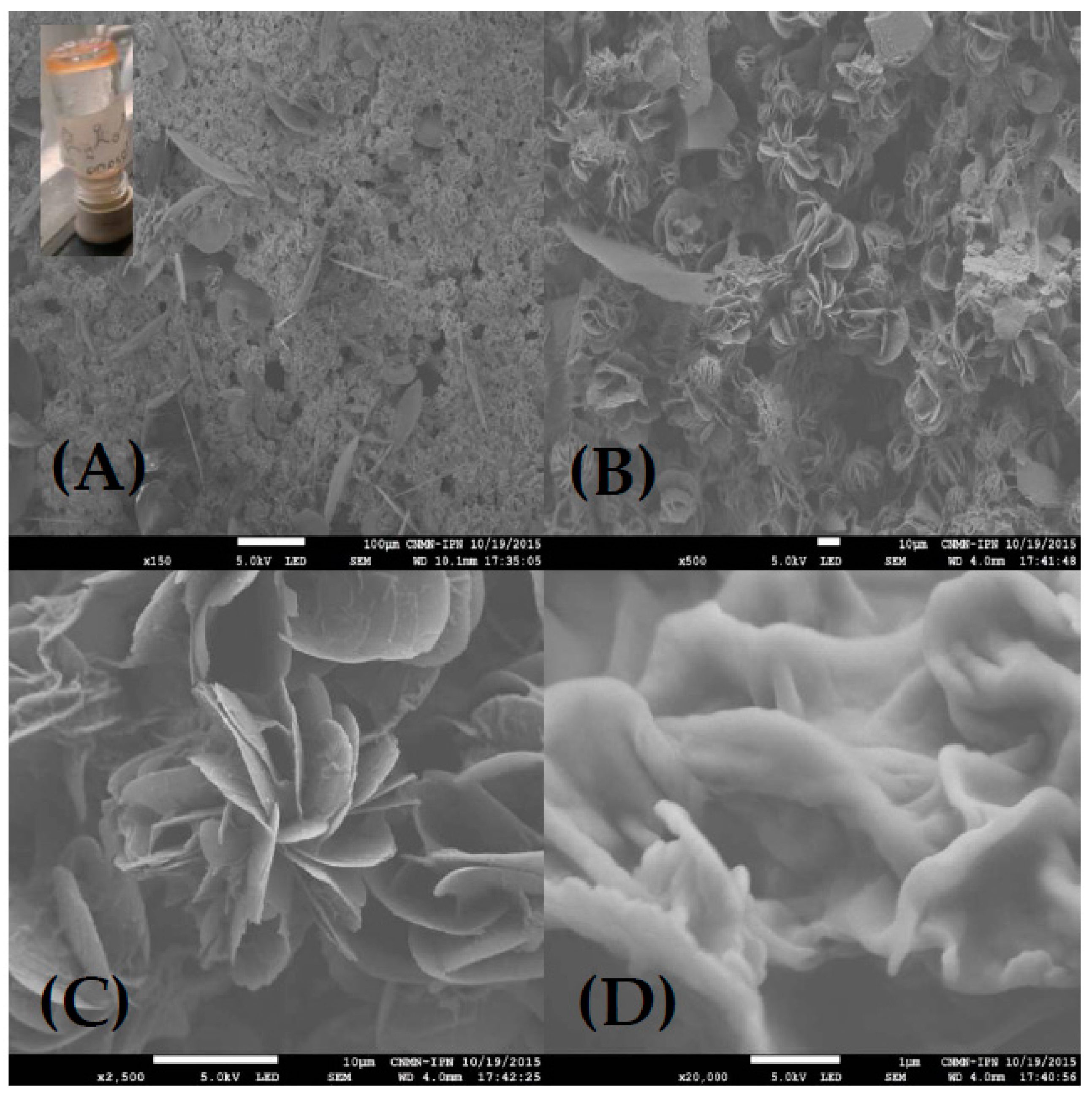

Figure 2. Micrographs of 3c carbamate with 1,4-dioxane: (A) × 150, (B) × 500, (C) × 2500 and (D) × 20,000.
Figure 2. Micrographs of 3c carbamate with 1,4-dioxane: (A) × 150, (B) × 500, (C) × 2500 and (D) × 20,000.
Gels 08 00440 g002
Gels 08 00440 g003 550
Figure 3. Micrographs of 5c urea with 1,4-dioxane: (A) × 500, (B) × 2500, (C) × 5000 and (D) × 20,000.
Figure 3. Micrographs of 5c urea with 1,4-dioxane: (A) × 500, (B) × 2500, (C) × 5000 and (D) × 20,000.
Gels 08 00440 g003
Gels 08 00440 g004 550
Figure 4. Linear correlation plots of 1H chemical shifts values of organogels with 5d urea and 3d carbamate.
Figure 4. Linear correlation plots of 1H chemical shifts values of organogels with 5d urea and 3d carbamate.
Gels 08 00440 g004
Gels 08 00440 g005 550
Figure 5. Frequency sweeps for organogels made with 5d urea (U) and 3d carbamate (C), XA-xylene-water, TDXA-toluene-dioxane-xylene-water, TXA-toluene-xylene-water and TA- toluene-water.
Figure 5. Frequency sweeps for organogels made with 5d urea (U) and 3d carbamate (C), XA-xylene-water, TDXA-toluene-dioxane-xylene-water, TXA-toluene-xylene-water and TA- toluene-water.
Gels 08 00440 g005
Gels 08 00440 g006 550
Figure 6. Apparent viscosity (η) as a function of shear rate (γ) for organogels of urea 5d (■) and carbamate 3d (☐) with mixture of solvents with water. Urea (U) and carbamate (C). Xylene-water (X-A), toluene- water (T-A), toluene-xylene-water (T-X-A) and toluene-dioxane-xylene-water (T-D-X-A).
Figure 6. Apparent viscosity (η) as a function of shear rate (γ) for organogels of urea 5d (■) and carbamate 3d (☐) with mixture of solvents with water. Urea (U) and carbamate (C). Xylene-water (X-A), toluene- water (T-A), toluene-xylene-water (T-X-A) and toluene-dioxane-xylene-water (T-D-X-A).
Gels 08 00440 g006
Gels 08 00440 sch001 550

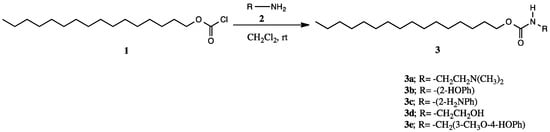

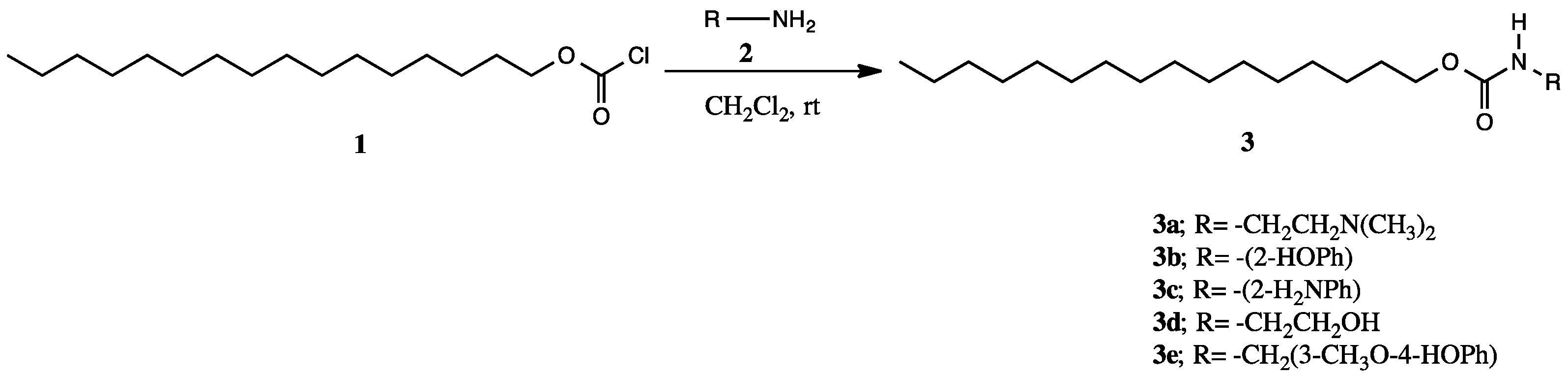

Scheme 1. Synthesis of carbamates 3 starting from hexadecyl chloroformate 1 and amines 2.
Scheme 1. Synthesis of carbamates 3 starting from hexadecyl chloroformate 1 and amines 2.
Gels 08 00440 sch001
Gels 08 00440 sch002 550
Scheme 2. Synthesis of ureas 5 starting from hexadecyl isocyanate 4 and amines 2.
Scheme 2. Synthesis of ureas 5 starting from hexadecyl isocyanate 4 and amines 2.
Gels 08 00440 sch002
Table
Table 1. Results of organic solvents removal (toluene, xylene and 1,4-dioxane) in water.
Table 1. Results of organic solvents removal (toluene, xylene and 1,4-dioxane) in water.
Carbamate CompoundUrea Compound
MixtureSolvent (g)Water (g)3d
(g)		Removal Efficiency (%)Solvent (g)Water (g)5d
(g)		Removal
Efficiency (%)
D-W0.23532.80360.01590.00.232.07830.02080.0
T-W0.48842.34950.020128.000.41242.31600.170680.18
X-W0.76713.24310.025282.530.73173.12730.015092.72
T-X-W0.88191.29580.025858.950.09231.25840.021590.72
D-T-X-W1.35221.00930.025662.401.36141.01470.012473.12
D = Dioxane; X = Xylene; T = Toluene; W= Water.
Table
Table 2. Results of the evaluation of the traces of the organic solvents in water before and after the treatment with 3d and 5d.
Table 2. Results of the evaluation of the traces of the organic solvents in water before and after the treatment with 3d and 5d.
Carbamate Compound 3dUrea Compound 5d
MixtureGravimetry Removal Efficiency (%)FT-IR
Removal Efficiency (%)		Gravimetry Removal Efficiency (%)FT-IR
Removal Efficiency (%)
T-W28.0019.3080.1880.70
X-W82.5379.392.7289.80
T-X-W58.9558.790.7290.40
D-T-X-W62.4064.9073.1265.40
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martínez-Mejía, G.; Bermeo-Solórzano, B.A.; González, S.; del Río, J.M.; Corea, M.; Jiménez-Juárez, R. New Carbamates and Ureas: Comparative Ability to Gel Organic Solvents. Gels 2022, 8, 440. https://doi.org/10.3390/gels8070440

AMA Style

Martínez-Mejía G, Bermeo-Solórzano BA, González S, del Río JM, Corea M, Jiménez-Juárez R. New Carbamates and Ureas: Comparative Ability to Gel Organic Solvents. Gels. 2022; 8(7):440. https://doi.org/10.3390/gels8070440

Chicago/Turabian Style

Martínez-Mejía, Gabriela, Brenda Afrodita Bermeo-Solórzano, Silvia González, José Manuel del Río, Mónica Corea, and Rogelio Jiménez-Juárez. 2022. "New Carbamates and Ureas: Comparative Ability to Gel Organic Solvents" Gels 8, no. 7: 440. https://doi.org/10.3390/gels8070440

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
