Article

Facile Enhancement of Electrochemical Performance of Solid-State Supercapacitor via Atmospheric Plasma Treatment on PVA-Based Gel-Polymer Electrolyte

by
Dong-Hyun Kim
1,†,
Suk Jekal
1,†,
Chan-Gyo Kim
1,
Yeon-Ryong Chu
1,
Jungchul Noh
2,
Min Sang Kim
1,
Neunghi Lee
1,
Woo-Jin Song
3,4,5 and
Chang-Min Yoon
1,*
1
Department of Chemical and Biological Engineering, Hanbat National University, Daejeon 34158, Republic of Korea
2
McKetta Department of Chemical Engineering and Texas Material Institute, The University of Texas at Austin, Austin, TX 78712, USA
3
Department of Polymer Science and Engineering, Chungnam National University, Daejeon 34134, Republic of Korea
4
Department of Chemical Engineering and Applied Chemistry, Chungnam National University, Daejeon 34134, Republic of Korea
5
Department of Organic Materials Engineering, Chungnam National University, Daejeon 34134, Republic of Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Gels 2023, 9(4), 351; https://doi.org/10.3390/gels9040351
Submission received: 30 March 2023 / Revised: 13 April 2023 / Accepted: 20 April 2023 / Published: 21 April 2023
(This article belongs to the Special Issue Advances in Gel-Based Devices and Flexible Electronics)
Browse Figures
Versions Notes

Abstract

:
A facile oxygen (O2) atmospheric plasma treatment is applied to a polyvinyl alcohol (PVA) matrix to enhance its wettability and hydrophilicity. The optimal plasma treatment conditions are determined by varying the applied plasma power and plasma treatment time. A PVA matrix treated with a plasma power of 120 W for 5 s shows the most hydrophilicity owing to successful formation of carbonyl (–CO, >C=O) functional groups without any structural degradation. The plasma-treated PVA matrix is used as the gel-polymer electrolyte of a solid-state supercapacitor (SSC) by immersing solid matrix into various liquid electrolytes, such as sodium sulfate (Na2SO4), sulfuric acid (H2SO4), and potassium hydroxide (KOH). Compared with the pristine PVA-based device, PVA-120W5/Na2SO4-, PVA-120W5/H2SO4-, and PVA-120W5/KOH-based SSCs show 2.03, 2.05, and 2.14 times higher specific capacitances, respectively. The plasma-treated PVA matrix shows increased specific capacitance owing to the increased wettability, which in turn increases the ion transportation and reduces the electrical resistance. This study successfully demonstrates that the electrochemical performance of a SSC can be readily enhanced through plasma treatment for a short time (≤5 s).

Graphical Abstract

1. Introduction

Energy storage devices, such as supercapacitors (SCs) and batteries, are widely used in hybrid and electric vehicles, renewable energy systems, and various electronic devices [1,2]. SCs provide several benefits over batteries, such as rapid charge/discharge rates, long-term cyclability, and high power density [3]. In particular, solid-state supercapacitors (SSCs) are expected to be used in future energy storage devices that are increasingly demanded for flexible, wearable, and portable devices [4]. An SC typically consists of two electrodes (one positive and one negative), a separator, and an electrolyte [5]. Various materials including carbon, transition metal oxides, and conductive polymers can be used as active materials for electrodes [6]. The electrolyte determines the interfacial resistance at the electrode interface, as well as the ionic conductivity, and thus, it is a key factor affecting the SC performance [7,8]. SSCs employ gel or solid electrolytes instead of liquid ones because they offer superior mechanical durability, thermal stability, outstanding electrochemical performance, and a flexible form factor [9,10].
In SSCs, various materials such as polymers, ceramics, and composite materials have been used as gel electrolytes [11,12]. Among them, gel-polymer electrolytes, with their advantages over liquid electrolytes, such as mechanical stability, high ion conductivity, and safety, have received widespread attention as a key component in electrochemical energy storage devices, including SCs and batteries [13,14,15]. Polymers, such as polyvinyl alcohol (PVA), polyvinylidene fluoride (PVDF), polyolefin, and polymethyl methacrylate (PMMA), are used most commonly, because of their chemical stability, ease of production, and low cost [16,17,18,19]. When dissolved in a water-soluble solvent, polymers can be gelated to form a gel-polymer electrolyte [20,21]. In particular, PVA is widely used for synthesizing gel-polymer electrolytes owing to its high ionic conductivity, flexibility, mechanical/thermal stability, and nontoxicity [22,23,24]. Moreover, PVA can be simply modified by introducing other functional groups, making it a versatile material for gel-polymer electrolyte applications [25]. The functional groups of PVA-based electrolytes can be conveniently adjusted using various physical and chemical techniques, including plasma treatment [26,27].
Plasma treatment is a simple process in which the surface properties of a material are modified using ionized gas without impacting the bulk properties [28,29]. By selecting appropriate gases, desired characteristics including wettability, adhesion, and biocompatibility can be conferred on the material surface [30,31]. Plasma treatment can be performed in a vacuum or using atmospheric plasma [32]. In a vacuum, the low pressure allows the plasma to be modified and functionalized more precisely by using various gases, such as oxygen (O), nitrogen (N), and fluorine (F) [33,34,35]. Compared with vacuum plasma, atmospheric plasma affords advantages, such as ease of operation, quickness, safety, and mass production [36,37]. Furthermore, atmospheric plasma activates near atmospheric pressure, making the process more convenient and less expensive to operate [38].
In particular, O2 atmospheric plasma treatment has attracted much attention because it can effectively enhance the wettability and adhesion of a target material [39,40]. Inherently hydrophobic materials, such as polymers, can be made hydrophilic by introducing hydroxyl (–OH) and carbonyl (–CO and >C=O) functional groups generated by O2 atmospheric plasma treatment [41,42]. In electrochemistry, surface modification is considered highly important because low wettability or adhesion of the active material, electrode, electrolyte, and separator can cause a high electrical resistance that degrades the electrochemical performance [43]. Some studies have investigated the enhancement of separator adhesion to electrodes in secondary batteries via O2 plasma treatment. For instance, Li et al. successfully generated various electronegative oxygenic functional groups such as carbonyl and hydroxyl on the separator surface via O2 plasma treatment and thereby enhanced the electrochemical performance of a Li-S battery [44]. Jin et al. improved the adhesion between a polyethylene separator and an electrode via the surface modification of the separator by O2 plasma treatment and thereby enhanced the electrochemical performance of a Li battery [45]. Such treatment promotes the movement of ions and ensures stable adhesion with the electrode to lower the electrical resistance, thereby improving the overall battery performance [46,47]. However, most of plasma treatment employed electrochemical studies were focusing on the fields of secondary batteries. There were some studies regarding the enhancement of electrochemical performance of supercapacitors, but previous studies were concentrated in the treatment on active material and electrode [48,49,50]. In this regard, there is necessity for a better understanding of plasma effects and related electrochemical performance on gel or solid electrolytes.
In this study, a PVA-based gel-polymer electrolyte (pristine PVA) was synthesized by the simple gelation of a PVA solution. To improve the electrochemical performance, the surface of the gel-polymer electrolyte was then functionalized through fast and effective O2 atmospheric plasma treatment (plasma-treated PVA). By controlling the intensity of the applied plasma power from 80 to 160 W (referred to as PVA-80W5, PVA-100W5, PVA-120W5, PVA-140W5, and PVA-160W5) and the treatment time from 5 to 25 s (referred to as PVA-120W5, PVA-120W10, PVA-120W15, PVA-120W20, and PVA-120W25), an applied power of 120 W and treatment time of 5 s (PVA-120W5) were identified to be the most effective conditions for introducing oxygen functional groups without causing polymer decomposition. The SSCs were then assembled using C/MnO2 and C/Fe2O3 as the positive and negative electrodes, respectively. Next, 1.0 M Na2SO4 was applied to the plasma-treated PVA (PVA-120W5/Na2SO4). The PVA-120W5/Na2SO4-based SSC showed a specific capacitance of ca. 7.89 mF cm−2 at 100 mV s−1; this was 2.03 times higher than that of a pristine PVA/Na2SO4-based device (i.e., 3.89 mF cm−2). The plasma-treated PVA matrix was further immersed into liquid electrolytes of 1.0 M H2SO4 and 1.0 M KOH. The PVA-120W5/H2SO4- and PVA-120W5/KOH-based SSCs exhibited 2.05 and 2.14 times higher capacitances, respectively, than that of their corresponding pristine PVA-based devices. In this manner, hydrophilic functional groups were successfully introduced to the PVA-based gel-polymer electrolyte using facile O2 atmospheric plasma treatment within a short time (≤5 s), and consequently, the electrochemical performance for SC applications was enhanced.

2. Results and Discussion

2.1. Fabrication of Plasma-Treated PVA-Based Gel-Polymer Electrolyte (Plasma-Treated PVA)

Figure 1 illustrates the process of O2 atmospheric plasma treatment of pristine PVA. The pristine PVA was fabricated via a simple gelation method. PVA powder was dissolved in deionized (DI) water with vigorous stirring to form a gel-like solution. PVA can be dissolved in a water-soluble solvent owing to the presence of hydrophilic groups, such as –OH (hydroxyl). Subsequently, pristine PVA was successfully synthesized by drop-casting the PVA solution followed by a drying process. O2 plasma treatment was then performed to enhance the wettability of pristine PVA by introducing hydrophilic groups, such as –CO and >C=O (carbonyl groups). The applied plasma power was varied in the range of 80–160 W for 5 s to determine the appropriate condition for introducing the hydrophilic groups. After confirming the applied plasma power, the treatment time was varied in the range of 5–25 s to determine the optimal condition for enhancing the wettability.
Optical microscopy (OM) analysis was conducted to investigate the surface conditions of pristine and various plasma-treated PVA matrices (Figure 2). In case of pristine PVA, flat surface was observed without any damages [51]. On the other hand, damaged surfaces by thermal deformation were clearly discovered for all plasma-treated PVA matrices. In specific, thermal energies of plasma treatment have left the brownish scorched damages on the surface and damages have increased with the applied power of plasma [52]. Additionally, scanning electron microscopy (SEM) was conducted to verify the surface conditions of each plasma-treated PVA (Figure S1). Similar to the results of OM images, surface damages were observed for the various plasma-treated PVA matrices.
Fourier-transform infrared (FT-IR) analysis was conducted for pristine and plasma-treated PVA matrices to further investigate the changes in their molecular composition after plasma treatment (Figure 3). First, pristine and plasma-treated PVA with applied plasma powers of 80–160 W for 5 s were examined, as shown in Figure 3a. In all cases, characteristic peaks corresponding to the O–H, C=O, and C–O stretching vibrations and C–C stretching vibration were observed at 3290, 1730, 1086, and 842 cm−1, respectively [53,54,55,56]. Additionally, minor peaks with low intensities were detected for C–H stretching, C–H bending, and O–H bending at 2932, 1424, and 1325 cm−1, respectively [56,57,58]. As the applied plasma power was increased up to 120 W, the absorbance of hydrophilic groups such as O–H, C=O, and C–O increased whereas that of the C–C group decreased [59,60]. As the applied plasma power was increased beyond 120 W, the absorbance of hydrophilic groups decreased, suggesting the structural deformation of the PVA matrix. Based on the FT-IR analysis, the optimal power for the surface modification of PVA through plasma treatment were determined to be 120 W.
To further optimize the condition of most hydrophilic functional groups, the plasma treatment time was varied as 5, 10, 15, 20, and 25 s (listed as PVA-120W#seconds), while maintaining the applied plasma power of 120 W (Figure 3b). The absorbance of O–H, C=O, and C–O groups was the highest when the plasma treatment time was 5 s. As the plasma treatment time was increased beyond 5 s, the absorbance of hydrophilic groups decreased, causing the structural deformation of PVA. Therefore, the optimal conditions to prepare the most hydrophilic plasma-treated PVA matrix were determined to be an applied plasma power of 120 W and treatment time of 5 s.

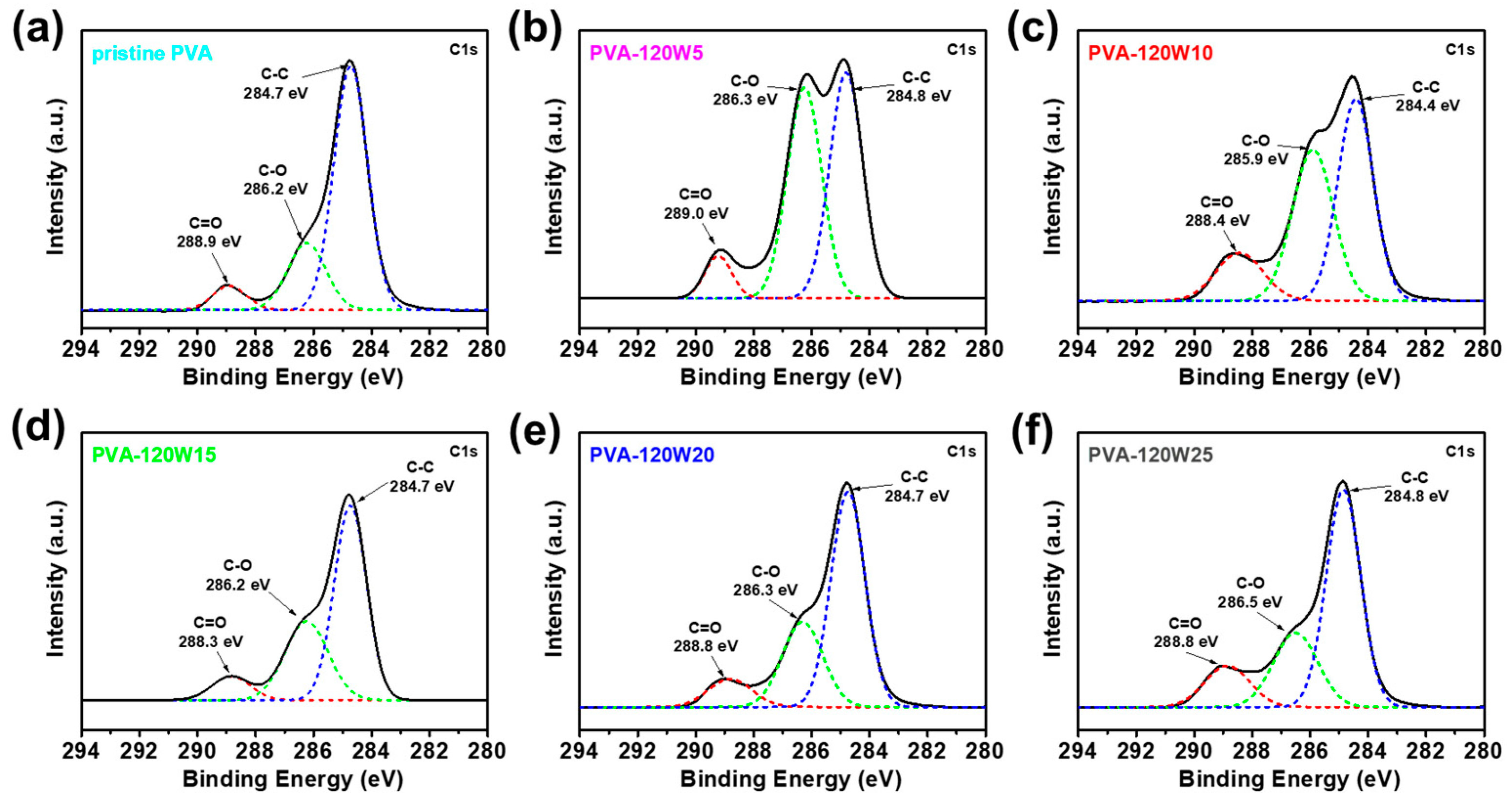

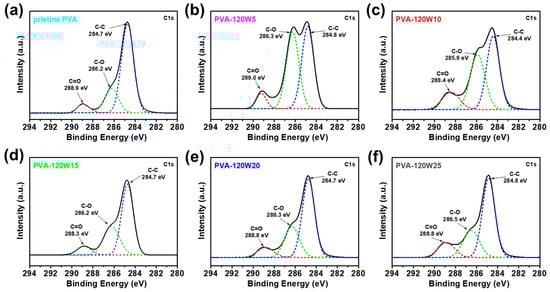

X-ray photoelectron spectroscopy (XPS) analysis was performed to investigate the molecular characteristics of pristine and plasma-treated PVA matrices with plasma treatment times of 5–25 s, as shown in Figure 4. As discussed previously, the optimized plasma treatment power of 120 W resulted in the most hydrophilic functional groups without structural deformation. In the C 1s spectra, C–C, C–O, and C=O bonds were detected at approximately 284.7, 286.9, and 289.0 eV for all samples, respectively [61]. In pristine PVA, the intensity of the C–C peak dominated those of carbonyl groups such as C–O and C=O. In plasma-treated PVA matrices, the peak intensities of carbonyl groups increased whereas that of C–C decreased. Notably, hydrophilic groups with the highest intensities were observed in case of PVA-120W5. As the plasma treatment time was increased beyond 5 s, the intensities of hydrophilic groups started to decrease because the initiation of the PVA etching process caused the deformation of the material [62]. Through the plasma treatment of pristine PVA, the optimal conditions for introducing the most hydrophilic functional groups without destroying the molecular structures were determined to be an applied plasma power of 120 W and treatment time of 5 s.

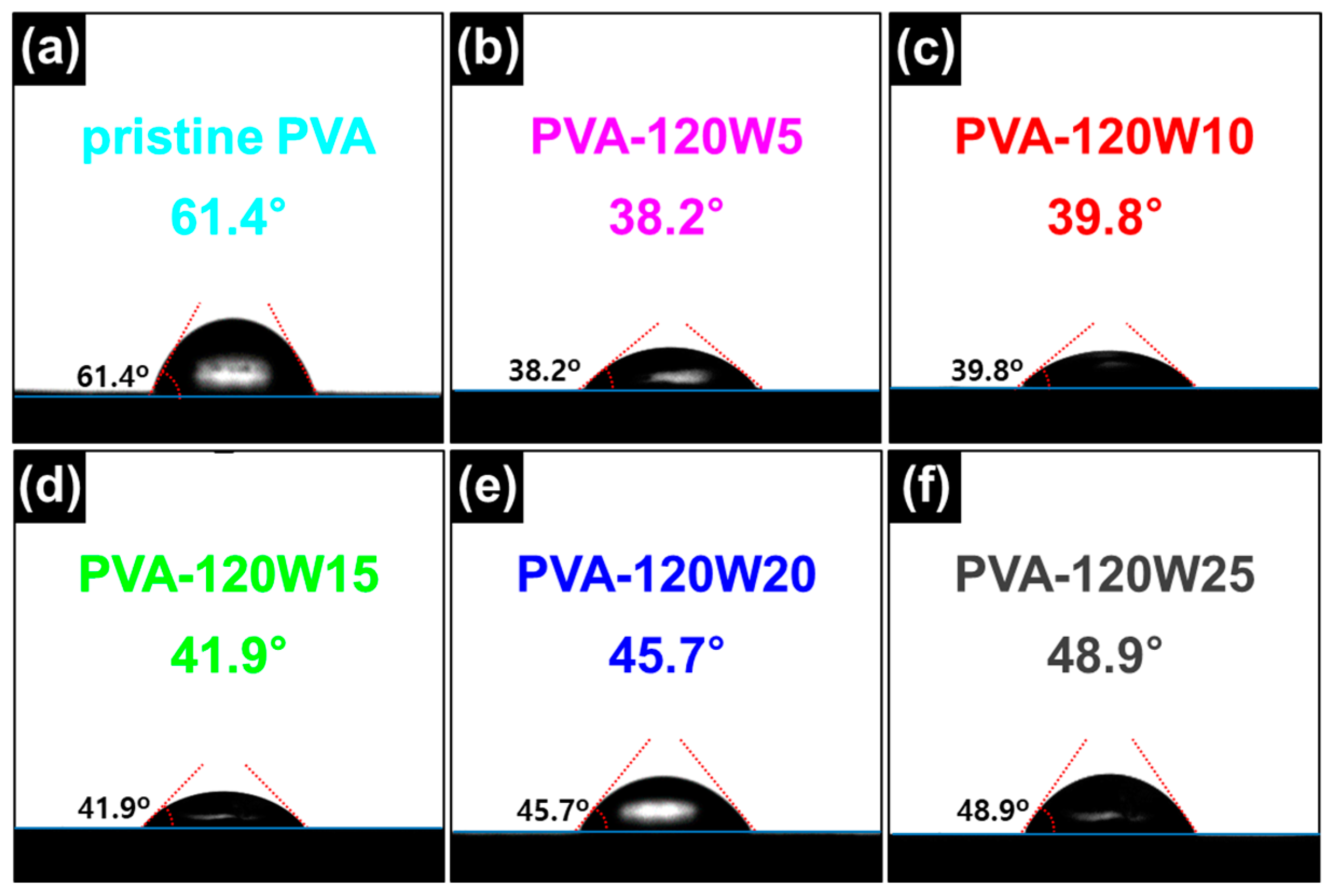

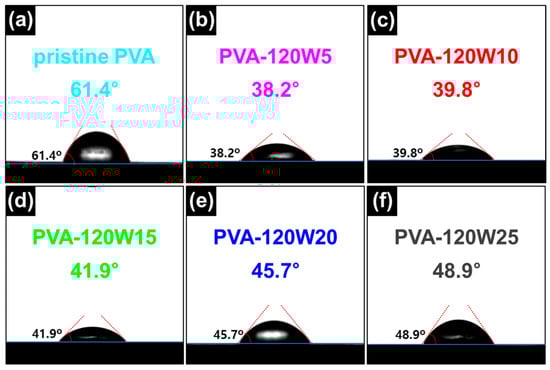

Contact angle (CA) measurements were performed to evaluate the wettability change according to the plasma treatment time with an applied plasma power of 120 W (Figure 5). The measured CA for pristine PVA, PVA-120W5, PVA-120W10, PVA-120W15, PVA-120W20, and PVA-120W25 was approximately 61.4, 38.2, 39.8, 41.9, 45.7, and 48.9°, respectively. Relative to the pristine PVA, all plasma-treated PVAs showed a lower CA owing to the formation of hydrophilic functional groups. However, the CA values increased with an increase in the plasma treatment time. This increase in CA is caused by the thermal degradation of functional groups by plasma treatment [63]. Specifically, the plasma treatment functionalized the PVA surface; however, continuous plasma treatment can cause the degradation and dissociation of the carbonyl functional groups. Therefore, an applied plasma power of 120 W and treatment time of 5 s (PVA-120W5) were determined as the optimal conditions to prepare the most hydrophilic PVA matrix.
In addition, swelling ratios of various plasma-treated PVAs were determined to further investigate the plasma effect on the wettability. Swelling ratios of pristine and plasma-treated PVAs were determined by immersing the sample into the solution for 10 s and determining the mass ratio between initial dry state and wetted state. Determined swelling ratio of Pristine PVA, PVA-120W5, PVA-120W10, PVA-120W15, PVA-120W20, and PVA-120W25 in aqueous solution were 2.3, 3.6, 3.3, 3.3, 3.2, and 2.7, respectively. It was confirmed that the swelling ratio of various plasma-treated PVAs were in accordance with the contact angle measurements. Additionally, the swelling ratios were measured for two organic solvents EtOH and commercial EC/EMC 3:7 (1.0M LiPF6) electrolyte. In case of EtOH, the evaluated swelling ratios were determined as 1.7, 2.6, 2.4, 2.3, 2.3, and 1.9, showing similar trends to aqueous solution. For the commercial EC/EMC 3:7 electrolyte (1.0M LiPF6), determined swelling ratios were 1.6, 1.8, 1.6, 1.3, 1.4, and 1.1. Notably, swelling trends of various plasma-treated PVAs were similar in two organic solvents; this led to a maximized swelling ratio in PVA-120W5 condition, decreasing after the plasma treatment times of 5 s. Polarities of organic solvents were lower compared to water or aqueous solution, but the presence of functional groups of EtOH and EC/EMC provided a binding effect with the functional groups of pristine and plasma-treated PVA matrices [64,65]. In this regard, swelling ratios were different for each solvent, but overall trends were similar due to the functional groups. After the 5 s of plasma treatment decrement in swelling ratio was observed due to the degradation of carbonyl functional groups. Accordingly, organic solvent with polar atom or functional groups manifested a similar uptake trend to aqueous solution. Detailed swelling ratios of pristine and plasma-treated PVAs after immersing in aqueous solution, EtOH, and organic solution are listed in Table S1.

2.2. Electrochemical Properties of Plasma-Treated PVA-Based SSC

Cyclic voltammetry (CV) measurements and electrochemical impedance spectroscopy (EIS) were used to investigate the improvement in the electrochemical performance of plasma-treated PVA. The SSC was assembled using C/MnO2 as the positive electrode, C/Fe2O3 as the negative electrode, and plasma-treated PVA matrix with added Na2SO4 as the gel-polymer electrolyte. MnO2 and Fe2O3 were mixed with the activated carbon material, owing to their large work function difference, high electrochemical performance, and hydrophilicity [66,67]. Furthermore, the pristine and plasma-treated PVA were immersed in 1.0 M Na2SO4 and employed as gel-polymer electrolytes to verify the difference in their electrochemical performance without destroying the electrode during the charging and discharging process [68].

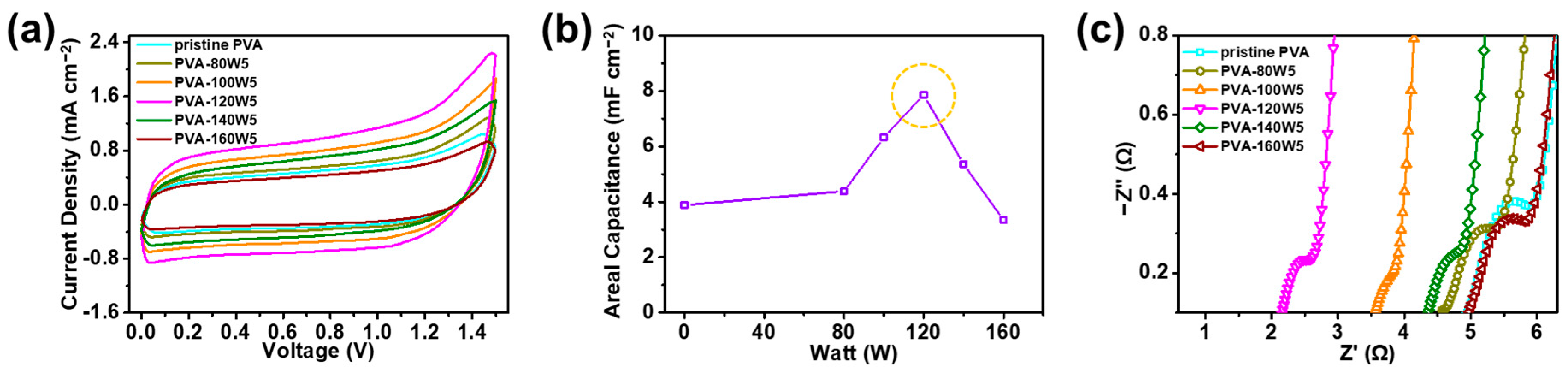

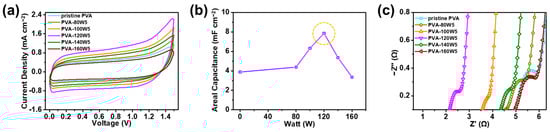

First, pristine and plasma-treated PVA with different plasma treatment powers were analyzed according to the CV curves at a scan rate of 100 mV s−1 in the potential window of 0–1.5 V, as shown in Figure 6a. The areal specific capacitance evaluated from the CV curves was 3.89, 4.36, 6.37, 7.89, 5.33, and 3.31 mF cm−2 for pristine PVA, PVA-80W5, PVA-100W5, PVA-120W5, PVA-140W5, and PVA-160W5, respectively (Figure 6b). Notably, PVA-120W5 exhibited the highest areal specific capacitance, in keeping with the hydrophilicity results obtained through FT-IR analysis. When the applied power was increased beyond 140 W, the areal capacitance decreased, suggesting the structural decomposition of PVA. The introduction of hydrophilic groups using facile plasma treatment increased the wettability of the gel-polymer electrolyte, which was capable of retaining its wettability and a large number of ions, resulting in the enhancement in electrochemical performance [69,70].
EIS analysis of the pristine and plasma-treated PVA matrices was used to compare the ion-transport capabilities of the as-assembled SSCs, as shown in Figure 6c. The corresponding equivalent circuit of the SSC is shown in Figure S2; the circuit consists of an equivalent circuit resistance (RESR), charge transfer resistance (RCT), Warburg impedance (ZW), and double-layer capacitance (CDL) [71]. Each EIS data was investigated by fitting the data into an equivalent circuit model and adding the fitted curve as an inset, as shown in Figure S5. RESR is the ionic resistance of the electrolyte and the interface resistance of the active material [72,73]. RCT is the resistance of the faradaic reaction at the electrolyte–electrode interface [74]. For pristine PVA, PVA-80W5, PVA-100W5, PVA-120W5, PVA-140W5, and PVA-160W5, RESR values were measured to be 4.91, 4.59, 3.45, 2.12, 4.30, and 4.90 Ω, respectively, and the corresponding RCT values were measured to be 1.46, 1.20, 0.84, 0.80, 1.06, and 1.32 Ω, respectively. PVA-120W5 showed the lowest RCT and RESR values of 0.80 and 2.12 Ω, respectively. MnO2 and Fe2O3 from each electrode are hydrophilic and therefore effectively activate ion transportation at the electrode–electrolyte interface more dynamically to reduce RCT [75,76]. Therefore, SSCs employing PVA-120W5 exhibited the highest capacitive behavior.

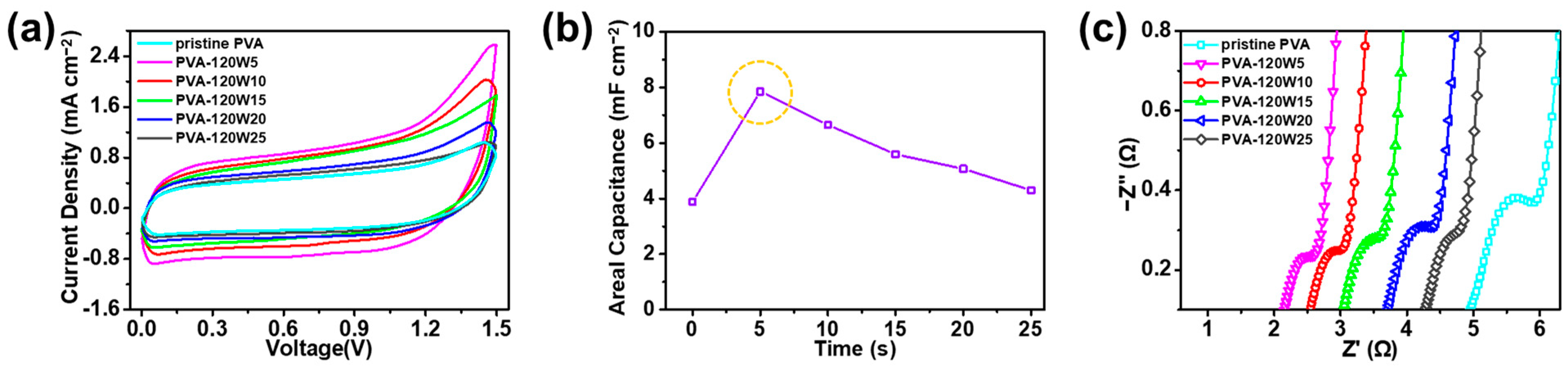

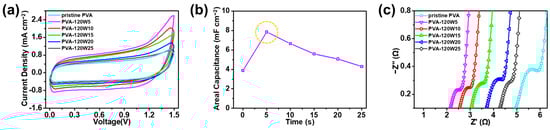

Moreover, to investigate the effect of the plasma treatment time on the electrochemical performance, CV curves of SSCs using plasma-treated PVAs with various treatment times of 5–25 s were measured at a scan rate of 100 mV s−1, as shown in Figure 7a. The PVA-120W5-based SSC had the largest area, indicating the highest electrochemical performance. The areal specific capacitances of SSCs using PVA-120W5, PVA-120W10, PVA-120W15, PVA-120W20, and PVA-120W25 were calculated to be 7.89, 6.77, 5.91, 5.13, and 4.36 F cm−2, respectively (Figure 7b). As the plasma treatment time of the electrolyte increased, the ability to retain water decreased, owing to the decrease in the hydrophilic groups of PVA, in turn resulting in a decrease in the ionic conductivity.
EIS analysis was conducted to verify the difference in the electrochemical performance of plasma-treated PVA according to the plasma treatment time, as shown in Figure 7c. In addition, the detailed information of each EIS data was further stated in Figure S4. For PVA-120W5, PVA-120W10, PVA-120W15, PVA-120W20, and PVA-120W25-based SSCs, the RESR values were measured to be 2.12, 2.47, 2.99, 3.66, and 4.21 Ω, respectively, and the corresponding RCT values were measured to be 0.80, 0.92, 1.00, 1.18, and 1.21 Ω, respectively. The RESR and RCT values increased with the plasma treatment time, confirming the increase in interface resistance between the electrode and electrolyte and decrease in ionic conductivity. Such phenomena occurred because the carbonyl group formed in PVA disintegrated as the plasma treatment time was increased beyond 5 s [77]. Therefore, PVA-120W5 showed improved hydrophilicity that effectively controlled the interface resistance and ionic conductivity, thus confirming its suitability as a gel-polymer electrolyte for the SSC device.

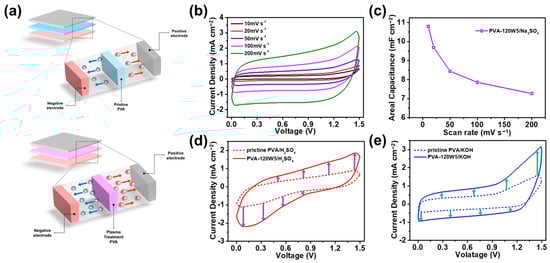

Figure 8a shows a plausible mechanism by which the ionic conductivity of SSCs using a plasma-treated PVA matrix increases, resulting in improved electrochemical performance. Compared with pristine PVA, plasma-treated PVA has more hydrophilic functional groups that can transport ions more conveniently. Figure 8b shows CV curves of the SSC using PVA-120W5/Na2SO4 at different scan rates of 10–200 mV s−1. The CV curves of the SSC maintained a rectangular shape even at high scan rates, suggesting the excellent ion transportation and capacitive properties [78,79]. In addition, the areal specific capacitances of the SSC measured from the CV curves were 10.77, 9.68, 8.41, 7.89, and 7.27 mF cm−2 at 10, 20, 50, 100, and 200 mV s−1, respectively (Figure 8c). Specifically, the capacitance retention was 67% as the scan rate was increased from 10 to 200 mV s−1, verifying the outstanding capacitive performance at even high scan rates [80,81]. Therefore, PVA-120W5 demonstrated improved performance as an SSC with ions and water being retained effectively by introducing hydrophilic groups using atmospheric plasma treatment. In addition, a cyclability test was conducted on the SSCs to compare the difference in retention rates between pristine PVA and PVA-120W5 at a current density of 5 mA cm−2 for 1000 cycles (Figure S7). The specific capacitances of the SSC devices employing pristine PVA and PVA-120W5 were evaluated as ca. 71.4 and 83.0% of their initial values, which verified the long-term stability of the SSC device. Furthermore, the CV curves of an SSC using PVA-120W5 with 1.0 M H2SO4 and 1.0 M KOH were examined at a scan rate of 100 mV s−1 to investigate the performance improvement with other electrolytes; CV curves obtained with the application of pristine PVA are shown for comparison (Figure 8d,e). The SSCs using PVA-120W5/H2SO4 and PVA-120W5/KOH exhibited 2.05 and 2.14 times higher electrochemical performance, respectively, compared with that of the SSC using pristine PVA. These results confirmed that introducing plasma-treated PVA increased the ionic conductivity and thereby enhanced the performance of SSCs. The newly prepared PVA-120W5/Na2SO4 was compared with other plasma-treated materials in SCs and summarized in Table 1 [48,82,83]. All other studies have reported on the enhancement of electrochemical performance by plasma treatment on active material and electrode. Accordingly, it was verified that the plasma treatment on various target or component including gel electrolyte can effectively enhance the electrochemical performance of supercapacitors.

3. Conclusions

Pristine PVA was subjected to O2 atmospheric plasma treatment. SSCs using the plasma-treated PVA exhibited improved electrochemical performance. PVA offers high ionic conductivity, and, therefore, it was used as a gel-polymer electrolyte via a simple gelation method. O2 plasma treatment was performed to introduce hydrophilic groups like –CO and >C=O (carbonyl) that enhanced the wettability of the pristine PVA. With an applied plasma power of 120 W, the most hydrophilic functional groups were detected. Moreover, a plasma treatment time of 5 s was found to be optimal. To verify the capacitive improvement of plasma-treated PVA, an SSC was assembled using C/MnO2 as the positive electrode, C/Fe2O3 as the negative electrode, and PVA-120W5/Na2SO4 as the gel-polymer electrolyte. The areal specific capacitance of this SSC was 7.89 mF cm−2 at a scan rate of 100 mV s−1; this was 2.03 times higher than that of the SSC using pristine PVA/Na2SO4. In addition, PVA-120W5 matrix was immersed into other liquid electrolytes of 1.0 M H2SO4 and 1.0 M KOH; PVA-120W5/H2SO4- and PVA-120W5/KOH-based SSCs showed 2.05 and 2.14 times higher specific capacitance than that of the SSC using pristine PVA, respectively. As a result, facile O2 plasma treatment functionalized the surface of pristine PVA to improve its wettability and thereby effectively enhanced the specific capacitance of the as-assembled SSC.

4. Materials and Methods

4.1. Materials

Potassium hydroxide (KOH, 95.0%), sodium sulfate (Na2SO4, 98.5%), sulfuric acid (H2SO4, 95.0%), manganese dioxide powder (MnO2), and iron (III) oxide powder (Fe2O3) were purchased from Samchun Chemical Company (Seoul, Republic of Korea). PVA (Mw 89,000–98,000), PVDF (Mw~534,000), 1-methyl-2-pyrrolidinone (NMP, 99.0%), and Lithium hexafluorophosphate solution (1.0 M LiPF6 in EC/EMC 3:7, battery grade) were purchased from Sigma-Aldrich Co. (Burlington, MA, USA). Activated carbon was purchased from Tokyo Chemical Industry Co. (Tokyo, Japan). All chemicals were used as received without any additional purification.

4.2. Preparation of PVA-Based Gel-Polymer Electrolyte (Pristine PVA)

PVA-based gel-polymer electrolyte (pristine PVA) was prepared using the simple gelation method. PVA powder (3.0 g) was dispersed in 20 mL of DI water and stirred for 5 h while maintaining a temperature of 85 °C. The resulting solution was then drop-casted onto a PMMA plate and allowed to dry slowly at room temperature for 2 h. The resulting pristine PVA was peeled off from the plate. Then, it was cut slightly larger than the positive and negative electrodes to prevent a short when the assembled SSC was connected to a circuit.

4.3. Surface Modification of PVA-Based Gel-Polymer Electrolyte Using O2 Atmospheric Plasma Treatment

Surface modification of pristine PVA was performed by atmospheric plasma treatment using a commercially available plasma apparatus (MyPL-100P, APP Co., Ltd., Hwaseong, Republic of Korea) to produce the plasma-treated PVA. A plasma curtain was generated by radio frequency (RF, 13.56 MHz) discharge on a cathode ray tube with an argon flow (flow rate = 2.5 L/min) and O2 flow (flow rate = 20 sccm) at an applied plasma power of 80–160 W. After the plasma curtain glowed, the pristine PVA placed at a distance of 0.5 cm from the cathode ray tube was exposed to it for 5–25 s. After completing the plasma treatment, the plasma-treated PVA was produced and kept in a fume hood for 3 h before characterization.

4.4. Characterization

The morphological structure of the pristine and plasma-treated PVA were examined using field-emission scanning electron microscopy (S-4800, Hitachi, Tokyo, Japan) and OM (BH2-UMA, Olympus, Tokyo, Japan). The molecular structures of the PVA matrices were characterized using an FT-IR instrument (Nicolet iS10, Thermo Fisher Scientific, Waltham, MA, USA). The surface oxidation states of the PVA matrices were investigated using XPS (K-alpha, Thermo Fisher Scientific, Waltham, MA, USA). The hydrophilicity of the plasma-treated PVA matrices was investigated by measuring the angle of the water droplet using a CA analyzer (Phoenix 300, SEO, Suwon, Republic of Korea. The swelling ratios were determined by immersing the pristine and plasma-treated PVAs in aqueous solution, EtOH, and commercial EC/EMC 3:7 (1.0 M LiPF6) electrolyte.

4.5. Assembly of SSC

The SSC was fabricated by sandwiching the PVA-based gel-polymer electrolyte between the positive and negative electrodes. The active materials for the electrodes were prepared using a simple paste mixing method by dispersing activated carbon (4.0 g) in 30 mL of EtOH and stirring for 6 h. For the positive and negative electrodes, MnO2 (1.2 g) and Fe2O3 (1.0 g) were dispersed in each solution, respectively. The solutions were shuffled using a paste mixer (PDM-300, DAE WHA TECH, Yongin, Republic of Korea) at a rotation speed of 800 rpm and revolution speed of 700 rpm for 2 h. The resulting solutions were then centrifuged at 8500 rpm for 20 min. A washing cycle was repeated three times, and the resulting C/MnO2 and C/Fe2O3 were obtained after drying in an oven at 70 °C overnight. The positive and negative electrodes were fabricated by mixing 2.0 mg of as-prepared active materials (C/MnO2 and C/Fe2O3, respectively) and 0.1 mg of PVDF as a binder with a few drops of N-methyl-2-pyrrolidone (NMP), which resulted in a homogeneous paste. This paste was then applied to a stainless-steel mesh (SUS304, 5 × 2 cm2) and dried in an oven at 75 °C. The pristine and plasma-treated PVA were immersed in 1.0 M Na2SO4, 1.0 M H2SO4, and 1.0 M KOH for 2 h and then dried at room temperature for 2 h. Finally, the SSC was fabricated by sandwiching the PVA-based gel-polymer electrolyte between C/MnO2 as the positive electrode and C/Fe2O3 as the negative electrode.

4.6. Electrochemical Measurement

CV measurements and EIS were performed using an electrochemical workstation (ZIVE SP1, WonATech Co., Seoul, Republic of Korea). For comparison, the CVs of SSCs fabricated using pristine and plasma-treated PVA were measured at a scan rate of 100 mV s−1. The voltage range of various SSCs was set to 0–1.5 V. CV measurements of the SSCs fabricated using plasma-treated PVA prepared under the optimal conditions were measured by varying the scan rate from 10 to 200 mV s−1. The areal capacitances (mF cm−2) were calculated from CV curves using the following equation [84]:
C = 1 S × ν × ∆ V ∫ V 0 V 0 + ∆ V I d V   ( f r o m   C V   c u r v e s )
where C is the areal capacitance; ν , the scan rate; V , the voltage; ∆ V , the operating voltage window; and S , the surface area of the electrode.
EIS analysis of the SSC was performed by applying an AC voltage of 10 mV in the frequency range of 10 mHz to 100 kHz.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gels9040351/s1, Figure S1: SEM images of (a) pristine PVA, (b) PVA-80W5, (c) PVA-100W5, (d) PVA-120W5, (e) PVA-140W5, and (f) PVA-160W5. Figure S2: Electrochemical equivalent circuit model for the EIS analysis. Figure S3: Electrochemical impedance spectroscopy (EIS) analysis including the equivalent circuit model for the SSC devices employing (a) pristine PVA, (b) PVA-80W5, (c) PVA-100W5, (d) PVA-120W5, (e) PVA-140W5, and (f) PVA-160W5. Figure S4: EIS analysis including the equivalent circuit model for the SSC devices employing (a) pristine PVA, (b) PVA-120W5, (c) PVA-120W10, (d) PVA-120W15, (e) PVA-120W20, and (f) PVA-120W25. Figure S5: Long-term cycling test of the SCC device employing pristine PVA and PVA-120W5 with the current density of 5 mA cm−2; Table S1: Swelling ratios of pristine and plasma-treated PVAs after immersed in aqueous solution (1.0 M Na2SO4), EtOH, and commercial electrolyte (1.0 M LiPF6 in EC/EMC 3:7).

Author Contributions

D.-H.K., S.J.: Conceptualization, Formal Analysis, Investigation, Methodology, Validation, Visualization, Writing—Original Draft, Writing—Review and Editing, C.-G.K., Y.-R.C.: Formal Analysis, Investigation, Validation, Visualization, Writing—Original Draft, J.N.: Formal Analysis, Investigation, Methodology, Validation, Supervision, M.S.K., N.L.: Validation, Visualization, W.-J.S.: Conceptualization, Methodology, Supervision, C.-M.Y.: Conceptualization, Formal Analysis, Investigation, Methodology, Validation, Visualization, Writing—Original Draft, Writing—Review and Editing, Project Administration, Funding Acquisition, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the development of high-power supercapacitor R&D program of MOTIE/KEIT [00156073, Development of lithium-ion capacitors for the control of load variation of hydrogen vehicles, 2023].

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rizoug, N.; Mesbahi, T.; Sadoun, R.; Bartholomeüs, P.; Le Moigne, P. Development of new improved energy management strategies for electric vehicle battery/supercapacitor hybrid energy storage system. Energy Effic. 2018, 11, 823–843. [Google Scholar] [CrossRef]
  2. Gao, D.; Luo, Z.; Liu, C.; Fan, S. A survey of hybrid energy devices based on supercapacitors. Green Energy Environ. 2022, in press. [Google Scholar] [CrossRef]
  3. Na, W.; Jun, J.; Park, J.W.; Lee, G.; Jang, J. Highly porous carbon nanofibers co-doped with fluorine and nitrogen for outstanding supercapacitor performance. J. Mater. Chem. A 2017, 5, 17379–17387. [Google Scholar] [CrossRef]
  4. Asl, M.S.; Hadi, R.; Salehghadimi, L.; Tabrizi, A.G.; Farhoudian, S.; Babapoor, A.; Pahlevani, M. Flexible all-solid-state supercapacitors with high capacitance, long cycle life, and wide operational potential window: Recent progress and future perspectives. J. Energy Storage 2022, 50, 104223. [Google Scholar] [CrossRef]
  5. Shi, S.; Xu, C.; Yang, C.; Li, J.; Du, H.; Li, B.; Kang, F. Flexible supercapacitors. Particuology 2013, 11, 371–377. [Google Scholar] [CrossRef]
  6. Guan, M.; Wang, Q.; Zhang, X.; Bao, J.; Gong, X.; Liu, Y. Two-Dimensional Transition Metal Oxide and Hydroxide-Based Hierarchical Architectures for Advanced Supercapacitor Materials. Front. Chem. 2020, 8, 390. [Google Scholar] [CrossRef]
  7. Zhang, Q.; Hou, X.; Liu, X.; Xie, X.; Duan, L.; Wei, L.Ü.; Gao, G. Nucleotide-Tackified Organohydrogel Electrolyte for Environmentally Self-Adaptive Flexible Supercapacitor with Robust Electrolyte/Electrode Interface. Small 2021, 17, 2103091. [Google Scholar] [CrossRef]
  8. Alipoori, S.; Mazinani, S.; Aboutalebi, S.H.; Sharif, F. Review of PVA-based gel polymer electrolytes in flexible solid-state supercapacitors: Opportunities and challenges. J. Energy Storage 2020, 27, 101072. [Google Scholar] [CrossRef]
  9. Redda, H.G.; Nikodimos, Y.; Su, W.-N.; Chen, R.-S.; Jiang, S.-K.; Abrha, L.H.; Hagos, T.M.; Bezabh, H.K.; Weldeyohannes, H.H.; Hwang, B.J. Enhancing the electrochemical performance of a flexible solid-state supercapacitor using a gel polymer electrolyte. Mater. Today Commun. 2021, 26, 102102. [Google Scholar] [CrossRef]
  10. Genovese, M.; Wu, H.; Virya, A.; Li, J.; Shen, P.; Lian, K. Ultrathin all-solid-state supercapacitor devices based on chitosan activated carbon electrodes and polymer electrolytes. Electrochim. Acta 2018, 273, 392–401. [Google Scholar] [CrossRef]
  11. Ulihin, A.S.; Mateyshina, Y.G.; Uvarov, N.F. All-solid-state asymmetric supercapacitors with solid composite electrolytes. Solid State Ion. 2013, 251, 62–65. [Google Scholar] [CrossRef]
  12. Li, C.; Huang, Y.; Chen, C.; Feng, X.; Zhang, Z.; Liu, P. A high-performance solid electrolyte assisted with hybrid biomaterials for lithium metal batteries. J. Colloid Interface Sci. 2022, 608, 313–321. [Google Scholar] [CrossRef] [PubMed]
  13. Amaral, M.M.; Venâncio, R.; Peterlevitz, A.C.; Zanin, H. Recent advances on quasi-solid-state electrolytes for supercapacitors. J. Energy Chem. 2022, 67, 697–717. [Google Scholar] [CrossRef]
  14. Chiu, L.-L.; Chung, S.-H. Composite gel-polymer electrolyte for high-loading polysulfide cathodes. J. Mater. Chem. A 2022, 10, 13719. [Google Scholar] [CrossRef]
  15. Cheng, X.; Pan, J.; Zhao, Y.; Liao, M.; Peng, H. Gel Polymer Electrolytes for Electrochemical Energy Storage. Adv. Energy Mater. 2018, 8, 1702184. [Google Scholar] [CrossRef]
  16. Ye, T.; Zou, Y.; Xu, W.; Zhan, T.; Sun, J.; Xia, Y.; Zhang, X.; Yang, D. Poorly-crystallized poly(vinyl alcohol)/carrageenan matrix: Highly ionic conductive and flame-retardant gel polymer electrolytes for safe and flexible solid-state supercapacitors. J. Power Sources 2020, 475, 228688. [Google Scholar] [CrossRef]
  17. Tian, B.; Wang, X.-Y.; Zhang, L.-N.; Shi, F.-N.; Zhang, Y.; Li, S.-X. Preparation of PVDF anionic exchange membrane by chemical grafting of GMA onto PVDF macromolecule. Solid State Ion. 2016, 293, 56–63. [Google Scholar] [CrossRef]
  18. Wang, M.; Xu, Z.; Guo, Y.; Hou, Y.; Li, P.; Niu, Q.J. Engineering a superwettable polyolefin membrane for highly efficient oil/water separation with excellent self-cleaning and photo-catalysis degradation property. J. Membr. Sci. 2020, 611, 118409. [Google Scholar] [CrossRef]
  19. Di Mauro, A.; Farrugia, C.; Abela, S.; Refalo, P.; Grech, M.; Falqui, L.; Privitera, V.; Impellizzeri, G. Synthesis of ZnO/PMMA nanocomposite by low-temperature atomic layer deposition for possible photocatalysis applications. Mater. Sci. Semicond. Process. 2020, 118, 105214. [Google Scholar] [CrossRef]
  20. Mhatre, A.; Bhagwat, A.; Bangde, P.; Jain, R.; Dandekar, P. Chitosan/gelatin/PVA membranes for mammalian cell culture. Carbohydr. Polym. Technol. Appl. 2021, 2, 100163. [Google Scholar] [CrossRef]
  21. Fergus, J.W. Ceramic and polymeric solid electrolytes for lithium-ion batteries. J. Power Sources 2010, 195, 4554–4569. [Google Scholar] [CrossRef]
  22. Zhao, Y.; Wang, D.; Gao, Y.; Chen, T.; Huang, Q.; Wang, D. Stable Li metal anode by a polyvinyl alcohol protection layer via modifying solid-electrolyte interphase layer. Nano Energy 2019, 64, 103893. [Google Scholar] [CrossRef]
  23. Alipoori, S.; Torkzadeh, M.M.; Mazinani, S.; Aboutalebi, S.H.; Sharif, F. Performance-tuning of PVA-based gel electrolytes by acid/PVA ratio and PVA molecular weight. SN Appl. Sci. 2021, 3, 310. [Google Scholar] [CrossRef]
  24. Putri, R.M.; Sundari, C.D.D.; Floweri, O.; Mayangsari, T.R.; Ivansyah, A.L.; Santosa, S.P.; Arcana, I.M.; Iskandar, F. PEO/PVA/LiOH Solid Polymer Electrolyte Prepared via Ultrasound-assisted Solution Cast Method. J. Non. Cryst. Solids 2021, 556, 120549. [Google Scholar] [CrossRef]
  25. Pei, X.; Wang, J.; Cong, Y.; Fu, J. Recent progress in polymer hydrogel bioadhesives. J. Polym. Sci. 2021, 59, 1312–1337. [Google Scholar] [CrossRef]
  26. Jiang, Z.; Jiang, Z.-J. Plasma techniques for the fabrication of polymer electrolyte membranes for fuel cells. J. Membr. Sci. 2014, 456, 85–106. [Google Scholar] [CrossRef]
  27. Zakaria, Z.; Kamarudin, S.K.; Wahid, K.A.A. Polymer electrolyte membrane modification in direct ethanol fuel cells: An update. J. Appl. Polym. Sci. 2023, 140, e53383. [Google Scholar] [CrossRef]
  28. Yalcinkaya, F.; Yalcinkaya, B.; Pazourek, A.; Mullerova, J.; Stuchlik, M.; Maryska, J. Surface Modification of Electrospun PVDF/PAN Nanofibrous Layers by Low Vacuum Plasma Treatment. Int. J. Polym. Sci. 2016, 2016, 4671658. [Google Scholar] [CrossRef]
  29. Mirabedini, S.M.; Arabi, H.; Salem, A.; Asiaban, S. Effect of low-pressure O2 and Ar plasma treatments on the wettability and morphology of biaxial-oriented polypropylene (BOPP) film. Prog. Org. Coat. 2007, 60, 105–111. [Google Scholar] [CrossRef]
  30. Kim, J.; Lee, G.; Lee, K.; Yu, H.; Lee, J.W.; Yoon, C.-M.; Kim, S.G.; Kim, S.K.; Jang, J. Fluorine plasma treatment on carbon-based perovskite solar cells for rapid moisture protection layer formation and performance enhancement. Chem. Commun. 2020, 56, 535–538. [Google Scholar] [CrossRef]
  31. Li, L.; Li, J.; Shao, H.; Dong, Y. Effects of low-vacuum helium cold plasma treatment on seed germination, plant growth and yield of oilseed rape. Plasma Sci. Technol. 2018, 20, 095502. [Google Scholar] [CrossRef]
  32. Merche, D.; Vandencasteele, N.; Reniers, F. Atmospheric plasmas for thin film deposition: A critical review. Thin Solid Film. 2012, 520, 4219–4236. [Google Scholar] [CrossRef]
  33. Boaretti, C.; Rossignolo, G.; Roso, M.; Modesti, M.; Kandola, B.; Vendrame, A.; Lorenzetti, A. Investigation and Optimization of Vacuum Plasma Treatment of PA66 Fabric for Reduced Fire Retardant Consumption. ACS Omega 2022, 7, 21775–21787. [Google Scholar] [CrossRef] [PubMed]
  34. Junkar, I.; Vesel, A.; Cvelbar, U.; Mozetič, M.; Strnad, S. Influence of oxygen and nitrogen plasma treatment on polyethylene terephthalate (PET) polymers. Vacuum 2009, 84, 83–85. [Google Scholar] [CrossRef]
  35. Lee, C.; Han, Y.-J.; Seo, Y.D.; Nakabayashi, K.; Miyawaki, J.; Santamaría, R.; Menéndez, R.; Yoon, S.-H.; Jang, J. C4F8 plasma treatment as an effective route for improving rate performance of natural/synthetic graphite anodes in lithium ion batteries. Carbon 2016, 103, 28–35. [Google Scholar] [CrossRef]
  36. Izadjoo, M.; Zack, S.; Kim, H.; Skiba, J. Medical applications of cold atmospheric plasma: State of the science. J. Wound Care 2018, 27, S4–S10. [Google Scholar] [CrossRef]
  37. Kim, K.-S.; Bang, J.-O.; Choa, Y.-H.; Jung, S.-B. The characteristics of Cu nanopaste sintered by atmospheric-pressure plasma. Microelectron. Eng. 2013, 107, 121–124. [Google Scholar] [CrossRef]
  38. Zille, A.; Oliveira, F.R.; Souto, P.A.P. Plasma treatment in textile industry. Plasma Process. Polym. 2015, 12, 98–131. [Google Scholar] [CrossRef]
  39. Domonkos, M.; Tichá, P. Wettability of SiOx nanofibrous mats and their modification using cold atmospheric plasma treatment. Acta Phys. Polon. A 2021, 140, 181–185. [Google Scholar] [CrossRef]
  40. Jucius, D.; Grigaliunas, V.; Kopustinskas, V.; Lazauskas, A.; Guobiene, A. Wettability and optical properties of O2 and CF4 plasma treated biaxially oriented semicrystalline poly(ethylene terephthalate) films. Appl. Surf. Sci. 2012, 263, 722–729. [Google Scholar] [CrossRef]
  41. Kim, K.S.; Lee, K.H.; Cho, K.; Park, C.E. Surface modification of polysulfone ultrafiltration membrane by oxygen plasma treatment. J. Membr. Sci. 2002, 199, 135–145. [Google Scholar] [CrossRef]
  42. Ozgen, O.; Aksoy, E.A.; Hasirci, V.; Hasirci, N. Surface characterization and radical decay studies of oxygen plasma-treated PMMA films. Surf. Interface Anal. 2013, 45, 844–853. [Google Scholar] [CrossRef]
  43. Fu, W.; Xu, R.; Zhang, X.; Tian, Z.; Huang, H.; Xie, J.; Lei, C. Enhanced wettability and electrochemical performance of separators for lithium-ion batteries by coating core-shell structured silica-poly(cyclotriphosphazene-co-4,4″-sulfonyldiphenol) particles. J. Power Sources 2019, 436, 226839. [Google Scholar] [CrossRef]
  44. Li, Z.; Jiang, Q.; Ma, Z.; Liu, Q.; Wu, Z.; Wang, S. Oxygen plasma modified separator for lithium sulfur battery. RSC Adv. 2015, 5, 79473–79478. [Google Scholar] [CrossRef]
  45. Jin, S.Y.; Manuel, J.; Zhao, X.; Park, W.H.; Ahn, J.-H. Surface-modified polyethylene separator via oxygen plasma treatment for lithium ion battery. J. Ind. Eng. Chem. 2017, 45, 15–21. [Google Scholar] [CrossRef]
  46. Kim, J.Y.; Lim, D.Y. Surface-modified membrane as a separator for lithium-ion polymer battery. Energies 2010, 3, 866–885. [Google Scholar] [CrossRef]
  47. Yoshida, A.; Tanahashi, I.; Nishino, A. Aluminum Collector Electrodes Formed by the Plasma Spraying Method for Electric Double-Layer Capacitors. IEEE Trans. Comp. Hybrids Manuf. Technol. 1988, 11, 318–323. [Google Scholar] [CrossRef]
  48. Lai, J.-Y.; Hsu, C.-C.; Chen, J.-Z. Comparison between atmospheric-pressure-plasma-jet-processed and furnace-calcined rGO-MnOx nanocomposite electrodes for gel-electrolyte supercapacitors. J. Alloy. Compd. 2022, 911, 165006. [Google Scholar] [CrossRef]
  49. Liu, C.; Hung, C.-W.; Cheng, I.-C.; Hsu, C.-C.; Cheng, I.-C.; Chen, J.-Z. Dielectric barrier discharge plasma jet (Dbdjet) processed reduced graphene oxide/polypyrrole/chitosan nanocomposite supercapacitors. Polymers 2021, 13, 3585. [Google Scholar] [CrossRef] [PubMed]
  50. Kim, S.-K.; Koo, H.-J.; Lee, A.; Braun, P.V. Selective wetting-induced micro-electrode patterning for flexible micro-supercapacitors. Adv. Mater. 2014, 26, 5108–5112. [Google Scholar] [CrossRef] [PubMed]
  51. Lai, J.; Sunderland, B.; Xue, J.; Yan, S.; Zhao, W.; Folkard, M.; Michael, B.D.; Wang, Y. Study on hydrophilicity of polymer surfaces improved by plasma treatment. Appl. Surf. Sci. 2006, 252, 3375–3379. [Google Scholar] [CrossRef]
  52. Zhang, Z.; Du, C.; Jiao, H.; Zhang, M. Polyvinyl Alcohol/SiO2 Hybrid Dielectric for Transparent Flexible/Stretchable All-Carbon-Nanotube Thin-Film-Transistor Integration. Adv. Electron. Mater. 2020, 6, 1901133. [Google Scholar]
  53. Ibrahim, M.M.; EI-Zawawy, W.K.; Nassar, M.A. Synthesis and characterization of polyvinyl alcohol/nanospherical cellulose particle films. Carbohydr. Polym. 2010, 79, 694–699. [Google Scholar] [CrossRef]
  54. Labbé, N.; Harper, D.; Rials, T.; Elder, T. Chemical structure of wood charcoal by infrared spectroscopy and multivariate analysis. J. Agric. Food Chem. 2006, 54, 3492–3497. [Google Scholar] [CrossRef]
  55. Korbag, I.; Mohamed Saleh, S. Studies on the formation of intermolecular interactions and structural characterization of polyvinyl alcohol/lignin film. Int. J. Environ. Stud. 2016, 73, 226–235. [Google Scholar] [CrossRef]
  56. Kharazmi, A.; Faraji, N.; Hussin, R.M.; Saion, E.; Yunus, W.M.M.; Behzad, K. Structural, optical, opto-thermal and thermal properties of ZnS-PVA nanofluids synthesized through a radiolytic approach. Beilstein J. Nanotechnol. 2015, 6, 529–536. [Google Scholar] [CrossRef] [PubMed]
  57. Sadiq, N.M.; Aziz, S.B.; Kadir, M.F.Z. Development of Flexible Plasticized Ion Conducting Polymer Blend Electrolytes Based on Polyvinyl Alcohol (PVA): Chitosan (CS) with High Ion Transport Parameters Close to Gel Based Electrolytes. Gels 2022, 8, 153. [Google Scholar] [CrossRef]
  58. Jipa, I.M.; Stoica, A.; Stroescu, M.; Dobre, L.-M.; Dobre, T.; Jinga, S.; Tardei, C. Potassium sorbate release from poly(vinyl alcohol)-bacterial cellulose films. Chem. Zvesti 2012, 66, 138–143. [Google Scholar] [CrossRef]
  59. Lim, M.; Zulkifli, A.Z.S. Investigation of biomass surface modification using non-thermal plasma treatment. Plasma Sci. Technol. 2018, 20, 115502. [Google Scholar] [CrossRef]
  60. Bharti, B.; Kumar, S.; Lee, H.-N.; Kumar, R. Formation of oxygen vacancies and Ti3+ state in TiO2 thin film and enhanced optical properties by air plasma treatment. Sci. Rep. 2016, 6, 32355. [Google Scholar] [CrossRef]
  61. De Geyter, N.; Morent, R.; Leys, C.; Gengembre, L.; Payen, E. Treatment of polymer films with a dielectric barrier discharge in air, helium and argon at medium pressure. Surf. Coat. Technol. 2007, 201, 7066–7075. [Google Scholar] [CrossRef]
  62. Zhang, Y.; Li, J.; An, G.; He, X. Highly porous SnO2 fibers by electrospinning and oxygen plasma etching and its ethanol-sensing properties. Sens. Actuators B Chem. 2010, 144, 43–48. [Google Scholar] [CrossRef]
  63. Kundu, S.; Wang, Y.; Xia, W.; Muhler, M. Thermal stability and reducibility of oxygen-containing functional groups on multiwalled carbon nanotube surfaces: A quantitative high-resolution xps and TPD/TPR study. J. Phys. Chem. C 2008, 112, 16869–16878. [Google Scholar] [CrossRef]
  64. Dawaymeh, F.; Abbas, Y.; Khaleel, M.; Alazzam, A.; Alamoodi, N. Tuning the Surface Wettability of Cyclic Olefin Copolymer by Plasma Treatment and Graphene Oxide Deposition and Reduction. Polymers 2021, 13, 2305. [Google Scholar] [CrossRef] [PubMed]
  65. Mohsen-Nia, M.; Amiri, H.; Jazi, B. Dielectric constants of water, methanol, ethanol, butanol and acetone: Measurement and computational study. J. Solut. Chem. 2010, 39, 701–708. [Google Scholar] [CrossRef]
  66. Kim, G.; Kang, J.; Choe, G.; Yim, S. Enhanced energy density of supercapacitors using hybrid electrodes based on Fe2O3 and MnO2 nanoparticles. Int. J. Electrochem. Sci. 2017, 12, 10015–10022. [Google Scholar] [CrossRef]
  67. Cho, S.; Patil, B.; Yu, S.; Ahn, S.; Hwang, J.; Park, C.; Do, K.; Ahn, H. Flexible, Swiss roll, fiber-shaped, asymmetric supercapacitor using MnO2 and Fe2O3 on carbon fibers. Electrochim. Acta 2018, 269, 499–508. [Google Scholar] [CrossRef]
  68. Kennedy, L.J.; Ratnaji, T.; Konikkara, N.; Vijaya, J.J. Value added porous carbon from leather wastes as potential supercapacitor electrode using neutral electrolyte. J. Clean. Prod. 2018, 197, 930–936. [Google Scholar] [CrossRef]
  69. Lin, W.-C.; Razali, N.A.M. Temporary Wettability Tuning of PCL/PDMS Micro Pattern Using the Plasma Treatments. Materials 2019, 12, 644. [Google Scholar] [CrossRef]
  70. Xie, H.; Wu, Z.; Wang, Z.; Qin, N.; Li, Y.; Cao, Y.; Lu, Z. Solid electrolyte interface stabilization via surface oxygen species functionalization in hard carbon for superior performance sodium-ion batteries. J. Mater. Chem. A 2020, 8, 3606–3612. [Google Scholar] [CrossRef]
  71. Jekal, S.; Kim, M.-S.; Kim, D.-H.; Noh, J.; Kim, H.-Y.; Kim, J.; Yi, H.; Oh, W.-C.; Yoon, C.-M. Fabrication of Flexible All-Solid-State Asymmetric Supercapacitor Device via Full Recycling of Heated Tobacco Waste Assisted by PLA Gelation Template Method. Gels 2023, 9, 97. [Google Scholar] [CrossRef] [PubMed]
  72. Haque, M.; Li, Q.; Smith, A.D.; Kuzmenko, V.; Köhler, E.; Lundgren, P.; Enoksson, P. Thermal influence on the electrochemical behavior of a supercapacitor containing an ionic liquid electrolyte. Electrochim. Acta 2018, 263, 249–260. [Google Scholar] [CrossRef]
  73. Kumbhar, V.S.; Jagadale, A.D.; Shinde, N.M.; Lokhande, C.D. Chemical synthesis of spinel cobalt ferrite (CoFe2O4) nano-flakes for supercapacitor application. Appl. Surf. Sci. 2012, 259, 39–43. [Google Scholar] [CrossRef]
  74. Emran, K.M.; Omar, I.M.A.; Arab, S.T.; Ouerfelli, N. On the pseudo-hyperbolic behavior of charge transfer resistance–temperature dependence in corrosion behavior of Nickel based glass alloy. Sci. Rep. 2022, 12, 6432. [Google Scholar] [CrossRef] [PubMed]
  75. Iwakura, C.; Fukumoto, Y.; Matsuoka, M.; Kohno, T.; Shinmou, K. Electrochemical characterization of hydrogen storage alloys modified with metal oxides. J. Alloy. Compd. 1993, 192, 152–154. [Google Scholar] [CrossRef]
  76. Kharade, P.M.; Kulkarni, S.B.; Salunkhe, D.J. Nanoflakes like hydrophilic Mn2O3 thin film as a supercapacitor electrode. Chin. J. Phys. 2017, 55, 1684–1689. [Google Scholar] [CrossRef]
  77. Ueshima, M.; Toda, E.; Nakajima, Y.; Sugiyama, K. Effect of microwave non thermal plasma irradiation on the adsorptive properties of active carbon preliminarily impregnated with poly(vinyl alcohol). Jpn. J. Appl. Phys. 2010, 49, 08JA03. [Google Scholar] [CrossRef]
  78. Xue, Q.; Gan, H.; Huang, Y.; Zhu, M.; Pei, Z.; Li, H.; Deng, S.; Liu, F.; Zhi, C. Boron Element Nanowires Electrode for Supercapacitors. Adv. Energy Mater. 2018, 8, 1703117. [Google Scholar] [CrossRef]
  79. Pandit, B.; Dhakate, S.R.; Singh, B.P.; Sankapal, B.R. Free-standing flexible MWCNTs bucky paper: Extremely stable and energy efficient supercapacitive electrode. Electrochim. Acta 2017, 249, 395–403. [Google Scholar] [CrossRef]
  80. Wang, X.; Li, Y.; Lou, F.; Melandsø Buan, M.E.; Sheridan, E.; Chen, D. Enhancing capacitance of supercapacitor with both organic electrolyte and ionic liquid electrolyte on a biomass-derived carbon. RSC Adv. 2017, 7, 23859–23865. [Google Scholar] [CrossRef]
  81. Wang, P.; Zhou, H.; Meng, C.; Wang, Z.; Akhtar, K.; Yuan, A. Cyanometallic framework-derived hierarchical Co3O4-NiO/graphene foam as high-performance binder-free electrodes for supercapacitors. Chem. Eng. J. 2019, 369, 57–63. [Google Scholar] [CrossRef]
  82. Hussain, S.; Amade, R.; Jover, E.; Bertran, E. Nitrogen plasma functionalization of carbon nanotubes for supercapacitor applications. J. Mater. Sci. 2013, 48, 7620–7628. [Google Scholar] [CrossRef]
  83. Dulyaseree, P.; Yordsri, V.; Wongwiriyapan, W. Effects of microwave and oxygen plasma treatments on capacitive characteristics of supercapacitor based on multiwalled carbon nanotubes. Jpn. J. Appl. Phys. 2016, 55, 02BD05. [Google Scholar] [CrossRef]
  84. Kong, M.; Wang, Z.; Wang, W.; Ma, M.; Liu, D.; Hao, S.; Kong, R.; Du, G.; Asiri, A.M.; Yao, Y.; et al. NiCoP Nanoarray: A Superior Pseudocapacitor Electrode with High Areal Capacitance. Chem. Eur. J. 2017, 23, 4435–4441. [Google Scholar] [CrossRef] [PubMed]
Gels 09 00351 g001 550

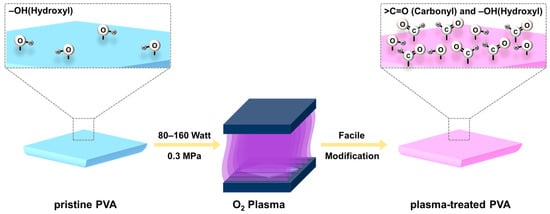

Figure 1. Schematic illustration of the synthesis of plasma-treated PVA-based gel-polymer electrolyte (plasma-treated PVA) through O2 atmospheric plasma treatment.
Figure 1. Schematic illustration of the synthesis of plasma-treated PVA-based gel-polymer electrolyte (plasma-treated PVA) through O2 atmospheric plasma treatment.
Gels 09 00351 g001
Gels 09 00351 g002 550
Figure 2. Optical microscope (OM) images of (a) pristine PVA, (b) PVA-80W5, (c) PVA-100W5, (d) PVA-120W5, (e) PVA-140W5, and (f) PVA-160W5 (inset: corresponding digital photograph).
Figure 2. Optical microscope (OM) images of (a) pristine PVA, (b) PVA-80W5, (c) PVA-100W5, (d) PVA-120W5, (e) PVA-140W5, and (f) PVA-160W5 (inset: corresponding digital photograph).
Gels 09 00351 g002
Gels 09 00351 g003 550

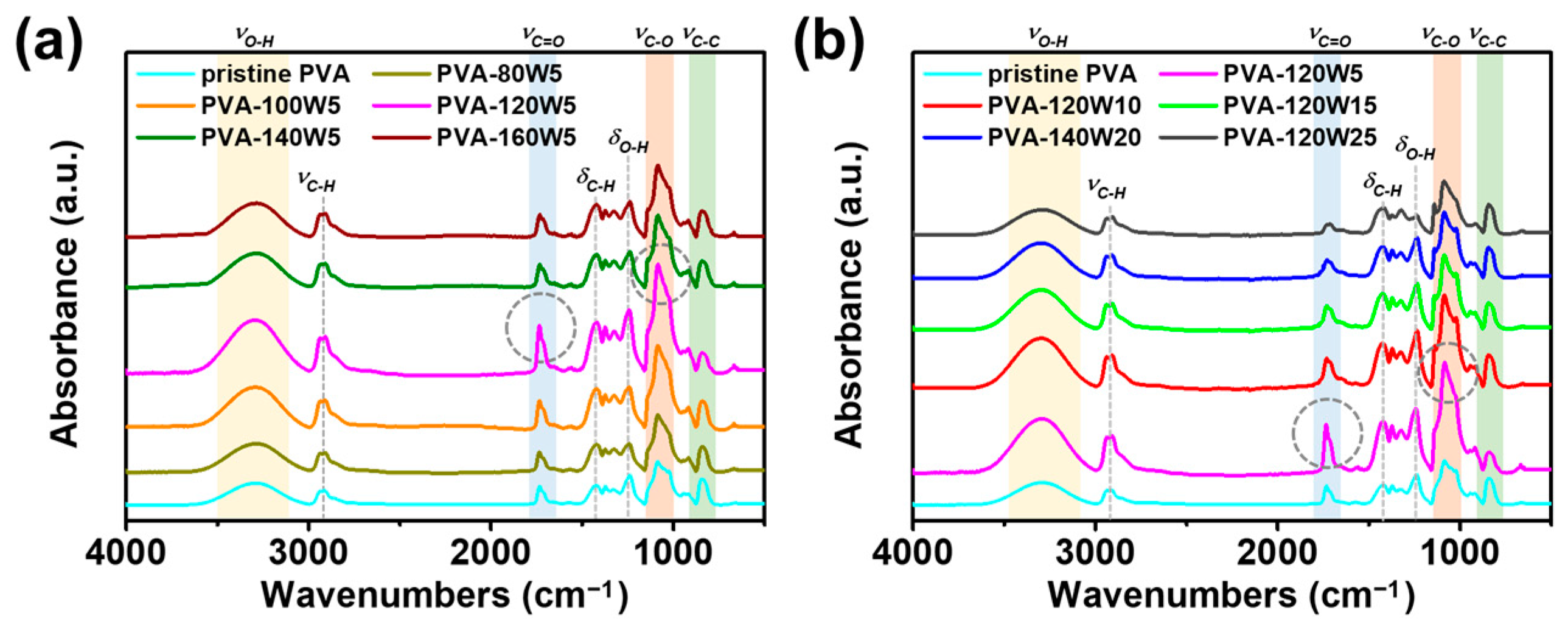

Figure 3. FT-IR spectra of pristine and plasma-treated PVA matrices with varying (a) plasma power in the range of 80–160 W (plasma treatment time: 5 s), and (b) plasma treatment time in the range of 5–25 s (applied plasma power: 120 W).
Figure 3. FT-IR spectra of pristine and plasma-treated PVA matrices with varying (a) plasma power in the range of 80–160 W (plasma treatment time: 5 s), and (b) plasma treatment time in the range of 5–25 s (applied plasma power: 120 W).
Gels 09 00351 g003
Gels 09 00351 g004 550
Figure 4. XPS C 1s spectra of (a) pristine PVA, (b) PVA-120W5, (c) PVA-120W10, (d) PVA-120W15, (e) PVA-120W20, and (f) PVA-120W25.
Figure 4. XPS C 1s spectra of (a) pristine PVA, (b) PVA-120W5, (c) PVA-120W10, (d) PVA-120W15, (e) PVA-120W20, and (f) PVA-120W25.
Gels 09 00351 g004
Gels 09 00351 g005 550
Figure 5. CA images of water droplet on surface of (a) pristine PVA, (b) PVA-120W5, (c) PVA-120W10, (d) PVA-120W15, (e) PVA-120W20, and (f) PVA-120W25.
Figure 5. CA images of water droplet on surface of (a) pristine PVA, (b) PVA-120W5, (c) PVA-120W10, (d) PVA-120W15, (e) PVA-120W20, and (f) PVA-120W25.
Gels 09 00351 g005
Gels 09 00351 g006 550
Figure 6. (a) CV curves of SSCs employing plasma-treated PVA matrices with different plasma powers at a scan rate of 100 mV s−1. (b) Areal capacitances evaluated from CV curves for SSCs employing plasma-treated PVA matrices with different plasma powers. (c) EIS results of SSCs employing plasma-treated PVA matrices with different plasma powers.
Figure 6. (a) CV curves of SSCs employing plasma-treated PVA matrices with different plasma powers at a scan rate of 100 mV s−1. (b) Areal capacitances evaluated from CV curves for SSCs employing plasma-treated PVA matrices with different plasma powers. (c) EIS results of SSCs employing plasma-treated PVA matrices with different plasma powers.
Gels 09 00351 g006
Gels 09 00351 g007 550
Figure 7. (a) CV curves of SSC devices using plasma-treated PVA matrices with different treatment times at a scan rate of 100 mV s−1. (b) Areal capacitances calculated from CV curves for SSCs using plasma-treated PVA matrices with different treatment times. (c) EIS analysis of SSCs using plasma-treated PVA matrices with different treatment times.
Figure 7. (a) CV curves of SSC devices using plasma-treated PVA matrices with different treatment times at a scan rate of 100 mV s−1. (b) Areal capacitances calculated from CV curves for SSCs using plasma-treated PVA matrices with different treatment times. (c) EIS analysis of SSCs using plasma-treated PVA matrices with different treatment times.
Gels 09 00351 g007
Gels 09 00351 g008 550
Figure 8. (a) Tentative mechanism of increased ionic conductivity of SSCs using plasma-treated PVA matrix. (b) CV curves of SSCs using PVA-120W5/Na2SO4 at different scan rates. (c) Areal capacitances of SSCs calculated from CV curves at different scan rates. (d) CV curves of SSCs using PVA-120W5/H2SO4 and (e) PVA-120W5/KOH before and after plasma treatment.
Figure 8. (a) Tentative mechanism of increased ionic conductivity of SSCs using plasma-treated PVA matrix. (b) CV curves of SSCs using PVA-120W5/Na2SO4 at different scan rates. (c) Areal capacitances of SSCs calculated from CV curves at different scan rates. (d) CV curves of SSCs using PVA-120W5/H2SO4 and (e) PVA-120W5/KOH before and after plasma treatment.
Gels 09 00351 g008
Table
Table 1. Comparison between the PVA-120W5/Na2SO4 with the other plasma-treated materials in the fields of SCs.
Table 1. Comparison between the PVA-120W5/Na2SO4 with the other plasma-treated materials in the fields of SCs.
MaterialsTarget of the TreatmentPlasma TypeSpecific CapacitanceRef
Without PlasmaWith Plasma
PVA-120W5/Na2SO4gel electrolyteOxygen atmospheric plasma3.89 mF cm−2
(at 100 mV s−1)		7.89 mF cm−2This work
rGO-MnOxactive material
or electrode		Nitrogen plasma9.92 mF cm−2
(at 2 mV s−1)		52.23 mF cm−2[48]
MWCNTsactive material
or electrode		Nitrogen plasma22 F g−1
(at 10 mV s−1)		55 F g−1[82]
MWNTsactive material
or electrode		Oxygen plasma61.5 F g−1
(at 100 mV s−1)		238.2 F g−1[83]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, D.-H.; Jekal, S.; Kim, C.-G.; Chu, Y.-R.; Noh, J.; Kim, M.S.; Lee, N.; Song, W.-J.; Yoon, C.-M. Facile Enhancement of Electrochemical Performance of Solid-State Supercapacitor via Atmospheric Plasma Treatment on PVA-Based Gel-Polymer Electrolyte. Gels 2023, 9, 351. https://doi.org/10.3390/gels9040351

AMA Style

Kim D-H, Jekal S, Kim C-G, Chu Y-R, Noh J, Kim MS, Lee N, Song W-J, Yoon C-M. Facile Enhancement of Electrochemical Performance of Solid-State Supercapacitor via Atmospheric Plasma Treatment on PVA-Based Gel-Polymer Electrolyte. Gels. 2023; 9(4):351. https://doi.org/10.3390/gels9040351

Chicago/Turabian Style

Kim, Dong-Hyun, Suk Jekal, Chan-Gyo Kim, Yeon-Ryong Chu, Jungchul Noh, Min Sang Kim, Neunghi Lee, Woo-Jin Song, and Chang-Min Yoon. 2023. "Facile Enhancement of Electrochemical Performance of Solid-State Supercapacitor via Atmospheric Plasma Treatment on PVA-Based Gel-Polymer Electrolyte" Gels 9, no. 4: 351. https://doi.org/10.3390/gels9040351

APA Style

Kim, D. -H., Jekal, S., Kim, C. -G., Chu, Y. -R., Noh, J., Kim, M. S., Lee, N., Song, W. -J., & Yoon, C. -M. (2023). Facile Enhancement of Electrochemical Performance of Solid-State Supercapacitor via Atmospheric Plasma Treatment on PVA-Based Gel-Polymer Electrolyte. Gels, 9(4), 351. https://doi.org/10.3390/gels9040351

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
