Investigation of Crosslinking Parameters and Characterization of Hyaluronic Acid Dermal Fillers: From Design to Product Performances
Abstract
:1. Introduction
2. Results and Discussion

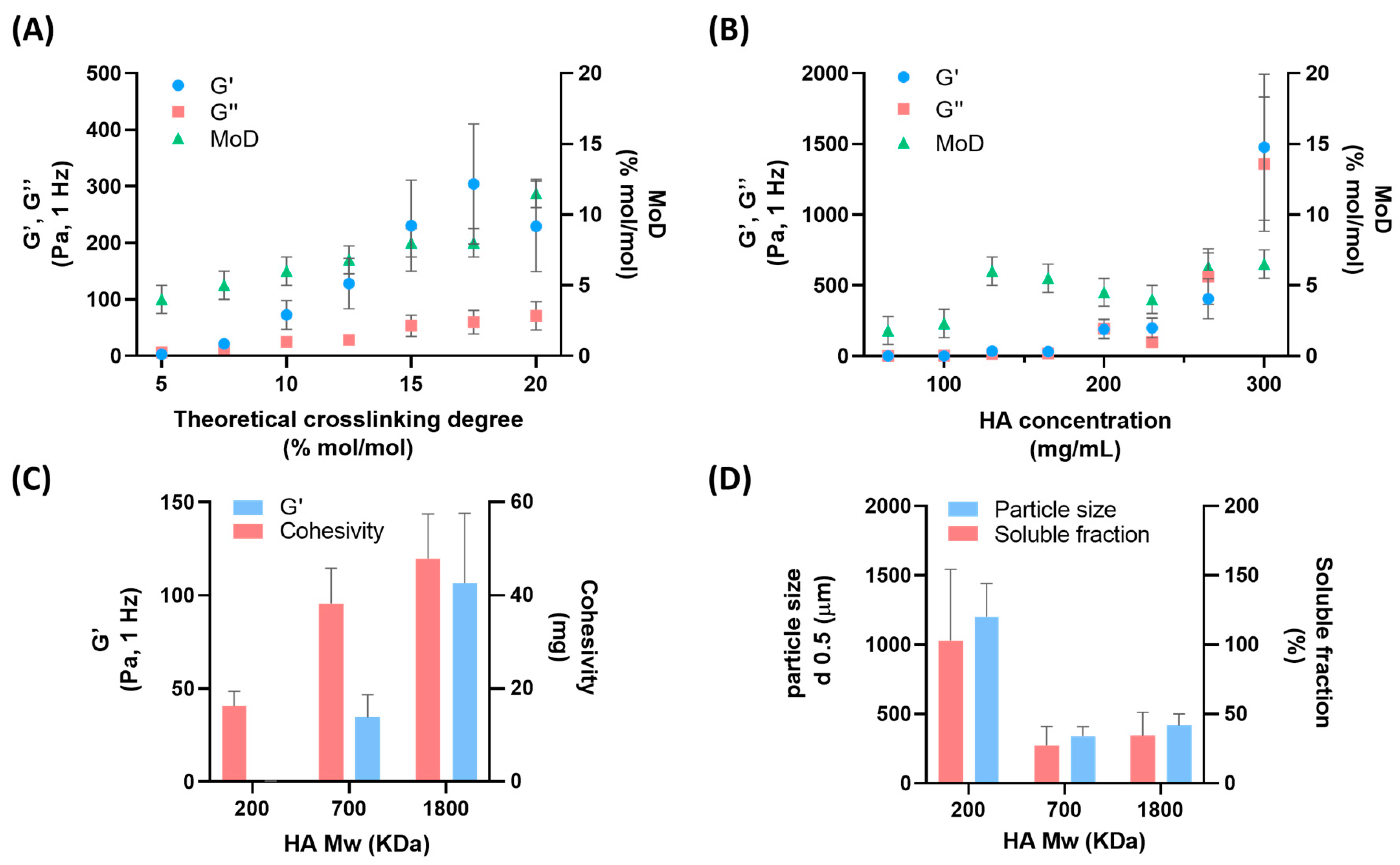

2.1. Crosslinking Parameters Modulate Hydrogel Rheology

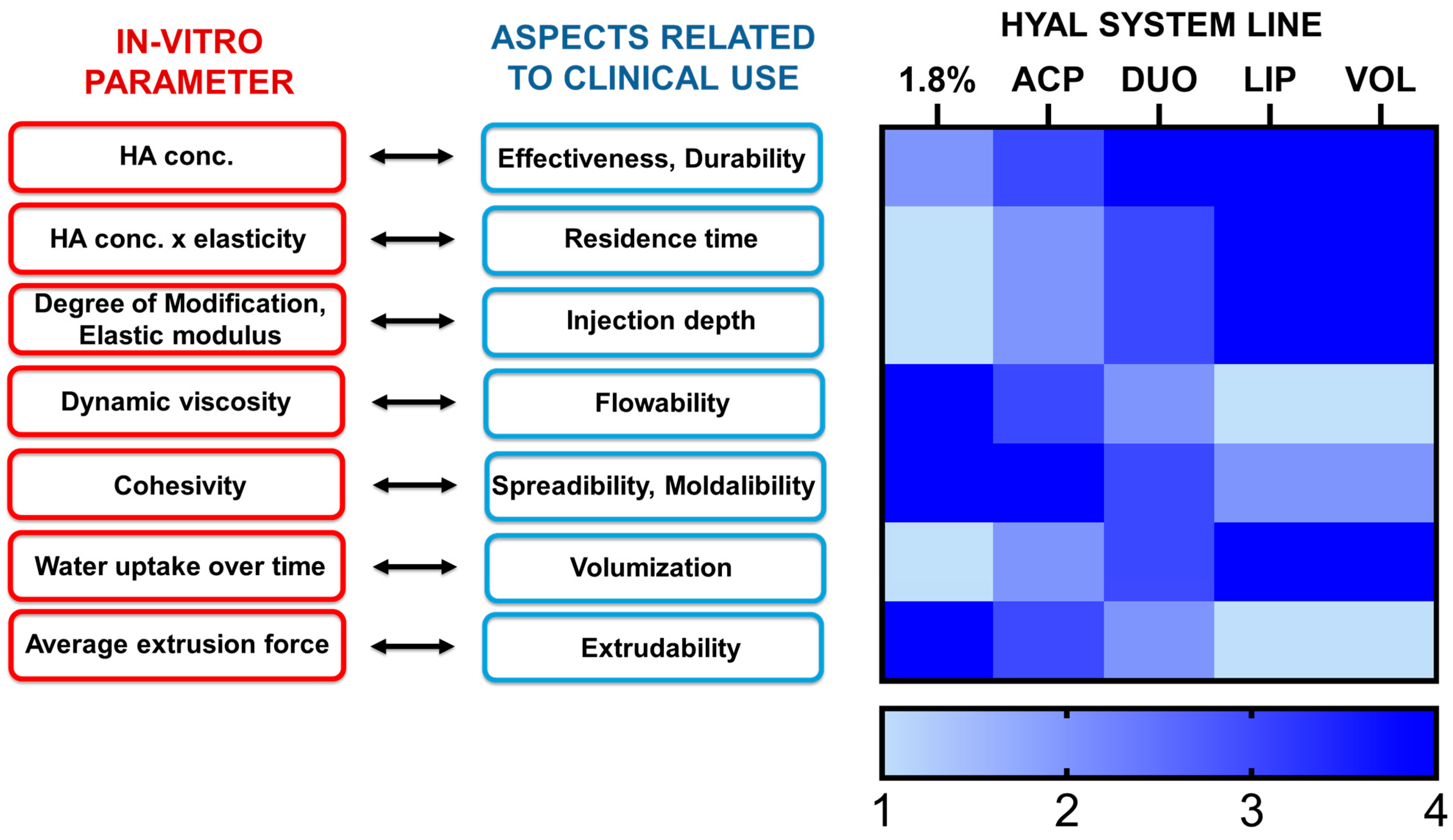

2.2. Characterization of Hyal System Dermal Products
2.2.1. Rheological and Physicochemical Characterization
2.2.2. Extrudability

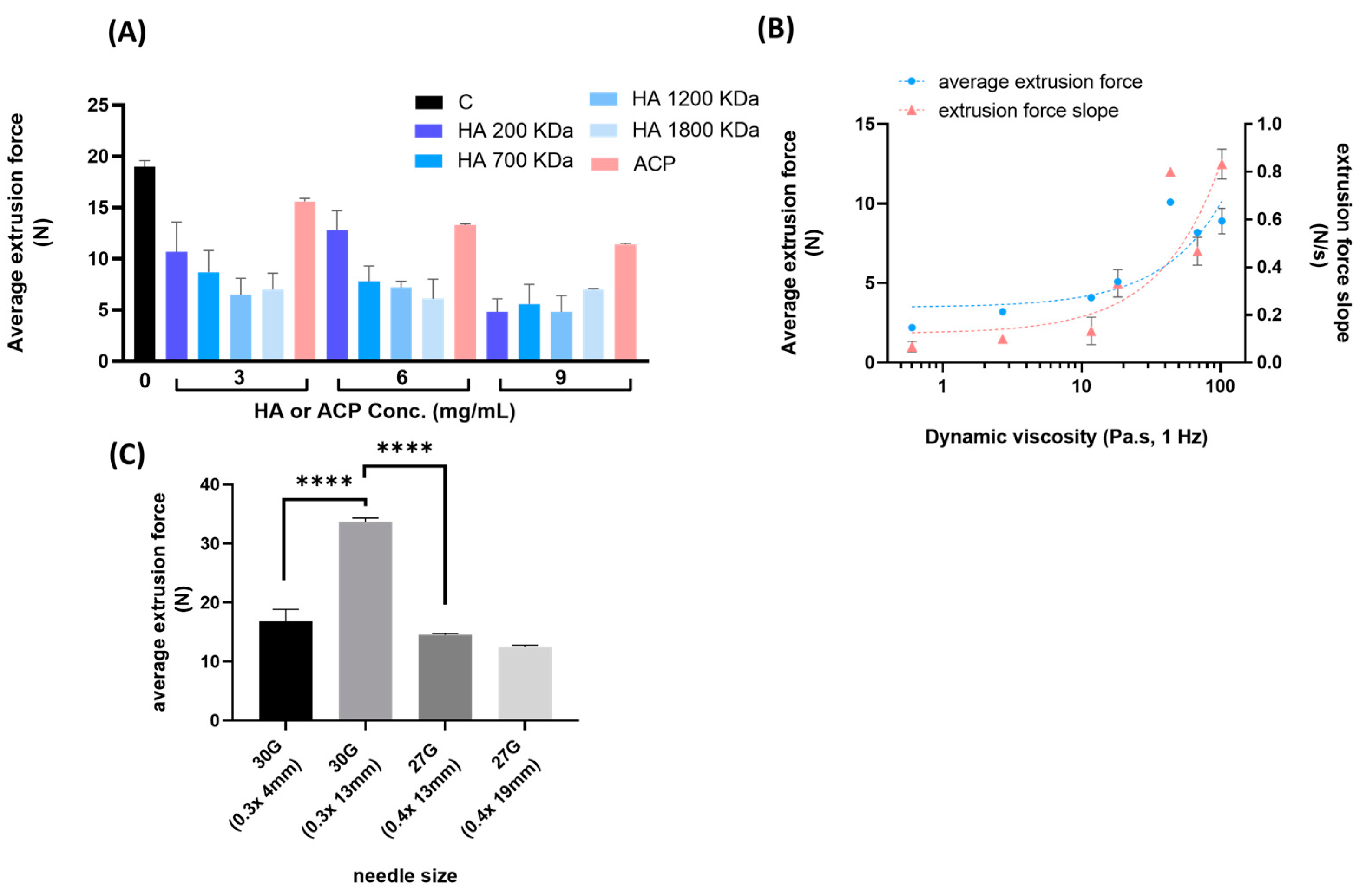

2.3. Linear HA and ACP Improve Extrudability

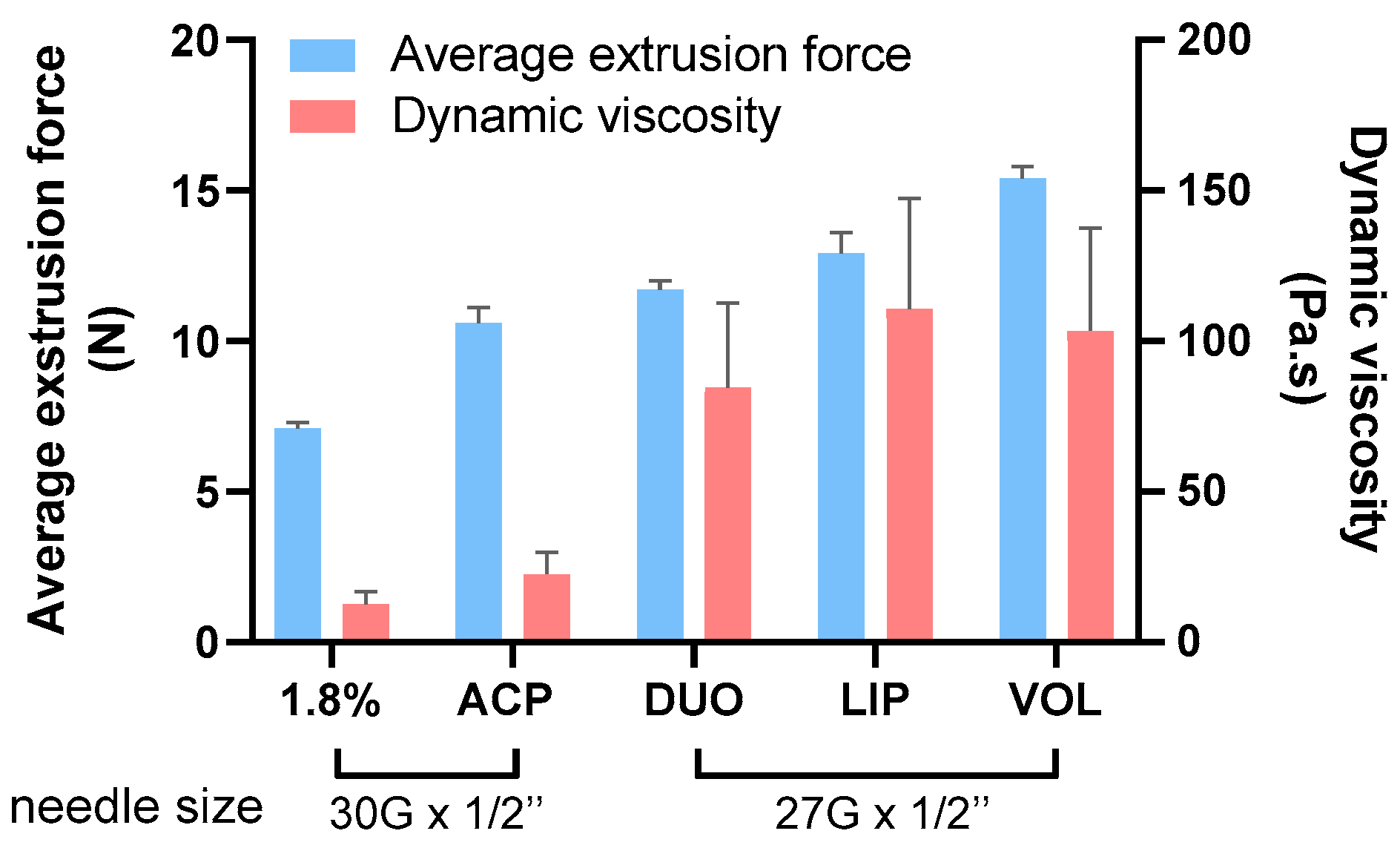

2.4. Dynamic Viscosity and Needle Size Influence Hydrogel Extrusion
2.5. Cell Migration with Linear and Crosslinked HA
3. Conclusions
4. Materials and Methods
4.1. Materials
4.2. Preparation of Crosslinked HA Hydrogels
4.3. Rheological Measurements
4.4. Determination of Degree of Modification
4.5. Cohesivity
4.6. Particle Size
4.7. Soluble fraction
4.8. Swelling Factor
4.9. Extrusion Force Measurements
4.10. Cell Culture
4.11. Migration Assay
4.12. Statistical Analysis
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Snetkov, P.; Zakharova, K.; Morozkina, S.; Olekhnovich, R.; Uspenskaya, M. Hyaluronic Acid: The Influence of Molecular Weight on Structural, Physical, Physico-Chemical, and Degradable Properties of Biopolymer. Polymers 2020, 12, 1800. [Google Scholar] [CrossRef] [PubMed]
- Laurent, T.C.; Laurent, U.B.G.; Fraser, J.R. Functions of Hyaluronan. Ann. Rheum. Dis. 1995, 54, 429–432. [Google Scholar] [CrossRef]
- ISAPS International Survey on Aesthetic/Cosmetic Procedures; International Society of Aesthetic Plastic Surgery: Mount Royal, NJ, USA, 2021; pp. 1–57.
- Gao, Y.; Peng, K.; Mitragotri, S. Covalently Crosslinked Hydrogels via Step-Growth Reactions: Crosslinking Chemistries, Polymers, and Clinical Impact. Adv. Mater. 2021, 33, 2006362. [Google Scholar] [CrossRef] [PubMed]
- Edsman, K.; Nord, L.I.; Öhrlund, Å.; Lärkner, H.; Kenne, A.H. Gel Properties of uronic Acid Dermal Fillers. Dermatol. Surg. 2012, 38 Pt 2, 1170–1179. [Google Scholar] [CrossRef]
- Budai, L.; Budai, M.; Fülöpné Pápay, Z.E.; Vilimi, Z.; Antal, I. Rheological Considerations of Pharmaceutical Formulations: Focus on Viscoelasticity. Gels 2023, 9, 469. [Google Scholar] [CrossRef] [PubMed]
- Wongprasert, P.; Dreiss, C.A.; Murray, G. Evaluating Hyaluronic Acid Dermal Fillers: A Critique of Current Characterization Methods. Dermatol. Ther. 2022, 35, e15453. [Google Scholar] [CrossRef]
- Fundarò, S.P.; Salti, G.; Malgapo, D.M.H.; Innocenti, S. The Rheology and Physicochemical Characteristics of Hyaluronic Acid Fillers: Their Clinical Implications. Int. J. Mol. Sci. 2022, 23, 10518. [Google Scholar] [CrossRef]
- Sundaram, H.; Fagien, S. Cohesive Polydensified Matrix Hyaluronic Acid for Fine Lines. Plast. Reconstr. Surg. 2015, 136, 149S–163S. [Google Scholar] [CrossRef]
- Micheels, P.; Sarazin, D.; Tran, C.; Salomon, D. Effect of Different Crosslinking Technologies on Hyaluronic Acid Behavior: A Visual and Microscopic Study of Seven Hyaluronic Acid Gels. J. Drugs Dermatol. 2016, 15, 600–606. [Google Scholar]
- Kablik, J.; Monheit, G.D.; Yu, L.P.; Chang, G.; Gershkovich, J. Comparative Physical Properties of Hyaluronic Acid Dermal Fillers. Dermatol. Surg. 2009, 35 (Suppl. 1), 302–312. [Google Scholar] [CrossRef]
- de la Guardia, C.; Virno, A.; Musumeci, M.; Bernardin, A.; Silberberg, M.B. Rheologic and Physicochemical Characteristics of Hyaluronic Acid Fillers: Overview and Relationship to Product Performance. Facial Plast. Surg. 2022, 38, 116–123. [Google Scholar] [CrossRef] [PubMed]
- Daoud, A.; Weiss, R. Hyaluronic Acid Fillers: Where We Have Been and Where We Are Going. In Extracellular Matrix: Developments and Therapeutics; IntechOpen: London, UK, 2021; pp. 113–117. [Google Scholar] [CrossRef]
- Goodman, G.J.; Swift, A.; Remington, B.K. Current Concepts in the Use of Voluma, Volift, and Volbella. Plast. Reconstr. Surg. 2015, 136, 139S–148S. [Google Scholar] [CrossRef] [PubMed]
- Guarise, C.; Pavan, M.; Pirrone, L.; Renier, D. SEC Determination of Cross-Link Efficiency in Hyaluronan Fillers. Carbohydr. Polym. 2012, 88, 428–434. [Google Scholar] [CrossRef]
- Pluda, S.; Pavan, M.; Galesso, D.; Guarise, C. Hyaluronic Acid Auto-Crosslinked Polymer (ACP): Reaction Monitoring, Process Investigation and Hyaluronidase Stability. Carbohydr. Res. 2016, 433, 47–53. [Google Scholar] [CrossRef]
- Guarise, C.; Barbera, C.; Pavan, M.; Panfilo, S.; Beninatto, R.; Galesso, D. HA-Based Dermal Filler: Downstream Process Comparison, Impurity Quantitation by Validated HPLC-MS Analysis, and in Vivo Residence Time Study. J. Appl. Biomater. Funct. Mater. 2019, 17, 2280800019867075. [Google Scholar] [CrossRef] [PubMed]
- Pierre, S.; Liew, S.; Bernardin, A. Basics of Dermal Filler Rheology. Dermatol. Surg. 2015, 41, S120–S126. [Google Scholar] [CrossRef]
- Kong, D.C.; Yang, M.H.; Zhang, X.S.; Du, Z.C.; Fu, Q.; Gao, X.Q.; Gong, J.W. Control of Polymer Properties by Entanglement: A Review. Macromol. Mater. Eng. 2021, 306, 2100536. [Google Scholar] [CrossRef]
- La Gatta, A.; Salzillo, R.; Catalano, C.; Pirozzi, A.V.A.; D’Agostino, A.; Bedini, E.; Cammarota, M.; De Rosa, M.; Schiraldi, C. Hyaluronan-Based Hydrogels via Ether-Crosslinking: Is HA Molecular Weight an Effective Means to Tune Gel Performance? Int. J. Biol. Macromol. 2020, 144, 94–101. [Google Scholar] [CrossRef]
- Alessandrini, A.; Tretyakova, K. The Rejuvenating Effect and Tolerability of an Auto-Cross-Linked Hyaluronic Acid on Décolletage: A Pilot Prospective Study. Aesthetic Plast. Surg. 2018, 42, 520–529. [Google Scholar] [CrossRef]
- Wohlrab, J.; Wohlrab, D.; Neubert, R.H.H. Comparison of Noncross-Linked and Cross-Linked Hyaluronic Acid with Regard to Efficacy of the Proliferative Activity of Cutaneous Fibroblasts and Keratinocytes in Vitro. J. Cosmet. Dermatol. 2013, 12, 36–40. [Google Scholar] [CrossRef]
- Wiest, L.; Kerscher, M. Native Hyaluronic Acid in Dermatology—Results of an Expert Meeting. J. Ger. Soc. Dermatol. 2008, 6, 176–180. [Google Scholar] [CrossRef] [PubMed]
- Edsman, K.L.M.; Wiebensjö, Å.M.; Risberg, A.M.; Öhrlund, J.Å. Is There a Method That Can Measure Cohesivity? Cohesion by Sensory Evaluation Compared With Other Test Methods. Dermatol. Surg. 2015, 41, S365–S372. [Google Scholar] [CrossRef] [PubMed]
- Edsman, K.L.M.; Öhrlund, A. Cohesion of Hyaluronic Acid Fillers: Correlation Between Cohesion and Other Physicochemical Properties. Dermatol. Surg. 2018, 44, 557. [Google Scholar] [CrossRef]
- Lemperle, G.; Morhenn, V.; Charrier, U. Human Histology and Persistence of Various Injectable Filler Substances for Soft Tissue Augmentation. Aesthetic Plast. Surg. 2020, 44, 1348–1360. [Google Scholar] [CrossRef]
- Falcone, S.J.; Berg, R.A. Crosslinked Hyaluronic Acid Dermal Fillers: A Comparison of Rheological Properties. J. Biomed. Mater. Res. Part A 2008, 87, 264–271. [Google Scholar] [CrossRef] [PubMed]
- Tezel, A.; Fredrickson, G.H. The Science of Hyaluronic Acid Dermal Fillers. J. Cosmet. Laser Ther. 2008, 10, 35–42. [Google Scholar] [CrossRef]
- De Vries, C.G.; Geertsma, R.E. Clinical Data on Injectable Tissue Fillers: A Review. Expert Rev. Med. Devices 2013, 10, 835–853. [Google Scholar] [CrossRef]
- Kleine-Börger, L.; Kalies, A.; Meyer, R.S.A.; Kerscher, M. Physicochemical Properties of Injectable Hyaluronic Acid: Skin Quality Boosters. Macromol. Mater. Eng. 2021, 306, 2100134. [Google Scholar] [CrossRef]
- Kleine-Börger, L.; Meyer, R.; Kalies, A.; Kerscher, M. Approach to Differentiate between Hyaluronic Acid Skin Quality Boosters and Fillers Based on Their Physicochemical Properties. J. Cosmet. Dermatol. 2022, 21, 149–157. [Google Scholar] [CrossRef]
- Cho, S.Y.; Park, J.W.; An, H.; Ko, H.J.; Kim, H.; Choi, J.K.; Choi, S.Y.; Kim, S.M.; Ko, E.J.; Kim, B.J. Physical Properties of a Novel Small-Particle Hyaluronic Acid Filler: In Vitro, in Vivo, and Clinical Studies. J. Cosmet. Dermatol. 2018, 17, 347–354. [Google Scholar] [CrossRef]
- La Gatta, A.; Papa, A.; Schiraldi, C.; De Rosa, M. Hyaluronan Dermal Fillers via Crosslinking with 1,4-Butandiol Diglycidyl Ether: Exploitation of Heterogeneous Reaction Conditions. J. Biomed. Mater. Res. Part B Appl. Biomater. 2016, 104, 9–18. [Google Scholar] [CrossRef]
- Bentkover, S.H. The Biology of Facial Fillers. Facial Plast. Surg. 2009, 25, 73–85. [Google Scholar] [CrossRef]
- Scott, J.E.; Heatley, F. Hyaluronan Forms Specific Stable Tertiary Structures in Aqueous Solution: A 13C NMR Study. Proc. Natl. Acad. Sci. USA 1999, 96, 4850–4855. [Google Scholar] [CrossRef] [PubMed]
- La Gatta, A.; De Rosa, M.; Frezza, M.A.; Catalano, C.; Meloni, M.; Schiraldi, C. Biophysical and Biological Characterization of a New Line of Hyaluronan-Based Dermal Fillers: A Scientific Rationale to Specific Clinical Indications. Mater. Sci. Eng. C 2016, 68, 565–572. [Google Scholar] [CrossRef] [PubMed]
- Maytin, E.V. Hyaluronan: More than Just a Wrinkle Filler. Glycobiology 2016, 26, 553–559. [Google Scholar] [CrossRef] [PubMed]
- De Boulle, K.; Glogau, R.; Kono, T.; Nathan, M.; Tezel, A.; Roca-Martinez, J.X.; Paliwal, S.; Stroumpoulis, D. A Review of the Metabolism of 1,4-Butanediol Diglycidyl Ether-Crosslinked Hyaluronic Acid Dermal Fillers. Dermatol. Surg. 2013, 39, 1758–1766. [Google Scholar] [CrossRef] [PubMed]
- Santoro, S.; Russo, L.; Argenzio, V.; Borzacchiello, A. Rheological Properties of Cross-Linked Hyaluronic Acid Dermal Fillers. J. Appl. Biomater. Biomech. 2011, 9, 127–136. [Google Scholar] [CrossRef]
- Wende, F.J.; Gohil, S.; Nord, L.I.; Helander Kenne, A.; Sandström, C. 1D NMR Methods for Determination of Degree of Cross-Linking and BDDE Substitution Positions in HA Hydrogels. Carbohydr. Polym. 2017, 157, 1525–1530. [Google Scholar] [CrossRef]
- La Gatta, A.; Salzillo, R.; Catalano, C.; D’Agostino, A.; Pirozzi, A.V.A.; De Rosa, M.; Schiraldi, C. Hyaluronan-Based Hydrogels as Dermal Fillers: The Biophysical Properties That Translate into a “Volumetric” Effect. PLoS ONE 2019, 14, e0218287. [Google Scholar] [CrossRef]
Technology | Manufacturer | Product-by-Process Claims | Patent Reference | Literature Reference |
---|---|---|---|---|
Non-Animal Stabilized HA (NASHA®) | Galderma |
| EP3013866B1 | [5] |
Optimal Balance Technology (OBT®) |
| WO2018104426A1 | [11] | |
Hylacross® | Allergan |
| US 8357795 B2 | [13] |
Vycross® |
| US 7741476 B2 | [14] | |
Cohesive Polydensified Matrix (CPM®) | Merz |
| EP1968711B1 | [9] |
Resilient HA (RHA®) | Teoxane |
| EP2429486B1 | [10] |
Parameter | Unit | Hyal System | ||||
---|---|---|---|---|---|---|
1.8% | ACP | DUO | LIP | VOL | ||
Concentration | mg/mL | 18 | 20 | 25 | 25 | 25 |
% linear HA | 100 | 0 | 0 | 7 ± 3 | 4 ± 3 | |
Composition | % ester crosslinked HA | 0 | 100 | 25 ± 5 | 0 | 0 |
% ether crosslinked HA | 0 | 0 | 75 ± 5 | 93 ± 3 | 96 ± 3 | |
G′ (1 Hz) | Pa | 12.3 ± 4.1 | 23.9 ± 7.9 | 27.5 ± 9.1 | 76.5 ± 25.2 | 89.2 ± 29.4 |
G″ (1 Hz) | Pa | 27.9 ± 9.2 | 10.6 ± 3.5 | 14.6 ± 4.8 | 29.1 ± 5.3 | 25.7 ± 8.5 |
% elasticity (1 Hz) | - | 30.6 ± 4.9 | 69.3 ± 11.1 | 65.3 ± 10.5 | 72.4 ± 11.6 | 77.6 ± 12.4 |
HA conc. x % elasticity | mg/mL | 551 ± 88 | 1386 ± 222 | 1633 ± 263 | 1811 ± 290 | 1941 ± 310 |
Tan delta | - | 2.3 ± 0.7 | 0.4 ± 0.1 | 0.5 ± 0.2 | 0.4 ± 0.1 | 0.3 ± 0.1 |
Dynamic viscosity (1 Hz) | Pa. | 12.6 ± 4.2 | 22.5 ± 7.4 | 84.6 ± 27.9 | 110.8 ± 36.6 | 103.5 ± 34.1 |
Cohesivity | mg/drop | 21.2 ± 3.6 | 23.5 ± 4.0 | 40.2 ± 6.9 | 52.3 ± 8.9 | 52.5 ± 8.9 |
Particle size (d 0.5) | µm | - | 481 ± 72 | 425 ± 64 | 45 ±7 | 99 ± 15 |
Soluble fraction | % | 103.5 ± 3.1 | 39.9 ± 15.2 | 50.2 ± 19.1 | 27.3 ± 10.4 | 16.2 ± 6.2 |
Swelling factor | % | n.a. | 120.6 ± 36.4 | 400.1 ± 61.0 | 450.1 ± 96.2 | 423.3 ± 38.4 |
Degree of modification | % mol/mol | 0 | 0 | 4.1 ± 0.1 | 5.2 ± 1.2 | 8.5 ± 0.7 |
Parameter | Unit | Hyal System | ||||||
---|---|---|---|---|---|---|---|---|
1.8% | ACP | DUO | LIP | VOL | ||||
Needle size | - | 30 G × 1/2″ (0.3 × 13 mm) | 30 G × 3/16″ (0.3 × 4 mm) | 30 G × 1/2″ (0.3 × 13 mm) | 27 G × 1/2″ (0.4 × 13 mm) | 27 G × 1/2″ (0.4 × 13 mm) | 27 G × 3/4″ (0.4 × 19 mm) | 27 G × 1/2″ (0.4 × 13 mm) |
Average extrusion force | N | 7.1 ± 0.2 | 7.9 ± 0.7 | 10.6 ± 0.5 | 11.7 ± 0.3 | 12.9 ± 0.7 | 17.1 ± 0.1 | 15.4 ± 0.4 |
Extrusion force slope | N/s | 0.4 ± 0.1 | 1.1 ± 1.0 | 1.4 ± 0.6 | 0.7 ± 0.1 | 4.6 ± 1.5 | 5.2 ± 1.1 | 5.0 ± 4.3 |
