Flow Past Mound-Bearing Impact Craters: An Experimental Study

by
Diego Gundersen
1,
Gianluca Blois
1,* and
Kenneth T. Christensen
1,2,3,†
1
Department of Aerospace and Mechanical Engineering, University of Notre Dame, Notre Dame, IN 46556, USA
2
Department of Civil and Environmental Engineering and Earth Sciences, University of Notre Dame, Notre Dame, IN 46556, USA
3
CO2 Storage Division, International Institute for Carbon-Neutral Energy Research (I2CNER), Kyushu University, Fukuoka 819-0385, Japan
*
Author to whom correspondence should be addressed.
Current Affiliation: Department of Mechanical, Materials, and Aerospace Engineering, Illinois Institute of Technology, Chicago, IL 60616, USA.
Fluids 2021, 6(6), 216; https://doi.org/10.3390/fluids6060216
Submission received: 28 April 2021 / Revised: 26 May 2021 / Accepted: 3 June 2021 / Published: 9 June 2021
(This article belongs to the Special Issue Boundary Layer Processes in Geophysical/Environmental Flows)

Abstract

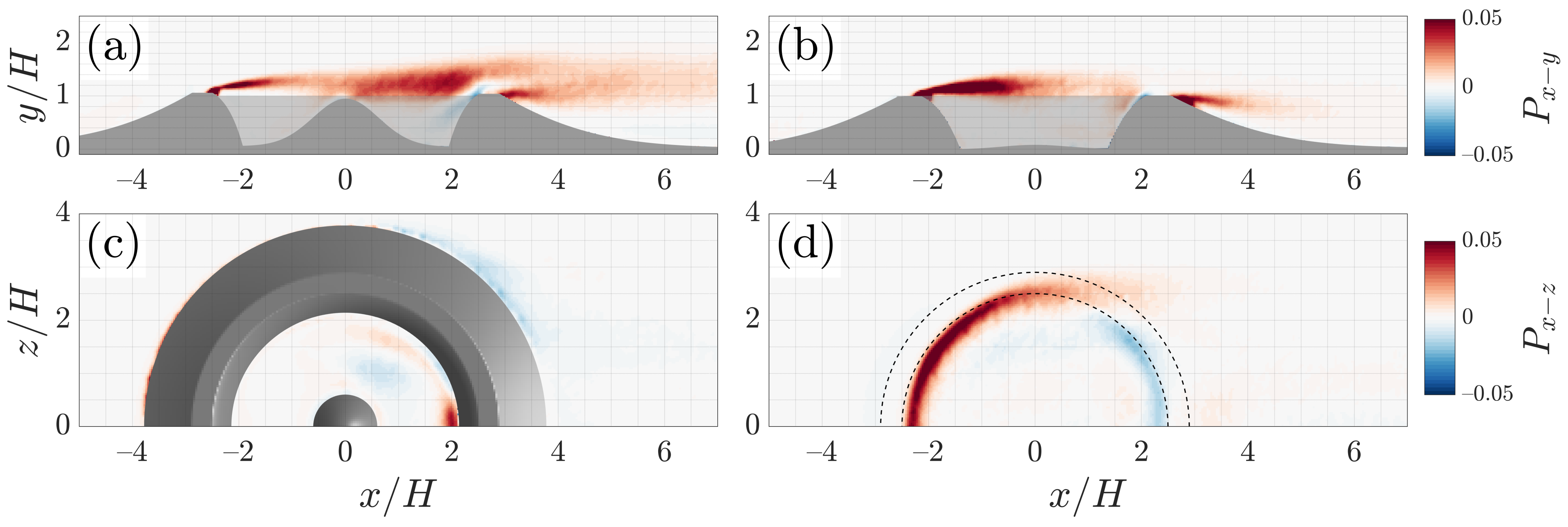

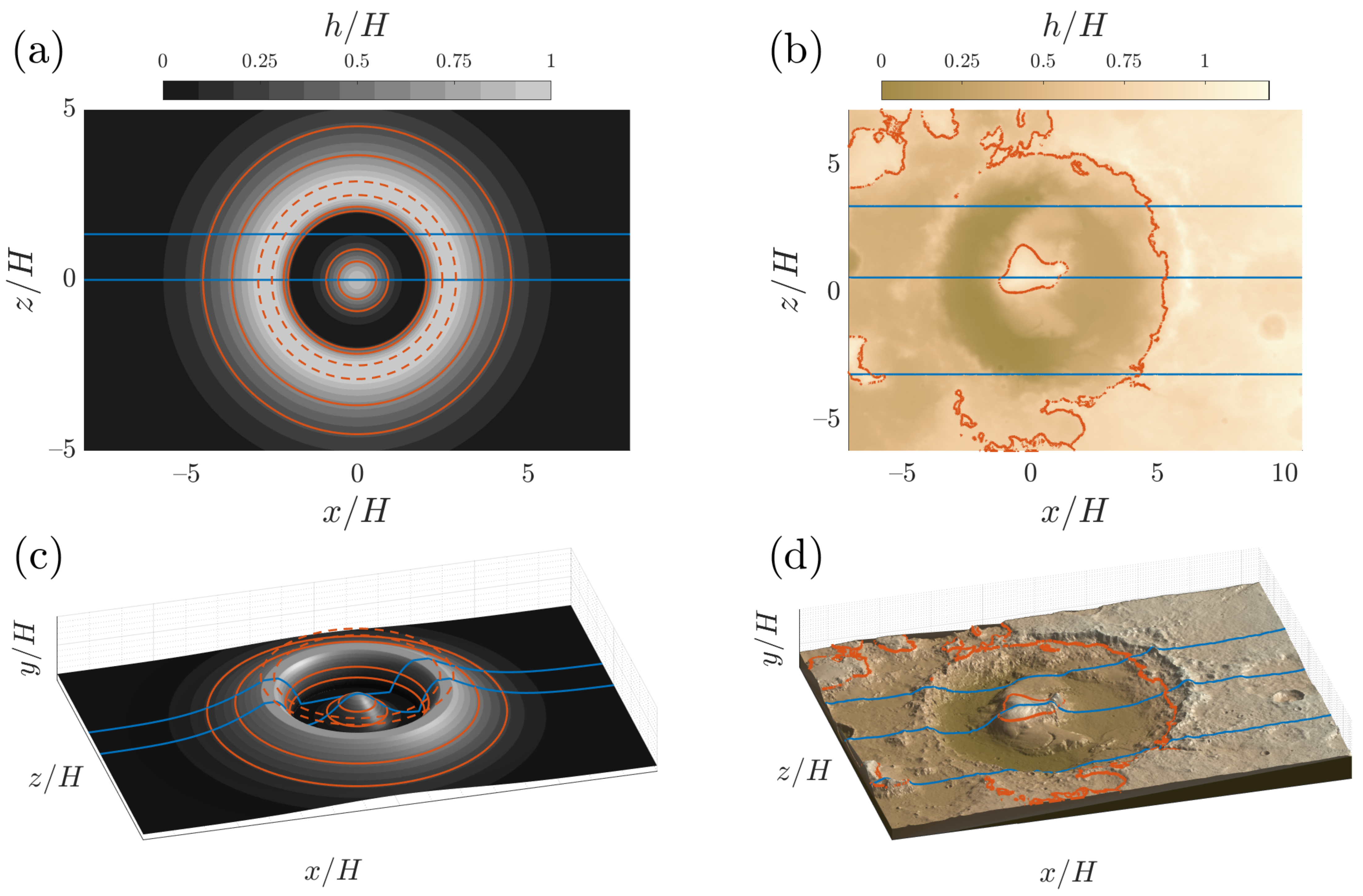

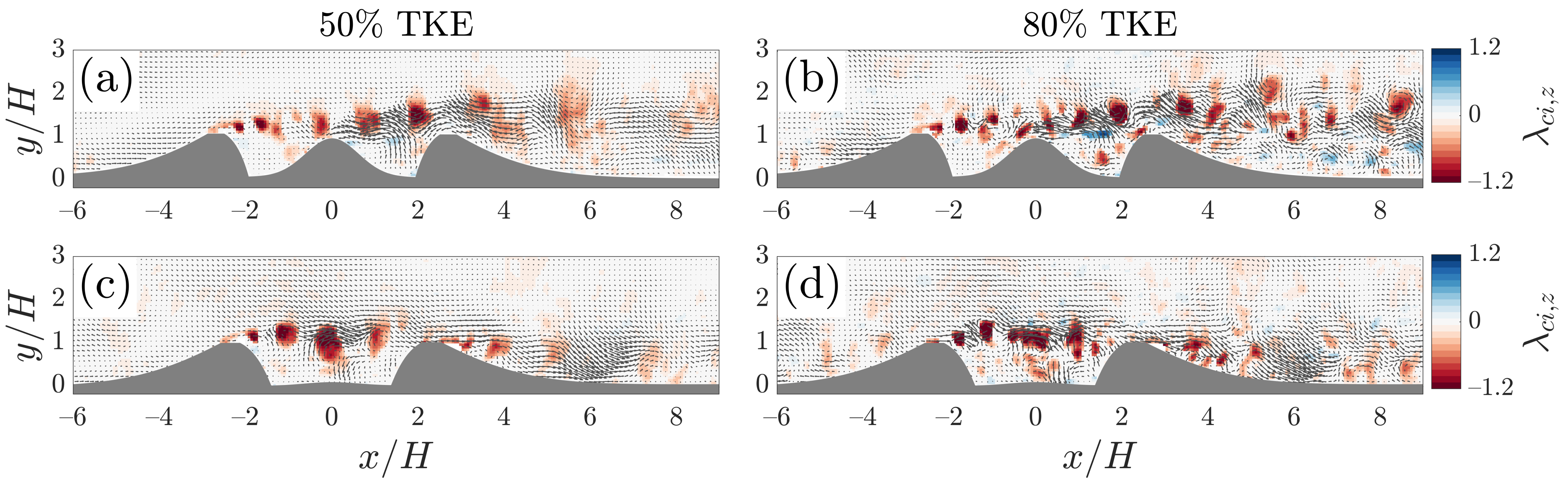

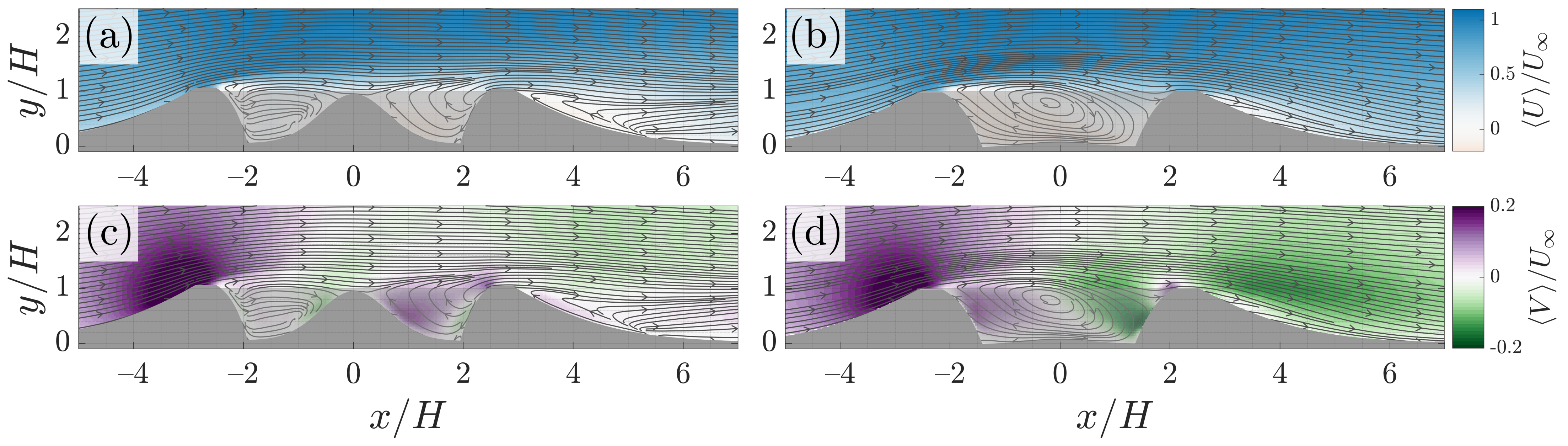

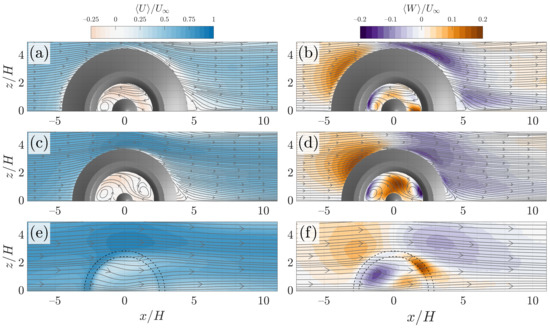

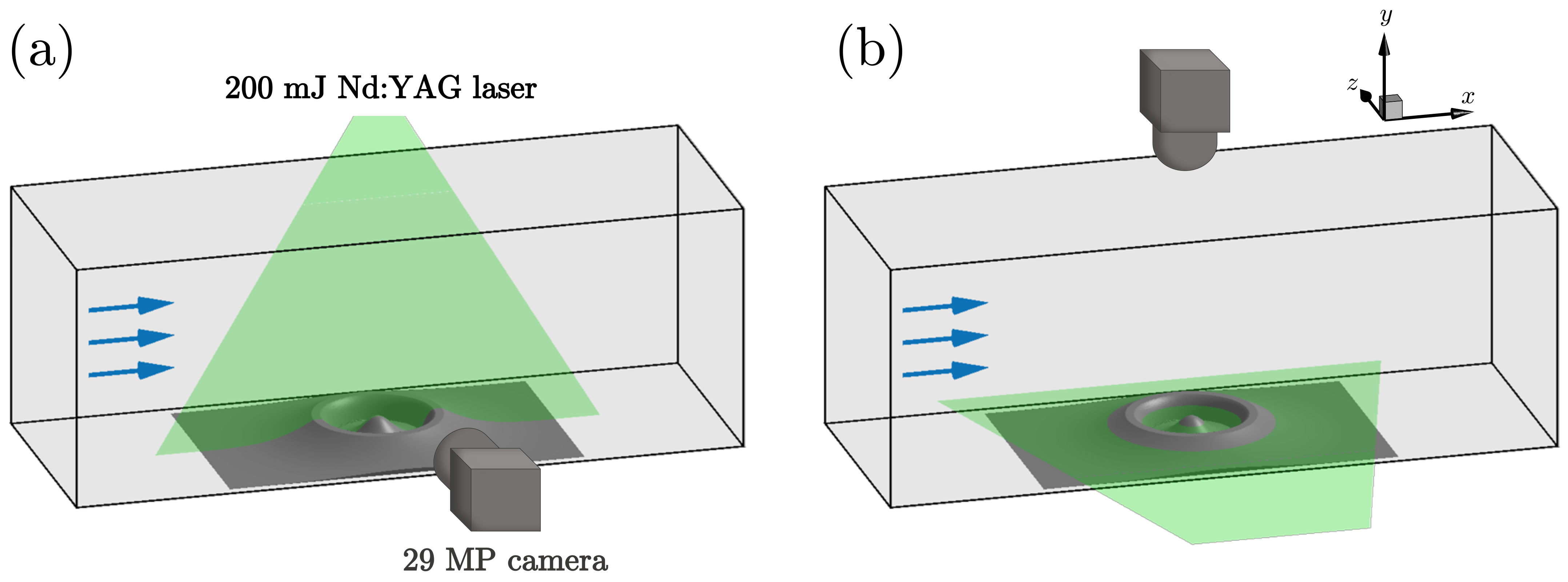

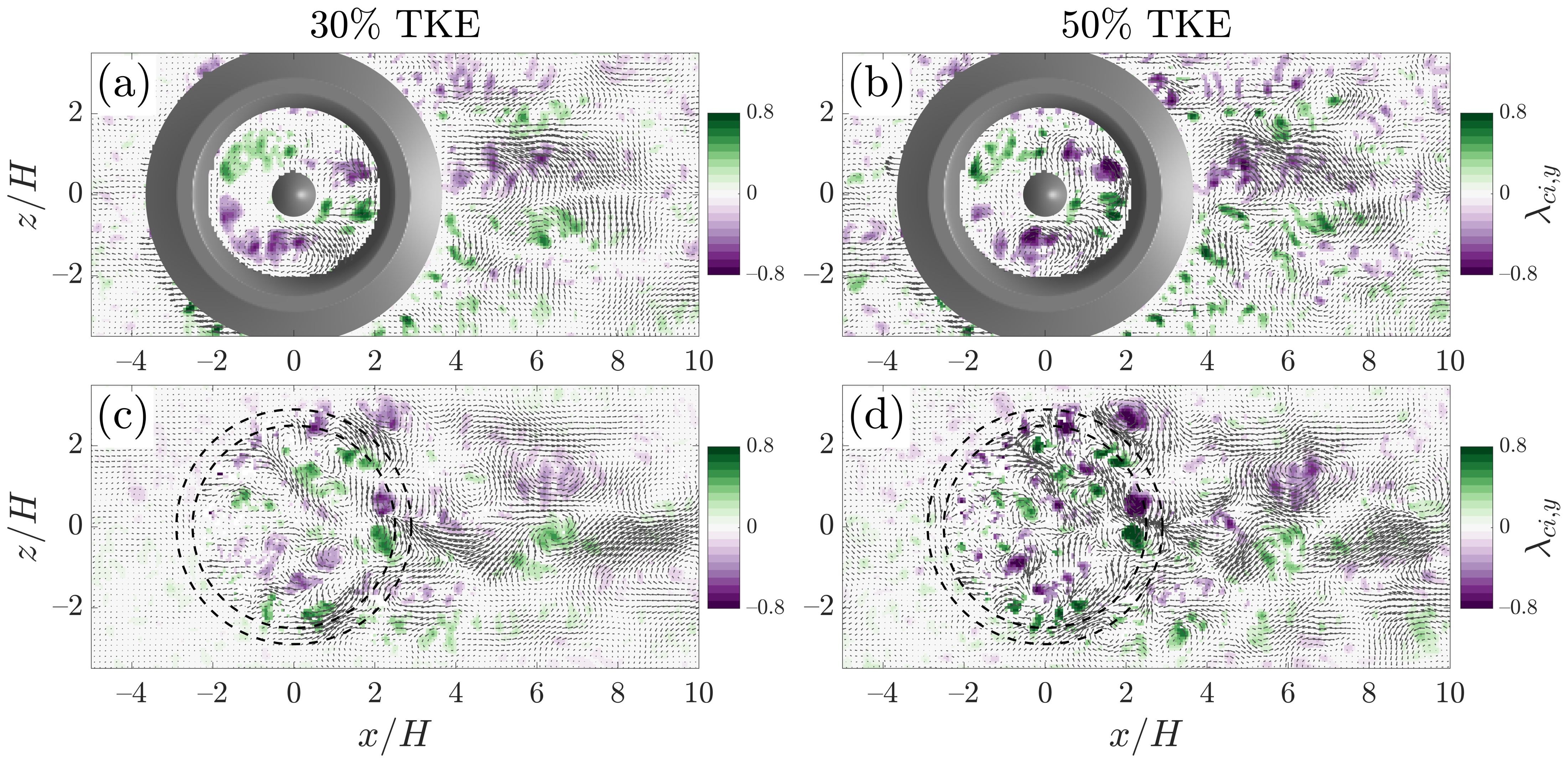

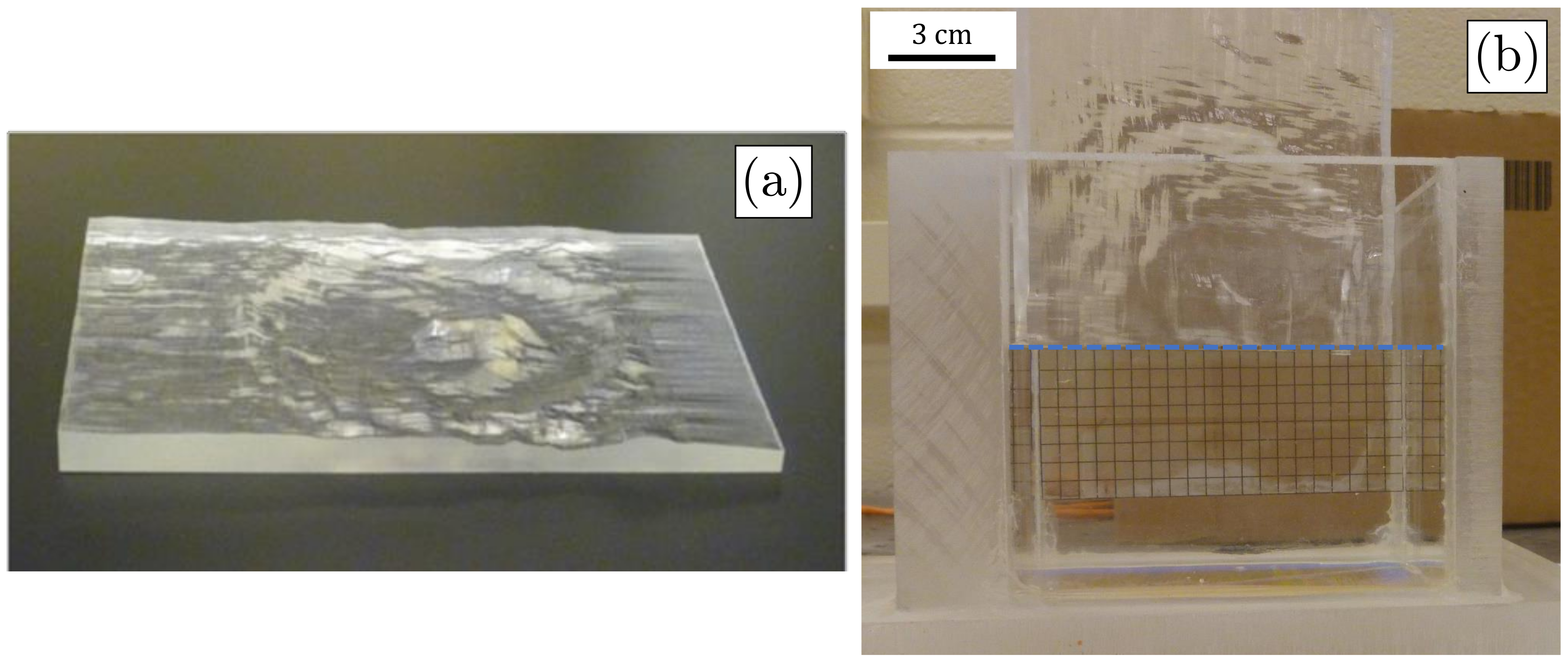

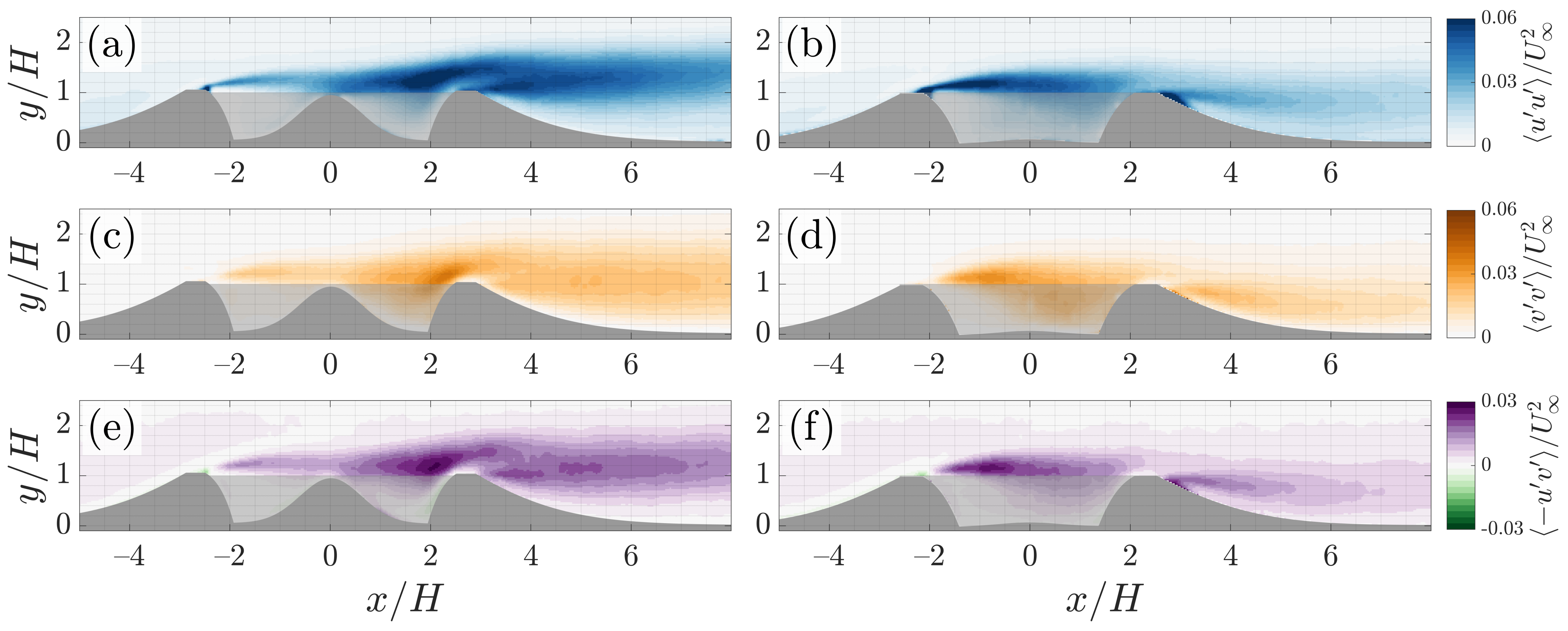

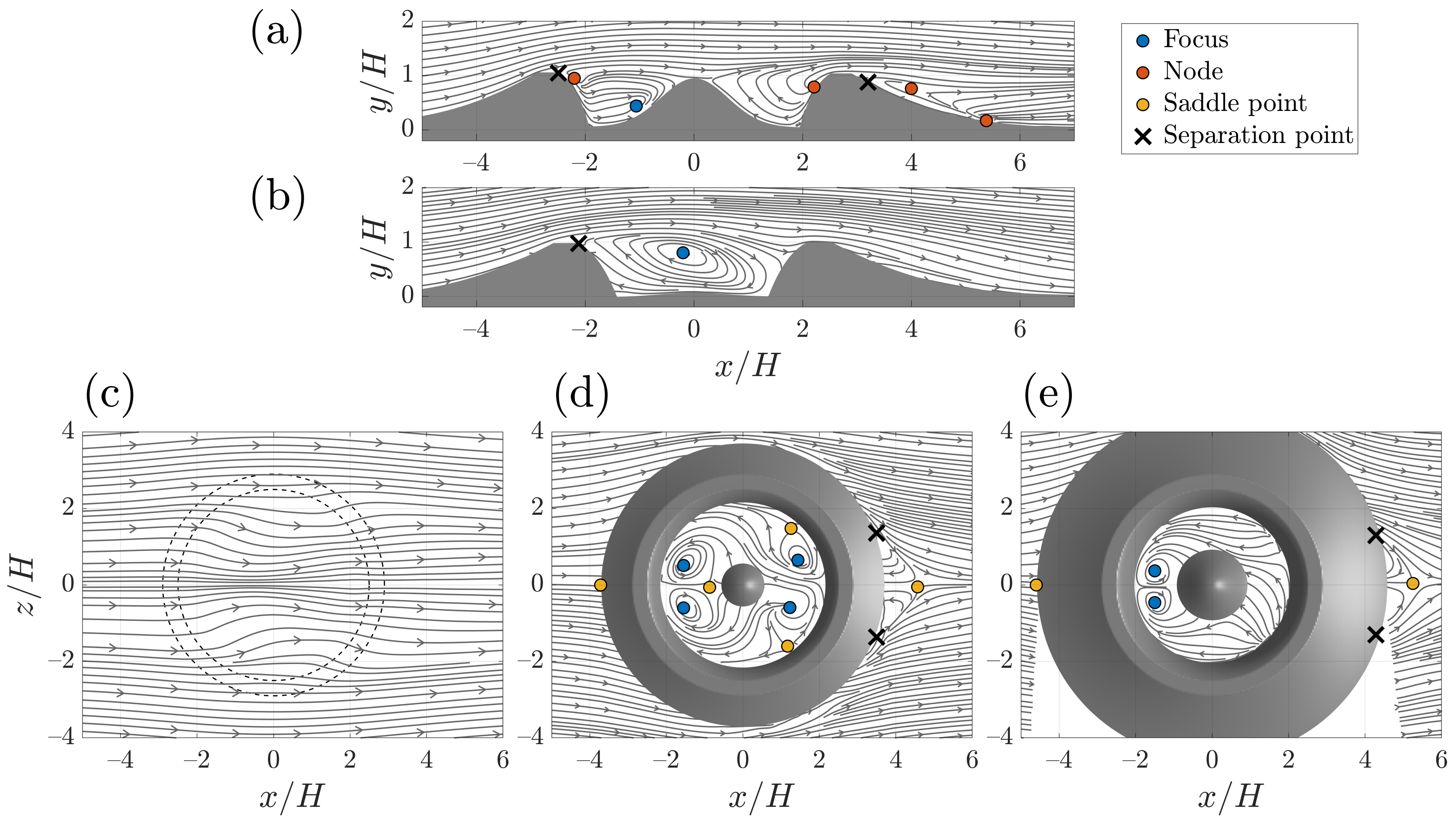

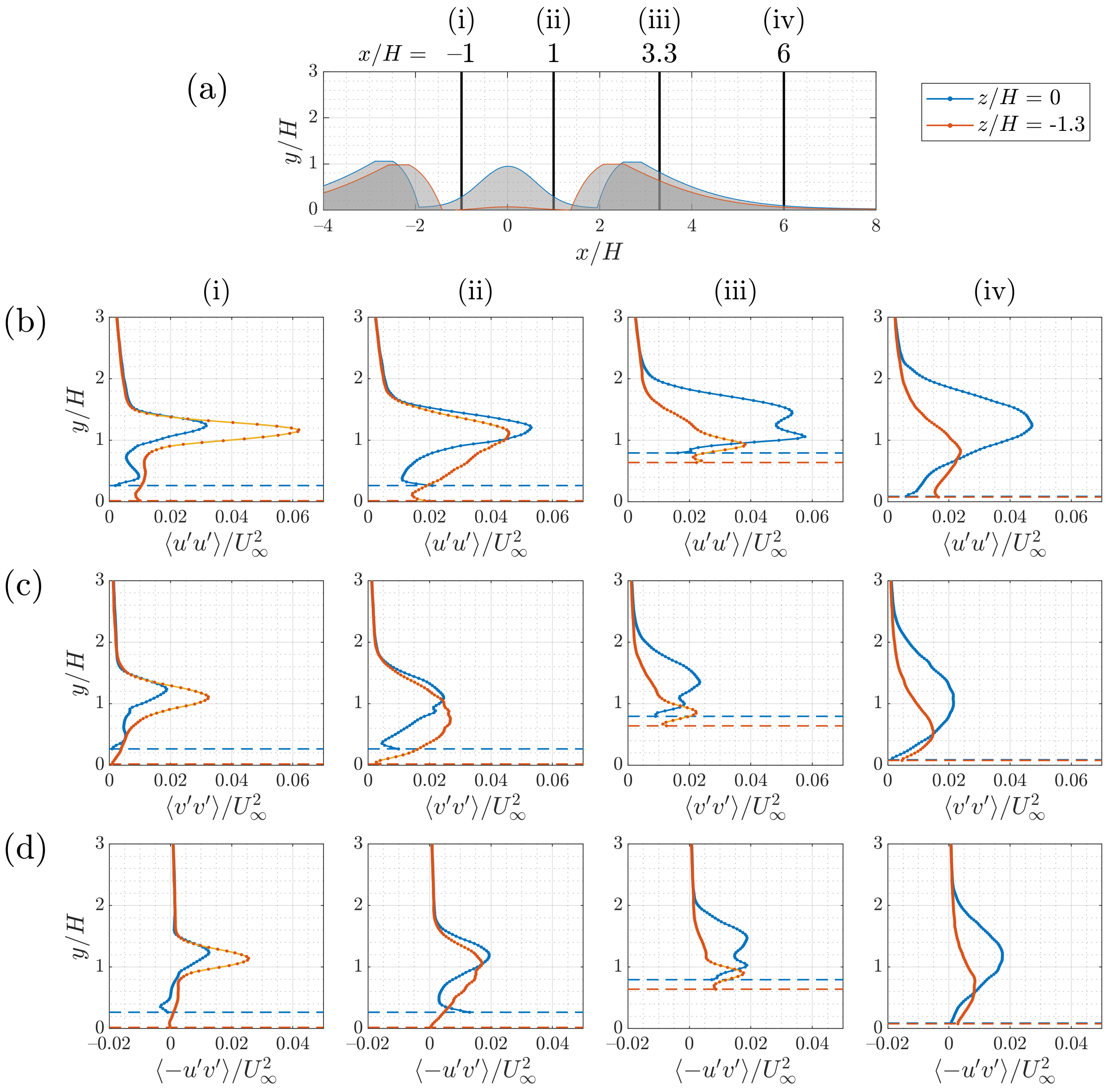

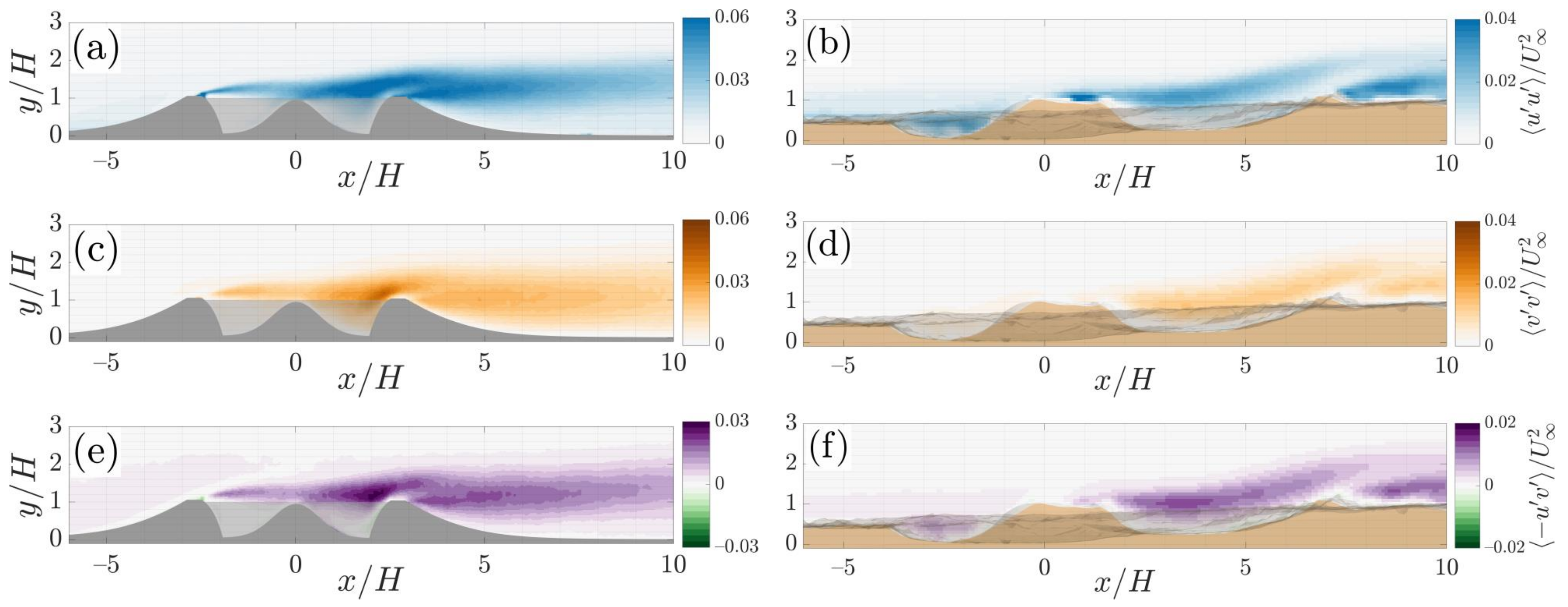

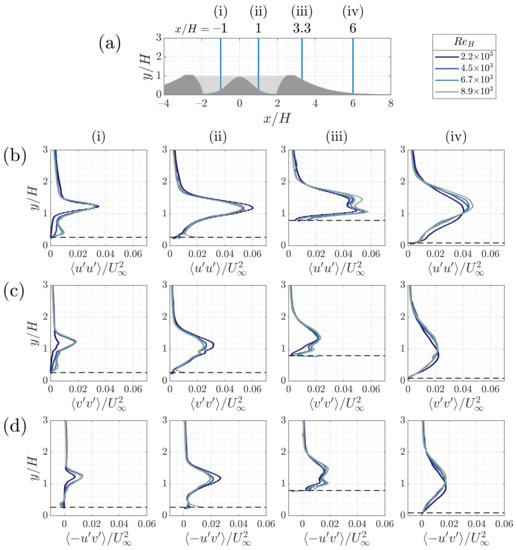

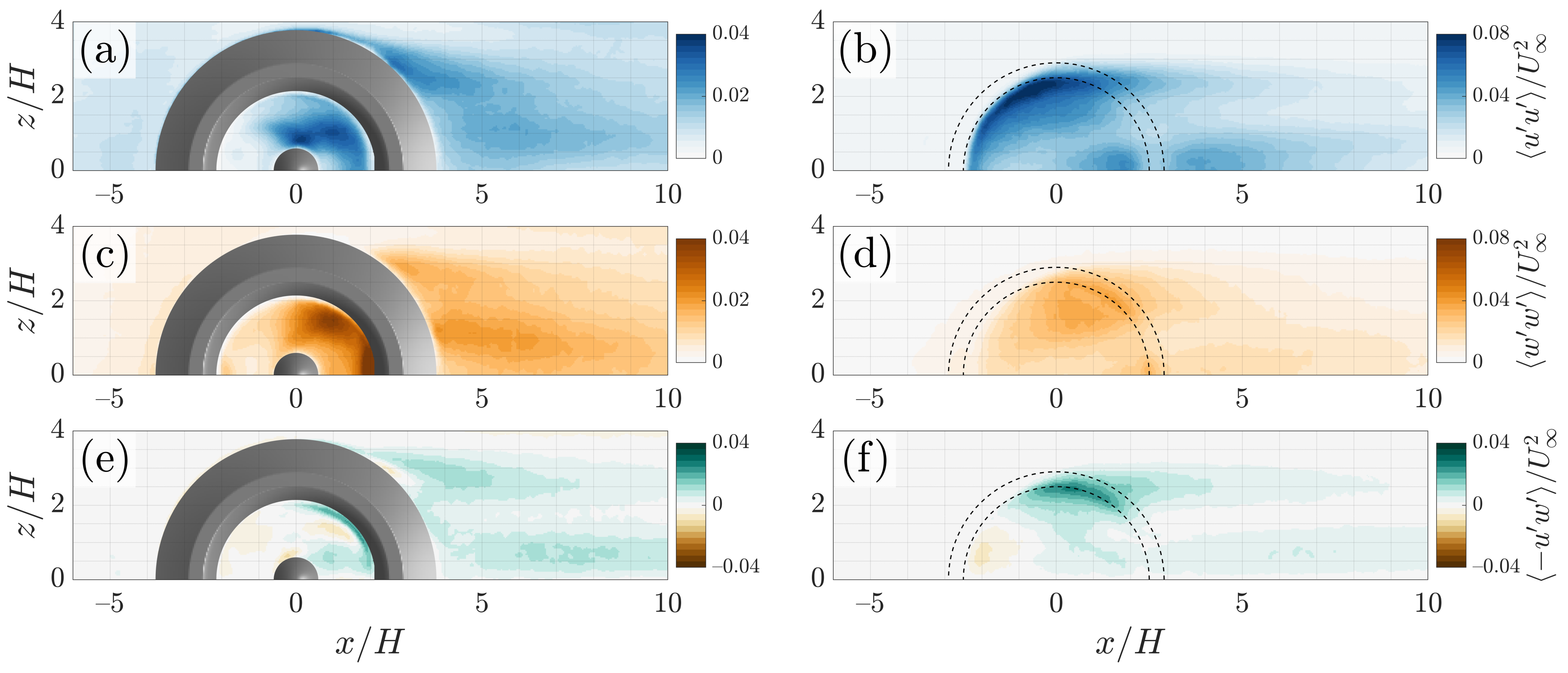

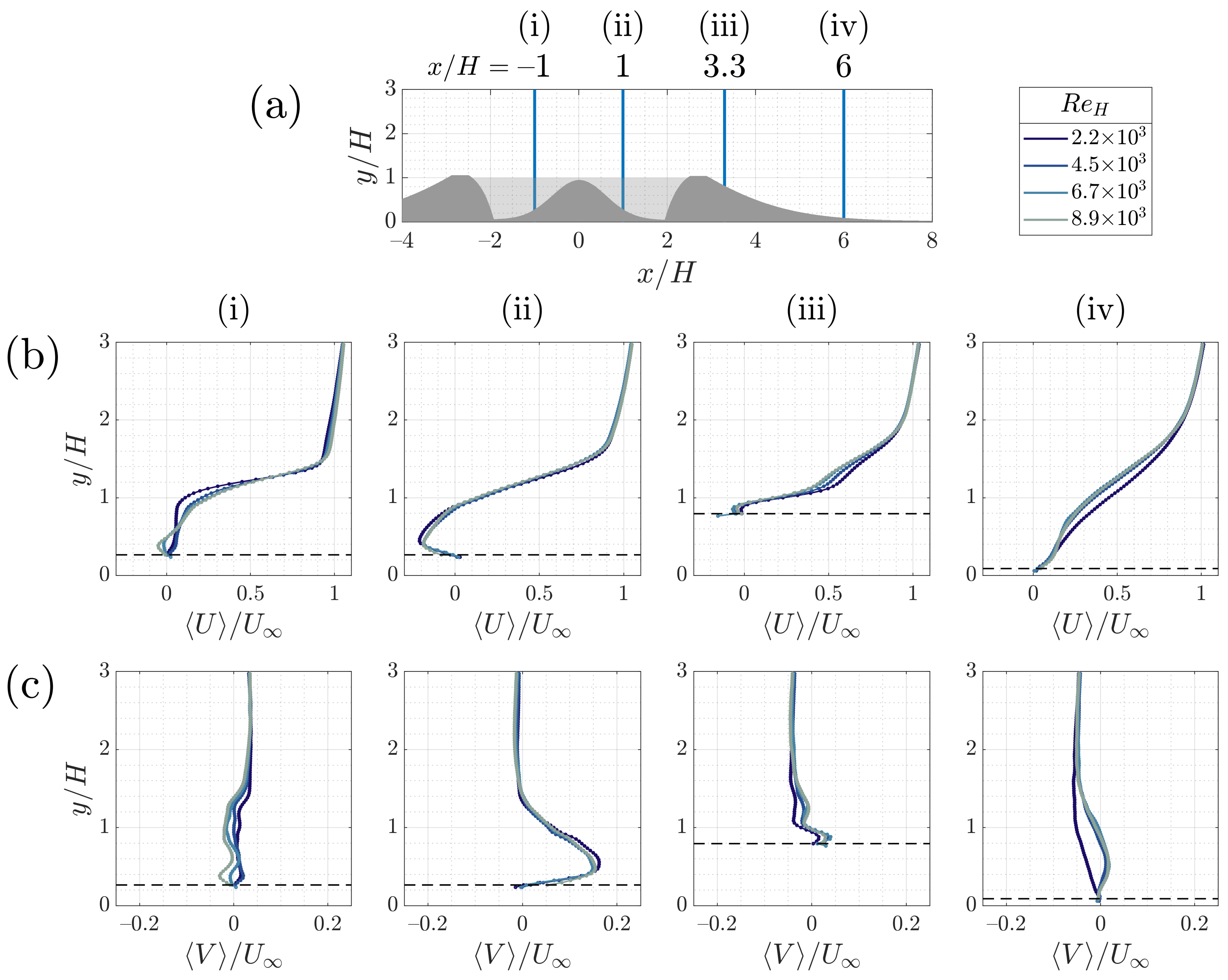

An experimental investigation into the flow produced by mound-bearing impact craters is reported herein. Both an idealized crater and a scaled model of a real martian crater are examined. Measurements were performed using high-resolution planar particle image velocimetry (PIV) in a refractive-index matching (RIM) flow environment. Rendering the crater models optically invisible with this RIM approach provided unimpeded access to the flow around and within each crater model. Results showed that the mean flow within the idealized crater exhibits more structural complexity compared to its moundless counterpart. Second-order statistics highlighted regions of minimal and elevated turbulent stresses, the latter of which revealed a complex interaction between shear layers that are present at the upstream and downstream parts of the rim and the central mound. Periodic vortex shedding of quasi-spanwise vortices from the upstream rim was revealed by POD-filtered instantaneous flow fields. Vertical flapping of this shear layer resulted in vortices occasionally impinging on the inner wall of the downstream rim. Further, conditional averaging analysis suggested periodic lateral oscillations of wall-normal vortices within the crater rim region reminiscent of those observed for flow inside spherical dimples. These results have implications for intra- to extra-crater mass and momentum exchange, and for sediment transport processes. Lastly, experiments with the Gale Crater model showed both similarities with and differences from the primary flow features found for the idealized model.
Keywords: impact crater; index matching; complex topography impact crater; index matching; complex topography
