Optical Transitions Dominated by Orbital Interactions in Two-Dimensional Fullerene Networks

College of Science, Liaoning Petrochemical University, Fushun 113001, China
*
Authors to whom correspondence should be addressed.
Submission received: 16 January 2025 / Revised: 12 February 2025 / Accepted: 24 February 2025 / Published: 25 February 2025
(This article belongs to the Special Issue High-Performance Carbon Materials and Their Composites)

Abstract

:
Fullerenes are a class of highly symmetric spherical carbon materials that have attracted significant attention in optoelectronic applications due to their excellent electron transport properties. However, the isotropy of their spherical structure often leads to disordered inter-sphere stacking in practical applications, limiting in-depth studies of their electron transport behavior. The successful fabrication of long-range ordered two-dimensional fullerene arrays has opened up new opportunities for exploring the structure–activity relationship in spatial charge transport. In this study, theoretical calculations were performed to analyze the effects of different periodic arrangements in two-dimensional fullerene arrays on electronic excitation and optical behavior. The results show that HLOPC60 exhibits a strong absorption peak at 1050 nm, while TLOPC60 displays prominent absorption features at 700 nm and 1300 nm, indicating that their electronic excitation characteristics are significantly influenced by the periodic structure. Additionally, analyses of orbital distribution and the spatial electron density reveal a close relationship between carrier transport and the structural topology. Quantitative studies further indicate that the interlayer interaction energies of the HLOPC60 and TLOPC60 arrangements are −105.65 kJ/mol and −135.25 kJ/mol, respectively. TLOPC60 also exhibits stronger dispersion interactions, leading to enhanced interlayer binding. These findings provide new insights into the structural regulation of fullerene materials and offer theoretical guidance for the design and synthesis of novel organic optoelectronic materials.

Graphical Abstract

1. Introduction

Organic optoelectronic materials, characterized by their optoelectronic activity, play a pivotal role in various applications such as organic light-emitting diodes (OLEDs) [1], dye-sensitized solar cells [2], organic–inorganic perovskite solar cells [3,4,5], and organic transistors [6]. Organic optoelectronic materials are usually organic systems that are rich in carbon atoms and have large π-conjugated electrons. Two-dimensional carbon materials, such as graphene [7,8,9] and graphdiyne [10,11,12], have unique pz orbital electron transport properties and have attracted much attention due to the special carrier transport properties generated by the unique π-electron system in the conjugated carbon network structure [13]. Among carbon materials, fullerenes stand out as particularly important. They are widely used in new solar cells and other fields due to their high electron affinity, low recombination energy, high electron mobility (5.09 cm2/Vs at 298.15 K), and isotropic transport properties [14,15]. New solar cells, including dye-sensitized solar cells, organic–inorganic hybrid perovskite solar cells, and quantum dot solar cells, are a promising class of photovoltaic devices. In organic solar cells, fullerene materials function as active layer acceptors, receiving and transferring electrons. They can also serve as electron transport layers to enhance compatibility with active layer materials. In perovskite solar cells, fullerene materials can be used as active layer additives to passivate perovskite defects and suppress the hysteresis effect. Additionally, they can be employed as an intermediate layer to optimize the interface morphology and promote charge extraction and transport.
In 1985, scientists such as Curl and Smalley discovered fullerenes [16], whose unique structure and optoelectronic properties have attracted the extensive attention of researchers. In the early 1990s, the discovery of fullerene (C60) crystals and subsequent research revealed the unique physical properties of this material. In particular, C60 crystals doped with alkali metals exhibit extraordinary superconducting properties, greatly stimulating the interest of the scientific community. One of the earliest studies, by Hebard et al., found that potassium-doped C60 exhibits superconductivity at 18 K [17]. This discovery quickly led to a large number of theoretical studies on the structure of C60 crystals and their electronic properties. So far, many new fullerenes have been discovered by scientists, including hollow fullerenes, endohedral metallofullerenes, fullerene derivatives, and nitrogen fullerenes [18,19]. Zheng Jian et al. published a paper in Nature and developed a new interlayer bond cleavage strategy to prepare a two-dimensional monolayer polymerized fullerene semiconductor [20], promoting a large number of scientists to conduct research on it [21,22]. In this monolayer polymer C60, the cluster cages of C60 are covalently bonded to each other in plane, forming a regular topology different from conventional 2D materials. Furthermore, the monolayer polymer C60 exhibits interesting in-plane anisotropy properties and a moderate band gap of 1.6 eV, which makes it a potential candidate for optoelectronic devices such as solar cells and light-emitting diodes.
In the past, related articles [23,24,25,26] have reported research on fullerene excitons in systems such as fullerene films, fullerene polymers, and fullerene derivatives, and have revealed the charge transfer characteristics of fullerenes in different states. Experimental and theoretical studies have shown that C60 molecules can form covalent bonds under high-pressure conditions. Covalently bonded C60 structures have higher stability and more unique electronic properties [27,28]. This stability and these properties give it an advantage in some applications compared to the non-covalently interacting C60 structure. Covalently bonded C60 films may exhibit better tolerance and stability under high-temperature or current density conditions. These studies support our hypothesis regarding the covalent bonding of C60 molecules. This covalently bonded C60 structure provides a unique model system that allows us to delve deeper into the nature and mechanisms of intermolecular interactions. By studying this highly ordered and well-defined covalent bond binding system, we are able to more clearly reveal the microscopic details of the interactions between C60 molecules, which has important fundamental scientific implications for understanding and regulating the properties of materials. So, we employ a novel periodic TDDFT technique to calculate the optoelectronic properties of two-dimensional fullerene arrays with two different packing modes of hexagonal and tetragonal long-range ordered poly-C60 (HLOPC60/TLOPC60). At present, a small number of studies on periodic TDDFT have been reported, and these studies have achieved good results in optics and other fields [29,30,31,32].
In this work, the cross-space charge transport properties between spherical systems of fullerenes are discussed, as these are crucial for understanding the structure–activity relationship between electron transport properties and the structure of π-systems. The studied systems, HLOPC60 and TLOPC60, are neutral in nature, allowing for a clear analysis of their intrinsic charge transport properties without the influence of external charges. We also performed detailed qualitative and quantitative studies on the intralayer interactions of HLOPC60 and TLOPC60. This research aims to offer theoretical guidance for the application of novel organic optoelectronic transport materials.

2. Calculation Method

The crystal structures used in this work were extracted from single-crystal diffraction CIF files (CCDC 2159850, CCDC 2159902, from [20]). Electronic excitation calculations for periodic systems were performed by the first-principles program-CP2K [33] through time-dependent density functional theory (TDDFT) combined with PBE functionals [34] and the DZVP-MOLOPT-SR-GTH pseudopotential basis set. The Tamm–Dancoff approximation (TDA) was employed during the excitation calculation. The studied systems are two-dimensional and neutral, ensuring that the intrinsic electronic properties and excitation characteristics can be explored without interference from external charges or dopants. To account for the periodic nature of the systems, only the two-dimensional plane direction was set to be periodically repeated in the TDDFT calculations. Since CP2K’s TDDFT calculations consider only Gamma points, the lattice vectors in the periodic direction were set to approximately 15 Å to ensure calculation accuracy. The charge transfer modes for different excited states are described by charge differential density (CDD) maps [35,36,37]. These clearly represent the transfer process of electrons and identify regions of electron and hole density. Additionally, seven quantitative transition indices were provided to supplement the CDD analysis. All wave function analyses were based on the wave function files generated by CP2K under the PBE functional and DZVP-MOLOPT-SR-GTH basis set. The wave function analysis used in this article was performed by the multi-function wave function analysis software Multiwfn 3.8 [38]. The methods and formulas used to perform the wave function analysis involved in this work are detailed in the Supplementary Information. All three-dimensional structure diagrams are drawn by VMD [39].

3. Result and Discussion

We investigated the optoelectronic properties of two-dimensional fullerene arrays (Figure 1) with two different packing modes by the first-principles software CP2K, and visualized the electron transfer mechanism by CDD. The purpose of this study was to explore the cross-space charge transport properties between the spherical systems of fullerenes, and to examine the structure–activity relationship between the electron transport properties and structures of π systems. In the CDD diagram, the electron and hole densities are defined as follows:
ρ hole r = i a ω i a 2 φ i φ i i a ω i a 2 φ i φ i + i a j i a ω i a ω j a φ i φ j i a j i a ω i a ω j a φ i φ j
ρ ele r = i a ω i a 2 φ a φ a i a ω i a 2 φ a φ a + i a i b a ω i a ω i b φ a φ b i a i b a ω i a ω j b φ a φ b
where ω is the excitation configuration coefficient, ω is the de-excitation configuration coefficient, r is the coordinate vector, φ is the orbital wave function, i or j is the occupied orbital label, and a or b is the empty orbital label. Thus, i a represents every excitation configuration of the cycle, and i a represents every de-excitation configuration of the cycle.
Subsequently, the optical absorption properties of the two-dimensional fullerene system were investigated. Firstly, the optical gap of hexagonal two-dimensional fullerene was calculated to be 1.64 eV. This differs by only 0.09 eV from the experimentally measured value of 1.55 eV, reflecting the reliability of the current computational approach. Figure 2A shows the absorption spectrum of HLOPC60. In the wavelength range of 300–2000 nm, there is a strong absorption peak contributed by a large number of excited states. The excited states that primarily contribute to the absorption peak are S3, S19, S70, S82 and S144. S3 (Figure 2B) exhibits significant hole density at the double covalent bonds (two covalent bonds between fullerenes) where the fullerene is attached, and a pronounced electron density at the single covalent bond (single covalent bond between fullerenes). This shows that there is charge transfer between the fullerene and the covalent bond at the junction, which will promote the flow of electrons in the two-dimensional plane. Although higher excited states such as S19 and S70 are less relevant for direct charge transport properties, they provide critical insights into charge density distributions and symmetry effects. These factors indirectly influence the electronic structure and overall transport characteristics of the system. Including these states ensures a comprehensive evaluation of both the optical and electronic behaviors under different stacking configurations. The charge transfer behavior of S19 (Figure 2C) is very obvious, with charge transfer occurring on both sides of HLOPC60. A substantial number of electron and hole densities are distributed on either side of the plane, illustrating the transfer of electrons from one side of HLOPC60 to the other. The absence of electron and hole densities at the covalent bond connecting the fullerenes in S70 (Figure 2D) suggests that the charge recombination of S70 occurs inside the fullerenes. The charge transfer patterns within fullerenes for S82 (Figure 2E) and S144 (Figure 2F) are very similar. The electron density of the two is mainly distributed on one side of HLOPC60, while the distribution of the hole density is relatively average. The difference between the two is that S82 has a high density of holes at the covalent bonds that hold fullerenes together, while S144 does not.
Figure 3A is the absorption spectrum of TLOPC60. There are two strong absorption peaks in the wavelength range of 300–2000 nm, which are jointly contributed by multiple excited states. The absorption peak at 1300 nm is mainly contributed by S29 and S50, and the absorption peak at 700 nm is mainly contributed by S134, S152 and S176. It can be found by observation that the charge transfer patterns of S29 (Figure 3B) and S50 (Figure 3C) are the same. The common point of the two is the obvious electron density at the single covalent bonds, and the hole density on both sides of the TLOPC60 plane is larger. Therefore, S29 and S50 are mainly charge transfer from both sides of the plane to the single covalent bonds. The charge transfer modes of S134 (Figure 3D) and S176 (Figure 3F) are the same within the fullerene, with the common feature being the higher electron density on both sides of the TLOPC60 plane. The difference between the two is that S134 has an obvious hole density at the double covalent bonds, while S176 does not. Therefore, S134 and S176 are mainly charge transfer from the vicinity of the double covalent bonds to both sides of the plane. Finally, S152 (Figure 3E) has no electron and hole density at both single and double covalent bonds, so S152 is charge recombination within the fullerene monomer. The transition indices (Sr, D, H, t, HDI, EDI, and TDM) provided in Table 1 and Table 2 quantitatively describe the transition characteristics of each excited state. These indices can be used to evaluate the overlap between holes and electrons, the distance between the centroids of holes and electrons, the average spatial extent of holes and electrons, as well as the degree of separation between them. Such quantitative analysis allows for a deeper understanding of the electronic excitation processes and their relationship with the optical response of the material. The meaning of the transition index can be found in the principles and formulas used in the wave function analysis shown in the Supplementary Information section.
Based on the above analysis, it is evident that the nature of space charge transfer (electron transport) is modulated by orbital interactions in different arrangement modes. At the same time, it was found that there is a distinct structure–effect relationship between the carrier transport and periodic topology.
Next, we study the orbital contribution of the excited states of the two structures during the transition process. This analysis is essential for understanding the nature of the charge transfer in each excited state. Tables S1 and S2, respectively, show the orbital pairs and the percentages that make a major contribution (>10%) to each excited state. In HLOPC60 and TLOPC60, most of the excited states are predominantly governed by a pair of orbital transitions (>50%). Figure 4, Figure 5, Figures S1 and S2 depict the occupied and unoccupied orbitals in HLOPC60 and TLOPC60, which mainly contribute to each excited state. Two key phenomena were observed during the examination of different molecular orbitals. First, different packing modes can significantly affect the orbital distribution of LOPC60. Secondly, it is found that the C-C bonds connecting the two five-membered rings in fullerenes in all occupied orbitals of low-symmetry HLOPC60 have obvious π orbital distributions, but there is no orbital distribution at the charge transfer bonds of empty orbitals. In TLOPC60, neither occupied nor empty orbitals have π orbital distribution at the charge transfer bond. This indicates that asymmetric or distorted organic ring structures with low orbital wave function symmetry have excellent and unique transport properties, and are also excellent electron transport outlets.
AIM (Atoms-In-Molecules) [40,41,42,43] is an extremely well-known and important method developed by Bader to investigate the electronic structure. In this section, we investigate different real-space functions at representative bond critical points (BCPs), ring critical points (RCPs), and cage critical points (CCPs) in HLOPC60 and TLOPC60 (Figure 6A). We define four representative critical points, which are the BCP at the double and single covalent bonds connecting the fullerenes, the RCP at the center of the double covalent bond, and the CCP at the center of the fullerenes (Figure 6B). Two fullerenes can be linked by single and double covalent bonds. In AIM theory, BCPs are considered to be the most representative points in the interaction region between atoms, so the properties of the BCP can be used to investigate the characteristics of corresponding chemical bonds, including their strength and nature. The electron density ( ρ ) and potential energy density ( V ) of BCP are closely related to the strength of chemical bonds; the latter is reflected in the external potential felt by the electrons at the BCPs, and V must be negative. For the same chemical bond, generally the larger ρ (BCP) and the more negative V (BCP), the bigger the chemical bond strength. The single and double covalent bonds are not significantly different for the two structures of HLOPC60 and TLOPC60. However, the electron density of the BCP in TLOPC60 is larger than that of HLOPC60, and the potential energy density of the BCP in TLOPC60 is also more negative. This indicates that the connection of the two fullerenes in TLOPC60 is more stable. It has been reported that when the energy density ( H ) (BCP) < 0, the chemical bond can be considered as covalent, while H > 0 is non-covalent [35]. It can be seen that H at BCP1, BCP2 and RCP is negative. There is no doubt that BCP1 and BCP2 are judged covalently, but why is H at RCP also negative? In Figure 6B, it can be seen that RCP is located in the middle of the double covalent bond, and that H at the RCP will be affected by the covalent bond, thereby reflecting a weak covalent component. The Laplacian of electron density ( 2 ρ ) is defined as the sum of three diagonal elements of the electron density Hessian matrix at the critical point. If 2 ρ < 0 in the bonding region, it can generally be considered that a covalent bond is formed. This is consistent with the results of judging the strength of covalent bonds by ρ , V and H . The kinetic energy of the BCP is reflected as a large positive value, and the kinetic energy of the BCP in TLOPC60 is larger. The kinetic energy of the RCP is a very small positive value of 0.0027a.u., and its kinetic energy is negligible. The electron localization function (ELF) is a quantum chemistry tool used to describe the degree to which an electron is localized in a molecule or solid. The calculation results show that the covalent bond has a greater confinement effect on electrons, and the difference in ELF between the two structures of HLOPC60 and TLOPC60 is small.
LOPC60 is an all-carbon conjugated system with a large number of π electrons on the surface of the system, which makes LOPC60 more likely to form π–π stacking interactions when it is in contact with the external environment. The nature of π–π stacking interactions has been shown to be dispersive interactions [44]. The van der Waals (vdW) potential [45] is crucial for studying dispersive interactions. The analysis of van der Waals potentials is mainly concerned with the negative region, that is, the part where the negative contribution corresponding to the dispersion attraction potential is greater than the positive contribution resulting from the exchange repulsion potential, so that the probe atoms will also bind to such regions. Helium is an inert gas, meaning that its chemical properties are very stable and that is does not easily react with other substances. This allows it to interact with the molecules under study without complex chemical interactions, thus more simply reflecting the characteristics of van der Waals interactions. So, the helium atom is used as the probe for the calculation. As shown in Figure 7A, the regions with a negative vdW potential in HLOPC60 are distributed in the depressions outside the system and spherical spaces inside the fullerenes. In TLOPC60, the vdW potential outside the system penetrates due to the different arrangement of fullerenes. The larger space between the fullerenes in TLOPC60 allows probe atoms to bind deeper. The minimum point of the vdW potential outside the system is −1.6 kcal/mol for TLOPC60 and −1.4 kcal/mol for HLOPC60, because the minimum point in TLOPC60 is attracted by more carbon atoms. The minimum point of the vdW potential inside the fullerenes of both systems is −2.9 kcal/mol, which is due to the same number of surrounding carbon atoms.
Finally, we investigated the interlayer interactions between the bilayer HLOPC60 and TLOPC60. Figure 7B shows the independent gradient model based on a Hirshfeld partition (IGMH) [46] map of bi-layer HLOPC60 and TLOPC60. IGMH can clearly describe the weak interaction between fragments and is defined as follows:
δ g r = g I G M r g r
g r = i ρ i r
g I G M r = i ρ i r
The specific interpretation of Formulas (3)–(5) can be seen in the Supplementary Information. In Figure 7B, the interaction isosurface between the bilayer HLOPC60 and TLOPC60 is represented by a green isosurface, indicating van der Waals interactions. This demonstrates that the interaction is predominantly a dispersion-driven π–π stacking interaction. It can be seen that one layer of LOPC60 is interleaved with another layer, which is due to the larger vdW potential in the recess, which has been discussed in the vdW potential section. At the same time, the vdW potential of the depression in TLOPC60 is significantly stronger than that of HLOPC60, so the interlayer interaction of bilayer TLOPC60 should be stronger than that of HLOPC60. We calculated the interaction energies of a single fullerene (C60) adsorbed on HLOPC60 and TLOPC60 in a crystalline manner by energy decomposition analysis based on forcefield (EDA-FF) [47], and the results are shown in Table 3. Since the region of action between fullerenes is obviously non-polar (i.e., the atomic charge is very small), their electrostatic interaction is almost zero, and the calculation accuracy based on force fields has certain limitations, resulting in small errors. It can be seen from the table that the main attraction between the two comes from the dispersive interaction, and the dispersive interaction in TLOPC60 is clearly stronger than that in HLOPC60, which also leads to a stronger interlayer interaction in the bilayer TLOPC60. This is because the interlayer fullerenes of TLOPC60 are more tightly bound, so the dispersion is stronger, and the repulsion is also enhanced.
To further highlight the potential of TLOPC60 in optoelectronic applications, we compare its properties with those of two widely studied 2D materials, graphene and MoS2. TLOPC60 demonstrates unique optoelectronic properties and application potential. Graphene, due to its zero-bandgap semi-metallic nature, exhibits excellent electrical conductivity, but its lack of a bandgap significantly limits its application in optoelectronic devices, such as light absorption and charge separation. Additionally, MoS2, which typically has a direct bandgap of approximately 1.8 eV in its monolayer form, is an ideal material for light absorption; however, its charge transport performance is limited by its high effective mass and relatively low carrier mobility.
In contrast, TLOPC60 combines the advantages of both materials: its moderate bandgap of approximately 1.6 eV allows for both efficient light absorption and charge separation, while its low wave function symmetry significantly enhances the efficiency of charge transport. Particularly in terms of interlayer interactions, TLOPC60 exhibits a higher electron density and a stronger negative potential energy density, ensuring greater stability in the interconnection between layers. These characteristics make TLOPC60 advantageous for applications requiring efficient light absorption and charge transport.

4. Conclusions

In this work, we employed the periodic TDDFT algorithm to study the optoelectronic properties of two-dimensional fullerene arrays with two different stacking modes. The results reveal significant differences in the cross-space charge transfer performance, which is linked to the wave function symmetry. Specifically, the C–C bond connecting two five-membered rings in fullerenes acts as an efficient electron transport outlet due to its low wave function symmetry. Real-space analyses, including the electron density at critical points, quantitatively explained the stacking mechanisms and interlayer interactions of bilayer LOPC60. Our findings show that TLOPC60, with its higher electron density, negative potential energy density, and stronger interlayer interactions, offers greater structural stability and enhanced charge transport efficiency. These properties make the TLOPC60 stacking mode more suitable for optoelectronic applications, such as solar cells and LEDs. Its moderate bandgap balances light absorption and charge transport, positioning it as an ideal candidate for high-performance device design. Furthermore, the theoretical insights provided here offer specific guidelines for synthesizing fullerene-based materials. The identification of TLOPC60’s stacking mode can inspire experimental efforts to replicate similar configurations, while its strong interlayer interactions suggest strategies for designing intermediate layers in optoelectronic devices to improve the charge extraction efficiency and reduce recombination losses. This work lays the foundation for bridging theoretical predictions with experimental developments in fullerene-like optoelectronic materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/c11010017/s1, Figure S1: Empty orbitals (A) and occupied orbitals (B) that make major contributions in each excited state of HLOPC60; Figure S2: Empty orbitals (A) and occupied orbitals (B) that make major contributions in each excited state of TLOPC60; Table S1: The main contributing orbitals of each excited state in HLOPC60 (>10%); Table S2: The main contributing orbitals of each excited state in TLOPC60 (>10%).

Author Contributions

Conceptualization, J.W. and Y.Z.; methodology, H.B.; software, H.B. and X.G.; formal analysis, H.B.; investigation, Y.Z.; resources, Y.Z.; data curation, X.G.; writing—original draft preparation, H.B. and X.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Basic scientific research project of Liaoning Provincial Department of Education (No. JYTMS20231431).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wada, Y.; Nakagawa, H.; Matsumoto, S.; Wakisaka, Y.; Kaji, H. Organic light emitters exhibiting very fast reverse intersystem crossing. Nat. Photonics 2020, 14, 643–649. [Google Scholar] [CrossRef]
  2. Ren, Y.; Zhang, D.; Suo, J.; Cao, Y.; Eickemeyer, F.T.; Vlachopoulos, N.; Zakeeruddin, S.M.; Hagfeldt, A.; Grätzel, M. Hydroxamic acid preadsorption raises efficiency of cosensitized solar cells. Nature 2022, 613, 60–65. [Google Scholar] [CrossRef] [PubMed]
  3. Li, H.; Zhang, R.; Li, Y.; Li, Y.; Liu, H.; Shi, J.; Zhang, H.; Wu, H.; Luo, Y.; Li, D. Graphdiyne-based bulk heterojunction for efficient and moisture-stable planar perovskite solar cells. Adv. Energy Mater. 2018, 8, 1802012. [Google Scholar] [CrossRef]
  4. Liu, L.; Kan, Y.; Gao, K.; Wang, J.; Zhao, M.; Chen, H.; Zhao, C.; Jiu, T.; Jen, A.K.Y.; Li, Y. Graphdiyne derivative as multifunctional solid additive in binary organic solar cells with 17.3% efficiency and high reproductivity. Adv. Mater. 2020, 32, 1907604. [Google Scholar] [CrossRef]
  5. Tress, W.; Domanski, K.; Carlsen, B.; Agarwalla, A.; Alharbi, E.A.; Graetzel, M.; Hagfeldt, A. Performance of perovskite solar cells under simulated temperature-illumination real-world operating conditions. Nat. Energy 2019, 4, 568–574. [Google Scholar] [CrossRef]
  6. He, Z.; Shen, H.; Ye, D.; Xiang, L.; Zhao, W.; Ding, J.; Zhang, F.; Di, C.-a.; Zhu, D. An organic transistor with light intensity-dependent active photoadaptation. Nat. Electron. 2021, 4, 522–529. [Google Scholar] [CrossRef]
  7. Geim, A.K. Graphene: Status and prospects. Science 2009, 324, 1530–1534. [Google Scholar] [CrossRef]
  8. Neto, A.C.; Guinea, F.; Peres, N.M.; Novoselov, K.S.; Geim, A.K. The electronic properties of graphene. Rev. Mod. Phys. 2009, 81, 109. [Google Scholar] [CrossRef]
  9. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.; Dubonos, S.; Firsov, A. Two-dimensional gas of massless dirac fermions in graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef]
  10. Jia, Z.; Li, Y.; Zuo, Z.; Liu, H.; Huang, C.; Li, Y. Synthesis and properties of 2d carbon graphdiyne. Acc. Chem. Res. 2017, 50, 2470–2478. [Google Scholar] [CrossRef]
  11. Zhao, Y.; Wan, J.; Yao, H.; Zhang, L.; Lin, K.; Wang, L.; Yang, N.; Liu, D.; Song, L.; Zhu, J. Few-layer graphdiyne doped with sp-hybridized nitrogen atoms at acetylenic sites for oxygen reduction electrocatalysis. Nat. Chem. 2018, 10, 924–931. [Google Scholar] [CrossRef] [PubMed]
  12. Li, Y.; Xu, L.; Liu, H.; Li, Y. Graphdiyne and graphyne: From theoretical predictions to practical construction. Chem. Soc. Rev. 2014, 43, 2572–2586. [Google Scholar] [CrossRef] [PubMed]
  13. Long, M.; Tang, L.; Wang, D.; Li, Y.; Shuai, Z. Electronic structure and carrier mobility in graphdiyne sheet and nanoribbons: Theoretical predictions. ACS Nano 2011, 5, 2593–2600. [Google Scholar] [CrossRef] [PubMed]
  14. Deng, L.L.; Xie, S.Y.; Gao, F. Fullerene-based materials for photovoltaic applications: Toward efficient, hysteresis-free, and stable perovskite solar cells. Adv. Electron. Mater. 2018, 4, 1700435. [Google Scholar] [CrossRef]
  15. Li, J.; Hou, S.; Yao, Y.-R.; Zhang, C.; Wu, Q.; Wang, H.-C.; Zhang, H.; Liu, X.; Tang, C.; Wei, M. Room-temperature logic-in-memory operations in single-metallofullerene devices. Nat. Mater. 2022, 21, 917–923. [Google Scholar] [CrossRef]
  16. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Buckminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  17. Hebard, A.; Rosseinsky, M.; Haddon, R.; Glarum, S.; Palstra, T.; Ramirez, A.; Kortan, A. Superconductivity at 18 K in potassium-doped C60. Nature 1991, 350, 600–601. [Google Scholar] [CrossRef]
  18. Guan, R.; Chen, M.; Xin, J.; Xie, X.-M.; Jin, F.; Zhang, Q.; Xie, S.-Y.; Yang, S. Capturing the missing carbon cage isomer of c84 via mutual stabilization of a triangular monometallic cyanide cluster. J. Am. Chem. Soc. 2021, 143, 8078–8085. [Google Scholar] [CrossRef]
  19. Zhong, Y.Y.; Chen, Z.C.; Du, P.; Cui, C.H.; Tian, H.R.; Shi, X.M.; Deng, S.L.; Gao, F.; Zhang, Q.; Gao, C.L. Double negatively curved c70 growth through a heptagon-involving pathway. Angew. Chem. Int. Ed. 2019, 58, 14095–14099. [Google Scholar] [CrossRef]
  20. Hou, L.; Cui, X.; Guan, B.; Wang, S.; Li, R.; Liu, Y.; Zhu, D.; Zheng, J. Synthesis of a monolayer fullerene network. Nature 2022, 606, 507–510. [Google Scholar] [CrossRef]
  21. Peng, B. Monolayer fullerene networks as photocatalysts for overall water splitting. J. Am. Chem. Soc. 2022, 144, 19921–19931. [Google Scholar] [CrossRef] [PubMed]
  22. Tromer, R.M.; Junior, L.A.R.; Galvão, D.S. A dft study of the electronic, optical, and mechanical properties of a recently synthesized monolayer fullerene network. Chem. Phys. Lett. 2022, 804, 139925. [Google Scholar] [CrossRef]
  23. Chakravarty, C.; Aksu, H.; Maiti, B.; Dunietz, B.D. Electronic spectra of c60 films using screened range separated hybrid functionals. J. Phys. Chem. A 2021, 125, 7625–7632. [Google Scholar] [CrossRef]
  24. Kobayashi, H.; Hattori, S.; Shirasawa, R.; Tomiya, S. Wannier-like delocalized exciton generation in C60 fullerene clusters: A density functional theory study. J. Phys. Chem. C 2020, 124, 2379–2387. [Google Scholar] [CrossRef]
  25. Fravventura, M.C.; Hwang, J.; Suijkerbuijk, J.W.; Erk, P.; Siebbeles, L.D.; Savenije, T.J. Determination of singlet exciton diffusion length in thin evaporated C60 films for photovoltaics. J. Phys. Chem. Lett. 2012, 3, 2367–2373. [Google Scholar] [CrossRef] [PubMed]
  26. Burkhard, G.F.; Hoke, E.T.; Beiley, Z.M.; McGehee, M.D. Free carrier generation in fullerene acceptors and its effect on polymer photovoltaics. J. Phys. Chem. C 2012, 116, 26674–26678. [Google Scholar] [CrossRef]
  27. Pan, F.; Ni, K.; Xu, T.; Chen, H.; Wang, Y.; Gong, K.; Liu, C.; Li, X.; Lin, M.L.; Li, S.; et al. Long-range ordered porous carbons produced from C60. Nature 2023, 614, 95–101. [Google Scholar] [CrossRef]
  28. Blank, V.D.; Buga, S.G.; Dubitsky, G.A.; Serebryanaya, N.R.; Popov, M.Y.; Sundqvist, B. High-pressure polymerized phases of C60. Carbon 1998, 36, 319–343. [Google Scholar] [CrossRef]
  29. McFarland, J.; Manousakis, E. Imaginary-time time-dependent density functional theory for periodic systems. J. Phys. Condens. Matter 2020, 33, 055903. [Google Scholar] [CrossRef]
  30. Guerrini, M.; Calzolari, A.; Corni, S. Solid-state effects on the optical excitation of push–pull molecular j-aggregates by first-principles simulations. ACS Omega 2018, 3, 10481–10486. [Google Scholar] [CrossRef]
  31. Byun, Y.-M.; Sun, J.; Ullrich, C.A.J.E.S. Time-dependent density-functional theory for periodic solids: Assessment of excitonic exchange—Correlation kernels. Electron. Struct. 2020, 2, 023002. [Google Scholar] [CrossRef]
  32. Tanuma, Y.; Kladnik, G.; Schio, L.; van Midden Mavrič, M.; Anézo, B.; Zupanič, E.; Bavdek, G.; Bavdek, G.; Canton-Vitoria, R.; Floreano, L.; et al. Noncontact Layer Stabilization of Azafullerene Radicals: Route toward High-Spin-Density Surfaces. ACS Nano 2023, 17, 25301–25310. [Google Scholar] [CrossRef] [PubMed]
  33. Kühne, T.D.; Iannuzzi, M.; Del Ben, M.; Rybkin, V.V.; Seewald, P.; Stein, F.; Laino, T.; Khaliullin, R.Z.; Schütt, O.; Schiffmann, F. Cp2k: An electronic structure and molecular dynamics software package-quickstep: Efficient and accurate electronic structure calculations. J. Chem. Phys. 2020, 152, 194103. [Google Scholar] [CrossRef]
  34. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef] [PubMed]
  35. Mu, X.; Sun, M. The linear and non-linear optical absorption and asymmetrical electromagnetic interaction in chiral twisted bilayer graphene with hybrid edges. Mater. Today Phys. 2020, 14, 100222. [Google Scholar] [CrossRef]
  36. Mu, X.; Wang, X.; Quan, J.; Sun, M. Photoinduced charge transfer in donor-bridge-acceptor in one-and two-photon absorption: Sequential and superexchange mechanisms. J. Phys. Chem. C 2020, 124, 4968–4981. [Google Scholar] [CrossRef]
  37. Mu, X.; Wang, J.; Sun, M. Visualization of photoinduced charge transfer and electron–hole coherence in two-photon absorption. J. Phys. Chem. C 2019, 123, 14132–14143. [Google Scholar] [CrossRef]
  38. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  39. Humphrey, W.; Dalke, A.; Schulten, K. Vmd: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  40. Bader, R.F.; Stephens, M.E. Spatial localization of the electronic pair and number distributions in molecules. J. Am. Chem. Soc. 1975, 97, 7391–7399. [Google Scholar] [CrossRef]
  41. Bader, R.F.; Beddall, P. Virial field relationship for molecular charge distributions and the spatial partitioning of molecular properties. J. Chem. Phys. 1972, 56, 3320–3329. [Google Scholar] [CrossRef]
  42. Cremer, D.; Kraka, E. Chemical bonds without bonding electron density—Does the difference electron-density analysis suffice for a description of the chemical bond? Angew. Chem. Int. Ed. Engl. 1984, 23, 627–628. [Google Scholar] [CrossRef]
  43. Fuster, F.; Grabowski, S. Intramolecular hydrogen bonds: The qtaim and elf characteristics. J. Phys. Chem. A 2011, 115, 10078–10086. [Google Scholar] [CrossRef] [PubMed]
  44. Grimme, S. Do special noncovalent π–π stacking interactions really exist? Angew. Chem. Int. Ed. 2008, 47, 3430–3434. [Google Scholar] [CrossRef] [PubMed]
  45. Lu, T.; Chen, Q. Van der waals potential: An important complement to molecular electrostatic potential in studying intermolecular interactions. J. Mol. Model. 2020, 26, 315. [Google Scholar] [CrossRef]
  46. Lu, T.; Chen, Q. Independent gradient model based on hirshfeld partition: A new method for visual study of interactions in chemical systems. J. Comput. Chem. 2022, 43, 539–555. [Google Scholar] [CrossRef]
  47. Lu, T.; Liu, Z.; Chen, Q. Comment on “18 and 12–member carbon rings (cyclo [n] carbons)—A density functional study”. Mater. Sci. Eng. B 2021, 273, 115425. [Google Scholar] [CrossRef]

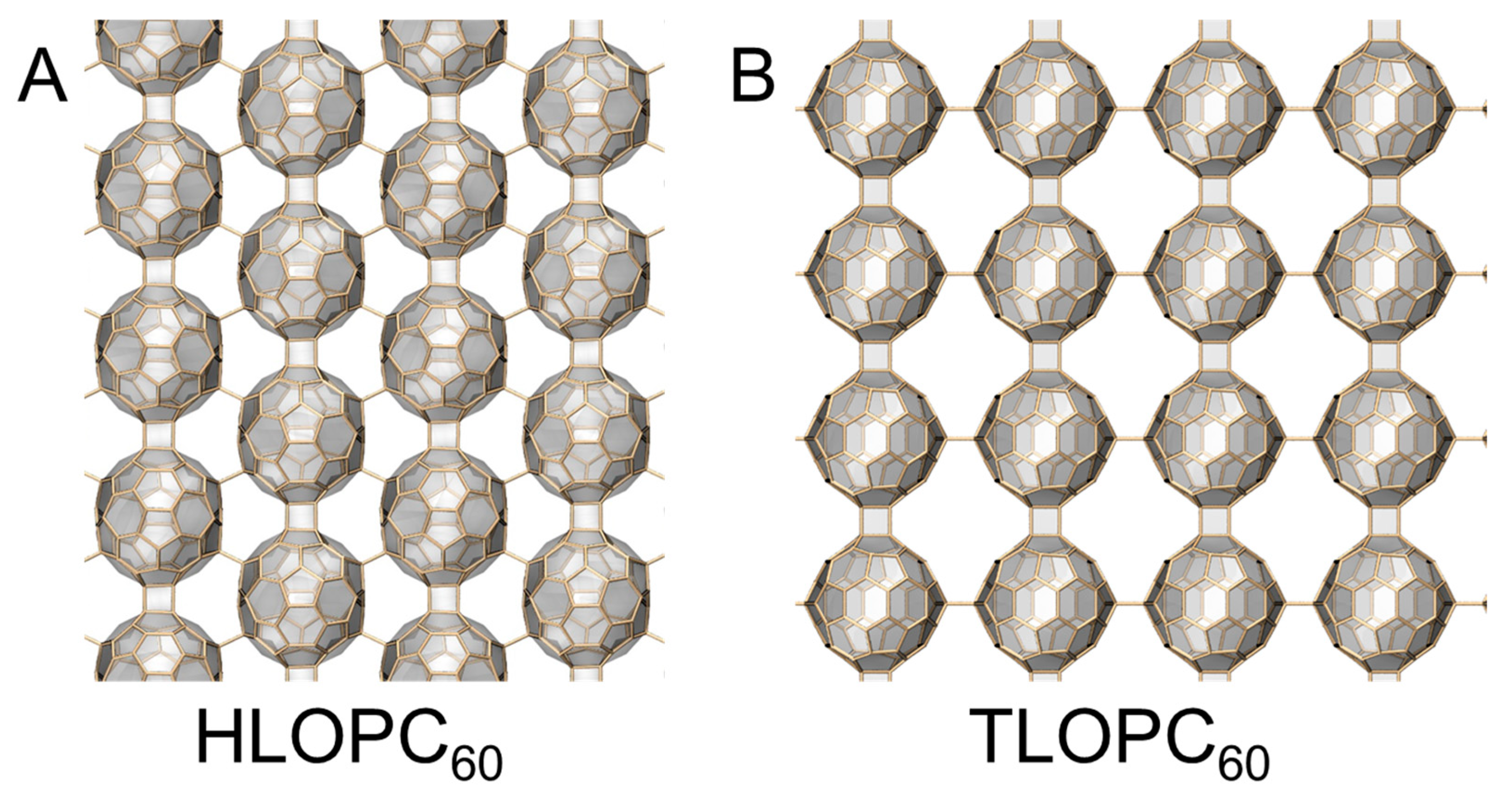

Figure 1. Structural diagram of HLOPC60 (A) and TLOPC60 (B).
Figure 1. Structural diagram of HLOPC60 (A) and TLOPC60 (B).
Carbon 11 00017 g001

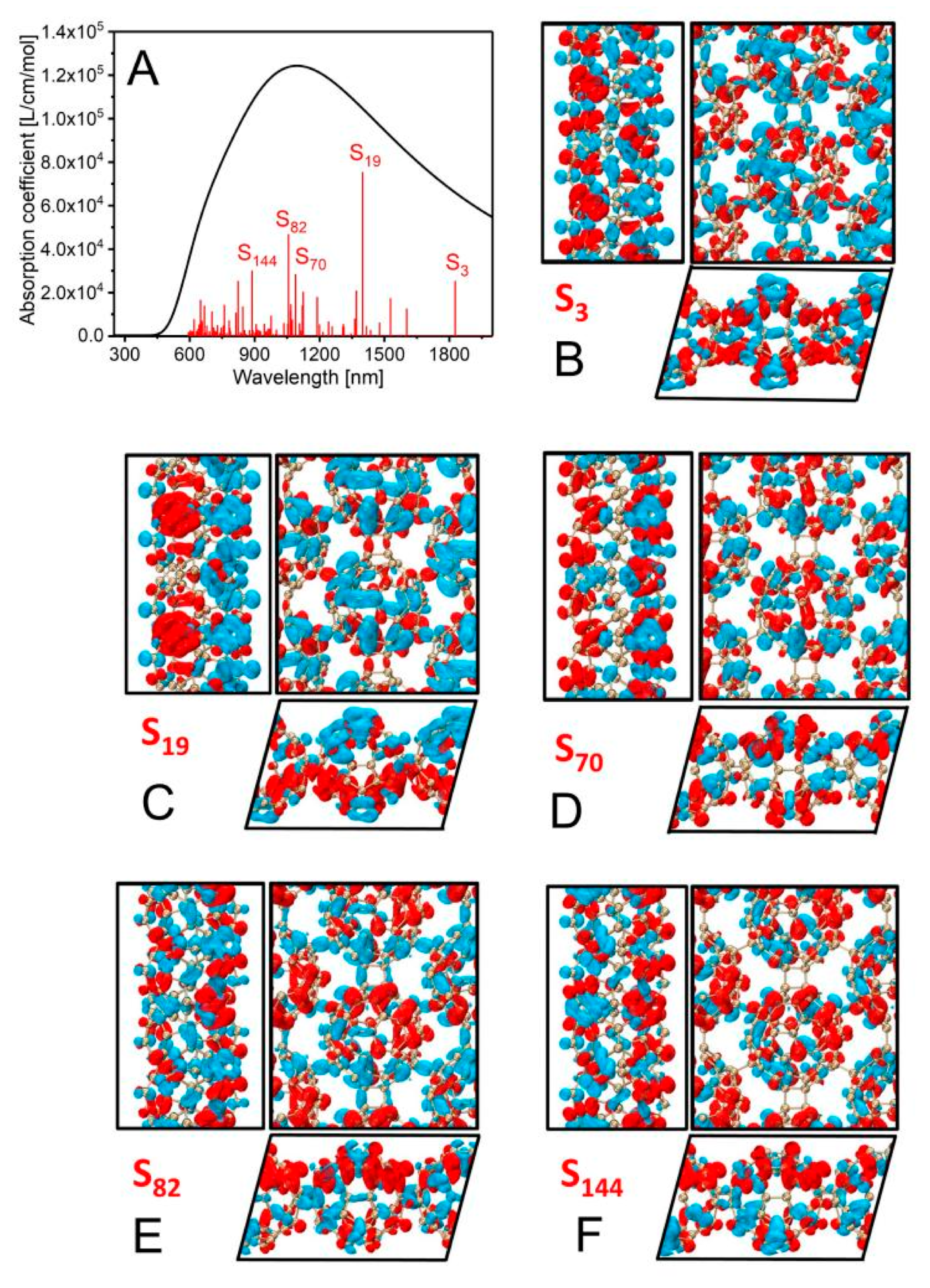

Figure 2. (A) Absorption spectrum of HLOPC60. S3 (B), S19 (C), S70 (D), S82 (E) and S144 (F) are the CDDs of each excited state. The red and blue isosurfaces represent the electron and hole, respectively.
Figure 2. (A) Absorption spectrum of HLOPC60. S3 (B), S19 (C), S70 (D), S82 (E) and S144 (F) are the CDDs of each excited state. The red and blue isosurfaces represent the electron and hole, respectively.
Carbon 11 00017 g002

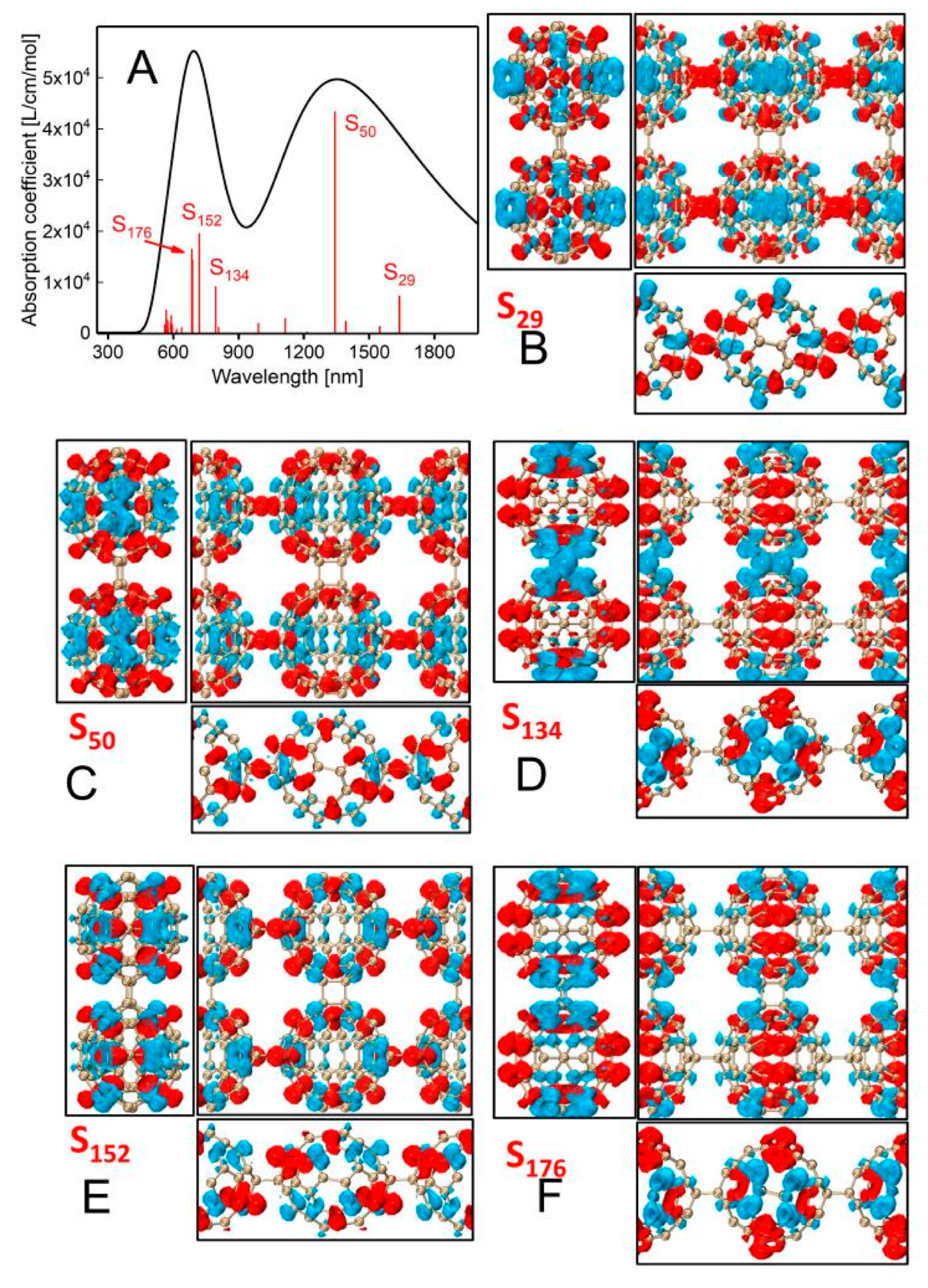

Figure 3. (A) Absorption spectrum of TLOPC60. S29 (B), S50 (C), S134 (D), S152 (E) and S176 (F) are the CDDs of each excited state. The red and blue isosurfaces represent the electron and hole, respectively.
Figure 3. (A) Absorption spectrum of TLOPC60. S29 (B), S50 (C), S134 (D), S152 (E) and S176 (F) are the CDDs of each excited state. The red and blue isosurfaces represent the electron and hole, respectively.
Carbon 11 00017 g003
Figure 4. Empty orbitals (A) and occupied orbitals (B) that make major contributions in each excited state of HLOPC60.
Figure 4. Empty orbitals (A) and occupied orbitals (B) that make major contributions in each excited state of HLOPC60.
Carbon 11 00017 g004

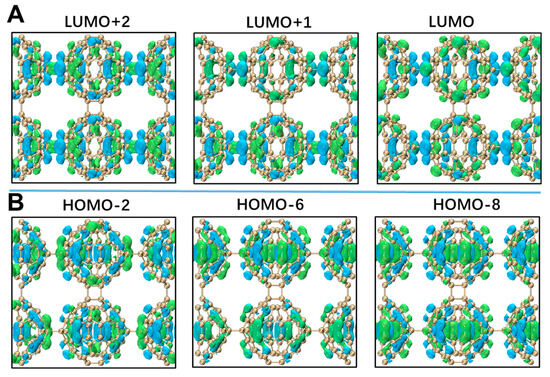

Figure 5. Empty orbitals (A) and occupied orbitals (B) that make major contributions in each excited state of TLOPC60.
