Novel Biobased Polyol Using Corn Oil for Highly Flame-Retardant Polyurethane Foams

Abstract

A novel bio-based polyol was synthesized using corn oil and 2-mercaptoethanol via thiol-ene reaction as an alternative to petroleum-based polyol for the synthesis of polyurethane foams. The polyol was analyzed using wet chemical techniques to obtain hydroxyl number and viscosity. Infrared spectroscopy and gel permeation chromatography were used to confirm the structural properties of the foams. Flame-retardant polyurethane foams were prepared by the addition of different concentrations of dimethyl methyl phosphonate (DMMP) in final foam composition. The effect of DMMP on the thermo-mechanical properties of the polyurethane foams was analyzed. The TGA analysis showed improved stability of the final char with addition of DMMP in the foams. All the foams maintained a well-defined cellular structure and over 95% of closed cell content. The horizontal burning test showed reduced burning time and weight loss from 115 s and 38 wt.% for the neat foams, to 3.5 s and 5.5 wt.% for DMMP-containing foams (1.94 wt.% P). The combustion test using cone calorimeter showed a considerable reduction in heat release rate and total heat release. Thus, our study shows that corn-oil based polyol can be used to produce renewable polyol for industrially producible rigid polyurethane foams. The addition of a small amount of DMMP could result in a significant reduction in the flame-retardant properties of the polyurethane foams.

1. Introduction

Polyurethane foams have been widely studied due to a versatile range of properties, such as low thermal conductivity, electrical insulation properties, low density, higher mechanical strength, and chemical resistance, making them suitable for various applications [1,2,3,4]. The mechanical and physical properties of the polyurethane foam depend upon the type of polyol used during its synthesis [3]. Majority of the starting materials used for synthesizing polyurethane foams are derived from petroleum-based resources. Due to rising environmental concerns, the use of renewable materials for synthesizing polyurethane foams could reduce the burden on petroleum resources [5]. Several bio-based materials such as soybean oil, orange oil, castor oil, sunflower oil, cardanol oil, and starch have been used as starting materials for the preparation of polyurethane foams [5,6,7,8,9,10,11,12]. The United States Department of Agriculture estimates that corn production will reach 371.52 million metric tonnes in 2019. [13,14]. As compared to other vegetable oils, corn oil has a competitive price range (~26.5–30.5 cents/lb) and could serve as a promising candidate for synthesizing of bio-based polyurethane foams [14]. Majority of vegetable oils consist of polyunsaturated fatty acids that allow the possibility of simple chemical modifications to create hydroxyl groups [3,8,15,16]. Similarly, chemical modification of corn oil can result in polyols to develop renewable, low cost, and industrially producible foams.

The chemical constituents of polyurethane foams majorly consist of oxygen, carbon, and hydrogen, which makes them susceptible to fire [17,18]. Moreover, low density and ease in air permeability allow for a higher fire growth velocity [17]. In order to counter this issue, compounds such as additive and reactive flame retardants consisting of halogenated and non-halogenated compounds or, inorganic metal oxides, and hydroxides are added within the foam matrix during the synthesis [8,19,20]. Reactive flame retardants consist of compounds with functional groups that can readily get bonded within the foam matrix [6,8,9,21]. In practice, separate synthesis for such flame retardants could add to the cost of the final foams, while additive flame retardants consist of simple compounds and require very little concentrations to impart flame retardancy [7]. Although halogenated flame retardants are widely used, they suffer from several environmental issues [20,22,23]. Phosphorus-containing flame retardants serve as promising candidates to counter this issue. In our previous studies, we observed that the addition of a small concentration of dimethyl methyl phosphonate (DMMP) showed a significant reduction in self-extinguishing time of the fire [7,10]. During a fire test, phosphorus compound created a protective char over the surface of the foam, preventing fire growth. Hence, the addition of DMMP within the foam matrix could provide flame-retardant properties.

In this work, unmodified corn oil was used for the synthesis of novel polyol using one-step, solvent free, and cost-effective thiol-ene chemistry. The flame retardancy of polyurethane foams was improved using DMMP. The effect of different concentrations of DMMP addition on the physicomechanical and thermal property of the polyurethane foams was studied in detail. It was observed that the addition of a low concentration of DMMP in foams showed significant reduction in self-extinguishing time, heat release rate, and total heat release.

2. Materials and Methods

2.1. Materials

Mazola corn oil (96 oz. plastic canister) was purchased from the local Walmart, (Pittsburg, KS, USA). 2-Mercaptoethanol was purchased from Acros Organic, PA, USA. Jeffol SG-360 and Rubinate M isocyanate (methylene diphenyl diisocyanate, NCO content of 31%) were purchased from Huntsman, Texas, USA. DABCO T-12 was received from Air Products, USA and NIAX A-1 was received from OSi Specialties, CT, USA. Silicone-based surfactant (Tegostab B-8404) was purchased from Evonik, USA. Distilled water was used as a blowing agent. Dimethyl methyl phosphonate (DMMP) and 2-hydroxy-2-methyl propiophenone were purchased from Sigma-Aldrich, St. Louis, MO, USA.

2.2. Synthesis of Corn Oil-Based Polyol

Corn oil-based polyol was synthesized via thiol-ene reaction using UV irradiation. The corn oil (CO) (200 g) and 2-mercaptoethanol (ME) (149 g) were added in a molar ratio of 1:4 along with 2.5 wt.% of a photoinitiator (2-hydroxy-2-methyl propiophenone). The unsaturation level in the corn oil was determined using iodine value and the corresponding amount of 2-mercaptoethanol was used. The reaction was carried out at room temperature under continuous stirring for 6 h and UV radiation intensity of 365 nm. The reaction for the synthesis of corn oil-based polyol for polyurethanes is given in Figure 1.

2.3. Characterization of Polyol

The synthesized corn oil-based polyol was analyzed using the standard wet characterization technique. The hydroxyl number (OH number) of the polyols was determined by the phthalic anhydride/pyridine (PAP) method, according to American Society for Testing and Materials (ASTM D 4274). The acid value was determined according to IUPAC 2.201 standard using the indicator method. Iodine value of the corn oil and polyol was determined using the Hanus method. The corn oil and polyol was treated with excess of the Hanus solution (BrI) and unreacted BrI was reacted with potassium iodide to form iodine. The iodine concentration was determined by titration with sodium thiosulfate. The viscosity of the polyol was measured using an AR 2000 dynamic stress rheometer (TA Instruments, New Castle, DE, USA) at 25 °C with a linear increase in shear stress from 1 Pa to 2000 Pa. The rheometer consists of a cone plate with a cone diameter of 25 mm and angle between 2°. The FT-IR spectrum of the polyol was obtained using Shimadzu IR Affinity-1 spectrophotometer (Columbia, MD, USA) at room temperature. The molecular weight of the polyols was analyzed using gel permeation chromatography (GPC) using a system by Waters (Milford, MA, USA). The system consists of four 300 × 7.8 mm phenogel 5 μ columns with different pore sizes of 50, 102, 103 and 104 Å. The eluent solvent was tetrahydrofuran and the eluent rate was maintained at 1 ml/min at 30 °C. A Bruker DPX-300 spectrometer (Billerica, MA, USA) was used to acquire the ¹H and ¹³C nuclear magnetic resonance spectra. Deuterated chloroform CDCl₃ was used as a solvent and tetramethyl silane as internal reference. The experiments were carried out at 300 MHz and eight scans for proton NMR at room temperature.

2.4. Preparation of Flame Retardant Rigid Polyurethane Foam

The structure of methylene diphenyl diisocyanate (MDI) and DMMP is given in Figure 2. The composition of the polyurethane foams consists of a different concentration of phosphorous as given in

Table 1. Formulation for preparation of phosphorus-containing polyurethane foams.

Compounds	P-0 wt.%	P-0.26 wt.%	P-0.51 wt.%	P-1 wt.%	P-1.5 wt.%	P-1.9 wt.%	P-2.4 wt.%
Jeffol-360	10.00	10.00	10.00	10.00	10.00	10.00	10.00
CO-ME	10.00	10.00	10.00	10.00	10.00	10.00	10.00
DMMP	0	0.50	1.00	2.00	3.00	4.00	3.00
Tegostab B-8404	0.40	0.40	0.40	0.40	0.40	0.40	0.40
Niax-A1	0.14	0.14	0.14	0.14	0.14	0.14	0.14
T-12	0.04	0.04	0.04	0.04	0.04	0.04	0.04
Water	0.80	0.80	0.80	0.80	0.80	0.80	0.80
MDI	26.20	26.20	26.20	26.20	26.20	26.20	26.20

All the weights are in grams.

. Except for MDI, all the ingredients were added into a 500-mL cup and stirred vigorously (3000 rpm) to form a homogeneous mixture. After complete mixing, 26.20 g of MDI was added into the mixture and stirred at 3000 rpm to make polyurethane foams. The obtained foams were designated as P-0 wt.%, P-0.26 wt.%, P-0.51 wt.%, P-1 wt.%, P-1.5 wt.%, P-1.9 wt.% and P-2.4 wt.%, respective to the percentage of phosphorous added. Some of the important industrial characteristics such as mix time, cream time, rise time and tack-free time was measured using the ASTM D7487 standard (see

Table 2. Some of the processing time characteristics of the polyurethane foams.

Characteristics	P-0 wt.%	P-0.26 wt.%	P-0.51 wt.%	P-1 wt.%	P-1.5 wt.%	P-1.9 wt.%	P-2.4 wt.%
Mix time	7	6	7	6	6	7	7
Cream time	6	6	6	7	6	6	7
Rise time	12	11	12	12	11	12	11
Tack free time	16	16	15	16	15	16	16

All the time is in seconds.

).

2.5. Characterization of Polyurethane Foams

At first, the foam samples were cut in a cylindrical shape of 45 mm × 30 mm (diameter × height) for further characterization. The samples were used to analyze the apparent density and closed-cell content. The apparent density of the foams was measured according to ASTM D 1622. The closed-cell content of the foams was measured using a Ultrapycnometer (Ultrafoam 1000) according to ASTM D 285. For the compression test, the foam samples were cut in dimensions of 50 mm × 50 mm × 25 mm (length × width × height). The compressive strength at 10% strain was determined by using a Q-Test 2-tensile machine (MTS, Raleigh, NC, USA) according to ASTM D 1621. The compressive force was applied at the strain rate of 30 mm/min, parallel to the direction of the foam. The microstructure and cell size distribution of the rigid polyurethane foams were studied using a Phenom G2 Pro scanning electron microscope (SEM) (Phenom, Netherlands). Before imaging, all the foam samples were gold sputtered to avoid a charging effect during imaging. Thermogravimeric analysis (TGA) was performed using TA instrument (TGA Q500, New Castle, DE, USA) to analyze the thermal behavior of the foams. The thermogravimetric analysis was performed under a nitrogen atmosphere by heating the foams from room temperature to 600 °C at 10 °C/min. TGA was also performed under air for some samples for comparison. Fire-retardant properties were studied using the horizontal burning test (ASTM D 4986-98). After exposing specimens (sized at 150 mm × 50 mm × 12.5 mm) to the flame for 10 s, burning time and weight difference (before and after the burn) were recorded. For the cone calorimeter tests, the test specimens were cut into a size of 100 mm × 100 mm × 25 mm (length × width × height) according to ISO 5560 standard and exposed to the external heat flux of 35 kW/m² using a standard cone calorimeter (Fire Testing Technology). The total heat release and heat release rate of the samples were analyzed.

3. Results and Discussion

3.1. Properties of Polyol

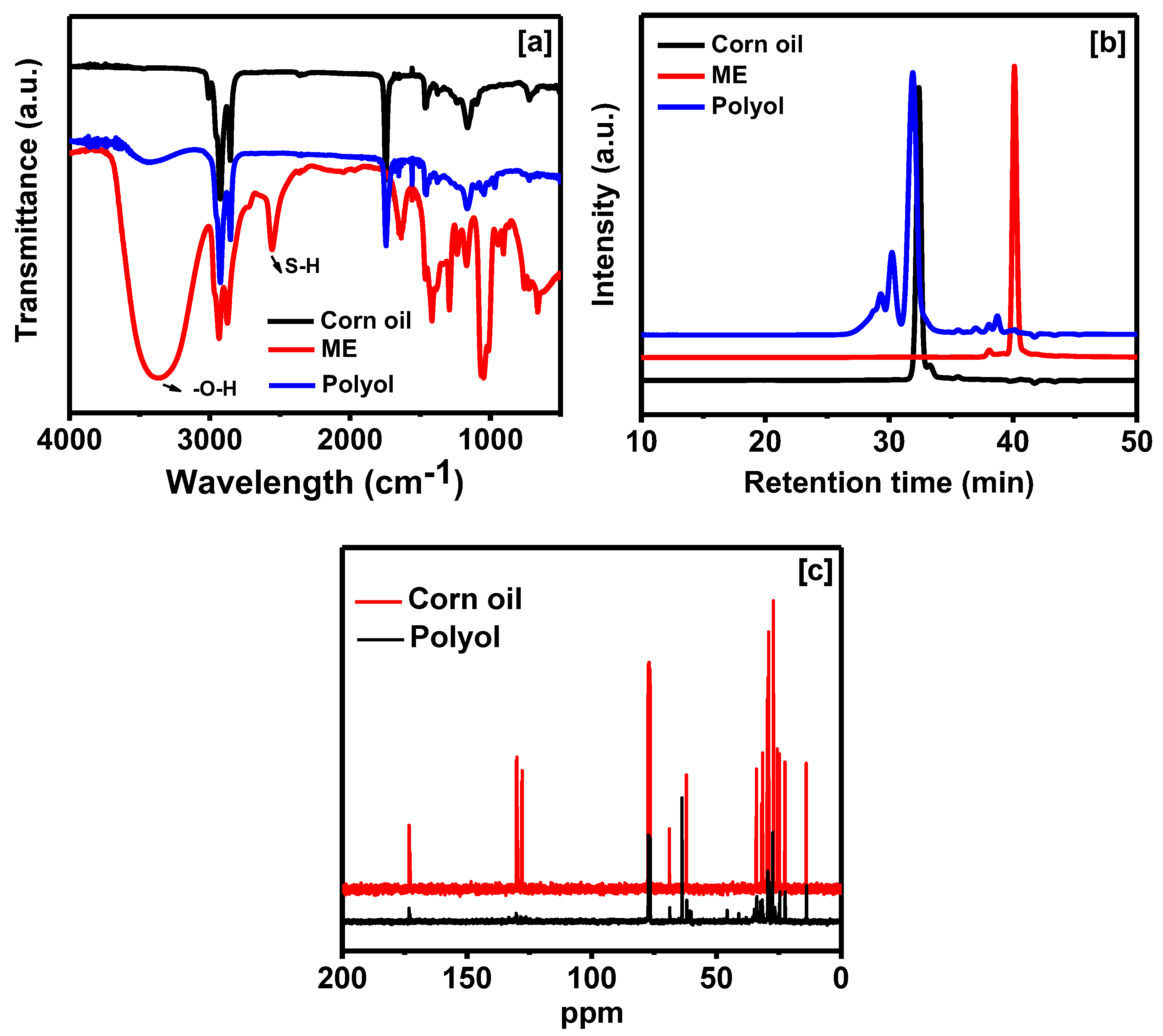

The synthesized corn oil-based polyol (CO-ME) showed a hydroxyl number and an acid value of 176 mg KOH/g and 1.77 mg KOH/g, respectively, with about 99% yield. The percentage yield was calculated by measuring the iodine value of corn oil and polyol [% yield = (Iodine value of polyol/iodine value of corn oil) × 100%]. Since the hydroxyl group acts as a main reactive group with isocyanate, the hydroxyl number provides an insight of reactivity of the polyol. On the other hand, the acid value corresponds to the number of acid groups in oligo-polyol [24]. The reaction of polyurethanes is catalyzed by ternary amines; hence, low acid value suggests a higher degree of reactivity during the foaming process and appropriate catalytic activity without acid-base neutralizing side reactions. The functionality and molecular weight of the synthesized bio-polyol was determined to be 3.7 and 1182 g/mol, respectively [24]. The lower viscosity of the polyol (1.33 Pa.s) results in homogeneous mixing and allows improved ease in processing. The structural characteristics of the synthesized polyol were studied using FT-IR spectra. Figure 3a shows the FT-IR spectrum of the raw materials and the final polyol. The peak intensity around 3432 cm⁻¹ in the polyol suggests the presence of hydroxyl groups (–OH). The peak around 2551 cm⁻¹ is the characteristic peak of S-H stretching of 2-mercaptoethanol. The disappearance of this peak in the FT-IR spectrum of the polyol suggests that the reaction has been carried out. All the FT-IR spectrum peaks were close to the previous studies [7,25]. The gel permeation chromatography graph shows a change in the molecular weight of the reacting species as the reaction proceeds and final polyol is obtained. It can be clearly observed in Figure 3b that the retention time for final polyol decreased to around 30 min as compared to pure CO (33 min) and ME (40.5 min). Peak around 32 min within the final polyol could be due to less reactivity of the inner double bonds within the structure of the corn oil [9]. The disappearance of retention peak for ME in the final polyol suggests purity of the final polyol. The synthesized polyol was further characterized using proton and carbon NMR. The disappearance of the signal around 5.4 ppm corresponding to =C–H confirms the attachment of the thiol group to the double bond. ¹³C NMR of corn oil and polyol is shown in Figure 3c. Corn oil shows a signal around 128 ppm which corresponds to C=C. The disappearance of this peak in polyol confirms the thio-ene reaction.

3.2. Properties of Corn Oil-Based Polyurethane Foams

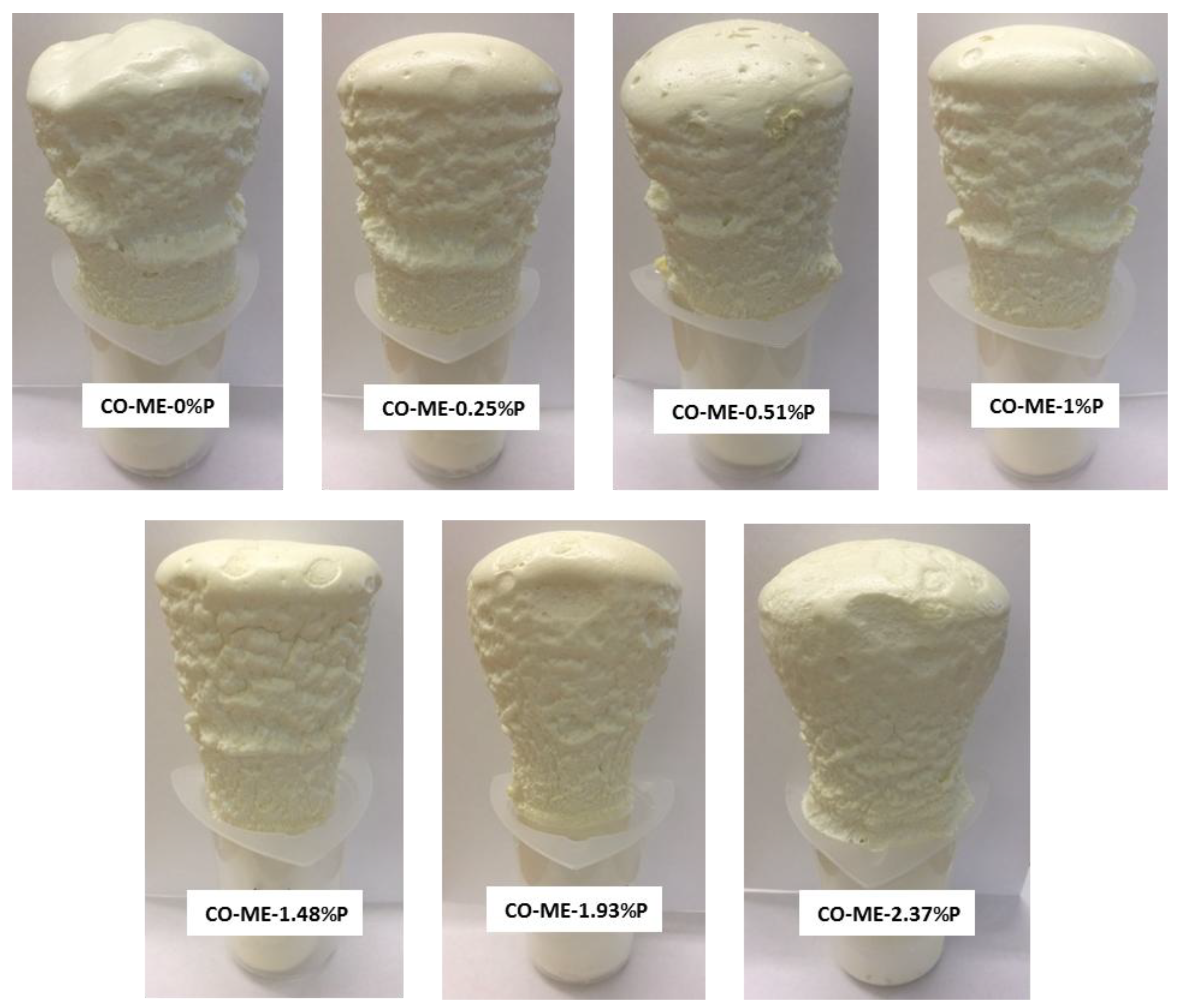

The optical images of the synthesized foams can be observed in Figure 4. All the foams showed uniform growth and well-defined structure suitable for industrial applications.

The apparent density of the polyurethane foams is an important parameter to determine its physical and mechanical properties. The average apparent density was calculated from cylindrical and square-shaped test specimens, as shown in Figure 5a. All the foams showed an apparent density of 35 kg/m³ with appropriate weight standards. [26] The addition of DMMP showed no significant change in the apparent density of the foams. In Figure 5b, it can be observed that the percentage of closed cell content of all the synthesized polyurethane foams was above 95%. The closed cell structure of the foam supports the thermal insulation properties of the polyurethane foams [7]. Higher closed cell content prevents rapid heat transfer between the cells (as air acts as an insulator) and prevents an easy access pathway for oxygen during combustion [8,9]. To understand the effect of the addition of DMMP on the mechanical properties of the foams, a compression strength study was performed for all the foams containing a different concentration of phosphorus (Figure 5c). As the concentration of DMMP increases, the compression properties of the foams decrease. Foams without DMMP showed compressive strength of ~120 kPa, which reduced to 81 kPa after addition of DMMP (0.5 wt.% P). This could be due to the plasticizing effect of DMMP, resulting in increased cellular size and decrease in compressive properties. The low values of compression strength can also be due to the presence of vegetable oil-based polyol consisting of flexible tri-glyceride chains and moderate OH number. [6]

Figure 6 shows the SEM images of all the foams with different concentrations of DMMP. Foams without DMMP showed an average cell size of 250 μm with uniform circular shape. As the concentration of DMMP increases, a slight increase in cell size was observed and comparable to previous reports [7,10]. Although the addition of DMMP showed little distortion in the circular shape of the foams, all the foams maintain promising physicomechanical properties.

The thermal stability of polyurethane foams was studied using thermogravimetric analyses (TGA) in a nitrogen environment. Polyurethane foams without DMMP showed three transitions around 325, 360 and 475 °C, corresponding to the decomposition of the main chain, pyrolysis of polyol and isocyanate, and degradation of char layer [6,27] (see Figure 7a). However, with the addition of DMMP, an extra transition was observed around 100–150 °C, corresponding to the volatilization of DMMP [10]. This peak increases with DMMP concentration resulting in improved char stability observed in later decomposition peak around 360 °C and 475 °C [28,29,30]. The volatilization of DMMP results in decomposition of a less-stable –P–O–C– bond, which further assists in the formation of a char layer that inhibits fire [31]. Figure 7a shows improvement in the final char content of the foams as the amount of DMMP was raised, suggesting the formation of stable char that could act as a barrier to improve flame retardancy. This could be correlated with improved flame retardancy observed in the horizontal burning test and the combustion test discussed later. The thermal behavior of two samples containing 0.51% and 1.9% of phosphorous was compared in nitrogen and air atmosphere. As is seen in Figure 7b, the thermal decomposition behavior in nitrogen and air atmosphere is similar, with little difference in residual content at high temperatures.

The flame-retardant properties of the foams were studied using a horizontal burning test as per ASTM D 4986-98. The foams were held horizontally and subjected to a continuous flame for 10 s. Burning time, along with respective weight loss, was recorded, as shown in Figure 8. The neat foams showed a burning time of 115 s and weight loss of 38 wt.%, which significantly reduced to 3.5 s and 5.5 wt.% after addition of DMMP for 1.94 wt.% P foams. Ranaweera et al. synthesized rigid polyurethane foams using limonene polyol and studied flame retardant properties by the addition of different amounts of DMMP [10]. The foams containing 6 wt.% of DMMP showed the lowest burning time of 19 s. Similarly, in our previous report, we observed that the 1.7 wt.% P foams prepared using DMMP as a flame retardant showed burning time and weight loss of ~5 s and ~5 wt.%, respectively [7]. Our study shows improved flame retardant properties, as compared to previous results. Figure 9 shows optical images of the burnt foams with different concentrations of phosphorus within the foams. The improved flame retardancy could be due to the two-way active contribution of DMMP, including condensed and vapor phase [7]. Firstly, the decomposition of DMMP could promote the formation of phosphoric acid resulting in pyrophosphate structure by dehydrating the polymer matrix containing oxygen (in this case due to polyol) [32]. Such dehydration further results in the formation of carbocation and a carbon-carbon double bond, which at higher temperatures forms a carbonized crosslinked structure, such as an intumescent barrier char layer over the surface of the foam preventing the combustible media, oxygen and thermal energy from propagating. Secondly, radical phosphorus species such as PO*, PO₂* and OHPO* help in inhibition of H* and OH* [33]. Therefore, with the addition of a small amount of DMMP, efficient flame retardancy can be achieved.

The combustion test was performed using a cone calorimeter to study flame-retardant characteristics in detail. A control foam and foam containing 1.5 wt.% phosphorus were exposed to the flame test. Figure 10a,b shows the heat release rate (HRR) and total heat release (THR) behavior of the foams. Total heat release for the foam containing 1.5% phosphorous showed 21% reduction in THR, compared to the control foam. The protective char formed due to the addition of DMMP improves the flame retardancy for the foam and reduces the heat transfer to the underlying layer [34,35]. Hence, from the overall study, it can be concluded that the addition of DMMP within the foam matrix could improve the flame-retardant properties of the foams.

4. Conclusions

In the present study, flame-retardant polyurethane foams were synthesized using corn oil-derived polyol and DMMP. The study conclude that high purity polyol can be synthesized using a single-step thiol-ene reaction. The foams prepared using as-synthesized polyol resulted in a uniform cellular structure, higher closed cell content (>95%), moderate compression strength (120–81 kPa), and appropriate density (~35 kg/m³). The addition of DMMP resulted in improved flame-retardant properties of the foams. It was observed that foams without DMMP showed a higher burning time of 115 s with weight loss of 38%, while foams containing 1.94 wt.% P showed reduced burning time of 3.5 s and weight loss of 5.5 wt.%. Similar behavior was observed from the cone test, where the foams containing DMMP showed a reduced peak heat release rate and total heat release, thereby improving the flame retardancy of the polyurethane foams.
