Article

Controlled Atmosphere Storage and Sorbitol Dipping Minimize Chilling Injuries in ‘Palmer’ Mangoes

by
Maryelle Barros da Silva
1,
Vanessa Maria Dantas Pedrosa
1,
Maiqui Izidoro
1,
Tiago Santana Balbuena
2,
Alex Guimarães Sanches
1 and
Gustavo Henrique de Almeida Teixeira
1,3,*
1
Faculdade de Ciências Agrárias e Veterinárias (FCAV), Campus de Jaboticabal, Departamento de Ciências da Produção Agrícola, Universidade Estadual Paulista (UNESP), Via de Acesso Prof. Paulo Donato Castellane s/n, Jaboticabal 14884-900, SP, Brazil
2
Faculdade de Ciências Agrárias e Veterinárias (FCAV), Campus de Jaboticabal, Departamento de Biotecnologia Agropecuária e Ambiental, Universidade Estadual Paulista (UNESP), Via de Acesso Prof. Paulo Donato Castellane s/n, Jaboticabal 14884-900, SP, Brazil
3
Kimberly Research and Extension Center, University of Idaho (U of I), 3806 N 3600 E, Kimberly, ID 83341-5082, USA
*
Author to whom correspondence should be addressed.
Horticulturae 2024, 10(4), 354; https://doi.org/10.3390/horticulturae10040354
Submission received: 29 January 2024 / Revised: 26 March 2024 / Accepted: 28 March 2024 / Published: 3 April 2024

Abstract

:
Our previous studies have shown that ‘Palmer’ mangoes immersed in solutions containing 2.5% sorbitol and stored under a controlled atmosphere (CA) at 8 °C for 30 days had fewer symptoms of a chilling injury. However, there is no information regarding the effectiveness of sorbitol treatment in other atmospheres and/or in combination with lower temperatures. Thus, the objective of this study was to assess the impact of dipping ‘Palmer’ mangoes in 0.1% and 2.5% (w/v) sorbitol solutions and storing the fruit under a CA without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) at 8 °C/95% relative humidity (RH) or with 5 kPa O2 + 5 kPa CO2 at 4 °C/95% RH for 28 days. The fruits were evaluated periodically for chilling injuries, quality, and oxidative metabolism. A chilling injury (CI) was correlated with increased fresh weight loss (FWL) and changes in the color of the epicarp (Lpeel, h°peel, and Cpeel) and mesocarp (L*pulp). Lipid peroxidation (LPpulp and LPpeel) and the hydrogen peroxide content (H2O2peel and H2O2pulp) were associated with the development of a CI, particularly after being transferred to ambient. The treatment with 2.5% sorbitol was more effective in minimizing the chilling injury symptoms and did not compromise the fruit quality, especially when it was stored at 4 °C in association with a CA containing 5 kPa O2 + 5 kPa CO2. This treatment reduced lipid peroxidation and increased the activities of the superoxide dismutase (SOD) and ascorbate peroxidase (APX) enzymes in the epicarp and mesocarp, providing greater cold tolerance. The use of 2.5% sorbitol has been identified as the most efficacious approach for mitigating the adverse impacts of chilling injuries, preserving the fruit quality, and enhancing oxidative metabolism, even at lower temperatures. Thus, this treatment represents a viable alternative for managing chilling injuries in mangoes.

1. Introduction

As observed in other horticultural products, cold storage is the primary post-harvest technology used to extend the shelf life of mangoes because low temperatures reduce their metabolic activity [1]. Mangoes stored at temperatures between 8 and 13 °C have a post-harvest shelf life of up to 21–30 days, depending on the cultivar and fruit maturity [2,3]. However, prolonged storage at temperatures below 13 °C can lead to the development of a physiological disorder known as a chilling injury (CI), resulting in qualitative and quantitative losses [4,5].
The symptoms of a CI in mangoes are most evident in the epicarp and are characterized by the presence of dark, sunken spots resembling burns, which can hinder the marketing of fresh fruit, as this defect may render the product unacceptable according to market standards. The mesocarp is also affected, as the fruit may exhibit irregular ripening [5,6].
The mechanisms related to the development of CIs in plants are related to changes in the lipid bilayer of the plasma membrane, i.e., transitioning from a more flexible fluid state to a rigid gel phase due to exposure to low temperatures. This change in rigidity leads to the loss of functions and the rupture of cell membranes, resulting in cell death [7]. Several studies have reported changes in the rigidity of cell membranes in mangoes with CIs [8,9,10,11].
Exposure to low temperatures also induces the overproduction of reactive oxygen species (ROS), such as hydrogen peroxide (H2O2), superoxide radicals (O2•−), and hydroxyl radicals (OH), that react with various molecules, leading to lipid membrane peroxidation [12]. In mangoes, ROS overproduction has been correlated with a higher incidence of CIs [5,13,14,15] and the manifestation of their various symptoms [16,17,18,19].
Sorbitol (C6H14O6) is a water-soluble polyol that naturally occurs in various fruits [20,21] and plays an important role in the osmotic adjustment of the cytoplasm under stress conditions, potentially stabilizing membranes [22]. It can increase cold stress tolerance [23] by binding to water and lowering the dielectric constant, even at temperatures above freezing [24]. Sorbitol acts as an osmoprotective agent that has been linked to CI tolerance [25], contributing to membrane stabilization and reducing structural damage [26]. It can also act as an antioxidant, affecting the activity of enzymes, such as superoxide dismutase (SOD), peroxidase (POD), and catalase (CAT), as well as scavenging ROS [27].
In this context, Sanches et al. [15] have reported that ‘Palmer’ mangoes stored at 8 °C for 30 days, when treated with 2.5% sorbitol, showed reduced H2O2 accumulation and polyphenol oxidase (PPO) activity, higher membrane integrity (malondialdehyde—MDA), and increased activity of the enzymes SOD, CAT, and ascorbate peroxidase (APX), both in the epicarp and the mesocarp compared to those in standard storage or storage after treatment with the polyols propylene glycol and glycerol. Consequently, sorbitol immersion has been considered a feasible approach to alleviating CI during refrigerated storage.
Under standard cold quarantine treatment conditions (1 °C for 14 days), immersion in a solution containing 0.1% sorbitol was the most effective in mitigating Cis. This effect was associated with lower MDA and H2O2 concentrations and PPO activity levels, as well as higher SOD, CAT, and APX enzyme activity and ascorbic acid levels, especially in the pericarp [28]. The combination of immersion of ‘Palmer’ mangoes in solutions containing 2.5% sorbitol with controlled atmosphere (CA) storage reduced CIs through the activation of non-enzymatic (ascorbic acid and total phenolic compounds) and enzymatic (SOD, CAT, and APX) mechanisms in fruits kept at 8 °C for 30 days [28]. Despite these results, there is no information available regarding the effectiveness of sorbitol treatment in other storage atmospheres and/or in combination with lower temperatures.
Thus, the objective of this study was to evaluate the effect of dipping ‘Palmer’ mangoes in 0.1 and 2.5% (w/v) sorbitol solutions and storing them under a CA with ambient atmospheric conditions (21 kPa O2 + 0.03 kPa CO2) at 8 °C/95% relative humidity (RH) or under 5 kPa O2 + 5 kPa CO2 at 4 °C/95% RH for 28 days. The development of chilling injuries, quality modification, and oxidative metabolism were evaluated periodically.

2. Materials and Methods

2.1. Plant Material

‘Palmer’ mangoes were obtained from commercial orchards located in Taquaritinga (21°25′57.72″ latitude south, 48°32′50.46″ longitude west), São Paulo, Brazil (Experiment I), and Belém do São Francisco (8°32′1.89″ latitude south, 38°58′53.97″ longitude west), Pernambuco, Brazil (Experiment II). The fruits were harvested at physiological maturity and selected manually, and then classified according to size, soundness, the absence of mechanical damage, and pest and disease lesions. Fruit physiological maturity was evaluated based on the dry matter (DM) content of 20 fruits from each experiment. The DM content was 13.1% ± 1% and 13.0% ± 1% in the fruits from Experiments I and II, respectively.

2.2. Experiment I: Without Gas Modification (Air)

After selection, the mangoes were washed with soap, rinsed with running water, and dried. Following that, they were dipped in one of the following solutions at 5 °C for 60 min: i. distilled water (control), ii. 0.1% (w/v) food-grade sorbitol, or iii. 2.5% (w/v) food-grade sorbitol (Sigma-Aldrich, St. Louis, MO, USA) [15]. Subsequently, the mangoes were stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH in a controlled atmosphere chamber (Venezia PCM 1000 model; Fruit Control Equipment, Milan, Italy), with ambient atmosphere conditions maintained (21 kPa O2 + 0.03 kPa CO2) for 28 days. The fruits were evaluated every 7 days. During each evaluation, the chilling injury was immediately evaluated, and some of the fruits were moved to ambient conditions (~24 ± 2.0 °C and 75 ± 2.0% RH) to evaluate them for signs of chilling injuries whenever the fruit became ripe (from 5 to 10 days). This study was set according to a completely randomized design (CRD) in a factorial arrangement of 3 (treatments: control, 0.1% sorbitol, and 2.5% sorbitol) × 5 (storage periods: 0, 7, 14, 21, and 28 days) with three replicates.

2.3. Experiment II: CA—Modification of Atmosphere Gases

The fruits for this experiment were washed, rinsed with water, and dried as in the other study. Following this, they were i. dipped in distilled water and stored in CA with 21 kPa O2 + 0.03 kPa CO2 (negative control), ii. dipped in distilled water and stored in CA with 5 kPa O2 + 5 kPa CO2 (positive control), iii. dipped in 0.1% (w/v) sorbitol and stored in CA with 5 kPa O2 + 5 kPa CO2, or iv. dipped in 2.5% (w/v) sorbitol and stored in CA with 5 kPa O2 + 5 kPa CO2. The fruits were stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH in a controlled atmosphere chamber (Venezia PCM 1000 model; Fruit Control Equipment, Milan, Italy), and control of the oxygen (O2), carbon dioxide (CO2), and ethylene (C2H4) levels was performed using SWINGLOS® software, GAC 5000 (Fruit Control Equipment, Milan, Italy). These conditions were maintained for 28 days, and evaluations were conducted every 7 days. At each evaluation, some of the fruits were moved to ambient conditions (~24 ± 2.0 °C and 75 ± 2.0% RH) to be evaluated for signs of chilling injuries whenever the fruit became ripe (from 4 to 7 days). This experiment was set according to a completely randomized design (CRD) in a factorial arrangement of 4 (treatments: negative control, positive control, 0.1% sorbitol, and 2.5% sorbitol) × 5 (storage periods: 0, 7, 14, 21, and 28 days) with three replications.

2.4. Evaluations

In both experiments, the fruits were evaluated using the same method.

2.4.1. Chilling Injury Development

To evaluate chilling injury (CI) development, the fruits had their pericarp lesions visually rated according to the process of Miguel et al. [29] with modifications. Fruits with no visible symptoms (CI = 0%) were rated as 1, mild symptoms (CI = 0–25%) as 2, moderate symptoms (CI = 25–50%) as 3, and severe symptoms (CI ≥ 50%) as 4.

2.4.2. Fresh Weight Loss

Fresh weight loss (FWL) was determined by weighing the mangoes on an analytical balance (AS 2000 model; Mars, Brazil), and the accumulated weight loss was calculated according to the method of Sanches et al. [15] for each experiment and each evaluation day. FWL is expressed as a percentage (%).

2.4.3. Firmness

Fruit firmness was measured in the mid portion between the stem end and the remains of stigma and style of each mango without the epicarp (skin). Firmness was measured using a penetrometer (Effegi Fruit Tester, Forlì, Italy) with an 8 mm tip, and the results are expressed in Newtons (N), as has been previously described by Watkins and Harman [30].

2.4.4. Color

The epicarp (skin) and mesocarp (flesh) colors were measured in the mid portion between the stem end and the remains of the stigma and style. The skin color was also measured on opposite sides of each fruit on the blush and green areas of the protruding side. A reflectometer (CR-400; Minolta, Osaka, Japan) was used to obtain the L*, a*, and b* values, and chromaticity (C*) and hue angle (h°) were calculated according to the method of McGuire [31].

2.4.5. Physicochemical Evaluation

The soluble solid content (SSC) of the fruits was measured using a digital refractometer (Alpha; Atago Co., Ltd., Tokyo, Japan), and the results are expressed as percentages [32]. Titratable acidity (TA) was measured via titration using 0.1% phenolphthalein as an indicator, and the results are expressed in g kg−1 citric acid [31]. The ratio (SSC/TA) was calculated according to the method of the AOAC [31], and the pH was determined using a pH meter (Orion 3 Star; Thermo Scientific, Waltham, MA, USA).

2.5. Oxidative Metabolism

2.5.1. Lipid Peroxidation

For this analysis, samples of peel and pulp (0.5 g) were homogenized with 2.5 mL of a solution containing 0.1% (w/v) trichloroacetic acid (TCA) and 20% (w/v) polyvinylpyrrolidone (PVP). After centrifugation (ST16-R; Thermo Scientific, Waltham, MA, USA) at 12,298× g and 4 °C for 15 min, 250 μL of the supernatant was mixed with 1 mL 20% TCA (w/v) and 0.5% thiobarbituric acid (TBA) and incubated in a water bath at 95 °C for 30 min. After this period, the samples were cooled in ice for 10 min and centrifuged at 12,298× g for 15 min at 4 °C. Lipid peroxidation was calculated according to Gratão et al. [33] and is expressed in μmol of malondialdehyde (MDA) per kg of fresh weight.

2.5.2. Hydrogen Peroxide (H2O2)

The hydrogen peroxide (H2O2) content was determined in 1.0 g peel and pulp samples according to the process of Alexieva et al. [34]. The samples were homogenized in 0.1% (w/v) trichloroacetic acid at 4 °C and centrifuged at 12,298× g for 20 min at 4 °C. Following this, the supernatant (200 μL) was mixed with 200 μL of 100 mM potassium phosphate buffer (pH 7.5) and 800 μL of 1 M potassium iodide (KI). The samples were incubated in ice for 1 h in the dark. The hydrogen peroxide content was measured at 390 nm and expressed in mol H2O2 per kg of fresh weight.

2.5.3. Superoxide Dismutase (SOD) and Ascorbate Peroxidase (APX) Extraction

These two enzymes were extracted according to the process of Yang et al. [35]. The peel and pulp samples (1.0 g) were homogenized in 100 mM potassium phosphate buffer (pH 7.0), 1 mM ethylenediaminetetraacetic acid (EDTA), and 20% (w/v) polyvinylpolypyrrolidone (PVP). The homogenates were filtered using a fine nylon mesh, centrifuged at 12,298× g for 25 min, and immediately frozen at −18 °C. The protein levels of the homogenates were determined [36].

2.5.4. Superoxide Dismutase (SOD) Activity

SOD (SOD, EC 1.15.1.1) activity was measured using the method described by Giannopolitis and Ries [37]. The enzymatic extract (50 μL) was mixed with 1.0 mL of 50 mM sodium phosphate buffer (pH 7.8), 19.5 mM methionine, 150 μL of NBT, and 300 μL of riboflavin. The incubation took place under light, and after 15 min, the absorbance was measured at 560 nm (Beckman spectrophotometer, DU-640; GMI: Mequon, WI, USA). The SOD activity is defined and expressed in U min−1 kg−1 106 protein [38].

2.5.5. Ascorbate Peroxidase (APX) Activity

APX (APX, EC 1.11.1.1) activity was measured according to the process of Nakano and Asada [39]. The enzymatic extract (50 μL) was mixed with 800 μL of 50 mM potassium phosphate buffer (pH 7.0), 0.1 mM EDTA, 100 μL of H2O2 (0.03 M), and 50 μL of ascorbic acid (0.015 M). Ascorbic acid oxidation was measured at 290 nm (Beckman spectrophotometer, DU-640; USA), and the APX results are expressed in mol H2O2 min−1 kg−1 protein.

2.5.6. Polyphenol Oxidase (PPO) Extraction and Activity Measurements

To extract the polyphenol oxidase (PPO) enzyme (EC 1.14.18.1), 1.0 g of peel and pulp was homogenized with 50 mM potassium phosphate buffer (pH 7.0) and 1% (w/v) polyvinylpyrrolidone (PVP) at 4 °C. The homogenate was centrifuged (12,298× g for 10 min at 4 °C), and the supernatant was immediately frozen [40]. PPO activity was measured by mixing 100 μL of enzymatic extract with 1.85 mL of 100 mM potassium phosphate buffer (pH 6.0). Catechol (100 mM) was used as a substrate, and after 30 min of incubation in a water bath (30 °C for 30 min), the reactions were terminated (800 μL of 2 N perchloric acid) and the absorbance measured at 395 nm (Beckman spectrophotometer, DU-640; USA). The activity is expressed in U min−1 kg−1 106 protein [41].

2.6. Statistical Analysis

2.6.1. Univariate

Analysis of variance (ANOVA) was performed on the data. R software version 3.0 (R Core Team, 2020; Auckland, New Zealand) was employed to obtain the means and compare them using Tukey’s test at 0.05%.

2.6.2. Multivariate

Multivariate analysis was performed to reduce the variables capable of interpretation, summarizing much of the variability among them. Numerical matrices were constructed using chilling injury (CI) symptoms, physicochemical variables, and oxidative metabolism in the peel and pulp of the fruits from the different storage periods in Experiment I (0, 0 + 10, 7, 7 + 5, 14, 14 + 6, 21, 21 + 5, 28, 28 + 5 days) and Experiment II (0, 0 + 7, 7, 7 + 6, 14, 14 + 4, 21, 21 + 4, 28, and 28 + 4 days). Principal component analysis (PCA) was performed by extracting the principal components via correlation matrix using R software (R Core Team, 2020; Auckland, New Zealand), and the first two principal components (PC1 and PC2) were used.

3. Results

The results of univariate analysis can be observed in the Supplementary Materials. Due to the large number of variables evaluated, we chose to focus on the results from multivariate analysis. Thus, the score plots and loading plots (biplots) of the PCA were obtained through correlation matrices based on the analyzed variables (Table 1 and Table 2). The factor loadings used in both the experiments were based on the first two principal components (PC1 and PC2), correlating chilling injuries with the other analyzed variables.

3.1. Experiment I: Without Gas Modification (Air)

3.1.1. Chilling Injury and Physicochemical Variables

During cold storage, chilling injury (CI) development was not affected by the sorbitol treatments (Table 3). At the end of cold storage, the mangoes showed mild-to-moderate CI symptoms (Figure 1). On the other hand, after being transferred to ambient conditions, the 2.5% sorbitol treatment reduced CI development (Table 4) and the mangoes showed a better visual quality (Figures S1 and S2). If the score 3 (moderate symptoms—CI = 25–50%) is used as a shelf-life threshold, mangoes from the control treatment had a shelf-life of 21 + 5 days and 28 + 5 days when treated with 0.1 and 2.5% sorbitol (Figure 2).
The variable related to chilling injury lesions (CI vector) was positioned in the lower positive quadrant of PC1, grouping with fresh weight loss (FWL), the soluble solid content (SSC), and pulp luminosity (Lpulp), as shown in Figure 3A. CIs do not correlate with firmness, peel and pulp chromaticity (C*peel and C*pulp), the pulp hue angle (h°pulp), the ratio (SSC/TA), or the pH. The data from the treatments evaluated on the last storage days (21 and 28 days) tended to be closer to the CI vector, while those from the control treatment, followed by immersion in 0.1% sorbitol and the 2.5% sorbitol treatment, were distanced more from this vector (Figure 3A).
Upon moving the fruits to ambient conditions, the CI vector was positioned in the upper-left quadrant of PC2, grouping with pulp luminosity (Lpulp), titratable acidity (TA), and firmness, and was not associated with the SSC levels, pH, SSC/TA, peel chromaticity (C*peel), or peel hue angle (h°peel), as shown in Figure 3A. At the beginning of the storage period, CIs were associated with the control treatment and with the 0.1% and 2.5% sorbitol treatments at the end of storage (21 and 28 days) (Figure 3B).

3.1.2. Cold Damage and Oxidative Metabolism

The sorbitol treatments affected the oxidative metabolism during cold storage (Table 5) and after moving to ambient conditions (Table 6). The CI vector correlated with the hydrogen peroxide content in the peel (H2O2peel), especially for the samples evaluated at the end of storage (21 and 28 days). The 0.1% and 2.5% sorbitol treatments were distanced from the CI vector, associating with the vectors of the superoxide dismutase enzyme in the peel and pulp (SODpeel and SODpulp) and the ascorbate peroxidase in the peel (APXpeel). On the other hand, the control treatment correlated with the vectors related to the hydrogen peroxide content in the pulp (H2O2pulp) and the PPO activity in the peel (PPOpeel), as shown in Figure 4A.
Upon being transferred to ambient conditions, the vector related to chilling injuries (Cis) was positioned in the lower positive quadrant of PC1, grouping with the vectors of lipid peroxidation (LPpulp) and superoxide dismutase (SODpulp), and even more with the data from the control treatment on evaluation days 21 + 5 and 28 + 5, which were closer to the CI vector (Figure 4B).

3.2. Experiment II: CA—Modification of Atmospheric Gases

3.2.1. Cold Damage and Physicochemical Variables

The association of sorbitol treatments and CA resulted in fewer chilling injuries (CIs) developing (Table 7) and a better fruit quality during cold storage compared to the control treatment (Figure 5). However, the CI symptoms were more severe in this condition with respect to Experiment I (Table 3 and Table 4). Upon moving the fruits to ambient conditions, the 0.1% and 2.5% sorbitol treatments reduced CI development (Table 8), and the mangoes showed a better visual quality (Figures S3 and S4). Again, if score 3 (moderate symptoms—CI = 25–50%) is used as the shelf-life threshold, the only treatment that reached this level of CI was the control and CA treatments (Figure 6). Overall, the shelf-life was 21 + 4 and 28 + 4 days for all the treatments (Figure 6).
The CI vector was in the lower-right quadrant of PC1 and correlated with the FWL, SSC, C*peel, SSC/TA, and hue angle (h°peel) vectors, grouping with the vectors of the control and CA treatments at both 21 and 28 days of storage (Figure 7A). The vectors of the variables of firmness, Lpulp, pH, h°pulp, and C*pulp were in PC2 and did not correlate with CIs. In the ambient conditions, the CI vector positioned itself in the upper quadrant of PC1 and correlated with Lpeel, Lpulp, h°peel, and C*peel, with the vectors of the control and CA treatments more grouped with this vector, especially on the last evaluation days (14 + 4, 21 + 4, and 28 + 4). On the other hand, the data from the 2.5% sorbitol treatment grouped in the lower quadrant of PC1 (Figure 7B).

3.2.2. Cold Damage and Oxidative Metabolism

The sorbitol treatments affected the oxidative metabolism during cold storage (Table 9) and after the move to ambient conditions (Table 10). The CI vector was positioned in the upper-right quadrant of PC1, correlating with LPpulp and grouping with the data from the negative control treatment on all the evaluated days as well as the CA and 0.1% sorbitol treatments on day 28 (Figure 8A). On the other hand, the vectors related to the activity of the ascorbate peroxidase enzyme (APXpeel and APXpulp) and superoxide dismutase (SODpulp) were located on the opposite side of CI, highlighting the 0.1% and 2.5% sorbitol treatments (7 and 14 days), which grouped with the vectors of these enzymes (Figure 8A).
When the fruits were transferred to ambient conditions, the vector of chilling injury (CI) was positioned in the lower-right quadrant of PC1, correlating with the activity of the PPO enzyme in the pulp (PPOpulp), LPpeel, H2O2peel, and H2O2pulp and grouping with the data from the negative control and CA treatments on days 21 + 4 and 28 + 4, which presented more pronounced chilling injury lesions at the end of storage compared to the 2.5% sorbitol treatment (Figure 8B).

4. Discussion

4.1. Cold Damage and Physicochemical Variables

In both the experiments, the incidence of chilling injuries (CIs) correlated with fresh weight loss (FWL), especially in the control treatments on the last evaluation days. The same was reported by Sanches et al. [15], who stored mangoes at 8 °C. However, those authors reported that a 75% RH cold room provided a fresh weight loss of 18%, and even under those conditions, immersion in solutions containing polyols (propylene glycol, glycerol, and sorbitol) significantly reduced the fresh weight loss to 17% [15]. This may suggest an effect of the modified atmosphere even at reduced sorbitol concentrations (0.1%).
To verify the effectiveness of sorbitol immersion by isolating the control of fresh weight loss on chilling injury development, we stored the fruit at 8.0 ± 1.0 °C and 95 ± 0.5% RH without gas modification (21 kPa O2 + 0.03 kPa CO2) for 28 days in CA chambers. This minimized the fresh weight loss (0.78–0.89%), and the sorbitol treatments had no significant effect. The same occurred during the storage of the fruits at 4.0 ± 1.0 °C and 95 ± 0.5% RH under a CA containing 5 kPa O2 + 5 kPa CO2 for 28 days, i.e., the fresh weight loss was reduced to 0.65–0.88%. Thus, the effect of the immersion in the sorbitol-containing solutions was not related to the reduction in fresh weight loss, as there was no significant effect compared to the control treatments, which showed more severe chilling injury symptoms regardless of the CA conditions.
The worsening of the chilling injury symptoms when the fruits were moved to ambient conditions was evidenced by the darkening of the epicarp, which is usually observed after removal from cold storage and fruits become ripe [42]. For this reason, the chilling injuries correlated with variables such as Lpeel, h°peel, C*peel, and h°pulp (Tables S1–S4). However, the chilling injuries were not restricted to damage to the epicarp and led to irregular ripening, affecting the color parameters of the pulp, the SSC, the TA, and the ratio. The discoloration of the epicarp (peel) and irregular ripening are commonly observed in mangoes stored at low temperatures [43].
Sanches et al. [44] have reported that a combination of immersion in solutions containing 2.5% sorbitol with storage in CA (5 kPa O2 + 5 kPa CO2) has delayed mango ripening and controlled chilling injury development. We observed that the mangoes subjected to the 0.1% and 2.5% sorbitol treatments were firmer even after being transferred to the ambient conditions, which may have affected the ripening process. In both of our experiments, dipping the fruit in 2.5% sorbitol reduced chilling injury incidence, and the fruits remained firmer. Thus, maintaining firmness may be related to the control of chilling injuries. Salazar-Salas et al. [45] observed that ‘Keitt’ mangoes dipped in hot water (HWT) showed a lower incidence of chilling injuries and had better firmness. Thus, firmness may be indicative of maintaining the structure of the cell wall and plasma membrane and be associated with reduced chilling injuries.

4.2. Cold Damage and Oxidative Metabolism

Chilling injury development was related to the accumulation of malondialdehyde (MDA) (LPpulp and LPpeel), which is considered a marker of lipid membrane peroxidation [46]. In PCA, it was observed that chilling injury correlated with hydrogen peroxide content (H2O2peel), LPpulp, LPpulp, LPpeel, H2O2peel, H2O2pulp, and LPpeel, especially in the control treatment on the last evaluation days (21, 21 + 4, 28, and 28 + 4 days), as represented by increases in the MDA and H2O2 contents.
Dipping the mangoes in sorbitol (0.1% and 2.5%) resulted in a higher activity level of superoxide dismutase (SOD), which is considered the first enzyme to be activated in the elimination of ROS via O2 dismutation [13]. Thus, it can be inferred that the sorbitol influenced the control of oxidative stress by increasing the SOD activity level in the fruit, similar to other polyols [47].
Other enzymes, such as APX, CAT, and POD, are also considered important in initiating plant defenses against oxidative stress. In this sense, higher activity levels of APX enzymes can reduce hydrogen peroxide accumulation, which was observed in the fruit treated with the sorbitol (0.1% and 2.5%) compared to the H2O2peel and H2O2pulp vectors of the control fruit, which showed significant increases in H2O2 and more severe chilling injury symptoms. Pomegranates (Punica granatum L.) with chilling injury symptoms had a higher accumulation of H2O2, which was lower in the fruits treated with arginine, also resulting in increased activity levels of the SOD, CAT, and APX enzymes [48]. Thus, the activation of the enzymatic defense system (SOD, APX, and CAT) is fundamental for reducing H2O2 accumulation in plants under stress conditions [49] and, consequently, minimizes chilling injuries in fruits stored at low temperatures, which was possible with the immersion in 2.5% sorbitol.
The most visible symptom of chilling injuries in mangoes is the presence of dark, sunken spots, similar to burns, associated with a higher polyphenol oxidase enzyme (PPO) activity level [50]. In both the experiments, the PPO activity correlated with the highest incidence of chilling injuries, especially in the control treatment of the experiment without gas modification (21 kPa O2 + 0.03 kPa CO2) after the fruits were transferred to the ambient conditions in the last days of storage (21 + 4, 28 + 4). However, the treatments with sorbitol, especially the 2.5% treatment, significantly reduced the PPO activity. This effect was evident when the CA (5 kPa O2 + 5 kPa CO2) and 2.5% sorbitol treatment were combined, even at lower temperatures (4.0 °C). This demonstrates a synergistic effect between CA and sorbitol treatment in activating oxidative metabolism to control chilling injuries. However, this combination only minimizes the chilling injuries, and further studies should be conducted to explain which mechanisms are involved combining sorbitol and CA.

5. Conclusions

The immersion of ‘Palmer’ mangoes in sorbitol-containing solutions demonstrated efficacy in mitigating chilling injuries under varied storage conditions, which has not been extensively explored in the existing literature, such as differing gas compositions (21 kPa O2 + 0.03 kPa CO2 and 5 kPa O2 + 5 kPa CO2) and temperatures (8 °C and 4 °C). When the mangoes were stored under controlled atmosphere (CA) conditions with 95% RH, it was possible to mitigate the impact of fresh weight loss and chilling injury symptoms, enabling the preservation of fruit quality for up to 21 + 5 days at 8 °C and to 21 + 4 days at 4 °C.
The effectiveness of controlling chilling injury was attributed to the attenuation of lipid peroxidation in the cell membranes and the activation of the antioxidant enzymes SOD and APX in the epicarp and mesocarp, particularly in the mangoes treated with sorbitol. Notably, the application of 2.5% sorbitol emerged as the most effective approach to mitigating chilling injuries, sustaining the fruit quality, and enhancing oxidative metabolism even at lower temperatures. Thus, this treatment option has established itself as a viable strategy for chilling injury management in mangoes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae10040354/s1, Figure S1: Epicarp chilling injury (CI) development in ‘Palmer’ mangoes (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) for up to 10 to 5 days; Figure S2: Mesocarp chilling injury (CI) development in ‘Palmer’ mangoes (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) for up to 10 to 5 days; Figure S3: Epicarp chilling injury (CI) development in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0°C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) for up to 7 to 4 days; Figure S4: Mesocarp chilling injury (CI) development in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days and then transferred to ambient conditions (24 ± 2.0°C and 75 ± 2.0% RH) for up to 7 to 4 days. Table S1: Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on firmness, luminosity, hue angle, and chromaticity parameters; Table S2: Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of firmness, luminosity, hue angle, and chromaticity after transfer to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) for up to 10 to 7 days. Table S3: Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modification of gases (5 kPa O2 + 5 kPa CO2) for 28 days on firmness, luminosity, hue angle, and chromaticity. Table S4: Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of firmness, luminosity, hue angle, and chromaticity after transfer to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) for up to 7 to 4 days.

Author Contributions

Methodology, M.B.d.S. and G.H.d.A.T.; validation, M.B.d.S.; formal analysis, M.B.d.S., V.M.D.P., M.I. and A.G.S.; investigation, M.B.d.S., V.M.D.P. and M.I.; data curation, M.B.d.S.; writing—original draft preparation, M.B.d.S., T.S.B., A.G.S. and G.H.d.A.T.; supervision, T.S.B. and G.H.d.A.T.; project administration, G.H.d.A.T.; funding acquisition, G.H.d.A.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP) grant number [2019/15116-0] and in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—(CAPES) Brazil—finance code [001].

Data Availability Statement

Data are contained within the article and supplementary materials.

Acknowledgments

The authors would like to thank Ogata Citrus, represented by Ademar Ogata, and Agropecuária Roriz Dantas (AGRODAN) for providing the fruit.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vega-Alvarez, M.; Salazar-Salas, N.Y.; López-Ângulo, G.; Pineda-Hidalgo, K.V.; López-López, M.E.; Vega-García, M.O.; Delgado-Vargas, F.; López-Valenzuela, J.A. Metabolomic changes in mango fruit peel associated with chilling injury tolerance induced by quarantine hot water treatment. Postharvest Biol. Technol. 2020, 169, 111299. [Google Scholar] [CrossRef]
  2. Singh, Z.; Singh, R.K.; Sane, V.A.; Nath, P. Mango-postharvest biology and biotechnology. Crit. Rev. Plant Sci. 2013, 32, 217–236. [Google Scholar] [CrossRef]
  3. Penchaiya, P.; Tijskens, L.M.M.; Uthairatanakij, A.; Srilaong, V.; Tansakul, A.; Kanlayanarat, S. Modelling quality and maturity of ‘Namdokmai Sithong’ mango and their variation during storage. Postharvest Biol. Technol. 2020, 159, 111000. [Google Scholar] [CrossRef]
  4. Zaharah, S.S.; Singh, Z. Postharvest nitric oxide fumigation alleviates chilling injury, delays fruit ripening and maintains quality in cold-stored ‘Kensington Pride’ mango. Postharvest Biol. Technol. 2011, 60, 202–210. [Google Scholar] [CrossRef]
  5. Zhang, Z.; Zhu, Q.; Hu, M.; Gao, Z.; An, F.; Li, M.; Jiang, Y. Low-temperature conditioning induces chilling tolerance in stored mango fruit. Food Chem. 2017, 219, 76–84. [Google Scholar] [CrossRef] [PubMed]
  6. Chaplin, G.R.; Cole, S.R.; Landrin, M.; Nuevo, P.A.; Lam, P.F.; Graham, G. Chilling injury and storage of mango (Mangifera indica L.) held under low temperatures. Acta Hort. 1991, 291, 461–471. [Google Scholar] [CrossRef]
  7. Lyons, J.M.; Raison, J.K.; Steponkus, P.L. The plant membrane in response to low temperature: An overview. In Low Temperature Stress in Crop Plants: The Role of the Membrane; Lyons, J.M., Graham, D., Raison, J.K., Eds.; Academic Press: New York, NY, USA, 1979; pp. 1–24. [Google Scholar]
  8. Kane, O.; Marcellin, P.; Mazliak, P. Incidence of ripening and chilling injury on the oxidative activities and fatty acid compositions of the mitochondria from mango fruit. Plant Physiol. 1978, 61, 634–638. [Google Scholar] [CrossRef] [PubMed]
  9. Hidalgo, M.; Cruz, J.; Parkin, K.L.; Garcia, H.S. Refrigerated storage and chilling injury development of Manila mangoes (Mangifera indica L.). Acta Hort. 1997, 455, 718–725. [Google Scholar] [CrossRef]
  10. Agillon, A.B.; Lizada, M.C.C. Responses of ‘Carabao’ mango (Mangifera indica) fruit to chilling stress. Acta Hort. 2012, 877, 467–474. [Google Scholar] [CrossRef]
  11. Kumpoun, W.; Nishizawa, T.; Motomura, Y.; Puthmee, T.; Aikawa, T. Histological and biochemical traits of chilling-injured pulp tissues as affected by cold storage of mango fruit. HortScience 2017, 52, 1380–1384. [Google Scholar] [CrossRef]
  12. Shewfelt, R.L.; Rosario, B.A. The role of lipid peroxidation in storage disorders of fresh fruit and vegetables. HortScience 2000, 35, 575–579. [Google Scholar] [CrossRef]
  13. Wang, B.; Zhu, S. Pre-storage cold acclimation maintained quality of cold-stored cucumber through differentially and orderly activating ROS scavengers. Postharvest Biol. Technol. 2017, 129, 1–8. [Google Scholar] [CrossRef]
  14. Khaliq, G.; Mohamed, M.T.M.; Ghazali, H.M.; Ding, P.; Ali, A. Influence of gum arabic coating enriched with calcium chloride on physiological, biochemical and quality responses of mango (Mangifera indica L.) fruit stored under low temperature stress. Postharvest Biol. Technol. 2016, 111, 362–369. [Google Scholar] [CrossRef]
  15. Sanches, A.G.; Pedrosa, V.M.D.; Checchio, M.V.; Fernandes, T.F.S.; Guevara, J.E.M.; Gratão, P.L.; Teixeira, G.H.A. Polyols alleviate chilling injury in ‘Palmer’ mangoes during cold storage. Food Control 2021, 129, 108248. [Google Scholar] [CrossRef]
  16. Lyons, J.M.; Raison, J.K. Oxidative activity of mitochondria isolated from plant tissues sensitive and resistant to chilling injury. Plant Physiol. 1970, 45, 386–389. [Google Scholar] [CrossRef]
  17. Raison, J.K.; Lyons, J.M. Chilling injury: A plea for uniform terminology. Plant Cell Environ. 1986, 9, 685–686. [Google Scholar] [CrossRef]
  18. Raison, J.K.; Orr, G.R. Proposals for a better understanding of the molecular basis of chilling injury. Chill. Inj. Hortic. Crops 1990, 145, 164. [Google Scholar]
  19. Sevillano, L.; Sanchez-Ballesta, M.T.; Romojaro, F.; Flores, F.B. Physiological, hormonal and molecular mechanisms regulating chilling injury in horticultural species. Postharvest technologies applied to reduce its impact. J. Sci. Food Agric. 2009, 89, 555–573. [Google Scholar] [CrossRef]
  20. Rice, T.; Zanini, E.; Arendt, E.K.; Coffey, A.A. Review of polyols–biotechnological production, food applications, regulation, labeling and health effects. Crit. Rev. Food Sci. Nutr. 2020, 60, 2034–2051. [Google Scholar] [CrossRef]
  21. Fang, T.; Cai, Y.; Yang, Q.; Ogutu, C.O.; Liao, L.; Han, Y. Analysis of sorbitol content variation in wild and cultivated apples. J. Sci. Food Agric. 2020, 100, 139–144. [Google Scholar] [CrossRef]
  22. Kanayama, Y. Physiological roles of polyols in horticultural crops. J. Jpn. Soc. Hortic. Sci. 2009, 78, 158–168. [Google Scholar] [CrossRef]
  23. Ito, A.; Sugiura, T.; Sakamoto, D.; Moriguchi, T. Effects of dormancy progression and low-temperature response on changes in the sorbitol concentration in xylem sap of Japanese pear during winter season. Tree Physiol. 2013, 33, 398–408. [Google Scholar] [CrossRef] [PubMed]
  24. Shirgire, S.D.; Talware, R.B.; Kadam, S.S.; Kumbharkhane, A.C. Dielectric relaxation of d-sorbital-water mixture using a time domain reflectometry technique. J. Mol. Liq. 2012, 169, 33–36. [Google Scholar] [CrossRef]
  25. Busttamante, C.; Monti, L.; Gabilondo, J.; Scossa, F.; Valentini, G.; Budde, C.; Lara, M.; Fernie, A.; Drincovish, M. Differential metabolic rearrangements after cold storage are correlated with chilling injury resistance of peach fruit. Front. Plant Sci. 2016, 7, 1478. [Google Scholar] [CrossRef] [PubMed]
  26. Thomashow, M.F. Plant cold acclimation: Freezing tolerance genes and regulatory mechanisms. Annu. Rev. Plant Physiol. 1999, 50, 571–599. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, G.; Li, L.Y.; Huang, M.L.; Yang, F.C.; Zhang, F.K.; Xu, R.C.; Yan, D.Y. Progresses in study on sorbitol effect on plants resistance. Soils 2018, 50, 446–454. [Google Scholar] [CrossRef]
  28. Sanches, A.G.; Silva, M.B.; Fernandes, T.F.S.; Pedrosa, V.M.D.; Wong, M.C.C.; Gratão PLTeixeira, G.H.A. Quarantine cold treatment hardness of ‘Palmer’ mangoes treated with polyols. J. Sci. Food Agric. 2022, 102, 6112–6122. [Google Scholar] [CrossRef] [PubMed]
  29. Miguel, A.C.A.; Durigan, J.F.; Morgado, C.M.A.; Oliveira, R.F. Lesão por frio em manga cv Palmer. Rev. Bras. Frutc. 2011, 33, 255–260. [Google Scholar] [CrossRef]
  30. Watkins, C.; Harman, J. Use of penetrometer to measure flesh firmness of fruit. Orchardist N. Z. 1981, 54, 14–16. [Google Scholar]
  31. McGuire, R.G. Reporting of objective color measurements. HortScience 1992, 27, 1254–1255. [Google Scholar] [CrossRef]
  32. AOAC. Official Methods of Analysis of the Association of Official Analytical Chemistry, 20th ed.; Patricia Cunniff: Washington, DC, USA, 2016. [Google Scholar]
  33. Gratão, P.L.; Monteiro, C.C.; Carvalho, R.F.; Teozotto, T.; Piotto, F.A.; Peres, L.E.P.; Azevedo, R.A. Biochemical dissection of diageotropica and Never ripe tomato mutants to Cd-stressful conditions. Plant Physiol. Biochem. 2012, 56, 79–96. [Google Scholar] [CrossRef] [PubMed]
  34. Alexieva, V.; Sergiev, I.; Mapelli, S.; Karanov, E. The effect of drought and ultraviolet radiation on growth and stress markers in pea and wheat. Plant Cell Environ. 2001, 24, 1337–1344. [Google Scholar] [CrossRef]
  35. Yang, Z.; Zheng, Y.; Cao, S. Effect of high oxygen atmosphere on quality, antioxidant enzymes, and DPPH-radical scanvenging activity of Chinese bayberry fruit. J. Agric. Food Chem. 2009, 57, 176–181. [Google Scholar] [CrossRef] [PubMed]
  36. Bradford, M.M. A rapid and sensitive method for the quantification of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 722, 248–254. [Google Scholar] [CrossRef]
  37. Giannopolitis, C.N.; Ries, S.K. Superoxide dismutase. I. Occurrence in higher plants. Plant Physiol. 1977, 59, 309–314. [Google Scholar] [CrossRef] [PubMed]
  38. Beauchamp, C.; Fridovich, I. Superoxide Dismutase: Improved Assays and an Assay Applicable to Acrylamide Gels. Anal. Biochem. 1971, 44, 276–287. [Google Scholar] [CrossRef] [PubMed]
  39. Nakano, Y.; Asada, K. Hydrogen peroxide is scavenged by ascorbate specific peroxidases in spinach chloroplast. Plant Cell Physiol. 1981, 22, 867–880. [Google Scholar] [CrossRef]
  40. Sojo, M.M.; Nuñez-Delicado, E.; García-Carmona, F. Partial purification of a banana polyphenol oxidase using triton X-114 and PEG 8000 for removal of polyphenols. J. Agric. Food Chem. 1998, 46, 4924–4930. [Google Scholar] [CrossRef]
  41. Wissemann, K.W.; Lee, C.Y. Polyphenoloxidase activity during grape maturation and wine production. Am. J. Enol. Vitic. 1980, 31, 206–211. [Google Scholar] [CrossRef]
  42. Lima, F.T.D.; Martins, L.P.; Toscano, B.L.M.D.; Costa, E.S.; Souza, W.F.C.; Lucena, F.A.; Silva Filho, J.F.; Sousa, S. Cold damage affects the quality of noni fruit (Morinda citrifolia L.). Biocatal. Agric. Biotechnol. 2023, 47, 102566. [Google Scholar] [CrossRef]
  43. Narayana, C.K.; Rao, D.V.S.; Roy, S.K.; Siddiq, M. Mango Production, Postharvest Physiology and Storage. In Tropical and Subtropical Fruit: Postharvest Physiology, Processing and Packaging; Wiley: Hoboken, NJ, USA, 2012; pp. 259–276. [Google Scholar] [CrossRef]
  44. Sanches, A.G.; Silva, M.B.; Wong, M.C.C.; Oliveira, A.R.G.; Pedrosa, V.M.D.; Fernandes, T.F.S.; Gratão, P.L.; Teixeira, G.H.A. Sorbitol immersion controls chilling injury in CA stored ‘Palmer’ mangoes. Postharvest Biol. Technol. 2022, 185, 111800. [Google Scholar] [CrossRef]
  45. Salazar-Salas, N.Y.; Chairez-Veja, D.A.; Vega-Alvarez, M.; González-Nuñez, D.G.; Pineda-Hidalgo, K.V.; Chávez-Ontiveros, J.; Delgado-Vargas, F.; Lopez-Valenzuela, J.A. Proteomic changes in mango fruit peel associated with chilling injury tolerance induced by quarantine hot water treatment. Postharvest Biol. Technol. 2022, 186, 111838. [Google Scholar] [CrossRef]
  46. Wei, C.; Ma, L.; Cheng, Y.; Guan, Y.; Guan, J. Exogenous ethylene alleviates chilling injury of ‘Huangguan’ pear by enhancing the proline content and antioxidant activity. Sci. Hortic. 2019, 257, 108671. [Google Scholar] [CrossRef]
  47. Saeed, F.; Chaudhry, U.K.; Raza, A.; Charagh, S.; Bakhsh, A.; Bohra, A.; Ali, S.; Chitikineni, A.; Saeed, Y.; Visser, R.G.F.; et al. Developing future heat-resilient vegetable crops. Funct. Integr. Genom. 2023, 23, 47. [Google Scholar] [CrossRef] [PubMed]
  48. Babalar, M.; Pirzad, F.; Sarcheshmeh, M.A.A.; Talaei, A.; Lessani, H. Arginine treatment attenuates chilling injury of pomegranate fruit during cold storage by enhancing antioxidant system activity. Postharvest Biol. Technol. 2018, 137, 31–37. [Google Scholar] [CrossRef]
  49. Dumanović, J.; Nepovimova, E.; Natić, M.; Kuča, K.; Jaćević, V. The significance of reactive oxygen species and antioxidant defense system in plants: A concise overview. Front. Plant. Sci. 2020, 11, 1–13. [Google Scholar] [CrossRef]
  50. Song, C.; Wang, K.; Xiao, X.; Liu, Q.; Yang, M.; Li, X.; Feng, Y.; Li, S.; Shi, L.; Chen, W.; et al. Membrane lipid metabolism influences chilling injury during cold storage of peach fruit. Food Res. Int. 2022, 157, 111249. [Google Scholar] [CrossRef]
Figure 1. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH).
Figure 1. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH).
Horticulturae 10 00354 g001

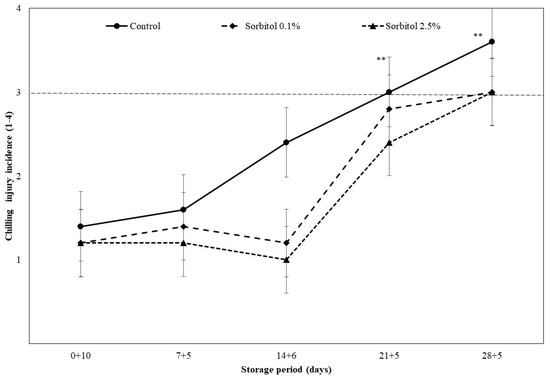

Figure 2. Interaction between treatments and storage period for (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days. Means followed by double asterisks (**) are significantly different using Tukey’s test at p < 0.01.
Figure 2. Interaction between treatments and storage period for (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days. Means followed by double asterisks (**) are significantly different using Tukey’s test at p < 0.01.
Horticulturae 10 00354 g002

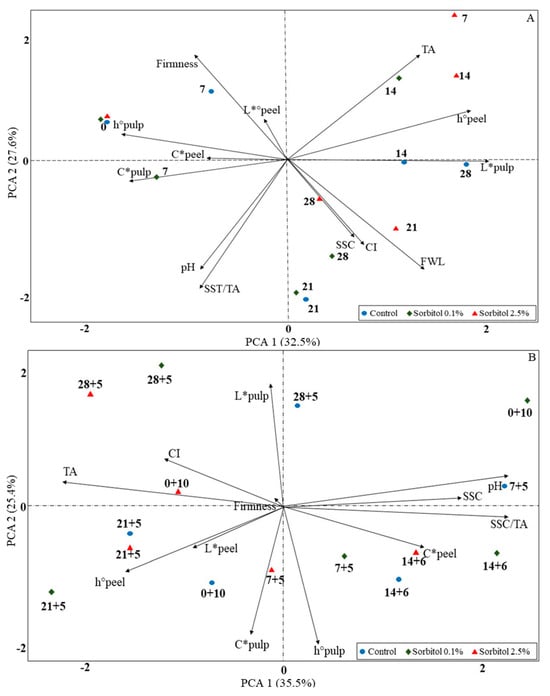

Figure 3. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days (B). Chilling injury (CI), fresh weight loss (FWL), luminosity (L*), hue angle (h°), chromaticity (C*), firmness, soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH. Treatments include control, 0.1% sorbitol, and 2.5% sorbitol.
Figure 3. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days (B). Chilling injury (CI), fresh weight loss (FWL), luminosity (L*), hue angle (h°), chromaticity (C*), firmness, soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH. Treatments include control, 0.1% sorbitol, and 2.5% sorbitol.
Horticulturae 10 00354 g003

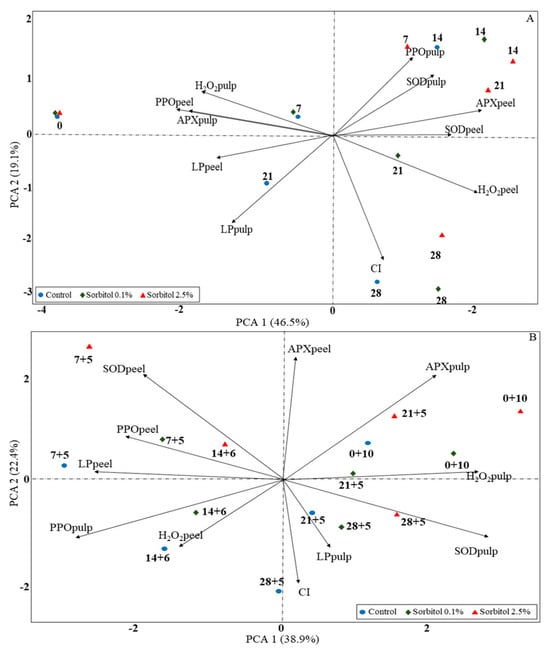

Figure 4. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days (B). Lipid peroxidation (LP), hydrogen peroxide (H2O2), superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO). Treatments: control, 0.1% sorbitol, and 2.5% sorbitol.
Figure 4. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment I) stored at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days (B). Lipid peroxidation (LP), hydrogen peroxide (H2O2), superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO). Treatments: control, 0.1% sorbitol, and 2.5% sorbitol.
Horticulturae 10 00354 g004
Figure 5. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH).
Figure 5. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH).
Horticulturae 10 00354 g005

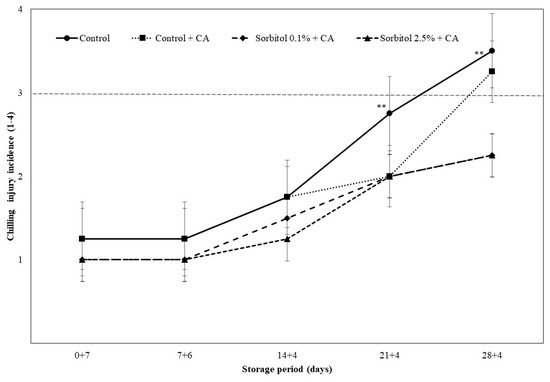

Figure 6. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days. Means followed by double asterisks (**) are significantly different using Tukey’s test at p<0.01.
Figure 6. Interaction between treatments and storage period for chilling injury (CI) in ‘Palmer’ mangoes (Experiment II) stored at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with gas modification (5 kPa O2 + 5 kPa CO2) for 28 days, and then transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days. Means followed by double asterisks (**) are significantly different using Tukey’s test at p<0.01.
Horticulturae 10 00354 g006

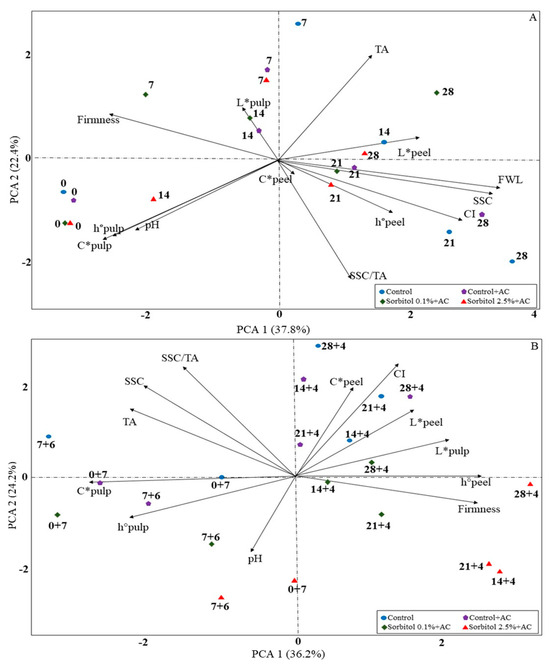

Figure 7. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment II) stored at 4 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere (5 kPa O2 + 5 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days (B). Chilling injury (CI), fresh weight loss (FWL), luminosity (L*), hue angle (h°), chromaticity (C*), firmness, soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH. Treatments: negative control, positive CA, 0.1% sorbitol + CA, and 2.5% sorbitol + CA.
Figure 7. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment II) stored at 4 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere (5 kPa O2 + 5 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days (B). Chilling injury (CI), fresh weight loss (FWL), luminosity (L*), hue angle (h°), chromaticity (C*), firmness, soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH. Treatments: negative control, positive CA, 0.1% sorbitol + CA, and 2.5% sorbitol + CA.
Horticulturae 10 00354 g007

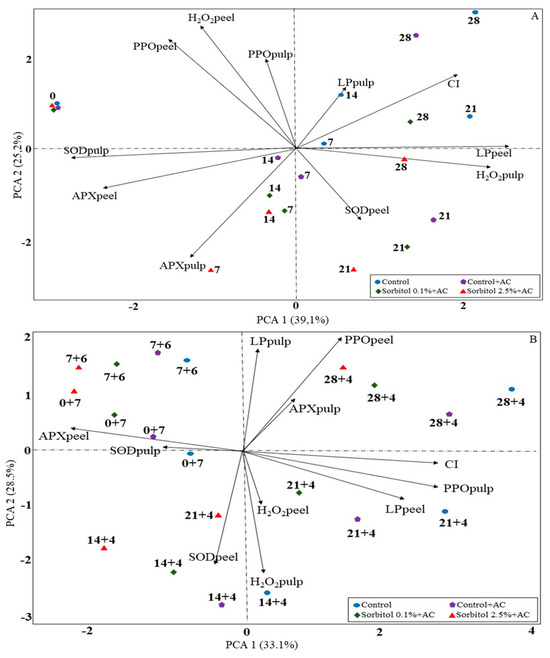

Figure 8. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment II) stored at 4 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere (5 kPa O2 + 5 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days (B). Lipid peroxidation (LP), hydrogen peroxide (H2O2), superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO). Treatments: negative control, CA, 0.1% sorbitol + CA, and 2.5% sorbitol + CA.
Figure 8. Biplot of the first principal component (PC1) and the second principal component (PC2) of ‘Palmer’ mango samples (Experiment II) stored at 4 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere (5 kPa O2 + 5 kPa CO2) for 28 days (A) and transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days (B). Lipid peroxidation (LP), hydrogen peroxide (H2O2), superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO). Treatments: negative control, CA, 0.1% sorbitol + CA, and 2.5% sorbitol + CA.
Horticulturae 10 00354 g008
Table 1. Variable codes for quality attributes used in the principal component analysis of Experiments I and II.
Table 1. Variable codes for quality attributes used in the principal component analysis of Experiments I and II.
VariablesCodes
FirmnessFirmness
pHpH
Soluble solids contentSSC
Titratable acidityTA
Ratio SSC/TASSC/TA
Fresh weight lossFWL
Chilling injuryCI
Luminosity peelL*peel
Luminosity pulpL*pulp
Hue angle peelpeel
Hue angle pulppulp
Chromaticity peelC*peel
Chromaticity pulpC*pulp
Table 2. Variable codes for oxidative metabolism variables used in the principal component analysis of Experiments I and II.
Table 2. Variable codes for oxidative metabolism variables used in the principal component analysis of Experiments I and II.
VariablesCodes
Lipid peroxidation peelLPpeel
Lipid peroxidation pulpLPpulp
Hydrogen peroxide peelH2O2peel
Hydrogen peroxide pulpH2O2pulp
Superoxide dismutase peelSODpeel
Superoxide dismutase pulpSODpulp
Ascorbate peroxidase peelAPXpeel
Ascorbate peroxidase pulpAPXpulp
Polyphenol oxidase peelPPOpeel
Polyphenol oxidase pulpPPOpulp
Table 3. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on parameters fresh weight loss (FWL), chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH.
Table 3. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on parameters fresh weight loss (FWL), chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH.
Main EffectFWL (%)CI (1–4)SSC (%)TA (g kg1)SSC/TApH
Treatments (A)
Control0.86 a1.30 a6.49 a0.280 a24.39 a3.83 a
Sorbitol 0.1%0.86 a1.15 a6.39 a0.276 a25.91 a3.79 a
Sorbitol 2.5%0.72 b1.10 a6.47 a0.254 a23.70 a3.88 a
F test7.63 **1.86 ns0.44 ns2.91 ns1.96 ns1.54 ns
Days (B)
00.00 e1.00 c6.38 ab0.255 bc25.07 b3.84 a
70.46 d1.11 bc6.21 b0.267 abc23.74 b3.87 a
140.82 c1.11 bc6.38 ab0.305 a21.70 b3.75 a
211.23 b1.25 ab6.54 ab0.292 ab23.22 b3.80 a
281.60 a1.50 a6.73 a0.231 c29.60 a3.93 a
F test220.93 **4.07 **3.59 *7.74 **8.33 **2.00 ns
Interaction
F test0.75 ns1.50 ns0.50 ns3.12 **2.86 *0.70 ns
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Table 4. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), SSC/TA ratio, and pH after being transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days.
Table 4. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), SSC/TA ratio, and pH after being transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days.
Main EffectsCI (1–4)SSC (%)TA (g kg−1)SSC/TApH
Treatments (A)
Control1.80 a14.13 a0.252 a60.53 b4.00 a
Sorbitol 0.1%1.70 a14.05 a0.209 b73.21 a4.04 a
Sorbitol 2.5%1.65 a14.29 a0.234 ab66.64 ab4.06 a
Test F0.30 ns 0.27 ns4.52 *7.77 **0.38 ns
Days (B)
0 + 101.25 b15.19 a0.245 ab62.56 a3.94 ab
7 + 51.33 b13.98 ab0.197 b70.46 a4.19 a
14 + 61.75 b14.06 ab0.209 b67.30 a4.12 a
21 + 51.41 b14.35 ab0.214 b67.05 a4.09 ab
28 + 52.83 a13.19 b0.292 a45.17 b3.83 b
Test F12.95 **5.44 **8.40 **3.17 ns 4.49 **
Interaction
Test F2.46 **1.69 ns3.77 **3.81 **1.5 ns
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Table 5. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO).
Table 5. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO).
Main EffectsLP
Peel
LP
Pulp
H2O2
Peel
H2O2
Pulp
SOD
Peel
SOD
Pulp
APX
Peel
APX
Pulp
PPO
Peel
PPO
Pulp
Treatments (A)
Control2.72 a2.28 a76.87 a57.59 a129.06 a204.12 a64.65 c123.60 b133.13 a180.13 a
Sorbitol 0.1%2.76 a2.28 a75.04 a51.68 b120.66 ab218.50 a83.82 b127.87 ab107.08 b161.14 b
Sorbitol 2.5%2.51 a2.05 b70.57 a48.52 b129.06 a227.54 a96.21 a134.76 a100.53 b119.17 c
Test F2.27 ns6.27 **2.66 ns9.41 **4.63 *2.80 ns70.62 **4.90 *51.85 **56.95 **
Days (B)
03.06 a2.34 a8.80 d91.94 b105.24 a101.46 d41.19 d227.41 a184.02 a81.63 c
72.33 b2.21 a53.14 c100.93 a106.24 a203.85 c96.77 ab97.37 c90.32 cd151.36 b
142.56 b1.87 b89.08 b14.94 d125.34 a296.07 b102.15 a84.06 cd107.83 b307.77 a
212.78 ab2.27 a108.91 a37.63 c130.58 a362.51 a77.83 c154.71 b102.46 bc133.20 b
282.59 b2.33 a110.86 a17.48 d105.24 a119.71 d89.85 b80.18 d83.27 d93.45 c
Test F5.67 **8.20 **284.82 **450.63 **2.55 ns152.09 **99.21 **364.92 **172.00 **289.64 **
Interaction
Test F2.04 ns1.62 ns0.99 ns1.40 ns0.94 ns0.37 ns14.67 **1.32 ns5.59 **24.47 **
Means followed by the same letter within each column do not differ statistically from each other by Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Table 6. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO) after transferring the mangoes to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days.
Table 6. Effect of dipping ‘Palmer’ mangoes (Experiment I) in sorbitol (0.1 and 2.5%) and storage at 8.0 ± 1.0 °C and 95 ± 0.5% RH without atmosphere modification (21 kPa O2 + 0.03 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO) after transferring the mangoes to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 5 to 10 days.
Main EffectsLP
Peel
LP
Pulp
H2O2
Peel
H2O2
Pulp
SOD
Peel
SOD
Pulp
APX
Peel
APX
Pulp
PPO
Peel
PPO
Pulp
Treatments (A)
Control4.93 a4.23 a104.03 a41.43 a89.19 b181.85 c80.55 c276.41 c212.56 a269.28 a
Sorbitol 0.1%4.57 ab4.32 a99.59 ab37.36 ab92.29 b192.95 b90.17 b320.59 b183.17 b233.92 b
Sorbitol 2.5%4.21 b4.01 a95.55 b35.71 b113.96 a202.52 a110.69 a353.81 a170.95 c197.12 c
Test F4.88 *1.79 ns7.29 **5.15 *45.45 **15.43 **159.49 **254.76 **52.74 **37.95 **
Days (B)
0 + 104.64 ab4.08 ab89.85 c63.87 a57.91 d257.26 a90.37 b374.25 a189.69 b150.12 c
7 + 55.10 a3.61 b108.41 a25.25 c162.49 a119.01 c111.85 b311.69 c236.111 a284.72 a
14 + 64.67 ab4.56 a90.78 c23.75 c 77.87 c120.19 c87.39 c263.10 e203.12 b300.59 a
21 + 54.27 ab4.51 a99.11 b40.92 b122.27 b200.14 b129.06 a345.08 b154.53 c208.38 b
28 + 54.18 b4.16 ab110.47 a37.01 b71.91 c265.26 a63.68 d290.73 d161.53 c223.38 b
Test F3.11 *6.14 **22.41 **92.83 **265.85 **436.84 **260.14 **194.87 **76.03 **64.76 **
Interaction
Test F1.65 ns0.33 ns0.12 ns0.39 ns15.52 **0.81 ns14.59 **48.50 **12.07 **2.05 ns
Means followed by the same letter within each column do not differ statistically from each other by Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Table 7. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of fresh weight loss (FWL), chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), the ratio (SSC/TA), and pH.
Table 7. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of fresh weight loss (FWL), chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), the ratio (SSC/TA), and pH.
Main EffectFWL (%)CI (1–4)SSC (%)TA (g kg1)SSC/TApH
Treatments (A)
Control0.86 a1.70 a8.91 a0.435 ab20.65 a3.63 a
CA0.77 a1.60 ab8.74 a0.427 ab20.88 ab3.70 a
Sorbitol 0.1% + CA0.76 a1.40 b8.38 a0.476 a18.37 b3.72 a
Sorbitol 2.5% + CA0.73 a1.35 b8.66 a0.418 b21.16 ab3.71 a
Test F1.43 ns5.24 **2.43 ns3.15 *3.06 *1.14 ns
Days (B)
00.00 e1.00 c6.90 d0.340 c21.70 ab3.81 a
70.39 d1.00 c7.88 c0.521 a15.37 c3.57 b
140.76 c1.00 c8.42 c0.452 b18.81 bc3.66 ab
211.12 b1.68 b9.74 b0.439 b22.41 ab3.73 ab
281.62 a2.87 a10.42 a0.441 b24.28 a3.68 ab
Test F149.57 **102.72 **80.90 **15.60 **13.84 **4.23 **
Interaction
Test F0.82 ns2.64 **2.85 **1.78 ns0.85 ns0.43 ns
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Table 8. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH after being transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days.
Table 8. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of chilling injury (CI), soluble solids content (SSC), titratable acidity (TA), ratio (SSC/TA), and pH after being transferred to ambient conditions (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days.
Main EffectsCI (1–4)SSC (%)TA (g kg−1)SSC/TApH
Treatments (A)
Control2.10 a11.86 a0.351 a34.07 a3.99 a
CA1.90 ab11.75 a0.336 ab35.28 a4.06 a
Sorbitol 0.1% + CA1.55 b11.50 a0.330 b34.87 a4.08 a
Sorbitol 2.5% + CA1.50 b10.61 b0.350 a30.52 b4.13 a
Test F5.41 **6.63 **4.96 **7.65 **1.29 ns
Days (B)
0 + 71.12 c11.40 ab0.338 bc33.85 b4.02 a
7 + 61.12 c12.21 a0.324 c37.81 a4.19 a
14 + 41.56 c11.41 a b0.327 c35.04 ab4.02 a
21 + 42.18 b10.83 b0.368 a29.44 c4.07 a
28 + 42.81 a11.30 ab0.353 ab32.30 bc4.03 a
Test F28.09 **4.11 **12.77 **12.59 **1.72 ns
Interaction
Test F0.86 ns2.68 **3.74 **1.75 ns1.34 ns
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), and significant interaction at p < 0.01 (**).
Table 9. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO).
Table 9. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO).
Main EffectsLP
Peel
LP
Pulp
H2O2
Peel
H2O2
Pulp
SOD
Peel
SOD
Pulp
APX
Peel
APX
Pulp
PPO
Peel
PPO
Pulp
Treatments (A)
Control2.92 a2.27 a58.45 a68.71 a168.40 d363.31 c86.98 c193.83 c84.94 a149.18 a
CA2.76 a1.97 a56.05 ab53.46 b182.48 c378.48 c99.39 b232.09 b73.16 b131.22 b
Sorbitol 0.1% + CA2.76 a1.91 a52.08 b48.18 b200.17 b403.71 b102.88 b238.93 b67.59 c100.98 c
Sorbitol 2.5% + CA2.72 a1.88 a50.21 b38.46 c207.86 a424.14 a112.19 a267.53 a61.38 d91.34 d
Test F0.53 ns2.74 ns5.24 **54.63 **176.66 **27.05 **24.05 **157.39 **50.98 **275.54 **
Days (B)
02.10 c1.82 b69.99 a11.85 c178.66 b646.47 a160.55 a2131.24 b134.80 a127.04 b
72.45 bc1.99 ab46.25 c54.71 b148.81 d420.82 b79.08 d268.81 a39.30 d119.52 c
142.66 b2.43 a46.77 c59.99 b112.11 e320.52 c124.69 b261.82 a50.98 c142.11 a
213.42 a1.76 b46.36 c80.53 a349.38 a333.08 c102.28 c216.51 c47.32 c94.19 e
283.33 a2.05 ab61.56 b53.94 b159.67 c241.17 d35.20 e186.10 d86.43 b108.05 d
Test F18.12 **4.71 **36.18 **170.95 **3837.48 **722.86 **394.41 **156.76 **637.60 **102.51 **
Interaction
Test F0.59 ns0.64 ns1.22 ns6.59 **65.60 **6.12 **4.11 **29.51 **13.01 **30.02 **
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), and significant interaction at p < 0.01 (**).
Table 10. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO) after being transferred to the environment (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days.
Table 10. Effect of dipping ‘Palmer’ mangoes (Experiment II) in sorbitol (0.1 and 2.5%) and storage at 4.0 ± 1.0 °C and 95 ± 0.5% RH under controlled atmosphere with modified gases (5 kPa O2 + 5 kPa CO2) for 28 days on the parameters of lipid peroxidation (LP), hydrogen peroxide content (H2O2), and the activity of the enzymes superoxide dismutase (SOD), ascorbate peroxidase (APX), and polyphenol oxidase (PPO) after being transferred to the environment (24 ± 2.0 °C and 75 ± 2.0% RH) from 4 to 7 days.
Main EffectsLP
Peel
LP
Pulp
H2O2
Peel
H2O2
Pulp
SOD
Peel
SOD
Pulp
APX
Peel
APX
Pulp
PPO
Peel
PPO
Pulp
Treatments (A)
Control4.11 a3.41 a82.29 a53.85 a104.39 d125.64 d56.16 c162.15 d190.58 a119.27 a
CA4.01 a3.32 a71.72 b50.94 a131.48 c131.77 c65.07 b174.05 c167.62 b104.32 b
Sorbitol 0.1% + CA3.81 a3.30 a66.37 c42.66 b145.41 b141.46 b67.27 b181.72 b160.28 c99.93 b
Sorbitol 2.5% + CA3.75 a2.95 a58.92 c36.86 b161.92 a155.30 a76.92 a190.04 a143.45 d90.31 c
Test F1.04 ns1.84 ns32.23 **18.74 **241.88 **86.97 **45.45 **44.85 **149.68 **50.56 **
Days (B)
0 + 73.43 b3.15 ab71.87 ab47.60 b69.92 e202.64 a67.60 c185.59 b140.00 d57.69 d
7 + 63.58 b3.80 a71.01 ab27.92 c95.68 c103.92 d86.84 a166.61 c180.65 c33.91 e
14 + 44.42 a2.90 b77.66 a59.88 a241.43 a147.17 b75.51 b147.69 d82.92 e111.31 c
21 + 43.42 b2.90 b62.66 c64.25 a185.57 b103.12 d51.55 d178.61 c232.32 a128.54 b
28 + 44.74 a3.48 ab65.93 b c27.90 c86.39 d135.87 c50.33 d206.15 a191.52 b185.91 a
Test F11.35 **5.37 **8.91 **67.64 **1796.24 **690.96 **121.81 **120.85 **1005.68 **1003.14 **
Interaction
Test F0.14 ns0.2 ns1.04 ns2.45 *63.20 **9.55 **3.38 **3.95 **26.77 **3.45 **
Means followed by the same letter within each column do not differ statistically from each other using Tukey’s test. Non-significant interaction (ns), significant interaction at p < 0.05 (*), and significant interaction at p < 0.01 (**).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

da Silva, M.B.; Pedrosa, V.M.D.; Izidoro, M.; Balbuena, T.S.; Sanches, A.G.; de Almeida Teixeira, G.H. Controlled Atmosphere Storage and Sorbitol Dipping Minimize Chilling Injuries in ‘Palmer’ Mangoes. Horticulturae 2024, 10, 354. https://doi.org/10.3390/horticulturae10040354

AMA Style

da Silva MB, Pedrosa VMD, Izidoro M, Balbuena TS, Sanches AG, de Almeida Teixeira GH. Controlled Atmosphere Storage and Sorbitol Dipping Minimize Chilling Injuries in ‘Palmer’ Mangoes. Horticulturae. 2024; 10(4):354. https://doi.org/10.3390/horticulturae10040354

Chicago/Turabian Style

da Silva, Maryelle Barros, Vanessa Maria Dantas Pedrosa, Maiqui Izidoro, Tiago Santana Balbuena, Alex Guimarães Sanches, and Gustavo Henrique de Almeida Teixeira. 2024. "Controlled Atmosphere Storage and Sorbitol Dipping Minimize Chilling Injuries in ‘Palmer’ Mangoes" Horticulturae 10, no. 4: 354. https://doi.org/10.3390/horticulturae10040354

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
