Nitrous Oxide Treatment after Pollination Induces Ploidy Changes in Statice (Limonium sp.)

by
Juana Cordoba-Sanchez
1,*,
Keith Funnell
2,
Duncan Hedderley
2,
Nick Roskruge
1 and
Ed Morgan
2
1
School of Agriculture and Environment, Massey University, Palmerston North 4410, New Zealand
2
New Zealand Institute for Plant and Food Research Limited, Palmerston North 4410, New Zealand
*
Author to whom correspondence should be addressed.
Horticulturae 2024, 10(8), 816; https://doi.org/10.3390/horticulturae10080816
Submission received: 22 June 2024 / Revised: 21 July 2024 / Accepted: 27 July 2024 / Published: 1 August 2024
(This article belongs to the Special Issue Germplasm Resources and Genetic Breeding of Ornamental Plants)
Browse Figures
Versions Notes

Abstract

:
The production of statice (Limonium sp.) plants with higher ploidy through induction of whole-genome duplication (WGD) via the spindle disrupter nitrous oxide (N2O) was examined as a strategy to increase the germplasm diversity of the species. Furthermore, the impact of the resulting ploidy changes on the morphological features of the progeny was examined. Intraspecific crosses between diploid plants of Limonium sinuatum (L.) Mill and L. perezii (Stapf) Hubb. were conducted daily for seven consecutive days, with subsequent exposure to N2O. Within the resulting progeny, between 16% and 35% of plants were polyploid when N2O was applied between one and four days after pollination. A comparative analysis between diploid and tetraploid progeny was conducted, using a selection of 10 L. sinuatum (5 diploids and 5 tetraploids) and 7 L. perezii (4 diploids and 3 tetraploids) genotypes. The results revealed differences between tetraploids and their diploid counterparts for most of the evaluated characteristics. Tetraploid plants of L. sinuatum and L. perezii exhibited pollen grains 1.5 times larger in plan area; the leaves and main floral stem diameter were 1.2 and 1.5 times thicker for L. sinuatum and L. perezii, respectively, the guard cell length was 1.4 times greater for both species, while the stomatal density was 0.6 times lower for L. perezii and 0.8 for L. sinuatum. The leaf area and main floral stem wings were affected by the ploidy increase only for L. sinuatum. In this regard, tetraploid plants of L. sinuatum displayed leaves 1.8 times bigger and main floral steam wings 2.4 times wider in comparison to diploid plants. In conclusion, the production of tetraploid Limonium plants using N2O shortly after pollination creates new diversity for breeding. These findings underscore the potential for leveraging polyploidy as a strategy to enhance desirable traits in Limonium species.

1. Introduction

As a cut flower, Limonium species and their hybrids are primarily used as a “filler” in flower arrangements and frequently as dried flowers. Limonium is the fifteenth most cut flower by volume sold [1], resulting in significant interest in delivering new cultivars. Hybridization offers an opportunity to increase diversity by introducing new characteristics and has been frequently used to generate new cultivars, e.g., “Ocean blue” [2] and the “siNZii” series [3]. Nevertheless, in interspecific hybrids, sterility and infertility are frequent, limiting the further use of the hybrids for breeding purposes [4]. An alternative approach to increase the germplasm diversity demanded by the ornamental industry is the production of seedlings with double the number of chromosomes, i.e., whole-genome duplication (WGD).
When utilizing diploid parental lines, WGD contributes to increasing germplasm diversity by means of producing tetraploid and mixoploid plants [5] with novel morphological features [6,7,8], although mixoploids are not desirable. In addition, ploidy increases have been associated with the “gene dosage effect” where the phenotype is suggested to be directly attributed to the number of copies of a particular gene [9]. Therefore, morphological changes such as bigger organs and lower stomatal density are expected to occur in polyploid plants [10,11,12,13].
At a cellular level, WGD is a consequence of the disruption of the mitotic spindle during cell reproduction, which can occur naturally or be induced [14]. In nature, four significant WGD events have been identified during the evolution and diversification of angiosperms (see [5,15] for a review), while in Limonium natural polyploids have occurred at least twice [10,16]. Possible mechanisms involved in the production of polyploids in Limonium are allopolyploidization or hybridization between diploid genotypes with different basic chromosome numbers, and fusion between a reduced gamete with an unreduced gamete or between unreduced gametes [10,16]. Hence, while WGD does occur naturally, its frequency is perhaps less than may be desirable within breeding programs. As a consequence, the generation of synthetic polyploids using mutagens such as nitrous oxide (N2O), colchicine, or oryzalin has been evaluated [4,11,12,13,17,18,19]. Ploidy manipulation in Limonium has previously been achieved using colchicine or oryzalin as the inductive agent [4,11,13], and recently the efficacy of N2O for in vivo induction of unreduced gametes was evaluated [20]. Treatment with N2O as a gas has induced WGD in other plant species such as wheat (Triticum aestivum; [17]), canary grass (Phalaris canariensis; [18]), rye (Secale cereale; [12]) and lilium (Lilium × formolongi; [19]). In those studies, for the induction of WGD, different pressures (i.e., from 608 Kpa to 1013 Kpa), durations (i.e., from 4 h to 72 h), and zygote/embryo developmental stages (i.e., between 5 and 13 days after pollination (DAP)) have been evaluated.
Treatment with N2O disrupts the mitotic/meiotic spindle by depolymerizing microtubules. As a result, chromosomes are retained in the center of the cell before the formation of the cell plate, resulting in one daughter cell having double the number of chromosomes and the other having none [21]. For the present study, N2O was selected over oryzalin or colchicine as N2O penetrates intact plant tissues, reaching the internal organs to exert its effect, and N2O does not remain in the plant, rapidly dissipating from the plant following treatment. Additionally, N2O is not considered to affect the survival and growth of treated plants, as can occur with both colchicine and oryzalin [21,22,23,24].
The developmental stage of the embryo is of great consequence with regard to the induction of WGD. Embryos that are younger are less developed, with a smaller number of cells. Immediately after fertilization, the embryo is single celled and thereafter, during the formation of a multi-celled embryo, cell divisions may not be synchronized [25]. This means that treatment at a given time after pollination may result in only one or few dividing cells within an embryo being affected by the treatment. It is thus considered important to time the treatment to coincide with the first cell division to ensure that all the cells resulting from subsequent cell divisions are tetraploid. Treating cells at the time of the first cell division therefore reduces the probability of the formation of mixoploids. Thus, the aim of N2O treatment for WGD was to disrupt the mitotic spindle in zygotes/proembryos during the first embryonic division, and to experimentally determine the best timing of treatment to increase the production of tetraploids while minimizing the occurrence of mixoploids.
In the current study, we chose to use flow cytometry to determine the ploidy of the progeny derived after treatment with N2O for WGD. In comparison to chromosome counting, the determination of ploidy by flow cytometry enhances accuracy in ploidy determination by simultaneously analyzing multiple nuclei to estimate ploidy, with no differences detected between the results of flow cytometry and chromosome counting for other plant species, such as oil-tea (Camelia oleifera; [26]) and Hibiscus [27]. Moreover, automation of flow cytometry enables the analysis of a large number of plants in a short amount of time. Additionally, flow cytometry has previously been used for determination of the plant ploidy of hybrids or their derived allopolyploids in Limonium [4,11,13]. In the research described here, gaseous N2O was applied so as to disrupt the mitotic spindle, ideally targeting single-celled zygotes [12]. As reported for wheat [17], 24 h N2O treatment is the recommended exposure time, and our own investigations with Limonium support this (unpublished). While N2O has been used for the induction of unreduced pollen (2n) of Limonium [20], the successful generation of progeny of increased ploidy by means of inducing WGD using N2O has not previously been reported. Therefore, the aim of this study was to demonstrate that treatment with N2O of zygotes of Limonium sinuatum (L.) Mill and Limonium perezii (Stapf) Hubb., at the right DAP, would result in plants with increased ploidy (i.e., tetraploid or mixoploid). The effects of WGD on the phenotypes of the L. sinuatum and L. perezii progeny were also described.

2. Materials and Methods

2.1. Plant Material and Cultivation

Two diploid L. sinuatum (2n = 16) genotypes (i.e., sin16, and sin18) and two L. perezii genotypes (i.e., per11 and per273) were used as parents in the crosses conducted in the current study. The genotypes were selected based on their contrasting stigma, synchronous flowering times, and greater-than-75% seed set following intraspecific pollination. Emasculation prior to anther dehiscence was not necessary as L. sinuatum and L. perezii are self-incompatible and present with pollen/stigma dimorphism [28]. Each genotype was available as multiple clones for experimentation.
Individual L. sinuatum flowers were pollinated manually during spring, while the crosses in L. perezii were completed during summer. Containerized plants were grown in a commercially sourced, bark-based growing medium (Dalton’s™ Base growing medium, (CAN Fines A Grade 50%; fiber 30%, Matamata, New Zealand), Pacific pumice 7 mm 20%, 0.5 kg/m3 superphosphate (9.1P–11S–20Ca), 2.0 kg/m3 each of agricultural lime and dolomite (21Ca–10Mg; Prebble Seeds, Christchurch, New Zealand), and 1 kg/m3 gypsum), with 4.3 kg/m3 of 8–9-month Osmocote® 16N–3.5P–10K (Grace-Sierra International, The Netherlands), 0.4 kg/m3 calcium ammonium nitrate (27N–6Ca–4Mg), 0.5 kg/m3 potassium sulfate (42K–18S), and 3 kg/m3 Osmocote® (23N) under greenhouse conditions in Palmerston North, New Zealand (40.9006 °S, 174.8860 °E), with daily air temperatures set at 20 °C for heating and 24 °C for venting, and a natural photoperiod of 11 h in spring and 14.30 h in summer.

2.2. Experimental Design

For the induction of WGD in zygotes of intraspecific crosses of either L. sinuatum or L. perezii, 10 recently opened individual flowers of each parental genotype were crossed in a reciprocal crossing design on each selected day prior to treatment with N2O. Following the methodology outlined previously [29], whole plants carrying the pollinated flowers were treated with N2O within a pressure-tolerant cylinder for 24 h at c. 600 kPa. After application of N2O, the plants were returned to the greenhouse conditions until ovule/embryo rescue was undertaken at one month after pollination. For example, plants treated on day seven (7 DAP) were pollinated and seven days after pollination were exposed to N2O.
In the first experiment, L. perezii genotypes were used with an experimental design comprising a 2 × 7 arrangement of factors: seed-bearing genotype (i.e., per11 or per273) and seven different treatment times (1 DAP to 7 DAP) when N2O was applied. In a subsequent experiment, L. sinuatum genotypes were used in a 2 × 7 arrangement of factors, i.e., seed-bearing genotype (i.e., sin16 or sin18) and seven treatment times (2 DAP to 8 DAP), for application of N2O.
In both experiments, a completely randomized design was utilized. Within each species, each genotype served as both pollen-donor and seed-bearing parent. As each pollinated flower can develop only one zygote, the experimental unit therefore corresponded to each pollinated flower, having 10 replicates per treatment.
As control treatments within the experiments, one pair of plants of each cross combination (i.e., sin16 × sin18; and per11 × per273) was used for performing crosses on two separate dates, but without N2O application.
For the parents and derived seedlings, measured and calculated response variables included proportion of pollinated flowers that successfully produced zygotes (i.e., cross success), ploidy of seedlings derived (and the proportion of tetraploid seedlings or seedlings with tetraploid tissues in the case of mixoploid plants), plan area of pollen grains (i.e., surface area of the image of a pollen grain as viewed under a microscope; refer to Section 2.4.1), guard cell length, stomatal density, leaf thickness and area, main floral stem diameter, and main floral stem wing width [30]. The efficacy of N2O treatment in inducing tetraploids and mixoploids was evaluated by determining the proportion of tetraploid and mixoploid seedlings relative to the total number of seedlings obtained for each species individually. Any triploid occurrences were omitted from the analysis.

2.3. In Vitro Ovule Culture

One month after the pollinations were undertaken, the zygotes were established in vitro by culturing the ovules enclosing the zygotes, utilizing a base medium comprising Murashige and Skoog macro and micro salts and iron [31], Gamborg B5 vitamins [32], 30 g/L sucrose, 7.5 g/L agar [33], and 0.03 mL/L Kathon® LXE (active ingredient chloromethylisothiazolinone/methylisothiazolinone). Once germinated, seedlings were transferred to a pre-rooting medium comprising the base medium [33] for further growth. Finally, the plants were transferred to a root induction medium comprising the base medium amended with Gamborg B5 vitamins [32] and 12 mg/L indole-3-butyric acid (IBA) for one month.
In all cases, the medium pH was adjusted to 5.7 with either 0.1 N NaOH or 0.1 N HCl prior to autoclaving at 121 °C at 103 kPa for 15 min. Seedlings were cultured in disposable plastic culture vessels (Alto Packaging, Hamilton, New Zealand) containing approximately c. 50 mL of above-mentioned media. The laboratory growing conditions were 25 ± 1 °C, at a photosynthetic photon flux density of 30 ± 5 μmol m2/s and 16 h photoperiod provided by cool-white fluorescent tubes.

2.4. Morphological Evaluation of L. sinuatum and L. perezii

Rooted plants of progeny were deflasked and grown under greenhouse conditions until flowering using the commercially sourced, bark-based growing medium detailed above. When at least 80% of the calyces were open [30], morphological evaluation was undertaken. A total of ten L. sinuatum genotypes were chosen for evaluation, comprising five diploids (sin15, sin16, sin18, sin191, and sin192) and five tetraploids (sin193, sin194, sin202, sin203, and sin204), as confirmed by prior flow cytometry analysis. Similarly, seven L. perezii genotypes were selected, consisting of four diploids (per11, per181, per271, and per52) and three tetraploids (per53, per54, and per91).

2.4.1. Floral Characteristics

Using a Vernier caliper (0–150 mm, Protech, Rydalmere, Australia, TD2082), diameter of the main floral stem and width of the main floral stem wings were recorded on three main stems of plants of each genotype.
For determination of plan area of pollen grains, pollen was collected from three flowers taken from three different corymbs of each genotype. The pollen from the three flowers was mixed and stored in an ethanol/glycerol fixation solution containing 85% ethanol and 100% glycerol in a 3:1 proportion [34,35] until measured. For each genotype, samples were prepared for microscopy using 30 µL of the solution containing this pooled pollen and 10 µL of modified Alexander’s stain [36] and observed using a Zeiss microscope Imager.Z2 (Axio Imager Z2, Carl Zeiss Microscopy GmbH, Gottingen, Germany). Pollen grains were photographed at 50x magnification using a digital camera (Axiocam 305 color, Carl Zeiss Microscopy GmbH, Gottingen, Germany) and the software ZEN2.6 (blue edition version 2.6.76.00000) [37]. The plan area of each of 100 grains was measured and recorded using the software Fiji version 1.54f [38]. Pollen grains that stained purple were recorded as viable, and those that stained brown or with doubtful coloration were recorded as aborted [36].

2.4.2. Vegetative Characteristics

For each genotype, three recently fully expanded leaves were selected for the measurement of leaf area and thickness. For leaf thickness, a Vernier caliper (0–150 mm, Protect, Rydalmere, Australia, TD2082) was used, and one measurement taken. In contrast, for the leaf area, photographic images (Nikon D5100with VR lens; 18–55 mm 1:3.5–5.6 G, Nikon, Melville, NY, USA) were obtained and processed using the software Fiji version 1.54f [38].
Guard cell length and stomatal density were measured from similar regions of two recently fully expanded leaves, each corresponding to replicates. Transparent impressions of the abaxial surface of leaves were created using a polyvinyl acetate wood glue (PVA) technique [39]. Guard cells were observed at 100× magnification (Zeiss imager.Z2, Axio Imager Z2, Carl Zeiss Microscopy GmbH, Gottingen, Germany), with the length of 100 guard cells measured per leaf, each guard cell corresponding to a subsample.
Quantification of stomatal density was based on transparent impressions of the abaxial surface of leaves photographed at 100× magnification using a digital camera (Axiocam 305 color, Carl Zeiss Microscopy GmbH, Gottingen, Germany) and the software ZEN2.6 (blue edition version 2.6.76.00000) [37]. Photographs were processed using the software Fiji version 1.54f [38], with the stomatal density calculated as the number of stomata in 1 mm2. Two leaves were taken from each genotype, representing the replicates, while five areas of each leaf were used for the density estimation and corresponded to subsamples.

2.5. Determination of Ploidy Level

For the determination of the ploidy level, leaves from two-month-old seedlings (parental genotypes as well as progeny) were sampled and analyzed using flow cytometry, utilizing the methodology of [40]. Leaf tissue was finely chopped, together with that of Trifolium repens or Bellis sp. as an internal standard, in 400 µL buffer extraction containing citric acid 0.5% and Tween 0.5%. This mix was filtered through CellTrics 30 μm filter (Sysmex, Görlitz, Germany). Next, 1.6 mL of 4′,6-diamidino-2-phenylindole (DAPI) staining solution (final concentration 2.5 µg/mL) was added, and the samples measured using a Partec PAII Flow Cytometer (SYSMEX CyFlow Space, Sysmex, Lincolnshire, (IL), USA). The DAPI relative fluorescence was compared with that of a known diploid L. sinuatum plant. One thousand events were counted for each sample peak. The software Flowmax flow cytometry version 2.9 (2014) (CyPAD WindowsTM-based software, Sysmex, Lincolnshire, IL, USA) was used for data acquisition and analysis.

2.6. Statistical Analysis

Data analysis was conducted using the software R version 4.2.2 (The R Foundation for Statistical Computing, Vienna, Austria) [41] with ggplot 2 version 3.5.1 [42] utilized for graphic outputs.
The response variable cross success followed a binary distribution while stomatal density followed a Poisson distribution. In both cases, a generalized linear model (glm function from the stats package version 4.4.1 [41]) with the relevant distribution was used to model the effects of seed-bearing genotype and DAP. The other response variables were analyzed with linear models (lm function from the stats package version 4.4.1 [41]).
Pairwise differences between means were tested using LSD (Least Significant Difference) test, adjusting the p-values by the Bonferroni method [43]. For the generalized linear models (glm), pairwise likelihood ratio tests were used to compare between the levels of factors (similar to LRPAIR in [44]). For all analyses, the p-value used was 0.05.
To visualize the effect of higher ploidies on plant morphology, a Principal Component Analysis (PCA) was completed of the variables: ploidy and each of the seven morphological characteristics were evaluated. The PCA utilized the software R version 4.2.2 (The R Foundation for Statistical Computing, Vienna, Austria) [41] using the packages FactoMineR version 2.11 [45] and factoextra version 1.0.7 [46]. The classical means of data summarizing, dimensionality reduction, and visualization for a multi-component analysis were used.

3. Results

3.1. Seedlings Obtained

For plants treated with N2O, the number of pollinated flowers that successfully produced zygotes varied from 7 to 53 (Online Supplementary Table S1), representing between 10% and 75% cross success. A lower number of zygotes occurred for L. perezii in comparison with L. sinuatum. In L. perezii, between 9% and 20% of zygotes were obtained in treated plants and control plants, respectively, whereas in L. sinuatum 67% of the zygotes were produced in treated plants and 70% in control plants (Online Supplementary Table S1). In tissue culture, embryo mortality was between 15% for L. sinuatum and 85% for L. perezii genotypes.

3.2. Effect of N2O Treatment on Ploidy

Flow cytometry results (Online Supplementary Data S2) revealed that the treatment of L. perezii with N2O for 24 h after pollination resulted in the production of five tetraploid progeny when it was applied between 1 and 3 DAP, with only diploids (five plants) and mixoploids (three plants) resulting when applied on other days after pollination (Figure 1; Online Supplementary Table S3). In L. perezii, the efficacy of the treatment with N2O in inducing tetraploids was 38%, whereas in mixoploids it was 23%, for a total of 61%. The progeny with N2O-induced doubling (i.e., tetraploids) was obtained between 1 DAP and 3 DAP.
In the case of L. sinuatum, the flow cytometry results (Online Supplementary Data S4) showed that N2O treatment for 24 h resulted in the production of one tetraploid progeny when the treatment was applied 2 DAP, and three mixoploid progeny when applied 4 and 5 DAP (Figure 2; Online Supplementary Table S5). Pollinations in the control plants resulted in no tetraploid progeny, though one triploid progeny was produced, presumably as the result of fertilization of an unreduced gamete (data not presented and excluded from the calculations of the efficacy of N2O to induce polyploidization). In this species, the efficacy of N2O treatment to induce tetraploidy was 1%, whereas for mixoploidy it was 3%, for a total of 4%.
The success of zygotes in being regenerated as plants (mean 0.72 ± 0.13 per flower) was not affected by the seed-bearing genotype (sin16 or sin18; p > 0.05) nor by the N2O treatment (p > 0.05).

3.3. Morphological Evaluation

3.3.1. Floral Characteristics

The plan area of individual, purple-stained (modified Alexander’s stain) i.e., viable, pollen grains ranged between 1195 µm2 and 4500 µm2 across all L. sinuatum and L. perezii genotypes examined, which included diploids and tetraploids. The differences observed were associated with the ploidy and species (p < 0.05; Table 1). For example, the mean of the plan area of the pollen collected from L. sinuatum (2000.4 µm2 ± 658 µm2) was 9% larger compared to that of L. perezii (1829.1 µm2 ± 728.3 µm2). With regard to the effect of ploidy, the pollen grain area in L. sinuatum varied from 1595.5 ± 405.9 µm2 for diploids to 2406.2 ± 611 µm2 for tetraploid genotypes. In L. perezii, the pollen grain area for diploids was 1519.6 ± 395.4 µm2 and for tetraploids it was 2240.3 ± 960.5 µm2. In summary, the pollen plan grain area of the tetraploid progeny of L. sinuatum and L. perezii was 1.5 times larger in comparison with their diploid counterparts (Online Supplementary Figure S6C).
The floral characteristics of the main floral stem diameter and main floral stem wing width increased in the tetraploid genotypes of L. sinuatum in comparison with their diploid counterparts (p < 0.05; Table 1). The main floral stem diameter was 1.5 times thicker in tetraploid plants, and the main floral stem wings were 2.4 times wider (Online Supplementary Figure S7). In contrast, as floral stem wings are absent in L. perezii, only the main floral stem diameter increased significantly in tetraploid plants, being 1.2 times thicker (p < 0.05; Table 1).

3.3.2. Vegetative Characteristics

The length of guard cells varied across all genotypes from 15 to 66 µm, and the differences observed were associated with both ploidy and species (p < 0.05; Table 2). The guard cells from the tetraploid genotypes were 1.4 times larger in comparison with the diploids for both L. sinuatum and L. perezii, displaying a mean value of 28.43 ± 4.40 for diploids versus 39.94 ± 7.65 for tetraploids (Online Supplementary Figure S6B).
Across genotypes, the stomatal density varied between 31.21 and 65.33 stomata per mm2, and the differences observed were associated with both ploidy and species (p < 0.05; Table 2). The average density of the stomata was between 0.6 times and 0.8 times lower in tetraploid L. perezii and L. sinuatum plants in comparison with their corresponding diploids (Online Supplementary Figure S6).
The leaf thickness increased in the tetraploid genotypes of L. perezii and L. sinuatum in comparison with their diploid counterparts (p < 0.05; Table 2). As a result, in the tetraploids, the leaves were 1.2 times thicker in L. perezii and 1.5 times thicker in L. sinuatum.
In the case of the leaf area, the increment in ploidy only produced a significant increase in area of the leaves of L. sinuatum, represented by leaves that were 1.8 times bigger in the tetraploid genotypes (Table 2).
An analysis of the morphological characteristics by PCA using diploid and tetraploid plants of L. sinuatum and L. perezii revealed two components that explained 78% of the observed variance in morphological measures (Figure 3). In the primary component (PC1), 54.11% of the variability was explained by factors such as the pollen grain plan area, main floral stem diameter, leaf thickness, and guard cell length, all of which exhibited a concurrent increase with ploidy; and by stomatal density, which showed a decrease with increasing ploidy. The variance within the second component (PC2; 25.24%) was linked to species differentiation between L. perezii and L. sinuatum. Notably, L. perezii had smaller main floral stem wings, a larger leaf area, a greater guard cell length, and higher stomatal density in comparison to L. sinuatum.

4. Discussion

N2O treatments were shown to induce WGD in two Limonium species when applied between 1 and 3 DAP. If applied later, however, e.g., at 4-6 DAP, the progeny could be mixoploid or diploid (Figure 1 and Figure 2). These effects of timing agreed with those reported for rye (Secale cereale; [12]). Thus, when N2O affects the mitotic spindle later in zygote development, only mixoploid or diploid progeny are obtained (Figure 1 and Figure 2). We interpret this as potentially being due to cell divisions in multi-celled zygotes not being synchronous (reviewed by [47]). As only dividing cells can be affected by the treatment, the result is a mix of diploid and tetraploid cells within one zygote.
While a genotype-specific effect of the induction of WGD has been reported in rye [12] and maize [14], in the current experiment no apparent genotypic specificity was evident, although the number of parent plants were small (two genotypes of each species). Both L. sinuatum and L. perezii produced between one and five tetraploids when their zygotes were treated with N2O between 1 DAP and 3 DAP (Figure 1 and Figure 2).
In the current study, the total proportion of tetraploid progeny observed in the L. perezii using N2O (38%) was similar to that reported for wheat (>30%; [17]); L. sinuatum with only one tetraploid progeny was excluded from this comparison (1% tetraploidization). Nevertheless, when compared to recent studies utilizing oryzalin to induce tetraploidization in L. sinuatum, our study revealed a doubling of the tetraploidization rate for L. sinuatum and a 37% increase for L. perezii, as compared to the tetraploidization of L. sinuatum using oryzalin [13]. Additionally, unlike previous findings where physiological abnormalities were observed in tetraploid L. sinuatum plants induced by oryzalin treatment [13], or in plantlets from unpublished studies conducted by our team, no such issues were noted in the tetraploid plants induced with N2O. While improving the frequency of polyploidization remains to be achieved, especially with the genotypes of L. sinuatum, these results highlight the effectiveness of N2O treatment for inducing whole-genome duplication (WGD) in Limonium when applied between 1 DAP and 4 DAP.
In the present study, the induction of WGD increased the germplasm diversity, as suggested in [5], through the production of plants with different ploidies, i.e., tetraploid L. sinuatum and L. perezii plants. In addition, new morphological features represented by the organ size increased in L. sinuatum and L. perezii between 1.2 and 1.6 times in the tetraploid plants in comparison with their diploid counterparts (Figure 3). The increased organ size noted in this research corroborates the “gene dosage effect” [9] and findings reported in other Limonium species, such as L. bellidifolium [11] and L. sinuatum [13], and in other crops, such as Phlox amabilis [6], Gerbera hybrida [8], and Brassica [7]. In the case of pollen size, the increase in size with increased ploidy seen here in L. sinuatum agrees with previous reports on L. sinuatum [20] but contrasts with L. ovalifolium and L. multiflorum, which did not display the direct ploidy–pollen size relation observed in our study [10].
The consistency of the morphological changes in leaf thickness, main floral stem diameter, guard cell length, and stomatal density observed in polyploid plants of both L. sinuatum and L. perezii provides a simple screening protocol to minimize the number of plants that require testing using flow cytometry to confirm ploidy status. Although pollen size, leaf thickness, main floral stem diameter, guard cell length, and stomatal density showed a direct association with ploidy in both L. sinuatum and L. perezii, because of the ease of measurement, measuring pollen size and guard cell length has the potential to be used for pre-selection of polyploid plants in L. sinuatum and L. perezii, hence reducing the resource costs within a breeding program.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/horticulturae10080816/s1, Supplementary Table S1: Number of crosses done, embryos/ovules rescued and seedlings obtain in Limonium sinuatum or Limonium perezii plants treated with nitrous oxide (N2O) or untreated (control).; Supplementary Data S2: Flow cytometry results for Limonium perezii; Supplementary Table S3: Percentage of diploid, tetraploid and mixoploid seedlings obtained in two seed-bearing genotypes of Limonium perezii treated with nitrous oxide (N2O) at different day after pollination (DAP) or untreated (control). n = 10 crosses; Supplementary Data S4: Flow cytometry results for Limonium sinuatum; Supplementary Table S5: Percentage of diploid, tetraploid and mixoploid seedlings obtained in two seed-bearing genotypes of Limonium sinuatum treated with nitrous oxide (N2O) at different day after pollination (DAP) or untreated (control). n = 10 crosses; Supplementary Figure S6: Morphological comparison between diploid and tetraploid plants of Limonium perezii. (A) Whole plants, scale bar = 10 cm (B) Guard cells, scale bar = 100 µm (C) pollen grains, scale bar = 200 µm; Supplementary Figure S7: Morphological comparison between diploid and tetraploid plants of Limonium sinuatum. (A) Whole plants, scale bar = 10 cm (B) Main floral stems, scale bar = 10 cm (C) Detailed view main floral stem wings from a diploid plant, scale bar = 2 cm (D) Detailed view main floral stem wings from a tetraploid plant, scale bar = 2 cm.

Author Contributions

J.C.-S. conceived, designed, and implemented the experiments with review input from K.F., E.M. and N.R. In coordination with D.H. and J.C.-S. analyzed and interpreted the data. J.C.-S. wrote the manuscript with review input from K.F., N.R. and E.M. All authors have read and agreed to the published version of the manuscript.

Funding

This manuscript forms a portion of a thesis submitted by J.C.-S. to fulfil a Ph.D. requirement. J.C.-S.’s doctoral studies were supported by a New Zealand Development Scholarship from the New Zealand Ministry of Foreign Affairs and Trade (PLC-0000003678). This work was supported by The New Zealand Institute for Plant and Food Research Limited SSIF funding 1972—“Breeding Technology Development”.

Data Availability Statement

The data presented in this study are available on request from the corresponding author due to legal restrictions.

Acknowledgments

This work forms a portion of a thesis submitted by J.C.-S. to fulfil a PhD requirement. We thank Andrew Mullan, Belinda Diepenheim, and Steven Ray for technical assistance, Sylvia Erasmuson for the flow cytometry analysis, and Philippa Barrell for reviewing the manuscript.

Conflicts of Interest

Authors Keith Funnell, Duncan Hedderley and Ed Morgan were employed by the New Zealand Institute for Plant and Food Research Limited. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflicts of interest.

References

  1. International Association of Horticultural Producers (Ed.) International Statistics Flowers and Plants 2022; International Association of Horticultural Producers (AIPH): Hannover, Germany, 2022; Volume 70, p. 232. [Google Scholar]
  2. Sato, K.; Koreeda, K.; Takanashi, N. Variety of Limonium named ‘Ocean Blue’. U.S. Patent 19,930,072,716, 7 June 1993. [Google Scholar]
  3. RioRoses. Ball SB Introduces Limonium siNZii. Available online: https://www.rioroses.com/ball-sb-introduces-limonium-sinzii/ (accessed on 20 July 2024).
  4. Morgan, E.; Burge, G.; Seelye, J. Limonium breeding: New options for a well known genus. Acta Hortic. Sin. 2001, 552, 39–42. [Google Scholar] [CrossRef]
  5. Van de Peer, Y.; Mizrachi, E.; Marchal, K. The evolutionary significance of polyploidy. Nat. Rev. Genet. 2017, 18, 411–424. [Google Scholar] [CrossRef]
  6. Chansler, M.T.; Ferguson, C.J.; Fehlberg, S.D.; Prather, L.A. The role of polyploidy in shaping morphological diversity in natural populations of Phlox amabilis. Am. J. Bot. 2016, 103, 1546–1558. [Google Scholar] [CrossRef]
  7. Kumar, A.; Yadav, P. Induced polyploidization in Brassica fruticulosa—A wild relative of brassicas as potential source for mustard aphid tolerance. NEHU J. 2020, XVIII, 1–11. [Google Scholar]
  8. Bhattarai, K.; Kareem, A.; Deng, Z. In vivo induction and characterization of polyploids in gerbera daisy. Sci. Hortic. 2021, 282, 110054. [Google Scholar] [CrossRef]
  9. Birchler, J.; Veitia, R. Gene balance hypothesis: Connecting issues of dosage sensitivity across biological disciplines. Proc. Natl. Acad. Sci. USA 2012, 109, 14746–14753. [Google Scholar] [CrossRef] [PubMed]
  10. Róis, A.; Teixeira, G.; Sharbel, T.; Fuchs, J.; Martins, S.; Espírito-Santo, D.; Caperta, A. Male fertility versus sterility, cytotype, and DNA quantitative variation in seed production in diploid and tetraploid sea lavenders (Limonium sp., Plumbaginaceae) reveal diversity in reproduction modes. Plant Reprod. 2012, 25, 305–318. [Google Scholar] [CrossRef] [PubMed]
  11. Mori, S.; Yamane, T.; Yahata, M.; Shinoda, K.; Murata, N. Chromosome doubling in Limonium bellidifolium (Gouan) Dumort. by colchicine treatment of seeds. Hortic. J. 2016, 85, 366–371. [Google Scholar] [CrossRef]
  12. Gordej, I.S.; Lyusikov, O.M.; Gordej, I.A. Zygotic autopolyploidization of rye (Secale cereale L.). Cytol. Genet. 2019, 53, 357–362. [Google Scholar] [CrossRef]
  13. Mori, S.; Yahata, M.; Kuwahara, A.; Shirono, Y.; Ueno, Y.; Hatanaka, M.; Honda, Y.; Sugiyama, K.; Murata, N.; Okamoto, Y. Morphological characterization of tetraploids of Limonium sinuatum (L.) Mill. produced by oryzalin treatment of seeds. Horticulturae 2021, 7, 248. [Google Scholar] [CrossRef]
  14. Molenaar, W.S.; Schipprack, W.; Melchinger, A.E. Nitrous oxide-induced chromosome doubling of maize haploids. Crop Sci. 2018, 58, 650–659. [Google Scholar] [CrossRef]
  15. Zhang, L.; Wu, S.; Chang, X.; Wang, X.; Zhao, Y.; Xia, Y.; Trigiano, R.N.; Jiao, Y.; Chen, F. The ancient wave of polyploidization events in flowering plants and their facilitated adaptation to environmental stress. Plant Cell Environ. 2020, 43, 2847–2856. [Google Scholar] [CrossRef] [PubMed]
  16. Brullo, S.; Pavone, P. Chromosome numbers in the sicilian species of Limonium Miller (Plumbaginaceae). An. Jard. Bot. Madr. 1981, 37, 535–555. [Google Scholar]
  17. Hansen, F.L.; Andersen, S.B.; Due, I.K.; Olesen, A. Nitrous oxide as a possible alternative agent for chromosome doubling of wheat haploids. Plant Sci. 1988, 54, 219–222. [Google Scholar] [CrossRef]
  18. Ostergren, G. Production of polyploids and aneuploids of Phalaris by means of nitrous oxide. Hereditas 1957, 43, 512–516. [Google Scholar] [CrossRef]
  19. Sato, T.; Miyoshi, K.; Okazaki, K. Induction of 2n gametes and 4n embryo in Lilium (Lilium × formolongi hort.) by nitrous oxide gas treatment. Acta Hortic. 2010, 855, 243–248. [Google Scholar] [CrossRef]
  20. Siregar, A. Initial Exploration of Unreduced Gamete (2n Gamete) Pollen Development through Nitrous Oxide (N2O) Application in Limonium sinuatum. MSc Thesis, Massey University, Palmerston North, New Zealand, 2021. [Google Scholar]
  21. Kitamura, S.; Akutsu, M.; Okazaki, K. Mechanism of action of nitrous oxide gas applied as a polyploidizing agent during meiosis in lilies. Plant Reprod. 2009, 22, 9–14. [Google Scholar] [CrossRef] [PubMed]
  22. Dewitte, A.; Van Laere, K.; Van Huylenbroeck, J. Use of 2n gametes in plant breeding. Plant Breed. 2012, 11, 59–86. [Google Scholar] [CrossRef]
  23. Kato, A.; Geiger, H. Chromosome doubling of haploid maize seedling using nitrous oxide gas at the flower primordial stage. Plant Breed. 2002, 121, 370–377. [Google Scholar] [CrossRef]
  24. Nukui, S.; Kitamura, S.; Hioki, T.; Ootsuka, H.; Miyoshi, K.; Satou, T.; Takatori, Y.; Oomiya, T.; Okazaki, K. N2O induces mitotic polyploidization in anther somatic cells and restores fertility in sterile interspecific hybrid lilies. Breed. Sci. 2011, 61, 327–337. [Google Scholar] [CrossRef]
  25. Gooh, K.; Ueda, M.; Aruga, K.; Park, J.; Arata, H.; Higashiyama, T.; Kurihara, D. Live-cell imaging and optical manipulation of Arabidopsis early embryogenesis. Dev. Cell 2015, 34, 242–251. [Google Scholar] [CrossRef] [PubMed]
  26. Li, Y.; Ye, T.; Han, C.; Ye, Z.; Zhang, J.; Xiao, S.; Yuan, D. Cytogenetic analysis of interspecific hybridization in oil-tea (Camellia oleifera). Euphytica 2021, 217, 28. [Google Scholar] [CrossRef]
  27. Deepo, D.M.; Islam, M.M.; Yesmin, R.; Lee, H.-M.; Kim, H.-Y.; Kim, C.-K.; Lim, K.-B. Karyotype and nuclear DNA content analyses of Korean native Hibiscus ‘Gangneung’ and ‘Baekryungdo’ using fluorescence in situ hybridization and flow cytometry. Hortic. Environ. Biotechnol. 2023, 64, 143–152. [Google Scholar] [CrossRef]
  28. Baker, H. Dimorphism and monomorphism in the plumbaginaceae: II. Pollen and stigmata in the genus Limonium. Ann. Bot. 1953, 17, 433–445. [Google Scholar] [CrossRef]
  29. Barba-Gonzalez, R.; Miller, C.T.; Ramanna, M.; van Tuyl, J.M. Nitrous oxide (N2O) induces 2n gametes in sterile F1 hybrids between Oriental × Asiatic lily (Lilium) hybrids and leads to intergenomic recombination. Euphytica 2006, 148, 303–309. [Google Scholar] [CrossRef]
  30. Karis, P.O. Taxonomy, phylogeny and biogeography of Limonium sect. Pteroclados (Plumbaginaceae), based on morphological data. Bot. J. Linn. Soc. 2004, 144, 461–482. [Google Scholar] [CrossRef]
  31. Murashige, T.; Skoog, F. A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant. 1962, 15, 473–497. [Google Scholar] [CrossRef]
  32. Gamborg, O.L.; Miller, R.A.; Ojima, K. Nutrient requirements of suspension cultures of soybean root cells. Exp. Cell Res. 1968, 50, 151–158. [Google Scholar] [CrossRef]
  33. Morgan, E.; Burge, G.; Seelye, J.; Hopping, M.; Grant, J. Production of inter-specific hybrids between Limonium perezii (Stapf) Hubb. and Limonium sinuatum (L.) Mill. Euphytica 1998, 102, 109–115. [Google Scholar] [CrossRef]
  34. Hammer, N.; Löffler, S.; Feja, C.; Bechmann, I.; Steinke, H. Substitution of formaldehyde in cross anatomy is possible. J. Natl. Cancer Inst. 2011, 103, 610–611. [Google Scholar] [CrossRef]
  35. Hammer, N.; Löffler, S.; Bechmann, I.; Steinke, H.; Hädrich, C.; Feja, C. Comparison of modified thiel embalming and ethanol-glycerin fixation in an anatomy environment: Potentials and limitations of two complementary techniques. Anat. Sci. Educ. 2015, 8, 74–85. [Google Scholar] [CrossRef] [PubMed]
  36. Peterson, R.; Slovin, J.; Chen, C. A simplified method for differential staining of aborted and non-aborted pollen grains. Int. J. Plant Sci. 2010, 1, e13. [Google Scholar] [CrossRef]
  37. Carl Zeiss Microscopy GmbH Zen 2.6 (Blue Edition), Version 2.6.76.00000. Germany. 2018. Available online: https://www.micro-shop.zeiss.com/en/us/softwarefinder/software-categories/zen-blue/ (accessed on 20 July 2024).
  38. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [PubMed]
  39. Cohen, D.; Yao, J.-L. In vitro chromosome doubling of nine Zantedeschia cultivars. Plant Cell Tissue Organ Cult. 1996, 47, 43–49. [Google Scholar] [CrossRef]
  40. Otto, F. DAPI staining of fixed cells for high-resolution flow cytometry of nuclear DNA. In Methods in Cell Biology; Darzynkiewicz, Z., Crissman, H.A., Eds.; Academic Press: Cambridge, MA, USA, 1990; Volume 33, pp. 105–110. [Google Scholar]
  41. R Core Team. A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Viena, Austria, 2018. [Google Scholar]
  42. Wickham, H. Ggplot2: Elegant Graphics for Data Analysis, 1st ed.; Springer: New York, NY, USA, 2016; p. 213. [Google Scholar]
  43. Lyman, R.; Longnecker, M. An Introduction to Statistical Methods and Data Analysis, 5th ed.; Duxbury Press: Duxbury, MA, USA, 2001. [Google Scholar]
  44. Goedhart, P. Lrpair, 19th ed.; Wageningen University & Research: Wageningen, The Netherlands, 2018; pp. 97–98. [Google Scholar]
  45. Sebastien, L.; Josse, J.; Husson, F. Factominer: An R package for multivariate analysis. J. Stat. Softw. 2008, 25, 1–18. [Google Scholar] [CrossRef]
  46. Kassambara, A.; Fabian Mundt, F. Factoextra: Extract and Visualize the Results of Multivariate Data Analyses. 2020. Available online: http://www.sthda.com/english/rpkgs/factoextra (accessed on 20 July 2024).
  47. ten Hove, C.A.; Lu, K.-J.; Weijers, D. Building a plant: Cell fate specification in the early Arabidopsis embryo. Development 2015, 142, 420–430. [Google Scholar] [CrossRef]
Horticulturae 10 00816 g001

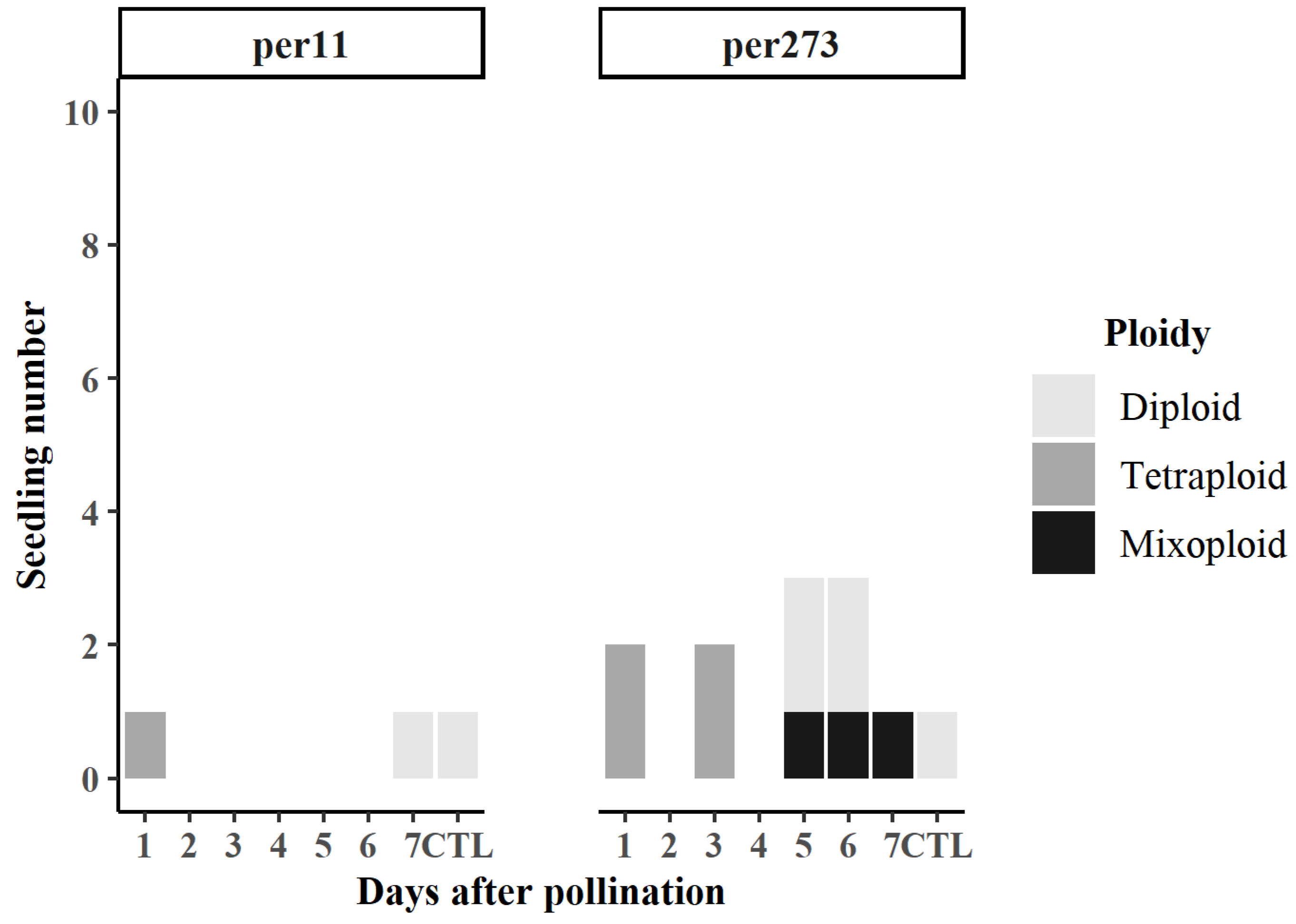

Figure 1. Number of diploid, tetraploid, and mixoploid progeny obtained in two seed-bearing genotypes of Limonium perezii on each day after pollination (DAP) when N2O was applied. Gaps in the data mean zero seedlings survived after tissue culture.
Figure 1. Number of diploid, tetraploid, and mixoploid progeny obtained in two seed-bearing genotypes of Limonium perezii on each day after pollination (DAP) when N2O was applied. Gaps in the data mean zero seedlings survived after tissue culture.
Horticulturae 10 00816 g001
Horticulturae 10 00816 g002

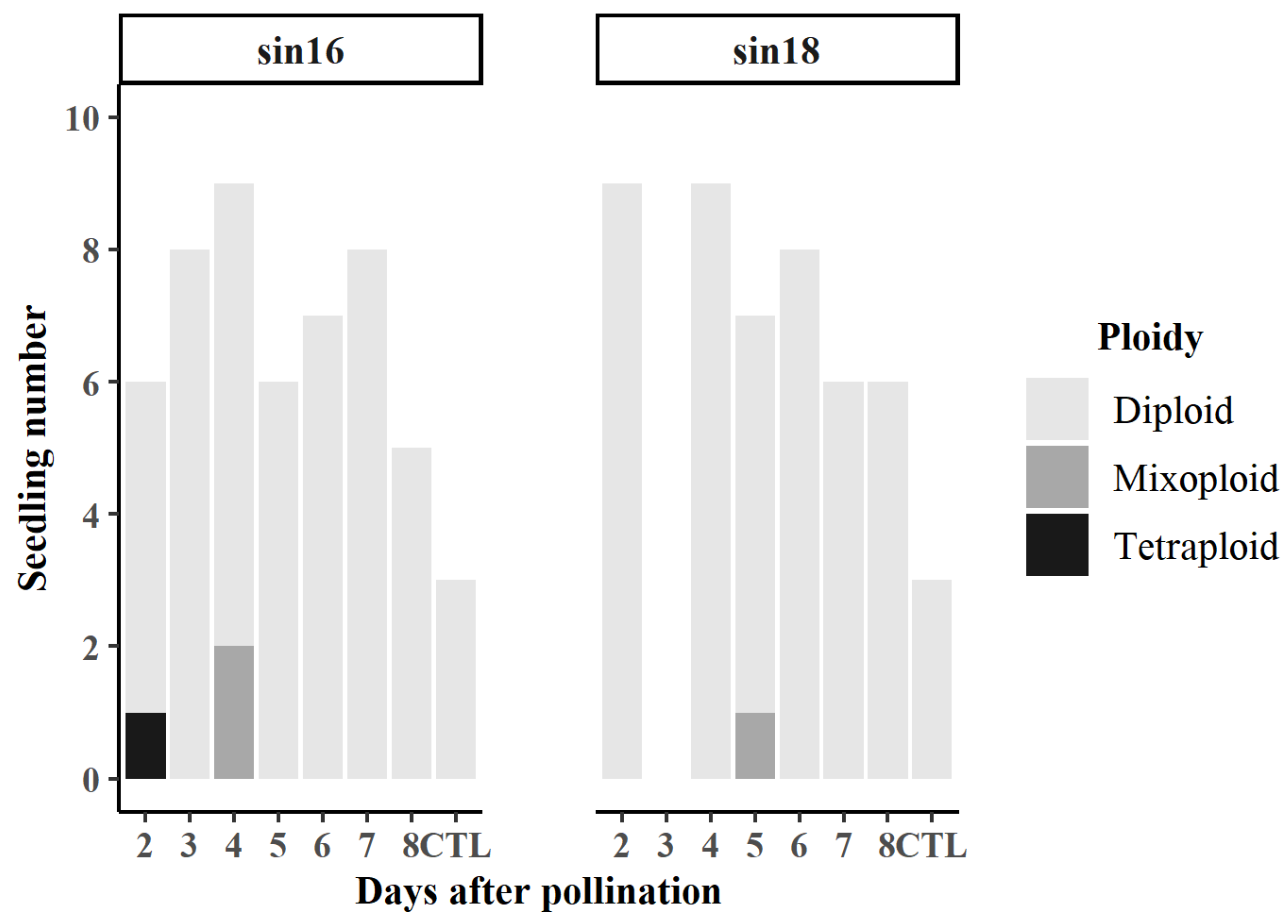

Figure 2. Number of diploid, tetraploid, and mixoploid progeny obtained in two seed-bearing genotypes of Limonium sinuatum on each day after pollination (DAP) when N2O was applied. Gaps in the data mean zero seedlings survived after tissue culture.
Figure 2. Number of diploid, tetraploid, and mixoploid progeny obtained in two seed-bearing genotypes of Limonium sinuatum on each day after pollination (DAP) when N2O was applied. Gaps in the data mean zero seedlings survived after tissue culture.
Horticulturae 10 00816 g002
Horticulturae 10 00816 g003
Figure 3. Principal Component Analysis (PCA) of the morphological response variables evaluated (pollen area, guard cell length, stomatal density, leaf thickness and area, main floral stem diameter, and main floral stem wing width) in diploid and tetraploid Limonium sinuatum genotypes. The arrows represent the eigenvectors and point in the direction of increasing magnitude of the measurement. The dimensions are described as PC1 (Dimension 1) and PC2 (Dimension 2).
Figure 3. Principal Component Analysis (PCA) of the morphological response variables evaluated (pollen area, guard cell length, stomatal density, leaf thickness and area, main floral stem diameter, and main floral stem wing width) in diploid and tetraploid Limonium sinuatum genotypes. The arrows represent the eigenvectors and point in the direction of increasing magnitude of the measurement. The dimensions are described as PC1 (Dimension 1) and PC2 (Dimension 2).
Horticulturae 10 00816 g003
Table 1. Plan area (µm2) by ploidy of purple-stained pollen collected from Limonium sinuatum genotypes used as parents or corresponding to their progeny treated as young zygotes with nitrous oxide (N2O) for 24 h.
Table 1. Plan area (µm2) by ploidy of purple-stained pollen collected from Limonium sinuatum genotypes used as parents or corresponding to their progeny treated as young zygotes with nitrous oxide (N2O) for 24 h.
GenotypePloidyPollen Plan Area (µm2) z
sin15 (parent)Diploid2200 ± 212 b
sin16 (parent)Diploid1811 ± 274 c
sin191 (progeny)Diploid1946 ± 180 c
sin192 (progeny)Diploid1854 ± 363 c
sin193 (progeny)Tetraploid2551 ± 407 a
sin194 (progeny)Tetraploid2597 ± 353 a
sin201 (progeny)Tetraploid2670 ± 329 a
sin202 (progeny)Tetraploid2439 ± 336 a
sin203 (progeny)Tetraploid2437 ± 276 a
sin204 (progeny)Tetraploid2543 ± 528 a
z LSD test was performed for analysis of the pairwise differences between means. Different letters represent different group means (p-value = 0.05).
Table 2. Guard cell length and stomatal density by ploidy of Limonium sinuatum genotypes used as parents or corresponding to their progeny treated as young zygotes with nitrous oxide (N2O) for 24 h.
Table 2. Guard cell length and stomatal density by ploidy of Limonium sinuatum genotypes used as parents or corresponding to their progeny treated as young zygotes with nitrous oxide (N2O) for 24 h.
GenotypePloidyGuard Cell Length (µm) zStomatal Density x y
sin15 (parent)Diploid23.8 ± 4.1 e2.2 ± 1.4 a
sin16 (parent)Diploid24.0 ± 4.9 de2.3 ± 1.3 a
sin191 (progeny)Diploid26.3 ± 3.2 e1.8 ± 1.0 b
sin192 (progeny)Diploid30.3 ± 3.7 d1.3 ± 0.4 c
sin193 (progeny)Tetraploid31.2 ± 4.6 c1.7 ± 1.6 c
sin194 (progeny)Tetraploid33.7 ± 3.9 c1.4 ± 0.6 e
sin201 (progeny)Tetraploid42.8 ± 5.8 b1.0 ± 0.6 f
sin202 (progeny)Tetraploid38.2 ± 5.3 c1.3 ± 1.1 g
sin203 (progeny)Tetraploid47.5 ± 5.6 a1.1 ± 1.0 h
sin204 (progeny)Tetraploid45.1 ± 4.8 b1.0 ± 0.9 g
z LSD test was performed for analysis of the pairwise differences between means. Different letters represent different group means (p-value = 0.05); x Number of stomata per mm2; y LRPAIR test grouping was performed for the stomatal density mean. Different letters represent different group means (p-value = 0.05).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cordoba-Sanchez, J.; Funnell, K.; Hedderley, D.; Roskruge, N.; Morgan, E. Nitrous Oxide Treatment after Pollination Induces Ploidy Changes in Statice (Limonium sp.). Horticulturae 2024, 10, 816. https://doi.org/10.3390/horticulturae10080816

AMA Style

Cordoba-Sanchez J, Funnell K, Hedderley D, Roskruge N, Morgan E. Nitrous Oxide Treatment after Pollination Induces Ploidy Changes in Statice (Limonium sp.). Horticulturae. 2024; 10(8):816. https://doi.org/10.3390/horticulturae10080816

Chicago/Turabian Style

Cordoba-Sanchez, Juana, Keith Funnell, Duncan Hedderley, Nick Roskruge, and Ed Morgan. 2024. "Nitrous Oxide Treatment after Pollination Induces Ploidy Changes in Statice (Limonium sp.)" Horticulturae 10, no. 8: 816. https://doi.org/10.3390/horticulturae10080816

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
