Use of Nondestructive Devices to Support Pre- and Postharvest Fruit Management

Abstract

Fruit quality is greatly affected by the ripening stage at harvest. In order to preserve quality traits, increase product marketability, and extend both the storage time and the shelf life, it is crucial to tailor postharvest strategies to ripening and physiological stages, and these need to be determined precisely. Surveying instruments working with modern technologies such as visible spectrometry can be precise and effective in assessing ripening stage and in grouping fruit in homogeneous classes. This paper reviews results using original nondestructive devices developed at the University of Bologna to define the fruit ripening of several fruit species through a new index (Index of Absorbance Difference (I_AD)) to compare relationships among fruit ripening stage, fruit quality, and postharvest life. The devices defining the I_AD can be used in the field (by the Difference Absorbance (DA)-Meter), at the packinghouse (with the DA-head, a stationary device), and at the cold storage level (with the DA Fruit Logger (DAFL)).

1. Introduction

Fruit quality is a combination of several features that depend on the stage of maturity reached at harvest, postharvest fruit management and disease susceptibility, and storage duration, each influencing general consumer appreciation. In fact, it has been demonstrated that, when fruit are harvested before they reach the proper ripening stage on the tree, fruit quality is poor, as they do not reach their characteristic aroma and flavor, causing, in some situations, disaffection of the consumers for the fruit that do not fulfill their expectations. In this context, the proper choice of the best harvest time plays a crucial role, representing a compromise between the achievement of sufficient quality and the mechanical resistance to harvest and postharvest practices.

Unfortunately, the most common techniques used to determine the ripening stage are often based on destructive methods (°Brix, texture analysis, starch degradation evolution, etc.), and thus they are not applicable to the entire harvest, but only to a small subset of fruits used as a statistical sample. Because the ripening dynamics on-tree can significantly diverge based on the fruit position within the canopy or on the position of the tree in the orchard, even in case of multiple harvest dates performed over a wide harvest window, the fruit batch should be considered heterogeneous [1,2,3,4,5]. A deeper and more precise knowledge of the ripening degree, obtained using a strict protocol and proper devices, could help by segregating the fruit into more uniform groups that each could then be managed with the best storage and marketing strategies. In addition, the possibility of monitoring fruit ripening changes occurring during cold storage could provide critical information for deciding the post-storage temperature that needs to be re-established to guarantee the most appropriate marketing strategy [6]. As a consequence, the ripening stage of fruit at harvest has to be determined with great accuracy following a strict protocol, using proper techniques and devices. However, although fruit quality has always been recognized as a crucial aspect [7,8], only a few quality traits and characteristics are commonly determined at harvest by simple and outdated analyses.

To overcome the problems arising from an imprecise determination of fruit quality, the University of Bologna has focused its efforts in recent years on developing nondestructive devices based on visible/near infrared (VIS/NIR) properties, allowing the definition of fruit ripening and fruit quality attributes by assessing the level of chlorophyll degradation, defined as Index of Absorbance Difference (I_AD), and providing a general indication about the fruit ripening stage. The devices have been tested at field and packinghouse levels and in the cold storage room to monitor fruit maturation and ripening evolution from the “field to the fork” level.

In this review, the main results obtained with these nondestructive devices are reported, focusing on the most significant results achieved with different fruit species as far as the relationships among fruit ripening definition, fruit quality enhancement, and disease susceptibility are concerned.

2. The VIS/NIR Devices Used in the Research

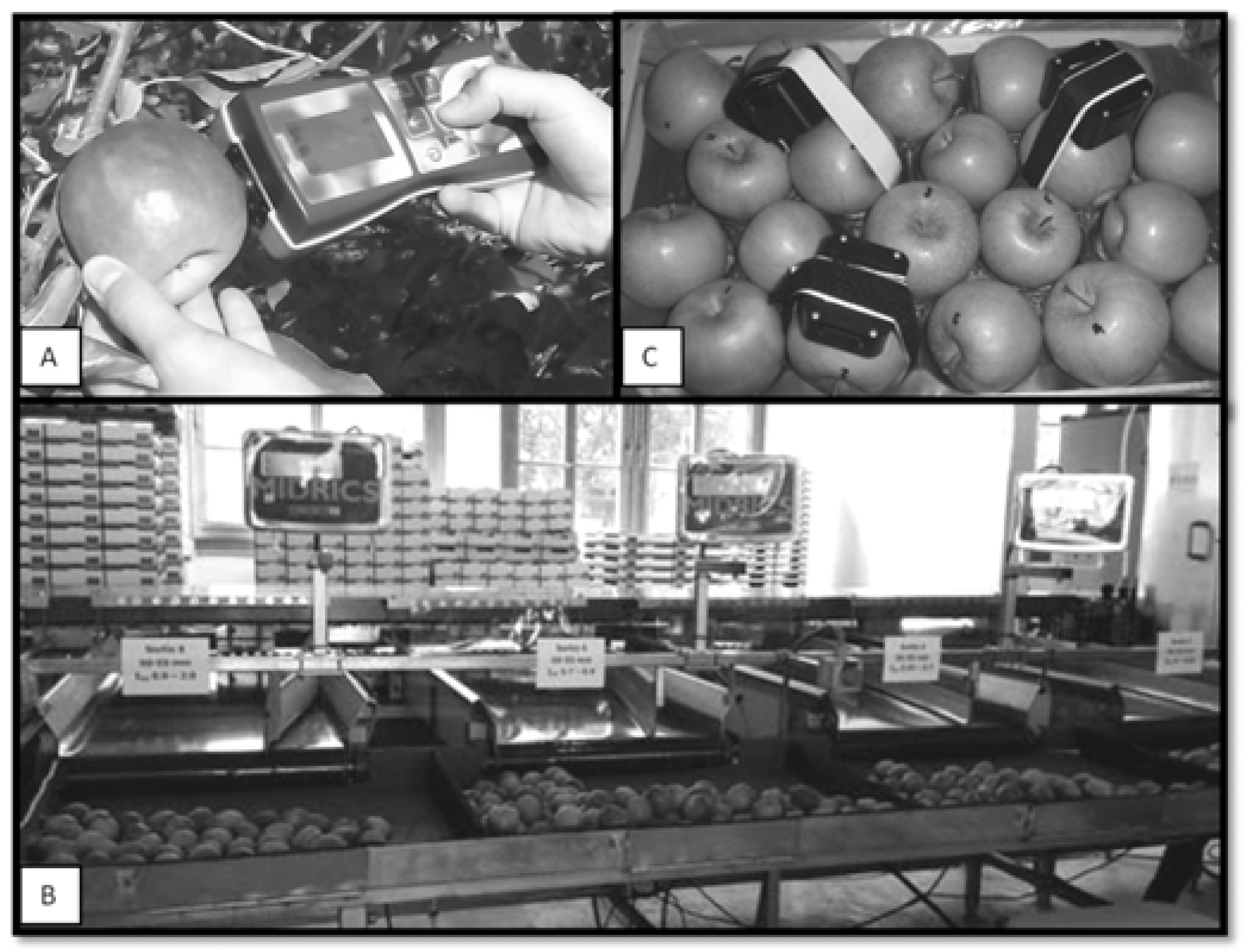

The 3 different devices developed for defining fruit ripening as I_AD can be used along the supply chain at different levels: (a) in the field with the DA-Meter; (b) in the packinghouse with the DA-Head, a stationary device; and (c) in cold storage with the Difference Absorbance Fruit Logger (DAFL).

2.1. The DA-Meter

The University of Bologna developed and patented three different devices, the DA-Meter, Kiwi-Meter and Cherry-Meter, that have been tested on different fruit species. All three meters do not require any complex calibration and can be used along the productive chain [9]. The first device patented was the DA-Meter (University of Bologna patent n° MO 2005000211) (Figure 1A). The DA-Meter is a portable, user-friendly device for measuring the I_AD. The DA-Meter has been tested on several pome and stone fruit cultivars. The I_AD is calculated as the difference between the absorbance values at 670 nm and 720 nm, near the chlorophyll a absorbance peak.

The Kiwi-Meter (University of Bologna patent n° PD2009A000081) has been tested on Actinidia deliciosa and Actinidia chinensis kiwi fruit varieties. The device was developed specifically for kiwifruit, and it differs from the DA-Meter by the wavelengths used: 540 and 640 nm with 800 nm as a reference point. The difference between absorbance at 540 nm versus 800 nm is used for the Actinidia deliciosa fruit, and the difference between 640 nm versus 800 nm is used for the Actinidia chinensis fruit [10]. In Actinidia deliciosa, a higher I_AD implies more ripe fruits with a brilliant green colored flesh, while with Actinidia chinensis, I_AD gradually decreases, staying in a constant range for some time followed by a rapid decrease with the onset of the flesh color break from green to yellow.

The Cherry-Meter is used on cherry (Prunus avium, Prunus cerasus) fruit, allowing the determination of I_AD with a value range from 0 to 2.6 positively correlated with ripening. The device is made up of six diode LEDs positioned around a photodiode detector. A set of two diode LEDs emit at 560 nm, 640 nm, and 750 nm. The fruit is illuminated alternately with the two monochromatic sources, and for each the amount of light re-emitted by the fruit is measured. Light is detected by a photodiode positioned centrally to a diode crown, and is converted to a digital signal through an analogue to digital converter. I_AD is obtained from the differences of the absorbance between two wavelengths for anthocyanin (560 and 640 nm) and the reference value at 750 nm [3].

2.2. The DA-Head

The DA-Head (Figure 1B) is a stationary device that measures the ripening stage as I_AD in a similar way to the DA-Meter. This device has been tested on several fruit species (kiwifruit, apricot (Prunus armeniaca), pear (Pyrus communis), apple (Malus × domestica), and peach (Prunus persica) [5,10,11], although the first and more complete trials have been carried out with the apricot cultivar “La vallée”, with the collaboration of the Office Cantonal de Arboriculture of Sion, Switzerland. The device can be considered a pre-commercial prototype [12]. The DA-Head, besides grading fruit on the basis of their size, contemporaneously groups the fruit according to their ripening stage using 2 or 3 remote sensors (DA-heads) which are able to read the I_AD of fruit passing on a moving belt. The DA-Heads can be adapted to standard commercial grading machines and operate and select fruit at the same speed of the sorting machine itself, approximately 15 fruit/s.

From the practical point of view, it is a very important achievement that the I_AD groups the fruit in homogeneous classes according to their ripening stage, starting in field conditions with the portable DA-Meter and at the packinghouse with the DA-Head.

2.3. The Difference Absorbance Fruit Logger (DAFL)

The last device along the productive chain is the DAFL (Figure 1C). It is a small device positioned over a batch of fruit stored in a cold room that continuously monitors the I_AD and the temperature data of each fruit remotely at programmed times (minutes, hours, days, etc.). The data are transmitted via radio signal to a receiver unit connected to a computer, and the information is available through Internet connection [6].

3. Major Accomplishments with the Use of the Devices

3.1. Assessing Proper Harvest Time

The portable DA-Meters (DA-Meter, Kiwi-Meter and Cherry-Meter) are mainly used to monitor the ripening process of fruit still attached to the tree and to assess the proper time to harvest. In particular, in some fruit species (i.e., peach and nectarine) [11,13], the ripening stage can be precisely defined since the I_AD and chlorophyll a amount in the outer mesocarp are highly correlated. In addition, in stone fruit, and in particular in peach, the I_AD correlates with ethylene evolution, the ripening hormone responsible for flesh softening, color development, and sugar accumulation [14,15]. It is worth noting that a trial carried out for several years with different cultivars of peach and nectarine showed that each cultivar has a typical I_AD value that remains constant year after year, coincident with the highest ethylene production peak. In addition, the I_AD value is strongly correlated with the transcript levels of ripening related genes [13,16]. As a consequence, the determination of the I_AD in nectarines and peach can precisely predict the optimal harvest time [17]. The ripening stage assessed at harvest by the I_AD was also recognized and appreciated by consumers who were also able to distinguish fruit of different ripening stages. In a consumer test trial, the most desirable “Stark Red Gold” nectarine fruit were those that reached an I_AD value of 0.4–0.5 [18], while “Plus Plus” peach fruit had to reach an I_AD value <0.7 to be as desirable (

Table 1. “Plus Plus” peach fruit segregated with the DA-stationary machine into 4 ripening classes, the % of the fruit in each class, and consumer likelihood of purchasing each class.

Class	IAD	Fruits (%)	Likelihood of Purchasing (%)
			Yes	Maybe	No
0	0–0.4	5.5	34.0	57.4	19.4
1	0.4–0.7	22.2	31.9	59.5	23.4
2	0.7–1	61.1	19.1	46.8	23.4
3	>1	11.2	8.5	40.4	21.3

).

For pome fruit, the I_AD was also used to define the proper harvest time of several apple varieties, including “Gala”, “Golden Delicious”, “Red Delicious”, “Fuji”, “Granny Smith”, and “Pink Lady” [18,19,20] and of “Abbé Fétel”pear [5]. A consumer test trial performed with “Gala” apples indicated that the most desirable fruit were harvested at an I_AD value of 0.6–0.9 [19]. Using “Abbé Fètel” pear, a consumer test trial performed with more than 100 people at the “AGER-Innovapero” Conference (Ferrara, Italy, 18 October 2013) [21] at the end of the storage period showed that the most desirable fruit were those harvested when the I_AD had reached value of 1.8–1.9, but when the I_AD value was >2 the fruit were not as desirable to consumers.

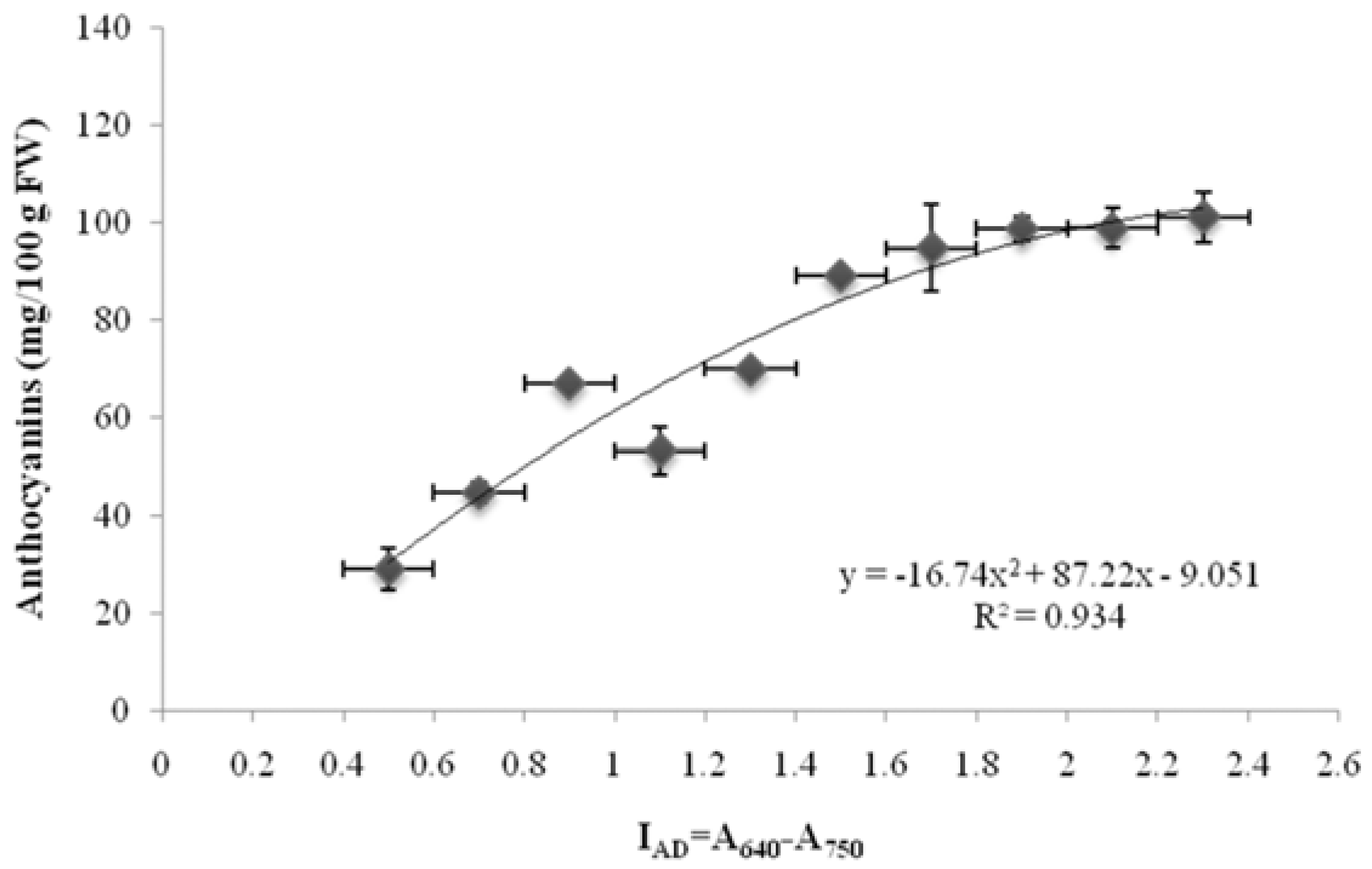

For cherry, the ripening stage expressed as I_AD correlates with anthocyanin content (Figure 2) as well as with other traits normally used to assess fruit quality [3].

With Actinidia deliciosa kiwifruit, the robustness of I_AD use is represented by the fact that the I_AD value significantly correlates with the standard fruit quality trait values (Figure 2) normally used for assessing fruit maturity [10,22]. “Hayward” kiwifruit must be harvested when the soluble solids concentration (SSC) reaches a minimum value of 6.2 °Brix [23]. In some seasons, ripening of Actinidia deliciosa fruit, expressed as SSC values, evolves slowly in the last period of fruit growth, complicating the definition of the evolution of fruit ripening. When the Kiwi-meter is used in such circumstances, the I_AD might not be fully able to detect small changes in ripening, and readings must be taken with a high accuracy to have robust and suitable data. In contrast, with Actinidia chinensis fruit, harvest must be performed when the flesh color changes from green to yellow, a change normally occurring at a hue angle of 103°–105° determined with a colorimeter (Figure 3) [10,24]. However, this determination requires fruit destruction and, as a consequence, can be only performed on a limited number of fruit. The Kiwi-Meter allows a much larger fruit sample, and the I_AD results are significantly correlated with hue angle (R² = 0.819). As a result the ripening stage expressed as I_AD is more reliable and repeatable [12,23] on most of the yellow-fleshed cultivars. In addition, the I_AD robustness is also underlined by the fact that the value is constant across years as shown in pome and stone fruit [12,13,25].

3.2. Grouping Fruit in Ripening Homogeneous Classes

The possibility of grouping fruit in homogeneous classes according to their ripening stage is an important use for the I_AD, especially for fruit undergoing longer storage periods. Such information can be easily obtained by the I_AD value determined at harvest with the DA-Meter on a limited number of fruit, or at the packinghouse with the DA-Head, so that all of the harvested fruit can be grouped into homogeneously-ripening classes. Such trials have been carried out on peach, apricot, apple, pear and kiwifruit. For instance, the DA stationary machine was able to detect within commercial classes of fruit differences that were not previously noticed using standard methods of evaluation, as in the case of classes of “Plus Plus” peaches that were further grouped into 4 subclasses of fruit according to the more precise I_AD ripening measure.

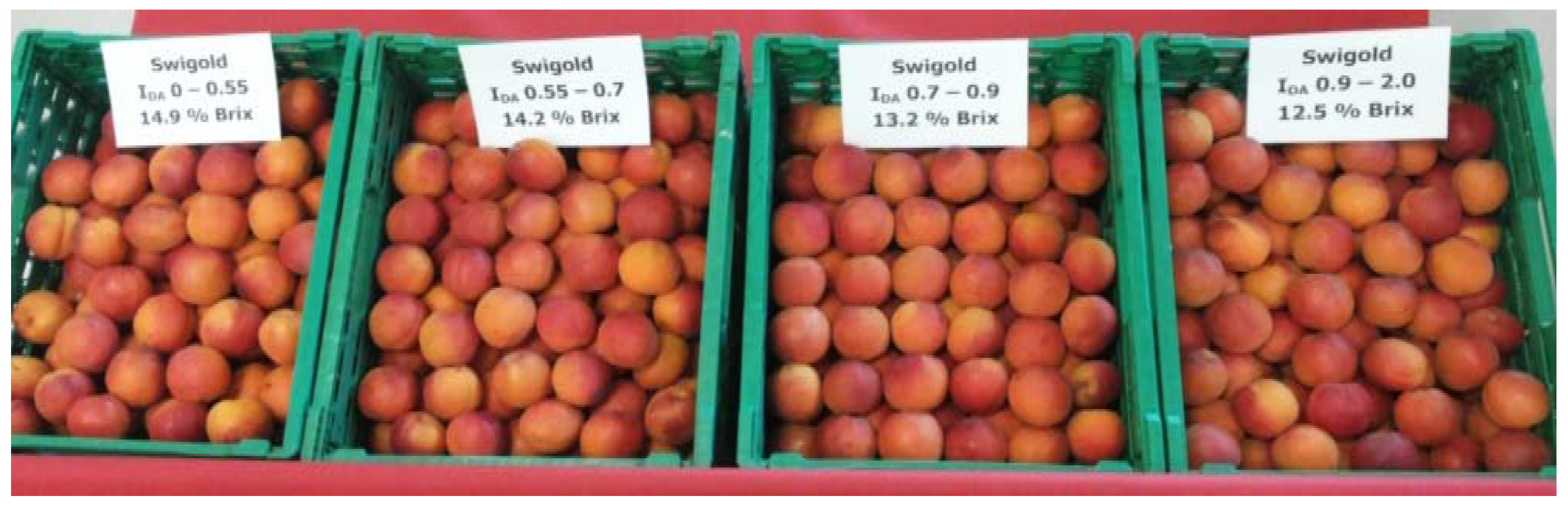

Moreover, the differences detected by these new devices, and represented by the I_AD index, are economically useful since the consumers are able to recognize the differences in ripening determined by the DA-Meter and appreciate more ripened fruit (Table 1). The same information was also obtained with several cultivars of apricot where the fruit were grouped into classes of uniform ripening with the DA-head device. Notably, consumer appreciation was related to fruit quality/ripening and but was influenced very little by appearance for “Swigold” apricot. In fact, although fruit ripening was quite different among the classes (4 classes characterized by the following I_AD values, 0–0.5; 0.5–0.7; 0.7–0.9, and 0.9–2.0, and by the soluble solids content, 14.9; 14.2; 13.2 and 12.5 °Brix, respectively, fruit appearance (skin color and fruit size) in the 4 classes was practically identical (Figure 4) [12], demonstrating that the traditional methodologies, such as colorimeter or caliper measurements, are not suitable for effectively determining fruit physiological stage.

3.3. Fruit Ripening Monitoring in Cold Storage

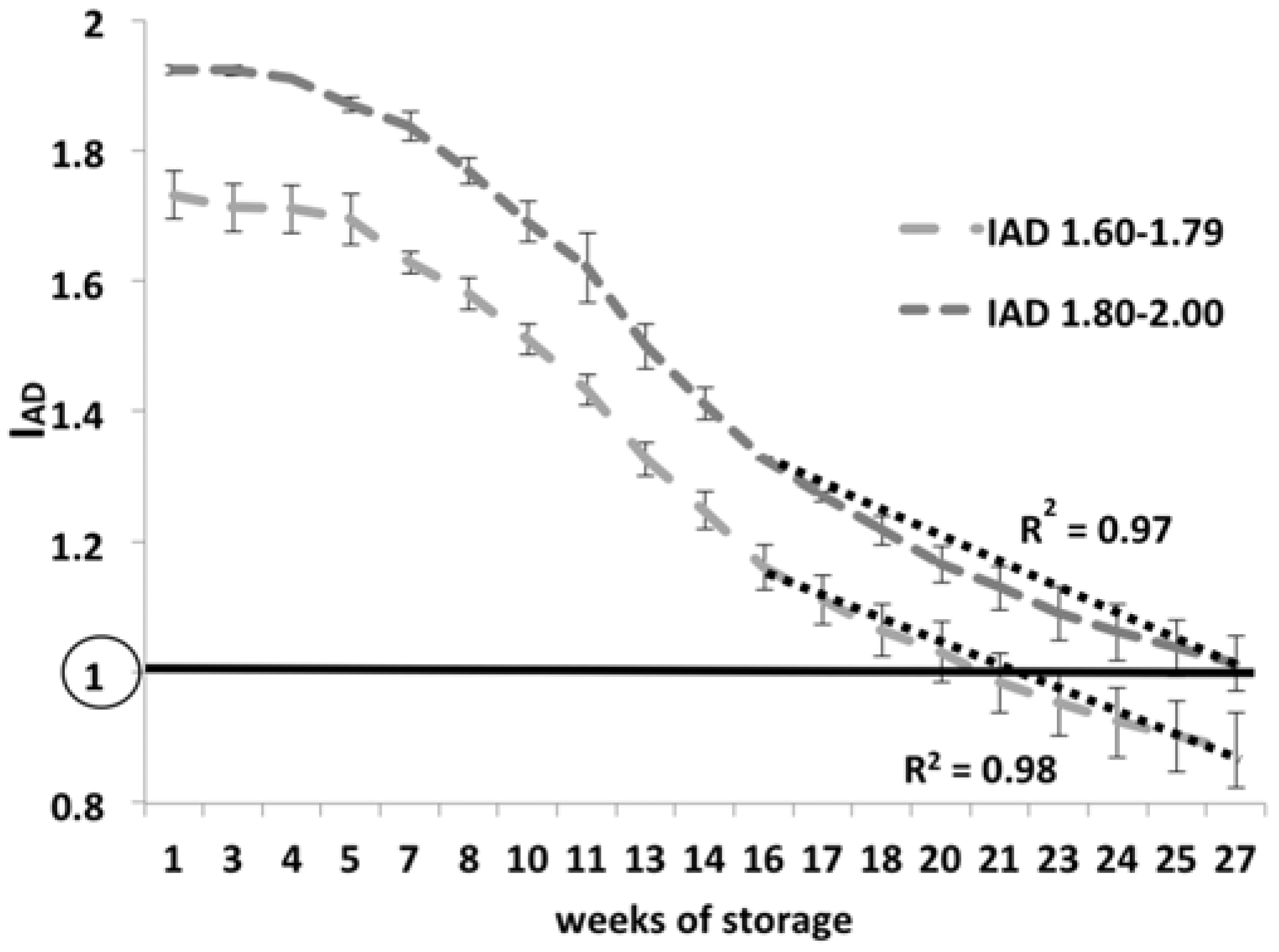

The Difference Absorbance Fruit Logger (DAFL) (Figure 1C) monitors ripening stage of the fruit maintained in cold room during storage. Trials were carried out with apple, pear and kiwifruit and indicated that fruit collected at higher I_AD values at harvest maintained higher values for the entire storage period as compared to fruit harvested at a lower I_AD. In pear, the I_AD value precisely followed ripening evolution in a sigmoid pattern (Figure 3). In the last phase of storage, the I_AD value was linear for both lower and higher initial I_AD values, allowing a tentative prediction of the span of time needed to reach the optimal I_AD value before removing fruit from cold storage (arbitrarily defined as 1) and driving marketing decisions [6].

3.4. Reducing Postharvest Losses

Several studies have pointed out that fruit disease susceptibility is related to the ripening stage reached by the fruit at harvest [26,27,28]. In apple, superficial scald susceptibility trials were performed with 3 varieties, “Red Delicious”, “Granny Smith”, and “Pink Lady”, and revealed that when the harvest was performed too early, the fruit were significantly affected by scald. For the susceptible variety “Granny Smith”, fruit were harvested at an I_AD value of 1.8–2.0 (early ripening, fruit not fully ripe). Scald incidence reached 100% after just two months of storage. In contrast, when fruit were harvested later at a more advanced ripening stage (I_AD of 1.6–1.8), fruit were not affected by superficial scald within the first two months of storage (Figure 5) [20].

Also, in peach, the appearance of brown rot (Monilia fruticola) was related to the ripening stage. The damage caused by the fungus was more severe on fruit characterized by an advanced ripening stage [29].

4. Final Remarks

The results of research carried out over the last few years on some of the main temperate fruit species indicated that the I_AD represents a powerful and reliable tool for assessing fruit ripening. The I_AD devices allow monitoring the evolution of ripening from the field until removal from cold storage. Fruit ripening measured in the field with the DA-Meter establishes the proper harvest time and gives preliminary information about the homogeneity of fruit ripening. Furthermore, at the packinghouse, use of the DA-Head allows grouping of the fruit into homogeneously-ripening classes driving decisions on the best storage strategies and subsequent marketing. Finally, in cold storage, the DAFL allows continuous monitoring of the evolution of fruit ripening.

The I_AD can find useful applications in the fruit production chain and represents an essential decision support system tool that can drive pre- and postharvest management of ripening fruit.
