Morphological and Physiological Properties of Greenhouse-Grown Cucumber Seedlings as Influenced by Supplementary Light-Emitting Diodes with Same Daily Light Integral

by
Zhengnan Yan
†,
Long Wang
†,
Yifei Wang
,
Yangyang Chu
,
Duo Lin
and
Yanjie Yang
*
College of Horticulture, Qingdao Agricultural University, Qingdao 266109, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Horticulturae 2021, 7(10), 361; https://doi.org/10.3390/horticulturae7100361
Submission received: 21 August 2021 / Revised: 19 September 2021 / Accepted: 21 September 2021 / Published: 4 October 2021
(This article belongs to the Special Issue Transformation toward Sustainability in Controlled Environment Agriculture)
Browse Figures
Versions Notes

Abstract

:
Insufficient light in autumn–winter may prolong the production periods and reduce the quality of plug seedlings grown in greenhouses. Additionally, there is no optimal protocol for supplementary light strategies when providing the same amount of light for plug seedling production. This study was conducted to determine the influences of combinations of supplementary light intensity and light duration with the same daily light integral (DLI) on the morphological and physiological properties of cucumber seedlings (Cucumis sativus L. cv. Tianjiao No. 5) grown in a greenhouse. A supplementary light with the same DLI of 6.0 mol m−2 d−1 was applied with the light duration set to 6, 8, 10, or 12 h d−1 provided by light-emitting diodes (LEDs), and cucumber seedlings grown with sunlight only were set as the control. The results indicated that increasing DLI using supplementary light promoted the growth and development of cucumber seedlings over those grown without supplementary light; however, opposite trends were observed in the superoxide dismutase (SOD) and catalase (CAT) activities. Under equal DLI, increasing the supplementary light duration from 6 to 10 h d−1 increased the root surface area (66.8%), shoot dry weight (24.0%), seedling quality index (237.0%), root activity (60.0%), and stem firmness (27.2%) of the cucumber seedlings. The specific leaf area of the cucumber seedlings decreased quadratically with an increase in supplementary light duration, and an opposite trend was exhibited for the stem diameter of the cucumber seedlings. In summary, increased DLI or longer light duration combined with lower light intensity with equal DLI provided by supplementary light in insufficient sunlight seasons improved the quality of the cucumber seedlings through the modification of the root architecture and stem firmness, increasing the mechanical strength of the cucumber seedlings for transplanting.

1. Introduction

Vegetables are vital components of healthy diets, which are related to lower mortality and morbidity in adult life [1]. In China, the vegetable planting area and the demand for vegetable seedlings were more than 20 million hectares and 680 billion in 2018, respectively [2]. Cucumber (Cucumis sativus L.) is one of the most cultivated vegetables worldwide and is economical to produce, with an annual production of 87.8 million tons in 2019, with 80.1% grown in China [3]. However, pronounced differences can be observed in terms of cucumber yield, with the highest and lowest cucumber yields in China being 150,000 kg per hectare and 56,000 kg per hectare, respectively [4]. Previous studies have demonstrated that the quality of vegetable seedlings affects the subsequent growth, yield, and the nutritional quality of mature plants at harvest [5,6]. Therefore, high-quality seedlings are essential to increase crop yield and economic benefits.
Light plays an important role in regulating the architectural development and secondary metabolites of plants [6,7]. Three main variables should be considered regarding the light requirements in horticulture: light intensity, the photoperiod, and light quality. The relatively low light intensity and short photoperiod of sunlight during autumn–winter and early spring results in plants having a longer hypocotyl length [8], lower flavonol content [9], and ultimately culminates in a lower yield [10]; thus, supplementary light is required for greenhouse-grown plants in insufficient sunlight seasons. The daily light integral (DLI, the product of the light intensity and the photoperiod) can be increased through the application of supplementary light, and increasing the DLI in certain situations can shorten growth cycles [6], promote carbohydrate accumulation [11], and increase the crop yield [12,13] and the nutritional quality [14,15] of plants.
Prior studies have indicated that 1% of additional light results in a 0.5% to 1% increase in the amount of harvestable product [5,16]. The dry mass [8], flower truss [13], and fruit weight [17] of greenhouse-grown plants grown with supplementary light increased by more than 23.0%, 12.5%, and 26.5%, respectively, compared to those grown without supplementary light. Supplementary light intensity [18] and duration [19,20] with different DLIs were investigated in greenhouse-grown plants in previous studies. Generally, increasing the light intensity or extending the supplementary light duration (with increasing DLIs) enhanced crop productivity under limited light conditions. Additionally, several combinations of light intensity and photoperiods with the same DLI were conducted in lettuce (Lactuca sativa) [21,22], mizuna (Brassica rapa var. japonica) [23], and strawberry (Fragaria × ananassa) seedlings [24] in a plant factory with artificial lighting. However, no information about the application of supplemental light with the same DLI is available for greenhouse-grown cucumber seedlings.
Artificial lighting has developed dramatically in the protected cultivation industry in recent decades, allowing it to be applied in fully controlled plant factories or as supplementary light in greenhouses [6,12,25]. Conventional light sources, such as high-pressure sodium (HPS), have a high operating temperature, low electrical efficiency, and limited controllability [1,10]. In contrast, light-emitting diodes (LEDs) provide tremendous potential for horticultural lighting in modern agriculture compared to conventional horticultural light sources due to their long functional life [26], lower heat production [25], spectral configuration flexibility [27], and high photosynthetically active radiation efficiency [28]. HPS lamps have been replaced by LED lamps in controlled agricultural environments, such as in growth chambers and greenhouses, in recent years [29,30]. Red plus blue LEDs were widely examined in various plant experiments due to the absorption spectra of the photosynthetic pigments of higher plants.
Supplementary lights with different red light to blue light ratios (R:B) were investigated in tomato (Solanum lycopersicum) seedlings [26], cucumber seedlings [8], peppers (Capsicum frutescens) [19], lettuce [31], and basil (Ocimum basilicum) [32] in grown in a greenhouse. However, plants have adapted to the broadband spectrum through long-term evolution [33]. Previous studies have shown that horticultural plants grown under white LEDs have higher photosynthetic activity than those grown under monochromatic light [34,35] and that white LEDs lead to higher light energy use efficiency in green leaf lettuce production than red plus blue LEDs [15]. Moreover, the energy consumption of different light strategies should be considered for commercial growers in greenhouse crop production [32]. Therefore, a suitable supplementary lighting strategy provided by white LEDs that considers energy consumption was needed for further investigation in cucumber seedling production.
The aim of this study was to evaluate the impacts of white LEDs as supplementary light with equal DLI on the leaf morphology, pigment content, photosynthetic characteristics, biomass accumulation, root architecture, and antioxidant enzyme activities of cucumber seedlings grown in a greenhouse. The results could be applied as guidelines for a light management strategy wherein supplemental light is administered to cucumber seedlings produced in greenhouses during the autumn–winter period or early spring.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

Cucumber (Cucumis sativus L. cv. Tianjiao No. 5) seeds were sown in a substrate containing a mixture of vermiculite, peat, and perlite (3:1:1, V/V/V) in 72-cell trays (53.5 cm × 27.5 cm × 4.0 cm) in the Venlo-type greenhouse in Qingdao Agricultural University, Qingdao, Shandong Province, China, for 21 days. Gutter height, peak height, and floor area of the greenhouse were 4.5 m, 6.0 m, and 2736 m2, respectively. Day and night temperatures in the greenhouse were controlled at (25 ± 2) °C and (18 ± 2) °C, respectively, by using a ground source heat pump system. Relative humidity was maintained at 60–70% inside the greenhouse. Hoagland’s nutrient solution was applied with an electrical conductivity of 1.8–2.0 mS cm−1 and pH of 6.0–6.5 with the following components (mg L−1): Ca(NO3)2·4H2O, 945; KNO3, 607; MgSO4·7H2O, 493; NH4H2PO4, 115; Na2Fe-EDTA, 30; MnSO4·H2O, 2.13; CuSO4·5H2O, 0.08; ZnSO4·7H2O, 0.22; H3BO3, 2.86; and (NH4)6Mo6O24·4H2O, 0.02. Tap water and 1/2 strength standard nutrient solution were used two days after the sowing and cotyledon stage, respectively. The standard Hoagland’s nutrient solution was used after the first true leaf emerged.

2.2. Light Treatments

The average daily light intensity of natural light in the Venlo-type greenhouse was 160 μmol m−2 s−1 during the experimental period (3–24 December 2020), with an average daily light integral of 5.5 mol m−2 d−1. Combined with the suitable daily light integral for the growth of cucumber seedlings based on our previous study [36], they were grown under supplemental DLI at 6.0 mol m−2 d−1 created by four levels of light intensity at 278, 208, 167, and 139 μmol m−2 s−1 combined with supplementary light duration at 6, 8, 10, and 12 h d−1 provided by white LEDs (Weifang Hengxin Electric Appliance Co., Ltd., China) for 21 days. The supplementary lighting time in the morning and in the afternoon was the same. In addition, cucumber seedlings grown without supplementary light were set as the control (DLI at 5.5 mol m−2 d−1 from solar radiation only). A randomized complete block designed with three replications and 72 seedlings in each replication was cultivated in this experiment. Each treatment had three plug trays, and each tray was considered as a replication. Spectral distribution of the LED lamps (Figure 1) used in this study as supplementary light was measured by a spectrometer (PG100N, United Power Research Technology Corporation, China) at the plant canopy.

2.3. Growth Measurements

2.3.1. Measurements of Photosynthetic Performance

Net photosynthetic rate, transpiration rate, substomatal CO2 concentration, and stomatal conductance were measured on the fully expanded leaf by a portable photosynthesis system (LI-6400XT, Li-Cor Inc., Lincoln, NE, USA). Light intensity, leaf temperature, gas flow, and CO2 concentration in the leaf chamber (6400-02B) were controlled at 400 μmol m−2 s−1, 25 °C, 500 μmol s−1, and 400 μmol mol−1, respectively. The soil plant analysis development (SPAD) index of the fully expanded leaf was recorded to quantify relative chlorophyll contents of cucumber seedlings by using a chlorophyll meter (SPAD-502 Plus, Konica Minolta Inc., Tokyo, Japan).

2.3.2. Measurements of Plant Morphology and Growth Parameters

Leaf length and leaf width of maximum leaf blade, shoot, and root fresh weights were measured at 21 days after sowing. The fresh weights of shoots and roots were measured by an electronic analytical balance (FA1204B, BioonGroup, Shanghai, China). Additionally, the fresh roots of cucumber seedlings were washed twice carefully with distilled water, and scanned by a scanning system (V800, Seiko Epson Corp., Nagano, Japan). The data of root surface area and root volume were obtained and analyzed using WinRHIZO software (Version 2016a, Regent Instruments Inc., Quebec, QC, Canada). The shoots and roots were dried in an oven at 105 °C for 3 h, and the oven was subsequently set to 80 °C for 72 h for measuring the dry weights. Seedling quality index and specific leaf area (SLA) of cucumber seedlings were calculated according to Han et al. [37] and Ghorbanzadeh et al. [11], where seedling quality index = (stem diameter/plant height + root dry weight/shoot dry weight) × total dry weight and specific leaf area = leaf area/leaf dry weight.

2.3.3. Measurement of Root Activity

The triphenyl tetrazolium chloride (TTC) method was used to determine the root activity of cucumber seedlings, following Li [38]. The 5 mL TTC (4%) and 5 mL phosphate buffers were added to root samples (0.5 g) in a tube, and then the tube was kept at 37 °C in the dark for 2 h. The reaction was stopped with 2 mL H2SO4 (1 mol L−1). Seedling roots were ground and transferred into a tube with ethyl acetate up to 10 mL. The absorbance of the test sample was measured using a spectrophotometer (UV1810, Shanghai Yoke Instrument Co., Ltd., China) at the wavelength of 485 nm.

2.3.4. Stem Firmness and Cellulose Content of Cucumber Seedlings

Stem firmness of cucumber seedlings was measured by a texture analyzer (TMS-Pro, Food Technology Corporation, USA) equipped with a 2 mm diameter probe, which was expressed in Newtons (N). The Updegraff method was used to measure the cellulose of cucumber stems [39].

2.3.5. Measurements of Activities of Antioxidant Enzymes

Leaf samples (0.5 g) were ground in pre-chilled 5 mL of 50 mM phosphate buffer (pH 7.8). The homogenate was centrifuged at 12,000× g for 20 min at 4 °C and the supernatant was applied as enzyme extract. Superoxide dismutase (SOD) activity was measured by determining its ability to inhibit the photochemical reduction in nitroblue tetrazolium (NBT) at a wavelength of 560 nm following the method of Giannopolitis and Ries [40]. Catalase (CAT) activity was assayed based on the oxidation of H2O2 and measured as a decline at a wavelength of 240 nm using the above spectrophotometer, as described by Aebi [41].

2.3.6. Supplementary Light Use Efficiency

Supplementary light use efficiency was calculated based on the increase in dry weight, which was reported by Wei et al. [20], where supplementary light use efficiency = ΔBiomass (Treatment biomass − CK biomass)/(supplementary light duration × leaf area × supplementary light intensity).

2.4. Statistical Analysis

One-way analysis of variance (ANOVA) was conducted using SPSS 19.0 software (IBM, Inc., Chicago, IL, USA) followed by the least significant difference (LSD) test to compare the means between treatments (p < 0.05). The results were reported as the mean ± standard deviation values. The regression analysis between treatments and morphological properties of cucumber seedlings was carried out using Microsoft Excel 2016 software.

3. Results and Discussion

3.1. Impacts of Supplementary Light Duration and Light Intensity on Photosynthetic Characteristics of Cucumber Seedlings

The chlorophyll content (SPAD) and photosynthetic characteristics of the cucumber seedlings were significantly influenced by supplementary light (Table 1). The chlorophyll contents of cucumber seedlings increased with the increase in supplementary light duration. However, no pronounced differences were observed as supplementary light duration increased from 8 to 12 h d−1 with equal DLI. Increased trends in chlorophyll content were also observed in lettuce [42] and Rudbeckia seedlings [43] grown with a longer photoperiod with equal DLI. This may be due to the fact that longer photoperiod with lower light intensity resulted in shade acclimation responses to capture more light energy. The previous studies also indicated that chlorophyll could be synthesized only in light; thus, extending the photoperiod was beneficial for the synthesis of photosynthetic pigments [44]. In addition, Ni et al. [45] indicated that the shading treatment (15% light intensity, 85% shaded) could promote Passiflora plant (Tainung No. 1) growth in SPAD compared with the non-shaded treatment, suggesting that long-term low-light-intensity treatment increased the relative chlorophyll concentration per leaf area in Passiflora plants. Similar trends were also observed in lettuce [46,47], chicory (Cichorium intybus) [46], cucumber seedlings [4], and strawberry plants [48,49].
The net photosynthetic rate of the cucumber seedlings increased as the supplementary light increased from 0 to 10 h d−1, and decreased as the supplementary light increased from 10 to 12 h d−1. Similar trends were found in the transpiration rate, substomatal CO2 concentration, and stomatal conductance. The net photosynthetic rate, transpiration rate, substomatal CO2 concentration, and stomatal conductance of cucumber seedlings grown under the supplementary light duration of 10 h d−1 increased by 125.7%, 169.2%, 27.3%, and 221.9%, respectively, compared with those grown without supplementary light. These results suggest that prolonging the supplementary light duration with equal DLI within certain ranges promotes the accumulation of photosynthetic pigments and CO2 exchange rate of plants. However, too long a photoperiod with low light intensity was not suitable for cucumber seedlings under equal DLI. These results demonstrate that it was not useful to provide a high light intensity, as plants cannot utilize the light efficiently to drive photosynthesis [50], which is consistent with the results of a previous study by Weaver and van Iersel [42]. The increased photosynthetic capacity was associated with the increased SPAD and thicker leaves (Figure 2), which may contain more chloroplasts per leaf area, leading to an increase in biomass. Dou et al. [51] reported similar results.

3.2. Influences of Supplementary Light Duration and Light Intensity on Plant Morphology and Growth of Cucumber Seedlings

The supplementary light duration and the light intensity with the same DLI significantly affected the leaf morphology and carbohydrate accumulation of the cucumber seedlings (Table 2). Previous studies suggested that high-quality seedlings should exhibit thick leaves, firm stems, and large white roots [5]. The seedling quality index of cucumber seedlings grown under supplementary light duration with 10 h d−1 increased by more than 7-fold compared with those grown without supplementary light. The cucumber seedlings that were exposed to supplementary light resulted in a larger leaf area and higher dry weights of the shoot and root than those grown without supplementary light. The leaf length and leaf width of the cucumber seedlings grown with supplementary light duration at 10 h d−1 were 52.5% and 70.4% higher, respectively, than those of the seedlings grown without supplementary light. Cucumber seedlings grown under long supplementary light durations with low light intensity demonstrated an increase in the occurrence of shade avoidance responses, including increased leaf elongation, which increased light interception [15,52]. In general, longer supplementary light duration with the same DLI resulted in higher fresh and dry weights of the cucumber seedlings as the supplementary light duration increased from 6 to 10 h·d−1, and decreased as the supplementary light duration exceeded 10 h d−1, indicating that light drives photochemistry more efficiently at relatively lower light intensity [21,50]. Kelly et al. [22] reported similar results, observing that lettuce grown under a longer photoperiod with a lower light intensity had greater fresh and dry weights than those grown under a shorter photoperiod with a higher light intensity with the same DLI at 10.4 mol·m−2·d−1 under a controlled environment. This is likely due to the fact that longer photoperiod with same DLI resulted in higher daily photochemical integral (electron transport rate integrated over a 24 h period) and quantum yield of photosystem II (ΦPSII) [21]. Previous studies suggested that a larger portion of the PSII reaction center closed as the light intensity increased due to the unacceptable additional excitation energy, leading to decreased ΦPSII of sweet potato (Ipomoea batatas (L.) Lam.) [6], lettuce [21,40], and golden pothos (Epipremnum aureum) [50] with increase in the light intensity. Supplementary light with DLI at 17 mol·m−2·d−1 was conducted in greenhouse-grown lettuce by Weaver and van Iersel [40], who concluded that a longer photoperiod with lower light intensity promoted plant growth due to increased photosynthetic light use efficiency. Nevertheless, prolonging the photoperiod (with decreased light intensity) beyond certain ranges was not beneficial for plant growth; this phenomenon was due to the fact that too weak a source of light was inadequate to drive appreciable amounts of photosynthesis (Table 1). Additionally, too long a photoperiod could cause leaf chlorosis and decrease the crop yield [53].
The stem diameter of the cucumber seedlings was positively correlated with supplementary light duration and the SLA of cucumber seedlings exhibited an opposite trend (Figure 1), allowing us to infer that longer light duration with lower light intensity resulted in thick stems and thin leaves with a larger leaf area (Table 2). The SLA of the cucumber seedlings significantly decreased with the administration of supplementary light, which was consistent with previous studies. Previous studies demonstrated that lower DLI led to higher SLA in tomato plants [54], sweet basil [51], and lettuce [11]. However, a decreased trend was observed in the SLA of cucumber seedlings grown with a decreased light intensity (increased light duration) with the same DLI (Figure 2), suggesting that the decreased SLA of cucumber seedlings was due to the impacts of light duration instead of light intensity in plants grown with the same DLI. A previous study indicated that the SLA of basil and chicory presented linear negative responses to an increased photoperiod [55]. Similarly, Elkins and van Iersel [43] observed that the SLA of Rudbeckia seedlings decreased linearly from 266 to 197 cm2 g−1 as the photoperiod increased from 12 to 21 h d−1 with same DLI at 12 mol m−2 d−1. However, no significant differences were observed in the SLA of greenhouse-grown lettuce supplemented with different combinations of light intensity and photoperiod with the same DLI at 17.0 mol m−2 d−1 [42]. These differences may be due to the different species, supplementary DLI, or lighting strategies.
The root morphology of the cucumber seedlings was significantly impacted by different combinations of supplementary light intensity and light duration with the same DLI (Figure 3A). The root surface area and root volume increased significantly in cucumber seedlings exposed to supplementary light compared to those grown without supplementary light. The root surface area and root volume increased as the supplementary light duration increased from 6 to 8 h d−1, but no pronounced differences were found when the supplementary light duration increased from 8 to 12 h d−1 (Figure 3B,C).
The root quality influenced the growth of the vegetable seedlings directly after transplanting, thus affecting the subsequent yield and nutritional quality of the crops [6,20]. Few studies have been performed on the root growth and physiology of cucumber seedlings grown under different combinations of light intensity and light duration with the same DLI. A previous study suggested that high DLI led to better-developed roots, such as longer root length, thicker root diameter, of Platycodon grandiflorum [56] and Fagus sylvatica seedlings [57] than those exposed to shading conditions and to a higher root fresh weight. The root activity reflected the ability of the roots to absorb nutrients and water or to synthesize certain compounds in the surrounding rhizosphere. The root activity of the cucumber seedlings grown with supplementary light duration at 10 h d−1 was 1.3-fold higher than those grown with sunlight only (Figure 3D). This may be due to the fact that higher shoot activity contributed partly or fully to higher root activity. Under equal DLI, higher root activity was observed in those cucumber seedlings exposed to supplementary light with a longer photoperiod at 10 h d−1 and 12 h d−1 (Figure 3D). Li et al. [58] demonstrated that the average root number of Acacia melanoxylon increased significantly with a prolonged photoperiod, but this trend was not observed in the average root length. A large root absorption area with higher root activity promoted plant growth, which was consistent with other reports [59].

3.3. Effects of Supplementary Light Duration and Light Intensity on Stem Firmness and Cellulose Content of Cucumber Seedlings

In general, the stem firmness of the cucumber seedlings increased with the increase in supplementary light duration. The stem firmness of the cucumber seedlings grown with supplementary light increased by more than 30% when compared with cucumber seedlings grown under sunlight only. Generally, positive relationships between cellulose content and stem firmness were observed in the cucumber seedlings; however, no significant differences were found in the cellulose content of the cucumber seedlings grown with supplementary light with the same DLI (Figure 4), as stem firmness could be associated with other chemical compounds, such as pectins, lignin, and hemicelluloses, and these associations also require further study.
Plant cell walls are constantly remodeled during growth and development and modified in accordance with the environment. Cellulose is the principal component of plant cell walls, which play a critical role in the mechanical strength and morphogenesis of plants [60,61]. Prior studies have demonstrated that soybean (Glycine max (L.) Merr.) [60] and maize (Zea mays L.) [62] with higher cellulose content in their stems had more lodging resistance than those with lower cellulose content. The cucumber seedlings grown with 8 h d−1 supplementary light duration had higher cellulose contents than those grown without supplementary light (Figure 4). No remarkable differences were observed in the cellulose contents of the cucumber seedlings as the supplementary light duration increased from 6 to 12 h d−1 with the same DLI.

3.4. Effects of Supplementary Light Duration and Light Intensity on Activities of Antioxidant Enzymes of Cucumber Seedlings

Previous studies suggested that insufficient or excessive light could cause abiotic stresses to grafted watermelon (Citrullus vulgaris) seedlings [20], tomato seedlings [63], and cucumber seedlings [4]. The duration of the supplementary light significantly influenced the activities of the antioxidant enzymes of the cucumber seedlings (Figure 5). The activities of the SOD and CAT were the highest in the cucumber seedlings grown without supplementary light; exposure to supplementary light resulted in decreased activities of the SOD and CAT of the cucumber seedlings compared those grown without supplementary light. The increase in SOD activity in the seedlings that were not treated with supplementary light might be due to the increased production of superoxide radicals, consummating the dismutation of the superoxide radical to hydrogen peroxide [64]. Zhang et al. [65] and Gong et al. [66] reported similar results. However, no pronounced differences were observed in the CAT activity of the cucumber seedlings grown with supplementary light; this may be due to the same DLI provided by the supplementary LEDs. Our results also demonstrated that an undesired light environment (low DLI) resulted in stress resistance in the cucumber seedlings. Zhang et al. [67] indicated that the CAT activities of the cucumber seedlings were reduced by the supplementary light, and it was also related to the light quality, observing that the activity of the CAT of the cucumber seedlings was increased by increasing the blue light proportion as compared to those not treated with supplementary light. Zrig et al. [68] reported similar results, observing that Thymus vulgaris L. cultivated in a shady enclosure had a higher SOD and CAT than those cultivated in an open field. Opposite trends were observed the in fresh weight and activities of the antioxidant enzymes in tomato seedlings [69] and peanut (Arachis hypogaea L.) seedlings [70], which were consistent with our results. Plants’ own reactive oxygen species (ROS) scavenging enzymes, including SOD and CAT, can adapt to diverse stresses. The accumulation of ROS is detrimental to the photosynthetic systems, and Lu et al. [71] indicated that the lower electron transportation activity between PSII and PSI probably turns the photosynthetic apparatus into a strong ROS source.

3.5. Supplementary Light Use Efficiency in Cucumber Seedlings Grown in a Greenhouse

The supplementary lighting costs in the greenhouse could be high due to the increased electricity consumption [50]. Thus, effective lighting strategies considering supplementary light use efficiency should be developed [43]. From an energy saving perspective, no pronounced differences were found in supplementary light use efficiency among cucumber seedlings grown with 6, 8, and 10 h d−1 of supplementary light (Figure 6), this was due to the fact that similar trends were observed in the leaf area and dry weight as supplementary light duration increased from 6 to 10 h d−1 with the same DLI. The decrease in the dry weight and leaf area in the cucumber seedlings grown with supplementary light duration at 12 h d−1 led to the decrease in supplementary light use efficiency. Supplementary light duration at 12 h d−1 led to the lowest light utilization rate among the supplementary treatments. Wei et al. [20] indicated that 16 h d−1 of supplementary light had a lower light use efficiency of the light compared to the 12 h d−1 in grafted watermelon seedlings. Additionally, cucumber rootstocks [72], perilla (Perilla frutescens) [14], and strawberry runner plants [49] exposed to higher light intensity or a longer photoperiod with higher DLI had lower light use efficiency.

4. Conclusions

The leaf morphology, photosynthetic characteristics, biomass accumulation, root architecture, and antioxidant enzyme activities of the greenhouse-grown cucumber seedlings were significantly affected by different combinations of light intensity and light duration, with equal DLI provided by supplementary light. In general, increasing DLI with supplementary light promoted the growth and development of the cucumber seedlings grown in seasons where the amount of natural light was insufficient. Additionally, the quality of the cucumber seedlings could be improved by applying relatively longer light durations combined with lower light intensity, which resulted in the modification of the root architecture and an improvement in the stem firmness, increasing the mechanical strength of the cucumber seedlings for transplanting.

Author Contributions

Conceptualization, Z.Y. and Y.Y.; methodology, Z.Y., L.W., Y.C. and Y.W.; validation, Z.Y., D.L. and Y.Y.; formal analysis, Z.Y. and L.W.; investigation, L.W., Y.C. and Y.W.; resources, Z.Y., L.W., Y.C. and Y.W.; data curation, Z.Y., L.W. and Y.Y.; writing—original draft preparation, Z.Y. and L.W.; writing—review and editing, Z.Y., L.W., D.L. and Y.Y.; visualization, Z.Y. and L.W.; supervision, Z.Y., D.L. and Y.Y.; project administration, Y.Y.; funding acquisition, Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Science and Technology of People-benefiting Project of Qingdao (21-1-4-ny-6-nsh), the National Key Research and Development Program of China (2019YFD1001901), the Foundation for High-level Talents of Qingdao Agricultural University (663/1120098), and the Innovation and Entrepreneurship Training Program for College Students of Qingdao Agricultural University in 2021.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are reported in the Results and Discussion sections. Please contact the corresponding author for any additional information.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pinho, P.; Jokinen, K.; Halonen, L. The influence of the LED light spectrum on the growth and nutrient uptake of hydroponically grown lettuce. Lighting Res. Technol. 2016, 0, 1–16. [Google Scholar] [CrossRef]
  2. Liu, M.C.; Ji, Y.H.; Wu, Z.H.; He, W.M. Current situation and development trend of vegetable seedling industry in China. China Veg. 2018, 11, 1–7. [Google Scholar]
  3. FAO. Crops and Livestock Products. 2021. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 7 June 2021).
  4. Ji, F.; Wei, S.Q.; Liu, N.; Xu, L.J.; Yang, P. Growth of cucumber seedlings in different varieties as affected by light environment. Int. J. Agric. Biol. Eng. 2020, 13, 73–78. [Google Scholar] [CrossRef]
  5. Yan, Z.N.; He, D.X.; Niu, G.; Zhou, Q.; Qu, Y.H. Growth, nutritional quality, and energy use efficiency of hydroponic lettuce as influenced by daily light integrals exposed to white versus white plus red light-emitting diodes. Hort. Sci. 2019, 54, 1737–1744. [Google Scholar] [CrossRef] [Green Version]
  6. He, D.X.; Yan, Z.N.; Sun, X.; Yang, P. Leaf development and energy yield of hydroponic sweetpotato seedlings using single-node cutting as influenced by light intensity and LED spectrum. J. Plant Physiol. 2020, 254, 153274. [Google Scholar] [CrossRef]
  7. Palma, C.F.F.; Castro-Alves, V.; Morales, L.O.; Rosenqvist, E.; Ottosen, C.O.; Strid, A. Spectral composition of light affects sensitivity to UV-B and photoinhibition in cucumber. Front. Plant Sci. 2021, 11, 610011. [Google Scholar] [CrossRef]
  8. Hernández, R.; Kubota, C. Growth and morphological response of cucumber seedlings to supplemental red and blue photon flux ratios under varied solar daily light integrals. Sci. Hortic. 2014, 173, 92–99. [Google Scholar] [CrossRef]
  9. Matysiak, B. The Effect of supplementary LED lighting on the morphological and physiological traits of Miniature Rosa×Hybrida ‘Aga’ and the development of Powdery Mildew (Podosphaera pannosa) under greenhouse conditions. Plants 2021, 10, 417. [Google Scholar] [CrossRef]
  10. Paucek, I.; Pennisi, G.; Pistillo, A.; Appolloni, E.; Crepaldi, A.; Calegari, B.; Spinelli, F.; Cellini, A.; Gabarrell, X.; Orsini, F.; et al. Supplementary LED interlighting improves yield and precocity of greenhouse tomatoes in the Mediterranean. Agronomy 2020, 10, 1002. [Google Scholar] [CrossRef]
  11. Ghorbanzadeh, P.; Aliniaeifard, S.; Esmaeili, M.; Mashal, M.; Azadegan, B.; Seif, M. Dependency of growth, water use efficiency, chlorophyll fluorescence, and stomatal characteristics of lettuce plants to light intensity. J. Plant Growth Regul. 2020, 39. [Google Scholar] [CrossRef]
  12. Zhang, M.Z.; Whitman, C.M.; Runkle, E.S. Manipulating growth, color, and taste attributes of fresh cut lettuce by greenhouse supplemental lighting. Sci. Hortic. 2019, 252, 274–282. [Google Scholar] [CrossRef]
  13. Palmitessa, O.D.; Paciello, P.; Santamaria, P. Supplemental LED increases tomato yield in mediterranean semi-closed greenhouse. Agronomy 2020, 10, 1353. [Google Scholar] [CrossRef]
  14. Lu, N.; Bernardo, E.L.; Tippayadarapanich, C.; Takagaki, M.; Kagawa, N.; Yamori, W. Growth and accumulation of secondary metabolites in perilla as affected by photosynthetic photon flux density and electrical conductivity of the nutrient solution. Front. Plant Sci. 2017, 8, 708. [Google Scholar] [CrossRef] [Green Version]
  15. Yan, Z.N.; He, D.X.; Niu, G.; Zhou, Q.; Qu, Y.H. Growth, nutritional quality, and energy use efficiency in two lettuce cultivars as influenced by white plus red versus red plus blue LEDs. Int. J. Agric. Biol. Eng. 2020, 13, 33–40. [Google Scholar] [CrossRef]
  16. Marcelis, L.F.M.; Broekhuijsen, A.G.M.; Meinen, E.; Nijs, E.M.F.M.; Raaphorst, M.G.M. Quantification of the growth response to light quantity of greenhouse grown crops. Acta Hortic. 2006, 711, 97–103. [Google Scholar] [CrossRef]
  17. Kramchote, S.; Glahan, S. Effects of LED supplementary lighting and NPK fertilization on fruit quality of melon (Cucumis melo L.) grown in plastic house. J. Hortic. Res. 2020, 28, 111–122. [Google Scholar] [CrossRef]
  18. Wei, H.; Zhao, J.; Hu, J.T.; Jeong, B.R. Effect of supplementary light intensity on quality of grafted tomato seedlings and expression of two photosynthetic genes and proteins. Agronomy 2019, 9, 339. [Google Scholar] [CrossRef] [Green Version]
  19. Li, X.; Lu, W.; Hu, G.; Wang, X.C.; Zhang, Y.; Sun, G.X.; Fang, Z.C. Effects of light-emitting diode supplementary lighting on the winter growth of greenhouse plants in the Yangtze River Delta of China. Bot. Stud. 2016, 57, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Wei, H.; Wang, M.Z.; Jeong, B.R. Effect of supplementary lighting duration on growth and activity of antioxidant enzymes in grafted watermelon seedlings. Agronomy 2020, 10, 337. [Google Scholar] [CrossRef] [Green Version]
  21. Elkins, C.; van Iersel, M.W. Longer photoperiods with the same daily light integral increase daily electron transport through photosystem II in lettuce. Plants 2020, 9, 1172. [Google Scholar] [CrossRef] [PubMed]
  22. Kelly, N.; Choe, D.; Meng, Q.W.; Runkle, E.S. Promotion of lettuce growth under an increasing daily light integral depends on the combination of the photosynthetic photon flux density and photoperiod. Sci. Hortic. 2020, 272, 109565. [Google Scholar] [CrossRef]
  23. Palmer, S.; van Iersel, M.W. Increasing growth of lettuce and mizuna under sole-source LED lighting using longer photoperiods with the same daily light integral. Agronomy 2020, 10, 1659. [Google Scholar] [CrossRef]
  24. Tsuruyama, J.; Shibuya, T. Growth and flowering responses of seed-propagated strawberry seedlings to different photoperiods in controlled environment chambers. Hort. Technol. 2018, 28, 453–458. [Google Scholar] [CrossRef]
  25. Morrow, R.C. LED lighting in horticulture. Hort. Sci. 2008, 43, 1947–1950. [Google Scholar] [CrossRef] [Green Version]
  26. Hernández, R.; Kubota, C. Tomato seedling growth and morphological responses to supplemental LED lighting red:blue ratios under varied daily solar light integrals. Acta Hort. 2012, 956, 187–194. [Google Scholar] [CrossRef]
  27. Mitchell, C.A.; Dzakovich, M.P.; Gomez, C.; Lopez, R.; Burr, J.F.; Hernández, R.; Kubota, C.; Currey, C.J.; Meng, Q.W.; Runkle, E.S.; et al. Light-emitting diodes in horticulture. In Horticultural Reviews; Janick, J., Ed.; John Wiley & Sons Inc.: London, UK, 2015; pp. 6–8. [Google Scholar]
  28. Piovene, C.; Orsini, F.; Bosi, S.; Sanoubar, R.; Bregola, V.; Dinelli, G.; Gianquinto, G. Optimal red:blue ratio in led lighting for nutraceutical indoor horticulture. Sci. Hortic. 2015, 193, 202–208. [Google Scholar] [CrossRef]
  29. Bantis, F.; Koukounaras, A.; Siomos, A.S.; Radoglou, K.; Dangitsis, C. Optimal LED wavelength composition for the production of high-quality watermelon and interspecific squash seedlings used for grafting. Agronomy 2019, 9, 870. [Google Scholar] [CrossRef] [Green Version]
  30. Dyśko, J.; Kaniszewski, S. Effects of LED and HPS lighting on the growth, seedling morphology and yield of greenhouse tomatoes and cucumbers. Hortic. Sci. 2021, 48, 22–29. [Google Scholar] [CrossRef]
  31. Choong, T.W.; He, J.; Qin, L.; Lee, S.K. Quality of supplementary LED lighting effects on growth and photosynthesis of two different Lactuca recombinant inbred lines (RILs) grown in a tropical greenhouse. Photosynthetica 2018, 56, 1278–1286. [Google Scholar] [CrossRef]
  32. Hammock, H.A.; Kopsell, D.A.; Sams, C.E. Supplementary blue and red LED narrowband wavelengths improve biomass yield and nutrient uptake in hydroponically grown basil. Hort. Sci. 2020, 55, 1888–1897. [Google Scholar] [CrossRef]
  33. Liu, H.; Fu, Y.M.; Hu, D.W.; Yu, J.; Liu, H. Effect of green, yellow and purple radiation on biomass, photosynthesis, morphology and soluble sugar content of leafy lettuce via spectral wavebands “knock out”. Sci. Hortic. 2018, 236, 10–17. [Google Scholar] [CrossRef]
  34. Zhang, G.; Shen, Y.Q.; Takagaki, M.; Kozai, T.; Yamori, W. Supplemental upward lighting from underneath to obtain higher marketable lettuce (Lactuca sativa) leaf fresh weight by retarding senescence of outer leaves. Front. Plant Sci. 2015, 6, 1110. [Google Scholar] [CrossRef] [Green Version]
  35. Yang, X.L.; Xu, H.; Shao, L.; Li, T.L.; Wang, Y.Z.; Wang, R. Response of photosynthetic capacity of tomato leaves to different LED light wavelength. Environ. Exp. Bot. 2018, 150, 161–171. [Google Scholar] [CrossRef]
  36. Xu, L.J. Effects of Artificial Lighting Environment on Growth of Pepper and Cucumber Transplant. Master’s Thesis, China Agricultural University, Beijing, China, 2015; pp. 41–58. [Google Scholar]
  37. Han, S.Q.; Wang, X.F.; Wei, M.; Li, Y. Study of plug seedling index if sweet pepper and relationship between seedling index and characters. J. Shandong Agric. Univ. 2004, 35, 187–190. [Google Scholar]
  38. Li, H.S. Principle and Technology of Plant Physiological and Biochemical Experiments; Higher Education Press: Beijing, China, 2003; pp. 119–120. [Google Scholar]
  39. Updegraff, D.M. Semi-micro determination of cellulose in biological materials. Anal. Biochem. 1969, 32, 420–424. [Google Scholar] [CrossRef]
  40. Giannopolitis, C.N.; Ries, S.K. Superoxide dismutase I. Occurrences in higher plants. Plant Physiol. 1977, 59, 309–414. [Google Scholar] [CrossRef]
  41. Aebi, H. Catalase in vitro. Method. Enzymol. 1984, 105, 121–126. [Google Scholar]
  42. Weaver, G.; van Iersel, M.W. Longer photoperiods with adaptive lighting control can improve growth of greenhouse-grown ‘Little Gem’ lettuce (Lactuca sativa). Hort. Sci. 2020, 55, 573–580. [Google Scholar] [CrossRef] [Green Version]
  43. Elkins, C.; van Iersel, M.W. Longer photoperiods with the same daily light integral improve growth of Rudbeckia seedlings in a greenhouse. Hort. Sci. 2020, 55, 1676–1682. [Google Scholar] [CrossRef]
  44. Langton, F.A.; Adams, S.R.; Cockshull, K.E. Effects of photoperiod on leaf greenness of four bedding plant species. J. Hort. Sci. Biotechnol. 2003, 78, 400–404. [Google Scholar] [CrossRef]
  45. Ni, Y.W.; Lin, K.H.; Chen, K.H.; Wu, C.W.; Chang, Y.S. Flavonoid compounds and photosynthesis in Passiflora plant leaves under varying light intensities. Plants. 2020, 9, 633. [Google Scholar] [CrossRef]
  46. Colonna, E.; Rouphael, Y.; Barbieri, G.; Pascale, S.D. Nutritional quality of ten leafy vegetables harvested at two light intensities. Food Chem. 2016, 199, 702–710. [Google Scholar] [CrossRef]
  47. Fu, Y.M.; Li, H.Y.; Yu, J.; Liu, H.; Cao, Z.Y.; Manukovskyd, N.S.; Liu, H. Interaction effects of light intensity and nitrogen concentration ongrowth, photosynthetic characteristics and quality of lettuce (Lactuca sativa L. Var. youmaicai). Sci. Hortic. 2017, 214, 51–57. [Google Scholar] [CrossRef]
  48. Zheng, J.F.; He, D.X.; Ji, F. Effects of light intensity and photoperiod on runner plant propagation of hydroponic strawberry transplants under LED lighting. Int. J. Agric. Biol. Eng. 2019, 12, 26–31. [Google Scholar] [CrossRef]
  49. Zheng, J.F.; Ji, F.; He, D.X.; Niu, G. Effect of light intensity on rooting and growth of hydroponic strawberry runner plants in a LED plant factory. Agronomy 2019, 9, 875. [Google Scholar] [CrossRef] [Green Version]
  50. Zhen, S.Y.; van Iersel, M.W. Photochemical acclimation of three contrasting species to different light levels: Implications for optimizing supplemental lighting. J. Am. Soc. Hort. Sci. 2017, 142, 346–354. [Google Scholar] [CrossRef] [Green Version]
  51. Dou, H.J.; Niu, G.; Gu, M.M.; Masabni, J.G. Responses of sweet basil to different daily light integrals in photosynthesis, morphology, yield, and nutritional quality. Hort. Sci. 2018, 53, 496–503. [Google Scholar] [CrossRef]
  52. Park, Y.; Runkle, E.S. Far-red radiation promotes growth of seedlings by increasing leaf expansion and whole-plant net assimilation. Environ. Exp. Bot. 2017, 136, 41–49. [Google Scholar] [CrossRef] [Green Version]
  53. Song, J.L.; Huang, H.; Song, S.W.; Zhang, Y.T.; Su, W.; Liu, H.C. Effects of photoperiod interacted with nutrient solution concentration on nutritional quality and antioxidant and mineral content in lettuce. Agronomy 2020, 10, 920. [Google Scholar] [CrossRef]
  54. Fan, X.X.; Xu, Z.G.; Liu, X.Y.; Tang, C.M.; Wang, L.W.; Han, X.L. Effects of light intensity on the growth and leaf development of young tomato plants grown under a combination of red and blue light. Sci. Hortic. 2013, 153, 50–55. [Google Scholar] [CrossRef]
  55. Pennisi, G.; Pistillo, A.; Orsini, F.; Cellini, A.; Spinelli, F.; Nicola, S.; Fernandez, J.A.; Crepaldi, A.; Gianquinto, G.; Marcelis, L.F.M. Optimal light intensity for sustainable water and energy use in indoor cultivation of lettuce and basil under red and blue LEDs. Sci. Hortic. 2020, 272, 109508. [Google Scholar] [CrossRef]
  56. Kwon, S.J.; Kim, H.R.; Roy, S.K.; Kim, H.J.; Boo, H.O.; Woo, S.H.; Kim, H.H. Effects of temperature, light intensity and DIF on growth characteristics in Platycodon grandiflorum. J. Crop Sci. Biotech. 2019, 22, 379–386. [Google Scholar] [CrossRef]
  57. Sevillano, I.; Short, I.; Grant, J.; O’Reilly, C. Effects of light availability on morphology, growth and biomass allocation of Fagus sylvatica and Quercus robur seedlings. For. Ecol. Manag. 2016, 374, 11–19. [Google Scholar] [CrossRef] [Green Version]
  58. Li, S.; Zhou, L.; Wu, S.; Liu, L.; Huang, M.; Lin, S.; Ding, G. Effects of led light on Acacia melanoxylon bud proliferation in vitro and root growth ex vitro. Open Life Sci. 2019, 14, 349–357. [Google Scholar] [CrossRef]
  59. Xu, Y.; Liang, Y.; Yang, M. Effects of composite led light on root growth and antioxidant capacity of Cunninghamia lanceolata tissue culture seedlings. Sci. Rep. 2019, 9, 9766. [Google Scholar] [CrossRef] [PubMed]
  60. Liu, W.G.; Deng, Y.C.; Hussain, S.; Zou, J.L.; Yuan, J.; Luo, L.; Yang, C.Y.; Yuan, X.Q.; Yang, W.Y. Relationship between cellulose accumulation and lodging resistance in the stem of relay intercropped soybean [Glycine max (L.) men.]. Field Crop. Res. 2016, 196, 261–267. [Google Scholar] [CrossRef]
  61. Hu, H.Z.; Zhang, R.; Feng, S.Q.; Wang, Y.M.; Wang, Y.T.; Fan, C.F.; Li, Y.; Liu, Z.Y.; Schneider, R.; Xia, T.; et al. Three AtCesA6-like members enhance biomass production by distinctively promoting cell growth in Arabidopsis. Plant Biotechnol. J. 2018, 16, 976–988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Xia, H.Y.; Wang, Z.G.; Zhao, J.H.; Sun, J.H.; Bao, X.G.; Christie, P.; Zhang, F.S.; Li, L. Contribution of interspecific interactions and phosphorus application to sustainable and productive intercropping systems. Field Crops Res. 2013, 154, 53–64. [Google Scholar] [CrossRef]
  63. Shu, S.; Tang, Y.; Yuan, Y.; Sun, J.; Zhong, M.; Guo, S. The role of 24-epibrassinolide in the regulation of photosynthetic characteristics and nitrogen metabolism of tomato seedlings under a combined low temperature and weak light stress. Plant Physiol. Biochem. 2016, 107, 344–353. [Google Scholar] [CrossRef]
  64. Aumonde, T.Z.; Pedó, T.; Borella, J. Seed vigor, antioxidant metabolism and initial growth characteristics of red rice seedlings under different light intensities. Acta Bot. Bras. 2013, 27, 311–317. [Google Scholar] [CrossRef] [Green Version]
  65. Zhang, X.L.; Jia, X.F.; Yu, B. Exogenous hydrogen peroxide influences antioxidant enzyme activity and lipid peroxidation in cucumber leaves at low light. Sci. Hortic. 2011, 129, 656–662. [Google Scholar] [CrossRef]
  66. Gong, J.; Liu, M.; Xu, S. Effects of light deficiency on the accumulation of saikosaponins and the ecophysiological characteristics of wild Bupleurum chinense DC. in China. Ind. Crop Prod. 2017, 99, 179–188. [Google Scholar] [CrossRef]
  67. Zhang, Y.T.; Dong, H.; Song, S.W.; Su, W.; Liu, H.C. Morphological and physiological responses of cucumber seedlings to supplemental LED light under extremely low irradiance. Agronomy 2020, 10, 1698. [Google Scholar] [CrossRef]
  68. Zrig, A.; Tounekti, T.; AbdElgawad, H.; Hamouda, F.; Khemira, H. Influence of light intensity and salinity on growth and antioxidant machinery of Thymus vulgaris L. Indian J. Exp. Biol. 2020, 58, 323–335. [Google Scholar]
  69. Altaf, M.A.; Shahid, R.; Ren, M.X.; Altaf, M.M.; Khan, L.U.; Shahid, S.; Jahan, M.S. Melatonin alleviates salt damage in tomato seedling: A root architecture system, photosynthetic capacity, ion homeostasis, and antioxidant enzymes analysis. Sci. Hortic. 2021, 285, 110145. [Google Scholar] [CrossRef]
  70. Tian, S.; Guo, R.; Zou, X.; Zhang, X.; Yu, X.; Zhan, Y.; Ci, D.; Wang, M.; Wang, Y.; Si, T. Priming with the green leaf volatile (Z)-3-Hexeny-1-yl acetate enhances salinity stress tolerance in peanut (Arachis hypogaea L.) seedlings. Front. Plant Sci. 2019, 10, 785. [Google Scholar] [CrossRef]
  71. Lu, T.; Meng, Z.; Zhang, G.; Qi, M.; Sun, Z.; Liu, Y.; Li, T. Sub-high Temperature and high light intensity induced irreversible inhibition on photosynthesis system of tomato plant (Solanum lycopersicum L.). Front. Plant Sci. 2017, 8, 365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. An, S.; Hwang, H.; Chun, C.; Jang, Y.; Lee, H.J.; Wi, S.H.; Yeo, K.H.; Yu, I.; Kwack, Y. Evaluation of air temperature, photoperiod and light intensity conditions to produce cucumber scions and rootstocks in a plant factory with artificial lighting. Horticulturae 2021, 7, 102. [Google Scholar] [CrossRef]
Horticulturae 07 00361 g001 550

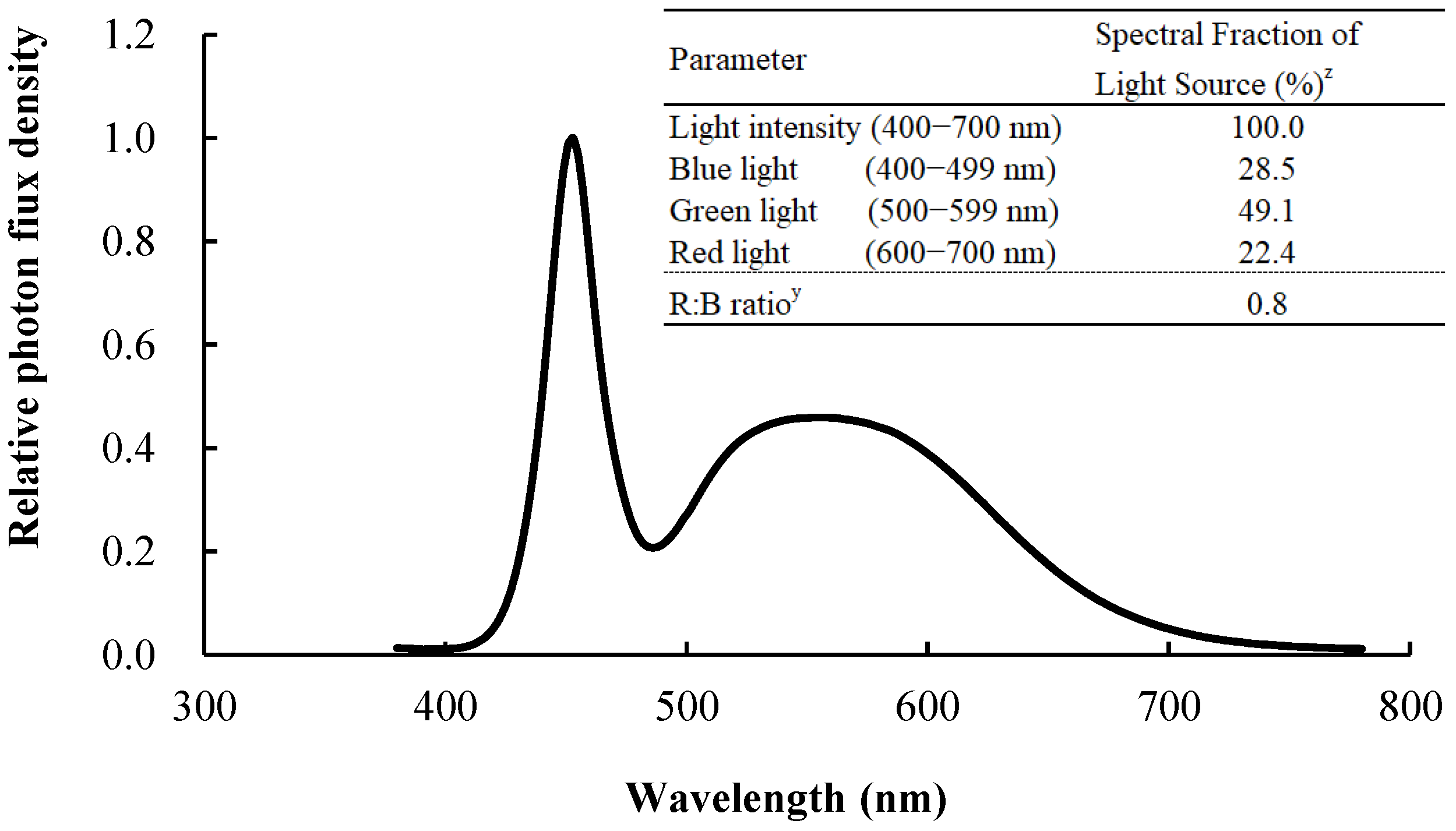

Figure 1. Relative photon flux density of the supplementary light source (white light emitting-diodes) used in the experiment. z Data are photon flux-based fractions of blue, green, and red lights. y R:B ratio, red light to blue light ratio.
Figure 1. Relative photon flux density of the supplementary light source (white light emitting-diodes) used in the experiment. z Data are photon flux-based fractions of blue, green, and red lights. y R:B ratio, red light to blue light ratio.
Horticulturae 07 00361 g001
Horticulturae 07 00361 g002 550

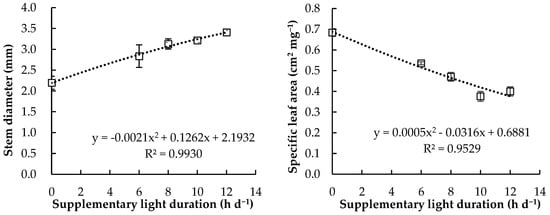

Figure 2. Relationships between supplementary light duration with the same daily light integral and morphological characteristics of cucumber seedlings grown in the greenhouse for 21 days after sowing.
Figure 2. Relationships between supplementary light duration with the same daily light integral and morphological characteristics of cucumber seedlings grown in the greenhouse for 21 days after sowing.
Horticulturae 07 00361 g002
Horticulturae 07 00361 g003 550

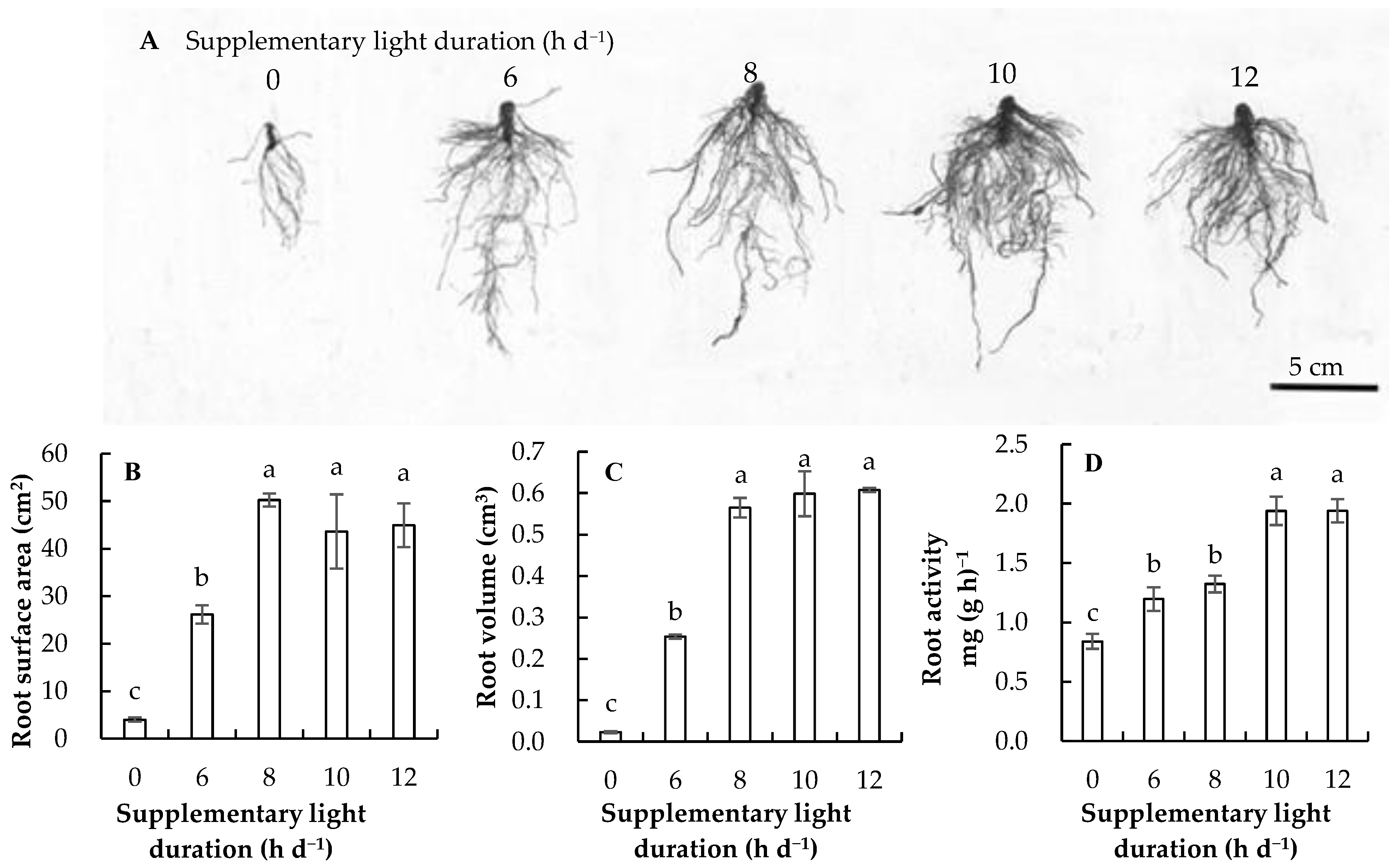

Figure 3. Effects of supplementary light duration with same daily light integral on root morphology and root activity of cucumber seedlings grown in the greenhouse for 21 days after sowing. (A) One representative picture was shown for each treatment, (B) root surface area, (C) root volume, and (D) root activity. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Figure 3. Effects of supplementary light duration with same daily light integral on root morphology and root activity of cucumber seedlings grown in the greenhouse for 21 days after sowing. (A) One representative picture was shown for each treatment, (B) root surface area, (C) root volume, and (D) root activity. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Horticulturae 07 00361 g003
Horticulturae 07 00361 g004 550
Figure 4. Effects of supplementary light duration with the same daily light integral on stem firmness and cellulose content of cucumber seedlings grown in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Figure 4. Effects of supplementary light duration with the same daily light integral on stem firmness and cellulose content of cucumber seedlings grown in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Horticulturae 07 00361 g004
Horticulturae 07 00361 g005 550

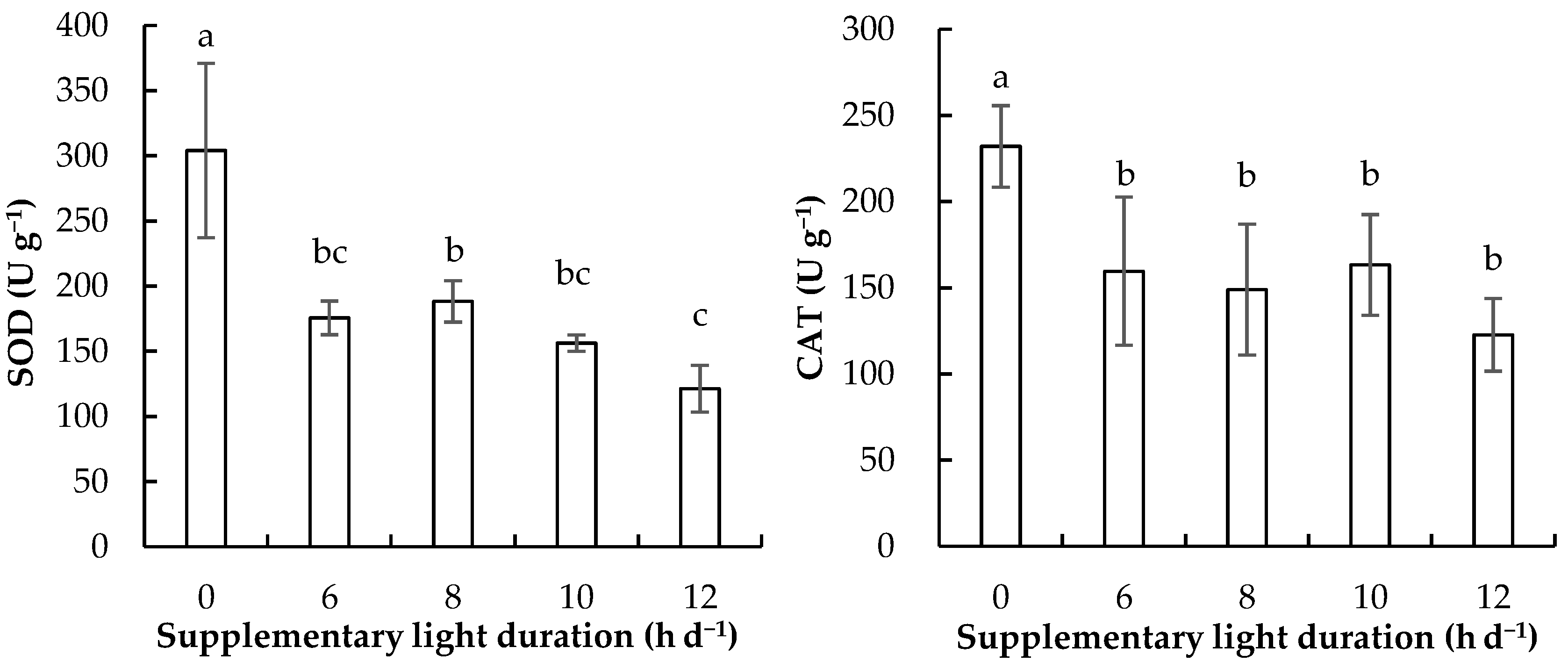

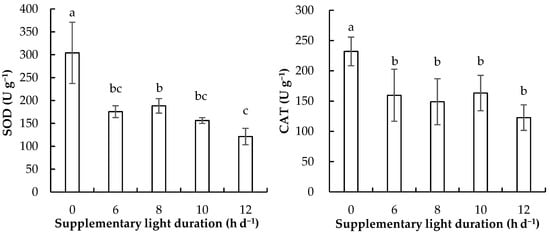

Figure 5. Effects of supplementary light duration with the same daily light integral on the activities of superoxide dismutase (SOD) and catalase (CAT) of cucumber seedlings grown in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Figure 5. Effects of supplementary light duration with the same daily light integral on the activities of superoxide dismutase (SOD) and catalase (CAT) of cucumber seedlings grown in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Horticulturae 07 00361 g005
Horticulturae 07 00361 g006 550

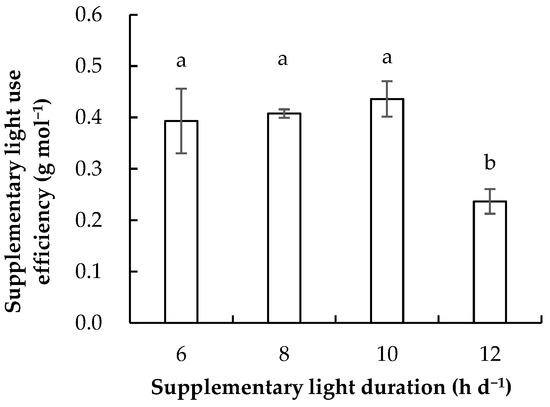

Figure 6. Supplementary light use efficiency of cucumber seedlings grown with light duration at 6, 8, 10, and 12 h d−1 with the same daily light integral in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Figure 6. Supplementary light use efficiency of cucumber seedlings grown with light duration at 6, 8, 10, and 12 h d−1 with the same daily light integral in the greenhouse for 21 days after sowing. Means followed by different letters within each parameter are significantly different based on the least significant difference (LSD) test (p < 0.05). Error bars show mean ± standard deviation.
Horticulturae 07 00361 g006
Table
Table 1. Photosynthetic characteristics of cucumber seedlings grown in the greenhouse for 21 days after sowing as affected by supplementary light-emitting-diodes with light duration at 0, 6, 8, 10, and 12 h d−1 with the same daily light integral.
Table 1. Photosynthetic characteristics of cucumber seedlings grown in the greenhouse for 21 days after sowing as affected by supplementary light-emitting-diodes with light duration at 0, 6, 8, 10, and 12 h d−1 with the same daily light integral.
Supplementary Light Duration
(h·d−1)		Chlorophyll Content (SPAD)Net
Photosynthetic
Rate (μmol·m−2·s−1)		Transpiration Rate
(mmol·m−2·s−1)		Substomatal CO2
Concentration
(μmol·mol−1)		Stomatal
Conductance
(mmol·m−2·s−1)
044.6 ± 2.7c z3.5 ± 0.4d0.39 ± 0.01c187 ± 18c27.9 ± 0.8c
649.6 ± 5.8b6.0 ± 0.6c0.68 ± 0.06b220 ± 12b58.4 ± 1.7b
852.7 ± 1.2ab6.8 ± 0.3b1.14 ± 0.18a267 ± 24a97.4 ± 17.6a
1053.6 ± 3.0ab7.9 ± 0.4a1.05 ± 0.14a238 ± 13ab89.8 ± 12.7a
1256.1 ± 0.9a6.8 ± 0.4b0.76 ± 0.09b193 ± 17bc58.1 ± 9.1b
z Different letters in the same column indicate significant differences based on the least significant difference (LSD) test at p < 0.05.
Table
Table 2. Growth and morphological properties of greenhouse-grown cucumber seedlings with supplementary light duration at 0, 6, 8, 10, and 12 h d−1 with the same daily light integral provided by light-emitting diodes.
Table 2. Growth and morphological properties of greenhouse-grown cucumber seedlings with supplementary light duration at 0, 6, 8, 10, and 12 h d−1 with the same daily light integral provided by light-emitting diodes.
Supplementary Light Duration
(h d−1)		Leaf Length
(cm)		Leaf Width
(cm)		Shoot Fresh Weight (g plant−1)Root Fresh Weight (g plant−1)Shoot Dry Weight (g plant−1)Root Dry Weight (g plant−1)Seedling Quality
Index
05.9 ± 0.4c z5.4 ± 0.5d0.96 ± 0.05c0.040 ± 0.004e0.073 ± 0.008d0.002 ± 0.001d0.011 ± 0.001e
67.6 ± 0.1b7.3 ± 0.6c2.97 ± 0.18b0.312 ± 0.031d0.271 ± 0.016c0.018 ± 0.002c0.027 ± 0.002d
87.7 ± 0.5b8.1 ± 0.3b3.22 ± 0.25b0.645 ± 0.049c0.315 ± 0.004ab0.046 ± 0.005b0.061 ± 0.004c
109.0 ± 0.1a9.2 ± 0.3a4.53 ± 0.26a1.191 ± 0.131a0.336 ± 0.032a0.064 ± 0.004a0.091 ± 0.005a
128.1 ± 0.4b8.0 ± 0.4b4.09 ± 0.44a0.769 ± 0.037b0.298 ± 0.011b0.048 ± 0.002b0.070 ± 0.002b
z Different letters in the same column indicate significant differences based on the least significant difference (LSD) test at p < 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yan, Z.; Wang, L.; Wang, Y.; Chu, Y.; Lin, D.; Yang, Y. Morphological and Physiological Properties of Greenhouse-Grown Cucumber Seedlings as Influenced by Supplementary Light-Emitting Diodes with Same Daily Light Integral. Horticulturae 2021, 7, 361. https://doi.org/10.3390/horticulturae7100361

AMA Style

Yan Z, Wang L, Wang Y, Chu Y, Lin D, Yang Y. Morphological and Physiological Properties of Greenhouse-Grown Cucumber Seedlings as Influenced by Supplementary Light-Emitting Diodes with Same Daily Light Integral. Horticulturae. 2021; 7(10):361. https://doi.org/10.3390/horticulturae7100361

Chicago/Turabian Style

Yan, Zhengnan, Long Wang, Yifei Wang, Yangyang Chu, Duo Lin, and Yanjie Yang. 2021. "Morphological and Physiological Properties of Greenhouse-Grown Cucumber Seedlings as Influenced by Supplementary Light-Emitting Diodes with Same Daily Light Integral" Horticulturae 7, no. 10: 361. https://doi.org/10.3390/horticulturae7100361

APA Style

Yan, Z., Wang, L., Wang, Y., Chu, Y., Lin, D., & Yang, Y. (2021). Morphological and Physiological Properties of Greenhouse-Grown Cucumber Seedlings as Influenced by Supplementary Light-Emitting Diodes with Same Daily Light Integral. Horticulturae, 7(10), 361. https://doi.org/10.3390/horticulturae7100361

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
