Comparison of the Activity of 3D Binary or Ternary Cobalt Coatings for Hydrogen and Oxygen Evolution Reactions

by
Zita Sukackienė
,
Aldona Balčiūnaitė
*,
Virginija Kepenienė
,
Jūratė Vaičiūnienė
,
Giedrius Stalnionis
,
Vidas Pakštas
,
Loreta Tamašauskaitė-Tamašiūnaitė
and
Eugenijus Norkus
*
Center for Physical Sciences and Technology (FTMC), Saulėtekio Ave. 3, LT-10257 Vilnius, Lithuania
*
Authors to whom correspondence should be addressed.
Batteries 2022, 8(9), 129; https://doi.org/10.3390/batteries8090129
Submission received: 18 July 2022 / Revised: 31 August 2022 / Accepted: 15 September 2022 / Published: 19 September 2022
(This article belongs to the Section Battery Materials and Interfaces: Anode, Cathode, Separators and Electrolytes or Others)
Browse Figures
Versions Notes

Abstract

:
In this study, cobalt-nickel (Co-Ni), cobalt-iron (Co-Fe), cobalt-iron-manganese (Co-Fe-Mn), cobalt-iron-molybdenum (Co-Fe-Mo), and cobalt-zinc (Co-Zn) coatings were studied as catalysts towards the evolution of hydrogen (HER) and oxygen (OER). The binary and ternary Co coatings were deposited on a copper surface using the electroless metal plating technique and morpholine borane (MB) as a reducing agent. The as-deposited Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings produce compact and crack-free layers with typical globular morphology. It was found that the Co-Fe-Mo coating gives the lowest overpotential of 128.0 mV for the HER and the lowest overpotential of 455 mV for the OER to achieve a current density of 10 mA cm−2. The HER and OER current density values increase 1.4–2.0 times with an increase in temperature from 25 °C to 55 °C using the prepared 3D binary or ternary cobalt coatings for HER and OER. The highest mass electrocatalytic activity of 1.55 mA µg−1 for HER and 2.72 mA µg−1 for OER was achieved on the Co-Fe coating with a metal loading of 28.11 µg cm−2 at 25 °C.

1. Introduction

Population growth leads to the depletion of natural resources, which is causing an energy crisis. This problem has attracted a lot of attention for producing new and promising alternatives. Electrochemical water splitting is one of the alternative methods that can be used to solve energy problems due to its safety, cleanliness, and simplicity of the process [1,2]. Produced hydrogen (H2) from electrochemical water splitting is like green energy; it does not involve carbon and can keep a greater energy capacity. As such, it can be seen as the up-and-coming nominee for a potential energy resource [3,4,5,6,7,8]. Hydrogen obtained using electrochemical water splitting is especially clean compared to hydrogen produced by the steam reforming process, and it is one of the most desirable alternatives to fossil fuels [9].
For more than half a century, many researchers have been looking for novel effective materials to produce H2 from water-splitting electrolysis. Noble metals, such as Pt, Au, Ru, and Pd, have been shown to have good electrocatalytic activity in water-splitting reactions. The noble metals have available empty d orbitals and enhance the electric properties, such as high electric current and electrons mobility, leading to increasing H2 evolution. However, noble metal catalysts are rare and expensive. For this reason, researchers tend to focus on cheaper alternatives to replace noble metal catalysts. Up to now, many water-splitting catalysts have been developed, such as transition metals [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27], metal-oxides [13,16,17], metal-nitrides [19,20,23,24], metal–sulfides [10,11,12,18], metal–hydroxides [28,29,30], and alloys [31,32,33,34,35,36]. Many catalysts have been investigated, and researchers are still looking for catalyst fabrication methods to increase the catalyst activity for HER and OER. For example, researchers currently are designing special coatings to expose more active sites by using a conductive substrate to increase the overall conductivity, doping some atoms to optimize the structure of the active center, and performing electrochemical activation to construct a new active phase. These works mainly aim to find more active catalysts for water-splitting electroactivity.
As mentioned above, electrochemical water–splitting can be performed by two half–reactions: HER at the cathode [37] and OER at the anode [38]. The HER is based on the formation of H2 molecules on the cathode in acidic or alkaline solutions. In general, there are three steps for H2 production from water splitting in an alkaline solution (Equations (1)–(3)):
M + H2O + e− ↔ MHads + OH− (Volmer reaction, b ~ 120 mV dec−1)
MHads + H2O + e− ↔ H2 + M + OH− (Heyrovsky reaction, b ~ 40 mV dec−1)
MHads + MHads ↔ H2 + 2M (Tafel reaction, b ~ 30 mV dec−1)
The first step is called the Volmer reaction, which is for water molecules or H2 to adsorb onto an electrode to generate MHads species (Equation (1)), and the next is to generate H2 gas through the Heyrovsky or Tafel step (Equations (2) and (3)).
Another OER reaction occurring on the anode also needs effective and low-cost catalysts. Many researchers have focused on developing and designing catalysts with high activity, examining their long-term stability in alkaline environments. Usually, the OER process involves a complex four-electron-proton coupling reaction. Thus, OER requires a larger overpotential, which leads to OER being a key step in water splitting [39,40].
It is known that noble metals are the most efficient metal catalysts, showing excellent catalytic performance in producing high cathodic and anodic currents in acidic or alkaline electrochemical water splitting. Many researchers have focused on developing novel alternative catalysts that are cheaper and more abundant than noble metals. In this context, cobalt (Co) binary and ternary coatings with metals such as nickel (Ni), zinc (Zn), iron (Fe), manganese (Mn), tungsten (W), and molybdenum (Mo) have been investigated for their suitability as electrode material for electrochemical water splitting, i.e., HER and OER, or for both [35,38,41,42,43,44,45,46,47]. They are potential candidates with the extra benefit of low cost in manufacturing. It was demonstrated that binary or ternary coatings have high efficiency for water-splitting reactions as electrocatalysts [47]. Despite some significant breakthroughs, we still have many challenges to overcome in the future (descriptors of catalytic activity in alkaline solution; many substances have an amorphous structure which needs to change to crystalline, which shows better catalytic activity; deactivation of catalysts and other problems). Accordingly, we investigated the possibilities of using the binary and ternary Co coatings, i.e., Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn, deposited on the copper (Cu) substrate using a low-cost electroless metal plating method as electrocatalysts for HER and OER.

2. Results and Discussion

2.1. Characterization of Coatings

In this study, 3D binary or ternary cobalt coatings (Co-Ni, Co-Fe, Co-Zn, Co-Fe-Mn, and Co-Fe-Mo) were evaluated as electrocatalysts for HER and OER in an alkaline medium. These Co-based coatings were plated on a Cu surface using an electroless metal deposition technique and morpholine borane (MB) as a reducing agent. The coatings’ surface morphology was studied by scanning electron microscopy. Figure 1 shows SEM images of the prepared Co-Ni (a), Co-Fe (b), Co-Fe-Mn (c), Co-Fe-Mo (d), and Co-Zn (e) coatings under different magnifications. The surface morphology of coatings is observed to be compact and crack-free (Figure 1a–e). The top side views of Co coatings in Figure 1a–e show a typical globular morphology consisting of larger nodulus in the average size range of ca. 1.2–1.4, 0.6–1.0, 0.8–1.2, 1.2–1.4, and 0.8–1.0 μm for Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn, respectively, while the ones consisting of smaller nodulus are in size range of ca. 0.08–0.17 μm.
The data of ICP-OES analysis of deposited Co binary and ternary coatings are given in Table 1. The Co coatings were prepared with different amounts of Co. The amount of Co in the Co-Ni and Co-Fe coatings was ca. 47 and 42 at.%, respectively, whereas in the Co-Zn coating, the Co amount is significantly higher and reaches ca. 94 at.%. In the case of Co-Fe-Mn and Co-Fe-Mo coatings, the amount of Co significantly differs and is equal to ca. 28 and 86 at.%, respectively. The same observation was seen for the Fe amount in those coatings. A higher amount of ca. 71 at.% of Fe was deposited in the Co-Fe-Mn coating, and only ca. 8 at.% of Fe was incorporated in the Co-Fe-Mo coating. Additionally, the amounts of Mn and Mo of ca. 1 and 6 at.% were incorporated in the Co-Fe-Mn and Co-Fe-Mo coatings.
The total metals loadings (µg cm−2) in the prepared coatings were also quite different, varying from 28 up to 868 µg cm−2. Fe ions were found to limit the rate of the electroless deposition of the Co-Fe and Co-Fe-Mn coatings. In the case of Co-Fe-Mo, the addition of Mo(VI) ions into the plating solution increases the coating deposition rate, but the concentration of Mo(VI) ions should be low (~1 mM).
The structure of Co binary and ternary coatings was evaluated using X-ray diffraction. XRD patterns of Co binary and ternary coatings were deposited on a Cu substrate with a cubic structure (ICDD #00-004-0836). Cu peaks at 2θ = 43.3° (111 planes), 50.43° (200), and 74.13° (220) are seen in all XRD patterns (Figure 2).
It can be stated that the crystalline peaks for Co-Fe and Co-Fe-Mn are not seen in the corresponding XRD patterns (Figure 2a). Since the electroless deposition of Co-Fe solid solution on the Cu substrate is slow, the hydrogen released during the process can lead to the formation of unstable CuH, which decomposes over time (or heating) [48]. The possible formation of CuH interfered with the formation of the Co-Fe solid solution. In the XRD pattern for the as-deposited Co-Fe coating (Figure 2c), a broad XRD peak at 40.5° related to the formation of CuH (ICDD #04-021-7878) is visible. After recording the XRD pattern for the same sample after two weeks of exposure, the mentioned peak can no longer be detected, which confirms the unstable CuH compound’s possible formation during the Co-Fe coating’s electroless deposition. Moreover, the shift of the Cu (220) peak in the XRD pattern for Co-Fe coating (Figure 2a) is likely due to the roughness of the Cu substrate. Regarding the XRD patterns recorded by the grazing incidence X-ray diffraction method (grazing incidence angle = 0.5 deg.), peaks of Cu (220) may have appeared due to the non-ideal smooth/flat surface of the Cu base (the shifts are especially evident at larger 2θ angles). Co-Fe and Co-Fe-Mn coatings are very thin, so the shift of peak is not affected by the Cu surface (especially at large 2θ angles). Notably, Cu substrate peaks are not intense in the XRD patterns for Co-Zn, Co-Fe-Mo, and Co-Ni (Figure 2b), since the thicker coatings were deposited on the Cu substrate. The XRD peaks at ca. 2θ = 44.5 ° for Co-Zn, Co-Fe-Mo, and Co-Ni coatings are wide, indicating a fine crystallinity (0.5-1.5 nm) of the coatings (Figure 2b). Those peaks can be attributed to consisting of a solid solution of Co with Fe, Zn, or Ni: Co0.75Fe0.25 (ICDD #04-003-3891), Co2.37Zn2.63 (ICDD #01-084-3248), and Co-Ni (ICDD #01-082-3072).

2.2. Electrocatalytic Activity of Coatings for HER

The activity of the prepared catalysts for HER was investigated by recording linear sweep voltammograms (LSVs) in a 1 M KOH solution at a potential scan rate of 5 mV s–1 from open-circuit potential (OCP) up to −0.45 V at a temperature from 25 up to 55 °C (Figure 3).
As evident from LSVs for all studied coatings, the obtained current densities at −0.45 V increase with the increase in temperature. Onset potential (Eonset) values for HER are shifted to more positive potential values with the increase in temperature for Co-Ni coating (Figure 3a). Co-Ni achieved the highest current density (j), followed by Co-Fe-Mo, Co-Zn, and Co-Fe coatings, and then by Co-Fe-Mn with notably lower current density during HER (Figure 3). The current density increases 1.4–2.0 times with an increase in temperature from 25 °C to 55 °C using the prepared different 3D binary or ternary cobalt coatings for HER. For instance, the current densities of −74.08, −73.91, −46.86, −43.56, and −34.88 mA cm−2 were reached at −0.45 V using Co-Ni, Co-Fe-Mo, Co-Zn, Co-Fe, and Co-Fe-Mn coatings, respectively, at 25 °C (Figure 4a and Table 2).
The possible kinetics of HER reaction on the Co-based coatings were investigated using Tafel plots. The Tafel equation (Equation (4)) was used for the determination of the kinetic parameters for the HER:
η = a + blogj,
where η (V), b (V dec−1), j (A cm−2), and a (V) represent the applied overpotential, the Tafel slope, the resulting current density, and the curve intercept, respectively. Tafel slope values were found to be 130, 172, 171, 297, and 178 mV dec–1 (Figure 4b and Table 2) for the prepared 3D structured Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn 3D coatings, respectively, implying that HER might occur through the Volmer–Heyrovsky mechanism. The overpotential to reach a current density of 10 mA cm−2 (η10) was found to be 128.0 mV for Co-Fe-Mo and increased in the order Co-Zn (259.2 mV) < Co-Fe (299.7 mV) < Co-Fe-Mn (306.4 mV) < Co-Ni (324.1 mV) (Table 2).

2.3. Electrocatalytic Activity of Coatings for OER

The activity of the prepared 3D binary or ternary Co coatings for OER was also thoroughly examined in alkaline media (1 M KOH). LSVs were recorded in a 1 M KOH solution at a potential scan rate of 5 mV s–1 from open-circuit potential (OCP) up to +2.05 V vs. RHE in the temperature range of 25–55 °C. OER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings are presented in Figure 5, where it can be observed that the highest current density was achieved for the Co-Fe-Mo coating (Figure 5d).
The current density increases by 1.5–1.9 times with an increase in temperature from 25 °C to 55 °C using the 3D structured Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings for OER. The lowest potential to reach a current density of 10 mA·cm−2 was found for Co-Fe-Mo (1.685 V), followed by a slight increase in the following order: Co-Fe-Mn (1.700 V), Co-Fe (1.737 V), Co-Zn (1.760 V), and Co-Ni (1.760 V) coatings (Table 3). Furthermore, current density values of 50 mA·cm−2 at 25 °C (Figure 6) were attained at potential values increasing in the following order: Co-Fe-Mo (1.887 V) < Co-Fe (1.923 V) < Co-Ni and Co-Fe-Mn (1.952 V) < Co-Zn (2.007 V). OER LSVs (Figure 6a) were then further used for constructing the Tafel plots and calculating the Tafel slope (Figure 6b). The lowest Tafel slope value of 54 mV dec−1 was found for OER at Co-Fe-Mn. Higher values of 77, 77, 81, and 91 mV dec−1 were determined for OER at Co-Fe-Mo, Co-Zn, Co-Ni, and Co-Fe, respectively (Figure 6b and Table 3).
The Co-Fe-Mo coating shows the best electrocatalytic performance for HER and OER among the Co-Ni, Co-Fe, Co-Fe-Mn, and Co-Zn coatings. It only needs 128 and 455 mV to achieve 10 mA cm−2 for HER and OER, respectively, which are significantly lower compared with those for the Co-Fe coating. The addition of Mo to the Co-Fe coating results in higher activity of the Co-Fe-Mo coating compared to pure Co-Fe. This may be related to the multiple synergistic effects among components.
In order to compare the electrocatalytic activity of these Co-based coatings, the current density values were normalized in reference to the metals loadings for each catalyst to represent the mass activity of catalysts towards the HER and OER at a temperature of 25 °C (Figure 7, Table 2 and Table 3). The highest mass electrocatalytic activity for HER (1.55 mA μg−1) and OER (2.72 mA μg−1) shows the Co-Fe coating with a metal loading of 28.11 μg cm–2. Co-Fe-Mo, Co-Ni, and Co-Zn coatings show similar mass activity for both reactions. Co-Fe and Co-Fe-Mn coatings demonstrate ca. 19, 27, and 17 and 12, 16, and 10 times, respectively, higher mass activity for OER than Co-Ni (0.14 mA μg−1), Co-Fe-Mo (0.10 mA μg−1), and Co-Zn (0.16 mA μg−1) coatings (Figure 7b, Table 3). In the case of HER, a higher mass activity was also obtained using Co-Fe and Co-Fe-Mn coatings. Mass activities for HER are ca. 11, 17, and 12 times higher for the Co-Fe coating as compared with those for Co-Ni, Co-Fe-Mo, and Co-Zn, respectively (Figure 7a, Table 2). Furthermore, the Co-Fe-Mn coating also exhibits ca. 6, 10, and 7 times higher mass activity for HER than those for Co-Ni, Co-Fe-Mo, and Co-Zn, respectively (Figure 7a, Table 2).
A comparison of HER and OER current densities generated using herein-tested Co-based coatings in an alkaline medium with some of the transition metal-based electrodes reported in the literature (Table 4 and Table 5) demonstrates that the Co-based coatings exhibit comparable overpotentials and Tafel slopes for HER, but manifest similar or lower overpotentials and Tafel slopes for OER.

3. Materials and Methods

3.1. Preparation of Coatings

Co binary and ternary coatings were deposited on copper (Cu) (1 × 1 cm) sheets using an electroless plating bath containing metal salts, glycine (Gly), sodium acetate (CH3COONa), and morpholine borane (MB) as a reducing agent. For Cu sheet activation prior to deposition of coatings, a PdCl2 solution was used. The cleaned Cu sheets were dipped in a solution containing 0.5 g L−1 PdCl2 for 5 s, rinsed with deionized water, and placed into the plating bath. The composition of the plating bath and the deposition parameters of different 3D binary or ternary Co coatings are shown in Table 6. The plating time was the same for all coatings (30 min), whereas the temperature of plating baths differed for each coating.

3.2. Physical Characterization

The Co coatings surface morphology was characterized with SEM/FIB Workstation Helios Nanolab 650 (FEI, Hillsboro, OR, USA). XRD patterns of coatings were measured using an X-ray diffractometer SmartLab (Rigaku) using a graphite monochromator. The measurements were performed using in grazing incidence (GID) step scan mode (the incidence angle of the primary beam was 0.5°).
The Co coatings composition was analyzed with the spectrometer Optima 7000DV (Perkin Elmer, Waltham, MA, USA).

3.3. Electrochemical Measurements

The activity of Co binary and ternary coatings towards HER and OER was evaluated by linear sweep voltammetry (LSV) using a potentiostat/galvanostat PGSTAT100 (Metrohm Autolab B.V., Utrecht, The Netherlands) and a standard three-electrode electrochemical cell. The prepared 3D binary or ternary Co coatings with a geometric area of 2 cm2 were used as the working electrodes. Counter and reference electrodes were a Pt sheet and Ag/AgCl/KCl (3 M KCl) electrode, respectively. LSVs were recorded using an N2-saturated 1 M KOH solution at the temperature range from 25 °C to 55 °C at a potential scan rate of 5 mV s−1. The current densities were normalized by the geometric area of the electrodes.

4. Conclusions

The electroless metal deposition has been used for the plating of the 3D binary or ternary cobalt coatings on a copper surface. The surface morphology of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings is compact and crack-free, with typical globular morphology. The electroactivity of the prepared coatings towards the hydrogen and oxygen evolution has been investigated in alkaline media. The lowest overpotential for the HER to reach a current density of 10 mA cm−2 has been found to be 128.0 mV for the Co-Fe-Mo coating. Furthermore, the lowest overpotential of 455 mV for the OER to reach 10 mA cm−2 also gives the Co-Fe-Mo coating. On the other hand, adding Mo to the Co-Fe coating results in higher activity of the Co-Fe-Mo coating compared to pure Co-Fe.
The current density increases 1.4–2.0 times with an increase in temperature from 25 °C to 55 °C using the prepared 3D binary or ternary cobalt coatings for HER and OER. The highest mass electrocatalytic activity of 1.55 mA µg−1 for HER and 2.72 mA µg−1 for OER has been achieved on the Co-Fe coating with a metal loading of 28.11 µg cm–2 at 25 °C.

Author Contributions

Conceptualization, Z.S., A.B., and E.N.; methodology, J.V., G.S., and V.P.; formal analysis, J.V., G.S., and V.P.; investigation, Z.S., A.B., and V.K.; writing—original draft preparation, A.B. and Z.S.; writing—review and editing, L.T.-T. and E.N.; visualization, V.K. and L.T.-T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Social Fund under Measure No. 09.3.3-LMT-K-712-19-0138 ‘Development of Competences of Scientists, other Researchers and Students through Practical Research Activities’.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shi, H.; Zhou, Y.T.; Yao, R.Q.; Wan, W.B.; Ge, X.; Zhang, W.; Wen, Z.; Lang, X.Y.; Zheng, W.T.; Jiang, Q. Spontaneously separated intermetallic Co3Mo from nanoporous copper as versatile electrocatalysts for highly efficient water splitting. Nat. Commun. 2020, 11, 1–10. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, H.; Lee, H.W.; Deng, Y.; Lu, Z.; Hsu, P.C.; Liu, Y.; Lin, D.; Cui, Y. Bifunctional non-noble metal oxide nanoparticle electrocatalysts through lithium-induced conversion for overall water splitting. Nat. Commun. 2015, 6, 1–8. [Google Scholar] [CrossRef] [PubMed]
  3. Jiao, Y.; Zheng, Y.; Jaroniec, M.; Qiao, S.Z. Design of electrocatalysts for oxygen-and hydrogen-involving energy conversion reactions. Chem. Soc. Rev. 2015, 44, 2060–2086. [Google Scholar] [CrossRef] [PubMed]
  4. Ali, M.; Pervaiz, E.; Noor, T.; Rabi, O.; Zahra, R.; Yang, M. Recent advancements in MOF-based catalysts for applications in electrochemical and photoelectrochemical water splitting: A review. Int. J. Energy Res. 2021, 45, 1190–1226. [Google Scholar] [CrossRef]
  5. Lubitz, W.; Tumas, W. Hydrogen: An Overview. Chem. Rev. 2007, 107, 3900–3903. [Google Scholar] [CrossRef]
  6. Zhang, Z.; Cong, L.; Yu, Z.; Qu, L.; Huang, W. Facile synthesis of Fe–Ni bimetallic N-doped carbon framework for efficient electrochemical hydrogen evolution reaction. Mater. Today Energy 2020, 16, 100387–100394. [Google Scholar] [CrossRef]
  7. Yang, L.; Liu, R.; Jiao, L. Electronic Redistribution: Construction and Modulation of Interface Engineering on CoP for Enhancing Overall Water Splitting. Adv. Funct. Mater. 2020, 30, 1909618. [Google Scholar] [CrossRef]
  8. Zeng, K.; Zhang, D. Recent progress in alkaline water electrolysis for hydrogen production and applications. Prog. Energy Combust. Sci. 2010, 36, 307–326. [Google Scholar] [CrossRef]
  9. Rabi, O.; Pervaiz, E.; Zahra, R.; Ali, M.; Niazi, B.K. An inclusive review on the synthesis of molybdenum carbide and its hybrids as catalyst for electrochemical water splitting. Mol. Catal. 2020, 494, 111116–111135. [Google Scholar] [CrossRef]
  10. Shah, S.A.; Xu, L.; Sayyar, R.; Bian, T.; Liu, Z.; Yuan, A.; Shen, X.; Khan, I.; Tahir, A.A.; Ullahe, H. Growth of MoS2 nanosheets on M@N-doped carbon particles (M = Co, Fe or CoFe Alloy) as an efficient electrocatalyst toward hydrogen evolution reaction. Chem. Eng. J. 2022, 428, 132126. [Google Scholar] [CrossRef]
  11. Shah, S.A.; Sayyar, R.; Xu, L.; Sun, H.; Khan, I.; Guo, J.; Shen, X.; Hussain, S.; Yuan, A.; Ullahe, H. In-situ synthesis of NiS2 nanoparticles/MoS2 nanosheets hierarchical sphere anchored on reduced graphene oxide for enhanced electrocatalytic hydrogen evolution reaction. J. Colloid Interface Sci. 2022, 624, 150–159. [Google Scholar] [CrossRef] [PubMed]
  12. Xu, L.; Shah, S.A.; Khan, H.; Sayyar, R.; Shen, X.; Khan, I.; Yuan, A.; Yaseen, W.; Ghazi, Z.A.; Naeem, A.; et al. Ni3S2 nanostrips@FeNi-NiFe2O4 nanoparticles embedded in N-doped carbon microsphere: An improved electrocatalyst for oxygen evolution reaction. J. Colloid Interface Sci. 2022, 617, 1–10. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, J.; Wang, T.; Liu, P.; Liao, Z.; Liu, S.; Zhuang, X.; Chen, M.; Zschech, E.; Feng, X. Efficient Hydrogen Production on MoNi4 Electrocatalysts with Fast Water Dissociation Kinetics. Nat. Commun. 2017, 8, 15437. [Google Scholar] [CrossRef] [PubMed]
  14. Li, C.; Gao, H.; Wan, W.; Mueller, T. Mechanisms for Hydrogen Evolution on Transaction Metal Phosphide Catalysts and a Comparison to P(111). Phys. Chem. Chem. Phys. 2019, 21, 24489–24498. [Google Scholar] [CrossRef]
  15. Miao, R.; Dutta, B.; Sahoo, S.; He, J.; Zhong, W.; Cetegen, S.A.; Jiang, T.; Alpay, S.P.; Suib, S.L. Mesoporous Iron Sulfide for Highly Effficient Electrocatalytic Hydrogen Evolution. J. Am. Chem. Soc. 2017, 139, 13604–13607. [Google Scholar] [CrossRef]
  16. Ola, O.; Ullah, H.; Chen, Y.; Thummavichai, K.; Wang, N.; Zhu, Y. DFT and experimental studies of iron oxide-based nanocomposites for efficient electrocatalysis. J. Mater. Chem. C 2021, 9, 6409–6417. [Google Scholar] [CrossRef]
  17. Zhang, J.; Shang, X.; Ren, H.; Chi, J.; Fu, H.; Dong, B.; Liu, C.; Chai, Y. Modulation of Inverse Spinel Fe3O4 by Phosphorous Doping as an Industrially Promising Electrocatalysts for Hydrogen Evolution. Adv. Mater. 2019, 31, 1905107. [Google Scholar] [CrossRef]
  18. Zhu, L.; Liu, L.; Huang, G.; Zhao, Q. Hydrogen Evolution over N-Doped CoS2 Nanosheets Enhanced by Superaerophobicity and Electronic Modulation. Appl. Surf. Sci. 2020, 504, 144490. [Google Scholar] [CrossRef]
  19. Xu, Z.; Li, W.; Yan, Y.; Wang, H.; Zhu, H.; Zhao, M.; Yan, S.; Zou, Z. In-Situ Formed Hydroxide Accelerating Water Dissociation Kinetics on Co3N for Hydrogen Production in Alkaline Solution. ACS Appl. Mater. Interfaces 2018, 10, 22102–22109. [Google Scholar] [CrossRef]
  20. Zhu, J.; Liu, X.; Wang, G. Tailoring the D-Band Centers Enables Co4N Nanosheets to Be Highly Active for Hydrogen Evolution Catalysis. Angew. Chem. Int. Ed. Engl. 2018, 57, 5076–5080. [Google Scholar]
  21. Wexler, R.B.; Martinez, J.M.P.; Rappe, A.M. Active Role of Phosphorus in the Hydrogen Evolving Activity of Nickel Phosphide (001). Surf. ACS Catal. 2017, 7, 7718–7725. [Google Scholar] [CrossRef]
  22. Cao, X.; Jia, D.; Li, D.; Cui, L.; Liu, J. One-Step Co-Electrodeposition of Hierarchical Radial NixP nanospheres on Ni Foam as Highly Actice Flexible Electrodes for Hydrogen Evolution Reaction and Supercapacitor. Chem. Eng. J. 2018, 348, 310–318. [Google Scholar] [CrossRef]
  23. Pei, Y.; Rezact, B.; Zhang, X.; Li, Z.; Shen, H.; Yang, M.; Wang, J. Interface Catalysis by Pt nanocluster@Ni3N for Bifunctional Hydrogen Evolution and Oxygen Evolution. Mater. Chem. Front. 2020, 4, 2665–2672. [Google Scholar] [CrossRef]
  24. Liu, B.; He, B.; Peng, H.Q.; Zhao, Y.; Cheng, J.; Xia, J.; Shen, J.; Ng, T.W.; Meng, X.; Lee, C.S.; et al. Unconventional Nickel Nitride Enriched wirh Nitrogenvacancies as a High-Efficiency Electrocatalyst for Hydrogen Evolution. Adv. Sci. 2018, 5, 1800406. [Google Scholar] [CrossRef]
  25. Ray, C.; Lee, S.C.; Jin, B.; Kundu, A.; Park, J.H.; Jun, S.C. Conceptual Design of Three-Dimensional CoN/Ni3N-Coupled Nanograsses Integrated on N-Doped Carbonto Serve as Efficient and Robust Water Splitting Electrocatalysts. J. Mater. Chem. A 2018, 6, 4466–4476. [Google Scholar] [CrossRef]
  26. Li, Z.; Feng, Y.; Liang, Y.L.; Cheng, C.Q.; Dong, C.K.; Liu, H.; Du, X.W. Stable Rhodium (IV) Oxide for Alkaline Hydrogen Evolution Reaction. Adv. Mater. 2019, 32, 1908521. [Google Scholar] [CrossRef]
  27. Bae, S.Y.; Mahmood, J.; Jeon, I.Y.; Baek, J.B. Recent Advances in Ruthenium Based Electrocatalysts for the Hydrogen Evolution Reaction. Nanoscale Horiz. 2020, 5, 43–56. [Google Scholar] [CrossRef]
  28. Kyeong, Y.; Woo, K.; Jun, T.; Youn, D.H.; Lee, J.S. Metal substrates activate NiFe(oxy)hydroxide catalysts for efficient oxygen evolution reaction in alkaline media. J. Alloys Compd. 2022, 901, 163689. [Google Scholar]
  29. Xu, Y.; Ren, K.; Xu, R. In situ formation of amorphous Fe-based bimetallic hydroxides from metal-organic frameworks as efficient oxygen evolution catalysts. Chin. J. Catal. 2021, 42, 1370–1378. [Google Scholar] [CrossRef]
  30. Loh, A.; Li, X.; Taiwo, O.O.; Tariq, F.; Brandon, N.P.; Wang, P.; Xu, K.; Wang, B. Development of Ni–Fe based ternary metal hydroxides as highly efficient oxygen evolution catalysts in AEM water electrolysis for hydrogen production. Int. J. Hydrogen Energy 2020, 45, 24232–24247. [Google Scholar] [CrossRef]
  31. Zheng, Y.; Shang, P.; Pei, F.; Ma, G.; Ye, Z.; Peng, X.; Li, D. Achieving an efficient hydrogen evolution reaction with a bicontinuous nanoporous PtNiMg alloy of ultralow Noble-metal content at an ultrawide range of current densities. Chem. Eng. J. 2022, 433, 134571. [Google Scholar] [CrossRef]
  32. Kamali, S.; Zhiani, M.; Tavakol, H. Synergism effect of first row transition metals in experimental and theoretical activity of NiM/rGO alloys at hydrogen evolution reaction in alkaline electrolyzer. Renew. Energy 2020, 154, 1122–1131. [Google Scholar] [CrossRef]
  33. Wang, M.; Wang, Y.; Mao, S.S.; Shen, S. Transition-metal alloy electrocatalysts with active sites modulated by metal-carbide heterophases for efficient oxygen evolution. Nano Energy 2021, 88, 106216. [Google Scholar] [CrossRef]
  34. Akbayrak, M.; Önal, A.M. Metal oxides supported cobalt nanoparticles: Active electrocatalysts for oxygen evolution reaction. Electrochim. Acta 2021, 393, 139053. [Google Scholar] [CrossRef]
  35. Wang, R.; Li, F.; Ji, J.; Wang, F. CoMoO4 enhanced anodized cobalt oxide nanotube as an efficient electrocatalyst for hydrogen evolution reaction. Appl. Surf. Sci. 2022, 579, 152128. [Google Scholar] [CrossRef]
  36. Zhao, H.; Yuan, Z.-Y. Surface/interface engineering of high-efficiency noble metal-free electrocatalysts for energy-related electrochemical reactions. J. Energy Chem. 2021, 54, 89–104. [Google Scholar] [CrossRef]
  37. Xu, H.; Zhao, Y.; He, G.; Chen, H. Race on engineering noble metal single-atom electrocatalysts for water splitting. Int. J. Hydrogen Energy 2022, 47, 14257–14279. [Google Scholar] [CrossRef]
  38. Gong, Y.; Yao, J.; Wang, P.; Li, Z.; Zhou, H.; Xu, C. Perspective of hydrogen energy and recent progress in electrocatalytic water splitting. Chin. J. Chem. Eng. 2022, 43, 282–296. [Google Scholar] [CrossRef]
  39. Diao, L.; Zhang, B.; Sun, Q.; Wang, N.; Zhao, N.; Shi, C.; Liu, E.; He, C. An in-plane Co9S8@MoS2 heterostructure for the hydrogen evolution reaction in alkaline media. Nanoscale 2019, 11, 21479–21486. [Google Scholar] [CrossRef]
  40. Tahira, A.; Ibrupoto, Z.H.; Willander, M.; Nur, O. Advanced Co3O4-CuO nano-composite based electrocatalysts for efficient hydrogen evolution reaction in alkaline media. Int. J. Hydrogen Energy 2019, 44, 26148–26157. [Google Scholar] [CrossRef]
  41. Du, Y.; Wang, Z.; Li, H.; Han, Y.; Liu, Y.; Yang, Y.; Liu, Y.; Wan, L. Controllable synthesized CoP-MP (M = Fe, Mn) as efficient and stable electrocatalyst for hydrogen evolution reaction at all pH values. Int. J. Hydrogen Energy 2019, 44, 19978–19985. [Google Scholar] [CrossRef]
  42. Zhang, X.; Li, Y.; Guo, Y.; Hu, A.; Li, M.; Hang, T.; Ling, H. 3D hierarchical nanostructured Ni–Co alloy electrodes on porous nickel for hydrogen evolution reaction. Int. J. Hydrogen Energy 2019, 44, 29946–29955. [Google Scholar] [CrossRef]
  43. Safizadeh, F.; Ghali, E.; Houlachi, G. Electrocatalysis developments for hydrogen evolution reaction in alkaline solutions—A review. Int. J. Hydrogen Energy 2015, 40, 256–274. [Google Scholar] [CrossRef]
  44. Lu, X.; Zhao, C. Electrodeposition of hierarchically structured three-dimensional nickel-iron electrodes for efficient oxygen evolution at high current densities. Nat. Commun. 2015, 6, 6616. [Google Scholar] [CrossRef]
  45. Allam, M.; Benaicha, M.; Dakhouche, A. Electrodeposition and characterization of NiMoW alloy as electrode material for hydrogen evolution in alkaline water electrolysis. Int. J. Hydrogen Energy 2018, 43, 3394–3405. [Google Scholar] [CrossRef]
  46. Neethu, R.M.; Hegde, A.C. Development of Ni-W alloy coatings and their electrocatalytic activity for water splitting reaction. Phys. B 2020, 597, 412359. [Google Scholar] [CrossRef]
  47. Wang, S.; Lu, A.; Zhong, C.-J. Hydrogen production from water electrolysis: Role of catalysts. Nano Converg. 2021, 8, 1–23. [Google Scholar] [CrossRef]
  48. Vaškelis, A.; Juškėnas, R.; Jačiauskienė, J. Copper hydride formation in the electroless copper plating process: In situ X-ray diffraction evidence and electrochemical study. Electrochim. Acta 1998, 43, 1061–1066. [Google Scholar] [CrossRef]
  49. Sun, Y.; Ganin, A.Y. The synergistic effects of alloying on the performance and stability of Co3Mo and Co7Mo6 for the electrocatalytic hydrogen evolution reaction. Hydrogen 2020, 1, 11–21. [Google Scholar] [CrossRef]
  50. Asraf, M.A.; Kiu, Z.; Pham, B.T.; Zhang, D. Electrodeposition of superhydrophilic and binder-free Mo doped Ni-Fe nanosheets as cost-efficient bifunctional electrocatalyst for overall water splitting. J. Electroanal. Chem. 2020, 873, 114351. [Google Scholar] [CrossRef]
  51. Balčiūnaitė, A.; Upadhyay, K.K.; Radinovic, K.; Santos, D.M.F.; Montemor, M.F.; Šljukic, B. Steps towards highly-efficient water splitting and oxygen reduction using nanostructured β-Ni(OH)2. RSC Adv. R. Soc. Chem. 2022, 12, 10020–10028. [Google Scholar] [CrossRef] [PubMed]
  52. Du, Y.; Qu, H.; Liu, Y.; Han, Y.; Wang, L.; Dong, B. Bimetallic CoFeP hollow microspheres as highly efficient bifunctional electrocatalysts for overall water splitting in alkaline media. Appl. Surf. Sci. 2019, 465, 816–823. [Google Scholar] [CrossRef]
  53. Bejar, J.; Alvarez-Contreras, L.; Ledesma-Garcia, J.; Arjona, N.; Arriaga, L.G. Electrocatalytic evaluation of Co3O4 and NiCo2O4 rosettes-like hierarchical spinel as bifunctional materials for oxygen evolution (OER) and reduction (ORR) reactions in alkaline media. J. Electroanal. Chem. 2019, 847, 113190. [Google Scholar] [CrossRef]
Batteries 08 00129 g001a 550Batteries 08 00129 g001b 550
Figure 1. SEM images of as-prepared Co-Ni (a,a’), Co-Fe (b,b’), Co-Fe-Mn (c,c’), Co-Fe-Mo (d,d’), and Co-Zn (e,e’) coatings on Cu surfaces under different magnifications.
Figure 1. SEM images of as-prepared Co-Ni (a,a’), Co-Fe (b,b’), Co-Fe-Mn (c,c’), Co-Fe-Mo (d,d’), and Co-Zn (e,e’) coatings on Cu surfaces under different magnifications.
Batteries 08 00129 g001aBatteries 08 00129 g001b
Batteries 08 00129 g002 550

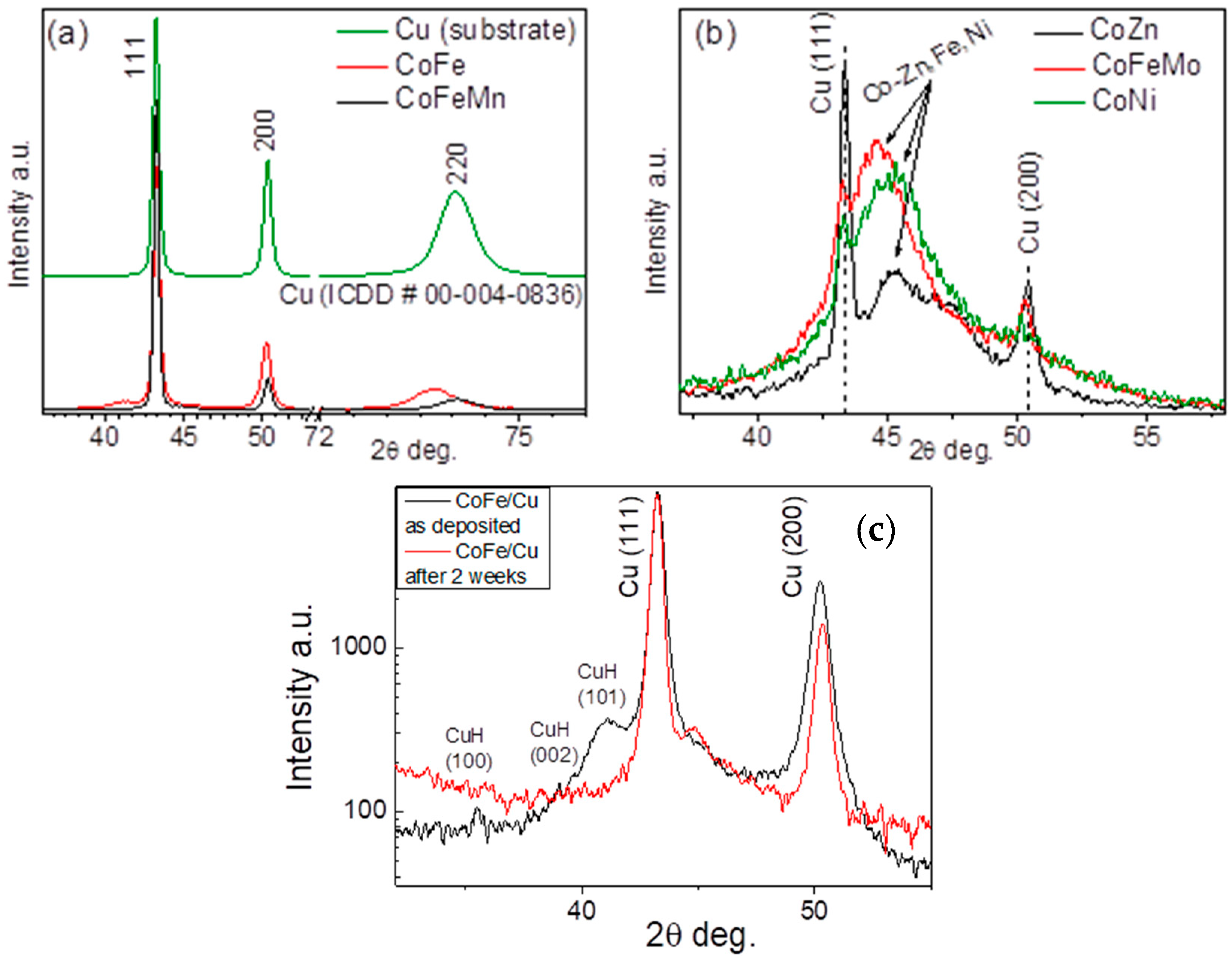

Figure 2. XRD patterns of coatings with different metals: (a) Cu (substrate), Co-Fe, and Co-Fe-Mn; (b) Co-Zn, Co-Fe-Mo, and Co-Ni. (c) represents the XRD patterns of as-deposited Co-Fe on Cu and that after 2 weeks of exposure.
Figure 2. XRD patterns of coatings with different metals: (a) Cu (substrate), Co-Fe, and Co-Fe-Mn; (b) Co-Zn, Co-Fe-Mo, and Co-Ni. (c) represents the XRD patterns of as-deposited Co-Fe on Cu and that after 2 weeks of exposure.
Batteries 08 00129 g002
Batteries 08 00129 g003 550
Figure 3. HER polarization curves of five studied coatings at 5 mV s−1 potential scan rate in 1 M KOH at different temperatures (25–55 °C): (a) Co-Ni, (b) Co-Fe, (c) Co-Fe-Mn, (d) Co-Fe-Mo, and (e) Co-Zn.
Figure 3. HER polarization curves of five studied coatings at 5 mV s−1 potential scan rate in 1 M KOH at different temperatures (25–55 °C): (a) Co-Ni, (b) Co-Fe, (c) Co-Fe-Mn, (d) Co-Fe-Mo, and (e) Co-Zn.
Batteries 08 00129 g003
Batteries 08 00129 g004 550

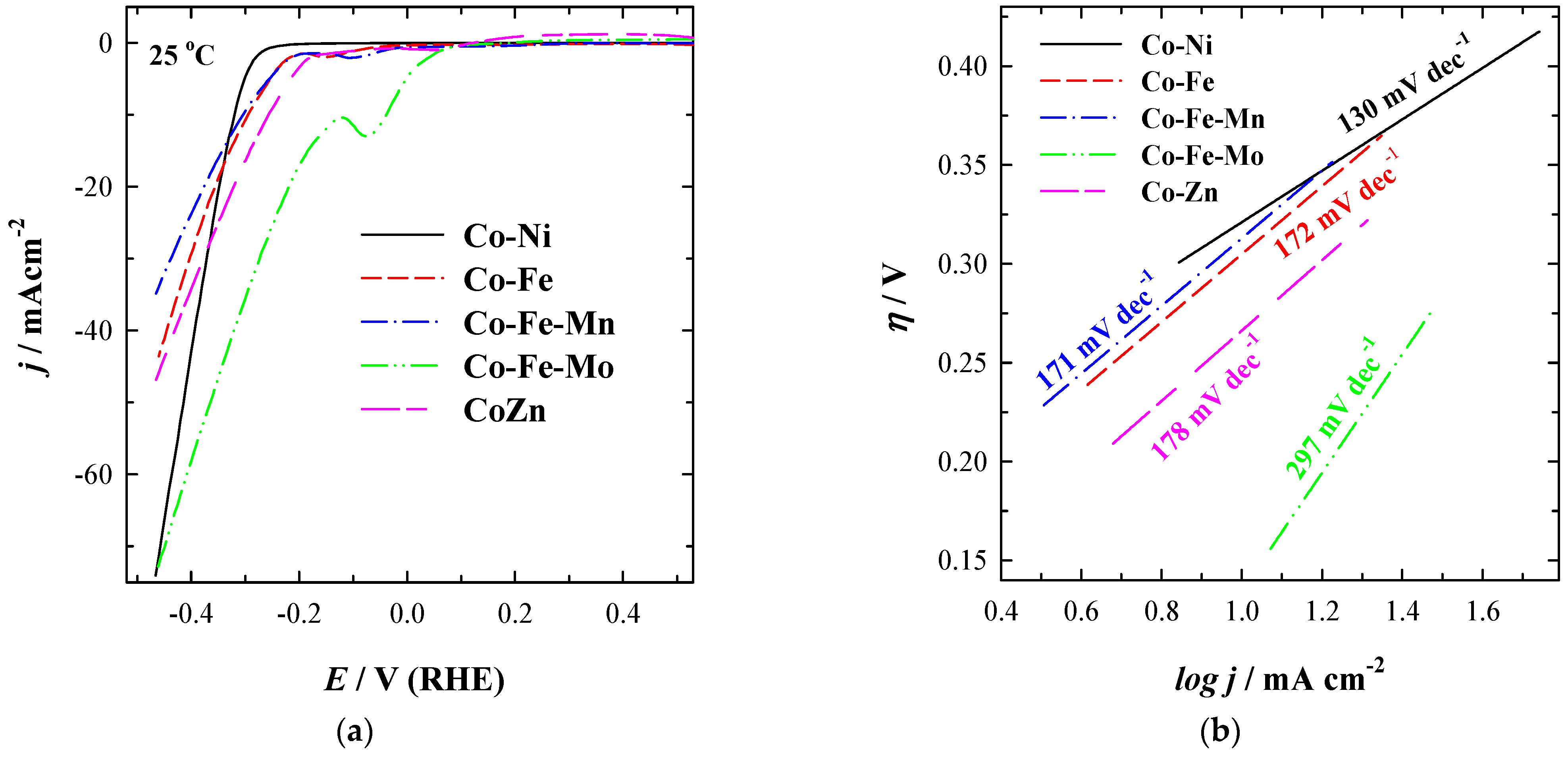

Figure 4. (a) LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1. (b) represents the corresponding Tafel plots.
Figure 4. (a) LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1. (b) represents the corresponding Tafel plots.
Batteries 08 00129 g004
Batteries 08 00129 g005 550

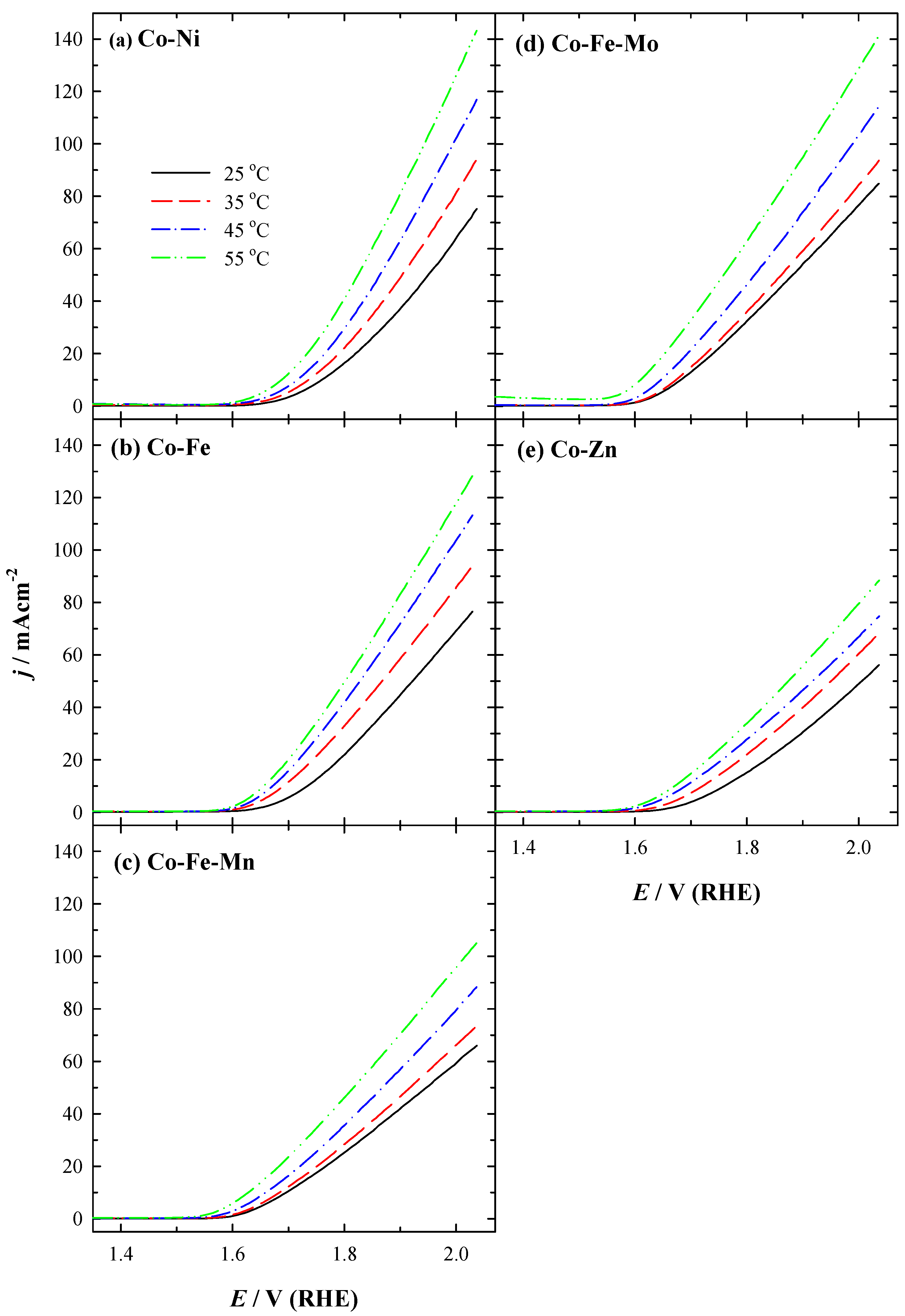

Figure 5. OER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at different temperatures (25–55 °C) at a potential scan rate of 5 mV s−1: (a) Co-Ni, (b) Co-Fe, (c) Co-Fe-Mn, (d) Co-Fe-Mo, and (e) Co-Zn.
Figure 5. OER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at different temperatures (25–55 °C) at a potential scan rate of 5 mV s−1: (a) Co-Ni, (b) Co-Fe, (c) Co-Fe-Mn, (d) Co-Fe-Mo, and (e) Co-Zn.
Batteries 08 00129 g005
Batteries 08 00129 g006 550
Figure 6. OER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1 (a). (b) represents the corresponding Tafel plots.
Figure 6. OER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1 (a). (b) represents the corresponding Tafel plots.
Batteries 08 00129 g006
Batteries 08 00129 g007 550
Figure 7. (a) OER and (b) HER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1.
Figure 7. (a) OER and (b) HER LSVs of Co-Ni, Co-Fe, Co-Fe-Mn, Co-Fe-Mo, and Co-Zn coatings recorded in 1 M KOH at 25 °C temperature at a potential scan rate of 5 mV s−1.
Batteries 08 00129 g007
Table
Table 1. ICP-OES results of the studied coatings.
Table 1. ICP-OES results of the studied coatings.
CoatingAt. %Total Metal Loading (µg cm−2)
CoNiFeZnMnMo
Co-Ni47.2252.78 526.45
Co-Fe42.54 57.46 28.11
Co-Fe-Mn28.07 70.83 1.09 40.58
Co-Fe-Mo86.36 7.90 5.74868.05
Co-Zn93.71 6.29 351.04
Table
Table 2. Electrochemical parameters for HER obtained on investigated cobalt coatings.
Table 2. Electrochemical parameters for HER obtained on investigated cobalt coatings.
Coatingj (mA cm−2) at Different Temperatures (°C) at −0.45Vj (mA µg−1) at 25 °Cη10 * (mV) at
25 °C		Tafel Slope (mV Dec−1)
25354555
Co-Ni–74.08–101.52–128.07–149.190.14–324.1130
Co-Fe–43.56–51.80–60.70–67.351.55–299.7172
Co-Fe-Mn–34.88–43.87–51.96–59.520.86–304.6171
Co-Fe-Mo–73.91–81.44–92.80–102.860.09–128.0297
Co-Zn–46.86–56.49–59.92–65.480.13–259.2178
* Overpotential (mV) at 10 mA cm−2.
Table
Table 3. Electrochemical parameters for OER obtained on investigated cobalt coatings.
Table 3. Electrochemical parameters for OER obtained on investigated cobalt coatings.
Coatingj (mA cm−2) at Different Temperature (°C) at +2.05 Vj (mA µg−1) at 25 °Cη10 * (V) at
25 °C		Tafel Slope (mV) Dec−1
25354555
Co-Ni75.1994.07116.83143.140.141.76081.00
Co-Fe76.5593.93113.22128.312.721.73791.00
Co-Fe-Mn65.9973.5988.35105.221.631.70054.00
Co-Fe-Mo84.9793.75114.47141.540.101.68577.00
Co-Zn56.1768.3674.7888.420.161.76077.00
* Potential (V) at 10 mA cm−2.
Table
Table 4. Comparison of HER parameters generated on transition metal-based electrodes reported in the literature with those on the investigated Co coatings in this study.
Table 4. Comparison of HER parameters generated on transition metal-based electrodes reported in the literature with those on the investigated Co coatings in this study.
Catalystη10 * (mV at 25 °C)Tafel Slope (mV Dec−1)ElectrolyteRef.
Co-Ni−324.11301 M KOHThis work
Co-Fe−299.71721 M KOHThis work
Co-Fe-Mn−304.61711 M KOHThis work
Co-Fe-Mo−128.02971 M KOHThis work
Co-Zn−259.21781 M KOHThis work
Co9S8-MoS2@3DC−177841 M KOH[39]
Co3O4-CuO−288651 M KOH[40]
CoP−163511 M KOH[41]
Ni-Co alloy86.769.81 M KOH[42]
Co3Mo−1201171 M KOH[49]
NiFe nanosheets−842251 M KOH[50]
β-Ni(OH)2−3332301 M KOH[51]
* Overpotential (mV) at 10 mA cm−2.
Table
Table 5. Comparison of OER parameters generated on transition metal-based electrodes reported in the literature with those on the investigated Co coatings in this study.
Table 5. Comparison of OER parameters generated on transition metal-based electrodes reported in the literature with those on the investigated Co coatings in this study.
Catalystη10 * (mV at 25 °C)Tafel Slope (mV Dec−1)ElectrolyteRef.
Co-Ni53081.001M KOHThis work
Co-Fe50791.001M KOHThis work
Co-Fe-Mn47054.001M KOHThis work
Co-Fe-Mo45577.001M KOHThis work
Co-Zn53077.001M KOHThis work
CoFeP350591M KOH[52]
CoFe2O45601821M KOH[52]
CoP4301011M KOH[52]
NiCo2O4470890.1M KOH[53]
Co3O46251130.1M KOH[53]
β-Ni(OH)24981491M KOH[51]
* Overpotential (mV) at 10 mA cm−2.
Table
Table 6. Plating baths and coating parameters.
Table 6. Plating baths and coating parameters.
CoatingComposition of Plating BathsPlating Conditions
Co2+ (M)Ni2+ (M)Fe2+ (M)Mn2+ (M)Zn2+ (M)Mo6+ (M)MB (M)Gly (M)CH3COO (M)pHt (min)T (°C)
Co-Ni0.060.15----0.050.20.0473030
Co-Fe0.01-0.15---0.060.3-53060
Co-Fe-Mn0.07-0.150.05--0.060.2-73050
Co-Fe-Mo0.01-0.15--0.0010.060.30.0253060
Co-Zn0.07---0.02-0.060.2-73045
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sukackienė, Z.; Balčiūnaitė, A.; Kepenienė, V.; Vaičiūnienė, J.; Stalnionis, G.; Pakštas, V.; Tamašauskaitė-Tamašiūnaitė, L.; Norkus, E. Comparison of the Activity of 3D Binary or Ternary Cobalt Coatings for Hydrogen and Oxygen Evolution Reactions. Batteries 2022, 8, 129. https://doi.org/10.3390/batteries8090129

AMA Style

Sukackienė Z, Balčiūnaitė A, Kepenienė V, Vaičiūnienė J, Stalnionis G, Pakštas V, Tamašauskaitė-Tamašiūnaitė L, Norkus E. Comparison of the Activity of 3D Binary or Ternary Cobalt Coatings for Hydrogen and Oxygen Evolution Reactions. Batteries. 2022; 8(9):129. https://doi.org/10.3390/batteries8090129

Chicago/Turabian Style

Sukackienė, Zita, Aldona Balčiūnaitė, Virginija Kepenienė, Jūratė Vaičiūnienė, Giedrius Stalnionis, Vidas Pakštas, Loreta Tamašauskaitė-Tamašiūnaitė, and Eugenijus Norkus. 2022. "Comparison of the Activity of 3D Binary or Ternary Cobalt Coatings for Hydrogen and Oxygen Evolution Reactions" Batteries 8, no. 9: 129. https://doi.org/10.3390/batteries8090129

APA Style

Sukackienė, Z., Balčiūnaitė, A., Kepenienė, V., Vaičiūnienė, J., Stalnionis, G., Pakštas, V., Tamašauskaitė-Tamašiūnaitė, L., & Norkus, E. (2022). Comparison of the Activity of 3D Binary or Ternary Cobalt Coatings for Hydrogen and Oxygen Evolution Reactions. Batteries, 8(9), 129. https://doi.org/10.3390/batteries8090129

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
