Prediction of the Heat Generation Rate of Lithium-Ion Batteries Based on Three Machine Learning Algorithms

Abstract

The heat generation rate (HGR) of lithium-ion batteries is crucial for the design of a battery thermal management system. Machine learning algorithms can effectively solve nonlinear problems and have been implemented in the state estimation and life prediction of batteries; however, limited research has been conducted on determining the battery HGR through machine learning. In this study, we employ three common machine learning algorithms, i.e., artificial neural network (ANN), support vector machine (SVM), and Gaussian process regression (GPR), to predict the battery HGR based on our experimental data, along with cases of interpolation and extrapolation. The results indicated the following: (1) the prediction accuracies for the interpolation cases were better than those of extrapolation, and the R² values of interpolation were greater than 0.96; (2) after the discharge voltage was added as an input parameter, the prediction of the ANN was barely affected, whereas the performance of the SVM and GPR were improved; and (3) the ANN exhibited the best performance among the three algorithms. Accurate results can be obtained by using a single hidden layer and no more than 15 neurons without the additional input, where the R² values were in the range of 0.89–1.00. Therefore, the ANN is preferable for predicting the HGR of lithium-ion batteries.

1. Introduction

Extensive research has been conducted on clean energy and energy storage systems due to the limited reserves of fossil fuels and owing to the environmental problems, such as global warming, that are caused by these resources. Over the past few decades, lithium-ion batteries have been widely implemented in various applications such as portable electronic devices, electric vehicles, aerospace vehicles, and so on due to their high energy density, low self-discharge rate, stable performance, and long cycle life [1,2]. However, these batteries generate a large amount of heat during operation, which can trigger thermal runaways and cause fire accidents if the heat is not appropriately controlled [3,4,5,6,7]. Determining the heat generation rate (HGR) is crucial for the thermal management of batteries and can help in the development of operation strategies of a thermal management system (TMS).

The existing research models developed for the HGR of lithium-ion batteries primarily include electrochemical-thermal, electric-thermal, and thermal models. The electrochemical-thermal models simulate the thermal behavior of a battery by modeling mesoscopic-scale electrochemical processes. However, various parameters, such as the composition, concentration of ions, diffusion coefficient, reaction rate, and porosity, are required [8,9,10,11], which complicates the modeling; furthermore, the modeling is affected by the accuracy of these parameters. Electric-thermal models are mainly used to determine irreversible and reversible heat by measuring the internal resistance and entropy changes of a battery [12,13,14,15]. Thermal models directly measure the HGR of a battery based on the three types of heat transfer: conduction, convection, and radiation [16,17,18,19]. Electric-thermal models and thermal models are relatively simple but require extensive experimental analysis. The heat generation characteristics of a battery are significantly affected by factors such as the state of charge (SOC), ambient temperature, current, and aging [20,21,22]. Therefore, it takes a long time to measure the HGRs in various environments or under different operating conditions. For example, it takes 4–20 days to perform a single entropy change measurement when applying the electric-thermal model [23]. In recent years, the rapid development of machine learning has provided a simpler and faster alternative to building a model to measure the HGR. The variation in the HGR of the battery affected by various factors is typically nonlinear. Machine learning methods can effectively solve nonlinear problems with multiple inputs and large sample sizes, and do not require insight into the mechanical characteristics of the battery. They train historical data to identify patterns and make decisions or predictions [24] and are applicable to various fields. Additionally, compared with traditional regression analysis, machine learning enormously reduces the risk of model misspecification [25].

The previous studies conducted on lithium-ion batteries using machine learning primarily focused on the SOC and state of health (SOH) estimation and the remaining useful life (RUL) prediction. Chandran et al. [26] estimated the battery SOC by using six machine learning algorithms: artificial neural network (ANN), support vector machine (SVM), Gaussian process regression (GPR), linear regression, ensemble bagging, and ensemble boosting. The results demonstrated that ANN and GPR presented the best performance. Zhang et al. [27] proposed a hybrid parallel residual convolutional neural network model for online RUL prediction. The model achieved reliable and accurate results based on sparse data that correspond to only 20% of the charging capacity. Wang et al. [28] proposed a SOH prediction method based on a multi-kernel relevance vector machine and a whale optimization algorithm and verified its performance for long-term and short-term predictions using two different data sets. Wang et al. [29] established an accurate SOH prediction model based on multi-output GPR by using the cycle data of a single cell and the initial cycle data of a battery pack. Wang et al. [30] integrated a long short-term memory (LSTM) network with differential thermal voltammetry to predict the battery’s SOH and RUL, which can be also used for offline battery degradation tracking in the cloud. The aforementioned studies conducted on state estimation typically considered voltage, temperature, internal resistance, and other parameters as the inputs. However, the environment in practical applications may vary from that of the historical data used for training. These parameters are significantly affected by the operating conditions, which affects the accuracy and applicability of machine learning in online estimation. Therefore, it is crucial to estimate the battery characteristics beforehand under various operating conditions.

Some studies have employed machine learning algorithms to estimate the battery temperature and TMS parameters. Afzal et al. [31] implemented four activation functions to train optimized neural network (NN) models and predicted the average Nusselt number of batteries in the TMS from six operating parameters of the TMS. They reported that the performance of the deep NN model was better than that of the single-layered NN model for all activation functions. Liu et al. [32] proposed a data-driven method that combines the optimized radial basis function neural network with an extended Kalman filter to estimate the internal temperature of lithium-ion batteries from the battery current, terminal voltage, and surface temperature. This method outperformed the linear neural network model under four conditions. Hasan et al. [33] proposed an ANN-based nonlinear autoregressive exogenous (NARX) approach to estimate the battery temperature in a battery energy storage system with inputs of the charge/discharge current and ambient temperature. Furthermore, they derived a more accurate seasonal NARX model than the universal model, based on the different temperatures and weather characteristics in each season. Zhu et al. [34] employed the LSTM model to predict the change in battery temperature during a long cycle-aging process. The temperature data of the first 80 cycles were trained to predict the temperature data of 81–100 cycles. This model requires a larger proportion of training data to obtain a better prediction. The research on battery temperature estimation has strong practicability. However, the increase in the battery temperature is only a manifestation of the battery heat generation, and it changes based on variations in the heat transfer environment. Additionally, the HGR also changes based on various factors; therefore, the historical data used for training may not be effective for other environments, which increases the difficulty of applying these algorithms. The battery temperature under different conditions can be more accurately estimated by predicting the HGR rather than the battery temperature under a specific condition directly.

However, very few studies have been conducted on the application of machine learning for the prediction of the battery HGR. Arora et al. [35] optimized a one-hidden-layered feedforward ANN with six neurons and estimated the battery HGR by using the nominal capacity, ambient temperature, discharge rate, and depth of discharge (DOD) as inputs. Their data set of the 8 Ah, 15 Ah, and 20 Ah LiFePO₄ pouch cells covered the operating range of the discharge rate and ambient temperature specified by the cell manufacturer. The data of the 15 Ah battery cell were used for the independent assessment of the trained model. The results concurred with the measured data, presenting a correlation coefficient of 0.98627. However, some details of the HGR curve have not been predicted accurately, and only one ANN model with a specific architecture was used in this study.

Based on the above literature review, we can observe that machine learning in the lithium-ion battery field was mainly used to predict battery characteristics during the long cycle-aging process. However, limited research has been conducted on the prediction of battery characteristics under different conditions. Additionally, few studies have compared the effectiveness of different machine learning algorithms in the prediction of the battery HGR.

Therefore, this study presents a detailed analysis and comparison of the performance of three common machine learning algorithms—ANN, SVM, and GPR—in the prediction of the HGR of lithium-ion batteries based on the experimental data measured by our research group. Furthermore, we analyze the impact of different input parameters on prediction accuracy. The predicted operating conditions include three discharge currents and three ambient temperatures, which can be divided into two types: interpolation and extrapolation. We evaluated the advantages and disadvantages of the three machine learning algorithms in predicting the battery HGR and provided specific operational suggestions. The findings of this study can help in reducing the time required for the research and development of the battery and TMS.

2. Data and Methods

2.1. Data Collection and Preprocessing

The training and testing data were measured by our research group and published in [36]. We used Panasonic NCR18650 batteries with a rated capacity of 2900 mAh. The active materials of NCR18650A are lithium nickel cobalt aluminum oxide (NCA) and graphite. The calorimetry tests were conducted for discharging with 0.5 C, 0.75 C, 1 C, 1.25 C, and 1.5 C at the ambient temperature of 25 °C and with 1 C at ambient temperatures of 20, 25, 30, 35, 40, and 45 °C. The ambient temperatures for the tests were selected within the normal operating ambient temperature range of the battery. The battery was charged in constant current–constant voltage mode by 0.5 C with the cut-off voltage and current set to 4.2 V and 59 mA. During the tests, a battery testing system was used to control and monitor basic parameters such as voltage, current, and capacity. A thermostatic chamber was used to provide the calorimetric environment and maintain the specific ambient temperature required for testing. The experimental data and the modeling in this paper were limited to new battery cells, with negligible capacity fade.

The Figure. 5b in [36] demonstrates that the HGR increased with an increase in the discharge current. The correlation between the HGR and discharge current is observed to be nonlinear based on the most commonly used thermal model [37] in Equation (1). The temperature and internal resistance are also related to the discharge current. The Figure. 7b in [36] demonstrates that the HGR decreased with an increase in the ambient temperature, and its variation rate was also nonlinear.

$$q=I^{2}R-IT\frac{\partial U_{OCV}}{\partial T}$$

(1)

where q is the HGR, I is the current, R is the internal resistance, T is the cell temperature, $U_{OCV}$ is the open-circuit voltage, and $\frac{\partial U_{OCV}}{\partial T}$ denotes the entropic coefficient.

To standardize the training and testing data, the HGR curves and discharge voltage curves were fitted and extracted as samples with an interval of 0.001 DOD. The DOD used in this study is defined as follows: The HGR curves were fitted with nine-degree polynomials, and the voltage curves were fitted by the smoothing splines. All the data were normalized before training to avoid focusing more on features with larger values during the training phase.

$$\mathrm{DOD}=\frac{C_d}{C_{rated}}$$

(2)

where C_d is the discharged capacity by a certain moment (Ah), and C_rated is the rated capacity of the battery (Ah).

2.2. Machine Learning Modeling

The DOD and discharge current I were selected as the inputs for the HGR prediction of different discharge currents. The DOD and ambient temperature T_a were the inputs for the HGR prediction of different ambient temperatures. Additionally, the discharge voltage U was added to the inputs and the results were compared with those obtained without considering discharge voltage as an input. Therefore, four types of modeling were conducted, as expressed by Equations (3)–(6).

Table 1. Operating conditions to be predicted and the data used.

No.	Operation Conditions	Do the Inputs Contain Discharge Voltage?	Training Data	Number of Training Samples	Number of Testing Samples	Interpolation/Extrapolation
1	0.5 C	No	0.75 C, 1 C, 1.25 C, and 1.5 C	3820	978	extrapolation
2		Yes
3	1 C	No	0.5 C, 0.75 C, 1.25 C, and 1.5 C	3836	962	interpolation
4		Yes
5	1.5 C	No	0.5 C, 0.75 C, 1 C, and 1.25 C	3856	942	extrapolation
6		Yes
7	20 °C	No	25, 30, 35, 40, and 45 °C	4930	933	extrapolation
8		Yes
9	30 °C	No	20, 25, 35, 40, and 45 °C	4887	976	interpolation
10		Yes
11	40 °C	No	20, 25, 30, 35, and 40 °C	4856	1007	extrapolation
12		Yes

lists the operating conditions to be predicted and the data used; 12 cases were predicted. The cases equivalent to interpolation and extrapolation were analyzed for different discharge currents and different ambient temperatures, respectively. The interpolation in Table 1 indicates that the operating conditions to be predicted were within the range of those of the training data, whereas the opposite was true for extrapolation.

$$q=f_1\left(DOD,I;T_a\right)$$

(3)

$$q=f_2\left(DOD,I,U;T_a\right)$$

(4)

$$q=f_3\left(DOD,T_a;I\right)$$

(5)

$$q=f_4\left(DOD,T_a,U;I\right)$$

(6)

The previous studies demonstrated that the ANN, SVM, and GPR algorithms perform well for small-sample problems [24,38]. Therefore, we selected these three algorithms for training and prediction due to the small number of samples in this study and compared their performance. For each case in Table 1, one ANN model, one SVM model, and one GPR model were trained, respectively.

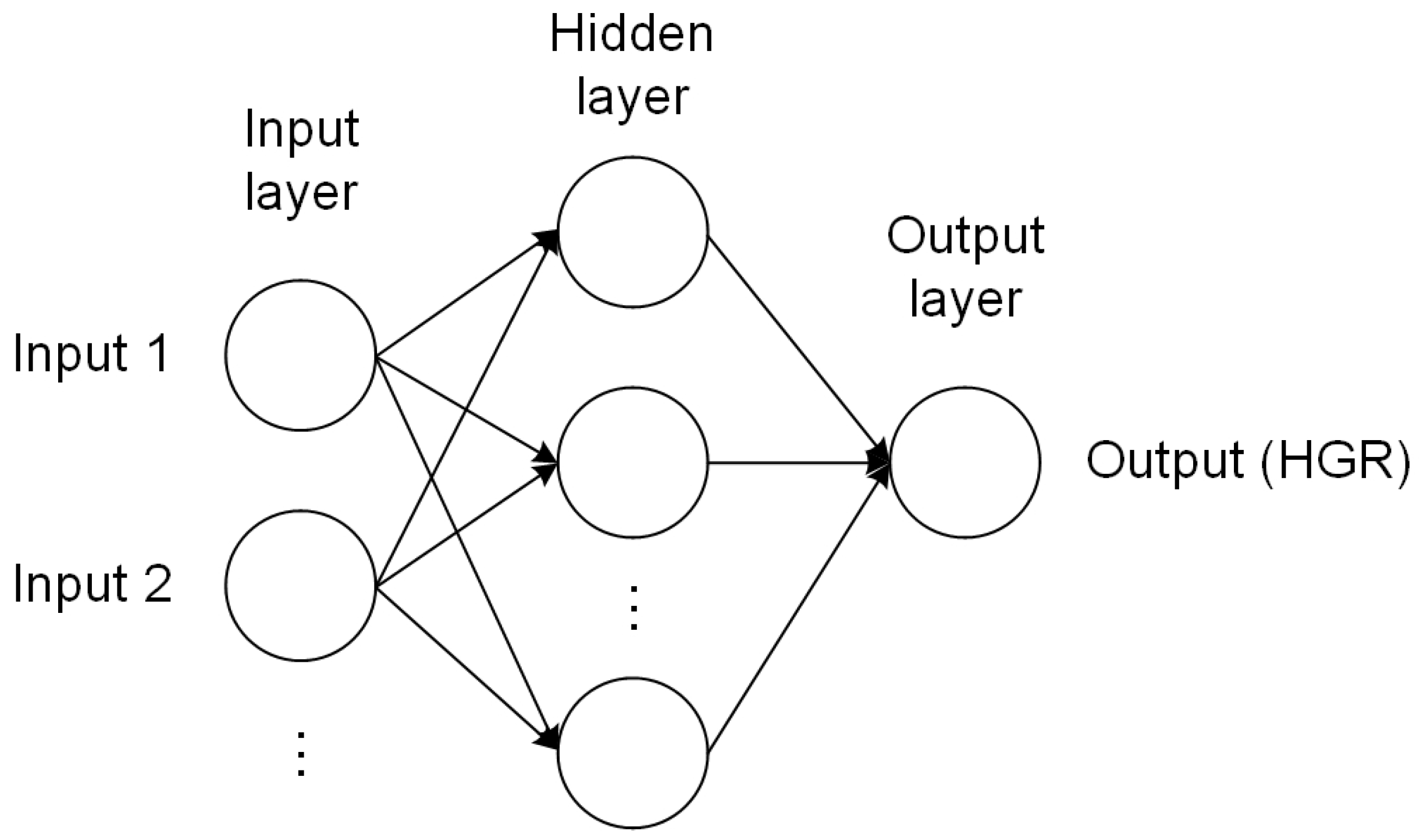

An ANN model is a multi-layered network comprising multiple neurons with one input layer, one or more hidden layers, and one output layer, as shown in Figure 1. The BP neural network exhibits a strong nonlinear mapping ability as a feedforward ANN. Therefore, we used the BP neural network for training and testing and selected the sigmoid as the activation function. The Levenberg–Marquardt algorithm was used as the learning algorithm due to its fast convergence. The learning rate was set to 0.01. There are no universal rules for selecting the number of hidden layers and neurons [39]. We employed the trial-and-error method to determine the architecture of the ANN model by creating and training networks with different architectures and implementing independent tests. The first choice for the number of hidden layers was one, and that for the number of neurons was in the range of 1–20. Lastly, we selected the architecture with a smaller test root mean square error (RMSE) and fewer hidden layers and neurons for each case.

The SVM is a generalized classification algorithm. Its core concept involves finding the widest separation band for separating the different types of data and solving the hyperplane, which is the classification plane in the middle of the band. When the SVM is implemented for regression analysis, an insensitive loss function is added to find an optimal hyperplane that minimizes the distance between the sample and the plane. The kernel function is defined as the function that transforms a low-dimensional space into a high-dimensional space to attain linear separability. The Gaussian kernel or the radial basis function (RBF) kernel exhibits a strong learning ability and can be effectively adapted for low-dimensional and small-sample problems [40]. Therefore, we used the Gaussian kernel function to train the SVM model. The box constraint was set to 1 and Bayesian optimization was used to optimize the kernel scale parameter for each case.

The GPR model is a nonparametric kernel-based model which uses the Gaussian process for regression. It solves the mean function followed by the mean vector elements and the covariance function followed by the covariance matrix elements. The solution is based on the Bayesian inference and follows the maximum likelihood estimation. We selected the constant as the mean function when using the GPR. The sigma parameter and kernel scale were kept to the default values first. The trial-and-error method was used to create and train models with different covariance functions and independent tests were conducted. After selecting the covariance function with the best test performance, the Bayesian optimization of the hyperparameters was performed to obtain the model with the best test performance.

k-fold cross-validation was used for model training due to the small number of input parameters and samples used in this study. According to [41], both k = 5 and k = 10 exhibit good performance. We selected the five-fold cross-validation to further reduce the training time. All the data preprocessing and machine learning operations in this study were performed using the MATLAB platform.

2.3. Evaluation of the Methods

The RMSE, R-squared (R²), and relative error of the average HGR, δ, were used to evaluate the prediction performance of these models. The RMSE is generally used to measure the deviation between the estimated and actual values, as defined in Equation (7). In this study, the actual value was the experimentally measured value. The closer the value of RMSE is to 0, the higher the prediction accuracy of the model.

$$\mathrm{RMSE}=\sqrt{\frac{{\displaystyle {\sum }_{i=1}^n{\left(q_{est}-q_{act}\right)}^2}}{n}}$$

(7)

where q_est and q_act are the estimated and actual values of the battery HGR for sample i, respectively, and n is the number of samples.

R², or the coefficient of determination, was used to evaluate the goodness of fit of a regression model, which is defined in Equation (8). The closer the value is to 1, the better the regression performance.

$$R^2=1-\frac{{\displaystyle {\sum }_{i=1}^n{\left(q_{est}-q_{act}\right)}^2}}{{\displaystyle {\sum }_{i=1}^n{\left(q_{est}-\overline{q_{act}}\right)}^2}}$$

(8)

where $\overline{q_{act}}$ denotes the average of all the samples of the actual HGR.

Additionally, we calculated the relative error of the average HGR, which is defined in Equation (9).

$$\delta =\frac{\overline{q_{est}}-\overline{q_{act}}}{\overline{q_{act}}}\times 100\%$$

(9)

where $\overline{q_{est}}$ denotes the average of all the samples of the estimated HGR.

3. Results

3.1. HGR Prediction at Different Discharge Currents

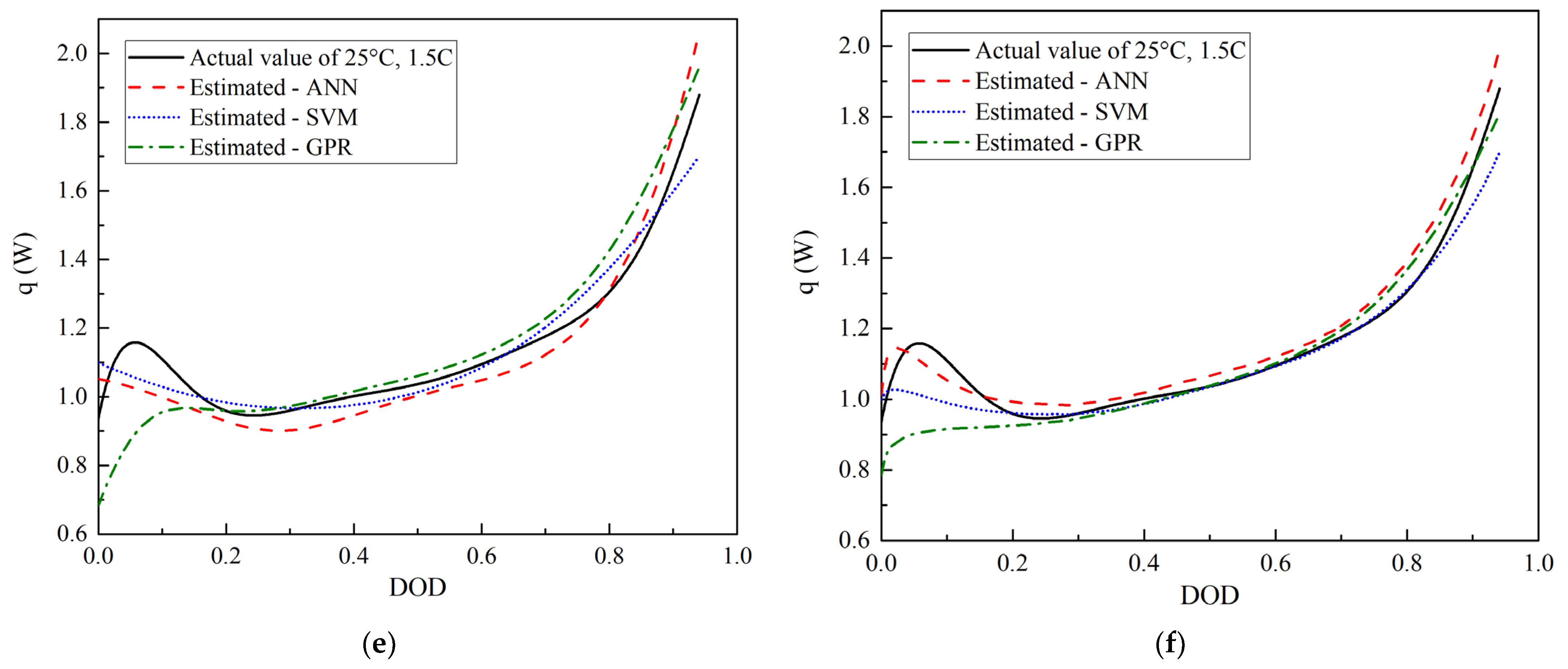

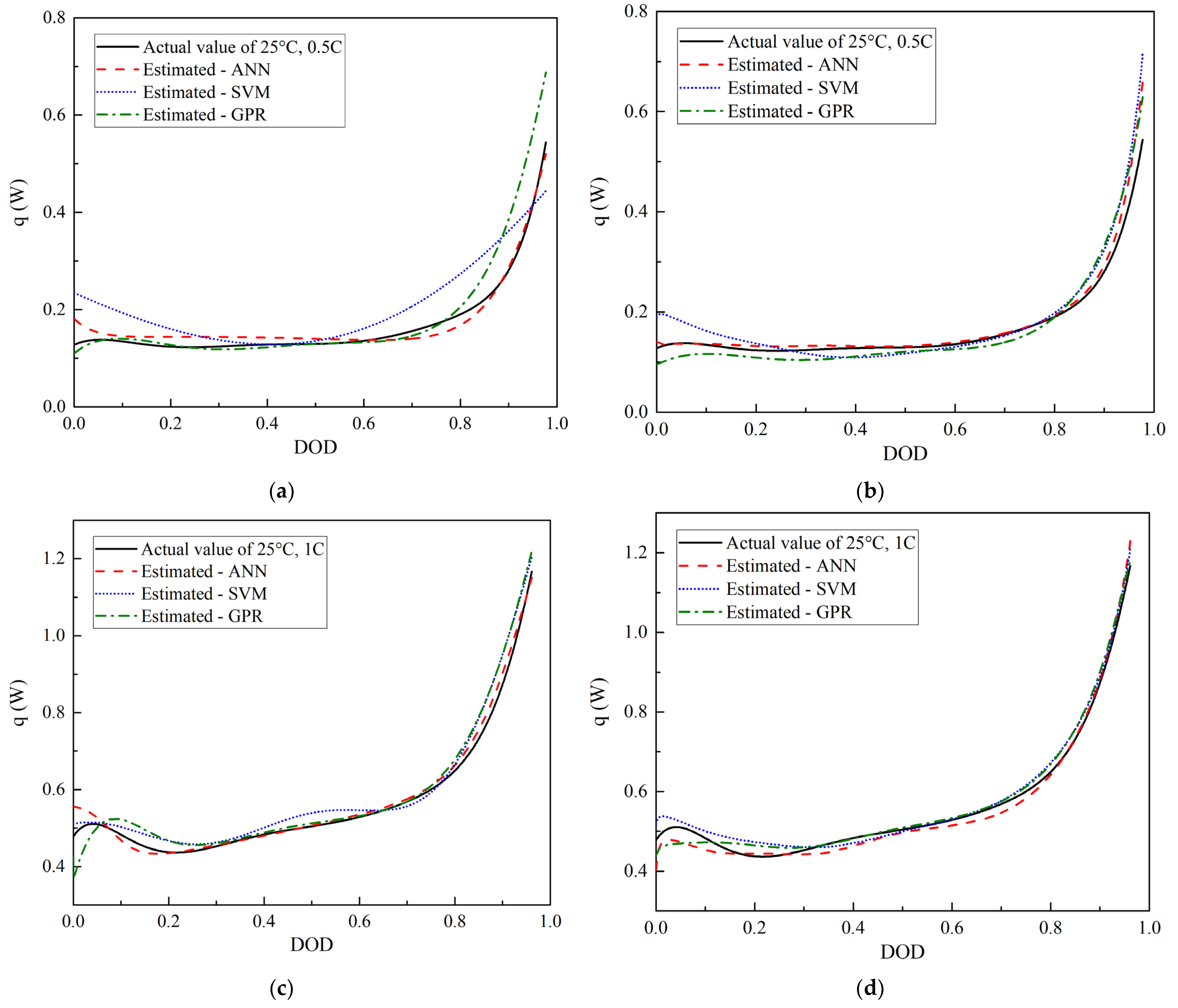

When the inputs were selected as the DOD and discharge current, the predicted HGRs discharged at 0.5 C, 1 C, and 1.5 C at 25 °C obtained by the ANN, SVM, and GPR were compared with the actual values, as shown in Figure 2a,c,e. Figure 2b,d,f depict the estimated and actual HGRs at 0.5 C, 1 C, and 1.5 C, respectively, after the discharge voltage was added to the inputs.

Table 2. ANN architectures and covariance functions of GPR that were used, and R² of the regressions.

No.	Operation Conditions	Do the Inputs Contain Discharge Voltage?	ANN Architecture	Covariance Function of GPR	R2
					ANN	SVM	GPR
1	0.5 C	No	1 hidden layer–5 neurons	Matern 3/2	0.95	0.53	0.67
2		Yes	1 hidden layer–8 neurons	Matern 3/2	0.95	0.82	0.88
3	1 C	No	1 hidden layer–3 neurons	Matern 5/2	0.99	0.96	0.97
4		Yes	1 hidden layer–5 neurons	Exponential	0.98	0.98	0.98
5	1.5 C	No	1 hidden layer–10 neurons	Matern 3/2	0.89	0.94	0.72
6		Yes	1 hidden layer–4 neurons	Matern 3/2	0.94	0.93	0.82

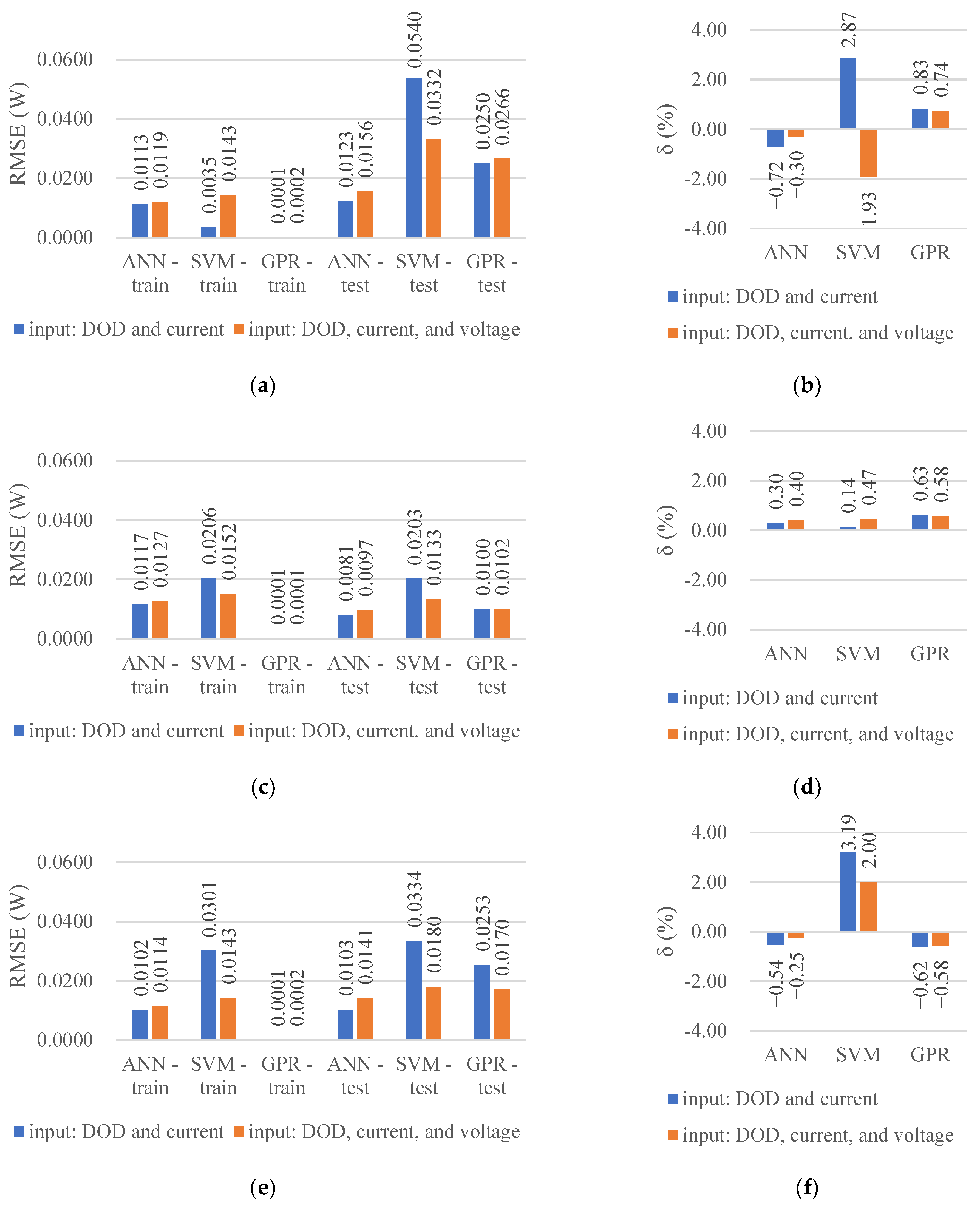

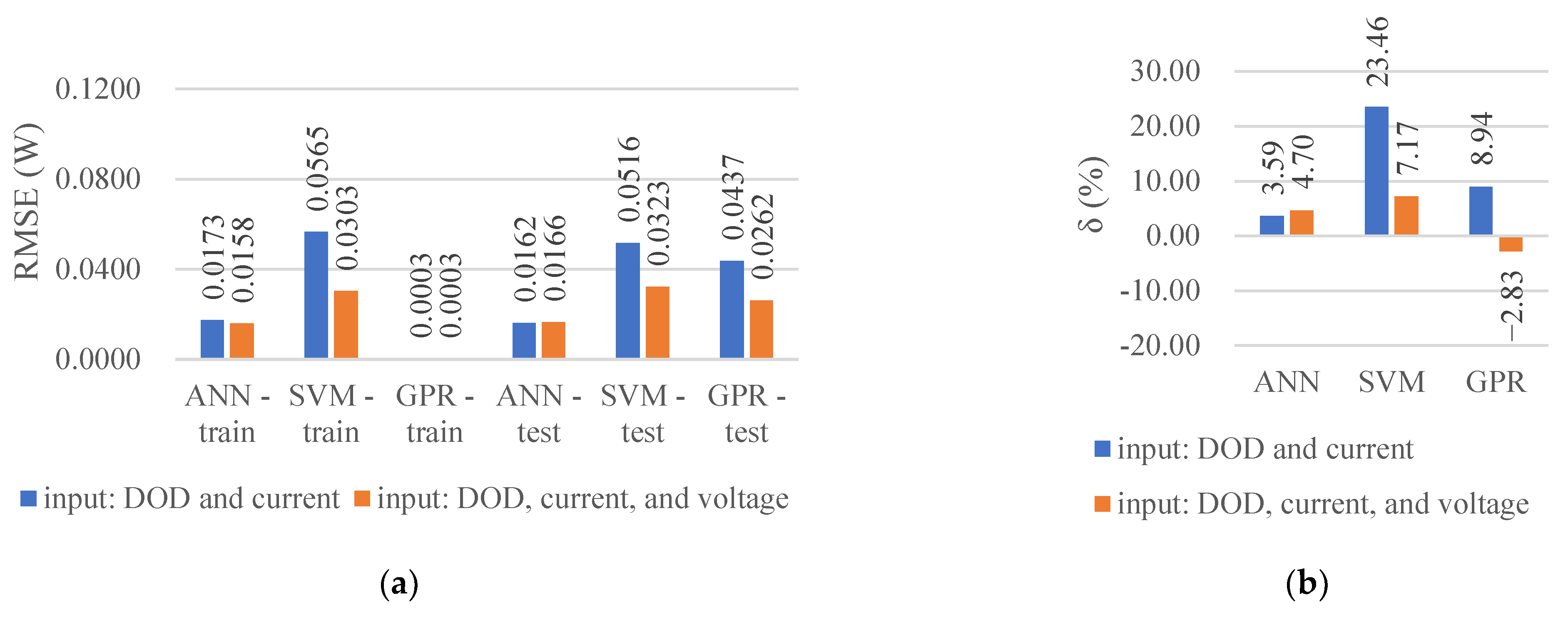

lists the ANN architectures and covariance functions of the GPR that were used and the R² values of the regressions. Figure 3 presents the training and testing RMSE values and the relative error of the average HGR, δ.

3.2. HGR Prediction at Different Ambient Temperatures

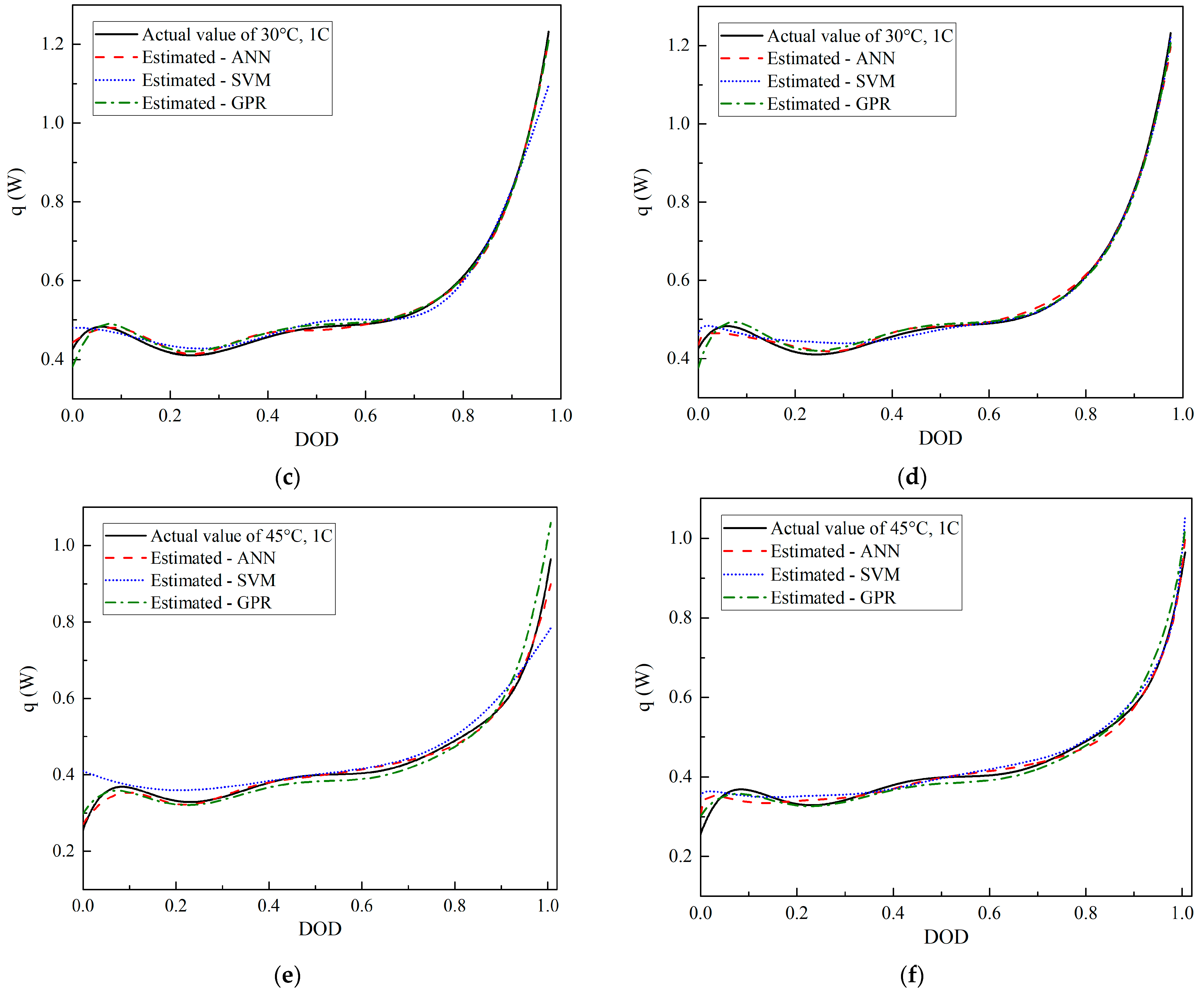

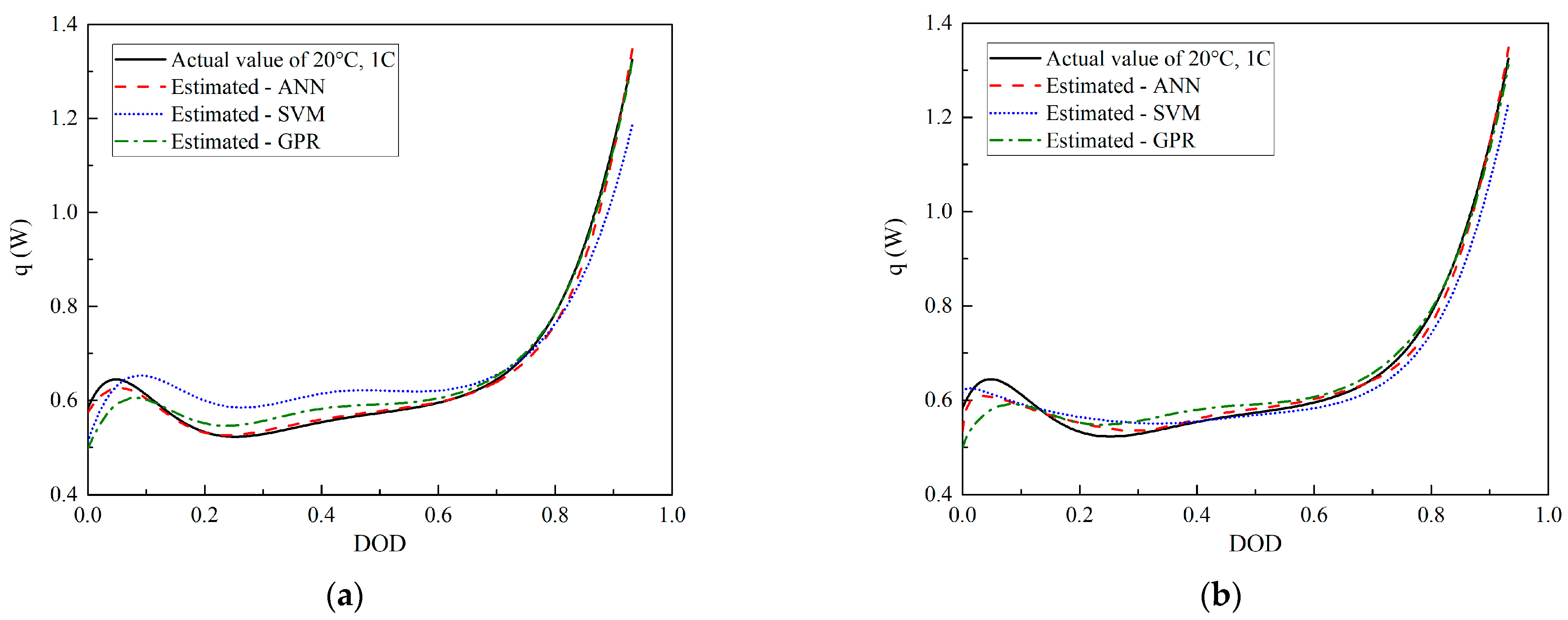

When the inputs were the DOD and ambient temperature, the predicted HGRs discharged at 20, 30, and 45 °C that we obtained by the ANN, SVM, and GPR were compared with the actual values, as shown in Figure 4a,c,e. After the discharge voltage was added to the inputs, the estimated and actual HGRs at 20, 30, and 45 °C are shown in Figure 4b,d,f, respectively.

Table 3. ANN architectures and covariance functions of GPR that were used, and R² of the regressions.

No.	Operation Conditions	Do the Inputs Contain Discharge Voltage?	ANN Architecture	Covariance Function of GPR	R2
					ANN	SVM	GPR
7	20 °C	No	1 hidden layer–15 neurons	Matern 3/2	0.99	0.90	0.98
8		Yes	1 hidden layer–5 neurons	Matern 3/2	0.99	0.96	0.97
9	30 °C	No	1 hidden layer–9 neurons	Matern 3/2	1.00	0.98	1.00
10		Yes	1 hidden layer–5 neurons	Rational quadratic	1.00	0.99	1.00
11	45 °C	No	1 hidden layer–6 neurons	Matern 3/2	0.99	0.92	0.96
12		Yes	1 hidden layer–7 neurons	Matern 3/2	0.99	0.98	0.98

lists the ANN architectures and covariance functions of the GPR that were used and the R² values of the regressions. Figure 5 depicts the training and testing RMSE values and the relative error of the average HGR, δ.

4. Discussion

Figure 2 and the R² values in Table 2 demonstrate that all three methods achieved good predictions for 1 C discharge (cases No. three and four) that are equivalent to the interpolation, where R² is greater than 0.96, regardless of whether the inputs contained the discharge voltage. However, the predictions of the extrapolated conditions of 0.5 C (cases No. one and two) and 1.5 C (cases No. five and six) are not as good as those of 1 C. The R² of the GPR on the 1.5 C discharge prediction was only 0.82 after the discharge voltage was added to the input parameters (Table 2). Figure 3 also demonstrates that the predicted RMSE values of the 1 C discharge were typically the lowest, and the δ values were also low, especially when the discharge voltage was selected as one of the input parameters. Similar results were observed in the predictions at different ambient temperatures. Figure 4 and Figure 5, and the R² values in Table 3 demonstrate that the three methods achieved good results in the 30 °C predictions (cases No. 9 and 10) that are equivalent to the interpolation, where the R² values were greater than 0.98. The prediction performances of the extrapolated conditions at 20 °C (cases No. seven and eight) and 45 °C (cases No. 11 and 12) were good, but not as good as those at 30 °C. The three algorithms performed well in the interpolation cases of the HGR prediction, whereas extrapolation may require more input parameters and may not achieve ideal results. Therefore, the boundary of the test conditions must be broadened as much as possible and extrapolation should be avoided in the regression.

The RMSE of the ANN for the 1.5 C discharge prediction decreased (Figure 3e) and R² increased (Table 2) after adding the discharge voltage to the input parameters, indicating that the prediction performance improved, whereas the performance of the ANN for 0.5 C and 1 C discharge decreased slightly. The performance of the SVM in predicting the discharge at 0.5 C and 1 C was improved after adding the discharge voltage to the input parameters (Figure 3a,c), wherein the minimum R² values increased from 0.53 to 0.82 (Table 2), and the maximum value reached 0.98 (Table 2). The RMSE of the SVM for 1.5 C discharge prediction slightly increased (Figure 3e) and R² slightly decreased (Table 2). However, the comparison between Figure 2e,f demonstrated that the accuracy of the prediction in 0.2–0.8 DOD increased after adding the input. The GPR performance significantly improved for all cases of discharge currents (Figure 3), wherein the minimum R² increased from 0.67 to 0.82 (Table 2) and the maximum value reached 0.98 (Table 2). In the prediction of the cases of different ambient temperatures, the RMSE of the ANN increased slightly after adding the discharge voltage to the inputs (Figure 5), and R² changed slightly (Table 3), demonstrating slight decreases in the prediction performance. The performance of the SVM and GPR both improved (Figure 5a), wherein the minimum R² values increased from 0.90 to 0.96 (Table 3) and the maximum value reached 0.99 (Table 3). In summary, the accuracy of the ANN was less affected by the added input parameters, and the number of neurons used exhibited no evident change pattern (Table 2 and Table 3). The SVM and GPR have a high probability of obtaining better predictions with more input parameters. Adding the discharge voltage to the inputs can slightly increase the accuracy of the prediction. However, additional tests must be conducted to obtain the discharge voltage data of the predicted conditions, which increases the test time. Therefore, the prediction accuracy and time consumption must be weighed when selecting the input parameters.

Notably, the average HGR may not accurately reflect the prediction precision. For example, Figure 2e,f, RMSE (Figure 3e), and R² values (Table 2) all demonstrate that the performance of the GPR for the 1.5 C discharge was improved after adding the discharge voltage as an input, whereas the absolute value of δ in Figure 3f did not decrease. However, δ can still supplement the RMSE, reflecting the relative error magnitude of the prediction. For the predictions of different discharge rates, the maximum absolute value of δ was 7.17% (Figure 3b), except for the prediction of the 0.5 C discharge by the SVM and GPR without discharge voltage being used as an input (Figure 3b). The maximum absolute value of δ was 3.19% (Figure 5f) for the predictions of different ambient temperatures. These results demonstrate that the three algorithms can be effectively applied to predict the battery HGR.

From the comparison of the three algorithms, the ANN performed well in the prediction of interpolation and extrapolation, especially when there was no added input; the minimum R² was 0.89 and the maximum was 1.00 (Table 2 and Table 3). Additionally, in the predictions for different discharge rates by the ANN, the peaks of the HGR at the initial stages of 1 C and 1.5 C discharge were simulated after adding the discharge voltage as an input, as shown in Figure 2d,f. This detail was also effectively simulated in the prediction for different ambient temperatures by the ANN (Figure 4). Conversely, the SVM and GPR could effectively predict the HGR of 0.5 C and 1.5 C discharge only after the discharge voltage was added to the inputs (Table 2). The performances of the SVM and GPR in the predictions for different ambient temperatures were also inferior to those of the ANN (Table 3). The GPR performed better than the SVM in the predictions except for the 1.5 C discharge (Table 2). Moreover, it better simulated the peak at the initial stage of discharge in the predictions for different ambient temperatures. The SVM exhibited the worst detail-simulation performance among the three algorithms. Figure 3 and Figure 5 also demonstrate that the training RMSE values of the SVM were typically higher than those of the ANN and GPR, and both the training and testing performance were not ideal, which indicates that the SVM models may be underfitting. Conversely, the training RMSE values of the GPR were far lower than those of the ANN and SVM, and also far lower than their testing RMSE (Figure 3 and Figure 5), indicating that the generalization ability of the GPR models was poor and that there was overfitting. The training and testing RMSE values of the ANN were relatively close and small (Figure 3 and Figure 5), indicating that both the learning and generalization abilities of the ANN models were satisfactory. The total training time cannot be directly compared since the search for the optimal architecture or kernel function and optimization of the hyperparameters were all performed when applying the three algorithms; however, a single training time can be considered as a reference. In this study, the single training times of the ANN, SVM, and GPR were within the ranges of 8–25 s, 1–13 s, and 69–383 s, respectively. Essentially, among the three algorithms, the computation cost of the GPR was the highest, whereas that of the SVM was the lowest, and that of the ANN was relatively low.

Overall, the ANN exhibited the best performance. It accurately predicted the interpolation and extrapolation cases using simple architectures (single hidden layer with the number of neurons limited to 15) and only two input parameters. Consequently, the computational cost was low and no additional tests were required. Therefore, the ANN was confirmed to be the most suitable algorithm for predicting the HGR. The prediction accuracies of the GPR were typically better than those of the SVM, but the computational cost was the highest. The prediction performance of the SVM was the worst, but it achieved fast computation.

5. Conclusions

In this study, we used three machine learning algorithms—ANN, SVM, and GPR—to predict the HGR of a lithium-ion battery that was discharged by 0.5 C, 1 C, and 1.5 C at 25 °C and by 1 C at 20, 30, and 45 °C, respectively; this included the cases of interpolation and extrapolation. The prediction performances of the cases where the discharge voltage was included in the input parameters were compared with the cases where the discharge voltage was excluded. The main conclusions of this study are as follows:

• The prediction performances of the three algorithms for the extrapolation cases were not as good as those for the interpolation cases. Particularly, ideal results may not be obtained for the predictions of the 0.5 C and 1.5 C discharge even after the discharge voltage was added to the inputs. For example, the R² values of the interpolation cases were greater than 0.96, whereas that of the GPR for the 1.5 C discharge after adding the discharge voltage as an input was only 0.82 (Table 2). Therefore, in practical applications, the boundary of the test conditions must be broadened and extrapolation regression must be avoided as much as possible.
• The prediction accuracy of the SVM and GPR can be improved by adding the discharge voltage to the input parameters of the DOD and discharge current/ambient temperature. For example, in the prediction of different discharge currents, the minimum R² value increased from 0.53 to 0.82, and the maximum reached 0.98 (Table 2). The effect of adding the input parameter on the accuracy of the ANN was minimal. However, more tests are required to obtain the discharge voltage data under the conditions to be predicted when the input is added, which increases the time consumption.
• The absolute values of the relative error of the average HGRs predicted by the three algorithms were mostly within 5%, indicating that all three algorithms can be applied to predict the battery HGR. The ANN exhibited the best performance among the three algorithms and accurately predicted the interpolation and extrapolation cases without additional input parameters. The R² values were within the range of 0.89–1.00 (Table 2 and Table 3), the architectures used were simple, and the computation cost was relatively small. Therefore, the ANN is the most preferred among the three machine learning algorithms for similar battery HGR prediction problems.

This study verified the feasibility of ANN, SVM, and GPR for predicting the HGR of lithium-ion batteries and compared their performances. The drawback faced by this study is that the predicted operating conditions are a single factor of the discharge current or ambient temperature. In the future, the HGRs of the combined factors of the discharge current, ambient temperature, and aging can be predicted by collecting more experimental data.
