Measuring Height Characteristics of Sagebrush (Artemisia sp.) Using Imagery Derived from Small Unmanned Aerial Systems (sUAS)

Abstract

In situ measurements of sagebrush have traditionally been expensive and time consuming. Currently, improvements in small Unmanned Aerial Systems (sUAS) technology can be used to quantify sagebrush morphology and community structure with high resolution imagery on western rangelands, especially in sensitive habitat of the Greater sage-grouse (Centrocercus urophasianus). The emergence of photogrammetry algorithms to generate 3D point clouds from true color imagery can potentially increase the efficiency and accuracy of measuring shrub height in sage-grouse habitat. Our objective was to determine optimal parameters for measuring sagebrush height including flight altitude, single- vs. double- pass, and continuous vs. pause features. We acquired imagery using a DJI Mavic Pro 2 multi-rotor Unmanned Aerial Vehicle (UAV) equipped with an RGB camera, flown at 30.5, 45, 75, and 120 m and implementing single-pass and double-pass methods, using continuous flight and paused flight for each photo method. We generated a Digital Surface Model (DSM) from which we derived plant height, and then performed an accuracy assessment using on the ground measurements taken at the time of flight. We found high correlation between field measured heights and estimated heights, with a mean difference of approximately 10 cm (SE = 0.4 cm) and little variability in accuracy between flights with different heights and other parameters after statistical correction using linear regression. We conclude that higher altitude flights using a single-pass method are optimal to measure sagebrush height due to lower requirements in data storage and processing time.

1. Introduction

Small Unmanned Aerial Systems (sUAS) are advancing at a rapid rate, thereby greatly expanding our ability to acquire high-resolution imagery for lower costs than relying on imagery acquired by satellite or manned-aircraft only. Additionally, the degree of automation involved in modern sUAS allows a less experienced pilot to acquire high-resolution imagery [1]. Many sUAS are able to be fitted with cameras capable of acquiring imagery at finer spatial and spectral resolution [2] than other satellite or fixed-winged aircraft systems. sUAS may collect data using thermal, near infrared (NIR), and Light Detection and Ranging (LiDAR) sensors to aid in image classification. Although not a perfect solution, use of sUAS usually decreases cost, time, and subjectivity of data collection compared to in situ measurements [3].

Photogrammetry is a technology that analyzes overlap between RGB photos by examining features common in multiple images from different look angles and generates a three-dimensional point cloud which can be used to create Digital Terrain Models (DTMs), Digital Surface Models (DSMs), and calculate plant height and structure by subtracting the DTM from the DSM (also known as DEM of Difference) [3,4,5,6,7,8]. Results are similar to data acquired by LiDAR [9,10,11,12,13], but come with advantages and disadvantages: data can be acquired with a standard RGB camera instead of a usually more expensive sensor [10,14], while the inability of the RGB camera to penetrate dense canopies can inhibit the construction of an accurate DTM [1,12], thus potentially introducing error into the dataset. Improvements in photogrammetric algorithms have subsequently improved the accuracy of DSMs created from aerial imagery in biometric applications, including forestry and range management, and improvements in computer processing power has made it possible to construct 3D models of progressively larger datasets [12]. However, differences in methods of data collection and their associated accuracies, including flight altitude above ground level (AGL), flight speed (continuous vs. pause and capture), camera angle (nadir vs. 70% camera angle), and flight pattern (single pass vs. double pass), are understudied in rangeland applications [5].

The sagebrush-steppe ecosystem in the western United States is a primarily sagebrush (Artemisia spp.) dominant landscape of great ecological concern [15,16]. Sagebrush cover has decreased by approximately 40%–50% [17,18] throughout much of its range, due mainly to anthropogenic factors (e.g., overgrazing, energy and urban development, recreation). Changes in plant community structure due to increased invasive plants and changes in fire regimes have also contributed greatly to the alteration of sagebrush dominated landscapes [19,20,21].

Reduced sagebrush habitats have been detrimental to several obligate and facultative wildlife species. For instance, greater sage-grouse (Centrocercus urophasianus), hereafter sage-grouse, are a sagebrush obligate species that has seen dramatic declines in population density throughout their range [22]. Sage-grouse dependence on sagebrush extends throughout all seasons and life stages, with sagebrush height being a vital attribute of brood-rearing and nesting habitat and winter range [23,24,25,26]. As a result of their moderate reproductive rates [27,28], and the direct correlation between nest/brood success and sagebrush structure [19], it is vital for land managers to understand changes in sagebrush habitat in areas they manage.

Land managers have focused for decades on quantifying sagebrush habitat using traditional on the ground measurement techniques to determine plant height, percent cover, frequency, and density [29,30,31]. While these measurements are typically effective, they can also be time consuming, expensive, and subject to the skill of the data collector [3,10,32]. However, measurements using remote sensing have in large part been found to complement many ground measurements across landscapes [12,19,32,33].

Study Objectives and Hypotheses

Our objectives were to (1) determine if photogrammetry is a viable method of measuring sagebrush height and (2) determine the most time efficient method to acquire sagebrush imagery (taking into account time and accuracy). We hypothesized that lower flight height, double pass flight patterns, and the drone pause method will yield higher accuracy but greatly increase flight time. We thus predicted that the optimal combination of parameters for moderate flight time with acceptable accuracy will be achieved at 75 m AGL using a single pass and continuous flight method.

2. Methods and Materials

2.1. Study Area

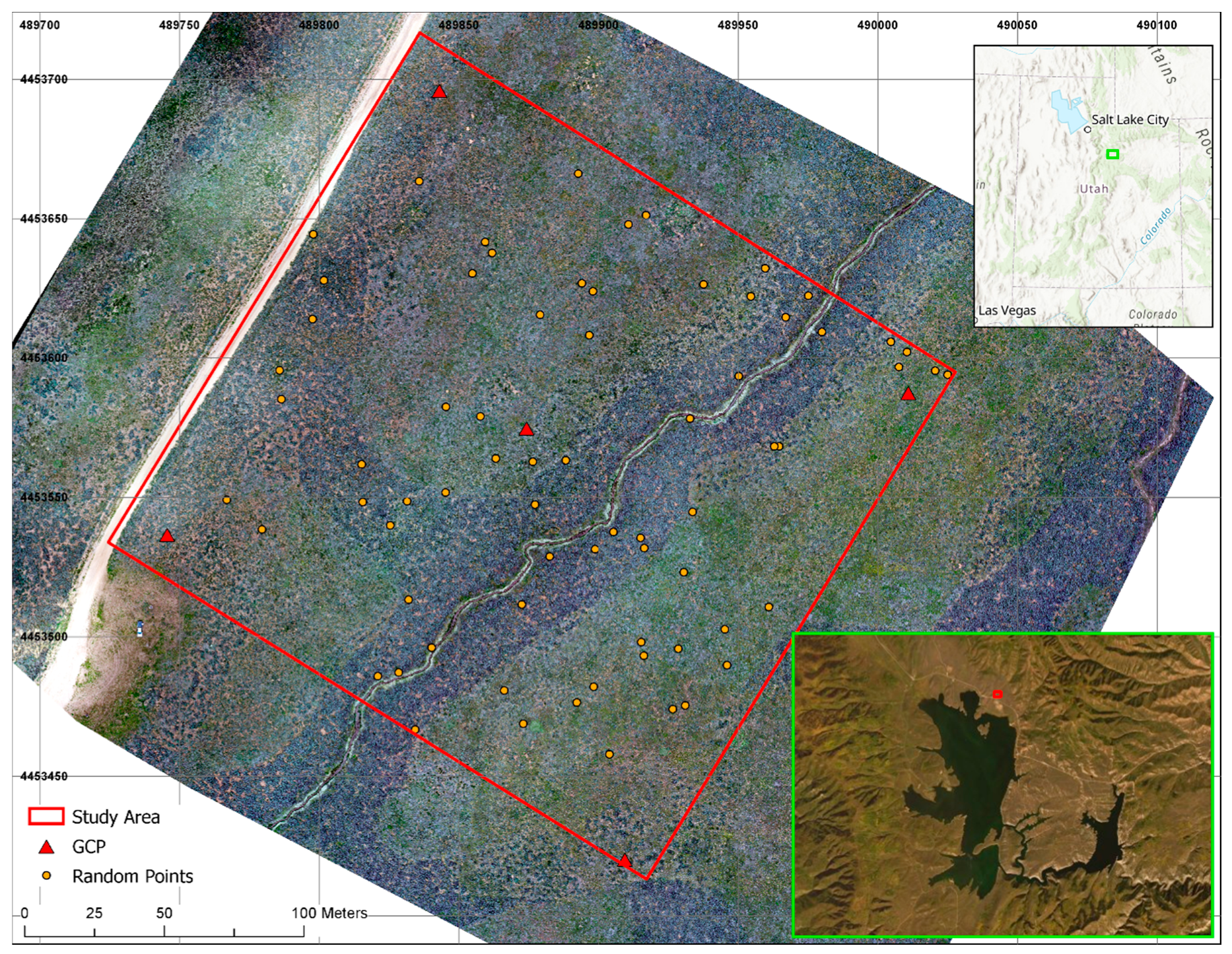

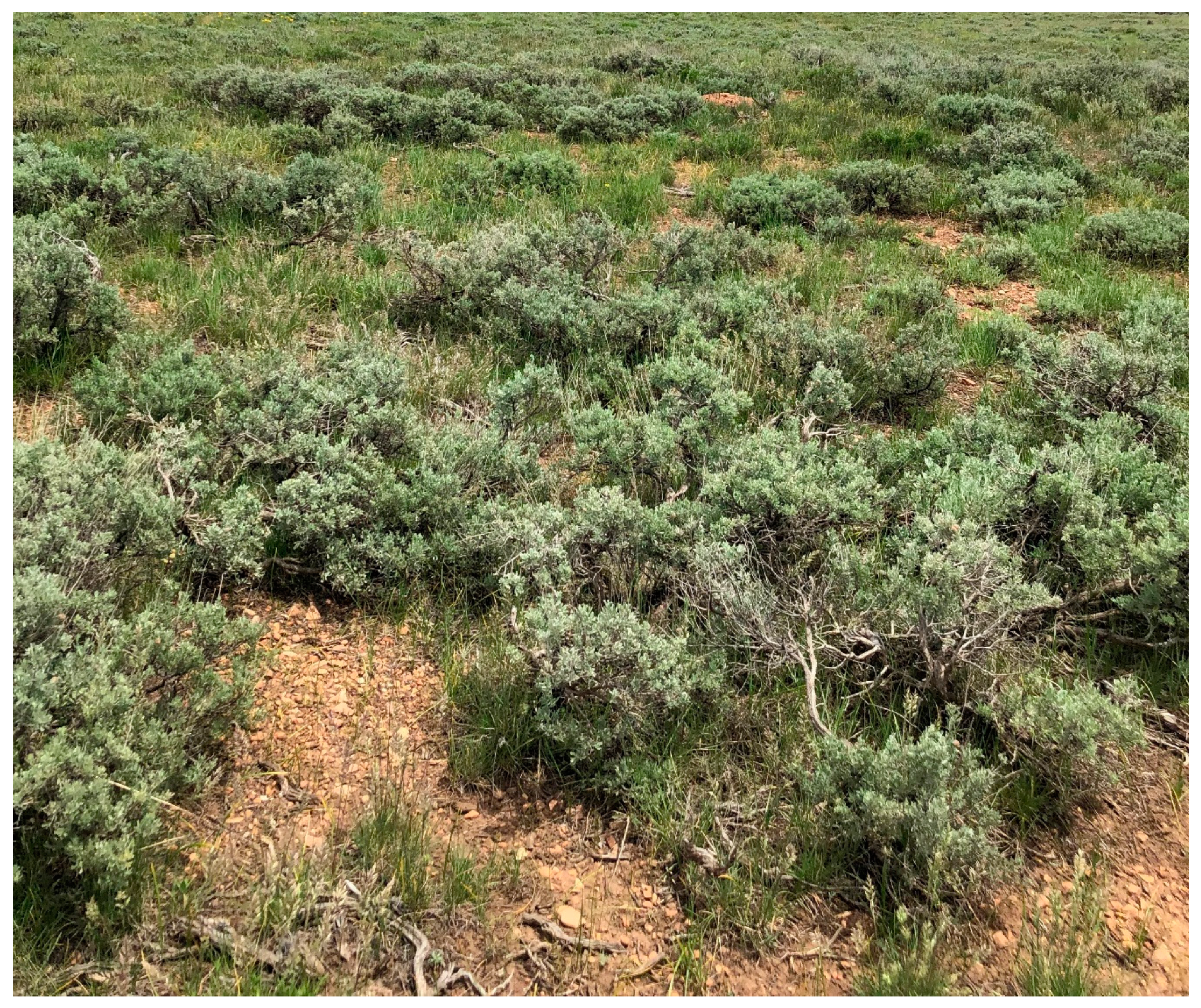

We acquired imagery on a 5.75 ha plot near Trout Creek, Utah, located east of the Wasatch Mountains and south of the Uinta Mountains in east-central Utah (40.232107° N, 111.118933° W, Figure 1). The dominant feature near the study area is the Strawberry Reservoir, which covers approximately 2500 ha. The terrain within the study area is relatively flat with a mean elevation of approximately 2350 m. Mean annual precipitation is 79 cm [34], with cool summers (13.5 °C mean air temperature) and cold winters (−8.7 °C mean air temperature). Mountain big sagebrush (Artemisia tridentata spp. vaseyana) is a tall, amorphous, typically flat-topped shrub that generally does not exceed 180 cm in height, but may exceed 240 cm in height [35,36], and is the dominant shrub with a rich diversity of intercanopy grasses and forbs (Figure 2).

The population of sage-grouse in Strawberry Valley, Utah has plummeted from 3–4000 in the late 1930s [37] to less than 200 in the late 1990s [38] due to habitat fragmentation and degradation caused by anthropogenic expansion [39], the introduction of the invasive red fox (Vulpes vulpes) [40], and genetic bottleneck [41,42]. Sagebrush was treated within the study area in 2006–2007 and retreated in 2017 using a Dixie Harrow, implemented to decrease total sagebrush cover and improve brood-rearing habitat conditions for sage-grouse [23,43]. We included both treated and untreated areas in our study area.

2.2. Data Collection

We acquired sUAS RGB imagery using a consumer-grade DJI Mavic Pro 2 quadcopter with an RGB camera (

Table 1. DJI Mavic Pro 2 specs for both camera and aircraft, as specified by DJI (https://www.dji.com/mavic-2/info).

Camera
CMOS	1″
Megapixels	20
Lens	F/2.8-11
FOV	77°
Electrical Rolling Shutter	8-1/8000 s
Resolution	5472 × 3648
ISO range	100–12,800
Aircraft
Takeoff weight	907 g
Max flight time	31 min
Max Speed	72 kph

) piloted by a Federal Aviation Administration (FAA) Part 107 certified remote pilot from 7 June–21 June 2019. All flights occurred within 2 h of solar noon (13:23 to 13:26) to minimize shadows [3]. Images were acquired with 85% front overlap and 70% side overlap, meeting the recommended minimum provided by Pix4D (Pix4D, Lausanne, Switzerland) as well as previous research [5]. The flights were automated for waypoint control and image capture using the Pix4D Capture mobile app using each combination of the following parameters:

• Height: 30.5 m AGL, 45 m AGL, 75 m AGL, and 120 m AGL
  Pre-flight calculations of spatial resolutions range from approximately 0.75 cm (30.5 m) to approximately 3 cm (120 m,

  Table 2. Summary of pre-flight estimated flight time and estimated Ground Sampling Distance (GSD) for each flight combination (by height, single or double pass, and continuous or safe mode). All values were calculated by the Pix4d Capture mobile app using a DJI Mavic Pro 2 quadcopter.

  Height AGL (m)	Flight	Time	Resolution (cm)
  30.5	Single Pass/Continuous	46 min 14 s	0.71
  	Double Pass/Continuous	91 min 26 s	0.76
  	Single Pass/Safe	122 min 19 s	0.71
  45	Single Pass/Continuous	23 min 26 s	1.06
  	Double Pass/Continuous	46 min 2 s	1.14
  	Single Pass/Safe	62 min 29 s	1.06
  75	Single Pass/Continuous	11 min 30 s	1.77
  	Double Pass/Continuous	21 min 20 s	1.9
  	Single Pass/Safe	30 min 58 s	1.77
  120	Single Pass/Continuous	6 min 55 s	2.79
  	Double Pass/Continuous	11 min 45 s	2.91
  	Single Pass/Safe	17 min 30 s	2.79

  ). Higher resolution (lower Ground Sampling Distance, GSD) is expected to result in higher accuracy of photogrammetrically derived plant height values [44]. In addition, higher flights have a higher viewing angle, which we predict will negatively impact our ability to achieve an oblique view for optimal point cloud generation. Flight time decreases by roughly half with each successive increase in height AGL (Table 2).
• Flight pattern: Single pass vs. Double pass with non-nadir imagery
  Single pass methods decrease flight time compared to double pass (or quadruple pass, which we did not test in this study). Double pass methods are expected to improve point cloud generation by utilizing the multiple viewing angles of each plant with non-nadir imagery (camera angle of about 70%). Flight time is roughly doubled by implementing a double pass flight (Table 2).
• Flight Speed: Continuous mode vs. Safe mode
  Lower heights are more susceptible to motion blur using continuous flight methods (“Continuous mode”), while pausing the drone, taking a picture, and resuming flight (“Safe mode”) decreases the risk of blur and improves overall image quality, which is also expected to aid in point cloud generation. Flight time is roughly tripled by implementing safe mode (Table 2).

We measured plant height in situ immediately following the flights using a tape measure and a Trimble GeoExplorer 6000 GPS unit at the sagebrush plant nearest 69 randomly distributed points (Figure 1) generated using ArcGIS Pro 2.3 (ESRI, Redlands, CA, USA). Each point was at least 2 m away from every other point to eliminate double measuring shrubs. Maximum height is the attribute most easily measured by photogrammetry [9]; therefore, we measured the tallest point of each random sagebrush, with and without inflorescence. We also measured each random shrub at the widest point to determine the maximum radius of the plant, which we used to determine the tallest point within a buffer specified by the radius using the Zonal Statistics tool in ArcGIS Pro 2.3 to minimize the effect of error on locating the tallest point of the plant. In addition, we determined the exact altitude of the ground beneath each random sagebrush plant to compare with our DTM. Additionally, we used a total of 5 ground control points (GCPs), marked using the Trimble GPS unit, to georeference our imagery.

2.3. Data Analysis

We processed the RGB images using Pix4Dmapper for Desktop (Pix4D, Lausanne, Switzerland) to mosaic the images and generate photogrammetric 3D point clouds. This software uses key points to determine common locations between images and computes tie points from which a point cloud and digital surface model (DSM) in a raster format is created. The DSM shows the highest point at each location, while a DTM utilizes a point classification to determine bare ground values by interpolating areas between points classified as “bare ground”. These two layers can be used to determine plant height by subtracting the DTM from the DSM (Figure 3). Using this plant height layer, we compared computer generated height data with the in situ data. Images were processed using a 64 bit Windows 10 operating system, equipped with an Intel(R) Core(TM) i7-8700 CPU @ 3.20 GHz and 16 GB of RAM. We processed each flight as one project in Pix4D, with the exception of projects with over 1000 images (

Table 3. Summary of flight results, including number of images, spatial resolution, RMSE, and R² values for plant height and Digital Terrain Model (DTM). Imagery was acquired near Strawberry Reservoir, Utah, USA using a DJI Mavic Pro 2 quadcopter and processed using Pix4D. Images were processed using a 64 bit Windows 10 operating system, equipped with an Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz and 16GB of RAM (with the exception of the 30.5 m double continuous flight, which was processed using 32 GB of RAM.

Height AGL (m)	Flight	# of Images	Processing Time (Minutes)	Average DSM GSD (cm)	Average DTM/Height GSD (cm)	RMSE (Mosaic)	RMSE (Height)	Plant Height R2	DTM R2
30.5	Single Continuous b	1244	2453	0.62	3	Sub 1: <0.001 Sub 2: 0.0678 Sub 3: <0.001	Sub 1: 0.05 Sub 2: <0.001 Sub 3: <0.001	0.5851	0.9695
	Double Continuous c	2402	3210	0.69	3.4	0.5656	0.0127	0.4319	0.9195
	Single Safe b	1251	2099	0.6	3	Sub 1: <0.001 Sub 2: <0.001 Sub 3: <0.001	Sub 1: <0.001 Sub 2: 0.005 Sub 3: <0.001	0.4711	0.8811
45	Single Continuous	567	1232	0.98	4.9	0.142	0.015	0.5204	0.9281
	Double Continuous a	1188	1425	1.11	5.5	Sub 1: <0.001 Sub 2: <0.001	Sub 1: <0.001 Sub 2: 0.03636	0.4244	0.9591
	Single Safe	567	1212	1	4.9	0.0604	0.0095	0.5774	0.9769
75	Single Continuous	240	570	1.74	8.7	0.1442	0.011	0.482	0.964
	Double Continuous	481	920	1.97	9.8	0.0655	0.0506	0.5631	0.9948
	Single Safe	239	473	1.72	8.5	0.0713	0.0957	0.5515	0.9914
120	Single Continuous	111	262	2.74	13.7	0.076	0.112	0.5297	0.9842
	Double Continuous	219	681	3.13	15.6	0.0417	0.037	0.5815	0.9777
	Single Safe	111	314	2.86	14.3	0.074	0.105	0.6162	0.9849

^a processed in 2 sub-projects; ^b processed in 3 sub-projects; ^c processed using 32 GB of RAM.

). Additionally, we processed the 30 m double continuous flight using 32GB of RAM due to insufficient RAM on the 16 GB machine and to eliminate the potential error and bias of processing in approximately 8 sub-projects.

Based on previous experience, we determined the optimal settings for generating a point cloud and subsequent DTM and DSM layers. Within the Pix4D processing settings, we set the image scale (the scale at which 3D points are computed) to full image size and the minimum number of matches to 3 (meaning each 3D point must be projected in at least 3 images). Default settings were left for the point density of the densified point cloud (optimal, or 4/Image Scale), resolution of the DSM (1 × GSD), and DTM resolution (5 × GSD). Images were processed in Pix4D using UTM 12N as the coordinate system and the WGS84 datum.

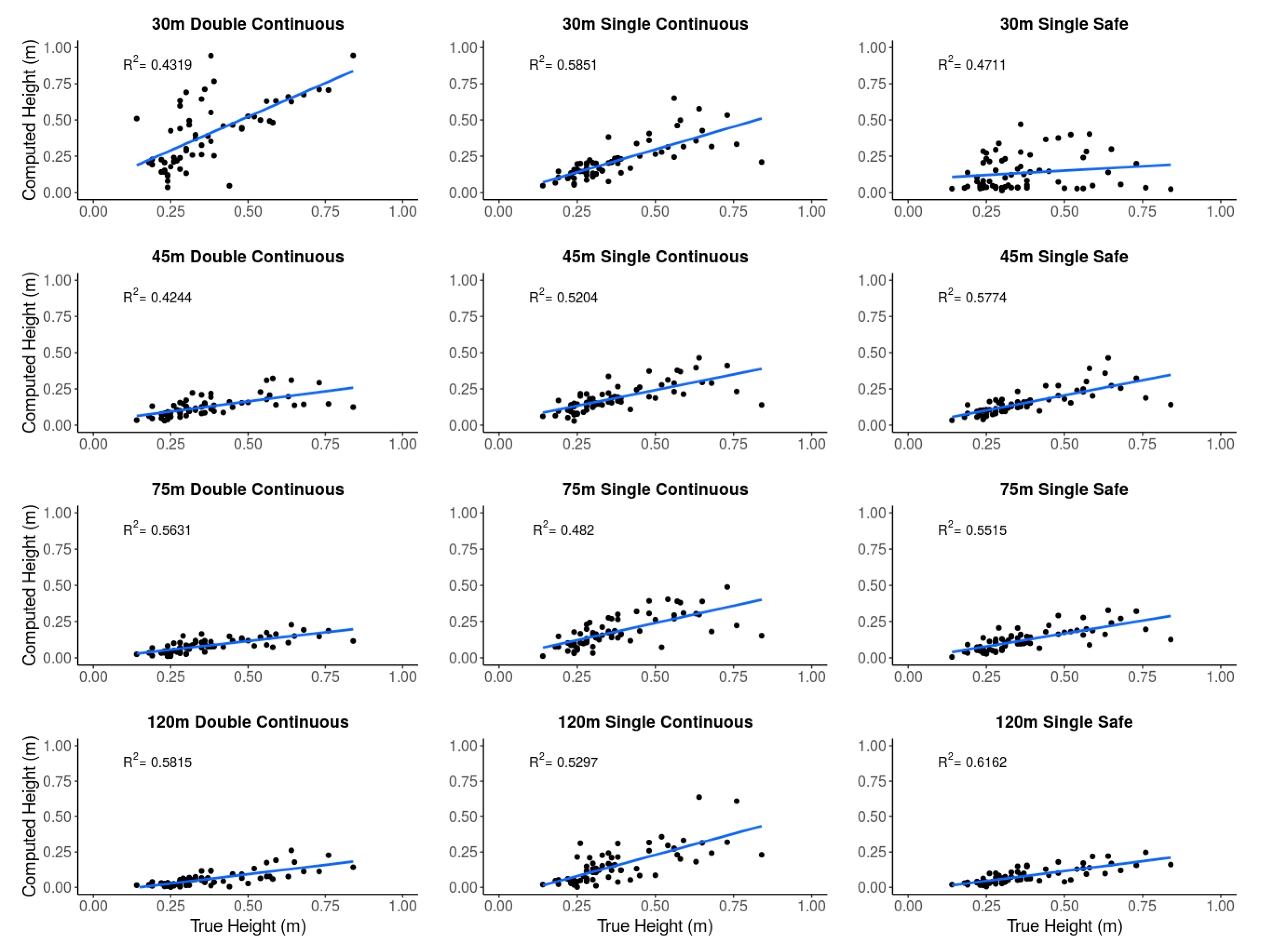

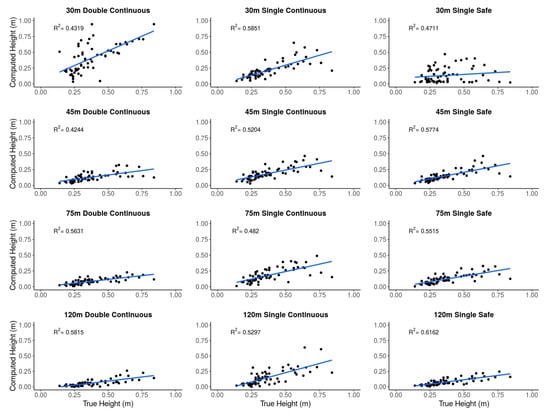

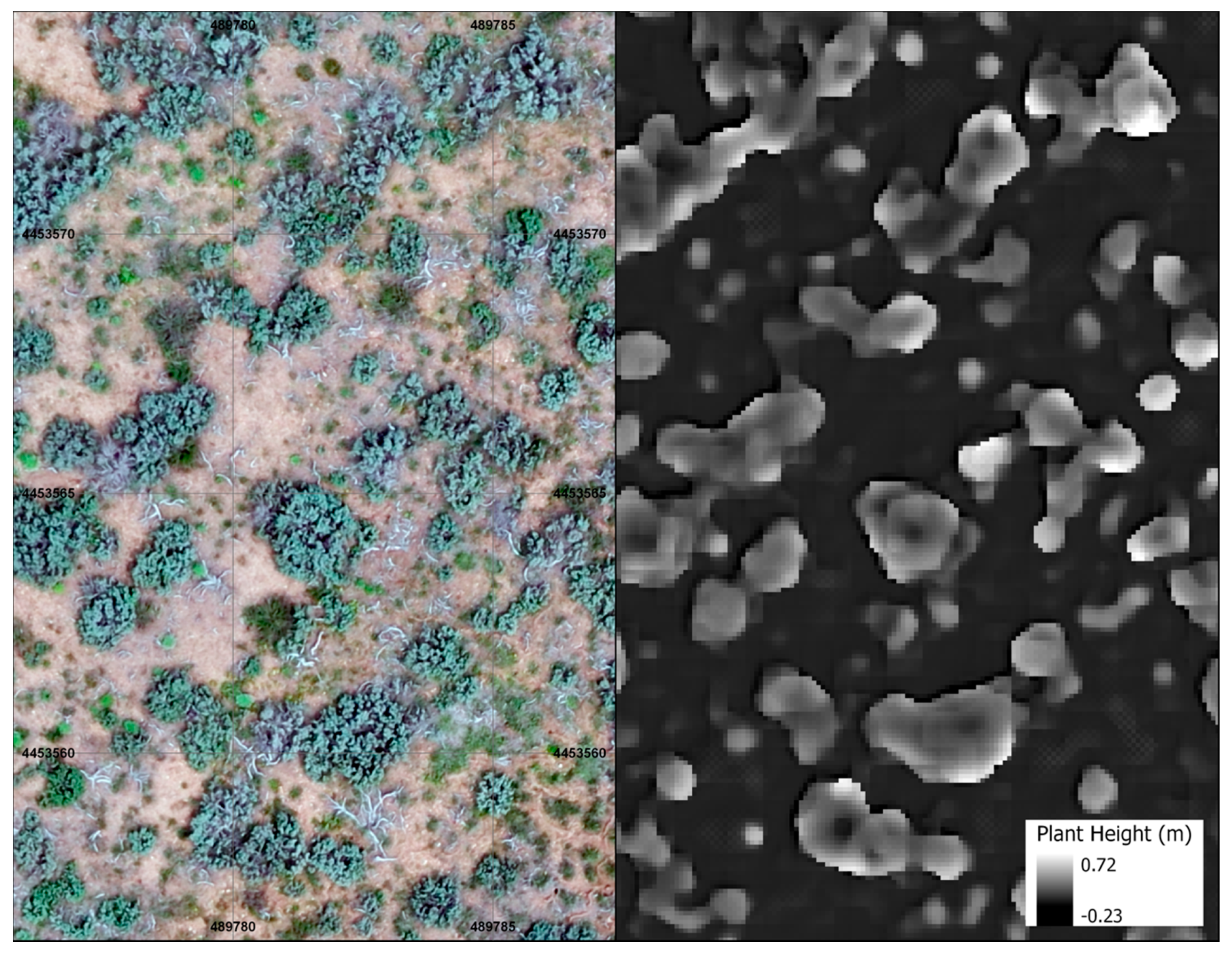

After processing the imagery, we compared the height values calculated by Pix4D (found in the plant height layer derived from subtracting the DTM from the DSM) with the in situ values measured in the field using a regression analysis for each flight. Comparing computed values with on the ground values provided R² values to determine correlation as well as the equation for the regression line, which we applied to the values derived from the height layer at each of the points used for the accuracy assessment. This method provided a statistical correction to aid in calibrating the height values across the entire dataset.

We reported all mean values as mean ± s.e.

3. Results

We performed flights according to the parameters set forth above. Temperatures during data collection ranged from 7.75 °C to 19 °C, with winds ranging from calm to approximately 19 kph. Cloud cover was mostly sunny, with occasional cover occurring during some of the flights, although we made every effort to fly in perfectly sunny conditions with no wind. The number of images per flight ranged from 111 images for the Single Pass flights at 120 m to 2402 images for the Double Pass flight at 30.5 m (Table 3). Additionally, GSD of the DSM ranged from 0.6 cm to 3.13 cm (Table 3). Each flight had high correlation between the two elevation values (ground truth measured at the base of each sagebrush plant and those derived from the DTM), with R² values of at least 0.9 for each flight (with the exception of one flight, Table 3).

We measured a total of 69 sagebrush plants within the study site to the highest point. Individual shrubs ranged from 14 cm–84 cm, with the mean shrub being 37 cm ± 1.8 cm. The measured points for each flight had a tendency to underestimate shrub height compared to true height on the ground, with mean differences ranging from 11 to approximately 30 cm (mean 21 cm ± 1.8 cm, Figure 4). However, correlation between measured and true heights was high for most flights, ranging from approximately 0.4 to 0.6 (Table 3, Figure 5). In the case of the 30 m and 45 m double continuous flights, random points were removed from analysis (9 points and 4 points, respectively) due to processing errors that resulted in unrealistic plant height values.

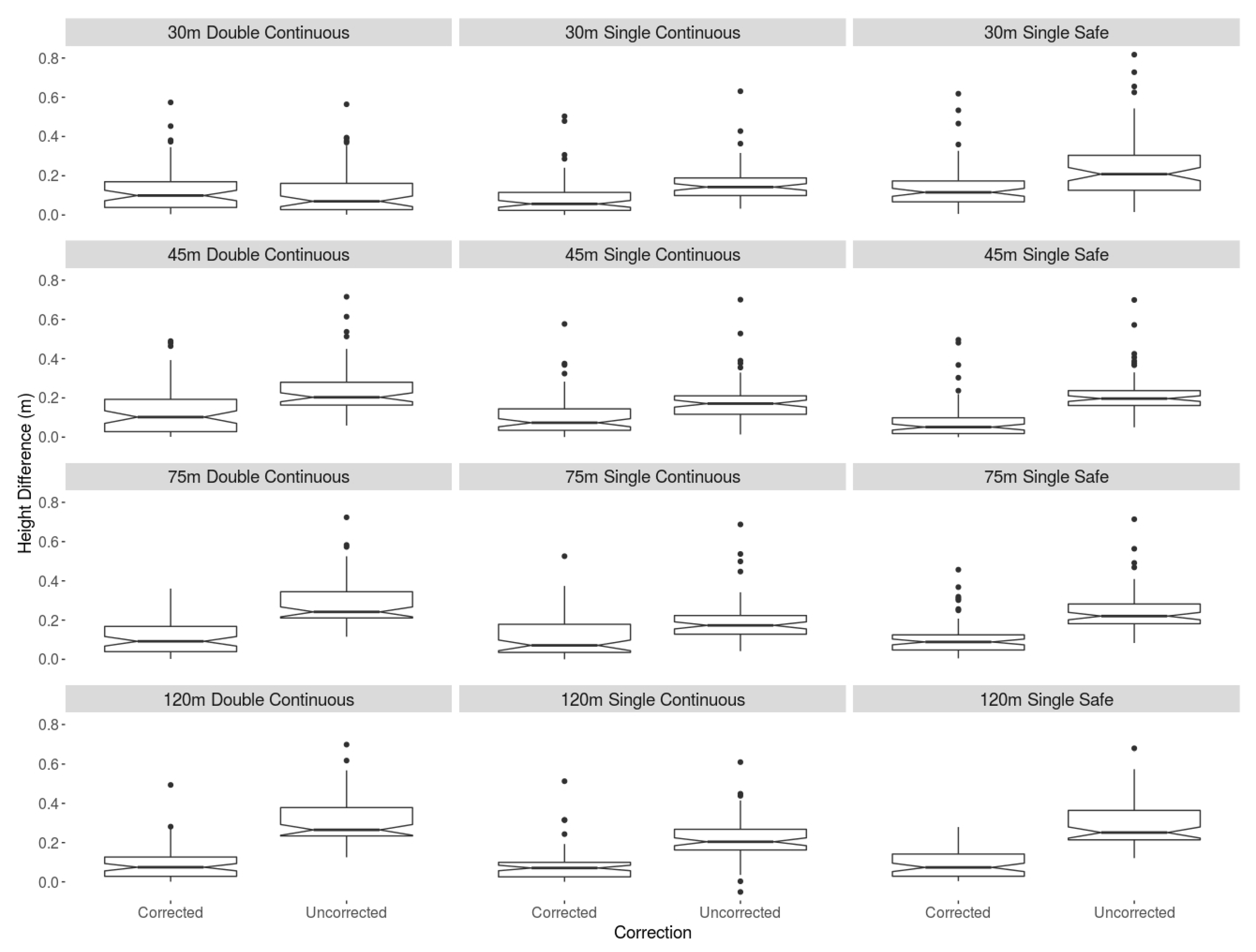

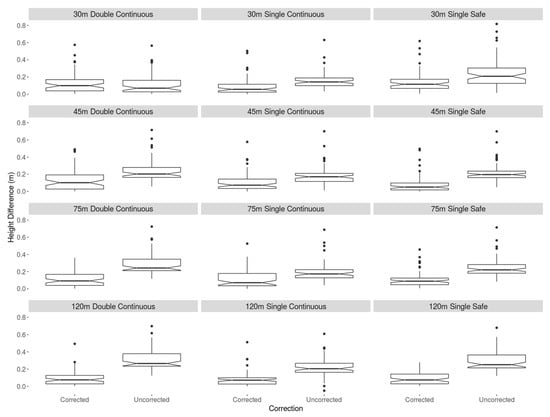

We used linear regression to correct differences between measured and true heights. By applying the regression line to the measured value at each of our random points, the mean difference between measured shrub height and true shrub height decreased to 8 cm–13.5 cm (mean 10.7 cm ± 0.4 cm,

Table 4. Summary of corrected and uncorrected average difference between measured and derived shrub heights. Imagery was acquired near Strawberry Reservoir, Utah, USA using a DJI Mavic Pro 2 quadcopter and processed using Pix4D.

Height AGL (m)	Flight	Uncorrected Average Difference Shrub Height (m)	Uncorrected SE	Corrected Average Difference Shrub Height (m)	Corrected SE
30.5	Single Continuous b	0.1559	0.012	0.0856	0.0118
	Double Continuous c	0.1154	0.0216	0.1311	0.0159
	Single Safe b	0.1372	0.0147	0.1208	0.0132
45	Single Continuous	0.183	0.013	0.106	0.0123
	Double Continuous a	0.2427	0.0153	0.135	0.0152
	Single Safe	0.2195	0.0127	0.0849	0.0121
75	Single Continuous	0.1923	0.0133	0.1191	0.0128
	Double Continuous	0.283	0.0146	0.105	0.0101
	Single Safe	0.2501	0.0133	0.1063	0.108
120	Single Continuous	0.219	0.0128	0.1034	0.0123
	Double Continuous	0.3133	0.0142	0.096	0.0107
	Single Safe	0.2929	0.014	0.0935	0.0094

^a processed in 2 sub-projects; ^b processed in 3 sub-projects; ^c processed using 32 GB of RAM.

). Additionally, approximately 80% of points are within 20 cm and over 50% are within 10 cm of true values, depending on the flight (

Table 5. Summary of number and percentage of accuracy assessment points within a given distance of true height for each flight parameter combination (by height, single or double pass, and continuous or safe mode) after applying a regression correction. Imagery was acquired near Strawberry Reservoir, Utah, USA using a DJI Mavic Pro 2 quadcopter and processed using Pix4D.

		Points Within a:				Percent Within:
		20 cm	15 cm	10 cm	5 cm	20 cm	15 cm	10 cm	5 cm
120	Single Continuous	60	58	52	29	86.96	84.06	75.36	42.03
	Single Safe	60	54	46	27	86.96	78.26	66.67	39.13
	Double Continuous	59	54	41	27	85.51	78.26	59.42	39.13
75	Single Continuous	55	47	37	23	79.71	68.12	53.62	33.33
	Single Safe	61	57	41	20	88.41	82.61	59.42	28.99
	Double Continuous	64	50	38	24	92.75	72.46	55.07	34.78
45	Single Continuous	59	53	44	25	85.51	76.81	63.77	36.23
	Single Safe	62	59	52	37	89.86	85.51	75.36	53.62
	Double Continuous b	52	43	33	22	80.00	66.15	50.77	33.85
30.5	Single Continuous	64	60	50	33	92.75	86.96	72.46	47.83
	Single Safe	57	52	41	22	82.61	75.36	59.42	31.88
	Double Continuous c	49	44	33	19	81.67	73.33	55.00	31.67

^a out of 69; ^b out of 65 (points removed due to processing errors); ^c out of 60 (points removed due to processing errors).

).

4. Discussion

Photogrammetry was an accurate method to measure elevation by creating a DTM in our study area. Due to the high correlation we observed between true elevation and elevation obtained using photogrammetry, as well as the unvarying terrain and relatively sparse vegetation within our site, we do not expect that DTM generation negatively affected our results. However, although much of the sage-steppe ecosystem exhibits similar landscape characteristics, care should be exercised in areas of more extreme topographic variation or dense vegetation.

Additionally, using photogrammetry was a reasonable method to predict sagebrush height before statistical correction, with accuracies for the 120 m flights similar to or better than what has been reported using LiDAR, but with a slightly lower correlation (with LiDAR being accurate within approximately 28 cm, with an R² of 0.84) [45]. Each step decrease in flight height AGL improved accuracy with similar R² as the 120 m flights (Table 3 and Table 4). We also observed a general underestimation of shrub height using this method, as has been reported elsewhere [3,45,46,47], presumably due to differences in field measurement methods (e.g., maximum height) versus how computed heights are derived from imagery; for example, the highest point might be too fine to be detected in the imagery. Using control points to perform a statistical correction using linear regression shows promise in further calibrating an image across an entire landscape. This is particularly useful in the sagebrush-steppe ecosystem (and similar systems in other parts of the world) as taking few ground measurements can help to construct a height model over large areas, decreasing time required for field measurements. Overall, we found that measurements derived using photogrammetry are similar to those expected from LiDAR, and the relatively low cost associated with photogrammetry makes it an attractive alternative [9,11].

Optimal flight parameters to measure sagebrush height, as is the case in many instances in remote sensing, depends on the resources available and question being asked. If a very rough shrub height measurement is all that is required, then the user should select the altitude AGL that correlates with the imagery resolution that is required for the question at hand; or, if no imagery is necessary, the researcher can simply fly at the highest altitude possible to decrease data acquisition and processing time, knowing that the mean error within the dataset will be within approximately 30 cm (Table 4). Similarly, we found negligible differences in accuracy between flights if statistical correction using linear regression is applied, with all flights having a mean difference of around 10 cm (Table 4). In this case, the user could opt to fly at the highest altitude possible to decrease data acquisition and processing time. If statistical correction is not an option and the user has higher amounts of processing time and computing power, flights at 30 m AGL had the lowest uncorrected differences in shrub height (Table 4).

It should be noted that processing time and system requirements are major factors to consider when determining ideal parameters, especially flight altitude AGL. We found that 16 GB of RAM was not enough to process a dataset with over 1000 images without dividing it into subprojects, which requires duplication of efforts to process each dataset and leads to increased potential of human error and bias. Additionally, our machine struggled to process the 30 m, double continuous dataset with over 2000 images due to the smaller amounts of RAM (16 GB). This was resolved by processing with a machine with 32 GB of RAM, which took 53.5 h to complete. The current growth rate in processing power indicates that this capability will become more and more accessible, but is currently considered a more high-powered machine that may or may not be a limiting factor. This discrepancy will only become more pronounced as datasets are produced to cover a larger area than the relatively small test area in this paper.

The use of sUAS to acquire RGB imagery for photogrammetric height extraction of sagebrush heights is relatively understudied in the literature, but it is comparable to LiDAR in accuracy without the cost of an expensive sensor. With the continuous evolution of sUAS comes reduced costs and greater ease of use, decreasing the amount of specialty training needed to acquire high-resolution imagery. Further research is necessary to continue to determine optimal methods to accurately model sagebrush height and structure and identify other parameters that could affect accuracy (such as weather conditions or different levels of overlap), especially over broad scales, but using sUAS derived photogrammetry to measure rangeland attributes could provide a cost effective way to measure sensitive sagebrush-steppe ecosystems.
