An Autonomous Tracking and Landing Method for Unmanned Aerial Vehicles Based on Visual Navigation

Abstract

In this paper, we examine potential methods for autonomously tracking and landing multi-rotor unmanned aerial vehicles (UAVs), a complex yet essential problem. Autonomous tracking and landing control technology utilizes visual navigation, relying solely on vision and landmarks to track targets and achieve autonomous landing. This technology improves the UAV’s environment perception and autonomous flight capabilities in GPS-free scenarios. In particular, we are researching tracking and landing as a cohesive unit, devising a switching plan for various UAV tracking and landing modes, and creating a flight controller that has an inner and outer loop structure based on relative position estimation. The inner and outer nested markers aid in the autonomous tracking and landing of UAVs. Optimal parameters are determined via optimized experiments on the measurements of the inner and outer markers. An indoor experimental platform for tracking and landing UAVs was established. Tracking performance was verified by tracking three trajectories of an unmanned ground vehicle (UGV) at varying speeds, and landing accuracy was confirmed through static and dynamic landing experiments. The experimental results show that the proposed scheme has good dynamic tracking and landing performance.

1. Introduction

UAVs offer numerous advantages, such as strong maneuverability, low maintenance costs, vertical takeoff ability, and impressive hovering capabilities. As a result, they are widely used in various fields, including search and rescue, exploration, disaster monitoring, inspection, and agriculture [1,2,3,4]. However, limitations on payload and flight time significantly restrict the range of UAV missions. Therefore, it is essential to develop fully autonomous multi-rotor UAVs that can collaborate with ground-based robots to perform more complex tasks [5,6]. In this case, especially during the takeoff and landing phases, high-precision vehicle position and attitude estimation and motion planning are required [7,8].

In recent years, scholars globally have extensively researched UAV tracking [9,10] and landing techniques [11], for instance, identifying safe landing locations using visual cues following a severe UAV malfunction [12]. Landing a UAV on an unmanned vessel is a challenging problem [13,14,15]. The fluctuating water surface causes unpredictable changes in the position and attitude of the unmanned vessel. Landing the UAV on the UGV can give the UGV system the ability to work in a three-dimensional space, and carrying the charging module on the UGV can solve the limitations of payload and flight time on the working range of the UAV, but it places high requirements on the accuracy of the drone landing [16,17,18,19]. The position and attitude of a UAV are estimated during the landing process, but the position and attitude of today’s UAVs are typically measured by inertial measurement units (IMUs) and Global Positioning System (GPS) [20]. However, the positioning accuracy of GPS is low, and it is not possible to use GPS positioning indoors or in places with a lot of cover. IMUs have the problem of accumulating errors in long-term positioning, making it difficult to perform high-precision tasks such as landing. Therefore, the selection of sensors is particularly important when the UAV performs the landing mission. Laser sensors can provide accurate distance information, accurately calculate the relative position and attitude relationship between the UAV and the landing landmark, and are used in UAV landing missions [14]. However, laser sensors are expensive, require a large amount of data, and have high platform requirements, making them unsuitable for mounting on small multi-rotor UAVs.

With the advantages of easy maintenance, low price, miniaturization, light weight, and low power consumption, vision sensors are widely used in various intelligent robots. With the development of technology, UAV visual localization can provide precise position and angle information, which can meet the accuracy requirements of UAV landing guidance. However, accurate landmark recognition is a challenge, and edge detection algorithms [21,22] and deep learning methods [19] are commonly used. These methods are computationally intensive and poorly portable, and deep learning also requires large amounts of data. Optical flow is also a promising solution for autonomous landing missions [23], but it is less stable as it is highly dependent on the environment.

During UAV landings, as the visual sensor approaches the landing landmark, there is a risk of losing information on global and relative position and attitude information, resulting in decreased landing precision or even failure. Therefore, a precise landmark must be designed to guide the UAV towards a successful landing. The use of ArUco marker is a common method for guiding UAV landings [17,18,19]. Compared to other markers, such as AprilTags and ARTags, ArUco markers can be easily generated and recognized using OpenCV. Ref. [24] compares AprilTags, ARTags, and ArUco markers in terms of recognition distance, accuracy, and computing resource consumption. ArUco markers have a low probability of detection errors during the recognition process and are therefore straightforward to set up and robust in tracking and landing UAVs. Therefore, we use the ArUco marker as landmark. When utilizing an ArUco marker for UAV landing guidance, the global information of the marker is forfeited when the UAV landmarks are in close proximity. As a result, nested ArUco markers or ArUco marker matrices are commonly implemented to ensure the precision of the low-altitude relative positions and attitudes of the UAV during landing.

This paper’s primary contribution is the development of dynamic tracking and landing control strategies for UAVs and the optimization of landmark structure and dimensions to obtain the best possible landmark parameters. By relying solely on vision to achieve dynamic tracking and precise landing of UAVs, an experimental platform for indoor UAV tracking and landing was established. The UAV tracking performance was validated by tracing three different trajectories of the unmanned ground vehicle (UGV) at varying speeds, while the landing precision of the UAV was confirmed through both static and dynamic landing experiments.

2. Materials and Methods

During the dynamic tracking and landing of the UAV, the state of the UAV is categorized into a tracking mode and a landing mode based on the relative position and attitude of the UAV and the landmark carried by the UGV (shown in Figure 1). Initially, the UAV utilizes vision to gather details about the surrounding area. If a landmark is identified, the UAV calculates the relative positions and attitudes of itself and the landmark. If no landmark is detected, the UAV will automatically elevate its altitude to broaden its field of view and locate the landmark. The controller receives the relative position and attitude obtained and translates it into commands to control the UAV. In tracking mode, the UAV sends commands to control the horizontal channel to the UAV’s flight controller to guide the UAV horizontally close to landmarks for autonomous UAV tracking, maintaining the UAV’s altitude to keep the target in view and adjusting the UAV’s speed to keep up with the target. The UAV enters the landing mode when the relative positions and attitudes of the UAV and the landmark meet the landing conditions. In landing mode, the UAV approaches the landmark horizontally, dropping its own altitude and keeping the UGV at the same speed as the tracked target; if the target is lost, it rises to expand the field of view to bring the target back into view; if the target is not lost, it calculates the straight-line distance to the center of the landmark. This straight-line distance refers to the distance from the center of the UAV to the center of the landmark(shown in Figure 2). When the straight-line distance is less than 0.3 m, the UAV’s landing command is triggered: the motor decelerates to land the UAV.

To fulfill the demands of the tracking and landing mission, the UAV is controlled through a controller featuring an inner and outer loop structure (shown in Figure 3). The inner loop structure controls the attitude angles ϕ, θ, ψ, and angular velocities p, q, r. An algorithm incorporating fuzzy PID is utilized for the attitude angular velocities, and a cascaded PID control regulates the attitude angles. Step response experiments were conducted in the MATLAB simulation platform for pitch angle, roll angle, yaw angle, and the corresponding angular velocity. The desired values were set to 0.1 for both the angle and angular velocity, with a simulation step size of 1 ms. The step response performance metrics were calculated from the step response curves: rise time “t_r”, regulation time “t_s”, peak time “t_p”, and maximum overshoot “σ” (

Table 1. Attitude angle and its angular velocity step response metrics.

Attitude Parameters	Performance Indicators
	${\mathit{t}}_{\mathit{r}}$ (s)	${\mathit{t}}_{\mathit{s}}$ (s)	${\mathit{t}}_{\mathit{p}}$ (s)	$\mathit{\sigma }$ (%)
$q$	$0.22$	$0.27$	$0.32$	$3.01$
$\theta$	0.40	0.60	$1.53$	$0.97$
$p$	$0.22$	$0.27$	$0.32$	$2.96$
$\varphi$	0.45	0.60	$1.41$	$0.91$
$r$	$0.14$	$0.18$	$0.70$	$0.09$
$\psi$	0.27	0.40	$0.60$	$1.38$

). The cascaded PID control algorithm is used in the outer loop structure to control the UAV’s position. The position controller comprises two loops to control speed and position. Simulation experiments were conducted on the system to track a circular trajectory with a 3 m radius. The desired positions of the x and y axes are updated at a rate of 0.2 radians per second (shown in Figure 4). The three-axis position response curves can be obtained. The resulting position response corresponds closely to the expected value, with a slight degree of hysteresis that produces an error of approximately 0.6 m. The z-axis position response is comparatively faster than the x and y axes’ responses. Consequently, the tracking effect of the system essentially meets the requirements.

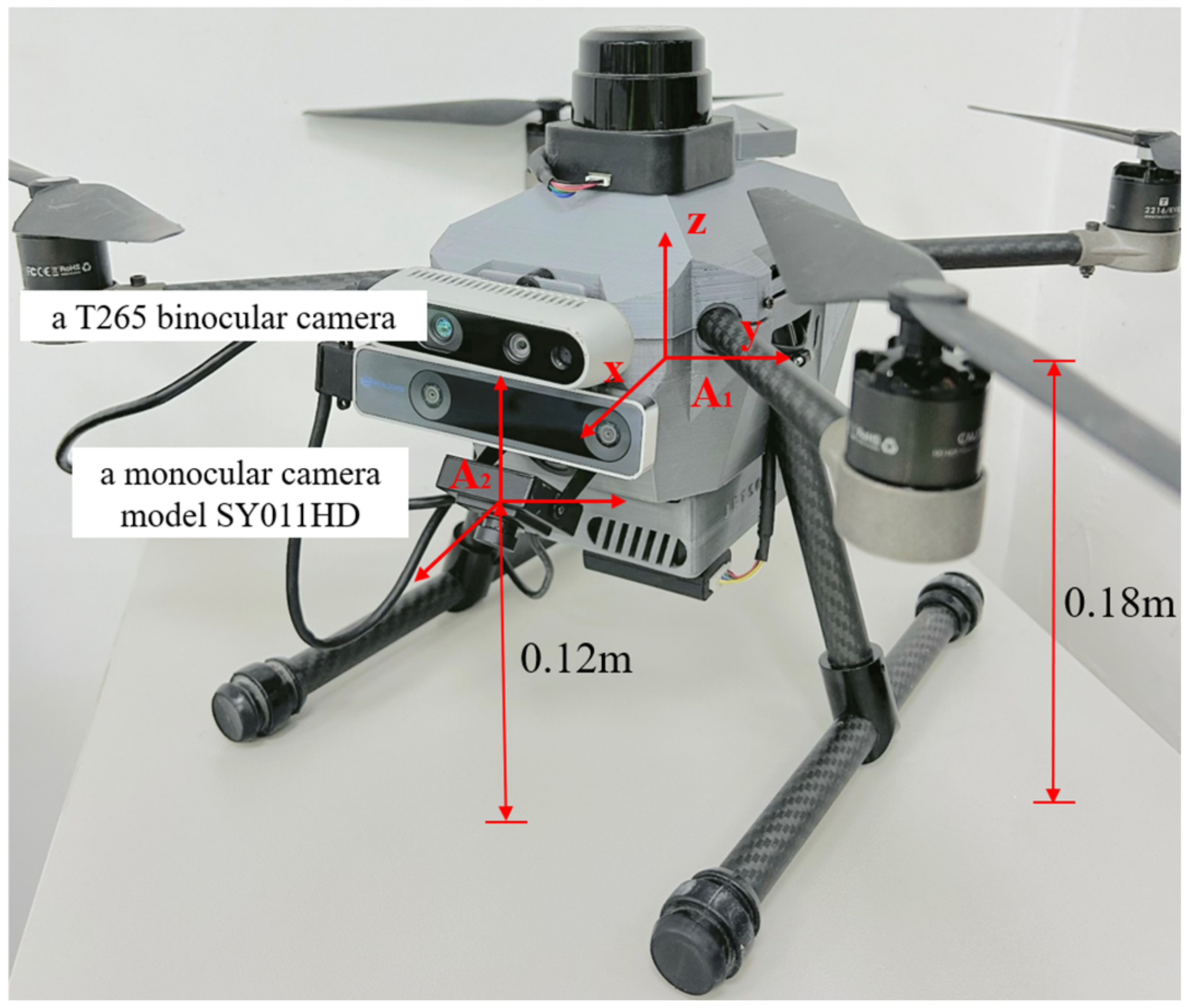

Using only visual information for autonomous UAV tracking and landing in GPS-less environments requires both estimating the position and attitude of the UAV itself based on visual navigation techniques, and detecting and tracking landmarks to achieve a landing. Therefore, the UAV has to carry two cameras, the first with a T265 binocular camera from Intel for localization and the second with a monocular camera model SY011HD for target tracking. Figure 2 shows the mounting position of the two cameras on the UAV, and some performance parameters of the two cameras are shown in

Table 2. Some performance parameters of the cameras.

Parameter Types	Performance Parameters
	SY011HD	T265
Active Pixels/frames per second	$1920\times 1080/30fps$	$848\times 800/30fps$
Angle of vision	$130°$	$163°$
Interface type	USB2.0	USB3.1

.

In this experimental research, we use the landmark generated by the ArUco library provided by OpenCV to guide the UAV to perform a tracking landing task. The inner and outer nested landmarks were used (shown in Figure 5), the landmarks were parameterized, and landmark parameter optimization experiments were performed to derive the optimal landmark parameters.

A black box surrounds each landmark, which initially detects quad candidates. Through inner and outer nested landmarks, up to two quads can be detected. When the camera detects two markers simultaneously, it independently calculates the contour perimeter of each marker and selects the quadrilateral marker with the smaller perimeter. In other words, the target is tracked and landed using information from the inner landmark. This approach increases the likelihood of maintaining the landmark within the camera’s field of view. When the camera is too close to the landmark, the outer marker occupies a larger area in the field of view and is more likely to lose global information, leading to a higher chance of losing the target and hindering the UAV’s landing. For the selected quadrilateral marker, we conduct a decoding operation. If the decoding is successful, it confirms the landmark as the target. Subsequently, we obtain the relevant information including the landmark, corresponding contour, and corner points. This information aids in determining the relative position of the UAV in relation to the landmark.

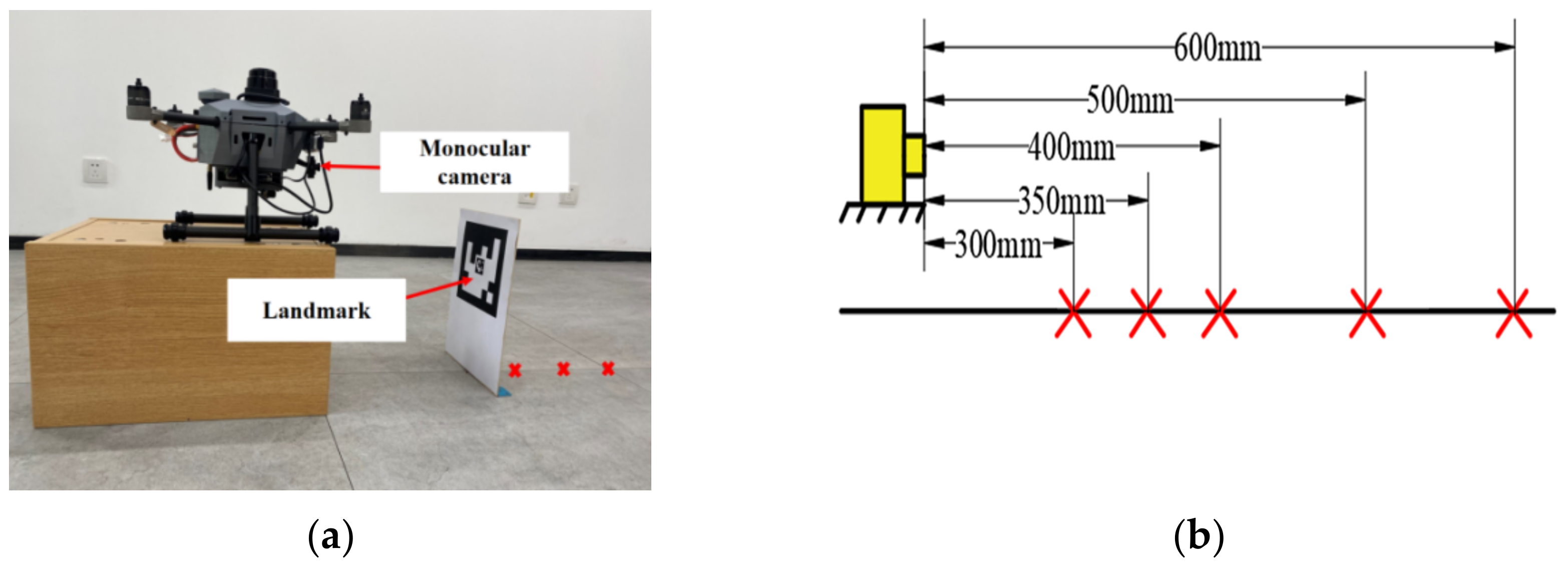

In the UAV tracking landing missions, landmark failure typically occurs at the time of touchdown. While the relative distance between the UAV and the landmark in the height direction in the landing mode is between 0.3 and 0.6 m, the variation of the relative distance between the UAV and the landmark in the landmark parameter optimization experiments is therefore set in the range of 0.3 to 0.6 m (shown in Figure 6). The UAV uses vision to measure the relative distance between the UAV and inner and outer markers of varying sizes. The position of the UAV does not move, changing the position of the landmark. The red “x” in the graph indicates each position of the landmark in the experiment, and the results of three experiments were recorded at each position.

Table 3. Inner ArUco marker of different sizes’ relative distance estimation data.

Size (mm)	Reference Value (mm)	Measured Value 1 (mm)	Measured Value 2 (mm)	Measured Value 3 (mm)	Average Value (mm)
20 × 20	300	306	310	312	309.3
	350	-	-	-	-
	400	-	-	-	-
	500	-	-	-	-
	600	-	-	-	-
30 × 30	300	313	312	311	312
	350	369	366	368	367.7
	400	426	419	421	422
	500	-	-	-	-
	600	-	-	-	-
40 × 40	300	313	311	313	312.3
	350	369	366	371	368.7
	400	426	419	421	423
	500	524	527	520	523.7
	600	-	-	-	-

Where “-” indicates that the relative distance could not be calculated because the marker was not detected due to camera resolution issues.

shows the estimated relative distances for inner markers of different sizes.

Table 4. Outer ArUco marker of different sizes’ relative distance estimation data.

Size (mm)	Reference Value (mm)	Measured Value 1 (mm)	Measured Value 2 (mm)	Measured Value 3 (mm)	Average Value (mm)
100 × 100	300	305	306	306	306
	350	361	360	361	361
	400	411	412	413	412
	500	517	518	519	518
	600	620	623	621	621
150 × 150	300	306	306	306	306
	350	359	358	358	358
	400	410	411	410	410
	500	516	514	515	515
	600	621	619	620	620
200 × 200	300	307	307	307	307
	350	359	360	358	359
	400	410	411	410	410
	500	515	514	515	515
	600	619	618	618	618

shows the estimated relative distances for outer markers of different sizes. During the experiment aimed at calculating the dimensional parameters of the outer marker, no inner marker was present.

To achieve more accurate landings, it is necessary for the relative position estimation data to possess a higher level of accuracy as the distance between the UAV and the landmark decreases. Based on data in the table, the relative distance derived from the inner marker of size 30 mm × 30 mm is closer to the actual value when the relative distance is small. Although the UAV cannot detect the inner marker measuring 30 mm × 30 mm at long distances, it can still obtain relative position information by recognizing the outer marker, which follows the sequence of landmark recognition in real-world scenarios. An outer marker with a size of 150 × 150 mm was chosen for more precise relative position estimation at smaller distances. The optimal nested landmark parameters are then determined (shown in Figure 7).

We designed the hardware platform for the tracking and landing system (shown in Figure 8). We used the Robot Operating System (ROS) as the backbone of the software and control. The UAV features a high-speed monocular camera model SY011HD and a binocular T265 camera, an on-board processor, the Nvidia-developed Jetson Xavier NX board, and flight controllers utilizing the Pixhawk4 hardware. In this system, the ground PC logs in remotely via WiFi to the onboard processor Jetson Xavier NX. The UAV’s onboard processor retrieves the UAV’s status information from the T265 camera via the ROS system. Concurrently, the SY011HD monocular camera transmits captured image information to the processor. Landmark identification occurs, and the relative positions between the UAV and the ground landmark are calculated to extract pertinent control information. The UAV is able to execute tracking and landing tasks by receiving control commands transmitted via the MAVROS package to its flight controller.

3. Results

Indoor flight experiments on UAV tracking landings were conducted in this research. The experimental scenario can be seen in Figure 9, which includes a quadcopter UAV with a wheelbase of 450 mm, a ground-based UGV, and a landing platform with the nested ArUco markers. A protective net was constructed around the experimental site’s perimeter, and ArUco markers were affixed to the net to enhance the UAV’s positional accuracy. A coordinate system was established at the experimental site, as depicted in Figure 9. We conduct experiments to track the flight of ArUco markers that move with the UGV’s three types of motion: linear reciprocating, circular, and straight-sided elliptical. In the experimental scenario, we plotted the motion trajectories of the UGV on the ground for three different paths to verify its position reliability. During the experiments, the UGV’s position and speed data are sourced from the wheel speed odometer, while UAV’s position and attitude information is obtained from the T265 camera. Inevitably, the UAV and UGV inherently generate a positioning measurement error. The auxiliary positioning ArUco markers present on the protective net serve the purpose of providing as much visual feature information as possible to the T265 binocular camera. Before the experiment, we conducted calibration experiments on the wheel speed odometer with the three motion trajectories of the UGV, respectively, compared the true value of the ground trajectory with the data measured by the odometer, and calibrated the cumulative error of the wheel speed odometer, so as to obtain more truthful information about the position of the UGV. Since the wheel speed odometer is calibrated to measure the UGV position very accurately, there is no requirement for an external measurement system to position the UGV. It will not affect the comparison with the experimental results. The offset of the initial UAV and UGV positions from the origin of the defined coordinate system were recorded prior to the experiment’s commencement. Since the position and attitude transformations of UAV and UGV are based on the body coordinate system, and the position information is recorded with its own starting point as the origin, the position information of the two in the same coordinate system can be obtained by making a difference between the data recorded by the two and the deviation of their respective initial positions.

During the experiment, in order to verify the effectiveness of UAV tracking and landing, we investigated the relative position deviation and velocity deviation between the UAV and UGV. Part of the bias arises from the algorithmic bias produced during the tracking process, and the other part of the bias derives from the dynamic response bias of the control system. Prior to the experiment, we optimized the parameters of the flight controller. Since we are focused on implementing a comprehensive method for vision-based tracking and landing of UAVs, we only analyze the overall bias generated by the tracking and landing system. The UGV was made to move at three speeds, v1 = 0.2 m/s, v2 = 0.4 m/s, and v3 = 0.6 m/s, while performing three different forms of motion in order to test the robustness and accuracy of the UAV’s dynamic tracking and landing.

3.1. Tracking Experiments

3.1.1. Linear Reciprocating Trajectory

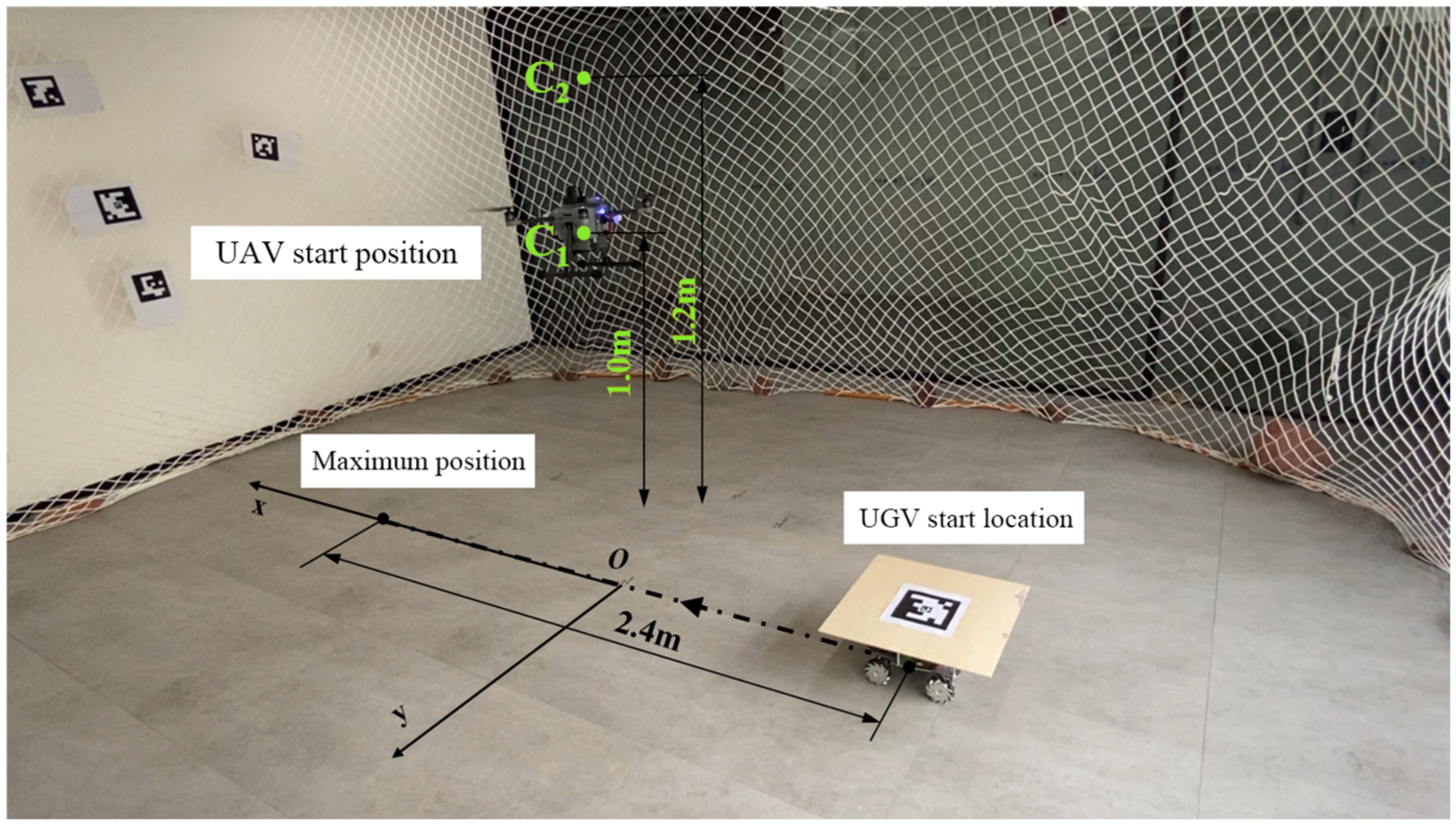

In the experiment, landmarks follow the UGV while it moves in a straight reciprocating motion at three different speeds. This is done to verify the tracking performance of the UAV. Taking into account the influence of the UAV’s movement speed and camera field of view on tracking performance, we adjusted the starting point of the UAV’s tracking at different heights depending on the speed (shown in Figure 10).

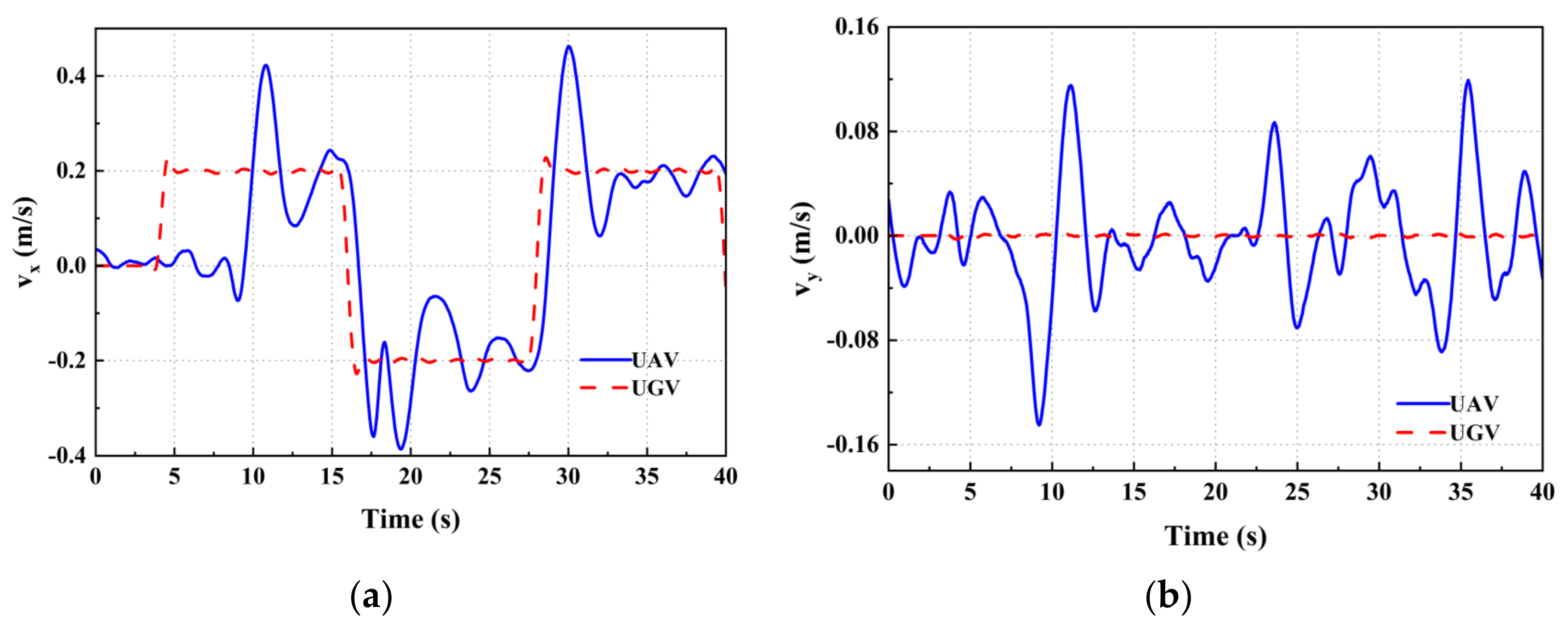

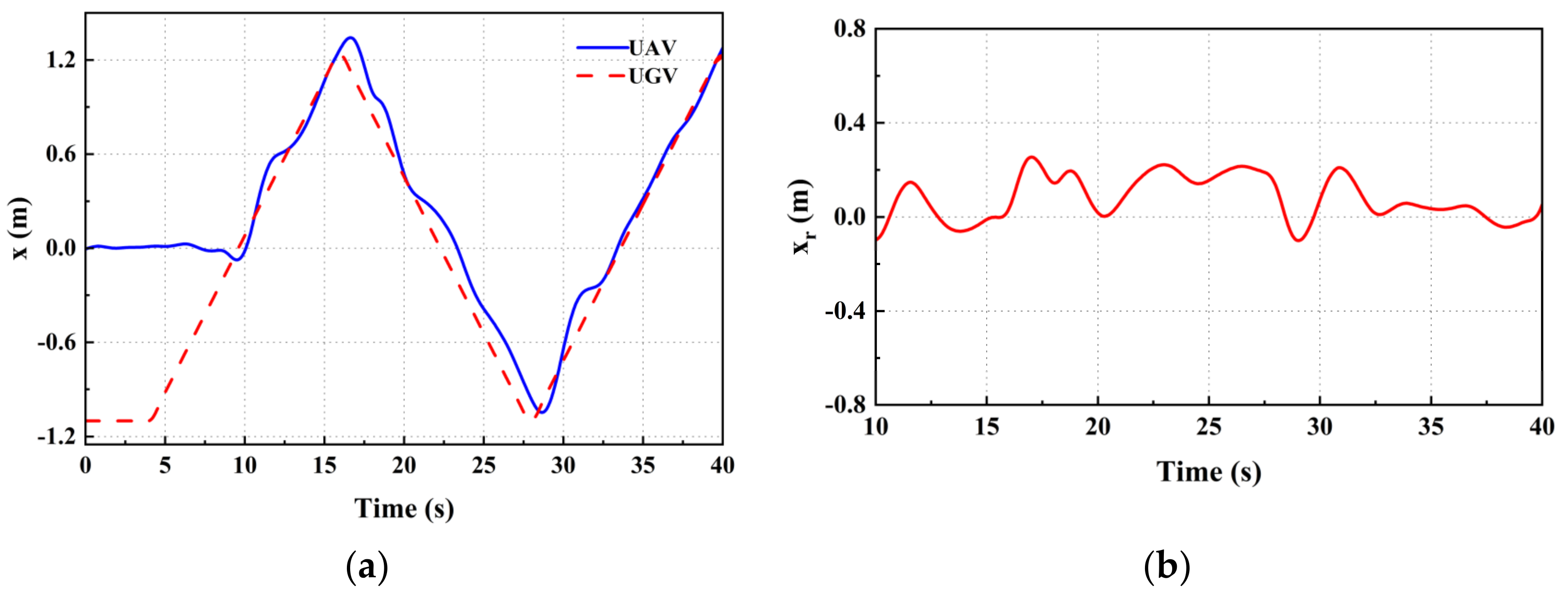

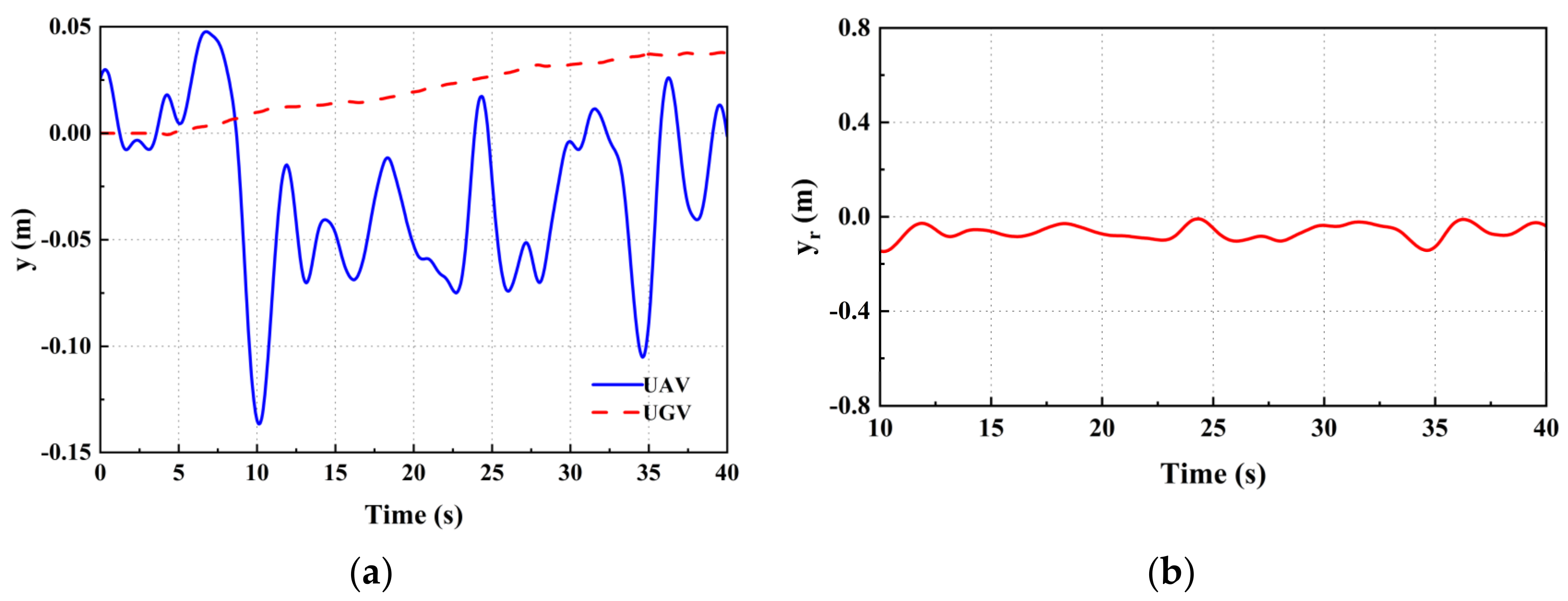

When the UGV is moving at velocity v1, the UAV’s position relative to the UGV in the x and y axes can be obtained (Figure 11 and Figure 12). x_r and y_r represent the deviations of the UAV and UGV along the x and y axes, respectively. The speeds of the UAV and the UGV on the x and y axes are depicted in Figure 13. There was a momentary increase in the speed of the UAV at 10 s, attributed to the landmark entering the UAV’s field of view. The UAV’s speed overshooting at 18 s and 28 s recurs as a result of the UGV changing direction. To ensure timely tracking of the landmark, an appropriate value of proportional gain (Kp) is set in the velocity controller, which ensures that the UAV can keep up with the UGV but also ensures that the control system is not divergent. Therefore, the UAV is highly responsive to landmark velocity changes and the controller exhibits overshooting behavior. During stable tracking, the UAV’s linear velocities along the x and y axes fluctuate at a rate commensurate with the speed of the UGV motion attachment.

From Figure 14, we are able to obtain the positional deviation of both the UAV and UGV on the x and y axes while the UGV is moving at three distinct speeds, namely x_r and y_r. The UGV’s tracking was stable at speed v1 but failed to maintain stability for extended durations at speeds v2 and v3. The UAV was more susceptible to losing the target due to the experimental site’s limitations. The UAV flew at a lower altitude, and the camera’s field of view was smaller. The mean and the mean square deviation of positional deviations in the x and y axes during constant tracking at speeds v1 and v2 were calculated and presented in

Table 5. Mean and mean square deviation of the position deviation of UAV from the UGV.

Velocity	Average Value Error		Mean Square Error
	${\mathit{x}}_{\mathit{A}\mathit{V}\mathit{E}}$ (m/s)	${\mathit{y}}_{\mathit{A}\mathit{V}\mathit{E}}$ (m/s)	${\mathit{x}}_{\mathit{M}\mathit{S}\mathit{E}}$ (m/s)	${\mathit{y}}_{\mathit{M}\mathit{S}\mathit{E}}$ (m/s)
v1	${6.73\times 10}^{-2}$	${2.55\times 10}^{-2}$	${7.44\times 10}^{-2}$	${3.08\times 10}^{-2}$
v2	${4.11\times 10}^{-1}$	${8.88\times 10}^{-2}$	${2.75\times 10}^{-1}$	${6.54\times 10}^{-2}$

. The mean outcomes in the table indicate that there is a slight increase in positional deviation between the UAV and the UGV in both the x- and y-axis directions as the speed of UGV movement increases. However, it still remains at the decimeter level. The table’s mean square error results indicate a gradual increase in x-axis position deviation fluctuation with the UGV’s increasing speed, whereas the UGV’s speed does not have a direct relation to y-axis position deviation fluctuation.

From Figure 15, one can derive the velocity deviation between the UAV and UGV on the x and y axes, denoted as v_xr and v_yr, respectively, when the UAV moves at three distinct velocities. The mean squared sum of the difference in velocity between the UAV and the UGV in the x- and y-axis directions is computed for UGV velocities v1 and v2. The findings are presented in

Table 6. Mean square sum of velocity deviation of UAV and UGV.

Velocity	Mean Square Error
	${\mathit{v}}_{{\mathit{x}}_{\mathit{M}\mathit{S}}}$ (m/s)	${\mathit{v}}_{{\mathit{y}}_{\mathit{M}\mathit{S}}}$ (m/s)
v1	$1.30\times {10}^{-2}$	${1.89\times 10}^{-3}$
v2	${1.33\times 10}^{-1}$	${1.32\times 10}^{-2}$

. When comparing the speed deviation fluctuations near 0 m/s at different speeds, it becomes more evident that the fluctuation near 0 m/s increases as the mean square sum of the speed deviation increases. As the UGV’s speed increases, the mean square sum of the deviation in the x-axis velocity also increases, resulting in more noticeable fluctuation. Meanwhile, the y-axis deviation fluctuation remains consistent near the speed of 0 m/s. One part of the deviation comes from the algorithmic error generated during the tracking process, while the other part of the deviation comes from the dynamic response error of the control system. We analyzed the overall system error. When the velocity of UGV is v1, the mean square error in the x-axis velocity is 0.013 m/s, and the mean square error in the y-axis velocity is 0.00189 m/s. When the velocity of UGV is v2, the mean square error in the x-axis velocity is 0.133 m/s, and the mean square error in the y-axis velocity is 0.0132 m/s.

3.1.2. Circular Trajectory

The UAV circular trajectory tracking experiment was performed in parallel to the linear reciprocating motion tracking experiment. The UGV moves in a circular motion, with a radius of 0.8 m, at three distinct velocities. Only the starting point coordinates for the UAV and UGV were altered in comparison to the linear reciprocal motion tracking experiment (shown in Figure 16).

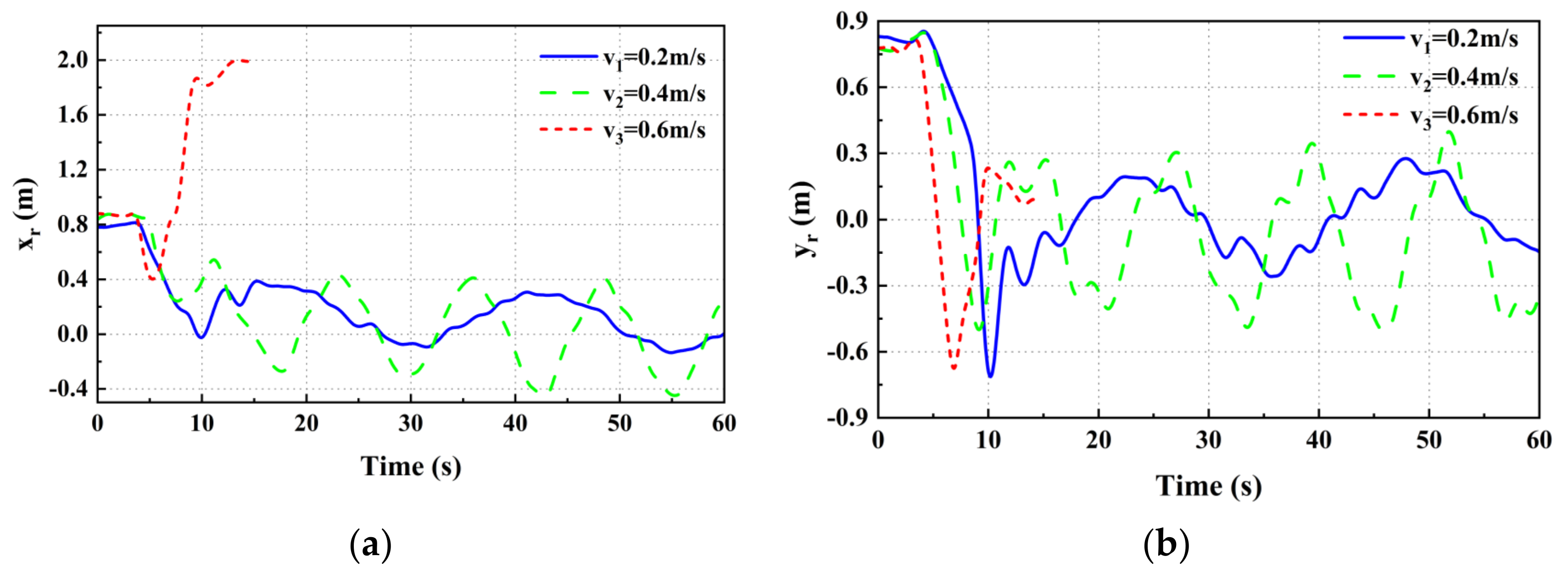

We can determine the amount of deviation in position between the UAV and the UGV when the UGV is moving at three distinct speeds (shown in Figure 17). Achieving stable tracking is possible at UGV speeds v1 and v2; however, at speed v3, the target is lost around the 15th second, making it impossible to maintain stable tracking for a long time. The probable reason for this is the low flight altitude of the UAV, which narrows the field of view of the camera and thereby increases the chances of target loss. The mean and mean square deviation of the position deviation of the UAV and the UGV were calculated and the results are shown in

Table 7. Mean and mean square deviation of the position deviation of UAV from the UGV.

Velocity	Average Value Error		Mean Square Error
	${\mathit{x}}_{\mathit{A}\mathit{V}\mathit{E}}$ (m/s)	${\mathit{y}}_{\mathit{A}\mathit{V}\mathit{E}}$ (m/s)	${\mathit{x}}_{\mathit{M}\mathit{S}\mathit{E}}$ (m/s)	${\mathit{y}}_{\mathit{M}\mathit{S}\mathit{E}}$ (m/s)
v1	${1.65\times 10}^{-1}$	${1.41\times 10}^{-1}$	${1.14\times 10}^{-1}$	${1.02\times 10}^{-1}$
v2	${2.41\times 10}^{-1}$	${2.43\times 10}^{-1}$	${1.35\times 10}^{-1}$	${1.37\times 10}^{-1}$

. It can be concluded that as the speed of the UGV increases, the mean position error and the mean square error of the x and y axes increase to a certain extent, i.e., the position error and the degree of fluctuation of the position error are positively correlated with the speed of the UGV. Furthermore, when compared with Table 5, the mean value of the x-axis position deviation for the UGV making a circular motion at the same speed is smaller. And since the UGV has a y-axis velocity in the circular motion, the mean and the mean square of the y-axis position deviation are larger in the circular motion.

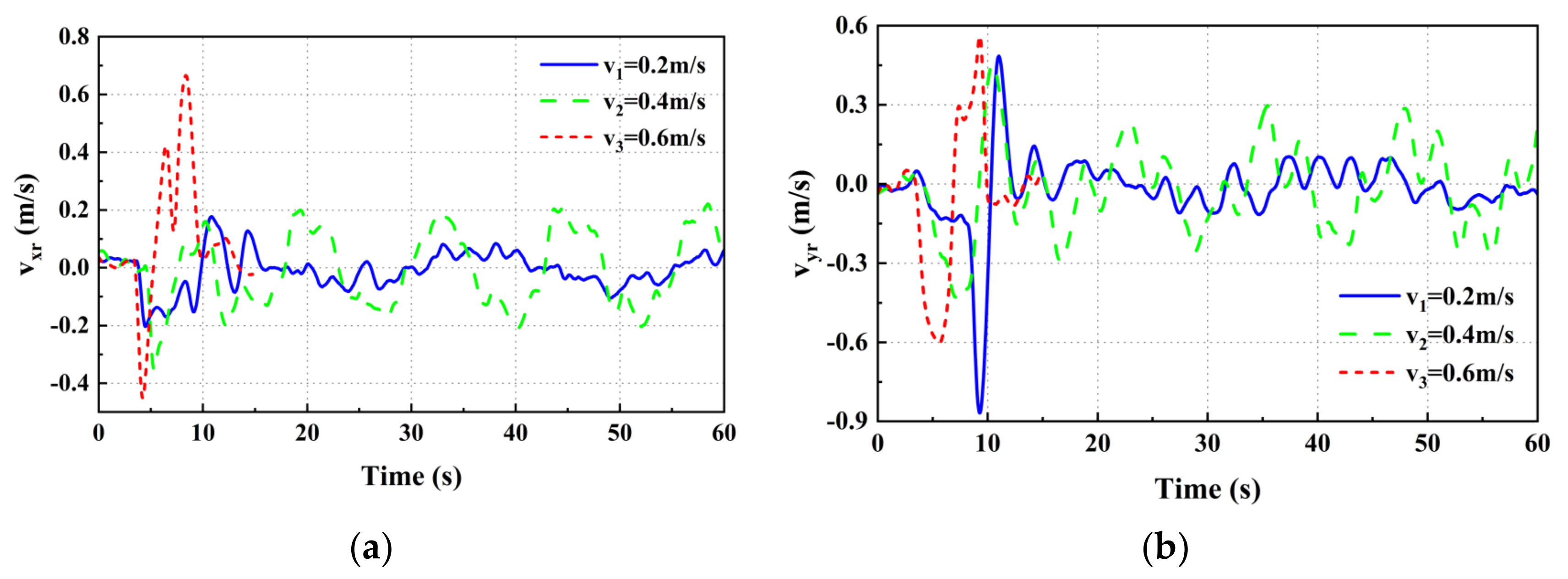

We can obtain the velocity deviation between the UAV and the UGV on the x and y axes when the UGV is moving at three different speeds (shown in Figure 18). The mean square sum of the velocity deviations was calculated and the results are shown in

Table 8. Mean square sum of velocity deviation of UAV and UGV.

Velocity	Mean Square Error
	${\mathit{v}}_{{\mathit{x}}_{\mathit{M}\mathit{S}}}$ (m/s)	${\mathit{v}}_{{\mathit{y}}_{\mathit{M}\mathit{S}}}$ (m/s)
v1	$2.89\times {10}^{-3}$	${7.88\times 10}^{-3}$
v2	${7.63\times 10}^{-2}$	${7.55\times 10}^{-2}$

. The fluctuation of UAV and UGV speed deviation becomes more noticeable as the speed of the UGV increases. Compared to Table 6, the fluctuation of the velocity deviation in the x-axis direction is smaller for the same velocity in circular motion. At the same time, since the UGV has a y-axis velocity during its circular motion, the phenomenon of fluctuating velocity deviation in the y-axis direction between the UAV and the UGV is more noticeable.

As a whole, when the UGV moves at three different speeds, the position deviation of the UAV and the UGV in the x- and y-axis directions can be kept within the range of ±0.4 m under the stable tracking state of the UAV and the velocity deviation of the two in the x- and y-axis directions basically stays within the ranges of ±0.2 m/s and ±0.3 m/s, which means that the tracking performance of the UAV is good.

3.1.3. Straight-Sided Ellipse Trajectory

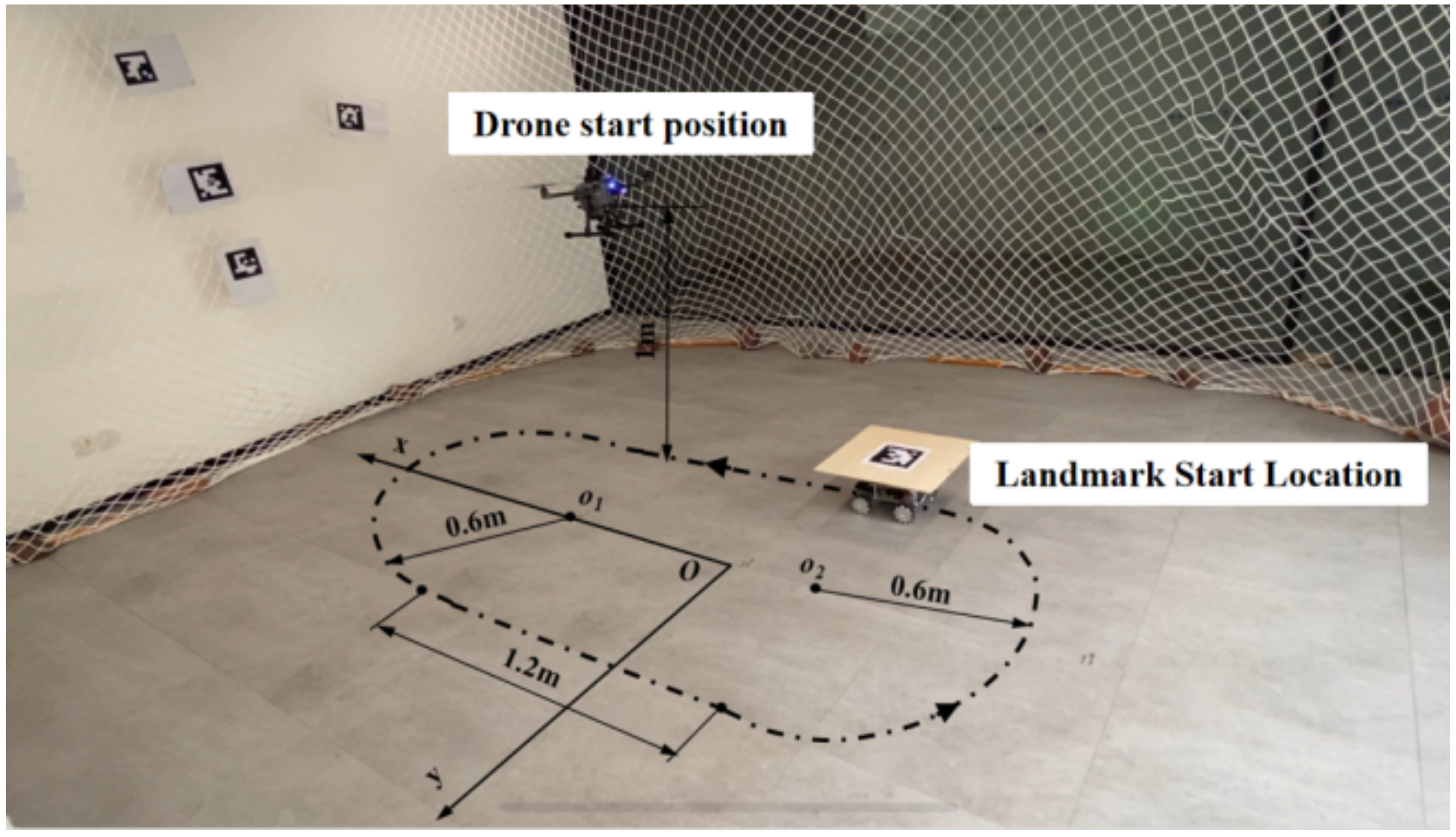

Experiments on the UAV’s tracking of the UGV moving in a straight elliptical trajectory are shown in Figure 19. Since the results of the previous experiments show that the UAV can achieve the tracking of the UGV when it is moving at three speeds, the experiments are conducted only for the UGV moving at speed v1 when the UGV is moving in a straight-sided elliptical trajectory.

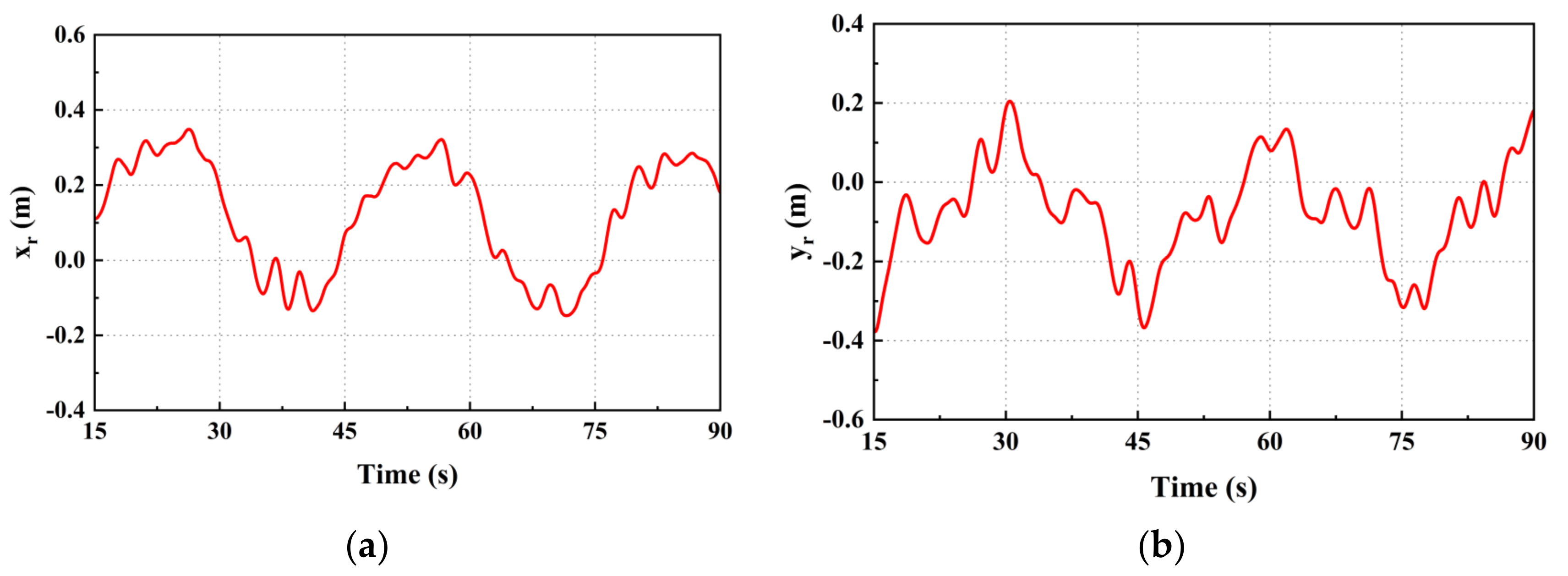

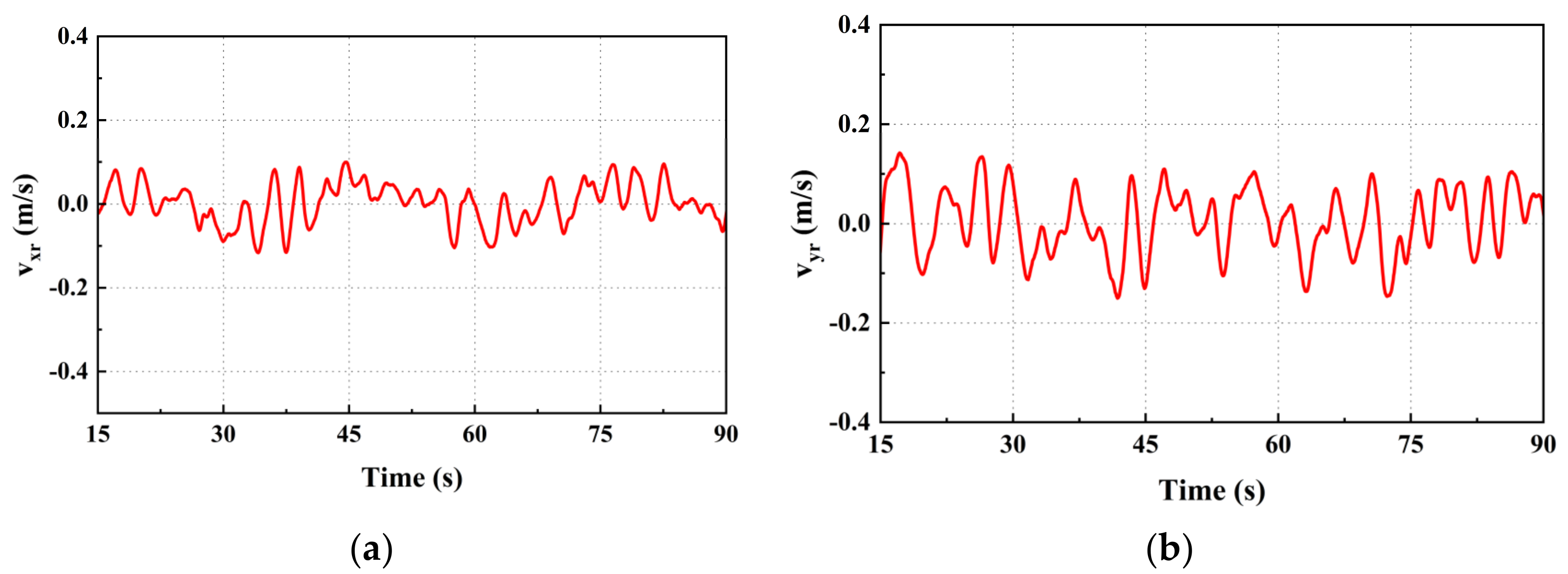

We can obtain the position and velocity deviation of the UAV and the UGV when the UGV moves in a straight-sided ellipse with velocity v1 (Figure 20 and Figure 21). The position deviation between the UAV and the UGV in the x- and y-axis directions is always within the range of ±0.4 m, and the speed deviation in the x- and y-axis directions is always within the range of ±0.15 m/s, which indicates that the tracking performance of the UAV for the complex trajectory is still good.

3.2. Landing Experiments

To further verify the landing performance of the UAV, we conducted landing experiments in static and dynamic scenarios (shown in Figure 22). We expect the horizontal landing accuracy to be no more than 0.5 m. In the stationary landmark landing experiment, the UAV ascends to a specific altitude and initiates a tracking landing mission once the landmark enters the field of view of the UGV. To minimize the possibility of error, we replicated three experiments and tabulated the x- and y-axis position coordinates and averaged values from each experiment in

Table 9. Static landing experiment accuracy and its mean value.

Experimental Sequence	x-Axis Landing Accuracy (m)	y-Axis Landing Accuracy (m)
Test 1	0.05	0.04
Test 2	0.01	0.04
Test 3	0.04	0.05
Average value	0.03	0.04

. In the dynamic landing experiment, the UGV moves linearly along the x-axis at three different speeds, while the UAV performs dynamic tracking and landing experiments on the UGV. When the landmark enters the monocular camera’s field of view, the UAV initiates the tracking landing mission. The UAV horizontally approaches the landmark while computing its relative position and altit. Additionally, it adjusts its speed to match that of the UGV. As the UAV reduces its flight altitude, it measures its distance from the center of landmark d. When the relative position of the two meets the landing conditions, the UAV enters the landing mode. During the landing process, it makes sure that the landmark is within the field of view of the monocular camera, while the speed of the UAV is adjusted to ensure that it keeps up with the target during the dynamic landing process. The landmark undergoes decoding measures to obtain information and corner points, followed by the calculation of the relative position between the UAV and the landmark. Based on our pre-experiments, we consider the position and size of the UAV, as well as the requirement to guarantee safety and stability during dynamic landings. When the distance, d, is less than or equal to 0.3 m, the on-board processor will send a command to the UAV flight controller to land and the duty cycle of the PWM will be reduced. The motor will decelerate and the UAV will land on the UGV.

Table 10. Dynamic landing experiment accuracy and its mean value.

Velocity	x-Axis Landing Accuracy (m)	y-Axis Landing Accuracy (m)
v1	0.14	0.04
v2	0.23	0.01
v3	0.32	0.01
Average value	0.23	0.02

displays the dynamic landing accuracy of the UAV at three separate vehicle speeds. The results of the experiment indicate that the UAV’s static landing accuracy can achieve a range between 0.03 and 0.04 m. During dynamic landing scenarios, the UAV demonstrated an x-axis landing accuracy of 0.23 m and a y-axis landing accuracy of 0.02 m, which is consistent with the predetermined expectations and satisfies the landing accuracy requirements.

4. Discussion

During the experiment, the UAV was unable to track for an extended period when the UGV was moving at velocity v3. This limitation can be attributed to the low flight altitude of the UAV and site constraints causing the camera to capture an insufficient image, hence increasing the likelihood of loss of the target. In this research, the structural design of the ArUco marker and dimension parameter optimization improved the system’s robustness in recognizing landmarks to some extent. However, it fails to consider the UAV control strategy in situations when the target becomes occluded or is lost for an extended period during the tracking process. Subsequent research can utilize this as a starting point to enhance the system’s ability to identify and track targets with greater accuracy and efficacy.

5. Conclusions

In this paper, we propose a method for tracking and landing UAVs in dynamic environments using nested ArUco markers. Firstly, this study examines tracking and landing as a unified process and proposes a switching strategy for transitioning between tracking and landing modes. Our proposed inner and outer loop controllers, which combine serial PID and fuzzy algorithms, effectively control a quadrotor UAV. Relative position and attitude estimation and landmark recognition detection rely only on vision. Mode conversion of the UAV for dynamic tracking and landing tasks is achieved by calculating the relative positional information between the UAV and the UGV using landmarks. Second, two landmarks with varying sizes were created as nested landmark codes to aid the UAV in tracking and positioning the UGV, taking into account the correlation between ArUco marker size and positioning accuracy. The experiments yielded the optimal landmark size parameters for enhancing the robustness of landmark classification to meet the task requirements. Finally, tracking and landing experiments were conducted at three different speeds. Overall, our adopted method improves the accuracy and robustness of tracking and landing during the dynamic tracking and landing process of UAVs on UGVs with varying motion trajectories. Furthermore, our method demonstrates higher landing accuracy against the dynamic landing platform, providing evidence for its feasibility in dynamic tracking and landing of UAV.
