Intravenous Nephrostomy Misplacement in Inferior Vena Cava after Percutaneous Nephrolithotomy

A 43-year-old man underwent left ultrasound-guided percutaneous nephrolithotomy. Post-stone removal, massive renal vein bleeding occurred; we opted to control the hemorrhage by inserting a Foley catheter as a nephrostomy tube and inflating the balloon. The catheter was placed under ultrasound guidance, but the path was lost after 5–6 cm, necessitating blind insertion for the remainder.

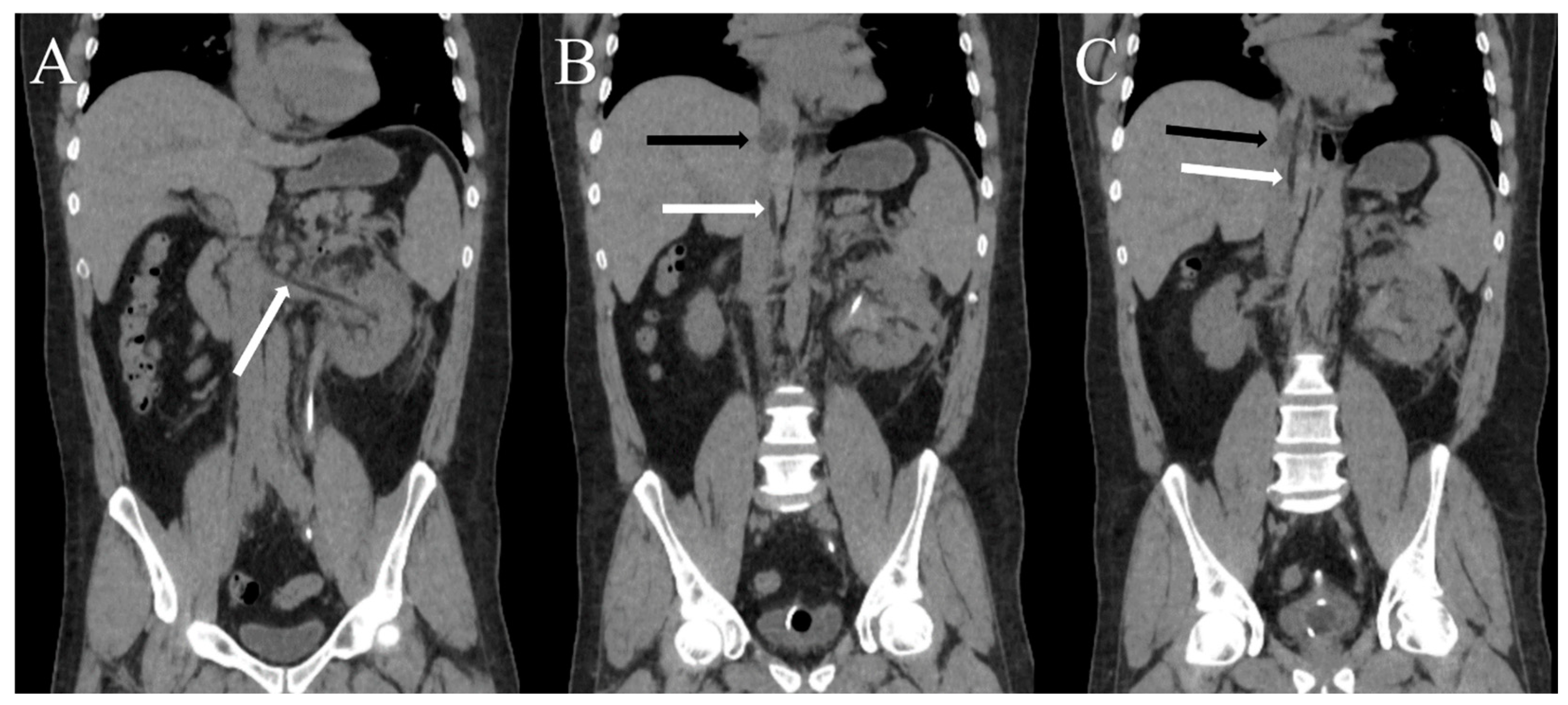

Subsequently, the patient experienced tachycardia and hypotension, requiring resuscitation with intravenous fluids and two units of packed cells. He was then stabilized and moved to recovery. However, he developed severe back and flank pain, unresponsive to analgesics. An abdominopelvic computed tomography (CT) scan was done (Figure 1).

The balloon of the Foley obstructed the inferior vena cava (IVC) lumen. So, immediately, we returned the patient to the operative room, called the vascular surgeon to be in the operative room (if necessary), deflated the balloon, and repositioned the nephrostomy tube under fluoroscopy. The patient recovered uneventfully and was discharged after three days, following a color Doppler ultrasound to exclude renal vein thrombosis.

Nephrostomy tube misplacement into the IVC is a rare complication of nephrostomy tube insertion. According to the paper published in 2020 by Liu et al. [1], including their case, only 14 patients with nephrostomy tube misplacement into the renal vein or IVC were reported in the literature. Therefore, its optimal management could be challenging. In the literature, nephrostomy tube withdrawal under fluoroscopy or CT guidance followed by open procedure as an alternative choice has been preferred [2,3,4]. In addition, two important complications critical for evaluation in this condition are vein thrombosis and IVC syndrome [5]. To prevent vein thrombosis, which could be fatal, we consider antithrombotic therapy essential in these cases [2].
