Frequency-Range-Specific Hand–Arm Vibration Exposure and the Risk of Musculoskeletal Disorders of the Upper Extremities: The German Hand–Arm Vibration Study

Abstract

To quantify the effect of frequency-range-specific hand–arm vibration (FRS-HAV) exposure on the risk of musculoskeletal disorders of the upper limb (UMSDs), we performed an analysis among the study sample of the German Hand–Arm Vibration Study. In total, 206 cases and 609 controls were included in this analysis. Cases were new patients with UMSDs. Controls were a random sample of people with compensable occupational injuries. Standardized personal interviews were performed among cases and controls. In addition to leisure activities and comorbidities, detailed work histories were obtained from all participants. To quantify FRS-HAV exposures, a database of vibration measurements of over 700 power tools was used. This database allows detailed quantification of vibration exposure over long periods of time. A dose–response relationship between FRS-HAV exposure and UMSDs was quantified using conditional logistic regression analyses. After adjustment for relevant confounders, consistent and statistically significant exposure–response relationships were observed between cumulative vibration exposure and UMSDs. The effect of vibration exposure on the risk of UMSDs is mainly concentrated in the frequency range ≤ 50 Hz. This suggests that the current ISO frequency-weighting curve for quantifying hand–arm vibration exposure is reasonable and can be used for vibration-related risk assessment, especially for musculoskeletal disorders.

1. Introduction

Hand–arm vibration exposure is an important risk factor in the workplace. Long-term exposure to hand–arm vibration may lead to a variety of pathological changes in the upper limbs, including vascular, neurological, and musculoskeletal disorders [1]. The complex of these disorders is known as hand–arm vibration syndrome (HAVS) [1].

Over the past few decades, a large number of epidemiological studies have been conducted on work-related HAVS, focusing mainly on vascular and neurological disorders. In contrast, only a limited number of studies are available on bone and joint disorders. Early studies and reviews suggest an increased risk of musculoskeletal symptoms (upper limb pain, stiffness, and muscle–tendon syndrome) and osteoarthritis (OA) of the upper limb in vibration-exposed workers compared with non-exposed workers [2,3,4,5,6]. However, an exposure–response relationship has not yet been well established in published studies, especially when objective diagnoses rather than clinical symptoms are considered as the relevant outcome [3].

According to the ISO frequency-weighting curve for quantifying hand–arm vibration exposure, vibration-induced adverse health effects are believed to be mainly concentrated in the frequency range between 16 and 1250 Hz [7]. Although early studies showed that both low- and high-frequency vibration can lead to impaired blood circulation and subsequent tissue damage in the upper extremities [8], more recent studies indicate frequency-range-specific effects of hand–arm vibration exposure in different human physiological systems [9,10,11,12]. Experimental rat tail studies and some epidemiological evidence have shown that the effect of vibration exposure on the peripheral vascular and sensorineural systems is more pronounced in the higher frequency range above 100 Hz [9,11,12]. However, biomechanical experiments suggest that vibration-induced musculoskeletal damage is more likely to occur in the low frequency range below 50 Hz due to the resonant frequency of bone [13].

Although the theory of a frequency-range-specific effect of hand–arm vibration on the occurrence of musculoskeletal disorders is widely accepted in the scientific community, no epidemiological data are available to date to support this hypothesis. In order to quantitatively assess the effect of frequency-range-specific hand–arm vibration exposure on the risk of musculoskeletal disorders, which can be used to guide the prevention of these occupational diseases, we performed an analysis on the study sample of the German Hand–Arm Vibration Study.

2. Materials and Methods

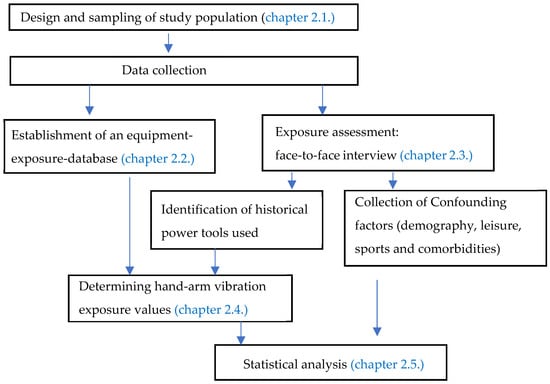

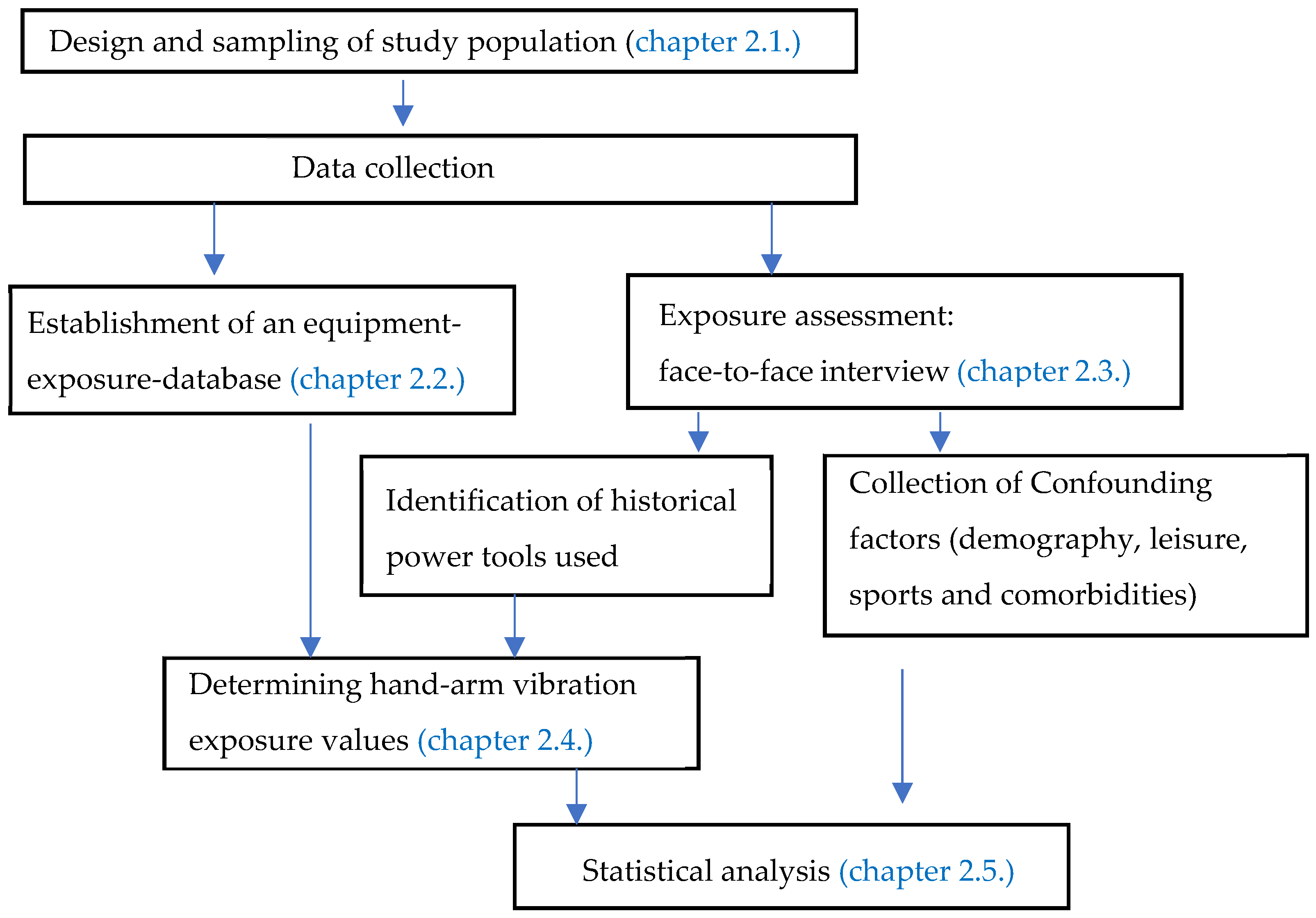

For a better understanding of how the German Hand–Arm Vibration Study was planned and carried out, a block diagram is given in Figure 1. Each block in this diagram represents a specific topic in the data collection process, which is described in detail in the following subsections.

2.1. Design and Study Population

The German Hand–Arm Vibration Study is a multicenter industry-based case-control study conducted between 1 January 2010 and 30 November 2021. The design and description of the study population have been previously published in detail [14]. Briefly, 209 male cases and 614 male controls were recruited from members of the German Social Accident Insurance institutions in the construction, underground coal mining, woodworking, and metal working industries.

The cases are patients with musculoskeletal disorders who were suspected by local physicians of having the legal occupational disease with the number 2103 (German: BK No. 2103) because of their work history involving exposure to hand–arm vibration. Occupational disease no. 2103 is a group of musculoskeletal disorders defined as including one of the following six clinical diagnoses:

• Hand OA;
• Elbow OA;
• Shoulder OA;
• Kienböck’s disease;
• Scaphoid fracture and scaphoid pseudoarthrosis;
• Elbow Osteochondrosis.

As there are very few cases in women, the study is limited to men. The controls were selected as a random sample of all types of newly reported compensable occupational injuries. They were matched to the cases by gender, birth year, industrial sectors, and reporting years. As all cases were selected to have jobs involving exposure to hand–arm vibration, controls were also randomly selected from those with jobs involving exposure to hand–arm vibration.

2.2. Equipment–Exposure Database for Quantifying Hand–Arm Vibration Exposure

As described previously [14], an exposure database for power tool vibrations for quantifying hand–arm vibration exposure has been established and continuously expanded by the German Social Accident Insurance since the mid-1980s. The database currently contains more than 700 hand-held power tools. Their frequency-range-specific vibration values were measured according to standardized industrial hygiene measurement protocols under real operating conditions. The subdivision of the frequency-weighted acceleration is based on the procedure described in the German standard VDI 2057-2 [15] (see Section 2.4 for more information). In addition to the vibration levels, information on the work process and materials used was also documented. This information is essential for quantifying work-related vibration exposures, as vibration exposures vary greatly when technical power tools are used on different working materials and for different purposes.

In addition, product information for the technical power tools (including manufacturer, year, weight, drive type, rated power, rotational speed, etc.) was also added to the database, provided this information was available.

2.3. Exposure Assessment Methods

Standardized face-to-face interviews were carried out among cases and controls by specially trained safety engineers from the German Social Accident Insurance institutions. Most of them have more than ten years’ professional experience and have extensive knowledge of the work organization, working process, technical power tools, and materials used at workplaces in the related industries.

Besides demographic characteristics, leisure activities, sports, and musculoskeletal comorbidities, the individual work history of all participants was assessed in detail. Exposure assessment focused on technical power tools and working materials used at the workplaces, including daily working hours and the frequency and duration of use of various technical power tools (working days/week and working weeks/year). Combining this information with the above-described equipment-exposure database made it possible to estimate and calculate detailed exposure values for the entire period of the previous working life of each study participant.

2.4. Determining Hand–Arm Vibration Exposure Values

Vibration generated by the technical power tools was measured in three orthogonal directions (x, y, and z) according to international standard ISO 5349-1:2001 [16]. Vibration values are expressed as accelerations a_hwx, a_hwy, and a_hwz in the three measuring directions under a given specific frequency range. The vibration total value (a_hv) is determined as the root-sum-of-squares of the three component values (a_hwx, a_hwy, and a_hwz):

$${\mathrm{a}}_{\mathrm{hv}}=\sqrt{{{\mathrm{a}}_{\mathrm{h}\mathrm{w}\mathrm{x}}}^2+{{\mathrm{a}}_{\mathrm{hwy}}}^2+{{\mathrm{a}}_{\mathrm{hwz}}}^2}$$

(1)

In addition to the vibration total value (a_hv), acceleration (a_hw) in the direction along the forearm (direction z) is also considered in the exposure–response analyses of this study.

According to the recommended frequency range of 4–1250 Hz and 4–50 Hz in the German standard VDI 2057-2 [15], four additional frequency ranges (two below and two above 50 Hz) were defined to investigate the frequency-range-specific vibration exposure: 4–20 Hz, 4–31.5 Hz, 4–50 Hz, 4–80 Hz, and 4–100 Hz.

The root-mean squares of the frequency-weighted acceleration (a_hw) for each frequency range are obtained with the aid of electronic frequency filters or calculated by taking the root-mean squares of the unweighted accelerations (a_hi) and multiplying them by the weighted factor W_hi given in Table B1 of the German standard VDI 2057-2 [15].

$${\mathrm{a}}_{\mathrm{hw}}=\sqrt{\sum _{\mathrm{i}=1}^{\mathrm{n}}{({\mathrm{a}}_{\mathrm{h}\mathrm{i}}\ast {\mathrm{W}}_{\mathrm{h}\mathrm{i}})}^2}$$

(2)

The energy-based averaging of the partial root-mean squares of the frequency-weighted acceleration can be calculated by taking into consideration the associated frequency bands for the parts of the frequency ranges:

a_hwi (4–20 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–20 Hz;

a_hwi (4–31.5 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–31.5 Hz;

a_hwi (4–50 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–50 Hz;

a_hwi (4–80 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–80 Hz;

a_hwi (4–100 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–100 Hz;

a_hwi (4–1250 Hz) = frequency-range-specific vibration exposure value calculated for spectrum of 4–1250 Hz.

The total value a_hvi for the respective frequency ranges were calculated accordingly.

Frequency-range-specific daily vibration exposures from using various technical power tools at different time periods in a day are quantified according to international standard ISO 5349-1:2001 [16] and expressed in terms of 8 h energy-equivalent root-sum-of-squares of the related frequency-range-specific acceleration magnitude:

$${\mathrm{a}}_{\mathrm{hv}\left(8\right)}=\sqrt{{\displaystyle \frac{1}{{\mathrm{T}}_0}}{\sum }_{\mathrm{i}=1}^{\mathrm{n}}{\mathrm{a}}_{\mathrm{h}\mathrm{v}\mathrm{i}}^2{\mathrm{T}}_{\mathrm{i}}}$$

(3)

$${\mathrm{a}}_{\mathrm{hw}\left(8\right)}=\sqrt{{\displaystyle \frac{1}{{\mathrm{T}}_0}}{\sum }_{\mathrm{i}=1}^{\mathrm{n}}{\mathrm{a}}_{\mathrm{h}\mathrm{w}\mathrm{i}}^2{\mathrm{T}}_{\mathrm{i}}}$$

(4)

where

• a_hv(8) = daily vibration exposure in three measuring directions;
• a_hw(8) = daily vibration exposure in the direction along the forearm;
• T₀ = reference duration of 8 h (conventional daily working time);
• T_i = daily working hours of using power tool i;
• a_hvi = acceleration in three measuring directions of the power tool i;
• a_hwi = acceleration in the direction along the forearm of the power tool i;
• n = total number of power tools used in a day.

The cumulative doses of hand–arm vibration exposure are quantified in a manner comparable to that of whole-body vibration as described in the German standard VDI 2057-1 [17] and are expressed as the sum-of-squares of daily vibration exposure over the course of an entire working life:

$${\mathrm{D}}_{\mathrm{h}\mathrm{v}}=\sum {\mathrm{a}}_{\mathrm{h}\mathrm{v}\mathrm{i}\left(8\right)}^2{\mathrm{d}}_{\mathrm{i}}$$

(5)

$${\mathrm{D}}_{\mathrm{h}\mathrm{w}}=\sum {\mathrm{a}}_{\mathrm{h}\mathrm{w}\mathrm{i}\left(8\right)}^2{\mathrm{d}}_{\mathrm{i}}$$

(6)

where

• D_hv = cumulative vibration doses in three measuring directions;
• D_hw = cumulative vibration doses in the direction along the forearm;
• a_hvi(8) = daily vibration exposure of three measuring directions at day i;
• a_hwi(8) = daily vibration exposure in the direction along the forearm at day i;
• d_i = number of working days with a daily exposure of a_hvi(8) (a_hwi(8));
• d_i was quantified as follows: work days/week ∗ work weeks/year ∗ total years of work.

2.5. Statistical Analysis

All statistical analyses were performed with SAS^® version 9.4 (SAS Institute, Inc., Cary, NC, USA).

We quantified the basic characteristics of the cases and controls by using descriptive statistics. Continuous variables were described with the mean, standard deviation (SD), median, and range, and categorical variables were described with frequencies. Chi-square tests were used to examine the crude differences of categorical variables. Bi- and multivariable conditional logistic regression analyses (with SAS syntax PROC PHREG) were applied to quantify the exposure–response relationship between cumulative hand–arm vibration exposure doses and the risk of musculoskeletal disorders according to occupational disease No. 2103 [18]. Cumulative vibration exposure was used in the statistical model as a continuous variable or in the quintile category. As published previously [9], study centers, body mass index, gout, arm fracture, rheumatism, generalized OA, injury, and inflammatory disorders of hand, elbow, or shoulder joints have been considered as potential confounders in the exposure–response analyses. To evaluate the relevance of a confounder in exposure–response estimation, stepwise backwards analyses were calculated. If a potential confounder did not change the effect estimates (odds ratio (OR)) of vibration exposure by at least 10%, this confounder was not considered in the final model of the analyses. At the end, study centers, generalized OA, injury, and inflammatory disorders of hand, elbow, or shoulder joints were considered as relevant confounders in the final model of the analyses. The threshold for statistical significance was set to p < 0.05. As all analyses are explorative, no adjustment (correction in data analyses) for multiple testing has been made.

3. Results

As previously published [9], a total of 823 male participants were recruited for this study. The average age was about 52 (range: 22–84) years. No difference between cases and controls regarding the body mass index (BMI) could be shown (p = 0.941). However, joint injuries and musculoskeletal comorbidities (such as gout, inflammatory disorders of the upper extremities, knee OA, hip OA, spinal OA, and generalized OA) were significantly more common among the cases than those among the controls (

Table 1. Description of study population (n = 823).

Parameters		Cases	Controls
N		209	614
Age (years)	Mean (SD)	53 (9)	52 (9)
	Median (range)	53 (22–84)	52 (22–83)
BMI	≤25	17.2%	22.0%
	25–30	50.7%	51.0%
	>30	32.1%	27.0%
Comorbidity	Gout *	14.4%	9.0%
	Pseudogout	0.5%	0.5%
	Finger/hand injury †	39.7%	25.7%
	Elbow injury **	11.5%	5.9%
	Shoulder injury *	13.9%	8.5%
	Arm fracture	10.1%	7.2%
	Inflammatory disorder of
	Hand †	26.3%	5.7%
	Elbow †	23.9%	5.5%
	Shoulder †	17.2%	8.8%
	Osteoporosis	2.4%	1.6%
	Knee osteoarthritis †	28.7%	15.0%
	Hip osteoarthritis †	10.1%	3.6%
	Spinal osteoarthritis †	19.1%	8.6%
	Generalized osteoarthritis †	23.0%	4.1%
	Rheumatism	6.2%	4.4%

Test of Difference (X²-test): * p < 0.05; ** p < 0.01; † p < 0.001.

).

The frequency-range-specific long-term cumulative hand–arm vibration and the corresponding distribution of exposure doses are shown in

Table 2. Frequency specific hand–arm vibration exposure.

Cumulative Vibration Doses	Cases	Controls
N	206	609
Dhv-values (m2/s4·year) *
Frequency 4–20 Hz
Mean (SD)	540.0 (647.9)	332.2 (620.3)
Median (range)	289.6 (0.2–2928.6)	106.0 (0–6717.2)
Frequency 4–31.5 Hz
Mean (SD)	726.1 (852.1)	448.1 (790.1)
Median (range)	386.9 (0.3–4123.2)	154.5 (0–7101.9)
Frequency 4–50 Hz
Mean (SD)	1316.2 (1442.0)	842.8 (1410.4)
Median (range)	783.2 (2.8–8153.5)	347.0 (0–13,374.2)
Frequency 4–80 Hz
Mean (SD)	1426.8 (1527.8)	921.8 (1488.6)
Median (range)	908.5 (3.2–8755.9)	417.6 (0–14,109.7)
Frequency 4–100 Hz
Mean (SD)	1482.1 (1563.3)	963.3 (1527.0)
Median (range)	950.6 (3.6–9014.2)	406.3 (0.1–14,471.1)
All frequency (4–1250 Hz)
Mean (SD)	1629.1 (1652.5)	1089.4 (1655.1)
Median (range)	1113.3 (4.4–9614.5)	556.7 (0.1–15,339.3)
Dhw-values (m2/s4·year) **
Frequency 4–20 Hz
Mean (SD)	80.3 (177.3)	46.0 (190.0)
Median (range)	38.6 (0.1–1731.8)	13.5 (0–3394.7)
Frequency 4–31.5 Hz
Mean (SD)	114.5 (229.5)	64.3 (218.7)
Median (range)	61.6 (0.1–2022.6)	21.2 (0–3756.5)
Frequency 4–50 Hz
Mean (SD)	377.1 (380.8)	228.3 (378.2)
Median (range)	288.9 (1.3–2262.6)	99.4 (0–4555.1)
Frequency 4–80 Hz
Mean (SD)	409.9 (402.2)	253.2 (400.8)
Median (range)	313.2 (1.4–2443.8)	120.3 (0–4806.1)
Frequency 4–100 Hz
Mean (SD)	432.0 (414.0)	266.4 (411.8)
Median (range)	330.5 (1.5–2529.1)	133.2 (0–4830.0)
All frequency (4–1250 Hz)
Mean (SD)	480.7 (457.3)	315.2 (530.5)
Median (range)	377.1 (1.8–3259.1)	169.1 (0–7742.0)

* Dhv: cumulative vibration doses in a total of three measuring directions. ** Dhw: cumulative vibration doses in the direction along the forearm.

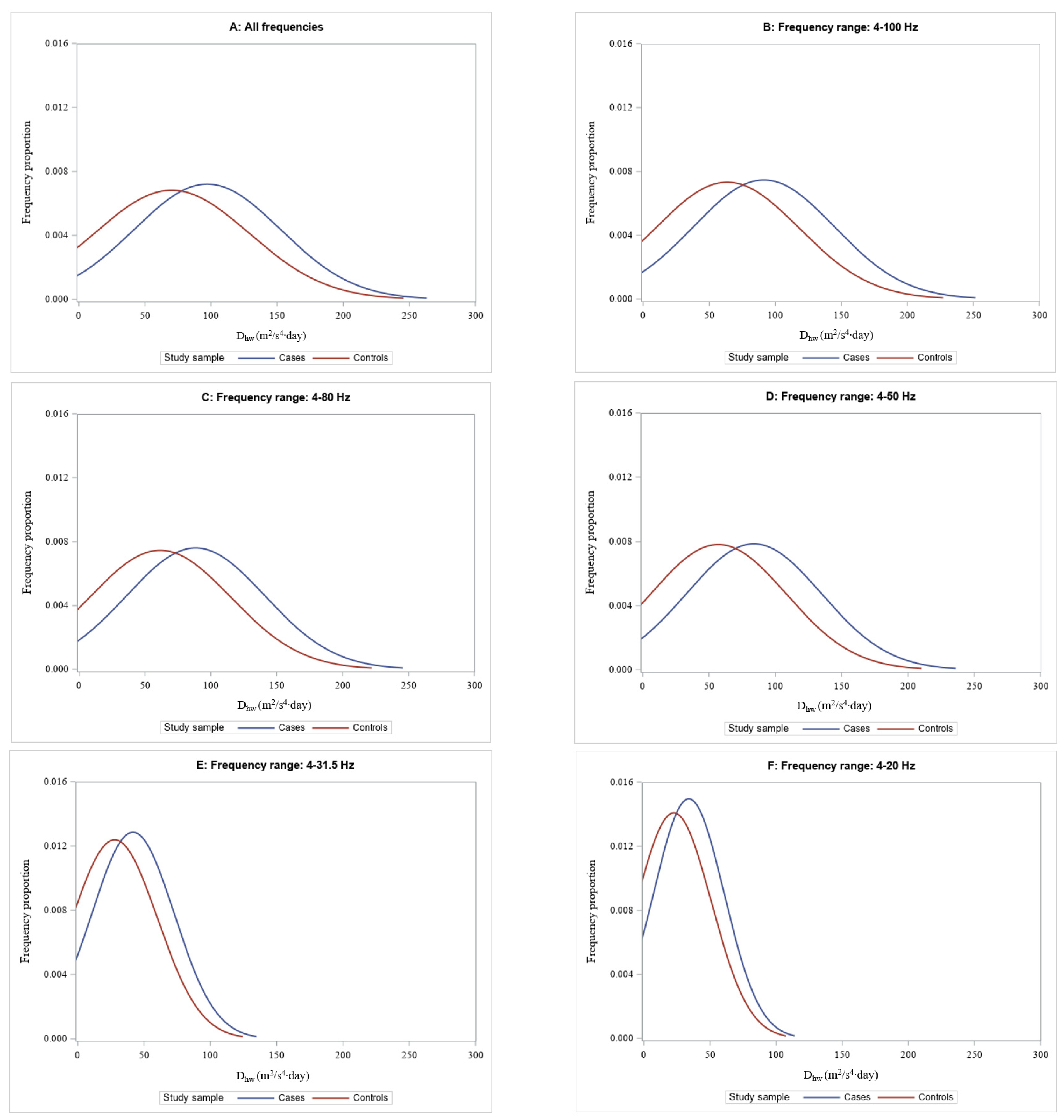

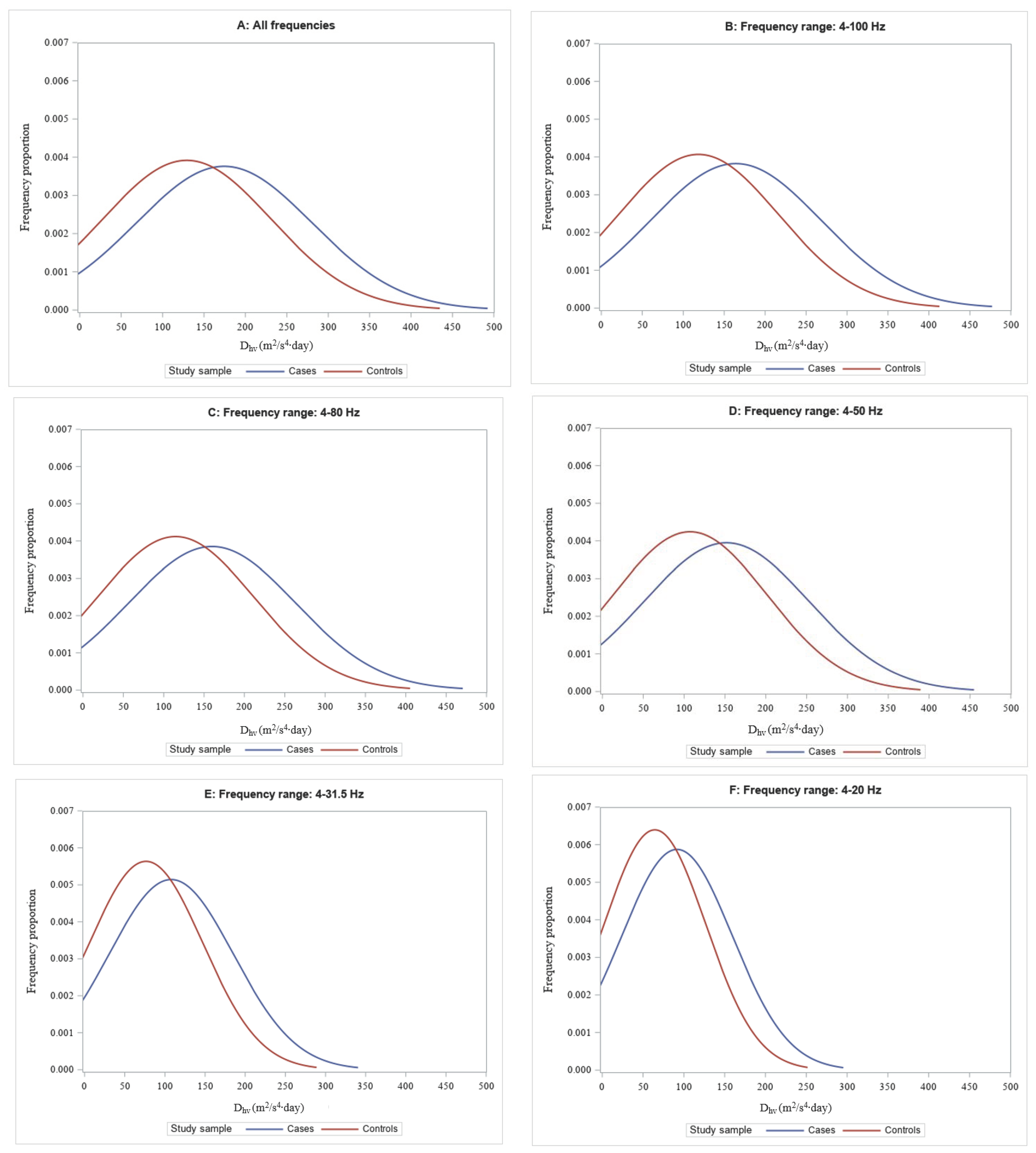

and Figure 2 and Figure 3, respectively. As 8 individuals (three cases and five controls) had missing frequency-range-specific exposure values, they were excluded from this analysis, leaving 815 individuals for the final analyses of this study. In general, the median values of the long-term cumulative vibration exposure doses are about 2–3 times higher in the cases than in the controls. These differences are more pronounced in the low-frequency range (frequency < 50 Hz), especially for D_hw values.

The frequency-range-specific dose–response relationships between long-term vibration exposure doses (D_hv and D_hw) and musculoskeletal disorders according to occupational disease No. 2103 are shown in

Table 3. Frequency-range-specific dose–response relationship between cumulative vibration exposure (D_hv) und musculoskeletal disorders according to occupational disease number 2103.

Dhv * (m2/s4·year)	n	Adjusted **		Adjusted †
		OR	95%KI	OR	95%KI
Frequency 4–20 Hz
1. Quintile	26/163	1	–	1	–
2. Quintile	34/163	1.41	0.81–2.46	1.22	0.66–2.24
3. Quintile	39/163	1.98	1.13–3.45	1.57	0.80–3.10
4. Quintile	36/163	2.84	1.57–5.15	2.00	0.87–4.63
5. Quintile	71/163	5.57	3.13–9.93	3.32	1.16–9.46
Frequency 4–31.5 Hz
1. Quintile	27/163	1	–	1	–
2. Quintile	30/163	1.41	0.80–2.48	1.23	0.66–2.31
3. Quintile	43/163	2.17	1.25–3.75	1.75	0.88–3.49
4. Quintile	35/163	2.93	1.60–5.36	2.12	0.88–5.09
5. Quintile	71/163	5.69	3.18–10.17	3.55	1.19–10.55
Frequency 4–50 Hz
1. Quintile	20/163	1	–	1	–
2. Quintile	36/163	2.16	1.18–3.93	2.31	1.16–4.63
3. Quintile	41/163	2.53	1.37–4.67	2.89	1.18–7.10
4. Quintile	42/163	4.74	2.52–8.91	5.78	1.80–18.54
5. Quintile	67/163	7.05	3.73–13.33	9.27	2.08–41.40
Frequency 4–80 Hz
1. Quintile	19/163	1	–	1	–
2. Quintile	36/163	2.34	1.27–4.30	2.64	1.28–5.44
3. Quintile	43/163	2.71	1.47–4.99	3.51	1.27–9.69
4. Quintile	41/163	4.34	2.29–8.25	6.41	1.63–25.31
5. Quintile	67/163	7.21	3.82–13.62	12.29	2.07–73.05
Frequency 4–100 Hz
1. Quintile	20/163	1	–	1	–
2. Quintile	37/163	2.11	1.17–3.84	2.18	1.05–4.56
3. Quintile	39/163	2.25	1.23–4.13	2.41	0.82–7.08
4. Quintile	42/163	3.77	2.06–6.93	4.16	0.96–18.02
5. Quintile	68/163	6.16	3.34–11.36	7.04	1.04–47.80
All frequency 4–1250 Hz
1. Quintile	20/163	1	–
2. Quintile	35/163	2.10	1.13–3.88
3. Quintile	43/163	2.53	1.38–4.67
4. Quintile	40/163	3.32	1.79–6.15
5. Quintile	68/163	5.81	3.14–10.75

* Dhv = cumulative vibration doses in a total of three measuring directions. ** Adjusted for study centers, generalized osteoarthritis, injury, and inflammatory disorders of hand, elbow, or shoulder joints. † Adjusted additionally for cumulative vibration exposure at all frequencies (4–1250 Hz).

and

Table 4. Frequency-range-specific dose–response relationship between cumulative vibration exposure (D_hw) und musculoskeletal disorders according to occupational disease number 2103.

Dhw * (m2/s4·year)	n	Adjusted **		Adjusted †
		OR	95%KI	OR	95%KI
Frequency 4–20 Hz
1. Quintile	18/163	1	–	1	–
2. Quintile	22/163	1.32	0.67–2.59	1.24	0.62–2.48
3. Quintile	26/163	1.95	0.99–3.85	1.71	0.81–3.61
4. Quintile	65/163	4.59	2.49–8.46	3.86	1.85–8.03
5. Quintile	75/163	4.78	2.60–8.76	3.86	1.76–8.44
Frequency 4–31.5 Hz
1. Quintile	12/163	1	–	1	–
2. Quintile	27/163	2.82	1.35–5.92	2.71	1.27–5.76
3. Quintile	28/163	3.33	1.54–7.19	3.02	1.30–7.04
4. Quintile	67/163	8.20	4.02–16.72	7.31	3.21–16.64
5. Quintile	72/163	7.67	3.77–15.62	6.60	2.71–16.07
Frequency 4–50 Hz
1. Quintile	20/163	1	–	1	–
2. Quintile	19/163	0.99	0.50–1.95	1.03	0.50–2.12
3. Quintile	47/163	2.72	1.48–4.99	2.97	1.33–6.62
4. Quintile	50/163	3.09	1.67–5.73	3.54	1.30–9.67
5. Quintile	70/163	4.50	2.48–8.19	5.38	1.60–18.09
Frequency 4–80 Hz
1. Quintile	18/163	1	–	1	–
2. Quintile	24/163	1.56	0.82–2.99	1.62	0.80–3.28
3. Quintile	42/163	2.73	1.48–5.02	2.93	1.22–7.04
4. Quintile	55/163	3.75	2.05–6.85	4.20	1.33–13.23
5. Quintile	67/163	4.70	2.59–8.52	5.46	1.32–22.58
Frequency 4–100 Hz
1. Quintile	16/163	1	–	1	–
2. Quintile	26/163	1.63	0.85–3.13	1.78	0.86–3.67
3. Quintile	41/163	2.73	1.45–5.13	3.32	1.28–8.60
4. Quintile	55/163	4.02	2.16–7.49	5.41	1.56–18.76
5. Quintile	68/163	4.71	2.56–8.65	6.96	1.48–32.68
All frequency 4–1250 Hz
1. Quintile	16/163	1	–
2. Quintile	26/163	1.68	0.87–3.25
3. Quintile	43/163	3.13	1.66–5.89
4. Quintile	57/163	3.89	2.09–7.25
5. Quintile	64/163	4.48	2.42–8.30

* Dhv = cumulative vibration doses in a total of three measuring directions. ** Adjusted for study centers, generalized osteoarthritis, injury, and inflammatory disorders of hand, elbow, or shoulder joints. † Adjusted additionally for cumulative vibration exposure at all frequencies (4–1250 Hz).

for D_hv and D_hw values, respectively. After adjusting for relevant confounders (study center, generalized osteoarthritis, injury, and inflammatory disorders of the hand, elbow, or should joints), regression analyses showed consistent and statistically significant dose–response relationships between cumulative hand–arm vibration exposure and the risk of musculoskeletal disorders. The effect estimates (ORs) of vibration exposure increase with increasing frequency ranges and are the highest for D_hv values in the frequency range of 4–80 Hz and for D_hw values in the frequency range of 4–31.5 Hz. The dose–response relationships remain consistent and statistically significant even after additional adjustment for vibration dose at all frequencies. The effect estimates (ORs) for vibration doses above 50 Hz become even larger after adjustment for vibration doses at all frequencies. This suggests that hand–arm vibration exposure at frequencies above 50 Hz has little effect on the occurrence of musculoskeletal disorders of the upper limbs.

Compared to the findings given in and Table 4, the effect of vibration exposure at all frequencies (4–1250 Hz) on the occurrence of musculoskeletal disorders of the upper limbs disappears after additional adjustment for the vibration dose at different frequency ranges, especially for vibration dose within 50 Hz (

Table 5. Effect of vibration exposure at all frequencies (4–1250 Hz) after adjusting for frequency-range-specific exposure.

Cumulative Vibration Dose at Alle Frequencies (4–1250 Hz)	OR *
	Additional Adjustment for Frequency-Range-Specific Vibration Dose
	Frequency Spectrum (Hz)
	0	4–20	4–31.5	4–50	4–80	4–100
Dhv (m2/s4·year) **
1. Quintile	1	1	1	1	1	1
2. Quintile	2.10	1.67	1.66	1.36	1.24	1.37
3. Quintile	2.53	1.68	1.58	1.07	0.90	1.10
4. Quintile	3.32	1.76	1.65	0.93	0.73	0.98
5. Quintile	5.81	2.41	2.19	0.98	0.72	1.11
Trend-Test	p < 0.0001	p = 0.167	p = 0.258	p = 0.719	p = 0.867	p = 0.874
Dhw (m2/s4·year) †
1. Quintile	1	1	1	1	1	1
2. Quintile	1.68	1.25	1.21	1.16	1.17	1.10
3. Quintile	3.13	1.62	1.51	1.47	1.47	1.33
4. Quintile	3.89	1.69	1.51	1.24	1.27	1.08
5. Quintile	4.48	1.57	1.37	0.98	1.00	0.81
Trend-Test	p < 0.0001	p = 0.366	p = 0.633	p = 0.757	p = 0.818	p = 0.623

* Adjusted for study centers, generalized osteoarthritis, injury, and inflammatory disorders of hand, elbow, or shoulder joints. ** Dhv = cumulative vibration doses in a total of three measuring directions. † Dhw = cumulative vibration doses in the direction along the forearm.

). This further and clearly shows that the effect of hand–arm vibration exposure on musculoskeletal disorders was mainly in the low frequency range below 50 Hz.

4. Discussion

To the best of our knowledge, this study provides the first clear epidemiologic evidence of a frequency-range-specific effect of hand–arm vibration exposure on the risk of musculoskeletal disorders of the upper limb. The results of this study confirm the previous hypotheses that the effect of hand–arm vibration exposure on the risk of musculoskeletal disorders of upper limbs is more pronounced in the low frequency range ≤ 50 Hz.

This is an industry-based case-control-study. The strengths and limitations of the study design have been discussed previously [9]. Briefly, vibration-induced musculoskeletal disorders have a long and gradual course of development and are less cause specific. This makes a longitudinal epidemiological study extremely time-consuming and expensive. Therefore, an industry-based case-control study provides a good alternative to the conventional cohort study. Since only newly reported cases (within one year) were included in this study, it should be considered as an incidence study. In comparison to a population-based design, in the chosen industry-based design, a high proportion of study participants are exposed to high levels of vibration exposure. Therefore, this design increases not only the statistical power for the initial purpose of this study (compared to a population-based design for the same sample size) but also provides relevant evidence in quantifying exposure–response relationships for work-related and vibration-induced musculoskeletal disorders.

In this study, the controls were selected as a random sample of all types of compensable occupational injuries. Compensable occupational injuries are injuries that lead to at least three days absence from work. There is no indication that occupational injuries in all parts of the body are associated with hand–arm vibration exposure. We even found that there is no significant association between injury of the upper limbs and hand–arm vibration exposure doses among the controls in this study (comparison between persons with and without upper limb injury: p = 0.1543 in the Wilcoxon two-sample test; this analysis is not reported in detail in the results section of this paper). Therefore, the sampling strategy for controls in this study (random sample of occupational injuries) is unlikely to bias the distribution of hand–arm vibration exposure when compared to the initial baseline population. The controls selected reflect the vibration exposure for a random sample of the initial baseline population.

Like all published occupational epidemiological studies, this study has some limitations. One limitation could be that all cases in this study were suspected (by local physicians) of having legal occupational disease No. 2103. This at least means that all cases have had vibration exposure in their work history. Many of them may even have had long years of employment with vibration exposure, although the magnitude of exposure level could not be estimated by the local physicians. To avoid a systemic bias, we only recruited controls who had been exposed to hand–arm vibration at work in the past. Our previous analyses demonstrated that there is no difference between the cases and the controls regarding employment duration and the initial vibration values of the technical power tools used [9]. Therefore, the sampling strategy in this study is unlikely to have introduced any systemic bias in the quantification of exposure–response relationships.

Despite the above-mentioned limitations, there are some important strengths in this study. Besides the practical design and large sample size, one striking strength of this study is the exposure assessment method. Exposure assessment is the most important and difficult part of an occupational epidemiological study. Recall bias and objective assessment of historical exposure data are the common challenges in assessing historical occupational exposures. In the absence of detailed historical employment records, personal interviews have to be conducted, and recall bias is usually unavoidable, especially when exposure duration is estimated subjectively. Previous analysis has shown that the duration of vibration exposure tends to be greatly overestimated [19]. As this type of recall bias occurs in the same direction in both cases and controls, the effect estimates (ORs) are expected to be little affected by this recall bias. In this study, the personal interviews focus mainly on the collection of relevant technical power tools used in the workplaces. As described above, the face-to-face interviews were carried out by specially trained safety engineers who have extensive knowledge of the work process and the technical power tools and materials used in these industries. This knowledge is crucial for accurately formulating target questions and assessing the plausibility of responses during the face-to-face interview. This minimizes the potential for recall bias. These engineers are also responsible for linking the technical power tools identified in the work history to the equipment–exposure matrix. This is very important because the same power tools can have different vibration levels when used on different materials. These engineers ensure the correct assignment of the power tools used in the work history and in the exposure matrix and thus a valid assessment of the historical vibration exposures. Furthermore, the values of hand–arm vibration exposures were quantified in this study objectively based on an equipment–exposure matrix. Since all vibration values in the exposure database were determined in the field under real operating conditions in accordance with national and international standards and regulations [15,16], the exposure assessment method used allows for a standardized, objective, and valid quantification of both daily and long-term vibration exposure.

According to the international standards [15,16], frequency-weighted acceleration is one of the key parameters for assessing vibration exposure. As this assessment, originally derived from the frequency-dependent perception of vibration, is not optimal for each pathological pattern of HAVS, various proposals have been made. For example, an alternative frequency assessment for vibration-related neurological diseases was published in ISO/TR 18570 [20]. In Germany, the standard VDI 2057-2 [15] also proposes a differentiated assessment of the frequency ranges for the retrospective assessment of the risk of bone and joint changes in the hand–arm system. According to this standard, an increased risk of bone and joint disorders is only to be expected if the ratio of the components below 50 Hz to the total value is greater than 75%. This view does not appear to be justified.

5. Conclusions

Overall, this study provides clear evidence of a frequency-range-specific dose–response relationship between hand–arm vibration exposure and the risk of musculoskeletal disorders of the upper limb. The effect of vibration exposure on the risk of upper limb musculoskeletal disorders is mainly concentrated in the frequency range ≤ 50 Hz. This finding is very useful in guiding the prevention of these occupational diseases. This suggests also that the current ISO frequency-weighting curve for quantifying hand–arm vibration exposure is reasonable and can be used for vibration-related risk assessment, especially for musculoskeletal disorders. An alternative assessment of frequency ranges for bone and joint disorders, as proposed in the German standard VDI2057-2, is therefore not required for the retrospective risk assessment.
