Impact of Battery Energy System Integration in Frequency Control of an Electrical Grid with Wind Power

Abstract

The rapid increase in the integration of renewable energy sources into the electrical grid is posing new challenges for the dynamic responses due to the global inertia reduction. In this regard, the impact on frequency stability of such reduction and the potential support from wind power have been investigated lately. However, it is well-known that the variability of wind power and its reduced inertia may not be enough to handle the power unbalance. Energy storage systems (e.g., batteries) may provide the required additional flexibility to ensure proper response. In this paper, an analysis of how the different control loops for frequency support on wind power and batteries interact and perform is presented. To gain insights from the different impacts, a sensitivity analysis comparison for frequency regulation through (i) inertia and droop control of a variable speed wind turbine and (ii) battery is performed. The analysis was carried out through simulations using the well-known 4 generator 2-area model adapted to include a wind farm. From a battery perspective, its ramping capabilities were varied to provide frequency regulation. The paper shows how, depending on the control parameters and battery size, the frequency response may even become unstable due to interactions of the various pieces of technology. Thus, it shows that coordinated actions, control optimization and grid status among different actors on the grid (as battery and wind) is required for stable operation.

1. Introduction

The steady increase in adoption of renewable energy sources (RES) to reduce emissions and make electrical grids sustainable worldwide has led to a large increase in wind power penetration. With offshore technology becoming commercial, the share of wind power is set to expand further. Due to this increasing contribution of RES, especially wind, there is concern over the reducing inertia and balancing the disturbances caused their variable nature. Wind turbines (WTs) are not capable of providing inertia, as they are decoupled from the grid through converters [1]. In addition, many nuclear and thermal power plants are being shut down worldwide, and the rising costs and supply-chain issues surrounding gas imports have increased concerns about the future of grid stability [2]. Inertia is essential in the grid, as it helps avoid changes in frequency by providing power over a short period of time. It provides the system with enough time to not destabilize before additional generation is completed or a load is shed [3].

Inertia control has generally been performed by governor control of synchronous machines and swing or backup generators. Depending on the country, the frequency is either 50 or 60 Hz, and during generation or load imbalance, the frequency starts deviating from these base values. The rate of change of frequency (ROCOF) is given by the swing equation:

$$\frac{df}{dt}=\frac{f_0}{2H_{sys}{S}_G}(P_m-P_e)$$

(1)

where $df/dt$ is the ROCOF; $f_0$ is the system frequency; $H_{sys}$, $S_G$, $P_m$ and $P_e$ are the system inertia constant, generator rated power, mechanical power and electrical power, respectively.

Traditionally, wind power plants (WPPs) do not participate in frequency regulation, as older permanent magnetic synchronous generator (PMSG) turbines operate in maximum power point tracking (MPPT) mode and their speed cannot be altered to vary their output power. Coordinated PMSG wind turbine control strategies have been developed to emulate the combined inertia response of WTs and generator to provide a short-term frequency response, but are still not preferred [4]. However, newer variable-speed wind turbines (VSWTs) can be controlled externally through several mechanisms to provide an inertia response [5,6,7,8,9]. For example, inertia control injects energy into the system based on the ROCOF, and droop control works with the difference between frequency levels [10,11]. On the other hand, deloading control shifts the WT operating point from the optimal to a reduced power level. The deloading is performed through speed and pitch angle control [12,13,14]. Reference [15] provides a control scheme for an isolated power system using optimum deloading techniques through static converters and pitch control, and rotor speed and active power variations. However, the frequency nadir with just integral control loop provides a marginal improvement over that of a primary frequency response without the control loop.

These WT control strategies can be combined and integrated with other generators in the grid to implement better frequency controls. Reference [16] proposes a coordinated control strategy with time-varying gains of inertia and droop control loops. The control loop gains depend on the desired frequency-response time, and initial gains are based on wind speed and operating conditions of each WT in the farm. Reference [17] formulates a coordination strategy between WT droop control and synchronous machines such that the conventional generators activate power injection from the start of frequency drop. This control leads to a lower frequency deviation value. Nevertheless, there is no improvement in the total time required to bring back the frequency to the threshold. Reference [18] provides a hierarchical control system structure for coordinating WTs and reducing the total number of turbines used for frequency regulation. Three layers of wind farm management are used, along with wind farm control and WT control, to share information among the wind farms, traditional power plants and system dispatching center. The WT control is responsible for tracking the reference active power value and transmitting information, such as output power, available frequency control power, wind speed, rotor speed, pitch angle and other operation status indicators of the WTG to the wind farm management layer. However, for the two active power control methods, rotor speed control and pitch angel control, the pitch angle control is slower and leads to more mechanical wear compared with the rotor speed control. Thus, it is considered that the reserve power quality provided by rotor speed control is better than the pitch control. However, the sensitivity of the WT response due to the variations of the inertia and droop constant was not studied in detail. With numerous WT control models, it is important to not only compare them but also evaluate how they perform with various degrees of sensitivity in different scenarios. In [19], a comparison is made between the performance of an actual WPP and a detailed model containing different gains of the inertial controller. However, gains are not varied by large values, and the approach is not compared with alternative methods of frequency control.

Lately, energy storage systems, especially batteries, have emerged as a popular option to provide primary frequency support. Batteries are not just capable of responding within a few seconds, but can also continuously supply power over longer periods. This could help eliminate the need for secondary or tertiary reserves in many cases [20,21,22]. Moreover, batteries can be charged with the excess energy generated from the WPPs. In fact, the possibility of providing frequency regulation combined with renewable energy arbitrage has been one of the key areas of interest for wind power plant operators [23].

As mentioned earlier, inertia in a power conventional power grid is provided by synchronous generators in thermal power plants through governor control. That is, in the event of a frequency drop, additional power can be supplied by the synchronous machines to balance the system. However, these are slow, as they take a few seconds to respond. Meanwhile, output from electrochemical energy storage technologies such as batteries and supercapacitors is almost instantaneous, and energy can be provided over a longer time duration as compared to inertia and droop responses of WTs. Numerous studies with battery energy storage system (BESS) control strategies have effectively shown suitability for frequency regulation in largely wind-powered systems [24,25,26,27,28,29,30,31,32,33]. Reference [24] depicts a BESS and WT pitch angle control. The pitch control is activated only when battery state of charge (SOC) is below 40%, and the synchronous generator responds at 30% SOC, charging the battery and bringing SOC levels back to 50%. Reference [25] assesses the impacts of various aggregated and distributed energy storage technologies in a wind farm. Reference [26] presents lithium-ion battery (LiB) control to limit damping power associated with inter area low frequency oscillations in a wind power plant. Reference [28] shows an SOC-control-based scheme and response time between generators and BESS to control wind frequency deviations. Reference [31] considers a WPP and a BESS together as a virtual power plant (VPP) to provide both energy and frequency regulation in energy markets. The cooperation strategy deploys a BESS during insufficient generation from the WPP, considering its cycle number and energy change functions to improve battery lifetime. Battery and supercapcitor combinations have also been widely studied for frequency regulation applications to provide faster responses and reduce battery size and overall costs [30,34,35,36,37,38,39,40].

Thus, different but complementing strategies can be used to provide better grid support. Simultaneous wind–battery control can be an effective strategy to avoid frequency imbalances, as it could reduce reliance on just one type of support. However, in-depth sensitivity analysis on the impact of different WT control strategies and their comparison with a BESS need to be studied further. In this paper, we explore WT control strategies that incorporate a battery to study their individual impacts on frequency regulation in the event of a grid disturbance. We also analyze the combined effect of the two controls and vary their response capabilities to encourage better control strategies with improved frequency regulation.

2. Materials and Methods

Frequency Support from Wind Turbine Control and BESS

As mentioned, in the event of rapid frequency changes, the WT is capable of regulating itself through several means. In our study, we used inertia and droop control methods, as they are capable of injecting sufficient momentary power into the grid without deloading the WT and causing stress on the turbine blades.

Inertia Response: In the case of VSWTs, the rotating mass is mechanically decoupled from the grid and the kinetic energy (KE) cannot provide a direct inertia response like the synchronous generators for frequency balancing. However, doubly-fed induction generators (DFIGs) can be operated to slow down and release this KE into the grid for a few seconds and provide inertia into the system for 10 s. This provides sufficient time for the synchronous generator to activate its governor control to further balance the frequency within 30 s (primary control). Afterwards, slower secondary and tertiary controls are activated to bring the frequency levels back to threshold values [41].

$$E_k=\frac{1}{2}J{\omega }^2$$

(2)

where $E_k$ is the kinetic energy, J is the moment of inertia of the wind rotor and $\omega$ is the rotational speed.

$$H=\frac{J{\omega }^2}{2S}$$

(3)

The inertia constant H represents the time duration for which the wind generator can provide nominal power (S) by using kinetic energy.

Droop Control: It is a popular method used by wind generators to imitate the governors of conventional generators by regulating the active power output from a WT proportionally to frequency change.

$$\Delta P=\frac{f_{nom}-f_{meas}}{R}$$

(4)

where $f_{nom}$, $f_{meas}$ and R are nominal frequency, measured frequency and the droop constant, respectively.

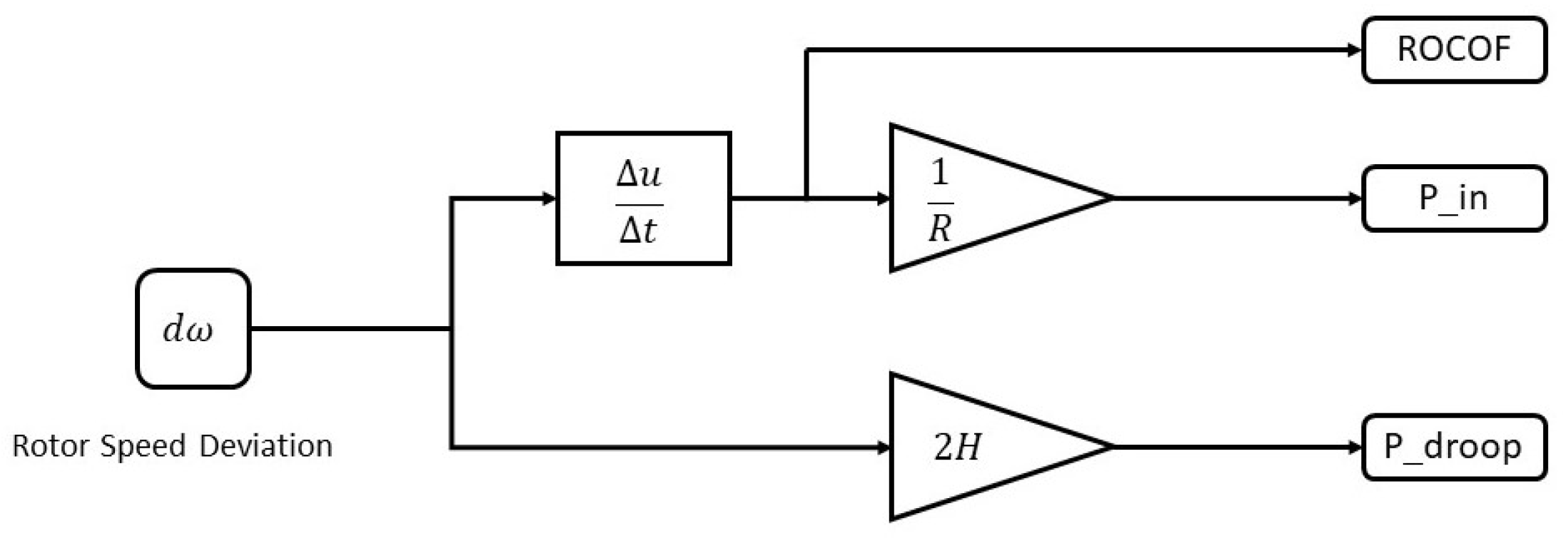

The default inertia constant was selected as 5.04 and the droop constant as 0.05. These were later modified to observe the best response (please see the Figure 1).

Battery Control: Unlike synchronous generators, batteries can inject and absorb power from the grid within seconds. The battery control algorithms can be modified to inject appropriate power into the grid as soon as there is a frequency drop. This can be done by responding to (i) frequency deviations in the grid and (ii) the ROCOF in the system.

The battery SOC at a given time $\left(t\right)$ is the ratio of available energy to the rated energy of the battery.

$$SOC\left(t\right)=\frac{E\left(t\right)}{E_{rated}}$$

(5)

The operation of the BESS is limited by:

$$SO{C}^{min}⩽SOC\left(t\right)⩽SO{C}^{max}$$

(6)

where $E\left(t\right)$ is the energy stored in the battery at time t and $E_{rated}$ is the rated energy of the battery. The battery parameters were set according to

Table 1. BESS parameters.

Parameter	Value
Rated Power	300 MW
Rated Capacity	50 MWh
Efficiency	95%
$SO{C}^{max}$	80%
$SO{C}^{min}$	20%

[30,42,43,44]. We assumed an energy rating higher than what is needed in order for the BESS to be able to supply sufficient energy for the whole simulated time period.

3. Case Study and Sensitivity Analysis

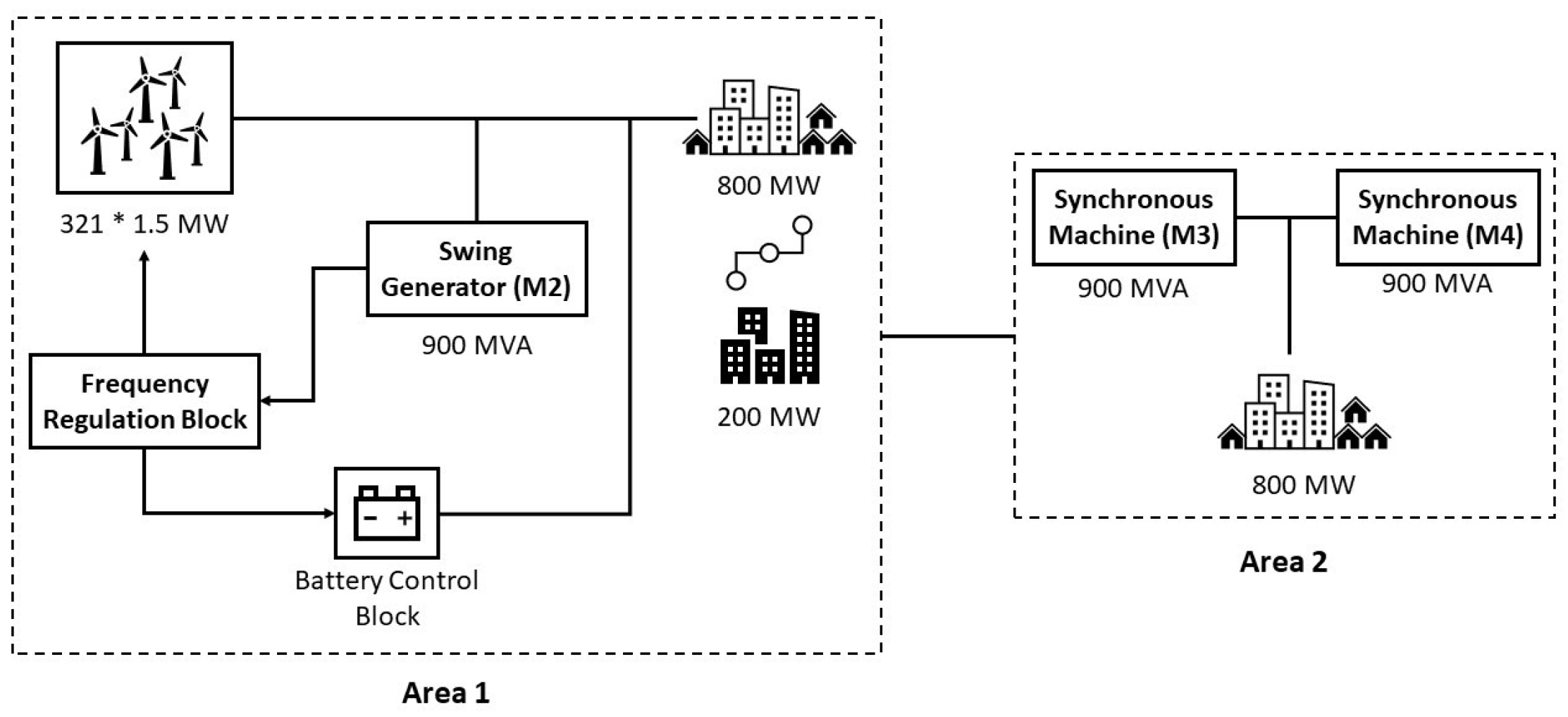

To compare the response sensitivity of the WT control and a battery, an existing Kundur two-area system was used and modified. The Simscape–MATLAB model simulated a grid system with a synchronous machine as a swing generator (M2), a DFIG wind turbine and a load in Area 1. An additional load of 200 MW was connected via a breaker that switched at 50 and 100 s, creating a frequency drop and rise, respectively. In Area 2, there were two synchronous machines (M3 and M4) and a load. A constant wind speed was assumed over the restricted simulation time (please see the Figure 2 and

Table 2. Parameters of the two-area model.

Parameter	Value
Wind Turbine Nominal Power	1.5 MW
Number of wind turbines	321
Wind speed	10 m/s
Grid Frequency	60 Hz
Initial Load	1600 MW
Rated Power of Synchronous Turbines	900 MVA

).

The sensitivity of the response to the frequency disturbance was measured for both under-frequency and over-frequency. Different cases were studied to observe the frequency response by the WT and the BESS.

3.1. Case I: No Frequency Control

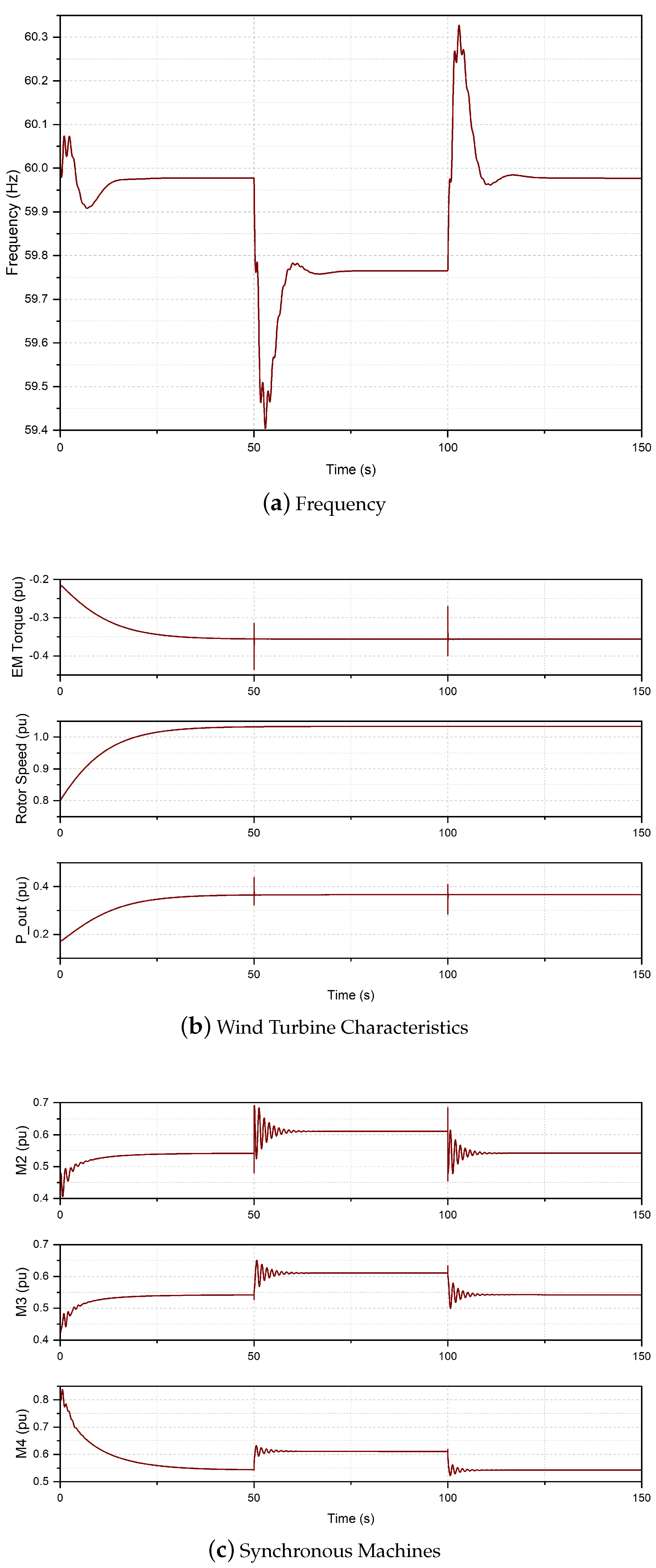

The response of the WT was studied without any frequency control to establish the base condition. At 50 s the load switch was connected, which led to the addition of 200 MW to the system. Consequently, there was a large frequency drop, and the frequency tried to settle after a few seconds. The frequency nadir was observed at 59.4 Hz. At 100 s, the additional load was disconnected, and the frequency increased but settled at around 60 Hz after a few seconds. Since there was no external frequency regulation, the synchronous generators (M2, M3, M4) responded to provide the extra power at after a few seconds to compensate for the frequency drop (please see the Figure 3).

3.2. Case II: Inertia and Droop Control

The inertia and droop constant were varied to study the best response that the WT can provide by itself. We compared the frequency responses of the default values of inertia constant (H = 5.04) and droop constant (R = 0.05) and {varied their values to check system stability. In all scenarios, at 50 s the frequency settled at a higher value compared to Case I, and the frequency nadir was greater with the default inertia and droop constant (A). When the inertia constant was increased and the droop constant reduced, the output power from the WT for frequency regulation also increased. The lowest frequency drop was observed with C and D. However, since additional power from the WT can be supplied only for a few seconds, there was a second drop in the frequency (C and D), and it finally settled at a lower value than that in default constant scenario (A) and could also cause further instability. From

Table 3. Inertia and droop constant values for frequency control through WT.

	Inertia Constant (H)	Droop Constant (R)
A	5.04	0.05
B	10.08	0.025
C	13.104	0.019
D	0	0.019

and Figure 4, we can conclude that in the case of a frequency response though only inertia and droop control, scenario B would be the best option. The wind turbine control clearly prevents a large initial drop, giving time to the synchronous machines to balance the frequency.

3.3. Case III: Battery Control

In this case, inertia and droop controls were turned off, and only the battery provided frequency support. The battery responded according to both frequency deviation and ROCOF, and the battery-response-controlling gains were varied. For lower gains (A), the battery had a slow response to the frequency drop, and the synchronous machines also participated in balancing. In the best case scenario (C), at 50 s, the battery responded very quickly by supplying power instantaneously and prevented a frequency drop. Moreover, the frequency was stabilized faster and at a higher value than in Case II. No significant increase in output from synchronous machines was observed, so we conclude that they did not participate in providing frequency support, and all the power was supplied by the battery. At 100 s, the battery absorbed the excess energy and stabilized the frequency at very close to 60 Hz. Thus, optimal gains can be selected to increase or reduce sensitivity of the battery towards frequency changes (please see the Figure 5 and

Table 4. Battery gain multipliers.

	Frequency Deviation Multiplier	ROCOF Multiplier
A	$50e^6$	$10e^6$
B	$50e^8$	$10e^8$
C	$50e^9$	$10e^9$

).

3.4. Case IV: Inertia, Droop and Battery Control

Both inertia and droop control and battery control were turned on. The best H and R values from Case II were selected to allow maximum possible support from the wind turbine first and the rest through the battery. The battery ramp rates were varied similarly to Case III. In A, the battery control gains were too low for it to respond. The frequency regulations was solely provided by the wind turbine and the synchronous machines, and the output power from the battery was zero. On the other hand, when battery control gains were extremely high (C), neither wind nor synchronous machines contributed at all to frequency regulation.

If we reduce the battery’s sensitivity (that is, reduce its response capabilities), we can observe that the inertia and droop control will kick in first. Meanwhile, the battery will also respond by providing less power. The contribution of the synchronous machines is negligible, showing that the wind turbine control and battery can be sufficient for handling frequency imbalances (please see the

Table 5. WT control and BESS gain parameters.

	H	R	Frequency Deviation Multiplier	ROCOF Multiplier
A	13.104	0.019	$50e^6$	$10e^6$
B	13.104	0.019	$50e^8$	$10e^8$
C	13.104	0.019	$50e^9$	$10e^9$
D	0	0.019	$50e^9$	$10e^9$

and Figure 6).

4. Results and Discussion

The individual and hybrid wind-battery frequency control schemes allow better regulation than conventional generators. The response depends on the control parameters and varies depending on the sensitivity of frequency regulation strategies.

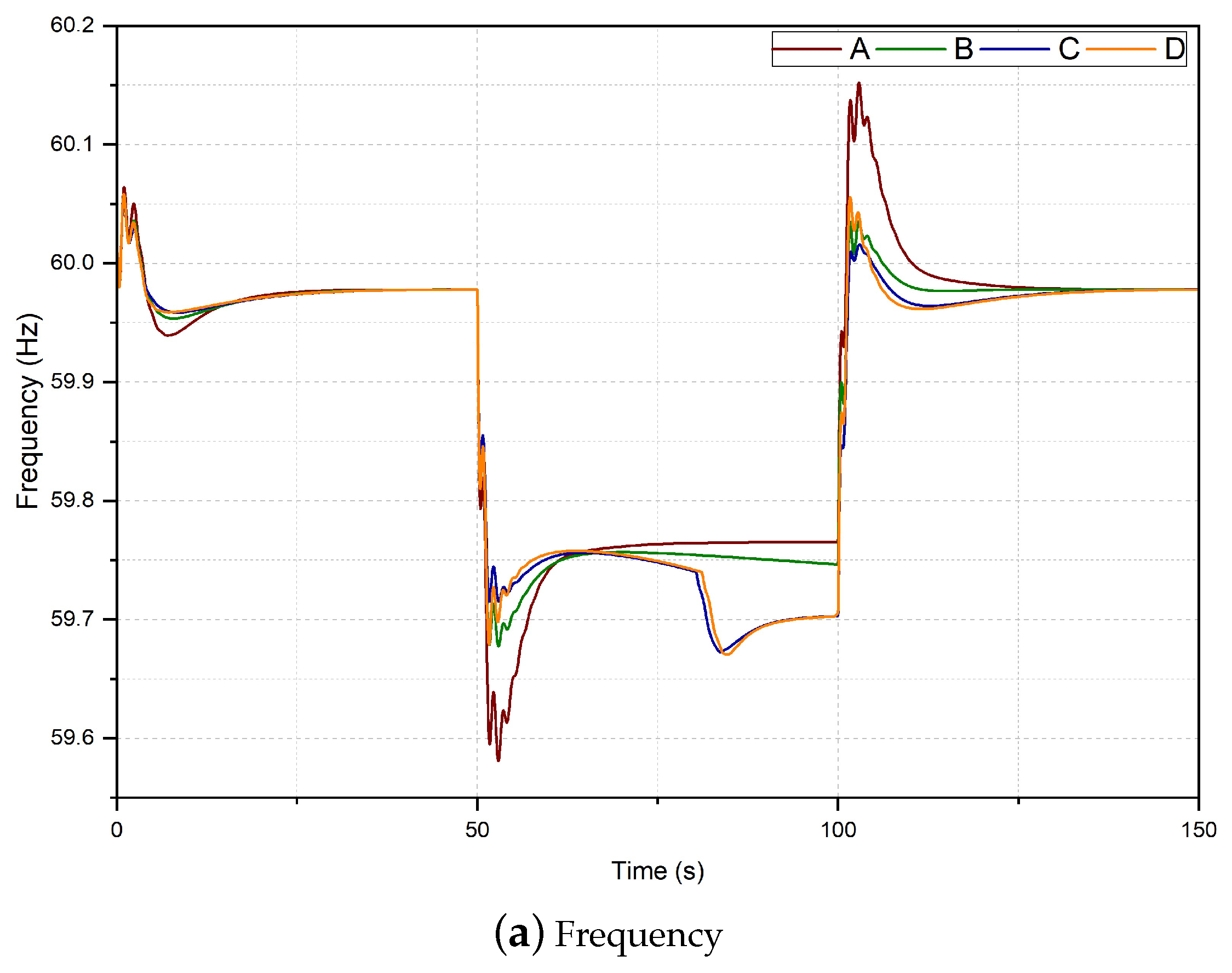

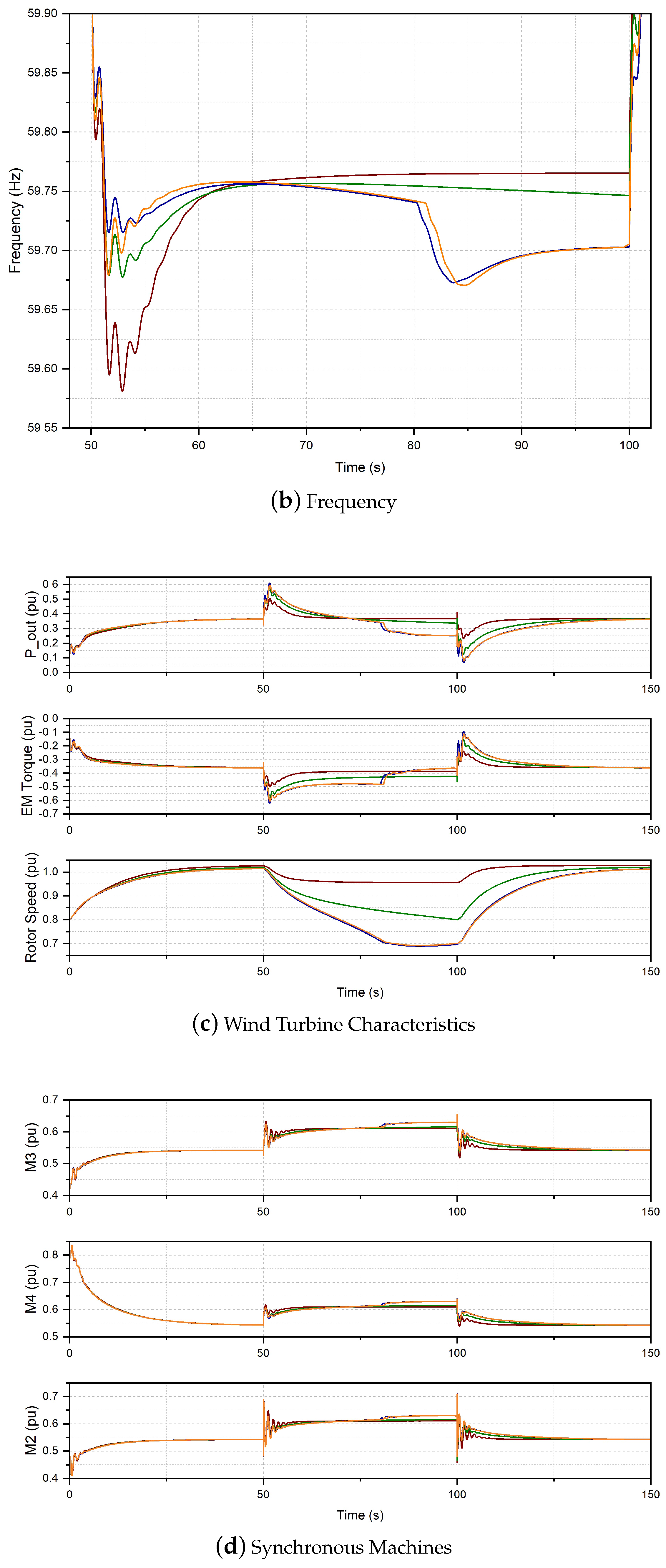

In Case II, a highly sensitive WT control strategy leads to a possible further destabilization of the frequency, as seen in Figure 4a. During controls C and D, the first frequency drop is much lower than in Case A at 59.72 or 59.67 Hz, respectively. However, after t = 80.5 s, the WT cannot provide any more extra power, and the frequency sees a second drop of 59.67 Hz for both. In such a scenario, a slight compromise in frequency nadir can provide a more stable response by the wind turbine.

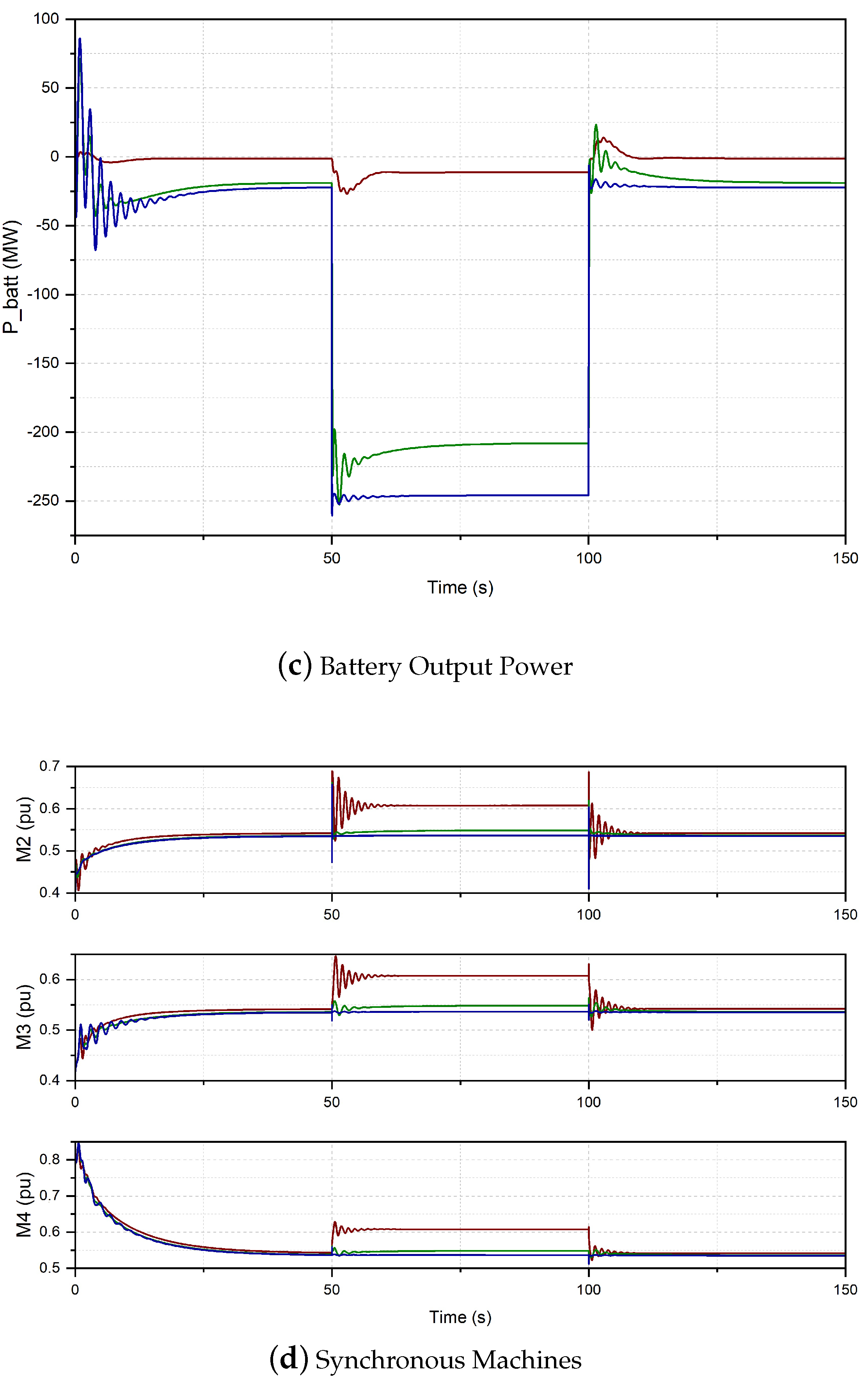

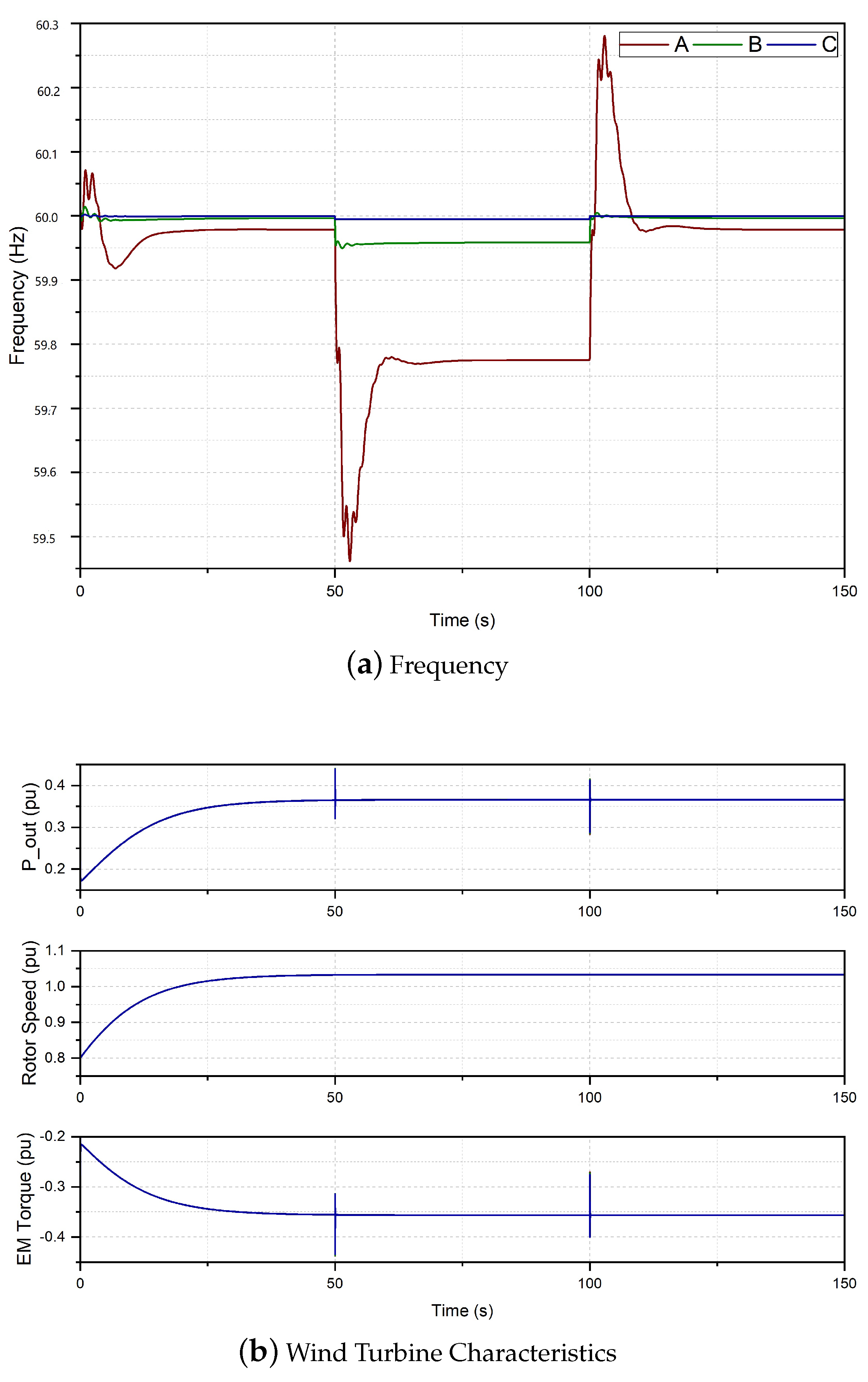

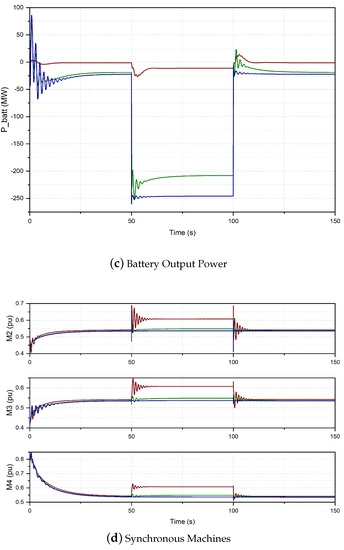

In Case III, when only a BESS is connected, depending on the control, it either maintains the frequency very close to 60 Hz or for very low sensitivity, drops till 59.45 Hz. For the medium-sensitivity control scenario (Case B), the BESS only allows a drop till 59.55 Hz; see Figure 5a. Highly sensitive control would lead to constant battery engagement with grid and could impact its overall health. While the long-term performance of a BESS is outside the scope of this study, it is imperative to note that the battery lifetime is greatly affected by many factors. Various studies have shown that modifying battery cycling, the depth of discharge levels [45] and even charge–discharge protocols can improve battery life [46,47,48,49,50]. Li-ion is the most commonly used battery technology, and recent studies have demonstrated improvements in their cyclability [51,52]. However, they still generally have short cycle lives (10${}^3$ cycles) as compared to supercapacitors (10${}^6$ cycles) [53] and need to be improved. Future energy systems are likely to have more frequency disturbances due to their large shares of variable renewables, which will lead to increased demand from the battery, and its overall lifetime would be impacted. More studies are needed to understand the relationships between different battery applications and its lifetime.

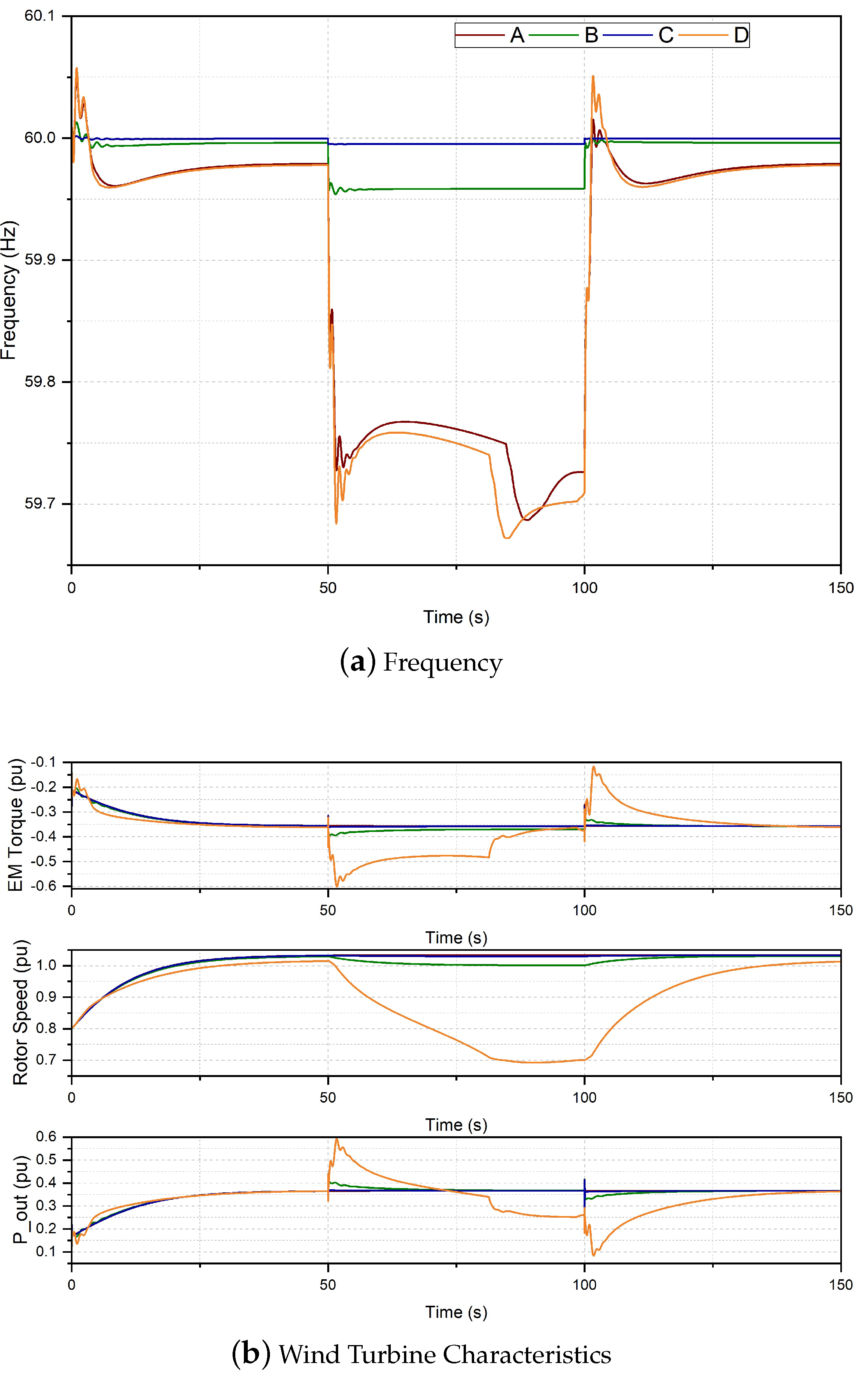

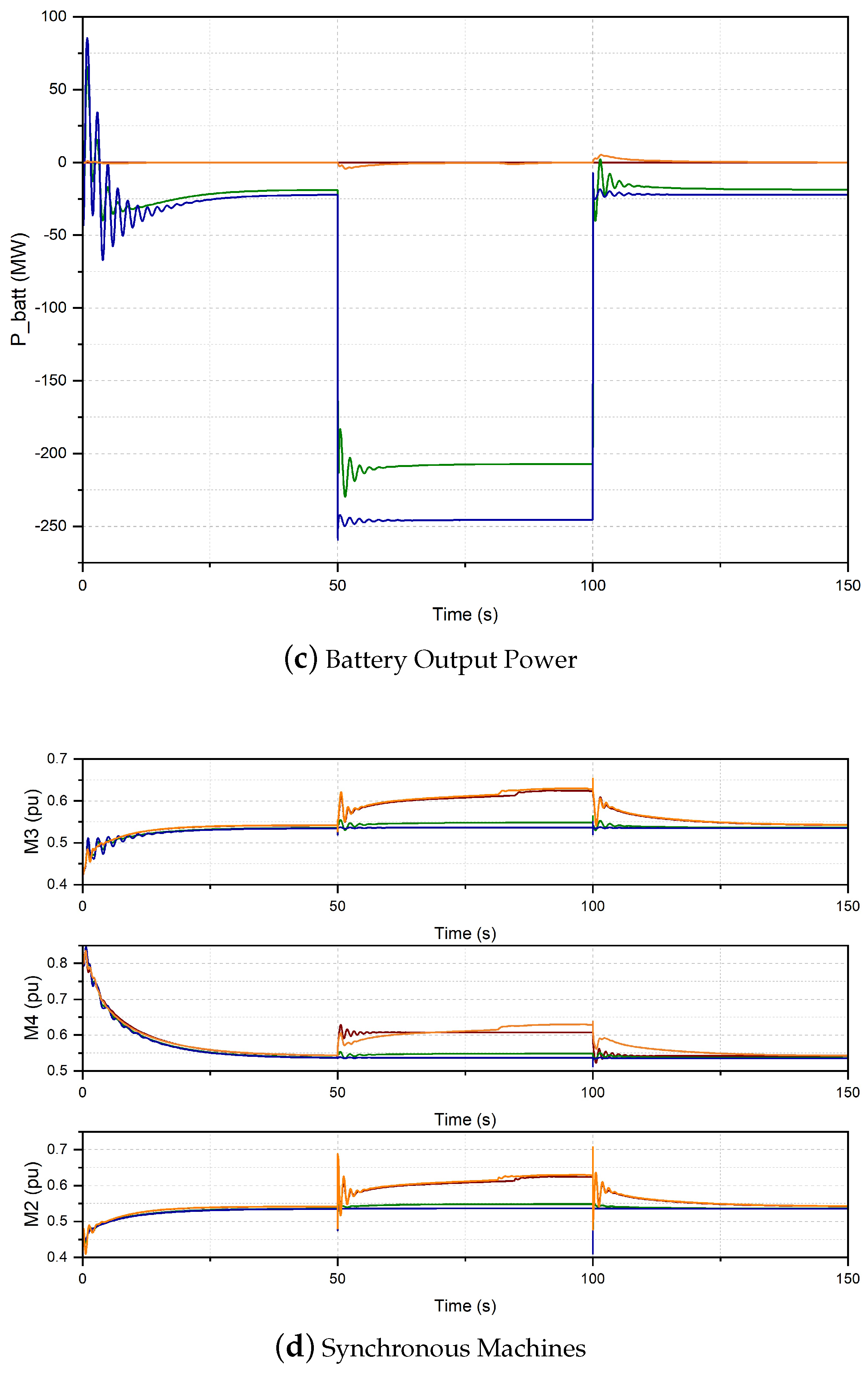

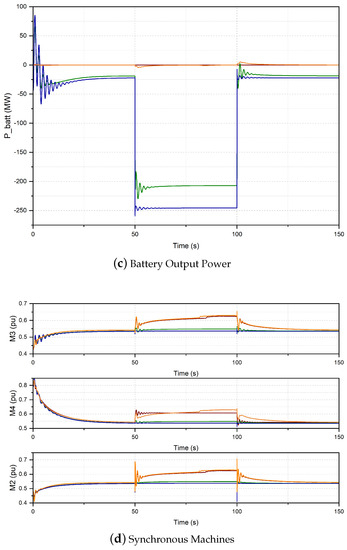

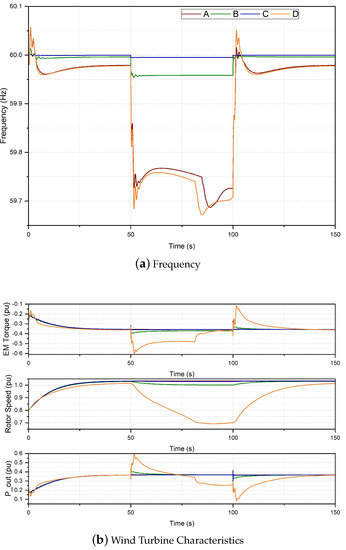

Therefore, the optimum strategy would be combining the best responses of both the WT and the battery to avoid reliance on a single means of control (Case IV). Figure 6a,b show that the battery’s response can be limited to allow WTs to simultaneously respond and support each other. The operators can optimize the sensitivity depending on the WT and battery ratings and the level of support required from them [54]. This would help reduce the mechanical stress on the WTs, improving battery life and reduce the need for conventional spinning reserves.

5. Conclusions

A control scheme for the hybrid system was developed up to allow both a WT and a battery to provide frequency regulation support. This prevents the battery from responding to every fluctuation in frequency. The battery clearly is more sensitive to frequency variations than the inertia and droop control. However, very high sensitivity would affect the battery’s health over long period of time. In contrast, reduced BESS sensitivity prevents proper frequency support, and the synchronous machines have to provide the inertia. An oversized BESS would lead to higher costs, but an undersized one would not be able to provide adequate response. Therefore, the BESS needs to be properly sized to provide the power needed in cases of frequency drop. For the wind turbine control, far less sensitive inertia and droop control is not sufficient, as the frequency drop is larger. However, highly sensitive inertia and droop control may cause a second frequency drop, thereby increasing the time for frequency stabilization or even further destabilizing the grid. We conclude that a battery may be deployed along with inertia and droop control for maximum support, but sizing and response sensitivity would be key to utilizing the battery efficiently. Depending on the control, additional synchronous machines may not be needed to provide inertia support in the event of a frequency drop.
