Scanning Kelvin Probe Investigation of High-Strength Steel Surface after Impact of Hydrogen and Tensile Strain

by
Andrei Nazarov
*,
Flavien Vucko
and
Dominique Thierry
French Corrosion Institute, 220 Rue Pierre Rivoalon, 29200 Brest, France
*
Author to whom correspondence should be addressed.
Corros. Mater. Degrad. 2020, 1(1), 187-197; https://doi.org/10.3390/cmd1010009
Submission received: 6 January 2020 / Revised: 10 May 2020 / Accepted: 18 May 2020 / Published: 20 May 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
Hydrogen in combination with mechanical stress can lead to rapid degradation of high-strength steels through environmentally assisted cracking mechanisms. The scanning Kelvin probe (SKP) was applied to automotive martensitic steel grade MS1500 in order to detect local reactivity of the surface after hydrogen uptake and tensile deformation. Hydrogen and stress distribution in microstructures can be characterized by SKP indirectly measuring the potential drop in the surface oxide. Thus, the links between electron work function, oxide condition, and subsurface accumulation of hydrogen and stress have to be investigated. It was shown that plastic strain can mechanically break down the oxide film creating active (low potential) locations. Hydrogen effusion from the steel bulk, after cathodic charging in aqueous electrolyte, reduced the surface oxide and also decreased potential. It was shown that surface re-oxidation was delayed as a function of the current density and duration of cathodic hydrogen pre-charging. Thus, potential evolution during exposure in air can characterize the relative amount of subsurface hydrogen. SKP mapping of martensitic microstructure with locally developed residual stress and accumulated hydrogen displayed the lowest potential.

1. Introduction

Hydrogen directly affects metallic materials by degrading their mechanical properties. Hydrogen-assisted cracking (HAC) limits the application of high-strength steels (HSS) in different branches of industry, such as the transport industry, because their sensitivity to cracking increases proportionally with their strength [1,2,3]. High-strength steel fasteners or automotive high-strength steel sheets may fail due to hydrogen-delayed fracture mechanisms. In the absence of residual stresses or external loading, this environmental hydrogen can reduce ductility and create blisters and internal cracks. Additionally, with the application of tensile stress with a stress intensity factor exceeding a specific threshold, the hydrogen induces subcritical cracks, whose growth leads to failure [4,5,6].
Corrosion of steel or its metallic protective coating is the main source of hydrogen under service conditions. It is well established that to induce HAC, critical diffusible hydrogen content in the HSS, which is a function of local stress, must be reached [7,8,9,10]. The locations which are prone to cracking are close to the corroding surface containing the highest hydrogen concentration (Figure 1) [8].
The resistance of an alloy to HAC is strongly affected by the interaction of hydrogen with the microstructural heterogeneities that act as hydrogen traps [11,12,13]. It was found that reversible (low-binding energy) traps often impart a degree of high susceptibility to HAC [12]. The hydrogen concentration increases with increasing deformation and, thus, also with an increasing amount of dislocations [12].
The schematic in Figure 1 shows that increased hydrogen concentration was found at the alloy surface or subsurface. To obtain further insight, localized surface-sensitive methods have been used to determine the distribution of hydrogen and the amount of stress close to the steel subsurface [14,15,16,17,18,19,20,21]. It was suggested [16,22] that the scanning Kelvin probe (SKP) and scanning Kelvin probe force microscopy (SKPFM) are currently the most sensitive techniques available and can detect extremely low quantities of hydrogen. The main interest is a possible application for the local quantification of hydrogen and its distribution close to the steel surface as a function of the microstructure, hydrogen traps, and stress [16,20,21]. One of the approaches for quantification links the ability of hydrogen to chemically reduce the oxide film with the electron work function (potential) [20,21,22,23,24]. Using this approach, the SKP was applied to determine the hydrogen diffusivity in hardened martensitic steels [24,25,26].
SKPFM with high spatial resolution showed that dislocation and vacancies at the interface matrix/oxide are the main hydrogen trapping sites in ferritic steel [16]. SKPFM is an effective technique to find the locations of hydrogen enrichment and developing pits or cracks in these locations [27,28]. It was shown that crack propagation is promoted by hydrogen enrichment of crack tip induced by stress [28]. SKPFM can compare the changes in topography and electron work function due to hydrogen uptake. It was observed that locations of low-electron work function related to hydrogen accumulation create the nano-bulges [28]. Thus, hydrogen local enrichment decreases the cohesion forces between atoms that lead to mechanical rupture and then propagation of microcracks [28].
The influence of the mechanical strain on the electron work function of different steels was investigated in previous works [29,30,31,32]. It was found that tensile strain creates breaks in the oxide film due to the emerging of dislocations and dislocation slip steps at the alloy surface. Potential SKP mapping detects these low potential locations, which are directly related to defects in oxide films.
For assessment of hydrogen and stress, SKP and SKPFM measure the local electron work function that is related to the conditions (thickness, degree of oxidation) of the surface oxide. Using these techniques, hydrogen and stress only indirectly can be characterized in microstructures. Thus, the links between local electron work function (potential), state of the oxide, concentration of the subsurface hydrogen, and level of residual stress, must be investigated in detail. It can help in further understanding their interaction at the local level. In this work the effect of hydrogen effusion (Figure 1) on the oxidation of an alloy surface in the air was studied. In addition, SKP was used to visualize the distribution of the strain in high-strength steel. Thus, locations with increased activity of the electrons in pre-strained and hydrogen pre-charged samples can be determined.

2. Materials and Methods

2.1. Materials and Surface Treatment

Specimens of cold-rolled automotive grade MS1500 steel plates (HSS) with a thickness of 0.8 mm were used in the tensile and hydrogen uptake experiments. The chemical composition of the steel is shown in Table 1 and the nominal mechanical properties determined according to ASTM E8/E8M standard [33] are presented in Table 2. Specimens were cut from plates using laser cutting. Two sides of the samples were ground down to P4000 by SiC paper, then degreased in acetone using an ultrasonic bath, rinsed in deionized water, and then dried by compressed air. To stabilize the surface oxide after polishing, the samples were aged in an oven at 100 °C for 1 h.
The microstructure of HSS was fully martensitic with carbide precipitates and prior austenite grain size in the range of 5–10 μm. The dimensions of the samples for the study of hydrogenation were 30 mm × 30 mm × 0.8 mm and the tensile samples had gauge area dimensions of 10 mm × 10 mm. To develop local tensile strain the tensile specimen was strained using a hydraulic tensile machine Zwick HC25 (ZwickRoell, Ulm, Germany) at a constant strain rate of 1 × 10−3 s−1.

2.2. Electrochemical Treatment

To study the effect of hydrogen absorption on the potential of steel, cathodic charging of the electrode was carried out. It was simply immersed in 0.1 M NaOH aqueous electrolyte and cathodically polarized using the current densities of −5 mA/cm2 and −25 mA/cm2. The setup included a three-electrode cell containing a working electrode (steel plate 30 mm × 30 mm × 0.8 mm), a counter Pt-mesh, and a reference Hg/HgO electrode. After treatment, the specimen was rinsed with deionized water and then was dried in a stream of dry air. The tensile specimens preliminary pre-strained under laboratory conditions were also used. The total time between the final grinding and the beginning of SKP measurement was ca. 5 min.
To study the effect of permeated hydrogen on the potential of the steel surface, the steel membrane was cathodically polarized from one side. After treatment, the sample was moved to SKP to study the side of the membrane opposite to treated.

2.3. SKP Setup for Analysis of Stress and Hydrogen

SKP measures the contact potential difference between two metallic electrodes (the working and the probe) separated by an air gap. The potential of the probe is calibrated which makes it possible to determine the potential of the working electrode and apply a convenient electrochemical scale. In this study, a height controlled SKP instrument from Wicinski–Wicinski GbR (Erkrath, Germany) was used. The reference electrode was a CrNi alloy needle with a tip diameter of 100 µm, vibration frequency of 9.8 Hz, and the distance to the working electrode surface was approximately 50 µm. Surface contour mapping (topographic profile) was carried out simultaneously with the potential mapping. The measurements were performed in ambient air at 50%–60% relative humidity (RH) and 22 ± 1 °C, which were defined as laboratory conditions. Prior to the measurement, the potential of the probe was calibrated above a saturated Cu/CuSO4 electrode; all potentials are provided against the standard hydrogen electrode (SHE). To verify the stability of the potential of SKP tip, the calibration was additionally checked after the experiment. The SKP measurements in-situ, polarizing the working electrode using potentiostat, involved a strong noise and this setup was difficult to apply. Thus, all SKP measurements were performed ex-situ after surface treatment of HSS.

3. Results and Discussion

3.1. Potential Distribution above HSS after Grinding.

To determine the links between potential and the state of the surface oxide, SKP was used to measure the evolution of the steel potential after oxide removal. The potential map (Figure 2A) of the HSS sample was scanned within 5 min after grinding. The speed of scanning was 0.4 mm/s and the densities of points were 50 mm (X-axis) and 200 mm (Y-axis). The native oxide film was removed and the exposure in air during the period of measurements (125 min) led to the growth of a new oxide film, which was accompanied by a corresponding increase in the measured potential from 50 mV to approximately 150 mV (SHE).
The oxidation of the steel under atmospheric conditions after grinding can be monitored at one point on the surface (Figure 2B). Over the course of the exposure to the atmosphere, the dependence of the potential vs. time asymptotically returns to the initial, pre-grinding potential of the surface near 0.3 V/SHE. When using semi-logarithmic coordinates, the plot of the potential vs. time was a straight line (Figure 2B). The potential can be considered as proportional to the oxide thickness. In aqueous electrolytes the thickness of the oxide layer on the iron surface at the steady state is a linear function of potential [34]. The direct correlation between potential measured by SKP and the oxide thickness measured by glow discharge optical emission spectroscopy was obtained for stainless steel [30]. The power law of oxide growth (Figure 2B) shows that the mass and charge transport occur in the oxide layer assisted by high field migration of defects or species (e.g., oxygen vacancies). According to X-ray photoelectron spectroscopy data [35], the oxide films formed on the iron surface in the humid atmosphere consist of interlayer Fe3O4 and a top layer of FeOOH, and oxidation in dry air completes the Fe2O3 top layer. The thicknesses of the oxide films formed in humid and dry atmospheres were 2 nm and 3.5 nm, respectively [35].

3.2. Effect of Tensile Strain on the Distribution of the Potential above HSS

The effect of tensile strain on the potential of mild steel tensile samples was described elsewhere [36]. The plastic tensile deformation generated dislocations and dislocation pileups. The emergence of the dislocations at the mild steel surface and the formation of the slip bands broke down the surface oxide, which created locations with decreased potential [36]. Thus, plastic strain close to 15% decreased potential in a central (gauge) section of 150–200 mV. Afterward, the contact of the newborn surfaces with air increased the potential due to the growth of a new oxide film. It was additionally evidenced by atomic force microscopy, scanning electrochemical microscopy, and local electrochemical impedance spectroscopy [30,31,36].
SKP was used to investigate the distribution of the potential above a gauge section of HSS tensile samples after the application of strain (Figure 3). HSS exhibited a low limit for elongation to fracture of ca. 7% (Table 2). The potential distribution across the gauge section of HSS after the application of 6% of plastic strain resulted in necking at the center of the sample. The necking area of the surface was observed visually and in a topographic profile (depth 40 μm). An area of low potential related to the necked area was found in the potential map (Figure 3B). Fresh surface areas, formed by the dislocations and slip bands, decreased the potential by 150 mV. Exposure in ambient air slowly increased the potential in the strained area and the potential difference increased by about 100 mV as a result of the re-oxidation (Figure 3C). A similar passivation process took place after surface grinding (Figure 2B). However, the deformed area, even after 24 h of exposure in air, exhibited a potential that was 80–90 mV lower than the potential of the non-altered surface (Figure 3C). The electrochemistry of freshly created surfaces developed Burstein and Kearns [37] showed accelerated hydrogen-reduction kinetics relative to the oxide-covered areas of the steel surface. Even without external load, the residual stress in the bulk might also influence hydrogen uptake in the steel as discussed by Lufrano and Sofronis [38]. From a particular study it can be concluded that SKP can determine the locations with increased surface reactivity as a result of tensile straining of HSS.

3.3. SKP Assessment of Steel Surface after Cathodic Polarization in 0.1 M NaOH Aqueous Electrolyte

Hydrogen-assisted cracking is a result of interplay between stress and subsurface hydrogen. SKP was mainly used to quantify hydrogen in steels coated by Pd films [20,21,22]. However, HSS surface reactivity as a function of the efficiency of hydrogen uptake was not studied systematically. The SKP surface assessment was carried out after cathodic hydrogen charging of steel MS1500 in a 0.1 M NaOH aqueous electrolyte. The sample was ground and cathodically polarized using a current density of −5 mA/cm2 for 133 min. SKP potential mapping was carried out in the air within 5 min after cathodic hydrogen charging (Figure 4A). Compared with profiles from Figure 2A of HSS after grinding, it was possible to demonstrate that cathodic polarization and hydrogen inserted in the microstructure significantly decreased the potential, which can be linked to oxide reduction and a decreased rate of oxide film formation [23,24,25,26]. The profile shown in Figure 4B was measured after 1440 min of exposure in air and had a potential distribution of 180 ± 30 mV (SHE). This potential was lower than the initial potential of 290 ± 20 mV (SHE).
The potential change after grinding and after grinding followed by cathodic polarization is presented in Figure 5 in semi-logarithmic coordinates. In linear coordinates, the curves look like those shown in Figure 2B. The potential for the hydrogen charged surfaces was lower than the potential of recently-ground surfaces. The increase of the duration of the cathodic charging decreased initial potential measured after treatment. It can be attributed to an increased subsurface hydrogen concentration and thinner oxide film. Two slopes were found in the passivation dependencies of the pre-charged surfaces (Figure 5). After initial potential delay, relatively quick potential increase can be attributed to oxide growth controlled by hydrogen emerging from low-energy traps. Later, the passivation kinetics are similar to that of pre-ground steel and the oxide-hydroxide film thickening can be controlled by species migration in the oxide film.
Previous experiments related to the conditions of relatively mild hydrogen absorption. To study the surface properties more related to hydrogen-assisted cracking, a cathodic current density of −25 mA/cm2 was applied for 266 and 1400 min in 0.1 M NaOH. After charging, rinsing in deionized water, and quick drying in a stream of dry air, the potential at one point of the surface was monitored (Figure 6A). The surfaces exhibited low potentials (Figure 5 and Figure 6) in the range of −0.3 to −0.35 V/SHE, which seeks to the standard reversible potential for a Fe/Fe2+ electrode (−0.44 V vs. SHE). This showed that the surface was nearly oxide-free. Exposure in the air increased the potential which can be a result of the formation of surface oxide. However, the surface potential remained low for a relatively long period which can be related to the effect of subsurface hydrogen. Thus, in a particular setups, hydrogen is affected on the surface oxide (Figure 5 and Figure 6A) strongly comparing with the mechanical removal of the oxide by grinding or by application of tensile plastic strain (Figure 2 and Figure 3).
Three days after the cathodic treatment and oxidation in dry air, the map of potential was measured (Figure 6B). The potential distribution was extremely non-uniform and the potential difference between locations with low and high potentials reached as high as 400 mV. In some locations, the potential had a low value, which can be the result of the interaction of subsurface hydrogen with a steel matrix at a local state. The locations that were more positive than the initial potential of 0.3 V (SHE) can be attributed to an increased thickness of the oxide-hydroxide film (Figure 6B). During exposure in air, the absorbed atomic hydrogen can reduce the Fe3+ species to Fe2+. On the other hand, oxygen in air can oxidize Fe2+ to Fe3+ [20,23,25]. Thus, the impacts of hydrogen and oxygen can lead to the local thickening of the surface oxide.
According to literature data [12], the emission of hydrogen from the steel after cathodic polarization can continue for about 1 h. However, the thickness of the steel membrane, density, and energy of trapping sites drive the desorption rate and complete desorption could last a few hours for martensitic or ferritic steels. Interaction of an active steel surface with the oxygen of air can increase the thickness of the oxide/hydroxide layer, depending on the hydrogen concentration and the kind of traps near the steel surface.

3.4. SKP Study of HSS Surface Interaction with Permeated Hydrogen

In the experiments given above, the hydrogen effused from interstitial locations and low-energy traps close to the steel surface. To get information about hydrogen permeated into alloy bulk, the SKP measurements have to be provided at the side of the steel membrane opposite the polarized one. The hydrogen entry side of the steel membrane (0.8 mm thick) was polarized in 0.1 M NaOH using a current density of −5 mA/cm2 for durations of 8 and 16 ks. SKP was used to monitor the potential of the opposite side within 5 min after treatment (Figure 7). Initial potentials were in the range of 0.16–0.18 V/SHE. Polarization with an increased current density of −10 mA/cm2 and a duration of 90 ks did not change this value (Figure 7). These potentials are significantly nobler than the potentials measured on the direct side, which were in the range of −0.2 to −0.3 V/SHE (Figure 5). This could be caused by hydrogen diffusion limitations and lower hydrogen concentration in the traps on the detection side. The passivation kinetics was similar to the surface grinding case (Figure 7). During polarization, the detecting side contacted with air and SKP mapping showed uniform potential distribution. The results showed that in this case, there was no significant hydrogen amount effused from the alloy bulk after cathodic charging. However, it is possible to note that time delay before the potential started to increase is in the range of 5–10 ks. From electrochemical permeation tests performed according to ISO 17081:2014 standard [39] (not reported here), the complete desorption of hydrogen from the detection side of 0.8 mm thick MS1500 steel sample after cathodic charging using the same conditions as for SKP data was typically in the range of 1.5 to 2 h. It is close to SKP measurements of time delay (Figure 7).

3.5. SKP Assessment of Stress and Hydrogen in Tensile HSS Sample

The important goal of this research was to study the interaction of absorbed hydrogen created by cathodic water reduction with pre-strained HSS surfaces. The initial potential distribution of the tensile specimen was flat and in the range of 380–395 mV/SHE. Then, 6% plastic strain was applied to the sample by tensile testing. A location with low potential, related to the necking of the sample, was found in the SKP map (Figure 8A). The potential dropped for 150 mV which corresponds to the data of Figure 3. Cathodic polarization with a current density of −25 mA/cm2 and a duration of 4 ks was applied to the whole surface of the sample. The monitoring of potential during hydrogen effusion for a non-strained sample in air was shown in Figure 6A. Initially the potential distribution for a tensile pre-strained sample was uniform at −0.25 V (SHE). The map in Figure 8B was obtained after exposure in air that decreased the potential in the area of necking. This was likely caused by surface activation by the hydrogen stored in the area of plastic deformation [12,18,38,40]. Thus, SKP confirmed that the plastically deformed area possessed an excess of hydrogen stored in trapped locations, such as the dislocations. This observation is in line with SKPFM measurement of the area containing a slip deformation part and cracked part on SUS 304 stainless steel [40]. This area accepted low potentials due to the accumulation of hydrogen.

4. Conclusions

  • The effect of tensile deformation on the potential of the high-strength steel was measured. Plastic strain (6%), close to the level to fracture, locally decreased the potential for 150 mV and exposure in air increased the potential. This is the result of the surface oxide breaking down with the following oxidation of the deformed surface.
  • The potential of specimen was monitored after cathodic hydrogen charging. Hydrogen effusion initially decreased the potential of steel for 300–500 mV and exposure in air and growth of surface oxide increased the potential. Effusion of subsurface hydrogen delayed the oxidation as a function of current density and duration of cathodic charging. Non-uniform distribution of the potential related to different surface reactivity was found for the case of charging with high current density.
  • Hydrogen pre-charged or pre-strained surfaces showed prolonged electron reactivity. Locations containing residual stress and absorbed hydrogen showed the lowest potential (electron work function).

Author Contributions

Conceptualization, A.N. and D.T.; methodology, A.N. and F.V.; software, F.V.; validation, F.V.; formal analysis, A.N.; investigation, A.N. and F.V.; writing—original draft preparation, A.N.; writing—review and editing, A.N. and D.T.; visualization, F.V.; supervision, D.T.; project administration, D.T.; funding acquisition, D.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Omura, T.; Kudo, T.; Fujimoto, S. Environmental Factors Affecting Hydrogen Entry into High Strength Steel due to Atmospheric Corrosion. Mater. Trans. 2006, 47, 2956–2962. [Google Scholar] [CrossRef] [Green Version]
  2. Tsuru, T.; Huang, Y.; Ali, M.R.; Nishikata, A. Hydrogen entry into steel during atmospheric corrosion process. Corros. Sci. 2005, 47, 2431–2440. [Google Scholar] [CrossRef]
  3. So, K.H.; Kim, J.S.; Chun, Y.S.; Park, K.T.; Lee, Y.K.; Lee, C.S. Hydrogen delayed fracture properties and internal hydrogen behaviour of a Fe–18Mn–1.5Al–0.6C TWIP steel. ISIJ Int. 2009, 49, 1952–1959. [Google Scholar] [CrossRef] [Green Version]
  4. Hirth, J.P. Effects of hydrogen on the properties of iron and steel. Metall. Mater. Trans. A 1980, 11, 861–890. [Google Scholar] [CrossRef]
  5. Chiaberge, M. New Trends and Developments in Automotive System Engineering, High Mn TWIP Steels for Automotive Applications; De Cooman, B.C., Chin, K.G., Kim, J.K., Eds.; InTech: Rijeka, Croatia, 2011; pp. 101–128. [Google Scholar]
  6. Liu, Z.Y.; Li, X.G.; Cheng, Y.F. Mechanistic aspects of near-neutral stress corrosion cracking of pipelines under cathodic polarization. Corros. Sci. 2012, 55, 54–60. [Google Scholar] [CrossRef]
  7. Wang, M.; Akiyama, E.; Tsuzaki, K. Determination of the critical hydrogen concentration for delayed fracture of high strength steel by constant load test and numerical calculation. Corros. Sci. 2006, 48, 2189–2202. [Google Scholar] [CrossRef]
  8. Akiyama, E.; Matsukado, K.; Wang, M.; Tsuzaki, K. Evaluation of hydrogen entry into high strength steel under atmospheric corrosion. Corros. Sci. 2010, 52, 2758–2765. [Google Scholar] [CrossRef]
  9. Sanchez, J.; Lee, S.F.; Martin-Rengel, M.A.M.; Fullea, J.; Andrade, C.; Ruiz-Hervias, J. Measurement of hydrogen and embrittlement of high strength steel. Eng. Fail. Anal. 2016, 59, 467–477. [Google Scholar] [CrossRef]
  10. Nanninga, N.; Grochowsi, J.; Heldt, L.; Rundman, K. Role of microstructure, composition and hardness in resisting hydrogen embrittlement of fastener grade steels. Corros. Sci. 2010, 52, 1237–1246. [Google Scholar] [CrossRef]
  11. Cabrini, M.; Sinigaglia, E.; Spinelli, C.; Tarenzi, M.; Testa, C.; Bolzoni, F.M. Hydrogen Embrittlement Evaluation of Micro Alloyed Steels by Means of J-Integral Curve. Materials 2019, 12, 1843. [Google Scholar] [CrossRef] [Green Version]
  12. Pérez Escobar, D.; Depover, T.; Duprez, L.; Verbeken, K.; Verhaege, M. Combined thermal desorption spectroscopy, differential scanning calorimetry, scanning electron microscopy and X-ray diffraction study of hydrogen trapping in cold deformed TRIP steel. Acta Mater. 2012, 60, 2593–2605. [Google Scholar]
  13. Frappart, S.; Feaugas, X.; Creus, J.; Thebault, F.; Delattre, L.; Marchebois, H. Hydrogen solubility, diffusivity and trapping in a tempered Fe–C–Cr martensitic steel under various mechanical stress states. Mater. Sci. Eng. A 2012, 534, 384–393. [Google Scholar] [CrossRef]
  14. Koyama, M.; Rohwerder, M.; Tasan, C.C.; Bashir, A.; Akiyama, E.; Takai, K.; Raabe, D.; Tsuzaki, K. Recent progress in microstructural hydrogen mapping in steels: Quantification, kinetic analysis, and multi-scale characterization. Mater. Sci. Technol. 2017, 33, 1481–1496. [Google Scholar] [CrossRef] [Green Version]
  15. Ohmisawa, T.; Uchiyama, S.; Nagumo, M. Detection of hydrogen trap distribution in steel using a microprint technique. J. Alloys Compd. 2003, 356, 290–294. [Google Scholar] [CrossRef]
  16. Krieger, W.; Merzlikin, S.V.; Bashir, A.; Szczepaniak, A.; Springer, H.; Rohwerder, M. Spatially resolved localization and characterization of trapped hydrogen in zero to three dimensional defects inside ferritic steel. Acta Mater. 2015, 144, 236–244. [Google Scholar] [CrossRef]
  17. Nagao, A.; Kuramoto, S.; Ichitani, K.; Kanno, M. Visualization of hydrogen transport in high strength steels affected by stress fields and hydrogen trapping. Scr. Mater. 2001, 45, 1227–1232. [Google Scholar] [CrossRef]
  18. Ozdirik, B.; Suter, T.; Hans, U.; Depover, T.; Verbeken, K.; Schmutz, P.; Jeurgens, L.P.H.; Terryn, H.; De Graeve, I. Study of the hydrogen uptake in deformed steel using the microcapillary cell technique. Corros. Sci. 2019, 155, 55–66. [Google Scholar]
  19. Schaller, R.F.; Thomas, S.; Birbilis, N.; Scully, J.R. Spatially resolved mapping of the relative concentration of dissolved hydrogen using the scanning electrochemical microscope. Electrochem. Commun. 2015, 51, 54–58. [Google Scholar] [CrossRef]
  20. Evers, S.; Senöz, C.; Rohwerder, M. Hydrogen detection in metals: A review and introduction of a Kelvin probe approach. Sci. Technol. Adv. Mater. 2013, 14, 14201. [Google Scholar] [CrossRef]
  21. Evers, E.; Senöz, C.; Rohwerder, M. Spatially resolved high sensitive measurement of hydrogen permeation by scanning Kelvin probe microscopy. Electrochim. Acta 2013, 110, 534–538. [Google Scholar] [CrossRef]
  22. Senöz, C.; Evers, S.; Stratmann, M.; Rohwerder, M. Scanning Kelvin probe as a highly sensitive tool for detecting hydrogen permeation with high local resolution. Electrochem. Commun. 2011, 13, 1542–1545. [Google Scholar] [CrossRef]
  23. Williams, G.; McMurray, H.N.; Newman, R.C. Surface oxide reduction by hydrogen permeation through iron foil detected using a scanning Kelvin probe. Electrochem. Commun. 2013, 27, 144–147. [Google Scholar] [CrossRef]
  24. Schaller, R.F.; Scully, J.R. Measurement of effective hydrogen diffusivity using the scanning Kelvin probe. Electrochem. Commun. 2014, 40, 42–44. [Google Scholar] [CrossRef]
  25. Schaller, R.F.; Scully, J.R. Spatial determination of diffusible hydrogen concentrations proximate to pits in a Fe–Cr–Ni–Mo steel using the Scanning Kelvin Probe. Electrochem. Commun. 2016, 63, 5–9. [Google Scholar] [CrossRef] [Green Version]
  26. Nazarov, A.; Vucko, F.; Thierry, D. Scanning Kelvin Probe for detection of the hydrogen induced by atmospheric corrosion of ultra-high strength steel. Electrochim. Acta 2016, 216, 130–139. [Google Scholar] [CrossRef]
  27. Li, M.; Guo, L.Q.; Qiao, L.; Bai, Y. The mechanism of hydrogen-induced pitting corrosion in duplex stainless steel studied by SKPFM. Corros. Sci. 2012, 60, 76–81. [Google Scholar] [CrossRef]
  28. Wang, G.; Yan, Y.; Yang, X.; Li, J.; Qiao, L. Investigation of hydrogen evolution and enrichment by scanning Kelvin probe force microscopy. Electrochem. Commun. 2013, 35, 100–103. [Google Scholar] [CrossRef]
  29. Nazarov, A.; Thierry, D. Application of Volta potential mapping to determine metal surface defects. Electrochim. Acta 2007, 52, 7689–7696. [Google Scholar] [CrossRef]
  30. Fuertes Casals, N.; Nazarov, A.; Vucko, F.; Pettersson, R.; Thierry, D. Influence of Mechanical Stress on the Potential Distribution on a 301 LN Stainless Steel Surface. J. Electrochem. Soc. 2015, 162, C465. [Google Scholar] [CrossRef] [Green Version]
  31. Nazarov, A.; Vivier, V.; Vucko, F.; Thierry, D. Effect of Tensile Stress on the Passivity Breakdown and Repassivation of AISI 304 Stainless Steel: A Scanning Kelvin Probe and Scanning Electrochemical Microscopy Study. J. Electrochem. Soc. 2019, 166, C3207–C3219. [Google Scholar] [CrossRef]
  32. Wang, R.J.; Lia, J.X.; Su, Y.J.; Qiao, L.J.; Volinsky, A.A. Changes of work function in different deformation stage for 2205 duplex stainless steel by SKPFM. Procedia Mater. Sci. 2014, 3, 1736–1741. [Google Scholar] [CrossRef] [Green Version]
  33. ASTM E8/E8M-16 Standard Test Methods for Tension Testing of Metallic Materials; ASTM International: West Conshohocken, PA, USA, 2016.
  34. Sato, N.; Noda, T. Ion migration in anodic barrier oxide films on iron in acidic phosphate solutions. Electrochim. Acta 1977, 22, 839–843. [Google Scholar]
  35. Grosvenor, A.P.; Kobe, B.A.; McIntyre, N.S. Studies of the oxidation of iron by air after being exposed to water vapour using angle-resolved X-ray photoelectron spectroscopy and QUASES. Surf. Interface Anal. 2004, 36, 1637–1641. [Google Scholar] [CrossRef]
  36. Nazarov, A.; Vivier, V.; Thierry, D.; Vucko, F.; Tribollet, B. Effect of Mechanical Stress on the Properties of Steel Surfaces: Scanning Kelvin Probe and Local Electrochemical Impedance Study. J. Electrochem. Soc. 2017, 164, C66–C74. [Google Scholar] [CrossRef]
  37. Burstein, G.T.; Kearns, M.A. Accelerated Evolution of Hydrogen on Freshly Generated Metal Surfaces in Aqueous Solution. J. Electrochem. Soc. 1984, 131, 991–997. [Google Scholar] [CrossRef]
  38. Lufrano, J.; Sofronis, P. Enhanced hydrogen concentrations ahead of rounded notches and cracks–competition between plastic strain and hydrostatic stress. J. Acta Mater. 1998, 46, 1519–1526. [Google Scholar] [CrossRef]
  39. ISO 17081:2014 Method of Measurement of Hydrogen Permeation and Determination of Hydrogen Uptake and Transport in Metals by an Electrochemical Technique; ISO: Geneva, Switzerland, 2014.
  40. Masuda, H. SKFM observation of SCC on SUS304 stainless steel. Corros. Sci. 2007, 49, 120–129. [Google Scholar] [CrossRef]
Cmd 01 00009 g001 550

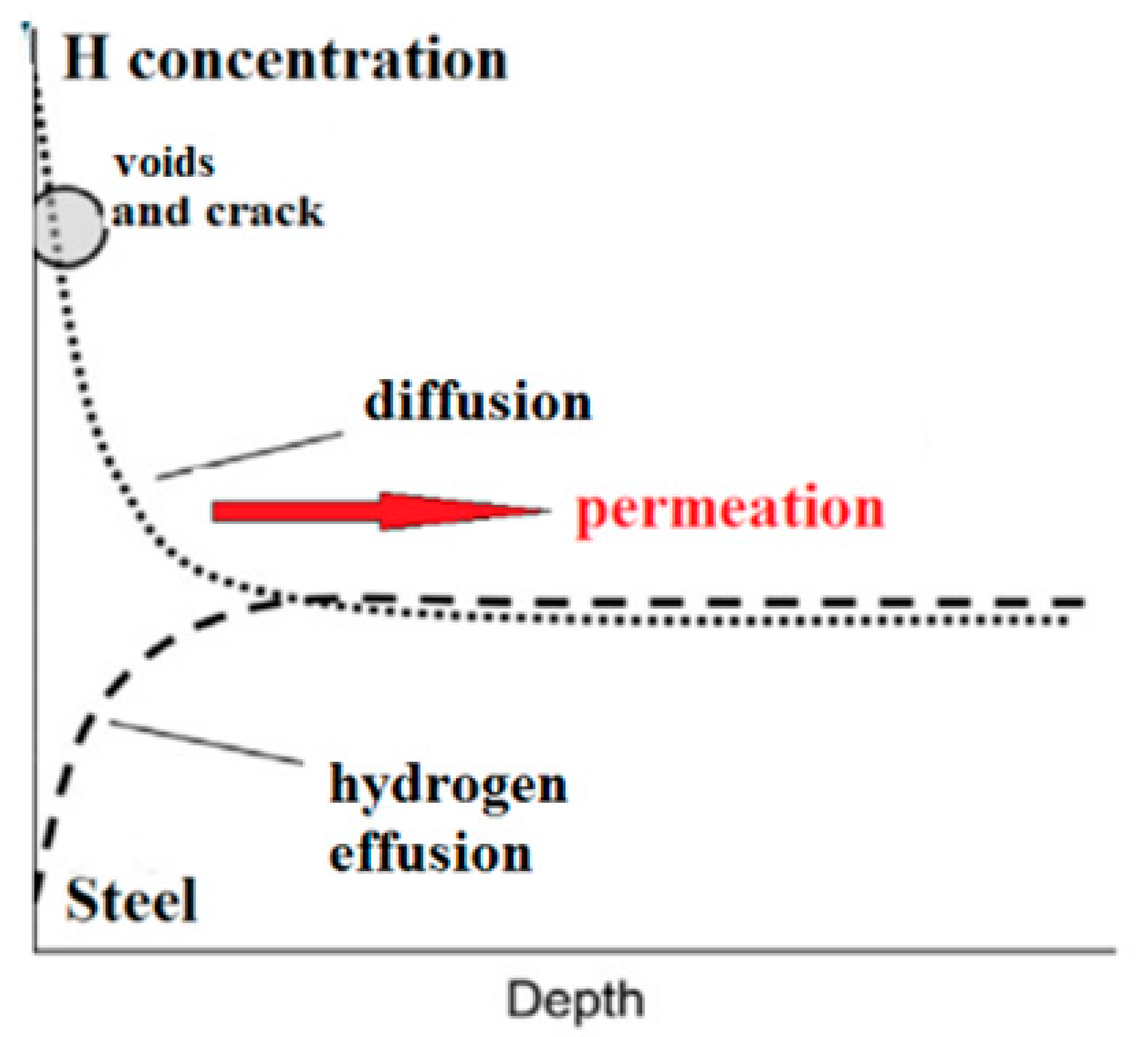

Figure 1. Schematic of the hydrogen depth distribution close to a steel surface. With permission from Elsevier Ltd. 2010 [8].
Figure 1. Schematic of the hydrogen depth distribution close to a steel surface. With permission from Elsevier Ltd. 2010 [8].
Cmd 01 00009 g001
Cmd 01 00009 g002 550

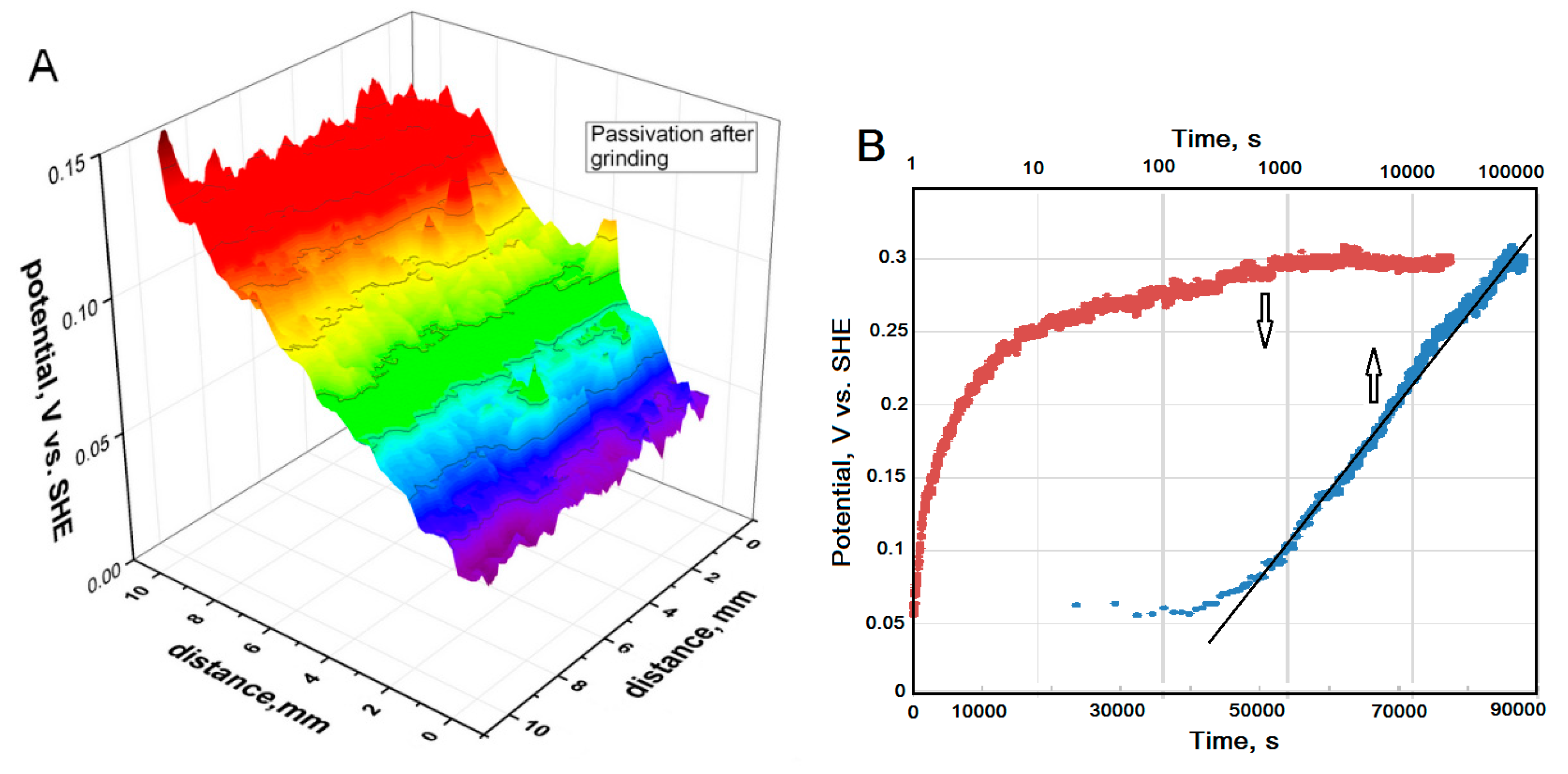

Figure 2. (A) Potential map of high-strength steel (HSS) surface after grinding with time of scanning at 125 min. (B) Monitoring of the potential taken above the surface of HSS after grinding plotted in direct and in semi-logarithmic coordinates.
Figure 2. (A) Potential map of high-strength steel (HSS) surface after grinding with time of scanning at 125 min. (B) Monitoring of the potential taken above the surface of HSS after grinding plotted in direct and in semi-logarithmic coordinates.
Cmd 01 00009 g002
Cmd 01 00009 g003 550
Figure 3. Schematic of the tensile sample (A), potential distribution across a gauge section of HSS after a plastic strain of 6%, within (B) 0.5 h and (C) 24 h of strain application.
Figure 3. Schematic of the tensile sample (A), potential distribution across a gauge section of HSS after a plastic strain of 6%, within (B) 0.5 h and (C) 24 h of strain application.
Cmd 01 00009 g003
Cmd 01 00009 g004 550

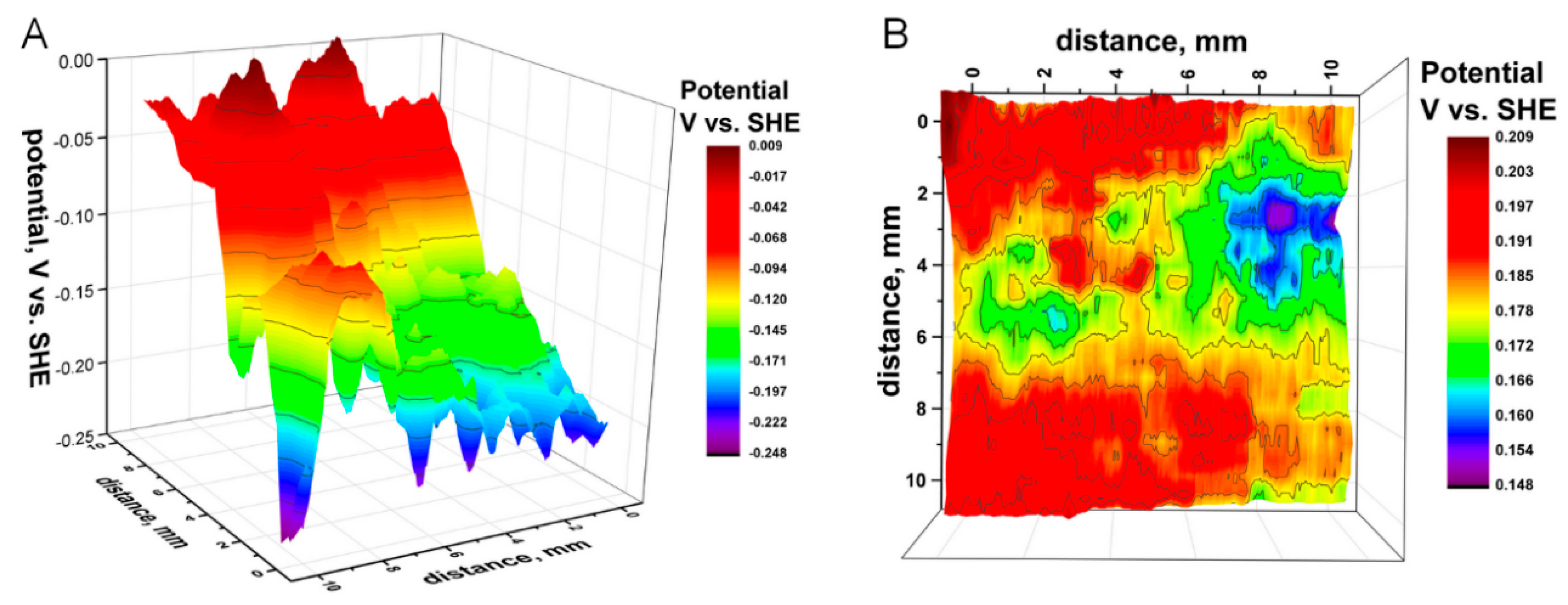

Figure 4. Potential distribution above HSS measured after surface grinding and cathodic polarization with a current density of −5 mA/cm2 for a duration of 8 ks (133 min). (A) Five min after surface treatment and (B) 1440 min after treatment.
Figure 4. Potential distribution above HSS measured after surface grinding and cathodic polarization with a current density of −5 mA/cm2 for a duration of 8 ks (133 min). (A) Five min after surface treatment and (B) 1440 min after treatment.
Cmd 01 00009 g004
Cmd 01 00009 g005 550

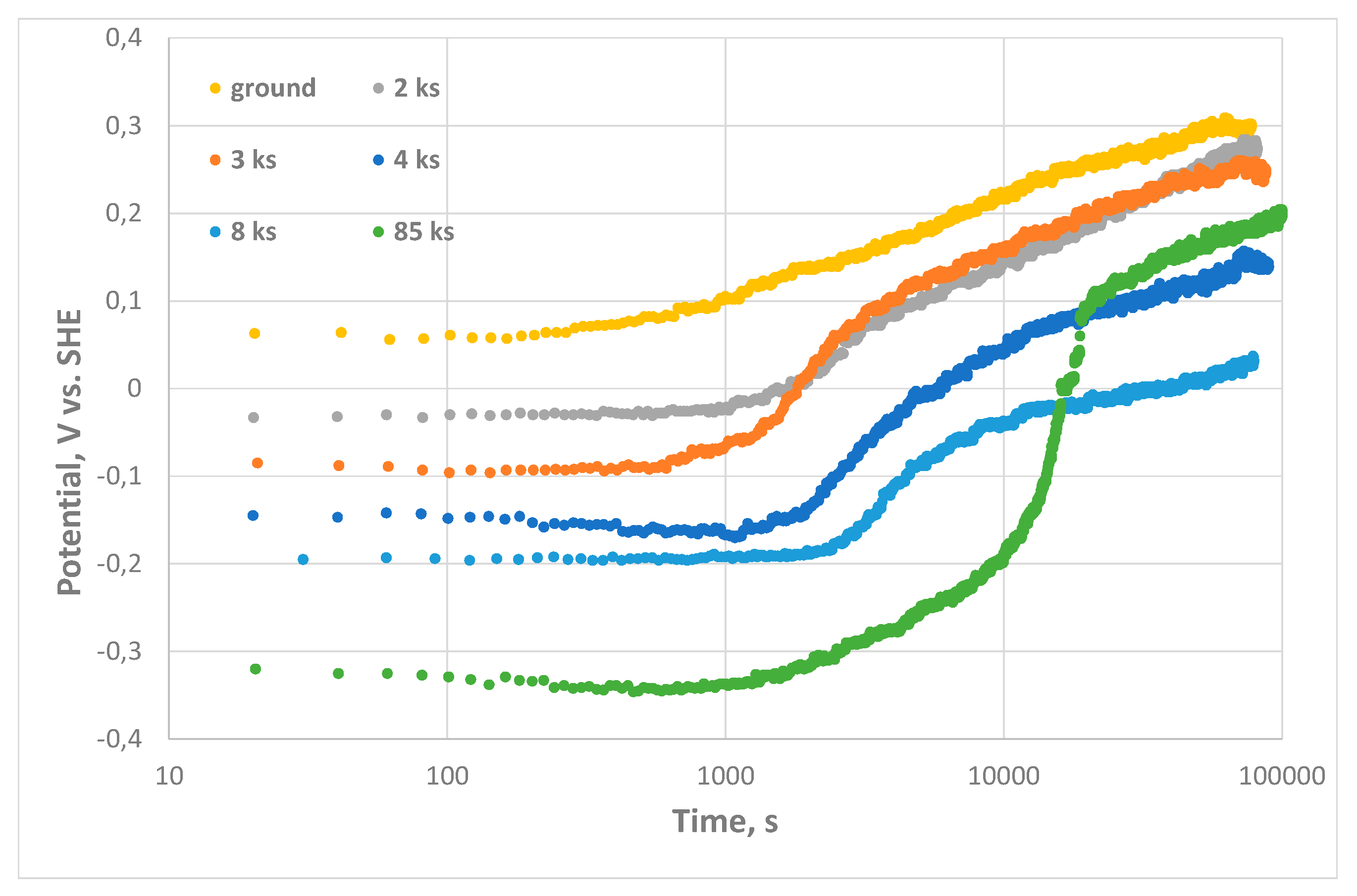

Figure 5. Potential monitoring after surface grinding (reference) and grinding followed by cathodic treatment with a current density of −5 mA/cm2 for 2 ks, 3 ks, 4 ks, 8 ks, and 85 ks.
Figure 5. Potential monitoring after surface grinding (reference) and grinding followed by cathodic treatment with a current density of −5 mA/cm2 for 2 ks, 3 ks, 4 ks, 8 ks, and 85 ks.
Cmd 01 00009 g005
Cmd 01 00009 g006 550
Figure 6. (A) Monitoring of potential in ambient air at room temperature after grinding (1) and hydrogen charging at −25 mA/cm2 in 0.1 M NaOH solution during 4 ks (2) and 85 ks (3). (B) Potential distribution after cathodic charging during 85 ks and exposure in air.
Figure 6. (A) Monitoring of potential in ambient air at room temperature after grinding (1) and hydrogen charging at −25 mA/cm2 in 0.1 M NaOH solution during 4 ks (2) and 85 ks (3). (B) Potential distribution after cathodic charging during 85 ks and exposure in air.
Cmd 01 00009 g006
Cmd 01 00009 g007 550
Figure 7. Scanning Kelvin probe (SKP) monitoring of the potential measured at opposite side of a HSS membrane after galvanostatic cathodic polarization (0.1M NaOH) of the working side at −5 mA/cm2 for durations of 8 ks and 16 ks and −10 mA/cm2 for duration of 90 ks. The dependence of the passivation after grinding is shown as a reference.
Figure 7. Scanning Kelvin probe (SKP) monitoring of the potential measured at opposite side of a HSS membrane after galvanostatic cathodic polarization (0.1M NaOH) of the working side at −5 mA/cm2 for durations of 8 ks and 16 ks and −10 mA/cm2 for duration of 90 ks. The dependence of the passivation after grinding is shown as a reference.
Cmd 01 00009 g007
Cmd 01 00009 g008 550
Figure 8. Potential profiles for a tensile sample of HSS after tensile straining (A), and after cathodic polarization in an aqueous electrolyte and 24 h of exposure in air (B).
Figure 8. Potential profiles for a tensile sample of HSS after tensile straining (A), and after cathodic polarization in an aqueous electrolyte and 24 h of exposure in air (B).
Cmd 01 00009 g008
Table
Table 1. Nominal compositions of the investigated materials (wt.%).
Table 1. Nominal compositions of the investigated materials (wt.%).
MaterialFeCSiMnPSAlNb + Ti
MS 1500Bal.<0.3<0.4<0.1<0.020.01>0.015<0.1
Table
Table 2. Mechanical properties of MS 1500 and SAE 1008 steels.
Table 2. Mechanical properties of MS 1500 and SAE 1008 steels.
MaterialYield Strength (MPa)Ultimate Tensile Strength (MPa)Elongation (%)
MS1500120015007
