Electrochemical Behavior of Al–Al₉Co₂ Alloys in Sulfuric Acid

Abstract

Al–Co alloys of various Co contents (2–20 wt.% Co) were fabricated by vacuum arc melting (VAM) with the scope to investigate the influence of cobalt on the microstructure and corrosion resistance of Al in 1 M H₂SO₄. The obtained microstructures were directional, consisting of Al₉Co₂ platelets (grown to coarse acicular plates as the Co content increased) uniformly dispersed in an Al-matrix. Alloying Al with Co did not decrease the rate of uniform corrosion of Al but it considerably increased its passivation ability. Moreover, all Al–Co alloys displayed lower uniform corrosion rate and notably higher passivation ability than market leading Al-alloys. The underlying mechanisms during anodic polarization in 1 M H₂SO₄ were identified and correlated with the microstructure. High Co content alloys (7–20 wt.% Co) presented superior passivation ability in 1 M H₂SO₄ as compared to the low Co content alloys.

1. Introduction

During the last decades, rapidly solidified (RS) or intensively cooled Al-alloys have attracted significant attention owing to improved properties, such as mechanical properties and corrosion resistance. More specifically, many works have reported that RS of Al-alloys has led to refined microstructures as compared to the conventionally cast counterparts [1,2,3], supersaturation of Al with transition metals (TM), alkaline earth metals or metalloids [1,2,4,5,6,7], formation of intermetallic compound (IC) phases (their morphology depending on the cooling rate and the content of the solute element in the alloys [1,2,4]), and formation of semi-crystalline or amorphous phases [8,9].

Although the processing and physical metallurgy of RS bulk Al-alloys have extensively been studied, their corrosion behavior is much less investigated. RS of Al-alloys is reported to lead to improved corrosion resistance, mainly due to microstructure refinement [10,11,12,13] (in terms of grain size [12] and IC dispersion [10,11,12]), microstructure homogeneity [11], reduction of the precipitate content [10,14], and supersaturation of Al with elements like Ti, Mn, Cr, Ni, Cu, Zr, and Nb [11,14,15]. However, the RS-due changes in the electrochemical characteristics of the constituent phases may negatively affect the corrosion resistance, as in the cases of supersaturation of Al with Zn [14,16], Mg and Fe [14].

Established knowledge on rapid solidification mainly addresses cooling rates higher than 10⁴ K/s. Intensive cooling rates, as those employed in vacuum arc melting (10–150 K/s) have also been shown to lead to refined structures and non-equilibrium phenomena, such as formation of supersaturated phases, non-equilibrium transformations, and suppression of equilibrium phase diagram regimes [17,18]. Vacuum arc melting (VAM) has been employed to rapidly melt and solidify Al- and Co-based materials, such as Al alloys [19,20,21], Al [19,20], Co and Co-alloys [22,23,24]. and Co-aluminides [25,26].

Despite the high research interest in RS Al-TM systems, only few works refer to the Al–Co alloys, most likely owing to their limited application fields. Renewed interest in Al–Co alloys surfaced over the last decades mainly due to the development of non-equilibrium manufacturing processes [7], quasicrystals/complex metallic alloys (QC/CMAs), and metadislocations [27]. The good catalytic activity of the Al–Co system has also been recognized [28,29,30]. Most recently, Co has been emerged as a promising alloying element of Al in the additive manufacture field. In particular, Geng et al. [31] managed to improve the 3D-printability of aluminum by decorating the surface of Al with a small amount of high laser absorbing Co nanoparticles, through electroless plating of Al powder and 3D printing by laser powder bed fusion. Hung et al. [32] noted that Al–Co alloys synthesized by arc-melting and subjected to laser glazing can produce promising non-equilibrium microstructures with respect to hardness and lack of cracking.

Al–Co alloys have been manufactured by various techniques including melt spinning [7,33], gun quenching [7], wedge shape casting [34], vacuum arc melting [35,36], stir casting [35], powder metallurgy/sintering [35], mechanical alloying [37], and single crystal growth of CMA alloys in the Al–Co system from a melt using the Czochralski method [38].

Regarding the corrosion behavior of RS or intensively cooled Al–Co alloys, few dedicated works are available. In a series of works cited by Scully et al. [39], the corrosion properties of the Al–Co–Ce amorphous system (Co < 10 at%) have been evaluated; Co has been found responsible for large increases in open circuit and repassivation potential values. Lekatou et al. [35,40] reported that Al–7 wt.% Co and Al–32 wt.% Co, prepared by VAM, showed higher resistance to localized and uniform corrosion in aqueous NaCl, as compared to counterparts fabricated by stir casting and free sintering. The authors also claimed that Al–7 wt.% Co had a slightly higher corrosion resistance than Co-richer (≤20 wt.% Co) Al alloys, mostly owing to a dense distribution of fine Al₉Co₂ eutectic particles in the Al matrix [20]. It is worthwhile to note that Al–7 wt.% Co alloys (prepared by stir casting and VAM) exhibited notably higher resistance to sliding wear than market leading Al-alloys (Al1050, Al6060, Al7075-T6, A356) [40]. Palcut et al. [25,36] studied the corrosion behavior of VAM alloys totally composed of Co-aluminides (Al–(24–29) at% Co) in aqueous NaCl; they observed a galvanic effect between nobler and less noble aluminides that led to pitting. They also reported a higher corrosion resistance for Z–Al₃Co as compared to Al₅Co₂, attributing it to the high structural complexity of Z–Al₃Co [26]. Bakoulis et al. [41] prepared Al–Al₉Co₂ composites (2–10 vol.% Al₉Co₂) by powder metallurgy; they noted that the localized corrosion resistance and sliding wear resistance increased with Al₉Co₂ volume fraction increasing.

Considering: (a) The highest corrosion resistance exhibited by Al–7 wt.% Co amongst Co-richer alloys in 3.5 wt.% NaCl [20], (b) the marked improvement of the sliding wear behavior of Al by the addition of 7 wt.% Co [40], (c) the relatively high cost of Co, and (d) the decrease in ductility when increasing the amount of the brittle Co-aluminides in the Al–Co alloys, the present work aims at identifying low enough Co additions in Al that can result in a notable improvement of the electrochemical behavior of Al, whilst at the same time keeping costs and ductility at satisfactorily low levels. Taking into account that H₂SO₄ is not only the largest single product of the chemical industry, but also a common electrolyte for the anodization of Al-alloys, the present study deals with the evaluation and analysis of the electrochemical performance of a wide range of Al–Co alloys (2–20 wt.% Co) in 1 M H₂SO₄ and its correlation with their microstructural features.

2. Materials and Methods

Al–Co alloys (2, 5, 7, 10, 15, 20 wt.% Co) were prepared by VAM of mixtures of commercially pure powders (99.5% purity) of Al (−325 mesh) and Co (−400 mesh). Approximately 4 g of the desired powder mixture were put into the water-jacket cooled copper hearth of a VAM furnace. The furnace chamber was closed, brought to a low vacuum, and then backfilled with 99.99% pure Ar. The electric arc was created with the aid of a tungsten electrode (DC current of 120 A). A homogeneous chemical composition was ensured by three-time re-melting of each specimen. Solidified meniscuses of 17–20 mm diameter and 8–10 mm height were finally received.

Cross-sectioned surfaces of as-solidified meniscuses, ground to 1000 grit, ultrasonically cleaned, and peripherally masked by PTFE (so that a surface area of approximately 1 cm² was left free to be exposed to the electrolyte), were subjected to potentiodynamic polarization in naturally aerated 1 M H₂SO₄ at 25 °C. The ACM Gill AC potentiostat/galvanostat (ACM Instruments, Cumbria, UK), connected to a standard three-cell configuration (Ag/AgCl/3.5KCl as the reference electrode, Pt-gauge as the counter electrode), was employed. After the determination of the steady state/open circuit potential (4 h immersion in the electrolyte), potentiodynamic polarization was conducted at the scan rate of 10 mV/min. The Tafel extrapolation method was used to determine the corrosion current density values. The Tafel region was extrapolated to the corrosion potential by linear regression analysis of the potential against the logarithm of the current density data (the least squares approach was used). Fair accuracy was ensured by complying with a number of restrictions, analytically reported in a previous work [42]. In summary: (a) The scan rate employed should be low enough to diminish the contribution of the current generated for charging the surface capacitance to the current generated from the electrochemical reactions; (b) a well-defined Tafel region should extend over at least one decade of current density to minimize any deviation due to concentration polarization and other extraneous effects; (c) the linear regression should be started at relatively large overpotentials (in the present case: 70–80 mV away from the corrosion potential), so as to minimize any likely deviation from the Tafel-like behavior at low current density values due to the influence of the anodic reaction on the cathodic reaction and vice-versa; (d) the linear fit would be considered acceptable only if it corresponded to a regression coefficient greater than 0.98; (e) only one reduction process should occur in the range of the linear fit (in the case of 1 M H₂SO₄, the reduction of hydrogen); and (f) if a region with linearity holding for at least one decade of current density existed only in the one of the two portions of the polarization curve, then the Tafel extrapolation should only be performed at this portion. Often, anodic polarization induces concentration effects and surface roughening that cause deviations from the linearity in the Tafel region.

Cyclic potentiodynamic polarization was adopted to investigate the resistance to localized corrosion. One of the main principles of this technique is that localized corrosion in the form of pitting or crevice corrosion would occur if the current density of the anodic curve of the reverse scan is greater than the current density of the forward scan at the same anodic potential. In that case, the so-called “negative hysteresis” results (more details can be sought in the works of Silverman [43] and Beavers et al. [44]). Chronoamperometry in aerated 1 M H₂SO₄ was performed to investigate the progress of surface film formation and its stability.

The microstructural states of the alloys, as fabricated and after the corrosion experiments, were studied by scanning electron microscopy (SEM) under secondary electron (SE) and backscattered electron composition (BEC) modes at the EOL JSM 6510 LV SEM (JEOL, Tokyo, Japan) system equipped with an Oxford Instruments X-Act energy dispersive X-ray (EDX) analyzer (Oxford Instruments, Abington, Oxfordshire, UK).

The second-phase volume fraction was estimated on polished cross-sections (×100, ×500) using the “Image J” image analysis software (2.0.0-rc-33 version). At least 10 measurements from different fields of view (SEM-SE) were conducted to extract the mean value. Image analysis was performed by thresholding the second phase in the field of view. Raman Spectroscopy at the Labram HR—HORIBA Scientific Raman system (HORIBA, Kyoto, Japan) was employed to clarify the nature of the corrosion products. The 514.5 nm line of an argon ion laser (laser power: 12 mW, power incident on the specimen surface: 2 mW, focused spot diameter: ~1 μm) was used for the Raman excitation.

3. Results and Discussion

3.1. Microstructural Analysis

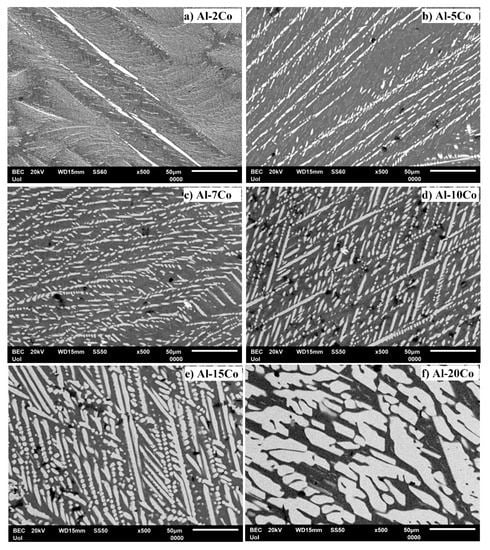

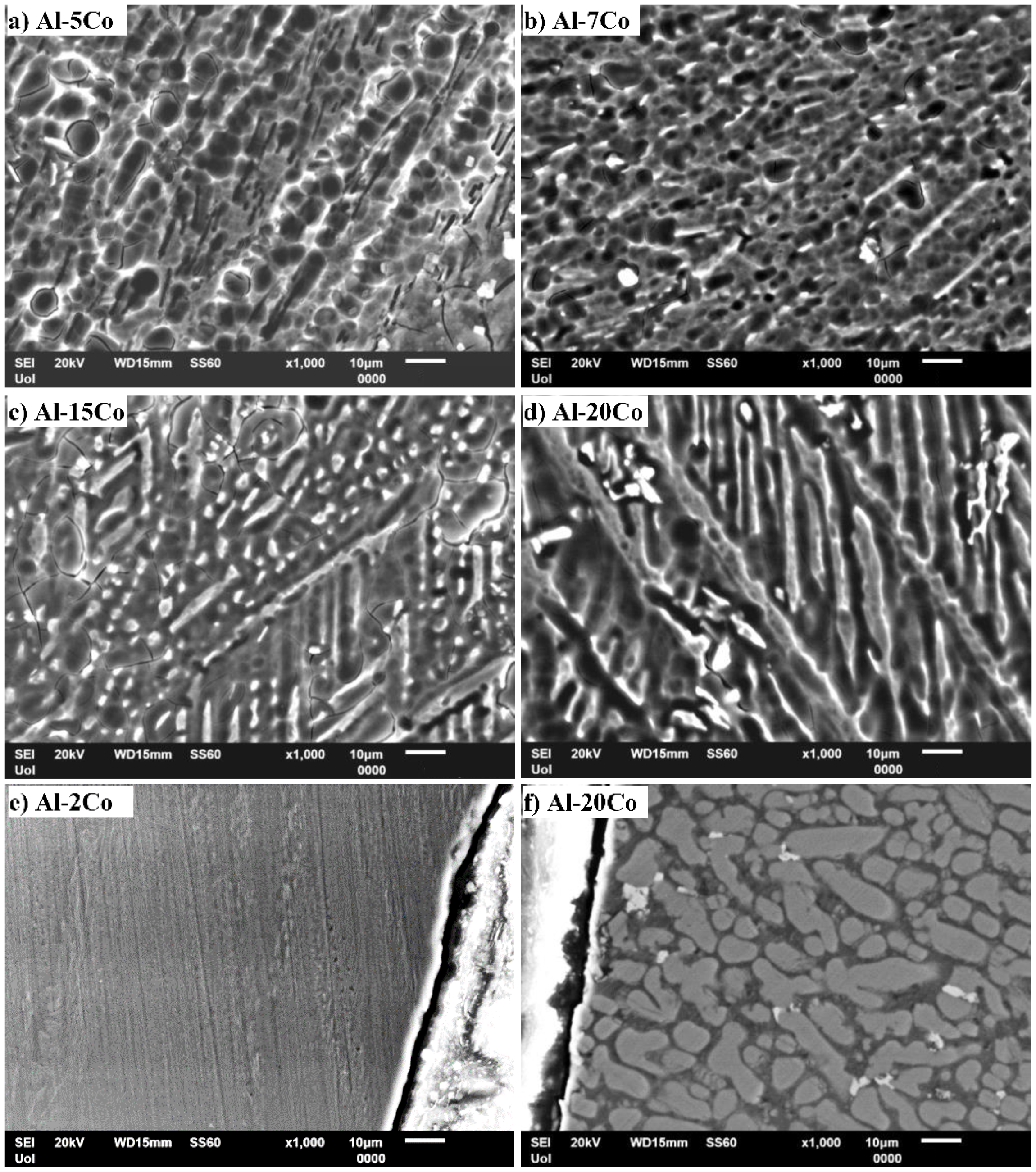

The microstructures of the produced Al–Co alloys are presented in Figure 1. A detailed microstructural analysis in context with the solidification mechanisms is reported elsewhere [20]. All alloys are composed of αAl and Al₉Co₂, as has been identified by EDX and XRD analysis [20]. The volume fractions of the Al₉Co₂ phase in Al–2Co, Al–5Co, Al–7Co, Al–10Co, Al–15Co, and Al–20Co (wt.%), have been determined (by image analysis) as 19 ± 2, 30 ± 2, 36 ± 3, 41 ± 1, 50 ± 1, and 63 ± 1 vol.%, respectively. Despite the negligible solid solubility limit of Co in Al under equilibrium conditions [45], notably higher concentrations of Co have been detected within the Al-matrix that increase with Co content. They range from max 0.49 wt.% in Al–5Co to max 5.51 wt.% in Al–20Co [20]. The supersaturation of the Al-matrix with Co has been caused by the fast solidification that stretched out the solid solubility limit of Co in Al.

Although all the compositions are hypereutectic [45], primary Al₉Co₂ is hardly discerned in the low Co (2, 5, 7, 10 wt. % Co) microstructures. The almost entirely eutectic morphologies suggest the suppression of the pre-eutectic stage due to rapid cooling. Figure 1a–d manifests that fine plates of Al₉Co₂ are distributed in the Al-matrix in a uniform and directional pattern, the outcome of preferential heat extraction [40]. In the microstructures of Al–(2–10) wt.% Co, relatively coarse stripes of bright contrast are observed to delimit the boundaries of elongated colonies. These colonies include fine dispersions of Al₉Co₂ eutectic platelets. In the case of Al–2 wt.% Co, this dispersion is very fine, dense and uniform. This morphology is considered to be the outcome of the high cooling rates, in the following way: At the beginning of solidification, an Al₉Co₂ stripe is formed. Due to the high cooling rate, there is not enough time for further crystal growth, since atomic diffusion to the surface of the existing crystal is constrained. To continue their growth, the crystals must develop along new directions that are easy for an effective atom capture. These preferential directions can be screw dislocations, the density of which increases with cooling rate [46,47]. Amongst the examined alloys, Al–2 wt.% Co has the highest solidification rate, owing to the lowest content of Co.

As far as Al–15 wt.% Co is concerned, planar Al₉Co₂ is discerned along with the eutectic Al₉Co₂/Al microconstituent (Figure 1e). In Figure 1b–e, it is observed that the Al₉Co₂ eutectic stripes are not continuous but they comprise small building units with a directional alignment. Such directional but interrupted growth has been observed in various types of arc-melted in-situ composite materials [46,48]. It has been attributed to the different cooling rates. When solidification starts, the cooling rate is high enough to cause the formation of a continuous Al₉Co₂ stripe. With the progress of solidification, the cooling rate decreases and the remaining liquid around the stripe becomes impoverished in Co. Such impoverishment interrupts the mode of continuous growth resulting in a brick-like pattern.

The predominant microstructural feature of Al–20 wt.% Co is that of coarse Al₉Co₂ plates with acicular acmes (Figure 1f). This morphology suggests an extensive presence of primary Al₉Co₂, which is attributed to the much lower thermal conductivity of Al₉Co₂ as compared to Al (Al₉Co₂, as a complex metallic alloy, has very low conductivity [49]). Hence, the cooling rate of Al₉Co₂ is much lower than that of Al, allowing the crystallization and development of coarse pre-eutectic Al₉Co₂. The above considerations can justify the observed increase in the amount of coarse acicular Al₉Co₂ plates and the corresponding decrease in the fraction of fine Al₉Co₂ eutectics, with Co content increasing.

3.2. Electrochemical Performance in 1 M H₂SO₄

3.2.1. Cyclic Polarization

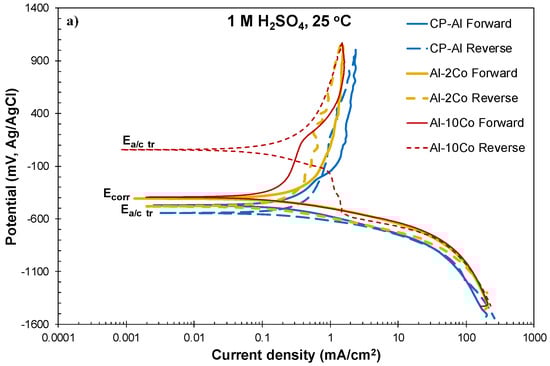

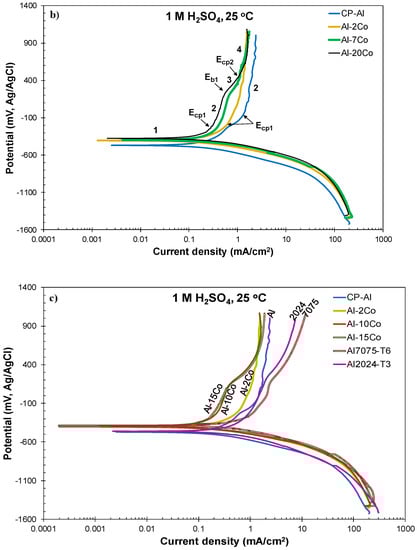

Figure 2a–c presents the potentiodynamic polarization curves of the Al–Co alloys and commercially pure (CP-Al) prepared by VAM, in 1 M H₂SO₄ at 25 °C. Cyclic and forward voltammograms are illustrated in Figure 2a,b, respectively. The voltammograms of two leading commercial Al-alloys (Al2024-T3, Al7075-T6), widely used in the aviation and military industries, are included in Figure 2c for comparison.

Table 1. Electrochemical values for Al–Co alloys, CP-Al fabricated by vacuum arc melting (VAM), Al7075-T6 and Al2024-T3 (1 M H₂SO₄, 25 °C). E_corr: Corrosion potential, E_cp1,2: Starting potentials for current limiting stages 2 and 4, respectively, E_b1: Breakdown potential of stage 2, E_{a/c tr}: Anodic-to-cathodic transition potential (E_{a/c tr_1:} upper E_{a/c tr}, E_{a/c tr_2:} lower E_{a/c tr}), i_p1: Current densities in the middle of current limiting stage 2; i_p2: Current densities at 750 mV vs. Ag/AgCl (upper part of stage 2 for CP–Al, Al–2Co and Al–5Co or stage 4 for the rest of the compositions); ±: 3–4 replicate runs.

Alloy	Ecorr (mV vs Ag/AgCl)	Ecp1 (mV vs Ag/AgCl)	Ecp1 − Ecorr (mV vs Ag/AgCl)	Eb1 (mV vs Ag/AgCl)	Ecp2 (mV vs Ag/AgCl)	Ea/c tr_1 (mV vs Ag/AgCl)	Ea/c tr_2 (mV vs Ag/AgCl)	ip1 (mA/cm2)	ip2 (mA/cm2)
CP-Al	−463 ± 8	−101 ± 18	363 ± 29	–	–	–	−530 ± 21	1.69 ± 0.04	1.96 ± 0.07
Al–2Co	−406 ± 7	−193 ± 9	213 ± 13	–	–	–	−436 ± 52	1.20 ± 0.02	1.62 ± 0.21
Al–5Co	−412 ± 2	−226 ± 18	187 ± 20	–	–	–	−467 ± 5	0.85 ± 0.07	1.09 ± 0.15
Al–7Co	−394 ± 10	−218 ± 23	166 ± 19	213 ± 46	374 ± 35	25 ± 10	−426 ± 16	0.48 ± 0.06	1.23 ± 0.03
Al–10Co	−396 ± 5	−227 ± 10	169 ± 12	157 ± 21	421 ± 21	9 ± 51	−444 ± 32	0.36 ± 0.09	1.45 ± 0.24
Al–15Co	−387 ± 18	−227 ± 25	159 ± 16	179 ± 28	439 ± 33	−4 ± 39	−391 ± 23	0.35 ± 0.08	1.50 ± 0.25
Al–20Co	−378 ± 7	−248 ± 16	130 ± 15	184 ± 46	401 ± 48	22 ± 64	−413 ± 20	0.34 ± 0.06	1.34 ± 0.19
Al7075-T6	−406 ± 25	−191 ± 24	214 ± 47	239 ± 68	431 ± 17	−50 ± 65	−418 ± 18	2.42 ± 0.25	7.20 ± 1.56
Al2024-T3	−457± 4	−134 ± 20	322 ± 16	193 ± 16	456 ± 35	−46 ± 71	−433 ± 60	1.32 ± 0.20	5.34 ± 1.48

lists critical electrochemical values drawn from the polarization curves.

Table 2. Data from the Tafel extrapolation on the voltammograms of the Al–Co alloys, CP-Al fabricated by VAM, Al7075-T6 and Al2024-T3 (1 M H₂SO₄, 25 °C): β: Tafel slope; α: Constant in Tafel equation, r²: Regression coefficient of the linear fit, subscript “c”: cathodic, ΔE: Overpotential range for the linear fit, Δi: Current density range for the linear fit, ±: 3–4 replicate runs.

Alloy	icorr (mA/cm2)	βc (mV/d)	αc (mV)	rc2	ΔΕ (mV vs. Ag/AgCl)	Δi (mA/cm2)
CP-Al	0.21 ± 0.01	−159 ± 4	−572 ± 20	0.998 ± 0.001	(−687±9)–(−532±11)	(0.58±0.08)–(5.87±0.71)
Al–2Co	0.19 ± 0.03	−128 ± 16	−500 ± 18	0.996 ± 0.002	(−610±9)–(−476±7)	(0.64±0.08)–(6.45±0.89)
Al–5Co	0.36 ± 0.06	−143 ± 12	−484 ± 15	0.991 ± 0.004	(−651±21)–(−492±12)	(0.94±0.40)–(9.49±0.43)
Al–7Co	0.26 ± 0.06	−137 ± 6	−480 ± 10	0.996 ± 0.002	(−598±10)–(−464±4)	(0.75±0.17)–(7.65±1.64)
Al–10Co	0.19 ± 0.06	−121 ± 9	−485 ± 24	0.995 ± 0.004	(−585±8)–(−465±3)	(0.75±0.18)–(7.67±1.84)
Al–15Co	0.31 ± 0.08	−119 ± 7	−448 ± 22	0.992 ± 0.003	(−575±11)–(−456±17)	(1.05±0.23)–(10.56±2.26)
Al–20Co	0.29 ± 0.04	−137 ± 6	−452 ± 10	0.997 ± 0.001	(−583±9)–(−448±7)	(0.85±0.09)–(8.54±0.95)
Al7075-T6	0.66 ± 0.18	−185 ± 12	−438 ± 12	0.986 ± 0.007	(−656±37)–(−475±24)	(1.35±0.40)–(13.41±3.74)
Al2024-T3	0.36 ± 0.08	−183 ± 6	−539 ± 38	0.994 ± 0.001	(−707±10)–(−527±4)	(0.71±0.19)–(7.18±1.85)

lists the data extracted from the Tafel extrapolation on the cathodic polarization curves. Figure 3 shows the microstructural state of the alloys after cyclic polarization in 1 M H₂SO₄ (surface and cross-section views).

At a first glance, Figure 2 and Table 1 and Table 2 show that the differences in the electrochemical behavior of the Al–Co alloys are small. Steep changes in the current density trends define distinct stages on the forward anodic portions of the polarization curves, noted in Figure 2b. However, on a closer observation, the alloys are classified into two groups on the basis of their anodic polarization behavior, namely:

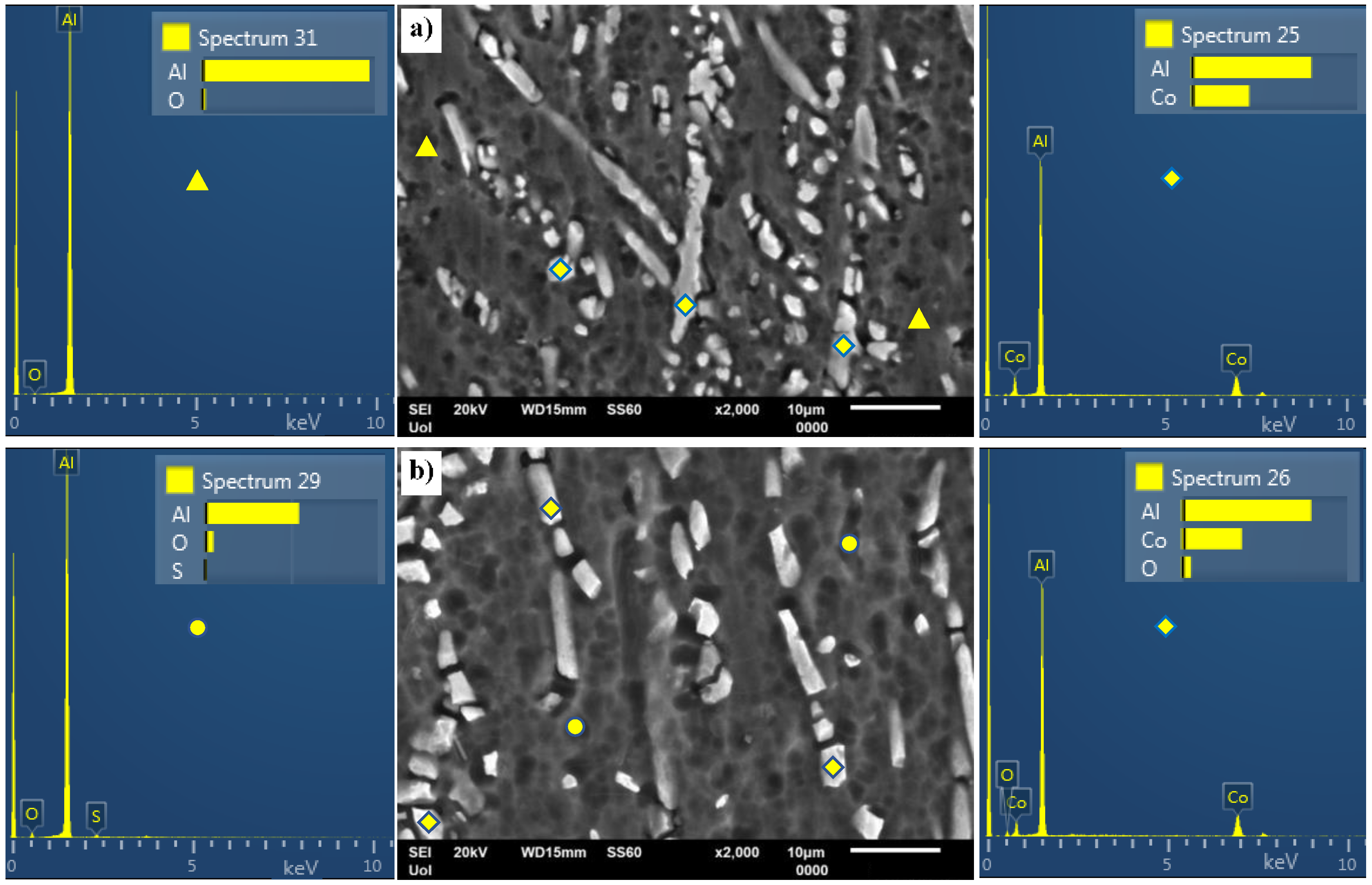

Al–(2–5) wt.% Co: Stage 1 is due to the active corrosion of the (Al) phase, since Al is more active than Al₉Co₂ [35]. Electrolyte penetration through the defects of the Al-surface film (existing after 4 h of immersion under open-circuit [50]) has taken place during stage 1. The defects can be the Al₉Co₂/(Al) interfaces and/or (Al)-grain boundaries where AlFeSi intermetallics reside [40]. Hydrogen evolution during the preceding cathodic polarization may also have caused damage to the surface film existing at E_corr [51,52]. More specifically, stage 1 is governed by ionic migration across the pre-existent surface film [53].

Passive-like stage 2 follows, extending for over 1000 mV (actually, no depassivation has taken place during the forward anodic scan). In the case of the Al-matrix, passivation reportedly occurs by film growth at the metal/film interface, with direct ejection of Al³⁺ to the film–electrolyte interface [53]. The relatively high values of current density (i > 0.1 mA/cm²) suggest pseudopassivation. The pseudopassivation of Al is justified by the formation of a film that is soluble in the outer layers [54].

The positive hysteresis loop through stage 2 (Figure 2a) indicates the efficient protectivity of the surface film (although the film on the Al-matrix is soluble at the oxide/electrolyte interface, it has a barrier effect at the metal/oxide interface [54].) However, the hysteresis turns to negative, sectioning the forward anodic scan at potentials just a couple of decades lower than the critical passivation potential (E_cp). As a consequence, E_{a/c tr} is less noble than E_corr by a few decades of mVs, indicating a slightly less noble surface at E_{a/c tr} (upon reverse polarization) than that at E_corr (upon forward polarization).

Al–(7–20) wt.% Co: Stage 1 corresponds to the selective dissolution of (Al), seen in Figure 3b–d. Stage 1 is followed by a passive-like stage (stage 2) extending for a potential range (E_b1 − E_cp1) of 385 to 432 mV. Unlike the low Co compositions, an increase in current density follows (stage 3), eventually leading to passive-like stage 4. The high slope of the E vs. log(i) curve during stage 3 along with the positive hysteresis upon reverse polarization through stage 3 (Figure 2a) suggest that this stage is owing to the occurrence of an oxidation process rather than a localized degradation process (the processes causing stages 3 and 4 are attempted to be clarified by chronoamperometry testing in 3.2.2). In the 25% of all the tested specimens (7–20 wt.% Co), hysteresis has remained positive through the whole reverse anodic scan resulting in an anodic-to-cathodic transition potential that is nobler than the corrosion potential by several hundred mVs (Figure 2a). The latter indicates that the surface at E_{a/c tr} (return scan) is nobler than the surface at E_corr (forward scan).

In 75% of all the tested specimens (7–20 wt.% Co), the reverse polarization curves presented multiple anodic-to-cathodic transition potentials (“cathodic loop”), usually forming “spikes”, and positive hysteresis through essentially the whole reverse scan, as illustrated in Figure 4. These multiple (2–3, commonly 3) anodic-to-cathodic transition potentials correspond to the intersection points of the anodic and cathodic Evans lines and they are often observed in the reverse polarization scans in the absence of pitting [55]. Their origin is attributed to the shift of the return anodic line towards smaller current densities as compared to the forward ones due to the formation of passive films during the preceding forward anodic scanning. Hence, during reverse scanning, the unchanged cathodic line intersects the reverse anodic line at more than one intersection points [55]. Therefore, a non-susceptibility to localized corrosion is suggested. Table 1 includes the values of the uppermost and lowermost anodic-to-cathodic potentials, since these are considered the most stable ones [55]. A third of the Al–(2–5) wt.% Co tested specimens and a quarter of the CP-Al tested specimens also presented a cathodic loop. Usually, one of the two E_{a/c tr} potentials corresponded to the formation of a short and relatively blunt protrusion (a “nose” rather than a “spike”), as the one shown in Figure 4 (Al–5wt.% Co).

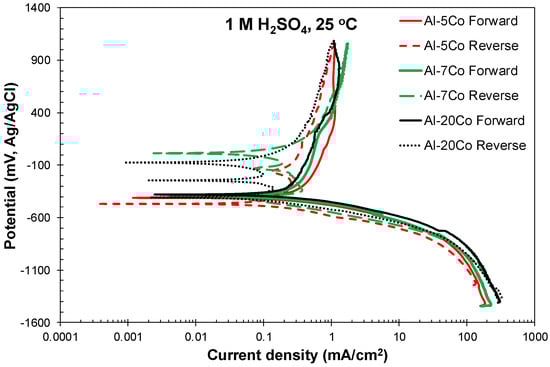

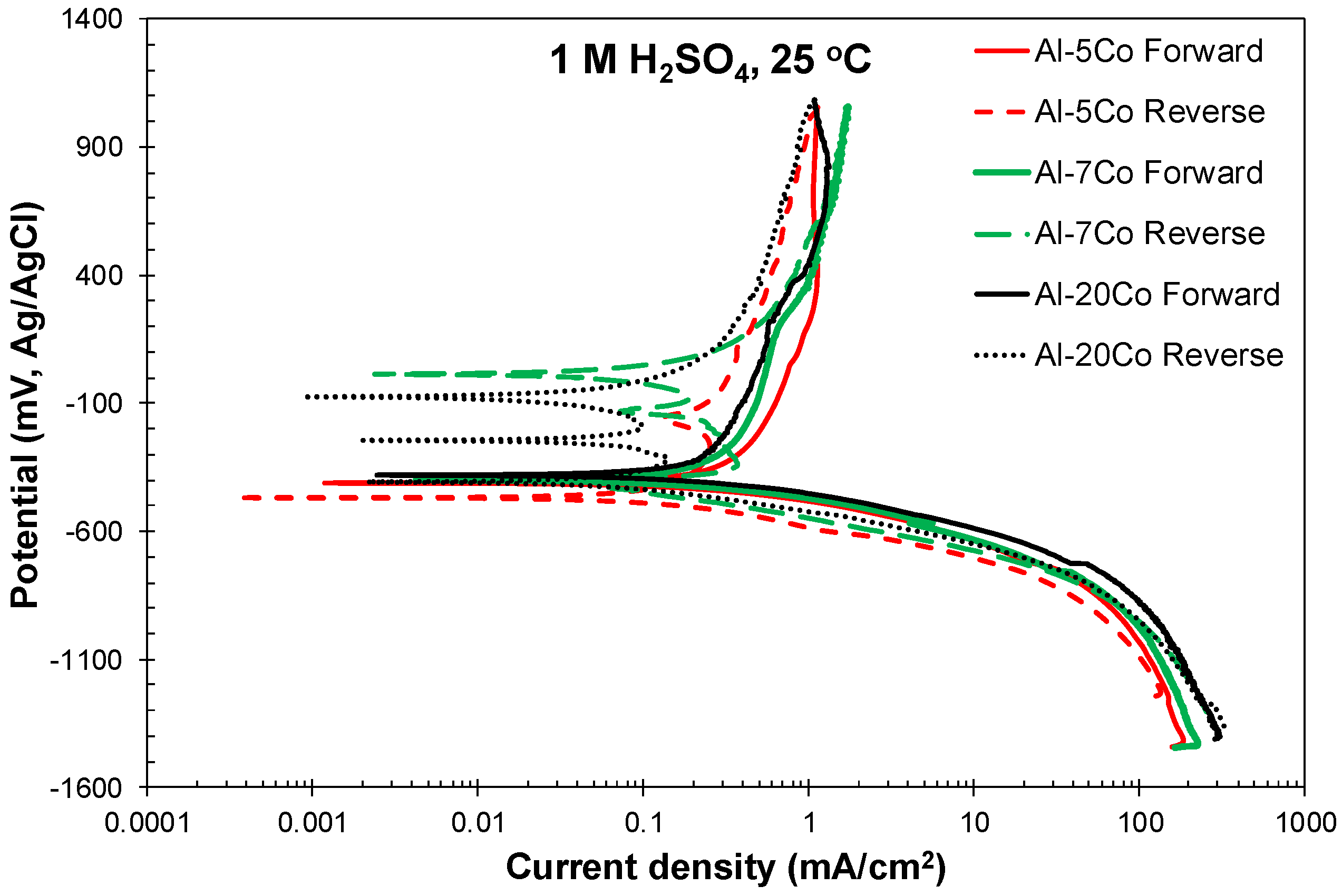

Figure 2a and Figure 4 show that the reverse cathodic currents are slightly lower than the forward cathodic currents, indicating a cathodic inhibition mechanism reportedly based on the adsorption of hydrous aluminum sulfate macromolecules to active sites on cathodic zones [51] (the adsorption of sulfates, also occurring on anodic sites, will be discussed in Section 3.2.2).

The effective protectivity of the surface film suggested by cyclic polarization is manifested by the good surface state of the Al–Co alloys in the SEM micrographs of Figure 3 (both surface view and cross-section view). Figure 3a–d also shows that the lower the Co content, and hence, the finer the Al₉Co₂ particles, the better defined the “cellular” morphology of the surface film. At 5 wt.% Co (Figure 3a), the film “cells” present a surface morphology resembling the well-defined hexagonal cells of the films on pure Al [53]. As the Co content increases, the cell diameter becomes smaller and is confined between the plates of Al₉Co₂. A closer observation of Figure 3d reveals a similar “cellular” morphology on the Al₉Co₂ plates.

3.2.2. Chronoamperometry

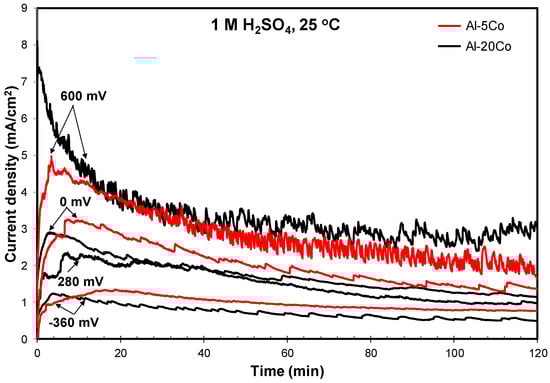

Figure 5 illustrates the chronoamperometry plots of a low Co-containing alloy (Al–5 wt.% Co) and a high Co-containing alloy (Al–20 wt.% Co) at potentials corresponding to different corrosion states (active (stage 1), passive-like (stage 2), transition (stage 3), and passive-like (stage 4)). In the case of polarization at a potential in stage 1 (−360 mV vs. Ag/AgCl), the initial rapid increase in the current density is followed by a gradual decrease in the rate of current density increase. Eventually, the current density is stabilized. The above trend signifies an active dissolution process gradually weakening due to the gradual reduction of the available active surface and/or surface deposition of corrosion products.

Al–5 wt.% Co: The current density vs. time curves of Al–5 wt.% Co at two potentials in stage 2 (a potential in the low range of “passive” potentials (0 mV vs. Ag/AgCl) and a potential in the high range of “passive” potentials (600 mV vs. Ag/AgCl)) present trends of passive-like behavior in agreement with the potentiodynamic polarization findings. More specifically, the initial steep increase in the current density (notably steeper at 600 mV) reflects fast oxidation. The subsequent current decrease (faster at 600 mV) corresponds to the growth of surface films. Eventually, current stabilization is attained signifying the stabilization of the surface films in terms of thickness and extent (after ~95 min in the case of polarization at 0 mV vs. Ag/AgCl and ~70 min in the case of polarization at 600 mV vs. Ag/AgCl). However, the high values and the oscillations of the current density, especially at 600 mV vs. Ag/AgCl, imply unstable surface products and/or metastable pitting. Metastable pitting of Al at defective sites of the oxide film in Al immersed in pure H₂SO₄ under open circuit has been observed by Mercier et al. [50]. The surface film on Al exposed to aqueous H₂SO₄ dissolves in the outer zones (film/solution interface) that are composed of Al₂O₃ hydrates and transitory complexes of SO₄²⁻, whereas it reforms in the inner zones that are composed of barrier anhydrous alumina [50,54]. Hence, a dynamic equilibrium is established through the simultaneous formation and dissolution of the film. The outer surface film layers are responsible for the high currents recorded during chronoamperometry (Figure 5) and potentiodynamic polarization through stages 2 and 4 (Figure 2 and Figure 4). The anhydrous inner layer provides the protection shown by the positive hysteresis loop through the passive stages in Figure 2 and Figure 4.

Through the whole range of passive-like stage 2, the Al-matrix of Al–5 wt.% Co appears oxidized (Figure 6a, spectrum 31 and Figure 6b, spectrum 29). In the case of polarization at 0 mV vs. Ag/AgCl, the Al₉Co₂ phase has remained free of any oxidation signs (Figure 6a, spectrum 25); hence, it is shown that oxidation has taken place only on the surface of the Al-matrix. Instead, in the case of polarization at 600 mV vs. Ag/AgCl, oxygen is detected on the surface of the Al₉Co₂ particles (Figure 6b, spectrum 26). Therefore, as far as the low Co Al-alloys are concerned (2, 5 wt.% Co), it is drawn that passivation in the low range of anodic potentials is exclusively caused by the formation of an Al₂O₃-based film on the Al-matrix; at the high range of anodic potentials, passivation of Al₉Co₂ also takes place.

Al–20 wt.% Co: The polarization behavior of Al–20 wt.% Co at 0 mV vs. Ag/AgCl (stage 2) and 600 mV vs. Ag/AgCl (stage 4) presents passive-like trends in agreement with the potentiodynamic polarization results. The shapes of the curves are very similar to the shapes of the respective curves of Al–5 wt.% Co. The fluctuations and high values of current density also suggest pseudopassivity and/or metastable pits. The current density values, especially in the stabilization parts, are close to the respective values of Al–5 wt.% Co. The similar curve shapes and current density values indicate similar corrosion phenomena for both the low and high Co Al-alloys. Indeed, the microstructural observations in Figure 7 confirm the above claim. Figure 7a reveals the formation of alumina-based films on the Al-phase of Al–20 wt.% Co polarized at 0 mV vs. Ag/AgCl (spectrum 53), as in the case of Al–5 wt.% Co. However, unlike Al–5 wt.% Co, the EDX spectra of the matrix surface of Al–20 wt.% Co include Co. The Al₉Co₂ phase has remained free of any oxidation signs (Figure 7a, spectrum 51). Therefore, it is deduced that, as in the case of the low Co Al-alloys polarized in the low range of passive potentials, stage 2 in the high Co Al-alloys has been caused by the formation of alumina-based films (containing some Co) on the Al-phase.

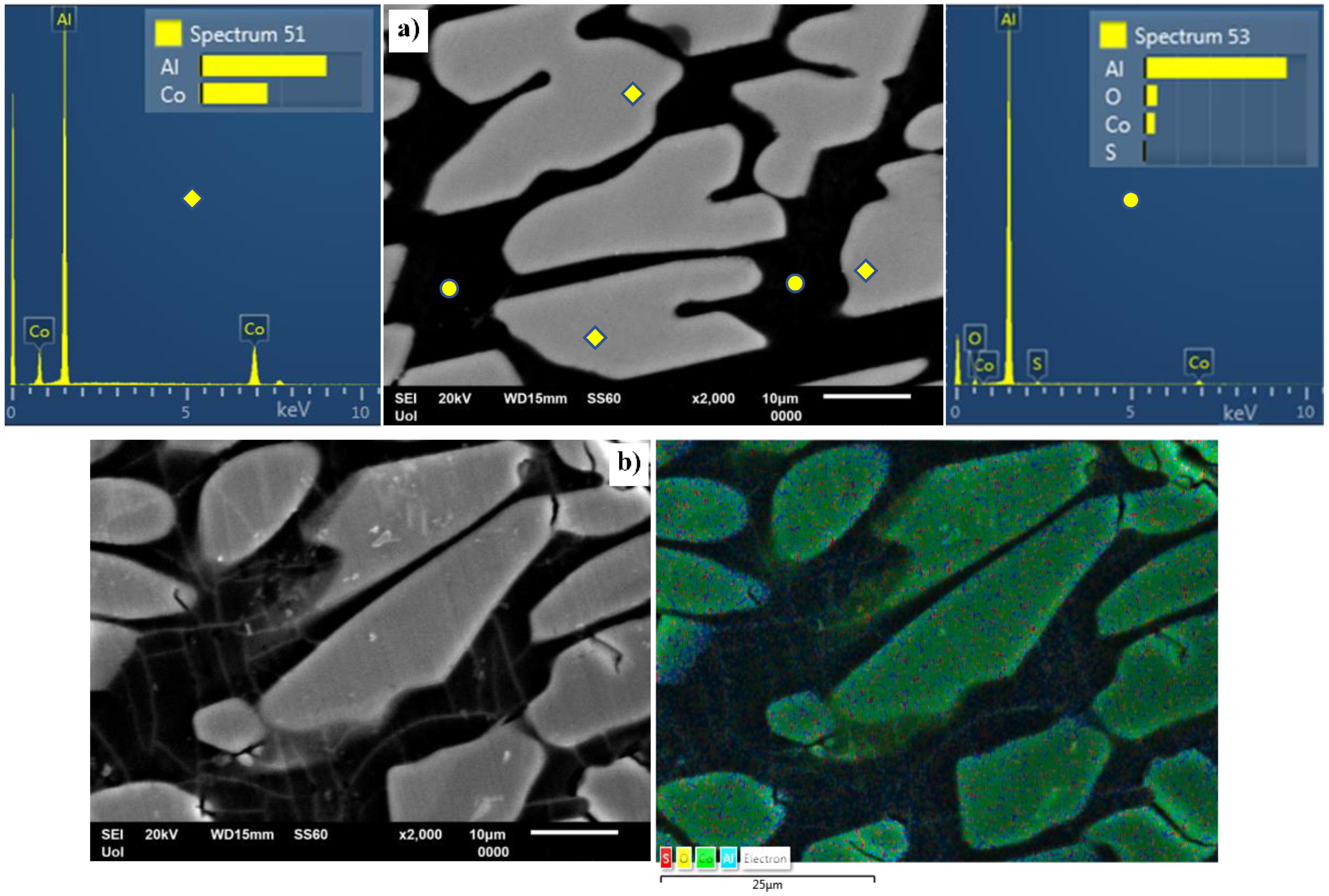

Regarding passive-like stage 4, Figure 7b shows that, besides passivation of the (Al) matrix, passivation of Al₉Co₂ has also occurred (Figure 7b, EDX elemental mapping).

The shape of the current density vs. time curve (Al–20 wt.% Co) at a potential in stage 3 (280 mV vs. Ag/AgCl) enhances the claim of an oxidation process proposed in 3.2.1. Comparing the shapes of the curves at passive-like stages 2 and 4 with the curve at stage 3, it is evident that the current initially rises at intermediate values between those of active stage 1 and those of passive-like stages 2 and 4. Then, the current density does not drop as in stages 2 and 4 but it continues to rise at a slow rate that gradually decreases with time elapsing (up to ~25 min). A stabilization trend is eventually attained. Taking into account the presence of oxygen on the surface of Al₉Co₂ in stage 4 (Figure 7b-EDX mapping) and its respective absence in stage 2 (Figure 7a-spectrum 51), it is drawn that intermediate stage 3 is mainly attributed to the oxidation of Al₉Co₂. Its distinctiveness, unlike the case of the low Co Al-alloys, is most likely due to the high surface area of the Al₉Co₂ plates.

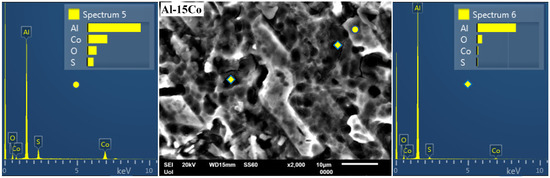

Often, minor amounts or traces of sulfur have been detected on the surface of the oxidized matrix after chronoamperometry at passive potentials (Figure 6b-spectrum 29, Figure 7a-spectrum 53), as well as after cyclic polarization (Figure 8-spectrum 6). Adsorption of SO₄²⁻ on the hydrous alumina can block active sites of the surface film [50]. Sulfates can rapidly displace aquo groups (Al–OH₂⁺) or hydroxo (A–OH₂⁺) groups on hydrous Al₂O₃ [56]. This blocking action does not, however, ensure inhibition of localized corrosion. The latter depends on the defects present in the structure of the surface film [50] that can be numerous [52]. This film is a porous-type anodic film, with a barrier layer at the metal/film interface and numerous imperfections [54]. Sulfur is also detected on the surface of oxidized Al₉Co₂ (Figure 8-spectrum 5).

To summarize, both potentiodynamic polarization and chronoamperometry experiments showed that the anodic polarization of Al–Co in 1 M H₂SO₄ at 25 °C proceeds via the stages: (1) Active dissolution of the Al-matrix by ionic conduction across the preexistent surface film; (2) pseudo-passivation of the Al-matrix by film formation at the metal/oxide interface and film dissolution at the film/electrolyte interface; (3) oxidation of the surface of the Al₉Co₂ particles; and (4) extension of pseudo-passivation to the surface of the Al₉Co₂ particles. Stage 3 is distinct only in the case of the high-Co alloys (7–20 wt.% Co).

3.2.3. Polarization Performance in 1 M H₂SO₄ Versus Co Content

Table 1 and Table 2 show that neither the corrosion potential values nor the corrosion current density values as a function of the Co content present any meaningful trends. Regarding E_corr, on closer observation, one could claim that the high Co Al-alloys present nobler corrosion potentials as compared to the low Co Al-alloys (compare the E_corr of Al–2 wt.% Co with the E_corr of Al–20 wt.% Co in Table 1). This trend can be justified by the increased Co dissolution in the Al-matrix at the high Co contents, as aforementioned in 3.1 (the corrosion potential of electrolytic Co in 1 M H₂SO₄ has been measured by potentiodynamic polarization as (−305 ± 11) mV vs. Ag/AgCl, whereas the corrosion potential of CP-Al in 1 M H₂SO₄ has been measured as (−463 ± 8) mV vs. Ag/AgCl.) Anyway, this ennoblement is not conclusive, as the variations in the mean E_corr values are small and often within experimental error.

Regarding i_corr, the insignificant variations (within experimental error) in the i_corr values of the various Al–Co compositions can be justified by the following competing contributions: As the Co content increases, a decrease in i_corr would be expected due to the decrease in the number of interfaces per unit area (coarser microstructure) and the increase in the surface area of the noble CMA/intermetallic compound (Al₉Co₂). A₉Co₂ is a CMA with a structural complexity between B2-AlCo and QC-Al₁₃Co₄. At its surface, A₉Co₂ presents a pseudogap in the electron density of the states across the Fermi energy [57], which is typical for CMAs, and it is considered responsible for their low surface energy, and, consequently, their high corrosion resistance. On the other hand, as the Co content increases, an increase in i_corr would be expected due to the decrease in the anode (Al)-to-cathode (Al₉Co₂) ratio and the increase in the size of the cathodic Al₉Co₂ particles.

However, a more consistent trend is observed in the current density values of pseudopassive stage 2: Figure 2, Figure 4 and Figure 5, as well as Table 1, show that, generally, as the Co content increases, the passive current (i_p1) decreases (especially, as far as the 0–10 wt.% Co compositions are concerned). Although the variations are within experimental error (only in the range 10–20 wt.% Co), the decreasing trend with Co increasing is consistent. In addition, the i_p1 values of the low-Co alloys appear clearly higher than the i_p1 values of the high-Co alloys, classifying the studied compositions in two groups, in compatibility with the observations in 3.2.1: Al–(0–5) wt.% Co and Al–(7–20) wt.% Co. The decreasing trend of stage 2-current values with Co content can be associated with the increase in the Co dissolved in the Al matrix, causing an increasing participation of Co in the alumina surface film. Indeed, minor amounts of Co have been detected in the surface film of the (Al) phase (Figure 7, spectrum 53, Figure 8, spectrum 6). Here, it should be noted that in order to ensure the validity of the point EDX qualitative analysis, all measurements were performed at distances greater than 2–3 μm from the interfacial boundaries, abiding by the principle that the spatial resolution of EDX is 1–5 μm³ for low atomic number elements and 0.2–1 μm³ for high atomic number elements in the voltage range of 15–25 kV [58]. It has been stated that the presence of oxidized species of TMs in the alumina-based surface layer improve the corrosion resistance of Al-TM alloys, aluminides, and Al-based CMAs in chloride solutions and sulfuric acid solutions by blocking the aggressive-ion entry sites in the passive layers [59,60,61] or stabilizing the passive layers [62]. Recently, Esquivel and Gupta [63] summarized the proposed mechanisms for the contribution of TMs in the passivation ability of Al-TM alloys prepared by non-equilibrium processing techniques. Here, it should be noted that the similarity in the i_p1 values of the high-Co alloys (10–20 wt.% Co), may be justified by the following reasoning: The increase in i_p1 (stage 2) due to the decrease in the passive surface area, i.e., Al matrix, can to some extent counterbalance the decrease in i_p1 due to the increase in the dissolved (in the matrix) Co content.

On the other hand, Figure 2 and Figure 4 and Table 1 show similar values of the current in passive-like stage 4 (i_p2, 7–20 wt.% Co) and the current in the upper part of passive-like stage 2 (2–5 wt.% Co), regardless of the Co content. Moreover, despite the comparatively high Co content in the Al-matrix, Al–20 wt.% Co presents only slightly higher current densities than Al–5 wt.% Co during chronoamperometry at 600 mV vs. Ag/AgCl (Figure 5). The most likely reason for these discrepancies is that surface films after polarization at 600 mV vs. Ag/AgCl (passive-like stage 4) are heavily hydrated, thus highly conductive [35]. As such, their conductivity is rather governed by the extent of the adsorbed water molecules than the compositional differences of the anhydrous parts of the surface complex compounds.

Another data group with a consistent trend is that of E_cp1 − E_corr (Table 1). A general trend of reduction with Co content along with small STDEV values are observed. This decreasing trend can be attributed to the increasing instability of the Al-matrix as the Co content increases due to the increasing amount of Co dissolved in Al (supersaturated state) and, consequently, the increasing ease of Al-matrix oxidation/passivation.

A moderately higher resistance to localized corrosion is suggested for the Al–(7–20) wt.% Co as compared to the Al–(2–5) wt.% Co, on the basis of positive hysteresis through the whole anodic scan (25% of tested specimens against 0% of tested specimens), cathodic looping (75% of tested specimens against 33% of tested specimens), and positive hysteresis turning to negative a couple decades of mV lower than E_cp1 (0% of tested specimens against 25% of tested specimens). This higher resistance to localized corrosion can be attributed to the mediating effect that the increased Co dissolution at the high Co contents has on the galvanic coupling between Al matrix and Al₉Co₂, at the Al/Al₉Co₂ interface.

The relatively low resistance to localized corrosion of the Al–(2–5) wt.% Co alloys in comparison with the Al–(7–20) wt.% Co alloys could also be correlated with the greater occurrence of interfacial defects in the low-Co compositions. A close observation of Figure 3a–d reveals some microcracks and inhomogeneities on the surface structure. These defects are located at the Al/Al₉Co₂ interphase. Their directional alignment in the case of Al–5 wt.% Co, where they are more abundant, suggests their formation along the boundaries of the long and coarse bright stripes of Al₉Co₂ (Figure 1b). According to Kharitonov et al. [64], the Volta potential difference between the intermetallic particles and the alloy matrix along with the interphase boundary zone that constitutes a potential gradient zone (similar to the sensitization zone) are responsible for localized microgalvanic corrosion, as well as accumulation of strain and microstructural mismatch in a multi-phase alloy. The accumulation of strain along these long, coarse Al₉Co₂ stripes is high even in the as-solidified state, as the stripes have grown along screw dislocations [46,47]; the density of screw dislocations is higher at higher cooling rates, namely at lower Al₉Co₂ contents. In the case of the low Al₉Co₂ compositions (Al–(2–5) wt.% Co), not only is the Volta potential difference between Al and Al₉Co₂ relatively high owing to the reduced dissolution of Co into the Al matrix, but the long, coarse Al₉Co₂ stripes constitute large cathodic zones leading to locally high cathode-to-anode ratios. The above considerations are compatible with Zhang et al. [65], who observed localized dissolution in parallel to anodic Al-oxide formation in Al-alloys containing cathodic intermetallic particles and anodic intermetallic particles.

The high resistance of the Al–Co alloys to 1 M H₂SO₄ also becomes evident when comparing their voltammograms with the voltammograms of market-leading Al-alloys. Figure 2c and Table 2 show that the Al–Co alloys present better performance than Al2024-T3 and Al7075-T6 in terms of lower corrosion current density values and lower passive current densities. It should be noted that the lower passive current densities of the Al-Co alloys with respect to those of CP-Al, Al2024-T3, and Al7075-T6, imply more stable passive films, a promising characteristic regarding the effectiveness of a potential anodization process.

3.2.4. Nature of Surface Films in 1 M H₂SO₄

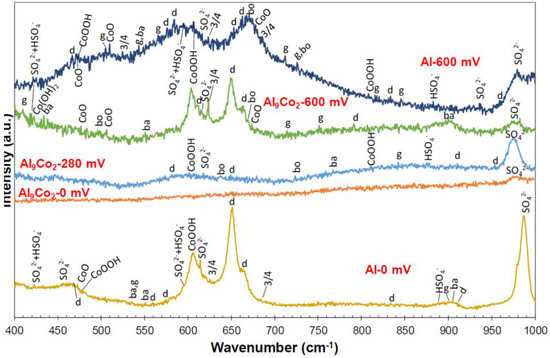

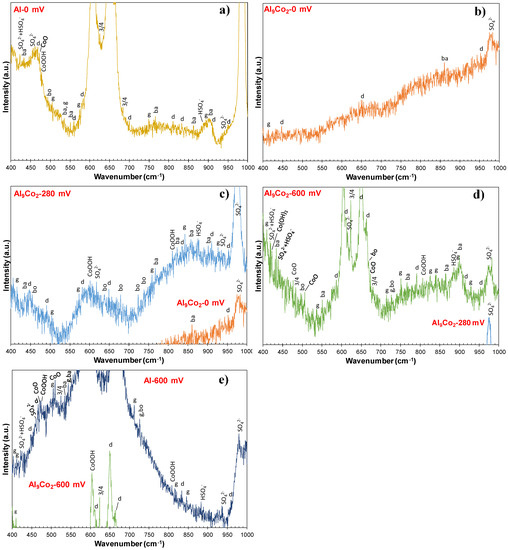

Figure 9 illustrates representative Raman spectra obtained from various spots of the surface of Al–15 wt.% Co polarized at potentials in passive-like stage 2 (0 mV vs. Ag/AgCl), stage 2-to-stage 4 transition stage 3 (280 mV vs. Ag/AgCl), and passive-like stage 4 (600 mV vs. Ag/AgCl). All Raman spectra present bands (clearly to hardly discerned) characterizing alumina hydrates, Co-oxide-based structures, and sulfate/bisulfate ions. The differentiation between the various forms of hydrous alumina, as well as the various products of cobalt oxidation, is a difficult task, due to the overlapping of bands, the significant presence of amorphous phases/dispersed species, and the metallic character of the intermetallic compounds as substrates to thin films. Nevertheless, an interpretation of the main features of the spectra is further attempted. It should be noted that the assignment of low-intensity peaks abundantly found in the spectra of Figure 9 can be speculative, since there is a risk of a baseline artefact to be misinterpreted as an active Raman band. For this reason, only the most prominent features of the received spectra are herein discussed. Furthermore, Figure 10 includes the baselines of the spectra in magnification (×8 along the y-axis) to ensure the correct assignments of low-intensity peaks.

The spectra received from the surface after chronoamperometry at 0 mV vs. Ag/AgCl are classified into two groups: Type “Al-0 mV” obtained from spots on the Al-matrix surface and Type “Al₉Co₂-0 mV” obtained from the surface of the Al₉Co₂ phase. Although the humpy morphologies of the base lines, exhibited in Figure 9 and Figure 10, indicate amorphicity, intensive or weak Raman bands characteristic of vibrations in crystalline phases stand out.

Spectrum “Al-0 mV”: A hump extending from ~565 cm⁻¹ to ~705 cm⁻¹ forms the baseline of two broad bands peaking at 652 cm⁻¹ and 604 cm⁻¹ (Figure 9). The broad band extending from ~565 cm⁻¹ to ~630 cm⁻¹ peaks at 604 cm⁻¹, a wavenumber corresponding to the F_2g mode of CoOOH vibrations [66]. The broad band extending from ~630 to ~705 cm⁻¹ peaks at 652 cm⁻¹, which is the highest peak in the spectrum. It is assigned to the γ(OH) vibrations (B_1g symmetry) of diaspore {α-AlOOH} [67], whereas it is accompanied by a “shoulder” peak at 662 cm⁻¹, ascribed to the A_g symmetry/γ (OH) vibrations of diaspore [68]. High and sharp peaks at 986 cm⁻¹ and 614 cm⁻¹ are assigned to the v₁ (SO₄²⁻) symmetric stretching vibration mode and the ν₄ (SO₄²⁻) bending and antisymmetric stretching vibration mode, respectively [69,70,71]. In Figure 9, another hump is seen to extend from ~435 cm⁻¹ to ~490 cm⁻¹. Figure 10a shows minor peaks standing out from this hump at 456 cm⁻¹ (v₂ (SO₄²⁻) symmetric bending vibrations [70], 467 cm⁻¹ (Al-O vibrations in the diaspore lattice [68]) and 471 cm⁻¹ (E_g mode of CoO [66,72]). Several minor peaks have also been identified throughout the spectrum; they are caused by vibrations in the lattices of alumina hydrates (diaspore, boehmite (γ-AlOOH), bayerite {α-Al(OH)₃}, gibbsite {γ-Al(OH)₃} [68]), and Co-oxide-based compounds (CoO, Co₃O₄, CoOOH [66,72]), the exact assignments of which, are shown in Figure 10a.

Spectrum “Al₉Co₂-0 mV”: Peaks are very weak hardly protruding from their background. Few weak peaks (noted in Figure 10b) could be due to vibrations in the alumina hydrate lattices, respectively [68]; however, their low intensities do not allow for reliable conclusions. The only distinguishable pattern is a broad band that extends from ~926 cm⁻¹ to ~994 cm⁻¹ and peaks at 979 cm⁻¹ (wavenumber ascribed to the v₁ (SO₄²⁻) vibrations). The above observations enhance the indications reported in 3.2.2 that stage 2 in the Al-Co alloys of high Co content (7–20 wt.% Co) is owing to the passivation of the Al-matrix (without the participation of Al₉Co₂ in the passivation process).

Spectrum “Al₉Co₂-280 mV”: A representative spectrum received from the surface of primary Al₉Co₂ stripes after chronoamperometry at 280 mV vs. Ag/AgCl is included in Figure 9. Spectrum “Al₉Co₂-280 mV” is characterized by several very broad bands of low intensity and jagged morphology, the latter clearly seen in Figure 10c. More analytically, a broad hump extends from ~520 to ~700 cm⁻¹, which is centered around 602 cm⁻¹ (the characteristic wavenumber of the F_2g mode of CoOOH vibrations). This broad band is typical of a dispersed Co-oxide phase [73]. Weak peaks are discerned to protrude from this hump; they are assigned to the Al–O bonding (<500 cm⁻¹), γ(OH) translation modes (<900 cm⁻¹), and δ(OH) deformation modes of alumina hydrates (>900 cm⁻¹) [68]; their exact assignments are noted in Figure 10c. The high degree of amorphicity (indicated by the humpy and jagged morphology, as well as the very weak peaks of the spectrum in Figure 9) is in accordance with the evidences of the voltammograms in Figure 2 and Figure 4, and the current density vs. time curve at 280 mV vs. Ag/AgCl in Figure 5, of a transition stage governed by oxidation processes on the Al₉Co₂ surface. The main products of these oxidation processes (after chronoamperometry for 2 h) are dispersed Co–O species and barrier amorphous Al–O films, probably precursor phases to the phases formed during stage 4. Regarding the claim for barrier Al-oxide films, these are postulated to be “substrates” to the thin alumina hydrate layers detected. The bi-layered structure of the passive film of Al in contact with an aqueous environment, namely an amorphous Al₂O₃ barrier layer beneath a permeable hydrous Al₂O₃ layer, is long acknowledged [74].

Two main types of spectra have been obtained from various spots of the surface after chronoamperometry at 600 mV vs. Ag/AgCl. Spectrum type “Al₉Co₂-600 mV”, received from the surface of an Al₉Co₂ primary stripe, and spectrum type “Al-600 mV”, received from the surface of the Al-matrix.

Spectrum “Al₉Co₂-600 mV” contains major peaks assigned to characteristic vibration modes of the lattices of CoOOH (F_2g: 604 cm⁻¹), Co₃O₄ (F_2g: 622 cm⁻¹), and diaspore (γ(OH), B_1g: 650 cm⁻¹). Other accountable peaks, more clearly discerned in Figure 10d, are ascribed to lattice vibrations of alumina hydrates (diaspore A_g symmetry/γ(OH) at 663 cm⁻¹ –shoulder to the B_1g band-, bayerite/γ(OH) at 899 cm⁻¹, bayerite/Al–O at 434 cm⁻¹, gibbsite/Al–O at 410 cm⁻¹, gibbsite/γ(OH) at 751 cm⁻¹, gibbsite/δ(OH) at 895 cm⁻¹, boehmite/γ(OH) at 670 cm⁻¹) [20,68]. Some minor peaks, more clearly discerned in Figure 10d, are considered to be due to vibrations in the lattices of CoO (A_1g symmetry at 674 cm⁻¹, F_2g symmetry at 507 cm⁻¹, E_g symmetry at 470 cm⁻¹), CoOOH (807 cm⁻¹), and Co(OH)₂ (A_1g symmetry at 424 cm⁻¹) [66,72]. Amorphicity is indicated by the hump that forms the base of the intensive bands peaking at 604 cm⁻¹, 622 cm⁻¹, and 650 cm⁻¹, whilst it extends from ~545 to ~700 cm⁻¹, as seen in Figure 9. The well-formed bands of high intensity, as compared to the “humpy” morphology of the spectrum at 280 mV vs. Ag/AgCl, suggest that the oxidation having occurred in transitional stage 3 has led to the formation of surface films on the Al₉Co₂ phase during potentiodynamic polarization through stage 4. The hump that forms the base of the band peaking at 604 cm⁻¹ enhances the postulation that dispersed Co–O species are precursors to Co(OH)₂, CoOOH, Co₃O₄, and CoO.

Figure 9 shows that Spectrum “Al-600 mV” includes three wide bands that give the impression of an overall humped morphology with numerous protruding small peaks forming a “jagged” shape: A band peaking at 510 cm⁻¹ (F_2g (CoO)), a band peaking at 584 cm⁻¹ (B_1g/γ(OH) in diaspore), 605 cm⁻¹ (F_2g/CoOOH), and 594 cm⁻¹ (fundamental transitions of both SO₄²⁻ and HSO₄⁻ [69,75]), and a band peaking at 671 cm⁻¹ (γ(OH) translation mode in boehmite). From these bands, minor peaks stand out; their exact assignments are given in Figure 10e. More analytically, from the broad band peaking at 510 cm⁻¹, minor peaks assigned to CoO (470 cm⁻¹: E_g), CoOOH (474 cm⁻¹: E_g), (Co₃O₄ (524 cm⁻¹: F_2g) and SO₄²⁻ (460 cm⁻¹: ν₂ symmetric bending mode [70]), as well as alumina hydrates are discerned. From the broad band peaking at 584 cm⁻¹, 605 cm⁻¹, and 594 cm⁻¹, peaks due to characteristic vibration modes of gibbsite (565 cm⁻¹: γ(OH)), diaspore (574 cm⁻¹: B_2g/γ(OH) [67]), SO₄²⁻ (614 cm⁻¹: ν₄(SO₄²⁻)), and Co₃O₄ (621 cm⁻¹: F_2g) are protruding. From the broad band peaking at 671 cm⁻¹, peaks corresponding to characteristic vibration modes of diaspore (663 cm⁻¹: A_g/γ(OH), 653 cm⁻¹: B_1g/γ(OH)), CoO (675 cm⁻¹: A_1g symmetry), and Co₃O₄ (685 cm⁻¹: A_1g symmetry) are standing out.

All Raman spectra in Figure 9 present sharp or wide bands of notable intensity peaking at 975–987 cm⁻¹. As aforementioned, these bands are assigned to the symmetric stretching vibrations of the SO₄²⁻ ion. A question arises whether the identified sulfate-due bands are due to vibrations in the electrolyte remaining in the pores of the alloys or they are due to bonding between surface metal and sulfate ions. The presence of residual H₂SO₄ solution is supported by the following considerations: The variety in the half-width of the v₁(SO₄²⁻) band, observed in Figure 9, has been attributed to the variety in the H₃O⁺ concentrations [69], suggesting the presence of aqueous H₂SO₄. Myhre et al. [69] showed that an increase in H₂SO₄ concentration leads to a significant decrease in the intensity and an increase in the half-width of the v₁ (SO₄²⁻) band. On the other hand, the presence of sulfate salts is supported by the following considerations: The max 12 cm⁻¹ shift observed in the v₁ (SO₄²⁻) band constitutes evidence of bonding between the adsorbed sulfate and surface atoms [70,76]. According to literature, the Raman position of the v₁ mode of a solid sulfate shifts to a high wavenumber compared to the aqueous solution [76,77]. According to Omori [78], “every atom of the SO₄ molecule in solution vibrates freely, but in a crystal, the atom vibrates under additional influences from the cations, causing variations in the wavenumber of the absorption band”. For example, the v₁ (SO₄²⁻) band of aqueous H₂SO₄ of various concentrations at room temperature is reported to center around 980 cm⁻¹ [69], whereas the v₁ (SO₄²⁻) band of Al₂(SO₄)₃·xH₂O has been reported to peak at 991 cm⁻¹ [79]. As such, for hydrated sulfates, the ν₁ symmetric stretching-due peak would shift to lower vibrational wavenumbers with increasing hydration [80]. Additionally, in solid salts, the vibrational wavenumber of each sulfate-due Raman band has been shown to decrease as the cation radius increases and, consequently, the cation’s polarizing power decreases [76,77]. Even in the case of sulfate salt presence, the ν₁ mode can exhibit a linewidth increasing from the anhydrous to hydrated and then to aqueous solution, which can be due to the increase in the structure disordering from the solid to the liquid state [76]. Splitting of the SO₄²⁻-due Raman bands (as in spectra Al₉Co₂-0 mV (ν₁), Al₉Co₂-600 mV (ν₄), Al-600 mV (ν₁)) may also be related to the metal cation radius in the solid sulfate salt [77]. Hence, although the possibility for the simultaneous presence of residual sulfuric acid solution or sulfuric salt solution cannot be excluded, the wide v₁ (SO₄²⁻) Raman bands in spectra Al₉Co₂-0 mV, Al₉Co₂-280 mV, Al₉Co₂-600 mV, and Al-600 mV could also be due to sulfate salts, in hydrated forms. In fact, splitting of the SO₄²⁻-due Raman bands favor the latter consideration. The v₁ (SO₄²⁻) band in spectrum Al-0 mV, presenting markedly higher sharpness and intensity and located at a higher wavenumber compared to the corresponding bands of the other spectra in Figure 9, could be due to the presence of a solid sulfate salt, most likely Al₂(SO₄)₃·xH₂O.

The different intensities of the v₁(SO₄²⁻) band are owing to the different concentrations of the SO₄²⁻ ions in the analyzed spots [81]. Weak peaks uniquely ascribed to HSO₄⁻ at (878–887) cm⁻¹ (asymmetric stretching vibrations) are also observed [69]. The considerable shift in the frequency of this band is attributed to the variation of the concentration of HSO₄^- [69]. Two peaks at 593–594 cm⁻¹ and 422–425 cm⁻¹ arise from fundamental vibrations of both SO₄²⁻ and HSO₄⁻ ions [69].

It should be emphasized that the studied system is complex and multicomponent; therefore, significant overlapping of bands is an additional reason for the variations in the band characteristics (intensities, peak shifts, width, etc.)

In conclusion, Raman spectra confirmed the findings reported in 3.2.1 and 3.2.2, namely:

(a) The nature of the surface films is complex, consisting of mixtures of crystalline and amorphous phases. Amorphicity is associated with dispersed Co-oxide species, alumina underlayers to alumina hydrates, and intensively hydrated surface films at high passive potentials.

(b) Al₉Co₂ has remained unoxidized at the low potentials of the passive stage (stage 2), for the low-Co compositions (2–5 wt.% Co), or during the first passive stage (stage 2) for the high-Co compositions (7–20 wt.% Co).

(c) Passive films on the Al-matrix contain Co-oxide based species due to the oxidation of Co dissolved in Al. (It is well established that Al alloyed with TMs forms Al₂O₃-based passivating layers in various electrolytes; these layers may incorporate oxidized species of the TM. Such systems include: CMAs (Al–Cu–Fe–Cr [82], Al–Cr–Fe [62,83] and Al supersaturated in TMs (W [59], Mo [59], and Ta [59,84]).

(d) Mixtures of alumina hydrates and Co-oxides (Co-oxide dispersed species, CoO, Co₃O₄, CoOOH) compose the films on Al₉Co₂ in compatibility with works on the passivation of Fe-aluminides in H₂SO₄ [60,85].

(e) Sulphate salts in hydrated forms may also be included in the surface films.

3.2.5. Some Comments on the Objectives of This Work

Regarding the primary objective of this work, which was to identify low enough Co additions that will satisfy the threefold: Ductility-corrosion resistance-cost of raw materials, this work produced the following data: The high Co alloys (7–20 wt.% Co) led to greater reductions of passive current, in comparison with the low Co alloys (2–5 wt.% Co), namely: During the first pseudopassive stage, a reduction of 3.5–5.0 times (as compared to pure Al) was attained for the 7–20 wt.% Co range, whereas a reduction of 1.4–2.0 times was attained for the 2–5 wt.% Co range. On the other hand, the differences in the electrochemical behaviors of the 2–5 wt.% Co and 7–20 wt.% Co compositions concerning the resistances to localized corrosion and uniform corrosion were not significant enough. Taking also into account that: (a) High Co alloys are more brittle than low Co alloys due to the high amounts of Co-aluminides [35], (b) addition of 7 wt.% Co to Al has led to higher localized and uniform corrosion resistances in 3.5 wt% NaCl, as compared to richer Co compositions [20], (c) Co additions raise the cost of the raw materials, and (d) low and high Co alloys have herein shown comparable resistances to localized corrosion and uniform corrosion in 1 M H₂SO₄, the present work tends to support that alloying Al with 7 wt.% Co could be a quite satisfactory option. However, safer conclusions will be drawn when the present study will be complemented with an investigation on the effect of Co on the wear resistance of Al, planned to be published in the immediate future.

As aforementioned in the Introduction, the main subject of this effort is to examine the electrochemical response of a wide compositional range of Al/Al₉Co₂ alloys to aqueous H₂SO₄, from the viewpoint of corrosion, as H₂SO₄ is a key substance in the chemical industry, an important agent in many industrial sectors, like mineral processing, oil refining, wastewater processing, as well as the main constituent of acid rain. For this purpose, a common commercial concentration of diluted H₂SO₄ was selected, which is also frequently used in electrochemical studies of Al (1 M) [86]. A wide potential range was employed including cathodic polarization, anodic polarization, and reverse polarization to gain as much information as possible (in a systematic manner) on the electrochemical performance of the Al–Al₉Co₂ alloys (a new combination of Al-intermetallic compound). A further objective was to evaluate whether off-equilibrium alloying Al with Co can improve the passivation ability of Al. As such, the present work can set the foundations for a future detailed investigation on the selection of the parameters of an anodizing treatment (e.g., electrolyte concentration, composition and temperature, current/potential values, time, pore sealing conditions, etc.), towards an optimum response to aggressive environments. Within the above framework, it should be emphasized that although the sulfuric acid concentration of 1 M has been employed for anodizing [87], the present effort should not be used to draw conclusions on the anodization procedure in practice.

4. Conclusions

• Al–Co alloys of various Co contents in the 2–20 wt.% Co range were produced by vacuum arc melting. The alloys were composed of Al₉Co₂ particles uniformly distributed in an Al matrix in a directional pattern. As the Co content of the alloy increased, the volume fraction and coarseness of Al₉Co₂ increased.
• Both potentiodynamic polarization and chronoamperometry experiments showed that the anodic polarization of Al–Co in 1 M H₂SO₄ at 25 °C proceeded via the stages: (1) Active dissolution of the Al-matrix by ionic conduction across the imperfections of the preexistent surface film; (2) pseudo-passivation of the Al-matrix by film formation at the metal/oxide interface and film dissolution at the film/electrolyte interface; (3) oxidation of the surface of the Al₉Co₂ particles; and (4) extension of pseudo-passivation to the surface of the Al₉Co₂ particles. Stage 3 was distinct only in the case of the high-Co alloys (7–20 wt.% Co).
• Different passivation behaviors were observed for the 2–5 wt.% Co and 7–20 wt.% Co alloys in 1 M H₂SO₄. The low-Co alloys presented one stage passivation governed by the passivation of the (Al) matrix; this stage included passivation of Al₉Co₂ at high overpotentials. The high-Co alloys presented passivation of two distinct stages. The first stage was governed by the passivation of the (Al) matrix. The second stage was governed by the passivation of Al₉Co₂. A transitional active stage separated the two passive stages; it corresponded to the oxidation of Al₉Co₂.
• Alloying Al with Co did not decrease the rate of uniform corrosion. Nevertheless, increasing the Co content led to a decrease in the passivation current density (during the first stage) in 1 M H₂SO₄, due to the increasing participation of Co in the surface layer of the (Al) matrix. Even low percentages of Co led to accountable decreases in the passive current density of Al (Al–2 wt.% Co: 1.4 times, Al–5 wt.% Co: 2 times, Al–7 wt.% Co: 3.5 times).
• All Al–Co compositions displayed greater passivation ability in 1 M H₂SO₄ than commercially pure Al, Al7075-T6, and Al2024-T3, in terms of passive current density and initiation of passivation at lower potentials with reference to the corrosion potential.
• All Al–Co compositions showed high resistance to localized corrosion. High Co alloys (Co ≥ 7 wt. %) did not show any susceptibility to localized corrosion.
• Mixtures of crystalline phases (Al₂O₃-hydrates, CoO, Co₃O₄, CoOOH, sulfates, bisulfates) and amorphous phases (dispersed Co-oxide species, Al₂O₃ underlayer to Al₂O₃-hydrate overlayers) composed the passive films.
• Taking into account that: (a) High Co alloys are more brittle than low Co alloys due to the high amounts of Co-aluminides, (b) addition of 7 wt.% Co to Al has previously led to higher localized and uniform corrosion resistances in 3.5 wt% NaCl, as compared to richer Co compositions, (c) Co additions raise the cost of raw materials, and (d) low and high Co containing alloys have herein shown comparable resistances to localized corrosion and uniform corrosion in 1 M H₂SO₄, the present work tends to support that alloying Al with 7 wt.% Co could be a quite suitable option, towards the threefold: Ductility-corrosion resistance-cost of raw materials. A planned publication on the effect of the Co content on the tribological performance of Al will further elucidate this matter.
