Systematic Review

The Diagnostic Accuracy of Abdominal X-ray in Childhood Constipation: A Systematic Review of the Literature

by
David Avelar Rodriguez
1,*,
Ghaida Dahlwi
1,
Michelle Gould
1,
Margaret Marcon
1 and
Marc Benninga
2
1
Department of Pediatric Gastroenterology, Hepatology & Nutrition, The Hospital for Sick Children, University of Toronto, Toronto, ON M5G 1E8, Canada
2
Department of Pediatric Gastroenterology and Nutrition, Emma Children’s Hospital, Amsterdam UMC, 1105 AZ Amsterdam, The Netherlands
*
Author to whom correspondence should be addressed.
Gastrointest. Disord. 2024, 6(1), 94-102; https://doi.org/10.3390/gidisord6010006
Submission received: 3 November 2023 / Revised: 22 December 2023 / Accepted: 2 January 2024 / Published: 9 January 2024
(This article belongs to the Special Issue Feature Papers in Gastrointestinal Disorders in 2023-2024)
Browse Figure
Review Reports Versions Notes

Abstract

:
Background: Previous systematic reviews have found insufficient and conflicting evidence for an association between the clinical and radiographic diagnosis of functional constipation. Abdominal X-ray is frequently used for the diagnosis of functional constipation in clinical practice. The objective of this study was to evaluate the diagnostic accuracy of abdominal X-ray for the evaluation of functional constipation in children. Results: Three studies were included in the final qualitative analysis. They were heterogeneous in their study design, definition of constipation, and radiologic parameters used to evaluate the abdominal X-rays. Sensitivities ranged from 73–92%, specificities ranged from 26–92%, and diagnostic accuracies ranged from 78–90%. Methods: This study involved a systematic review of English literature published between 2012 and 2022 covering children 2–18 years of age with a diagnosis of functional constipation in whom abdominal X-ray was performed. The databases searched include Medline, Embase, and Scopus. Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) and Quality Assessment of Diagnostic Accuracy Studies 2 (QUADAS-2) guidelines were followed. PROSPERO ID: CRD42022301833. Conclusions: There is insufficient evidence to support the use of abdominal X-ray as part of the diagnostic workup of functional constipation. More methodologically rigorous studies are needed to determine the utility of abdominal X-ray in the evaluation of functional constipation. The diagnosis of functional constipation should be based on history and clinical findings.

1. Introduction

Childhood constipation is a common condition in children of all ages, with a global pooled prevalence of 9.5% [1], high healthcare costs [2], and a significant impact on the quality of life of affected children and families [3]. The most common form of constipation in children is functional in nature [4], a clinical diagnosis defined by the Rome IV criteria [5,6]. Symptoms of constipation in children include hard and painful bowel movements, infrequent defecation, withholding behaviour, and abdominal pain, often accompanied by faecal incontinence [5,6].
The use of imaging and laboratory tests in functional constipation is of limited value. The main role of laboratory tests is to rule out organic causes of constipation (e.g., coeliac disease, hypothyroidism, and hypercalcaemia) when alarm signs are present. Imaging investigations, such as abdominal X-ray (AXR), which are commonly used to assess for faecal impaction, are also of limited value and not recommended by clinical guidelines [7,8].
While available data discourage the use of AXR for the evaluation of functional constipation in children due to its limited value, radiation exposure, as well as its possible misleading nature [7,8,9,10,11,12,13,14], a significant number of AXRs continue to be performed on children with constipation, particularly in the emergency department [15,16,17,18]. This has led to quality improvement projects that aim to reduce the number of abdominal X-rays performed in such children, with them showing promising results [19,20,21].
Given that it has been more than 10 years since the last systematic review on this topic was published [10], an updated systematic review is now warranted. The aim of this systematic review was to evaluate the diagnostic accuracy of abdominal X-ray in children with functional constipation.

2. Results

The search identified a total of 1125 articles, of which 855 were screened after removing 270 duplicates. One relevant article was uncovered from the bibliographies of a screened article. After the initial title and abstract screening, 845 articles were excluded, leaving 11 articles for the full-text screen. Of these, only three were included in the final qualitative analysis. Figure 1 shows the PRISMA flowchart. The three included studies were heterogeneous in their study design, the definition of constipation, and the radiologic parameters used to evaluate the AXRs. The selection process was not clearly described in all three studies.
Among the included studies, two studies [22,23] were conducted in the USA and one study was conducted in Iran, involving a total of 416 children with constipation. None of the included studies recruited patients in a consecutive or random manner, or at least this was not clearly specified. While the two case-control studies [22,24] compared AXRs of children with and without a clinical diagnosis of constipation, the cohort study [23] retrospectively collected data on AXRs and calculated the sensitivity and specificity based on a later diagnosis of constipation. The diagnosis of constipation was made by the Rome III criteria in one study, and in two of the studies the definition of constipation was not specified. While in two of the studies the AXRs were interpreted by radiologists [25,26], in the third study both radiologists and clinicians interpreted the AXRs [22]. Table 1 shows the study characteristics.
Marks et al. [22] compared the AXRs of children with constipation and children whose constipation was successfully treated. The mean age of children with and without constipation was 7.5 and 7.8 years, respectively. The authors found a model with the most accurate predictive capability to identify constipation on AXR, which included a combination of caecal diameter, stool length in the rectum, total stool length, age, and gender, with an AUC of 0.87. Inter- or intra-observer agreement analyses were not investigated in this study. Table 2 shows the study findings.
In the study by Rezazadeh et al. [24], the authors evaluated the Barr, Leech, and Blethyn scores in children with abdominal pain and constipation and children with abdominal pain without constipation (constipation was defined as per the Rome III criteria). The mean age was 68.39 ± 33.48 months and 69.46 ± 32.60 months for the cases and controls, respectively. All three scores were found to be significantly higher in children with constipation and the sensitivity and diagnostic accuracy of the Leech score was found to be better than that of the Barr and Blethyn scores, as shown in Table 2.
Anwar ul Haq et al. [23] retrospectively collected data from their hospital electronic medical records on AXRs that were performed in children during a three-year period for different indications in the emergency department and the inpatient setting. Charts of children whose AXR reports contained specific constipation keywords (“constipation”, “stool load”, “fecal retention”, and “fecal load”) were reviewed to determine if a diagnosis of clinical constipation was made based on history and physical examination within 45 days after the AXR was performed. The sensitivity, specificity, NPV, and PPV were calculated based on the difference between the initial radiologic diagnosis of constipation and the later diagnosis of clinical constipation.

Risk of Bias and Applicability

Based on the six QUADAS-2 items applied to each of the articles, the two case–control studies were judged to be at unclear-to-low risk of bias, while the cohort study was judged to be at unclear-to-high risk of bias. Some applicability concerns were also raised in the article by Anwar ul Haq et al. [23] around the patient selection and reference standard domains. Table 3 illustrates the assessment of the risk of bias and applicability concerns.

3. Methods

The protocol for the present systematic review was registered (PROSPERO ID: CRD42022301833). We followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) [25] guidelines and the research question was formulated in accordance with the Quality Assessment of Diagnostic Accuracy Studies 2 (QUADAS-2) [26] approach as follows: what is the diagnostic accuracy of abdominal X-ray (index test) in children and adolescents aged 2 to 18 years (patients) with a clinical diagnosis of functional constipation (reference standard) in different settings, including outpatient and inpatient settings, as well as the emergency department?

3.1. Eligibility Criteria

Studies eligible included those that assessed the diagnostic accuracy of abdominal X-ray for the evaluation of functional constipation in children. The study population included children 2 to 18 years old with a clinical diagnosis of constipation in whom AXR was performed. The radiologic parameters that were used to evaluate the AXRs had to be specified by the authors. The exclusion criteria included children with organic causes of constipation and children younger than two years of age.

3.2. Information Sources, Search Strategy, and Selection Criteria

A reference librarian searched the Medline, Embase, and Scopus databases to identify all potentially relevant articles that fit the pre-established eligibility criteria from 2012 (the year of the last systematic review) to May 2022. The full search strategy is outlined in Supplementary file. The search was limited to English literature only. Covidence systematic review management software (Covidence systematic review software, Veritas Health Innovation, Melbourne, Australia. Available at www.covidence.org, accessed on 1 June 2022) was used for data screening and extraction purposes. In addition, reference lists from selected papers were screened for relevant articles.

3.3. Data Collection

Two authors (DAR and GD) independently screened the eligible articles. Disagreements between investigators were resolved by consensus with a third investigator. Extracted data was inputted into a structured collection sheet by the same authors (DAR and GD) working independently.

3.4. Risk of Bias Assessment and Applicability Concerns

To assess the risk of bias and applicability concerns, two investigators (DAR and GD) working independently applied six of the QUADAS-2 items to each of the included articles. The QUADAS-2 tool [26] aids in the assessment of potential risk of bias and applicability concerns by applying some or all the items (signaling questions) that fit the research question chosen by the authors.

4. Discussion

Two previous systematic reviews investigated the utility of AXR in functional constipation [10,11]. The first systematic review [11] found a limited amount of data and conflicting evidence for the association between the clinical and radiographic diagnosis of constipation. This systematic review included six studies, of which only two were judged to have good methodological quality. The second and more recent systematic review published in 2012 [10] also found insufficient evidence, with high study heterogeneity for the study design, definition of constipation, and radiologic parameters used to evaluate the AXRs.
The present systematic review identified three studies published in the last 10 years that assessed the diagnostic accuracy of AXR for the evaluation of constipation in children. A quantitative analysis was not conducted due to clinical and methodological heterogeneity. The three included studies used different definitions of constipation and study designs, as well as different radiologic parameters, to evaluate the AXRs. Unfortunately, none of the included studies recruited participants in a consecutive or random manner, which is the preferred method of patient selection for diagnostic accuracy studies [26].
Two of the included studies, using different radiologic parameters, found a diagnostic accuracy of 78–90% for AXR to detect constipation, and the calculated sensitivities and specificities ranged from 73–92% and 26–92%, respectively. The two studies in which specific radiologic criteria were applied (i.e., Marks et al. [22] and Rezazadeh et al. [24]) rather than only commenting on the overall stool loading appearance of the AXR were possibly better in detecting constipation. However, this is rarely performed in clinical practice as radiologists tend to interpret the overall “fecal loading” appearance of the AXR.
Marks et al. [22] found a model with a diagnostic accuracy of 87% to detect constipation in children who were successfully treated for the condition. However, it is important to mention that the treatments for constipation were not standardized in time or regimen and the cutoff values used in this study may not be generalized to other age groups whose intestinal size and volume may differ depending on age [27,28,29]. A recent prospective study [30] used the same radiologic parameters to assess AXRs and predict the risk of urinary tract infection in children who underwent an initial scout X-ray as part of their voiding cystourethrogram, but unfortunately, the radiologic score was not validated in the study.
Even though the Barr [31], Leech [32], and Blethyn [33] scores were found to have good diagnostic accuracy in one of the included studies [24], previous data show suboptimal sensitivities, specificities, and diagnostic accuracy for these scores [10,11,34]. A recent study of children who presented to the emergency department with abdominal pain and functional constipation (based on the Rome IV criteria) found perfect interobserver agreement (Kappa coefficient = 1.00) for the Leech score compared to a new scale devised by the authors (“faecal impaction grade by length percentage”), which had low interobserver agreement (Kappa coefficient = 0.133). An association between pain intensity and the radiographic grade of faecal impaction based on the Leech score was found to be statistically significant. It is important to mention, however, that the patients included in this study likely had severe constipation as indicated by the moderate-to-severe abdominal pain and therefore were more likely to have radiographic changes on the AXR [35]. In contrast, another recent study found poor interobserver agreement (Kappa coefficient = 36–48%) among radiologists, pediatric gastroenterologists, and pediatric emergency medicine physicians for the “subjective” interpretation of AXRs and poor (38.4%) and fair inter-observer agreement (60%) for the Blethyn and Barr scores, respectively. The Leech score was unfortunately not studied [36].
The study by Anwar ul Haq et al. [23] must be interpreted with caution given the unclear and high risk of bias assigned in three of the four QUADAS-2 domains, as well as the possible applicability concerns. The calculated sensitivity and specificity are likely inaccurate as it is unclear as to how many patients did or did not have a clinical diagnosis of constipation at the follow-up visit and therefore were not included in the final analysis. Also, patients might have received treatment for constipation in the interim between the radiologic diagnosis of constipation and the follow-up visit. Although not clearly stated in the methods, this study might have not excluded children with constipation of an organic nature; however, despite this, we decided to include this study.
Clinical practice guidelines discourage the use of AXR for the diagnostic workup of children with constipation due to its limited value, misleading nature, and radiation exposure [7,8,9,10,11,12,13,14]. AXR is an imperfect test for the assessment of constipation in children due to the absence of comparative radiologic normative data from children without constipation and the fact that symptoms may not correlate with the extent of faecal loading seen on the AXR or if other factors, such as air in the colon rather than the stool, may play a role in symptomatology. Children with abdominal pain who receive treatment for constipation in the emergency department are more likely to be admitted if an AXR is performed [37], and there is an increased risk of revisiting the emergency department with a clinically important alternate diagnosis (e.g., appendicitis, intestinal obstruction, or pneumonia) if children diagnosed with constipation undergo an AXR [38]. The NASPGHAN [7], Rome IV criteria [6], and other literature [39] provide specific instances where AXR may be helpful. For example, children in whom faecal impaction is suspected but physical examination is not possible/unreliable [6]; those with poor or unreliable history; or when a rectal examination is considered traumatic [39].
There is evidence to suggest that other imaging modalities, such as abdominal ultrasound (including point-of-care ultrasound [POCUS]), may have a role in assessing for signs of constipation (e.g., rectal diameter and rectal anterior wall thickness). POCUS is increasingly being used in children by non-radiologists [40]; it is low-cost, non-invasive, and radiation-free [41]. Since the last systematic review [10], which found insufficient evidence for an association between clinical constipation and ultrasound findings, more research has been published in the last few years showing promising results [42,43,44,45,46]. These data need to be further evaluated to determine the role of abdominal ultrasound in functional constipation.
If an AXR is completed for the assessment of constipation due to any of the above reasons, rather than assessing the overall faecal loading appearance of the AXR, radiologists or clinicians should apply the Leech score, whenever possible, as this score appears to have better diagnostic accuracy based on very limited evidence.

5. Conclusions

There is insufficient evidence to support the use of AXR as part of the diagnostic workup of functional constipation. More methodologically rigorous studies are needed to determine the utility of AXR in the evaluation of functional constipation. The diagnosis of functional constipation should be based on history and clinical findings. AXR may have a role in specific clinical situations, such as when faecal impaction is suspected but physical examination is not possible/unreliable; in those with poor or unreliable history; or when a rectal examination is considered traumatic. If an AXR is completed, the Leech score may be more useful compared to other scores based on very limited evidence.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gidisord6010006/s1.

Author Contributions

D.A.R. contributed to the conception and design of the study. D.A.R. and G.D. collected the data and wrote the first draft of the manuscript. M.G., M.M., and M.B. wrote and edited sections of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The authors declare that no funds, grants, or other support were received during the preparation of this manuscript.

Data Availability Statement

Raw data are available as Supplementary Files.

Acknowledgments

We would like to thank Jessie Cunningham, Reference Librarian at the Hospital for Sick Children, for conducting the search of the systematic review.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Koppen, I.J.N.; Vriesman, M.H.; Saps, M.; Rajindrajith, S.; Shi, X.; van Etten-Jamaludin, F.S.; Di Lorenzo, C.; Benninga, M.A.; Tabbers, M.M. Prevalence of Functional Defecation Disorders in Children: A Systematic Review and Meta-Analysis. J. Pediatr. 2018, 198, 121–130.e6. [Google Scholar] [CrossRef] [PubMed]
  2. Liem, O.; Harman, J.; Benninga, M.; Kelleher, K.; Mousa, H.; Di Lorenzo, C. Health utilization and cost impact of childhood constipation in the United States. J. Pediatr. 2009, 154, 258–262. [Google Scholar] [CrossRef]
  3. Vriesman, M.H.; Rajindrajith, S.; Koppen, I.J.N.; van Etten-Jamaludin, F.S.; van Dijk, M.; Devanarayana, N.M.; Tabbers, M.M.; Benninga, M.A. Quality of Life in Children with Functional Constipation: A Systematic Review and Meta-Analysis. J. Pediatr. 2019, 214, 141–150. [Google Scholar] [CrossRef] [PubMed]
  4. Vriesman, M.H.; Koppen, I.J.N.; Camilleri, M.; Di Lorenzo, C.; Benninga, M.A. Management of functional constipation in children and adults. Nat. Rev. Gastroenterol. Hepatol. 2020, 17, 21–39. [Google Scholar] [CrossRef] [PubMed]
  5. Benninga, M.A.; Faure, C.; Hyman, P.E.; St James Roberts, I.; Schechter, N.L.; Nurko, S. Childhood Functional Gastrointestinal Disorders: Neonate/Toddler. Gastroenterology 2016, 150, 1443–1455. [Google Scholar] [CrossRef] [PubMed]
  6. Hyams, J.S.; Di Lorenzo, C.; Saps, M.; Shulman, R.J.; Staiano, A.; van Tilburg, M. Functional Disorders: Children and Adolescents. Gastroenterology 2016, 00181-5. [Google Scholar] [CrossRef]
  7. Tabbers, M.M.; DiLorenzo, C.; Berger, M.Y.; Faure, C.; Langendam, M.W.; Nurko, S.; Staiano, A.; Vandenplas, Y.; Benninga, M.A. Evaluation and treatment of functional constipation in infants and children: Evidence-based recommendations from ESPGHAN and NASPGHAN. J. Pediatr. Gastroenterol. Nutr. 2014, 58, 258–274. [Google Scholar] [CrossRef]
  8. National Institute for Health Care Excellence (NICE). Constipation in Children and Young People: Diagnosis and Management.Clinical Guideline [CG99]. 2017. Available online: https://pubmed.ncbi.nlm.nih.gov/22220325/ (accessed on 1 August 2022).
  9. Pensabene, L.; Buonomo, C.; Fishman, L.; Chitkara, D.; Nurko, S. Lack of utility of abdominal x-rays in the evaluation of children with constipation: Comparison of different scoring methods. J. Pediatr. Gastroenterol. Nutr. 2010, 51, 155–159. [Google Scholar] [CrossRef]
  10. Berger, M.Y.; Tabbers, M.M.; Kurver, M.J.; Boluyt, N.; Benninga, M.A. Value of abdominal radiography, colonic transit time, and rectal ultrasound scanning in the diagnosis of idiopathic constipation in children: A systematic review. J. Pediatr. 2012, 161, e1–e2. [Google Scholar] [CrossRef]
  11. Reuchlin-Vroklage, L.M.; Bierma-Zeinstra, S.; Benninga, M.A.; Berger, M.Y. Diagnostic value of abdominal radiography in constipated children: A systematic review. Arch. Pediatr. Adolesc. Med. 2005, 159, 671–678. [Google Scholar] [CrossRef]
  12. Hoskins, B.; Marek, S. Things We Do for No Reason™: Obtaining an Abdominal X-ray to Assess for Constipation in Children. J. Hosp. Med. 2020, 15, 557–559. [Google Scholar] [CrossRef] [PubMed]
  13. Lammi, M.; Vuolle, S.; Kiekara, T.; Kurppa, K.; Pauniaho, S.L. The use of abdominal imaging studies in children visiting emergency department was variable and unsystematic. Acta Paediatr. 2019, 108, 2089–2094. [Google Scholar] [CrossRef] [PubMed]
  14. Freedman, S.B.; Thull-Freedman, J.; Manson, D.; Rowe, M.F.; Rumantir, M.; Eltorki, M.; Schuh, S. Pediatric abdominal radiograph use, constipation, and significant misdiagnoses. J. Pediatr. 2014, 164, 83–88. [Google Scholar] [CrossRef] [PubMed]
  15. Kearney, R.; Edwards, T.; Bradford, M.; Klein, E. Emergency Provider Use of Plain Radiographs in the Evaluation of Pediatric Constipation. Pediatr. Emerg. Care 2019, 35, 624–629. [Google Scholar] [CrossRef] [PubMed]
  16. Gatto, A.; Curatola, A.; Ferretti, S.; Capossela, L.; Nanni, L.; Rendeli, C.; Chiaretti, A. The impact of constipation on pediatric emergency department: A retrospective analysis of the diagnosis and management. Acta Biomed. 2022, 92, e2021341. [Google Scholar] [CrossRef]
  17. Nutter, A.; Meckler, G.; Truong, M.; Doan, Q. Constipation and paediatric emergency department utilization. Paediatr. Child. Health 2017, 22, 139–142. [Google Scholar] [CrossRef] [PubMed]
  18. Rajan, J.; Audu, G. 156 Use of abdominal X-ray in children with constipation presenting to ed in a district general hospital: A review of our practice. BMJ Paediatr. Open 2021, 5, A45. [Google Scholar] [CrossRef]
  19. Ferguson, C.C.; Gray, M.P.; Diaz, M.; Boyd, K.P. Reducing Unnecessary Imaging for Patients with Constipation in the Pediatric Emergency Department. Pediatrics 2017, 140, e20162290. [Google Scholar] [CrossRef]
  20. McSweeney, M.E.; Chan Yuen, J.; Meleedy-Rey, P.; Day, K.; Nurko, S. A quality improvement initiative to reduce abdominal radiograph use in pediatric patients presenting with constipation. J. Pediatr. 2022, 251, 127–133. [Google Scholar] [CrossRef]
  21. Lipshaw, M.J.; Zamor, R.L.; Carson, R.; Mallon, D.; Sobolewski, B.; Vukovic, A.A.; Kurowski, E.M. Evidence-based Standardization of Constipation Management in the Emergency Department: A Quality Improvement Study. Pediatr. Qual. Saf. 2021, 6, e395. [Google Scholar] [CrossRef]
  22. Marks, A.; Vasquez, E.; Moylan, S.; Diaz-Saldano, D.; Schreiber, J.; Saker, M.; Lindgren, B.W. Definition of reliable, objective criteria by abdominal radiography to identify occult constipation in children with lower urinary tract symptoms. J. Urol. 2013, 189, 1519–1523. [Google Scholar] [CrossRef]
  23. Anwar Ul Haq, M.M.; Lyons, H.; Halim, M. Pediatric Abdominal X-rays in the Acute Care Setting—Are We Overdiagnosing Constipation? Cureus 2020, 12, e7283. [Google Scholar] [CrossRef] [PubMed]
  24. Rezazadeh, A.; Javaherizadeh, H.; Chahardahcherik, F.; Yavarahmadi, M.H.; Sadjadei, N.; Tahmasebi, M. reliability of Barr, Leech and Blethyn score in using of plain radiography in determining fecal impaction in children with and without constipation. Arq. Gastroenterol. 2016, 53, 141–145. [Google Scholar] [CrossRef] [PubMed]
  25. Moher, D.; Shamseer, L.; Clarke, M.; Ghersi, D.; Liberati, A.; Petticrew, M.; Shekelle, P.; Stewart, L.A.; PRISMA-P Group. Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015 statement. Syst. Rev. 2015, 4, 1. [Google Scholar] [CrossRef] [PubMed]
  26. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M.; QUADAS-2 Group. QUADAS-2: A revised tool for the quality assessment of diagnostic accuracy studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef] [PubMed]
  27. Koppen, I.J.; Yacob, D.; Di Lorenzo, C.; Saps, M.; Benninga, M.A.; Cooper, J.N.; Minneci, P.C.; Deans, K.J.; Bates, D.G.; Thompson, B.P. Assessing colonic anatomy normal values based on air contrast enemas in children younger than 6 years. Pediatr. Radiol. 2017, 47, 306–312. [Google Scholar] [CrossRef] [PubMed]
  28. Levin, M.D. Radiological anatomy of the colon and rectum in children. Gastroenterol. Hepatol. Open Access. 2019, 10, 82–86. [Google Scholar] [CrossRef]
  29. Sharif, H.; Hoad, C.L.; Abrehart, N.; Gowland, P.A.; Spiller, R.C.; Kirkham, S.; Loganathan, S.; Papadopoulos, M.; Benninga, M.A.; Devadason, D.; et al. Colonic Volume Changes in Paediatric Constipation Compared to Normal Values Measured Using MRI. Diagnostics 2021, 11, 974. [Google Scholar] [CrossRef]
  30. Muniz, G.; Kar, E.; Gumus, S.; Liu, H.; Shaikh, N. Constipation on abdominal radiograph as potential risk factor for recurrent urinary tract infection development. Pediatr. Nephrol. 2021, 36, 2769–2775. [Google Scholar] [CrossRef]
  31. Barr, R.G.; Levine, M.D.; Wilkinson, R.H.; Mulvihill, D. Chronic and Occult Stool Retention: A Clinical Tool for Its Evaluation in School-Aged Children. Clin. Pediatr. 1979, 18, 674–686. [Google Scholar] [CrossRef]
  32. Leech, S.; McHugh, K.; Sullivan, P. Evaluation of a method of assessing faecal loading on plain abdominal radiographs in children. Pediatr. Radiol. 1999, 29, 255–258. [Google Scholar] [CrossRef] [PubMed]
  33. Blethyn, A.J.; Verrier Jones, K.; Newcombe, R.; Roberts, G.M.; Jenkins, H.R. Radiological assessment of constipation. Arch. Dis. Child. 1995, 73, 532–533. [Google Scholar] [CrossRef] [PubMed]
  34. De Lorijn, F.; van Rijn, R.R.; Heijmans, J.; Reitsma, J.B.; Voskuijl, W.P.; Henneman, O.D.; Taminiau, J.A.; Benninga, M.A. The Leech method for diagnosing constipation: Intra- and interobserver variability and accuracy. Pediatr. Radiol. 2006, 36, 43–49. [Google Scholar] [CrossRef]
  35. Torres Molina, S.; Herrera Flores, I.; Torrejón Macedo, J.A.; Gómez Delgado, A.; Madrazo de la Garza, J.A. Association between abdominal pain and fecal impaction grade assessed through radiography in constipated patients at a pediatric emergency service. Rev. Gastroenterol. Mex. (Engl. Ed.) 2020, 85, 235–239. [Google Scholar] [CrossRef] [PubMed]
  36. Yallanki, N.; Small-Harary, L.; Morganstern, J.; Tobin, M.; Milla, L.; Chawla, A. Inter and Intraobserver Variation in Interpretation of Fecal Loading on Abdominal Radiographs. J. Pediatr. Gastroenterol. Nutr. 2023, 76, 295–299. [Google Scholar] [CrossRef] [PubMed]
  37. Chumpitazi, C.E.; Rees, C.A.; Camp, E.A.; Henkel, E.B.; Valdez, K.L.; Chumpitazi, B.P. Diagnostic approach to constipation impacts pediatric emergency department disposition. Am. J. Emerg. Med. 2017, 35, 1490–1493. [Google Scholar] [CrossRef] [PubMed]
  38. Freedman, S.B.; Rodean, J.; Hall, M.; Alpern, E.R.; Aronson, P.L.; Simon, H.K.; Shah, S.S.; Marin, J.R.; Cohen, E.; Morse, R.B.; et al. Delayed Diagnoses in Children with Constipation: Multicenter Retrospective Cohort Study. J. Pediatr. 2017, 186, 87–94.e16. [Google Scholar] [CrossRef]
  39. Benninga, M.A.; Tabbers, M.M.; van Rijn, R.R. How to use a plain abdominal radiograph in children with functional defecation disorders. Arch. Dis. Child. Educ. Pract. Ed. 2016, 101, 187–193. [Google Scholar] [CrossRef]
  40. van Wassenaer, E.A.; Daams, J.G.; Benninga, M.A.; Rosendahl, K.; Koot, B.G.P.; Stafrace, S.; Arthurs, O.J.; van Rijn, R.R. Non-radiologist-performed abdominal point-of-care ultrasonography in paediatrics—A scoping review. Pediatr. Radiol. 2021, 51, 1386–1399. [Google Scholar] [CrossRef]
  41. Moore, C.L.; Copel, J.A. Point-of-care ultrasonography. N. Engl. J. Med. 2011, 364, 749–757. [Google Scholar] [CrossRef]
  42. Shapouri, S.; Matani, R.; Salahshoor, A.; Qorbani, M.; Hosseini, A.; Norouzi, M.; Khavandegar, A. Rectal measurements and their correlation with bowel habits: Evaluation by trans-abdominal ultrasound in children with functional constipation. J. Paediatr. Child. Health. 2022, 58, 1792–1796. [Google Scholar] [CrossRef]
  43. Modin, L.; Dalby, K.; Walsted, A.M.; Jakobsen, M. Transabdominal ultrasound measurement of rectal diameter is dependent on time to defecation in constipated children. J. Paediatr. Child. Health 2015, 51, 875–880. [Google Scholar] [CrossRef]
  44. Pop, D.; Tătar, S.; Fufezan, O.; Farcău, D. Rectum sizes: Assessment by ultrasonography in children with functional constipation. J. Paediatr. Child. Health 2021, 57, 1244–1249. [Google Scholar] [CrossRef]
  45. Hamdy, A.M.; Sakr, H.M.; Awad, Y.M.M.; Boules, I.S. The role of rectal ultrasound in children with functional constipation. J. Paediatr. Child. Health 2023, 59, 533–536. [Google Scholar] [CrossRef]
  46. Hatori, R.; Tomomasa, T.; Ishige, T.; Tatsuki, M.; Arakawa, H. Fecal retention in childhood: Evaluation on ultrasonography. Pediatr. Int. 2017, 59, 462–466. [Google Scholar] [CrossRef] [PubMed]
Gastrointestdisord 06 00006 g001

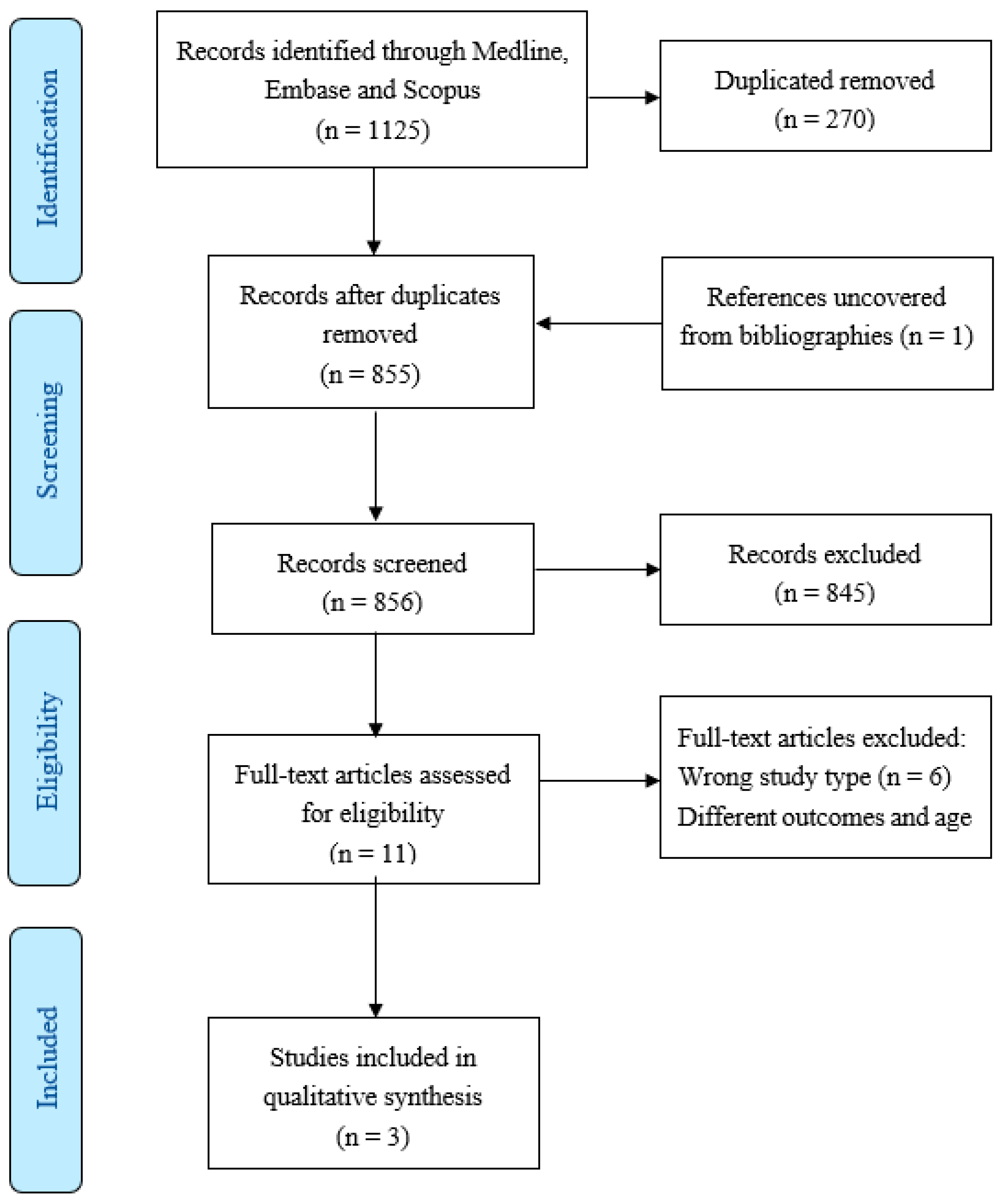

Figure 1. PRISMA flowchart.
Figure 1. PRISMA flowchart.
Gastrointestdisord 06 00006 g001
Table 1. Study characteristics.
Table 1. Study characteristics.
ReferenceYearCountryStudy TypeAge Range (Years)Number of ParticipantsIndex TestReference Standard (Cases)Controls
Marks et al. [22]2013USARetrospective, case–control study4–12 (mean age: cases: 7.5; controls: 7.8)80 (40 cases and 40 controls)AXR criteria: caecal diameter, maximum length of contiguous stool, rectal diameter, total length of collapsed colon/air-filled colon, and length of stool in each colon segment. The total air-to-stool ratio was calculated from the length measurementsChildren with FCChildren with constipation who were successfully treated for constipation before AXR
Rezazadeh et al. [24]2016IranCase–control study2–14 (mean age [months]: cases: 68.39 ± 33.48; controls: 69.46 ± 32.60, p = 0.82)204 (102 cases and 102 controls)AXR criteria: Barr, Leech, and Blethyn scoresChildren with abdominal pain and FC as per the Rome II criteriaChildren with abdominal pain without constipation
Anwar ul Haq et al. [23]2020USARetrospective cohort study2–18
(mean age: 10.3 ± 4.3)		132AXR keywords: “constipation”, “stool load”, “fecal retention”, and “fecal load”Children diagnosed with constipationN/A
USA: United States of America; AXR: abdominal X-ray; FC: functional constipation; N/A: not applicable.
Table 2. Reported sensitivities, specificities, PPV, NPV, and AUC/ROC.
Table 2. Reported sensitivities, specificities, PPV, NPV, and AUC/ROC.
StudySensitivitySpecificityPPVNPVAUC/ROC
Marks et al. [22] 3.7 cm caecal diameter cutoff: 60%
5.9 cm stool length in the rectum cutoff: 63%
33.4 cm for total stool length in the colon cutoff: 70% 		3.7 cm caecal diameter cutoff: 61%
5.9 cm stool length in the rectum cutoff: 63%
33.4 cm for total stool length in the colon cutoff: 68%		NANA87%
Model of a combination of caecal diameter, stool length in the rectum, total stool length, age, and gender
Rezazadeh et al. [24] Barr score > 11: 83%
Leech score > 9: 92%
Blethyn score > 2: 79% 		Barr score > 11: 79%
Leech score > 9: 80%
Blethyn score > 2: 92% 		NANABarr: 87%
Leech: 90%
Blethyn: 78%
Anwar ul Haq et al. [23]73.8%26.8%46.4%54.3%NA
AUC: area under the curve; ROC: receiver operating characteristic; NA: not applicable.
Table 3. Risk of bias assessment and applicability concerns.
Table 3. Risk of bias assessment and applicability concerns.
StudyRisk of BiasApplicability Concerns
Patient SelectionIndex TestReference StandardFlow and TimingPatient SelectionIndex TestReference Standard
Marks et al. [22]Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002
Rezazadeh et al. [24]Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i002
Anwar ul Haq et al. [23]Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i003Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i003Gastrointestdisord 06 00006 i001Gastrointestdisord 06 00006 i002Gastrointestdisord 06 00006 i001
Gastrointestdisord 06 00006 i001 Unclear risk; Gastrointestdisord 06 00006 i002 Low risk; Gastrointestdisord 06 00006 i003 High risk.
