Nanocomposite-Supported Polymeric Composites Prepared with Different Deposition Bases: Characterization and Application in X-ray Shielding

Abstract

This study deals with the preparation of magnetite nanoparticles (NPs) via a coprecipitation method using several precipitation bases: binary precipitator (NH₄OH), mono precipitator (NaOH), and weak precipitator (Ca(OH)₂). The prepared magnetite NPs were identified using X-ray diffraction (XRD), transmission electron microscopy (TEM), scanning electron microscopy (SEM), energy-dispersive X-ray (EDX) analysis, surface area analysis, magnetic properties, Fourier-transformed infrared spectra (FT-IR), and ultra-violet UV–visible spectra. As a result, the phases of the produced magnetite NPs were unaffected by the use of various bases, but their crystallite sizes were affected. It was found that the binary base provided the smallest crystallite size, the mono base provided an average size, and the weak base provided the largest crystallite size. The UV–visible absorption spectroscopy investigation revealed that the absorption and the energy gap rose with a reduction in nanoparticle size. The prepared magnetite NPs were used to manufacture polymeric-based nanocomposites employed as protective shields from low-energy X-rays that are light in weight. These samples were identified using XRD, atomic force microscopy (AFM), and FT-IR spectroscopy. The crystallite size was slightly larger than it was in the case of magnetite NPs. This is consistent with the results of AFM. The interference between the two phases was observed in the results of the FT-IR spectra. The effects of the size of the magnetite NPs on the attenuation tests, linear attenuation coefficient, mass attenuation coefficient, half-value layer, and mean free path were investigated. The results showed that the efficiency of using manufactured shields increases with the decrease in the NPs size of the magnetite used as a reinforcement phase for a range of low operating voltages.

1. Introduction

The production of protective shields is necessary due to the usage of X-ray ionization in many disciplines, including the medical profession, nuclear and atomic laboratories, etc. It is necessary to comprehend how X-rays interact with objects in order to create suitable shields. In essence, X-rays are a class of electromagnetic radiation with short wavelengths and high energy [1,2,3,4,5,6,7]. When a medium is exposed to a beam of these rays, secondary electrons are created, which transfer the majority of the incident photon’s energy to the medium’s substance and ionize its atoms [8,9,10]. With increasing absorbent material thickness, the beam deteriorates dramatically, and the photon absorption or scattering process is dependent on both the photon’s energy and the medium’s type of matter [9,11,12,13]. Lead, tungsten, bismuth, and other elements with high atomic weights are some of the most significant materials utilized as shields to attenuate ionizing radiation. They have unwanted and impractical qualities such as being heavy and large. Moreover, they often fall short in shielding and pose toxicity hazards as well as environmental concerns during disposal. Heavy element-reinforced polymers are a good alternative to use when making radiation shields due to their lightweight nature and the ability to form in a way that makes them useful for a variety of radiation protection applications, such as the creation of radiation-resistant clothing [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30].

It is worth noting that the use of magnetite nanoparticles (NPs) to reinforce polymeric materials to manufacture protective shields from ionizing radiation is due to the fact that the surface area per unit size is inversely proportional to the diameter of the granules. This means that with constant density, the attenuation coefficient is inversely proportional to the diameter. As for the half thickness, it is directly proportional to the diameter of the granules; therefore, there is an indirect relationship between the nanoparticle size and the process of attenuation of the photons falling on the material [31,32]. In addition, the use of nanomaterials to support polymeric materials works to increase the dispersion of the support phase within the polymer matrix, which is reflected in raising the bulk density of the composites, thus improving the attenuation of radiation [33].

Magnetite (Fe₃O₄) is classified as the best material used in the formation of natural rocks used in shielding from ionizing radiation due to its specific weight range of 5.2–4.6 and its natural abundance. It serves as a source for the reinforcement of polymeric-based composites used to create comparatively lightweight X-ray protective shields with advantageous mechanical and thermal characteristics. The importance of using magnetite in various fields increases when it is of nano size due to its vast surface area at the expense of size and the simplicity with which its surface can be coated with organic and inorganic compounds and polymers. Magnetite plays an increasingly important role in a variety of industries; using this preparation process, particle size and structural features can be controlled [34,35].

The sol–gel process, thermal decomposition, coprecipitation, and others are the most frequently used techniques for preparing nanomaterials. The technique used in this study to prepare magnetite nanoparticles is coprecipitation, which is regarded as one of the most common and reasonably cost-effective ways to prepare diverse nanomaterials in general and nanomagnetic materials in particular [36,37,38,39].

In the present paper, we study the manufacture of polymeric nanocomposite supported by magnetite NPs prepared for the manufacture of lightweight shields that protect against X-rays with relatively low energy. We reported all of the experimental findings on the coprecipitation method’s manufacture of magnetite NPs using different precipitation bases—Ca(OH)₂, NaOH, and NH₄OH. Moreover, the nanostructures were characterized using energy-dispersive X-ray (XRD), scanning electron microscopy (SEM), magnetic properties, surface area, energy-dispersive X-ray (EDX), Fourier-transformed infrared (FT-IR), and ultra-violet UV–visible spectroscopy. In addition, we diagnosed the efficiency of the developed nanocomposites using XRD, atomic force microscopy (AFM), FT-IR, and X-ray attenuation. To our best knowledge, no have covered and reported on the preparation of nanomagnetite powder via the coprecipitation method using different precipitation bases. In addition, we studied the effect of the different magnetite NPs on the attenuation, morphological, and magnetic properties of polymeric composites.

2. Materials and Methods

2.1. Synthesis of Magnetite NPs

In

Table 1. The chemicals formula, and percentage of the materials used.

Material	Chemical Formula	Percentage (%)
Iron (II) sulfate heptahydrate	FeSO4·7H2O	98
Ferric chloride	FeCl3	97
Hydrochloric acid	HCl	37
Sodium hydroxide	NaOH	99
Ammonium hydroxide	NH4OH	25
Calcium hydroxide	Ca(OH)2	99

, all the utilized compounds are listed. The following actions were taken in order to prepare the magnetite NPs (Fe₃O₄) using the coprecipitation method: In the first step, we chose the ratio (2/1) of the salts Fe⁺³, Fe⁺², where $6.4 \mathrm{m}\mathrm{g}$ and $5.56 \mathrm{m}\mathrm{g}$ of the salts (FeCl₃ and FeSO₄·7H₂O) were mixed, respectively. In addition, $31 \mathrm{m}\mathrm{L}$ of HCl acid was added at a concentration of $1.5 \mathrm{M}$ after diluting it with $250 \mathrm{m}\mathrm{L}$ of ionic water. Then, the solution was placed on a magnetic stirrer at a rotational speed of 3000 rpm/min at room temperature for $2 \mathrm{h}$ and left without stirring for $24 \mathrm{h}$ to ensure complete dissolution before filtering. The chemical reaction medium equation for magnetite can be written as follows [35]:

$${\mathrm{F}\mathrm{e}}^{2+}+2{\mathrm{F}\mathrm{e}}^{3+}+8{\mathrm{O}\mathrm{H}}^{-}⟶{\mathrm{F}\mathrm{e}}_3{\mathrm{O}}_4+4{\mathrm{H}}_2\mathrm{O}.$$

(1)

In the second step, the sedimentation bases are prepared separately. A concentration of $1.5 \mathrm{M}$ of the bases NaOH, Ca(OH)_2, and NH₄OH is used. The bases’ dissociation equations formulas used are given, respectively, by [40]

$$\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}⟶{\mathrm{N}\mathrm{a}}^{+}+{\mathrm{O}\mathrm{H}}^{-},$$

(2)

$${\mathrm{C}\mathrm{a}\left(\mathrm{O}\mathrm{H}\right)}_2⟶{\mathrm{C}\mathrm{a}}^{2+}+2{\mathrm{O}\mathrm{H}}^{-},$$

(3)

$$\mathrm{N}{\mathrm{H}}_4\mathrm{O}\mathrm{H}⟶\mathrm{N}{\mathrm{H}}_4^{+}+{\mathrm{O}\mathrm{H}}^{-}.$$

(4)

The prepared solutions were filtered using filter paper. The prepared base solutions were dripped separately at a rate of $5 \mathrm{m}\mathrm{L}/\mathrm{m}\mathrm{i}\mathrm{n}$ into the prepared solution in the first step after placing it on the magnetic stirrer at a rotational speed of $3000 \mathrm{r}\mathrm{p}\mathrm{m}/\mathrm{m}\mathrm{i}\mathrm{n}$ at room temperature, and the distillation continued until the solution reached a value of $\mathrm{p}\mathrm{H}=14$. It is worth noting that the residue appeared between $\mathrm{p}\mathrm{H}=6$ and $\mathrm{p}\mathrm{H}=8$ according to the type of base used for sedimentation. The sediment was washed with water several times until $\mathrm{p}\mathrm{H}=7$ was reached, then the powders were dried in a drying oven at a temperature of $60 °\mathrm{C}$ for $24 \mathrm{h}$, denoted as magnetite (NaOH), magnetite (Ca(OH)₂), and magnetite (NH₄OH).

2.2. Fabrication of Nanocomposites

Epoxy resin was used as the base phase in the creation of the nanocomposite. This resin is known for its mechanical and thermal properties, lack of interaction with most chemical solutions, good moisture resistance, and thermal hardening. When a hardener is added to it, it transforms into a solid with a high molecular weight. In order to weigh the necessary amount, a sensitive balance with four levels was used to weigh the epoxy with the hardener at a mixing ratio of 1/3. Then, a glass motor was used to mix the components for $30 \mathrm{s}$ while adhering to the following volumetric fractions of the components of the nanocomposites: A (pure epoxy), B (epoxy + magnetite (Ca(OH)₂)), C (epoxy + magnetite (NaOH)), and D (epoxy + magnetite (NH₄OH)), shown in

Table 2. Volumetric fraction of chemical components. See text for details.

Nanocomposites	Matrix Material (%)	Reinforcement Materials (%)
	Epoxy	Magnetite (Ca(OH)2)	Magnetite (NaOH)	Magnetite (NH4OH)
A	100	0	0	0
B	75	25	0	0
C	75	0	25	0
D	75	0	0	25

. The mixture was stirred with a glass motor for a period not exceeding $30 \mathrm{s}$ to ensure that complete solidification did not occur and to disperse the nanomaterials and prevent agglomeration; the ultrasonic device was used for a period not exceeding $5 \mathrm{m}\mathrm{i}\mathrm{n}$. The mixture was poured into a circular mold with a diameter of $10 \mathrm{m}\mathrm{m}$ and a height of $4 \mathrm{m}\mathrm{m}$, after which the models were left for a period of not less than 48 h to ensure complete solidification. They were extracted from the mold and placed inside the drying oven at a temperature of $60 °\mathrm{C}$ for a period of $10 \mathrm{m}\mathrm{i}\mathrm{n}$ to complete the heat treatment and relaxation. The primary phase bonds with the reinforcement phase and then the models are ready for shielding tests [10,20,39]. Then, we calculated the volumetric fraction, the weight fraction, and the density of theoretical compounds, respectively, to determine the required amount of the two phases, respectively:

$$V_{\mathrm{f}}=1/\left\{1+\left(\frac{1-\mathrm{\Psi }}{\mathrm{\Psi }}\right)\frac{{\mathrm{\rho }}_{\mathrm{f}}}{{\mathrm{\rho }}_{\mathrm{m}}}\right\},$$

(5)

$$\mathrm{\Psi }\left(\mathrm{\%}\right)=\frac{W_{\mathrm{f}}}{W_{\mathrm{f}}+W_{\mathrm{m}}}\times 100,$$

(6)

$$W_{\mathrm{c}}=W_{\mathrm{f}}+W_{\mathrm{m}},$$

(7)

$${\mathrm{\rho }}_{\mathrm{c}}=V_{\mathrm{f}}{\mathrm{\rho }}_{\mathrm{f}}+\left(1–V_{\mathrm{f}}\right){\mathrm{\rho }}_{\mathrm{m}},$$

(8)

where $V_{\mathrm{f}}$ is the fraction volume, $\mathrm{\Psi }$ represents the weight fraction of the reinforcing material, $W_{\mathrm{c}}$ is the weight fraction for composite material, $W_{\mathrm{f}}$ is the weight fraction of the reinforcing material, $W_{\mathrm{m}}$ is the weight of the base material, ${\mathrm{\rho }}_{\mathrm{c}}$ is the density of the composite, ${\mathrm{\rho }}_{\mathrm{f}}$ is the density of the filler, ${\mathrm{\rho }}_{\mathrm{m}}$ is the density of the matrix material.

2.3. Characterization Techniques

The XRD patterns of all developed samples were recorded with a wavelength of $\mathrm{\lambda }=1.5406 \mathrm{\AA }$, the current $I=30 \mathrm{m}\mathrm{A}$, and the voltage $V=40 \mathrm{k}\mathrm{V}$ using a Cu target. To measure the size of magnetite NPs from XRD data, the Debye–Scherrer equation is used [41]:

$$D=\frac{K\mathrm{\lambda }}{\mathrm{\beta }\cos \mathrm{\theta }},$$

(9)

where $\mathrm{\lambda }=1.5406 \mathrm{\AA }$ is the Cu kα line, $\mathrm{\theta }$ is the Braggs’ XRD diffraction angle, $\mathrm{\beta }$ is the full width at half maximum (FWHM) in radians, and $K=0.9$ is a unitless constant that depends on the shape of the crystal.

The above equation is limited to the nanoscale, it is not applicable to particles larger than $0.1–0.2 \mathrm{\mu }\mathrm{m}$, and it measures the minimum particle size. The reason for this is that there are many effects on the width of the apex other than the effect of the device and because of the difference in the size of the crystals of the material to be studied. The surface area $\left(S\right)$ is calculated by the following equation [19]:

$$D=\frac{6}{S·\mathrm{\rho }},$$

(10)

where $D\left(\mathrm{n}\mathrm{m}\right)$ is the particle size, $S({\mathrm{m}}^2/\mathrm{m}\mathrm{g})$ is the specific surface area, and $\mathrm{\rho }=5.18 \mathrm{g}/{\mathrm{c}\mathrm{m}}^3$ represents the density of the material. Nitrogen gas was used at a temperature of $77 \mathrm{K}$ measured using the Brunauer–Emmett–Teller (BET), Langmuir (Lan), t-plot (T), and Barrett-Joyner-Halenda (BHJ) methods.

Transmission electron microscopy (TEM) was used to study the average particle size of the prepared materials, through which we could identify the nature of the distribution in addition to studying the shape of the particles.

Scanning electron microscopy (SEM), was used to study the surface composition of samples, as it has a high analysis capacity that reaches the nanoscale. For the purpose of analyzing the elements and knowing their proportions, EDX was used, which involves a device attached to the scanning electron microscope.

Magnetic hysteresis is defined as the lag in the magnetization changes when the external magnetic field changes. If a ferromagnetic material is exposed to increasing and decreasing fields, and the changes between the magnetic field (H) and the magnetic induction (B) are plotted, the magnetic lag curve can be plotted, and through the magnetic hysteresis curve, magnetic saturation $\left(M_{\mathrm{s}}\right)$ was measured [42,43]. Magnetization occurs and magnetism increases when the magnetic field increases beyond a specific limit, after which all moments are aligned towards the applied magnetic field. The material reaches the magnetic saturation limit, after which any increase in the magnetic field does not increase the magnetization. In the case of decreasing the magnetic field until it reaches $H=0$, the material that has magnetic moments will retain a part of the magnetization, called the residual magnetism $\left(M_{\mathrm{r}}\right)$, which results from the aligned moments [43].

AFM was used to identify fine details of topography and crystalline granular structures on the surface of the prepared samples in two (2D) and three (3D) dimensions. This microscope is characterized by a high-resolution capacity of 0.1–1.0 nm and a high magnification power estimated at 5 × 10²–10⁸, with the possibility of operating it under normal atmospheric pressure and without the need for a high vacuum as is customary in electron microscopes. We can know the surface roughness rate and the root mean square (RMS), which represents the square of the sum of the heights and depressions of the grains over their sum under the square root. The lower the RMS value, the more uniform the surface. The grain distribution, the average grain size, and the grain height within the area were also studied.

The infrared spectra were recorded with FT-IR in a Shimadzu 8400 infrared spectrophotometer (Shimadzu Corp., Kyoto, Japan) in the range $4000–400 {\mathrm{c}\mathrm{m}}^{-1}$.

The UV–visible spectra of prepared samples were recorded using a UV–visible–NIR (near-infrared) spectrophotometer with a wavelength range of $190–1100 \mathrm{n}\mathrm{m}$. The optical properties under study are absorbance, permissible direct energy gap, and permissible indirect energy gap. The energy gap, E_g, can be calculated using the following equation [44,45,46]:

$${\left(\mathrm{\alpha }h\mathrm{\nu }\right)}^r=b(h\mathrm{\nu }-E_{\mathrm{g}}),$$

(11)

where $r$ is an exponential coefficient, whose value depends on the type of transition as follows: $r=1/2$ indirect transmission allowed, $r=2$ direct transmission allowed, $\mathrm{\alpha }$ is absorption coefficient, h is the Planck constant and $b$ is the constant.

An X-ray attenuation test was performed to evaluate shields made of nanocomposites using an X-ray generation device. A current of $0.2 \mathrm{m}\mathrm{A}$ and operating voltages of $20 \mathrm{k}\mathrm{e}\mathrm{V}$, $25 \mathrm{k}\mathrm{e}\mathrm{V}$, $30 \mathrm{k}\mathrm{e}\mathrm{V}$, and $35 \mathrm{k}\mathrm{e}\mathrm{V}$ are used to find out their effect on the attenuation properties of the nanocomposites. The X-ray-generating tube is made of molybdenum and the radiation detector is Geiger–Müller counter, with a filter of zirconium with its angle fixed at a certain value. After that, the readings of the original intensity $\left(I_0\right)$ are made without the presence of the sample at the beginning and end of each attempt, with the goniometer angle at a fixed value, and then the model is put in the place designated for examination inside the device.$I$ is measured five times for each of the nanocomposites (A, B, C, D) to reduce the error rate. In addition, a thickness parameter was used for all models.

The shields manufactured to protect against X-rays must possess some criteria that make them a suitable material for protection against radiation and reduce damage. The key criteria are as follows.

The linear attenuation coefficient $\left(\mathrm{\mu }\right)$ of X-rays in a medium by photon removal from the beam per unit path during its interaction with the atoms of the attenuated medium as a result of the occurrence of photon absorption or scattering. The attenuation coefficient is calculated using the following equation [9,46]:

$$\mathrm{\mu }=\ln \left(I_0/I_T\right)/x$$

(12)

where $I_0$ and $I_T$ denote the incident and transmitted intensity of radiation, respectively. Here, $x$ is the thickness of absorbing material (in this study, the value of the models was fixed).

The radiation attenuation in one of the three attenuation coefficients dependent on the energy of the incident photon which depends on the atomic number of the substance. ${\mathrm{\mu }}_{\mathrm{m}}$ is the algebraic sum of the molecular absorption coefficients (photoelectric effect, Compton effect, pair production). This is calculated using the following equation [2,3,46]:

$${\mathrm{\mu }}_{\mathrm{m}}=\mathrm{\mu }/\mathrm{\rho },$$

(13)

where $\mathrm{\rho }$ is the density of the sample and is calculated from Equation (8).

The half thickness is the amount of material needed to reduce the intensity of incident rays to half of what it was initially, i.e., $I_T=I_0/2$. This parameter can be calculated by the following equation [10,46]:

$$\mathrm{H}\mathrm{V}\mathrm{L}=\frac{\mathrm{l}\mathrm{n}2}{\mathrm{\mu }}.$$

(14)

The mean free path $\left(\mathrm{\lambda }\right)$ represents the thickness of the material required to remove a photon from the beam of rays falling on the material. The free path rate is calculated by the following equation [10,13]:

$$\mathrm{\lambda }=1/\mathrm{\mu }.$$

(15)

3. Results and Discussion

3.1. Effect of Sedimentation Rules on Structure Description

From Figure 1, one can see that the different sedimentation bases used do not affect the phase change of prepared magnetite. It should be noted that the phase is cubic for magnetite prepared with different bases and this agrees with the research in [19,47,48,49]. From

Table 3. X-ray diffraction (XRD), transmission electron spectroscopy (TEM), scanning electron microscopy (SEM) assay parameters of magnetite nanoparticles (NPs) and nanocomposites in different models. See text for details.

Sample	S (m2/mg)	DXRD (nm)	DTEM (nm)	DSEM (nm)	Standard Deviation (nm)	a (Å)
Magnetite (Ca(OH)2)	241	4.82	8.50	22.78	8.98	8.35
Magnetite (NaOH)	200	5.71	11.11	28.19	11.24	8.35
Magnetite (NH4OH)	130	8.2	16.17	33.51	12.50	8.35
B	222	5.23	-	-	-	8.35
C	158	7.36	-	-	-	8.35
D	105	11.03	-	-	-	8.35

, it can be seen that the value of the lattice constant (a) does not change dependent on the sedimentation base used. One can also see that the different sedimentation rules affected the crystallite size of the resulting magnetite NPs and that the order of the crystallite size from smallest to largest is D(magnetite (Ca(OH)₂)) < D(magnetite (NaOH)) < D(magnetite (NH₄OH)). This arrangement shows that using Ca(OH)₂ gives smaller crystallite sizes than other bases. This is attributed to a rapid union with iron that occurs as a result of the abundance of oxygen and its high negativity, in addition to the relatively low electrical negative value of iron which is estimated at 1.83. This causes rapid precipitation, obtaining a nanosized crystallite to quickly reach the required value and thus reduce the development time of the crystallites [49].

When using the strong base NaOH, one notices that the Na⁺ ion has low electronegativity, so rapid dissociation occurs in the base ions, and the negative ions combine with the iron ions to form magnetite NPs. This process begins at a low $\mathrm{p}\mathrm{H}$, so there will be sufficient time until $\mathrm{p}\mathrm{H}=14$ is reached and the granule growth process occurs. As a result of this process, an average size of nanograins is produced. Meanwhile, in the case of using the weak base NH₄OH, the particle size is the largest, but it is also on the nanometric scale. This size is attributed to the chemical composition, so that each nitrogen atom is bonded to four hydrogen atoms. Due to the difference in electronegativity of the elements, this results in a decay of the base, resulting in an abundance of hydrogen at the expense of oxygen and, consequently, a slow precipitation process and difficulty in raising the acid function, which results in a relatively large granular size. That is, the strength of the precipitating base affects the nucleation process. For example, the weak base NH₄OH produces a smaller number of nuclei, which favors crystal growth and size. However, when strong bases such as NaOH are used, a bigger number of nuclei will precipitate, which limits the nucleation rate and results in particles with a smaller grain size. These results are in agreement with the results of Ref. [50].

3.2. Effect of Different Sedimentation Rules on Surface Area

The specific surface area (S), the specific volume, and its relationship to the type of base used for the deposition of nanomagnetite were calculated using BET, Langmuir, T, and BJH methods.

Table 4. Specific size, surface area, and magnetic saturation values of the prepared magnetite NPs calculated using the Brunauer–Emmett–Teller (BET), Langmuir (Lan), Barrett-Joyner-Halenda (BJH), and t-plot (T) methods.

Fe3O4 Models	S (m2/mg)				V (cm2/mg)				Ms
	T	BJH	Lan	BET	T	BJH	Lan	BET
Magnetite (Ca(OH)2)	40.3	48.9	53.9	40.8	0	0.255	12.3	9.3	52.7
Magnetite (NaOH)	36.0	60.7	60.8	45.7	0	0.208	13.6	10.3	54.9
Magnetite (NH4OH)	55.5	65.99	75.2	57.2	0	0.283	17.2	13.1	58.6

shows that the quantities calculated from these methods are subject to the following order of qualitative size: $V_{\mathrm{L}\mathrm{a}\mathrm{n}}>V_{\mathrm{B}\mathrm{E}\mathrm{T}}>V_{\mathrm{B}\mathrm{J}\mathrm{H}}>V_{\mathrm{T}}$, and specific surface area: $S_{\mathrm{L}\mathrm{a}\mathrm{n}}>S_{\mathrm{B}\mathrm{J}\mathrm{H}}>S_{\mathrm{B}\mathrm{E}\mathrm{T}}>S_{\mathrm{T}}$. When comparing the obtained surface area by the different methods in Table 4 and the specific surface area extracted from the X-ray diffraction analysis data in Table 3, one notices that there are some differences. This difference means that the specific surface area extracted from the XRD result is more subject to the inverse relationship with the particle size. As a result, a decrease in the particle size improved the quality of the surface area, in the following order: $S\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left({\mathrm{C}\mathrm{a}\left(\mathrm{O}\mathrm{H}\right)}_2\right)\right]<S\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left(\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}\right)\right]<S\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left(\mathrm{N}{\mathrm{H}}_4\mathrm{O}\mathrm{H}\right)\right]$.

In the case of comparing the grain size extracted from the BET and Langmuir plots and from the XRD data, there is a quite good match in terms of the order of the bases from smallest to largest: $V\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left({\mathrm{C}\mathrm{a}\left(\mathrm{O}\mathrm{H}\right)}_2\right)\right]>V\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left(\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}\right)\right]>V\left[\mathrm{m}\mathrm{a}\mathrm{g}\mathrm{n}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{t}\mathrm{e}\left(\mathrm{N}{\mathrm{H}}_4\mathrm{O}\mathrm{H}\right)\right]$. Minor differences between the results of XRD are deduced from the relatively small size of magnetite NPs, which results in faster agglomeration of the granules and thus gives slightly higher values of particle size. Under these conditions, the surface will be affected by surface analysis by different adsorption methods.

3.3. Effect of Sedimentation Rules on Powder Morphology

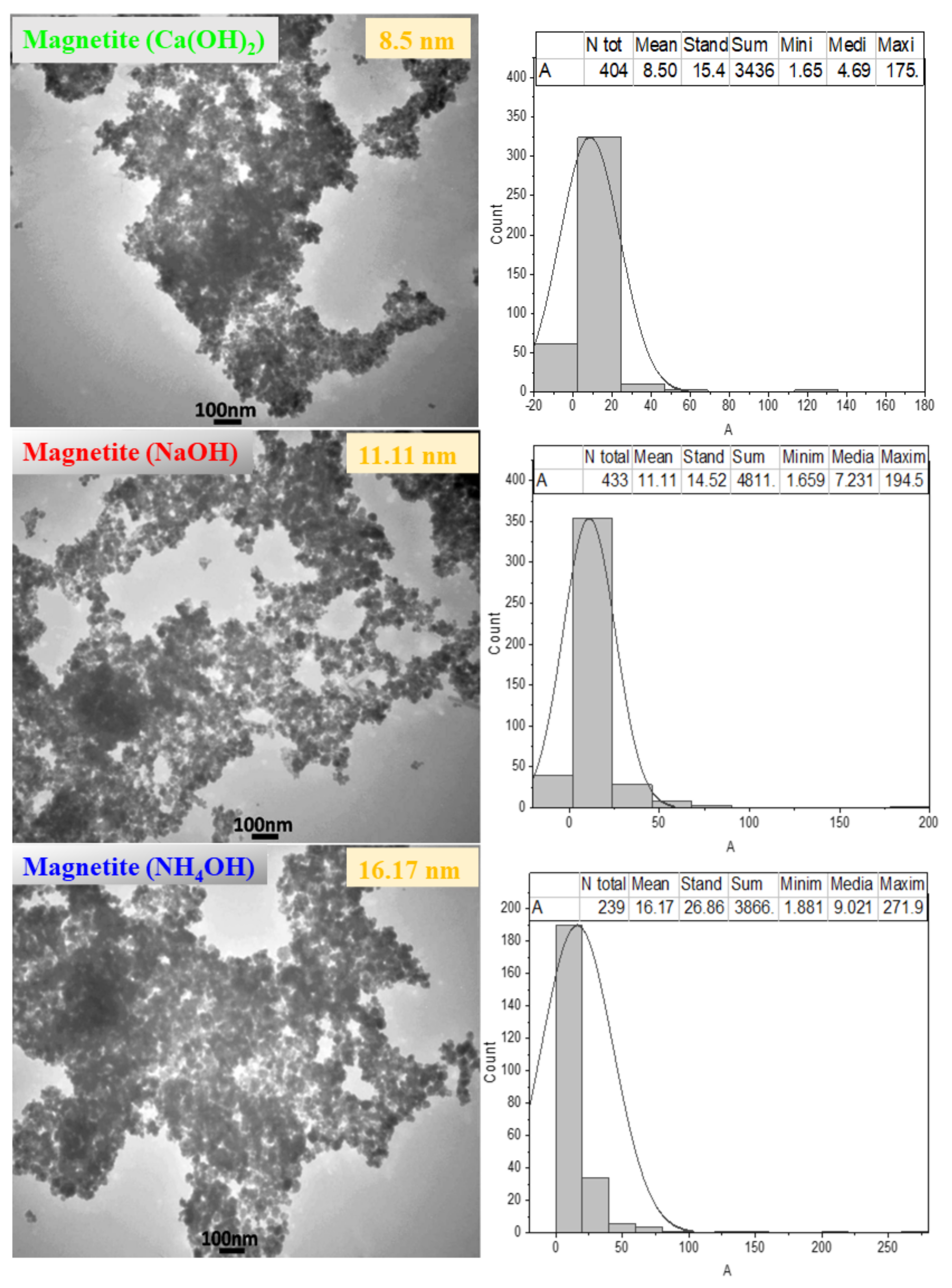

From Figure 2 and Figure 3, the particle sizes are 8.5 nm, 11.11 nm, 16.17 nm and $22.78 \mathrm{n}\mathrm{m}$, $28.19 \mathrm{n}\mathrm{m}$, and $33.51 \mathrm{n}\mathrm{m}$, respectively, for magnetite prepared with Ca(OH)₂, NaOH, and NH₄OH bases, respectively. This agrees with what was obtained from the results of the XRD analysis (see Table 3). The small increase in particle size found by TEM and SEM examination compared to XRD is due to the nature of nanomaterials that can agglomerate. This property increases more in magnetic magnetite NPs. One also notices that the granular shape of the prepared samples did not change according to the type of base used to prepare them. A finer granular look indicates that this parameter does not affect the shape, but it does affect the particle size; see Figure 3, right.

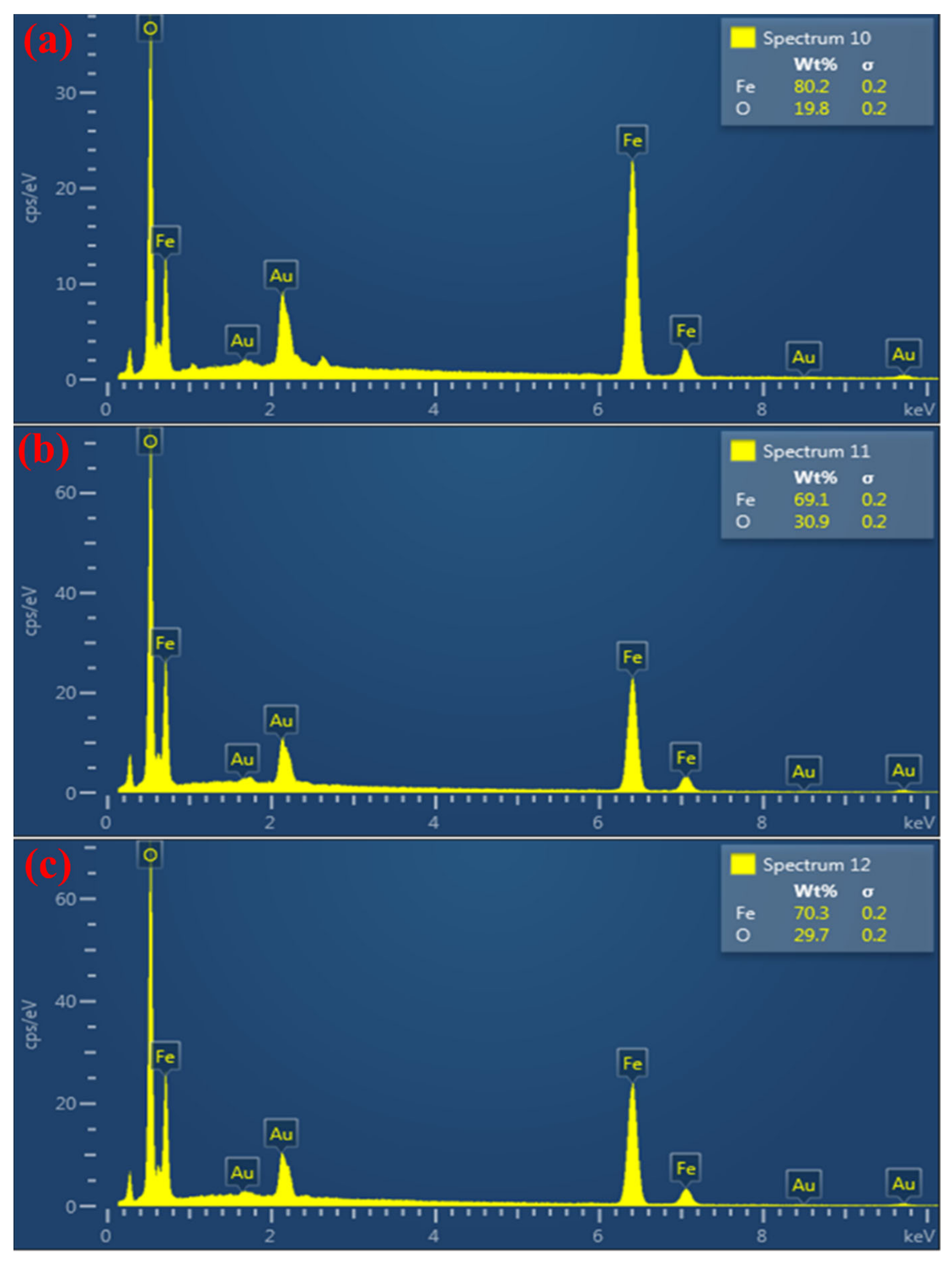

The EDX spectrum, shown in Figure 4, was used to determine the purity of the prepared magnetite NPs. Note that the purity was very high. Still, there was a difference in the weight ratios of the constituent elements of the magnetite resulting from the different chemical bases [34,51]. The difference in the weight ratios of the elements is due to the variation in the electronegativity values of the different sedimentation bases, which leads to a difference in the precipitated weight ratio of iron and oxygen.

3.4. Effect of Different Sedimentation Rules on Magnetic Properties

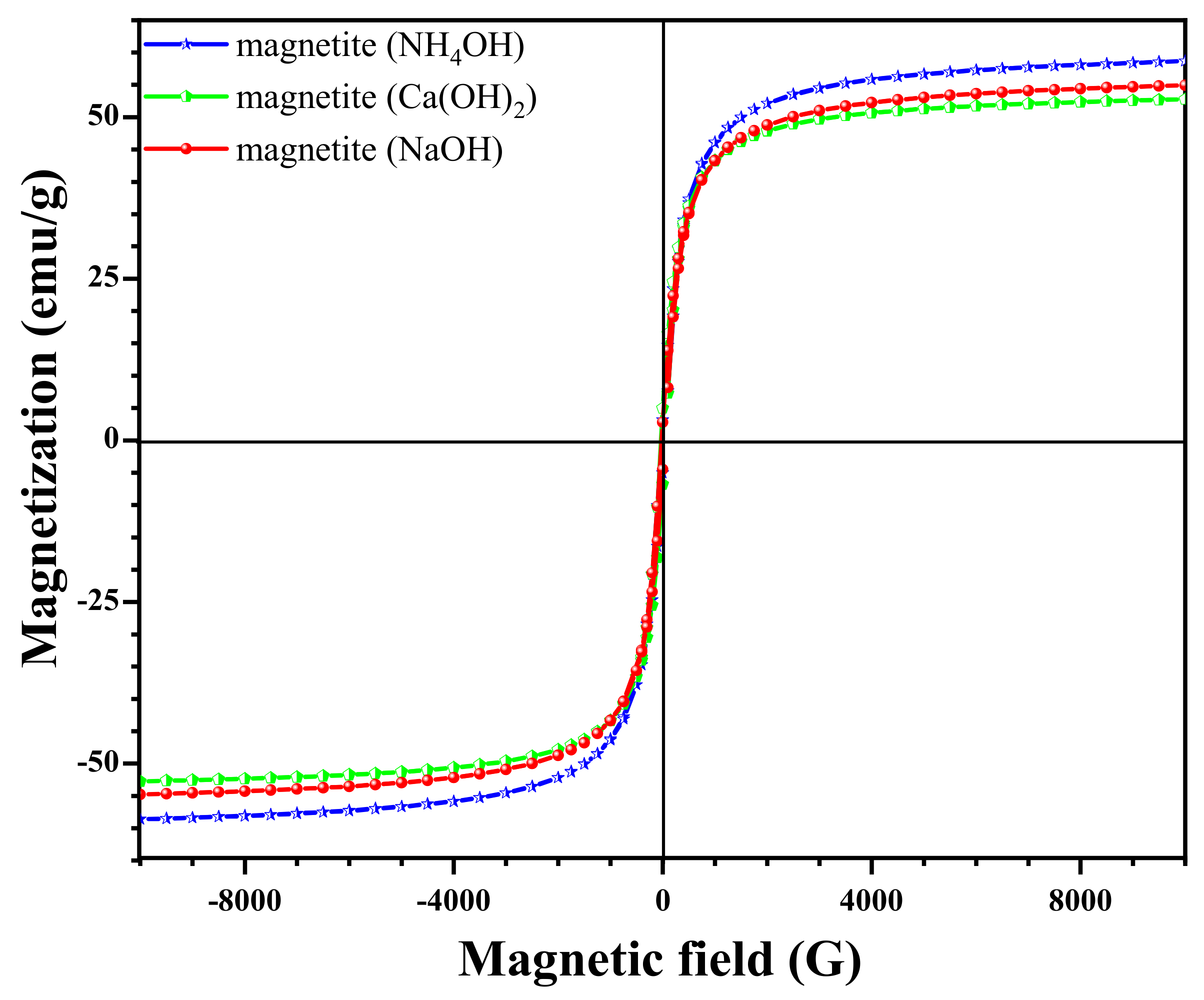

The relationship of particle sizes to the prepared materials’ magnetic properties are shown in Figure 5. Referring to the NP size values investigated by XRD, TEM, and SEM, it is found that the lowest value is shown by magnetite (Ca(OH)₂). The largest NP size was in the powder produced from the sediment magnetite (NH₄OH), whereas magnetite (NaOH) had the average of the two values. Comparing these values with the $M_{\mathrm{s}}$ values shown in Table 4, one finds that the width of the hysteresis ring depends on the magnetite NP size. Also, one notices that the width of the ring shrinks whenever there is a decrease in the crystallite size and an increase in the surface area. Thus, the borders between the rings decrease, which leads to a decrease in magnetic saturation, which agrees with the result from Ref. [19].

3.5. Effect of Different Deposition Rules on the FT-IR Spectra

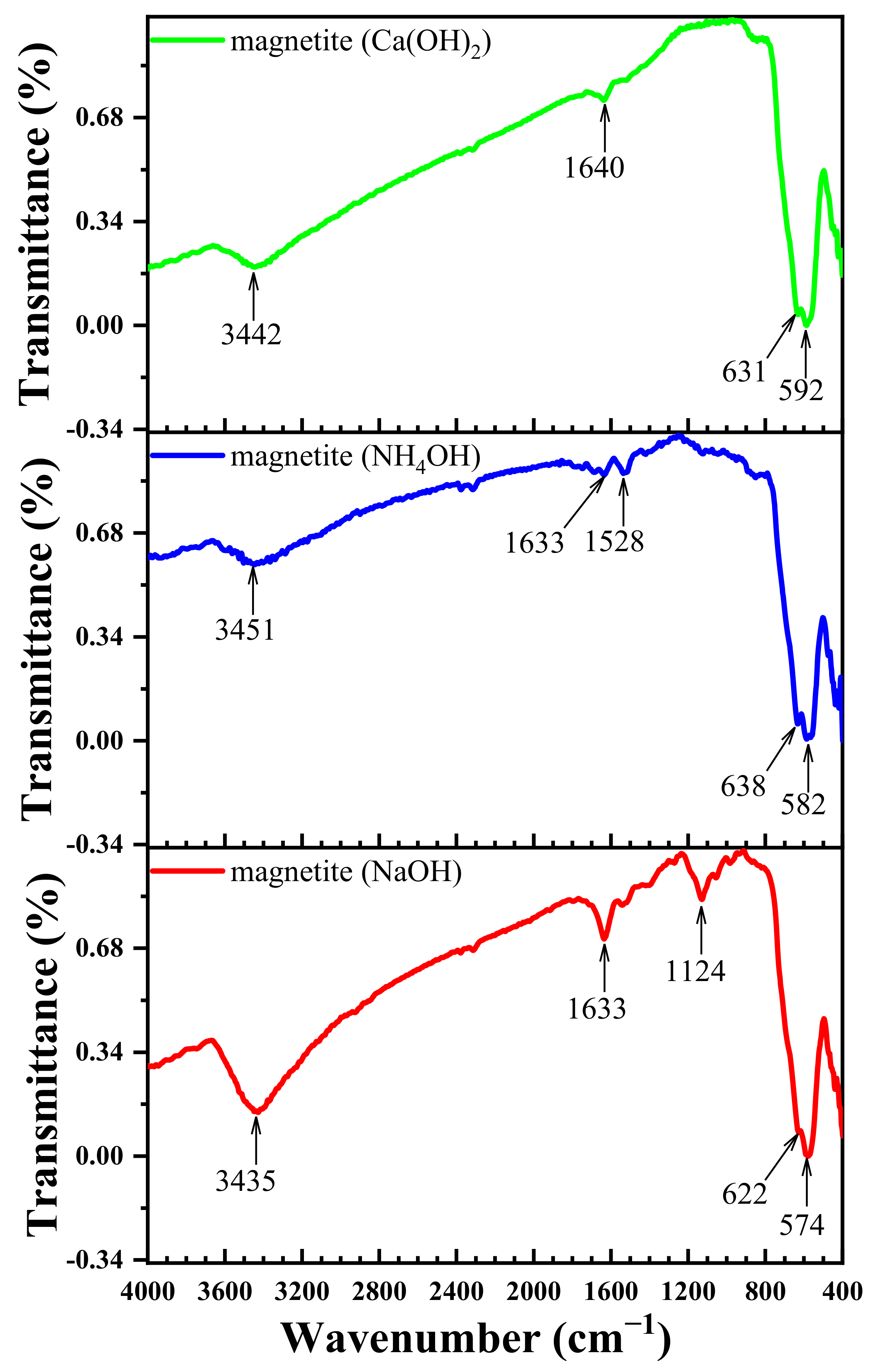

Through the results of the IR spectra shown in Figure 6, one finds that whenever the crystallite size of magnetite NPs decreases, the appearance of the Fe-O bond is delayed. The appearance of stretch bands for the OH group and the vibrational curvature of the HOH group is due to the water absorbed by the model. Also, the appearance of these bands is delayed as the magnetite NP size increases. As for the length of the appearance of the Fe-O bonds and the OH and HOH bands, it increases with the decrease in the particle size of the prepared magnetite NPs. The locations of these bands agree with the findings from Refs. [52,53].

3.6. The Effect of the Size of Magnetite NPs on Optical Properties

From Figure 7, one finds that there is an increase in the absorbance of all magnetite NPs in the low-wavelength region. The values of the energy band gap and the size of the magnetite NPs are inversely correlated. The reduction of the band gap is directly related to the enlargement of the size. Disruption of electronic conduction bands occurs at higher energy levels, leading to the possibility of superposition when particles are small in size. In terms of distance at the Fermi level, the greater the distance from the center of the particle, the lower the electronic conduction nuclear potential. In addition, it should be noted that the unilateral spherical dispersion of the magnetite NPs causes the absorption peak of the magnetite NPs to occur in the 292–550 nm range what concurs with what is obtained in Ref. [43]. From Table 3 and Figure 8, one can see that the energy gap values increased as the magnetite NP size decreased. Consequently, magnetite (NH₄OH), having the largest size of 8.5 nm, had the smallest energy gap (1.75 eV, 1.35 eV) for the two types of transitions, which is in agreement with the literature [44].

3.7. The Effect of the Size of Magnetite NPs on the XRD and AFM of the Shields

X-ray diffraction analysis of the overlays (A, B, C, D) (see Figure 9) compares the components of the overlay’s magnetite NPs and polymers, where the cubic phase of the magnetite NPs appears inside the overlays at the same angle at which the cubic phase of the magnetite appears for the magnetite NPs. However, one notices that the nanoparticle size of the nanocomposites gave the same arrangement for the magnetite NPs as shown in Table 3, but there are slightly larger magnetite NP sizes within the composites B, C, and D with values of $11 \mathrm{n}\mathrm{m}$, $7.2 \mathrm{n}\mathrm{m}$, and $5.2 \mathrm{n}\mathrm{m}$, respectively. This is due to the agglomeration of the nanomaterials during the mixing process with the polymer. In addition, one notices that the decrease in the nanoparticle size improves the process of consolidation and penetration into the polymer matrix, so the phase intensity increases. The epoxy peak appears for all the overlays at approximately a 20° angle, which agrees with Ref. [15].

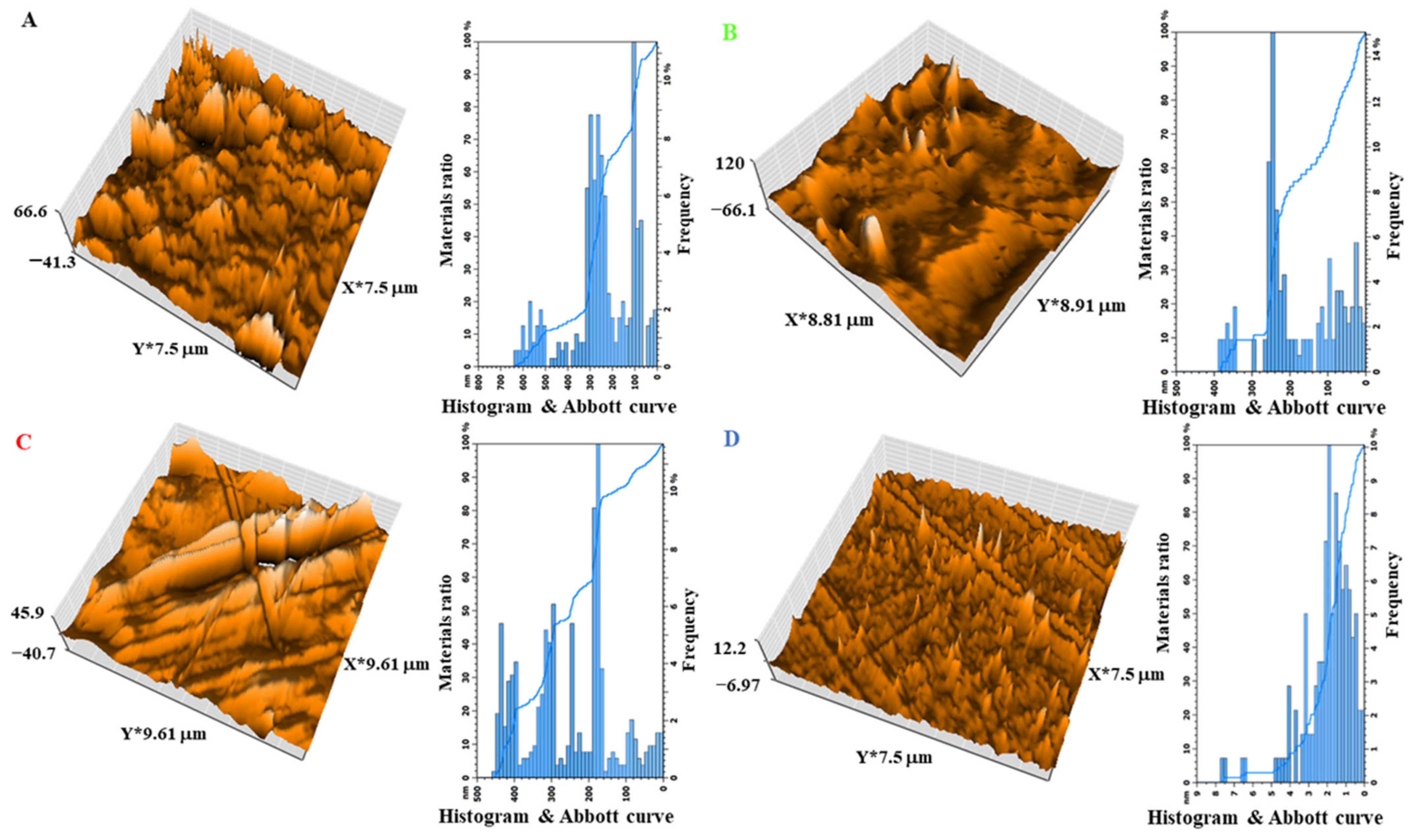

From the results of the AFM examination of the manufactured composites (see Figure 10 and

Table 5. Results of an atomic force microscopy (AFM) examination.

Nanocomposites	Average Grain Size (nm)	Roughness Average (nm)	Root Mean Square (nm)	Surface Thickness (nm)
A	100	672.8	93.81	66.6
B	250	1093	104.2	120
C	180	757.3	101	45.9
D	2	102.4	10.24	12.2

), the surface roughness rate, RMS, surface thickness, and particle size values increase as the particle size decreases, as a result of the increase in agglomeration.

3.8. The Effect of the Size of Magnetite NPs on the FT-IR Spectra of the Shields

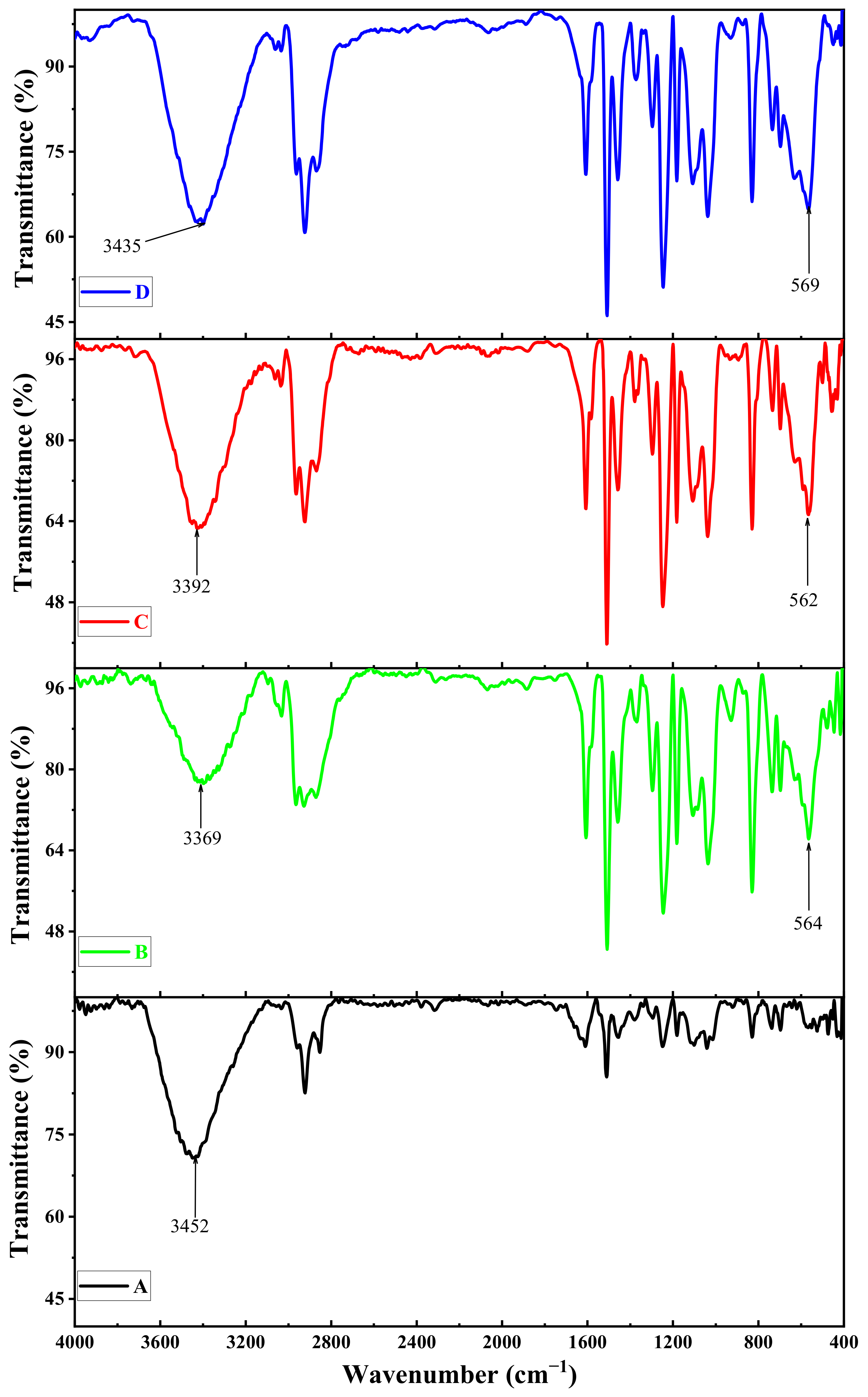

From Figure 11, there is an overlap between the support phase and the base phase and this increases as the particle size of the reinforcement magnetite NPs decreases, through the locations of the most important effective aggregates O-H and Fe-O shown in Figure 11. These aggregates are delayed in appearance with higher wavenumbers as the size of magnetite NPs increases. This is due to the decrease in the surface area, which requires the projection of the infrared photon with a higher energy for the appearance of the aggregates, in contrast to powders that have a relatively small magnetite NP size, which have quite a large surface area. Thus, a projection of a low-energy photon is required to reveal the effective aggregates.

3.9. The Effect of the Size of Magnetite NPs on the X-ray Attenuation Properties of Shields

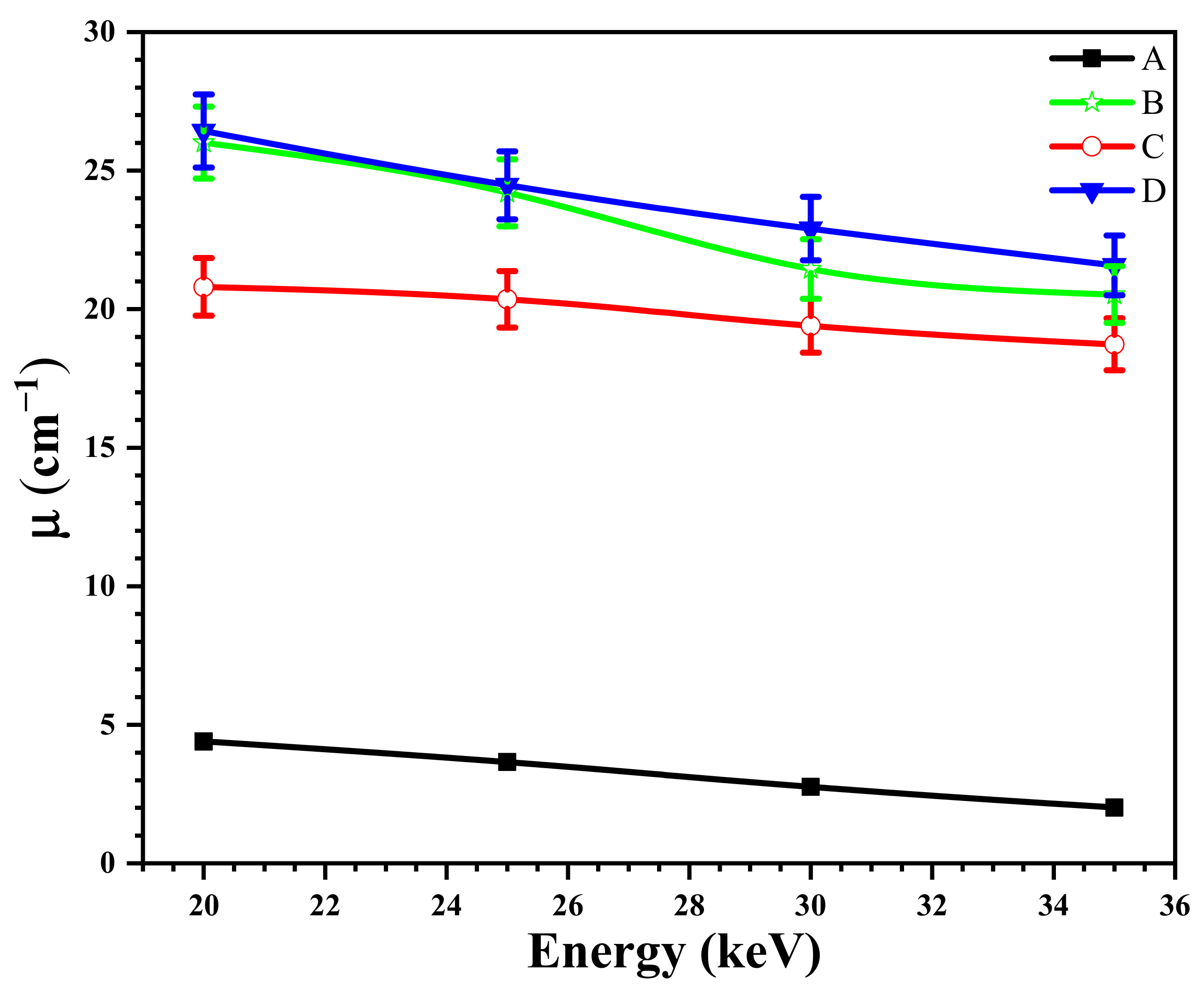

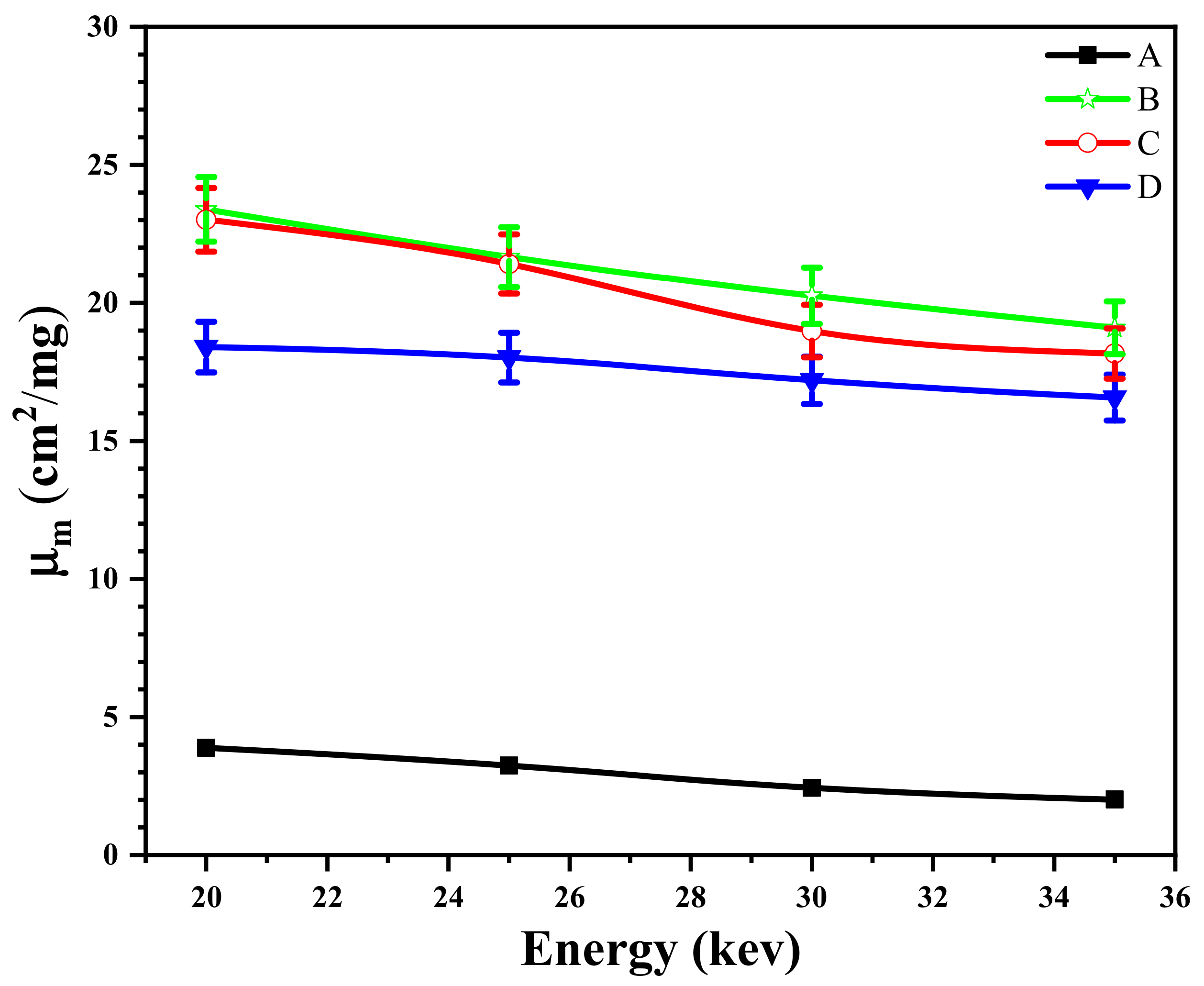

From Figure 12, Figure 13, Figure 14 and Figure 15, one notices that the significant effect of using magnetite NPs as a support phase for epoxy resin is caused by increasing the linear (12) and mass (13) attenuation coefficients and decreasing the values of the half thickness (14) and the free path rates (15), respectively, of the B, C, and D overlays compared to overlay A (pure epoxy). One finds that the possibility of protection from X-rays increases with a decrease in the size of magnetite NPs of the reinforcement phase. The values for the linear attenuation coefficient and the mass attenuation coefficient are $26.43 {\mathrm{c}\mathrm{m}}^{-1}$ and $23.39 {\mathrm{c}\mathrm{m}}^2/\mathrm{m}\mathrm{g}$, respectively. The lowest values for the half thickness and free path rate are $0.029 \mathrm{c}\mathrm{m}$, and $0.042 {\mathrm{c}\mathrm{m}}^{-1}$, respectively. This is due to the increase in the surface area and the scattering of magnetite NPs within the polymer matrix, thus increasing the possibility of radiation interaction with the material, absorbing the energy of the photon, and this agrees with findings in Refs. [54,55]. The effect of the operating voltage can be seen from the values of the attenuation properties in Figure 12, Figure 13, Figure 14 and Figure 15 and it is found that by increasing the voltage values, the ability of the nanocomposite to attenuate the rays decreases. This is consistent with the results from [46] for other materials.

4. Conclusions

From this study, we conclude that the use of the binary strong base Ca(OH)₂ has a greater effect than the strong mono base NaOH in reducing the nanoscale particle size of magnetite. Meanwhile, the weak base NH₄OH gives a large NP size. According to the results of the TEM, the NP size values were 8.5 nm, 11.11 nm, and 16.17 nm, respectively. The smaller the size of the magnetite NPs, the larger the specific surface area values. The values of the magnetic saturation of the prepared materials decrease with the decrease in the size of the magnetite NPs. The phase of the materials and their granular shapes were not affected by the change in the sedimentation base used in their preparation. The appearance sites of Fe-O and OH-HOH bands and the length of appearance are affected by the particle size of the magnetite NPs. As NP size decreases, absorbance values and direct and indirect allowable energy deviations increase.

For polymer-based nanocomposites, decreasing the size of magnetite NPs further improves their dispersion within the polymer matrix, which appears from the increase in the number of bonds of active OH groups for the composite that has the smallest NP size compared to the composite that has the largest NP size. The decrease in the size of magnetite NPs dispersed in the nanocomposite increases both the linear and mass attenuation coefficients and decreases the half-value layer and mean free path.
