Hierarchically Coupled Ornstein–Uhlenbeck Processes for Transient Anomalous Diffusion

Abstract

The nonlinear dependence of the mean-squared displacement (MSD) on time is a common characteristic of particle transport in complex environments. Frequently, this anomalous behavior only occurs transiently before the particle reaches a terminal Fickian diffusion. This study shows that a system of hierarchically coupled Ornstein–Uhlenbeck equations is able to describe both transient subdiffusion and transient superdiffusion dynamics, as well as their sequential combinations. To validate the model, five distinct experimental, molecular dynamics simulation, and theoretical studies are successfully described by the model. The comparison includes the transport of particles in random optical fields, supercooled liquids, bedrock, soft colloidal suspensions, and phonons in solids. The model’s broad applicability makes it a convenient tool for interpreting the MSD profiles of particles exhibiting transient anomalous diffusion.

1. Introduction

Standard Brownian motion (BM) theory, as established by Albert Einstein, Marian Smoluchowski, and Paul Langevin in the early last century, cannot adequately describe the transport properties of active or passive particles in complex environments [1,2,3,4,5,6]. One of the primary discrepancies arises from the anomalous diffusion patterns frequently observed in these systems. In these instances, the mean-squared displacement (MSD) of the particles (tracers) does not increase linearly with time, t, as predicted by standard BM (Fickian diffusion). Instead, it is observed that

$$\mathrm{MSD}\propto t^{\nu },$$

(1)

where the exponent $\nu$ deviates from unity. In cases where $0<\nu <1$, the particle diffuses slower than BM (subdiffusion), whereas, for cases with $\nu >1$, the diffusion is faster (superdiffusion). Quite often, the anomalous behavior is only transient, meaning the MSD is diffusive or ballistic at relatively short times, then it transitions to anomalous diffusion (subdiffusion or superdiffusion) and entails entirely Fickian diffusion at longer time scales. Anomalous diffusion in passive BM has been observed in soft biological systems [7,8,9,10,11,12], supercooled and ionic liquids [13,14,15,16,17,18], granular and glassy materials [19,20,21,22,23,24,25,26,27], colloidal suspensions [28,29], as well as diffusion under random external fields [30,31]. In active motion, anomalous diffusion has been reported in cell motion [32], chemically powered nanomotors [33], and even mammal movement [34].

Theoretical frameworks often employ continuous-time random walks (CTRWs) as a general method for modeling anomalous diffusion [17,35,36,37,38,39,40]. This stochastic process is based on a random walk (RW) that moves in independent directions with steps and waiting times drawn from specific distributions. Transient anomalous diffusion becomes feasible when employing truncated power law distributions [41]. The continuous counterparts of CTRW, represented by fractional diffusion and fractional Fokker–Planck equations, are also regularly implemented to describe transport properties in complex environments [42,43]. Fractional BM is another established stochastic process that effectively characterizes anomalous diffusion [44,45]. Notably, fractional BM captures Equation (1) while being a Gaussian process. Studies based on the Langevin equation and its generalization, whether involving scaled Brownian motion, fractional derivatives, or with or without tempered memory kernels, form a major category for modeling anomalous diffusion [46,47,48,49,50,51,52,53,54,55,56].

This study demonstrates that a mathematical model based on a hierarchical implementation of the kinetic theory [57] effectively captures various aspects of transient anomalous diffusion. This model can be mathematically formulated either as an RW coupled to n independent noise sources or by a system of hierarchically coupled Ornstein–Uhlenbeck (OU) processes. Following the results in [57,58], it is shown here that, for $n=2$, the model can capture a wide range of transient super- and subdiffusive dynamics, regardless of whether the initial behavior is ballistic or diffusive. The analytical and numerical results are in exceptional qualitative agreement with a broad range of experimental, molecular dynamics (MD) simulation, and other numerical and theoretical studies. Interestingly, by incorporating more than two noise sources, the model describes a series of alternating super- and subdiffusion dynamics, a result that has been observed in soft colloids and cell motion in embryonic tissue [28,59]. The model predictions were validated by comparing them to five experimental and theoretical studies [28,30,60,61,62]. Similar to the aforementioned theoretical studies, the present model is also characterized by its simplicity since it admits analytical solutions. Besides, its potential to also describe both transient superdiffusion and subdiffusion, as well as multiple layers of different diffusion phases, offers a convenient description of transient anomalous diffusion. It should be noted that active OU models are capable of modeling transient superdiffusion [63,64,65,66]. As we show below, such models qualitatively agree with our approach when $n=2$ and $D_2>D_1$.

The paper is organised as follows. The model recently proposed in Ref. [57] is briefly discussed in Section 2. Section 3 describes four different cases of transient anomalous diffusion that can be captured by the system of hierarchically coupled OU equations. Section 4 directly compares the model predictions with experimental, MD simulation, and theoretical studies. Lastly, Section 5 briefly summarizes the study.

2. Hierarchically Coupled OU Equations

Consider a particle moving through a complex one-dimensional environment characterized by the presence of n independent white noise sources, $\mathrm{d}{B}_t^{\left(i\right)}=\sqrt{2D_i}\mathrm{d}{W}_t^{\left(i\right)}$, where $i=1,2,...,n$, $B_t^{\left(i\right)}$ denote the BM paths, $D_i$ denote the diffusivities, and $\mathrm{d}{W}_t^{\left(i\right)}$ are independent Wiener increments. In a recent study [57], it was suggested that the position, $X_t^{\left(n\right)}$, of the particle can be described by the following equation:

$$\frac{\mathrm{d}{X}_t^{\left(n\right)}}{\mathrm{d}t}=\sum _{i=1}^n{\gamma }_i\left(B_t^{\left(i\right)}-X_t^{\left(i\right)}\right),$$

(2)

where each ${\gamma }_i$ is a positive constant and represents the relaxation rates at each noise level. Any state $X_t^{\left(i\right)}$ with $i<n$ is described by the same equation as if only the first i noise sources were considered. Since the jth state affects the ith state only if $j<i$, Equation (2) describes a series of hierarchically coupled processes. By introducing the change of variables:

$$u_t^{\left(i\right)}=B_t^{\left(i\right)}-X_t^{\left(i\right)},$$

(3)

Equation (2) reduces to a system of hierarchically coupled OU processes:

$$\begin{array}{cc}\hfill \mathrm{d}{u}_t^{\left(n\right)}& =-{\gamma }_n{u}_t^{\left(n\right)}\mathrm{d}t+{\sigma }_n\mathrm{d}{W}_t^{\left(n\right)}-\sum _{i=1}^{n-1}{\gamma }_i{u}_t^{\left(i\right)}\mathrm{d}t,\hfill \end{array}$$

(4)

where ${\sigma }_i=\sqrt{2D_i}$. A similar change of variables has also been used in Ref. [63]. Equation (4) admits an analytical solution that describes a non-equilibrium stationary state distribution [57]. Therefore, the particle’s velocity, as expressed by Equation (2):

$$V_t^{\left(i\right)}=\sum _{j=1}^i{\gamma }_j{u}_t^{\left(j\right)},$$

(5)

is well-defined and also exhibits a stationary distribution.

In the special case of $n=1$, both the Langevin equation and Equation (4) have the same solution after suitable parameter rescaling, as shown in Ref. [57]. However, the key difference lies in the way they address random fluctuations in the equations of motion. The Langevin equation introduces random fluctuations as stochastic forces, while this model assumes that the particle is trapped around a BM path ($B_t^{\left(1\right)}$) by a linear force of constant ${\gamma }_1$. Thus, in the long enough term, the particle follows the BM with diffusivity $D_1$. In line with the kinetic theory, Equation (2) describes a ballistic motion at quite short times, and after a characteristic timescale of ${\gamma }_1^{-1}$, the motion becomes diffusive [57]. The resulting motion matches the BM of the Langevin equation. Thus, for $n=1$, one can add external force fields to perform standard Langevin dynamics simulations for the model. However, here, we argue that the introduction of extra noise sources ($n\ge 2$) in Equation (2) can mimic both sub- and superdiffusion. Specifically, if the particle is subsequently influenced by a second noise source, one can similarly assume that the Brownian particle is trapped around an additional BM path ($B_t^{\left(2\right)}$) with its own distinct elastic constant, ${\gamma }_2$. In this case, the tracer is still influenced by the first noise source, but eventually, follows the trajectory of $B_t^{\left(2\right)}$. If $D_2<D_1$, then the particle significantly slows down, thus mimicking the structural or dynamics heterogeneity traps that are observed in nature. The generalization for any number of noise sources, n, leads to Equation (2). A more detailed interpretation of the proposed model and its connection to the kinetic theory can be found in Ref. [57].

In what follows, the vector ${\mathbf{\Pi }}^{\left(n\right)}=\{D_1,...,D_n;{\gamma }_1,...,{\gamma }_n\}$ is used to define the diffusivities and relaxation parameters when necessary.

3. Transient Anomalous Diffusion

Equation (2) was initially developed to study transient subdiffusion dynamics [57]. However, it can also effectively model transient superdiffusion, as well as more complex dynamics involving multiple anomalous diffusion regimes. The standard way to characterize diffusion is through the MSD of the tracer’s position from the initial condition, i.e., $R_n\left(t\right)=X_t^{\left(n\right)}-X_0^{\left(n\right)}$. Here, the MSD is defined as $〈R_n^2\left(t\right)〉$, where $〈·〉$ denotes the ensemble average. The computation can be achieved by solving Equation (4) and, then, using Equation (3) to compute $R_n\left(t\right)$. The $〈R_n^2\left(t\right)〉$ can be computed using Ito’s integral properties.

This Section presents four different MSD profiles that the model can describe. The profiles have been reported in either experimental, MD simulation, numerical or theoretical studies. A comparison of our model with the studies listed is given in Section 3.1, Section 3.2, Section 3.3 and Section 3.4 just below.

3.1. Case A: Ballistic to Diffusive Crossover

By utilizing the analytical solution of Equation (4) [57], it is straightforward to show that, when $n=1$, the MSD is expressed as

$$〈R_1^2\left(t\right)〉=2D_{1}t-\frac{2D_1}{{\gamma }_1}\left(1-e^{-{\gamma }_{1}t}\right).$$

(6)

The asymptotic analysis of this equation demonstrates the transition from ballistic to diffusive behavior:

$$〈R_1^2\left(t\right)〉\approx \left\{\begin{array}{cc}{t}^2,\hfill & t\to 0,\hfill \\ \\ 2D_{1}t,\hfill & t\to \infty .\hfill \end{array}\right.$$

(7)

It is noteworthy that, when $n=1$, Equation (2) produces results consistent with Langevin dynamics by setting ${\gamma }_1=\kappa /m$ and ${\sigma }_1=\sqrt{2k_{B}T}/\kappa$, where m is the mass of the tracer, $\kappa$ represents the fluid friction, while $k_B$ and T are Boltzmann’s constant and the temperature of the system, respectively. This ballistic to diffusive crossover can also be described by active OU models.

3.2. Case B: Ballistic to Anomalous to Fickian Diffusion

For $n=2$, the MSD of the particle is given by [57]

$$\begin{array}{cc}\hfill 〈R_2^2\left(t\right)〉& =2D_{2}t-\frac{2D_2}{{\gamma }_2}\left(1-e^{-{\gamma }_{2}t}\right)+{\varphi }_0\frac{D_1}{{\gamma }_2}{\left(1-e^{-{\gamma }_{2}t}\right)}^2\hfill \\ \hfill & +{\varphi }_1\frac{2D_1}{{\gamma }_1}\left(1-e^{-{\gamma }_{2}t}\right)\left(e^{-{\gamma }_{1}t}-e^{-{\gamma }_{2}t}\right)+{\overline{\gamma }}^2\frac{D_2}{{\gamma }_1}\left[h\left(t\right)+{\left(e^{-{\gamma }_{1}t}-e^{-{\gamma }_{2}t}\right)}^2\right],\hfill \end{array}$$

(8)

where $\overline{\gamma }={\gamma }_1/({\gamma }_1-{\gamma }_2)$, ${\varphi }_0={\gamma }_1/({\gamma }_1+{\gamma }_2)$, ${\varphi }_1={\gamma }_1^2/({\gamma }_1^2-{\gamma }_2^2)$, ${\varphi }_2=1-{\varphi }_1{({\sigma }_1/{\sigma }_2)}^2$, and

$$h\left(t\right)=2{\gamma }_1\left(\frac{1-e^{-2{\gamma }_{1}t}}{2{\gamma }_1}+\frac{1-e^{-2{\gamma }_{2}t}}{2{\gamma }_2}-2\frac{1-e^{-({\gamma }_1+{\gamma }_2)t}}{{\gamma }_1+{\gamma }_2}\right).$$

Two interesting cases are worth noting. First, Equation (8) exhibits the following asymptotic behavior:

$$〈R_2^2\left(t\right)〉\approx \left\{\begin{array}{cc}{t}^2,\hfill & t\to 0,\hfill \\ 2D_{1}t,\hfill & t\approx {\gamma }_1^{-1}\mathrm{and}{\gamma }_1\gg {\gamma }_2,\hfill \\ 2D_{2}t,\hfill & t\to \infty .\hfill \end{array}\right.$$

(9)

Second, when $D_1=D_2$, the MSDs for $n=1$ and $n=2$ are approximately the same, i.e.,

$$〈R_2^2\left(t\right)〉\approx 〈R_1^2\left(t\right)〉.$$

(10)

With these assumptions, Equations (9) and (10) suggest that the particle always moves ballistically for a quite short time, and its subsequent diffusive behavior is controlled by the ratio $d=D_2/D_1$. Specifically, the particle motion undergoes a transition from transient sub-diffusion when $d<1$ to normal diffusion when $d=1$ and transient superdiffusion when $d>1$.

This behavior is illustrated in Figure 1a. In all three cases, the system begins with ballistic motion and ends with normal diffusion with diffusivity $D_2$. The transient subdiffusive dynamics for $d=0.01$ is shown in Figure 1a with blue triangles. For this parameter set, the exponent of the transient subdiffusion is $\nu \approx 0.12$. The transient superdiffusion is shown with red circles, corresponding to $d=100$. Here, the superdiffusion occurs with an exponent $\nu \approx 1.9$. Additionally, for $d=1$, one has $〈R_2^2\left(t\right)〉\approx 〈R_1^2\left(t\right)〉$, demonstrating a direct transition from ballistic to diffusive dynamics.

3.3. Case C: Fickian to Anomalous Back to Fickian Diffusion

In the limit of ${\gamma }_1\to \infty$, Equation (8) reduces to [57]

$$〈R_2^2\left(t\right)〉=2D_{2}t+\frac{2(D_1-D_2)}{{\gamma }_2}\left(1-e^{-{\gamma }_{2}t}\right).$$

(11)

One can show that the MSD has the following asymptotic behavior for any value of ${\gamma }_2$:

$$〈R_2^2\left(t\right)〉\approx \left\{\begin{array}{cc}2D_{1}t,\hfill & t\to 0,\hfill \\ 2D_{2}t,\hfill & t\to \infty .\hfill \end{array}\right.$$

(12)

Furthermore, when $D_1=D_2=D$, the diffusion becomes Fickian, i.e.,

$$〈R_2^2\left(t\right)〉=2Dt.$$

(13)

Similar to case B, Equations (12) and (13) provide two essential insights into the particle’s dynamics. First, the motion is always diffusive for relatively short and long enough times. Second, the nature of the motion between the two diffusive regimes is also controlled by the ratio $d=D_2/D_1$. Specifically, the particle experiences transient subdiffusion when $d<1$, normal diffusion when $d=1$, and transient superdiffusion when $d>1$. This transition is demonstrated in Figure 1b.

3.4. Case D: Multilayered Transient Anomalous Diffusion

For $n=3$, the MSD is

$$\begin{array}{cc}\hfill & 〈R_3^2\left(t\right)〉={\sigma }_3^{2}t-2\frac{{\sigma }_3^2}{{\gamma }_3}{F}_3+{\sigma }_3^2{E}_{33}+\left\{{\sigma }_2^2{\overline{\gamma }}_{23}^2\left(E_{33}-2E_{23}+E_{22}\right)\right\}\hfill \\ \hfill & +\left\{K_{33}^{\infty }{\left(F_3\right)}^2+2K_{23}^{\infty }{\overline{\gamma }}_{23}{F}_3{G}_{32}+2K_{13}^{\infty }{F}_3\left({\overline{\gamma }}_{12}{\overline{\gamma }}_{13}{G}_{31}-{\overline{\gamma }}_{12}{\overline{\gamma }}_{23}{G}_{32}\right)\right\}\hfill \\ \hfill & +\left\{K_{22}^{\infty }{\left({\overline{\gamma }}_{23}\right)}^2{\left(G_{32}\right)}^2+2K_{12}^{\infty }{\overline{\gamma }}_{23}{G}_{32}\left({\overline{\gamma }}_{12}{\overline{\gamma }}_{13}{G}_{31}-{\overline{\gamma }}_{12}{\overline{\gamma }}_{23}{G}_{32}\right)\right\}\hfill \\ \hfill & +\left\{K_{11}^{\infty }{\left({\overline{\gamma }}_{12}{\overline{\gamma }}_{13}{G}_{31}-{\overline{\gamma }}_{12}{\overline{\gamma }}_{23}{G}_{32}\right)}^2\right\}+\left\{{\sigma }_1^2\right({\overline{\gamma }}_{12}^2{\overline{\gamma }}_{13}^2\left(E_{33}-2E_{13}+E_{11}\right)\hfill \\ \hfill & -2{\overline{\gamma }}_{12}^2{\overline{\gamma }}_{13}{\overline{\gamma }}_{23}\left(E_{33}-E_{23}-E_{13}+E_{12}\right)+{\overline{\gamma }}_{12}^2{\overline{\gamma }}_{23}^2\left(E_{33}-2E_{23}+E_{22}\right)\left)\right\},\hfill \end{array}$$

(14)

where

$$E_{ij}=\frac{1-e^{-({\gamma }_i+{\gamma }_j)t}}{{\gamma }_i+{\gamma }_j},F_i=1-e^{-{\gamma }_{i}t},G_{ij}=e^{-{\gamma }_{i}t}-e^{-{\gamma }_{j}t},$$

and for $i\ne j$, ${\overline{\gamma }}_{ij}={\gamma }_i/({\gamma }_i-{\gamma }_j)$. Here, $K_{ij}^{\infty }$ represent the entries of the equilibrium covariance matrix that is given in Appendix A.2. It must be underlined that the analysis is restricted to the cases with ${\gamma }_1>{\gamma }_2>{\gamma }_3$. This condition enables the particle to interact with each noise source in a sequential manner. Thus, the relative order of $D_1$, $D_2$, and $D_3$ ultimately determines the nature of the transient anomalous diffusion.

Let us discuss a typical case of $n=3$ with $D_2<D_1<D_3$, as shown in Figure 1c. It is apparent that the MSD profile reveals a pattern of alternating diffusive behaviors. The motion exhibits ballistic behavior at relatively short times, followed by a brief period of normal diffusion ($2D_{1}t$). Subsequently, it undergoes subdiffusion with $\nu \approx 0.5$ before entering another brief diffusive phase ($2D_{2}t$). Afterwards, the MSD becomes superdiffusive with $\nu \approx 1.6$ and returns to a final diffusive regime ($2D_{3}t$) after a longer period of time.

The entire MSD profile can be viewed as a combination of cases B and C discussed above. Notably, there is a characteristic time $\tau \approx 50$ that separates two distinct transient anomalous dynamics. For $t<\tau$, given $D_1>D_2$, the system exhibits standard ballistic to subdiffusive ($\nu \approx 0.5$) to diffusive behavior as discussed in case B. For $t>\tau$, since $D_2<D_3$, the system transitions to superdiffusive ($\nu \approx 1.6$) back to diffusive dynamics associated with case C. As a different example, if a quite large ${\gamma }_1$ (overdamped limit) is used and $D_1<D_3<D_2$ is set, the particle would undergo sequential diffusive → superdiffusive → diffusive dynamics for $t<\tau$ and diffusion → subdiffusion → diffusion for $t>\tau$. For any value of $n>3$, our model can describe several different types of anomalous diffusive behavior. This scenario will be detailed in a forthcoming paper.

4. Comparison with Experimental and MD Results

The results from Section 3 can help to understand the possible picture behind the various noise levels and the physical interpretation of their parameters $D_i$ and ${\gamma }_i$. First of all, the first noise level, $B_t^{\left(1\right)}$, represents the collisions with the surrounding fluid molecules, similar to the white noise present in the Langevin equation. All other noise levels ($n\ge 2$) represent random forces that may be attributed to interparticle interactions or external fields. Let us discuss the case where $n=2$. As shown in Section 3, in the relatively long run, the tracer follows the dynamics of $B_t^{\left(2\right)}$. This happens because it is restricted around the stochastic path of $B_t^{\left(2\right)}$ by a harmonic potential with an elastic constant of ${\gamma }_2$ (refer to Equation (2)). If the diffusivity of the second noise source is $D_2<D_1$, then the tracer slows down (see the blue triangles in Figure 1a,b). In this case, the second noise source represents trapping events due to dynamic or spatial heterogeneity that have been observed, for instance, in supercooled liquids or colloidal suspensions in optical fields [30,31,61]. If $D_2>D_1$, the tracer experiences faster superdiffusive dynamics, as depicted in Figure 1a,b (red circles). In this case, the tracer undergoes quite long runs until it intersects the stochastic path of $B_t^{\left(2\right)}$. These long runs are typical in active motion, powered by internal or external force fields, such as temperature gradients, electric potentials, or water flows. In more complicated systems, such as soft colloidal suspensions, the tracer may experience both subdiffusion due to dynamic and structural heterogeneity and superdiffusion due to stress propagation (see, for example, [28]). In some cases, such as polymers diffusing close to chemically heterogeneous surfaces, the MSD exhibits a prolonged subdiffusive behavior [67]. The duration of anomalous diffusion and the transition to Fickian dynamics is determined by the corresponding relaxation parameter ${\gamma }_i$.

The different cases described in Section 3 have been reported in experiments and numerical simulations [28,30,60,61,62]. This Section compares the predictions of Equation (2) with the outcomes from five such studies. The purpose of this comparison is only to demonstrate the model’s ability to describe MSD profiles in different settings. Thus, other interesting aspects of these studies are not discussed in the current paper.

To provide more accurate fitting, the MSD is defined as

$$〈R_n^2\left(t\right)〉=\sum _{m=1}^M{p}_m{〈R_n^2\left(t\right)〉}_m,$$

(15)

where ${〈R_n^2\left(t\right)〉}_m$ are the MSD profiles for parameters ${\mathbf{\Pi }}_m^{\left(n\right)}$ and $\mathit{p}=\{p_1,...,p_M\}$ are the corresponding statistical weights. To keep the fitting procedure as simple as possible, this paper only considered cases where $M=1$ or 2. Often, there is a relatively high number of fitting parameters to be considered. However, the initial estimate for the parameter values is straightforward. All diffusivities can be obtained by independently fitting the one-parameter function $2D_{i}t$ to the corresponding linear MSD regimes. Additionally, the times ${\gamma }_i^{-1}$ correspond to the beginning of the transition from one ballistic or diffusive regime to the next diffusive regime. These initial estimates are often close to the values obtained by standard linear optimization techniques.

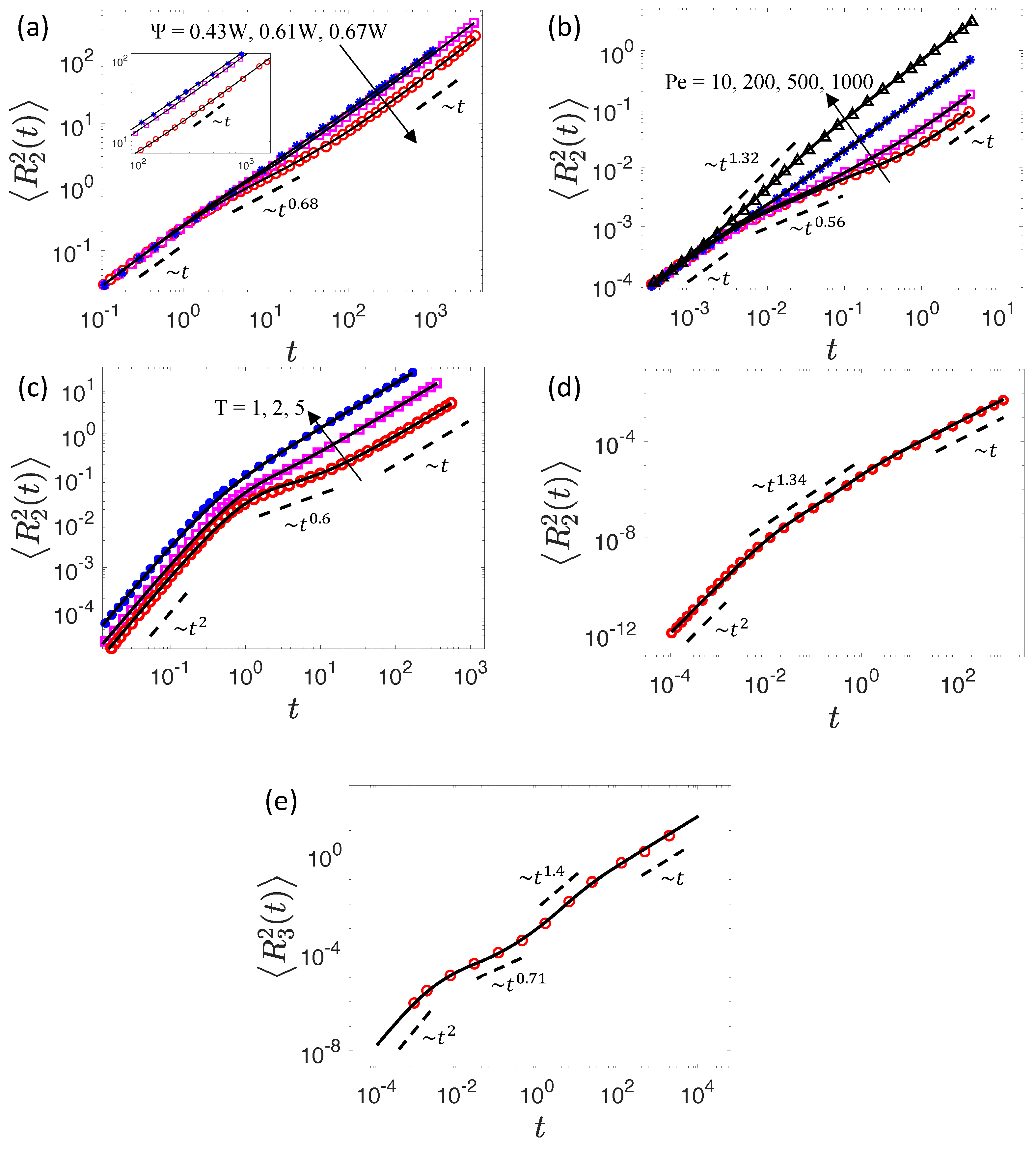

The comparison of our model with other approaches is demonstrated in Figure 2 and is described in Section 4.1, Section 4.2, Section 4.3, Section 4.4 and Section 4.5. The optimally fit parameters are given in Appendix A.1. Note that ${\gamma }_1=\infty$ indicates that Equation (11) was used to fit the data. All data were extracted using the WebPlotDigitizer software [68].

4.1. Transient Subdiffusion of Colloidal Suspensions in Optical Speckle Fields

In a recent study, the motion of quasi-two-dimensional suspensions of colloidal particles under the influence of spatially random optical force fields were investigated [30,31]. It was found that the strength of the optical field ($\Psi$) significantly influences the tracers’ diffusive behavior. Specifically, without an external field, the motion exhibited Fickian dynamics. However, the presence of an optical field led to transient subdiffusive motion, similar to the blue backward triangles in Figure 1b. Interestingly, the motion became increasingly more subdiffusive (i.e., lower $\nu$) as the optical field strengthened. This transition from a diffusive to a transient subdiffusive process resembles case C from Section 3.3. Equation (11) can successfully reproduce the experimental MSD profiles by decreasing the ratio d starting from 1. The direct comparison of the model with the results of Refs. [30,31] is presented in Figure 2a. The optimal parameters can be found in

Table A1. Fit parameters for Section 4.1 and Figure 2a.

$\mathbf{\Psi }$	$(\mathit{n},\mathit{M})$	p	${\mathbf{\Pi }}_1^{\left(2\right)}$	${\mathbf{\Pi }}_2^{\left(2\right)}$
$43W$	$(2,2)$	$\{0.68,0.32\}$	$\{0.133,0.065;\infty ,0.3\}$	$\{0.133,0.065;\infty ,0.01\}$
$61W$	$(2,2)$	$\{0.8,0.2\}$	$\{0.133,0.057;\infty ,0.3\}$	$\{0.133,0.057;\infty ,0.01\}$
$67W$	$(2,2)$	$\{0.8,0.2\}$	$\{0.133,0.0315;\infty ,0.38\}$	$\{0.133,0.0315;\infty ,0.05\}$

in Appendix A.1.

4.2. Transient Anomalous Diffusion in Bedload Tracers

The movement of bedload tracers exhibits both super- and subdiffusion characteristics, which are typically modeled using the CTRW. In a recent study, in Ref. [60], the Exner-based master equation was implemented to show, for the first time, that the anomalous diffusion of bedload tracers is transient, and over time, the system returns to a Fickian phase. Additionally, by adjusting the Peclet number, Pe, from high to low values, it was predicted that the motion shifts from transient subdiffusion to Fickian diffusion and, then, to transient superdiffusion. This transition is detailed in case C (Figure 1b) of Section 3.3 and can also be successfully modeled by adjusting the ratio d in Equation (11) from $d<1$ to $d=1$ to $d>1$. The exceptionally good fitting of Equations (11) and (15) with the MSD profiles reported in Ref. [60] is illustrated in Figure 2b. The optimally fit parameters are given in

Table A2. Fit parameters for Section 4.2 and Figure 2b.

Pe	$(\mathit{n},\mathit{M})$	p	${\mathbf{\Pi }}_1^{\left(2\right)}$	${\mathbf{\Pi }}_2^{\left(2\right)}$
10	$(2,2)$	$\{0.22,0.78\}$	$\{0.155,0.0103;\infty ,14.38\}$	$\{0.155,0.0103;\infty ,199\}$
200	$(2,2)$	$\{0.15243,0.8151\}$	$\{0.155,0.04;\infty ,8.12\}$	$\{0.155,0.04;\infty ,163.1\}$
500	$(2,2)$	$\{0.72,0.28\}$	$\{0.155,0.08;\infty ,333.5\}$	$\{0.155,0.08;\infty ,6.9\}$
1000	$(2,2)$	$\left\{1\right\}$	$\{0.155,0.35;\infty ,100\}$	-

in Appendix A.1.

4.3. Transient Subdiffusion in Supercooled Liquids

The Stokes–Einstein relation breaks down in supercooled liquids. This phenomenon is commonly attributed to the emergence of dynamic heterogeneity at low temperatures [69]. Typically, in dynamic heterogeneity, particles continuously jump between traps temporarily formed by neighboring molecules [70]. This entrapment leads to a subdiffusive behavior at intermediate time scales. Overall, the MSD in supercooled liquids is ballistic at relatively short times, changes to subdiffusive at intermediate scales, and eventually resembles standard Fickian dynamics. The subdiffusive phase becomes more pronounced with decreasing temperature. This transition resembles case B from Section 3.2 and can be captured by decreasing the ratio d departing from unity.

Figure 2c demonstrates a direct comparison of Equation (8) with the MD results of a supercooled binary Lennard–Jones mixture [61]. The fitting is good enough at the moderate temperatures ($T=5$, 2, and 1), but it becomes less precise for considerably low temperatures (not shown in Figure 2c). This deviation may be due to the existence of numerous relaxation time scales in the limit of strong dynamic heterogeneity. If this is true, Equation (2) must consider a larger number of noise sources. It would also be helpful to consider a more appropriate superstatistical approach of the MSD as compared to quite a simple equation (15). This hypothesis is planned to be tested in future. The best-fit parameters for the temperatures $T=5$, 2, and 1 are given in

Table A3. Fit parameters for Section 4.3 and Figure 2c.

T	$(\mathit{n},\mathit{M})$	p	${\mathbf{\Pi }}_1^{\left(2\right)}$	${\mathbf{\Pi }}_2^{\left(2\right)}$
1	$(2,1)$	$\left\{1\right\}$	$\{0.133,0.00423;1.59,1.6\}$	-
2	$(2,1)$	$\left\{1\right\}$	$\{0.068,0.0185;2.4,1.6\}$	-
5	$(1,2)$	$\{0.5,0.5\}$	$\{0.068;5\}$	$\{0.072;4\}$

in Appendix A.1.

4.4. Transient Superdiffusion in Semiconductor Alloys

In solids, the transfer of heat typically occurs through the harmonic vibrations of the atoms. Such vibrations are described by quasiparticles known as phonons. Despite significant differences in the underlying physical mechanisms, phonon transport is generally modeled by the stochastic trajectories of Brownian particles. This picture is certainly sufficient at the macroscale, where Fourier’s equation of heat transport coincides with the diffusion equation of Brownian particles. However, on the microscopic scale, phonon transport substantially deviates from Fickian diffusion and exhibits superdiffusive (quasi-ballistic) behavior. Instead of standard BM, CTRWs are typically employed to capture this phenomenon. In Ref. [62], the authors used the Boltzmann transport equation (PTE) with ab initio phonon dispersions and scattering rates to study thermal conductivity in semiconductor alloys. Through a combination of numerical and analytical results, it was revealed that heat transport exhibits an intermediate superdiffusive regime. In SiGe, specifically, the authors showed that the MSD of thermal energy is ballistic at short time scales, superdiffusive at intermediate scales, and diffusive at longer time scales. This transient anomalous diffusion can be described by Equation (8) with $d>1$, as shown in Figure 1a (red circles). The exceptionally good agreement of our model predictions the PTE solution is presented in Figure 2d. The optimal parameters are given in

Table A4. Fit parameters for Section 4.4 and Figure 2d.

$(\mathit{n},\mathit{M})$	p	${\mathbf{\Pi }}_1^{\left(2\right)}$	${\mathbf{\Pi }}_2^{\left(2\right)}$
$(2,2)$	$\{0.5,0.5\}$	$\{0.000000825,0.0000027;134,2\}$	$\{0.015,0.0000542;2,3.89\}$

in Appendix A.1.

4.5. Multilayer Transient Anomalous Diffusion in Highly Packed Soft Colloids

The recent study [28] used MD simulations to investigate the impact of deformation on the transport properties of soft colloids. It was found that, when the packing fraction is high enough, the interplay between deformation and dynamic heterogeneity results in intermediate superdiffusive behaviors. The reported MSD for a packing fraction of $\zeta =1.264$ also indicated a preceding phase of ballistic to subdiffusive behavior. Overall, the motion of highly packed soft colloids exhibits multiple diffusive phases that are similar to case D from Section 3.4. The successful reproduction of Equation (2) in the MD simulations of highly packed soft colloids ($\zeta =1.264$) [28] is presented in Figure 2e. It is quite evident that the MSD profile is ballistic at relatively short times, gradually progresses to subdiffusive with $\nu \approx 0.71$, then switches to superdiffusive with $\nu \approx 1.4$ before it reaches the terminal diffusive phase with diffusivity $D_3$. The optimally fit parameters are presented in

Table A5. Fit parameters for Section 4.5 and Figure 2e.

$(\mathit{n},\mathit{M})$	p	${\mathbf{\Pi }}_1^{\left(2\right)}$	${\mathbf{\Pi }}_2^{\left(2\right)}$
$(3,1)$	$\left\{1\right\}$	$\{0.0012,0.00035,0.0018;1550,90,0.2\}$	-

of Appendix A.1.

5. Conclusions

This study briefly demonstrated that quite a simple system of hierarchically coupled OU processes effectively models a diverse range of transient anomalous diffusion MSD profiles. Although initially developed for transient subdiffusion, its applicability extends to transient superdiffusion dynamics and, equally significant, mixtures of transient anomalous diffusion. This note may be useful in an effort to unify the diffusion of active and passive Brownian particles in complex environments. To demonstrate the capability of the proposed stochastic process, this paper directly compared the predictions of Equation (2) with other experimental and numerical studies. Equation (4) can be straightforwardly extended to any spatial dimension to model more realistic settings. It can also be generalized by incorporating different types of noise sources with or without fluctuating diffusivities. The latter is crucial in describing non-Gaussian features that are often observed in transport phenomena in complex environments [57].
