Enhanced Retention of Mandibular Digital Complete Dentures Using an Intraoral Scanner: A Case Report

Abstract

Introduction: Mandibular complete dentures often pose challenges due to anatomical and functional limitations. Impression techniques, including functional, mucostatic, compressive, selective pressure, and neutral zone methods, play a crucial role in achieving stability and retention. In 1999, Abe introduced the Suction Effective Mandibular Complete Denture (SEMCD) technique, revolutionizing mandibular denture retention by incorporating functional extensions and achieving a peripheral seal even in the presence of mobile soft tissues. Case report: An 87-year-old male presented to a private dental clinic with the chief complaint that his current lower complete denture lacked retention and stability. Intraoral examination revealed a severely resorbed mandibular edentulous ridge with movable retromolar pads and a prominent spongy lingual area. This case report describes the integration of Abe’s concepts into a digital workflow, using a single-step intraoral scanning technique and digital design software to fabricate a mandibular denture with enhanced retention and stability. Conclusions: This approach minimizes the number of clinical steps involved, improves patient comfort, and achieves predictable outcomes, highlighting the utility of digital technologies in modern prosthodontics.

1. Introduction

Achieving acceptable stability and retention with mandibular complete dentures presents significant challenges. Specific issues such as high tongue mobility, insufficient residual ridge height, movable retromolar pads, and anatomical structures that change size when the patient opens or closes their mouth complicate the use of mandibular dentures [1,2].

Definitive impressions for complete dentures play a crucial role in treatment success and can be classified into techniques such as neutral zone, mucostatic, mucocompressive, selective pressure, and functional. Among these, functional techniques aim to capture the dynamic relationship between soft tissues and the denture base, enhancing retention and stability during function [3,4,5].

In 1999, Abe introduced an innovative functional impression technique and new concepts regarding the correct extension of the prosthesis that revolutionized denture fitting by ensuring a peripheral seal even with mobile soft tissues at the denture’s base. This method, known for its high predictability, enabled mandibular dentures to restore function and masticatory capacity, significantly improving patients’ quality of life, all without requiring surgical procedures [6].

Advancements in technology have significantly transformed the fabrication of complete dentures, offering more efficient and precise methods than traditional approaches. The integration of computer-aided design (CAD) and computer-aided manufacturing (CAM) has enabled the creation of digital complete dentures with a high degree of accuracy and repeatability [7]. The use of intraoral scanners (IOS) has significantly improved the patient experience by eliminating the need for physical impressions, which can be uncomfortable and less accurate [8].

The purpose of this report is to describe a technique for fabricating mandibular dentures with increased retention, utilizing a single-step scanning technique combined with Abe’s concepts for both the intraoral scanning process and the design of the prosthesis extension.

2. Materials and Methods

An 87-year-old male presented to a private dental clinic with the chief complaint that his current lower complete denture, which he had worn for approximately two years, lacked retention and stability, making it difficult for him to eat and speak. The patient’s medical history was non-contributory, with no contraindications for dental treatment.

Intraoral examination revealed a severely resorbed mandibular edentulous ridge with movable retromolar pads and a prominent spongy lingual area (Figure 1). The existing denture exhibited excessive movement of the mandibular base during functional activities, with teeth positioned in suboptimal locations.

The patient was presented with several treatment options, including implant overdentures, implant-supported fixed prostheses, and new complete dentures. However, he opted for a new mandibular complete denture, emphasizing his preference for a design closely resembling his current prosthesis and expressing his intention to use it temporarily while deciding whether to pursue implant treatment at a later date.

During the first appointment, an intraoral scanner (Aoralscan 3, Shining 3D, Hangzhou, China) was used to scan the patient’s existing dentures in occlusion. Although the dentures lacked adequate stability, they provided a reference for the patient’s vertical dimension of occlusion. This process not only facilitated the capture of the antagonist but also preserved the vertical dimension, eliminating the need for an additional appointment. In cases where the patient does not have existing dentures, it would be necessary to schedule an extra visit to design and print bases with wax rims to obtain an occlusal record.

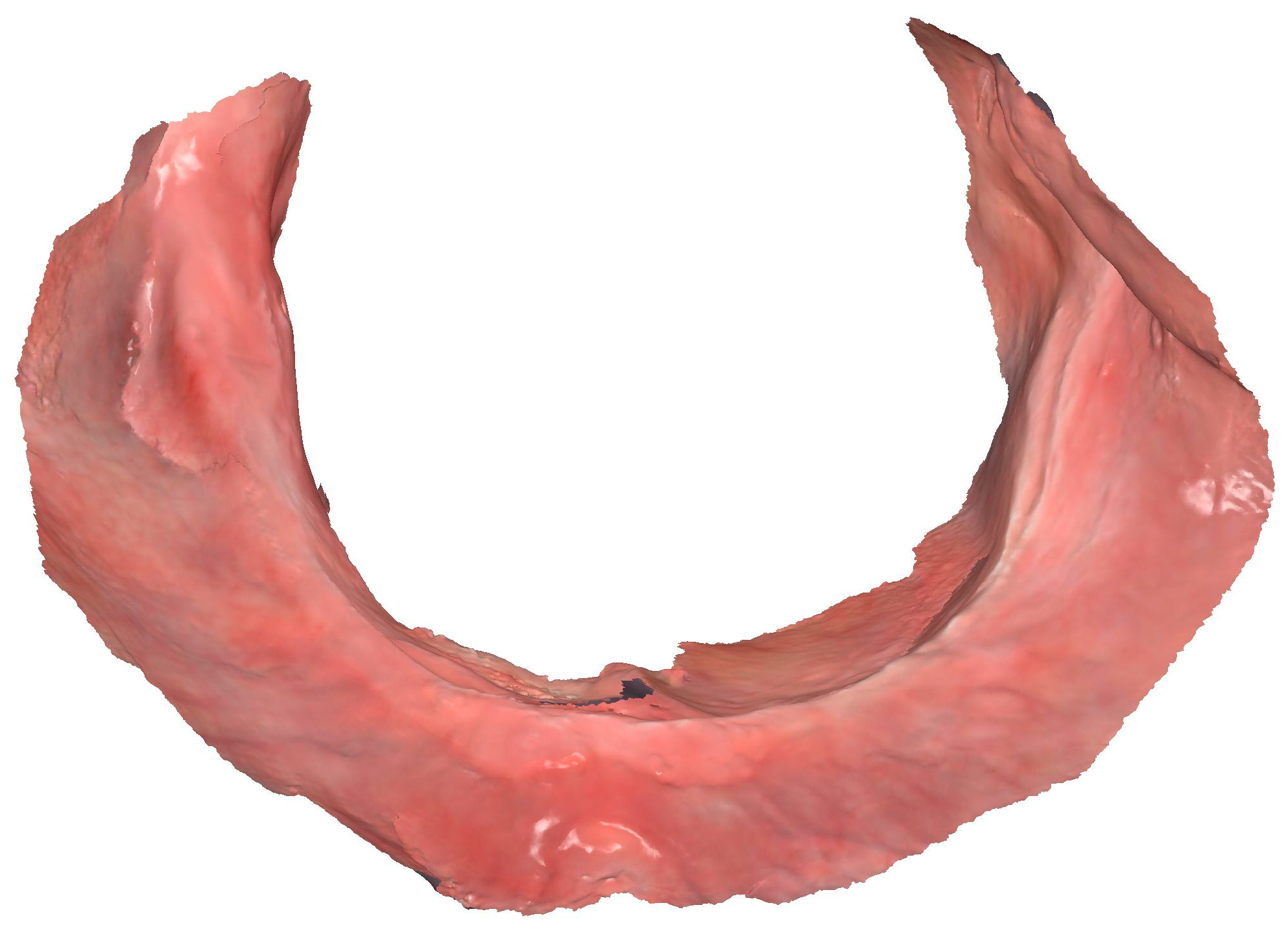

To perform the mandibular scan, an intraoral retractor for edentulous arches (Lo Russo Retractors, Vallesaccarda, Italy) was employed (Figure 2). The patient was instructed to keep their mandible slightly closed, in a resting position, while the scan was performed following a specific strategy: starting posteriorly and proceeding along the occlusal aspect of the ridge to the opposite side, subsequently returning along the palatal or lingual aspect, and finally scanning the buccal aspect (Figure 3).

Once the mandibular scan was completed, the scanner software automatically aligned the scan with the reference of the patient’s existing dentures due to similarities in their surface geometry. If automatic alignment is not feasible because the existing denture lacks sufficient extension, it may be necessary to reline the denture using an impression material or a relining material. This adjustment enables proper matching, which can be performed through various methods, either directly in the scanner software or later in the design software. The scan files were subsequently exported to design software (DentalCAD 3.2 Elefsina, Exocad GmbH, Darmstadt, Germany) to create the prosthesis.

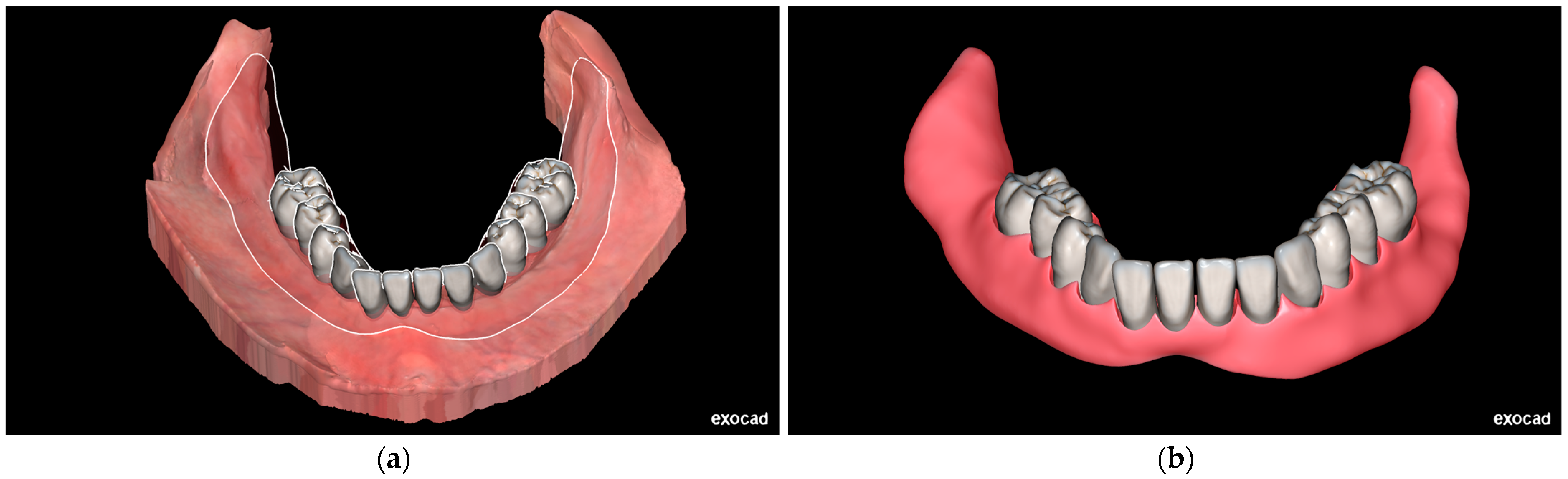

For this design, the outline was carefully extended to fully cover the retromolar pad, avoid interference with Someya’s sinew string, reach the deepest point of the buccal shelf, relieve pressure on the buccal frenum, and extend two millimeters beyond the mylohyoid ridge. The teeth were positioned based on the patient’s request, using the previous denture as a reference (Figure 4).

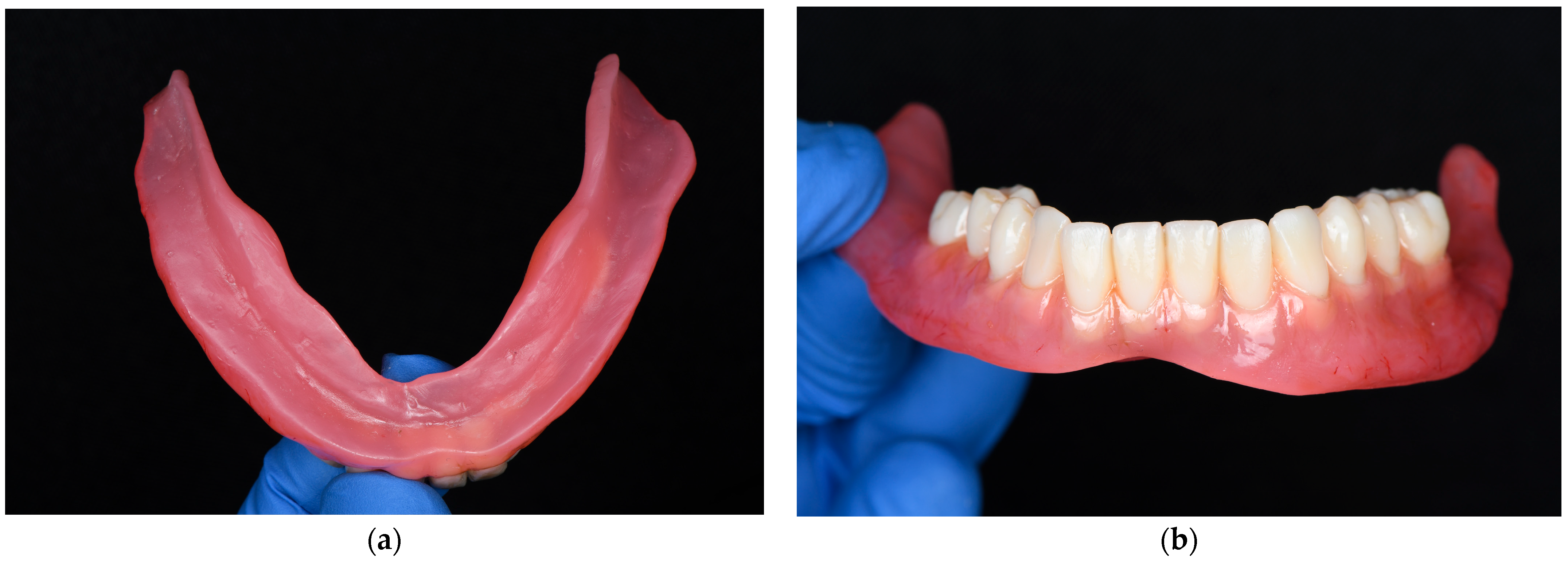

The final denture base was printed using pink base resin (Denture Base Resin, Formlabs, Somerville, MA, USA), and the teeth were printed with denture teeth resin (Denture Teeth Resin A2, Formlabs, Somerville, MA, USA). The prosthesis was then assembled, finished, and polished (Figure 5).

At the second appointment, the patient received the final denture, which fit well and restored his masticatory function. He reported satisfaction with the comfort, stability, and esthetics of the new denture (Figure 6). He was instructed to attend regular follow-up appointments to monitor and maintain the functionality and comfort of the prosthesis. At the first follow-up visit, a minor adjustment was made to a small area of the denture’s intaglio surface to alleviate slight pressure. During follow-up appointments at one and four months, the patient reported high satisfaction with both function and esthetics.

3. Discussion

The advent of digital technologies in dentistry has significantly transformed the fabrication of complete dentures, introducing more efficient and precise methods compared to traditional techniques [9]. Conventional impression methods have long been considered the gold standard for obtaining accurate anatomical records; however, they present limitations such as patient discomfort, potential for tissue distortion, and challenges in capturing dynamic anatomical structures, especially in the mandibular arch [10].

IOS have emerged as valuable alternatives, offering efficient and reproducible means of capturing oral anatomy while enhancing patient comfort. Studies have demonstrated that digital scans obtained via IOS can capture fine anatomical details without the distortion associated with conventional impression materials, a critical factor for achieving optimal fit in mandibular complete dentures, particularly in patients with compromised residual ridges or mobile soft tissues [11].

Despite these advantages, achieving an effective peripheral seal—a crucial element for the retention and stability of complete dentures—remains a challenge with digital impressions. The development of refined scanning protocols and techniques has addressed many of these obstacles, improving clinical predictability [12]. Utilizing IOS as a primary record before definitive impressions allows for precise planning and iterative adjustments of prosthetic designs, reducing clinical time and the number of appointments required [13]. The implementation of specific scanning strategies is essential to ensure accurate and functional digital impressions [14,15,16,17]. Techniques such as employing intraoral retractors to stabilize soft tissues and systematically capturing critical anatomical landmarks—such as the retromolar pad and buccal shelf—have enhanced the quality and clinical utility of digital records [18].

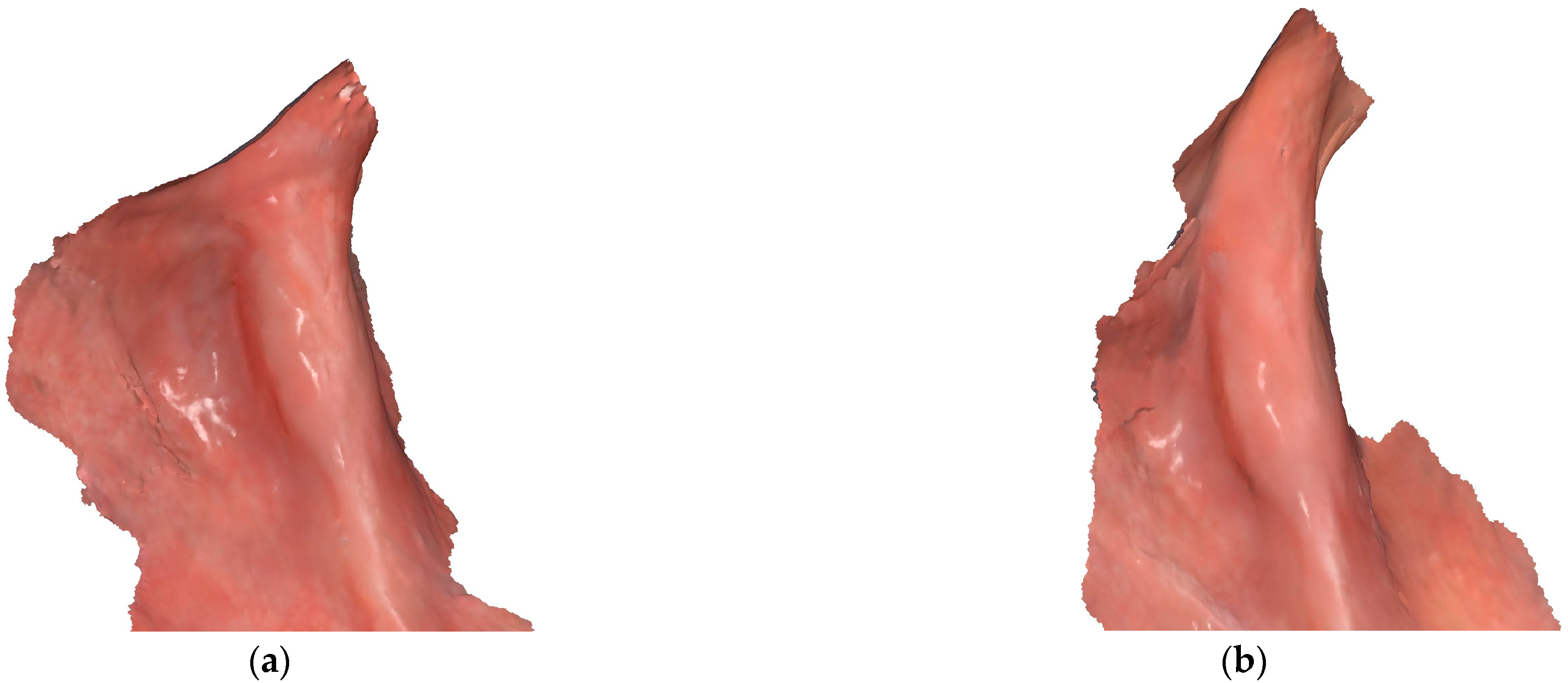

Jiro Abe’s Suction Effective Mandibular Complete Denture (SEMCD) technique revolutionized the concept of achieving a peripheral seal in mandibular dentures by accounting for the dynamic nature of soft tissues. The key concepts of SEMCD involve capturing tissue dynamics by recognizing the dimensional changes in the retromolar area when the mouth opens or closes. Abe emphasized taking impressions with the mouth closed to ensure that the prosthesis aligns accurately with the tissues during function, as impressions taken with the mouth open can lead to discrepancies between the prosthesis and posterior tissues, compromising the peripheral seal and suction effectiveness. Additionally, extending the denture 2 to 3 mm beyond the mylohyoid ridge increases stability during functional movements by engaging additional tissue support. Relieving pressure in the area of Someya’s sinew string—a tendinous structure located in the floor of the mouth near the retromolar pad—is crucial. This anatomical feature plays a key role in regulating the movement of the buccal mucosa and maintaining the posterior seal of the oral vestibule [19]. It appears as a sinew-like band of connective tissue that stabilizes the mucosal tissues during functional movements, such as mastication. Failure to account for this structure during prosthesis design can cause discomfort, impair tissue function, and lead to prosthesis dislodgement during mastication, compromising patient comfort and prosthetic stability (Figure 7).

In the present case, Abe’s SEMCD principles were integrated into a digital workflow by considering three key elements: the use of an intraoral retractor to scan edentulous arches, performing the scan with the mandible in a proper resting position, and ensuring the ideal extension of the prosthesis. The intraoral retractor provided optimal soft tissue stabilization and visibility, enabling accurate execution of the scanning strategy. By performing the intraoral scan with the patient maintaining a mandibular resting position, the functional dimensions of the soft tissues were captured, improving the accuracy of the digital impression (Figure 8). Additionally, the digital prosthesis design was extended beyond the mylohyoid ridge, and pressure was relieved in the area of Someya’s sinew string, replicating the functional extensions described by Abe and optimizing the stability and retention of the final denture [20].

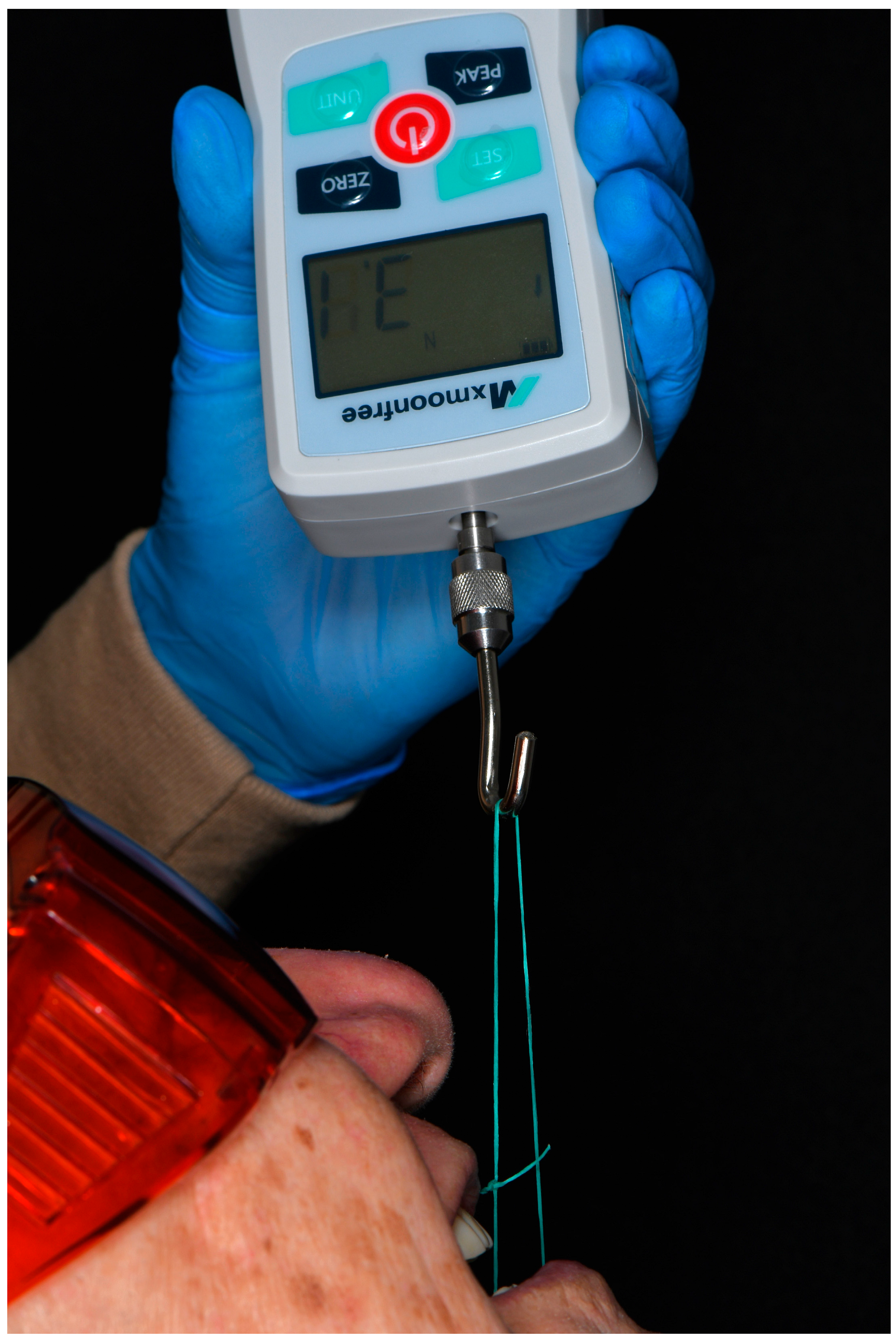

Retention is a critical factor in the success of mandibular dentures. Studies comparing the force required to dislodge mandibular overdentures have shown that ball attachments require approximately 0.655 kg, implant bar attachments require 1.677 kg, and magnet attachments require 0.370 kg for removal [21]. In this case, dental floss and a dynamometer (Digital Force Gauge, Mxmoonfree, Hangzhou, China) were used to measure the retention of the denture. The dental floss was tied to the prosthesis, which was then inserted into the patient’s mouth. The patient was in-structed to swallow to ensure proper seating of the denture. Afterward, the hook of the dynamometer was attached to the dental floss, and the patient was asked to open their mouth. Once the mouth was open, a vertical force was applied to measure the amount of force required to dislodge the prosthesis. The digitally fabricated mandibular complete denture required 0.31 kg of force for dislodgement (Figure 9). Although the retention force achieved is slightly lower than that of some attachment systems, this approach offers a viable treatment option for edentulous patients.

Incorporating SEMCD concepts into a digital workflow is both feasible and beneficial. The digital replication of functional extensions allows for high precision in prosthesis fabrication, potentially leading to improved clinical outcomes. Moreover, this method eliminates the need for physical impressions and models, streamlining the fabrication process and enhancing patient comfort. Due to the nature of the present article, further clinical studies are necessary to compare the impact of scanning edentulous mandibles with open or closed mouth techniques on long-term denture retention and stability.

4. Conclusions

The integration of Abe’s principles into a digital workflow enhances the retention and stability of mandibular complete dentures while minimizing the number of clinical steps involved. The results of this study demonstrate that digital technologies can effectively replicate established functional concepts, providing a precise and efficient solution for the rehabilitation of edentulous patients.
