Chemical and Anatomical Study of Gleditsia triacanthos to Identify Opportunities for Wood and Non-Wood Uses ^†

Abstract

In Uruguay and neighbouring countries, Gleditsia triacanthos is an exotic tree species categorized as invasive; it produces severe ecological impact as it displaces native species, changing the structure of the native forest community. One way to mitigate its negative impact is to identify opportunities to use it by revaluating its biological products. This work studies the applicability of this species as a source of both combustible and non-wood products. The heat capacity, chemical composition, and anatomical description of its wood was determined. Polyphenols extracted by way of an adhesive for timber products were finally added, partially substituting petroleum derivatives; it showed promising results.

1. Introduction

Known as honey-locust, Gleditsia triacanthos (Gt) is a woody species of the Fabaceae family, native to North America [1]. It is a thorny, medium-sized tree with a straight stem form, usually reaching 21–25 m, with a diameter at breast height (DBH) of 60–100 cm. It appears to require warm climates (temperate or Mediterranean) with moist conditions (moist semi-arid to sub-humid) to become invasive, although actual requirements are far from clear [2]. It can be considered an aggressive colonizer: a root sucker, its abundant seed production and high germination capacity [3] allows it to rapidly form dense, impenetrable stands. Gleditsia triacanthos is a successful invader given its competitive ability, its phenotypic plasticity, and its high adaptability to different environments [4]. It forms mixed or monospecific forests [5]. This species has been introduced all around the world, spreading away from where it is planted and becoming a naturalized or invasive species [6]. Today it is categorized as invasive in Oceania, Europe, and many South American countries, such as Uruguay and Argentina. In Australia [7] and Africa [8], it is a potentially invasive species.

As any other biological invasion, Gt is a main cause of biodiversity loss [9], which has severe economic [10] and ecological impact, as it displaces native species, changing the structure of the native forest community and negatively affecting native fauna and flora. Given its wide distribution, it is extremely difficult to control. Chemical methods, namely drilling the trunk and applying herbicides, are commonly used; such control methods reduce its effects on the environment, but has visual impact and operational and time costs [1]. One way to mitigate its negative impact is to identify opportunities to use Gt after cutting down the bushes by reevaluating its biological products. Using its wood or non-wood byproducts and residues as raw material for new biochemical products, biomaterials, and biocombustibles creates added value and reduces waste. There are various examples of biorefining and valorization of Gt, scalable for designing cost-effective, circular bio-economy approaches: the galactomannans fraction from Gt seeds could become a food texture modifier for starch-based products [11]; the galactomannans could also be used as a foam stabilizer and thickening agent in the food industry [11]; a functional wound dressings with antioxidant and antimicrobial activity have been developed from the cellulose of G. triacanthos pods, and phenolic compounds have been extracted from its leaves [12,13].

This work aims to study the applicability and valorization of this species as a source of both combustible and non-wood products, creating sustainable value chains based on a circular economy that could be put into practice in Uruguay and the region. In order to achieve this, the calorific value, chemical composition, and anatomical description of its wood was determined, as well as the suitability of its extractives for their use in wood adhesives.

2. Materials and Methods

2.1. Test Specimens

27-year-old Gleditsia triacanthos (Gt) trees from Facultad de Agronomía, Udelar (32°20′16.22″ S, 54°26′58.00″ W) were used in the study. Sapwood and heartwood were air dried for five weeks to a stable moisture content of 12% and were then cut into (3.0 × 3.0 × 3.0) cm cubes.

2.2. Wood Characterization

2.2.1. Microscopy

Wood samples were softened in water for 24 h and were then sectioned with a sliding microtome Reichert-Jung xylotome (Vienna, Germany) into 10–20 mm thick slides, which were observed with a fluoresce microscope, Nikon Eclipse 50i.

2.2.2. Chemical Analysis

Heartwood and sapwood were finely milled in a rotary mill (Marconi Ltd., Piracicaba, Brasil), and the 40–60 mesh fraction was used for chemical analysis. A sample was taken in order to determine humidity content by weight difference before and after drying in a stove at 103 ± 2 °C until constant weight. Milled samples were extracted with ethanol for 24 h in a Soxhlet apparatus. Chemical analyses were conducted in three replicates.

Lignin content [14]: 3.0 mL of 72% sulphuric acid was added to 300 mg of milled hardwood or sapwood, dry and free from extractives, and then incubated in a water bath set at 30 ± 3 °C for 60 min, diluted at 4% with purified water, and placed in an autoclave at 121 °C for 60 min. The mixture was finally cooled down, filtered with a filter crucible by vacuum and washed with hot deionized water. Acid soluble lignin was measured in the obtained liquid with a UV-Visible spectrophotometer at 240 nm; acid-insoluble lignin was determined by weight in the solid residue.

Holocellulose content [15]: 8 mL of hot water, 0.5 mL of acetic acid, and 1 g of sodium chlorite were added to 2.5 g of dry extractive free samples, which were then placed in a water bath at 70 °C. Every hour, 0.5 mL of acetic acid and 1 g of sodium chlorite were added until fibers were separated. These were cooled, filtered, and washed with distilled water and acetone. The solid was dried at 105 °C for 24 h. Finally, for cellulose content [14]: 5 g of milled wood was refluxed for 1 h in an alcoholic solution with nitric acid, which was then filtered and left in distilled water for 30 min. The residue was extracted with NaOH at 4% for 40 min, then filtered, washed with water and acetic acid, and dried at 105 °C for 12 h.

2.2.3. Proximate Analysis and Calorific Value

Ash determination was performed according to ASTM D1102 standard [16] in a muffle (ThermoScientific, Waltham, MA, USA) at 580 °C. Volatile determination was performed according to ASTM E872-82 standard [17]. Calorific value was determined according to ASTM D2015-89(00) standard [18] using a calorimetric oxygen pump (XRY-1A+, Shangai, China).

2.3. Extraction and Stiasny Number

Extraction was carried out in a laboratory autoclave [19] in which the milled heartwood was placed in a 1:10 (m/m) ratio, water/wood at 120 °C for one hour. The mixture was then placed on a stove at 70 °C in a stainless-steel tray until all water evaporated. The resulting dust was milled and used to determine the Stiasny number.

Five milliliters of formaldehyde 38% and 2.5 mL of HCl 37% were added to 25 mL of Gt hardwood extract. The mixture was refluxed for 30 min [18], filtered by vacuum, and the solid was washed with distilled water. Solid precipitate was dried at 105 °C until constant weight. Stiasny number (%) was determined as (Dry mass of precipitate/Dry mass of extract) × 100.

3. Results and Discussion

3.1. Chemical and Anatomical Analysis

Table 1. Chemical composition of G. triacanthos sapwood and heartwood. Average values with their respective standard deviations.

Component	Sapwood	Heartwood
Extractives in ethanol (%)	4.29 ± 0.02	8.60 ± 0.02
Cellulose (%)	45.19 ± 1.42	43.41 ± 1.06
Holocellulose (%)	79.9 ± 0.97	82.88 ± 1.68
Acid soluble lignin (%)	0.54 ± 0.02	0.88 ± 0.03
Acid insoluble lignin (%)	13.30 ± 2.07	9.65 ± 0.58

shows the global chemical composition of Gt wood, whereas

Table 2. Proximate analysis and calorific value of G. triacanthos. Average values with their respective standard deviations.

Component	Sapwood	Heartwood
Ash (%)	0.72 ± 0.04	0.80 ± 0.03
Volatiles (%)	83.04 ± 0.62	83.18 ± 0.56
Humidity (%)	9.98 ± 0.05	10.32 ± 0.14
Calorific value (kJ/kg)	18.24	18.61

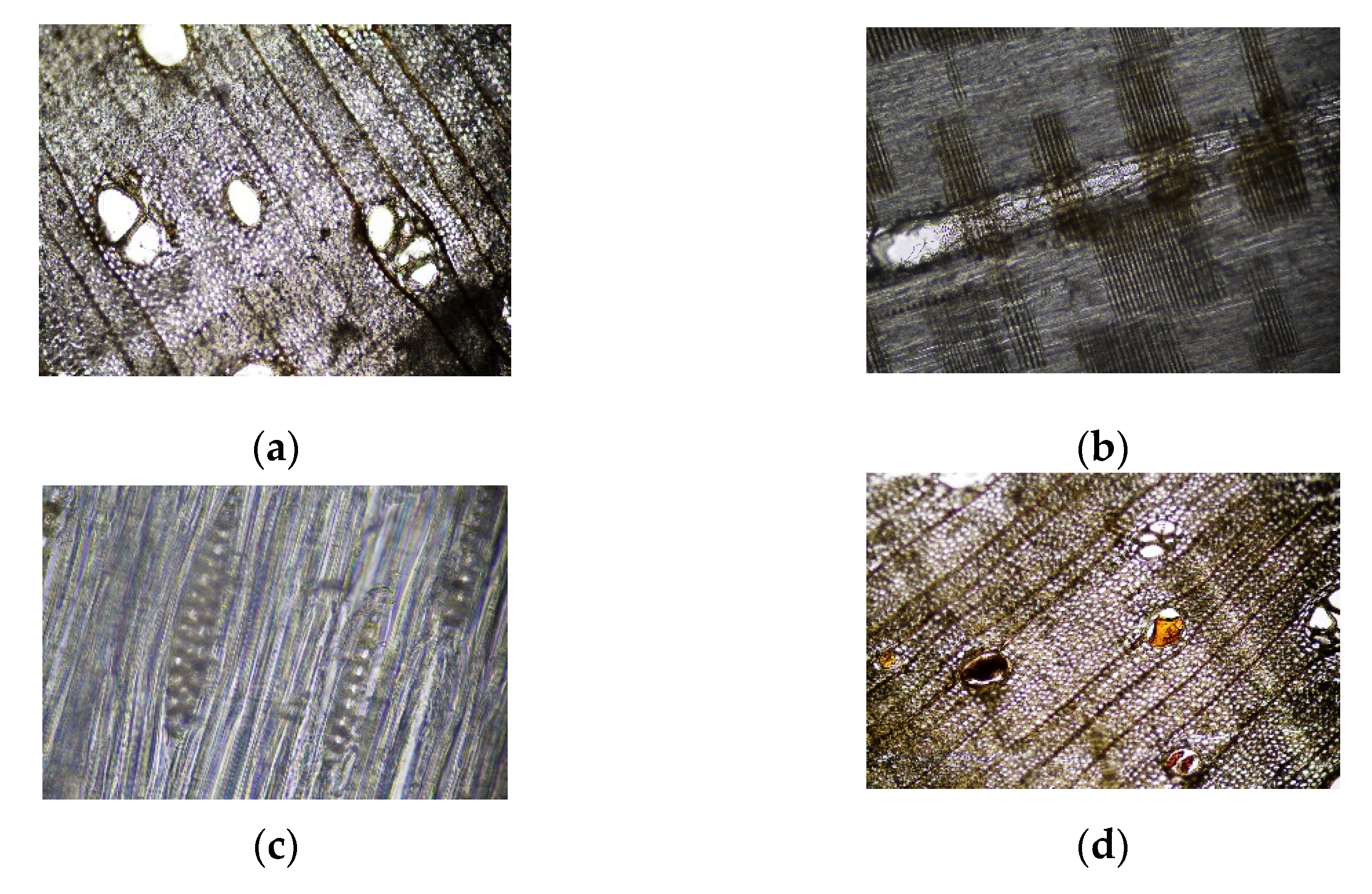

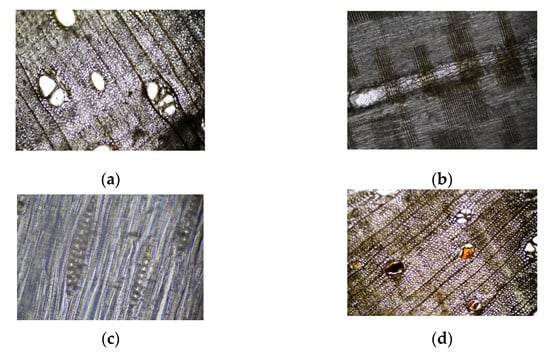

shows the proximate analysis. Figure 1 shows pictures of tangential, radial, and transversal cuts of Gt wood as seen through an optic microscope, porosity, multiseriate rays, and obstructions in heartwood vessels.

Overall, Gt wood has a similar composition to other wood species, although its lignin content is lower than in the literature by 19–21% [19]. As expected, more extractives were obtained with ethanol from heartwood than from sapwood; however, no differences in structural polymer content was observed between Gt heartwood and sapwood.

When comparing Gt and Eucalyptus camaldulensis wood, it can be observed that cellulose content is analogous to that presented in the literature, 43–44% range for E. camaldulensis [20]. However, holocellulose content is higher than that reported for E. camaldulensis (65–79% range) [20]. No literature could be found on Gt’s lignin content. E. camaldulensis is a very dense species, easy to work with and commonly used in the region in construction for its resistance to decay [21] and also as a combustible [22,23].

E. camaldulensis has a calorific value of 19.2 MJ/kg [24], higher than that of Gt sapwood and heartwood. Although calorific value indicates heating potential when using wood as fuel, usually, it is the fuel value index that is used to quantify and compare wood quality as fuel [25]. Said index also considers basic density of the wood, humidity, and ash content. Gt not only has a lower calorific value, but also its basic density and ash content negatively affect its fuel value index. Although using Gt wood as fuel does not seem to offer any advantages over wood species used today, it is still a viable option.

Finally, extractive content is lower for Gt than for E. camaldulensis (10%) [23], but it is higher than that of other Eucalyptus species, which present values in the 3.0–5.0% range [25]. Although a determining factor for extractive type and quantity, age was not considered.

3.2. Extractions and Stiasny Number

During the last few decades there has been an increasing interest in substituting fossil products with more natural alternatives, as evidenced by co-efficient bio-based adhesives, developed considering ecological and economical aspects [26]. Examples of such bio-based adhesive are those in which formol-formaldehyde is partially or totally substituted with tannins. Tannins are compounds of fundamentally phenolic nature, which can be classified into hydrolyzable and condensed. The latter are very abundant in the heartwood of some wood species and can be used in the development of adhesives. In this work, solid/liquid extraction had a performance of 10.9% for sapwood and 14.3% for heartwood. The latter value coincides with that obtained by maceration with ethanol in previous studies [27], making extraction in an autoclave the most convenient method, as it uses water as a solvent, which is preferred by the industry [28].

Suitability of Gt tannins to be used in wood adhesives is evaluated through a simple reaction with formaldehyde, triggering the polymerization of tannins, from which the Stiasny number is determined [28]. If it is above 65, tannins are considered to be suitable to be used in adhesives [29]. Gt extracts presented values of 85 in heartwood and 65 in sapwood, proving to be suitable to be used in wood adhesive formulations.
