Hypergolic Ignition of 1,3-Cyclodienes by Fuming Nitric Acid toward the Fast and Spontaneous Formation of Carbon Nanosheets at Ambient Conditions

Abstract

A hypergolic system is a combination of organic fuel and oxidizer that ignites spontaneously upon contact without any external ignition source. Although their main usage pertains to rocket bipropellants, it is only recently that hypergolics have been established from our group as a revolutionary preparative method for the synthesis of different types of carbon nanostructures depending on the organic fuel-oxidizer pair. In an effort to further enrich this concept, the present work describes new hypergolic pairs based on 1,3-cyclohexadiene and 1,3-cyclooctadiene as the organic fuels and fuming nitric acid as the strong oxidizer. Both carbon-rich compounds (ca. 90% C) share a similar chemical structure with unsaturated cyclopentadiene that is also known to react hypergolically with fuming nitric acid. The particular pairs ignite spontaneously upon contact of the reagents at ambient conditions to produce carbon nanosheets in suitable yields and useful energy in the process. The nanosheets appear amorphous with an average thickness of ca. 2 nm and containing O and N heteroatoms in the carbon matrix. Worth noting, the carbon yield reaches the value of 25% for 1,3-cyclooctadiene, i.e., the highest reported so far from our group in this context. As far as the production of useful energy is concerned, the hot flame produced from ignition can be used for the direct thermal decomposition of ammonium dichromate into Cr₂O₃ (pigment and catalyst) or the expansion of expandable graphite into foam (absorbent and insulator), thus demonstrating a mini flame-pyrolysis burner at the spot.

1. Introduction

Carbon plays a fundamental role in materials science due to its ability to exist in various forms and morphologies possessing outstanding properties [1,2,3,4]. Traditionally, the making of carbon is often an energy-consuming process that requires high temperature in order to extract the element from its compounds. However, is it possible to make carbon at ambient conditions in an energy-liberating manner? Hypergolics may hold the key to this question. In hypergolics, a fuel and an oxidizer ignite spontaneously upon contact without external stimuli. Although the concept is widely used in space flights and the rocket industry for several decades now [5,6,7,8], it is only recently that their role in carbon materials synthesis has been explored by our group [9,10,11,12,13,14,15,16].

More specifically, carbon nanosheets had been previously obtained from self-ignition of lithium dialkylamides in air [9], highly crystalline graphite through the spontaneous reaction of the acetylene-chlorine hypergolic mixture [10], carbon dots or nanosheets via hypergolic pairs based on Girard’s reagent T or nitrile rubber and fuming nitric acid as strong oxidizer [11], carbon nanosheets or hydroxylated fullerenes using coffee grains or C₆₀ as carbon sources and sodium peroxide as strong oxidizer [12], dense or hollow spheres derived from the reaction of ferrocene with liquid bromine at room temperature [13], carbon nanodiscs obtained through the cyclopentadienyllithium-fuming nitric acid hypergolic pair [14], carbon nanosheets via the hypergolic reaction of furfuryl alcohol with fuming nitric acid at ambient conditions [15], and lastly, carbon nanosheets or carbon dots from the hypergolic ignition of conductive polymers [16]. The new synthesis method not only allows the fast and spontaneous formation of the above-mentioned nanocarbons at ambient conditions but also produces useful energy in the process, such as chemical, mechanical, thermoelectric, photovoltaic, or heating fluids. At this point, we would like to mention that the exothermic character of the hypergolic reactions in combination with the release of gases provides spontaneity (e.g., ΔH < 0 and ΔS > 0 give ΔG = ΔH − T·ΔS < 0), whereas the fast kinetics probably stems from the fact that hypergolic reactions are usually spin allowed (e.g., the change of spin is zero as moving from diamagnetic reactants to diamagnetic products). The spontaneity and fast kinetics at ambient conditions clearly differentiate from conventional pyrolytic approaches that require energy and time in order to extract carbon from its compounds.

Since hypergolic materials synthesis is a fresh preparative technique in material science at its infancy stage, our first priority is to further explore and study as many as possible chemical options in this direction. Hence, in a continuous search of new pairs in this context, herein we present the hypergolic ignition of 1,3-cyclohexadiene and 1,3-cyclooctadiene by fuming nitric acid toward the fast and spontaneous formation of carbon nanosheets at ambient conditions. The chosen organic compounds, which contain high carbon contents (90%), can be regarded as a rational extension of the simplest unsaturated prototype cyclopentadiene presented elsewhere [14]. At the same time, we provide simple ways of converting the released energy into useful chemical work. For instance, the produced flame can be used for the direct thermal decomposition of ammonium dichromate into Cr₂O₃ or the thermal expansion of graphite bisulfate (expandable graphite) into foam, thus demonstrating a sort of mini flame-pyrolysis burner sustained by hypergolic reactions. Lastly, it is worth mentioning the fact that the carbon yield for the 1,3-cyclooctadiene–HNO₃ pair is 25%, i.e., the highest reported so far using hypergolics (usually 5–15%).

2. Materials and Methods

All procedures were performed in a safety hood with a ceramic tile bench using a small number of reagents.

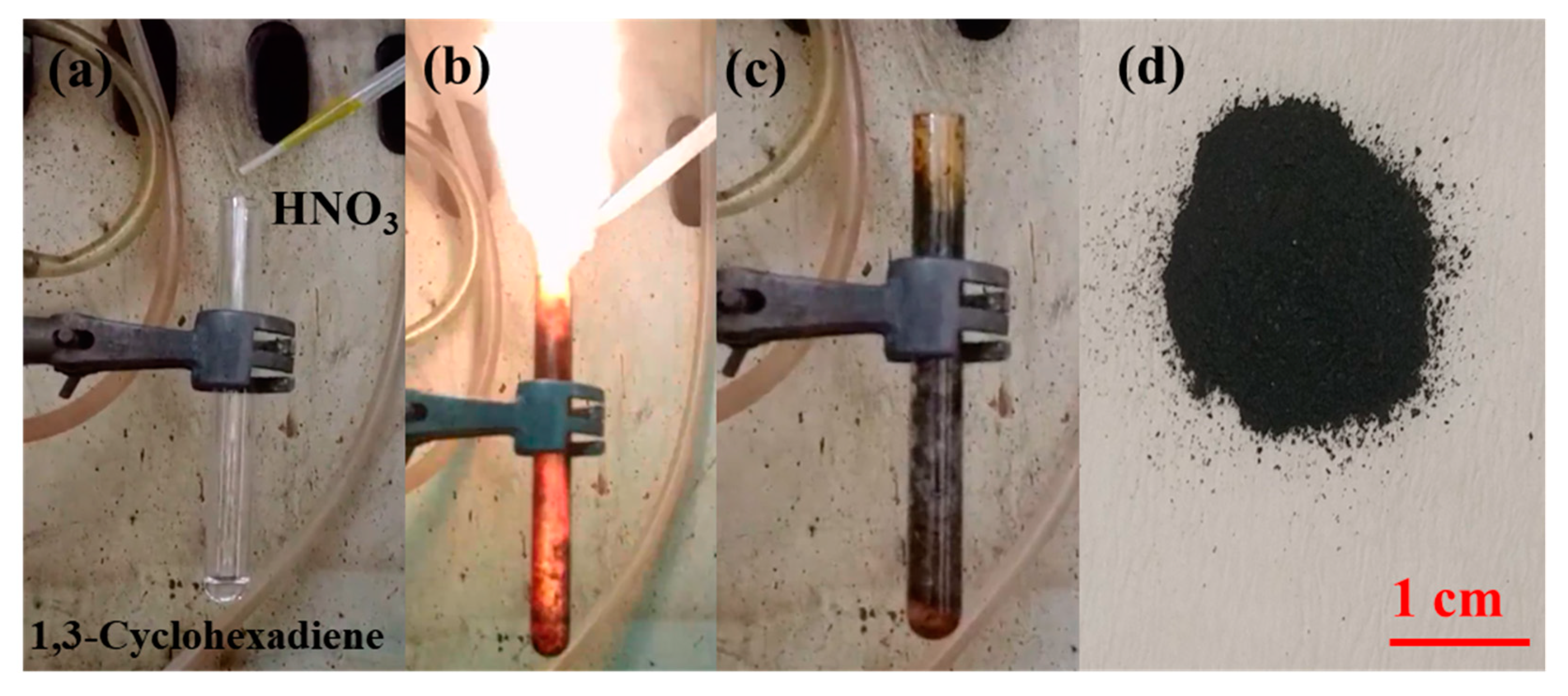

A glass test tube (diameter: 1.5 cm; length: 15 cm) was charged with 0.5 mL 1,3-cyclohexadiene (97% C₆H₈, Sigma-Aldrich, CAS Number: 592-57-4, St. Louis, MO, USA) followed by the dropwise addition of 0.25 mL fuming nitric acid (100%, Sigma-Aldrich, St. Louis, MO, USA). The addition of fuming nitric acid triggered ignition toward the formation of a carbon residue within the test tube. The residue was collected and washed thoroughly with acetone (≥99% Merck KGaA, Darmstadt, Germany), tetrahydrofuran (THF, ≥99% Merck KGaA, Darmstadt, Germany), and hexane (≥99% Merck KGaA, Darmstadt, Germany) prior to drying at 100 °C. A fine carbon powder was obtained (codenamed CDNA) at 7% yield (N₂ specific surface area: 27 m² g⁻¹). The ignition process is illustrated in Figure 1.

Similarly, 0.5 mL 1,3-cyclooctadiene (≥95% C₈H₁₂, Sigma-Aldrich, CAS Number: 1700-10-3, St. Louis, MO, USA) was charged in a test tube (diameter: 1.5 cm; length: 15 cm) followed by the dropwise addition of 0.5 mL fuming nitric acid (100%, Sigma-Aldrich, St. Louis, MO, USA). The compound was ignited with a delay releasing an intense flame (Figure 2). The product was scratched off the walls of the test tube and then thoroughly washed with acetone (≥99% Merck KGaA, Darmstadt, Germany), tetrahydrofuran (THF, ≥99%, Merck KGaA, Darmstadt, Germany), and hexane (≥99% Merck KGaA, Darmstadt, Germany) prior to drying at 100 °C. A fine carbon powder was obtained (codenamed CONA) at 25% yield (N₂ specific surface area: 43 m² g⁻¹). This carbon yield is the highest reported so far from our group using hypergolic reactions (typically in the range of 5–15%). It is likely that the less volatile nature of 1,3-cyclooctadiene (normal boiling point 140 °C) vs. 1,3-cyclohexadiene (normal boiling point 80 °C) prevents the compound from escaping the tube during ignition.

Powder X-ray diffraction (XRD) was performed using background-free Si wafers and Cu Kα radiation from a Bruker Advance D8 diffractometer (Bruker, Billerica, MA, USA). Raman spectra were obtained on a DXR Raman microscope using a laser excitation line at 455 nm, 2 mW (Thermo Scientific Waltham, MA, USA). Optical spectroscopy was conducted with a UV/Vis spectrophotometer SPECORD S 600 operated by WinASPECT software. Attenuated total reflection infrared spectrum (ATR-IR) was recorded on a Thermo Nicolet iS5 FTIR spectrometer, using the Smart Orbit ZnSe ATR accessory. X-ray photoelectron spectroscopy (XPS) measurements were performed in an ultra-high vacuum at a base pressure of 4 × 10⁻¹⁰ mbar with a SPECS GmbH spectrometer equipped with a monochromatic Mg Kα source (hv = 1253.6 eV and a Phoibos-100 hemispherical analyzer (Berlin, Germany). The spectral analysis included a Shirley background subtraction and peak deconvolution with mixed Gaussian-Lorentzian functions using a least-squares curve-fitting program (WinSpec, University of Namur, Belgium). Scanning electron microscopy (SEM) images were obtained using a JEOL JSM-6510 LV SEM Microscope (Ltd., Tokyo, Japan) equipped with an X-Act EDS-detector by Oxford Instruments, Abingdon, Oxfordshire, U.K. (5 kV). Transmission electron microscopy (TEM) analysis was performed on JEOL JEM 2100 at 200 kV using a LaB6 type emission gun. Atomic force microscopy (AFM) images were collected in tapping mode with a Bruker Multimode 3D Nanoscope (Ted Pella Inc., Redding, CA, USA) using a microfabricated silicon cantilever type TAP-300G, with a tip radius of <10 nm and a force constant of approximately 20–75 N m⁻¹. The Si wafers (P/Bor, single-side polished, Si-Mat) used in AFM imaging were cleaned before use for 20 min in an ultrasonic bath (160 W) with water, acetone (≥99.5% Sigma-Aldrich, St. Louis, MO, USA), and ethanol (≥99.5% Sigma-Aldrich, St. Louis, MO, USA).

3. Results and Discussion

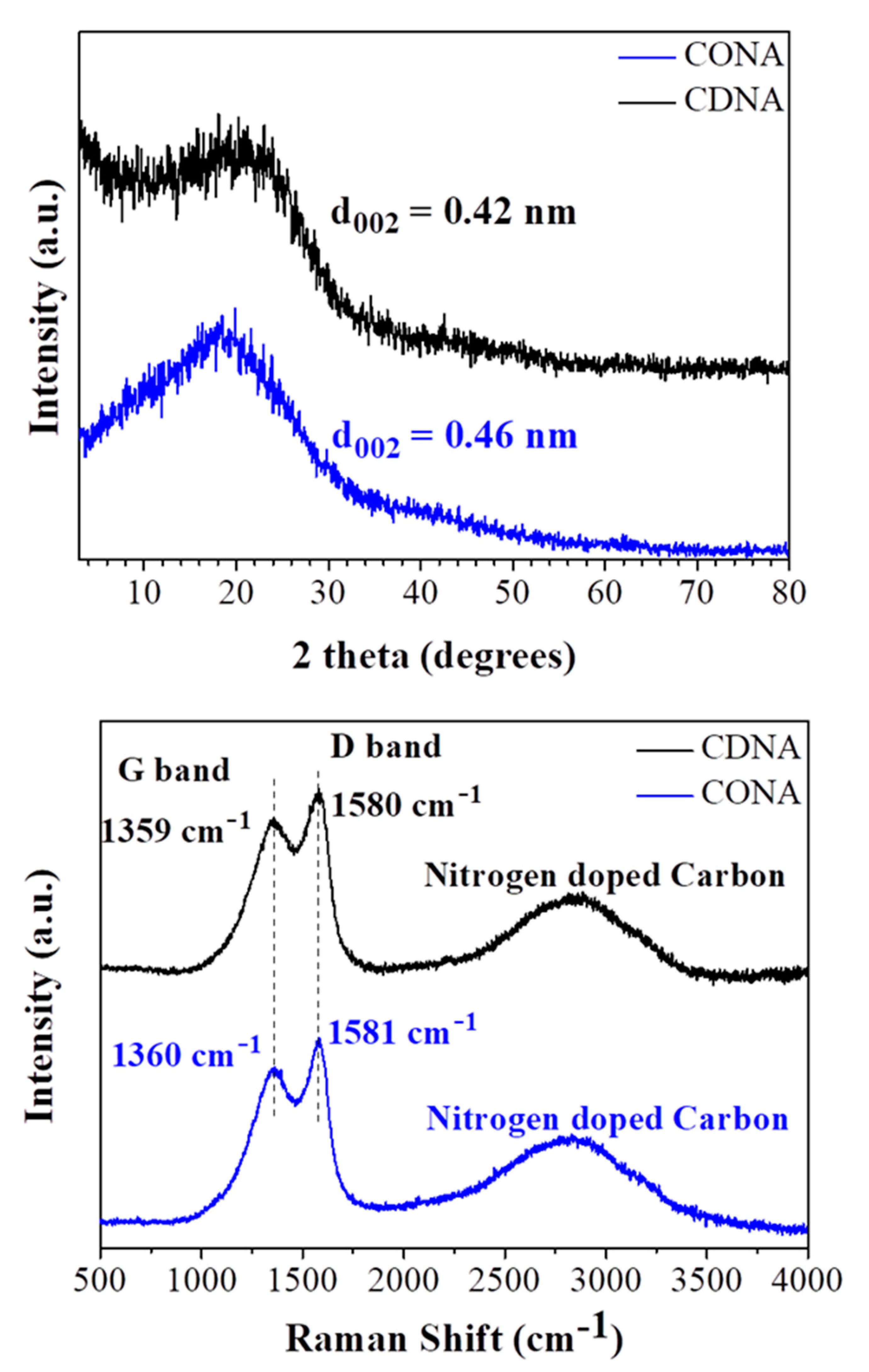

The carbon obtained from the 1,3-cyclodiene-HNO₃ hypergolic pairs was identified by the XRD and Raman techniques. The XRD patterns of CDNA and CONA exhibited, respectively, broad reflections at d₀₀₂ = 0.42 nm and d₀₀₂ = 0.46 nm (Figure 3, top), thus signaling the formation of amorphous carbon [17]. Raman spectroscopy (Figure 3, bottom) revealed the typical for carbon materials G and D bands [18], also indicating the formation of amorphous carbon. The samples additionally displayed a strong yet broad band at 2900 cm⁻¹, indicative of nitrogen incorporation into the carbon lattice [19].

The ATR-IR spectra of the solids are shown in Figure 4, top. In the case of CDNA, the peaks at 1717 and 1616 cm⁻¹ are assigned to the corresponding C=O and C=C stretchings [20]. The intense band at 1507 cm⁻¹ and the weak shoulder at ca. 1300 cm⁻¹ originate from C=N and C-O moieties, respectively, whereas the band at 1102 cm⁻¹ stems from C–N–C bending vibrations. The peak at 780 cm⁻¹ is correlated with the bending modes of C–H. The material additionally contains aliphatic hydrogens, as evidenced by the stretching of the C–H group near 3000 cm⁻¹ along with the stretching vibrations of N–H, –OH in the high region frequencies [21]. On the other hand, CONA displayed similar absorptions bands with CDNA. The weak peaks near 3000 cm⁻¹ were assigned to residual C–H moieties while the weak shoulder at 1705 cm⁻¹ was assigned to carbonyl groups C=O. The broadband at ca. 1300 cm⁻¹ was due to the C–O stretching mode while those at 1539 cm⁻¹ and 1619 cm⁻¹ due to C=N and C=C bonds, respectively. The material additionally contains the bending modes of the C–H group (750 cm⁻¹). Lastly, the bands at 3250 cm⁻¹ and 3400 cm⁻¹ were ascribed to N–H and –OH groups, respectively. As far as the UV-vis spectra of CDNA and CONA are concerned, these exhibit a well-discernable peak at 273 nm attributed to π-π* transitions within long-ranged sp² domains (Figure 4, bottom) [22,23,24].

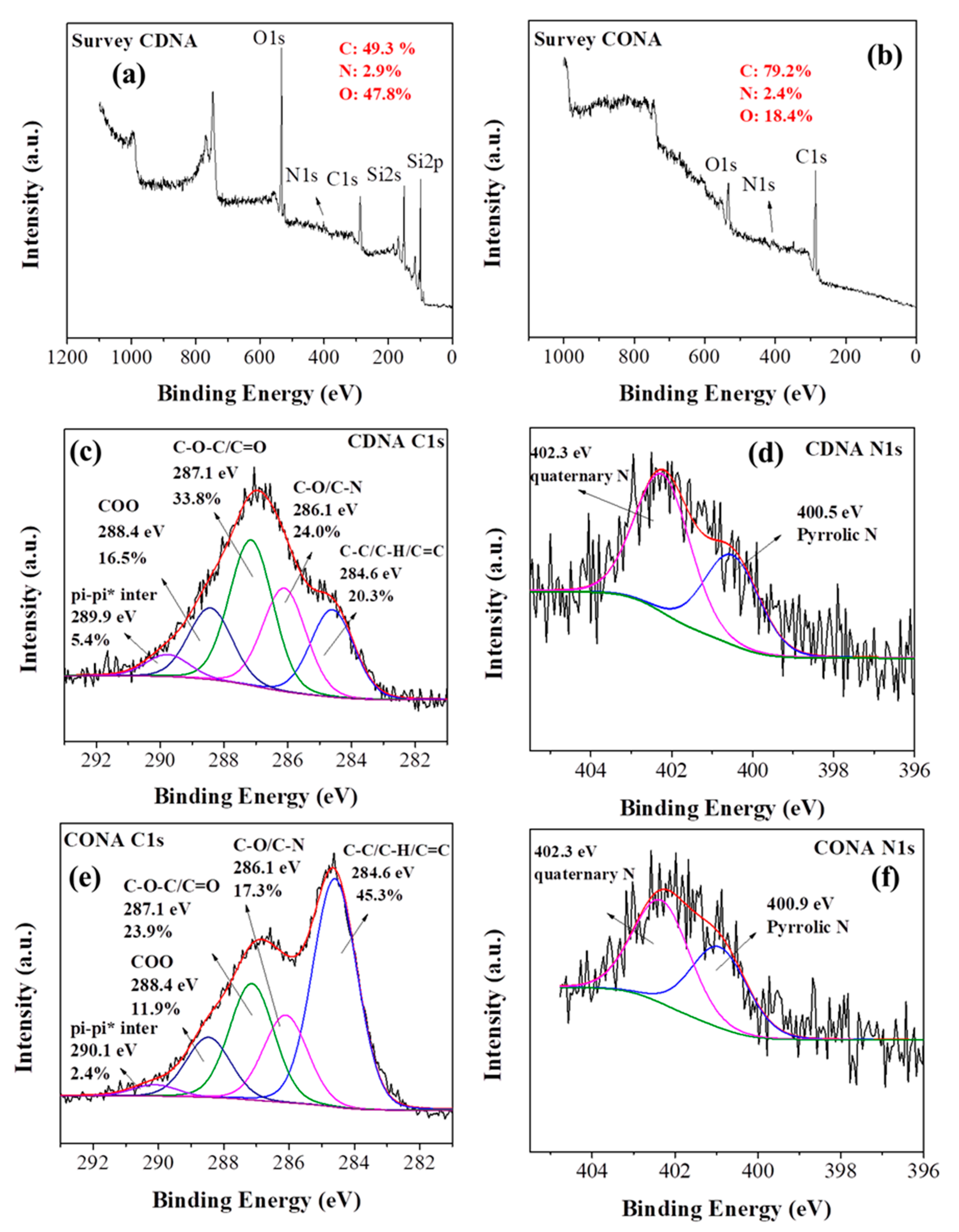

The XPS technique was used in order to further clarify the chemical structure of the solids (Figure 5). The survey spectra clearly showed the presence of variable amounts of C, O, and N in the elemental composition of the samples. Characteristically, CDNA was more oxidized than CONA, with the corresponding carbon contents being 49.3% and 79.2% (note that both samples contained comparable amounts of nitrogen). The high-resolution C1s spectra of CDNA and CONA were deconvoluted into five components. The peak at 284.6 eVis due to C–C/C–H/C=C bonds. At 286.1 eV, we have the contribution from C–O/C–N bonds, while at 287.1 eV the contribution from C–O–C/C=O groups. The peak at higher binding energy (288.4 eV) is due to carboxyl groups. We additionally observe a peak at even higher binding energies that reveals the graphitic nature of the samples due to pi-pi* interactions between aromatic groups [25]. Lastly, the deconvoluted N1s spectra showed that the nitrogen atoms were present mainly in two forms: pyrrolic at lower binding energies and quaternary at higher binding energies [26].

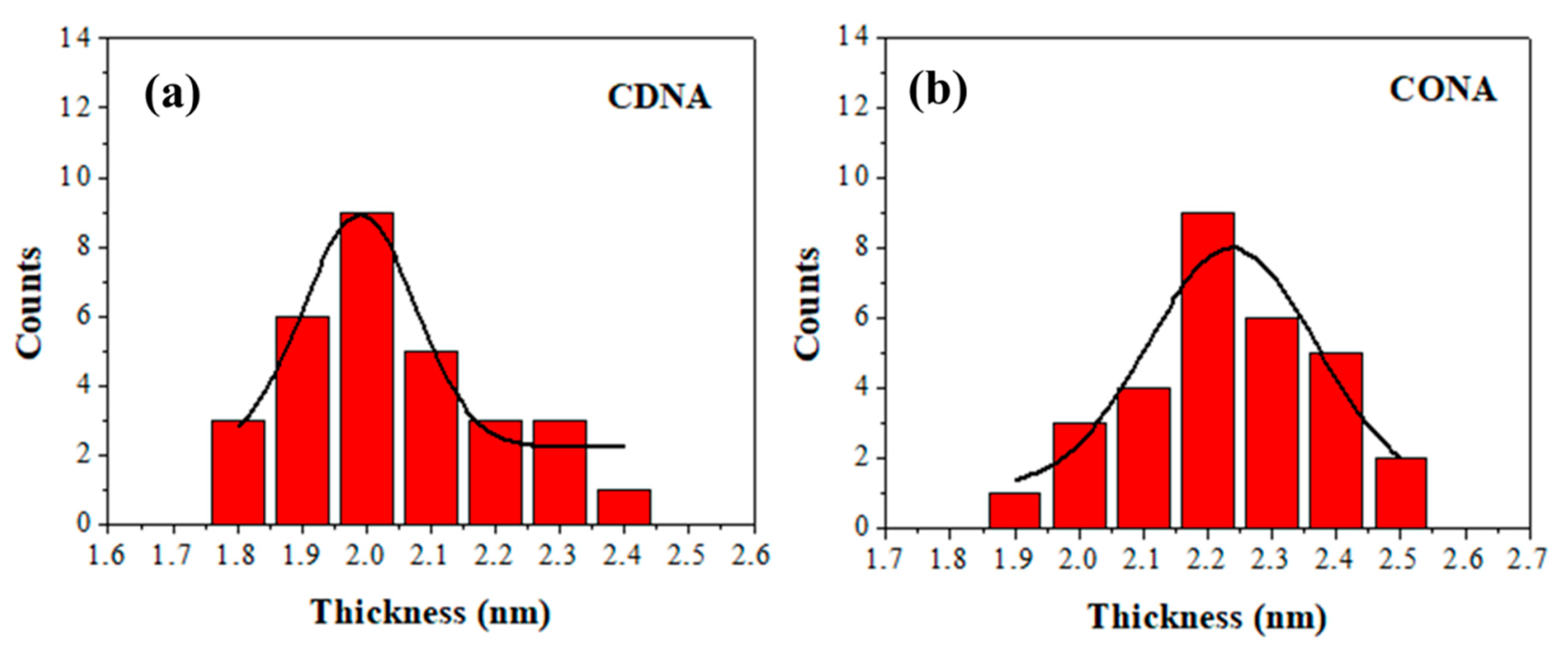

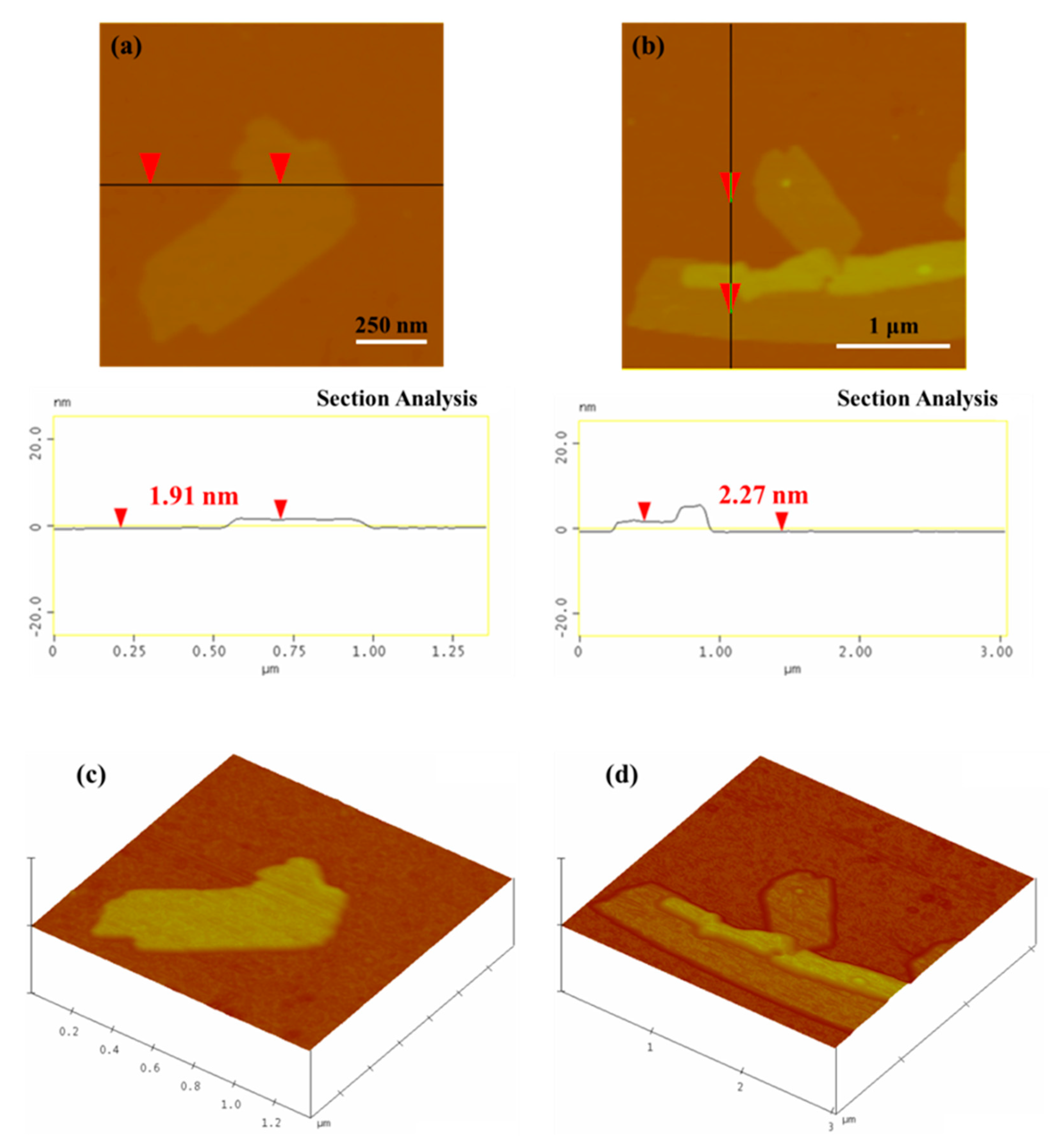

The AFM study of CDNA and CONA clearly showed the formation of carbon nanosheets (Figure 6). The average thicknesses of the sheets as evaluated by AFM cross-sectional images occupied the range of 1.8–2.5 nm. To properly determine the nanosheets size distributions, a statistical analysis was performed based on AFM representative imaging. An amount of 30 randomly selected carbon nanostructures were used for the statistical analysis histograms. As a result, in thickness histograms, the Gaussian curves fit are centered on the average values of 2.0 nm for CDNA and 2.2 nm for CONA (Figure 7).

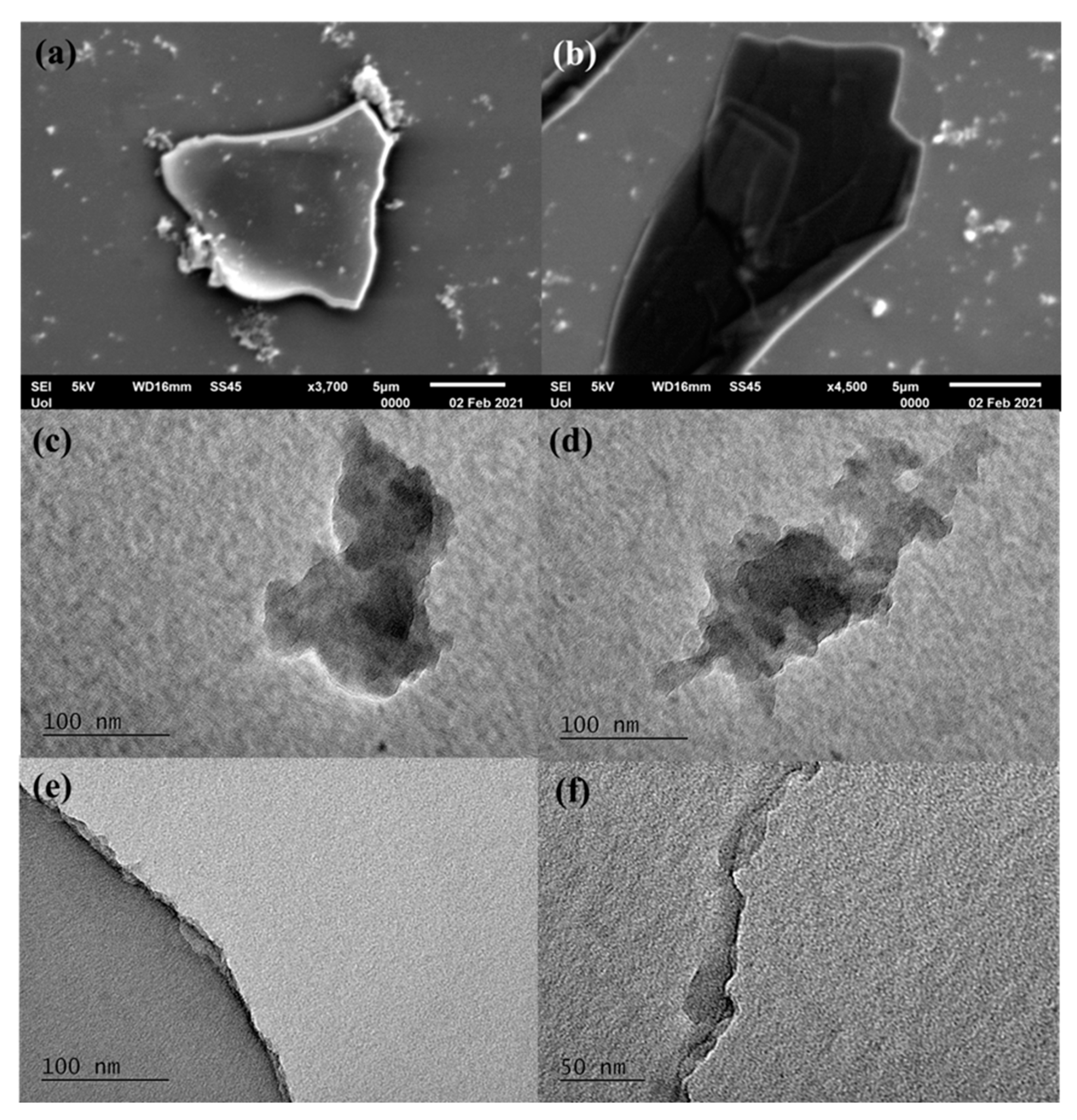

The morphology of the samples was additionally confirmed by electron microscopy (Figure 8). Accordingly, the SEM and TEM portraits of CDNA and CONA revealed the presence of carbon nanosheets displaying multilayer structure near the edges due to stacks of individual layers.

At this point, we would like to mention that since the carbon precursors used in past preparations vary in structure and composition, it is difficult to make any direct comparison of the present findings with previous ones from our group. Each system is unique in terms of the obtained structure, composition, and morphology. Hence, any rational correlation between them would be rather misleading at this stage. We believe that only the closely related 1,3-cyclohexadiene and 1,3-cyclooctadiene can be discussed side-by-side in this work. Nevertheless, we could compare these 1,3-cyclodienes with the relevant cyclopentadienyllithium presented elsewhere [14]. Accordingly, the nanodiscs that had been previously obtained from cyclopentadienyllithium are morphologically different from the present nanosheets, although sharing a comparable structure and composition. This might be attributed to the starting cyclopentadiene ring, which generally favors the formation of round-shaped nanostructures. Another point refers to the carbon yields within this series of compounds, which increases as moving from cyclopentadienyllithium (2%) to 1,3-cyclohexadiene (7%) to 1,3-cyclooctadiene (25%). Hence, the smaller yield for cyclopentadienyllithium can be ascribed to the relatively smaller carbon content of the compound, as well as its tendency to release cyclopentadiene gas upon acid treatment, which escapes from the reaction.

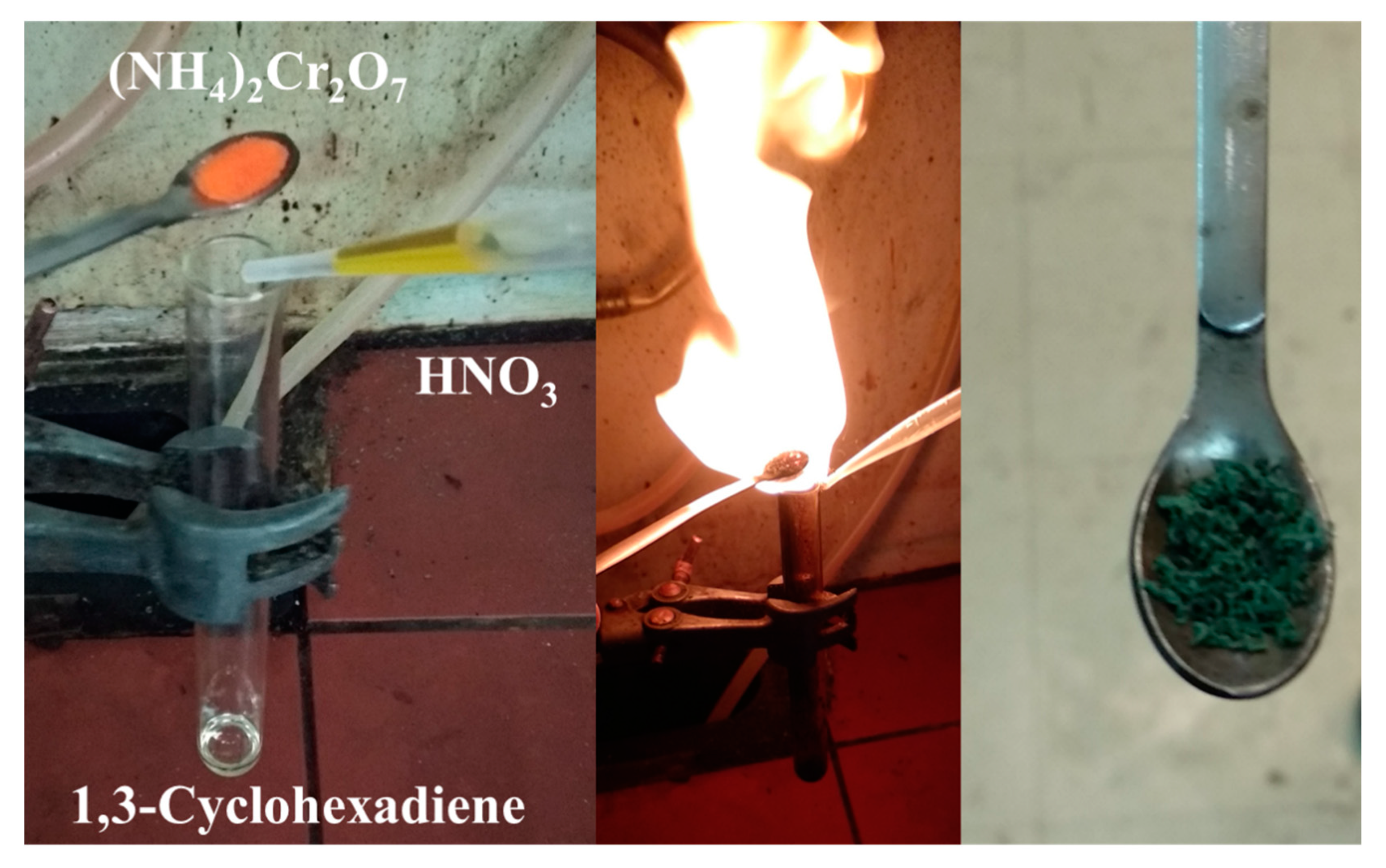

The energy released from the hypergolic reactions was further exploited for the production of useful chemical work. In one example, the flame produced from the ignition of 1,3-cyclohexadiene was used for the thermal decomposition of ammonium dichromate into Cr₂O₃ (the “chemical volcano” experiment), thus representing a mini flame-pyrolysis burner set off by the hypergolic reaction (Figure 9). For this purpose, a metallic spatula loaded with ammonium dichromate was held above the top rim of the “rocket” test tube in direct contact with the released flame. Cr₂O₃ is a useful green pigment in the paint industry, as well as an efficient catalyst toward NH₃ oxidation in the Ostwald process for making nitric acid.

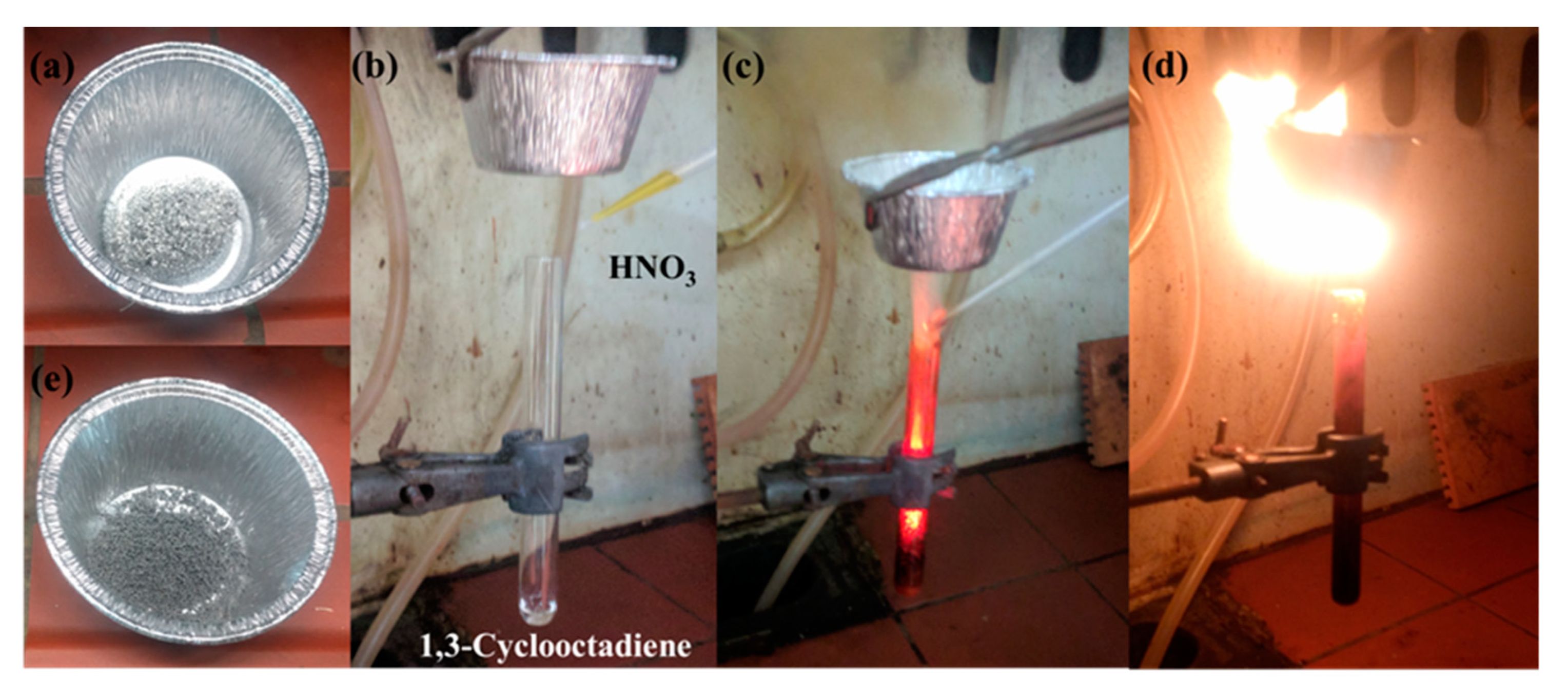

In another example, the flame produced from the ignition of the 1,3-cyclooctadiene–HNO₃ pair was used to heat-expandable graphite (graphite bisulfate C₂₄⁺HSO₄⁻, Sigma-Aldrich, St. Louis, MO, USA) in an aluminum cup (Figure 10). Upon contact of the cup with the flame, the lustrous graphite flakes turned into foam. Such an expansion results from the thermal decomposition of the intercalated sulfate species into SO₂ gas that pushes the graphite layers apart. The produced foam is considered an excellent absorbent material for oil removal, as well as a suitable thermal insulator and flame retardant.

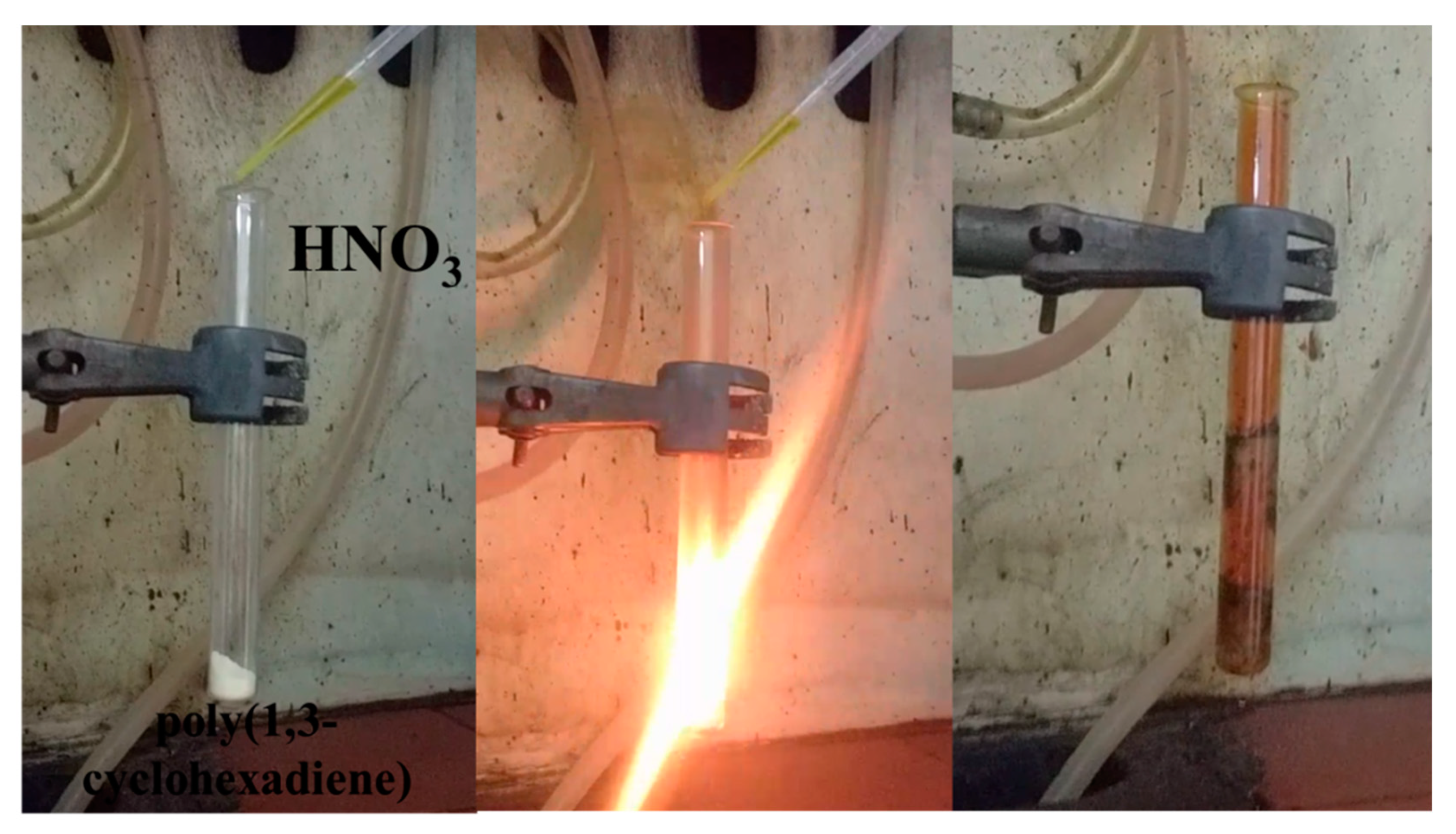

It is interesting to note that poly(1,3-cyclohexadiene), which has been synthesized via anionic polymerization method under high vacuum techniques [27,28,29,30,31], also reacts hypergolically with fuming nitric acid (Figure 11), thus expanding the usage of the method beyond monomers’ reactivity [16].

4. Conclusions

The hypergolic synthesis of carbon nanomaterials is a new preparative technique in materials science, allowing synthesis at ambient conditions and releasing useful energy in the process. In exploring additional chemical options in this direction, we have demonstrated here that ignition of the carbon-rich compounds 1,3-cyclohexadiene and 1,3-cyclooctadiene by fuming nitric acid leads to the fast and spontaneous formation of carbon nanosheets at ambient conditions in fairly suitable yields. In the case of 1,3-cyclooctadiene, the obtained carbon yield is the highest reported within this context, reaching the value of 25%. The structure and morphology of the sheets were studied with a variety of techniques, such as XRD, infrared spectroscopies (Raman/IR), UV-vis, XPS, and SEM/TEM/AFM microscopies. The micron-sized nanosheets are less than 3 nm thick, containing O/N heteroatoms and displaying amorphous structure. The energy released from ignition can be further used to produce useful chemical work, such as the thermal decomposition of (NH₄)₂Cr₂O₇ into Cr₂O₃ pigment and catalyst or the expansion of graphite bisulfate into absorbing and thermal insulating graphite foam. The present findings show that 1,3-cyclodienes are versatile precursors toward the hypergolic synthesis of carbon nanostructures at ambient conditions, thus expanding the arsenal of chemical reagents used in hypergolic materials synthesis. Although the majority of examples provided from our group so far pertain to carbon, hypergolic materials synthesis can be extended beyond carbon for the synthesis of inorganic materials as well. Future work is underway in this direction using suitable organometallic compounds and fuming nitric acid as the starting reagents.
