Article

A New Species of Hydrozoan Jellyfish Eutima onahamaensis and New Record of Eutima diademata (Hydrozoa, Leptothecata) from Japan

1
Kuroshio Biological Research Foundation, 560 Nishidomari, Otsuki, Hata 788-0333, Kochi, Japan
2
Marine Science Museum, Fukushima Prefecture, 50 Tatsumi-cho, Onahama, Iwaki 971-8101, Fukushima, Japan
*
Author to whom correspondence should be addressed.
Zoobank link: urn:lsid:zoobank.org:pub:3B60DB77-E14F-4B37-ACCB-4BC40B30BFAC.
Hydrobiology 2024, 3(3), 134-148; https://doi.org/10.3390/hydrobiology3030010
Submission received: 21 May 2024 / Revised: 19 June 2024 / Accepted: 26 June 2024 / Published: 2 July 2024

Abstract

:
The family Eirenidae is one of the major taxa of the order Leptothecata, comprising approximately 80 species from ten genera. In this study, taxonomic investigations, including morphological observations and molecular 16S phylogenetic analyses, were conducted on unknown Eirenidae specimens collected off the coast of Iwaki, Fukushima Prefecture, eastern Japan, in June 2022. The specimens had the following morphological characteristics: marginal warts and tentacular bulbs with lateral cirri and without adaxial papillae, a mouth with simple lips, four simple radial canals, and eight statocysts common to the genus Eutima. However, this species can be distinguished from other species of Eutima by the number of tentacles, number and shape of marginal warts, position of the gonads, and gastric peduncle length. Moreover, the monophyly of the species was evident in the 16S rRNA phylogenetic tree (as indicated by the high bootstrap value of 100%), thereby supporting the validity of the new species. Based on these results, we describe it as a new species, Eutima onahamaensis, for taxonomic stabilization. We also made detailed observations of the morphology and molecular phylogenetic analyses of one of the species newly recorded in Japan: Eutima diademata. A comparative table of the primary diagnostic characteristics of Eutima has been provided. This study provided taxonomic keys for identifying species in the genus Eutima.

1. Introduction

The family Eirenidae is one of the major taxa in the order Leptothecata, comprising approximately 80 species in ten genera [1,2]. Eirenidae species are distributed in shallow waters in the Pacific and Atlantic Oceans [1,3,4,5,6]. These species have sexual planktonic medusae and asexual benthic polyps in their life cycle [7,8,9]. Polyps of certain species belonging to the genera Eugymnanthea and Eutima live in the soft parts of bivalve mollusks [10,11]. Inhabitation of polyps of Eutima japonica (Uchida, 1925) reduced shell length growth of the Japanese scallop Mizuhopecten yessoensis (Jay, 1857) by 43% and triglyceride accumulation in the digestive glands by 24–47% [12]. Eirene lacteoides (Kubota & Horita, 1992); Eirene menoni (Kramp, 1953); Eutonina indicans (Romanes, 1876), and Tima nigroannulata (Calder et al., 2021) are beautiful jellyfish and are popular for exhibitions in public aquaria in Japan [13,14].
The genus Eutima currently comprises 23 species [2,15]. Eutima was established by McCrady and described as two new species: Eutima mira (McCrady, 1859) and Eutima variabilis (McCrady, 1859) [16]. Eutima is classified in the family Eucopidae [3,16]; however, Kramp regarded it as a genus of the family Eutimidae [4]. Bouillon removed Eutima from the family Eirenidae [17]. Recent molecular analyses have suggested that Eutima belongs to the genus Eirenidae [18,19].
Eutima is characterized as follows: Medusa with distinct gastric peduncle; lateral cirri (difficult to observe and often destroyed after fixation); marginal swellings or warts; mouth with simple lips; four simple radial canals; “gonads” on radial canals, either beneath subumbrella or on gastric peduncle or both; with eight (exceptionally twelve) statocysts. Polyps are either single hydranths, erect colonies arising from creeping stolons, or epizootic naked polyps; in nonepizootic forms, hydrocaulus with smooth perisarc, young colonies with cylindrical hydrotheca with diaphragm and a folded pleated operculum formed by convergent flaps not demarcated from the hydrothecal rim (Campanulina type), in older colonies of this type, operculum generally lost and hydrotheca reduced to a perisarcal collar of the type; usually with intertentacular web [1].
To date, two Eutima species, Eutima japonica and Eutima cirrhifera (Kakinuma, 1964), have been reported in Japanese waters [2,20,21]. In this study, six specimens of unidentified Eirenidae species were collected off the coast of Iwaki, Fukushima Prefecture, eastern Japan, and off Itoman, Okinawa Prefecture, southern Japan. Our morphological and molecular phylogenetic analyses suggested that these Eirenidae species should be regarded as a new species and a new species record to Japan within the genus Eutima.

2. Materials and Methods

2.1. Collection and Fixation

Six medusae of Eirenidae specimens were collected from near the water surface (within about 10 m) at Onahama Port, Iwaki, Fukushima Prefecture, eastern Japan (36°56′23.84″ N, 140°54′26.40″ E); off Itoman, Okinawa Prefecture, southern Japan (26°7′6.41″ N, 127°35′53.36″ E) between 20 April 2022 and 4 June 2022. The medusae were captured using a plankton net (mesh size, approximately 0.1 mm, mouth diameter, 30 cm) and a plastic bottle by SCUBA. Four specimens were fixed in 3% formalin in seawater and deposited in the National Museum of Nature and Science, Tsukuba (NSMT). The three specimens (two whole medusa and one tentacle) were preserved in 99.5% ethanol until molecular analysis. Additionally, two specimens of Eutima japonica from Shonan Port, Fujisawa, Kanagawa Prefecture, eastern Japan (35°17′52.40″ N, 139°28′32.20″ E) were used in the molecular phylogenetic analyses (Table 1) [18,22,23,24].

2.2. Morphological Investigation

Taxonomic observations and measurements were conducted on both live and preserved specimens (Figure 1). Medusae were placed and flattened on a glass dish (diameter 50 mm). The umbrella height was measured from the apex of the umbrella to the umbrella margin. The umbrella diameter was measured across the turnover of the exumbrella. Specimens were photographed under a compound microscope (SZ61, OLYMPUS, Tokyo, Japan) using an OLYMPUS OM-D E-M5 MarkII. Measurements were made using methods previously [6] with ImageJ software to the nearest 0.01 mm [25].
For nematocyst identification in medusae, squash prepared from fresh tissue was examined under a compound microscope (BX53, OLYMPUS, Tokyo, Japan). The nematocysts were identified using the method previously described by Kubota [10]. In total, 90 nematocysts were identified, measured, and counted to determine the abundance of nematocyst types in medusae. Measurements were made using ImageJ to the nearest 0.1 µm [25].

2.3. Molecular Phylogenetic Analysis

Near-complete sequences of the mitochondrial 16S rDNA gene (approximately 600 bp) were used for molecular phylogenetic analysis. Genomic DNA was extracted from the ethanol-preserved tissue of the cultured specimens using the DNeasy Blood and Tissue Kit (QIAGEN, Hilden, Germany) according to the manufacturer’s instructions. The 16S rDNA was PCR-amplified and sequenced with the forward and reverse primer pair TCGACTGTTTACCAAAAACATAGC and ACGGAATGAACTCAAATCATGTAAG [26], using the following PCR profile: initial denaturation at 94 °C for 5 min; five cycles at 94 °C for 50 s, 45 °C for 50 s, and 72 °C for 60 s; 30 cycles at 94 °C for 50 s, 50 °C for 50 s, and 72 °C for 60 s; and final elongation at 72 °C for 5 min [27]. The PCR products were purified using a QIAquick PCR Purification Kit (Qiagen) and sequenced in both directions using an ABI 3730 automated sequencer (Applied Biosystems, Bedford, MA, USA). The new sequences were aligned using MEGAX with built-in ClustalW [28]. Phylogenetic analysis and pairwise distance measurements were performed using the maximum likelihood method based on the Kimura 2-parameter model [29], with 1000 bootstrap replications in MEGAX. Five sequences of the Eutima species were deposited in GenBank under the accession numbers LC822404-822408 (Table 1).

3. Results

3.1. Taxonomy

Phylum Cnidaria Verrill, 1865.
Subphylum Medusozoa Petersen 1979
Class: Hydrozoa Owen 1843.
Subclass Hydroidolina Collins, 2000
Order: Leptothecata Cornelius 1992.
Family: Eirenidae Haeckel, 1879
Genus Eutima McCrady, 1859

3.2. Species Description

Eutima onahamaensis sp. n
New Japanese name. Jangara-konoha-kurage
Material examined. Holotype: NSMT-Co1848; Onahama Port, Iwaki, Fukushima Prefecture, eastern Japan; 36°56′23.84″ N 140°54′26.40″ E; 4 June 2022; collector: Rintaro Ishii. Paratypes: NSMT-Co1846-Co1847. The locality, date, and collector are used for the holotype (Table 2).
Description. Mature medusae umbrella flat (Figure 2A), 2–4 mm high and 4–8 mm in diameter. Umbrella apex rounded and mesoglea thickened. Exumbrella smooth and nematocysts sparsely scattered (Figure 2A,B). Manubrium hanging in the umbrella cavity, tubular, reddish-brown in color (Figure 2A and Figure 3A). Gastric peduncle very short and indistinct. Manubrium length is about 1 mm, 1/5 of the length of the umbrella diameter, not extended beyond umbrella margin. Mouth cruciform, with four frilled lips (Figure 3B). Four radial canals and a circular canal (Figure 2B). Gonads linear, extending along almost the entire length of radial canals (Figure 2A). Tentacular bulbs four, swollen, dark brown in color (Figure 3D,E). Tentacles four, filiform, tapering to a tip, length about twice umbrella diameter (Figure 3F). Marginal warts 39–55, usually 7–15 between successive tentacles (Figure 3G). Statocysts eight. Marginal warts and tentacular bulbs with lateral cirri and without adaxial papillae (Figure 3H). Velum narrow, 1/5 of umbrella diameter.
Cnidome. Three different nematocyst types, artichous isorhizas, basitrichous isorhizas, and merotrichous isorhizas, were identified and measured in the adult medusae (Table 3, Figure 4A–C).
Habitat and ecology. Medusae of Eutima onahamaensis sp. n. appeared in shallow waters (5 m depth) in June in a range of cold-temperature localities on the coast of Onahama, Iwaki, Fukushima Prefecture, eastern Japan. The medusae swam by contracting their tentacles and relaxed with extended tentacles (Figure 2A,B). Seasonal occurrence and early life cycle, including embryogenesis, are unknown.
Etymology. The specific name “onahamaensis” refers to the Onahama, southern region of Iwaki City, Fukushima Prefecture, which includes the type locality in which the species was found.
Eutima diademata (Kramp, 1959)
New Japanese name. Enaga-konoha-kurage
Material examined. NSMT-Co1849; Off Itoman, Itoman, Okinawa Prefecture, western Japan; 26°7′6.41″ N, 127°35′53.36″ E; 20 April 2022; collector: Sho Toshino. Description. Mature medusae umbrella flat (Figure 5A), 8.7 mm high and 10.4 mm in diameter. Umbrella apex rounded and mesoglea thickened. Exumbrella smooth and nematocysts sparsely scattered (Figure 5A–C). Manubrium hanging in the umbrella cavity, tubular, and whitish in color (Figure 6A,B). Gastric peduncle very long and distinct. Gastric peduncle length about 25 mm, three times the length of umbrella diameter, extended beyond umbrella margin. Mouth cruciform, with four frilled lips. Four radial canals and a circular canal (Figure 6C). Gonads linear, extending along almost the entire length of radial canals and gastric peduncle (Figure 6A). Tentacular bulbs four, swollen, whitish in color (Figure 6D,E). Tentacles nine, filiform, tapering to a tip, length about three times the umbrella diameter (Figure 6F). The four tentacles are arranged perradially and four interradially, but an additional tentacle is included due to malformation. Marginal warts 96, usually 11–13 between successive tentacles (Figure 6G). Statocysts eight (Figure 6G,H). Marginal warts and tentacular bulbs with lateral cirri and without adaxial papillae (Figure 6H). Velum narrow, 1/5 of umbrella diameter.
Cnidome. Not examined in this study.
Habitat and ecology. Eutima diademata has been reported offshore in Mindanao, Philippines, the Nansha Islands region, the coast of the southeast China Sea, and the Taiwan Strait [30,31,32,33,34]. The medusa was abundant in the surface waters along the upwelling region of the southern part of the Taiwan Straits in June [34]. In this study, medusae of E. diademata appeared approximately 5 m below the surface in April in a range of subtropical-temperature localities off Itoman, Okinawa Prefecture, southern Japan. Developmental stages and structural details of medusae have been reported [34]. The early life cycle, including embryogenesis and polyp, is unknown.
Etymology. The specific name “diademata” is taken from the Latin word ‘diadema’, meaning ‘crown’. The name may reflect the shape of a medusa, similar to a crown.

3.3. Molecular Phylogenetics

We sequenced Eutima onahamaensis, E. diademata, E. japonica, and the nine Leptothecata taxa for statistical analyses using the 16S rDNA fragments. The maximum likelihood tree constructed for the family Eirenidae based on the 16S rDNA sequences (Figure 7) comprised five major clades formed by the family Eirenidae: (1) Tima, (2) Eugymnanthea, (3) Eutima, (4) Eutonina, and (5) Eirene. Eutima onahamaensis clustered in the subclade Eutima curva (Browne, 1905) and E. gracilis (Forbes & Goodsir, 1853). The monophyly of Eutima onahamaensis was evident in the 16S phylogenetic tree (as indicated by the high bootstrap value of 99%), thereby supporting the validity of this new species. Eutima diademata from Japan clustered with E. diademata from China (FJ418653, JQ716003, JQ716004). Eutima japonica from Japan clustered with E. japonica (MW066348).
The Kimura two-parameter distance was 0.064–0.167 between Eutima onahamaensis n. sp. and other Eutima, 0.124–0.205 between E. onahamaensis and other Eirenidae genera (Eirene, Eugymnanthea, Eutonina and Tima), 0.009–0.011 between Eutima diademata from Japan and E. diademata from Taiwan, and 0.000 between Eutima japonica from Japan and E. japonica (MW066348) (Table S1).

4. Discussion

4.1. Morphological Investigation

A comparison of the key features of species in the genus Eutima (two and four tentacled species) is presented in Table 4 [2,4,7,17,20,30,31,34,35,36,37,38,39,40,41,42,43,44,45]. All species of Eutima have a gastric peduncle, lateral cirri, marginal swellings or warts, a mouth with simple lips, four simple radial canals, gonads on radial canals, either beneath the subumbrella or on the gastric peduncle, or both, with eight (exceptionally twelve) statocysts [1]. Eutima onahamaensis can be distinguished from other Eutima species by the number of tentacles, number, and shape of warts, gonad position, and peduncle length. Most Eutima species have more than eight tentacles; however, E. onahamaensis, E. curva, E. gracilis, E. japonica (intermediate and transitional forms), E. mira, Eutima orientalis (Browne, 1905), Eutima ostrearum (Mattox & Crowell, 1951), and Eutima sapinhoa (Narchi & Hebling, 1975) have only four tentacles. The number of marginal warts is lower in E. onahamaensis (39–55) and higher in E. curva (120–140) and E. mira (over 100). Four gonads are present in the radial canals of E. onahamaensis and E. japonica (intermediate and transitional forms), restricted to the peduncle in E. curva and E. gracilis, four on the radial canals and four on peduncles in E. mira and E. orientalis, and the subumbrella in E. sapinhoa. The gastric peduncle is very short and indistinct in E. onahamaensis, E. japonica (intermediate form), and E. sapinhoa, whereas it is long in E. curva, E. gracilis, E. mira, E. orientalis, and E. ostrearum. Based on these morphological differences, the present species is identified as a new species.
Prior to our study, two Eutima species, Eutima japonica and E. cirrhifera, were reported in Japanese waters [2,20,21]. Additionally, Eutima japonica is classified into four types, northern, southern, intermediate, and transitional, based on the following morphological characteristics: number of tentacles, length of manubrium, and presence of lateral cirri [10]. Eutima onahamaensis tends to resemble those of the intermediate form of Eutima japonica. The intermediate form of the species was originally described by Kubota as Eucheilota intermedia (Kubota, 1984) based on specimens from Zagashima Island, Ago Bay, Mie Prefecture, Japan [39]. This form has been reported on Tsushima and Okinawa Islands [39,40,46]. Eutima onahamaensis and the intermediate form of E. japonica have short, indistinct peduncles on the manubrium and cruciform oral lips. However, E. onahamaensis has a larger number of marginal warts (39–55 vs. 20–24) and long gonads (half the length of the gonads in E. japonica). The distributions of the two species did not overlap.
Eutima diademata was described as Eucheilota diademata by Kramp from Candos Bay, Mindanao, Philippines, based on a single immature specimen [30]. Additionally, Guo et al. described Eutima krampi by observing developmental stages and structural details of medusae from the southern part of the Taiwan Strait [34]. Guo et al. regarded that E. diademata is the young medusa of E. krampi because of the following morphological characters: absence of gonads; 2 opposite, perradial tentacles with 1 pair of lateral cirri and without black spot; 29 marginal warts with 1 pair of cirri and each with a distinct black spot on the extreme tip; with 8 statocysts; without gastric peduncle. Given the result of morphological observation, Eutima krampi is regarded as a junior synonym of E. diademata [2]. The morphological inspection of E. diademata from Japan agrees well with the morphological description of the mature stage by Guo et al. [34].
Cnidomes are important for their identification. Three types of nematocysts, i.e., atrichous, basitrichous, and merotrichous isorhizas, have been examined in E. cirrhifera, E. japonica, and Eutima onahamaensis sp. n. ([47,48], this study). Eutima gegenbauri and E. gracilis bear merotrichous haplonemes [49].

4.2. Molecular Phylogenetic Analysis

The paraphyly of Eutima, including Eutima onahamaensis and seven species (E. curva, E. diademata, E. gegenbauri, E. gracilis, E. japonica, E. levuka, and E. viridula), was evident in the 16S rDNA phylogenetic tree with high bootstrap values, which supports the validity of the new species.
The Kimura two-parameter distance was 0.064–0.167 between different Eutima and other Eirenidae genera and Aequoreidae (Aequorea coerulescens). In the genus Eutima, the intrageneric variability was 0.185–0.190 [18]. Given the results of the K2P distances in this study, E. onahamaensis was considered a genetically independent species in Eutima. The distance was 0.009–0.011 between E. diademata from Japan and E. diademata from Taiwan, and 0.000 between E. japonica from Japan and E. japonica (MW066348), which is considered to represent intraspecific variability [18,50,51,52].

5. Conclusions

Our morphological and molecular phylogenetic analyses suggested that the specimens collected off the coast of Iwaki, Fukushima Prefecture, eastern Japan, are new species belonging to the genus Eutima. Additionally, we first reported Eutima diademata from Japan. The medusae of Eutima onahamaensis sp. n. appeared in the shallow waters of Japan in June. However, polyps of the species have not been detected in the wild. Polyps of Eutima species have been found inside bivalve molluscs, Barbatia virescens (Reeve, 1844), Dendostrea sandvichensis (G. B. Sowerby II, 1871), Magallana gigas (Thunberg, 1793), Mytilus edulis Linnaeus, 1758, Mytilus galloprovincialis Lamarck, 1819, Mizuhopecten yessoensis [12,46,47,53]. Further investigations, including polyps and their life cycles, are necessary to gain insight into the ecology of the new species.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/hydrobiology3030010/s1.

Author Contributions

Conceptualization, S.T., R.I. and S.M.; methodology, S.T., R.I. and S.M.; validation, S.T. and R.I.; formal analysis, S.T.; investigation, S.T., R.I. and S.M.; resources, S.T., R.I. and S.M.; data curation, S.T. and R.I.; writing—original draft preparation, S.T. and R.I.; writing—review and editing, S.T., R.I. and S.M.; supervision, S.T.; funding acquisition, S.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by JSPS KAKENHI (grant number 21K15158, awarded to S. Toshino).

Data Availability Statement

All datasets collected and analyzed in the current study are available from the corresponding author upon request.

Acknowledgments

We express our sincere thanks to Junko Fukada, Takuma Mezaki, Yuji Ise, Tatsuki Koido, Kenjiro Hinode, Isao Hirabayashi, Chika Nagaoka, Kaeko Hashimoto (Kuroshio Biological Research Foundation), and the staff of Marine Science Museum, Fukushima Prefecture. We also thank Ryo Minemizu, Suzuka Kaneshiro (Ryo Minemizu Photo Office), and Gaku Yamamoto (Enoshima Aquarium) for sampling and providing specimens of Eutima japonica and Eutima diademata.

Conflicts of Interest

The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bouillon, J.; Gravili, C.; Pagès, F.; Gili, J.M.; Boero, F. An Introduction to Hydrozoa; Muséum National d’Histoire Naturelle: Paris, France, 2006; Volume 194, pp. 1–591. [Google Scholar]
  2. Tosetto, E.G.; Neumann-Leitão, S.; Júnior, M.N. New species of Eirenidae (Hydrozoa: Leptothecata) from the Amazonian coast (northern Brazil). Sci. Mar. 2020, 84, 421–430. [Google Scholar] [CrossRef]
  3. Mayer, A.G. Medusae of the World. Volume I; Hydromedusae; Carnegie Institution: Washington, DC, USA, 1910; pp. 1–498. [Google Scholar]
  4. Kramp, P.L. Synopsis of the medusae of the World. J. Mar. Biol. Assoc. UK 1961, 40, 1–382. [Google Scholar] [CrossRef]
  5. Calder, D.R.; Crow, G.L.; Ikeda, S.; Adachi, A.; Yamamoto, G.; Harrington, A.; Holland, B.S. Tima nigroannulata (Cnidaria: Hydrozoa: Eirenidae), a new species of hydrozoan from Japan. Zool. Sci. 2021, 38, 370–382. [Google Scholar] [CrossRef]
  6. Crow, G.L.; Holland, B.S.; Yamamoto, G.; Ikeda, S.; Adachi, A.; Niide, K. Integrative systematics and biogeography of the hydrozoans (Leptothecata: Eirenidae) Eirene menoni Kramp, 1953 and Eirene lacteoides Kubota and Horita, 1992 from Japan and China with comments on Pacific Ocean distributions. Zool. Stud. 2023, 62, 49. [Google Scholar]
  7. Santhakumari, V. The life cycle of Eutima commensalis n. sp. (Eutimidae, Hydromedusae). Mar. Biol. 1970, 5, 113–118. [Google Scholar] [CrossRef]
  8. Brinckmann-voss, A. The life-cycle of Eirene lactea (Mayer, 1900) and Helgicirrha schulzei Hartlaub, 1909 (phylum Cnidaria, class Hydrozoa, order Leptomedusae, family Eirenidae). Publ. Seto Mar. Biol. Lab. 1973, 20, 63–72. [Google Scholar] [CrossRef] [PubMed]
  9. Piraino, S.; Todaro, C.; Geraci, S.; Boero, F. Ecology of the bivalve-inhabiting hydroid Eugymnanthea inquilina in the coastal sounds of Taranto (Ionian Sea, SE Italy). Mar. Biol. 1994, 118, 695–703. [Google Scholar] [CrossRef]
  10. Kubota, S. Occurrence of a Commensal Hydroid Eugymnanthea inquilina Palombi from Japan (With 7 Text-figures). J. Fac. Sci. Hokkaido Univ. Ser. VI Zool. 1979, 21, 396–406. [Google Scholar]
  11. Migotto, A.E.; Caobelli, J.F.; Kubota, S. Redescription and life cycle of Eutima sapinhoa Narchi and Hebling, (Cnidaria: Hydrozoa, Leptothecata): A hydroid commensal with Tivela mactroides (Born) (Mollusca, Bivalvia, Veneridae). J. Nat. Hist. 2004, 38, 2533–2545. [Google Scholar] [CrossRef]
  12. Baba, K.; Miyazono, A.; Matsuyama, K.; Kohno, S.; Kubota, S. Occurrence and detrimental effects of the bivalve-inhabiting hydroid Eutima japonica on juveniles of the Japanese scallop Mizuhopecten yessoensis in Funka Bay, Japan: Relationship to juvenile massive mortality in 2003. Mar. Biol. 2007, 151, 1977–1987, (In Japanese with English Summary). [Google Scholar] [CrossRef]
  13. Shimura, K.; Takeshima, T.; Adachi, A.; Tanimura, S. Breeding jellyfish at Enoshima Aquqrium. J. JAZA 1993, 34, 57–70. [Google Scholar]
  14. Yasuda, T. Jellyfish: UFO of the Sea; Kouseishakouseikaku: Tokyo, Japan, 2003; pp. 1–206. (In Japanese) [Google Scholar]
  15. Schuchert, P. World Hydrozoa Database. 2024. Available online: http://www.marinespecies.org (accessed on 20 April 2024).
  16. McCrady, J. Gymnopthalmata of Charleston Harbor. Proc. Elliott Soc. Nat. Hist. 1859, 1, 103–221. [Google Scholar]
  17. Bouillon, J. Hydroméduses de la mer de Bismarck (Papouasie, Nouvelle Guinée). IV. Leptomedusa (Hydrozoa-Cnidaria). Indo-Malays. Zool. 1984, 1, 25–112. [Google Scholar]
  18. Zheng, L.; He, J.; Lin, Y.; Cao, W.; Zhang, W. 16S rRNA is a better choice than COI for DNA barcoding hydrozoans in the coastal waters of China. Acta Oceanol. Sin. 2014, 33, 55–76. [Google Scholar] [CrossRef]
  19. Kubota, S.; Collins, A. A single origin of bivalve-inhabiting hydrozoans (Cnidaria, Hydrozoa, Leptomedusae) in the family Eirenidae based on an analysis of 16S rRNA gene. Biogeography 2017, 19, 75–79. [Google Scholar]
  20. Kakinuma, Y. A new commensal hydrozoan, Eugymanthea cirrhifera n. sp. from Hachinohe. Bullenn Mar. Biol. Stn. Asamushi 1964, 12, 51–57. [Google Scholar]
  21. Kubota, S.; Gravili, C. A list of hydromedusae (excluding Siphonophora, Milleporidae and Actinulidae) in Japan. Nankiseibutsu 2007, 49, 189–204. [Google Scholar]
  22. Schuchert, P.; Hosia, A.; Leclère, L. Identification of the polyp stage of three leptomedusa species using DNA barcoding. Rev. Suisse Zool. 2020, 124, 167–182. [Google Scholar]
  23. Leclère, L.; Schuchert, P.; Cruaud, C.; Couloux, A.; Manuel, M. Molecular phylogenetics of Thecata (Hydrozoa, Cnidaria) reveals long-term maintenance of life history traits despite high frequency of recent character changes. Syst. Biol. 2009, 58, 509–526. [Google Scholar] [CrossRef]
  24. Govindarajan, A.F.; Piraino, S.; Gravili, C.; Kubota, S. Species identification of bivalve-inhabiting marine hydrozoans of the genus Eugymnanthea. Invertebr. Biol. 2005, 124, 1–10. [Google Scholar] [CrossRef]
  25. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  26. Cunningham, C.W.; Buss, L.W. Molecular evidence for multiple episodes of pedomorphosis in the family Hydractiniidae. Biochem. Syst. Ecol. 1993, 21, 57–69. [Google Scholar] [CrossRef]
  27. Collins, A.G.; Winkelmann, S.; Hadrys, H.; Schierwater, B. Phylogeny of Capitata and Corynidae (Cnidaria, Hydrozoa) in light of mitochondrial 16S rDNA data. Zool. Scr. 2008, 34, 91–99. [Google Scholar] [CrossRef]
  28. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  29. Kimura, M. A simple method for estimating evolutionary rate of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef] [PubMed]
  30. Kramp, P.L. Some new and little-known Indo-Pacific medusae. Vidensk. Medd. Dan. Naturhist. Foren. 1959, 121, 223–259. [Google Scholar]
  31. Kramp, P.L. The Hydromedusae of the Pacific and Indian Oceans. Sections II and III; Carlsberg Foundation: Copenhagen, Denmark, 1968; Volume 968, pp. 1–200. [Google Scholar]
  32. Li, A.; Chen, Q. The Hydromedusae in the Waters around Nansha Island–The Species Composition, Faunstical Characters and Zoogeography of Hydromedusae around the Nansha Islands Waters; Research on Marine Fauna and Zoogeography of Nansha Islands; Ocean Press: Beijing, China, 1991; pp. 1–63. [Google Scholar]
  33. Xu, Z.; Huang, J.; Liu, G. On new species and records of Hydroidomedusae from the Changjiang River Estuary and its adjacent waters. Acta Oceanol. Sin. 2007, 26, 77–83. [Google Scholar]
  34. Guo, D.; Xu, Z.; Huang, J. Two new species of Eirenidae from the coast of southeast China. Acta Oceanol. Sin. 2008, 27, 61–66. [Google Scholar]
  35. Bouillon, J. Hydromedusae. In South Atlantic Zooplankton; Backhuys Publishers: Leiden, The Netherlands, 1999; pp. 424–512. [Google Scholar]
  36. Bouillon, J.; Barnett, T.J. The Marine Fauna of New Zealand: Hydromedusae (Cnidaria: Hydrozoa); National Institute of Water and Atmospheric Research (NIWA): Wellington, New Zealand, 1999; pp. 1–136. [Google Scholar]
  37. Kramp, P.L. Hydromedusae in the Indian museum. Rec. Ind. Mus. 1958, 53, 339–376. [Google Scholar] [CrossRef]
  38. Kubota, S. Biogeographical study on bivalve-inhabiting hydroids (Cnidaria, Hydrozoa) in Japan. In The Latest Studies of Aquatic Invertebrates; Tokai University Press: Hiratsuka, Japan, 1999; pp. 35–39, (In Japanese with English Abstract). [Google Scholar]
  39. Kubota, S. A New Bivalve-Inhabiting Hydroid from Central. J. Fac. Sci. Hokkaido Univ. Ser. VI Zool. 1984, 23, 454–467. [Google Scholar]
  40. Kubota, S. A new occurrence of the medusa of the “intermedia” form of Eutima japonica (Hydrozoa, Leptomedusae, Eirenidae) at Okinawa Island, Japan. Biol. Mag. Okinawa 2003, 41, 55–59. [Google Scholar]
  41. Uchida, T. Some medusae from New Caledonia. Publ. Seto Mar. Biol. Lab. 1964, 12, 109–112. [Google Scholar] [CrossRef]
  42. Mattox, N.T.; Crowell, S. A new commensal hydroid of the mantle cavity of an oyster. Biol. Bull. 1951, 101, 162–170. [Google Scholar] [CrossRef]
  43. Narchi, W.; Hebling, N.J. The life cycle of the commensal hydromedusa Eutima sapinhoa n. sp. Mar. Biol. 1975, 30, 73–78. [Google Scholar] [CrossRef]
  44. Allwein, J. North American Hydromedusae from Beaufort, North Carolinae. Vidensk. Meddel. Dan. Naturhist. Foren. 1967, 130, 117–136. [Google Scholar]
  45. Guo, D.; Xu, Z.; Huang, J.; Chunguang, W.; Mao, L. Two new hydrozoan species from the Taiwan Strait, China (Cnidaria: Hydrozoa: Leptothecata). Zool. Syst. 2019, 43, 185–190. [Google Scholar]
  46. Kubota, S.; Kobayashi, A.; Iwanaga, S.; Oshiro, N.; Torigoe, K. Geographical distributions of hydropolyps of bivalve-inhabiting hydrozoans (Hydrozoa, Leptomedusae) in Okinawa Island and its adjacent islands, Japan. Biol. Mag. Okinawa 2005, 43, 65–70. [Google Scholar]
  47. Kubota, S. The polyp and medusa of a commensal eutimid hydroid associated with a mussel from Oshoro, Hokkaido. Annot. Zool. Jpn. 1978, 51, 125–145. [Google Scholar]
  48. Kubota, S. Studies on life history and systematics of the Japanese commensal hydroids living in bivalves, with some reference to their evolution (with 28 text-figures, 38 tables, and 1 plate). J. Fac. Sci. Hokkaido Univ. Ser. VI Zool. 1983, 23, 296–402. [Google Scholar]
  49. Werner, B. Die Nesselkapseln der Cnidaria, mit besonderer Beruecksichtigung der Hydroida: I. Kassifikation und Bedeutung für Systematik und Evolution. Helgoländer Wiss. Meeresunters. 1965, 12, 1–39. [Google Scholar] [CrossRef]
  50. Schuchert, P. Species boundaries in the hydrozoan genus Coryne. Mol. Phylogenet. Evol. 2005, 36, 194–199. [Google Scholar] [CrossRef] [PubMed]
  51. Schuchert, P. DNA barcoding of some Pandeidae species (Cnidaria, Hydrozoa, Anthoathecata). Rev. Suisse. Zool. 2018, 125, 101–127. [Google Scholar]
  52. Lindsay, D.J.; Grossmann, M.M.; Nishikawa, J.; Bentlage, B.; Collins, A.G. DNA barcoding of pelagic cnidarians: Current status and future prospects. Bull. Plankton. Soc. Jpn. 2015, 62, 39–43. [Google Scholar]
  53. Kubota, S. Distribution of two species of bivalve-inhabiting hydrozoans (Hydrozoa, Leptomedusae) at the northernmost place of Tsushima Island, Nagasaki Prefecture, Japan-GFP distribution pattern of intermediate form of Eutima japonica. Bull. Biogeogr. Soc. Jpn. 2012, 67, 251–255. [Google Scholar]

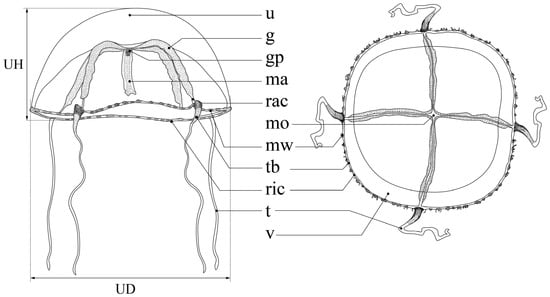

Figure 1. Key characters for identification and measurement of parts of the Eutima: g = gonad; gp = gastric peduncle; ma = manubrium; mo = mouth; mw = marginal wart; rac = radial canal; ric = ring canal; t = tentacle; tb = tentacle bulb; u = umbrella; UD = umbrella diameter; UH = umbrella height; v = velum.
Figure 1. Key characters for identification and measurement of parts of the Eutima: g = gonad; gp = gastric peduncle; ma = manubrium; mo = mouth; mw = marginal wart; rac = radial canal; ric = ring canal; t = tentacle; tb = tentacle bulb; u = umbrella; UD = umbrella diameter; UH = umbrella height; v = velum.
Hydrobiology 03 00010 g001
Figure 2. Live mature medusa of Eutima onahamaensis sp. n.: (A) lateral, (B) apical view. Scale bars: 1 mm.
Figure 2. Live mature medusa of Eutima onahamaensis sp. n.: (A) lateral, (B) apical view. Scale bars: 1 mm.
Hydrobiology 03 00010 g002
Figure 3. Live mature medusa of Eutima onahamaensis sp. n.: (A) manubrium, (B) mouth, (C) stomach, (D,E) tentacular bulb, (F) tentacle, (G) statocyst, (H) umbrella margin. lc = lateral cirri; mw = marginal wart; st = statocyst. Scale bars: 0.2 mm.
Figure 3. Live mature medusa of Eutima onahamaensis sp. n.: (A) manubrium, (B) mouth, (C) stomach, (D,E) tentacular bulb, (F) tentacle, (G) statocyst, (H) umbrella margin. lc = lateral cirri; mw = marginal wart; st = statocyst. Scale bars: 0.2 mm.
Hydrobiology 03 00010 g003
Figure 4. Nematocysts of Eutima onahamaensis sp. n.: (A) merotrichous isorhiza, (B) basitrichous isorhiza, (C) artichous isorhiza. Scale bars represent 5 µm.
Figure 4. Nematocysts of Eutima onahamaensis sp. n.: (A) merotrichous isorhiza, (B) basitrichous isorhiza, (C) artichous isorhiza. Scale bars represent 5 µm.
Hydrobiology 03 00010 g004
Figure 5. Fixed mature medusa of Eutima diademata: (A) lateral, (B) oral view, (C) apical view. Scale bars: 5 mm.
Figure 5. Fixed mature medusa of Eutima diademata: (A) lateral, (B) oral view, (C) apical view. Scale bars: 5 mm.
Hydrobiology 03 00010 g005
Figure 6. Fixed mature medusa of Eutima diademata: (A) manubrium and gastric peduncle, (B) manubrium, (C) stomach, (D,E) tentacular bulb, (F) tentacle, (G,H) umbrella margin. gp = gastric peduncle; lc = lateral cirri; ma = manubrium; mw = marginal wart; st = statocyst; t = tentacle; v = velum. Scale bars: (A,C) = 1 mm; (B,G) = 0.5 mm; (D,E,H) = 0.2 mm.
Figure 6. Fixed mature medusa of Eutima diademata: (A) manubrium and gastric peduncle, (B) manubrium, (C) stomach, (D,E) tentacular bulb, (F) tentacle, (G,H) umbrella margin. gp = gastric peduncle; lc = lateral cirri; ma = manubrium; mw = marginal wart; st = statocyst; t = tentacle; v = velum. Scale bars: (A,C) = 1 mm; (B,G) = 0.5 mm; (D,E,H) = 0.2 mm.
Hydrobiology 03 00010 g006

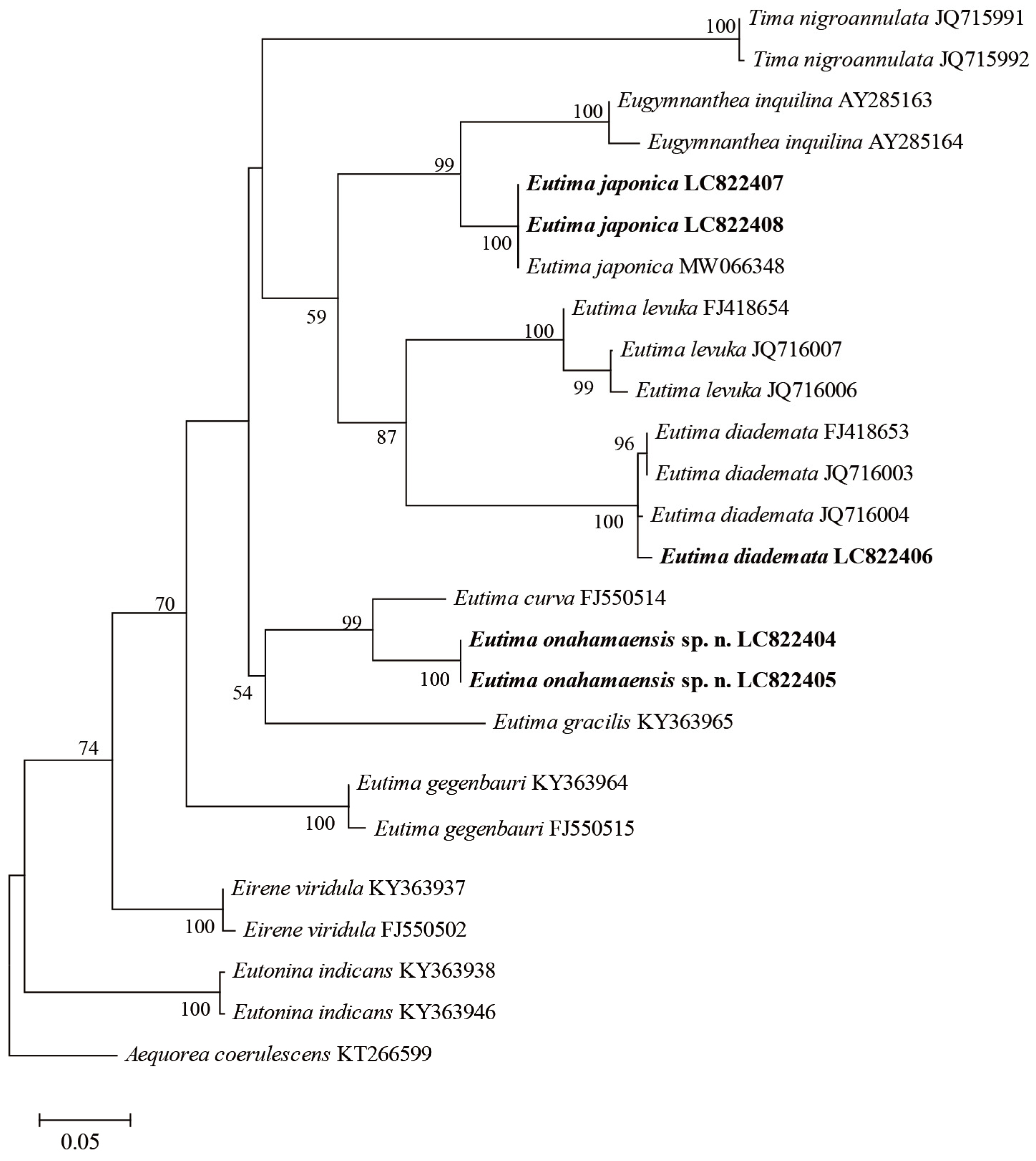

Figure 7. Maximum likelihood tree (under GTR + G + I) for 12 Leptothecata taxa based on the mitochondrial 16S rDNA data set. The scale bar indicates branch length in substitutions per site. Nodal support values are presented as the ML bootstrap value; only values >50% are shown.
Figure 7. Maximum likelihood tree (under GTR + G + I) for 12 Leptothecata taxa based on the mitochondrial 16S rDNA data set. The scale bar indicates branch length in substitutions per site. Nodal support values are presented as the ML bootstrap value; only values >50% are shown.
Hydrobiology 03 00010 g007
Table 1. Taxa included in the phylogenetic analyses and GenBank accession numbers for the sequences. Sequences obtained in this study are in bold.
Table 1. Taxa included in the phylogenetic analyses and GenBank accession numbers for the sequences. Sequences obtained in this study are in bold.
SpeciesAccessioned NameAccession No.Locality (Origin)Reference
Eirene viridulaEirene viridulaKY363937France: Villefranche-sur-Mer, Ligurian Sea, Mediterranean[22]
Eirene viridulaEirene viridulaFJ550502France: Luc-sur-mer[23]
Eugymnanthea inquilinaEugymnanthea inquilinaAY285163Italy[24]
Eugymnanthea inquilinaEugymnanthea inquilinaAY285164Italy[24]
Eutima curvaEutima curvaFJ550514New Zealand: Devonport[23]
Eutima gegenbauriEutima gegenbauriFJ550515France: Villefranche-sur-Mer[23]
Eutima gegenbauriEutima gegenbauriKY363964Sweden: Kristineberg[22]
Eutima gracilisEutima gracilisKY363965Sweden: Kristineberg[22]
Eutima diademataEutima diademataLC822406Japan: off Itoman, OkinawaThis study
Eutima diademataEutima krampiFJ418653UnknownUnpublished
Eutima diademataEutima krampiJQ716003Taiwan Strait[18]
Eutima diademataEutima krampiJQ716004Taiwan Strait[18]
Eutima japonicaEutima japonicaLC822407Japan: Shonan Port, Fujisawa, KanagawaThis study
Eutima japonicaEutima japonicaLC822408Japan: Shonan Port, Fujisawa, KanagawaThis study
Eutima japonicaEutima sp.MW066348UnknownUnpublished
Eutima levukaEutima levukaFJ418654UnknownUnpublished
Eutima levukaEutima levukaJQ716006China: Xiamen Bay[18]
Eutima levukaEutima levukaJQ716007China: Xiamen Bay[18]
Eutima onahamaensisEutima onahamaensis n. sp.LC822404Japan: Onahama Port, Iwaki, FukushimaThis study
Eutima onahamaensisEutima onahamaensis n. sp.LC822405Japan: Onahama Port, Iwaki, FukushimaThis study
Eutonina indicansEutonina indicansKY363938USA: San Juan Island, Friday Harbor[22]
Eutonina indicansEutonina indicansKY363946Norway: Fanafjord, Kinnar Osen[22]
Tima nigroannulataTima formosaJQ715991China: Changjiang River Estuary[18]
Tima nigroannulataTima formosaJQ715992China: Changjiang River Estuary[18]
Aequorea coerulescensAequorea coerulescensKT266599Japan: Shirahama, WakayamaUnpublished
Table 2. Morphometrics (mm) of Eutima onahamaensis sp. n. and Eutima diademata. * The holotype. Nos. NSMT-Co1846-1847 are paratypes. UH, umbrella height; UD, umbrella diameter.
Table 2. Morphometrics (mm) of Eutima onahamaensis sp. n. and Eutima diademata. * The holotype. Nos. NSMT-Co1846-1847 are paratypes. UH, umbrella height; UD, umbrella diameter.
SpeciesSpecimen NumberUH
(mm)
UD
(mm)
No. of
Tentacles
No. of
Marginal Warts
No. of
Statocysts
Eutima onahamaensis n. sp.NSMT-Co18462.74.64448
Eutima onahamaensis n. sp.NSMT-Co18472.13.74398
Eutima onahamaensis n. sp.NSMT-Co1848 *4.17.94558
Eutima diademataNSMT-Co18498.710.49968
Table 3. Cnidomes of Eutima onahamaensis sp. n. D, L represent capsule diameter and length, respectively, in μm.
Table 3. Cnidomes of Eutima onahamaensis sp. n. D, L represent capsule diameter and length, respectively, in μm.
Type MinMaxMeanSDN
Artichous isorhizaD2.74.43.40.530
L4.87.16.10.530
Basitrichous isorhizaD3.76.45.30.730
L9.012.410.80.830
Merotrichous isorhizaD2.65.83.50.630
L7.112.89.01.130
Table 4. Morphology of Eutima in previous and present studies.
Table 4. Morphology of Eutima in previous and present studies.
SpeciesUmbrella
(mm)
No. of
Tentacle
Marginal
Warts
GonadsAdaxial PapillaeGastric PeduncleDistributionReference
Eutima onahamaensis
sp. n.
4–8439–554 on radial canalsAbsentVery short, indistinctJapan: FukushimaThis study
Eutima cirrhifera
(Kakinuma, 1964)
8–10824–49SubumbrellaAbsentShortJapan: Hokkaido[17,20]
Eutima coerulea
(Agassiz, 1862)
103296Restricted to peduncleAbsent1/2 of umbrella
diameter, tapering
Bahamas, Florida, Tortuga[4,35]
Eutima commensalis
Santhakumari, 1970
6848–80SubumbrellaAbsentShortIndian, Arabian Sea[7,17]
Eutima curva
Browne, 1905
254120–140Restricted to peduncleAbsentLong, pyramidal
above
Indo-Pacific, China Sea[4,36]
Eutima diademata
(Kramp, 1959)
15850–808:4 on radial canals,
4 on peduncle
AbsentLongIndo-Pacific([30,34], This study)
Eutima gegenbauri
(Haeckel, 1864)
208–1660–818:4 on radial canals,
4 on peduncle
PresentVery longMediterranean, European
Atlantic, Australia, China Sea
[4,17]
Eutima gentiana
(Haeckel, 1879)
8816Restricted to peduncleAbsentVery longCanary Islands, China Sea[4,17]
Eutima gracilis
(Forbes & Goodsir, 1853)
132 or 440–80Restricted to peduncleAbsentLong and narrow,
with conical base
Mediterranean, European
Atlantic, West Africa
[4,36]
Eutima hartlaubi
Kramp, 1958
1512–14328:4 on radial canals,
4 on peduncle
Absent1/2 of umbrella
diameter
Djibouti, Nicobar, Aden
Gulf, Indian Ocean
[17,37]
Eutima japonica
Uchida, 1925 (northern form)
5–11816–454 on radial canalsAbsentShortJapan, North Pacific[38]
Eutima japonica
Uchida, 1925 (southern form)
9–12847–674 on radial canalsAbsentShortJapan, the Seto Inland Sea, Kochi Prefecture[38]
Eutima japonica
Uchida, 1925 (intermediate form)
2–348–244 on radial canalsAbsentVery short, indistinctJapan, Mie Prefecture, Tsushima Island[38,39,40]
Eutima japonica
Uchida, 1925 (transitional form)
5–74 or 816–454 on radial canalsAbsentShortJapan, Miyazaki Prefecture[38]
Eutima levuka
(Agassiz & Mayer, 1899)
1581008:4 on radial canals,
4 on peduncle
Absent1/2 of umbrella
diameter
Indo-Pacific, China Sea[4,17]
Eutima longigonia
Bouillon, 1984
88864–80Restricted to peduncleAbsent1× umbrella
diameter
Papua New Guinea[17]
Eutima marajoara
Tosetto, Neumann-Leitão & Nogueira, 2020
104048SubumbrellaPresent1/4 of umbrella
diameter
North Brazil[2]
Eutima mira
McCrady, 1859
304<1004 on radial canals,
4 on peduncle
AbsentLong, taperingIndo-Pacific, Brazil, Northeast
Atlantic, China Sea
[4,35]
Eutima modesta
(Hartlaub, 1909)
81616<SubumbrellaAbsent1× umbrella
diameter
Djibouti, Aden Gulf[4,17]
Eutima mucosa
Bouillon, 1984
15856–80SubumbrellaAbsent1/2 of umbrella
diameter
Papua New Guinea[17]
Eutima neucaledonia
Uchida, 1964
9848–56SubumbrellaAbsent1× umbrella
diameter
New Caledonia[17,41]
Eutima orientalis
(Browne, 1905)
6460–804 on radial canals,
4 on peduncle
Absent2× umbrella
diameter
Sri Lanka[31]
Eutima ostrearum
(Mattox & Crowell, 1951)
34124 on radial canalsAbsentLong, simple, extendng to velar openingPuerto Rico[42]
Eutima sapinhoa
Narchi & Hebling, 1975
4428SubumbrellaAbsent1× umbrella
diameter
Brazil[17,43]
Eutima suzannae
Allwein, 1967
6832SubumbrellaPresent1/2 of umbrella
diameter
North Carolina[17,44]
Eutima variabilis
McCrady, 1859
-20364 on radial canals,
4 on peduncle
Absent1–1.5 of umbrella
height
East USA, China Sea[4,17]
Eutima taiwanensis
Xu, Huang and Guo, 2019
1212–1680–1204 on radial canals,
4 on peduncle
AbsentLongTaiwan Strait[45]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Toshino, S.; Ishii, R.; Mizutani, S. A New Species of Hydrozoan Jellyfish Eutima onahamaensis and New Record of Eutima diademata (Hydrozoa, Leptothecata) from Japan. Hydrobiology 2024, 3, 134-148. https://doi.org/10.3390/hydrobiology3030010

AMA Style

Toshino S, Ishii R, Mizutani S. A New Species of Hydrozoan Jellyfish Eutima onahamaensis and New Record of Eutima diademata (Hydrozoa, Leptothecata) from Japan. Hydrobiology. 2024; 3(3):134-148. https://doi.org/10.3390/hydrobiology3030010

Chicago/Turabian Style

Toshino, Sho, Rintaro Ishii, and Seiichi Mizutani. 2024. "A New Species of Hydrozoan Jellyfish Eutima onahamaensis and New Record of Eutima diademata (Hydrozoa, Leptothecata) from Japan" Hydrobiology 3, no. 3: 134-148. https://doi.org/10.3390/hydrobiology3030010

Article Metrics

Back to TopTop
