Search Results (4)

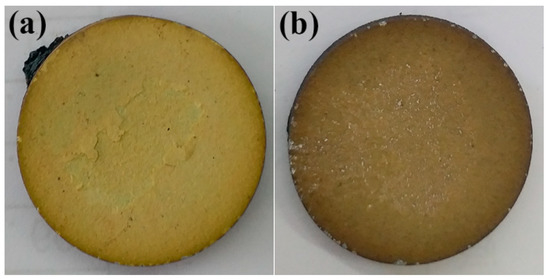

To tackle the ever-increasing operating temperature of aero-engines, a La₂Ce₂O₇ (LCO)/yttria partially stabilized zirconia (YSZ) double-layer thermal barrier coating (TBC) was investigated. The LCO/YSZ double-layer samples were annealed with volcanic ash (VA) at 1250 °C to assess their stability in comparison with that of standard single-layer YSZ. The findings showed that the double-layer system exhibited greater resistance to VA damage than the single-layer YSZ coating. The corrosion mechanism was characterized by a rapid crystallization reaction between LCO and VA, where the kinetics of the solution’s reprecipitation reaction outpaced the penetration rate into the coating’s open pores. Full article

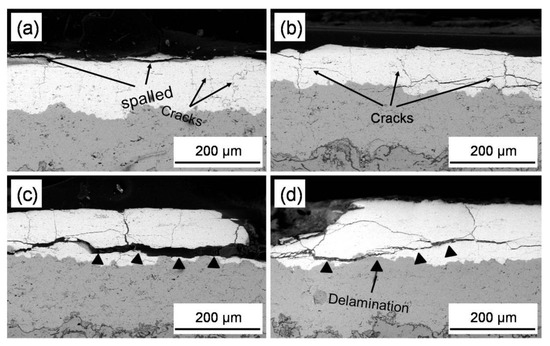

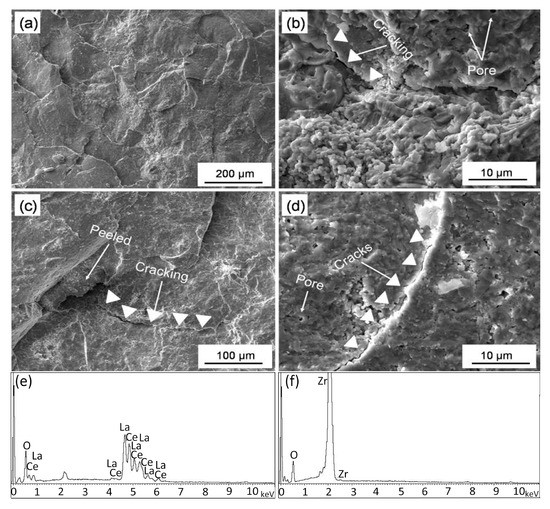

Thermal barrier coatings (TBC) used for turbine blades are indispensable for the most advanced aero-engines due to their excellent thermal insulation performance. Solid particle erosion (SPE) at high temperatures is one of the most critical factors in TBC failure. The high-temperature SPE failure behavior of TBC on circular sheets and turbine blades was investigated in this paper at erosion angles 60° and 90°. The high-temperature thermal shock behavior of TBC was also studied as the control group. The SPE failure mechanism of TBC is attributed to the spallation and thickness decrease of TBC. The formation of thermally grown oxide is the main reason for the TBC spallation, while the thickness decrease of TBC is due to the impaction of solid particles by near-surface cracking. The erosion angle is critical to the failure behavior of TBC, and TBC is more susceptible to SPE at an erosion angle of 60° than that at 90° because of the additional shear stress. Furthermore, a La₂Ce₂O₇/YSZ double-ceramic-layer TBC was designed and deposited on turbine blades. The experimental results indicate that this type of double-layer TBC has more excellent performance under SPE than traditional YSZ TBC. Full article

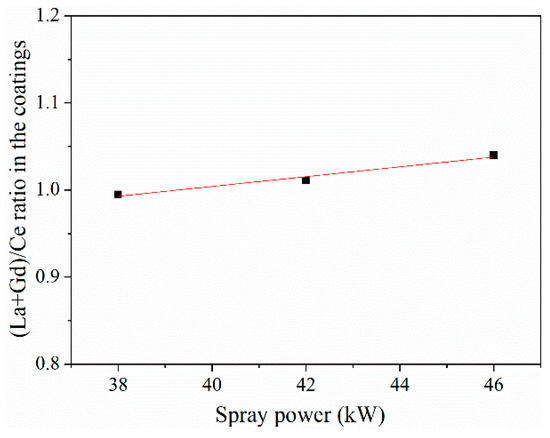

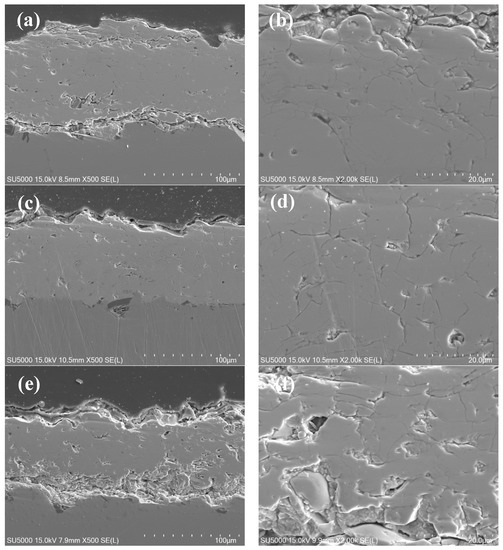

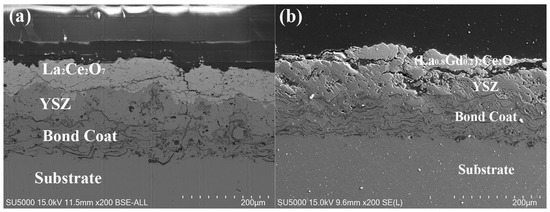

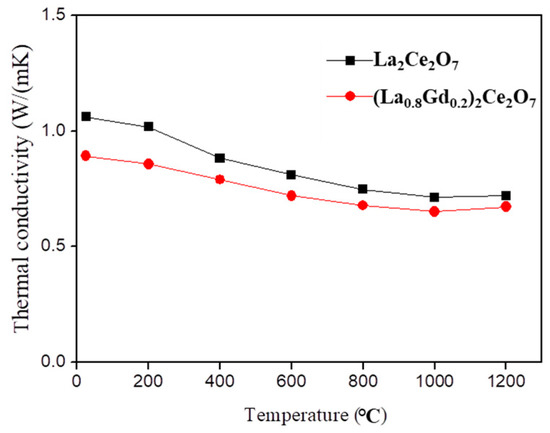

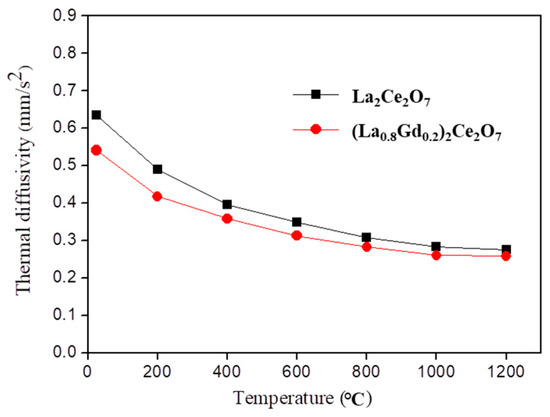

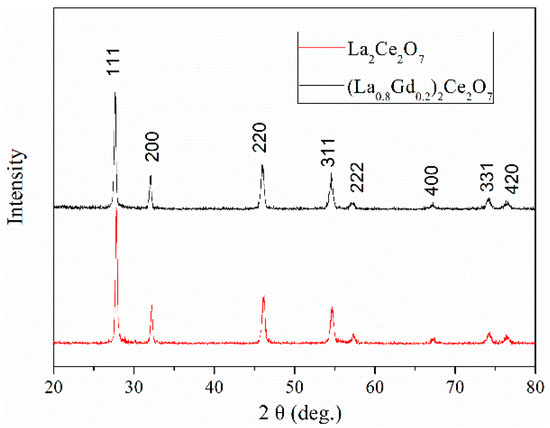

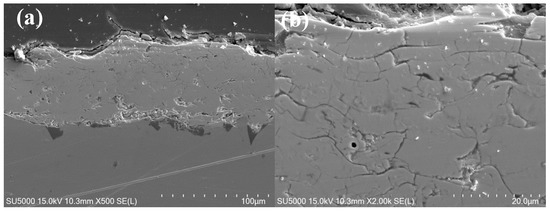

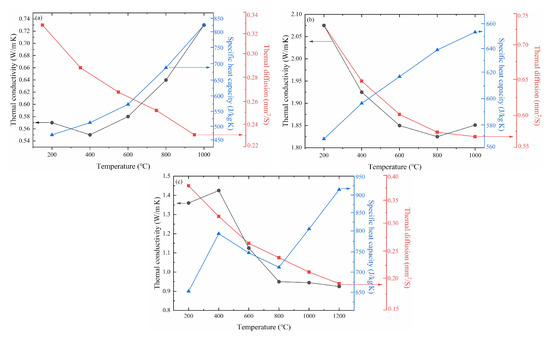

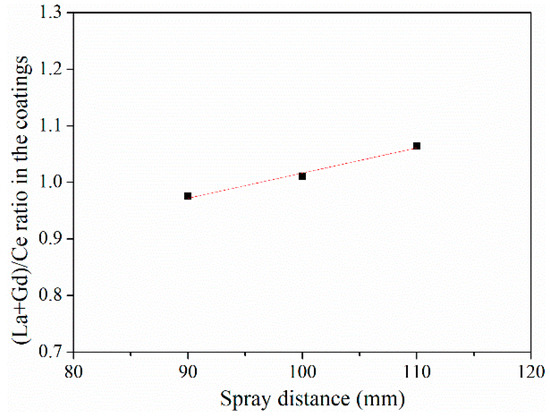

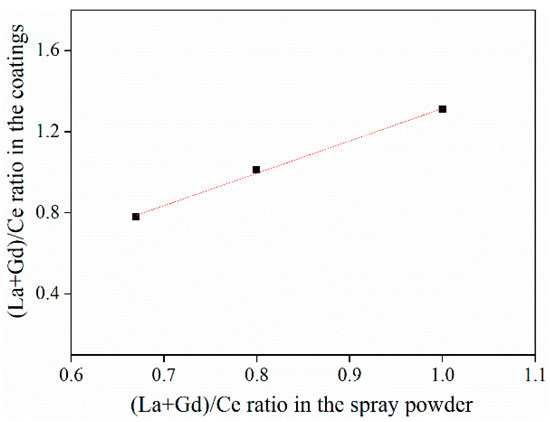

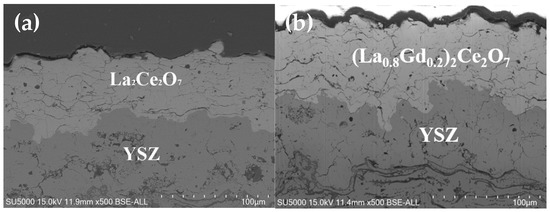

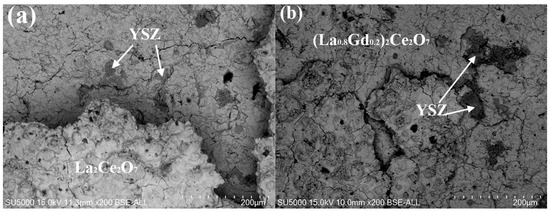

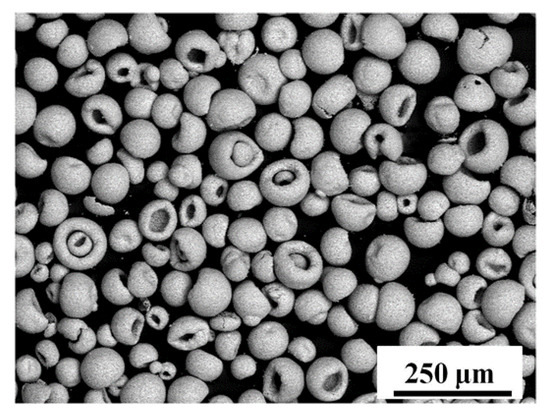

As one of the promising thermal barrier coating (TBC) candidates, stoichiometric (La_0.8Gd_0.2)₂Ce₂O₇ (LGC) coatings were prepared by atmospheric plasma spraying (APS), using (La_0.8Gd_0.2)₂Ce_2.5O₈ as a spray powder and optimized spray parameters. It was found that spray distance and spray power both play an important role in the phase composition and microstructure of the coating. The LGC coating exhibited lower thermal conductivities than that of La₂Ce₂O₇ (LC) coating, which is ~0.67 W/m·K at 1200 °C. Double-ceramic-layer (DCL) optimum (La_0.8Gd_0.2)₂Ce₂O₇/YSZ (LGC/YSZ) thermal barrier coating was prepared and its thermal shock behavior was investigated. The LGC/YSZ DCL TBCs had better thermal shock resistance ability than that of LC/YSZ TBCs, which was around 109 cycles at 1100 °C. However, the failure mode was similar to that of LC/YSZ DCL TBCs, which was still layer-by-layer spallation in the top ceramic layer due to the sintering of the ceramic coating. Full article

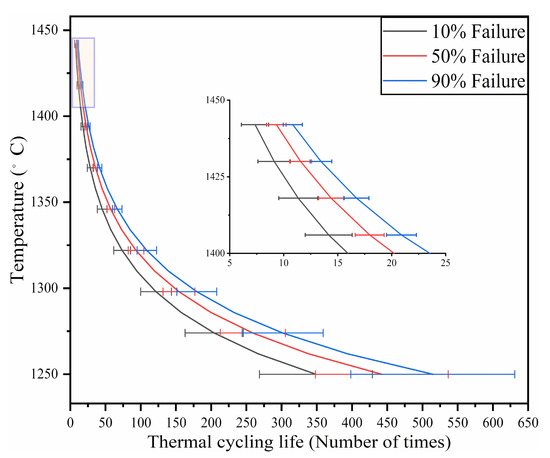

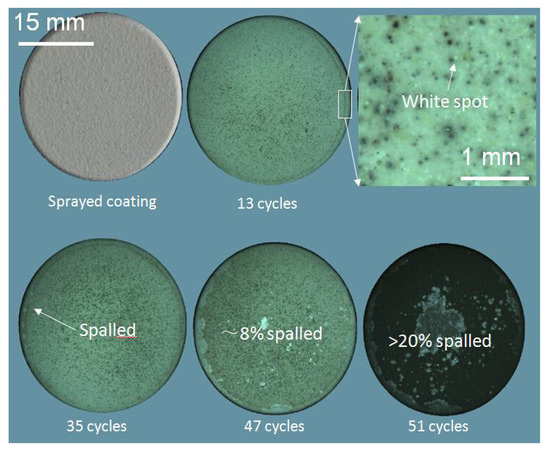

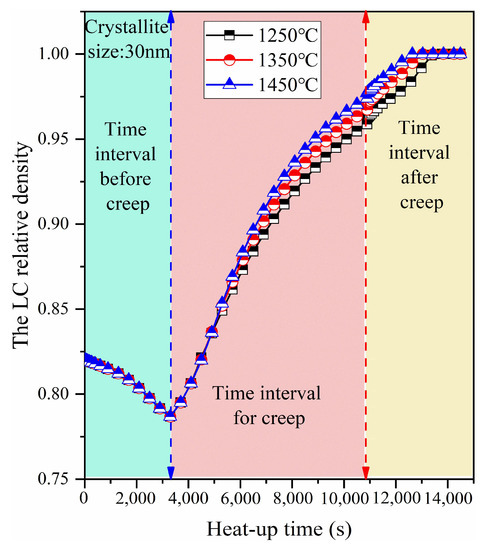

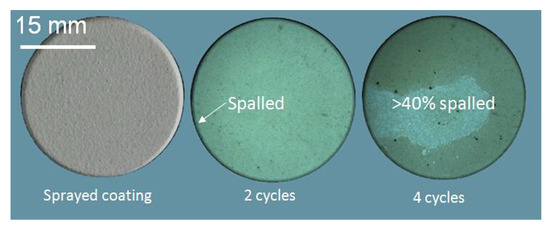

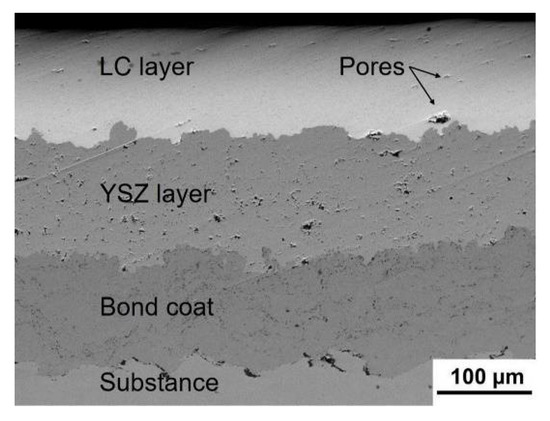

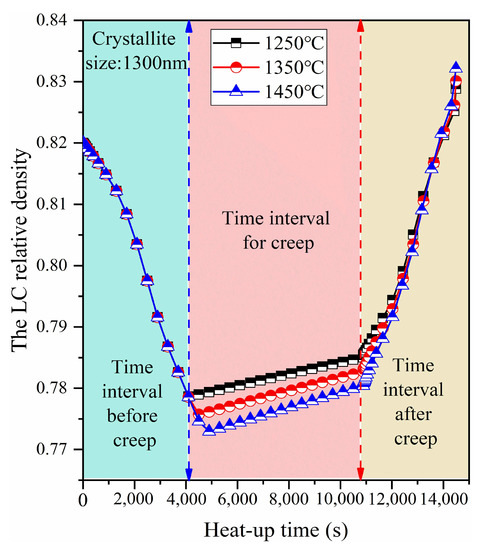

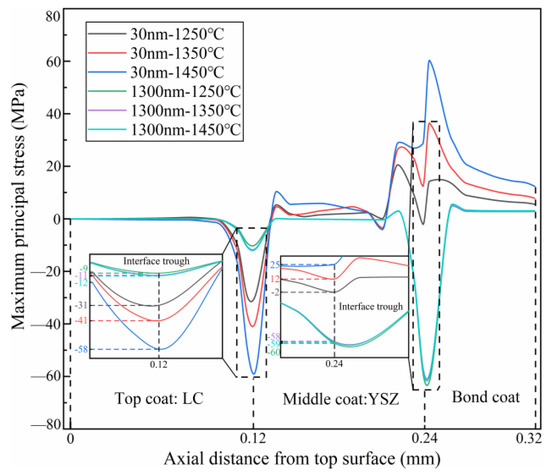

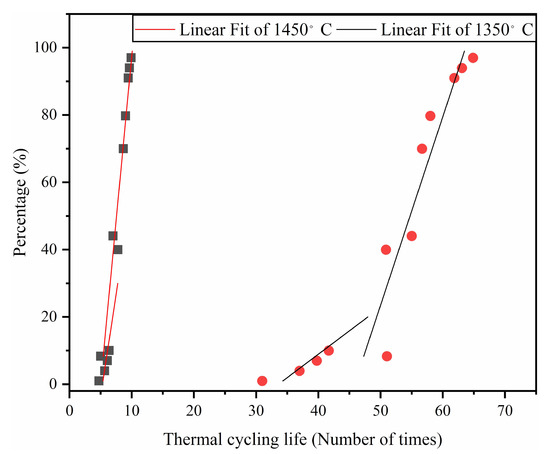

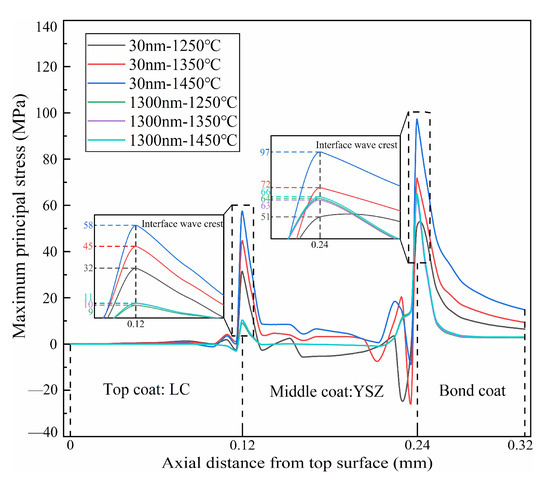

The purpose of this paper is to study the thermal shock resistance and failure mechanism of La₂Ce₂O₇/8YSZ double-ceramic-layer thermal barrier coatings (LC/8YSZ DCL TBCs) under extreme temperature gradients. At high surface temperatures, thermal shock and infrared temperature measuring modules were used to determine the thermal cycling life and insulation temperature of LC/8YSZ DCL TBCs under extreme temperature gradients by an oxygen–acetylene gas flame testing machine. A viscoelastic model was used to obtain the stress law of solid phase sintering of a coating system using the finite element method. Results and Conclusion: (1) Thermal cycling life was affected by the surface temperature of LC/8YSZ DCL TBCs and decreased sharply with the increase of surface temperature. (2) The LC ceramic surface of the failure coating was sintered, and the higher the temperature, the faster the sintering process. (3) Accelerated life test results showed that high temperature thermal cycling life is not only related to thermal fatigue of ceramic layer, but is also related to the sintering degree of the coating. (4) Although the high temperature thermal stress had great influence on the coating, great sintering stress was produced with sintering of the LC ceramic layer, which is the main cause of LC/8YSZ DCL TBC failure. The above results indicate that for new TBC ceramic materials, especially those for engines above class F, their sinterability should be fully considered. Sintering affects the thermal shock properties at high temperature. Our research results can provide reference for material selection and high temperature performance research. Full article
