Search Results (603)

This work examines the possibility of using a PbO₂-based electrode doped with the rare-earth metal holmium in the field of oxygen evolution and the development of an efficient method for the degradation of acetamiprid. Acetamiprid is a widely used insecticide and, as such, it very often reaches waterways, where it can cause many problems for wildlife and the environment. X-ray powder diffraction analysis, Raman spectroscopy, and energy-dispersive X-ray spectroscopy results confirmed the structure of Ti/SnO₂-Sb₂O₃/Ho-PbO₂, while the morphology of its surface was investigated by scanning electron microscopy with energy-dispersive X-ray spectroscopy. Ti/SnO₂-Sb₂O₃/Ho-PbO₂ showed good OER activity in alkaline media with a Tafel slope of 138 mV dec⁻¹. The Ti/SnO₂-Sb₂O₃/Ho-PbO₂ electrode shows very good efficiency in removing acetamiprid. By optimizing the degradation procedure, the following operating conditions were obtained: a current density of 20 mA cm⁻², a pH value of the supporting electrolyte (sodium sulfate) of 2, and a concentration of the supporting electrolyte of 0.035 M. After optimization, the maximum efficiency of removing acetamiprid (10 mg L⁻¹, 4.5 × 10⁻⁵ mol) from water was achieved, 96.8%, after only 90 min of treatment, which represents an efficiency of 1.125 mol cm⁻² of the electrode. Additionally, it was shown that the degradation efficiency is strictly related to the concentration of the treated substance. Full article

This study addresses the need for efficient photoelectric materials by fabricating Indium-doped tin sulfide (SnS-In)/titanium dioxide (TiO₂) heterostructure thin films via radio frequency (RF) magnetron sputtering. We systematically investigated the synergistic enhancement of photoelectric properties from both In-doping and the heterostructure design. SnS-In films with controlled In concentrations were prepared by embedding varying numbers of indium pellets into the SnS sputtering target. Our findings reveal that an optimal In doping of 4.93 at% significantly improves the crystalline quality and light absorption of SnS, reducing its band gap from 1.27 eV to 1.13 eV and enhancing carrier concentration and mobility. Subsequently, the optimized SnS-In film combined with TiO₂ formed a heterojunction, achieving a peak photocurrent density of 6.36 µA/cm² under visible light. This is 2.2 and 53.0 times higher than standalone SnS-In and TiO₂ films, respectively. This superior performance is attributed to the optimal In³⁺ doping effectively modulating the SnS band structure and the type-II heterojunction promoting efficient charge separation. This work demonstrates a promising strategy for optoelectronic conversion and photocatalysis by combining In-doping for SnS band structure engineering with TiO₂ heterostructure construction. Full article

Nosocomial infections caused by Candida albicans pose serious challenges to healthcare systems due to their persistence on medical surfaces and resistance to conventional disinfectants. This study evaluates antifungal properties of SnO₂ doped with silver and cuprite nanoparticles and WO₃ thin films, as well as cobalt (CoFe₂O₄) and cobalt–nickel (Co_0.5Ni₀.₅Fe₂O₄) ferrite nanoparticles, activated by ultraviolet C (UVC) radiation, direct electric current (up to 100 V), and magnetic fields. SnO₂ films were synthesized by Spray Pyrolysis and WO₃ by Sputtering deposition, Ferrites nanoparticles by sol–gel, while metallic nanoparticles were synthetized via chemical reduction. Characterization consisted mainly of SEM, TEM, and XRD, and their antimicrobial activity was tested against C. albicans. WO₃ films achieved 86.2% fungal inhibition after 5 min of UVC exposure. SnO₂ films doped with nanoparticles reached 100% inhibition when combined with UVC and 100 V. Ferrite nanoparticles alone showed moderate activity (21.9%–40.4%) but exhibited strong surface adhesion to fungal cells, indicating potential for magnetically guided antifungal therapies. These results demonstrate the feasibility of using multifunctional nanomaterials for rapid, non-chemical disinfection. The materials are low-cost, scalable, and adaptable to hospital settings, making them promising candidates for reducing healthcare-associated fungal infections through advanced surface sterilization technologies. Full article

The structural features of Sb–doped (Ti,Zr)NiSn and (Ti,Zr,Hf)NiSn half-Heusler (HH) thermoelectrics have been identified down to the atomic scale using a combination of transmission electron microscopy (TEM) techniques. TEM sheds light on the morphology, phases present, size distributions and elemental variations between the two samples. Both materials consist of the HH phase, at both micro- and nanoscale levels, and comprise particles with two size ranges, 115 and 223 nm, on average, for large HH particles and 4–17 nm for nanoparticles for both materials. Hf incorporation in the HH lattice brought upon significant elemental fluctuations, manifested in chemical profiles and lattice parameter variations measured by post-experimental image analysis. The increased elemental variations induced by Hf substitution significantly contributed to the low thermal conductivity values and high power factor, leading to an enhanced figure of merit of 0.76 at 762 K for (Ti,Zr,Hf)NiSn, demonstrating the capability of TEM to confirm the structural features that are responsible for improved TE performance. Full article

Improving the catalytic performance of the oxygen evolution reaction (OER) for water splitting in acidic media is crucial for the production of clean and renewable hydrogen energy. Herein, we study the OER electrocatalytic properties of various active sites on four exposed (110) and ($\overline{1}$10) surfaces of Sn-doped RuO₂ (Sn/RuO₂) with antiferromagnetic arrangements in acidic environments. The Sn/RuO₂ bulk structure with the Cm space group exhibits favorable thermodynamic stability. The coordinatively unsaturated metal (M_cus) sites distributed on the right branch of the volcano plot are generally more active than the bridge-bonded lattice oxygen (O_br) sites located on the left. Different from the conventional knowledge that the most active site is located in the nearest neighbor of the doped atom, it has a lower OER overpotential when the active site is 3.6 Å away from the doped Sn atom. Among the sites studied, the 46-Ru_cus site exhibits the optimal OER catalytic performance. The inherent factors affecting the OER activity of each site on the Sn/RuO₂ surface are further analyzed, including the center of the d/p band at the active sites, the average electrostatic potential of the ions, and the number of transferred electrons. This work provides a reminder for the selection of active sites used to evaluate catalytic performance, which will benefit the development of efficient OER electrocatalysts. Full article

The toxicity of lead in conventional perovskites and their inherent chemical instability impede the commercialization of perovskite-based optoelectronics. Therefore, it is vital to develop chemically stable and environmentally friendly Pb-free alternatives. Recently, zero-dimensional (0D) all-inorganic Cs₂ZnCl₄ doped with Sn(II) has emerged as a promising candidate, exhibiting superior chemical robustness, minimal biotoxicity, and exceptional optoelectronic properties. In this work, pressure effects on structure and optical properties in Sn(II)-doped all-inorganic zero-dimensional halide perovskite are investigated both experimentally and theoretically. The structure–property relationship of Sn(II)-doped Cs₂ZnCl₄ is studied using high-pressure techniques. Piezochromism, accompanied by a remarkable change in emission color from orange/red and green to orange/yellow, was obtained from 1 atm to 22.5 GPa. Angle dispersive synchrotron X-ray diffraction (ADXRD) patterns and Raman spectra manifest that the material underwent an isostructural phase transition followed by amorphization with increasing pressure. The piezochromism and band gap engineering originate from the pressure-induced lattice compression and isostructural phase transition. This work advances STE emission studies and provides a robust strategy to boost emission efficiency and to construct multifunctional materials with piezochromism in environmentally friendly perovskites, thus facilitating diverse future applications. Full article

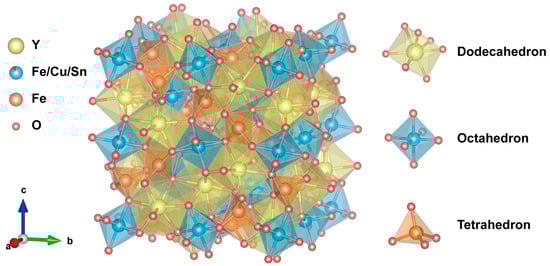

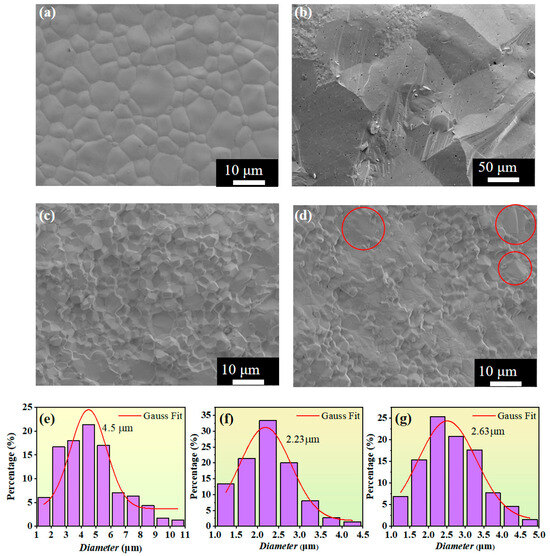

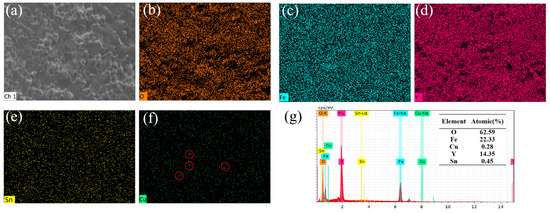

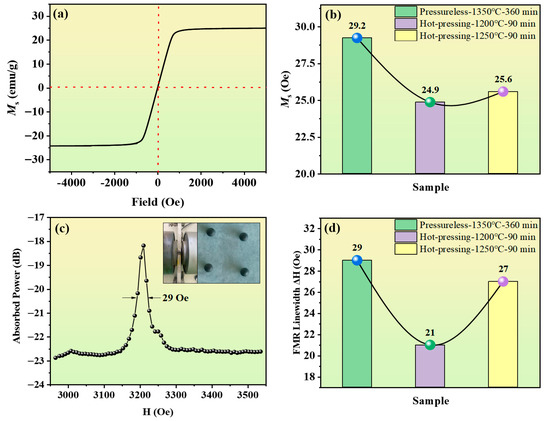

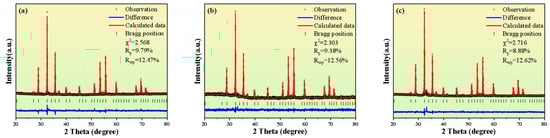

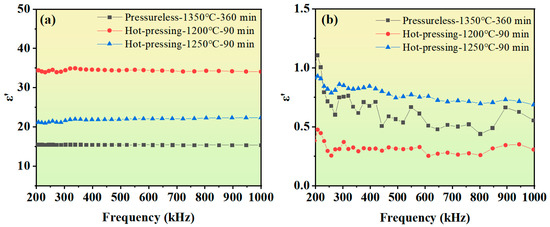

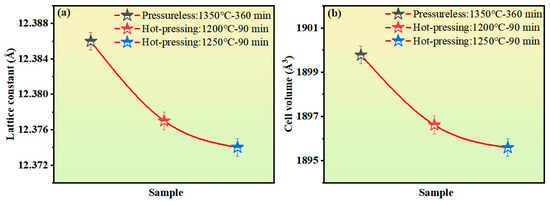

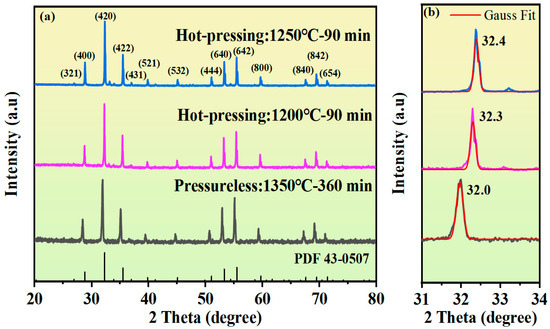

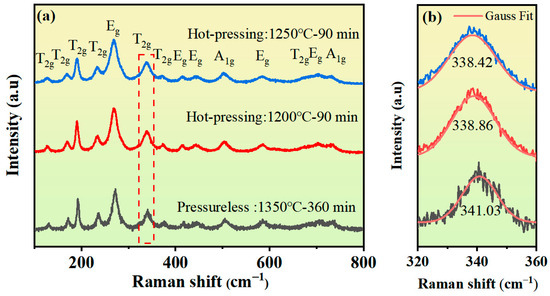

Yttrium iron garnet (YIG), as a core material in microwave devices, remains a key focus in materials science for performance optimization. In this study, Y₃Fe_4.8Cu_0.1Sn_0.1O₁₂ samples were prepared via the solid-phase method with the co-doping of low-magnetic-anisotropy Cu²⁺ and Sn⁴⁺, combined with hot-press sintering under different conditions. Systematic analyses revealed that hot-press sintering optimized the microstructure, reduced porosity, and improved the compactness to 5.60 g/cm³. The sample hot-pressed sintered at 1200 °C achieved a maximum ε′ of 34, the lowest dielectric loss and a minimal FMR linewidth of 21 Oe, thus holding great potential for applications in high-frequency microwave devices requiring low loss and high integration. This work provides a viable approach to regulating the microstructure, dielectric properties, and magnetic properties of YIG ferrites. Full article

In this study, a novel strategy to enhance the performance of palladium (Pd)-based catalysts by doping with metal oxides (Mn₃O₄, MoO₃, and SnO) has been developed in order to overcome the limitations of its low activity and high cost in the catalytic oxidation of formaldehyde (HCHO). The novelty of this strategy lies in the fact that by precisely controlling the types and doping ratios of the metal oxides, a significant enhancement of the electrochemical performance and catalytic activity of the Pd-based catalysts was achieved, while the dependence on precious metals was reduced and the cost-effectiveness of the catalysts was improved. The effects of different metal oxide doping on the catalytic performance were systematically investigated by electrochemical characterization and catalytic activity tests. Among the prepared catalysts, Pd-Mn₃O₄ showed the most excellent performance, with an electrochemically active surface area of 20.6 m²/g and a formaldehyde oxidation reaction (FOR) current density of 3.5 mA/cm², which were 31.6% and 169.2% higher than pure Pd, respectively. In a 1000 s timed current method stability test, the limiting current density of Pd-Mn₃O₄ reached 0.48 mA/cm², which is 4.4 times higher than that of pure Pd. The excellent catalytic performance is attributed to the abundant surface hydroxyl (-OH) groups provided by Mn₃O₄, which contribute to the oxidation of formaldehyde intermediates, as well as the electronic synergistic effect between Pd and Mn₃O₄, which is manifested as a 0.4 eV downshift of the Pd 3d binding energy. In addition, the sensor evaluation showed that the Pd-Mn₃O₄-based formaldehyde sensor exhibited a high sensitivity (1.5 μA/ppm), excellent linearity (R² = 0.995), minimal long-term degradation (<7% in 30 days), and ~20-fold selectivity for formaldehyde over interfering gases (e.g., ethanol). This study provides a theoretical basis and practical material reference for the development of efficient and low-cost catalysts for formaldehyde oxidation. Full article

Stoichiometric single crystals of Mn₄Al₁₁ were synthesized from the elements using Sn as a flux. The crystal structure of Mn₄Al₁₁ was investigated using single crystal X-ray diffraction and showed a complex triclinic structure with a relatively small unit cell and interpenetrating networks of Mn and Al atoms. While our results generally agree with the previously reported data in the basic structure features such as triclinic symmetry and structure type, the atomic parameters differ significantly, likely due to different synthetic techniques producing off-stoichiometry or doped crystals used in the previous works. Our structural analysis showed that the view of the Mn substructure as isolated zigzag chains is incomplete. Instead, the Mn chains are coupled in corrugated layers by long Mn-Mn bonds. The high quality of the crystals with the stoichiometric composition also enabled us to study magnetic behavior in great detail and reveal previously unobserved magnetic ordering. Our magnetization measurements showed that Mn₄Al₁₁ is an antiferromagnet with T_N of 65 K. The presence of the maximum above T_N also suggests strong local interactions indicative of low-dimensional magnetic behavior, which likely stems from lowered dimensionality of the Mn substructure. Full article

The most prevalent growth of Candida cells is based on biofilm development, which causes the intensification of antifungal resistance against a large range of chemicals. Nanoparticles can be synthesized using green methods via various biological extracts and reducing agents to control Candida biofilms. This study aims to compare copper oxide nanoparticles (CuONPs) synthesized through chemical methods and those synthesized using Cinnamomum verum-based green methods against Candida infections and their biofilms isolated from Iraqi patients, with the potential to improve treatment outcomes. The physical and chemical properties of these nanoparticles were characterized using Fourier-transform infrared spectroscopy (FT-IR,) scanning electron microscopy (SEM), transmission electron microscopy (TEM), atomic force microscopy (AFM) and X-ray diffraction (XRD). Four strains of Candida were isolated and characterized from Iraqi patients in Tikrit Hospital and selected based on their ability to form biofilm on polystyrene microplates. The activity of green-synthesized CuONPs using cinnamon extract was compared with both undoped and doped (Fe, Sn) chemically synthesized CuONPs. Four pathogenic Candida strains (Candida glabrata, Candida lusitaniae, Candida albicans, and Candida tropicalis) were isolated from Iraqi patients, demonstrating high biofilm formation capabilities. Chemically and green-synthesized CuONPs from Cinnamomum verum showed comparable significant antiplanktonic and antibiofilm activities against all strains. Doped CuONPs with iron or tin demonstrated lower minimum inhibitory concentration (MIC) values, indicating stronger antibacterial activity, but exhibited weaker anti-adhesive properties compared to other nanoparticles. The antiadhesive activity revealed that C. albicans strain seems to produce the most resistant biofilms while C. glabrata strain seems to be more resistant towards the doped CuONPs. Moreover, C. tropicalis was the most sensitive to all the CuONPs. Remarkably, at a concentration of 100 µg/mL, all CuONPs were effective in eradicating preformed biofilms by 47–66%. The findings suggest that CuONPs could be effective in controlling biofilm formation by Candida species resistant to treatment in healthcare settings. Full article

The widespread adoption of sodium-ion batteries (SIBs) remains constrained by the inherent limitations of conventional anode materials, particularly their inadequate electronic conductivity, limited active sites, and pronounced structural degradation during cycling. To overcome these limitations, we propose a novel redox engineering approach to fabricate oxygen-vacancy-rich SnO₂ dots anchored on reduced graphene oxide (rGO), which are encapsulated within N-doped carbon nanofibers (denoted as ov-SnO₂/rGO@N-CNFs) through electrospinning and subsequent carbonization. The introduction of rich oxygen vacancies establishes additional sodium intercalation sites and enhances Na⁺ diffusion kinetics, while the conductive N-doped carbon network effectively facilitates charge transport and mitigates SnO₂ aggregation. Benefiting from the well-designed architecture, the hierarchical ov-SnO₂/rGO@N-CNFs electrode achieves remarkable reversible specific capacities of 351 mAh g⁻¹ after 100 cycles at 0.1 A g⁻¹ and 257.3 mAh g⁻¹ after 2000 cycles at 1.0 A g⁻¹ and maintains 177 mAh g⁻¹ even after 8000 cycles at 5.0 A g⁻¹, demonstrating exceptional long-term cycling stability and rate capability. This work offers a versatile design strategy for developing high-performance anode materials through synergistic interface engineering for SIBs. Full article

The inferior electrical conductivity and elevated hardness of AgSnO₂ electrical contact materials have impeded their development. To investigate the effects of Co, Bi, and La doping on the stability and electrical properties of AgSnO₂, this study established interfacial models of doped AgSnO₂ based on first-principles calculations initiated from the atomic structures of constituent materials, subsequently computing electronic structure parameters. The results indicate that doping effectively enhances the interfacial stability and bonding strength of AgSnO₂ and thereby predicted improved electrical contact performance. Doped SnO₂ powders were prepared experimentally using the sol–gel method, and AgSnO₂ contacts were fabricated using high-energy ball milling and powder metallurgy. Testing of wettability and electrical contact properties revealed reductions in arc energy, arcing time, contact resistance, and welding force post-doping. Three-dimensional profilometry and scanning electron microscopy (SEM) were employed to characterize electrical contact surfaces, elucidating the arc erosion mechanism of AgSnO₂ contact materials. Among the doped variants, La-doped electrical contact materials exhibited optimal performance (the lowest interfacial energy was 1.383 eV/Ų and wetting angle was 75.6°). The mutual validation of experiments and simulations confirms the feasibility of the theoretical calculation method. This study provides a novel theoretical method for enhancing the performance of AgSnO₂ electrical contact materials. Full article

The efficient electrochemical reduction of carbon dioxide to formate under mild conditions is a promising approach to mitigate the energy crisis, but requires the use of high-performance catalysts. The selectivity and activity of catalysts can be enhanced through multi-metal doping, further advancing the electrochemical reduction of CO₂ to formate. This study demonstrates a co-electrodeposition strategy for synthesizing SnBi electrocatalysts on pretreated copper foam substrates, systematically evaluating how the Sn²⁺/Bi³⁺ molar ratio in the electrodeposition solution and the applied current density affect the catalytic performance for CO₂-to-formate conversion. Optimal performance was achieved with a molar ratio of Sn²⁺ to Bi³⁺ of 1:0.5 and a deposition current density of 3 mA cm⁻², resulting in a formate Faradaic efficiency (FE_formate) of 97.80% at −1.12 V (vs. RHE) and a formate current density of 26.9 mA·cm⁻². Furthermore, the Sn₁Bi_0.50-3 mA·cm⁻² electrode demonstrated stable operation at the specified potential for 9 h, maintaining a FE_formate above 90%. Compared to previously reported metal catalysts, the SnBi catalytic electrode exhibits superior performance for the electrochemical reduction of CO₂ to HCOOH. The study highlights the significant impact of the metal ion molar ratio and deposition current density in the electrodeposition process on the characteristics and catalytic performance of the electrode. Full article

CdS nanowires have garnered considerable attention lately for their promising potential in next-generation nanolaser devices, attributed to their relatively high stability and exceptional emission efficiency within the Ⅱ–Ⅵ semiconductor family. In this study, tin-doped CdS nanowires with varying dimensions were synthesized, and the underlying mechanisms responsible for the formation of micro-cavities within these nanowires were systematically explored through scanning electron microscopy (SEM) analysis and photoluminescence mapping. The results show that a very distinct hexagonal-shaped micro-cavity is observed on the cross-section of CdS nanowires, and the size of the micro-cavity is determined by the radius of the nanowire. Additionally, through the use of angle-resolved micro-fluorescence Fourier imaging technology, it is found that under high excitation density conditions, the micro-cavity mode is more prominent at higher collection angles, which is consistent with the mode of the wall-pass cavity micro-cavity. Finally, the formation of the full reflection spectrum of the micro-cavity mode is confirmed through the wavelength shift and intensity shift phenomena related to the excitation power. These results further deepen our understanding of the micro-cavity modes in tin-doped cadmium sulfide nanowires, which may be of great significance for the application of these nanowires in new optical devices. Full article

In this study, a UVC photodetector (PD) was fabricated by incorporating CsI into a conventional double-cation perovskite (FAMAPbI₃) to enhance its stability. The device utilized a methylammonium iodide post-treatment solution to fabricate CsFAMAPbI₃ perovskite thin films, which functioned as the primary light-absorbing layer in an NIP structure composed of n-type SnO₂ and p-type spiro-OMeTAD. Perovskite films were fabricated and analyzed as a function of the Cs concentration to optimize the Cs content. The results demonstrated that Cs doping improved the crystallinity and phase stability of the films, leading to their enhanced electron mobility and photodetection performance. The UVC PD with an optimum Cs concentration exhibited a responsivity of 58.2 mA/W and a detectivity of 3.52 × 10¹⁴ Jones, representing an approximately 7% improvement over conventional structures. Full article
