Search Results (372)

Alginate fiber has been widely recognized in the field of sustainable development due to its environmental friendliness, non toxicity, flame retardancy, biodegradability, good biocompatibility, abundant raw material sources, and the fact that its production process is not limited by arable land resources. However, in the application of textile and apparel, desizing efficiency and economic performance have constrained the application and development of alginate/cotton fiber shuttle-woven fabrics. To resolve the desizing problem of alginate/cotton blended fabrics in a green and effective manner, this study focuses on the catalytic decomposition of hydrogen peroxide by aluminates and their crosslinking modification effect in enhancing the chemical corrosion resistance of alginate fibers; the catalytic effect of aluminates on hydrogen peroxide was investigated and applied to the oxidative decomposition of textile sizing agents, followed by a study of the oxidative desizing process. The results indicate that aluminum salts have excellent catalytic activity towards hydrogen peroxide; after adding aluminate and hydrogen peroxide to the simulated desizing starch slurry, the decomposition rate of starch reached 44.20%. Compared to traditional oxidation desizing processes, this treatment causes slight damage to the strength of alginate fibers, alginate fiber blended yarns, and pure cotton fabrics, with a loss rate of only 3.55 ± 0.08% for alginate fibers in the fabric. The application of this technology can provide important theoretical and practical support for the sustainable development of textiles and the green dyeing and finishing of alginate fibers. Full article

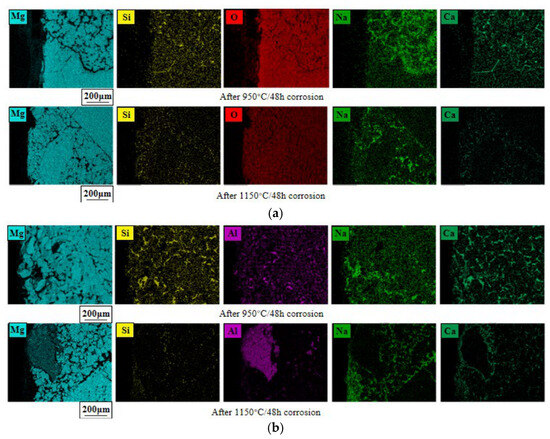

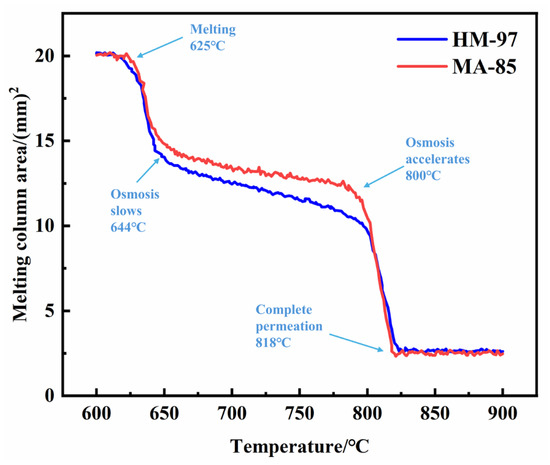

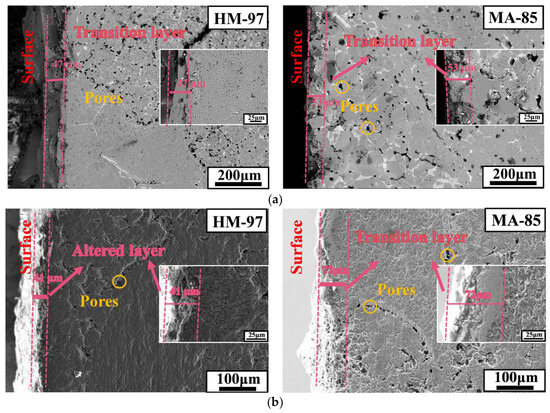

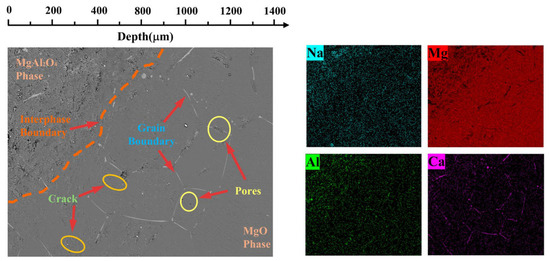

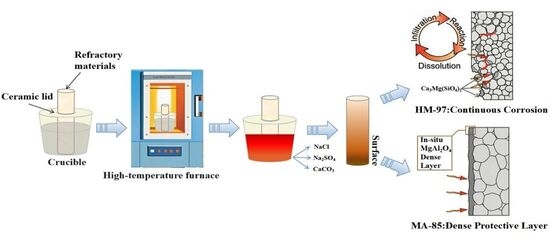

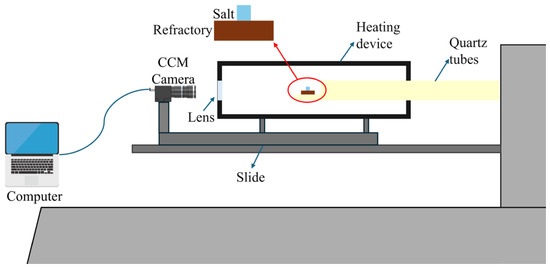

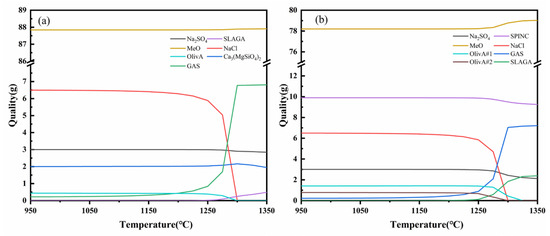

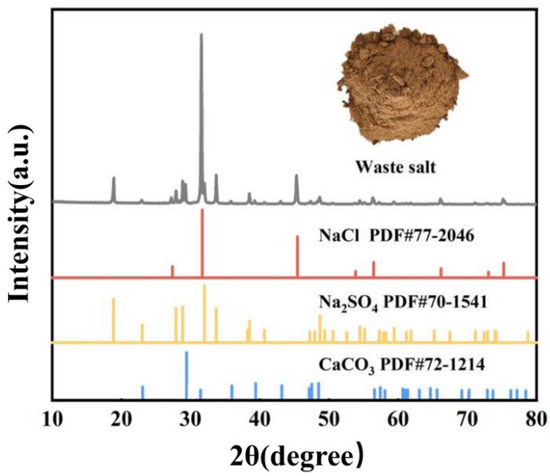

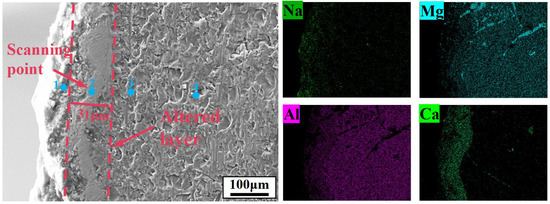

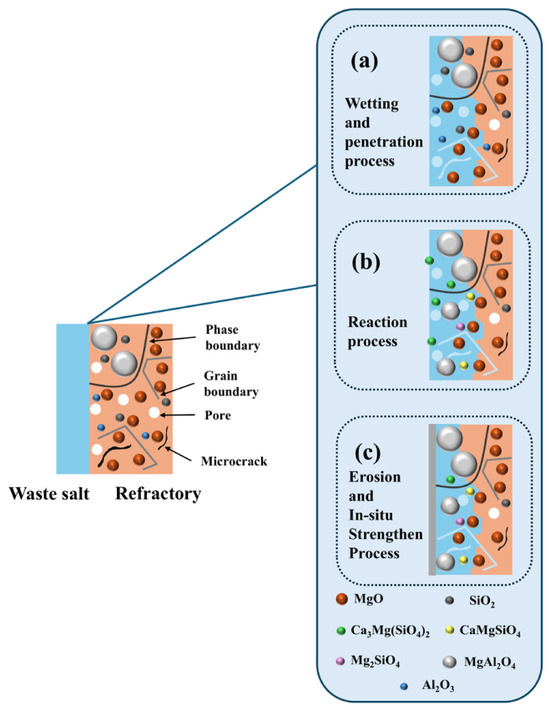

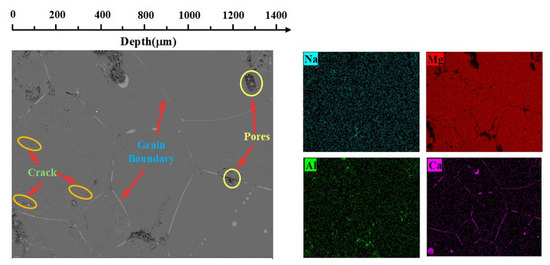

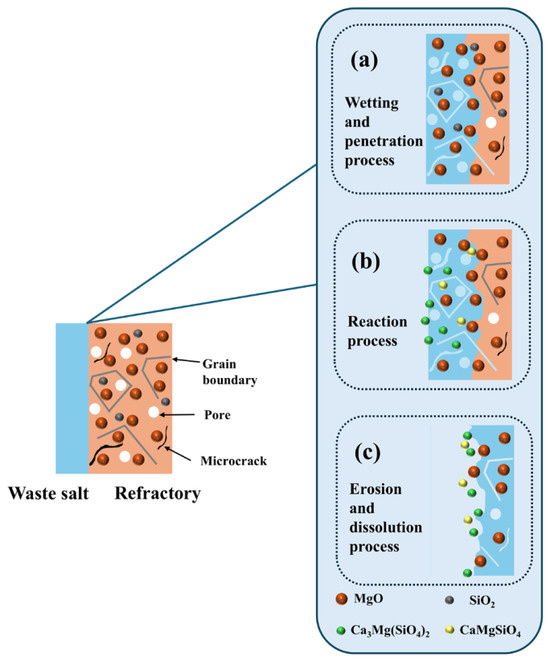

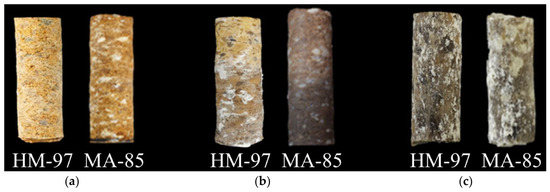

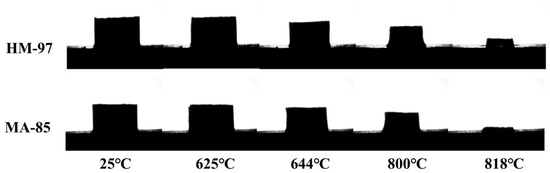

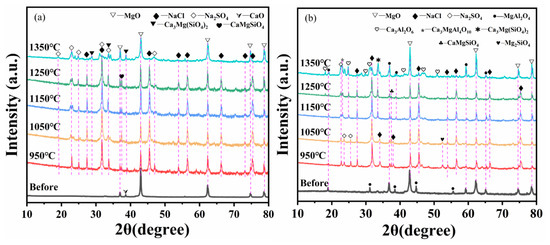

This study addresses the corrosion problem of refractory materials during high-temperature molten treatment of pharmaceutical waste salt, and systematically investigates the interface behavior and corrosion mechanism of MgO-based refractory materials in simulated pharmaceutical waste salt (65 wt% NaCl-30 wt% Na₂SO₄-5 wt% CaCO₃). Through sessile drop wetting infiltration experiments, static corrosion tests (950 °C and 1150 °C/48 h), combined with SEM-EDS, XRD characterization, and FactSage thermodynamic calculations, the corrosion resistance of high-purity MgO phase (HM-97) refractory materials and magnesium–aluminum spinel composite phase (MA-85) refractory materials was compared and analyzed. The results show that due to the fine periclase grains and rich grain boundaries, the molten salt infiltration rate of HM-97 material in the 644–800 °C range is significantly higher than that of MA-85. After corrosion at 950 °C, HM-97 and MA-85 formed 47 μm and 53 μm transition layers respectively, and the HM-97 surface generated Ca₃Mg(SiO₄)₂ phase leading to uneven corrosion morphology. At 1150 °C, HM-97 produced long cracks and the transition layer thickness remained almost unchanged due to dissolution, while MA-85 formed an approximately 72 μm transition layer and a dense metamorphic layer. Phase analysis and thermodynamic calculations suggest that the MgAl₂O₄ phase in MA-85 is likely stable at high temperatures, which appears to effectively prevent molten salt infiltration and contribute to forming a protective metamorphic layer, thereby potentially enhancing the material’s corrosion resistance. The MgAl₂O₄ phase is proposed to improve the service performance of MgO-based refractory materials in the molten pharmaceutical waste salt environment. Full article

Adjuvants play a crucial role in increasing vaccination efficacy. While aluminum salts have historically been the most common adjuvants, recent research has turned to new compounds with enhanced adjuvant properties and improved safety. Cutting-edge nanotechnology, leveraging nanoformulations and novel delivery systems, has enhanced efficacy while reducing adverse effects. Microparticles, emulsions, and immunostimulants are now essential tools due to their significant potential for vaccine production. Additionally, advanced drug delivery systems (DDSs) have been developed using sophisticated technologies to expedite and optimize drug and vaccine delivery to specific target sites, thereby maximizing therapeutic efficacy and minimizing systemic accumulation. The latest DDSs offer numerous advantages over conventional drug delivery systems, including heightened performance, precision, and efficiency. These DDSs, comprising nanomaterials or miniaturized devices, feature multifunctional components that are biocompatible and biodegradable, with high viscoelasticity, thereby extending their circulating half-life. This review aims to provide an in-depth and up-to-date overview of adjuvants and technological advancements in vaccine delivery systems. Full article

A comparative investigation of the corrosion behavior evolution of 15%SiCp/Al-Cu-Mg aluminum matrix composites (AMC) subjected to different heat treatments in a salt spray environment containing 5wt% NaCl was performed. Metallographic microscopy was used to observe the surface morphology of the corroded materials. Field-emission transmission electron microscopy (TEM) and scanning electron microscopy (SEM) were used for microstructural evaluation and elemental analysis of the samples. Polarization curves and electrochemical impedance spectroscopy (EIS) were also employed to investigate the corrosion performance of the particle-reinforced aluminum matrix composites under different heat treatments. The test results indicate that, in addition to the influence of various grain boundary precipitates and electrochemical inhomogeneities between the precipitate-free zone (PFZ) and the aluminum matrix, differences in electrochemical properties between the SiC reinforcement particles and the aluminum alloy matrix are also a primary factor contributing to the corrosion of the aluminum-based composites in a 5wt% NaCl salt spray environment. Microstructural observations and electrochemical testing of AMC specimens at different corrosion stages indicate that under-aged samples exhibit relatively higher intergranular corrosion susceptibility. Under prolonged exposure to a salt spray environment, the over-aged specimen exhibited more pronounced galvanic corrosion phenomena, specifically, a significant decrease in Charge transfer resistance (R_ct) values and an increase in CPE values. R_ct results indicate that naturally aged AMC exhibits higher corrosion resistance than artificially aged AMC. With increased salt spray corrosion time, varying degrees of crevice corrosion occurred at the Al–SiC interface in all heat-treated samples. Full article

Gypsum-based fire protection relies on thermally activated dehydration, where chemically bound water is released and evaporated, thereby providing an endothermic heat sink that delays heat penetration through assemblies. In parallel, inorganic hydrated salts are increasingly used as flame-retardant additives in gypsum-based systems to enhance heat absorption over specific temperature ranges. Fire simulation tools and performance-based fire engineering approaches require reliable kinetic data and reaction enthalpies that can be implemented as coupled thermal–chemical source terms. However, additive-specific kinetic datasets remain limited, particularly under restricted vapor exchange conditions representative of porous construction materials. This work investigates the thermal decomposition behavior and dehydration kinetics of Aluminum Trihydrate (Al(OH)₃, ATH), Magnesium Hydroxide (Mg(OH)₂, MDH), Calcium Aluminate Sulfate (3CaO·Al₂O₃·3CaSO₄·32H₂O, CAS), and Magnesium Sulfate Heptahydrate (MgSO₄·7H₂O, ESM) with emphasis on vapor-restricted conditions representative of confined porous systems. Differential scanning calorimetry (DSC) experiments were conducted at three heating rates (2, 10, and 20 K/min for MDH, CAS and ESM and 20, 40 and 60 K/min for GB-ATH) up to 600 °C using pinhole crucibles to simulate autogenous vapor pressure. The thermal analysis indicates that ATH and MDH exhibit predominantly single-step dehydration behavior, while ESM shows a complex multi-step mechanism. Although CAS presents a single dominant thermal peak in the DSC signal, the isoconversional analysis reveals a multi-stage reaction behavior, demonstrating that peak-based interpretation alone may be insufficient for such systems. Kinetic parameters were determined using both model-free (Starink) and model-fitting approaches in accordance with the recommendations of the Kinetics Committee of the International Confederation for Thermal Analysis and Calorimetry (ICTAC). All reactions were consistently described using the Avrami–Erofeev model as an effective phenomenological representation of the conversion behavior. The extracted kinetic triplets were validated through numerical simulations, showing good agreement with experimental conversion and reaction rate data. The resulting kinetic parameters and dehydration enthalpies provide a physically consistent dataset for the description of dehydration processes under restricted vapor exchange. These results support the development of thermochemical models for gypsum-based systems; however, their transferability to full-scale assemblies remains subject to validation under coupled heat- and mass-transfer conditions. Full article

Ti₂AlC, an important member of the MAX phase family, exhibits combined metallic and ceramic characteristics, showing potential for applications in conductive composites and high-temperature structural components. However, this phase possesses a narrow thermodynamic stability window, making high-purity synthesis challenging. Conventional solid-state synthesis requires temperatures exceeding 1300 °C, where aluminum volatilization and kinetic limitations of carbon diffusion lead to impurity phases such as TiC and Ti₃AlC₂. Based on the ionic transport characteristics of molten salt media, this study employed the eutectic NaCl-KCl molten salt method to synthesize Ti₂AlC using Ti, Al, and TiC powders within the temperature range of 1000–1150 °C. Systematic investigations revealed that an optimized raw powder composition (Ti:Al:TiC = 1:1.10:0.95) at 1100 °C yielded Ti₂AlC powders with 96.1% phase purity, high crystallinity, and typical laminated structure with stable stoichiometry (Ti/Al ≈ 2:1). Furthermore, Ag/Ti₂AlC composites demonstrated excellent electrical conductivity (resistivity of 5.72 μΩ·cm) and favorable mechanical properties, validating the applicability of this synthetic route for conductive composite materials. Full article

To investigate the mechanical property degradation laws of 6061-T6 aluminum alloy under the synergistic effect of coastal corrosive environments and cyclic loading, the effects of various corrosion durations (0 h, 600 h, 900 h, and 1200 h) on the static performance, hysteretic characteristics, and energy dissipation capacity of the material were studied through indoor accelerated salt spray corrosion tests, monotonic tensile tests, and multi-regime cyclic loading tests. The results indicate that after 1200 h of corrosion, the yield strength and ultimate strength decreased by an average of 2.28% and 5.16%, respectively, with the peak stress point shifting significantly forward. Corrosion significantly inhibits the cyclic hardening effect and accelerates the loss of ductility, with the ductility loss of 1200 h specimens reaching up to 44.0%. Strain is the key factor in activating the energy dissipation potential of the material; when the loading amplitude exceeds 4%, the energy dissipation coefficient stabilizes between 3.0 and 3.3. However, the combination of corrosion and random loading exacerbates the decay of energy dissipation capacity. This study aims to provide a theoretical foundation for the performance assessment and safety assurance of aluminum alloy structures in coastal engineering. Full article

To evaluate the behavior of industrial equipment from a corrosion point of view, it is mandatory to consider both the material that equipment is made from and the working conditions such as temperature, pH, and the existing microorganisms in the working environment. Our studies regarding ecotoxicological monitoring of biological suspensions Diatomee, Saccharomyces, and Spirulina (DSS) are focused on three directions: (1) the evolution of chemical and biological parameters of the reaction environment (pH, conductivity, TDS, DO, OD), the kinetics of DSS microorganisms’ growing curve; (2) the analysis of biofilm forming on the exposed metallic surface and (3) the analysis of corrosion degree (phenomena) of tested metals in five media, by using the corrosion indices: volumetric index, gravimetric index, and penetration index. The viability of microorganisms in the presence of aluminum, zinc, and iron shows the following sequence: Al_Diat > Fe_Diat > Zn_Diat > Al_Spir > Zn_Spir > Al_Sach > Zn_Sach > Fe_Spir > Fe_Sach. The development of biofilms on the surface of metal plates followed the sequence outlined below: Al_Diat > Fe_Diat > Zn_Diat > Fe_Spir > Zn_Sach > Fe_Sach > Al_Sach > Zn_Spir > Al_Spir. Iron exhibits the most favorable performance, displaying a very low Ip value across all tested environments, including salt water. Aluminum demonstrates sensitivity to specific biological environments, with the highest degree of corrosion observed in Spirulina, indicating that not all biological environments confer protection to aluminum. Diatoms and Saccharomyces suspensions exert an inhibitory effect on corrosion. Zinc is the most susceptible metal, experiencing the greatest corrosion in Spirulina, followed by salt water, while biological environments only partially mitigate the corrosion rate. Full article

Phytic acid (myo-inositol hexakisphosphate) and its salts, including iron, aluminum, sodium, and lanthanum phytate, are perhaps the most recent discovery in the field of bio-sourced flame retardants. Phytic acid can be extracted from sustainable resources, such as beans, cereals, and oilseeds. Its high phosphorus content (28 wt.% based on molecular weight) organized into six phosphate groups justifies the growing interest this biomolecule has attracted over the last decade in various sectors (as a corrosion inhibitor, antioxidant, and anticancer additive, among others). In addition, when exposed to a flame or an irradiative heat flux, phytic acid is a highly efficient dehydrating and char-forming agent. It also contributes to excellent flame-retardant properties when combined with other carbon sources, such as chitosan, or nitrogen-containing additives, including melamine, urea, and polyethyleneimine. This paper reviews the most recent advances in using phytic acid and its derivatives to design effective flame-retardant systems for textiles, bulk polymers, and foams. It also provides perspectives on possible future developments and implementations. Full article

The depletion of natural resources remains an acute global problem, highlighting the importance of developing sustainable technologies that enable the simultaneous extraction of metals and recycling of waste. This paper describes a study of a technology for recycling aluminum slag from foundries to produce secondary aluminum alloy and regenerated flux. Research and processing methods include X-ray phase and spectral analysis of slag composition, multi-stage grinding in a jaw crusher and planetary mill, screening for fraction separation, and selective dissolution of the oxide–salt phase in water or hydrochloric acid followed by filtration and evaporation; obtaining regenerated flux based on phase diagrams of chloride systems; and briquetting and remelting of the extracted aluminum. The technology ensures the extraction of up to 85% of the metallic aluminum from slag and the production of regenerated flux based on the NaCl–KCl–MgCl₂ system with a low melting point. Full article

Earthen immovable cultural relics, such as murals and painted clay sculptures, are prone to deterioration (e.g., efflorescence, flaking, and cracking) under long-term preservation conditions. While conventional restoration materials primarily offer reinforcement, they fail to regulate the migration of soluble salts within the relics, which is the main cause of such damage. Herein, aimed at protecting the painted sculptures and murals of the Yungang Grottoes, nano calcium-aluminum layered double hydroxides (Ca-Al LDHs) were prepared, and their effectiveness in regulating salt crystallization within the earthen ground layer, as well as their reinforcement performance were investigated. Simulated salt crystallization tests revealed that coating the ground layer with Ca-Al LDHs delayed salt-induced damage time by 150%. This can be attributed to the ability of Ca-Al LDHs to adsorb sulfate ions from soluble salts, thereby inhibiting the crystallization of magnesium sulfate on the surface of the ground layer. After curing Ca-Al LDHs-coated samples at 35 °C and 55% relative humidity (RH) for 7 days, their surface Leeb hardness increased by 3.1%, and the weight loss rate (measured via tape peeling test) decreased by 38.3%. These results indicate that the surface bonding strength was enhanced following Ca-Al LDHs coating, with the underlying mechanism being the transformation of part of the LDHs into calcium carbonate under the influence of water and carbon dioxide. This study demonstrates that Ca-Al LDHs not only suppress magnesium sulfate crystallization but also provide effective surface consolidation, showing promising potential for application in conserving painted sculptures and murals at the Yungang Grottoes. Full article

This study focuses on sulfuric acid-anodized films formed on 2A12 and 6061 aluminum alloys, in which the corrosion behavior of the oxide films under different film thicknesses, sealing methods, and defect states was investigated through neutral salt spray testing combined with surface morphology characterization and XRD analysis. The results indicate that the corrosion resistance of anodic oxide films is positively correlated with film thickness, while the anodized film on 2A12 aluminum alloy contains more cracks than that on 6061, which can readily serve as long-term corrosion initiation sites. Although the corrosion products of both alloys are identified as Al₂O₃ and AlO(OH), the oxide films on 6061 aluminum alloy exhibit higher compactness than those on 2A12 at all investigated thicknesses, resulting in superior resistance to neutral salt spray corrosion, and both sealing methods provide effective protection for the 6061 aluminum alloy substrate. This study provides experimental and theoretical references for the development and application of anodizing processes for aluminum alloys in chloride-containing marine environments. Full article

In this study, we investigated the impact of varying iron (Fe) and aluminum (Al) contents on the adsorption of phosphonates to activated sludge. Phosphonates originating from household applications account for up to 40% of the non-reactive dissolved phosphorus in domestic sewage treatment plants and thus can contribute to the eutrophication of water bodies. Although these substances are not readily degradable, substantial quantities, ranging from 40% to more than 90%, are removed by sludge adsorption. The results demonstrate a strong correlation between the adsorption of aminophosphonates and the Fe³⁺ content of the sludge. The maximum phosphonate loadings were 5.94 mmol g⁻¹ Fe³⁺ for ATMP, 4.94 mmol g⁻¹ Fe³⁺ for EDTMP, 4.74 mmol g⁻¹ Fe³⁺ for DTPMP, and 2.25 mmol g⁻¹ Fe³⁺ for glyphosate. In contrast to pure ferric hydride flocs, the adsorption of phosphonates was approximately threefold higher when the hydroxides were located within activated sludge flocs. It is concluded that native sludge flocs provide larger iron surfaces than ferric hydroxide alone. Based on the weight of the adsorbents, aluminum salts were four times less efficient than ferric salts. In sludge without ferric or aluminum hydroxides, phosphonate adsorption was negligible. Full article

This study established a marine atmospheric corrosion prediction model by comparing the corrosion behavior of 7075 aluminum alloy in neutral salt spray tests and outdoor exposure tests conducted in the coastal atmosphere of Hainan. The results show that severe rusting occurred after 96 h of neutral salt spray testing, with loose white cluster-like corrosion products mainly composed of Al(OH)₃ and Al₂O₃. The thickening of the corrosion product layer slowed down the corrosion process, following a nonlinear power-law kinetic relationship. In the later stage, potential dropped sharply due to product layer spallation, and recovered as new corrosion products formed, confirming that the stability of the product layer is critical for protection. Under coastal atmospheric exposure, the composition of corrosion products was similar to that observed in the salt spray test, but the actual corrosion rate was affected by environmental dynamic equilibrium. The acceleration factor of the neutral salt spray test corresponding to the same corrosion amount in the Hainan marine atmosphere exhibited a declining trend, reflecting that differences in the protective nature of the corrosion product layer were influenced by environmental factors. Electrochemical analysis indicated that both tests showed similar current–potential synergistic variation mechanisms dominated by product layer stability. In summary, while the neutral salt spray test effectively simulates the chloride-induced corrosion mechanism in marine atmospheres, its kinetic model cannot directly predict real corrosion behavior through a simple acceleration factor, as environmental complexity must be considered. Full article

This study quantitatively investigates the corrosion behavior of aluminum (Al1070) under salt water acetic acid test (SWAAT) conditions, focusing on the effects of chloride ions (Cl⁻) and acetic acid (CH₃COOH) concentration on the pitting corrosion. Potentiodynamic polarization tests showed that increasing Cl⁻ concentration caused a negative shift in corrosion potential (E_corr) and an increase in corrosion current density (i_corr), indicating accelerated passive film breakdown and enhanced pitting susceptibility. Immersion tests and SEM analysis revealed intensified surface discoloration, oxide formation, and crack propagation at higher Cl⁻ levels, confirming localized dissolution. The effect of acetic acid was evaluated for concentrations ranging from 0 to 2000 µL L⁻¹. Higher acetic acid levels lowered solution pH and slightly increased E_corr and elevated i_corr while reducing ΔE(E_pit − E_corr), indicating increased localized corrosion susceptibility. SEM and 3D XCT analyses showed increased pit density, corrosion loss, and pitting showed temporary pit coalescence at intermediate concentrations. Mechanistically, the acidic SWAAT environment (pH 2.8–3.0) positions aluminum in the active corrosion region. Cl⁻ destabilizes the passive oxide layer, initiating pitting, while acetic acid promotes metal dissolution via hydrogen evolution reactions. Their combined action exerts a specific effect, accelerating localized corrosion through chemical oxide layer degradation. These results provide quantitative insights into aluminum corrosion under SWAAT conditions. They could inform the design of corrosion resistant materials and reliability assessments in industrial applications. Full article
