Search Results (10)

Rollpave technology offers an efficient and low-disruption solution for pavement rehabilitation but has not yet been widely implemented in practice. This review aims to provide a comprehensive overview of rollpave technology by examining performance evaluation methods, material design strategies, and construction workflows, and identifying its advantages and limitations to support practical application. Recent advances in rollpave pavement technology are reviewed, including flexural performance testing methods and evaluation criteria for rollable pavement materials, as well as the design of flexible asphalt mixtures and interlayer bonding materials. Construction techniques across different stages of rollpave implementation are summarized, and existing engineering case studies are reviewed. The advantages and limitations of rollpave technology are evaluated in comparison with other pavement construction and rehabilitation approaches, and current research focuses are discussed. The review indicates that pavement performance requirements can be achieved through the development of specialized modified asphalt binders and optimized mixture designs. On-site installation relies on coordinated operation of multiple devices to ensure adequate interfacial bonding between new and existing layers; however, current practices are largely experience-based and lack standardized guidelines. It is believed that rollpave technology demonstrates unique advantages for rapid pavement repair and emergency rehabilitation, but there are still challenges related to material and structural design, on-site installation, and cost-effectiveness that remain, limiting large-scale adoption. Future research could focus on establishing technical standards, developing specialized equipment, and enhancing multifunctional integration. Full article

This study investigates rapid-setting, phosphate-based, chemically bonded phosphate ceramic (CBPC) composites for emergency pothole repair through a two-phase experimental approach. Phase I involved fundamental mix design experiments that systematically examined the effects of water-to-binder ratio (20–40%), filler content (10–50%), and phosphate powder fineness (570–3640 cm²/g) on setting and mechanical performance. Based on Phase I results, Phase II evaluated field-applicable mixes optimized for concrete and asphalt pavement conditions in terms of rapid strength development: compressive strength exceeding 24 MPa within 30 min, flexural strength surpassing 3.4 MPa within 1 h, and adhesive strength reaching up to 1.62 MPa (concrete) and 0.68 MPa (asphalt) within 4 h. Additional performance evaluations included Marshall stability (49,848 N), water-immersion residual stability (100% under the test protocol), length change (small magnitude over 28 days), and self-filling behavior (complete filling in 17 s in the specified setup). These rapid early-age results met or surpassed relevant domestic specifications used for emergency repair materials. Based on these data, mix designs for field application are proposed, and practical implications and limitations for early-age performance are discussed. Full article

Asphalt pavement cracking represents a prevalent form of deterioration that significantly compromises road performance and safety under the combined effects of environmental factors and traffic loading. Crack sealing has emerged as a widely adopted and cost-effective preventive maintenance strategy that restores the pavement’s structural integrity and extends service life. This paper presents a systematic review of the development of crack sealing technology, conducts a comparative analysis of conventional sealing materials (including emulsified asphalt, hot-applied asphalt, polymer-modified asphalt, and rubber-modified asphalt), and examines the existing performance evaluation methodologies. Critical failure mechanisms are thoroughly investigated, including interfacial bond failure resulting from construction defects, material aging and degradation, hydrodynamic scouring effects, and thermal cycling impacts. Additionally, this review examines advanced sensing methodologies for detecting premature sealant failure, encompassing both non-destructive testing techniques and active sensing technologies utilizing intelligent crack sealing materials with embedded monitoring capabilities. Based on current research gaps, this paper identifies future research directions to guide the development of intelligent and sustainable asphalt pavement crack repair technologies. The proposed research framework provides valuable insights for researchers and practitioners seeking to improve the long-term effectiveness of pavement maintenance strategies. Full article

The absence of standardized evaluation criteria for cold patch asphalt mixtures (CPAMs) leads to arbitrary material selection in pavement pothole repair, resulting in premature failure and recurrent damage. This study develops a comprehensive evaluation framework combining macro-performance tests with X-ray computed tomography (CT)-based meso-structural analysis. The macroscopic evaluation system incorporates six key parameters: aggregate gradation, binder–aggregate ratio, penetration strength, molding strength, residual rate, and stability retention. The CT-based meso-structural assessment quantifies void characteristics (longitudinal distribution, radial distribution, fractal dimension) and aggregate skeleton features (contact points, coordination number) through 3D reconstruction. Experimental results demonstrate that optimizing asphalt content (4.5–4.7%) with adjusted critical aggregate fractions (4.75 mm:35.0–45.0%; 2.36 mm:30.0–40.0%; 13.2 mm:1.0–1.2%; 9.5 mm:10.0–15.0%) significantly enhances repair durability. The established multiscale evaluation methodology provides a theoretical foundation for developing standardized CPAM quality specifications, particularly in emergency maintenance scenarios. Full article

With the continuous expansion of highway networks and rapid advancements in the transportation industry, the need for highway maintenance and reconstruction has become increasingly urgent. Resonant rubblization technology generates an interlocking structure within the pavement layer by producing diagonal cracks at angles of 35–40°, thereby significantly enhancing load-bearing capacity and structural stability. As a result, this technique offers substantial benefits, including a marked reduction in reflective cracking, efficient reuse of existing concrete slabs (with a utilization rate exceeding 85%), reduced construction costs (by 15–30% compared to conventional methods), and faster construction speeds—up to 7000 square yards per day. Consequently, resonant rubblization has emerged as a key method for rehabilitating aging cement concrete pavements. Building on this foundation, this paper reviews the fundamental principles of resonant rubblization technology by synthesizing global research findings and engineering case studies. It provides a comprehensive analysis of the historical development, equipment design, construction principles, and practical application outcomes of resonant rubblization, with particular attention to its effects on pavement structure, load-bearing capacity, and long-term stability. Future research should focus on developing more realistic subgrade models, improving evaluation methods for post-rubblization pavement performance, and advancing the intelligentization of resonant equipment. The ultimate goal is to enhance the quality of road maintenance and repair, ensure road safety, and promote the development of long-life, sustainable road infrastructure through the continued advancement and application of resonant rubblization technology. Full article

This study evaluated the effects of adding waste PET fibers on the mechanical properties and chloride ion penetration of latex-modified ultra-rapid hardening cement concrete used for emergency road pavement repairs. The primary experimental variable was the content of waste PET fibers. The mechanical properties of the concrete were evaluated through compressive strength, flexural strength, and splitting tensile strength tests. Its durability was evaluated through chloride ion penetration, surface resistivity, and abrasion resistance tests. The experimental results were compared with the quality standards for emergency repair concrete set by the Korea Expressway Corporation. As a result, this study has enhanced the strength and resistance to chloride ions of latex-modified concrete by incorporating waste PET fibers. In the mixture with 3.84 kg/m³ of waste PET fibers, the compressive strength was 29.9 MPa at 4 h and 42.5 MPa at 28 curing days. The flexural strength was 6.0 MPa at 4 curing hours and 7.0 MPa at 28 days, and the splitting tensile strength was 4.5 MPa at 28 days of curing. The chloride ion permeability amount and abrasion depth were 1081C and 0.82 mm, respectively. The mixture with 3.84 kg/m³ of waste PET fibers has superior compressive strength, flexural strength, splitting tensile strength, chloride ion penetration, and surface resistivity compared to the mixture with 7.68 kg/m³. This result means that the waste PET fibers caused poor dispersion and fiber-balling within the concrete, leading to loose internal void structures when incorporated at 3.84 kg/m³. However, the abrasion resistance test showed better results for the mixture with 7.68 kg/m³ of waste PET fibers than the 3.84 kg/m³ mixture. Therefore, the test results indicated that 3.84 kg/m³ of waste PET fibers is the most effective for latex-modified concrete used in emergency road pavement repairs. Full article

This study evaluated the mechanical properties and durability performance of latex-modified hybrid fiber-reinforced roller-compacted rapid-set cement concrete (LMHFRCRSC) for emergency repair of concrete pavement. Experimental parameters included the blend ratio of the hybrid fiber, which comprised natural jute fiber (0–0.2 vol.%) and structural synthetic fiber (0–2 vol.%). The mechanical performance of LMHFRCRSC of various blend ratios was evaluated in terms of compressive, flexural, and splitting tensile strength. Durability assessment included chlorine ion penetration and abrasion resistance measurements. Compressive and flexural strength values of 21 and 3.5 MPa, respectively, were the set targets after 4 h of curing; a compressive strength of 35 MPa, a flexural strength of 4.5 MPa, a splitting tensile strength of 4.2 MPa, and chloride ion penetration of 2000 C or less were required after 28 days of curing. Our test results confirmed that all mix proportions satisfied the target values, regardless of the blend ratio of the hybrid fiber. Specifically, the mechanical performance of the concrete improved as the blend ratio of the structural synthetic fiber increased. With regard to durability, a greater amount of jute fiber, a hydrophilic fiber, enhanced the concrete’s durability. Additionally, incorporating jute fiber of 0.6 kg/m³ provided excellent chlorine ion penetration resistance. The optimal blend ratio for the hybrid fiber was natural jute fiber at 0.6 kg/m³ and structural synthetic fiber at 13.65 kg/m³ (mix: J0.6 + P13.65); with this mix proportion, a chloride ion penetration amount of 1000 C or less and maximum mechanical performance were achieved. Full article

The benefits of using reinforcing fibers in latex-modified rapid-set cement preplaced concrete for emergency pavement repairs were examined in terms of strength, permeability, and durability as functions of the type of fiber. Single-type fibers, including jute, poly (vinyl alcohol) (PVA), and nylon fibers, as well as hybrid fiber mixtures prepared with two of the aforementioned fibers at a 1:1 weight ratio, were evaluated. Fibers were incorporated into the concrete mixture at 1.2 kg/m³. A vibratory press compactor that simulates roller compaction was used to increase compaction and densification of the resulting pavement repair material. The hybrid fiber-reinforced latex-modified rapid-set cement preplaced concrete (HFLMC) was manufactured to satisfy the criteria for opening traffic, i.e., compressive strength of 21 MPa or higher, and flexural strength of 3.5 MPa or higher after 4 h. Pavement requiring repair was removed and replaced with coarse aggregate. The rapid-set binder, fibers, and latex were then mixed and placed onto the coarse aggregate layer. The repair was considered complete after compaction. The resulting HFLMC satisfied all of the test criteria. Furthermore, concretes made with hybrid fibers were more mechanically sound than those made with a single fiber variety. Hybrid fiber concretes made with PVA and nylon fibers exhibited the best properties for emergency pavement repair. These results indicate that HFLMC is suitable for emergency pavement repair. Full article

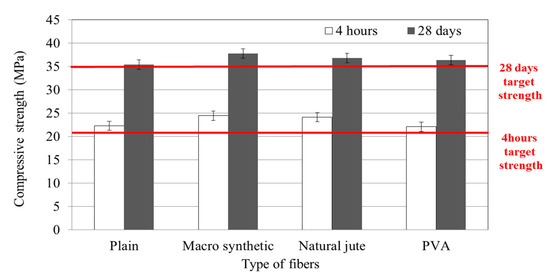

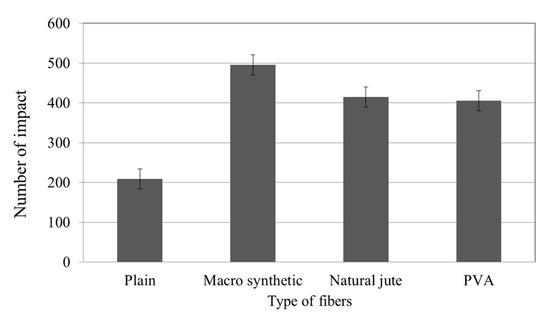

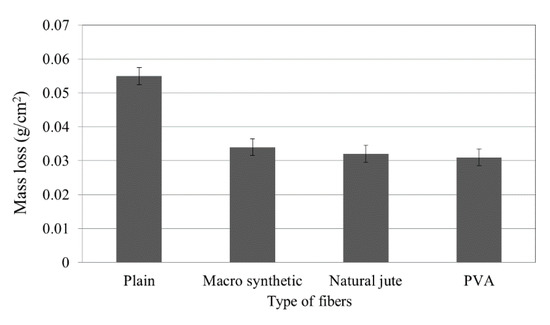

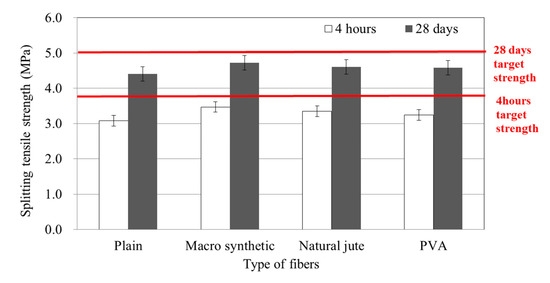

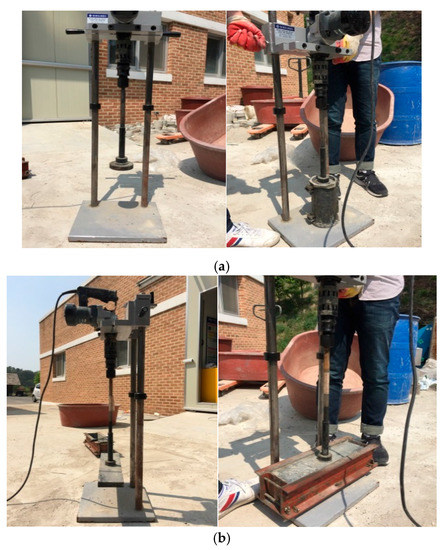

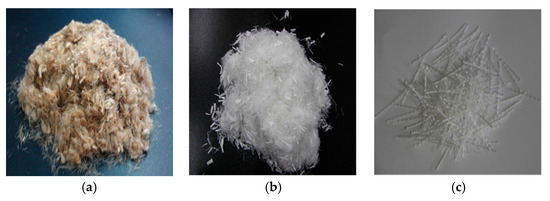

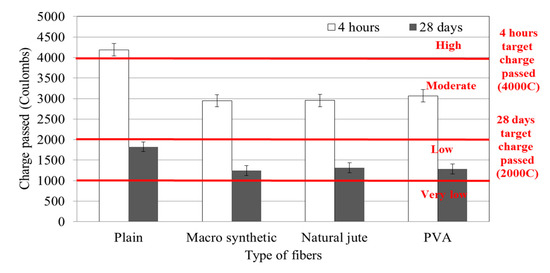

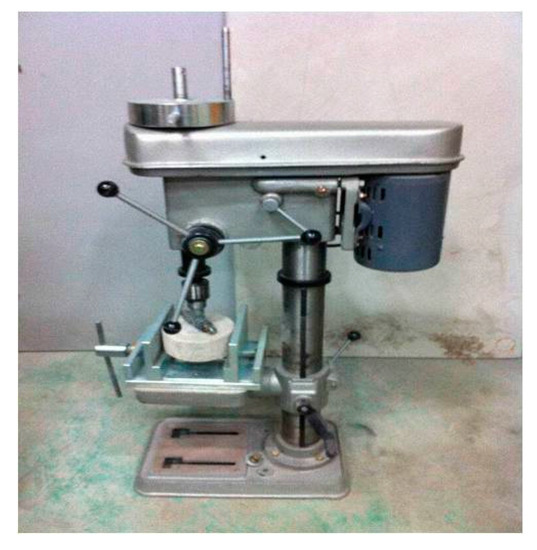

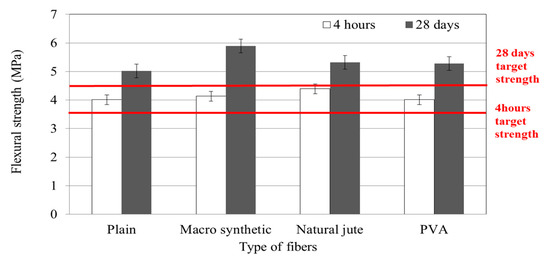

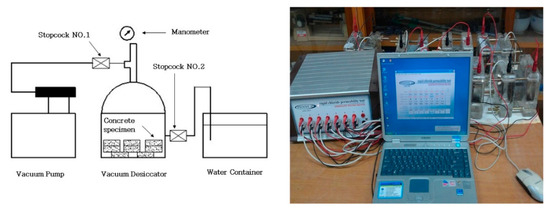

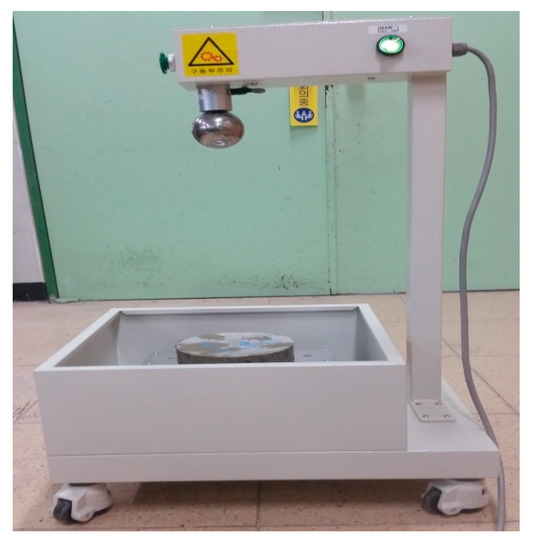

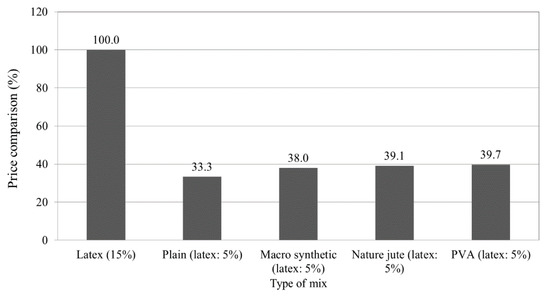

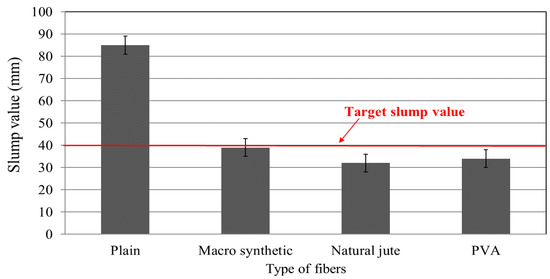

This study evaluated the effects of reinforcement fibers on the mechanical characteristics, chloride ion penetration properties and abrasion resistance of roller-compacted latex-modified fiber-reinforced rapid-hardening-cement concrete (RCLMFRRHCC) for use in the emergency repair of concrete pavements. The reinforcement fibers tested included macro synthetic fibers (a structural fiber) as well as PVA (polyvinyl alcohol) and natural Jute fibers (non-structural fibers). In the experiment, compressive strength, flexural strength, splitting tensile strength, chloride ion penetrating properties, abrasion resistance tests and impact resistance tests were performed. Test results were compared with traffic open standards of concrete for concrete pavement emergency repair. RCLMFRRHCC satisfied all traffic open standards for concrete emergency repair. Mixes with reinforcement fibers showed superior results to the mix without, in terms of compressive strength, flexural strength, splitting tensile strength, chloride ion penetration resistance, abrasion resistance and impact resistance. With regard to the reinforcement fibers, the compressive strength, flexural strength, splitting tensile strength, and impact resistance of the mix with macro synthetic fiber showed improved results as a structural fiber compared to mixes containing natural jute and PVA fibers, namely the non-structural fibers. However, using the reinforcement fiber type had little effect on chloride ion penetration resistance or abrasion resistance. Thus, the addition of reinforcement fibers was effective in improving the performance of RCLMFRRHCC. The use of macro synthetic fibers improved the mechanical characteristics of concrete. Full article

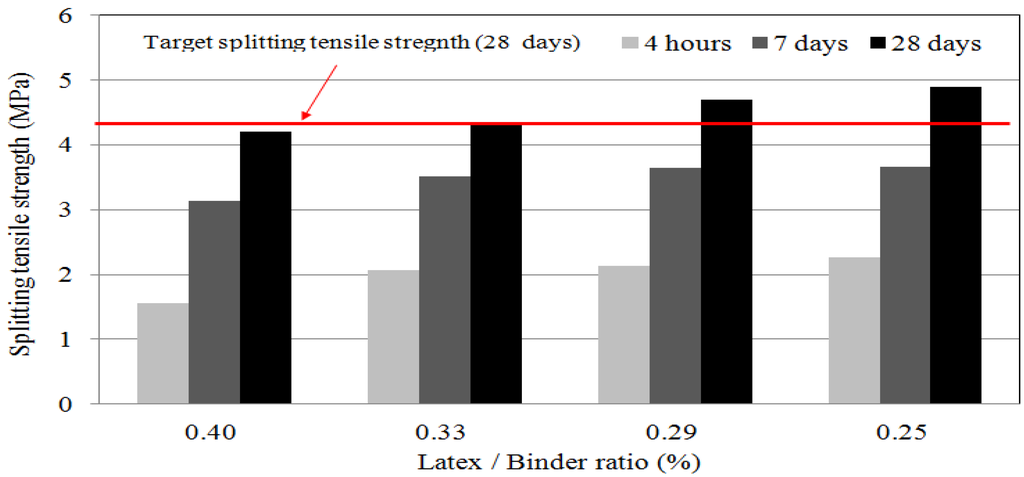

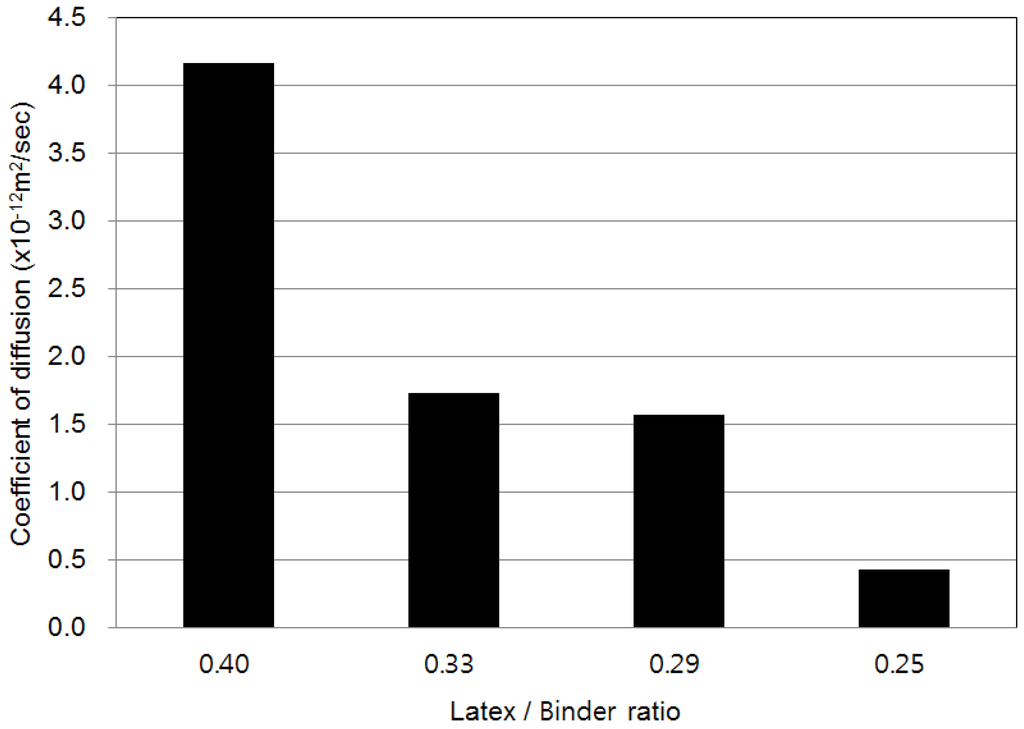

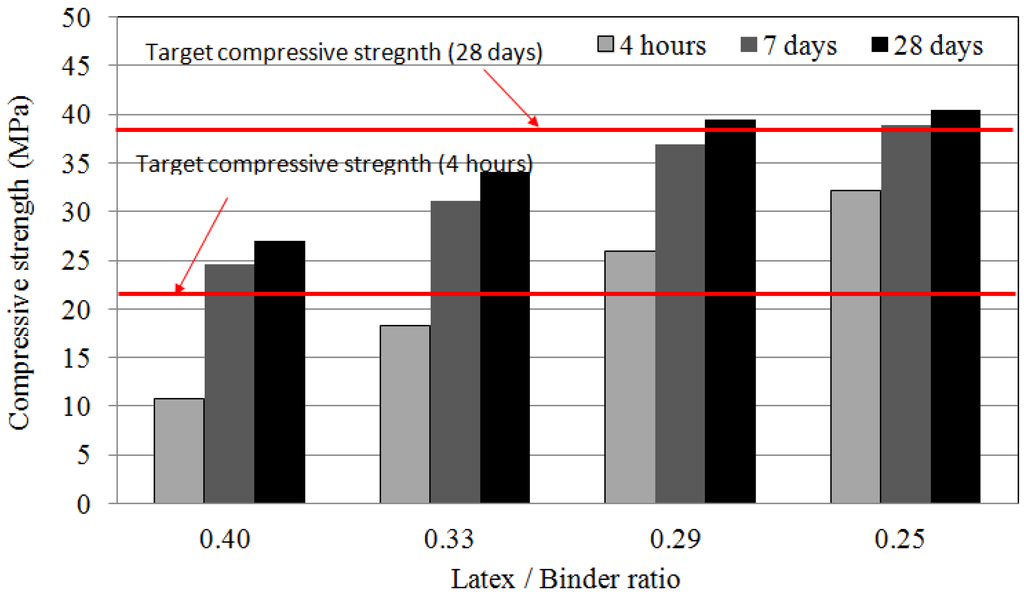

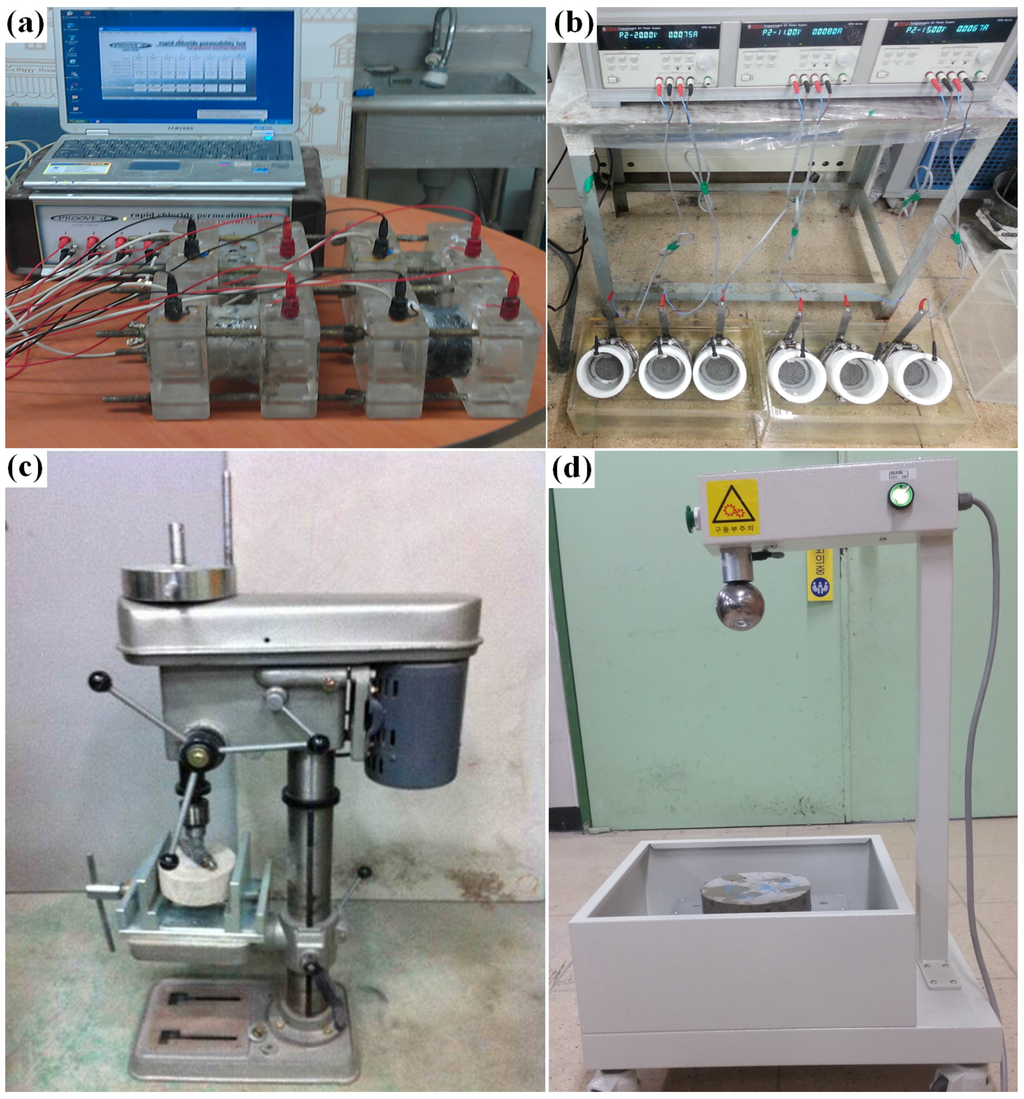

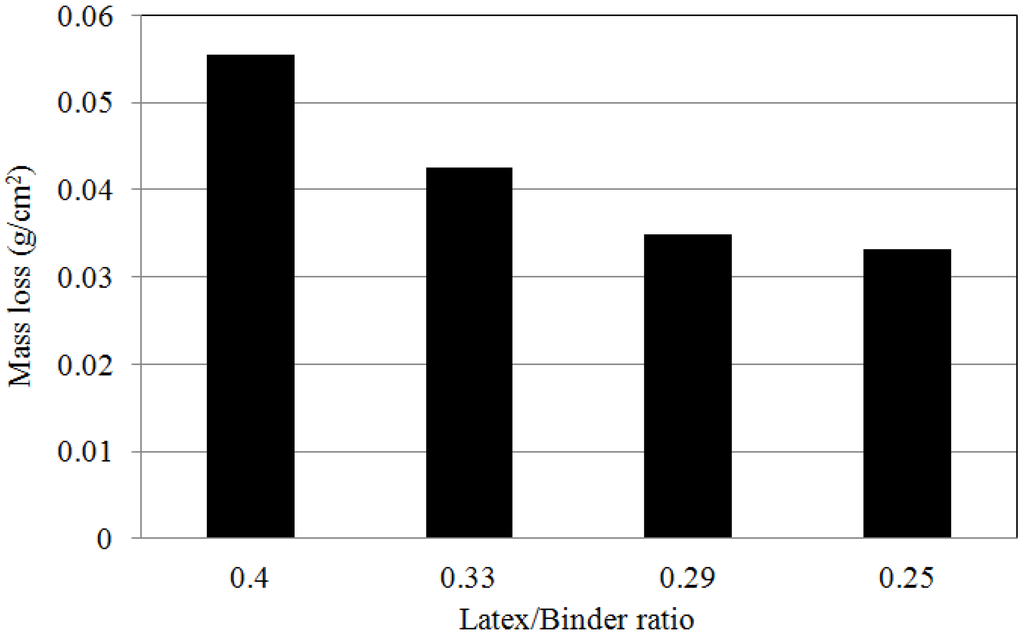

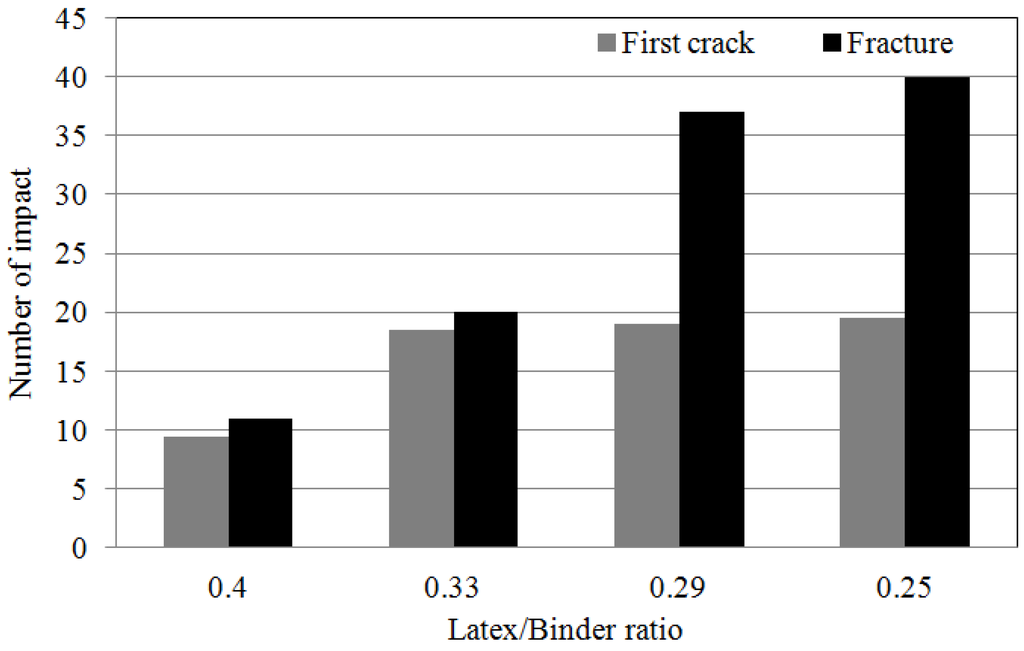

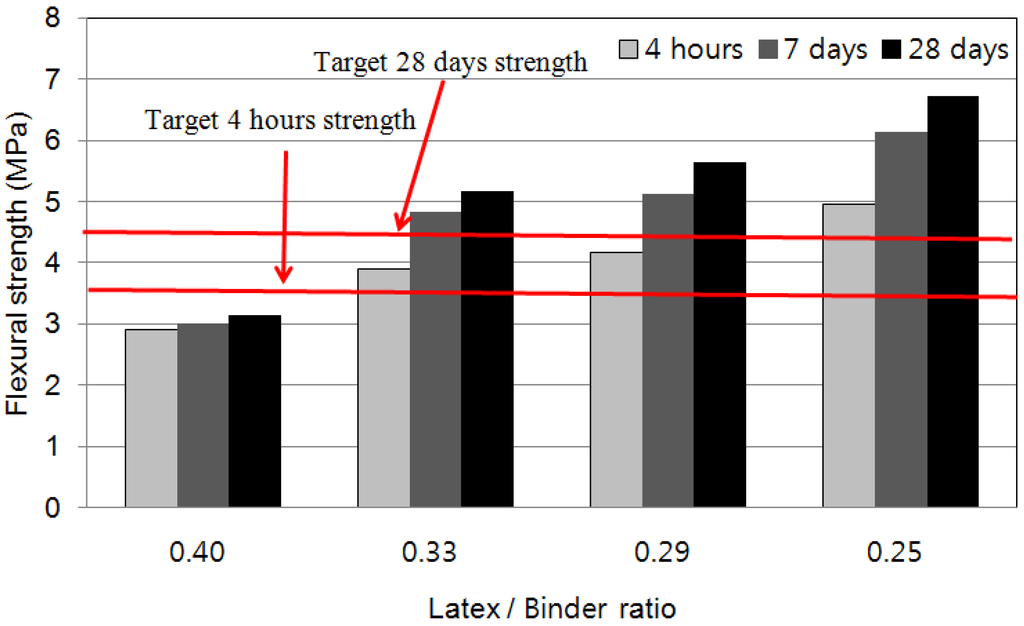

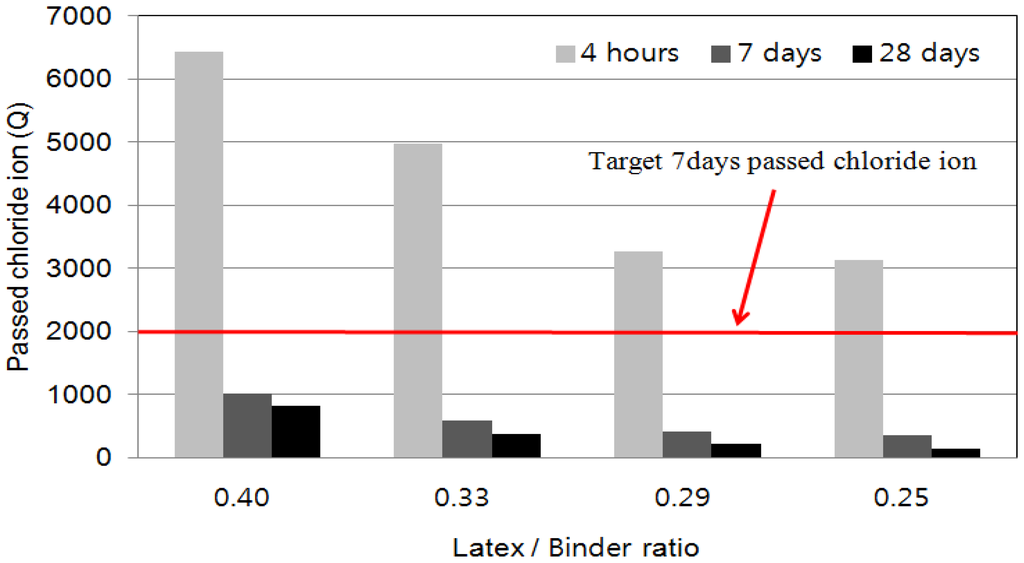

We evaluated the strength and durability characteristics of latex-polymer-modified, pre-packed pavement repair concrete (LMPPRC) with a rapid-set binder. The rapid-set binder was a mixture of rapid-set cement and silica sand, where the fluidity was controlled using a latex polymer. The resulting mix exhibited a compressive strength of ¥21 MPa and a flexural strength of ¥3.5 MPa after 4 h of curing (i.e., the traffic opening term for emergency repairs of pavement). The ratio of latex polymer to rapid-set binder material was varied through 0.40, 0.33, 0.29, and 0.25. Mechanical characterization revealed that the mechanical performance, permeability, and impact resistance increased as the ratio of latex polymer to rapid-set binder decreased. The mixture exhibited a compressive strength of ¥21 MPa after 4 h when the ratio of latex polymer to rapid-set binder material was ¤0.29. The mixture exhibited a flexural strength of ¥3.5 MPa after 4 h when the ratio of latex polymer to rapid-set binder material was ¤0.33. The permeability resistance to chloride ions satisfied 2000 C after 7 days of curing for all ratios. The ratio of latex polymer to rapid-set binder material that satisfied all conditions for emergency pavement repair was ¤0.29. Full article
