17 pages, 2735 KB
Article
Nano/Microscale Thermal Field Distribution: Conducting Thermal Decomposition of Pyrolytic-Type Polymer by Heated AFM Probes
by Bo Li, Yanquan Geng and Yongda Yan
Nanomaterials 2020, 10(3), 483; https://doi.org/10.3390/nano10030483 - 7 Mar 2020
Cited by 2 | Viewed by 4468
Abstract
In relevant investigations and applications of the heated atomic force microscope (AFM) probes, the determination of the actual thermal distribution between the probe and the materials under processing or testing is a core issue. Herein, the polyphthalaldehyde (PPA) film material and AFM imaging [...] Read more.

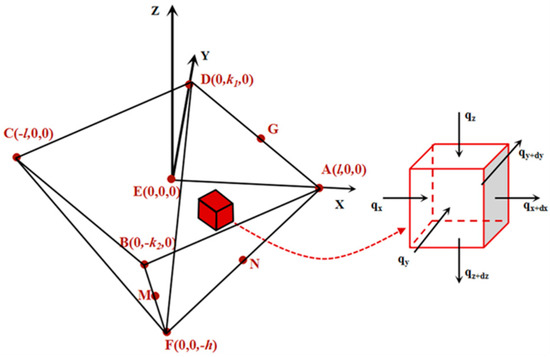

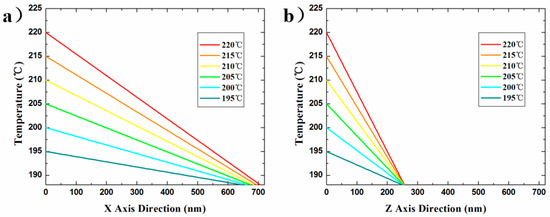

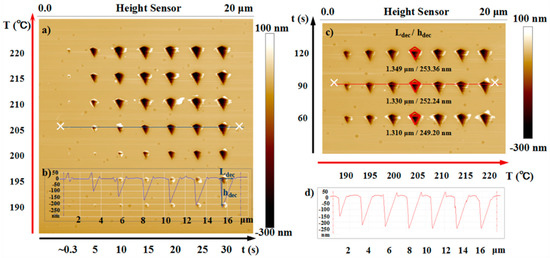

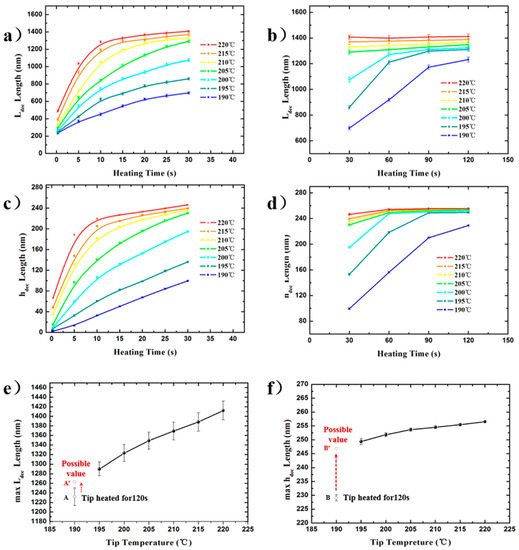

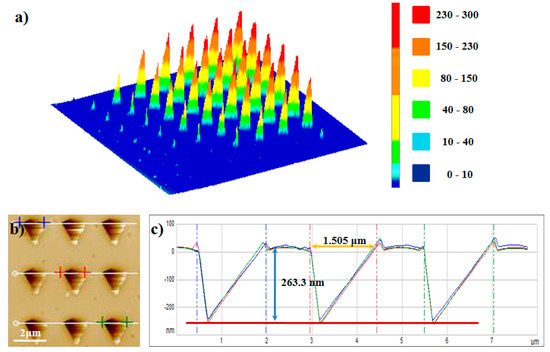

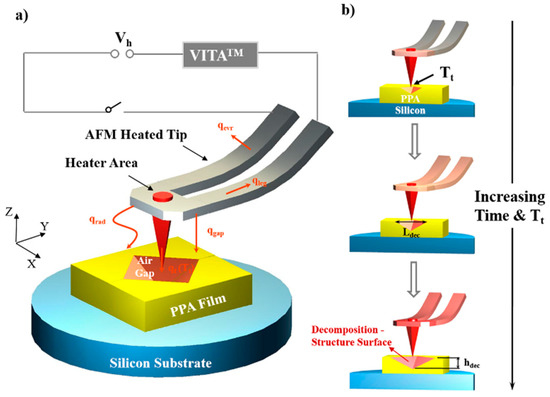

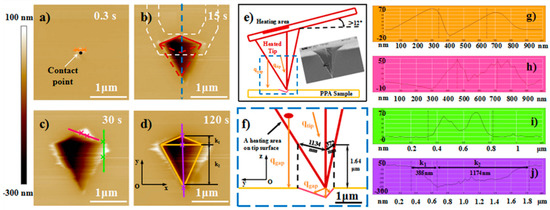

In relevant investigations and applications of the heated atomic force microscope (AFM) probes, the determination of the actual thermal distribution between the probe and the materials under processing or testing is a core issue. Herein, the polyphthalaldehyde (PPA) film material and AFM imaging of the decomposition structures (pyrolytic region of PPA) were utilized to study the temperature distribution in the nano/microscale air gap between heated tips and materials. Different sizes of pyramid decomposition structures were formed on the surface of PPA film by the heated tip, which was hovering at the initial tip–sample contact with the preset temperature from 190 to 220 °C for a heating duration ranging from 0.3 to 120 s. According to the positions of the 188 °C isothermal surface in the steady-state probe temperature fields, precise 3D boundary conditions were obtained. We also established a simplified calculation model of the 3D steady-state thermal field based on the experimental results, and calculated the temperature distribution of the air gap under any preset tip temperature, which revealed the principle of horizontal (<700 nm) and vertical (<250 nm) heat transport. Based on our calculation, we fabricated the programmable nano-microscale pyramid structures on the PPA film, which may be a potential application in scanning thermal microscopy. Full article
Show Figures

Figure 1
