Search Results (2)

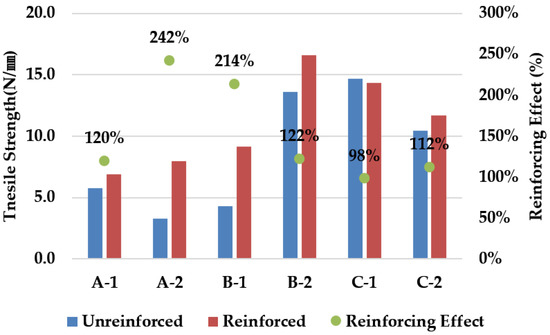

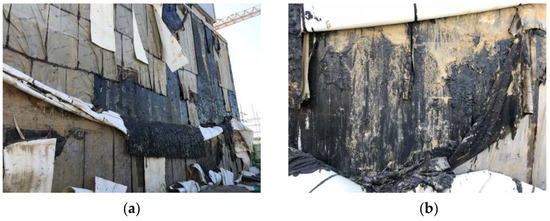

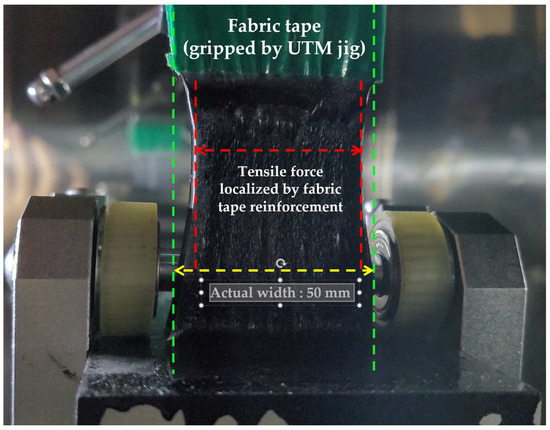

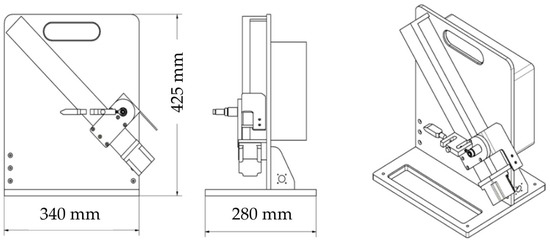

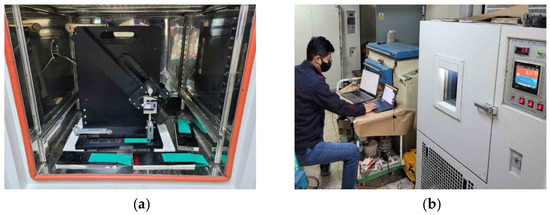

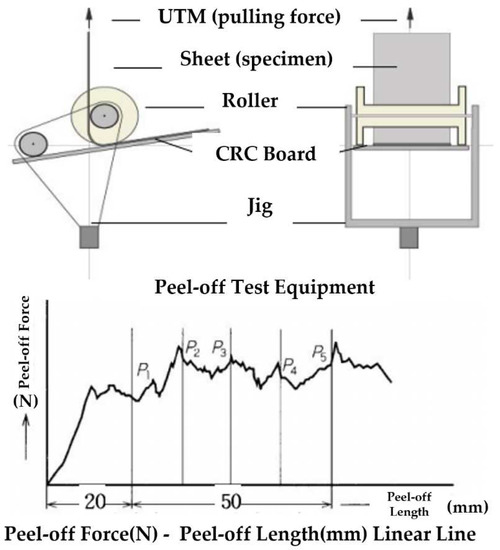

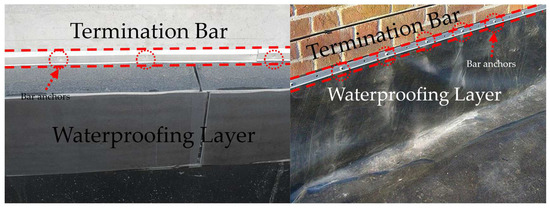

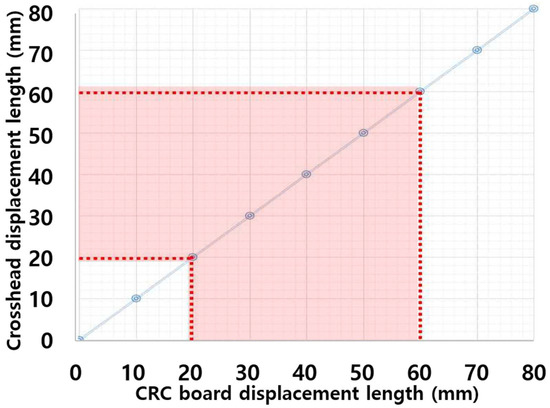

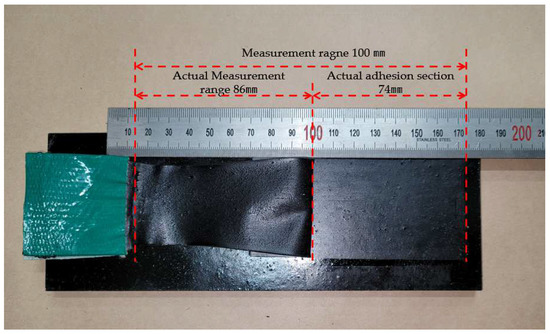

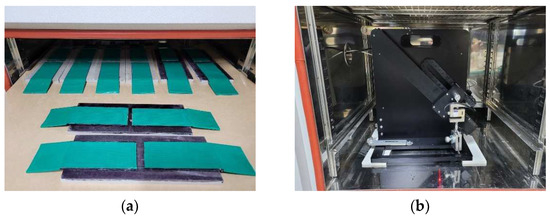

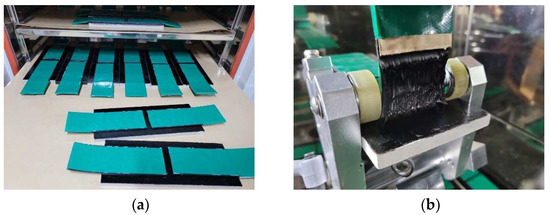

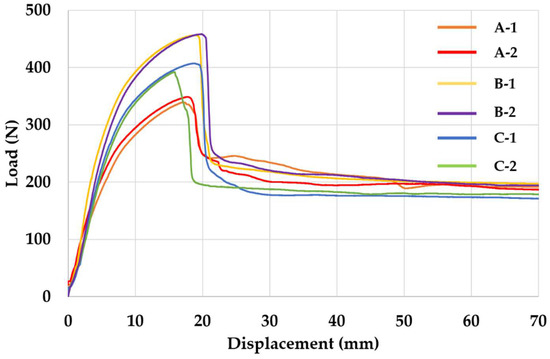

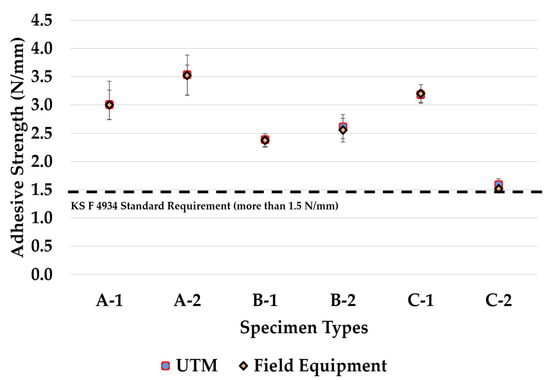

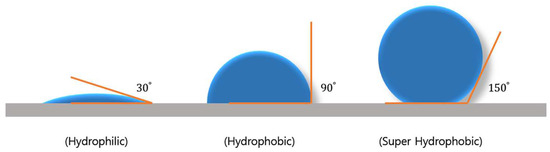

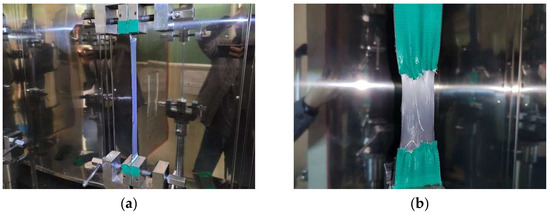

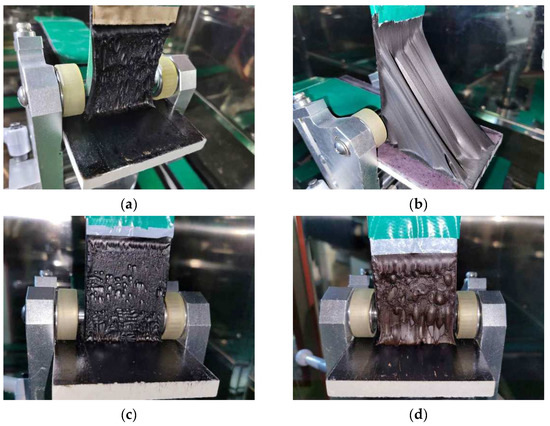

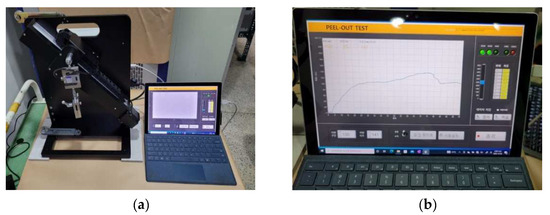

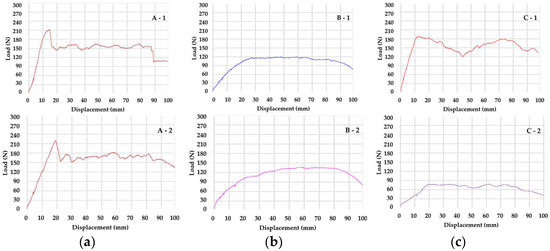

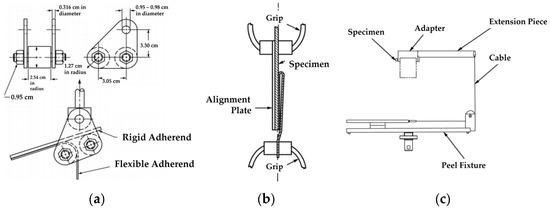

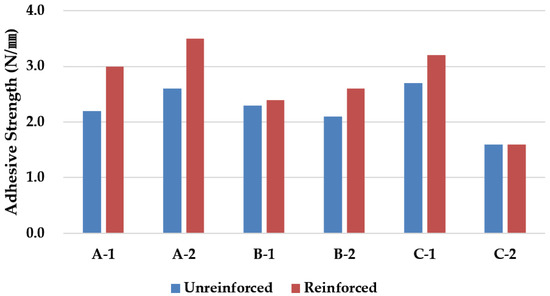

In the field of waterproofing concrete structures, the use of self-adhesive waterproofing sheets has become a popular technique for ensuring long-term waterproofing performance. One important characteristic of such sheet materials is maintaining their stable adhesion strength over an extended period. Adhesion testing serves as a crucial method for assessing the long-term adhesion performance. However, a standardized test method, including equipment and criteria, for directly measuring the adhesion strength of waterproofing sheets applied to onsite concrete walls has not yet been established. Therefore, reliance on laboratory evaluation results has been the only option thus far. In this study, a field-applicable adhesion measurement device was developed in an effort to provide a quality control method for self-adhesive waterproofing sheets and to demonstrate the validity of a standardized evaluation method utilizing this device. The developed adhesion measurement device was designed based on the principle of the peel-out test in compliance with the requirements outlined KS F 4934, where the test specimen backing plate can slide into a 1:1 ratio at the same distance as the rise of the tension jig when the tension jig is raised at a 45° angle. By utilizing this device, the adhesion strength values of self-adhesive waterproofing materials applied in the field were compared with those obtained using a laboratory universal testing machine (Salem, MA, USA) (UTM) on the test specimens. Comparative analysis yielded that the standard deviation of the results varied for the tested waterproofing materials, and the overall standard deviation for the UTM measurements was 0.17, while it was 0.18 for the portable field measurement equipment. The results of the comparison indicated that when limited to the scope of the KS measurement method specifications, the possibility for a wider scope of usage can be made possible with more data and studies. Full article

Both erosive and abrasive wear are common in mechanical systems and moving components in industrial production. Once they occur in machine parts, the task of breakdown maintenance should be carried out, leading to high production costs. Previous research has shown that high-chromium cast iron (HCCI), a commonly used wear-resistant material, experiences repeated particle impacts that break up the chromium carbides (M₇C₃) on its surface, resulting in the formation of fine fracture carbides. It has been reported that erosion wear occurs progressively due to the shedding of protrusions caused by the plastic deformation of the material’s matrix. Thus, the erosion wear characteristics of a material are strongly affected by carbides, which come in various shapes and can affect resistance. This research examined the orientation of carbides on the microstructure and their effects on erosion and abrasion properties. The wear tests showed that 27 wt.% chromium content high-alloy cast irons showed the best wear resistance properties due to the coarse strips of M₇C₃ carbides that effectively suppressed wear propagation. Additionally, the M₂C carbides crystallized around the M₇C₃ carbides which support the M₇C₃ carbide to reduce plastic deformation and carbide peel-out. Consequently, the wear resistance properties of this material are significantly improved. Full article
