Search Results (1,670)

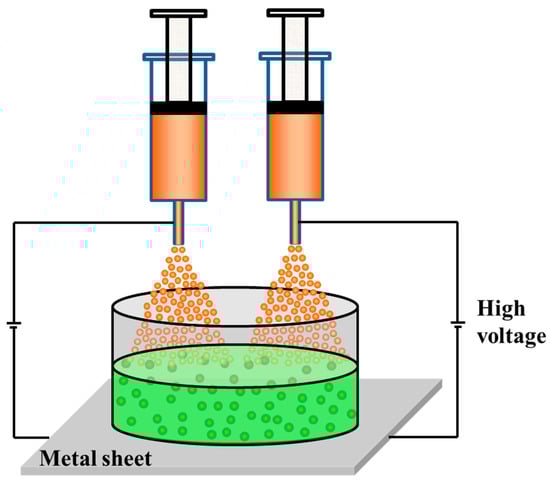

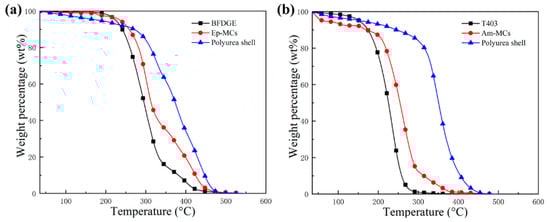

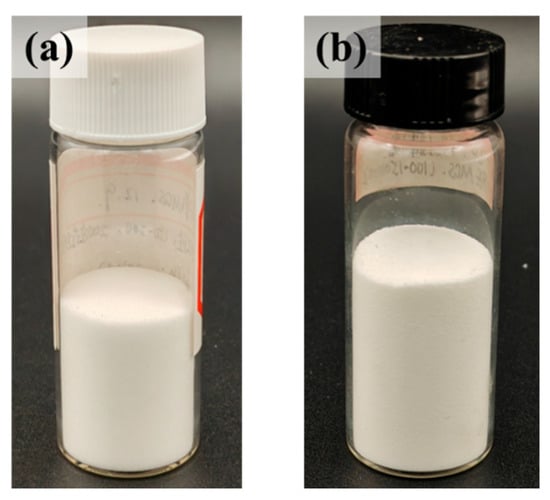

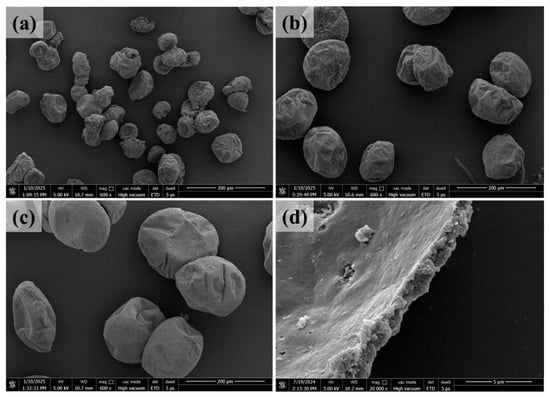

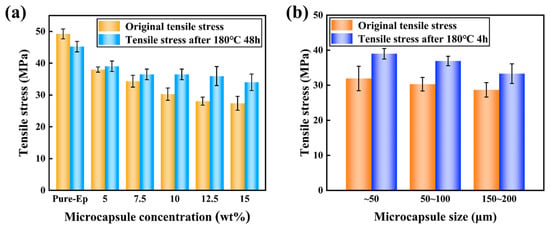

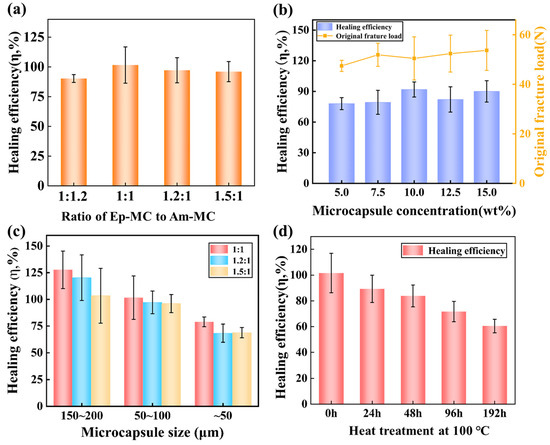

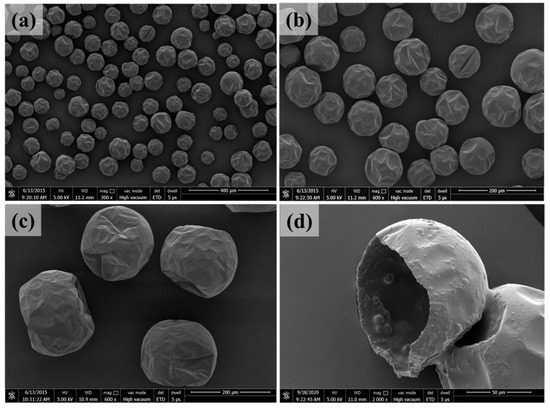

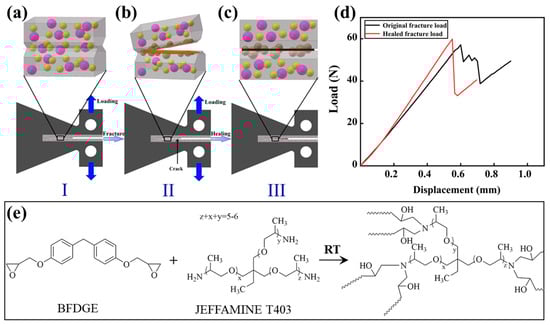

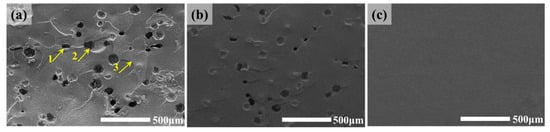

Epoxy resins used in reactors are prone to cracking and failure due to mechanical vibration, thermal stress, and ultraviolet radiation. Improving their resistance to damage is important to extend the service life of reactors. This investigation develops a self-healing imidazole-cured epoxy resin for reactors using epoxy microcapsules and amine microcapsules prepared by electrospraying-interfacial polymerization (ES-IP) microencapsulation technique. Firstly, this investigation studies the feasibility of using double nozzles for simultaneous spraying to improve the preparation of small-sized microcapsules. After successful synthesis, the healing performance of self-healing imidazole-cured epoxy based on the microencapsulated epoxy-amine chemistry was studied, focusing on the influence of the ratio, concentration, and size of the two microcapsules on the healing efficiency, and further exploring the thermal stability of the self-healing performance. The addition of microcapsules to the mechanical properties was also investigated. Results show that the double-nozzle technique can prepare microcapsules with controllable sizes (20~200 μm). The self-healing imidazole-cured epoxy exhibits high self-healing performance, reaching 100% at the optimal ratio with 10.0 wt% 50~100 μm microcapsules. Although the added microcapsules reduce the tensile strength of the material, they improve its high-temperature aging resistance. The above investigation is significant for developing self-healing fiber-reinforced epoxy-based composite materials for reactors. Full article

Objective: This study aimed to evaluate the color stability and microhardness of two resin composites, a BPA-based composite (Luna) and a BPA-free composite (Luna 2), after immersion in chlorhexidine (CHX), using two different polishing protocols. Methods: Disks (7 mm diameter × 2 mm thickness) were prepared and divided into three groups per material: unpolished, Sof-Lex, and FlexiDisc polished (n = 20 per group). The specimens were immersed daily in either 0.12% CHX or distilled water for 21 days. Color change (ΔE) was measured at 7, 14, and 21 days using a spectrophotometer. Microhardness was evaluated at each time point using a Vickers hardness tester (200 g load, 10 s dwell time). Results: Luna 2 exhibited significant discoloration from day 14, while Luna showed significant color change on day 21 (p < 0.05). After 21 days of CHX immersion, unpolished Luna reached a ΔE value of 6.27 ± 1.69, exceeding the clinically acceptable threshold. At 14 days, Sof-Lex polishing significantly improved color stability compared to unpolished controls for both materials (p < 0.05). No significant differences were observed between the two polishing systems over time (p > 0.05). Luna 2 demonstrated significantly higher microhardness at all evaluated time points (p < 0.001). Both composites exhibited slight reductions in microhardness over time, which were more pronounced in Luna (p < 0.001). Conclusions: Polishing enhanced the color stability of both composites. Luna 2 exhibited superior microhardness compared to Luna, and polishing had no significant effect on this property. Given the increasing clinical shift toward BPA-free materials due to biocompatibility concerns, these findings offer relevant guidance for optimizing the long-term esthetic and mechanical performance of modern resin-based restorations. Full article

Developing high-performance bio-based epoxy resins as sustainable alternatives to petroleum-derived bisphenol A (BPA) epoxies for recyclable carbon fiber-reinforced polymers (CFRPs) is pivotal in materials research. Herein, the bio-based bisphenol monomer BDEF was synthesized from the lignin derivative 4-propylguaiacol. The derived epoxy monomer BDEF-EP was cured with adipic acid to form a bio-based vitrimer. Stress relaxation synergistically accelerates through intrinsic dynamic carboxylic acid ester exchange and enhanced chain mobility from the flexible propyl structure. At 220 °C, this vitrimer shows rapid stress relaxation (τ* < 30 s) and repairs ~90% of surface scratches in 30 min. It exhibits tensile and flexural strengths of 69 MPa and 105 MPa, respectively. BDEF-EP’s low viscosity reduces diluent needs in composite fabrication, lowering costs and improving efficiency. The resulting bio-based CFRP achieves tensile and flexural strengths of 543 MPa and 414 MPa, respectively, which are comparable to commercially available petroleum-derived CFRP. In addition, CFRP containing dynamic crosslinked networks demonstrates degradable recyclability in ethylene glycol solvent, preserving the surface morphology and chemical structure of recovered carbon fibers. The results demonstrate that this bio-based epoxy vitrimer has promising potential for developing sustainable, degradable, and recyclable CFRP composites. Full article

Over the last few decades, polymer composites have been rapidly making inroads in critical applications of electrical storage devices such as batteries and supercapacitors. Structural supercapacitor composites (SSCs) have emerged as multifunctional materials capable of storing energy while bearing mechanical loads, offering lightweight and compact solutions for energy systems. This study investigates the functionalization of Bisphenol A-based thermosetting polymers with ionic liquids, aiming to synthesize dual-functional structural electrolytes for SSC fabrication. A multifunctional sandwich structure was subsequently fabricated, in which the fabricated SSC served as the core layer, bonded between two structurally robust outer skins. The core layer was fabricated using carbon fibre layers coated with 10% graphene nanoplatelets (GNPs), while the skin layers contained 0.25% GNPs dispersed in the resin matrix. The developed device demonstrated stable operation up to 85 °C, achieving a specific capacitance of 57.28 mFcm⁻² and an energy density of 179 mWhm⁻² at room temperature. The performance doubled at 85 °C, maintaining excellent capacitance retentions across all experimented temperatures. The flexural strength of the developed sandwich SSC at elevated temperature (at 85 °C) was 71 MPa, which exceeds the minimum requirement for roofing sheets as specified in Australian building standard AS 4040.1 (Methods of testing sheet roof and wall cladding, Method 1: Resistance to concentrated loads). Finite element analysis (FEA) was performed using Abaqus CAE to evaluate structural integrity under mechanical loading and predict damage initiation zones under service conditions. The simulation was based on Hashin’s failure criteria and demonstrated reasonable accuracy. This research highlights the potential of multifunctional polymer composite systems in renewable energy infrastructure, offering a robust and energy-efficient material solution aligned with circular economy and sustainability goals. Full article

Fiber-reinforced composites (FRCs) have emerged as transformative alternatives to traditional marine construction materials, owing to their superior corrosion resistance, design flexibility, and strength-to-weight ratio. This review comprehensively examines the current state of FRC technologies in marine deck and underwater applications, with a focus on manufacturing methods, durability challenges, and future innovations. Thermoset polymer composites, particularly those with epoxy and vinyl ester matrices, continue to dominate marine applications due to their mechanical robustness and processing maturity. In contrast, thermoplastic composites such as Polyether Ether Ketone (PEEK) and Polyether Ketone Ketone (PEKK) offer advantages in recyclability and hydrothermal performance but are hindered by higher processing costs. The review evaluates the performance of various fiber types, including glass, carbon, basalt, and aramid, highlighting the trade-offs between cost, mechanical properties, and environmental resistance. Manufacturing processes such as vacuum-assisted resin transfer molding (VARTM) and automated fiber placement (AFP) enable efficient production but face limitations in scalability and in-field repair. Key durability concerns include seawater-induced degradation, moisture absorption, interfacial debonding, galvanic corrosion in FRP–metal hybrids, and biofouling. The paper also explores emerging strategies such as self-healing polymers, nano-enhanced coatings, and hybrid fiber architectures that aim to improve long-term reliability. Finally, it outlines future research directions, including the development of smart composites with embedded structural health monitoring (SHM), bio-based resin systems, and standardized certification protocols to support broader industry adoption. This review aims to guide ongoing research and development efforts toward more sustainable, high-performance marine composite systems. Full article

Aluminum nitride (AlN) ceramics exhibit exceptional properties that render them highly valuable for diverse industrial applications. However, conventional manufacturing techniques encounter significant challenges in fabricating complex AlN components with precise geometries. To address these limitations, digital light processing (DLP) has emerged as a promising additive manufacturing approach for AlN ceramics. This study presents a systematic investigation of the monomer composition in the photopolymer resin system through a comprehensive experimental evaluation. The results demonstrate that an optimized mixture of monomers ACMO (56.7 wt%), DEGDA (2.7 wt%), and TMPTA (40.6 wt%) yields photopolymer resin with superior comprehensive performance. Utilizing this optimized formulation, a 50 vol% solid loading AlN ceramic slurry was successfully prepared, and subsequently, dense AlN ceramic components were fabricated through DLP. This provides an important basis for optimizing the slurry preparation of AlN ceramic fabrication based on DLP 3D printing. Full article

Objective: To investigate the effect of various surface conditioning protocols on the shear bond strength between 3D-printed dental composite resin and feldspathic ceramic rods using Panavia V5 resin cement. Methods: 3D-printed composite resin discs were allocated into four groups based on surface treatment: (1) untreated control, (2) air abrasion, (3) hydrofluoric acid etching, and (4) combined air abrasion and hydrofluoric acid etching. All specimens were bonded to standardized Vita Mark II ceramic rods using Panavia V5 cement under a static load to ensure uniform cement thickness, followed by light curing using an LED unit at 1200 mW/cm² for 20 s. After 24 h of water storage at 37 °C, shear bond strength was evaluated using a universal testing machine. Statistical analysis was performed using one-way ANOVA and Tukey’s post-hoc test (α = 0.05). Results: The combined treatment group demonstrated the highest mean bond strength (40.7 ± 11.5 MPa), followed by the hydrofluoric acid group (37.8 ± 9.3 MPa). Both groups exhibited significantly higher bond strength compared to the untreated control (p = 0.002 and p = 0.011, respectively), with no statistically significant difference between them (p = 0.887). The air abrasion-only group did not differ significantly from the untreated control (p = 0.570). Conclusions: Hydrofluoric acid etching, either alone or in combination with air abrasion, significantly enhances the shear bond strength between 3D-printed composite resin and feldspathic ceramic substrates. Air abrasion alone did not result in a significant improvement compared to the untreated condition. Full article

This study evaluated the influence of different surface treatments and composite materials on the microtensile bond strength (μTBS) of repaired aged bulk-fill resin composite restorations, aligning with the principles of minimal intervention dentistry. Seventy-two specimens of bulk-fill resin composite (Tetric EvoCeram) were prepared, sectioned into bars (1 × 1 × 5 mm), and subjected to thermocycling to simulate aging. Specimens were randomly allocated into six groups (n = 12) based on surface treatment and repair material: phosphoric acid etching followed by repair with either Tetric EvoCeram (Group 1) or Filtek Z350 XT (Group 2); diamond bur roughening followed by repair with Tetric EvoCeram (Group 3) or Filtek Z350 XT (Group 4); and air abrasion followed by repair with Tetric EvoCeram (Group 5) or Filtek Z350 XT (Group 6). μTBS testing was performed using a universal testing machine, and failure patterns were examined under a stereomicroscope at 40× magnification. The highest bond strength values were observed in Groups 5 and 6 (air abrasion), followed by Group 3 (diamond bur). Groups 1, 2, and 4 showed significantly lower bond strength values (p < 0.05). No significant differences in failure modes were reported across groups. These findings suggest that air abrasion is a superior surface treatment for repairing aged bulk-fill resin composites, as it significantly enhanced μTBS compared to phosphoric acid etching and diamond bur roughening. Full article

An in vitro study evaluated the fracture resistance of four CAD/CAM restorative materials: lithium disilicate ceramic (IPS e.max CAD, EM), hybrid ceramic (Vita Enamic, VE), a polymer-based composite (Cerasmart, CS), and a novel 3D-printed resin (Ceramic Crown, CC) fabricated using digital press stereolithography (DPS) technology. Standardized full-coverage crowns were designed and manufactured for each material. All specimens underwent thermocycling and fracture testing using a universal testing machine. EM exhibited the highest fracture resistance (mean: 440.49 N), while VE showed the lowest (173.82 N). CS (265.49 N) and CC (306.76 N) presented intermediate values without statistically significant differences between them. Stereomicroscopic analysis revealed differences in fracture patterns, with IPS e.max CAD showing smooth, brittle fractures, while hybrid and polymer-based materials exhibited tortuous fracture surfaces. These results suggest that DPS technology achieves mechanical performance for Ceramic Crown comparable to that of milled polymer-based composites, while offering production advantages in terms of time efficiency. As one of the first studies to evaluate Ceramic Crown and DPS technology, these findings provide initial insights into their mechanical behavior. However, further studies are required to validate their clinical performance before widespread use can be recommended. Full article

Modern dentistry depends on polymer composite materials for a wide range of applications. These materials, mainly composed of polymer resins and reinforced with inorganic fillers, offer mechanical strength, wear resistance, and durability for restorations and prosthetics. This study concentrated on the density and surface tension of monomers often used in dental resins and employed Quantitative Structure–Property Relationship (QSPR) modeling to investigate the influence of monomers’ structural features on these properties. Two main and two auxiliary models to predict both density and surface tension were built and validated. Additionally, two models based on CircuS descriptors were built and analyzed. Molecular descriptors from the models were interpreted and structural characteristics of dental monomers influencing their physicochemical properties were identified. It was found that the presence of heteroatoms increases both of the analyzed properties, while all of the other identified structural features exert an opposite influence on density and surface tension. Furthermore, the study showed that the density of dental monomers can be reliably predicted using the database containing regular organic compounds, but the surface tension requires the database containing specific monomers in order to perform satisfactorily. Full article

The adhesion of endodontic sealers to dentin may be influenced both by the chemical composition of the sealer and the final irrigation protocol. The aim of this study was to examine the push-out bond strength of three differently formulated bioceramic sealers to root canal dentin, after different irrigation protocols. Four cavities were prepared in dentine discs obtained from middle thirds of third molars with fused roots. Discs were randomly divided into three groups (n = 8). Group 1: specimens were immersed in 2.5% NaOCl; group 2: in 2.5% NaOCl followed by 17% EDTA; and group 3: in a solution of 2.5% NaOCl with 9% etidronic acid (HEDP). The cavities on each disk were filled with four tested sealers: AH Plus Bioceramic, Bio C Angelus, BioRoot RCS, and AH Plus (n = 8 per sealer). The push-out bond strength test was performed after 7 days. The data were statistically analyzed using two-way analysis of variance with the Bonferroni post hoc test (α = 0.05). Irrigation with NaOCl resulted in significantly lower bond strength values of the sealers in comparison to NaOCl/EDTA and NaOCl/HEDP groups. In the NaOCl and NaOCl/HEDP groups, BioRoot RCS showed similar push-out bond strength compared to AH Plus and significantly higher compared to Bio-C and AH Plus Bioceramic. In the NaOCl/EDTA group, bioceramic sealers achieved a significantly weaker bond strength compared to AH Plus. The bond strength of BioRoot RCS was significantly higher compared to Bio-C and AH Plus Bioceramic. The irrigation protocols and the chemical composition of the sealers significantly influenced their bond strength to dentin. Epoxy resin-based sealer achieved the strongest bond strength, while within bioceramic sealers, the highest values were obtained for BioRoot RCS and the lowest for AH Plus Bioceramic. Full article

Background/Objectives: Soft tissues are essential for maintaining the function and long-term success of dental implants. In many cases, implant placement necessitates soft tissue augmentation procedures such as free gingival grafts (FGGs) or connective tissue grafts (CTGs) to restore lost gingival architecture. Nevertheless, a significant challenge associated with FGG and CTG is postoperative pain, largely due to morbidity at the palatal donor site. To address this issue, various approaches have been proposed to reduce patient discomfort and promote improved wound healing at the donor site. This study aimed to compare the effectiveness of four different methods for protecting the palatal donor site following free gingival graft harvesting. Methods: A total of 76 patients undergoing implant therapy with an indication for free gingival grafting were selected and divided into four groups based on the method used to protect the palatal donor site: an absorbable gelatin sponge secured with sutures (GS); an absorbable gelatin sponge with sutures and cyanoacrylate tissue adhesive (GS+CTA); oxidized regenerated cellulose combined with cyanoacrylate tissue adhesive (ORC+CTA); and an absorbable gelatin sponge covered with a flowable resin composite and stabilized with sutures (GS+FRC). The effectiveness of each method was evaluated in terms of postoperative pain, bleeding, and wound healing. Results: Although the differences in pain intensity among the groups were not statistically significant throughout the observation period (p > 0.05), the GS+FRC group consistently exhibited the lowest mean pain scores. No statistically significant differences were observed between the groups regarding the incidence of secondary bleeding. The highest mean wound healing rate was recorded in the GS+FRC group (75.95 ± 18.75%), whereas the ORC+CTA group demonstrated the lowest rate (43.66 ± 25.74%). Conclusions: The use of an absorbable gelatin sponge covered with a flowable resin composite and secured with sutures, despite the presented limitations, appears to be a promising approach for palatal wound protection. While this group consistently demonstrated the lowest mean pain scores, differences in pain intensity among the groups were not statistically significant. Nonetheless, it achieved the most favorable outcomes in terms of wound epithelialization. Full article

This study investigates the processability—via Fused Deposition Modeling (FDM) 3D printing—and mechanical performance of biocomposites based on polylactic acid (PLA), polybutylene succinate (PBS), and their 50/50 wt% blend, each reinforced with hemp shive at 3 and 5 wt%. Blending PLA with PBS represents a straightforward and encouraging strategy to enhance both the printability and mechanical properties of the individual resins, expanding the range of their potential applications. The addition of hemp shive—a by-product of hemp processing—not only enhances the biodegradability of the composites but also improves their thermo-mechanical performance, as well as aligning with circular economy principles. The rheological characterization, performed on all the systems, evidenced that the PLA/PBS blend possesses viscoelastic properties well suited for FDM, enabling smooth extrusion through the nozzle, good shape stability after deposition, and effective interlayer adhesion. Moreover, the constrain effect of hemp shives within the polymer matrix reduced the extrudate swell, a key factor affecting the dimensional accuracy of the printed parts. Optimal processing conditions were identified at a nozzle temperature of 190 °C and a printing speed of 70 mm/s, providing a favorable compromise between print quality, final performances and production efficiency. From a mechanical perspective, the PLA/PBS blend exhibited an 8.6-fold increase in elongation at break compared to neat PLA, and its corresponding composite showed a ductility nearly three times higher than the PLA-based counterpart’s. In conclusion, the findings of this study provide new insights into the interplay between material formulation, rheological behavior and printing conditions, supporting the development of sustainable, hemp-reinforced biocomposites for additive manufacturing applications. Full article

This study investigates the surface properties of bio-based unsaturated polyester resin (b-UPR) nanocomposites reinforced with biosilica nanoparticles derived from rice husk. The b-UPR matrix was synthesized from recycled polyethylene terephthalate (PET) and renewable monomers, providing a sustainable alternative to conventional polyester resins. Unmodified and modified biosilica particles with silanes: (3-trimethoxysilylpropyl methacrylate—MEMO, trimethoxyvinylsilane—VYNIL, and 3-aminopropyltrimethoxysilane with biodiesel—AMBD) were incorporated in different amounts to evaluate their influence on the wettability, topography, and viscoelastic behavior of the composites. Contact angle measurements revealed that the addition of modified biosilica significantly improved the hydrophobicity of the b-UPR surface. The greatest increase in the wetting angle, amounting to 79.9% compared to composites with unmodified silica, was observed in the composites containing 5 wt.% SiO₂-AMBD. Atomic force microscopy (AFM) analysis indicated enhanced surface roughness and uniform dispersion of the nanoparticles. For the composite containing 1 wt.% of silica particles, the surface roughness increased by 25.5% with the AMBD modification and by 84.2% with the MEMO modification, compared to the unmodified system. Creep testing demonstrated that the reinforced nanocomposites exhibited improved dimensional stability under sustained load compared to the neat resin. These findings confirm that the integration of surface-modified biosilica not only enhances the mechanical properties but also optimizes the surface characteristics of bio-based polyester composites, broadening their potential for high-performance and sustainable applications. Full article

This study aimed to develop dental resin composites containing ZnO/SiO₂ ceramic particles as an antimicrobial filler for producing provisional dental restorations using the lithography-based liquid crystal display (LCD) 3D printing technique. Three types of dental resin-ceramic composites with different filler contents (0 wt%, 5 wt%, and 10 wt%) were prepared to offer high antimicrobial efficacy. Printing parameters, particularly off-time, were optimized for each composition to achieve high-quality prints. Mechanical testing demonstrated increased hardness and elastic modulus. In addition, the 10 vol% composite exhibited a three-point flexural strength of 113.4 MPa, exceeding the 100 MPa requirement specified in ISO 4049:2019 for provisional dental materials. Antimicrobial testing showed a significant reduction in Streptococcus mutans colonies, with up to 84.4% decrease for the 10 vol% composite compared to the unfilled resin. A provisional 3-unit bridge was successfully printed using the 10 vol% composite, demonstrating practical applicability. Full article
