Search Results (581)

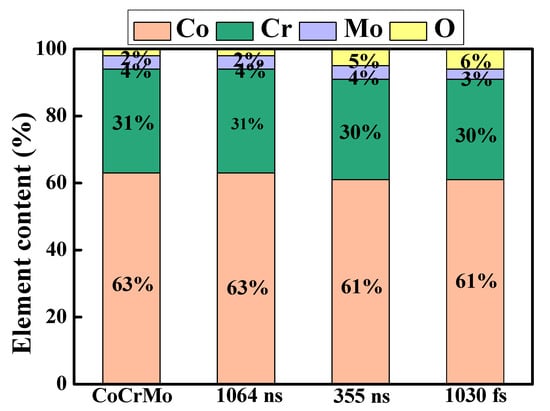

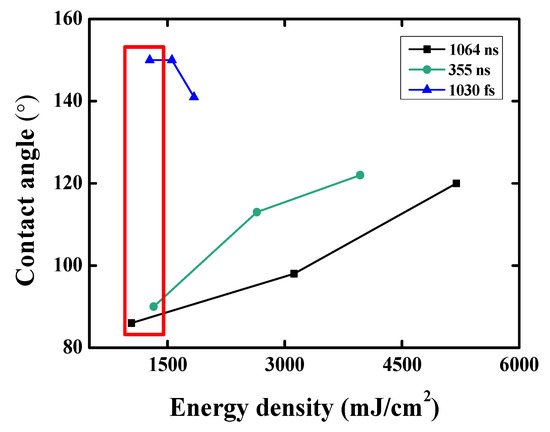

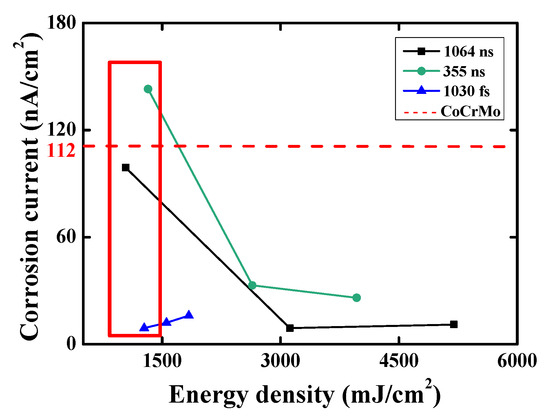

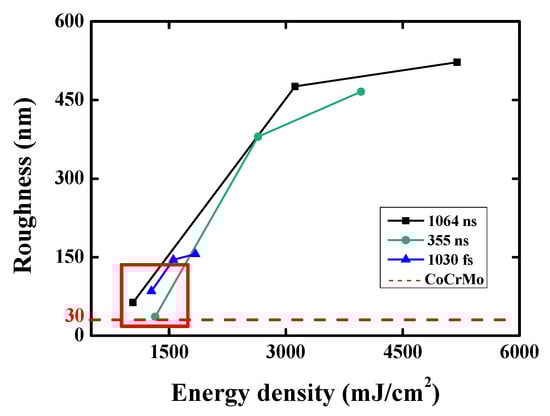

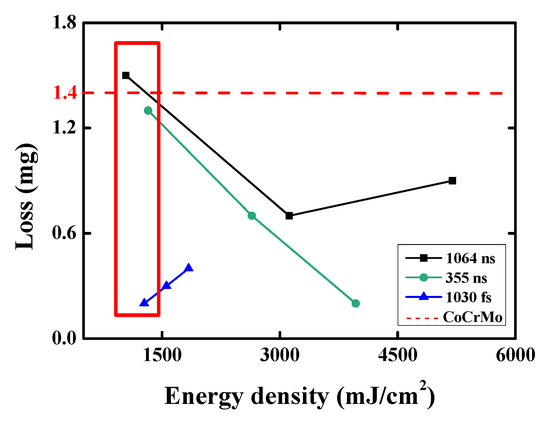

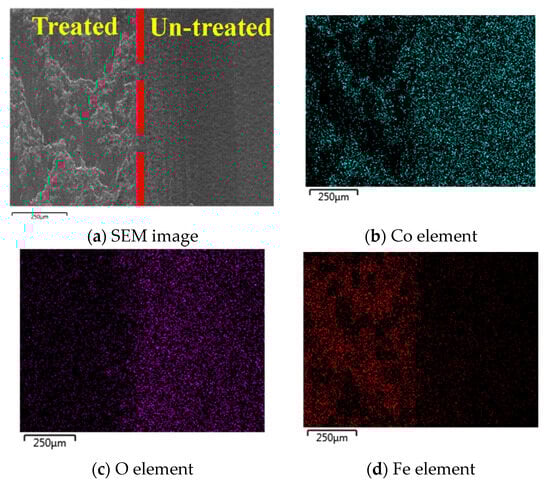

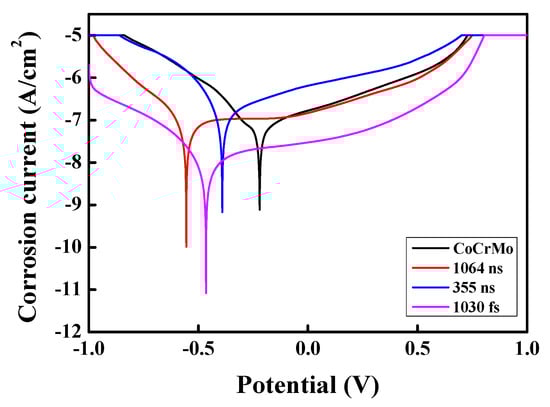

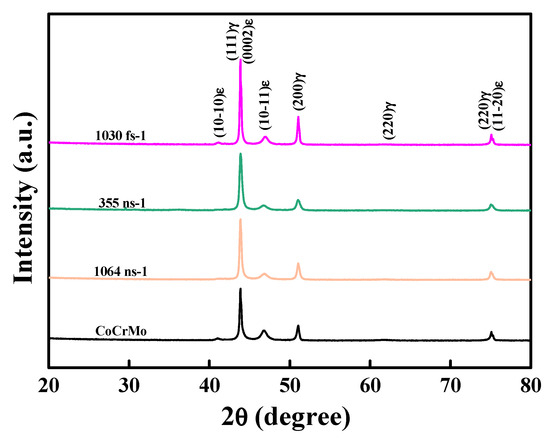

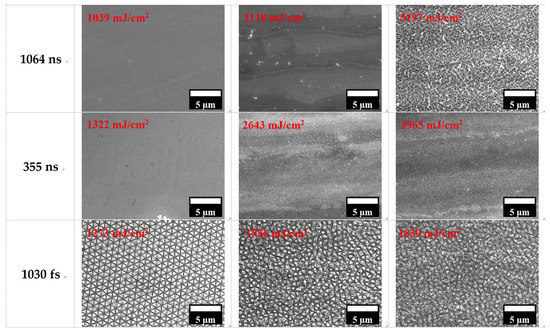

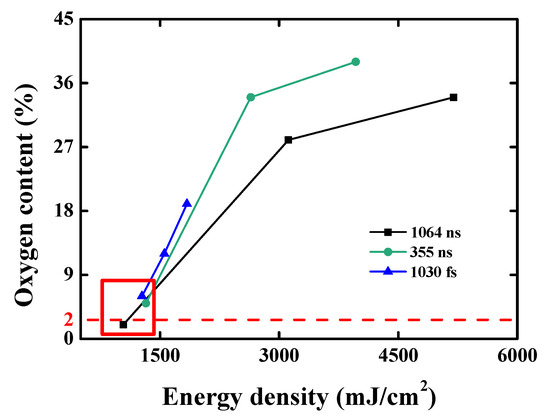

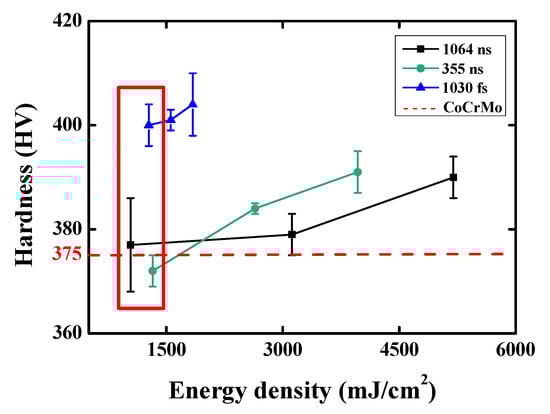

With an aging population, the number of joint replacement surgeries is on the rise. One of the most common implant materials is cobalt–chromium–molybdenum (CoCrMo) alloy. Hence, the surface properties of this alloy have attracted increasing attention. In this study, nanosecond and femtosecond laser processing, followed by annealing, was employed to modify the CoCrMo surface. The effects of the treatment conditions on the surface morphology, structure, composition, hardness, roughness, contact angle, wear properties, and corrosion current were studied. Femtosecond laser processing with an energy density of 1273 mJ/cm², followed by heat treatment at 160 °C for 2 h, produced laser-induced periodic surface structures (LIPSS) without altering the chemical composition of the alloy and rendered the surface superhydrophobic. In contrast, nanosecond laser treatment at higher laser energy densities promoted the formation of an oxide layer, which improved the hardness and corrosion resistance of the substrate. Overall, the CoCrMo samples processed using the femtosecond laser system exhibited superior corrosion and wear resistance, with a protection efficiency of approximately 92%. Full article

Functional glass surfaces with tunable wettability are of growing interest in optical, biomedical, and architectural applications. In this study, we investigate the influence of femtosecond laser processing parameters—including power, scanning speed, and repetition rate—on the surface morphology, wettability, and optical properties of Panda glass. Laser structuring generated microscale ablation features and increased surface roughness (arithmetic mean height, Sa, rising from ~0.02 µm for pristine glass to ~1.85 µm under optimized conditions). The treated surfaces exhibited enhanced hydrophobicity, with static water contact angles up to ~82° and sliding angles exceeding 50°, indicating significant droplet pinning. Optical characterization further showed a reduction in transmittance at 550 nm from ~92% (pristine) to ~68% after laser treatment, consistent with increased scattering by surface textures. These findings demonstrate that femtosecond laser processing is an effective mask-free method to enhance the hydrophobicity of glass surfaces and establish clear process–structure–property relationships, providing guidance for future optimization toward superhydrophobic performance. Full article

Ice accretion on critical transportation infrastructure presents serious operational risks and economic challenges, highlighting the need for sustainable anti-icing solutions. This study develops a strong PDMS-based composite coating on aluminum by incorporating carbon nanotubes (CNTs) and carbon powder, effectively merging passive superhydrophobicity with photothermal capabilities. We systematically assess how different ratios of CNTs to carbon powder (3:1, 1:1, 1:3) influence surface morphology, wettability, anti-icing performance, mechanical durability, and corrosion resistance. The morphological analysis shows the formation of hierarchical micro/nano-structures, with the optimal 1:3 ratio (designated as P13) resulting in dense, porous agglomerates of intertwined CNTs and carbon powder. P13 demonstrates high-performing superhydrophobicity, with a contact angle of 139.7° and a sliding angle of 9.4°, alongside a significantly extended freezing delay of 180 s at −20 °C. This performance is attributed to reduced water–surface interaction and inhibited ice nucleation. Mechanical abrasion tests indicate remarkable durability, as P13 retains a contact angle of 132.5° and consistent anti-icing properties after enduring 100 abrasion cycles. Electrochemical analysis reveals exceptional corrosion resistance, particularly for P13, which achieves a notable 99.66% corrosion inhibition efficiency by creating a highly tortuous diffusion barrier that protects against corrosive agents. This multifunctional coating effectively utilizes the photothermal properties of CNTs, the affordability of carbon powder, the low surface energy of PDMS, and the thermal conductivity of aluminum, presenting a robust and high-performance solution for anti-icing applications in challenging environments. Full article

The array of regular square pyramid microstructures with zero-spacing features is an ideal structural topology for building superhydrophobic functional surfaces due to its excellent anti-wetting performance and low surface adhesion properties. In the framework of existing studies, this microstructured array is usually considered to exist only in two typical wetting states, the stable Cassie state and the Wenzel state. In this study, a third type of wetting state, the incomplete Wenzel state, was discovered for the first time using experimental characterization, and the evolution mechanism of this new wetting state was revealed based on critical contact angle theory and numerical simulation. It is revealed that the faces and edges of the square pyramid microstructures exhibit different tilting angles, and this unique geometrical design endows them with dual critical contact angles. When the intrinsic contact angle of the microstructure is between the critical contact angles for the edges and faces, the wetting behavior of the droplet contact line in the directions parallel to the edges and faces will generate spontaneous and non-spontaneous competition effects, which lead to the formation of the incomplete Wenzel state. The dual-critical-angle theoretical model constructed in this study provides a new perspective for improving the theoretical system of wetting dynamics on pyramid arrays. Full article

Transparent coatings with superwetting properties (superhydrophilicity or superhydrophobicity) have broad application prospects. Usually, most studies have been carried out separately on superhydrophobic coatings or superhydrophilic coatings. In our work, superhydrophilic transparent coatings were prepared by the four-mercapto and four-polyethylene glycol monomethyl acrylate modified POSS (POSS-(SH)₄-(PEGMA)₄) (designated as I-coating) as well as superhydrophobic transparent coating (designated as O-coating) were prepared with the mercapto and seven-heptyl decafluoroheptyl acrylate modified POSS (POSS-SH-(DFMA)₇). The similarities and differences in anti-fogging, stain resistance, self-cleaning and anti-biological application between superhydrophobic and superhydrophilic coatings were compared systematically. The results show that superhydrophilic coatings performed better at preventing fog and facilitating self-cleaning; nevertheless, superhydrophobic coatings exhibited superior efficacy in the removal of contaminants such as markers and lipsticks. Both superwetting coatings demonstrated proficiency in self-cleaning and in deterring biological adhesion with respect to low-viscosity oil droplets. The relevant research of this paper provided a reference for the subsequent study on the advantages and disadvantages of superhydrophilic and superhydrophobic as well as its specific application. Full article

Over the last few decades, the growing demand for sustainable resources has made biopolymers increasingly popular, as they offer an eco-friendly alternative to conventional synthetic polymers, which are often associated with environmental issues such as the formation of microplastics and toxic substances. Functionalization of biomaterials involves modifying their physical, chemical, or biological properties to improve their performance for specific applications. Cellulose and bacterial cellulose are biopolymers of interest, due to the plethora of hydroxyl groups, their high surface area, and high porosity, which makes them ideal candidates for several applications. However, there are applications, which require precise control of their wetting properties. In this review, we present the most effective fabrication methods for modifying both the morphology and the chemical properties of cellulose and bacterial cellulose, towards the realization of superhydrophobic bacterial cellulose films and surfaces. Such materials can find a wide variety of applications, yet in this review we target and discuss applications deriving from the wettability control, such as antibacterial surfaces, wound healing films, and separation media. Full article

Superhydrophobic coatings possess distinct wettability characteristics and hold significant potential in metal corrosion protection and underwater drag reduction. However, their practical application is often hindered by poor durability arising from the fragility of their micro/nanostructured surface roughness. In this study, a durable superhydrophobic coating featuring a hierarchical, hydrangea-like micro/nanostructure was successfully fabricated on an aluminum alloy substrate via a simple one-step cold-spraying technique. The coating consisted of hydrangea-shaped SiO₂ nanoparticles modified with 1H,1H,2H,2H-perfluorodecyltrimethoxysilane (PFDT) to produce multiscale roughness, while epoxy resin (EP) served as the binding matrix to enhance mechanical integrity. The hydrangea-like SiO₂ nanostructures were characterized by solid cores and wrinkled, petal-like outgrowths. This unique morphology not only increased the surface roughness but also provided more active sites for air entrapment, thereby enhancing the coating’s overall performance. The h-SiO₂@PFDT-EP composite coating exhibited excellent superhydrophobicity, with a WCA of 170.1° ± 0.8° and a SA of 2.7° ± 0.5°. Durability was evaluated through sandpaper abrasion, tape peeling, acid and alkali immersion, artificial weathering, and salt spray tests. The results demonstrated that the coating retained stable superhydrophobic performance under various environmental stresses. Compared with bare 6061 aluminum and EP coatings, its corrosion current density was reduced by four and three orders of magnitude, respectively. Furthermore, the coating achieved a maximum drag-reduction rate of 31.01% within a velocity range of 1.31–7.86 m/s. The coating also displayed excellent self-cleaning properties. Owing to its outstanding durability, corrosion resistance, and drag-reducing capability, this one-step fabricated superhydrophobic coating showed great promise for applications in marine engineering and defense. Full article

The superhydrophobic coatings for outdoor use need to be exposed to sunlight for a long time; therefore, their UV-aging resistances are crucial in practical applications. In this study, the primary product of titanium dioxide (P-TiO₂) was used as the raw material. Nano-silica (SiO₂) was coated onto the surface of P-TiO₂ by the acid precipitation method to prepare P-TiO₂-SiO₂ composite particles. Then, they were modified and sprayed simply to obtain a superhydrophobic P-TiO₂-SiO₂/HDTMS coating. The results indicated that amorphous nano-SiO₂ was coated on the P-TiO₂ surface, forming a micro–nano binary structure, which was the essential structure to form superhydrophobic coatings. Additionally, the UV-aging property of P-TiO₂ was significantly enhanced after being coated with SiO₂. After continuous UV irradiation for 30 days, the color difference (ΔE*) and yellowing index (Δb*) values of the coating prepared with P-TiO₂-SiO₂ increased from 0 to 0.75 and 0.23, respectively. In contrast, the ΔE* and Δb* of the coating prepared with P-TiO₂ increased from 0 to 1.68 and 0.74, respectively. It was clear that the yellowing degree of the P-TiO₂-SiO₂ coating was lower than that of P-TiO₂, and its UV-aging resistance was significantly improved. After modification with HDTMS, the P-TiO₂-SiO₂ coating formed a superhydrophobic P-TiO₂-SiO₂/HDTMS coating. The water contact angle (WCA) and water slide angle (WSA) on the surface of the coating were 154.9° and 1.3°, respectively. Furthermore, the coating demonstrated excellent UV-aging resistance. After continuous UV irradiation for 45 days, the WCA on the coating surface remained above 150°. Under the same conditions, the WCAs of the P-TiO₂/HDTMS coating decreased from more than 150° to 15.3°. This indicated that the retention of surface hydrophobicity of the P-TiO₂-SiO₂/HDTMS coating was longer than that of P-TiO₂/HDTMS, and the P-TiO₂-SiO₂/HDTMS coating’s UV-aging resistance was greater. The superhydrophobic P-TiO₂-SiO₂/HDTMS self-cleaning coating reported in this study exhibited outstanding UV-aging resistance, and it had the potential for long-term outdoor use. Full article

As an emerging energy-saving approach, bio-inspired drag reduction technology has become a key research direction for reducing energy consumption and greenhouse gas emissions. This study introduces the latest research progress on bio-inspired microstructured surfaces in the field of underwater drag reduction, focusing on analyzing the drag reduction mechanism, preparation process, and application effect of the three major technological paths; namely, bio-inspired non-smooth surfaces, bio-inspired superhydrophobic surfaces, and bio-inspired modified coatings. Bio-inspired non-smooth surfaces can significantly reduce the wall shear stress by regulating the flow characteristics of the turbulent boundary layer through microstructure design. Bio-inspired superhydrophobic surfaces form stable gas–liquid interfaces through the construction of micro-nanostructures and reduce frictional resistance by utilizing the slip boundary effect. Bio-inspired modified coatings, on the other hand, realize the synergistic function of drag reduction and antifouling through targeted chemical modification of materials and design of micro-nanostructures. Although these technologies have made significant progress in drag reduction performance, their engineering applications still face bottlenecks such as manufacturing process complexity, gas layer stability, and durability. Future research should focus on the analysis of drag reduction mechanisms and optimization of material properties under multi-physical field coupling conditions, the development of efficient and low-cost manufacturing processes, and the enhancement of surface stability and adaptability through dynamic self-healing coatings and smart response materials. It is hoped that the latest research status of bio-inspired drag reduction technology reviewed in this study provides a theoretical basis and technical reference for the sustainable development and energy-saving design of ships and underwater vehicles. Full article

In the present study, we synthesized fluorocarbon-coated cobalt ferrite (CoFe₂O₄) magnetic nanoparticles using alkoxysilanes such as trimethoxy(3,3,3-trifluoropropyl)silane (TFPTMS), trimethoxy(1H,1H,2H,2H-nonafluorohexyl)silane (NFHTMS), and triethoxy(1H,1H,2H,2H-perfluorodecyl)silane (PFDTES). The synthesized nanoparticles were characterized by various techniques, including X-ray diffractometry (XRD), transmission electron microscopy (TEM/HRTEM/EDXS), Fourier transform infrared spectroscopy (FTIR), specific surface area measurements (BET), and magnetometry (VSM). To understand their surface characteristics, contact angle (CA) measurements were carried out, providing valuable insights into their hydrophobic properties. Among the samples of CoFe₂O₄ coated with fluoroalkoxysilanes, those with PFDTES surface coating had the highest water contact angle of 159.2°, indicating their superhydrophobic character. The potential of the prepared fluoroalkoxysilane-coated CoFe₂O₄ nanoparticles for the removal of waste low-SAPS synthetic engine oil from a model aqueous solution was evaluated based on three key parameters: adsorption efficiency (%), adsorption capacity (mg/g), and desorption efficiency (%). All synthesized CoFe₂O₄ samples coated with fluoroalkoxysilane showed high oil adsorption efficiency, ranging from 87% to 98%. The average oil adsorption capacity for the samples was as follows: F₃-SiO₂@CoFe₂O₄ (3.1 g of oil/g of adsorbent) > F₉-SiO₂@CoFe₂O₄ (2.7 g of oil/g of adsorbent) > F₁₇-SiO₂@CoFe₂O₄ (1.5 g of oil/g of adsorbent) as a result of increasing oleophobicity with increasing fluorocarbon chain length. The desorption results, which showed 77–97% oil recovery, highlighted the possibility of reusing the adsorbents in multiple adsorption/desorption cycles. Full article

To address the challenges of cotton cellulose materials being susceptible to environmental humidity and pollutant erosion, a strategy for constructing superhydrophobic functional coatings with biomimetic micro–nano composite structures was proposed. Through surface silanization modification, diatomite (DEM) and Fe₃O₄ nanoparticles were functionalized with octyltriethoxysilane (OTS) to prepare superhydrophobic diatomite flakes (ODEM) and OFe₃O₄ nanoparticles. Following the multi-scale composite principle, ODEM and OFe₃O₄ nanoparticles were blended and crosslinked via the hydroxyl-initiated ring-opening polymerization of epoxy resin (EP), resulting in an EP/ODEM@OFe₃O₄ composite coating with hierarchical roughness. Microstructural characterization revealed that the micrometer-scale porous structure of ODEM and the nanoscale protrusions of OFe₃O₄ form a hierarchical micro–nano topography. The special topography combined with the low surface energy property leads to a contact angle of 158°. Additionally, the narrow bandgap semiconductor characteristic of OFe₃O₄ induces the localized surface plasmon resonance effect. This enables the coating to attain 80% light absorption across the 350–2500 nm spectrum, and rapidly heat to 45.8 °C within 60 s under 0.5 sun, thereby demonstrating excellent deicing performance. This work provides a theoretical foundation for developing environmentally tolerant superhydrophobic photothermal coatings, which exhibit significant application potential in the field of anti-icing and anti-fouling. Full article

Background/Objectives: Three-dimensional (3D) cell culture models more accurately simulate the in vivo tissue environments as compared to conventional two-dimensional (2D) monolayer cultures. Among these, spheroid cultures are particularly valuable for pharmaceutical research, as they allow for the study of tumor growth, drug responses, and cell–cell interactions in a physiologically relevant manner. Superhydrophobic surfaces (SHSs) have shown a promise in enhancing spheroid formation by reducing cell–substrate adhesion and promoting cell–cell aggregation. This study aims to evaluate the effectiveness of two different SHS coatings (SHS1: fluorinated; SHS2: silicone-based) in generating co-culture spheroids composed of non-tumoral fibroblasts (3T3) and tumoral epidermoid carcinoma cells (A431), thereby mimicking aspects of the tumor microenvironment. Methods: Co-cultures of 3T3 and A431 cells were seeded at varying ratios onto SHS1 and SHS2 substrates to assess their ability to support 3D spheroid formation. Spheroids were characterized by measurements of circularity and size distribution, viability through live/dead staining, and surface topography using 3D profilometry. Results: Spheroid formation was significantly influenced by both the surface properties and the fibroblast-to-carcinoma cell ratio. The fluorinated SHS1 surface facilitated superior cell viability and promoted the formation of well-rounded, uniform spheroids. In contrast, the silicone-based SHS2 surface resulted in less defined spheroidal structures and lower overall viability. Profilometry confirmed more consistent and compact 3D architectures on SHS1. Conclusions: This study demonstrates that SHS1, a fluorinated superhydrophobic coating, is more effective than SHS2 in supporting the formation of viable and structurally coherent 3D co-culture spheroids. These findings underscore the potential of SHS1 as a low-cost, tunable platform for developing in vitro cancer models and advancing the study of tumor–stroma interactions. Full article

The application of superhydrophobic (SH) coatings in road construction has attracted growing attention due to their potential to improve surface durability, reduce cracking, and enhance skid resistance. Among various materials, SiO₂ nanoparticles have emerged as key components in SH coatings by contributing essential surface roughness and hydrophobicity. This review paper analyzes the role of SiO₂ nanoparticles in enhancing the water-repellent properties of coatings applied to road surfaces, particularly concrete and asphalt. Emphasis is placed on their influence on road longevity, reduced maintenance, and overall performance under adverse weather conditions. Furthermore, this review compares functionalization techniques for SiO₂ using different hydrophobic modifiers, evaluating their efficiency, cost effectiveness, and scalability for large-scale infrastructure. In addition to highlighting recent advancements, this study discusses persistent challenges—including environmental compatibility, mechanical wear, and long-term durability—that must be addressed for practical implementation. By offering a critical assessment of current approaches and future prospects, this short review aims to guide the development of robust, high-performance SH coatings for sustainable road construction. Full article

The present work introduces a sustainable, low-carbon method to fabricate durable, non-toxic superhydrophobic surfaces using bamboo-derived cellulose. Uniform TEMPO-carboxylated cellulose particles (TOC-Ps), approximately 2 μm in diameter, were synthesized through thermal polymerization and spray drying. These particles, featuring a nano-scale convex structure formed by intertwined TOC nanofibers, were applied to substrates and modified with low-surface-energy materials to achieve superhydrophobicity. At an optimal TOC-P mass ratio of 6%, the surface displayed a water contact angle of 156.2° and a sliding angle of 7°. The coating maintained superhydrophobicity after extensive mechanical testing—120 cm of abrasion, 100 bending cycles, and continuous trampling—and exhibited robust chemical stability across harsh conditions, including subjection to high temperatures, UV irradiation, and corrosive solutions (pH 2–12). The hierarchical micro–nano structure was found to enhance both hydrophobicity and durability, offering an environmentally friendly alternative for self-cleaning surfaces, textiles, and building applications. Full article

Graphene oxide (GO) films have attracted significant attention due to their potential in separation and filtration applications. Based on their unique lamellar structure and ultrathin nature, GO films are difficult to maintain in a free-standing form and typically require substrate support. Consequently, understanding their film formation behavior and mechanisms on substrates is of paramount importance. This work employs commonly used nonwoven fibrous membranes as substrates and guided by the coffee-ring theory, systematically investigates the film formation behaviors, film morphology, and underlying mechanisms of GO films on fibrous membranes with varying wettability. Fibrous membranes with different wetting properties—hydrophilic, hydrophobic, and superhydrophobic—were prepared via electrospinning and initiated chemical vapor deposition (iCVD) surface modification techniques. The spreading behaviors, deposition dynamics, capillary effects, and evaporation-induced film formation mechanisms of GO suspensions on these substrates were thoroughly examined. The results showed that GO formed belt-like, ring-like, and circular patterns on the three fibrous membranes, respectively. GO films encapsulated more than the upper half, approximately the upper half, and the top portion of fibers, respectively. Pronounced wrinkling of GO films was observed except for those on the hydrophilic fibrous membrane. This work demonstrates that tuning the wettability of fibrous substrates enables precise control over GO film morphology, including fiber encapsulation, wrinkling, and coverage area. Furthermore, it deepens the understanding of the interactions between 1D nanofibers and 2D GO sheets at low-dimensional scales, laying a foundational basis for the optimized design of membrane engineering. Full article
