Search Results (7)

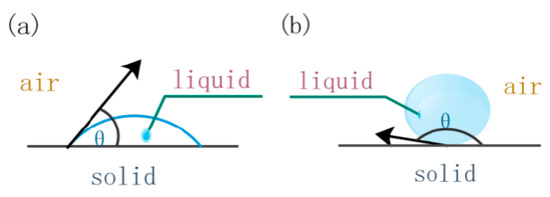

The paper presents experimental results of the work conducted to improve the adhesion between alumina ceramics and urea-urethane elastomer in the interpenetrating phase composites (IPCs), in which these two phases are interpenetrating three-dimensionally and topologically throughout the microstructure. Measurements of the contact angle, surface roughness, and shear tests were used to evaluate the effectivity and select the quantity of a silane coupling agent and the ceramic fabrication method. The tests were conducted using samples of dense alumina ceramic obtained by three- or four-step methods. In the four-step process, hot isostatic pressing (HIP) was applied additionally. As a result of the coupling agent coat and HIP application, the ceramic substrate wettability by the elastomer was improved. The water contact angle was reduced from 80 to 60%. In the next step, porous ceramic preforms were fabricated using HIP sintering and a solution of silane coupling agent treated their surface. The composites were produced using vacuum-pressure infiltration of porous alumina ceramics by urea-urethane elastomer in liquid form. The influence of the coupling agent application on the microstructure and mechanical properties of the composites was estimated. The microstructure of the composites was identified using SEM microscopy and X-ray tomography. As a result of using the coupling agent, residual porosity decreased from 7 to 2%, and compressive strength, as well as stress at a plateau, increased by more than 20%, from 25 to 33 MPa and from 15 to 24 MPa, respectively, for the composites fabricated by infiltration ceramic preforms with 40% of porosity. Full article

Graphene oxide-carbon fiber/epoxy (GO-CF/EP) composites with extrusion temperatures of 30, 40, 50, 60 and 70 °C were prepared by a vacuum infiltration hot-press-forming experimental system (VIHPS). The effects of extrusion temperature on the microstructure, fracture mechanism and mechanical properties of GO-CF/EP composites were investigated. It was found that the best mechanical property of composites and infiltration effect of the matrix in the fiber gap were obtained at the temperature of 50 °C, and the bending strength of the composite reached 728 MPa. The fiber was pulled out and broken under the wrapping of the matrix. The matrix viscosity was high, and the fluidity was poor when the extrusion temperature was low. The poor infiltration of the matrix resulted in many fibers failing to bond together, resulting in the disorderly breakage of fiber bundles. Under the condition of higher temperature, the flow speed of the matrix could be improved. However, part of the matrix was extruded during the extrusion process, and cracks and other defects occurred during the loading, which caused the brittle fracture of the specimen. Full article

In this paper, four groups of graphene oxide and carbon fiber hybrid-reinforced resin matrix (GO-CF/EP) composites with different layering ways were prepared by a vacuum infiltration hot pressing system (VIHPS). The damping properties of the specimens with different layering ways were tested by the force hammer method, and the micromorphology of the specimens was photographed by scanning electron microscope. The experimental results showed that the damping properties of GO-CF/EP composites gradually increased with the increase in the number of Y-direction layers. The [XYXYXY]₆ has the best damping property, with a damping ratio of 1.187%. The damping ratio is 5.3 times higher than that of [XXXXXX]₆ layer mode, and the first-order natural frequency is 77.7 Hz. This is mainly because the stiffness of the X-direction layer is larger than that of the Y-direction layer, and its resistance to deformation is considerable. Therefore, its decay rate is slower. The Y-direction layer has weak resistance to deformation and fast energy attenuation. The increase in the number of Y-direction layers will lead to the overall increase in, and the improvement of, the damping properties of GO-CF/EP composites. Full article

Graphene is often used to improve interlaminar fracture toughness of carbon fiber/epoxy resin (CF/EP) composites. It is still a challenge to improve the toughness while maintaining the in-layer properties. In this study, 2D graphene oxide carbon fiber reinforced epoxy resin matrix (2D CF-GO/EP) composites were prepared by a vacuum infiltration hot-press forming experimental system (VIHPS), and three-point flexural and end notch flexural (ENF) tests were carried out. With the increase of the fiber mass fraction in the composites, the mode II interlaminar fracture toughness (G_IIC) layers decrease gradually, and the bond property between the fiber and matrix interface layer becomes worse, because the accumulation of dense fiber bundles reduces the matrix penetration ability of cracks. However, the flexural properties increased first and then decreased, and reached the best flexural properties at 64.9%. When the fiber mass fraction is too high, the interlamellar bonding properties will decrease, and the fiber bundles will compress and affect each other. The delamination phenomenon will occur between the layers of the composites, which affects the overall bearing strength and stress limit of the composites. The results of the study show that the composites prepared by VIHPS have excellent mechanical properties, and the content of carbon fiber plays an important role in the influencing factors of the interlaminar and in-layer properties of composites. Full article

The applications of pure multi-walled carbon nanotubes (MWCNTs) buckypapers are still limited due to their unavoidable micro/nano-sized pores structures. In this work, polyvinyl alcohol (PVA) was added to a uniform MWCNTs suspension to form MWCNT/PVA buckypapers by vacuum infiltration combined with a hot press method. The results showed an improvement in the thermal, electrical, and electromagnetic interference (EMI) shielding properties due to the formation of dense MWCNTs networks. The thermal and electrical properties rose from 1.394 W/m·k to 2.473 W/m·k and 463.5 S/m to 714.3 S/m, respectively. The EMI performance reached 27.08 dB. On the other hand, ABAQUS finite element software was used to simulate the coupled temperature-displacement performance. The electronic component module with buckypapers revealed a homogeneous temperature and thermal stress distribution. In sum, the proposed method looks promising for the easy preparation of multi-functional nanocomposites at low-cost. Full article

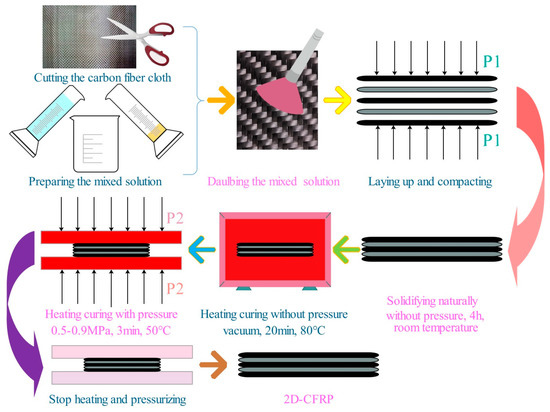

In order to prepare a carbon-fiber-reinforced polymer composite (CFRP) with ideal microstructure and properties, a new vacuum pressure infiltration CFRP method is proposed based on an analysis of existing CFRP preparation process methods. Research on composite material preparation systems was carried out by using this new method principle. The system mainly includes a fiber pre-forming module, a vacuum heating infiltration module, a hot-press curing molding module, and a data acquisition control module. Under the conditions of natural curing at 0 MPa + 6 h + 25 °C, vacuum heating curing at –0.05 MPa + 30 min + 80 °C, and hot-press curing at 0.7 MPa + 5 min + 50 °C, a two-dimensional (2D) CFRP with excellent microstructure and properties was successfully prepared. Observing the microstructure of the prepared composite material, it can be found that the inside of the composite material was sufficiently and uniformly infiltrated, and common preparation defects such as holes and delamination were effectively controlled. Through the performance test, the bending strength of the material reached 790 MPa. Full article

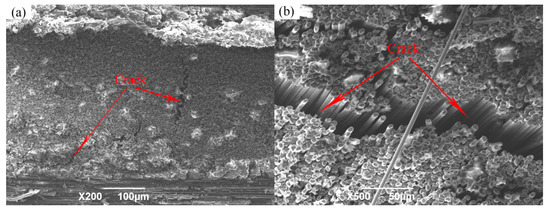

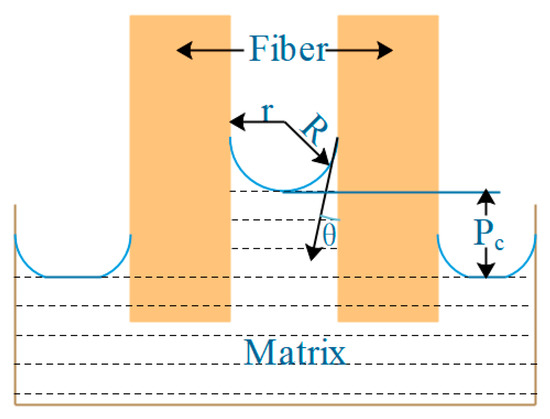

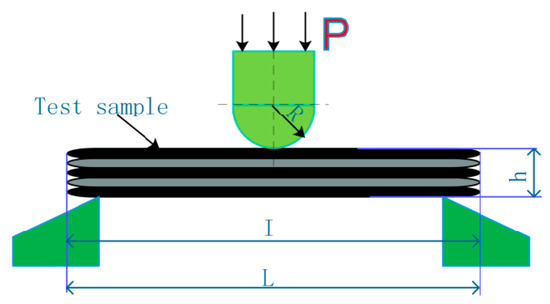

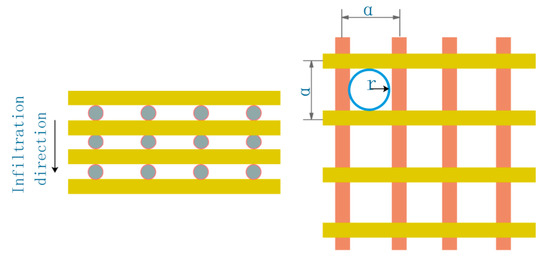

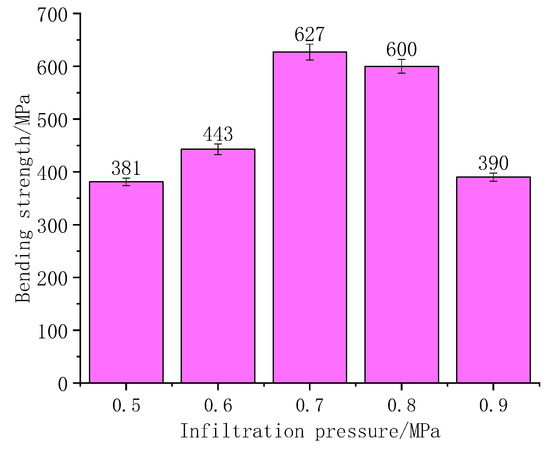

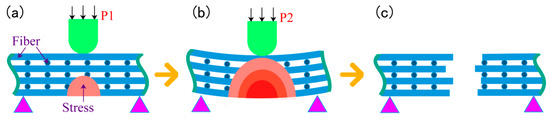

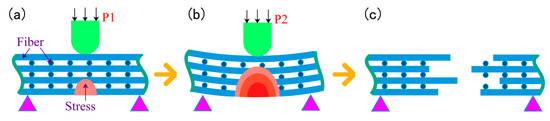

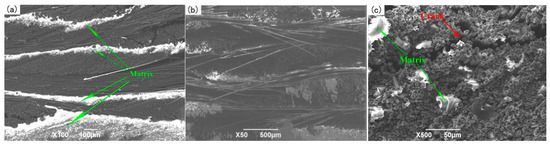

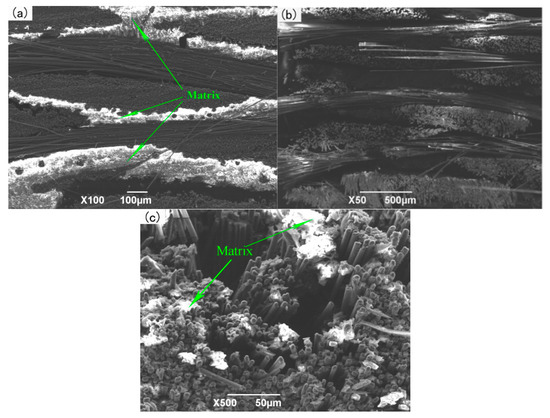

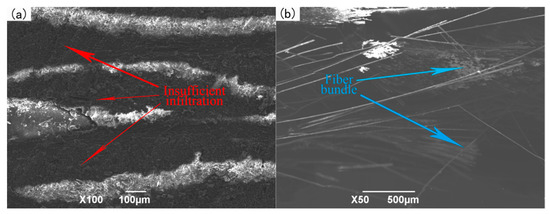

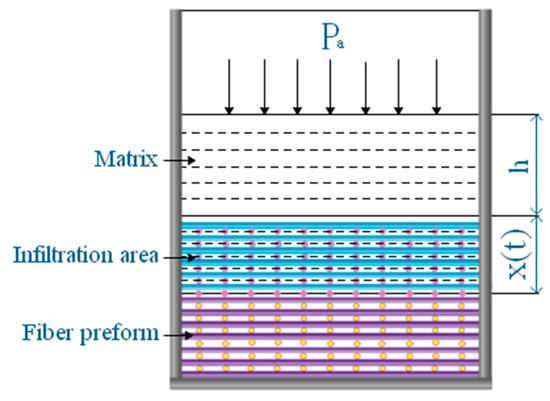

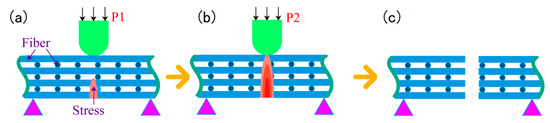

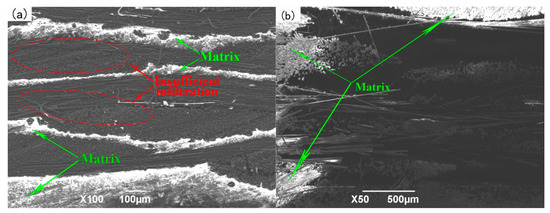

The critical infiltration pressures of the matrix in a two-dimensional (2D) carbon fiber preform were calculated theoretically, and the calculated values of the static and dynamic models were 0.115 and 0.478 MPa, respectively. Compared with the dynamic model, there is no viscous resistance or infiltration front gas pressure in the static model, so the static value is obviously lower than the dynamic value. To verify the rationality of theoretical calculation, 2D carbon fiber reinforced plastics (2D-CFRP) with infiltration pressures of 0.5, 0.6, 0.7, 0.8, and 0.9 MPa were prepared by the vacuum infiltration hot pressing molding process. The microstructure of the composite was observed and the bending strength was tested by three-point bending test. The results show that the infiltration pressure has an important influence on the infiltration effect and the bending fracture morphology. When the infiltration pressure is 0.7 MPa, the composite has an excellent infiltration effect. The fibers distribute reasonable in the fracture. Stress can be effectively transferred when the composite material is loaded. And the bending strength of the composite material reaches 627 MPa at this time. Full article
