Search Results (1,457)

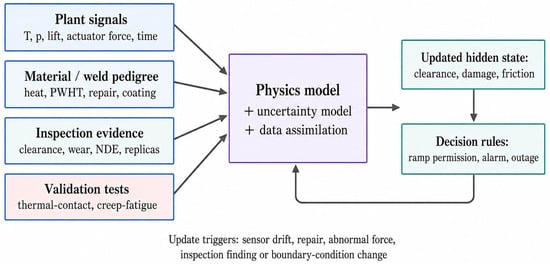

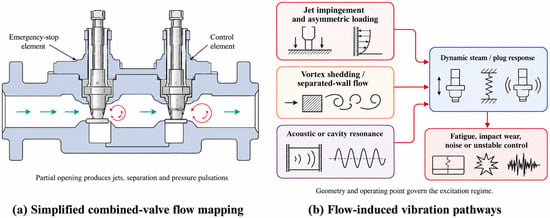

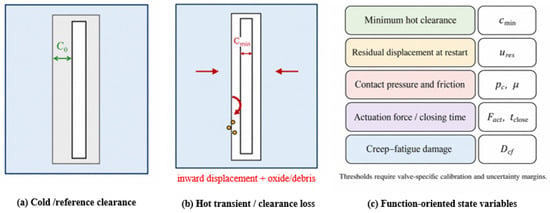

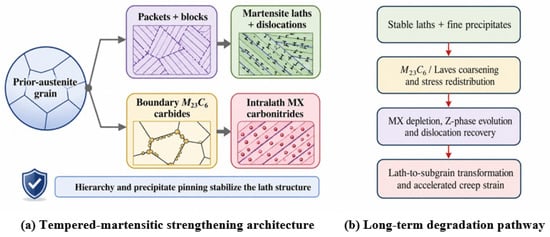

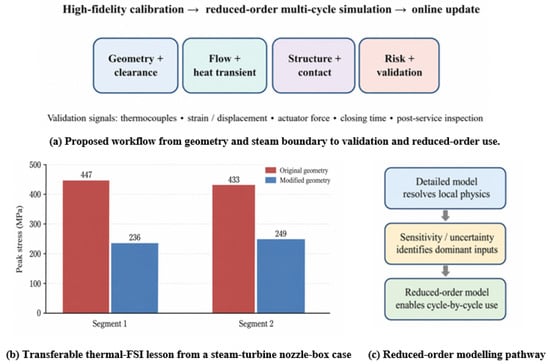

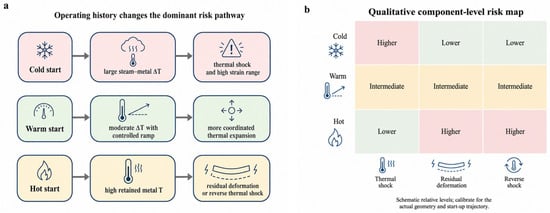

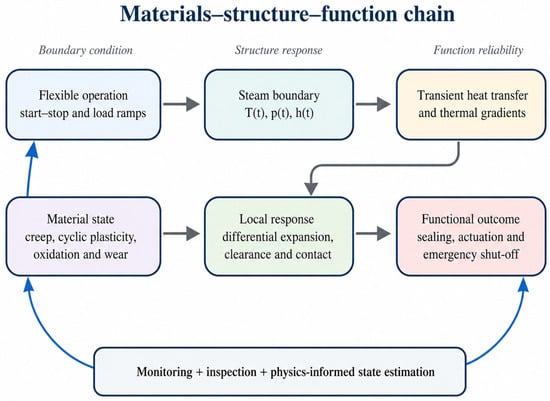

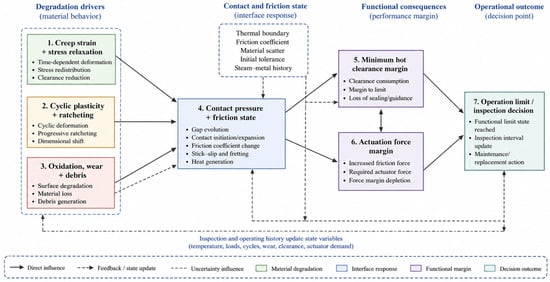

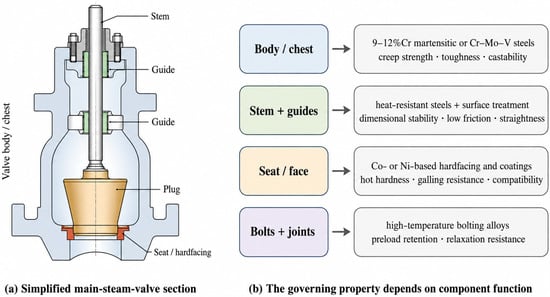

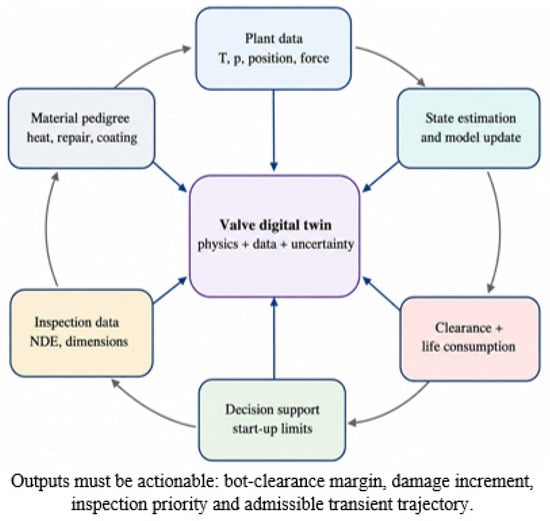

Ultra-supercritical (USC) steam turbines combine severe steam conditions with increasingly frequent start-up, shutdown, and load-following operations. Their main steam valves must preserve pressure boundary integrity, sealing, and rapid actuation while non-uniform heating, creep, cyclic plasticity, oxidation, wear, and contact redistribution alter component geometry. However, the relevant evidence remains fragmented across alloy development, component thermo-mechanics, valve aerodynamics, and lifetime monitoring. This short, mechanism-oriented review integrates these domains through a material structure–function framework in which deformation relative to assembly clearance governs jamming risk. It synthesizes evidence on heat-resistant body and surface materials, 9–12% Cr steel stability, weldability and repair sensitivity, and cold, warm, and hot start-up histories. It also evaluates creep–fatigue interaction, contact, flow-induced vibration, multi-physics modeling, validation, uncertainty, monitoring, and digital twins. The synthesis shows that neither peak equivalent stress nor steady-state temperature alone can establish functional reliability. Credible assessment requires temperature-dependent material data, realistic steam-side heat transfer, cyclic constitutive behavior, initial and residual clearances, manufacturing and assembly tolerances, state-dependent friction, uncertainty analysis, and corroborating plant or inspection evidence. The most consequential research needs are valve-level validation datasets, thermal contact testing, function-oriented life criteria, and uncertainty-aware digital twins that jointly inform materials, geometry, and transient operation. Full article

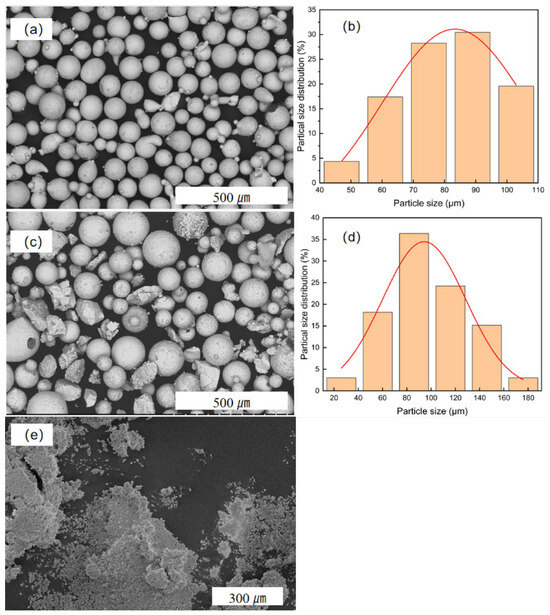

Steel is the most fundamental material used in structural system elements in the construction industry. It needs to be coated with materials that provide resistance to high temperatures, wear, and corrosion. Ni-Al powder is preferred in coatings because nickel increases corrosion resistance and aluminium forms an oxide layer to reduce oxidation. In the long term, the protective effect of coatings decreases, and corrosion resistance declines. In this study, a random forest model was evaluated using experimental data on the corrosion performance of A36 steel coated with Ni-Al powder for corrosion prevention, after exposure to a 3.5% NaCl solution for 1 h and 30 days for short- and long-term electrochemical response prediction. The impedance and phase angle characteristics, which represent the electrochemical response of coated and uncoated steel, have been predicted. In addition, the model’s reproducibility was investigated using the multi-seed (30 seeds) method to analyse the stability and consistency of the random forest model. The aim of this study was to develop a machine learning model that learns the frequency-dependent electrochemical impedance (Bode) response of graphene oxide-enriched Ni–Al coatings on steel, which reflects the corrosion-related electrochemical behaviour of the coating system, and to evaluate the model for predicting the impedance magnitude and phase angle of reference coatings over the investigated frequency range. The developed artificial intelligence model predicted the Bode response (impedance magnitude and phase angle) of coated and uncoated steel to NaCl solution after 1 h and 30 days as a function of frequency and coating type. The predicted impedance spectra reflected the deterioration of the corrosion protection performance of the Ni–Al coatings with increasing exposure time. The predicted EIS responses were subsequently used to assess changes in the corrosion-related electrochemical behaviour of the coatings over short- and long-term exposure. According to the findings, the random forest models can predict the frequency-dependent electrochemical response (impedance magnitude and phase angle) with high accuracy. Full article

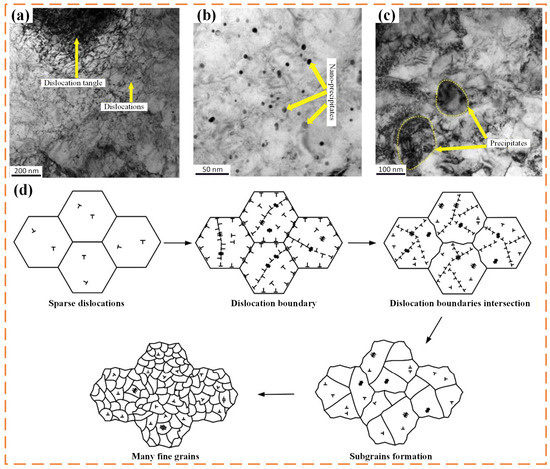

High-carbon martensitic steels for bearing components are conventionally low-temperature tempered for stress relief, yet the influence of tempering temperature on compressive and fatigue wear resistance remains unclear, directly affecting the service life of bearing races and rollers. In this study, a high-carbon martensitic steel was tempered at 170 °C, 200 °C, and 230 °C. The microstructural evolution, compressive properties, and contact fatigue wear resistance were systematically investigated, along with the corresponding strengthening and wear mechanisms. After spheroidizing annealing and quenching, the microstructure consists of high-carbon martensite and retained austenite, with a high density of dislocations and fine twins. Tempering decomposes retained austenite into tempered martensite and promotes fine carbide precipitation, processes that become more pronounced at higher temperatures. Consequently, hardness decreases from 810 HV in the as-quenched state to 690 HV after 230 °C tempering, while compressive failure strain increases from 10.5% to 24.1%. More importantly, under cyclic contact stress, the 230 °C-tempered specimen exhibits approximately 33% lower wear mass loss than the 170 °C-tempered counterpart, despite its lower hardness. This unexpected improvement is attributed to the formation of a distinct plastic deformation zone in the near-surface region, which absorbs greater strain energy and delays fatigue spallation. The well-tempered martensitic matrix accommodates more long-range dislocation slip, enabling a transition from fatigue spallation to a more ductile failure mode. These findings provide new insights into the role of low-temperature tempering in balancing strength, ductility, and wear resistance, and offer practical guidance for optimizing heat treatment protocols to enhance the contact fatigue performance of bearing steels. Full article

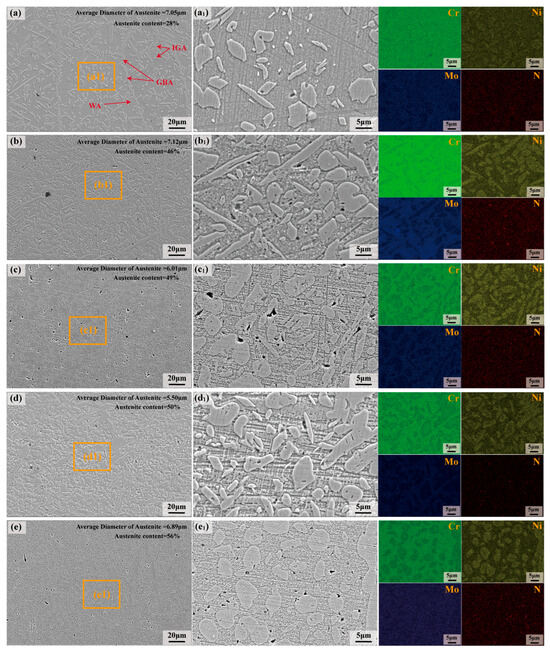

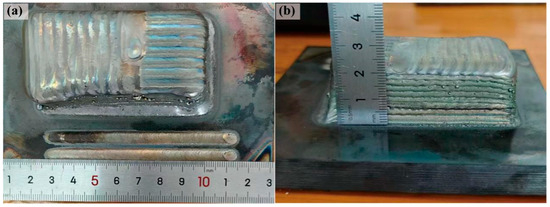

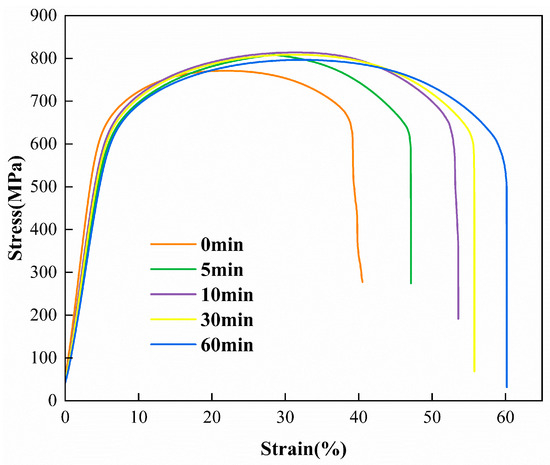

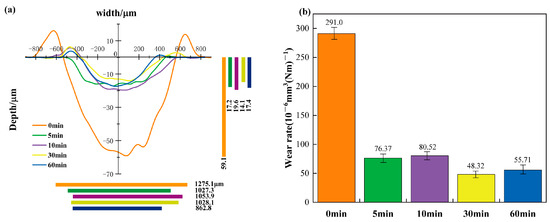

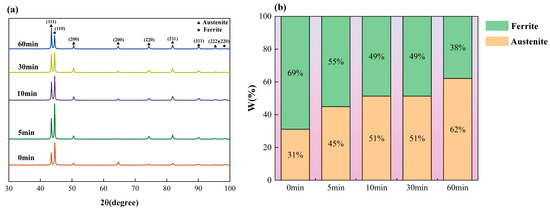

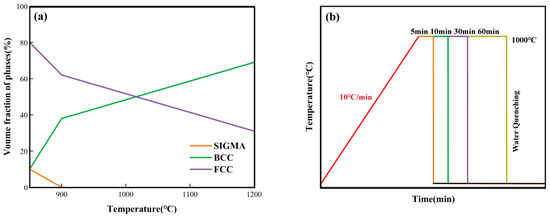

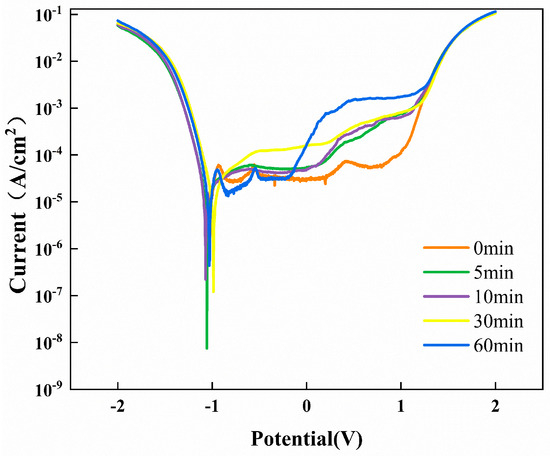

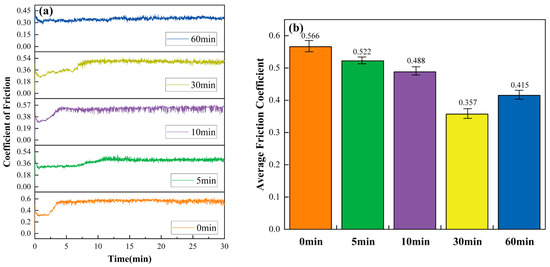

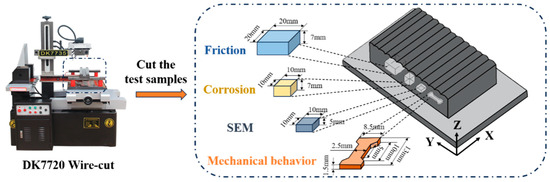

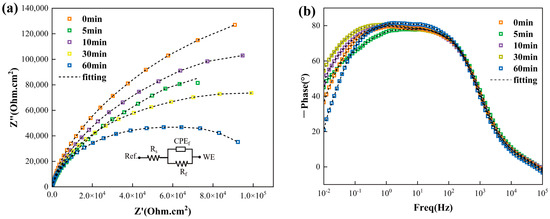

In this work, the microstructural evolution and comprehensive performances (mechanical, wear, and corrosion resistance) of LDED-fabricated 2205 DSS subjected to heat treatment at 1000 °C for different holding durations (5 min, 10 min, 30 min, and 60 min) were systematically investigated. The results indicate that the austenite content gradually increases with the extension of heat treatment time, reaching a peak value of 51% at 30 min. Meanwhile, the austenite morphology transforms from dendritic grains to equiaxed grains, accompanied by the massive precipitation of intragranular austenite (IGA) and obvious elemental enrichment behavior. In terms of mechanical and functional performances, the microhardness decreases slightly with prolonged heat treatment, with a total reduction of only 7%. The elongation increases continuously, while the yield strength and tensile strength remain relatively stable. Additionally, the wear coefficient and wear rate present a trend of first decreasing and then increasing. The minimum wear rate of 48.32 × 10⁻⁶ mm³/(N·m) is obtained at the heat treatment duration of 30 min, which is 83.4% lower than that of the untreated sample. Moreover, the optimal corrosion resistance is achieved after 30 min of heat treatment, with the corrosion current density decreasing by 45.8% relative to the as-built specimen. These results demonstrate that heat treatment at 1000 °C for 30 min is an optimal processing parameter to significantly optimize the microstructure and comprehensive performances of LDED-2205 DSS. Full article

This research work investigates the machinability of WP7V die steel of very high toughness and wear resistance in turning with a TiAlN-coated carbide tool, with the chip reduction coefficient (CRC) serving as a guide for machining performance and energy requirements. The machining parameters, like cutting speed, feed rate, depth of cut, and machining environment, were assessed to find parameter combinations that encourage established cutting and enhanced chip control. The results illustrate that the CRC is strongly influenced by cutting speed, and at a higher cutting speed (210 m/min), the lowest CRC values are obtained. In dry machining, a medium feed rate (0.1 mm/rev) favors chip breaking, and wet machining results in medium-spiral chips. Long, continuous chips with laminar and sheared surfaces are produced at a low cutting speed (70 m/min). The findings suggest that low CRC values are correlated with stable machining behavior and decreased energy utilization. High cutting speed and the suitable selection of feed rates are needed for the efficient machining of WP7V steel. Full article

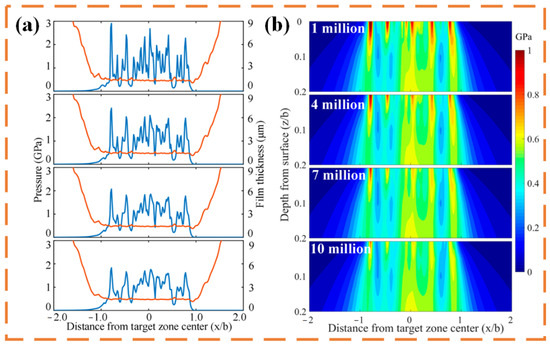

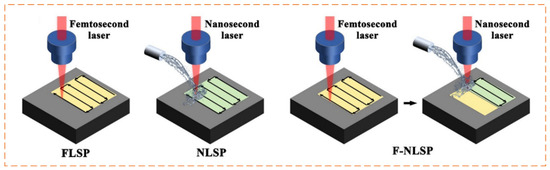

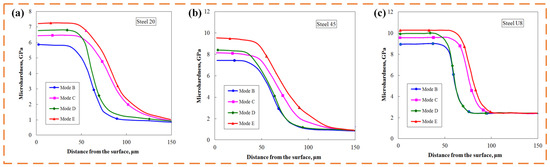

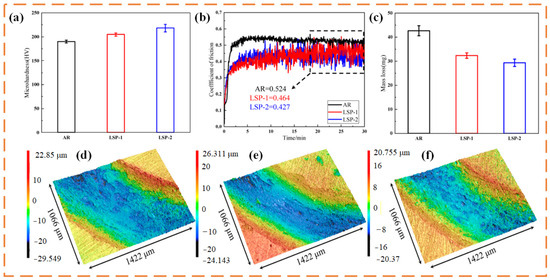

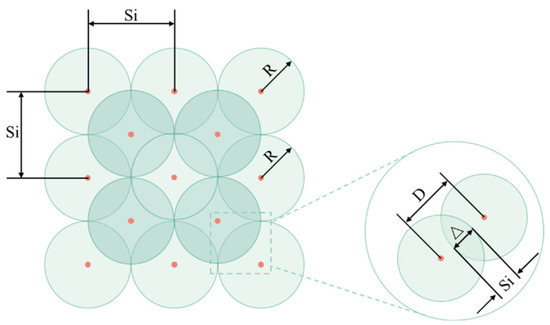

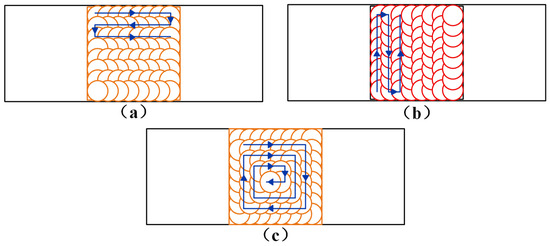

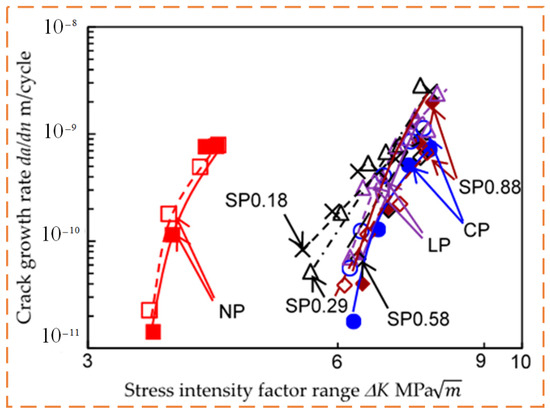

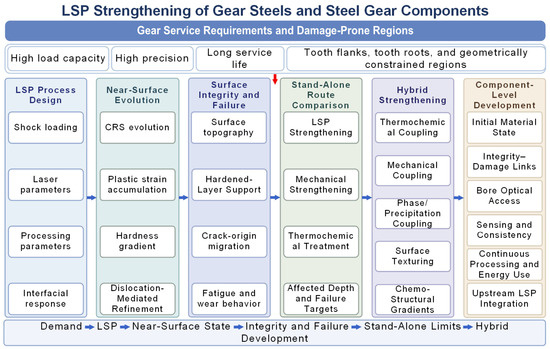

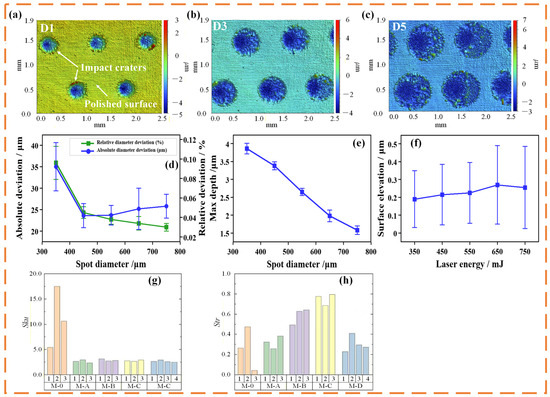

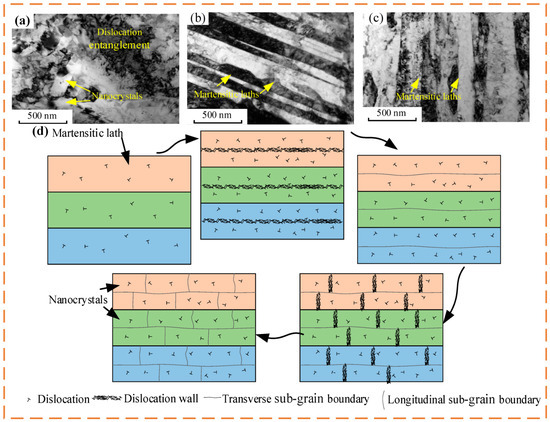

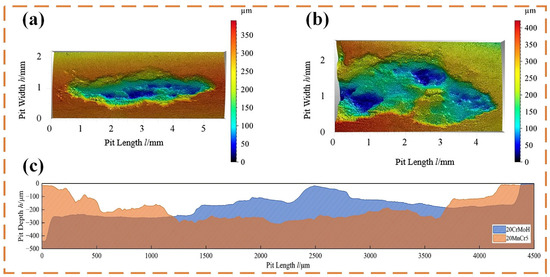

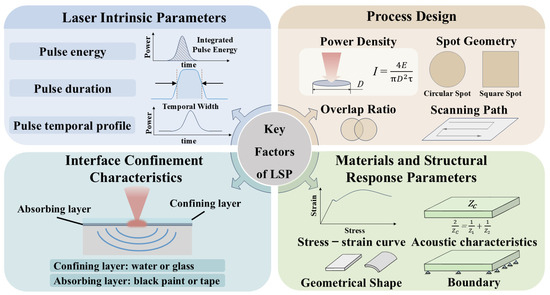

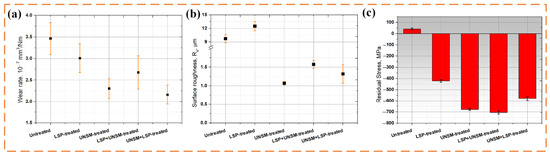

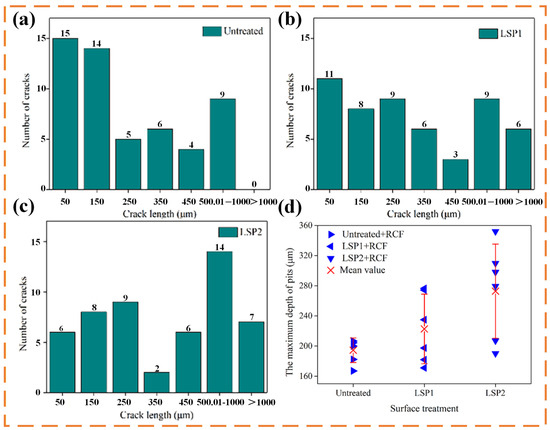

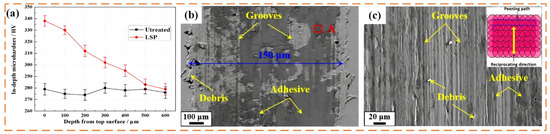

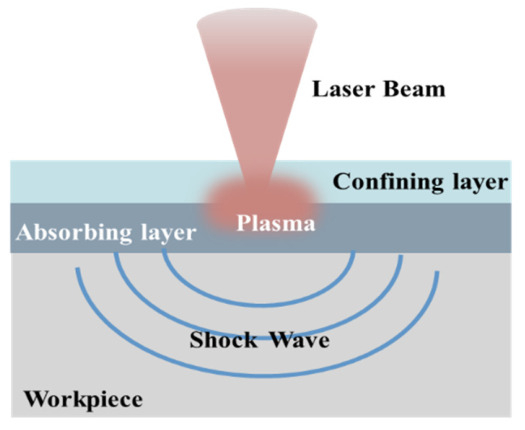

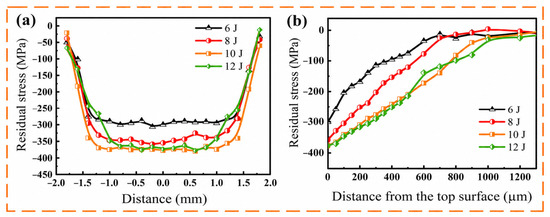

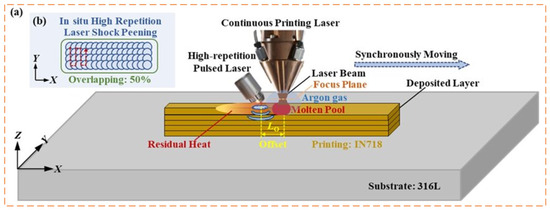

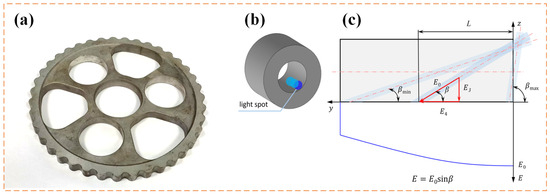

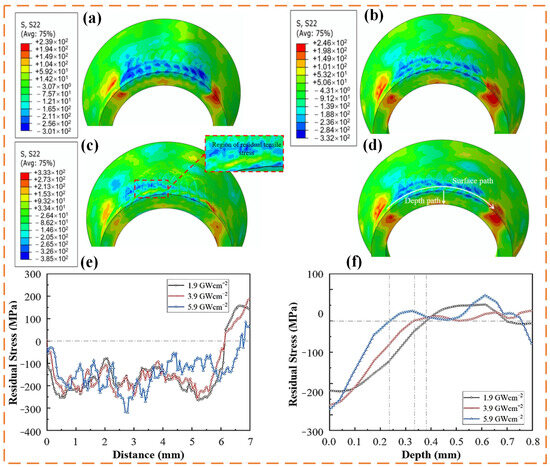

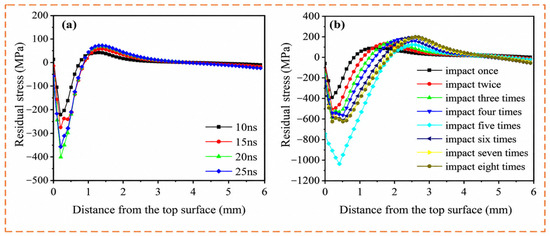

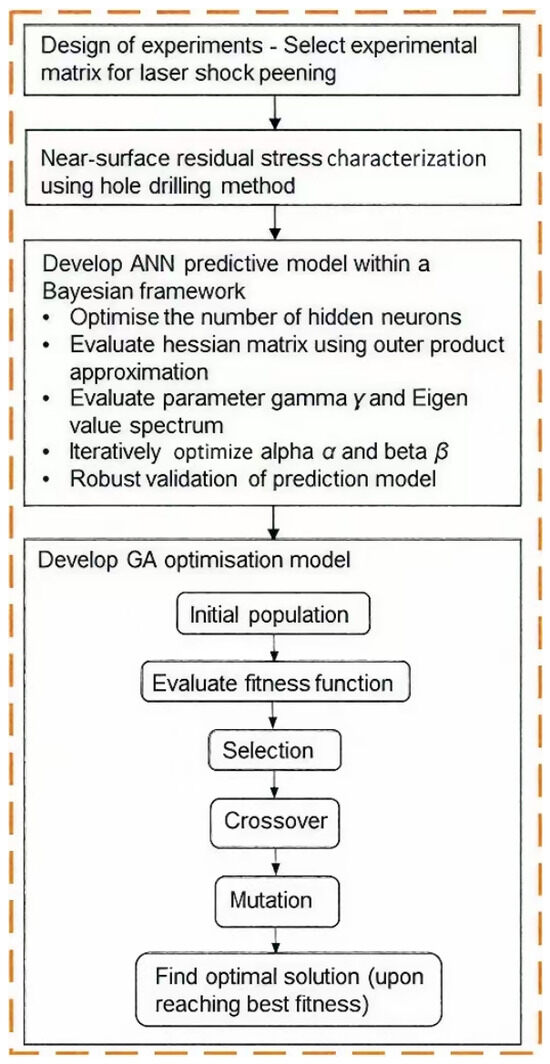

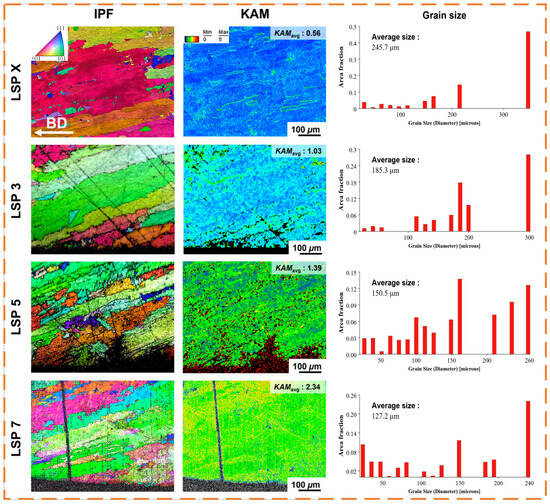

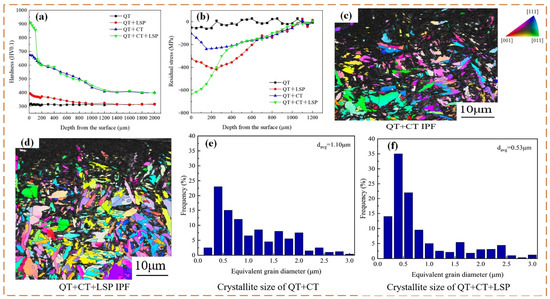

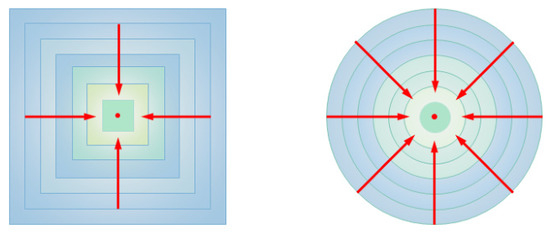

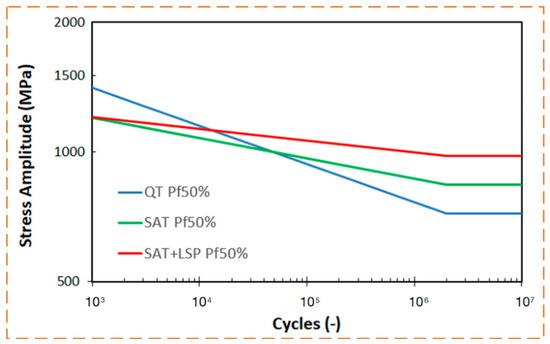

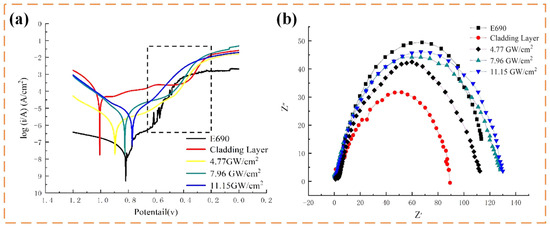

Contact fatigue, bending fatigue, and wear failures in gears are governed by the stress state, hardening gradient, microstructural stability, and surface topography within the near-surface and subsurface regions. For tooth flanks, rolling–sliding contact, asperity interaction, lubricant-film disturbance, and subsurface shear stress control micropitting, pitting, and spalling. For tooth-root fillets, local stress concentration and surface or near-surface defects dominate bending-fatigue crack initiation. Laser shock peening (LSP) introduces deep compressive residual stress, gradient hardening, and microstructural refinement, and is therefore relevant to gears when these effects are matched to the critical damage zones. This review examines LSP of gear steels and related load-bearing steels from the viewpoint of tooth-flank and tooth-root damage control. It links laser parameters, shock-induced plastic deformation, residual-stress depth, hardening response, surface roughness, and profile accuracy to bending fatigue, rolling contact fatigue, and wear behavior. LSP is most effective when the compressive residual-stress layer and hardened layer reach the contact- or bending-damage depth while lubrication compatibility, flank form accuracy, and subsequent finishing are preserved. Excessive pulse energy, overlap, or unstable absorbing/confining conditions may increase roughness, produce ablation or micropitting-sensitive defects, and compromise tooth profile accuracy. Thus, LSP for gears should be evaluated together with carburizing, nitriding, shot peening, surface rolling, polishing, coatings, and laser texturing rather than as an isolated treatment. The central task is to define gear-specific process windows that balance residual-stress depth, surface integrity, dimensional accuracy, and manufacturing repeatability. Full article

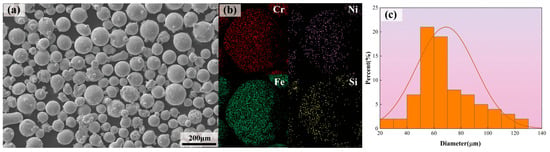

This study investigates the influence of detonation spraying parameters on the microstructure, mechanical properties and tribological performance of self-fluxing Ni–Cr–Fe–Si–B–C coatings deposited on AISI 321 stainless steel substrates. The effects of the barrel filling ratio (48–68%), the oxygen-to-fuel molar ratio (O/C = 1.026–1.856), and the delay time between detonation shots (0–1 s) were systematically evaluated. The coatings were characterized using scanning electron microscopy (SEM), energy-dispersive spectroscopy (EDS), X-ray diffraction (XRD), microhardness measurements, instrumented indentation, and ball-on-disk tribological testing. Microstructural investigations revealed that the spraying parameters significantly influence coating thickness, porosity and defect formation. The lowest porosity (0.306 per cent) and the most homogeneous microstructure were obtained at a barrel filling ratio of 48 per cent, an O/C ratio of 1.026 and a shot delay of 1 s. XRD analysis identified a multiphase structure consisting of a Ni₃Fe matrix reinforced by Cr₇C₃ carbides, Ni₃B and CrB borides, and Ni₃₁Si₁₂ silicides. Tribological tests demonstrated that increasing the delay between shots significantly improved wear resistance, reducing the wear rate to 1.89 × 10⁻⁴ mm³/(N × m). The optimised coating exhibited an average coefficient of friction of 0.578 ± 0.093 and a wear rate of 1.03 × 10⁻⁴ mm³/(N × m). Instrumented indentation revealed a hardness of 1049.1 ± 43.4 HV and a Young’s modulus of 215.9 ± 8.5 GPa. The wear mechanism was predominantly abrasive–adhesive, whilst the wear rate of the 100Cr6 counter-body remained low at 1.20 × 10⁻⁵ mm³/(N × m). The results obtained demonstrate that appropriate optimisation of detonation spraying parameters enables the formation of dense Ni–Cr–Fe–B–Si–C coatings with superior mechanical and tribological properties, making them promising candidates for wear-resistant engineering applications. Full article

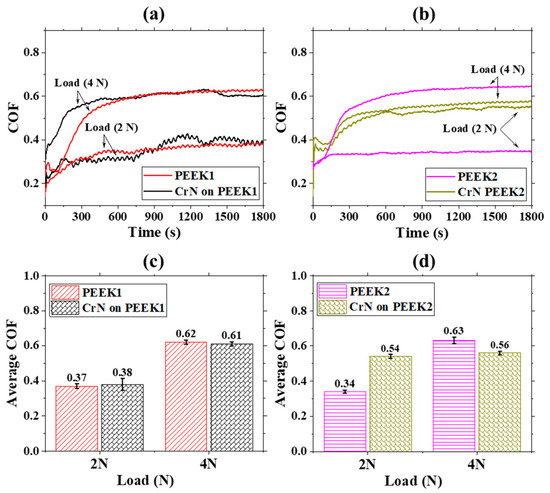

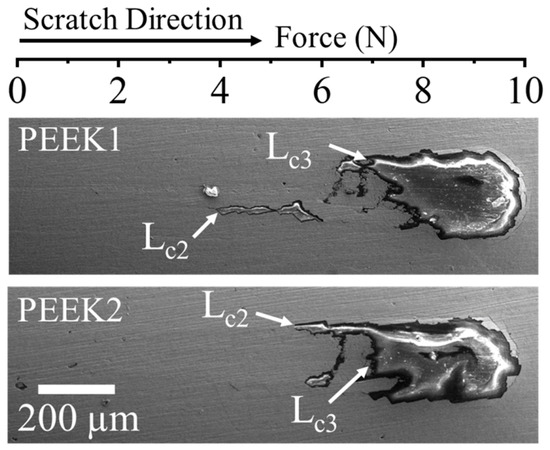

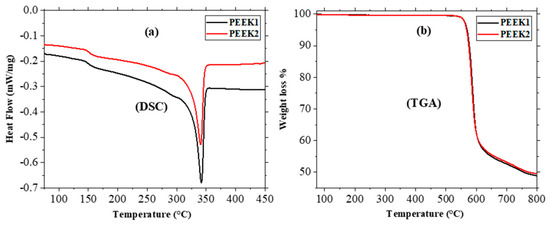

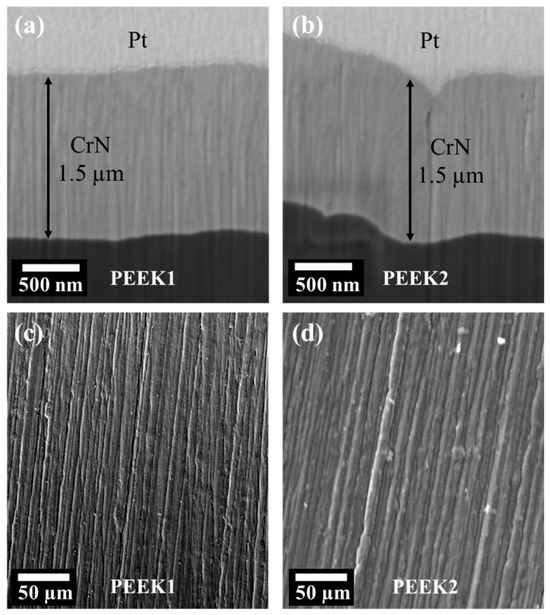

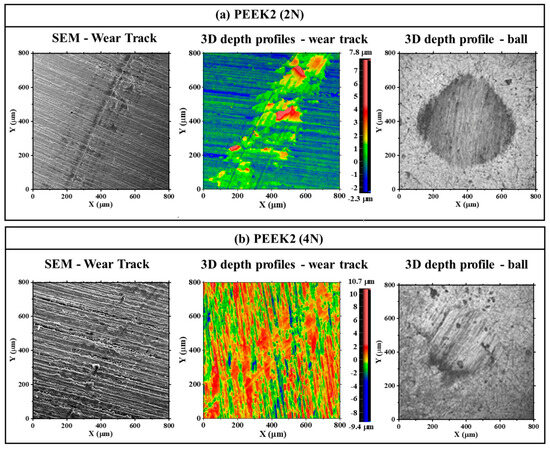

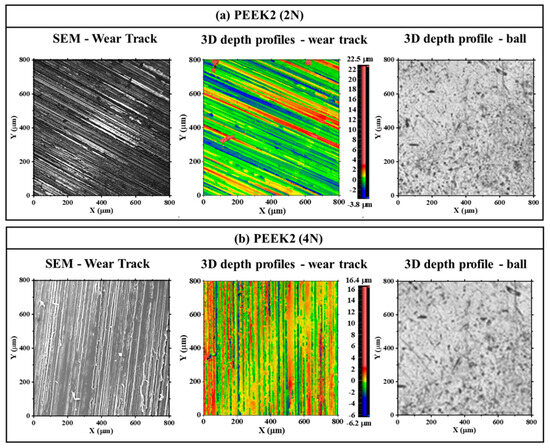

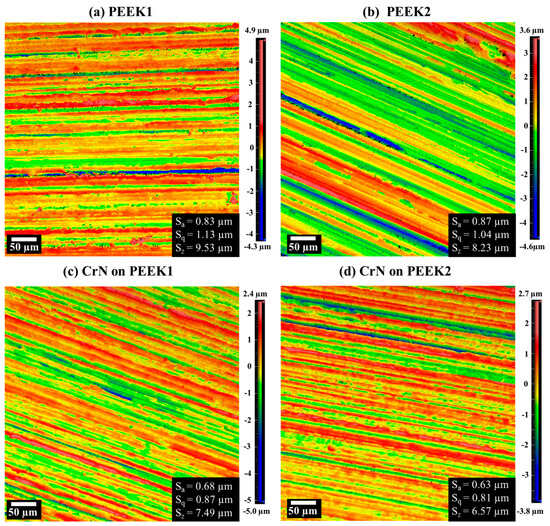

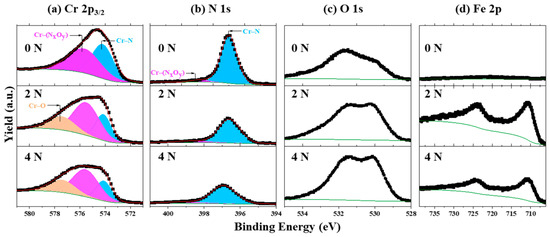

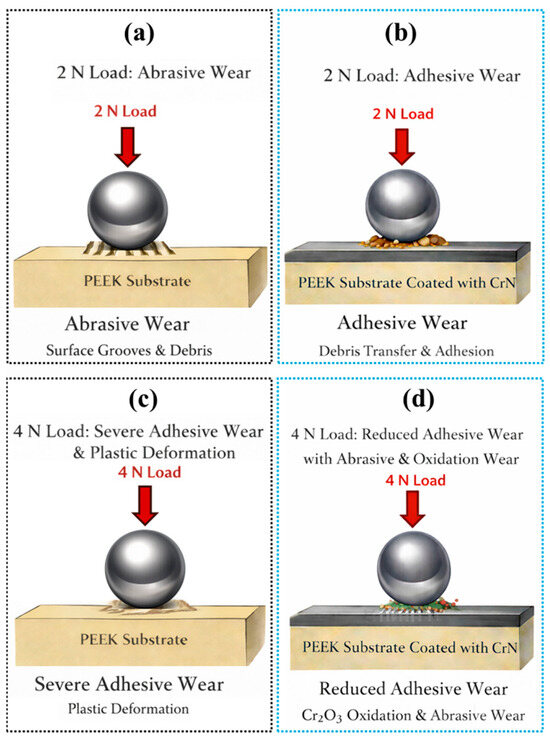

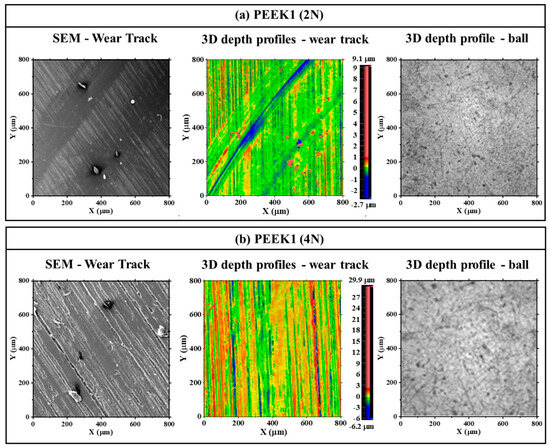

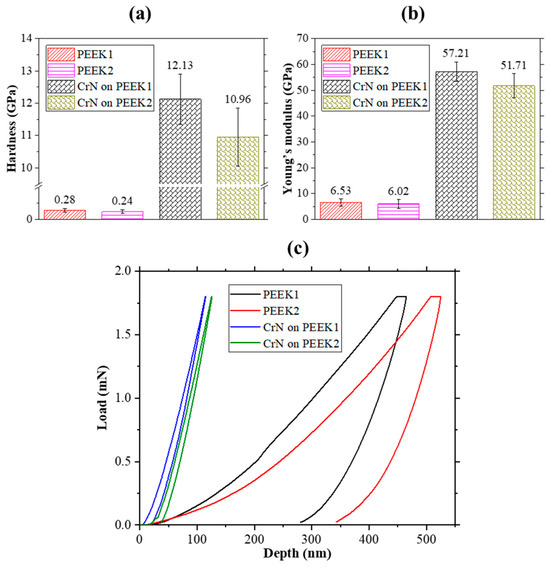

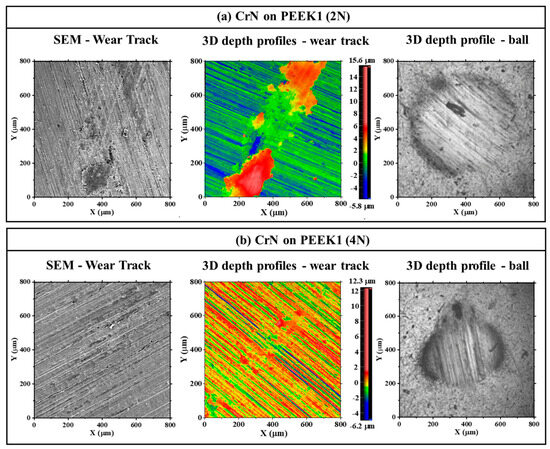

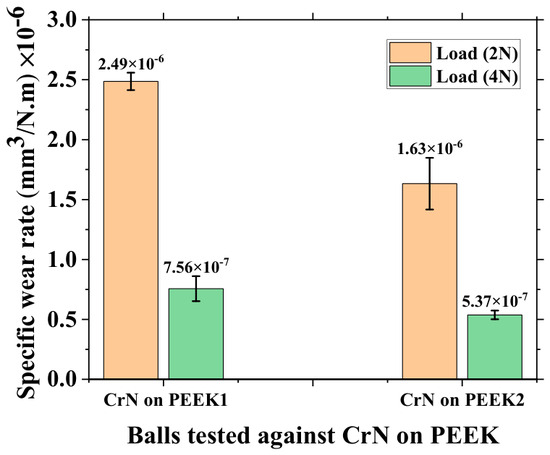

This study investigates the tribological performance of chromium nitride (CrN)-coated polyether ether ketone (PEEK) polymers. CrN coating was deposited by physical vapor deposition (PVD) onto two commercially available substrates: neat PEEK and a modified PEEK. The suitability of the coated substrates for tribological applications was evaluated using ball-on-disc tests against stainless-steel (SS) counterparts. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) confirmed the high thermal stability of the PEEK substrates, ensuring compatibility with low-temperature coating deposition. Microstructural analysis revealed dense and continuous CrN coatings with an average thickness of ~1.5 µm on both substrates. Tribological results of selected PEEK-based polymers showed that under the applied load of 2 N, uncoated PEEK substrates exhibited lower coefficients of friction (COFs) and smoother wear tracks compared with coated samples. In contrast, under the applied load of 4 N, CrN-coated PEEK substrates demonstrated reduced friction and improved stability relative to uncoated PEEK. This behavior is attributed to load-induced tribo-oxidation and the formation of a chromium-oxide-rich tribolayer that stabilized the sliding interface and suppressed adhesive wear. Overall, the results demonstrate that CrN coatings significantly enhance the load-bearing capacity and tribological performance of selected PEEK substrates under applied load of 4 N, highlighting their potential for advanced lightweight engineering applications requiring improved wear resistance. Full article

Relatively low-cost titanium carbide (TiC) materials and metal matrix composites (MMC) are proposed for waste-to-hydrogen conversion. Two types of steels are used as bases prepared from EN 10088 flat products, namely X2CrTi12 (1.4512, AISI 409) and X5CrNi18-10 (1.4301, AISI 304). TiC is mixed with TRIBALOY^® T-800 alloy in powder form and applied via laser-directed energy deposition (DED-LB) over the substrates. For the powder mixture, Fourier transform infrared spectroscopy (FT-IR) and differential scanning calorimetry (DSC) are performed. The raw materials are investigated for the processes that occur in them under heating. After the solidification of the molten mixture, grinding and polishing are performed to achieve a thin layer. The studies of the obtained MMC include interface zone assessment, hardness and Young’s modulus distribution, microstructural analysis, and visual defect evaluation. Advanced sensors for acoustic emission (AE) and Electrical Contact Resistance (ECR) provided characterization together with micro-scratch testing. The use of photoluminescence spectroscopy is proposed for the new composite materials. The electron transfer pathway can be studied with time-resolved spectroscopy. Renewable energy production by breaking down waste into hydrogen-rich syngas can be achieved through pyrolysis, followed by steam reforming and purification. The obtained novel materials show promising application solutions with increased durability, corrosion, and wear resistance. Full article

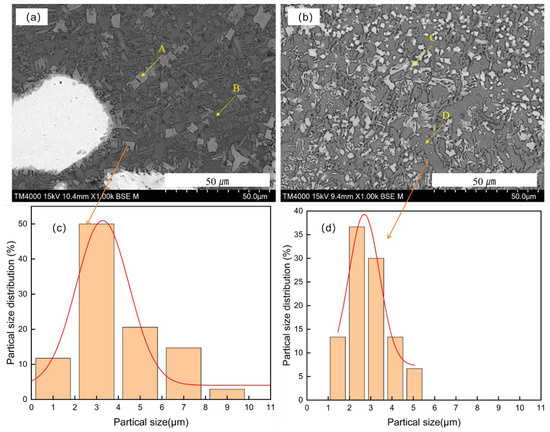

This study investigates the design, microstructure, and performance profile of a novel composite coating combining a high-entropy alloy (HEA) matrix with cermet reinforcement. A 50wt.%CoCrFeMnNi_0.8V–50wt.% Cr₃C₂-Ni₈₀Cr₂₀ powder mixture was successfully deposited onto steel substrates via high-velocity oxy-fuel (HVOF) thermal spraying. Microstructural analysis revealed a highly dense, well-bonded coating architecture (450–500 μm thick) where partially melted, spherical HEA splats were uniformly surrounded by the Cr₃C₂-Ni₈₀Cr₂₀ phase. X-ray diffraction confirmed a complex multiphase evolution consisting of FCC, BCC, and σ-NiCr phases driven by the rapid solidification inherent to the HVOF process. Tribological evaluations via ball-on-disc testing demonstrated that incorporating the Cr₃C₂-Ni₈₀Cr₂₀ reinforcement significantly improves wear resistance compared to the monolithic HEA coating. The composite’s wear behavior is governed by a synergistic mechanism: the ductile HEA matrix accommodates plastic deformation, while the harder carbide particles enhance load-bearing capacity, transitioning from adhesive wear to mild third-body abrasion and protective tribo-oxidation. Conversely, electrochemical testing in a 3.5 wt.% NaCl solution showed that the composite coating exhibits higher corrosion current densities (10.53 × 10⁻⁶ A/cm²) and more active corrosion potentials than the pure HEA matrix. This behavior is attributed to localized micro-galvanic cells forming at the heterogeneous interfaces between the different phases, alongside chloride-induced destabilization of the surface oxide film. Overall, the novel composite coating offers a compelling, sustainable alternative for surface engineering applications requiring a balanced trade-off between mechanical toughness and acceptable environmental durability. This behavior is also verified by the comparison with previous results dealing with monolithic CoCrFeMnNi_0.8V and 75wt.%CoCrFeMnNi_0.8V–25wt.% Cr₃C₂-Ni₈₀Cr₂₀ thermal sprayed coatings, where it is evident that the increase of the reinforcing phase leads to an optimum combination of properties. Full article

This study proposes an integrated finite element methodology for evaluating and redesigning three critical subsystems of an XCMG XC740K skid-steer loader: the excavation attachment, the arm–bucket charging system, and the ROPS/FOPS operator protection cab. The components were reconstructed by reverse engineering and 3D scanning, modeled in CAD, and simulated in ANSYS Workbench/Mechanical under load cases derived from hydraulic parameters, soil–tool interaction, and international safety standards. The novelty of the work lies in applying a single FEM-based workflow to three interacting subsystems of the same compact machine, rather than optimizing isolated components independently. The original configuration showed critical effort concentrations in the cab and charging system. Localized geometric reinforcements and the use of high-strength and wear-resistant steels improved stiffness and safety margins in the excavation bucket, loading bucket, and ROPS/FOPS cab. However, the arm–quick coupler region remained the controlling weak point of the loading assembly, indicating the need for further redesign. The proposed approach provides a transferable computational framework for identifying structural vulnerabilities and prioritizing redesign actions in compact earthmoving machinery. Because the study is numerical, future experimental validation is required before certification or field implementation. Full article

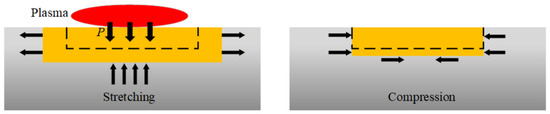

H13 tool steel is widely used in precision injection molds; however, severe wear in confined regions, such as ejector pin holes, limits its service life, while conventional strengthening techniques remain difficult to apply in these areas. In this study, a combined plasma nitriding and oblique laser shock peening (OLSP) treatment was proposed, and the effects of laser incidence angle on microstructure, mechanical properties, and wear behavior were systematically investigated through electron backscatter diffraction (EBSD), X-ray diffraction (XRD) residual stress analysis, and ball-on-disk (BOD) wear tests. The results demonstrate that OLSP promotes grain refinement, dislocation accumulation, and the introduction of high-magnitude compressive residual stress. The NLSP1 sample exhibited the optimum strengthening effect, with a maximum compressive residual stress of −1033 MPa. It also achieved the lowest wear depth, wear volume, and specific wear rate, with a specific wear rate of 1.64 × 10⁻⁶ mm³/(N·m), representing a 54.3% reduction compared with the untreated sample. The enhanced wear resistance was attributed to the synergistic effects of hardness improvement, microstructural refinement, and compressive residual stress. These findings demonstrate that optimizing the laser incidence angle can improve strengthening efficiency and provide an effective strategy for surface modification of critical regions in complex molds. Full article

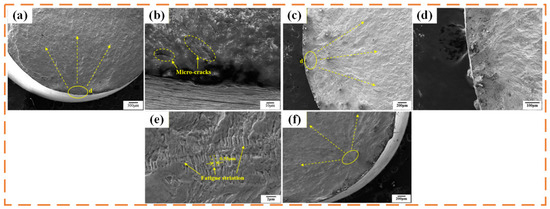

Against the background of severe wear failure of Rotary Tillage blades restricting agricultural tillage efficiency, this study aimed to explore wear resistance differences, reveal wear mechanisms and locate critical failure zones to support blade material selection, structural optimization and localized strengthening. Five commercial IT195 Rotary Tillage blades made of 65Mn and 60Si2Mn steels were tested via a soil-bin rotary wear test rig. Microstructure, hardness and wear morphology were characterized by metallographic microscopy, Vickers hardness test and SEM, while 3D scanning and stress simulation were adopted to analyze full-cycle wear behavior of the optimal blade. The results showed that the E-type blade with 60Si2Mn possessed the best wear resistance, with minimum mass and dimensional wear loss and the gentlest wear rate, attributed to its single-phase acicular martensite and high hardness of 627.73 HV, forming uniform shallow grooves and suppressing micro-cutting and spalling. Full-cycle wear analysis demonstrated highly uneven wear distribution, with the bend transition zone linking tangential and side cutting regions identified as the critical failure zone featuring the largest wear depth and fastest material loss, verified by stress concentration from simulation. This work provides theoretical support and targeted references for material optimization, structural design and surface strengthening of key regions of Rotary Tillage blades. Full article

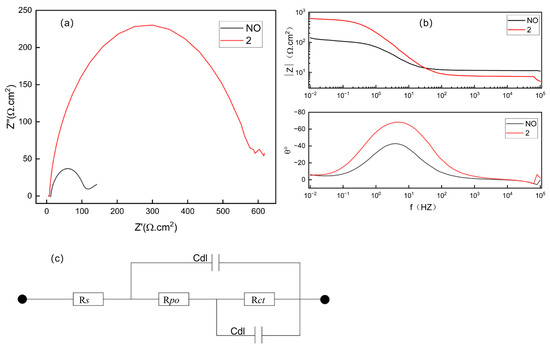

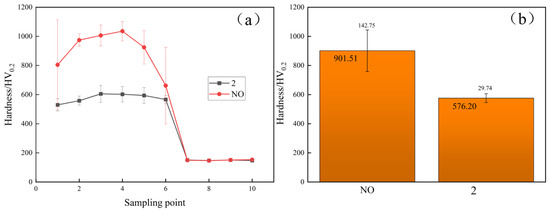

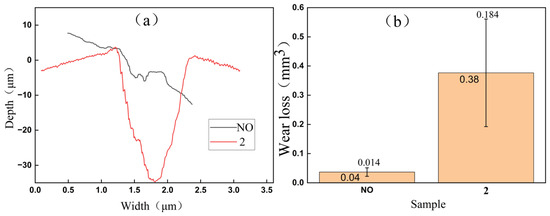

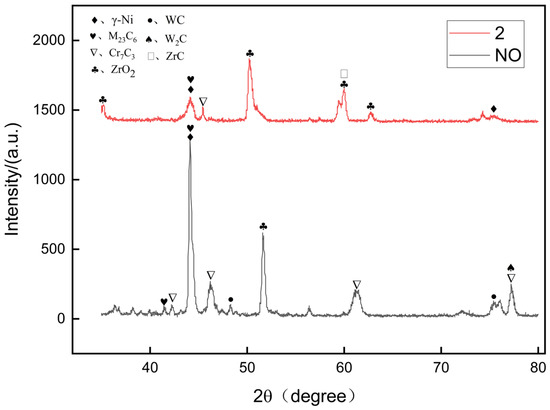

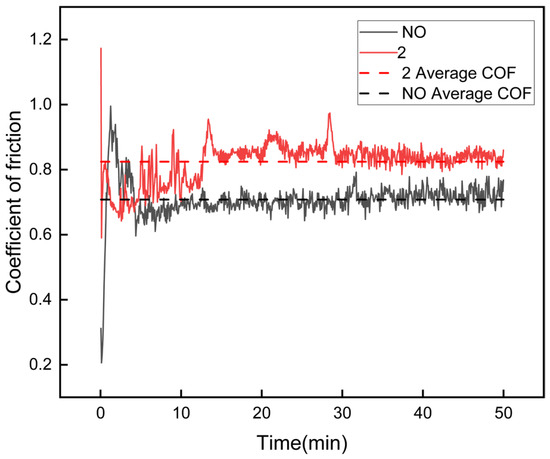

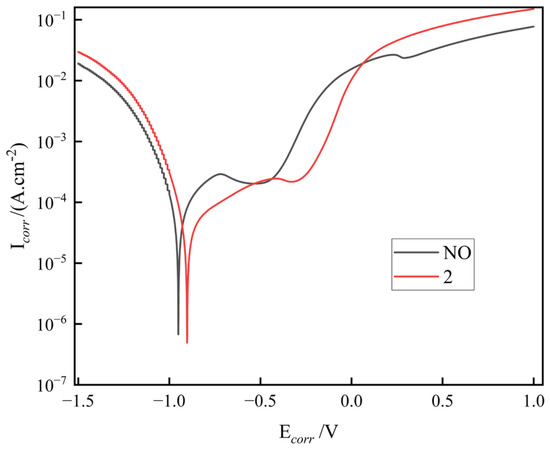

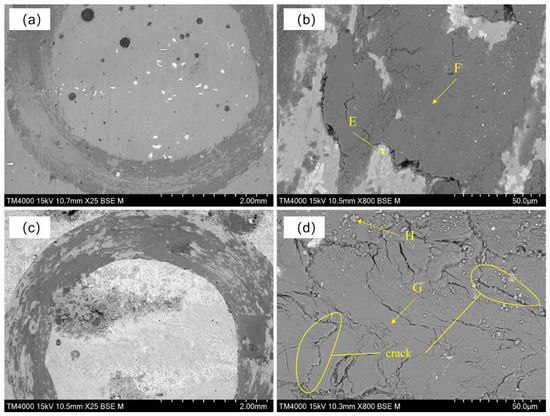

To improve the surface properties of Q235 steel, two types of composite coatings were prepared using laser cladding technology: a 25% WC + 75% Ni60 coating (Group NO) and a 25% WC + 73% Ni60 coating with 2% ZrO₂ added (Group 2). Through XRD, SEM, microhardness testing, friction and wear testing, and electrochemical testing, the effects of ZrO₂ on the phase composition, microstructure, mechanical properties, and corrosion resistance of the coatings were systematically investigated. The results indicate that upon the addition of ZrO₂, Zr atoms solid-solve into the γ-Ni lattice, causing the grain size to refine from 17.36 nm to 10.84 nm, and the carbides to transform from coarse cuboidal particles (average 4.00 μm) into fine, irregularly shaped, dispersed particles (average 2.93 μm); the average hardness of the coating decreased from 901.51 HV0.2 to 576.20 HV0.2, but the uniformity of the hardness distribution improved significantly (standard deviation decreased from 142.75 to 29.74); the coefficient of friction increased from 0.71 to 0.85, and the wear volume increased from 0.04 mm³ to 0.38 mm³, indicating a decline in wear resistance; in a 3.5% NaCl solution, the corrosion potential shifted positively by 38 mV, and the corrosion rate decreased from 0.7234 mm·a⁻¹ to 0.7071 mm·a⁻¹, indicating a slight improvement in corrosion resistance. In summary, the addition of 2% ZrO₂ achieves grain refinement, carbide homogenization, and improved corrosion resistance, but reduces hardness and wear resistance. It is suitable for operating conditions where corrosion resistance and microstructural uniformity are the primary considerations. Full article

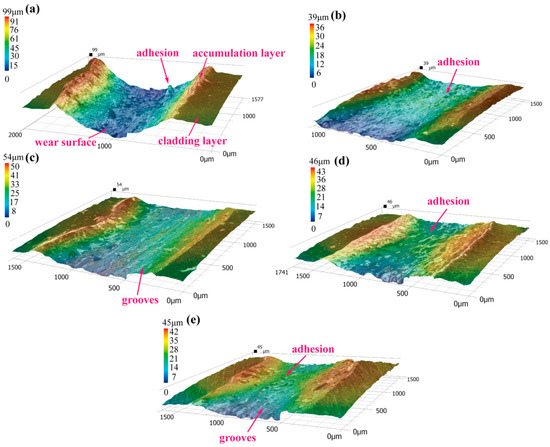

Steel components in thermal power plants are vulnerable to severe wear and wall thinning induced by the high-velocity impact of pulverized coal, which significantly compromises their service life and structural integrity. To address this issue, a TiC-reinforced AlCoCrFeNi high-entropy alloy (HEA) composite coating was fabricated via laser cladding, aiming to substantially enhance the wear resistance of these critical components. The phase composition, microstructure, microhardness and tribological behaviors of the coatings were systematically investigated by XRD, SEM, EDS and dry sliding wear tests. Results show that both coatings possess dense microstructures and reliable metallurgical bonding with the substrate. The AlCoCrFeNi coating consists of a single BCC solid solution phase, while the TiC/AlCoCrFeNi composite coating contains a BCC phase and a TiC ceramic phase without brittle intermetallic compounds. The average microhardness of the TiC/AlCoCrFeNi composite coating was measured to be 823 HV_0.3, which is 85.66% greater than that of the AlCoCrFeNi coating (443 HV_0.3). Under identical wear test conditions, the AlCoCrFeNi coating exhibits a mass loss of 31.4 mg and a volumetric wear rate of 24 × 10⁻³ mm³/min, whereas the TiC/AlCoCrFeNi composite coating exhibits a mass loss of 15.6 mg and a wear rate of 13 × 10⁻³ mm³/min, corresponding to reductions of approximately 50.32% and 45.83%, respectively. The wear mechanism of the AlCoCrFeNi coating is dominated by severe abrasive wear coupled with adhesive wear, while the addition of TiC converts the wear mechanism into mild abrasive wear and oxidative wear. The incorporation of TiC particles effectively enhances the microhardness and reduces the mass loss, thereby contributing to a marked improvement in the wear properties of the laser-clad AlCoCrFeNi coating. This research provides experimental data and theoretical support for the engineering application of TiC/AlCoCrFeNi composite coatings on wear-resistant components in thermal power units. Full article
