Synthesis of Some Phenylpropanoid Glycosides (PPGs) and Their Acetylcholinesterase/Xanthine Oxidase Inhibitory Activities

Abstract

In this research, three categories of phenylpropanoid glycosides (PPGs) were designed and synthesized with PPGs isolated from Rhodiola rosea L. as lead compounds. Their inhibitory abilities toward acetylcholinesterase (AChE) and xanthine oxidase (XOD) were also tested. Some of the synthetic PPGs exhibited excellent enzyme inhibitory abilities.

1. Introduction

Rhodiola rosea L. has been used in Chinese herbal medicine to stimulate the nervous system, decrease depression, enhance work performance, resist anoxia, eliminate fatigue, prevent high altitude sickness and improve sleep, etc. Clinical studies show that Rhodiola rosea extract has the ability to improve mental ability and learning behavior [1,2,3]. Recent literature indicates that it can improve resistance to cerebral ischemia and reduce myocardial infarction area. It also has therapeutical effects on coronary heart disease and hyperlipidemia [4,5,6,7]. Most of the reported activities were confined to the plant itself or its extract. Many trace components such as amino acids, polysaccharides, steroids and phenylpropanoid glycosides have been isolated from Rhodiola rosea L. and phenylpropanoid glycosides (Figure 1) are considered to be the major active components. However, the low content of PPGs in this plant has limited the further investigation of their activities.

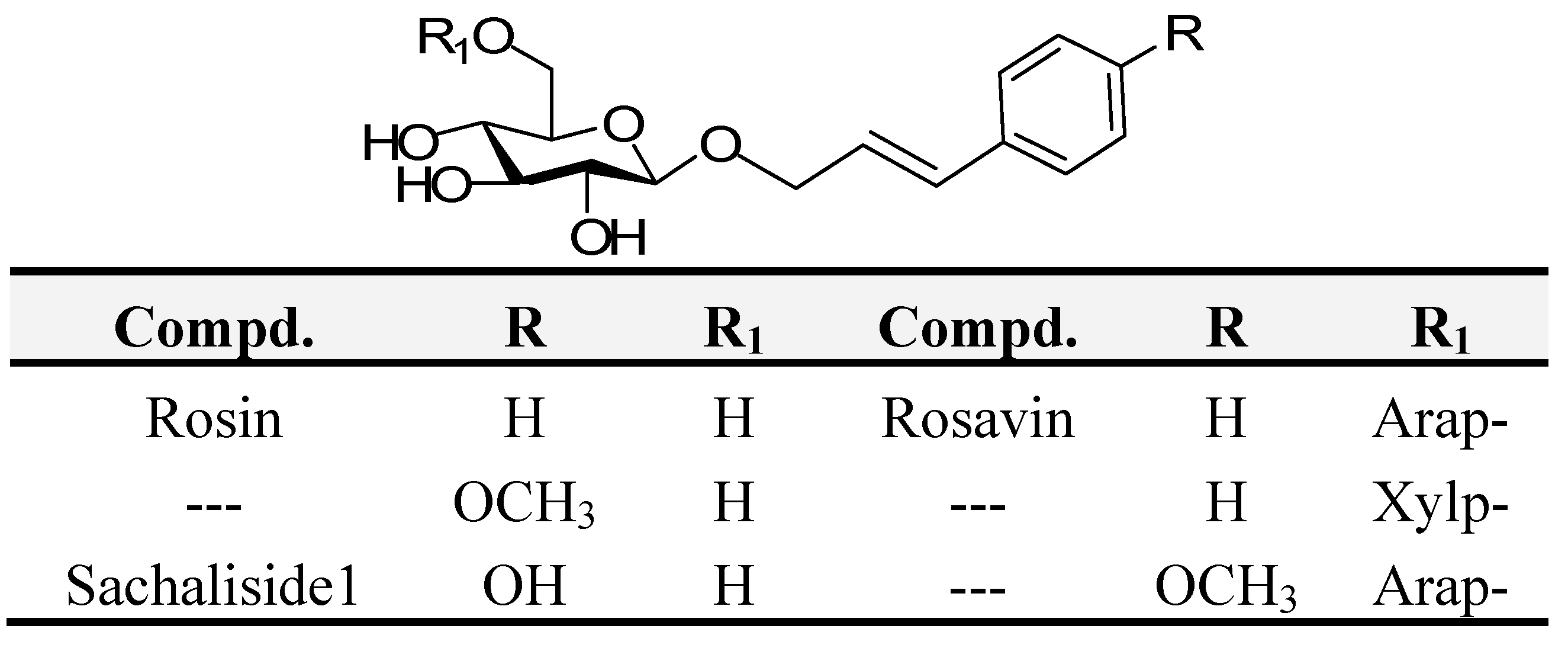

Figure 1. Phenylpropanoid glycosides Isolated from Rhodiola rosea L.

Figure 1. Phenylpropanoid glycosides Isolated from Rhodiola rosea L.

Cholinesterase inhibitors are the only currently approved drugs for treating patients with mild to moderately severe Alzheimer’s disease, a disorder associated with progressive degeneration of memory and cognitive function. The cholinergic hypothesis postulates that memory impairment in patients with Alzheimer’s disease result from a deficit of cholinergic function in the brain [8,9]. The most important changes observed in the brain are a decrease in hippocampal and cortical levels of the neurotransmitter acetylcholine and associated enzyme choline transferase.

Acetylcholinesterase inhibitors can restore the level of acetylcholine by inhibiting acetylcholinesterase. Xanthine oxidase (XO) is a key enzyme in the purine metabolic pathway, catalyzing the oxidation of hypoxanthine to xanthine, and then to uric acid [10]. Xanthine oxidase and xanthine dehydrogenase (XDH) are the isomers of xanthine oxidoreductase (XOR). XO receives molecular oxygen resulting in superoxide anion (O₂⁻) which causes serial harmful damages to vascular endothelial cell. The rise of XO protein level has been observed in heart failure models of both animal and human, which plays an important role in pathophysiological process of heart failure [11,12,13,14,15].

In order to provide the pharmacological basis for the usage of Rhodiola rosea L. in the therapy of nervous and cardiovascular diseases in Traditional Chinese Medicine, it was deemed necessary to synthesize these PPGs and evaluate their inhibitory activities towards acetylcholinesterase (AChE) as well as xanthine oxidase (XOD).

2. Results and Discussion

2.1. Chemistry

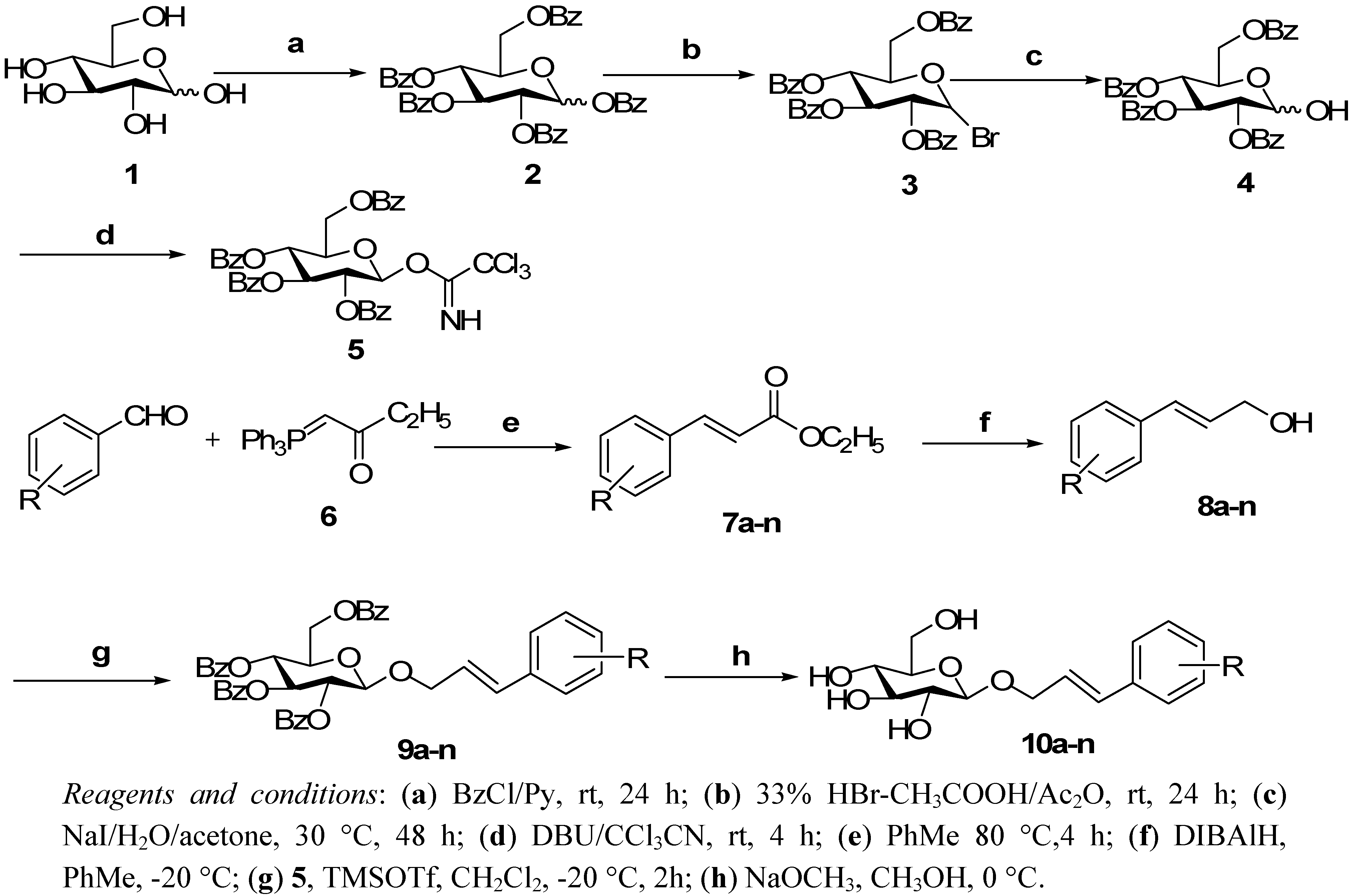

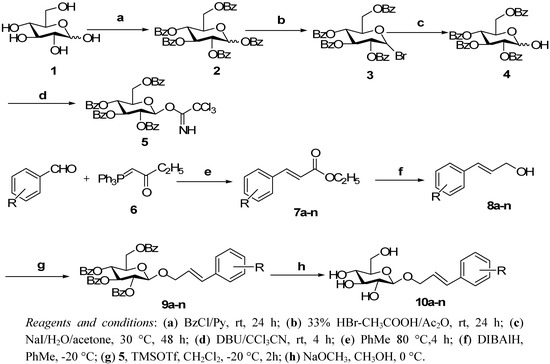

The designed synthetic route of these PPGs is depicted in Scheme 1. Compound 4 was prepared via benzoylation of D-glucose followed by 1-O-bromination and sequential regioselective C-1 hydrolization with NaI as catalyst in a mixed solution of acetone-water (3:1). Treatment of the hemiacetal 4 with 1,8-diazabicyclo[5,4,0]undec-7-ene (DBU) and excess trichloroacetonitrile furnished the corresponding trichloroacetimidate donor 5.

Condensation of different benzaldehyde derivatives with [(ethoxycarbonyl)methylene]triphenyl-phosphorane (6) afforded the target ethyl esters 7a-n in satisfactory yields. The latter were next reduced to the corresponding alcohol derivatives 8a-n using DIBAlH in toluene. Treatment of 8a-n with excess trichloroacetimidate under the influence of catalytic amounts of TMSOTf in CH₂Cl₂ at −20 °C to room temperature for 2 h afforded the tetrabenzoyl PPGs derivates 9a-n. Finally, the protective groups were readily removed using NaOMe in MeOH to afford the desired PPGs 10a-n.

Scheme 1. The synthetic route of the target PPGs 10a-n

Scheme 1. The synthetic route of the target PPGs 10a-n

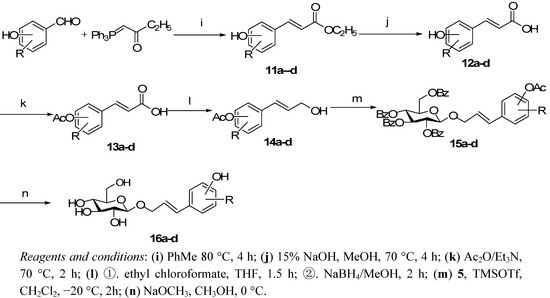

In order to introduce the hydroxyl group onto the aromatic rings an alternative route was chosen and is depicted in Scheme 2. Coupling of benzaldehyde derivates with the same ylide reagent 6 gave compounds 11a-d, which were then hydrolyzed and acetylated to produce 13a-d, which in turn were treated with ethyl chloroformate in THF to form the corresponding anhydride intermediates. Reduction of the latter by adding sodium borohydride and a calculated amount of anhydrous methanol to the above solutions afforded the desired alcohols 14a-d, which were then glycosidated and deacylated using conditions similar to those used for 10a-n and we thus obtained 16a-d.

Scheme 2. The preparation of the target PPGs 16a-d.

Scheme 2. The preparation of the target PPGs 16a-d.

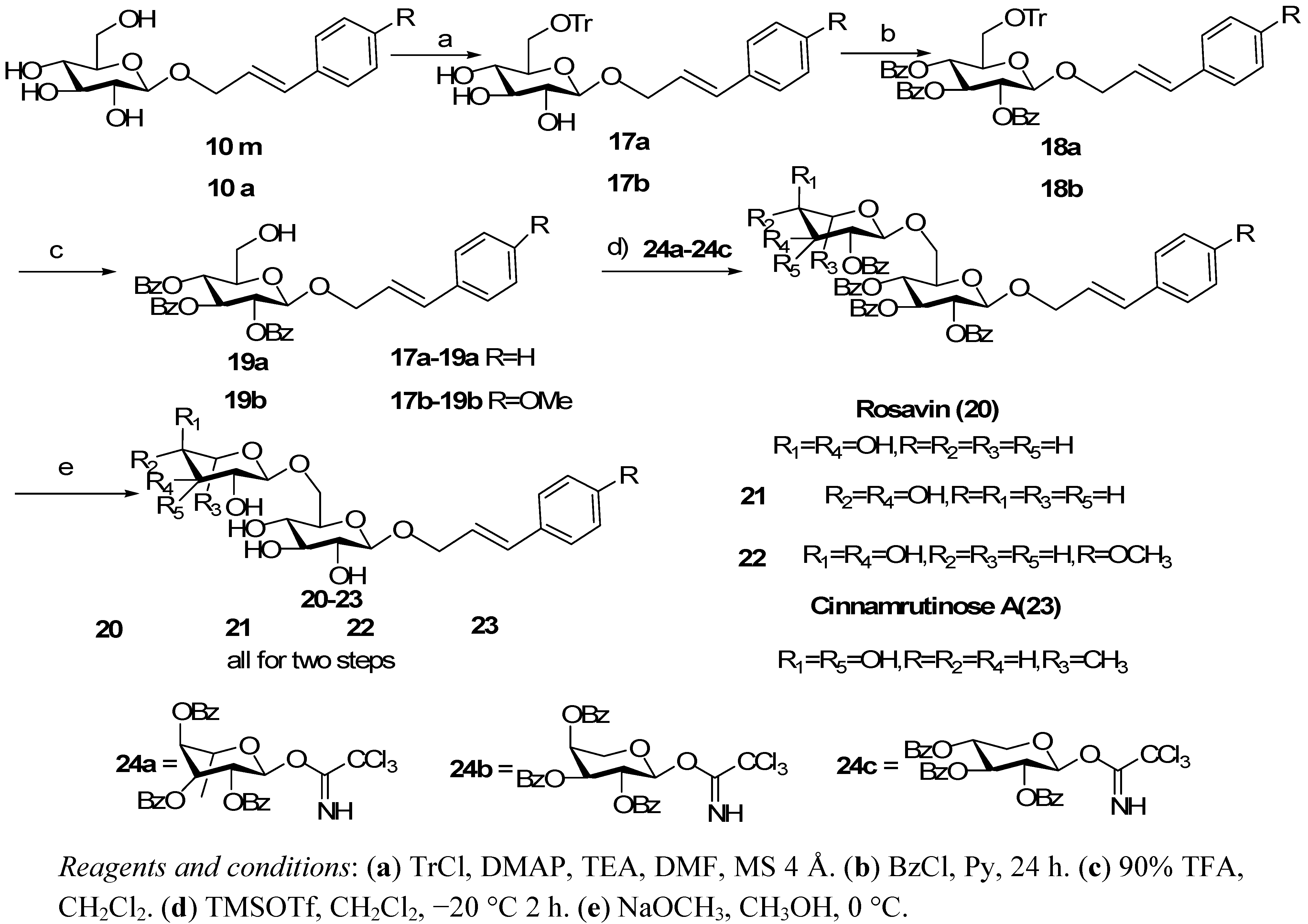

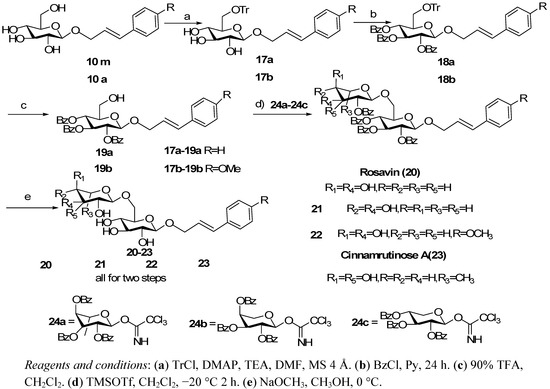

Scheme 3. The synthetic approaches to the target disaccharide PPGs.

Scheme 3. The synthetic approaches to the target disaccharide PPGs.

The designed synthetic route for disaccharide PPGs was as shown in Scheme 3. Compounds 24a-c were prepared via a similar method to that used in the preparation of compound 5 [16]. Reaction of trityl chloride with 10m or 10a in N,N-dimethylformamide (DMF) solution for 36 h at room temperature in the presence of 4-N,N-dimethylaminopyridine (DMAP), powdered 4 Å molecular sieves and triethylamine cleanly produced 17a or 17b in high yields (56% and 64%, respectively) [17]. Compounds 17a and 17b were then converted to their tribenzoyl derivatives 18a and 18b by using benzoyl chloride in pyridine.

Compounds 18a and 18b were then treated with 90% aqueous TFA to selectively remove the trityl group and we thus acquired the key intermediates 19a and19b. Treatment of 19a and 19b with excess trichloroacetimidates 24a-c under the influence of catalytic TMSOTf in CH₂Cl₂ at −20 °C to room temperature for 2 h afforded the corresponding hexabenzoyl derivatives. Finally, treatment of the coupling products with NaOMe in MeOH/CH₂Cl₂ provided the synthetic targets rosavin (20), cinnamyl 6-O-(β-D-xylopyranosyl)-β-D-glucopyranoside (21), 4-methoxycinnamyl 6-O-(α-L-arabino-pyranosyl)-β-D-glucopyranoside (22) and cinnamyl 6-O-(α-L-rhamnopyranosyl)-β-D-glucopyranoside (23). The spectral data (¹H- and ¹³C-NMR) and specific rotation of the synthetic PPGs were consistent with those of the natural products reported in the literature [18,19,20].

2.2. AChE and XOD Inhibitory Activities of the Synthetic PPGs

In vitro inhibitory activity test of these glycosides against AChE and XOD was studied by using Acetylcholinesterase Detection Kit and Xanthine Oxidase Detection Kit. The results were summarized and shown in Table 1.

Table 1. Effect of the synthetic PPGs on acetylcholinesterase and xanthine oxidase

Compd.	Structure		AChE inhibitory activitiy		XOD inhibitory activity
	R1	R	% inhibition (1.5 mg/mL)	IC50 (μM) a	% inhibition (1.5 mg/mL)	IC50 (μM) a
10a I	H	4-OCH3	15 ± 3.27	–	10 ± 2.22	–
10b	H	2-OCH3	62 ± 4.53	15.5 ± 2.1	12 ± 3.12	–
10c	H	3,5-di-OCH3	23 ± 0.85	–	21 ± 1.21	–
10d I	H	3,4-di-OCH3	43 ± 1.35	43.5 ± 0.6	35 ± 3.22	73.5 ± 1.5
10e	H	2,3-di-OCH3	34 ± 4.36	71.2 ± 2.8	22 ± 0.85	–
10f	H	4-CF3	22 ± 2.44	–	5 ± 0.22	–
10g	H	3,4(-OCH2O-)	15 ± 3.55	–	13 ± 1.43	–
10h I	H	3,4,5-tri-OCH3	17 ± 4.33	–	33 ± 2.16	69.3 ± 1.3
10i	H	2-F	18 ± 2.11	–	24 ± 1.32	–
10j	H	4-Cl	42 ± 3.23	38.3 ± 1.4	50 ± 2.35	24.3 ± 1.4
10k	H	3,4-di-F	43 ± 2.31	35.5 ± 1.1	37 ± 2.78	55.4 ± 1.3
10l	H	4-Br	57 ± 1.22	22.4 ± 0.6	55 ± 3.67	19.6 ± 1.5
10m I	H	H	16 ± 0.44	–	38 ± 2.83	93.2 ± 1.4
10n	H	3-Br,4-OC2H5, 5-OCH3	36 ± 3.55	87.3 ± 2.1	28 ± 1.74	97.3 ± 0.8
16a I	H	4-OH	34 ± 2.67	75.2 ± 1.2	32 ± 1.63	79.3 ± 0.7
16b	H	3-OH	75 ± 2.12	7.62 ± 1.1	41 ± 2.22	29.6 ± 1.2
16c I	H	3-OCH3,4-OH	54 ± 2,34	25.7 ± 0.7	23 ± 0.93	–
16d	H	3-OH,4OCH3	66 ± 3.45	10.3 ± 2.0	56 ± 2.34	16.5 ± 1.1
20 I	α-L- Arap-	H	85 ± 0.21	1.72 ± 0.1	73± 0.02	5.55 ± 0.0
21 I	β-D- Xylp-	H	82 ± 0.11	3.71 ± 0.1	74± 0.12	4.56 ± 0.1
22 I	α-L- Arap-	4-OCH3	72 ± 0.10	4.23 ± 0.1	65± 0.10	5.71 ± 0.1
23 I	α-L- Rhap-	H	81 ± 0.05	2.05 ± 0.0	60± 0.01	8.21 ± 0.0

^a Data are means ± standard deviation of triplicate independent experiments. –, not active (less than 30% inhibition at 1.5 mg/mL). ^I natural products.

Table 1. Effect of the synthetic PPGs on acetylcholinesterase and xanthine oxidase

Compd.	Structure		AChE inhibitory activitiy		XOD inhibitory activity
	R1	R	% inhibition (1.5 mg/mL)	IC50 (μM) a	% inhibition (1.5 mg/mL)	IC50 (μM) a
10a I	H	4-OCH3	15 ± 3.27	–	10 ± 2.22	–
10b	H	2-OCH3	62 ± 4.53	15.5 ± 2.1	12 ± 3.12	–
10c	H	3,5-di-OCH3	23 ± 0.85	–	21 ± 1.21	–
10d I	H	3,4-di-OCH3	43 ± 1.35	43.5 ± 0.6	35 ± 3.22	73.5 ± 1.5
10e	H	2,3-di-OCH3	34 ± 4.36	71.2 ± 2.8	22 ± 0.85	–
10f	H	4-CF3	22 ± 2.44	–	5 ± 0.22	–
10g	H	3,4(-OCH2O-)	15 ± 3.55	–	13 ± 1.43	–
10h I	H	3,4,5-tri-OCH3	17 ± 4.33	–	33 ± 2.16	69.3 ± 1.3
10i	H	2-F	18 ± 2.11	–	24 ± 1.32	–
10j	H	4-Cl	42 ± 3.23	38.3 ± 1.4	50 ± 2.35	24.3 ± 1.4
10k	H	3,4-di-F	43 ± 2.31	35.5 ± 1.1	37 ± 2.78	55.4 ± 1.3
10l	H	4-Br	57 ± 1.22	22.4 ± 0.6	55 ± 3.67	19.6 ± 1.5
10m I	H	H	16 ± 0.44	–	38 ± 2.83	93.2 ± 1.4
10n	H	3-Br,4-OC2H5, 5-OCH3	36 ± 3.55	87.3 ± 2.1	28 ± 1.74	97.3 ± 0.8
16a I	H	4-OH	34 ± 2.67	75.2 ± 1.2	32 ± 1.63	79.3 ± 0.7
16b	H	3-OH	75 ± 2.12	7.62 ± 1.1	41 ± 2.22	29.6 ± 1.2
16c I	H	3-OCH3,4-OH	54 ± 2,34	25.7 ± 0.7	23 ± 0.93	–
16d	H	3-OH,4OCH3	66 ± 3.45	10.3 ± 2.0	56 ± 2.34	16.5 ± 1.1
20 I	α-L- Arap-	H	85 ± 0.21	1.72 ± 0.1	73± 0.02	5.55 ± 0.0
21 I	β-D- Xylp-	H	82 ± 0.11	3.71 ± 0.1	74± 0.12	4.56 ± 0.1
22 I	α-L- Arap-	4-OCH3	72 ± 0.10	4.23 ± 0.1	65± 0.10	5.71 ± 0.1
23 I	α-L- Rhap-	H	81 ± 0.05	2.05 ± 0.0	60± 0.01	8.21 ± 0.0

^a Data are means ± standard deviation of triplicate independent experiments. –, not active (less than 30% inhibition at 1.5 mg/mL). ^I natural products.

The data listed in Table 1 clearly show that most of the designed compounds such as 10b, 10l, 16b-d and compounds 20-23 exhibited moderate inhibitory activities toward cholinesterase. In the synthetic monosaccharide PPGs, compounds with sterically small substituents at position 4 (compounds 10b, 10j-l) were more potent than the corresponding unsubstituted compound 10m. The presence of a hydroxyl group at the aromatic ring caused a significant improvement in the activity. Disaccharide glycosides always possessed much stronger AChE inhibitory activities than the corresponding momosaccharide PPGs, with rosavin being the most potent (IC₅₀ = 1.72 μmol/L). Accordingly, the XOD inhibitory activity of these PPGs was generally lower than that against AChE. Compounds 10j, 10l, 16b, 16d and 20-23 have XOD inhibitory activity. Among them compound 21 showed the best such activity, with an IC₅₀ value of 4.56 μmol/L. The above results indicate that disaccharide glycosides and monosaccharide PPGs with a substitution of sterical small group at position 4 or hydroxyl at the aromatic ring are favorable for the enzymes inhibitory activities which are worthy of further study.

3. Experimental

3.1. General

Commercial reagents were used without further purification unless otherwise stated. The boiling range of petroleum ether was 60–90 °C. Preparative TLC was done on silica gel plates (GF254; Qingdao Haiyang Co.; China). Preparative column chromatography was performed with silica gel (200–300 mesh; supplier as above). Melting points were measured with a Yanaco apparatus and are uncorrected. NMR spectra were recorded on Bruker ARX 300 MHz or AV 600 MHz spectrometers; J values were given in Hertz, δ in ppm rel. to TMS used as internal standard. Optical rotations were measured at the sodium D-line at room temperature with a Perkin-Elmer 241 MC polarimeter. ESI mass spectra were obtained on a Finnigan TSQ 7000 mass spectrometer. High-resolution mass spectra (HR-ESI-MS) were obtained with Bruker micro TOF-Q 125 mass spectrometer.

2,3,4,6-Tetra-O-benzoyl-β-D-glucopyranose (4). D-Glucose (10.0 g, 55.5 mmol) in pyridine (150 mL) was cooled to 0 °C, and then benzoyl chloride (38.5 mL, 333 mmol) was added dropwise over 30 min. The reaction mixture was raised to room temperature. After 24 h, water (100 mL) was added to the reaction mixture, and stirring was continued for 30 min. The aq solution was extracted with CH₂Cl₂ (3 × 150 mL). The extract was washed with HCl (1 N) followed by saturated sodium bicarbonate (2 × 150 mL), dried (Na₂SO₄) and concentrated to dryness to give a yellow solid which was directly dissolved in a solution of anhydrous dichlormethane (230 mL) containing 33% HBr in glacial acetic acid (50 mL) and acetic anhydride (7 mL). The reaction mixture was stirred for 24 h at 34 °C, and then ice-cold water (200 mL) was added. The mixture was extracted with CH₂Cl₂ (3 × 100 mL). The combined CH₂Cl₂ layers were washed with a saturated NaHCO₃ solution and brine, and the filtrate was evaporated in vacuo to give a colorless white solid. The white solid was dissolved in acetone (144 mL) and water (48 mL). After addition of sodium iodide dihydrate (2.22 g, 7.5 mmol) the mixture was stirred at 30°C for 2–3 days before removing the solvents in vacuo. The residue was resuspended in water (100 mL) and the resulting water phase was extracted with dichloromethane (3 × 100 mL). The combined organic layers were washed with 10% sodium thiosulfate, saturated sodium bicarbonate and water, dried (Na₂SO₄). The filtrate was concentrated in vacuo to give the crude product (28.0 g, 47 mmol) as a white solid (85% yield for the three steps), m.p. 65–68 °C. ¹H-NMR (600 MHz, CDCl₃): δ 8.07–7.30 (20H, m, Ar-H × 20), 6.06 (1H, t, J = 10.2 Hz, CH), 5.62 (1H, t, J = 10.2 Hz, CH), 5.53 (1H, t, J = 3.6 Hz, CH), 5.20 (1H, d, J = 7.2 Hz, CH), 4.62 (1H, d, J = 10.0 Hz, CH), 4.48 (1H, d, J = 12.6 Hz, CH), 4.42 (1H, dd, J = 12.0, 4.2 Hz, CH). HRMS (ESI-TOF) calcd. for C₃₄H₂₈O₁₀Na (M+Na)⁺ 619.1582 found 619.1580.

2,3,4,6-Tetra-O-benzoyl-β-D-glucopyranosyl tricholoroacetimidate(5). The above product (19 g, 31.9 mmol) and trichloroacetonitrile (13.7 g, 95 mmol) were dissolved in CH₂Cl₂ (100 mL) and a catalytic amount of DBU (0.48 mL) was added. The above solution was stirred for four hours at room temperature, then concentrated and purified by Al₂O₃ column chromatography with pet.ether/EtOAc (3:1) as eluent to give the product (20.0 g, 27.1 mmol) as a foamy white solid in 80% yield. ¹H-NMR (600 MHz, CDCl₃): δ 8.63 (s, 1H, NH), 8.10-7.87 (8H, m, Ar-H ×8), 7.58–7.30 (12H, m, Ar-H × 15), 6.80 (d, 1H, J_1,2 = 3.6 Hz, H-1), 6.26 (t, 1H, J_2,3 = J_3,5 = 10.2 Hz, H-3), 5.82 (t, 1H, J_3,4 = J_4,5 = 10.2 Hz, H-4), 4.69 (dd, 1H, J_1,2 = 4.2 Hz, J_2,3 = 9.6 Hz, H-2), 4.65, 4.64, 4.49 (3H, m, H-5, H-6, H-6′). ¹³C-NMR (75 MHz, DMSO-d₆): δ 165.4 (PhCO-), 165.2 (PhCO-), 164.7 (PhCO-), 166.6 (PhCO-), 163.0 (C=NH), 133.8 (Ar-C), 133.7 (Ar-C), 133.6 (Ar-C), 133.5 (Ar-C), 129.3 (8C, 8Ar-C), 128.8 (12C, 12Ar-C), 93.1 (C-1), 89.5 (CCl₃), 73.4(C-2), 70.5 (C-4), 68.2 (C-3), 66.7 (C-5), 62.4 (C-6). HRMS (ESI-TOF) calcd. for C₃₆H₂₈Cl₃NO₁₀Na (M+Na)⁺ 762.0676 found 762.0679.

General procedure for preparation of compounds 8. A mixture of the appropriate benzaldehyde derivative (5 mmol) in anhydrous toluene (40 mL) and (carbethoxymethylene)triphenyl-phosphorane (1.99 g, 6 mol) was refluxed for 4 h. The reaction was monitored by TLC using petroleum-ethyl acetate (3:1) as the mobile phase. The solvent was removed and the residue was suspended in water and the resulting water phase was extracted with ethyl acetate. The combined organic layers were dried (Na₂SO₄) and filtered. The solvent was concentrated then purified by column chromatography with pet.ether/EtOAc (3:1) to give compounds 7 which were then dissolved in CH₂Cl₂. Three equivalents of DIBAlH in toluene were added dropwise to the above solution at −20 °C. After 2 h, water was added and the mixture solution was extracted with EtOAc, concentrated. The crude products were purified with a short silica gel column to afford compounds 8.

General procedure for preparation of compounds 14. 15% NaOH solution (20 mL) was added to the solution of compounds 11 (5 mmol) in MeOH. The mixture was refluxed for 3 h until the yellow oil disappeared and then cooled to room temperature. The organic solvent was removed. The residue was diluted with water and acidified by 10 N HCl to pH 1 to afford a white precipitate. The precipitate was collected and recrystallized from anhydrous ethanol, affording white needle-like crystals 12. To a 25 mL flask equipped with CaCl₂ drying tube, phenol 12, acetic anhydride (10 equiv) and triethylamine (2.0 equiv) were added. The mixture was refluxed at 70 °C for 4 h and water was added. The above solution was stirred until it became turbid. The precipitate was collected, washed with water and dried to give the product 13. To a solution of dry THF containing compounds 13 and triethylamine (1.1 equiv) was added dropwise ethyl chloroformate (1.1 equivalents) at 0 °C. After stirring for an additional 30 min, the reaction mixture was allowed to warm to r t and 4.0 equiv. of powdered sodium borohydride was added in one portion. To this suspension, 16 equiv. of absolute methanol was added dropwise over one hour at the same temperature. After being stirred at room temperature for an additional one hour, the reaction mixture was poured into saturated ammonium chloride solution (150 mL) and extracted with dichloromethane (2 × 150 mL). The combined organic layer were dried over anhydrous Na₂SO₄ and concentrated. Crude products were purified by silica gel column chromatography (pet. ether/EtOAc 3/1) to give the products 14.

Schmidt’s reaction to prepare the target PPGs 10a-n and 16a-d. Alcohols (1.5 mmol), the Schmidt donor 5 (6.0 mmol, 1.2 equiv), and powdered 4 Å molecular sieves (1.0 g) in dry CH₂Cl₂ (20 mL) were stirred for 30 min at −20 °C. A dry CH₂Cl₂ solution (0.5 mL) of TMSOTf (0.02 equiv) was added dropwise. The mixture was stirred for 1 h before a small amount of Et₃N was added to quench the reaction. The mixture was then diluted with CH₂Cl₂ and filtered. The resulting residue was dissolved in dry CH₂Cl₂-MeOH (1:2), to which NaOMe (4.0 equiv) was added. The solution was stirred at rt for 2 h and then neutralized with Dowex H⁺ resin to pH 7 and filtered. The filtrate was concentrated and purified with a silica gel column to give the products as white powder.

4-Methoxycinnamyl β-D-glucopyranoside (10a). Yield: 41%. [α]²⁵_D= –35.9 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.34 (d, 2H, J = 8.7 Hz, Ar-H), 6.85 (d, 2H, J = 7.9 Hz, Ar-H), 6.60 (d, 1H, J = 15.9 Hz, =CH), 6.21 (dt, 1H, J = 6.6, 15.9 Hz, =CH-CH₂), 4.50 (dd, 1H, J = 5.8, 12.4 Hz, =CH-CH₂), 4.36 (d, 1H, J = 7.7 Hz, H-1), 4.29 (dd, 1H, J = 6.8, 12.4 Hz), 3.87 (d, 1H, J = 11.7 Hz), 3.78 (s, 3H, -OCH₃),3.67 (dd, 1H, J = 5.2, 11.9 Hz, =CH-CH₂), 3.35–3.18 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₇H₂₃O₉ (M+HCOO)^– 371.1342; found 371.1342.

2-Methoxycinnamyl β-D-glucopyranoside (10b). Yield: 45%. [α]²⁵_D= –25.5 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.45 (d, 1H, J = 7.8 Hz, Ar-H), 7.22 (t, 1H, J = 7.7 Hz, Ar-H), 6.94 (d, 1H, J = 15.6 Hz, =CH), 6.93 (d, 1H, J = 7.8 Hz, =CH), 6.90 (t, 1H, J = 6.6 Hz, =CH), 6.36 (dt, 1H, J = 6.3, 16.2 Hz, =CH-CH₂), 4.53 (dd, 1H, J = 5.7, 13.5 Hz, =CH-CH₂), 4.40 (d, 1H, J = 7.5 Hz, H-1), 4.32 (dd, 1H, J = 6.0,12.3 Hz), 3.90 (dd, 1H, J = 12.0, 2.0 Hz), 3.82 (s, 3H, -OCH₃), 3.72 (dd, 1H, J = 5.1, 12.0 Hz), 3.45–3.24 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₂O₇Na(M+Na)⁺ 349.1263; found 349.1259.

3,5-Dimethoxycinnamyl β-D-glucopyranoside (10c). Yield: 53%. [α]²⁵_D= –38.7 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 6.60 (d, 1H, J = 16.5 Hz, Ar-H), 6.36 (m, 2H), 4.51 (dd, 1H, J = 5.6, 13.3 Hz, =CH-CH₂), 4.36 (d, 1H, J = 7.7 Hz, =CH-CH₂), 4.31 (dd, 1H, J = 6.7, 12.9 Hz, H-1), 3.88 (d, 1H, J = 11.6 Hz), 3.76 (s, 3H, -OCH₃ × 2), 3.68 (dd, 1H, J = 5.2, 12.4 Hz, H-1), 3.38–3.21 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₈H₂₅O₁₀ (M+HCOO)^– 401.1448; found 401.1445.

3,4-Dimethoxycinnamyl β-D-glucopyranoside (10d). Yield: 73%. [α]²⁵_D= –38.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.05 (d, 1H, J = 1.8 Hz, Ar-H), 6.95 (dd, 1H, J = 1.8, 8.4 Hz, Ar-H), 6.88 (d, 1H, J = 8.4 Hz, =CH), 6.60 (d, 1H, J = 15.9 Hz, =CH), 6.25 (dt, 1H, J = 6.3, 15.9 Hz, =CH), 4.51 (dd, 1H, J = 6.0, 12.9 Hz, =CH-CH₂), 4.39 (d, 1H, J = 7.8 Hz, =CH-CH₂), 4.33 (dd, 1H, J = 6.3, 12.6 Hz, H-1), 3.91 (d, 1H, J = 11.4 Hz), 3.84 (s, 3H, -OCH₃), 3.81 (s, 3H, -OCH₃), 3.71 (dd, 1H, J = 3.8, 11.7 Hz, H-1), 3.44–3.23 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₇H₂₄O₈Na(M+Na)⁺ 379.1369; found 379.1372.

2,3-Dimethoxycinnamyl β-D-glucopyranoside (10e). Yield: 53%. [α]²⁵_D= –34.8 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.13 (dd, 1H, J = 7.8, 1.2 Hz, Ar-H), 7.03 (t, 1H, J = 8.1 Hz, Ar-H), 6.95 (d, 1H, J = 15.6 Hz, =CH), 6.91 (d, 1H, J = 7.5 Hz, =CH), 6.36 (dt, 2H, J =6.0, 16.2 Hz, =CH), 4.53 (dd, 1H, J = 5.1, 12 Hz, =CH-CH₂), 4.39 (d, 1H, J = 7.5 Hz, =CH-CH₂), 4.33 (d, 1H, J = 6.6 Hz, H-1), 3.90 (d, 1H, J = 11.7 Hz), 3.85 (s, 3H, -OCH₃), 3.77 (s, 3H, -OCH₃), 3.70 (dd, 1H, J = 5.1, 12 Hz, H-1), 3.43–3.23 (m, 4H). HRMS (ESI-TOF) calcd. for C₃₄H₄₈O₁₆Na (2M+Na)⁺ 735.2840; found 735.2833.

4-Trifluoromethycinnamyl β-D-glucopyranoside (10f). Yield: 49%. [α]²⁵_D= –29.9 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.60 (s, 4H, Ar-H × 4), 6.77 (d, 1H, J = 16.0 Hz, =CH), 6.52 (dt, 1H, J = 5.6, 16.0 Hz, =CH), 4.57 (dd, 1H, J = 13.4, 5.0 Hz, =CH-CH₂), 4.39 (d, 1H, J = 7.5 Hz, H-1), 4.36 (dd, 1H, J = 5.3, 13.4 Hz, =CH-CH₂), 3.91(d, 1H, J = 12.5 Hz), 3.70 (dd, 1H, J = 5.2, 11.8 Hz), 3.45–3.18 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₇H₂₀O₈F₃ (M+HCOO)^– 409.1110; found 409.1104.

3,4-Methylenedioxycinnamyl β-D-glucopyranoside (10g). Yield: 51%. [α]²⁵_D= –36.8 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 8.10 (d, J = 3.9 Hz, 1H), 7.47 (t, 1H, J = 3.9 Hz, =CH), 6.97 (d, 1H, J = 0.6 Hz), 6.83 (dd, 1H, J = 3.9, 0.6 Hz), 6.74 (d, 1H, J = 3.9 Hz), 6.58 (d, 1H, J = 8.1 Hz), 6.20 (dt, 1H, J = 3.0, 8.1 Hz), 5.92 (s, 2H, -CH₂-), 4.90 (dd, 1H, J =0.3, 2.7 Hz, =CH-CH₂), 4.37 (d, 1H, J = 3.9 Hz, H-1), 4.29 (dd, 1H, J =3.6, 6.3 Hz), 3.89 (d, 1H, J = 3.0 Hz), 3.69 (dd, 1H, J = 6.0, 2.7 Hz), 3.40–3.23 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₀O₈Na(M+Na)⁺ 363.1056; found 363.1057.

3,4,5-Trimethoxycinnamyl β-D-glucopyranoside (10h). Yield: 57%. [α]²⁵_D= –38.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 6.71 (s, 2H), 6.60 (d, 1H, J = 15.9 Hz, Ar-H), 6.30 (dt, 1H, J = 6.0, 9.7 Hz, =CH), 4.51 (dd, 1H, J = 5.0, 12.9 Hz, =CH-CH₂), 4.37 (d, 1H, J = 7.7 Hz, =CH-CH₂), 4.31 (dd, 1H, J = 6.5, 13.0 Hz, H-1), 3.88 (d, 1H, J = 11.8 Hz), 3.82 (s, 3H, -OCH₃ × 2), 3.73 (s, 3H, -OCH₃), 3.69 (dd, 1H, J = 5.0, 11.9 Hz, H-1), 3.40–3.22 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₈H₂₆O₉Na (M+Na)⁺ 409.1475; found 409.1455.

2-Fluorocinnamyl β-D-glucopyranoside (10i). Yield: 55%. [α]²⁵_D= –39.0 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.47 (t, 1H, J = 7.8 Hz, Ar-H), 7.16 (q, 1H, J = 7.8 Hz, Ar-H), 7.06 (t, 1H, J = 7.5 Hz, =CH), 6.98 (t, 1H, J = 8.4 Hz, =CH), 6.76 (d, 1H, J = 16.2 Hz, =CH), 6.40 (dt, 1H, J = 6.0, 16.2 Hz, =CH-CH₂), 4.50 (dd, 1H, J = 5.4, 12.9 Hz, =CH-CH₂), 4.32 (d, 1H, J = 7.8 Hz, H-1), 4.28 (dd, 1H, J = 4.8, 11.4 Hz), 3.83 (d, 1H, J = 11.4 Hz), 3.63 (dd, 1H, J = 5.1, 12.0 Hz), 3.36–3.17 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₀O₈F (M+HCOO)^– 359.1142; found 359.1145.

4-Chlorocinnamyl β-D-glucopyranoside (10j). Yield: 81%. [α]²⁵_D= –35.5 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.39 (d, 2H, J = 8.4 Hz, Ar-H × 2), 7.29 (d, 2H, J = 8.5 Hz, Ar-H × 2), 6.66 (d, 1H, J = 16.0 Hz, =CH), 6.38 (dt, 1H, J = 6.0, 16.0 Hz, =CH), 4.52 (dd, 1H, J = 5.3, 12.8 Hz, =CH-CH₂), 4.36 (d, 1H, J = 7.7 Hz, H-1), 4.30 (dd, 1H, J = 5.3, 12.8 Hz, =CH-CH₂), 3.88 (d, 1H, J = 12.5 Hz), 3.67 (dd, 1H, J = 11.8, 5.2 Hz), 3.35–3.18 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₀O₈Cl(M+HCOO)^– 375.0847; found 375.0857.

3,4-Difluorocinnamyl β-D-glucopyranoside (10k). Yield: 49%. [α]²⁵_D= –40.0 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.28 (dd, 1H, J = 7.3, 10.6 Hz, Ar-H), 7.14-7.09 (m, 2H), 6.58 (d, 1H, J = 16.0 Hz, =CH), 6.28 (dt, 1H, J = 5.9, 16.0 Hz, =CH), 4.45 (dd, 1H, J = 5.3, 13.2 Hz, =CH-CH₂), 4.28 (d, 1H, J = 7.7 Hz, H-1), 4.25 (dd, 1H, J = 6.2, 14.7 Hz), 3.81 (d, 1H, J = 11.5 Hz), 3.61 (dd, 1H, J = 5.2, 11.9 Hz), 3.30–3.14 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₁₉O₈F₂ (M+HCOO)^– 377.1048; found 377.1035.

4-Bromocinnamyl β-D-glucopyranoside (10l). Yield: 70%. [α]²⁵_D= –31.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.45(d, 2H, J = 8.4 Hz, Ar-H), 7.34 (d, 2H, J = 8.4 Hz, Ar-H), 6.67 (d, 1H, J = 16.0 Hz, =CH), 6.41 (dt, 1H, J = 5.8, 15.9 Hz, =CH), 4.53 (dd, 1H, J = 5.2, 13.2 Hz, =CH-CH₂), 4.37 (d, 1H, J = 7.8 Hz, =CH-CH₂), 4.33 (dd, 1H, J = 6.8, 13.8 Hz, H-1), 3.90 (d, 1H, J = 11.5 Hz), 3.69 (dd, 1H, J = 4.8, 11.9 Hz, H-1), 3.39–3.22 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₀O₈Br(M+HCOO)^– 479.0342; found 479.0340.

Cinnamyl β-D-glucopyranoside (10m). Yield: 61%. [α]²⁵_D= –24.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, DMSO-d₆): δ 7.85 (d, 2H, J = 7.2 Hz, Ar-H), 7.74 (t, 2H, J = 7.1 Hz, Ar-H), 7.66 (d, 1H, J = 7.2 Hz, =CH), 7.18 (d, 1H, J = 16.0 Hz, =CH), 5.50 (d, 1H, J = 4.9 Hz, =CH), 5.35 (dd, 2H, J = 4.4, 12.8 Hz, =CH-CH₂), 4.95 (t, 1H, J = 5.8 Hz, H-1), 4.83 (dd, 1H, J = 6.6, 12.3 Hz, =CH-CH₂), 4.63 (d, 2H, J = 7.7 Hz), 3.87 (m, 1H), 3.48 (m, 4H). (ESI-TOF) calcd. for C₁₅H₂₀O₆Na (M+Na)⁺ 319.1158; found 319.1158.

3-Bromo-4-ethoxy-5-methoxycinnamylcinnamyl β-D-glucopyranoside (10n). Yield: 43%. [α]²⁵_D= –31.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.18 (d, 1H, J = 1.7 Hz, Ar-H), 7.03 (d, 1H, J = 1.7 Hz, Ar-H), 6.59 (d, 1H, J = 15.9 Hz, =CH), 6.32 (dt, 1H, J = 6.0, 15.9 Hz, =CH-CH₂), 4.54 (dd, 1H, J = 5.5, 13.0 Hz, =CH-CH₂), 4.36 (d, 1H, J = 7.7 Hz, H-1), 4.31 (dd, 1H, J = 6.5, 13.3 Hz), 4.02 (q, 2H, J = 7.1 Hz), 3.86 (s, 3H, -OCH₃),3.67 (dd, 1H, J = 5.2, 11.9 Hz, =CH-CH₂), 3.40-3.20 (m, 4H), 1.35 (t, 3H, J = 7.2 Hz, -CH₃). HRMS (ESI-TOF) calcd. for C₁₉H₂₆O₁₀Br(M+HCOO)^– 493.0709; found 493.0700.

4-Hydroxycinnamyl β-D-glucopyranoside (16a). Yield: 46%. [α]²⁵_D= –32.6 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.23 (d, 2H, J = 8.6 Hz, Ar-H), 6.72 (d, 2H, J = 8.5 Hz, Ar-H), 6.55 (d, 1H, J = 15.9 Hz, =CH), 6.15 (dt, 1H, J = 5.8, 15.9 Hz), 4.47 (dd, 1H, J = 6.0, 12.8 Hz, =CH-CH₂), 4.36 (d, 1H, J = 7.7 Hz, H-1), 4.26 (dd, 1H, J = 6.8, 12.4 Hz), 3.89 (d, 1H, J = 12.9 Hz), 3.69 (dd, 1H, J = 5.2, 12.0 Hz), 3.39–3.21 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₅H₂₀O₇ Na (M+Na)⁺ 335.1107; found 335.1088.

3-Hydroxycinnamyl β-D-glucopyranoside (16b). Yield: 51%. [α]²⁵_D= –35.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.12 (t, 1H, J = 7.8 Hz, Ar-H), 6.88 (d, 2H, J = 9.2 Hz, Ar-H), 6.69 (dd, 1H, J = 2.1, 8.4 Hz, =CH), 6.61 (d, 1H, J = 15.9 Hz, =CH), 6.32 (dt, 1H, J = 6.3, 15.9 Hz, =CH), 4.51 (dd, 1H, J = 5.7, 12.6 Hz, =CH-CH₂), 4.39 (d, 1H, J = 7.8 Hz, =CH-CH₂), 4.31 (dd, 1H, J = 6.6, 13.5 Hz, H-1), 3.95 (d, 1H, J = 12.0 Hz), 3.71 (dd, 1H, J = 5.1, 12 Hz, H-1), 3.41-3.23 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₆H₂₁O₉ (M+HCOO)^– 357.1186; found 357.1173.

4-Hydroxy-3-methoxycinnamyl β-D-glucopyranoside (16c). Yield: 51%. [α]²⁵_D= –36.2 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 7.01 (d, 1H, J = 1.5 Hz, Ar-H), 6.85 (dd, 1H, J = 1.5, 8.1 Hz, Ar-H), 6.72 (d, 1H, J = 8.1 Hz, =CH), 6.57 (d, 1H, J = 15.9 Hz, =CH), 6.18 (dt, 1H, J = 6.3, 15.9 Hz, =CH), 4.49 (dd, 1H, J = 6.0, 13.3 Hz, =CH-CH₂), 4.37 (d, 1H, J = 7.5 Hz, H-1), 4.29 (dd, 1H, J = 6.6, 12.3 Hz, =CH-CH₂), 3.91 (d, 1H, J = 10.8 Hz), 3.86 (s, 3H, -OCH₃), 3.68 (dd, 1H, J = 5.1, 11.7 Hz, =CH-CH₂), 3.40-3.19 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₇H₂₃O₁₀ (M+HCOO)^– 387.1291; found 387.1284.

3-Hydroxy-4-methoxycinnamyl β-D-glucopyranoside (16d). Yield: 61%. [α]²⁵_D= –35.7 (c = 1.0, MeOH). ¹H-NMR (300 MHz, methanol-d₆): δ 6.96 (d, 1H, J = 1.5 Hz, Ar-H), 6.87 (dd, 1H, J = 1.5, 8.0 Hz, Ar-H), 6.73 (d, 1H, J = 8.1 Hz, =CH), 6.56 (d, 1H, J = 15.9 Hz, =CH), 6.18 (dt, 1H, J = 6.3, 15.9 Hz, =CH), 4.44 (dd, 1H, J = 6.0, 13.3 Hz, =CH-CH₂), 4.33 (d, 1H, J = 7.5Hz, H-1), 4.29 (dd, 1H, J = 6.6, 12.3 Hz, =CH-CH₂), 3.91 (d, 1H, J = 10.8 Hz), 3.86 (s, 3H, -OCH₃), 3.66 (dd, 1H, J = 5.1, 11.7 Hz, =CH-CH₂), 3.40-3.20 (m, 4H). HRMS (ESI-TOF) calcd. for C₁₇H₂₃O₁₀ (M+HCOO)^– 387.1291; found 387.1283.

Cinnamyl 6-trityl-O-β-D-glucopyranoside (17a). A solution of 10m (1.25 g, 3.8 mmol), trityl chloride (2.24 g, 8.1 mmol), triethylamine (0.98 g, 9.8 mmol), DMAP (0.31 g, 2.5 mmol) and powered 4 Å molecular sieves (2.5 g) in DMF (12 mL) was stirred overnight at room temperature under nitrogen. After another 12 h stirring, the yellow cloudy solution was poured into ice-water and extracted with CH₂Cl₂. The organic extracts were washed with saturated ammonium chloride solution and water, dried (Na₂SO₄). After removal of the solvents, the yellowish solid was subjected to column chromatography on silica gel with petroleum-ethyl acetate (3:1) and ethyl acetate as eluents. Concentrating the ethyl acetate part gave the product as a white amorphous solid. Yield: 1.14 g (56%). m.p. 68–70 °C; [α]²⁵_D= –48.8 (c 1.0, MeOH); ¹H-NMR (600 MHz, DMSO-d₆): δ 7.50–7.20 (m, 20H, Ar-H × 20), 6.70 (d, 1H, J = 16.2 Hz, =CH), 6.44 (dt, 1H, J = 16.2, 6.0 Hz, =CH), 5.15 (d, 1H, J = 4.8 Hz), 4.98 (d, 1H, J = 4.8 Hz), 4.86 (d, 1H, J = 5.4 Hz,), 4.52 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.35 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.34 (d, 1H, J = 7.8 Hz), 3.28 (d, 1H, J = 9.6 Hz), 3.15 (m, 1H), 3.07 (m, 3H). ¹³C-NMR (75 MHz, DMSO-d₆): δ 144.1 (3C, 3Ar-C), 136.5 (Ar-C), 131.6 (=CH)), 128.8 (4C, 4Ar-C), 128.5 (4C, 4Ar-C ), 128.0 (4C, 4Ar-C), 127.8 ( =CH), 127.1 (4C, 4Ar-C), 126.5 (4C, 4Ar-C), 102.2 (C-1), 85.7 (Ph₃C), 77.0 (C-3), 75.3 (C-5), 73.6 (C-2), 70.4 (C-4), 68.6 (=C-CH₂), 63.8 (C-6). HRMS (ESI-TOF): calcd. for C₃₅H₃₅O₈ (M+HCOO)^– 583.2332; found 583.2332.

4-Methoxycinnamyl 6-trityl-O-β-D-glucopyranoside (17b).Prepared according to synthetic method of 17a from 10a (1.23 g, 3.8 mmol). Yield: 1.15 g (64%).m.p. 58–60 °C; [α]²⁵_D= –25.4( c 1.0, MeOH); ¹H-NMR (600 MHz, DMSO-d₆): δ 7.90 (d, 2H, J = 7.8 Hz, Ar-H × 2), 7.73 (d, 2H, J = 7.2 Hz, Ar-H × 2), 7.66 (d, 2H, J = 7.8 Hz, Ar-H × 2), 7.58 (m, 2H, Ar-H × 2), 7.49 (t, 1H, J = 7.2 Hz, Ar-H), 7.43 (t, 2H, J = 7.8 Hz, Ar-H × 2), 7.40–7.35 (m, 11H, Ar-H × 11), 7.20–7.15 (m, 8H, Ar-H × 8), 7.15–7.10 (m, 4H, Ar-H × 4), 6.81 (d, 2H, J = 9.0 Hz, Ar-H × 2), 6.51 (d, 1H, J = 16.2 Hz, =CH), 6.16 (dt, 1H, J = 16.2, 5.4 Hz, =CH), 5.90 (t, 1H, J = 5.4 Hz), 7.25 (m, 6H, Ar-H × 6), 7.25–7.21 (m, 3H, Ar-H × 3), 6.85 (d, 2H, J = 8.4 Hz, Ar-H × 2), 6.62 (d, 1H, J = 16.2 Hz, =CH), 6.28 (dt, 1H, J = 16.2, 6.0 Hz, =CH), 5.13 (d, 1H, J = 4.8 Hz), 4.98 (d, 1H, J = 4.8 Hz), 4.85 (d, 1H, J = 5.4 Hz), 4.49 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.33 (d, 1H, J = 7.8 Hz), 4.32 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 3.73 (s, 3H, -OCH₃), 3.27 (d, 1H, J = 9.6 Hz), 3.15 (m, 1H), 3.07 (m, 3H). ¹³C-NMR (75 MHz, DMSO-d₆): δ 159.1 (Ar-C), 144.1 (3C, 3Ar-C),131.6 (Ar-C), 129.4 (=CH), 129.2 (=CH), 128.5 (6C, 6Ar-C), 127.9 (6C, 6Ar-C), 127.8 (2C, 2Ar-C), 127.1 (3C, 3Ar-C), 114.2 (2C, 2Ar-C ), 102.1 (C-1), 85.7 (Ph₃C), 77.0 (C-3), 75.3 (C-5), 73.7 (C-2), 70.5 (C-4), 68.8 (=C-CH₂), 63.9 (C-6), 55.2 (OCH₃). HRMS (ESI-TOF): calcd. for C₃₆H₃₇O₉ (M+HCOO)^– 613.2438; found 613.2433.

Cinnamyl 6-trityl-2,3,4-tri-O-benzoyl-β-D-glucopyranoside (18a). Cinnamyl 6-trityl-O-β-D-gluco-pyranoside (4.4 g, 8.16 mmol) in pyridine (50 mL) was cooled to 0 °C, and then benzoyl chloride (5.71 g, 40.8 mmol) was added dropwise over 30 min. The reaction temperature was raised to room temperature. After 24 h water (50 mL) was added to the reaction mixture and stirring was continued for 30 min. The aq. solution was extracted with CH₂Cl₂ (3 × 50 mL) and the extracts were washed with saturated NaHCO₃. The solution was evaporated under vacuum to give a yellow sticky solid which was dissolved in toluene and dehydrate by repeated azeotropic distillation to give the crude product (6.7 g). The product was purified using a short silica gel column eluted with petroleum-ethyl acetate (10:1), to give the title compound as a yellow oil (6.0 g, yield 87%). [α]²⁵_D+4.9 ( c 1.0, CDCl₃); ¹H-NMR (600 MHz, DMSO-d₆): δ 7.99–7.14 (m, 35H, Ar-H × 35), 6.59 (d, 1H, J = 16.2 Hz, =CH), 6.35 (dt, 1H, J = 16.2, 5.4 Hz, =CH), 5.93 (t, 1H, J = 9.6 Hz), 5.74 (t, 1H, J = 9.6 Hz), 5.49 (d, 1H, J = 9.0 Hz), 5.27 (d, 1H, J = 7.8 Hz), 4.56 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.42 (dd, 1H, J = 6.0, 13.8 Hz, =CH-CH₂) 4.29 (d, 1H, J = 10.2 Hz), 3.35 (d, 1H, J = 10.2 Hz), 3.06 (dd, 1H, J = 3.0, 10.2 Hz).¹³C-NMR (75 MHz, DMSO-d₆): δ 165.3 (PhCO-), 164.9 (PhCO), 164.5 (PhCO-), 143.5 (3C, 3Ar-C), 136.2 (Ar-C), 133.8 (3C, 3Ar-C), 132.9 (2Ar-C), 131.8 (=CH), 130.9 (Ar-C), 129.4 (3C, 3Ar-C), 129.2 (3C, 3Ar-C), 128.9 (3C, 3Ar-C), 128.7 (3C, 3Ar-C), 128.6 (6C, 6Ar-C), 128.2 (6C, 6Ar-C), 127.9 (4C, =CH, 3Ar-C), 127.0 (2C, 2Ar-C), 126.4 (2C, 2Ar-C), 125.5 (Ar-C), 99.2 (C-1), 85.9 (Ph₃C), 73.6 (C-3), 72.3 (2C, C-5,2), 69.0 (2C, C-4, =C-CH₂), 61.7 (C-6). HRMS (ESI-TOF): calcd. for C₅₆H₄₇O₁₁Na (M+Na)⁺ 873.3040; found 873.3020.

4-Methoxycinnamyl 6-trityl-2,3,4-tri-O-benzoyl-β-D-glucopyranoside (18b). Prepared according to the synthetic method used for the preparation of 18a from 17b (5.7 g, 10 mmol). Yield: 7.93 g (90%). m.p. 88–90 °C; [α]²⁵_D+21.5 ( c 1.0, CDCl₃); ¹H-NMR (600 MHz, DMSO-d₆): δ 7.90–7.10 (m, 32H, Ar-H × 32), 6.82 (d, 2H, J = 9.0 Hz, Ar-H × 2), 6.51 (d, 1H, J = 16.2 Hz, =CH), 6.17 (dt, 1H, J = 16.2, 5.4 Hz, =CH), 5.90 (t, 1H, J = 9.6 Hz), 5.70 (t, 1H, J = 9.6 Hz), 5.47 (t, 1H, J = 9.0 Hz), 5.24 (d, 1H, J = 7.8 Hz, H-1), 4.51 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.42 (dd, 1H, J = 6.0, 13.2 Hz, =CH-CH₂), 4.26 (dt, 1H, J = 2.4, 9.6 Hz), 3.33 (d, 1H, J = 9.0 Hz), 3.03 (dd, 1H, J = 3.6, 10.2 Hz).¹³C-NMR (75 MHz, DMSO-d₆): δ 165.3 (PhCO-), 164.9 (PhCO-), 164.5 (PhCO-), 159.0 (2C, 2Ar-C), 143.5 (3C, 3Ar-C), 133.7 (3C, 3Ar-C), 131.8 (3C, 3Ar-C), 129.3 (2C, 2Ar-C), 129.2 (3C, 3Ar-C), 128.9 (3C, 3Ar-C), 128.8 (3C, 3Ar-C), 128.6 (=CH), 128.2 (6C, 6Ar-C), 127.9 (3C, 3Ar-C), 127.7 (3C, 3Ar-C), 127.0 (3C, 3Ar-C), 122.9 (=CH), 114.0 (2C, 2Ar-C), 99.2 (C-1), 86.0 (Ph₃C), 73.7 (C-3), 72.3 (2C, C-5, 2), 69.1 (2C, C-4, =C-CH₂), 61.7 (C-6), 55.1 (OCH₃). HRMS (ESI-TOF): calcd. for C₅₆H₄₉O₁₀ (M+H)⁺ 881.3320; found 881.3347.

Cinnamyl 2,3,4-tri-O-benzoyl-β-D-glucopyranoside (19a). Cinnamyl 6-trityl-2,3,4-tri-O-benzoyl-β-D-glucopyranoside (18b, 5.0 g, 5.9 mol) was dissolved in CH₂Cl₂ (30 mL) followed by the addition of 90% aq TFA (3.0 mL) and the solution was allowed to stir for 30 min at room temperature. Then the solution was poured into a separating funnel and washed successively with water (50 mL), saturated NaHCO₃ (2 × 50 mL) and brine (50 mL). The organic layer was collected, dried (Na₂SO₄) and filtered. The filtrate was evaporated and the resulting crude material was purified by silica gel chromatography using petroleum-ethyl acetate (3:1) as eluent, affording pure compound (3.0 g, 84%) as a light yellow solid.m.p. 108–110 °C; [α]²⁵_D+2.9 (c 1.0, CDCl₃);¹H-NMR (600 MHz, DMSO-d₆): δ 7.87–7.15 (m, 20H, Ar-H × 20), 6.51 (d, 1H, J = 16.2 Hz, =CH), 6.23 (dt, 1H, J = 5.4, 16.2 Hz, =CH), 5.93 (t, 1H, J = 9.6 Hz), 5.49 (d, 1H, J = 9.0 Hz), 5.36 (d, 1H, J = 9.0 Hz), 5.18 (d, 1H, J = 7.8 Hz), 5.06 (s, 1H, OH), 4.48 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.32 (dd, 1H, J = 6.0, 13.8 Hz, =CH-CH₂), 4.09 (m, 1H), 3.66 (m, 2H), 3.06 (dd, 1H, J = 3.0, 10.2 Hz). ¹³C-NMR (75 MHz, DMSO-d₆): δ 165.4 (PhCO-), 165.0 (2C, 2PhCO-), 136.3 (Ar-C), 133.9 (3C, 3Ar-C), 131.8 (=CH), 129.4 (3C, 3Ar-C), 129.2 (2C, 2Ar-C), 129.0 (3C, 3Ar-C), 128.9 (2C, 2Ar-C), 128.7 (3C, 3Ar-C), 127.9 (=CH), 126.4 (3C, 3Ar-C), 125.5 (Ar-C), 99.3 (C-1), 74.2 (C-3), 73.9 (C-5), 72.3 (C-2), 69.6 (C-4), 69.2 (=C-CH₂), 60.4 (C-6). HRMS (ESI-TOF): calcd. for C₃₇H₃₃O₁₁ (M+HCOO)^– 653.2023; found 653.2028.

4-Methoxycinnamyl 2,3,4-tri-O-benzoyl-β-D-glucopyranoside (19b). Prepared according to synthetic method described for preparation of 19a from 18b (6.0 g, 6.8 mmol). Yield: 3.73 g (86%). m.p. 125–127 °C; [α]²⁵_D+6.8 (c 1.0, CDCl₃); ¹H-NMR (600 MHz, CDCl₃): δ 8.10-7.10 (m, 17H, Ar-H × 17), 6.80 (d, 2H, J = 9.0 Hz, Ar-H × 2), 6.49 (d, 1H, J = 15.6 Hz, =CH), 6.00 (dt, 1H, J = 6.0, 15.0 Hz, =CH), 5.93 (t, 1H, J = 9.6 Hz), 5.55 (t, 1H, J = 9.0 Hz), 5.51 (t, 1H, J = 9.0 Hz), 4.94 (d, 1H, J = 7.8 Hz, H-1), 4.51 (dd, 1H, J = 5.4, 13.2 Hz, =CH-CH₂), 4.34 (dd, 1H, J = 6.0, 13.8 Hz, =CH-CH₂), 3.87 (m, 1H), 3.79 (s, 3H, OCH₃), 3.82–3.78 (m, 2H), 3.48 (s, 1H, -OH). ¹³C-NMR (75 MHz, CDCl₃): δ 166.0 (PhCO-), 165.8 (PhCO-), 165.1 (PhCO-), 159.3 (Ar-C), 133.6 (Ar-C), 133.2 (Ar-C), 132.8 (Ar-C), 130.1 (2C, 2Ar-C), 129.8 (2C, 2Ar-C), 129.7 (2C, 2Ar-C), 129.6 (2C, 2Ar-C), 129.2 (Ar-C), 128.8 (3C, 3Ar-C), 128.2 (2C, 2Ar-C), 127.8 (2C, 2Ar-C), 127.2 (2C, 2Ar-C), 126.9 (Ar-C), 122.1 (Ar-C), 113.9 (2C, 2Ar-C), 99.6 (C-1), 74.6 (C-3), 72.7 (C-5), 71.8 (C-2), 70.1 (C-4), 69.5 (=C-CH₂), 61.3 (C-6), 55.2 (OCH₃). HRMS (ESI-TOF): calcd. for C₃₈H₃₅O₁₂ (M+HCOO)^– 638.2129; found 638.2104.

Rosavin (20). A suspension of cinnamyl 2,3,4-tri-O-benzoyl-β-D-glucopyranoside (100 mg, 0.164 mmol), 2,3,4-tri-O-benzoyl-α-L-arabinopyranosyl tricholoroacetimidate (119 mg, 0.197 mmol) and powdered 4 Å molecular sieves (1.0 g) in dry CH₂Cl₂ (20 mL) was stirred for 30 min at −20 °C. A dry CH₂Cl₂ solution (0.2 mL) containing TMSOTf (1.8 µL, 0.01 mmol) was added dropwise. The mixture was stirred for 1 h before Et₃N (0.1 mL) was added to quench the reaction, and then the mixture was diluted with CH₂Cl₂ (20 mL) and passed through a sintered-glass funnel. The resulting solution was concentrated and the resulting residue was dissolved in dry CH₂Cl₂- MeOH (1:2, 30 mL). NaOMe (108 mg, 2.0 mmol) was added. The solution was stirred at room temperature for 2 h and then neutralized with Dowex H⁺ resin to pH 7. The resin was filtered and the filtrate was concentrated. The residue was subjected to a silica gel PTLC to give the product as a white powder. Yield: 69 mg (79%).m.p. 170–173 °C; [α]²⁵_D-54.2 [c 0.7, CHCl₃:MeOH (1:1)]. Lit. [19] [α]²⁰_D-56.5 [c 0.7, CHCl₃:MeOH (1:1)]; ¹H-NMR (600 MHz, MeOH-d₄): δ 7.36 (d, 2H, J = 7.2 Hz, Ar-H × 2), 7.26 (t, 2H, J = 7.2 Hz, Ar-H × 2), 7.15 (t, 1H, J = 7.2 Hz, Ar-H), 6.61 (d, 1H, J = 15.6 Hz, =CH), 6.31 (dt, 1H, J = 6.0, 16.2 Hz, =CH), 4.45 (dd, 1H, J = 6.0, 12.6 Hz, =CH-CH₂), 4.37 (d, 1H, J = 7.8 Hz, H-1′), 4.36 (d, 1H, J = 6.8 Hz, H-1′′), 4.35 (dd, 1H, J = 6.0, 12.6 Hz, =CH-CH₂), 4.11 (d, 1H, J = 10.9 Hz), 3.94 (dd, 1H, J = 1.8 Hz, 11.4 Hz), 3.77 (d, 1H, J = 2.0, 3.0 Hz), 3.75 (1H, dd, J = 6.0, 11.4 Hz), 3.61 (t, 1H, J = 7.2 Hz), 3.55 (m, 2H), 3.35 (m, 1H), 3.33 (m, 1H), 3.25 (m, 1H), 3.20 (t, 1H, J = 7.0 Hz). ¹³C-NMR (150 MHz, MeOH-d₄): δ 138.3 (Ar-C), 133.8 ( =CH), 129.7 (2C, 2Ar-C), 128.7 (Ar-C), 127.6 (2C, 2Ar-H), 126.7 (=CH), 105.2 (C-1′′), 103.4 (C-1′), 78.1 (C-3′), 76.9 (C-5′), 75.1 (C-2′), 74.3 (C-3′′), 72.5 (C-2′′), 71.8 (C-4′), 70.9 (-CH₂-), 69.6 (C-4′′, C-6′), 66.7 (C-5′′). HRMS (ESI-TOF): calcd. for C₂₁H₂₉O₁₂ (M+HCOO)^– 473.1659; found 473.1656.

Cinnamyl 6-O-(β-D-xylopyranosyl)-β-D-glucopyranoside (21). Prepared according to the synthetic method described for the preparation of 20 from 19a (100 mg, 0.164 mmol). Yield: 68 mg (78%). m.p. 173–175 °C; [α]²⁵_D−67.9 ( c 1.0, MeOH). ¹H-NMR (600 MHz, MeOH-d₄): δ 7.33 (d, 2H, J = 7.8 Hz, Ar-H × 2), 7.29 (t, 2H, J = 7.8 Hz, Ar-H × 2), 7.20 (t, 1H, J = 7.2 Hz, Ar-H), 6.68 (d, 1H, J = 15.6 Hz, =CH), 6.36 (dt, 1H, J = 6.0, 16.2 Hz, =CH), 4.51 (dd, 1H, J = 6.0, 12.6 Hz, =CH-CH₂), 4.38 (d, 1H, J = 7.8 Hz, H-1′), 4.36 (d, 1H, J = 7.2 Hz, H-1′′), 4.35 (dd, 1H, J = 6.0, 12.6 Hz, =CH-CH₂), 4.11 (d, 1H, J = 1.8, 9.6 Hz), 3.86 (dd, 1H, J = 5.6, 11.4 Hz), 3.77 (dd, 1H, J = 6.0, 11.4 Hz), 3.55–3.45 (m, 1H), 3.40–3.32 (m, 3H), 3.28–3.13 (m, 3H).¹³C-NMR (75 MHz, MeOH-d₄): δ 138.1 (Ar-C), 133.9 (=CH), 129.5 (2C, 2Ar-C), 128.7 (Ar-C), 127.5 (2C, 2Ar-H), 126.7 (=CH), 105.4 (C-1′′), 103.3 (C-1′), 77.8 (C-3′′), 77.5 (C-3′), 76.8 (C-5′), 74.9 (C-2′), 74.6 (C-2′′), 71.4 (C-4′), 71.1 (C-4′′), 70.9 (-CH₂-), 69.8 (C-6′), 66.8 (C-5′′). HRMS (ESI-TOF): calcd. for C₂₁H₂₉O₁₂ (M+HCOO)^– 473.1659; found 473.1656.

4-Methoxycinnamyl 6-O-(α-L-arabinopyranosyl)-β-D-glucopyranoside (22). Prepared according to synthetic method described for the preparation of 20 from 19b (100 mg, 0.156 mmol). Yield: 71 mg (81%). m.p. 93–95 °C; [α]²⁵_D−40.2 (c 1.0, MeOH). ¹H-NMR (600 MHz, MeOH-d₄,): δ 7.37 (d, 2H, J = 8.3 Hz), 6.83 (d, 2H, J = 8.3 Hz), 6.60 (d, 1H, J = 15.9 Hz), 6.20 (td, 1H, J = 6.8, 15.9 Hz), 4.48 (dd, 1H, J = 5.8, 12.6 Hz), 4.36 (d, 1H, J = 7.8 Hz, H-1′), 4.33 (d, 1H, J = 6.8 Hz, H-1′′), 4.30 (dd, 1H, J = 7.8, 12.6 Hz), 3.88 (dd, 1H, J = 3.0, 12.4 Hz), 3.82-3.78 (m, 1H), 3.78 (s, 3H), 3.74 (dd, 1H, J = 5.8, 11.4 Hz), 3.63 (t, 1H, J = 6.8 Hz), 3.55–3.51 (m, 2H), 3.46–3.40 (m, 1H), 3.37–3.33 (m, 3H), 3.25–3.20 (m, 1H); ¹³C-NMR (75 MHz, MeOH-d₄): δ 160.9 (Ar-C), 133.7 (=CH), 130.9 (Ar-C), 128.8 (2C, 2Ar-C), 124.3 (=CH), 115.0 (2C, 2Ar-C), 105.1 (C-1′′), 103.2 (C-1′), 78.0 (C-3′), 76.9 (C-5′), 75.1 (C-2′), 74.2 (C-3′′), 72.4 (C-2′′), 71.7 (C-4′), 71.1 (-OCH₂-), 69.5 (C-6′), 69.4 (C-4′′), 66.7 (C-5′′), 55.7 (OCH₃); HRMS (ESI-TOF): C₂₂H₃₁O₁₃ (M+HCOO)^– 503.1765; found 503.1773.

Cinnamyl 6-O-(α-L-rhamnopyranosyl)-β-D-glucopyranoside (23). Prepared according to synthetic method described for the preparation of 20 from 19a (100 mg, 0.164 mmol). Yield: 74 mg (83%). m.p. 111–112 °C; [α]²⁵_D−59.2 (c 1.0, MeOH); ¹H-NMR (600 MHz, MeOH-d₄,): δ 7.35 (d, 2H, J = 7.2 Hz, Ar-H × 2), 7.25 (t, 2H, J = 7.2 Hz, Ar-H × 2), 7.17 (t, 1H, J = 7.2 Hz, Ar-H), 6.62 (d, 1H, J = 15.6 Hz, =CH), 6.31 (dt, 1H, J = 6.0, 16.2 Hz, =CH), 4.45 (dd, 1H, J = 6.0, 12.6 Hz, =CH-CH₂), 4.74 (d, 1H, J = 1.2 Hz, H-1′′), 4.32 (d, 1H, J = 7.8 Hz, H-1′), 4.35 (dd,1H, J = 6.0, 12.6 Hz, =CH-CH₂), 3.94 (dd, 1H, J = 1.8 Hz, 11.4 Hz, H-6′), 3.86 (t, 1H, J = 1.8 Hz, H-2′′), 3.77 (d, 1H, J = 2.0, 3.0 Hz, H-5′′), 3.67 (m, 1H, H-3′′), 3.60 (1H, dd J = 6.0, 11.4 Hz, H-6′), 3.39 (m, 1H, H-5′), 3.37 (m, 1H, H-4′), 3.35 (m, 1H, H-4′′), 3.33 (m, 1H, H-6′), 3.25 (1H, m, H-3′), 3.20 (t, 1H, J = 9.0 Hz, H-2′), 1.24 (d, 3H, J = 7.8 Hz, CH₃). ¹³C-NMR (75 MHz, MeOH-d₄): δ 138.0 (Ar-C), 133.9 (=CH), 129.5 (2C, 2Ar-C), 128.7 (Ar-C), 127.5 (2C, 2Ar-H), 126.4 (=CH), 103.1 (C-1′), 102.2 (C-1′′), 77.9 (C-5′), 76.7 (C-4′), 74.9 (C-2′), 73.9 (C-4′′), 72.2 (C-3′′), 72.1 (C-2′′), 71.5 (C-3′), 70.7 (-CH₂-), 69.7 (C-5′′), 68.1 (C-6′), 18.0 (-CH₃). HRMS (ESI-TOF): calcd. for C₂₂H₃₁O₁₂ (M+HCOO)^– 487.1816; found 487.1828.

Assay of the in vitro AChE/XOD inhibitory activity: The tests of in vitro inhibitory activity of these PPGs against AChE (from drosophila, Jing Peng Bio-Pesticide Co., Ltd. Shandong, P. R. China) and Xanthine Oxidase (from buttermilk, Sigma Co., Ltd. X4875) were carried out by using AChE (or XOD) Detection Kits (Jian Cheng Bioengineering Institute, Nan Jin, Jiangsu, P. R. China), following the manufacturer’s protocol. All the compounds were dissolved in 1% DMSO. The test compounds were initially assayed for their inhibition of AChE and XOD at a concentration of 1.5 mg/mL. If an inhibition of more than 30% was observed, the compound was classified as active. The active compounds were consequently tested at seven concentrations. The results were read on a microplate reader at the wavelength of 450 nm/530 nm. All the assays were performed in triplicate with three independent experiments. The IC₅₀ values were calculated using XLfit software.

4. Conclusions

In summary, by using active ingredients from Rhodiola rosea L. as lead compounds, we adopted three routes to synthesize three categories of natural and synthetic PPGs and tested their AChE and XOD inhibitory activity. Several PPGs were found to have potential inhibitory effects on AChE and XOD which are worthy of further study. This result suggested PPGs may be the active ingredients of Rhodiola rosea L. in the therapy of nervous and cardiovascular diseases and also provided some pharmacological basis for the usage of this plant in Traditional Chinese Medicine.
