Determination of Pesticide Residues in Honeybees using Modified QUEChERS Sample Work-Up and Liquid Chromatography-Tandem Mass Spectrometry

by
Żaneta Bargańska
1,*,
Marek Ślebioda
2 and
Jacek Namieśnik
1
1
Department of Analytical Chemistry, Faculty of Chemistry, Gdansk University of Technology, Narutowicza 11/12, Gdańsk 80-233, Poland
2
Perlan Technologies Polska Sp. z.o.o., Puławska 303, Warszawa 02-785, Poland
*
Author to whom correspondence should be addressed.
Molecules 2014, 19(3), 2911-2924; https://doi.org/10.3390/molecules19032911
Submission received: 3 December 2013 / Revised: 24 February 2014 / Accepted: 26 February 2014 / Published: 6 March 2014
(This article belongs to the Special Issue Microextraction)
Browse Figures
Versions Notes

Abstract

:
Increasing emissions of chemical compounds to the environment, especially of pesticides, is one of factors that may explain present honeybee colony losses. In this work, an analytical method employing liquid chromatography-tandem mass spectrometry (LC-MS/MS) was optimized for the simultaneous screening of 19 pesticides which have not been yet determined in honeybee samples from northern Poland (Pomerania). The sample preparation, based on the QuEChERS method combining salting-out liquid-liquid extraction to acetonitrile and a dispersive-SPE clean-up, was adjusted to honeybee samples by adding a small amount of hexane to eliminate beeswax. The recovery of analytes ranged from 70% to 120% with relative standard deviation ≤20%. The limits of detection were in the range of 0.91–25 ng/g. A total of 19 samples of honeybees from suspected pesticide poisoning incidents were analyzed, in which 19 different pesticides were determined.

1. Introduction

Nowadays, pesticides are widely used in agricultural practice to control pests and diseases. Degradation of these compounds in the environment and extensive or inappropriate use by farmers can lead to the contamination of various ecosystems. Widespread distribution of pesticides is also known to cause problems to the apiculture industry. Bees may be contaminated by pesticide residues during harvesting and contaminants can be transported on bee bodies or with forages to the hive, from where they can be transferred into honey. Moreover, the use of pesticides in beehive treatment (during honey harvesting) is another possible route of honey contamination. The presence of such xenobiotics in bee products can decrease their quality and devalue their properties [1,2,3,4,5,6].
Honeybees can be used as indicators of environmental pollution because of their morphological characteristics and the intense foraging activity, and their ability to retain and bioaccumulate in their bodies substances which they are in close contact with during pollination [7,8,9,10].
Increased mortality of bee colonies was observed in the USA in 2006 [11]. Most honey bee and bumble bee losses are partly attributable to pesticide exposure [12,13] and some European beekeepers have reported major losses of honey bee colonies located near crops treated with pesticides, even at a low dose [14]. The phenomenon of mass extinction of bees is called Colony Collapse Disorder (CCD) [15,16]. It should be noticed that also parasitic flies, mites, nutritional stress and decreased biodiversity caused by industrial agriculture may be other important factors conditioning the occurrence of Colony Collapse Disorder [17,18,19,20,21].
Chronic exposure of honeybees to pesticides at concentrations that could approximate field-level exposure impairs their natural foraging behavior and increases worker mortality leading to significant reductions in brood development and colony success [22]. Consequently, determination of residues of these compounds is very important. Determination of pesticides in honeybees at trace levels is a challenging task due to the complex sample matrix. Honeybees contain a large amount of beeswax, proteins and other substances which have an adverse effect on the results of analyses. Therefore, clean-up stage prior to analysis is often necessary. Matrix solid-phase dispersion (MSPD) [23,24,25] or solid phase extraction (SPE) followed by clean-up using gel permeation chromatography (GPC) [26,27] is the most frequently utilized for honeybee sample preparation stage. However, this procedure of preparing samples for analysis allows only for the determination of selected analytes from the group of pesticides. New ways of sample preparation for analysis are necessary to determine the widest possible spectrum of pesticides.
The multiresidue methods have become more popular in recent years because they can be used for the determination of a wide range of compounds in one analytical process. The most universal extraction technique to isolate a wide range of pesticides is the QuEChERS method, first introduced in 2003 [28]. This method ensures excellent extract clean-up and high analytes recovery [29] in application to different food matrices such as fruits and vegetables [30,31,32,33,34,35], fruit juices [36], raisings and wheat flour [37], cereals and fish tissue [38], rice paddies [39], soil [40], olives and olive oil [41], milk, eggs, avocado [42], honey [43,44] and honeybees [44,45,46].
In this article, we describe the evaluation and adaptation of the QuEChERS approach in combination with liquid chromatography–tandem quadrupole mass spectrometry (LC–MS/MS) used to determine 19 pesticide residues in honeybee samples. The developed methodology was already used to determine other types of pesticide residues in different matrices (honey samples) [47]. Based on the previously obtained data, samples of dead honeybees were collected from the most contaminated areas of Pomerania in Poland (Tczew, Gdansk, Kartuzy) where pesticide poisoning was suspected. The methodology was optimized and next it was validated according to the regulation presented in the Method Validation and Quality Control Procedures for Pesticide Residues Analysis in Food and Feed [48]. This methodology allows for the monitoring of pesticides belonging to various classes for the use of bee organisms as the indicators of environmental contamination.

2. Results and Discussion

2.1. Extraction Procedure

Bee samples always contain large amounts of wax, proteins and other substances readily extractable with organic solvents [40]. The separation of co-extracted beeswax from extract samples containing the pesticide residues of interest was the main challenge in developing the clean-up method. The basic QuEChERS method (using 10 mL of water and 10 mL of acetonitrile with a set of packaged salts precipitation) does not eliminate beeswax, which was observed in the resulting extract. A modification by the freezing of the extract before the purification with dSPE (2 h, −24 °C) was introduced, but a reduction of recovery of the analytes was observed. Therefore, during further optimization of the extraction stage, 3 mL of n-hexane was added before application a set of packaged salts followed by dSPE purification.
The addition of 3 mL of n-hexane helped to remove the interfering matrix components, especially wax. Figure 1 presents differences in the recovery found during the optimization of the extraction process. The recovery of some analytes was lowered by the addition of n-hexane to a small extent (4% for alachlor and dimethoate, 12% for carbofuran and coumaphos). A greater difference (22%) was observed for diazinon. For other pesticides, better recoveries were achieved by applying a mixture of water/acetonitrile/hexane in the extraction process in comparison with the mixture of water and acetonitrile.
Molecules 19 02911 g001 550

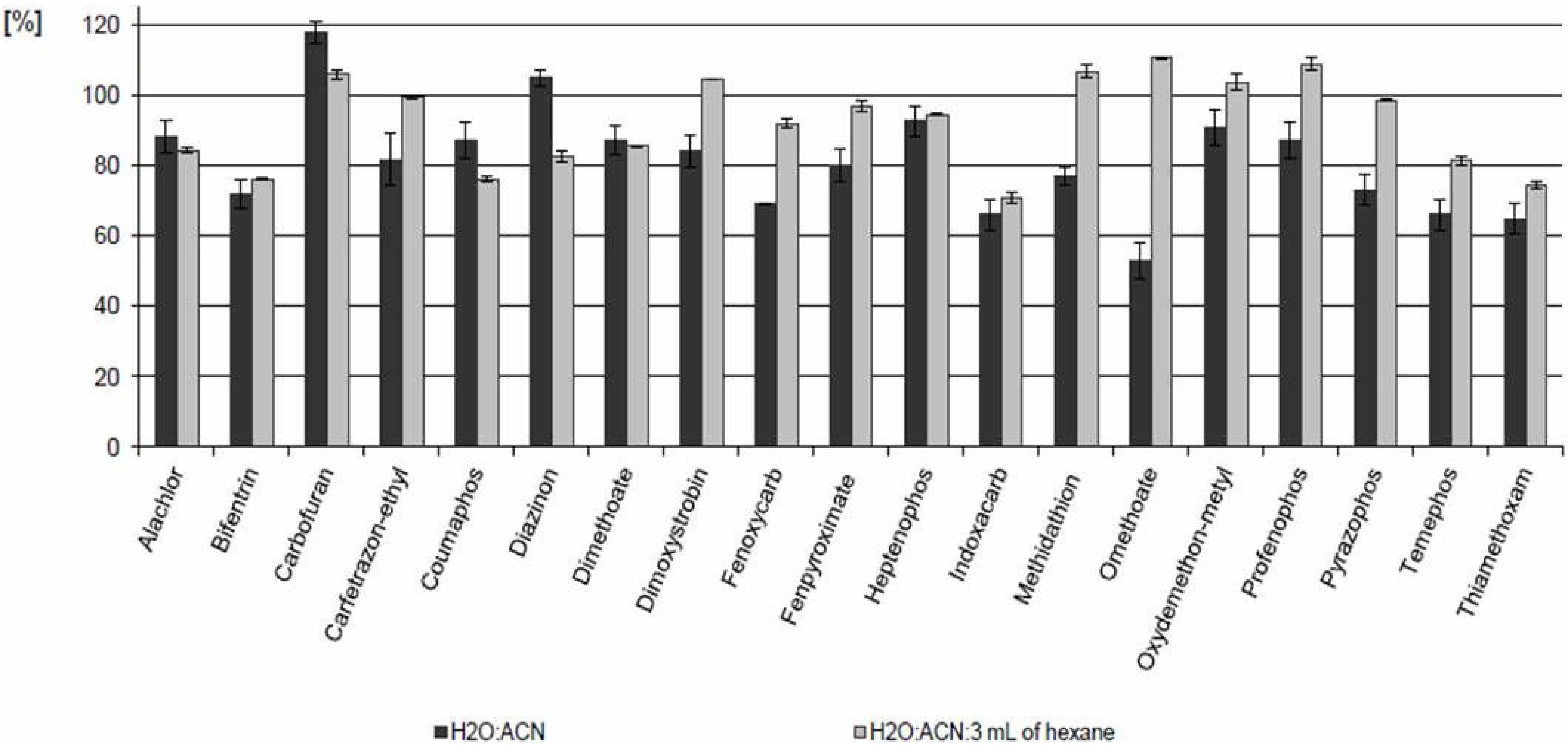

Figure 1. Recovery changes during the optimization of the extraction process.
Figure 1. Recovery changes during the optimization of the extraction process.
Molecules 19 02911 g001

2.2. Method Performance

The developed method was evaluated according to the Method Validation and Quality Control Procedures for Pesticides Residues Analysis in Food and Feed [48] in terms of repeatability, linearity, recovery and precision. The selectivity of the method was assessed by analysis of honeybee samples and spiked honeybee samples with addition of TPP 100 ng/g (I.S). No significant interferences were observed (Figure 2).
Molecules 19 02911 g002 550

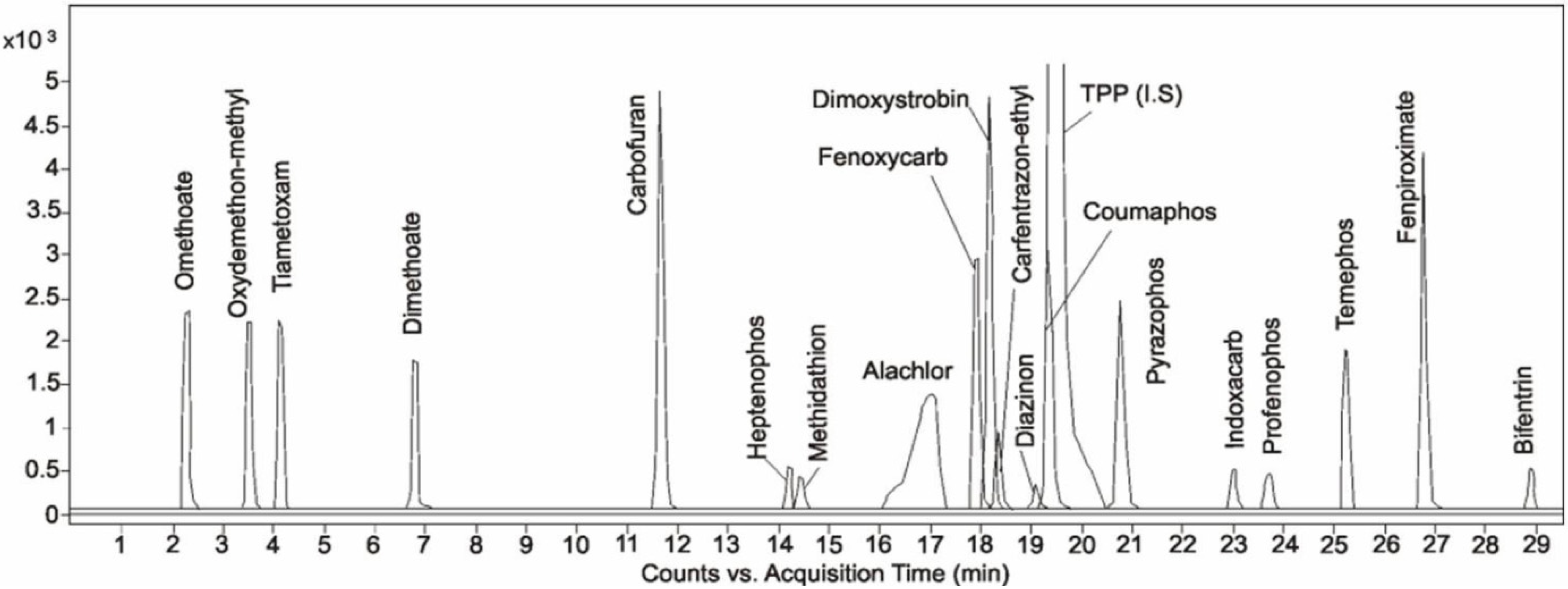

Figure 2. Sample MRM chromatograms of honeybee sample spiked with pesticides at concentration level of 3LOQ.
Figure 2. Sample MRM chromatograms of honeybee sample spiked with pesticides at concentration level of 3LOQ.
Molecules 19 02911 g002
The limits of detection (LOD) and quantification (LOQ) were estimated based on the preliminary calibration curve in acetonitrile within the concentration range of 2–100 ng/g. The LOD was calculated using the following dependence LOD = 3.3 × SD/b, where b is the slope of calibration curve and SD is the residual standard deviation of the calibration curve. The limit of quantification was calculated as LOQ = 3 × LOD. The appropriate matrix-matched calibration was made at levels of concentrations from 3LOD up to 6LOQ with an addition of 100 ng/g TPP as the internal standard.
The recovery of the analytes and repeatability studies were performed at two levels of fortification, 3LOD and 3LOQ, by adding known quantities of pesticides to a honeybee sample, each in five replicates (n = 5). The mean recovery ranged from 70.1% to 110.6%, as recommended by the SANCO Guideline (Table 1).
Table
Table 1. Range of linearity, recovery of analytes, limit of determination and quantification (LOD and LOQ) of the modified analysis method of solvent extracts of honeybee samples.
Table 1. Range of linearity, recovery of analytes, limit of determination and quantification (LOD and LOQ) of the modified analysis method of solvent extracts of honeybee samples.
AnalyteRange [ng/g]Recovery [%] ± RSD [%] n = 5LOD [ng/g]LOQ [ng/g]
LOQ3LOQ
Alachlor75/45080.5 ± 5.484.34 ± 0.762575
Bifentrin4.05/24.4085 ± 1776.08 ± 0.221.34.1
Carbofuran3.65/22.00106 ± 11106.1 ± 1.21.23.6
Carfetrazon-ethyl3.78/22.6079.0 ± 9.099.48 ± 0.451.33.8
Coumaphos4.95/29.8080.4 ± 7.776.18 ± 0.951.64.9
Diazinon4.02/24.2083 ± 1482.7 ± 1.61.34.0
Dimethoate3.51/21.0085.3 ± 7.285.63 ± 0.281.23.5
Dimoxystrobin3.87/23.2076.8 ± 5.7104.45 ± 0.401.33.9
Fenoxycarb3.69/22.2070.8 ± 6.391.9 ± 1.31.23.7
Fenpiroxymate3.69/22.2083 ± 1097.0 ± 1.51.23.7
Heptenophos2.97/17.8093.0 ± 8.094.63 ± 0.101.03.0
Indoxacarb3.66/22.0070.8 ± 5.170.8 ± 1.61.23.7
Methidathion4.53/27.2074.6 ± 6.7106.8 ± 1.81.54.5
Omethoate3.63/21.8071.6 ± 2.1110.58 ± 0.141.23.6
Oxydemeton-methyl3.63/21.8087.3 ± 9.3103.9 ± 2.21.23.6
Profenophos3.42/20.6080.1 ± 5.7109.1 ± 1.71.13.4
Pyrazophos3.87/23.2070.4 ± 1.898.69 ± 0.321.33.9
Temephos3.69/22.2072.70 ± 0.3681.5 ± 1.21.23.7
Thiamethoxam3.42/20.6070.1 ± 2.074.38 ± 0.921.13.4

2.3. Application to Real Samples

The methodology described above was used to monitor pesticide concentrations in 19 honeybee samples obtained from the Regional Beekeepers Association in Gdansk (Poland) in the year 2013. Detailed information about concentration levels of pesticides residues found in the analysis of honeybee samples is presented in Table 2.
Table
Table 2. Pesticide residues determined in honeybee samples collected from apiaries in the Pomerania region of Poland (concentration with expanded uncertainty).
Table 2. Pesticide residues determined in honeybee samples collected from apiaries in the Pomerania region of Poland (concentration with expanded uncertainty).
PesticidesNumber of samplesThe districts in Pomerania (Poland)No. of samples above LOD (%)Min level [ng/g] (RSD)Max level [ng/g] (RSD)
Alachlor11–15Kartuzy, Tczew5 (26.3%)>LOD95.0 (8.4)
Bifenthrin1, 5, 6, 7, 10–14, 19Gdansk, Kartuzy, Tczew10 (52.6%)nd<LOQ
Carbofuran1, 11Gdańsk, Kartuzy2 (10.5%)nd<LOQ
Carfentrazon-ethyl1, 11, 14, 15Gdańsk, Kartuzy, Tczew4 (21%)>LOD18.1 (1.3)
Coumaphos11Kartuzy1 (5.3%)nd<LOQ
Diazinon1, 5, 11–13, 15Gdańsk, Kartuzy, Tczew6 (31.6%)>LOD13.3 (1.4)
Dimethoate1, 8, 13, 14, 16Gdansk, Kartuzy, Tczew5 (26.3%)>LOD20.5 (0.4)
Dimoxystrobin11Kartuzy1 (5.3%)nd<LOQ
Fenoxycarb11Kartuzy1 (5.3%)nd15.0 (0.2)
Fenpyroximate1, 11Gdansk, Kartuzy2 (10.5%)nd<LOQ
Heptenophos1, 2, 3, 6, 8–16Gdańsk, Kartuzy, Tczew13 (68.4%)>LOD18.5 (0.6)
Indoxacarb11, 12Kartuzy2 (10.5%)>LOD11.8 (2.3)
Methidathion1, 5, 6, 10, 11, 13–16Gdańsk, Kartuzy, Tczew9 (47.4%)>LOD22.4 (1.9)
Omethoate11, 14, 16Kartuzy, Tczew3 (15.8%)>LOD15.8 (2.9)
Oxydemeton-methyl11Kartuzy1 (5.3%)nd18.4 (1.5)
Profenophos1, 11, 12Gdańsk, Kartuzy3 (15.8%)>LOD7.6 (2.7)
Pyrazophos2, 5, 6, 10, 11, 15Gdańsk, Kartuzy, Tczew6 (31.6%)>LOD14.3 (0.6)
Temephos1, 2, 13Gdańsk, Kartuzy3 (15.8%)nd<LOQ
Thiamethoxam11, 14Kartuzy, Tczew2 (10.5%)>LOD4.1 (0.7)
nd—not detected.
The investigated pesticide residues were detected in all 19 honeybee samples. Heptenophos (organophosphorus insecticide) was detected in 68.4% of the samples. Laboratory tests have shown that it is highly toxic to bees and can be accumulated in bee products [49]. Bifenthrin was detected in 52.6% of samples. This is an insecticide and a member of the pyrethroid family of chemicals. Bifenthrin is very highly toxic to bees (neurotoxic, typically causing paralysis in target pests) with a reported oral LD50 of 0.1 μg/bee and contact LD50 of 0.01462 μg/bee (about 1,000 ng/g and 150 ng/g, respectively) [50,51].
Methidathion was detected in 47.4% of the samples. This pesticide is a non-systemic organophosphorous insecticide and acaricide with stomach and contact action (LD50 0.23 µg/bee). The compound is used to control a variety of insects and mites in many crops such as fruits, vegetables, tobacco, alfalfa and sunflowers. It is also used in greenhouses and on rose cultures. It is especially useful against scale insects. It works by inhibiting certain enzyme actions in the target pests [52]. Methidathion must not be used during the flowering period and bee activity and it is prohibited in the European Union.
The estimated limit of detection and quantification (25 and 75 ng/g respectively) of alachlor is high but alachlor was detected in five samples at levels between the LOQ and 95 ng/g. High levels of this compound in honeybees may be associated with agricultural or apicultural practices in the regions by farmers performing sprayed treatments on the weeds around the apiary without observing the period of prevention. Alachlor is an herbicide used to control annual grasses and broadleaf weeds in field corn, soybeans, and peanuts. It is a selective systemic herbicide, absorbed by germinating shoots and by roots. It works by interfering with a plant’s ability to produce protein and by interfering with root elongation [53].
One of the samples (number 11, Kartuzy district) was contaminated by 17 of the 19 pesticides under analysis. On the basis of an analysis of the results obtained it can be concluded that the accumulated contamination, such as pesticides in bee organisms collected from the investigated areas could affect the health of bees and cause their death.

3. Experimental

3.1. Materials

The solution of triphenyl phosphate (TPP), analytical grade, used as an internal standard was purchased from Sigma Aldrich (Seelze, Germany). The Certified Reference Materials (CRMs) standard solutions of carfentrazon-ethyl, bifenthrin, coumaphos, diazinon, dimethoathe, heptenophos, oxydemethon-methyl, profenophos, pyrazophos, temephos were purchased from LGC Standards (Łomianki, Poland), The CRM solution of alachlor, indoxacarb, carbofuran, fenoxycarb, fenpyroximate, methidathion, omethoate, thiamethoxam was obtained from Ultra Scientific (North Kingston, RI, USA) and CRM solutions of dimoxystrobin were purchased from Dr Ehrenstorfer GmBH (Augsburg, Germany). The stock standard solutions were stored at −18 °C. The calibration standards and working standards were prepared by dilution with acetonitrile on the day of analysis.
Acetonitrile, methanol (LC-MS Chromosolv®, ≥99.9%), and n-hexane (pro analysis) were obtained from Fluka (Sigma–Aldrich, Seelze, Germany). Acetic acid and aqueous ammonia were delivered by POCh (Gliwice, Poland). Water was purified with a Milli-Q water system (Millipore Corporation, Billerica, MA, USA). The QuEChERS kits with salt packets containing 4 g of anhydrous MgSO4 and 1 g of sodium chloride, as well as two-milliliter centrifuge tubes with 150 mg anhydrous magnesium sulphate and 25 mg primary-secondary amine (PSA) for dispersive solid phase extraction (dSPE) were purchased from Agilent Technologies (Santa Clara, CA, USA). Anhydrous magnesium sulfate and sodium chloride were from Fluka (Sigma–Aldrich), and formic acid was delivered by POCh.

3.2. Sample Collection

The honeybee samples collected in 2013 (April, May, June, July) were submitted to the laboratory by the Regional Beekeepers Association (Gdansk, Poland). All samples were immediately freeze-dried and stored at −18 °C until analysis. Figure 3 presents the location of the sample collection area in the northern part of Poland (The Pomerania Voivodeship or The Pomerania).
Molecules 19 02911 g003 550
Figure 3. Location of the sample collection area in the northern part of Poland (Pomerania): A (Gdansk)—samples 1–7; B (Kartuzy)—samples 8–13; C (Tczew)—samples 14–19.
Figure 3. Location of the sample collection area in the northern part of Poland (Pomerania): A (Gdansk)—samples 1–7; B (Kartuzy)—samples 8–13; C (Tczew)—samples 14–19.
Molecules 19 02911 g003

3.3. Sample Preparation

The laboratory samples of freeze-dried honeybees were thoroughly homogenized. Approximately 1 g of sample was weighed into a polypropylene centrifuge tube (50 mL) and acetonitrile (ACN, 10 mL), water (10 mL), n-hexane (3 mL), and internal standard solution (TPP at 100 µg/mL, 50 µL) were added. The tube content was hand-shaken. Subsequently, the content of the salt kit QuEChERS was added. The mixture was immediately hand-shaken for 1 min and centrifuged at 4,400 rpm for 5 min. Afterwards, 1 mL of the acetonitrile fraction (below the n-hexane fraction) was transferred to a 2 mL dSPE polypropylene tube containing 150 mg of MgSO4 and 25 mg of primary secondary amine (PSA). The tube was shaken by hand, vortexed for 1 min and then centrifuged at 5000 rpm for 1 min. Finally, the 0.5 mL aliquot of the supernatant was transferred into a glass autosampler vial. Figure 4 presents the flowchart of all steps of the analytical protocol used during the study.
Molecules 19 02911 g004 550

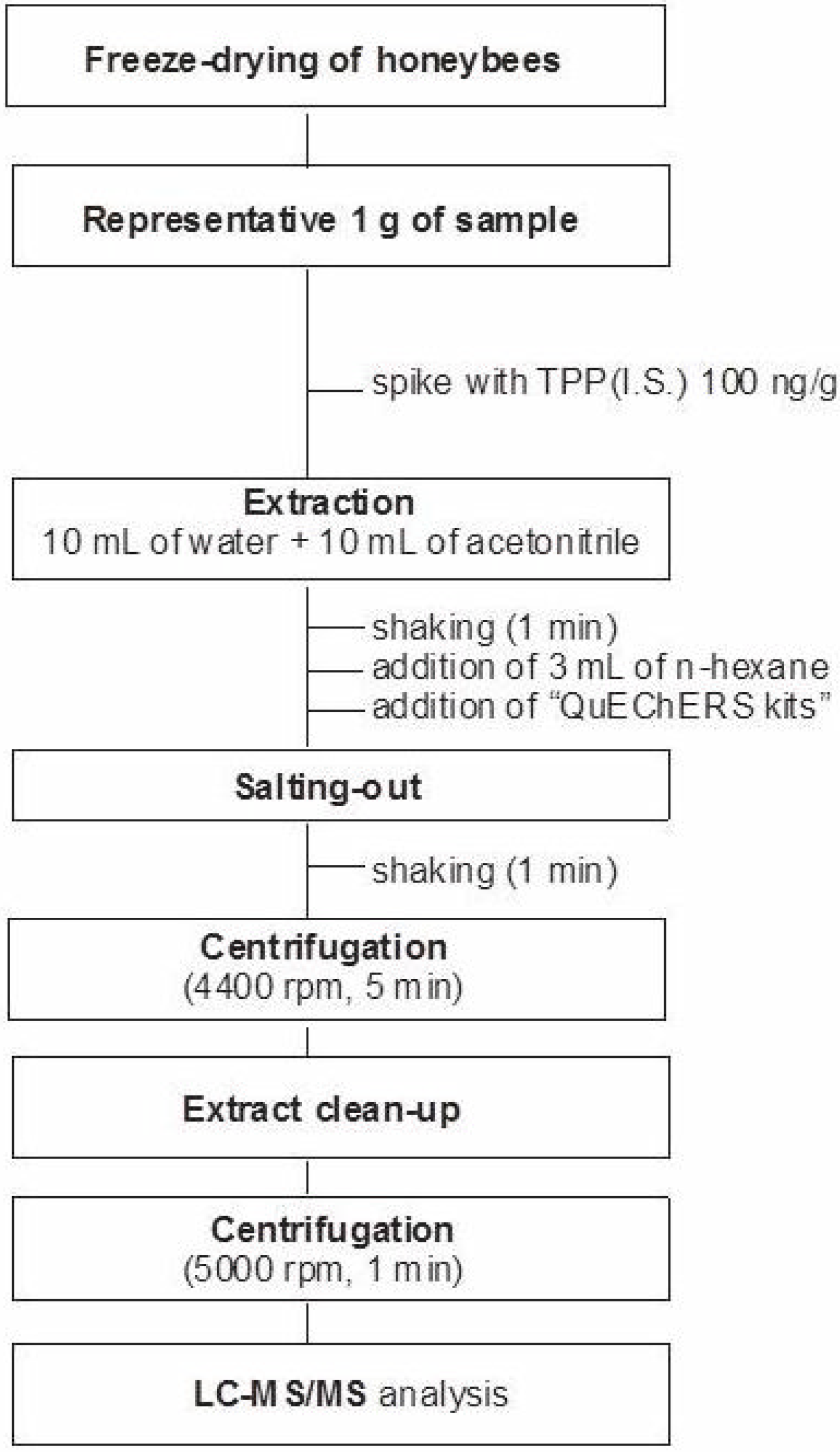

Figure 4. The procedure of modified QuECheRS/d-SPE sample work-up for the determination of pesticides in honeybee organisms.
Figure 4. The procedure of modified QuECheRS/d-SPE sample work-up for the determination of pesticides in honeybee organisms.
Molecules 19 02911 g004

3.4. LC–MS/MS Analysis

An Agilent 1290 Series chromatograph coupled to a model 6460A triple quadrupole mass spectrometer (Agilent Technologies) with a JetStream electrospray source in the positive ionization mode was used. The chromatographic separation was performed on a Poroshell 120 EC-C18 2.7 µm, 3 × 100 mm column (Agilent Technologies). The mobile phase consisting of: (A) water; and (B) methanol, both containing 10 mM of ammonium acetate, was used at a flow rate of 0.4 mL/min. During the analysis, a multi-linear gradient was used from 20% to 50% B in 10 min, 50% to 70% B at 13.5 min, 70% to 71% B at 20 min, 71% to 100% B at 29 min, and 100% B until 35 min. The injection volume of the extract sample was 2 µL.
The capillary voltage was set at 3.5 kV and the electrospray source sheath gas flow and temperature were 5 L/min and 300 °C, respectively. Drying gas was operated at a flow of 11 L/min and a temperature of 250 °C. The nebulizer pressure was maintained at 45 psi. The mass spectrometer was operated in the MS/MS mode using dynamic multiple reaction monitoring (dMRM).
The compounds were identified by their retention times and relative intensities of qualifier ions in the positive ionization mode as listed in Table 3.
Table
Table 3. Multiple reaction monitoring parameters of the studied compounds (dMRM: delta retention time 1 min, except for alachlor 2 min).
Table 3. Multiple reaction monitoring parameters of the studied compounds (dMRM: delta retention time 1 min, except for alachlor 2 min).
CompoundMW [g/mol]Precursor ions (m/z)Product ions (m/z)tr [min]Fragmentor potential [V]Collision energy (CE) [V]
Quantifier ionQualifier ion
Alachlor269.1270.1238.0162.117.0110313
117.061
Bifentrin422.1440.2181.0165.028.9410377
115.0141
Carbofuran221.1222.1123.0165.011.631039
51.069
Carfetrazon-ethyl411.1412.1345.9383.918.421529
365.913
Coumaphos362.0363.0226.9334.919.431529
306.913
Diazinon304.1305.1169.1153.119.1910317
96.933
Dimethoate229.0230.0124.9198.96.70545
170.99
Dimoxystrobin326.2327.2205.0116.018.2410317
58.129
Fenoxycarb301.1302.188.0256.017.981039
116.09
Fenpyroximate421.2422.2366.0107.026.8415261
77.0101
Heptenophos250.0251.0127.0125.014.171039
89.033
Indoxacarb527.1528.1149.9292.923.131529
248.99
Methidathion302.0303.014585.114.425413
58.129
Omethoate213.0214.0124.9182.92.191039
154.99
Oxydemethon-methyl246.0247.0168.9124.93.4310317
109.025
Profenophos372.0373.0302.8344.823.791039
128.049
Pyrazophos373.1374.1222.0238.020.9015217
148.053
Temephos466.0467.0124.9418.925.3115213
404.99
Thiamethoxam291.0292.0211.0181.04.0510317
131.917

4. Conclusions

Pesticides or their residues are persistent and can accumulate in various ecosystems. Honeybees visiting flowers come into contact with pesticides applied to protect crops and ultimately the honey and other bee products become contaminated. The developed analytical procedure allows for determination of 19 pesticide residues in honeybee samples in a single analytical run. The modified sample work-up procedure based on the QuEChERS methodology is effective, economical and fast. The method was applied to determine pesticide levels in real samples from the northern part of Poland (The Pomerania Voivodeship). The results obtained confirm that the death of honeybees occurred mainly as a result of poisoning with pesticide residues remaining near the apiaries and those bees can be used as potential environmental bioindicator.

Acknowledgments

The authors would like to thank the Regional Association of Beekeepers in Gdansk (Poland) for providing the honeybee samples for analysis. This work has been supported financially by the National Science Centre in Poland based on decision DEC-2012/05/N/ST4/00211 and by the system project “InnoDoktorant—Scholarships for PhD students, 5th edition”. The project is co-financed by the European Union within the framework of the European Social Fund.

Author Contributions

Żaneta Bargańska, Marek Ślebioda, and Jacek Namieśnik participated in designing the study. Żaneta Bargańska and Marek Ślebioda conducted the study. Data was collected and analyzed by Żaneta Bragańska. Manuscript was written by Żaneta Bargańska, Marek Ślebioda, and Jacek Namieśnik.

Conflictts of Interest

The authors declare no conflict of interest.

References

  1. Rissato, S.R.; Galhiane, M.S.; de Almeida, M.V.; Gerenutti, M.; Apon, B.M. Multiresidue determination of pesticides in honey samples by gas chromatography–mass spectrometry and application in environmental contamination. Food Chem. 2007, 101, 1719–1726. [Google Scholar] [CrossRef]
  2. Rial-Otero, R.; Gaspar, E.M.; Moura, I.; Capelo, J.L. Chromatographic-based methods for pesticide determination in honey: An overview. Talanta 2007, 71, 503–514. [Google Scholar] [CrossRef]
  3. Kujawski, M.; Namieśnik, J. Challenges in preparing honey samples for chromatographic determination of contaminants and trace residues. TrAC Trends Anal. Chem. 2008, 27, 785–793. [Google Scholar] [CrossRef]
  4. Thompson, H.M. Risk assessment for honey bees and pesticides—Recent developments and ‘new issues’. Pest Manag. Sci. 2010, 66, 1157–1162. [Google Scholar] [CrossRef]
  5. Mullin, C.A.; Frazier, M.; Frazier, J.L.; Ashcraft, S.; Simonds, R.; van Engelsdorp, D.; Pettis, J.S. High levels of miticides and agrochemicals in North American apiaries: Implications for honey bee health. PLoS One 2010, 5, e9754. [Google Scholar] [CrossRef]
  6. Bargańska, Ż.; Namieśnik, J. Pesticide analysis of bee and bee product samples. Crit. Rev. Anal. Chem. 2010, 40, 159–171. [Google Scholar] [CrossRef]
  7. Ghini, S.; Fernández, M.; Picó, Y.; Marín, R.; Fini, F.; Mañes, J.; Girotti, S. Occurrence and distribution of pesticides in the province of Bologna, Italy, using Honeybees as bioindicators. Arch. Environ. Contam. Toxicol. 2004, 47, 479–488. [Google Scholar] [CrossRef]
  8. Amorena, M.; Visciano, P.; Giacomelli, A.; Marinelli, E.; Sabatini, A.G.; Medrzycki, P.; Persano Oddo, L.; de Pace, F.M.; Belligoli, P.; di Serafino, G.; et al. Monitoring of levels of polycyclic aromatic hydrocarbons in bees caught from beekeeping: Remark 1. Vet. Res. Commun. 2009, 33, S165–S167. [Google Scholar] [CrossRef]
  9. Kamel, A. Refined Methodology for the Determination of Neonicotinoid Pesticides and Their Metabolites in Honey Bees and Bee Products by Liquid Chromatography-Tandem Mass Spectrometry (LC-MS/MS). J. Agric. Food Chem. 2010, 58, 5926–5931. [Google Scholar] [CrossRef]
  10. Lambert, O.; Veyrand, B.; Durand, S.; Marchand, P.; le Bizec, B.; Piroux, M.; Puyo, S.; Thorin, C.; Delbac, F.; Pouliquen, H. Polycyclic aromatic hydrocarbons: Bees, honey and pollen as sentinels for environmental chemical contaminants. Chemosphere 2012, 86, 98–104. [Google Scholar] [CrossRef]
  11. Van Engelsdorp, D.; Evans, J.D.; Donovall, L.; Mullin, C.; Frazier, M.; Frazier, J.; Tarpy, D.R.; Hayes, J., Jr.; Pettis, J.S. Entombed Pollen: A new condition in honey bee colonies associated with increased risk of colony mortality. J. Invertebr. Pathol. 2009, 101, 147–149. [Google Scholar] [CrossRef]
  12. Topolska, G.; Gajda, A.; Pohorecka, K.; Bober, A.; Kasprzak, S.; Skubida, M.; Semkiw, P. Winter colony losses in Poland. J. Apic. Res. 2010, 49, 126–128. [Google Scholar] [CrossRef]
  13. Osborne, J.L. Bumblebees and pesticides. Nature 2012, 491, 43–45. [Google Scholar] [CrossRef]
  14. Stokstad, E. Field research on bees raises concern about low-dose. Science 2012, 335, 1555. [Google Scholar] [CrossRef]
  15. Higes, M.; Martín-Hernández, R.; Martínez-Salvador, A.; Garrido-Bailón, A.; González-Porto, A.V.; Meana, A.; Bernal, J.L.; del Nozal, M.J.; Bernal, J. A preliminary study of the epidemiological factors related to honey bee colony loss in Spain. Environ. Microbiol. Rep. 2010, 2, 243–250. [Google Scholar] [CrossRef]
  16. Dainat, B.; van Engelsdrop, D.; Neumann, P. Colony collapse disorder in Europe. Environ. Toxicol. Rep. 2012, 4, 123–125. [Google Scholar]
  17. Core, A.; Runckel, C.; Ivers, J.; Quock, C.; Siapno, T.; DeNault, S.; Brown, B.; DeRisi, J.; Smith, C.D.; Hafernik, J. A new threat to honey bees, the parasitic phorid flyapocephalus borealis. PLoS One 2012, 7, e29639. [Google Scholar] [CrossRef]
  18. Martin, S.J. The role of Varroa and viral pathogens in the collapse of honeybee colonies: A modelling approach. J. Appl. Ecol. 2001, 38, 1082–1093. [Google Scholar] [CrossRef]
  19. Nazzi, F.; Brown, S.P.; Annoscia, D.; del Piccolo, F.; di Prisco, G.; Varricchio, P.; Vedova, G.D.; Cattonaro, F.; Caprio, E.; Pennacchio, F. Synergistic parasite-pathogen interactions mediated by host immunity can drive the collapse of honeybee colonies. PLoS One 2012, 8, e1002735. [Google Scholar]
  20. Sharpe, R.J.; Heyden, L.C. Honey bee colony collapse disorder is possibly caused by a dietary pyrethrum deficiency. Biosci. Hypothesis 2009, 2, 439–440. [Google Scholar] [CrossRef]
  21. Naug, D. Nutritional stress due to habitat loss may explain recent honeybee colony collapses. Biol. Conserv. 2009, 142, 2369–2372. [Google Scholar] [CrossRef]
  22. Gill, R.J.; Ramos-Rodriguez, O.; Raine, N.E. Combined pesticide exposure severely affects individual- and colony—Level traits in bees. Nature 2012, 491, 105–108. [Google Scholar] [CrossRef]
  23. Morzycka, B. Simple method for the determination of trace levels of pesticides in honeybees using matrix solid-phase dispersion and gas chromatography. J. Chromatogr. A 2002, 982, 267–273. [Google Scholar] [CrossRef]
  24. Fernández, M.; Picó, Y.; Mañes, J. Rapid screening of organophosphorus pesticides in honey and bees by liquid chromatography—Mass spectrometry. Chromatographia 2002, 56, 577–583. [Google Scholar] [CrossRef]
  25. Kristenson, E.M.; Shahmiri, S.; Slooten, C.J.; Vreuls, R.J.J.; Brinkman, U.A.T. Matrix solid-phase dispersion micro-extraction of pesticides from single insects with subsequent GC–MS analysis. Chromatographia 2004, 59, 315–320. [Google Scholar]
  26. Rossi, S.; Dalpero, A.P.; Ghini, S.; Colombo, R.; Sabatini, A.G.; Girotti, S. Multiresidual method for the gas chromatographic analysis of pesticides in honeybees cleaned by gel permeation chromatography. J. Chromatogr. A 2001, 905, 223–232. [Google Scholar]
  27. Charlton, A.J.A.; Jones, A. Determination of imidazole and triazole fungicide residues in honeybees using gas chromatography–mass spectrometry. J. Chromatogr. A 2007, 1141, 117–122. [Google Scholar]
  28. Anastassiades, M.; Lehotay, S.J.; Štajnbaher, D.; Schenck, F.J. Fast and easy multiresidue method employing acetonitrile extraction/partitioning and “Dispersive Solid-Phase Extraction” for the determination of pesticide residues in produce. J. AOAC Int. 2003, 86, 412–431. [Google Scholar]
  29. Garcia-Reyes, J.F.; Ferrer, C.; Gómez-Ramos, J.M.; Molina-Diaz, A.; Fernández-Alba, A.R. Comprehensive screening of target, non-target and unknown pesticides in food by LC-TOF-MS. TrAC Trends Anal. Chem. 2007, 26, 828–841. [Google Scholar] [CrossRef]
  30. Lehotay, S.J.; de Kok, A.; Hiemstra, M.; van Bodegraven, P. Validation of a fast and easy method for the determination of residues from 229 pesticides in fruits and vegetables using gas and liquid chromatography and mass spectrometric detection. J. AOAC Int. 2005, 88, 595–614. [Google Scholar]
  31. Kmellár, B.; Fodor, P.; Pareja, L.; Ferrer, C.; Martínez, M.A.; Valverde, A.; Fernandez-Alba, A.R. Validation and uncertainty study of a comprehensive list of 160 pesticide residues in multi-class vegetables by liquid chromatography-tandem mass spectrometry. J. Chromatogr. A 2008, 1215, 37–50. [Google Scholar]
  32. Lesueur, C.; Knittl, P.; Gartner, M.; Mentler, A.; Fuerhacker, M. Analysis of 140 pesticides from conventional farming foodstuff samples after extraction with the modified QuECheRS method. Food Control 2008, 19, 906–914. [Google Scholar] [CrossRef]
  33. Koesukwiwat, U.; Lehotay, S.J.; Miao, S.; Leepipatpiboon, N. High throughput analysis of 150 pesticides in fruits and vegetables using QuEChERS and low-pressure gas chromatography-Time-of-flight mass spectrometry. J. Chromatogr. A 2010, 1217, 6692–6703. [Google Scholar]
  34. Nocentini, M.; Focardi, C.; Fortini, M. Single laboratory validation and uncertainty estimation of multiresidues method for determination of pesticides in vegetables and fruits by using QuEChERS sample extraction and GC–MS (Abstract: P308-041). Toxicol. Lett. 2010, 196, S325. [Google Scholar] [CrossRef]
  35. Li, J.; Dong, F.; Xu, J.; Liu, X.; Li, Y.; Shan, W.; Zheng, Y. Enantioselective determination of triazole fungicide simeconazole in vegetables, fruits, and cereals using modified QuEChERS (quick, easy, cheap, effective, rugged and safe) coupled to gas chromatography/tandem mass spectrometry. Anal. Chim. Acta 2011, 702, 127–135. [Google Scholar] [CrossRef]
  36. Romero-González, R.; Garrido Frenich, A.; Martínez Vidal, J.L. Multiresidue method for fast determination of pesticides in fruit juices by ultra performance liquid chromatography coupled to tandem mass spectrometry. Talanta 2008, 76, 211–225. [Google Scholar] [CrossRef]
  37. Kolberg, D.I.; Prestes, O.D.; Adaime, M.B.; Zanella, R. Development of a fast multiresidue method for the determination of pesticides in dry samples (wheat grains, flour and bran) using QuEChERS based method and GC–MS. Food Chem. 2011, 125, 1436–1442. [Google Scholar] [CrossRef]
  38. Norli, H.R.; Christiansen, A.; Deribe, E. Application of QuEChERS method for extraction of selected persistent organic pollutants in fish tissue and analysis by gas chromatography mass spectrometry. J. Chromatogr. A 2011, 1218, 7234–7241. [Google Scholar]
  39. Nguyen, T.D.; Han, E.M.; Seo, M.S.; Kim, S.R.; Yun, M.Y.; Lee, D.M.; Lee, G.-H. A multi-residue method for the determination of 203 pesticides in rice paddies using gas chromatography/mass spectrometry. Anal. Chim. Acta 2008, 619, 67–74. [Google Scholar] [CrossRef]
  40. Pinto, C.G.; Laespada, M.E.F.; Martín, S.H.; Ferreira, A.M.C.; Pavón, J.L.P; Cordero, B.M. Simplified QuEChERS approach for the extraction of chlorinated compounds from soil samples. Talanta 2010, 81, 385–391. [Google Scholar] [CrossRef]
  41. García-Reyes, J.F.; Ferrer, C.; Gómez-Ramos, M.J.; Fernández-Alba, A.R.; García-Reyes, J.F.; Molina-Díaz, A. Determination of pesticide residues in olive oil and olives. TrAC Trends Anal. Chem. 2007, 26, 239–251. [Google Scholar]
  42. Wilkowska, A.; Biziuk, M. Determination of pesticide residues in food matrices using the QuEChERS methodology. Food Chem. 2009, 125, 803–812. [Google Scholar] [CrossRef]
  43. Blasco, C.; Vazquez-Roig, P.; Onghena, M.; Masia, A.; Picó, Y. Analysis of insecticides in honey by liquid chromatography–ion trap-mass spectrometry: Comparison of different extraction procedures. J. Chromatogr. A 2011, 1218, 4892–4901. [Google Scholar] [CrossRef]
  44. Wiest, L.; Buleté, A.; Giroud, B.; Fratta, C.; Amic, S.; Lambert, O.; Pouliquen, H.; Arnaudguilhem, C. Multi-residue analysis of 80 environmental contaminants in honeys, honeybees and pollens by one extraction procedure followed by liquid and gas chromatography coupled with mass spectrometric detection. J. Chromatogr. A 2011, 1218, 5743–5786. [Google Scholar] [CrossRef]
  45. Walorczyk, S.; Gnusowski, B. Development and validation of a multi-residue method for the determination of pesticides in honeybees using acetonitrile-based extraction and gas chromatography-tandem quadrupole mass spectrometry. J. Chromatogr. A 2009, 1216, 6522–6531. [Google Scholar] [CrossRef]
  46. Tapparo, A.; Giorio, C.; Soldà, L.; Bogialli, S.; Marton, D.; Marzaro, M.; Girolami, V. UHPLC-DAD method for the determination of neonicotinoid insecticides in single bees and its relevance in honeybee colony loss investigations. Anal.Bioanal. Chem. 2013, 405, 1007–1014. [Google Scholar] [CrossRef]
  47. Bargańska, Ż.; Ślebioda, M.; Namieśnik, J. Pesticide residues levels in honey from apiaries located of Northern Poland. Food Control 2013, 31, 196–201. [Google Scholar] [CrossRef]
  48. SANCO/12495/2011. Method Validation and Quality Control Procedures for Pesticide Residues Analysis in Food and Feed. Available online: http://ec.europa.eu/food/plant/plant_protection_products/guidance_documents/docs/qualcontrol_en.pdf (accessed on 11 November 2013).
  49. Johnson, R.M.; Ellis, M.D.; Mullin, C.A.; Frazier, M. Pesticides and honey bee toxicity—USA. Apidologie 2010, 41, 312–331. [Google Scholar] [CrossRef]
  50. Tomlin, C.D.S. The Pesticide Manual, A World Compendium, 12th ed.; British Crop Protection Council: Surry, UK, 2000; pp. 502–504. [Google Scholar]
  51. Qualls, W.A.; Xue, R.D.; Zhong, H. Impact of bifenthrin on honeybees and Culex quinquefasciatus. J. Am. Mosq. Control Assoc. 2010, 26, 223–225. [Google Scholar] [CrossRef]
  52. Washburn, A.D. The Environmental Fate of Methidathion. Available online: http://www.cdpr.ca.gov/docs/emon/pubs/fatememo/methidathion.pdf (accessed on 8 August 2013).
  53. Snedeker, S. Pesticides and Breast Cancer Risk, an Evaluation of Alachlor. Cornell University Program on Breast Cancer and Environmental Risk Factors in New York State (BCERF). Fact Sheet 2000, 32, 1–6. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.

Share and Cite

MDPI and ACS Style

Bargańska, Ż.; Ślebioda, M.; Namieśnik, J. Determination of Pesticide Residues in Honeybees using Modified QUEChERS Sample Work-Up and Liquid Chromatography-Tandem Mass Spectrometry. Molecules 2014, 19, 2911-2924. https://doi.org/10.3390/molecules19032911

AMA Style

Bargańska Ż, Ślebioda M, Namieśnik J. Determination of Pesticide Residues in Honeybees using Modified QUEChERS Sample Work-Up and Liquid Chromatography-Tandem Mass Spectrometry. Molecules. 2014; 19(3):2911-2924. https://doi.org/10.3390/molecules19032911

Chicago/Turabian Style

Bargańska, Żaneta, Marek Ślebioda, and Jacek Namieśnik. 2014. "Determination of Pesticide Residues in Honeybees using Modified QUEChERS Sample Work-Up and Liquid Chromatography-Tandem Mass Spectrometry" Molecules 19, no. 3: 2911-2924. https://doi.org/10.3390/molecules19032911

Article Metrics

Back to TopTop
