Article

Design of Highly Sensitive C2H5OH Sensors Using Self-Assembled ZnO Nanostructures

by
Kang-Min Kim
,
Hae-Ryong Kim
,
Kwon-Il Choi
,
Hyo-Joong Kim
and
Jong-Heun Lee
*
Department of Materials Science and Engineering, Korea University, Seoul 136-713, Korea
*
Author to whom correspondence should be addressed.
Sensors 2011, 11(10), 9685-9699; https://doi.org/10.3390/s111009685
Submission received: 5 September 2011 / Revised: 26 September 2011 / Accepted: 8 October 2011 / Published: 12 October 2011
(This article belongs to the Special Issue Sensing at the Nano-Scale: Chemical and Bio-Sensing)
Browse Figures
Versions Notes

Abstract

: Various ZnO nanostructures such as porous nanorods and two hierarchical structures consisting of porous nanosheets or crystalline nanorods were prepared by the reaction of mixtures of oleic-acid-dissolved ethanol solutions and aqueous dissolved Zn-precursor solutions in the presence of NaOH. All three ZnO nanostructures showed sensitive and selective detection of C2H5OH. In particular, ultra-high responses (Ra/Rg = ∼1,200, Ra: resistance in air, Rg: resistance in gas) to 100 ppm C2H5OH was attained using porous nanorods and hierarchical structures assembled from porous nanosheets, which is one of the highest values reported in the literature. The gas response and linearity of gas sensors were discussed in relation to the size, surface area, and porosity of the nanostructures.

1. Introduction

The chemo-resistive detection of reducing gases in n-type oxide semiconductors is determined by various factors such as the degree of electron depletion in nanostructures, the electron transfer across the necks or grain boundaries, the effective diffusion of analyte gases onto the sensor surface, the amount of oxygen adsorption on the surface, and the surface reaction between analyte gases and negatively charged adsorbed oxygen [1–8]. Most of the key factors in gas sensing reactions, except the surface reactions, can be effectively manipulated by proper control of the size, morphology, crystallinity, and agglomerated configuration of the nanostructures used. To achieve high gas responses, nanostructures with small size, high surface area, good crystallinity, macro-, meso- and nano-porosity, and less-agglomerated configurations are advantageous [9–13].

ZnO is one of the most representative chemo-resistive n-type oxide semiconductors. Many synthetic routes to prepare ZnO nanostructures have been suggested, which include hydrothermal reactions [14–16], ambient-atmosphere solution reactions at mild temperature (50–100 °C) [17–19] or room temperature [20,21], thermal evaporation [22], and microwave methods [23]. Among these, solution-based self-assembly reactions under ambient atmosphere provide facile and cost-effective methods to prepare various ZnO nanostructures with high surface areas. When the low-dimensional nano-building blocks such as 1-dimensional (1D) nanorods and 2D nanosheets are self-assembled into the higher dimensional hierarchical structures, well-defined porous architectures can be achieved without sacrifice of high surface area. Thus the gas response, as well as the response kinetics, can be enhanced significantly by the rapid and effective diffusion of analyte gases to the entire sensing surface [24–26].

The present authors have previously prepared ZnO hierarchical nanostructures assembled from dense nanosheets by the forced stirring of immiscible mixtures of oleic-acid-dissolved n-hexane solutions and aqueous solutions of dissolved Zn-precursors and subsequent addition of NaOH [27]. In this contribution, we further controlled the morphology and porosity of ZnO nanostructures by the reaction of mixtures of oleic-acid-dissolved ethanol solutions and the aqueous solutions of dissolved Zn-precursors in the presence of NaOH. Various nanostructures such as porous nanorods and hierarchical nanostructures consisting of porous nanosheets or crystalline nanorods could be synthesized by employing ethanol in the oleic-acid-dissolving solvent mixture instead of n-hexane, by controlling the addition of NaOH, or by mild heating of the solutions. Our main focus was directed at studying the effect of size, crystallinity, surface area, morphology, and nano-porosity of the various nanostructures on the gas response and linearity of the resulting gas sensors.

2. Experimental Section

The morphologies of Zn-precursors were controlled by changing the reaction steps and reaction temperatures. Three Zn-precursors with different morphologies were prepared: hierarchical structures assembled from nanosheets (referred as “H-NS” precursor); thin nanorods (“NR” precursor); hierarchical structures assembled from thick nanorods (“H-NR” precursor). These were converted into the corresponding ZnO nanostructure-like morphologies by heat treatment at 500 °C for 1 h, and will be referred to hereafter as the “H-NS”, “NR” and “H-NR” nanostructures, respectively.

2.1. Preparation of H-NS Precursors

Zn(NO3)2·6H2O (2.38 g, >99%, Kanto Chemical, Japan) was dissolved in deionized water (160 mL) after which ethanol (C2H5OH, 40 mL, 99%, Sigma Aldrich, USA) and oleic acid (C18H34O2, 1.28 g, >99%, Sigma Aldrich, USA) were added to the solution in sequence with stirring. While ethanol and oleic acid are miscible with each other, oleic acid is insoluble in aqueous solution. Thus, water-insoluble and ethanol-soluble surfactant (oleic acid) was provided continuously and gradually by the forced stirring of the emulsion mixture of the oleic-acid-dissolved ethanol solution and the dissolved Zn-precursor aqueous solution. After 50% NaOH aqueous solution (6.4 g, Samchun Chemical Co., Korea) was instantaneously poured into the mixture, the resulting emulsion was stirred for 1 h at room temperature.

2.2. Preparation of NR Precursors

50% NaOH aqueous solution (6.4 g) was dissolved in deionized water (160 mL). Then Zn(NO3)2·6H2O (2.38 g) dissolved in ethanol (40 mL) and oleic acid (1.28 g) were instantaneously poured into the solution in sequence. The solution was reacted for 1 h with continuous stirring.

2.3. Preparation of H-NR Precursors

Zn(NO3)2·6H2O (2.38 g) was dissolved in deionized water (200 mL). After the instantaneous addition of 50% NaOH solution (9.6 g), the solution was heated at 90 °C for 1 h. The resultant products were collected by centrifugation, washed several times with deionized water and ethanol, and dried at room temperature.

2.4. Characterization

The phase and crystallinity of the powders were analyzed by X-ray diffraction (XRD, Rigaku D/MAX-2500 V/PC). The morphology of the powders was investigated using field-emission scanning electron microscopy (FE-SEM, S-4800, Hitachi Co. Ltd., Japan). High resolution transmission electron microscopy (HR-TEM) (JEM-2100F) was used to examine the microstructure of the individual powders. To investigate the thermal decomposition of the precursors, Differential scanning calorimetry/thermogravimetric analyses (DSC/TGA) (SDT Q600, Ta instrument, Inc) were carried out under air in the temperature range from room temperature to 700 °C. The surface areas were measured by using the Brunauer–Emmett–Teller (BET) method (Tristar 3000, Micromeritics Co. Ltd.).

2.5. Gas Sensing Characteristics

The as-prepared precursors were prepared into a paste form and applied to an alumina substrate (size: 1.5 mm × 1.5 mm, thickness: 0.25 mm) having two Au electrodes (electrode width: 1 mm, electrode spacing: 0.2 mm). The sensor element was heated to 500 °C at 25 °C/min and then treated at this temperature for 1 h for conversion into pure ZnO nanostructures and to decompose the organic content of the paste. The sensor was placed in a quartz tube and the temperature of the furnace was stabilized at 400 °C. A flow-through technique with a constant flow rate of 500 cm3/min was used and 4-way valve was employed to switch the gas atmospheres. The gas responses (S = Ra/Rg, Ra: resistance in dry air, Rg: resistance in gas) to 100 ppm C2H5OH, CO, H2, and C3H8 were measured at 400 °C. The gas concentration was controlled by changing the mixing ratio of the parent gases (100 ppm C2H5OH, 100 ppm CO, 100 ppm H2, and 100 ppm C3H8, all in dry air balance) and dry synthetic air. The dc 2-probe resistance of the sensor was measured using an electrometer interfaced with a computer.

3. Results and Discussion

The phase and composition of as-prepared precursors and ZnO nanostructures after heat treatment at 500 °C for 1 h in air were examined by X-ray diffraction (XRD) (Figure 1). The H-NS and NR precursors were identified as the mixture between hexagonal ZnO (JCPDS #79-0207) and orthorhombic Zn(OH)2 (JCPDS #76-1778)[Figure 1(a,c)]. The Zn(OH)2 phase content was higher in NR precursors. In contrast, the H-NR precursors were identified as crystalline ZnO phase without Zn(OH)2 [Figure 1(e)]. All the three precursors were converted into pure ZnO by heat treatment at 500 °C for 1 h [Figure 1(b,d,f)].

As-prepared H-NS precursors were hierarchical structures assembled from nanosheets [Figure 2(a,b)]. The sizes of assembled hierarchical structures ranged from 3 to 5 μm. Closer inspection revealed that the 2-dimensional nano-building blocks (nanosheets) are extremely thin (5–10 nm) [Figure 2(c)]. The overall hierarchical morphology was maintained after heat treatment at 500 °C for 1 h [Figure 2(d,e)]. However, the relatively smooth surfaces of the as-prepared precursors [Figure 2(c)] were changed into nano-porous ones upon heat treatment [Figure 2(f)]. The nano-porous and sheet-like structures were further confirmed by TEM analysis [Figure 2(g,h)]. Well-developed crystalline structures were found in the local area [Figure 2(i)]. Two lattice planes with interplanar distances of 2.70 and 5.22 Å and an angle of 90 ° were observed in the lattice fringe, which corresponded to the (10–10) and (0001) planes of the ZnO (hexagonal) crystal structures, respectively.

The NR precursors consist of 1-dimensional nanorods [Figure 3(a–c)]. These nanorods were typically 2–3 μm long and 300–700 nm thick. Note that the surfaces of NR precursors are relatively clean and smooth [Figure 3(c)]. The rod morphology remained similar after heat treatment at 500 °C for 1 h [Figure 3(d–f)]. However, nano-porous structures developed on the surface of nanorods by heat treatment [Figure 3(f)]. The low and high magnification TEM images [Figure 3(g,h)] confirm again that nanorods are nano-porous and consist of small primary particles (size: 30 to 200 nm). Lattice image of local area showed that each primary particle is highly crystalline ZnO [Figure 3(i)].

The H-NR precursors were hierarchical structures assembled from nanorods [Figure 4(a–c)]. The relatively thick nanorods (typical thickness: ∼700 nm) with sharp edges were hierarchically assembled into an urchin-like morphology. A closer look revealed the hexagonal structures of the nanorods [Figure 4(c)]. This morphology was also found in other ZnO hierarchical structures prepared from different physico-chemical routes [28,29] and indicates the growth of highly crystalline ZnO nanorods along the [0001] direction. The hierarchical structures were maintained after heat treatment at 500 °C [Figures 4(d–f)]. The nanorods with sharp edges were identified as single crystalline ZnO by TEM analysis [Figures 4(g–i)].

It should be noted that the surfaces of heat-treated H-NR nanostructures remained smooth and dense after heat treatment [Figure 4(d–f)] while those of heat-treated H-NS and NR nanostructures were changed into nano-porous ones by the heat treatment [Figures 2(f) and 3(f)]. Considering the phases of H-NS [ZnO + Zn(OH)2] and NR [ZnO + Zn(OH)2], and H-NR precursors (pure ZnO) [Figure 1(a,c,e)], the development of nano-porous structures in the H-NS and NR nanostructures [Figures 2(f) and 3(f)] is thought to be related to the dehydration of the Zn(OH)2 phase during heat treatment.

To confirm above idea, the thermal evolutions of precursors were analyzed using DSC and TGA (Figure 5). The sharp endothermic peaks at ∼120 °C [Figure 5(a,b)] and the abrupt weight loss between 112–123 °C in H-NS and NR precursors can be attributed to the dehydration of Zn(OH)2 phase. This can be supported by the higher weight loss in NR precursors containing the more Zn(OH)2 phase [Figure 5(b)]. Indeed, neither the endothermic peak nor the abrupt weight loss near 112–123 °C was found in H-NR precursors [Figure 5(c)] without Zn(OH)2 phase.

The gas responses to 100 ppm C2H5OH, C3H8, CH4, CO and H2 were measured at 250–400 °C. The response to C2H5OH was higher than those to other gases and the highest gas response was attained at 340 °C (data not shown). Thus, the dynamic sensing transients to 0.2–1 ppm C2H5OH were measured at 340 °C (Figure 6). All the H-NS, NR and H-NR sensors showed very high responses, even to sub-ppm-level C2H5OH, and sensor resistances recovered to the air-level value reproducibly. The times to reach 90% variation in sensor resistance upon exposure to gas was defined as 90% response time (τres). The τres value of NR sensor (1,214 s) upon exposure to 1 ppm C2H5OH and air were higher than those of the H-NS (866 s) and H-NR (500 s) sensors. The NR precursors contained the largest amount of Zn(OH)2, while no Zn(OH)2 phase was found in H-NR precursors. Thus, the slowest response in NR sensor may be explained either by the change of nano-porosity or by the variation of trace amount of residual (OH)− radicals after heat-treatment. Longer times were required for response as the C2H5OH concentration decreased down to 0.2 ppm. Although the highest gas responses were attained at 340 °C, relatively sluggish response and recovery kinetics can limit the application of this sensor.

In order to enhance the response and recovery rates, the sensor temperature was increased to 400 °C. Figure 7 shows the sensing transients to 0.2–100 ppm C2H5OH at 400 °C (Figure 7). In all the three sensors, the gas responses to C2H5OH decreased with increasing sensor temperature. Nevertheless, the responses to 0.2–1 ppm C2H5OH of H-NS (Ra/Rg =3.1–8.9), NR (Ra/Rg = 1.2–1.8), and H-NR sensors (Ra/Rg = 1.9–2.5) were still very high and enough to detect sub-ppm-levels of C2H5OH. The τres value of the NR sensor upon exposure to 1 ppm C2H5OH and air were markedly decreased to 1.8 s and the τres values of H-NS and H-NR sensors were also decreased significantly to 8.9 and 4.5 s, respectively. Taking into account both of gas response and gas responding speed, the operation of the sensor at 400 °C is more advantageous.

The gas responses to 100 ppm C2H5OH, C3H8, CH4, CO and H2 at 400 °C were compared (Figure 8). The responses to 100 ppm C2H5OH of H-NS and NR sensors were 1,171.6 and 1,285.1, respectively, which were significantly higher than those to C3H8, CH4, CO and H2 [Figure 8(a,b)]. Although the response to 100 ppm C2H5OH of H-NR sensor (203.0) was smaller than those of H-NS and NR sensors, it is still sufficiently higher than the responses to other gases (1.5–2.3) [Figure 8(c)]. Accordingly, all the sensors in the present study can be used for the selective detection of C2H5OH with minimum cross-sensitivities to C3H8, CH4, CO and H2. High selectivity to C2H5OH may be attributed to the higher chemical interaction between C2H5OH and ZnO surface, the more active electrochemical interaction between C2H5OH and O− on the surface of ZnO.

The responses to C2H5OH of the sensors at 340 and 400°C and those of various ZnO nanostructures in the literature [19,23,30–39] were plotted in Figure 9. At the sensor temperature of 340 °C, the H-NS sensor showed the highest responses to 0.2–1 ppm C2H5OH, followed by NR sensor and H-NR sensor. The same order was also found in the gas responses to sub-ppm-level C2H5OH at 400 °C although the absolute response values were decreased. However, the order of gas responses was changed as increasing C2H5OH concentration to 25–100 ppm. In the log-log plot, the gas responses of H-NS and NR sensors abruptly increase near 5–25 ppm C2H5OH, while those of H-NR sensors increase linearly with the entire range of concentration. As a result, the responses to 25–100 ppm C2H5OH of NR sensors become larger than those of H-NR sensors.

The pore size and volume distribution and surface area were analyzed by nitrogen adsorption-desorption isotherm measurements (Figure 10). The surface areas of H-NS, NR and H-NR nanostructures after heat treatment at 500 °C for 1 h were 17.2, 7.7 and 4.5 m2/g, respectively. The pore volumes of H-NS nanostructures over the entire pore sizes were substantially higher than those of NR and H-NR nanostructures, which agree well with the highest gas response of H-NS sensor. The pore volumes of NR nanostructures in the size range of 2–10 nm are slightly larger than those of H-NR nanostructures, whereas the pore volumes of NR nanostructures in the size range of 10–100 nm are significantly higher than those of H-NR nanostructures. The order of gas response values to 25–100 ppm C2H5OH can be explained by the different surface areas available for gas sensing. However, at glance, it is difficult to explain why the H-NR sensors with lower surface area (4.5 m2/g) show the higher responses to sub-ppm-level C2H5OH than the NR sensors with a higher surface area (7.7 m2/g). Although further study is needed, a plausible explanation can be given as follows: at low concentration range, the gas sensing reaction may occur more effectively on the surface of highly crystalline H-NR sensors rather than on the surface of nano-porous and polycrystalline NR sensor. The amount of oxygen adsorption can vary according to the crystallographic planes of oxide nanocrystals, which is supported by the literature [40] which states that the gas responses depend closely on the preferred orientation of ZnO nanocrystals. Thus, the high response of H-NR sensors despite its low surface area might be attributed to the enhanced gas sensing behaviors at the specific crystallographic plane.

It should be noted that non-linear gas response behaviors are only found at the H-NS and NR sensors with nano-porous structures developed from the heat-treatment of hydroxide precursors. At low concentration, most of the analyte gas will be consumed by the reaction with negatively charged oxygen on the outermost surfaces. However, as analyte concentration increases, excess analyte gas can diffuse further into the inner part of nanopores, which provides an additional contribution to the gas sensing reaction. Thus, the non-linear sensing behaviors at high C2H5OH concentration can be explained by the additional gas sensing reaction within the nanopores.

At the sensing temperature of 400°C, the low detection limit of C2H5OH of H-NS sensor was estimated to be <0.057 ppm from the extrapolation of the linear part at the low concentration range (0.2 to 10 ppm C2H5OH), when the criterion for gas detection was set to Ra/Rg > 1.2. This demonstrates that the present sensor can be used to detect the several-tens-ppb-levels of C2H5OH. Moreover, the deviation of gas responses from the linear regime at the high C2H5OH concentration range leads to ultra-high gas responses. The gas responses of H-NS and NR sensors to 100 ppm C2H5OH are ∼1,200, which are among the highest values reported in the literature for ZnO nanowires [30–33], nanorods [34], nanoparticles [35,36], nanofibers [37], and hierarchical nanostructures [19,23,27,38,39] (Figure 9). The linear sensing behaviors over the concentration range between 0.2 to 100 ppm could be obtained using H-NR sensor. These clearly show that the high gas response and linearity can be effectively designed by controlling the size, morphology, and macro- and nano-porosity of the nanostructures.

4. Conclusions

Three different morphologies of ZnO nanostructures for gas sensor applications were prepared by controlling the solvent to dissolved surfactant, the NaOH addition procedure, and the solution temperature during an oleic-acid-based self-assembly reaction. In the log-log plot of gas responses and analyte (C2H5OH) concentration, the hierarchical structures assembled from dense and crystalline nanosheets showed linear sensing behaviors. In contrast, the gas responses of porous nanorods and hierarchical structures assembled from porous nanosheets showed a deviation from the linear line above 5–10 ppm C2H5OH and lead to ultra-high responses (Ra/Rg = ∼1,200, Ra: resistance in air, Rg: resistance in gas) to 100 ppm C2H5OH. This non-linearity of gas responses at high C2H5OH concentration was attributed to the additional gas sensing reaction occurring within the nanopores by the diffusion of excess analyte gas into the nanopores. The results show that not only the linear sensing but also the ultra-high gas response can be effectively designed by the control of size, morphology, and porosity of nanostructures.

Acknowledgments

This work was supported by KOSEF NRL program grant funded by the Korean government (MEST) (No.R0A-2008-000-20032-0) and the Fundamental R&D program for Core Technology of Materials (M2008010013) funded by Ministry of Knowledge Economy.

References

  1. Yamazoe, N. Toward innovations of gas sensor technology. Sens. Actuat. B 2005, 108, 2–14. [Google Scholar]
  2. Barsan, N; Weimar, N. Conduction model of metal oxide gas sensors. J. Electroceram 2001, 7, 143–167. [Google Scholar]
  3. Franke, ME; Koplin, TJ; Simon, U. Metal and metal oxide nanoparticles in chemiresistors: Does the nanoscale matter? Small 2006, 2, 36–50. [Google Scholar]
  4. Shimizu, Y; Egashira, M. Basic aspects and challenges of semiconductor gas sensors. MRS Bull 1999, 24, 18–24. [Google Scholar]
  5. Kolmakov, A; Moskovits, M. Chemical sensing and catalyst by one-dimensional metal oxide nanostructures. Annu. Rev. Mater. Res 2004, 34, 151–180. [Google Scholar]
  6. Comini, E; Bratto, C; Faglia, G; Ferroni, A; Vomiero, M; Sberveglieri, G. Quasi-one dimensional metal oxide semiconductors: preparation and characterization and application as chemical sensors. Prog. Mater. Sci 2009, 54, 1–67. [Google Scholar]
  7. Brinzari, V; Korotchenkov, G; Golovanov, V. Factors influencing the gas sensing characteristics of tin dioxide films deposited by spray pyrolysis: Understanding and possibilities of control. Thin Solid Films 2001, 391, 167–175. [Google Scholar]
  8. Sakai, G; Matsunaga, N; Shimanoe, K; Yamazoe, N. Theory of gas-diffusion controlled sensitivity for thin film semiconductor gas sensor. Sens. Actuat. B 2001, 80, 125–131. [Google Scholar]
  9. Xu, CN; Tamaki, J; Miura, N; Yamazoe, N. Grain size effects on gas sensitivity of porous SnO2-based elements. Sens. Actuat. B 1991, 3, 147–155. [Google Scholar]
  10. Kida, T; Doi, T; Shimanoe, K. Synthesis of monodispersed SnO2nanocrystals and their remarkably high sensitivity to volatile organic compounds. Chem. Mater 2010, 8, 2662–2667. [Google Scholar]
  11. Rossinyol, E; Prim, A; Pellicer, E; Arbiol, J; Hernández-Ramírez, F; Peiró, F; Cornet, A; Morante, JR; Solovyov, LA; Tian, B; Bo, T; Zhao, D. Synthesis and characterization of chromium-doped mesoporous tungsten oxide for gas sensing applications. Adv. Funct. Mater 2007, 17, 1801–1806. [Google Scholar]
  12. Lee, C-Y; Kim, S-J; Hwang, I-S; Lee, J-H. Glucose-mediated hydrothermal synthesis and gas sensing characteristics of WO3 hollow microspheres. Sens. Actuat. B 2009, 142, 236–242. [Google Scholar]
  13. Kim, H-J; Choi, K-I; Pan, A; Kim, I-D; Kim, H-R; Kim, K-M; Na, C-W; Cao, G; Lee, J-H. Template-free solvothermal synthesis of hollow hematite spheres and their applications in gas sensors and Li-ion batteries. J. Mater. Chem 2011, 21, 6549–6555. [Google Scholar]
  14. Liu, B; Zeng, HC. Hydrothermal Synthesis of ZnO Nanorods in the Diameter Regime of 50 nm. J. Am. Chem. Soc 2004, 125, 4430–4431. [Google Scholar]
  15. Zhang, Y; Mu, J. Controllable synthesis of flower- and rod-like ZnO nanostructures by simply tuning the ratio of sodium hydroxide to zinc acetate. Nanotechnology 2007, 18, 075606. [Google Scholar]
  16. Cho, P-S; Kim, K-W; Lee, J-H. NO2 sensing characteristics of ZnO nanorods prepared by hydrothermal method. J. Electroceram 2005, 17, 975–978. [Google Scholar]
  17. Yamabi, S; Imai, H. Growth conditions for wurzite zinc oxide films in aqueous solutions. J. Mater. Chem 2002, 12, 3773–3778. [Google Scholar]
  18. Pal, U; Santiago, P. Controlling the Morphology of ZnO Nanostructures in a Low-Temperature Hydrothermal Process. J. Phys. Chem. B 2005, 109, 15317–15321. [Google Scholar]
  19. Huang, J; Wu, Y; Gu, C; Zhai, M; Yu, K; Yang, M; Liu, J. Large-scale synthesis of flowerlike ZnO nanostructures by a simple chemical solution route and its gas-sensing property. Sens. Actuat. B 2010, 146, 206–212. [Google Scholar]
  20. Liu, B; Zeng, HC. Room temperature solution synthesis of monodispersed single-crystalline ZnO nanorods and derived hierarchical nanostructures. Langmuir 2004, 20, 4196–4204. [Google Scholar]
  21. Zhao, W; Song, X; Yin, Z; Fan, C; Chen, G; Sun, S. Self-assembly of ZnO nanosheets into nanoflowers at room temperature. Mater. Res. Bull 2008, 43, 3171–3176. [Google Scholar]
  22. Fan, Z; Wang, D; Chang, P-C; Tseng, W-Yu; Lu, JG. ZnO nanowire field effect transistor and oxygen sensing property. Appl. Phys. Lett 2004, 86, 5932. [Google Scholar]
  23. Zing, Z; Zhan, J. Fabrication and gas-sensing properties of porous ZnO nanoplates. Adv. Mater 2008, 20, 4547–4551. [Google Scholar]
  24. Lee, J-H. Gas sensors using hierarchical and hollow oxide nanostructures: Overview. Sens. Actuat. B 2009, 140, 319–336. [Google Scholar]
  25. Kim, H-R; Choi, K-I; Lee, J-H; Akbar, SA. Highly sensitive and ultra-fast responding gas sensors using self-assembled hierarchical SnO2 spheres. Sens. Actuat. B 2009, 136, 138–143. [Google Scholar]
  26. Choi, K-I; Kim, H-R; Lee, J-H. Enhanced CO sensing characteristics of hierarchical and hollow In2O3 microspheres. Sens. Actuat. B 2009, 138, 497–503. [Google Scholar]
  27. Kim, K-M; Kim, H-R; Choi, K-I; Kim, H-J; Lee, J-H. ZnO hierarchical nanostructures grown at room temperature and their C2H5OH sensor applications. Sens. Actuat. B 2011, 155, 745–751. [Google Scholar]
  28. Peterson, RB; Fields, CL; Gregg, BA. Epitaxial chemical deposition of ZnO nanocolumns from NaOH solutions. Langmuir 2004, 20, 5114–5118. [Google Scholar]
  29. Yi, R; Zhang, N; Zhou, H; Shi, R; Qui, G. Selective synthesis and characterization of flower-like ZnO microstructures via a facile hydrothermal route. Mater. Sci. Eng. B 2008, 153, 25–30. [Google Scholar]
  30. Hsueh, T-J; Hsu, C-L; Chang, S-L; Chen, I-C. Laterally grown ZnO nanowire ethanol sensors. Sens Actuat B 2007, 126, 473–477. [Google Scholar]
  31. Wan, Q; Li, QH; Chen, YJ; Wang, TH; He, XL; Li, JP; Lin, CL. Fabrication and ethanol sensing characteristics of ZnO nanowire gas sensors. Appl. Phys. Lett 2004, 84, 3654–3656. [Google Scholar]
  32. Calestani, D; Zha, M; Mosca, R; Zappettini, A; Carotta, MC; Natale, CD; Zanotti, L. Growth of ZnO tetrapods for nanostructure-based gas sensors. Sens. Actuat. B 2010, 133, 472–478. [Google Scholar]
  33. Hieu, NV; Chien, ND. Low-temperature growth and ethanol-sensing characteristics of quasi-one-dimensional ZnO nanostructures. Sens. Actuat. B 2008, 403, 50–56. [Google Scholar]
  34. Sun, Z-P; Liu, L; Zhang, L; Jia, D-Z. Rapid synthesis of ZnO nano-rods byone-step, room-temperature, solid-state reaction and their gas-sensing properties. Nanotechnology 2006, 17, 2266–2270. [Google Scholar]
  35. Singha, RC; Singha, O; Singh, MP; Chandic, PS. Synthesis of zinc oxide nanorods and nanoparticles by chemical route and their comparative study as ethanol sensors. Sens. Actuat. B 2008, 135, 352–357. [Google Scholar]
  36. Tamaekong, N; Liewhiran, C; Wisitsoraat, A; Phanichphant, S. Flame-spray-made undoped zinc oxide films for gas sensing applications. Sensors 2010, 10, 7863–7873. [Google Scholar]
  37. Wu, W-Y; Ting, J-M; Huang, P-J. Electrospun ZnO nanowires as gas sensors for ethanol detection. Nanoscale. Res. Lett 2009, 4, 513–517. [Google Scholar]
  38. Feng, P; Wan, Q; Wang, TH. Contact-controlled sensing properties of flowerlike ZnO nanostructures. Appl. Phys. Lett 2005, 87, 213111. [Google Scholar]
  39. Zhang, W-D; Zhang, W-H; Ma, X-Y. Tunable ZnO nanostructures for ethanol sensing. J. Mater. Sci 2009, 44, 4677–4682. [Google Scholar]
  40. Han, X; Jin, M; Xie, S; Kuang, Q; Jiang, Z; Jiang, Y; Xie, Z; Zheng, L. Synthesis of tin dioxide octahedral nanoparticles with exposed high-energy {221} facets and enhanced gas-sensing properties. Angew. Chem. Int. Ed. Engl 2009, 48, 9180–9183. [Google Scholar]
Sensors 11 09685f1 1024

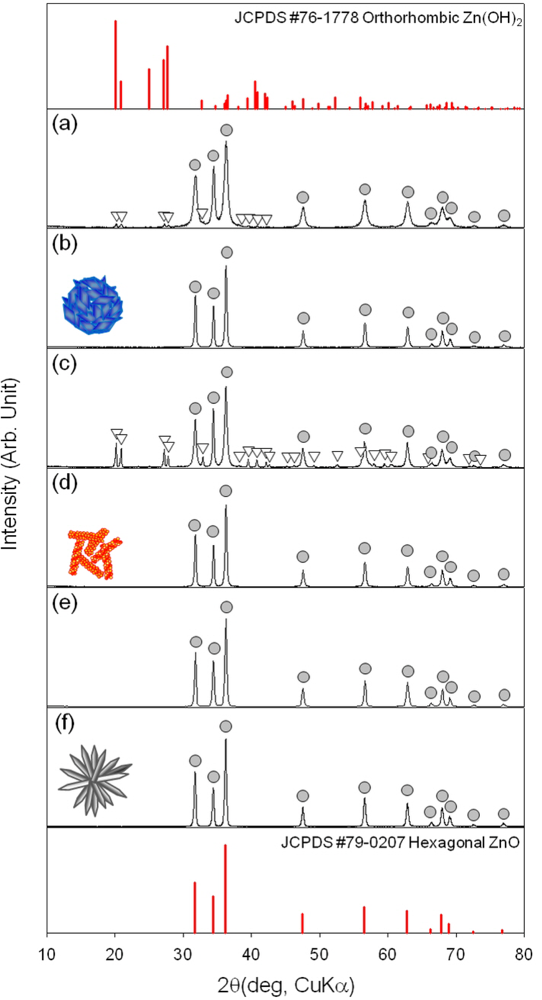

Figure 1. X-ray diffraction patterns of (a) H-NS precursors; (b) H-NS nanostructures; (c) NR precursors; (d) NR nanostructures; (e) H-NR precursors; and (f) H-NR nanostructures. H-NS, NR, and H-NR ZnO nanostructures were prepared by heat treatment of H-NS, NR, and H-HR precursors at 500 °C for 1 h, respectively.
Figure 1. X-ray diffraction patterns of (a) H-NS precursors; (b) H-NS nanostructures; (c) NR precursors; (d) NR nanostructures; (e) H-NR precursors; and (f) H-NR nanostructures. H-NS, NR, and H-NR ZnO nanostructures were prepared by heat treatment of H-NS, NR, and H-HR precursors at 500 °C for 1 h, respectively.
Sensors 11 09685f1 1024
Sensors 11 09685f2 1024

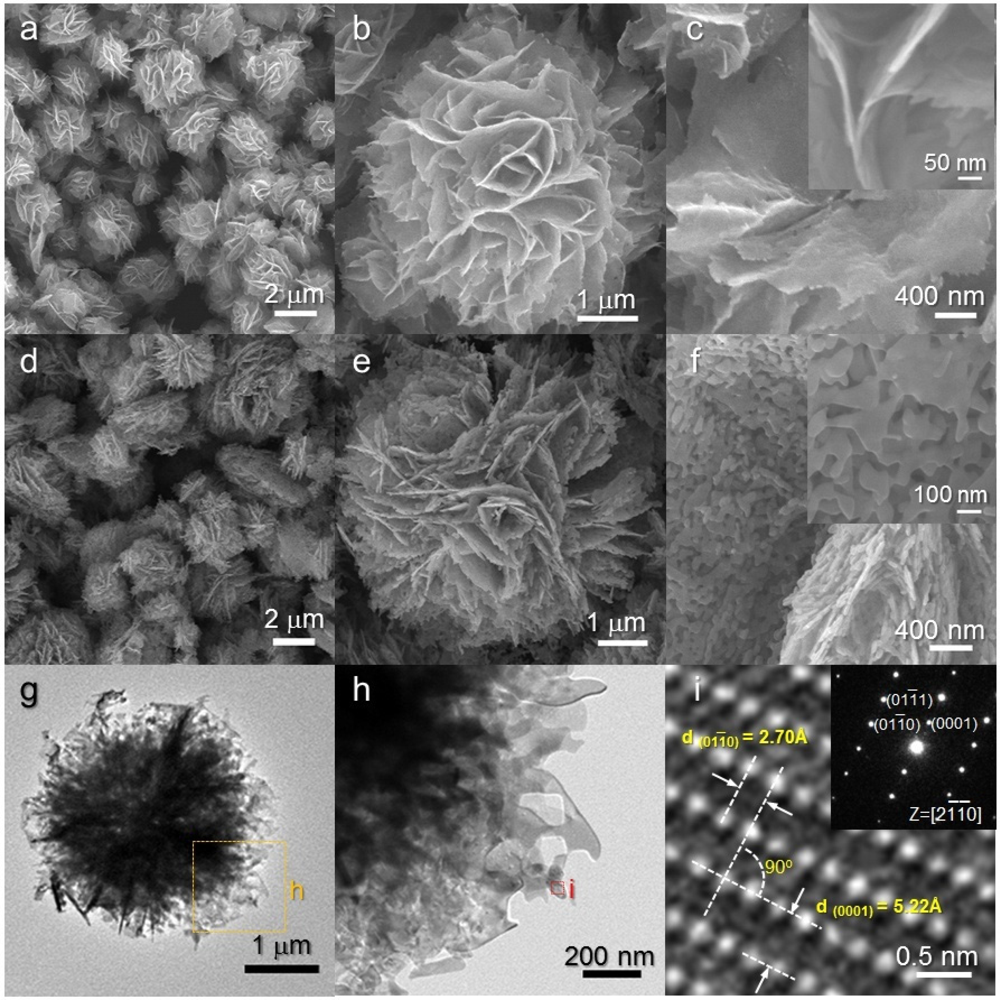

Figure 2. (a–c) SEM images of as-prepared H-NS precursors; (d–f) SEM images of heat-treated H-NS ZnO nanostructures; (g–i) TEM images of heat-treated H-NS ZnO nanostructures.
Figure 2. (a–c) SEM images of as-prepared H-NS precursors; (d–f) SEM images of heat-treated H-NS ZnO nanostructures; (g–i) TEM images of heat-treated H-NS ZnO nanostructures.
Sensors 11 09685f2 1024
Sensors 11 09685f3 1024

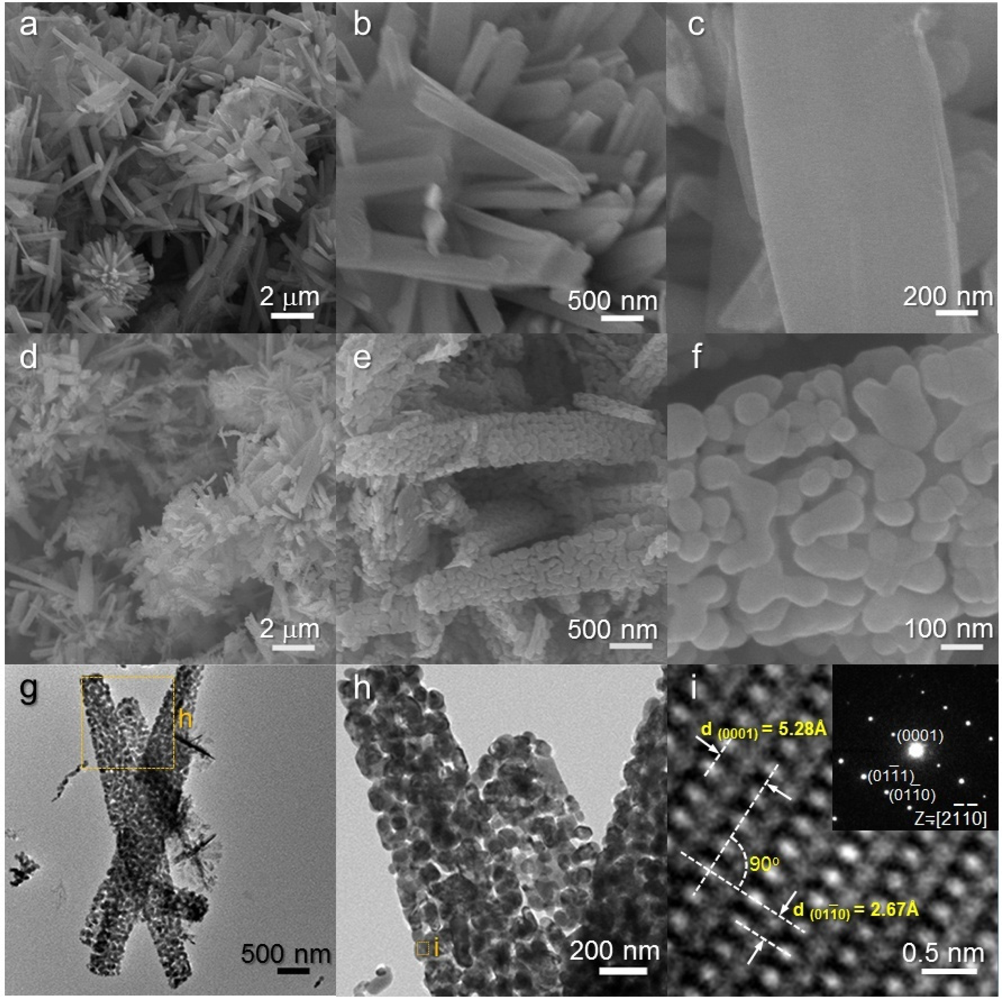

Figure 3. (a–c) SEM images of as-prepared NR precursors; (d–f) SEM images of heat-treated NR ZnO nanostructures; (g–i) TEM images of heat-treated NR ZnO nanostructures.
Figure 3. (a–c) SEM images of as-prepared NR precursors; (d–f) SEM images of heat-treated NR ZnO nanostructures; (g–i) TEM images of heat-treated NR ZnO nanostructures.
Sensors 11 09685f3 1024
Sensors 11 09685f4 1024

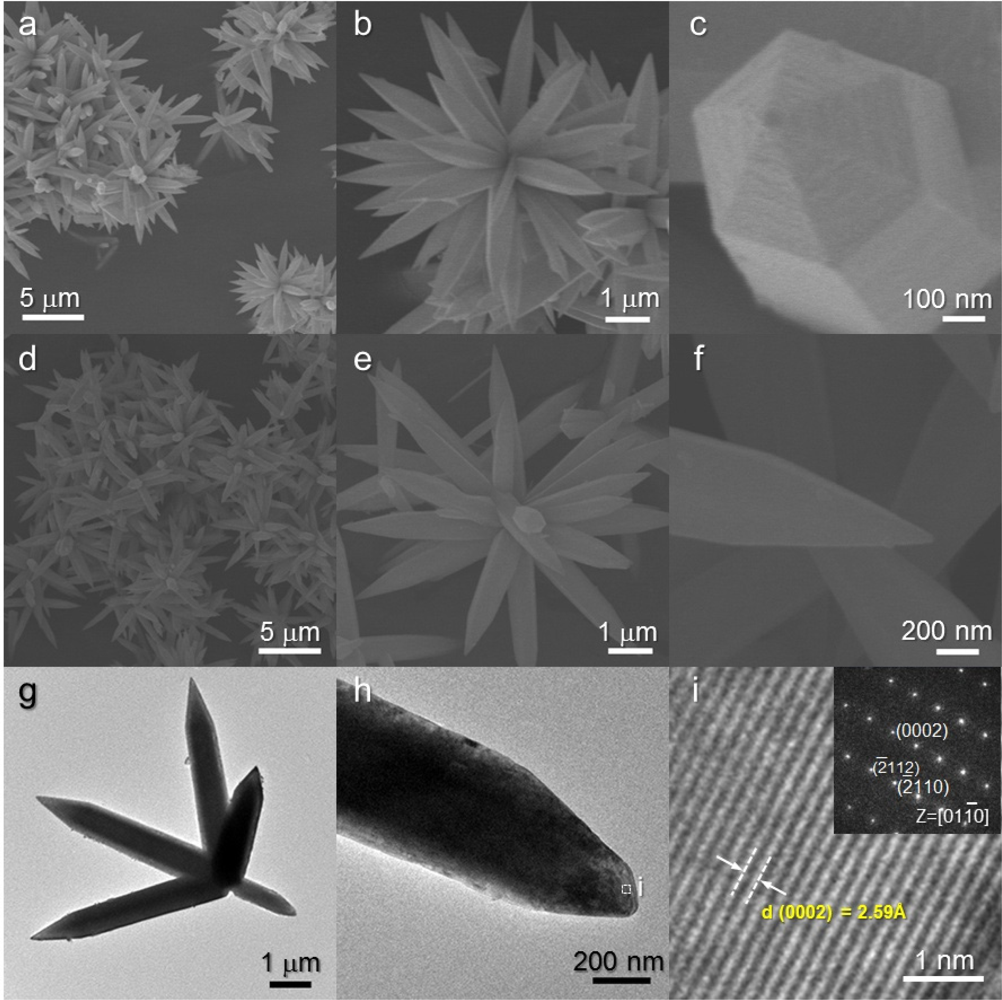

Figure 4. (a–c) SEM images of as-prepared H-NR precursors; (d–f) SEM images of heat-treated H-NR ZnO nanostructures; (g–i) TEM images of heat-treated H-NR ZnO nanostructures.
Figure 4. (a–c) SEM images of as-prepared H-NR precursors; (d–f) SEM images of heat-treated H-NR ZnO nanostructures; (g–i) TEM images of heat-treated H-NR ZnO nanostructures.
Sensors 11 09685f4 1024
Sensors 11 09685f5 1024

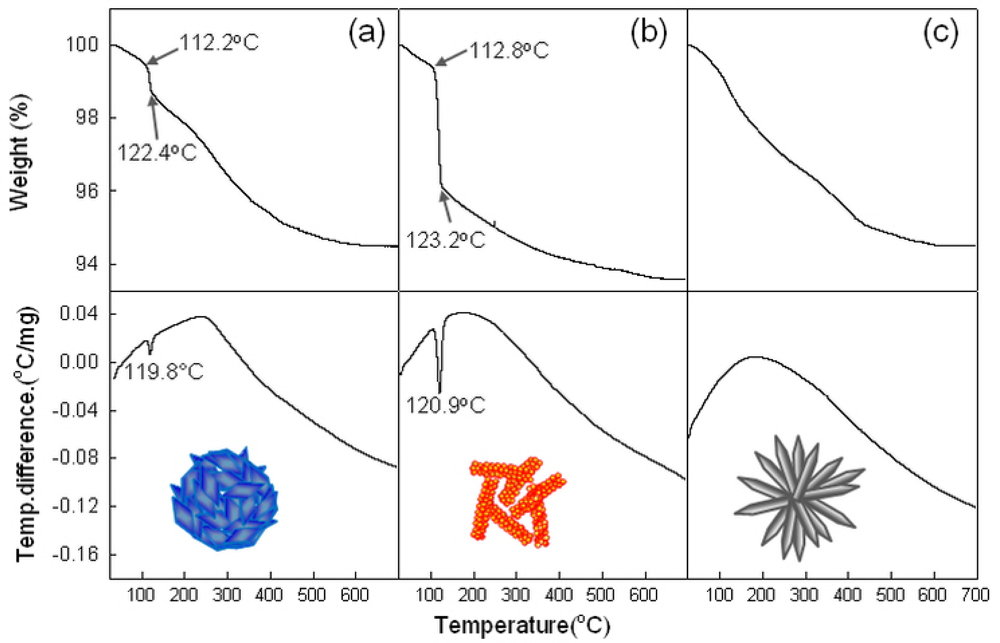

Figure 5. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA)curves of (a) H-NS precursors; (b) NR precursors; and (c) H-NR precursors.
Figure 5. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA)curves of (a) H-NS precursors; (b) NR precursors; and (c) H-NR precursors.
Sensors 11 09685f5 1024
Sensors 11 09685f6 1024

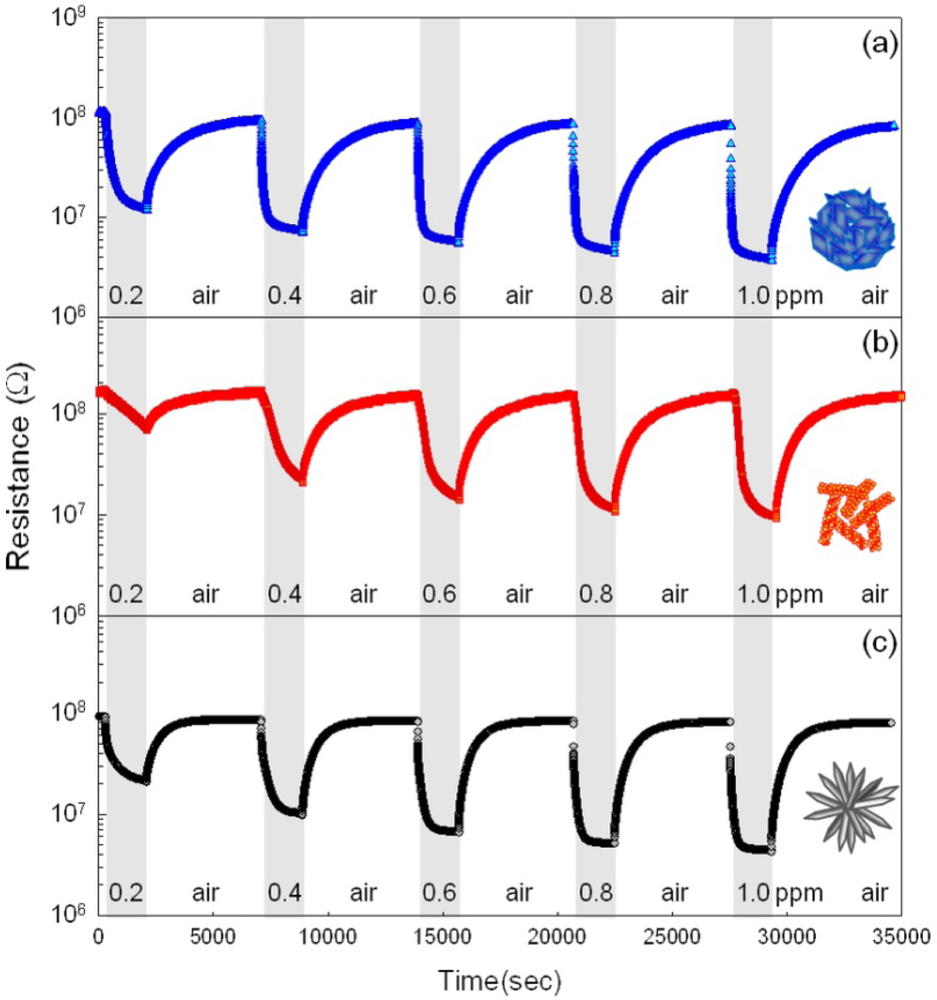

Figure 6. C2H5OH sensing transients of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 340 °C. (C2H5OH concentration: 0.2–1 ppm).
Figure 6. C2H5OH sensing transients of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 340 °C. (C2H5OH concentration: 0.2–1 ppm).
Sensors 11 09685f6 1024
Sensors 11 09685f7 1024

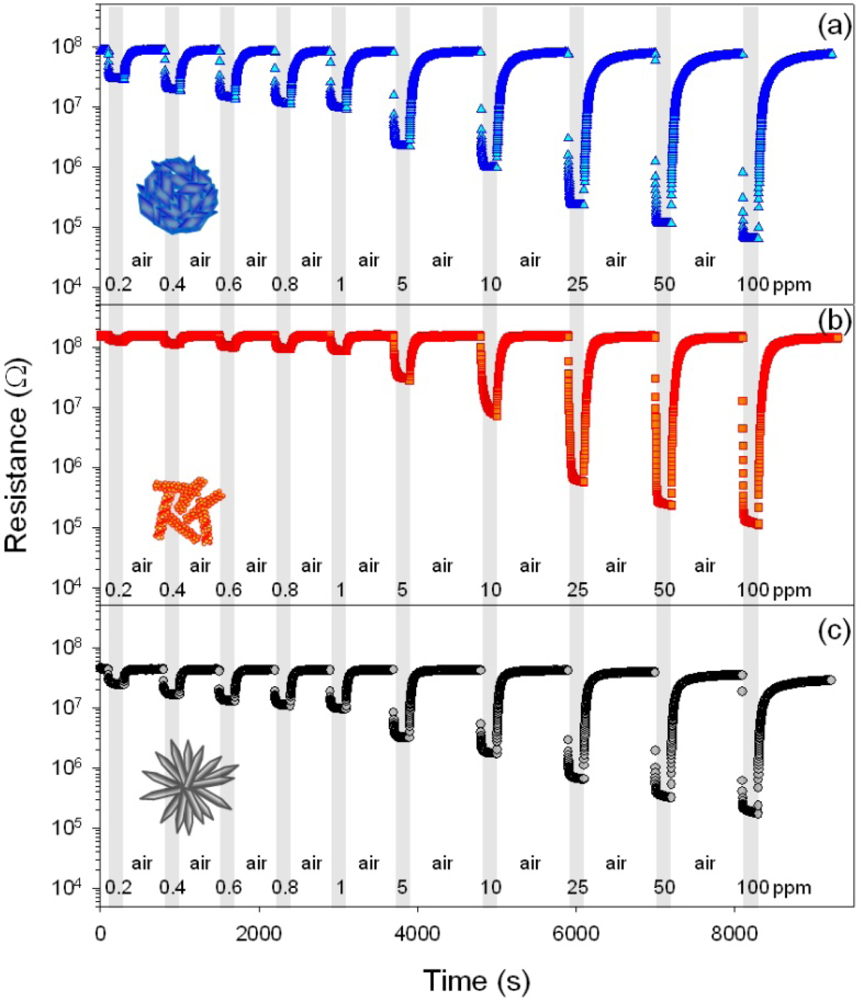

Figure 7. C2H5OH sensing transients of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 400 °C. (C2H5OH concentration: 0.2–100 ppm).
Figure 7. C2H5OH sensing transients of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 400 °C. (C2H5OH concentration: 0.2–100 ppm).
Sensors 11 09685f7 1024
Sensors 11 09685f8 1024

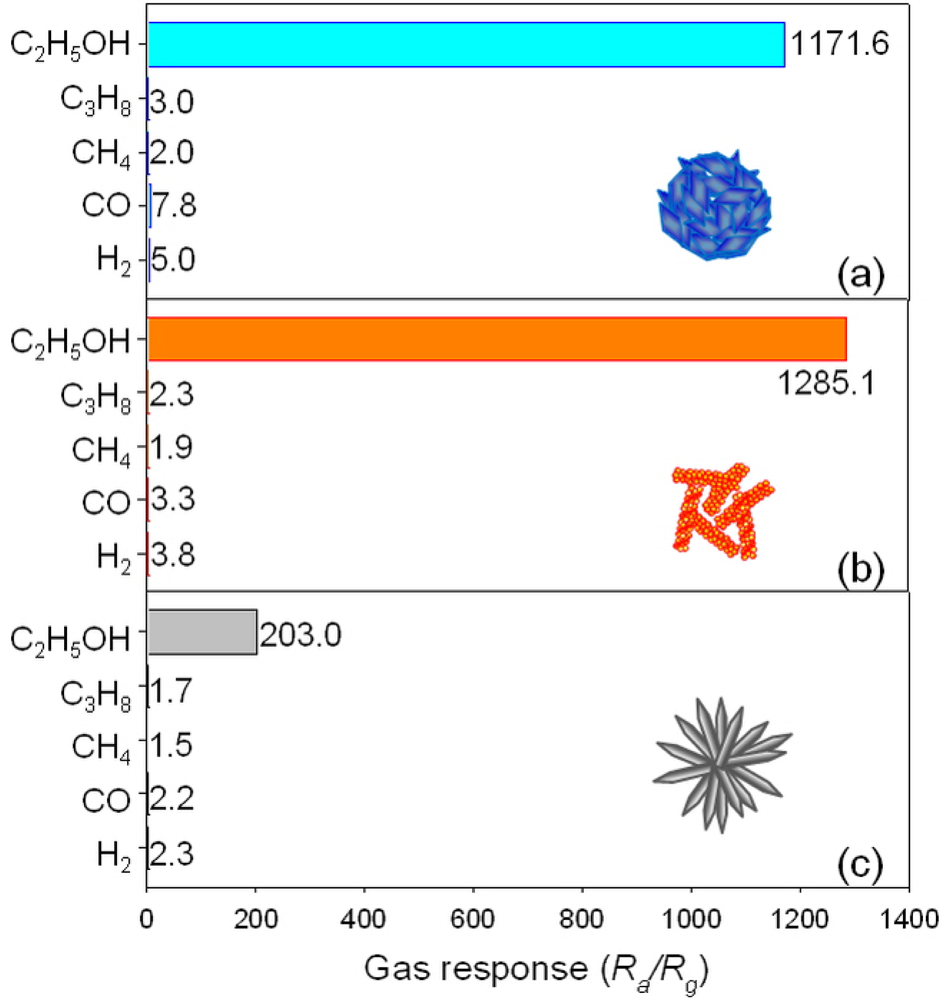

Figure 8. Gas responses to 100 ppm C2H5OH, C3H8, CH4, CO and H2 of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 400 °C.
Figure 8. Gas responses to 100 ppm C2H5OH, C3H8, CH4, CO and H2 of (a) H-NS sensor; (b) NR sensor; and (c) H-NR sensor at 400 °C.
Sensors 11 09685f8 1024
Sensors 11 09685f9 1024

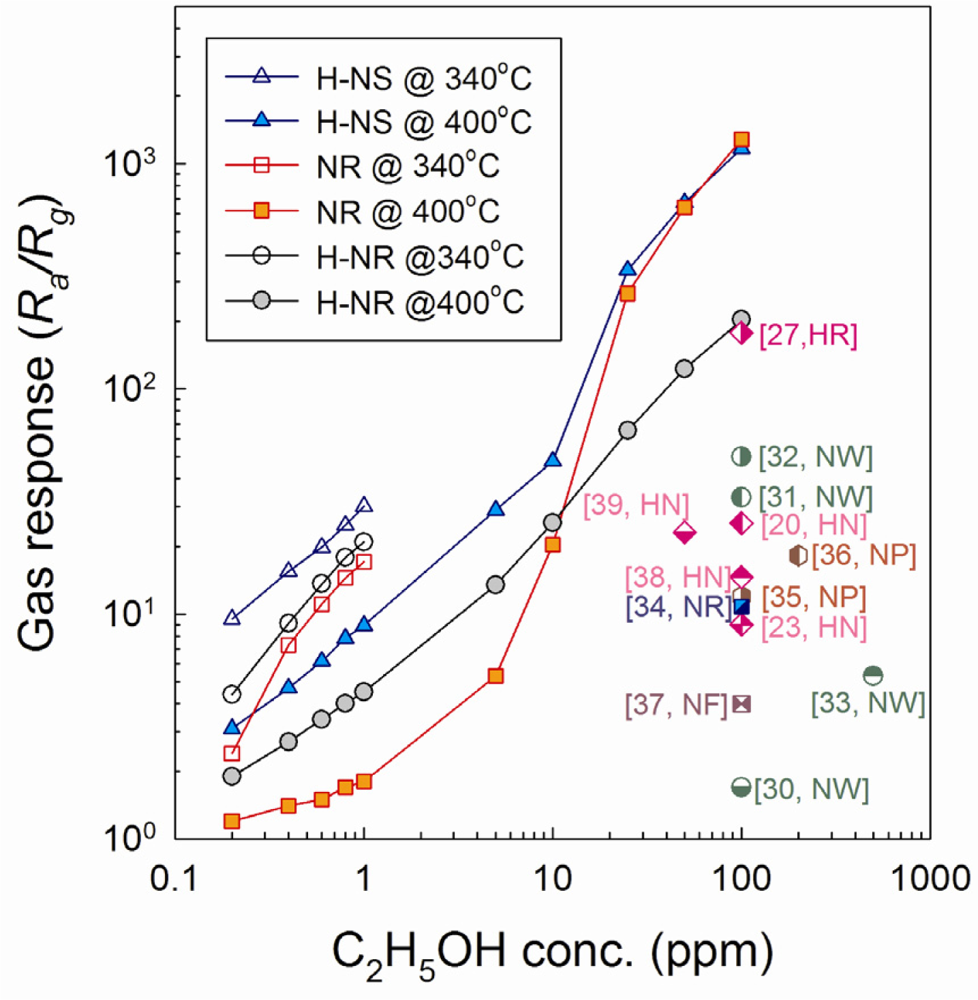

Figure 9. Gas responses to 0.2–100 ppm C2H5OH of H-NS, NR, and H-NR sensors at 340 and 400 °C in the present study and other pure ZnO nanostructured sensors in the literature [19,23,30–39]. (HN: hierarchical nanostructures, NW: nanowires, NP: nanoparticles, NR: Nanorods, NF: nanofibers).
Figure 9. Gas responses to 0.2–100 ppm C2H5OH of H-NS, NR, and H-NR sensors at 340 and 400 °C in the present study and other pure ZnO nanostructured sensors in the literature [19,23,30–39]. (HN: hierarchical nanostructures, NW: nanowires, NP: nanoparticles, NR: Nanorods, NF: nanofibers).
Sensors 11 09685f9 1024
Sensors 11 09685f10 1024

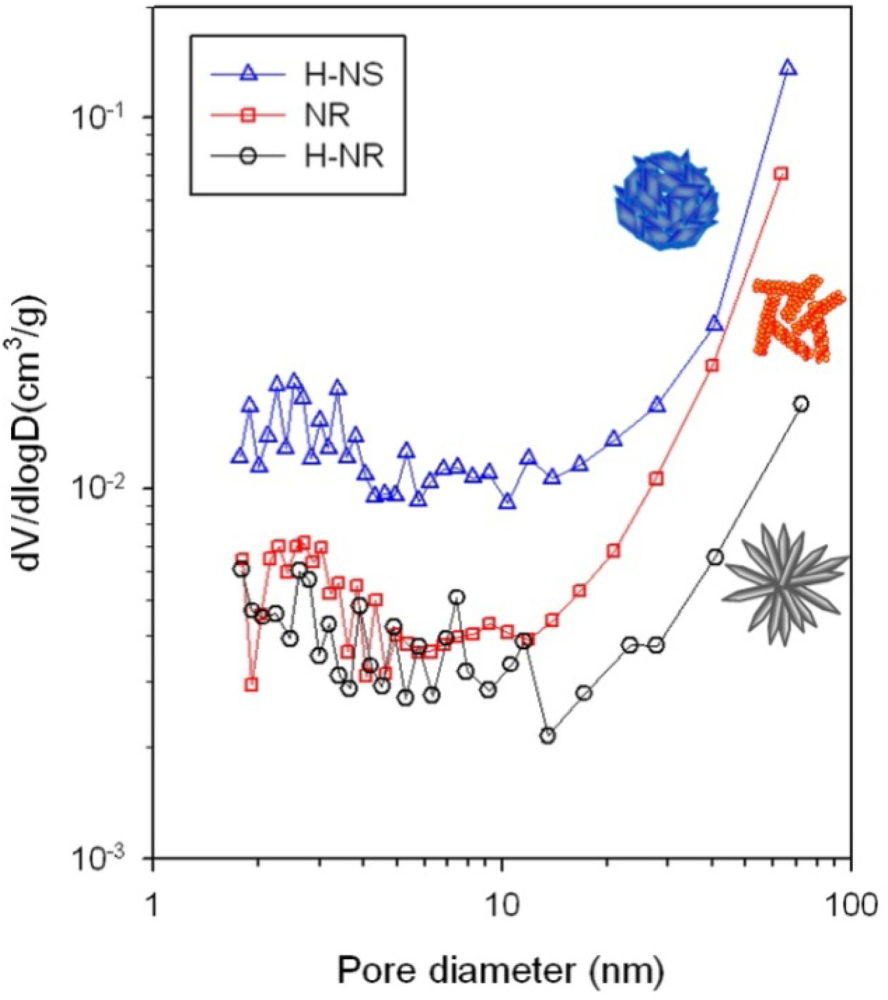

Figure 10. Pore size distributions of heat-treated H-NS, NR, and H-NR ZnO nanostructures determined from the nitrogen adsorption-desorption isotherm.
