Discrete and Polymeric, Mono- and Dinuclear Silver Complexes of a Macrocyclic Tetraoxime Ligand with AgI–AgI Interactions

by
Shohei Tashiro
,
Jun-ichiro Tanihira
,
Mihoko Yamada
and
Mitsuhiko Shionoya
*
Department of Chemistry, Graduate School of Science, the University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan
*
Author to whom correspondence should be addressed.
Sensors 2013, 13(5), 5671-5685; https://doi.org/10.3390/s130505671
Submission received: 3 March 2013 / Revised: 22 April 2013 / Accepted: 27 April 2013 / Published: 2 May 2013
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

: Macrocyclic compounds that can bind cationic species efficiently and selectively with their cyclic cavities have great potential as excellent chemosensors for metal ions. Recently, we have developed a tetraoxime-type tetraazamacrocyclic ligand 1 formed through a facile one-pot cyclization reaction. Aiming to explore and bring out the potential of the tetraoxime macrocycle 1 as a chelating sensor, we report herein the preparation of several kinds of silver complexes of 1 and their unique coordination structures determined by single-crystal X-ray diffraction analyses. As a result, the formation of two kinds of discrete structures, monomeric complexes [Ag(1)X] (X = counter anions) and a dimeric complex [Ag2(1)2]X2, and two kinds of polymeric structures from a mononuclear complex, [Ag(1)]nXn, and from a dinuclear complex, [Ag2(1)X2]n, was demonstrated. In the resulting complexes, the structurally flexible macrocyclic ligand 1 was found to provide several different coordination modes. Notably, in some silver complexes of 1, AgI–AgI interactions were observed with different AgI–AgI distances which depend on the kind of counter anions and the chemical composition.

1. Introduction

In the molecular design of chemosensors, macrocyclic compounds provide excellent structural and functional motifs due to their efficient and specific binding to analytes through multipoint interactions within restricted cyclic skeletons. So far, a great number of macrocyclic compounds such as crown ethers [1], cryptands [2], cyclic polyamines [3], porphyrins [4] and Schiff-base macrocycles [5] have been extensively used for cation [6] and anion [7] sensing by covalently attached chromophores, luminophores [8–10] or redox-active moieties [11], and for indicator-displacement assays (IDAs) in which an indicator molecule non-covalently bound to a host molecule is displaced by an analyte to cause signaling [12]. Recently, arrangement or immobilization of macrocycles on several interfaces or nanometer-sized materials allows for more practical sensing applications [13–15]. Therefore, while selection and combination of the signaling moieties are obviously important, it will also be necessary to develop novel chemically modifiable macrocyclic skeletons capable of binding analytes in well-defined modes.

Previously we reported the synthesis of a tetraoxime-type tetraazamacrocycle, 3,7,11,15-tetra-methyl-1,5,9,13,2,6,10,14-tetraoxatetraazacyclohexa-2,6,10,14-tetraene (1), by facile metal-template one-pot cyclization of a simple dioxime-type compound [16]. The macrocyclic ligand 1 can complex with various divalent transition metal ions such as FeII, NiII, CuII and PdII to form six-coordinate octahedral and four-coordinate square-planar structures. Notably, macrocycle 1 has a flexible, larger 16-membered cyclic skeleton compared with widely-used tetraazamacrocycles such as a 12-membered cyclen and a 14-membered cyclam. Moreover, the oxime nitrogen donors of 1 generally show lower Lewis basicity than nitrogen donors such as amine, imine and hydrazone. A unique coordination structure based on these features was preliminarily found in a crystalline, linear polymeric AgI complex in which Ag2L1-type dinuclear complexes are bridged by counter anions [16].

As part of the development of the metal binding ability of 1 as a basic structure of chemosensors, we found that ligand 1, depending on the kind of AgI salts, forms a variety of discrete or polymeric AgI complexes with different compositional ratios such as [Ag(1)], [Ag2(1)2] and [Ag2(1)] in the crystalline state (Figure 1). We also found AgI–AgI interactions in some crystal structures, in which the distances between two AgI ions vary with the kind of counter anions and/or the ligand-to-metal ratios. It is well known that metal-metal interactions of d10 metals such as CuI, AgI and AuI ions and square planar d8 metals such as RhI, PdII and PtII ions produce characteristic luminescence with appropriate ligands [17–21]. Although we have not so far observed such behaviour of the AgI complexes of 1, ligands capable of mediating metal-metal interactions would have great potential to serve as a luminescent chemosensor with appropriate bridging ligands or additional pendant ligand on the macrocycle.

2. Experimental Section

2.1. General Procedures

All solvents, organic and inorganic reagents except for the macrocyclic ligand 1 are commercially available, and were used without further purification. The ligand 1 was synthesised and isolated as colorless crystals via formation of the ferrous complex, [Fe(1)(CH3CN)2] (ClO4)2, according to our previous report [16]. Crystallisation of silver complexes was carried out in the dark. Single-crystal X-ray crystallographic analyses were performed using a Rigaku RAXIS-RAPID imaging plate diffractometer with MoKα (λ = 0.71075 Å) radiation, and data obtained were calculated using the CrystalStructure crystallographic software package except for refinement, which was performed using SHELXL-97 [22]. Crystallographic data and refinement details for obtained five complexes are shown in Table 1. The X-ray structures are displayed using the Mercury program.

2.2. Crystallisation of [Ag(1)NO3]

Ligand 1 (1.0 mg, 3.5 μmol) and AgNO3 (5.9 mg, 35 μmol) were dissolved in CH3CN (2 mL). The resulting solution was slowly evaporated for 2 days at room temperature. Colorless block crystals appeared with a powder of excess silver salts. One of the crystals was analysed by single-crystal X-ray diffraction measurement.

2.3. Crystallisation of [Ag(1)CF3SO3]

Ligand 1 (1.0 mg, 3.5 μmol) and AgCF3SO3 (9.0 mg, 35 μmol) were dissolved in CH3CN (1 mL). After addition of toluene (1 mL), the resulting mixed solution was slowly evaporated for 1 week at room temperature. Colorless plate crystals appeared with powder of excess silver salts. One of the crystals was analysed by single-crystal X-ray diffraction measurement.

2.4. Crystallisation of [Ag2(1)2] (SbF6)2

Ligand 1 (0.10 mg, 0.35 μmol) and AgSbF6 (0.60 mg, 1.75 μmol) were dissolved in CHCl3 (0.25 mL). The mixed solution was crystallised by slow diffusion of diethyl ether as a poor solvent at room temperature. After several days, colorless block crystals appeared and one of the crystals was analysed by single-crystal X-ray diffraction measurement.

2.5. Crystallisation of [Ag(1)]n(BF4)n

Ligand 1 (0.23 mg, 0.81 μmol) and AgBF4 (1.6 mg, 8.2 μmol) were dissolved in CH3CN (0.25 mL). After addition of toluene (0.25 mL), the resulting mixed solution was slowly evaporated for several days at room temperature. Colorless block crystals appeared with a powder of excess silver salts. One of the crystals was analysed by single-crystal X-ray diffraction measurement.

2.6. Crystallisation of [Ag2(1)(NO3)2]n

Ligand 1 (1.0 mg, 3.5 μmol) and AgNO3 (5.9 mg, 35 μmol) were dissolved in CH3CN (1 mL). After addition of toluene (1 mL), the resulting mixed solution was slowly evaporated for 1 week at room temperature. Colorless plate crystals appeared with a powder of excess silver salts. One of the crystals was analysed by single-crystal X-ray diffraction measurement.

3. Results

3.1. Two Discrete, Mononuclear Silver Complexes, [Ag(1)NO3] and [Ag(1)CF3SO3]

To precisely evaluate the molecular structures of silver complexes of 1 by single-crystal X-ray diffraction analysis, we examined crystallisation of mixed solutions of 1 with several kinds of silver salts. Crystallisation of the mixed solution of 1 with 10 equivalents of AgNO3 or AgCF3SO3 salts afforded similar mononuclear complexes, [Ag(1)NO3] or [Ag(1)CF3SO3], respectively. For example, when ligand 1 and AgNO3 were dissolved in CH3CN, colorless block crystals were obtained after slow evaporation. Single-crystal X-ray analysis of the resulting block crystal revealed the molecular structure of a neutral, mononuclear silver complex, [Ag(1)NO3] (Figure 2(a)). In this structure, four nitrogen atoms of 1 and two oxygen atoms of an NO3− ion bind to an AgI ion to form a six-coordinate structure (Figure 2(b)). The bound AgI ion does not fit into the N4-plane of 1, but sits on the four upturned nitrogen atoms of 1, resulting in the formation of a shuttlecock-like structure (Figure 2(c)). The structure of [Ag(1)NO3] is chiral so that both enantiomers exist in the crystal as a racemate.

Crystallisation of a mixed solution of 1 with AgCF3SO3 in CH3CN-toluene produced a similar complex, [Ag(1)CF3SO3] (Figure 2(d)). This structure also has a shuttlecock-like structure with a six-coordinate AgI ion bound by four nitrogen atoms of 1 and two oxygen atoms of a CF3SO3− anion (Figure 2(e,f)). This chiral complex [Ag(1)CF3SO3] also exists as a racemate in the crystal. In comparing Ag–N bond distances in both complexes, [Ag(1)NO3] and [Ag(1)CF3SO3], an average Ag–N distance of 2.490 Å for [Ag(1)CF3SO3] is significantly shorter than that of 2.536 Å for [Ag(1)NO3] (Tables 2 and 3). In contrast, an average Ag–O distance of 2.641 Å for [Ag(1)CF3SO3] is significantly longer than that of 2.513 Å for [Ag(1)NO3]. This is probably due to the difference in the basicities of both anions, CF3SO3− and NO3−.

3.2. A Discrete, Dimeric Silver Complex, [Ag2(1)2] (SbF6)2

Crystallisation of a solution of 1 and five equivalents of AgSbF6 in CHCl3 yielded colorless block crystals composed of a cationic, dimeric silver complex, [Ag2(1)2] (SbF6)2, as proven by single-crystal X-ray analysis (Figure 3(a)). In this structure, an AgI ion sits on the three upturned nitrogen atoms of 1 to form a shuttlecock-like structure which is similar to the structures of [Ag(1)NO3] and [Ag(1)CF3SO3]. However, another one nitrogen atom N(3) of 1 binds to another AgI ion to form a dimeric complex [Ag2(1)2]2+ with a four-coordinate AgI ion (Figure 3(b)). The average Ag–N distance of 2.421 Å for [Ag2(1)2]2+ (Table 4) is obviously shorter than those of six-coordinate [Ag(1)NO3] and [Ag(1)CF3SO3]. Notably, the resulting dimeric structure shows AgI–AgI interactions with a distance of 3.364 Å, which is shorter than the sum of van der Waals radii (Ag–Ag = 3.44 Å) [23,24]. The dimeric structure with a pair of AgI ions is composed of an enantiomeric pair arising from the chiral conformation of 1. In this crystal, the non-coordinating anions SbF6− do not bind to AgI, but are accommodated in the bowl-shaped pocket of 1 surrounded by four methyl groups (Figure 3(c)).

3.3. A Polymeric Silver Complex Based on Mononuclear Units, [Ag(1)]n(BF4)n

In contrast to the discrete structures described above, a polymeric, cationic silver complex, [Ag(1)]n(BF4)n, was obtained from complexation of 1 with 10 equivalents of AgBF4. Upon slow evaporation of a mixed solution of both components in CH3CN-toluene, colorless block crystals were obtained suitable for single-crystal X-ray analysis. In the crystal structure, ligand 1 adopts a non-chiral stair-like conformation and binds one AgI ion that is disordered between two positions that are 1.466 Å apart (0.5 occupancy each) (Figure 4(a)). The AgI ion adopts a three-coordinate geometry with two shorter and one longer Ag–N distances of 2.249, 2.359 and 2.630 Å, respectively (Table 5). For three nitrogen atoms bound to one AgI ion, two nitrogen atoms come from one ligand and the third nitrogen atom from another neighboring ligand (Figure 4(b)), resulting in the connection of two macrocycles through one AgI ion to form a polymeric structure (Figure 4(c)). Due to the disorder of AgI, although three kinds of AgI–AgI distances are possible (3.190, 4.396 and 5.726 Å), the second shortest distance of 4.396 Å appears to be more probable. The one-dimensional AgI arrays are arranged parallel in the crystal packing structure. Counter anions, BF4–, also are arranged linearly in the interstitial channels which are formed by the parallel packing of AgI arrays.

3.4. A Polymeric Silver Complex Based on Dinuclear Units, [Ag2(1)(NO3)2]n

Another polymeric silver complex was found as plate crystals from a mixed solution of 1 and 10 equivalents of AgNO3 in CH3CN-toluene, which are different conditions from those used with the mononuclear complex, [Ag(1)NO3], formed from the CH3CN solution as block crystals. The single-crystal X-ray analysis of the plate crystal revealed a unit structure of a neutral, dinuclear silver complex, [Ag2(1)(NO3)2], for a one-dimensional coordination polymer, [Ag2(1)(NO3)2]n. The stair-like conformation of 1 is almost the same as [Ag(1)]n(BF4)n, thus 1 in [Ag2(1)(NO3)2]n can also bind two AgI ions to form a polymeric structure. Notably, the coordination polymer is composed of two kinds of [Ag2(1)(NO3)2] units. In one [Ag2(1)(NO3)2], the Ag(1) atom adopts a four-coordinate structure with two nitrogen atoms of the same 1 and two oxygen atoms of one NO3− anion (Figure 5(a–c)). Meanwhile, the other [Ag2(1)(NO3)2] contains a five-coordinate Ag(2) atom bound by two nitrogen atoms of 1, two oxygen atoms of one NO3− anion and one oxygen atom of another NO3− (Figure 5(d–f)). Importantly, both [Ag2(1)(NO3)2] structures show AgI–AgI interactions with different distances (Ag(1)–Ag(1′): 3.235 Å, Ag(2)–Ag(2′): 3.348 Å) (Table 6).

Both [Ag2(1)(NO3)2] units are crookedly connected with each other through an O(3) atom of one NO3− anion (Figure 6(a,b)). The inter-unit AgI–AgI distance of 3.709 Å is relatively short. As the result of alternate arrangement of two [Ag2(1)(NO3)2] units, AgI ions are aligned in a zigzag fashion (Figure 6(c)). In the crystal packing structure, the coordination polymers are arranged parallel and closely.

4. Discussion

4.1. Ligand Conformation

Macrocyclic ligands and their metal complexes such as crown ethers [25] and macrocyclic polyamines [26–28] have been well studied and discussed with regard to their conformation as one of the most important factors to determine their metal complexation behaviours. In this study, we have demonstrated the formation of several types of silver complexes of 1 with different coordination geometries, compositional ratios and packing structures. The main origin for the diverse structures appears to be the relatively flexible macrocyclic structure of 1 capable of adopting several different ring conformations. So far, at least four conformations of 1 were found in the single-crystal X-ray analyses. For example, two mononuclear complexes, [Ag(1)NO3] and [Ag(1)CF3SO3], and one dimeric complex, [Ag2(1)2] (SbF6)2, adopt shuttlecock-like conformations (Figure 7(a)). In these cases, AgI ions sit on the four nitrogen atoms of 1 due to the large ionic radius of AgI. Interestingly, a mononuclear complex, [Ag(1)CF3CO2], previously reported [16] has a similar but significantly different conformation of 1, that is regarded as a flipped shuttlecock-like conformation in which one nitrogen atom is oriented to the opposite face (Figure 7(b)). The differences in the crystal packing, counter anions and crystallisation conditions might cause the partial flipping of the shuttlecock-like conformation of 1.

In contrast to the discrete complexes, the present polymeric complexes, [Ag(1)]n(BF4)n and [Ag2(1)(NO3)2]n, and previously reported [Ag2(1)(CF3CO2)2]n [16], possess a stair-like conformation of 1, in which two nitrogen atoms and the other two atoms of 1 are oriented to upper and lower faces, respectively (Figure 7(c)). As the result, one macrocycle 1 can bind two AgI ions on both faces simultaneously to form polymeric structures. It should be also noted that the stair-like conformation is quite similar to the conformation of metal-free ligand 1 [16], suggesting that the polymer formation of silver complexes of 1 seems to be less strained, predictable structures.

The last planar conformation of 1 found previously [16] is similar to those of conventional tetraaza macrocyclic complexes (Figure 7(d)). In our previous study, this conformation was exclusively observed with divalent transition metal complexes in a six-coordinate octahedral geometry such as [Fe(1)(CH3CN)2] (ClO4)2, [Ni(1)(CH3CN)2] (ClO4)2, [Ni(1)(H2O)2] (ClO4)2, [Cu(1)(ClO4)2] and [Pd(1)] (BF4)2 [16]. This result indicates that the combination of larger AgI ions and the structurally flexible ligand 1 allows the formation of diverse and unique silver complexes. This finding is expected to provide further information on further functionalisation of tetraoxime macrocycle 1 as a metal-selective chemosensor or a template for multi-metal assemblies.

4.2. AgI–AgI Interactions and AgI Arrays

Construction of AgI–AgI bonded AgI chain arrays in crystals has attracted much attention in the fields of crystal engineering, supramolecular chemistry and metal–organic frameworks, because the AgI ion possesses flexible coordination geometries and labile and diverse bonding manners such as AgI–N, AgI–π, AgI–AgI [29,30]. Therefore, a novel molecular platform for AgI-based coordination polymers would make a significant contribution to this research area. In this study, several types of crystalline AgI complexes were constructed, in which the AgI–AgI distances varied due to the structural flexibility of 1. For example, in three mononuclear discrete complexes, [Ag(1)NO3], [Ag(1)CF3SO3] and [Ag(1)CF3CO2], AgI ions are chemically isolated. On the other hand, the dimeric complex, [Ag2(1)2] (SbF6)2, possesses an isolated AgI-pair with AgI–AgI interaction (AgI–AgI distance: 3.364 Å) (Figure 8(a)). The polymeric complex based on mononuclear units, [Ag(1)]n(BF4)n, does not include any AgI–AgI interactions, but forms a one-dimensional AgI array in the crystal [Figure 8(b)]. In contrast, the polymeric complex based on dinuclear units, [Ag2(1)(NO3)2]n, allows the formation of an AgI array involving two different AgI–AgI distances of 3.235 and 3.348 Å (Figure 8(c)). Interestingly, a polymeric complex, [Ag2(1)(CF3CO2)2]n, with different counter anions forms a similar AgI array but with longer AgI–AgI distances of 3.671 and 4.756 Å (Figure 8(d)) [16]. These results suggest that the alignment properties of AgI complexes in the crystal states would vary with the coordinating counter anions of silver salts. In addition, crystallisation condition is an important factor to determine the crystal packing structures of the silver complexes of 1.

4.3. Prospects for Chemosensors Using 1

Finally, prospects for chemosensors using 1 are the development of different types of crystals of mononuclear, dinuclear and polymeric silver complexes with various AgI–AgI distances depending on the kind of counter anions. If each crystal exhibits optical and electrical properties specific to the structural factors such as nucleus number and metal-metal distance, ligand 1 would serve as an anion sensor through metal-induced crystallisation. Due to its structural flexibility, ligand 1 can also complex with various transition metal ions such as FeII, NiII, CuII, PdII and AgI [16], suggesting the potential of 1 as cation sensors or other functional materials as demonstrated in recent progress of coordination chemistry [31,32].

5. Conclusions

In this study, we demonstrated the structural diversity of tetraoxime macrocyclic silver complexes to bring out the potential of 1 as a macrocyclic chemosensor. Single-crystal X-ray analyses revealed the molecular structures of five silver complexes of 1. Depending on the kinds of counter anions and ring conformation of 1, two discrete mononuclear complexes, [Ag(1)NO3] and [Ag(1)CF3SO3], one discrete dimeric complex, [Ag2(1)2] (SbF6)2, one polymeric complex based on mononuclear units, [Ag(1)]n(BF4)n and one polymeric complex based on dinuclear units, [Ag2(1)(NO3)2]n, were constructed. The crystal packing structures of these complexes possessed different arrangement patterns of AgI ions. Importantly, some silver complexes can induce AgI–AgI interactions in the crystals. These results unambiguously demonstrate the structural diversity of 1 leading to a new macrocyclic platform for chemosensors.

Acknowledgments

This study was supported by the Global COE Program and KAKENHI, the Japan Society for the Promotion of Science (JSPS) and MEXT (Japan). M. Y. thanks JSPS for the JSPS Research Fellowship for Young Scientists.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Gokel, G.W.; Leevy, W.M.; Weber, M.E. Crown ethers: Sensors for ions and molecular scaffolds for materials and biological models. Chem. Rev. 2004, 104, 2723–2750. [Google Scholar]
  2. Kang, S.O.; Llinares, J.M.; Day, V.W.; Bowman-James, K. Cryptand-like anion receptors. Chem. Soc. Rev. 2010, 39, 3980–4003. [Google Scholar]
  3. Kimura, E. Macrocyclic polyamines with intelligent functions. Tetrahedron 1992, 48, 6175–6217. [Google Scholar]
  4. Sessler, J.L.; Seidel, D. Synthetic expanded porphyrin chemistry. Angew. Chem. Int. Ed. 2003, 42, 5134–5175. [Google Scholar]
  5. Guerriero, P.; Tamburini, S.; Vigato, P.A. From mononuclear to polynuclear macrocyclic or macroacyclic complexes. Coord. Chem. Rev. 1995, 139, 17–243. [Google Scholar]
  6. Valeur, B.; Leray, I. Design principles of fluorescent molecular sensors for cation recognition. Coord. Chem. Rev. 2000, 205, 3–40. [Google Scholar]
  7. Beer, P.D.; Gale, P.A. Anion recognition and sensing: The state of the art and future perspectives. Angew. Chem. Int. Ed. 2001, 40, 486–516. [Google Scholar]
  8. De Silva, A.P.; Gunaratne, H.Q.N.; Gunnlaugsson, T.; Huxley, A.J.M.; McCoy, C.P.; Rademacher, J.T.; Rice, T.E. Signaling recognition events with fluorescent sensors and switches. Chem. Rev. 1997, 97, 1515–1566. [Google Scholar]
  9. De Silva, A.P.; Fox, D.B.; Huxley, A.J.M.; Moody, T.S. Combining luminescence, coordination and electron transfer for signalling purposes. Coord. Chem. Rev. 2000, 205, 41–57. [Google Scholar]
  10. Martínez-Máñez, R.; Sancenón, F. Fluorogenic and chromogenic chemosensors and reagents for anions. Chem. Rev. 2003, 103, 4419–4476. [Google Scholar]
  11. Beer, P.D.; Cadman, J. Electrochemical and optical sensing of anions by transition metal based receptors. Coord. Chem. Rev. 2000, 205, 131–155. [Google Scholar]
  12. Nguyen, B.T.; Anslyn, E.V. Indicator–displacement assays. Coord. Chem. Rev. 2006, 250, 3118–3127. [Google Scholar]
  13. Ariga, K.; Ito, H.; Hill, J.P.; Tsukube, H. Molecular recognition: From solution science to nano/materials technology. Chem. Soc. Rev. 2012, 41, 5800–5835. [Google Scholar]
  14. Ariga, K.; Vinu, A.; Yamauchi, Y.; Ji, Q.; Hill, J.P. Nanoarchitectonics for mesoporous materials. Bull. Chem. Soc. Jpn. 2012, 85, 1–32. [Google Scholar]
  15. Leung, K.C.-F.; Chak, C.-P.; Lo, C.-M.; Wong, W.-Y.; Xuan, S.; Cheng, C.H.K. pH-controllable supramolecular systems. Chem. Asian J. 2009, 4, 364–381. [Google Scholar]
  16. Tashiro, S.; Minoda, A.; Yamada, M.; Shionoya, M. One-pot, template syntheses of a new class of metallomacrocycles with a tetraoxime cyclic skeleton. Inorg. Chem. 2009, 48, 10093–10101. [Google Scholar]
  17. Pyykkö, P. Strong closed-shell interactions in inorganic chemistry. Chem. Rev. 1997, 97, 597–636. [Google Scholar]
  18. Katz, M.J.; Sakai, K.; Leznoff, D.B. The use of aurophilic and other metal–metal interactions as crystal engineering design elements to increase structural dimensionality. Chem. Soc. Rev. 2008, 37, 1884–1895. [Google Scholar]
  19. Hissler, M.; McGarrah, J.E.; Connick, W.B.; Geiger, D.K.; Cummings, S.D.; Eisenberg, R. Platinum diimine complexes: Towards a molecular photochemical device. Coord. Chem. Rev. 2000, 208, 115–137. [Google Scholar]
  20. Wang, M.-S.; Guo, S.-P.; Li, Y.; Cai, L.-Z.; Zou, J.-P.; Xu, G.; Zhou, W.-W.; Zheng, F.-K.; Guo, G.-C. A direct white-light-emitting metal–organic framework with tunable yellow-to-white photoluminescence by variation of excitation light. J. Am. Chem. Soc. 2009, 131, 13572–13573. [Google Scholar]
  21. Ray, L.; Shaikh, M.M.; Ghosh, P. Shorter argentophilic interaction than aurophilic interaction in a pair of dimeric {(NHC)MCl}2 (M = Ag, Au) complexes supported over a N/O-Functionalized N-Heterocyclic Carbene (NHC) ligand. Inorg. Chem. 2008, 47, 230–240. [Google Scholar]
  22. Sheldrick, G.M. SHELXL-97, Program for Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  23. Bondi, A. van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar]
  24. Singh, K.; Long, J.R.; Stavropoulos, P. Ligand-unsupported metal–metal (M = Cu, Ag) interactions between closed-shell d10 trinuclear systems. J. Am. Chem. Soc. 1997, 119, 2942–2943. [Google Scholar]
  25. Troxler, L.; Wipff, G. Conformation and dynamics of 18-Crown-6, Cryptand 222, and their cation complexes in acetonitrile studied by molecular dynamics simulations. J. Am. Chem. Soc. 1994, 116, 1468–1480. [Google Scholar]
  26. Thöm, V.J.; Fox, C.C.; Boeyens, J.C.A.; Hancock, R.D. Molecular mechanics and crystallographic study of hole sizes in nitrogen-donor tetraaza macrocycles. J. Am. Chem. Soc. 1984, 106, 5947–5955. [Google Scholar]
  27. Pérez, J.; Carrascosa, R.; García, L.; Barandika, G.; Calderón-Casado, A.; Pérez, E.; Serrano, J.L.; Santana, M.D. Coordination to metal centers: A tool to fix high energy conformations in organic molecules. Application to 2,4,4-trimethyl-1,5,9-triazacyclododec-1-ene and related macrocycles. Dalton Trans. 2011, 40, 9504–9511. [Google Scholar]
  28. Curtis, N.F. Configurational isomerism of 2,5,5,7,9,12,12,14-Octamethyl-1,4,8,11-tetraazacyclotetradecane and its compounds. Coord. Chem. Rev. 2012, 256, 878–895. [Google Scholar]
  29. Khlobystov, A.N.; Blake, A.J.; Champness, N.R.; Lemenovskii, D.A.; Majouga, A.G.; Zyk, N.V.; Schröder, M. Supramolecular design of one-dimensional coordination polymers based on silver(I) complexes of aromatic nitrogen-donor ligands. Coord. Chem. Rev. 2001, 222, 155–192. [Google Scholar]
  30. Chen, C.-L.; Kang, B.-S.; Su, C.-Y. Recent advances in supramolecular design and assembly of silver(I) coordination polymers. Aust. J. Chem. 2006, 59, 3–18. [Google Scholar]
  31. Lasanta, T.; Olmos, M.E.; Laguna, A.; López-de-Luzuriaga, J.M.; Naumov, P. Making the golden connection: Reversible mechanochemical and vapochemical switching of luminescence from bimetallic gold–silver clusters associated through aurophilic interactions. J. Am. Chem. Soc. 2011, 133, 16358–16361. [Google Scholar]
  32. Sakata, Y.; Furukawa, S.; Kim, C.; Kitagawa, S. Formation of nanocrystals of a zinc pillared-layer porous coordination polymer using microwave-assisted coordination modulation. Chem. Lett. 2012, 41, 1436–1438. [Google Scholar]
Sensors 13 05671f1 1024

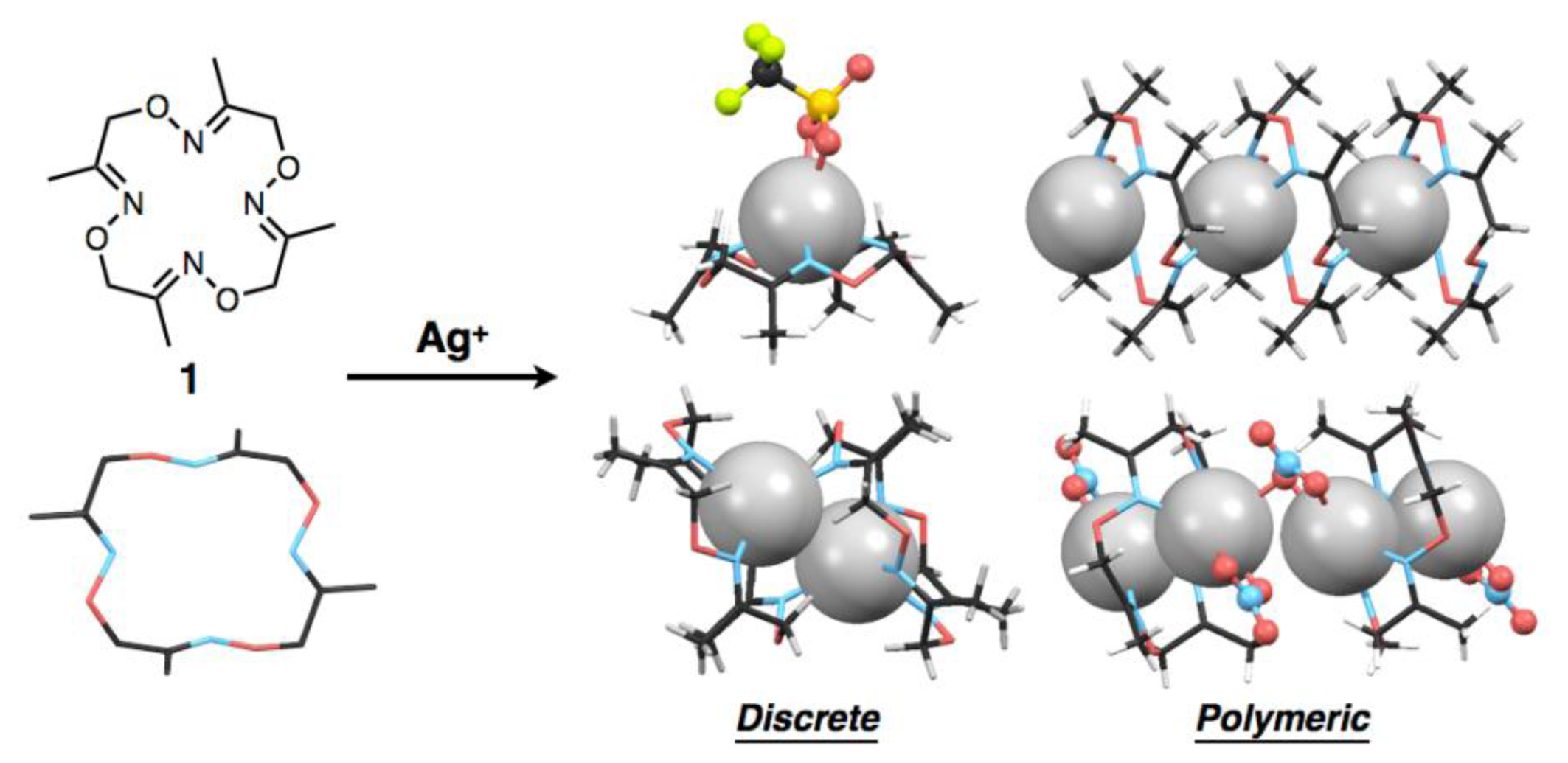

Figure 1. Schematic representation of the formation of four types of AgI complexes of 1 with discrete or polymeric structures.
Figure 1. Schematic representation of the formation of four types of AgI complexes of 1 with discrete or polymeric structures.
Sensors 13 05671f1 1024
Sensors 13 05671f2 1024
Figure 2. Crystal structures of (a–c) [Ag(1)NO3] and (d–f) [Ag(1)CF3SO3]. (a,d) Top views and (b,e) coordination structures represented with 50% thermal ellipsoids; (c,f) Side views represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Figure 2. Crystal structures of (a–c) [Ag(1)NO3] and (d–f) [Ag(1)CF3SO3]. (a,d) Top views and (b,e) coordination structures represented with 50% thermal ellipsoids; (c,f) Side views represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Sensors 13 05671f2 1024
Sensors 13 05671f3 1024
Figure 3. Crystal structure of [Ag2(1)2] (SbF6)2. (a) A top view; and (b) the coordination structure represented with 50% thermal ellipsoids; (c) A side view represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Figure 3. Crystal structure of [Ag2(1)2] (SbF6)2. (a) A top view; and (b) the coordination structure represented with 50% thermal ellipsoids; (c) A side view represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Sensors 13 05671f3 1024
Sensors 13 05671f4 1024
Figure 4. Crystal structure of [Ag(1)]n(BF4)n. (a) A top view; and (b) the coordination structure represented with 50% thermal ellipsoids; (c) A side view represented with space fill (Ag) and stick (1) models. BF4− anions and disordered AgI cations are omitted for clarity in (b) and (c).
Figure 4. Crystal structure of [Ag(1)]n(BF4)n. (a) A top view; and (b) the coordination structure represented with 50% thermal ellipsoids; (c) A side view represented with space fill (Ag) and stick (1) models. BF4− anions and disordered AgI cations are omitted for clarity in (b) and (c).
Sensors 13 05671f4 1024
Sensors 13 05671f5 1024

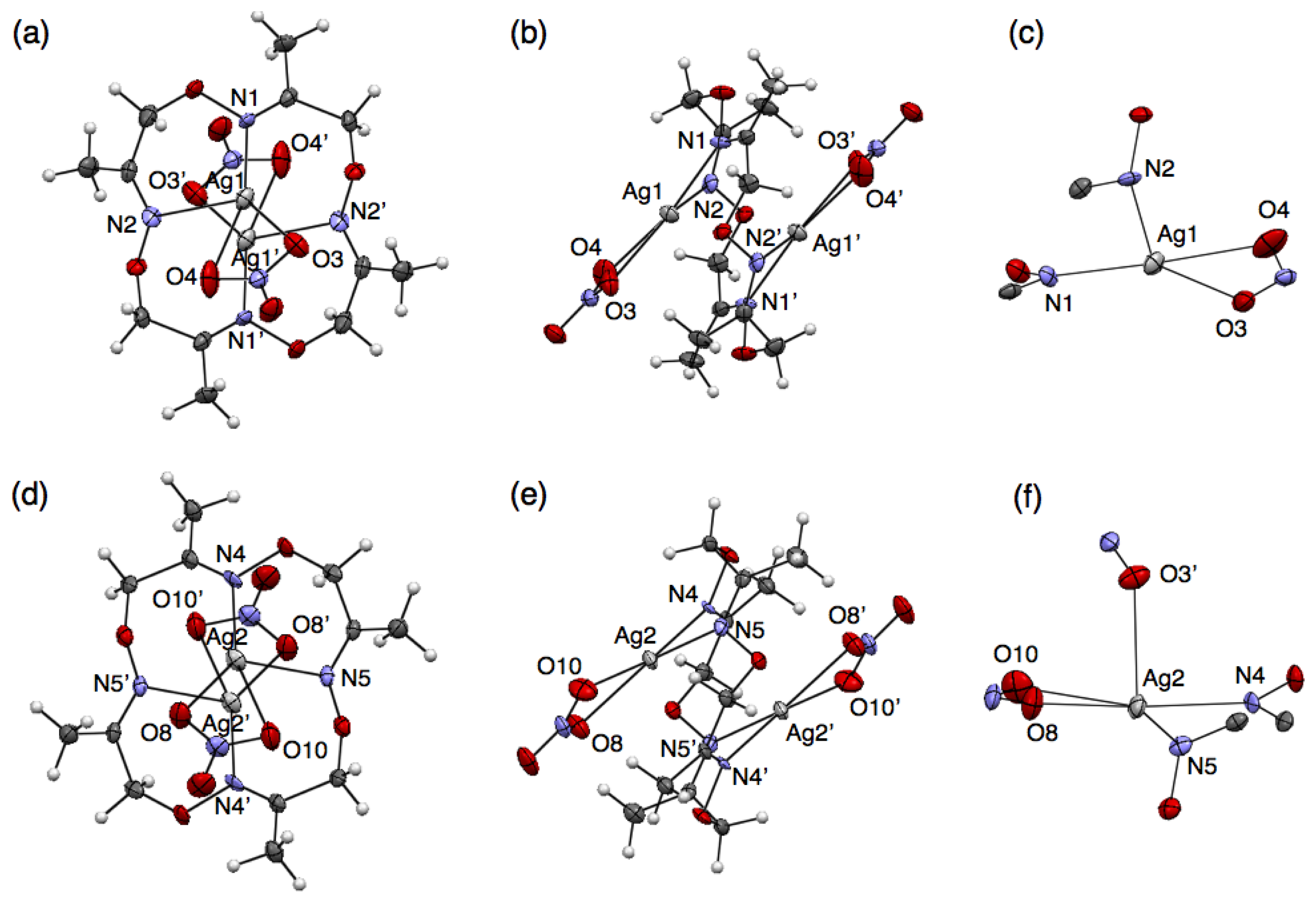

Figure 5. Crystal structure of [Ag2(1)(NO3)2]n. (a–c) One [Ag2(1)(NO3)2] structure containing Ag(1); and (d–f) another [Ag2(1)(NO3)2] structure containing Ag(2). (a,d) Top views, (b,e) side views and (c,f) coordination structures represented with 50% thermal ellipsoids.

Figure 5. Crystal structure of [Ag2(1)(NO3)2]n. (a–c) One [Ag2(1)(NO3)2] structure containing Ag(1); and (d–f) another [Ag2(1)(NO3)2] structure containing Ag(2). (a,d) Top views, (b,e) side views and (c,f) coordination structures represented with 50% thermal ellipsoids.
Sensors 13 05671f5 1024
Sensors 13 05671f6 1024
Figure 6. Polymeric structure of [Ag2(1)(NO3)2]n in the crystal. (a) A top view; and (b) a side view of a crookedly connected structure containing two [Ag2(1)(NO3)2. [units; and (c) a polymeric structure represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Figure 6. Polymeric structure of [Ag2(1)(NO3)2]n in the crystal. (a) A top view; and (b) a side view of a crookedly connected structure containing two [Ag2(1)(NO3)2. [units; and (c) a polymeric structure represented with space fill (Ag), stick (1) and ball-stick (counter anions) models.
Sensors 13 05671f6 1024
Sensors 13 05671f7 1024
Figure 7. Top and side views of four conformations of ligand 1 in each complex. (a) A shuttlecock-like conformation in [Ag(1)CF3SO3]; (b) A flipped shuttlecock-like conformation in [Ag(1)CF3CO2] [16]; (c) A stair-like conformation in [Ag(1)]n(BF4)n; (d) A planar conformation in [Ni(1)(CH3CN)2] (ClO4)2 [16].
Figure 7. Top and side views of four conformations of ligand 1 in each complex. (a) A shuttlecock-like conformation in [Ag(1)CF3SO3]; (b) A flipped shuttlecock-like conformation in [Ag(1)CF3CO2] [16]; (c) A stair-like conformation in [Ag(1)]n(BF4)n; (d) A planar conformation in [Ni(1)(CH3CN)2] (ClO4)2 [16].
Sensors 13 05671f7 1024
Sensors 13 05671f8 1024
Figure 8. Several AgI arrangement structures in (a) [Ag2(1)2] (SbF6)2; (b) [Ag(1)]n(BF4)n; (c) [Ag2(1)(NO3)2]n; and (d) [Ag2(1)(CF3CO2)2]n [16].
Figure 8. Several AgI arrangement structures in (a) [Ag2(1)2] (SbF6)2; (b) [Ag(1)]n(BF4)n; (c) [Ag2(1)(NO3)2]n; and (d) [Ag2(1)(CF3CO2)2]n [16].
Sensors 13 05671f8 1024
Table
Table 1. Crystallographic data and refinement details for [Ag(1)NO3], [Ag(1)CF3SO3], [Ag2(1)2](SbF6)2, [Ag(1)]n(BF4)n and [Ag2(1)(NO3)2]n.
Table 1. Crystallographic data and refinement details for [Ag(1)NO3], [Ag(1)CF3SO3], [Ag2(1)2](SbF6)2, [Ag(1)]n(BF4)n and [Ag2(1)(NO3)2]n.
[Ag(1)NO3][Ag(1)CF3SO3][Ag2(1)2] (SbF6)2[Ag(1)]n(BF4)n[Ag2(1)(NO3)2]n
FormulaC12H20AgN5O7C13H20AgF3N4O7SC12H20AgF6N4O4SbC12H20AgBF4N4O4C12H20Ag2N6O10
Formula weight454.19541.25627.92478.99624.06
Crystal systemtriclinictriclinicorthorhombictetragonaltriclinic
Space groupP–1P–1PbcaP4/nP–1
a (Å)8.4448(14)8.442(2)16.0247(4)19.4458(15)8.0660(11)
b (Å)10.5207(16)9.988(3)13.4358(3)19.4458(15)9.6775(13)
c (Å)11.576(2)12.974(3)17.7726(5)4.3965(4)13.3698(15)
α (°)67.188(5)71.262(8)909067.686(4)
β (°)81.490(4)88.062(7)909085.264(4)
γ (°)63.784(3)69.975(7)909084.658(5)
V (Å3)850.2(3)969.8(4)3826.51(17)1662.5(3)960.0(2)
Z22842
T (K)93939310893
Dcalcd (g/cm3)1.7741.8532.1801.9142.159
μ (mm−1)1.2281.2172.5141.2792.101
2θmax (°)5555555555
Reflns, total8344946434764220409440
Reflns, unique38414400438419044341
Rint0.02670.03720.03130.06000.0505
R1 (I > 2σ(I)) a0.02410.03320.01790.10030.0560
wR2 (all data) b0.06260.10170.04030.26000.1743
GOF on F21.0831.1311.1801.1181.118
CCDC numbers918055918056918057918058918059

aR1 = ∑‖Fo| – |Fc‖/∑|Fo|;bwR2 = [∑ [w(Fo2 – Fc2)2]/∑w(Fo2)2]]1/2.

Table
Table 2. Selected bond lengths (Å) and angles (deg) for [Ag(1)NO3].
Table 2. Selected bond lengths (Å) and angles (deg) for [Ag(1)NO3].
Ag(1)–N(1)2.471(2)Ag(1)–N(2)2.530(3)
Ag(1)–N(3)2.5945(17)Ag(1)–N(4)2.5476(15)
Ag(1)–O(5)2.430(3)Ag(1)–O(6)2.5967(17)
N(1)–Ag(1)–N(2)83.96(7)N(1)–Ag(1)–N(3)136.31(7)
N(1)–Ag(1)–N(4)81.03(6)N(1)–Ag(1)–O(5)118.69(7)
N(1)–Ag(1)–O(6)125.67(6)N(2)–Ag(1)–N(3)79.73(7)
N(2)–Ag(1)–N(4)133.00(7)N(2)–Ag(1)–O(5)134.35(5)
N(2)–Ag(1)–O(6)83.44(7)N(3)–Ag(1)–N(4)81.17(5)
N(3)–Ag(1)–O(5)101.31(7)N(3)–Ag(1)–O(6)92.41(5)
N(4)–Ag(1)–O(5)91.41(7)N(4)–Ag(1)–O(6)139.97(8)
O(5)–Ag(1)–O(6)50.94(6)
Table
Table 3. Selected bond lengths (Å) and angles (deg) for [Ag(1)CF3SO3].
Table 3. Selected bond lengths (Å) and angles (deg) for [Ag(1)CF3SO3].
Ag(1)–N(1)2.489(3)Ag(1)–N(2)2.460(4)
Ag(1)–N(3)2.512(3)Ag(1)–N(4)2.498(3)
Ag(1)–O(5)2.588(3)Ag(1)–O(6)2.693(3)
N(1)–Ag(1)–N(2)83.44(10)N(1)–Ag(1)–N(3)139.05(8)
N(1)–Ag(1)–N(4)83.41(10)N(1)–Ag(1)–O(5)135.80(9)
N(1)–Ag(1)–O(6)83.08(8)N(2)–Ag(1)–N(3)83.09(11)
N(2)–Ag(1)–N(4)139.73(8)N(2)–Ag(1)–O(5)123.30(9)
N(2)–Ag(1)–O(6)116.62(9)N(3)–Ag(1)–N(4)82.41(10)
N(3)–Ag(1)–O(5)82.90(8)N(3)–Ag(1)–O(6)137.13(9)
N(4)–Ag(1)–O(5)91.77(9)N(4)–Ag(1)–O(6)99.27(9)
O(5)–Ag(1)–O(6)54.28(8)
Table
Table 4. Selected bond lengths (Å) and angles (deg) for [Ag2(1)2] (SbF6)2.
Table 4. Selected bond lengths (Å) and angles (deg) for [Ag2(1)2] (SbF6)2.
Ag(1)–N(1)2.4203(17)Ag(1)–N(2)2.4999(16)
Ag(1)–N(3′)2.3320(17)Ag(1)–N(4)2.4307(18)
Ag(1)–Ag(1′)3.3636(3)
N(1)–Ag(1)–N(2)83.56(6)N(1)–Ag(1)–N(3′)115.83(6)
N(1)–Ag(1)–N(4)84.69(6)N(2)–Ag(1)–N(3′)108.38(6)
N(2)–Ag(1)–N(4)126.29(6)N(3′)–Ag(1)–N(4)123.82(6)
Table
Table 5. Selected bond lengths (Å) and angles (deg) for [Ag(1)]n(BF4)n.
Table 5. Selected bond lengths (Å) and angles (deg) for [Ag(1)]n(BF4)n.
Ag(1)–N(1)2.249(5)Ag(1)–N(1′)2.359(6)
Ag(1)–N(2′)2.630(5)
N(1)–Ag(1)–N(1′)143.0(3)N(1)–Ag(1)–N(2′)85.13(17)
N(1′)–Ag(1)–N(2′)122.60(16)
Table
Table 6. Selected bond lengths (Å) and angles (deg) for [Ag2(1)(NO3)2]n.
Table 6. Selected bond lengths (Å) and angles (deg) for [Ag2(1)(NO3)2]n.
Ag(1)–N(1)2.318(8)Ag(1)–N(2)2.493(6)
Ag(1)–O(3)2.334(7)Ag(1)–O(4)2.647(8)
Ag(2)–N(4)2.373(7)Ag(2)–N(5)2.429(6)
Ag(2)–O(3′)2.630(7)Ag(2)–O(8)2.338(6)
Ag(2)–O(10)2.705(7)Ag(1)–Ag(1′)3.2351(9)
Ag(2)–Ag(2′)3.3481(8)Ag(1)–Ag(2′)3.7090(8)
N(1)–Ag(1)–N(2)81.7(3)N(1)–Ag(1)–O(3)143.3(2)
N(1)–Ag(1)–O(4)163.1(3)N(2)–Ag(1)–O(3)134.9(3)
N(2)–Ag(1)–O(4)85.4(3)O(3)–Ag(1)–O(4)50.6(2)
N(4)–Ag(2)–N(5)80.1(2)N(4)–Ag(2)–O(3′)88.0(2)
N(4)–Ag(2)–O(8)143.9(2)N(4)–Ag(2)–O(10)162.7(3)
N(5)–Ag(2)–O(3′)115.0(3)N(5)–Ag(2)–O(8)134.6(3)
N(5)–Ag(2)–O(10)90.4(2)O(3′)–Ag(2)–O(8)84.8(3)
O(3′)–Ag(2)–O(10)83.0(3)O(8)–Ag(2)–O(10)49.9(3)
