Amperometric Non-Enzymatic Hydrogen Peroxide Sensor Based on Aligned Zinc Oxide Nanorods

Abstract

Zinc oxide (ZnO) nanorods (NRs) have been synthesized via the hydrothermal process. The NRs were grown over a conductive glass substrate. A non-enzymatic electrochemical sensor for hydrogen peroxide (H₂O₂), based on the prepared ZnO NRs, was examined through the use of current-voltage measurements. The measured currents, as a function of H₂O₂ concentrations ranging from 10 μM to 700 μM, revealed two distinct behaviours and good performance, with a lower detection limit (LOD) of 42 μM for the low range of H₂O₂ concentrations (first region), and a LOD of 143.5 μM for the higher range of H₂O₂ concentrations (second region). The prepared ZnO NRs show excellent electrocatalytic activity. This enables a measurable and stable output current. The results were correlated with the oxidation process of the H₂O₂ and revealed a good performance for the ZnO NR non-enzymatic H₂O₂ sensor.

1. Introduction

Hydrogen peroxide (H₂O₂) plays an important role in environmental monitoring, clinical diagnosis, and in the food industry [1]. The monitoring of H₂O₂ is also important because H₂O₂ results from many biological targets, such as glucose and lactose [2]. It has been noted that diseases such as Alzheimer’s, Parkinson’s, and other central nervous system diseases are caused by excessive amounts of H₂O₂ [1]. It has been further noted that H₂O₂ contributes to the formation of acid rain, which makes the determination of H₂O₂ levels a crucial task in the fields of physiology, pathology, and the environment [3,4].

Several methods have been used and developed to detect H₂O₂, such as titrimetry, spectrophotometry, chemiluminescence, and electrochemical methods [5,6]. However, these methods have certain drawbacks, such as expensive reagents, long analysis times, and poor long-term stability [7]. Electrochemical approaches to the measurement of H₂O₂ have gained increasing attention due to their high sensitivity, low cost, low power consumption, and capability of practical applications. Metal-oxide semiconductors are among those materials with promising behaviour in the field of electrochemical biosensor applications. Metal-oxide semiconductors such as tin oxide [2], tungsten oxide [5], copper oxide [6], titanium dioxide [8,9], magnesium oxide [10], cuprous oxide [11] and zinc oxide (ZnO) have demonstrated outstanding performance in the biosensor and chemical sensor fields [7,12]. High catalytic efficiency, biocompatibility, and chemical stability in physiological environments, as well as nontoxicity, make ZnO a promising candidate for such applications [13,14]. Thus far, ZnO nanostructures have been employed as biosensors to detect several analytes, such as uric acid [15], glucose [16], and phenolic compounds [17].

In addition, ZnO has been used as an enzymatic-based biosensor for redox enzymes such as cortisol [13], cytochrome c [14], cholesterol oxidase [18] and horseradish peroxidase [19]. Furthermore, ZnO enzymatic-based biosensors have been extensively employed for H₂O₂ detection. Results tend to show high sensitivity and excellent selectivity for different analytes [20], although they are still the subject of intensive study. Enzyme immobilisation and its stability on an electrode surface is a crucial factor, as the enzyme can be easily damaged during the fabrication process and testing [6,21]. Moreover, enzymatic-based biosensors are only able to work effectively under proper conditions and are thus not conducive to a wide range of applications. Furthermore, enzymatic-based biosensors generally use expensive materials, such as multi-walled carbon nanotubes (MWCNTs) [22], gold, silver, palladium, and platinum [23], and enzyme immobilisation involves multiple complex steps [24]. Non-enzymatic biosensors, on the other hand, have been suggested for sensing several analyte species [25,26]. Many published works have focused on enzymatic biosensors based on ZnO, while relatively fewer works have been concerned with non-enzymatic ZnO biosensors [27,28,29].

The simple growth of ZnO nanostructures over a wide range of substrates with high crystallinity make it favourable over many other compounds. Both physical and chemical deposition techniques were used to synthesise ZnO nanostructures. Techniques include sol-gel, thermal evaporation [30], electrochemical deposition [31], and hydrothermal methods. The latter show high repeatability and are considered a low temperature process [12].

In this paper, we have fabricated an enzyme-free H₂O₂ electrochemical biosensor based on ZnO nanorods (NRs) grown on a conductive glass substrate via the hydrothermal method. The produced ZnO NRs can be directly used as sensor electrodes without any additional processing, such as surface modification or immobilisation of expensive enzymes. Moreover, with a NR structure, a large surface-to-volume ratio can be achieved, which will improve the efficiency of electron transport. The produced ZnO NRs will initially be characterised using an X-ray diffractometer for the phase structure. A ZnO NR/aluminium-doped ZnO (AZO) electrode was tested in a two-electrode method in the presence of H₂O₂. The concentration of the analyte ranged from 10 μM to 700 μM.

2. Materials and Methods

The ZnO NRs were grown on a commercial glass slide coated with a conductive layer of aluminium-doped ZnO (AZO) with a sheet resistance of 10 Ω/square. Initially, the substrates were cleaned by soaking them in beakers filled with acetone, isopropanol, and deionized (DI) water for 10 min in an ultrasonic bath. The growth process was explained in detail in our previous work [12]. Here, we will summarize the process. Equimolar amounts of 25 mM aqueous solutions of zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O) and hexamethylenetetramine (C₆H₁₂N₄) were dissolved in 200 mL of DI water and stirred continuously for 1 h. Substrates were vertically immersed in the solution in a screw-capped bottle, and then the bottle was placed into a laboratory oven at a temperature of 95 °C for 4 h. During this process, the Zn²⁺ species reacted with OH⁻ to form the Zn(OH)₂ intermediate complex, which decomposed to ZnO at high temperatures. Prepared samples were then washed several times with DI water before being dried at 100 °C and then post-annealed for 1 h at 400 °C under ambient atmospheric conditions.

The sensing characteristics of the prepared AZO/ZnO NRs electrode toward H₂O₂ were examined using a 6517A electrometer (Keithley Instruments, Inc., Cleveland, OH, USA). A two-electrode cell was used for measuring the I-V characteristics, with the AZO/ZnO acting as the sensing electrode (working electrode) with an active area of 0.5 cm², and a platinum wire (diameter of 0.5 mm) being used as the counter-electrode. The distance between the electrodes was fixed at 1 cm. The current response was measured by applying a voltage in the range of 0.1 V to 6 V. Measurements were commenced after 20 s with the addition of H₂O₂ (35.0% from Sigma-Aldrich (M) Sdn. Bhd. Kuala Lumpur, Malaysia) to the DI water (resistivity = 18 MΩ-cm). The solutions were prepared by mixing a known amount of H₂O₂ with DI water in different concentrations ranging from 10 μM to 700 μM. A magnetic bar with a stirrer was used to achieve homogeneity of the solution in a short time. Measurements were performed under ambient atmospheric conditions (23 °C and 50% relative humidity).

The prepared ZnO NR samples were characterised for phase structures via an X-ray diffractometer (D8 ADVANCE, Bruker, Billerica, MA, USA), which was operated at a voltage of 60 kV with a copper target. The scanning Bragg angle was recorded in the range of 20° to 60°).

3. Results and Discussion

3.1. Structure and Morphology of the ZnO NRs

The pattern of X-ray diffraction (XRD) for the prepared ZnO layer is depicted in Figure 1. The pattern showed a predominant peak at a Bragg angle equal to 34.48°, which corresponds to the (002) phase of the ZnO hexagonal structure. The sharp diffraction peak from the (002) plane indicated the excellent crystallinity of the prepared sample. Several low intensity peaks were also noticed in the pattern, which can be well indexed to the hexagonal ZnO structure according to the database JCPDS No. 36-1451. No diffraction peaks of impurities were observed, indicating the high purity of the final products. The surface morphology of the hydrothermally-grown ZnO was similar to our previous results and can be seen in our published article [12].

3.2. The Sensing Performance of ZnO NR

3.2.1. The I-V Response to Hydrogen Peroxide

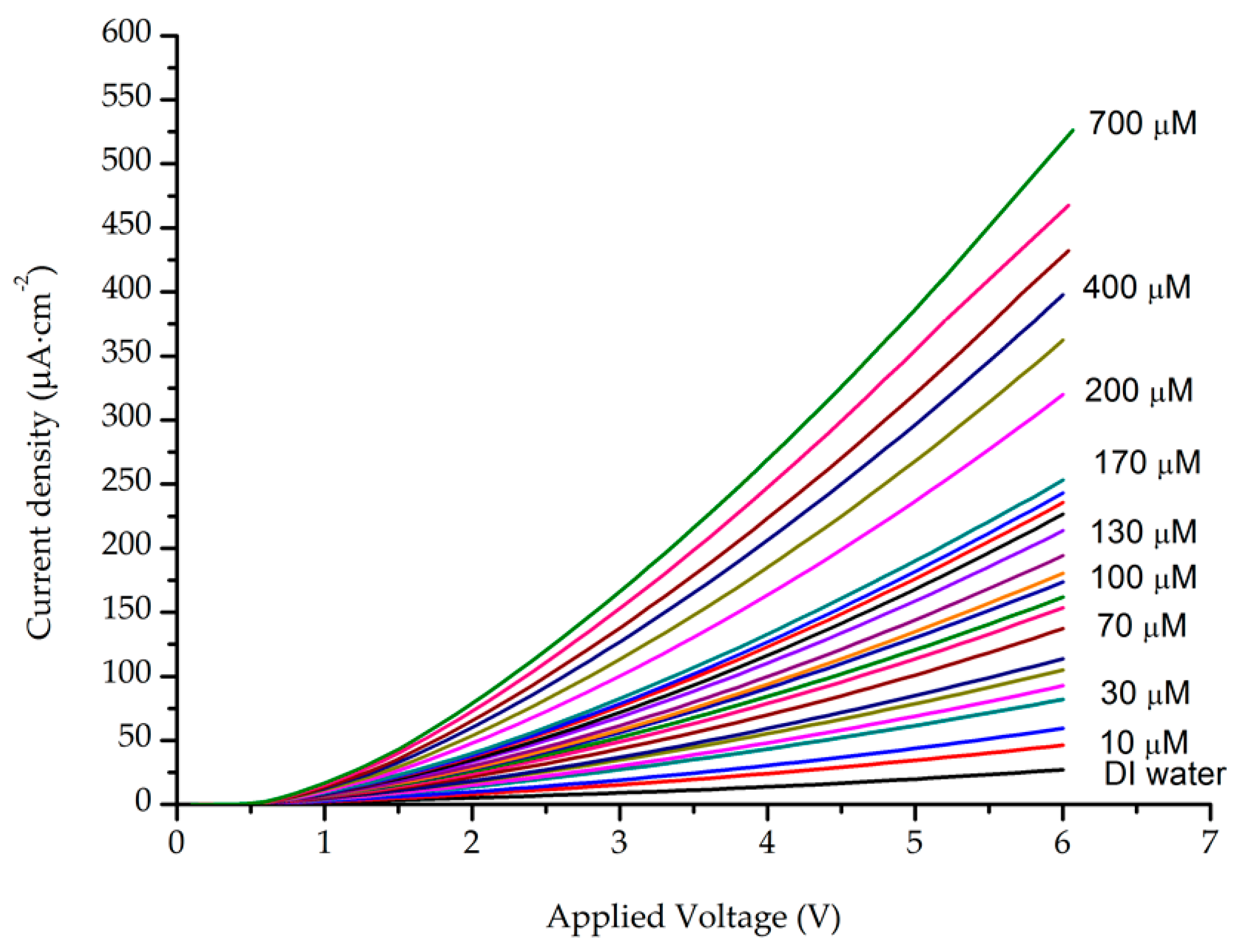

The sensing characteristics of AZO/ZnO electrodes toward H₂O₂ concentrations were tested at room temperature. The I-V characteristics of the prepared sensing electrode are shown in Figure 2. As can be seen in the figure, a low current density was detected in pure DI water, but the current density was continuously increased with the addition of H₂O₂ to the DI water. This increase in the current density is due to the generation of ions with the addition of the H₂O₂. This can be understood in terms of the following reactions [32]:

$$\begin{array}{l}{\mathrm{O}}_2(\text{dissolved})\to {\mathrm{O}}_2(\text{adsorbed})\\ {\mathrm{O}}_2(\text{adsorbed})+{\mathrm{e}}^{-}\to {\mathrm{O}}_2^{-}(\text{adsorbed})\\ 2{\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{O}}_2^{-}\to 2{\mathrm{H}}_2\mathrm{O}+2{\mathrm{O}}_2+2{\mathrm{e}}^{-}\end{array}$$

(1)

According to the above reactions, the dissolved oxygen molecules are chemisorbed into sites covering the surface of the ZnO NRs. The electrons from the conduction band are attracted to the oxygen-adsorbed molecules, which results in a reduction in the charge carrier’s density. Consequently, a barrier height near the surface is formed and the resistivity of the ZnO NRs is increased [32]. The addition of the H₂O₂ to the DI water results in the release of negative ions (e⁻). More H₂O₂ added to the solution will result in the release of more electrons, thereby decreasing the barrier height. Subsequently, the resistivity will decrease, and the measured current density will increase.

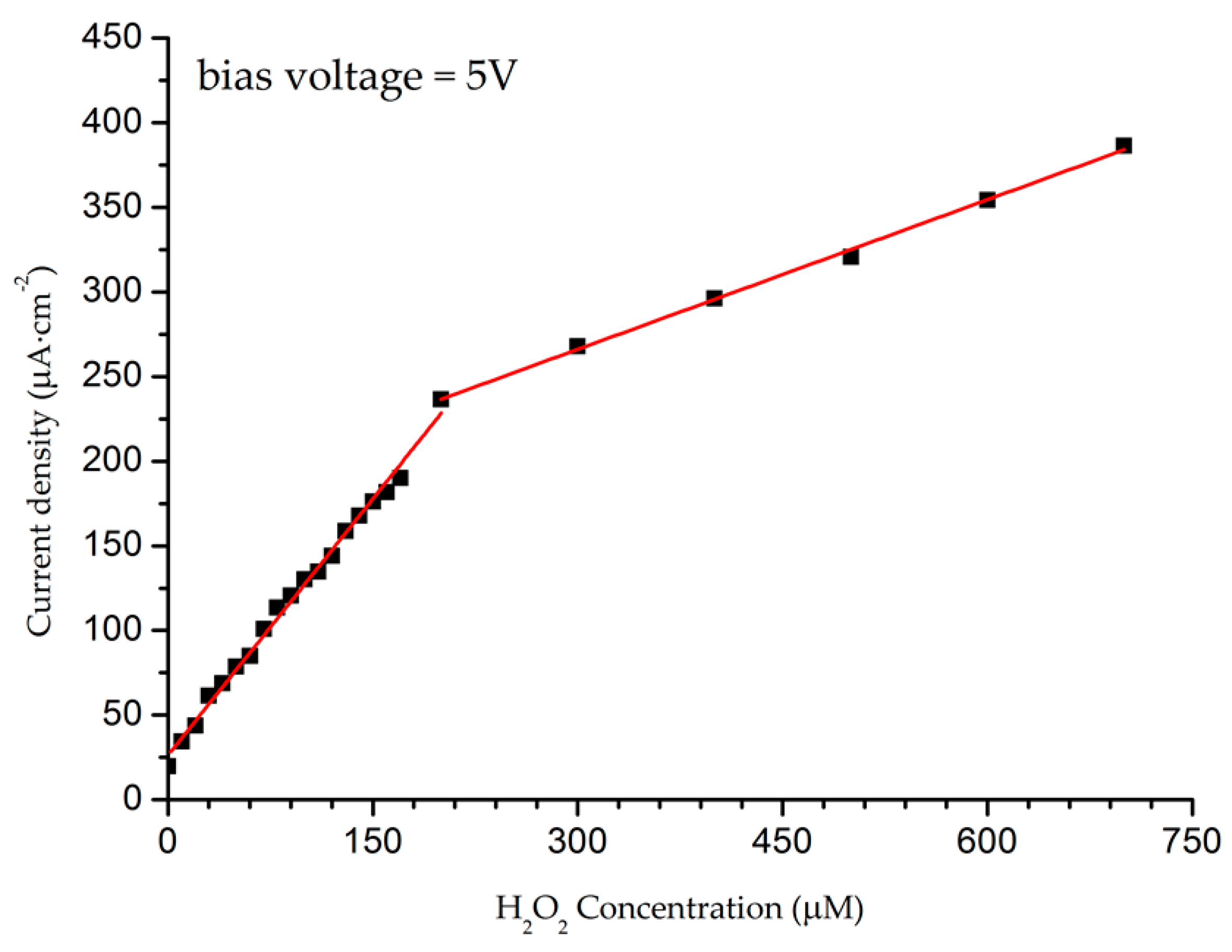

We chose data of the measured current density in relation to H₂O₂ concentrations at a fixed bias voltage of 5 V to evaluate the sensitivity of the prepared sensing electrode (see Figure 2). Figure 3 depicts the results of the measured current density in relation to H₂O₂ concentrations. It is noteworthy that the current density drastically increased as the H₂O₂ concentrations increased up to 200 μM, after which a modest increase in the current density occurred as the concentration increased from 200 μM up to 700 μM. Consequently, two distinct sensing behaviour regions were observed: the first ranged up to a H₂O₂ concentration of 200 μM, and the second covered the concentration range from 200 μM to 700 μM. The sensitivity of the prepared AZO/ZnO NR electrode was calculated from the calibration curve, using the slope found in Figure 4. In addition, the results of the lower detection limits (LODs) were based on the ratio of the standard deviation (SD) of the response and the slope of the calibration curve at a signal-to-noise ratio (SNR) of 3 [12]:

$$LOD=\frac{3SD}{S}$$

(2)

where SD is the standard deviation of the blank and S is the sensitivity (the slope of the line). For the low range of H₂O₂ concentration (from 10 μM to 200 μM), the sensitivity was approximately equal to 1.1 μA·μM⁻¹·cm⁻² (correlation coefficient (R²) = 0.995), with LOD approximately equal to 42 μM. For the higher range of H₂O₂ concentration (from 200 μM to 700 μM), however, the sensitivity was approximately equal to 295 nA·μM⁻¹·cm⁻² (R² = 0.998), with LOD close to 143.5 μM.

The inflection in the response at low and high H₂O₂ concentrations is due to the adsorption process on the surface of the ZnO NRs. The available surface sites for adsorption at the surface of the prepared ZnO NRs will decrease because of the increase in the amount of available H₂O₂. Consequently, the number of conduction centres will decrease as the chemisorption process becomes dominant, which will result in the decrease of the charges responsible for the electrical conduction because the physisorption rate will be slower [12,33]. In view of the results obtained in this work, we believe that H₂O₂ undergoes an oxidation process more often than a reduction process, as has been noticed by several research groups that prepared non-enzymatic H₂O₂ biosensors based on metal-oxide semiconductors [6,8,34,35,36]. This is probably due to the different measurement configurations.

3.2.2. Amperometric Response

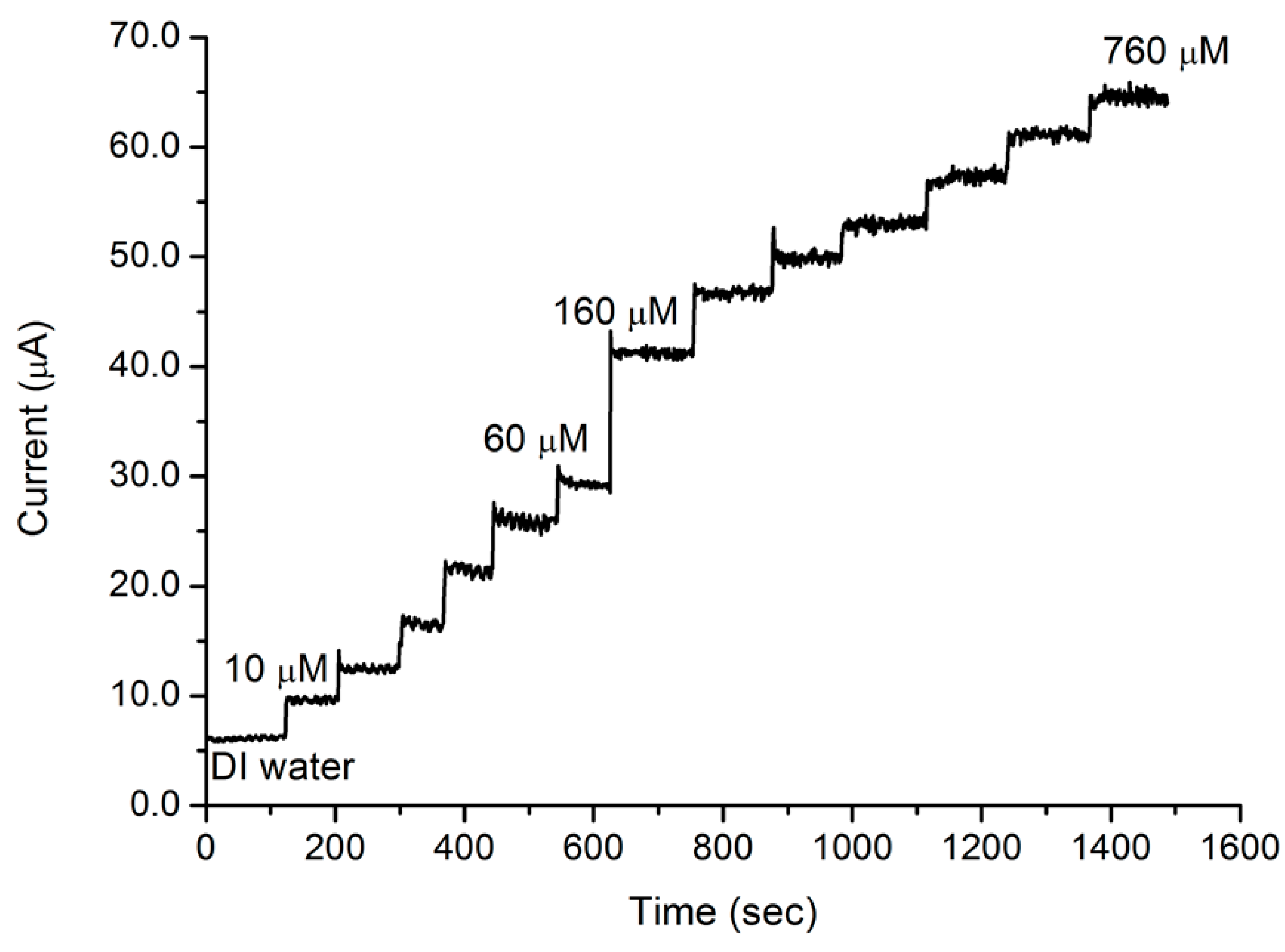

Figure 4 shows the typical amperometric response (current vs. time) of the AZO/ZnO NR electrode with successive increments of H₂O₂ added into the stirred H₂O₂/DI solution to achieve concentrations of 10 μM to 760 μM. The electrodes were supplied with a fixed bias voltage of 5 V. The stable and measurable currents for each step are noteworthy. The AZO/ZnO NR electrode responded rapidly as the concentration of H₂O₂ was increased, with a response time of less than 7 s. The substantial increase in the measured current reveals a good sensing response toward the addition of H₂O₂, which demonstrates the high electrocatalytic activity behaviour of the prepared ZnO NRs.

Metal oxide semiconductors are widely used as non-enzymatic sensors for H₂O₂. However, past measurements were based mostly on cyclic voltammetry with a three-electrode electrochemical cell. In the present study, the ZnO NR-based H₂O₂ sensor is investigated by simple and reliable I-V characteristics measurement. Although the results of the sensing behaviour found in this study may differ from those published in previous studies using cyclic voltammetry measurements, they are still comparable.

A number of other types of non-enzymatic H₂O₂ sensors have been showcased in previous studies. CuO₂ nanostructures prepared with reduced graphene oxide (nanocomposites) have been used for non-enzymatic H₂O₂ sensor applications [11] and results revealed a wide measurement range for H₂O₂, from 30 μM to 12.8 mM with a sensitivity of 19.5 μA/mM. A TiO₂/MWNCT electrode has also been deployed for enzyme-less sensing of H₂O₂ [37] and was able to detect H₂O₂ concentrations up to 15 mM with a sensitivity of 13.4 μA/mM and detection limit of 0.4 μM. Another H₂O₂ sensor employed Co₃O₄ nanoparticles and non-enzymatic glucose [38] and exhibited a detection limit of 0.81 μM with a high sensitivity of 107.4 μA·mM⁻¹·cm⁻². The response range, however, was up to 200 mM, which is lower than what was estimated in the present study. Despite the fact that the sensor platform was simple in the present work, the results obtained by this study are within the range of those presented by other published studies.

4. Conclusions

ZnO NRs for non-enzymatic sensor applications were successfully synthesised on an AZO conductive substrate via the hydrothermal process. Structure and the sensing properties of the prepared ZnO NRs were investigated using XRD, and I-V characterisations. The prepared sensor was capable of generating different responses with different H₂O₂ concentrations. This shows the excellent electrocatalytic activity of the prepared AZO/ZnO NR electrode in relation to H₂O₂, making ZnO NR a promising candidate for use in non-enzymatic sensor applications.
