Luminescence-Based Optical Sensors Fabricated by Means of the Layer-by-Layer Nano-Assembly Technique

by
Nerea De Acha
1,*,
Cesar Elosua
1,2,
Ignacio Matias
1,2 and
Francisco Javier Arregui
1,2
1
Department of Electric and Electronic Engineering, Public University of Navarra, E-31006 Pamplona, Spain
2
Institute of Smart Cities (ISC), Public University of Navarra, E-31006 Pamplona, Spain
*
Author to whom correspondence should be addressed.
Sensors 2017, 17(12), 2826; https://doi.org/10.3390/s17122826
Submission received: 15 November 2017 / Revised: 1 December 2017 / Accepted: 4 December 2017 / Published: 6 December 2017
(This article belongs to the Special Issue Fluorescent Probes and Sensors)
Browse Figures
Versions Notes

Abstract

:
Luminescence-based sensing applications range from agriculture to biology, including medicine and environmental care, which indicates the importance of this technique as a detection tool. Luminescent optical sensors are required to be highly stable, sensitive, and selective, three crucial features that can be achieved by fabricating them by means of the layer-by-layer nano-assembly technique. This method permits us to tailor the sensors′ properties at the nanometer scale, avoiding luminophore aggregation and, hence, self-quenching, promoting the diffusion of the target analytes, and building a barrier against the undesired molecules. These characteristics give rise to the fabrication of custom-made sensors for each particular application.

1. Introduction

Optical sensing techniques allow for the possibility of making remote [1] and non-invasive measurements [2], as well as working in hazardous environments [3]. These, and many other significant advantages over other detection technologies, have attracted the attention of scientists over the last decades [4,5], and hence this technology has experienced a high development.
Optical sensors can be based on different transduction mechanisms, such as absorption [6,7], resonance [8,9,10], or photoluminescence [11,12,13]. The latter consists of emission of light by a material as a consequence of its previous absorption at lower wavelengths (excitation). Depending on the lifetime of this emission (i.e., the average time it takes the intensity to drop by 1/e), luminescence can be classified as fluorescence (lifetime in the range of ps and ns) or phosphorescence (lifetime greater than ms). The intensity of this emission, as well as its lifetime, can be quenched or enhanced by the variation of different external parameters: pH [14], temperature [15], biomolecules [16], oxygen [17], or metal ion concentration [18]. This modulation of the intensity (and lifetime) by external parameters has been widely employed for the development of luminescence-based sensors, either in solution [19,20], or onto different substrates [21,22,23].
Among the existing luminescent materials (also known as luminophores), quantum dots (QDs) [24,25], nanoparticles (NPs) [26,27], fluoropolymers [28], dyes [29,30], and porphyrins [31,32,33] have been the most utilized. For the fabrication of sensors, these luminescent materials are usually entrapped or encapsulated in different matrices [34,35] or shells [36,37], which must be designed to facilitate the interaction between the analyte and the sensing material [38].
There are three key requirements that luminescent sensors must meet: good photostability, and high selectivity and sensitivity [39]. To achieve these characteristics and allow the rapid adsorption/desorption of the target analytes to the sensing films, highly permeable coatings are usually fabricated by means of dip-coating [40], spin-coating [41], sol-gel [42], or xero-gel [43] techniques. However, when utilizing these methods the distribution of the luminophore inside the films cannot be controlled, which gives rise to their aggregation and causes self-quenching, hence significantly reducing the sensors′ sensitivity [44]. This can be overcome by fabricating the sensing coatings by means of the layer-by-layer nano-assembly (LbL) technique, which consists of the deposition of oppositely charged materials (typically polyelectrolytes) by electrostatic forces or other attractive forces acting cooperatively, including interactions such as hydrophobic attraction [45]. LbL has been experimentally demonstrated to be a powerful method for the fabrication of luminescence-based sensors, since it is a reproducible technique that allows the utilization of a wide variety of indicators. Furthermore, an accurate selection of materials and assembly parameters not only permits us to modify the permeability of the nanostructure [46], hence promoting the diffusion of target species or forming a barrier against undesirable ones [47], but also allows us to control the layer thickness at the nanometer scale and tailor the space distance between luminescent layers [48]. Taking advantage of this fact, it is possible to tailor the homogeneity of the distribution of the luminophore into the matrix [49] in order to attenuate self-quenching [48].
In recent years, luminescence has become a powerful detection mechanism in a broad range of areas, being the most important sensing tool in different biological applications [50]. This fact, together with the versatility that the LbL technique offers for the fabrication of custom-made sensors [51], has led to the development of a wide variety of luminescent probes built by this technique. Thus, a review in which the principal luminescence-based sensors fabricated by the LbL technique are analyzed is of great interest. This review compiles solution probes as well as multilayer sensing films for different purposes: metal ions detection, dissolved and gaseous oxygen monitoring, and biosensing applications.

2. Luminescent Sensors Based on Encapsulated Indicators

The progress of in vivo measurement systems in recent years has yielded the development of biocompatible optical sensors [52]. A widespread method for the fabrication of this kind of sensor consists of the encapsulation of the sensitive material in multilayered nanostructures (also called shells or capsules). These walls have to meet a key requirement: protecting sensitive molecules from the external environment while allowing fast diffusion of the target analyte [53]. LbL encapsulation of sensors was first described in the early 2000s [54,55] and, since then, many different applications have been reported [56,57,58,59].

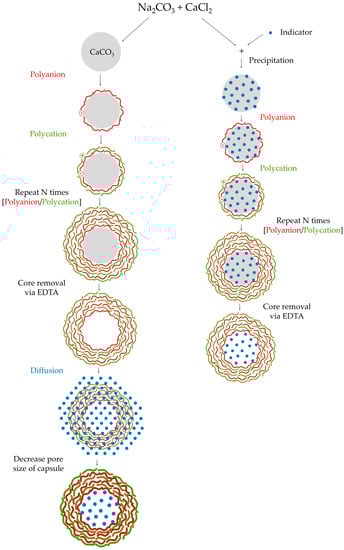

Particle encapsulation requires a template that is coated with a multilayered nanostructure and then dissolved. The main methods for immobilizing the luminophores inside the shells are diffusion and precipitation [60], which are illustrated in Figure 1.
In the case of encapsulating the sensing molecules by diffusion, the multilayered coatings are adsorbed onto sacrificial templates, usually dissolvable or degradable inorganic polymeric microspheres. Once the capsules are fabricated, the templates are dissolved in order to leave hollow microspheres suspended in solutions of the sensing molecules, which are loaded inside them just by diffusion [61]. Despite this technique offering the possibility of employing almost any dissolvable template, it also exhibits the lowest loading efficiency.
When the luminophores are encapsulated by precipitation, they co-precipitate with the sacrificial templates before the shell is built and, subsequently, templates are diluted [58]. By employing this technique, the highest loading efficiency rates can be obtained.
For an adequate selection of templates, it is important to take into account two factors: firstly, they must be able to keep their structural properties during the coating process and, secondly, they have to be easily dissolved once the encapsulating nanostructure has been attached to their surface [58]. Typical materials used as templates are calcium carbonate (CaCO3) [62], silica [63], latex [64] polystyrene [65], or gold [66] nanoparticles and melamine formaldehyde [67] microspheres. The dimensions of the shell depend on their shape and size, which can range from nanometers to microns [68].
Owing to the versatility of the LbL method, it has been extensively used for micro- and nanoparticle encapsulation [69,70], usually employing polyelectrolytes. That is because, by varying some properties of polyelectrolyte solutions and controlling the deposition conditions, it is possible to tailor the properties of the capsule walls [71]. For instance, the pH of the solutions not only influences the shell thickness [72], but also its permeability [73] and, hence, the diffusion rate of molecules inward.
As mentioned below, capsules are usually made of different polyelectrolyte combinations. The most used pairs are poly(allylamine hydrochloride) (PAH)/poly(styrene sulfonate) (PSS) [74] and poly(diallyldimethylammonium chloride) (PDDA)/poly(styrene sulfonate) (PSS) [75]. Apart from them, other combinations of materials can be employed, for instance, poly-l-lysine/poly(l-glutamatic acid) [76], chitosan/dextran [63], or poly-l-lysine/heparin [77]. However, their use is not as common as the first mentioned polyelectrolyte pairs.
One of the advantages of this technique is the possibility of developing self-referenced sensors by using a sensitive luminophore and a non-sensitive luminophore that acts as an optical reference [63]. Ideally, both have the same absorption spectrum and a complementary emission spectrum [52], which allows the use of a single excitation light source and the simultaneous monitoring of the emission peaks: one of them will change in the presence of the target analyte, while the other will remain constant. Apart from encapsulating both luminophores [58], it is also common that one of them is assembled as part of the multilayered coating [78].
The main applications of these sensors (metal ion detection, dissolved oxygen sensing, and glucose and lactate monitoring) are analyzed in the following subsections.

2.1. Encapsulated Sensors for Ion Detection

Metal ions are known to be highly toxic materials [79], so considerable efforts have been made towards their detection in aqueous media. Duchesne and co-workers [80] fabricated a potassium sensor by encapsulating the fluorescent indicators by the diffusion technique: using positively charged melamine formaldehyde (MF) particles as templates, multilayer capsules of PSS and PDDA were fabricated. The MF cores were diluted afterwards in HCl, and then the capsules were immersed in solutions of potassium-binding benzofuran isophthalate tetraammonium salt (PBFI), which diffused through the walls to the hollow cores. The PBFI-loaded sensors exhibited a luminescent peak at 500 nm, which moved towards lower wavelengths and increased in intensity upon the addition of K+ ions in the 0–45 mM range.
Rare-earth (RE) nanocrystals are of great interest for sensing applications because of their optical and chemical properties, such as long lifetime (in the range of μs or ms) [81], high quantum yield, or resistance to photobleaching [82]. A fluorescent sensing system based on RE nanocrystals and CdSe/ZnS quantum dots was fabricated by means of the LbL technique in [83]: PEI-coated NaYF4:Ce,Tb nanorods were separated from the CdSe/ZnS QDs by a PSS/PAH bilayer. Under UV illumination (255 nm), a dual emission was observed, with the luminescent peaks centered at 542 nm (RE nanocrystals) and 650 nm (QDs), with the latter being dominant due to the fluorescence resonance energy transfer between the RE nanorods and the QDs. Under exposure to different concentrations of Cu2+ or Ag+ metal ions in the μM range, the luminescent intensity at 650 nm decreased, while that corresponding to the peak centered at 542 nm remained constant. This can be observed in Figure 2, in which the system was exposed to different metal ions (30 μM): the red color (650 nm) was quenched by Ag+ ions, while it completely disappeared in the presence of Cu2+ ions, demonstrating high selectivity.
Other encapsulated sensors for the detection of metal ions are summarized in Table 1. Most of them use salts as sensitive indicators (e.g., benzofuran isophthalate tetraammonium salt (PBFI) or sodium-binding benzofuran isophthalate tetraammonium salt (SBFI)), and FluoSpheres as references.

2.2. Encapsulated Sensors for Dissolved Oxygen Detection

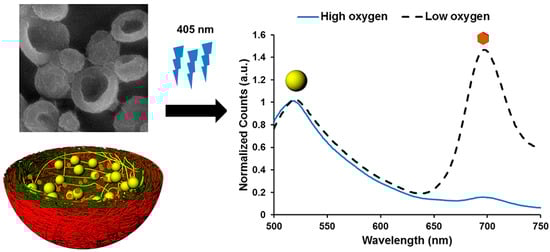

The most important application of this kind of sensors is the detection of low concentrations of dissolved oxygen for biomedical applications, typically utilizing ruthenium porphyrins as indicators. McShane et al. [52] fabricated a self-referred oxygen sensor by employing tris(2,2′-bipyridyl) dichlororuthenium(II) hexahydrate (Ru(bpy)) as the sensitive material and fluorescein isothiocyanate (FITC) as the reference one, so the use of a single light source at 460 nm was possible, and the simultaneous monitoring of the luminescent peaks at 525 nm (FITC) and 620 nm (Ru(bpy)), allowing ratiometric measurement of the fluorescence (I620/I525). For the capsule fabrication, 2.6 µm melamine formaldehyde microtemplates were coated with {PSS/PAH-FITC}n or {PSS/PAH-FITC}nPSS shells. After the cores’ dilution, the capsules were suspended in solutions of the oxygen-sensitive indicator at different pH values, and Ru(bpy) molecules were loaded by diffusion. The highest loading efficiency was achieved in the case of the {PSS/PAH-FITC}5PSS shells, when the pH value of the Ru(bpy) solution was 10.4. Suspensions of these sensors were bubbled with O2 and N2, and it was observed that in the presence of O2, the intensity at 620 nm (Ru(bpy)) decreased while the intensity at 525 nm (FITC) remained constant. A total decrease of 15% of the I620/I525 ratio was measured when only O2 was bubbled. Moreover, the sensor response was consistent with the dynamic changes of the gas levels over time.
Palladium porphyrin was encapsulated in [58] by the co-precipitation technique: the carboxylate modifies FluoSpheres (FS), used as the reference, and the Pd-meso-tetra(4-carboxyphenyl) porphine (PdTCPP) co-precipitated with the calcium carbonate (CaCO3) nanoparticles. They were first stabilized in poly(vinylsulfonic acid) (PVSA) and then coated with the multilayer (PDDA/PSS)10 structure, and the CaCO3 cores were diluted. When the capsules were excited at 405 nm, they emitted luminescence at 515 nm (FS) and 700 nm (PdTCPP). Under exposure to different dissolved oxygen concentrations, the intensity of the emission peak centered at 515 nm remained constant, while that of the peak at 700 nm decreased proportionally to the oxygen concentration. Thus, the ratio I700/I515 was used to characterize the sensor, which had a detection limit of 7.62 μM. A schematic illustration of this sensor and its response to oxygen is given in Figure 3.
Other dissolved oxygen probes were developed with different ruthenium porphyrins, such as tris(4,7-diphenyl-1,10-phenanthroline)ruthenium(II) dichloride (Ru(dpp)) or [Ru(Ph2phen)3]2+. They are summarized in Table 2.

2.3. Encapsulated Sensors for Glucose and Lactate Monitoring

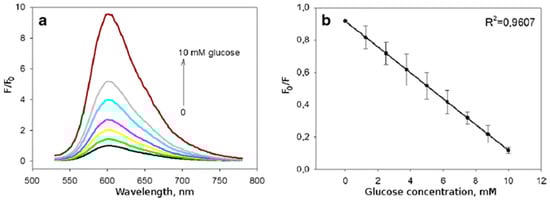

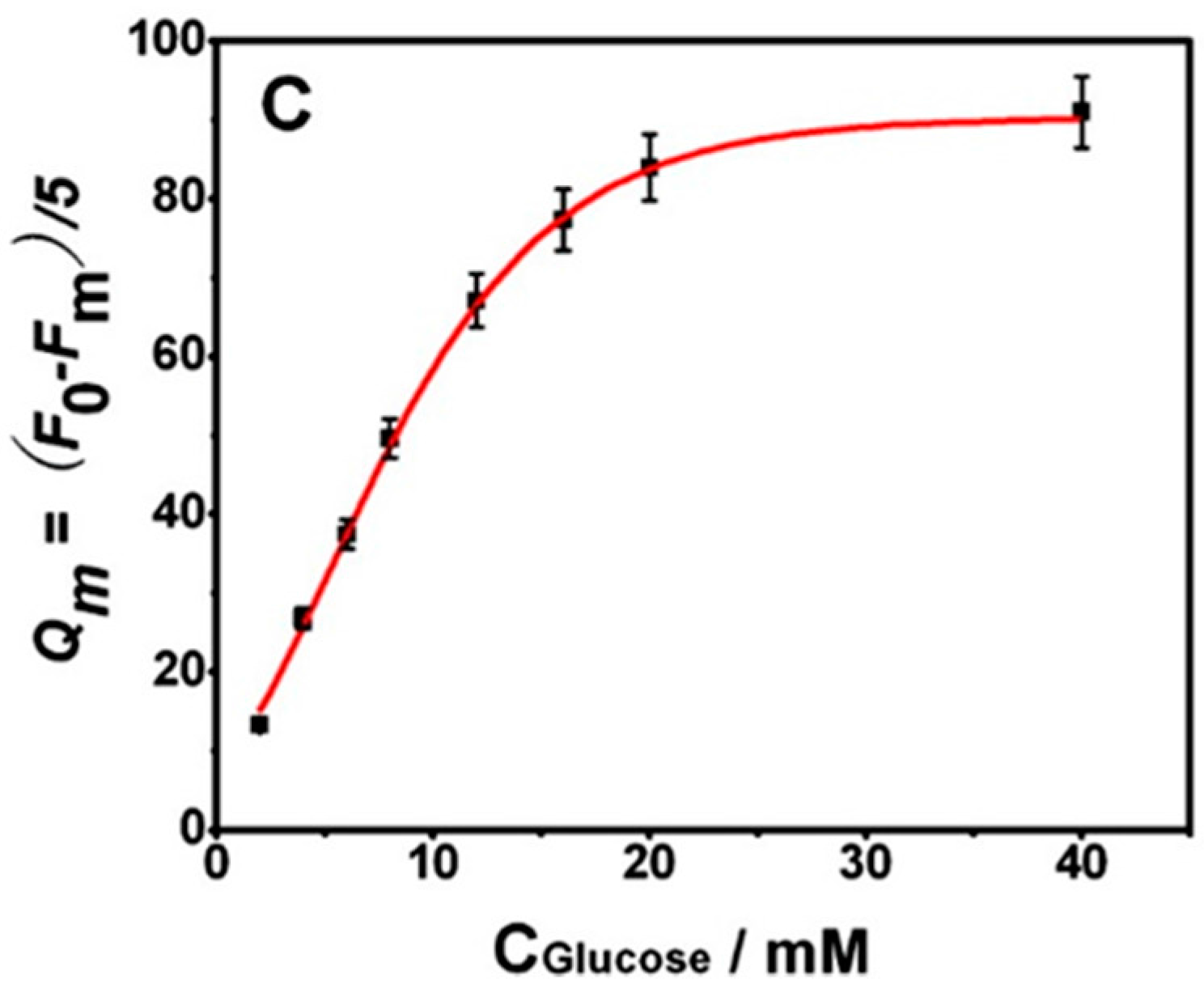

A particular application of dissolved oxygen sensors is glucose monitoring [89]. To this end, glucose binding proteins, usually glucose-oxidase [87] or apo-glucose-oxidase [90], are loaded inside the multilayered shells, as well as the sensitive molecules. For instance, Kazakova et al. [87] fabricated 5 μm-microcapsules made of PAH and PSS loaded with oxygen-sensitive dye (Ru(dpp)) that entrapped glucose-oxidase. This indicator emitted fluorescence between 560 and 700 nm, and its intensity was inversely proportional to the oxygen concentration. Furthermore, glucose concentration was correlated with oxygen reduction during enzymatic degradation by glucose oxidase. An increase in the fluorescent intensity and the calibration curve of this sensor upon the addition of different glucose concentrations is observed in Figure 4.
Kazakova et al. also coated lactate oxidase and peroxide with capsules of PAH and PSS loaded with dihydrorhodamine 123 (DHR123), which was sensitive to hydrogen peroxide. The addition of lactate in the presence of lactate oxidase produced hydrogen peroxide, which oxidized DHR123 in the presence of peroxide, yielding rhodamine123, a molecule that emitted green fluorescence (510–560 nm), as can be observed in Figure 5.

3. Luminophores Immobilized in Multilayer Films for Sensing Applications

Luminescence-based sensors are also fabricated onto different substrates by coating them with films in which the sensitive luminophores are embedded. These luminescent coatings exhibit many different advantages over solution-based sensors, such as the possibility of fabricating them onto almost any kind of substrate [91,92], their easy storage and portability [93], their regeneration and reusability [94], and the good chemical stability of luminophores in solid state [95]. Furthermore, they can be used for vapor/gas detection [96], an application field where the encapsulated probes are hardly used [97].

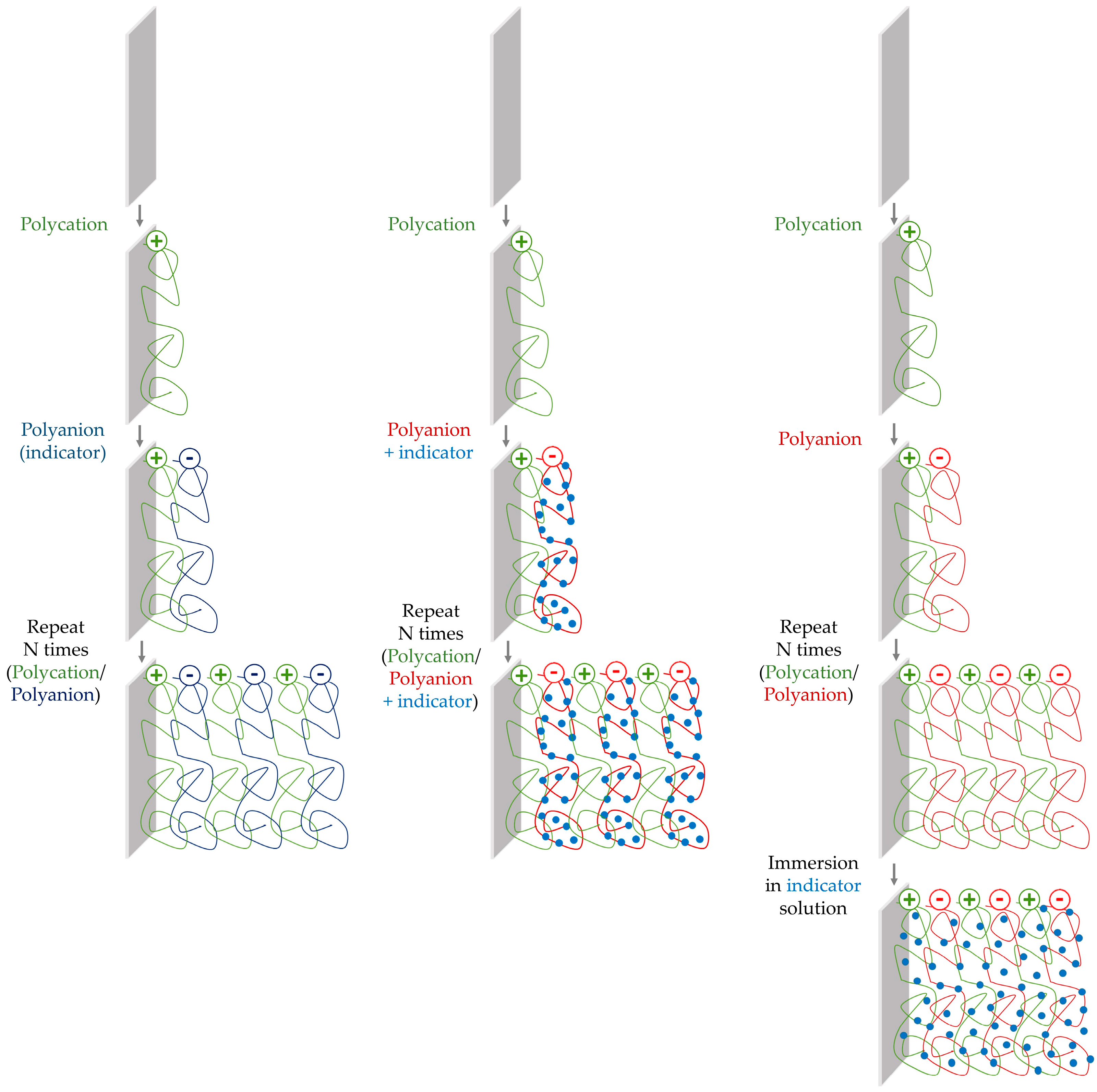

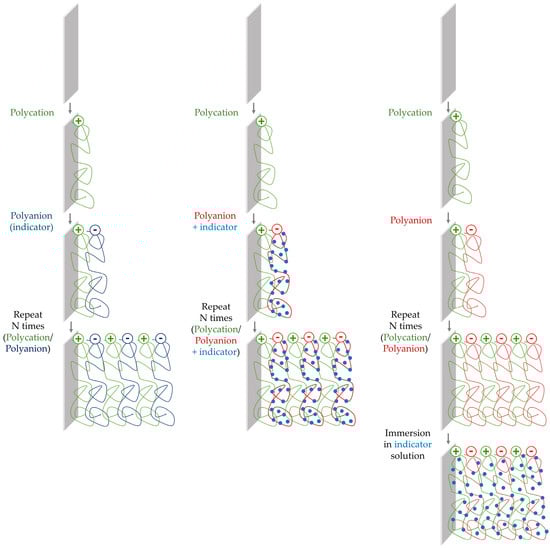

The luminescent indicators can be entrapped in multilayer structures by different methods, which are displayed in Figure 6. If they are immobilized during the fabrication process, this can be done by direct assembly (in this case they are not neutral materials), or by mixing, covalently linking, or entrapping them inside charged materials. When the immobilization of the indicator occurs after the fabrication of the film, it is carried out by immersing it in a solution of the dye. Examples of these cases are explained in the following subsections.

3.1. LbL Luminescent Coatings for the Detection of Metal Ions

A wide variety of indicators have been employed for the fabrication of luminescent films for the detection of metal ions, ranging from ligand-capped quantum dots to fluorescent conjugated polymers, including porphyrins and water-soluble dyes. To this latter category belongs 1-hydroxypyrene-3,6,8-trisulfonate, HPTS, a luminescent indicator widely used for pH monitoring [98,99]. For its deposition by the LbL technique, Lee and coworkers [100] attached it covalently to the polyanion PAA and, by using PAH as a cationic polyelectrolyte, deposited the multilayer structure [PAH/PAA-HPTS]n onto glass slides. HPTS emitted luminescence at 485 nm when it was illuminated at 410 nm. The maximum of the luminescent peak decreased linearly, but with different quenching constants, in the presence of electron-deficient metal cations, such as Fe3+ and Hg2+, the nitro compound 2,4-dinitrotoluene, DNT, or the dicationic electron acceptor methyl viologen, MV2+ [101]. This can be observed in Figure 7, where the Stern–Volmer plots of multilayers of [PAH/PAA-HPTS] for each compound are displayed. Furthermore, this luminescence was not affected by other metal ions, for instance, Ba2+, Ca2+, K+, Zn2+, Cd2+, and Pb2+.

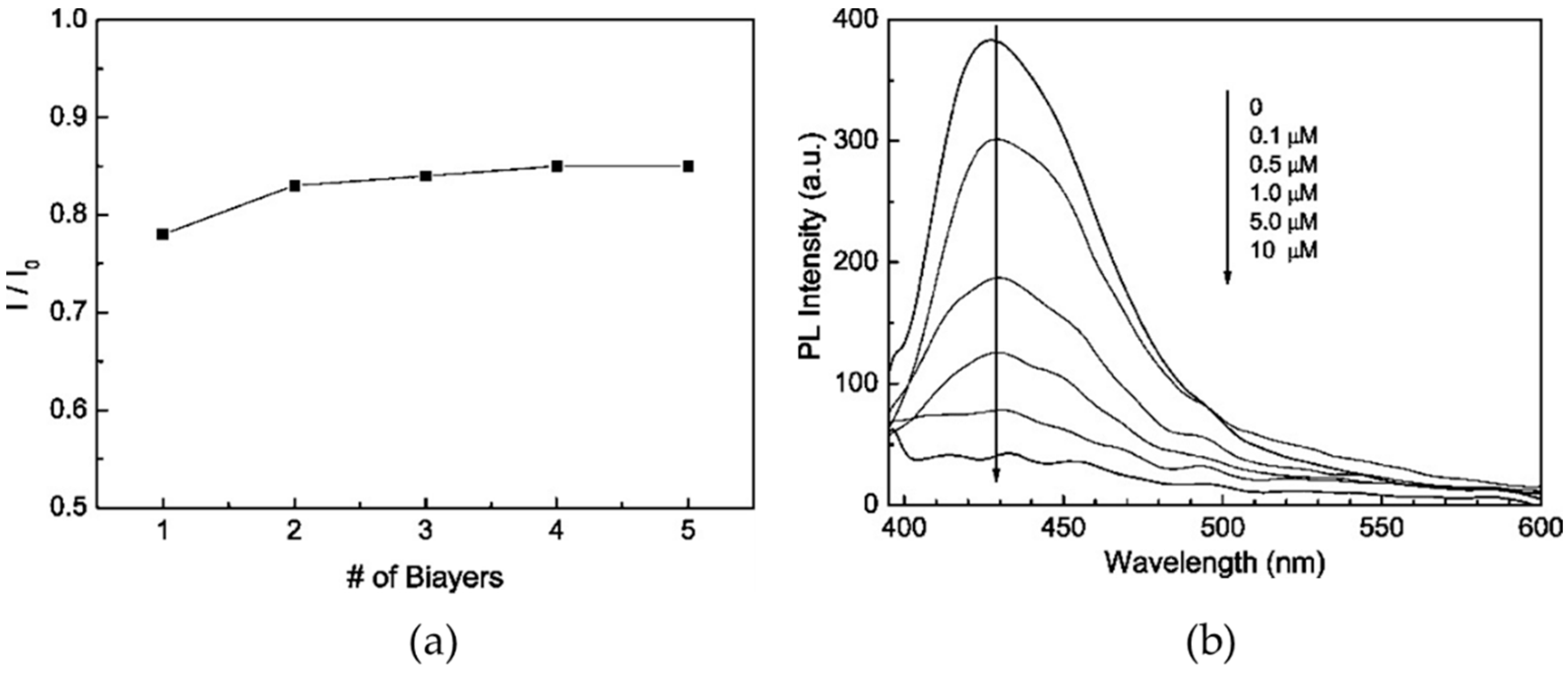

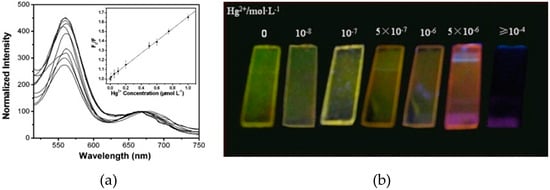

Different fluorescent probes for mercury(II) ion detection based on the water-soluble porphyrin 5,10,15,20-tetrakis(4-sulfonatophenyl)porphyrin (TPPS) were compared in [102]. PDDA was employed as a cationic polyelectrolyte and TPPS, PSS, or solutions with different ratios of TPPS:PSS were used as anionic counterparts. On one hand, it was observed that, when TPPS and PSS were co-deposited, giving rise to the structure (PDDA/TPPS:PSS)n, higher quantum yields were observed when the PSS:TPPS ratio increased from 1:1 to 1:100. On the other hand, when depositing TPPS alternately (i.e., PDDA/PSS/PDDA/TPPS)n), the amount of adsorbed porphyrin was higher than when as mixed with PSS, and a good quantum yield was also achieved. A detailed analysis of this structure demonstrated that films with one or two tetralayers were most suitable to be used as Hg(II) sensors, since they combined good optical properties with the lowest response time. In the case of (PDDA/PSS/PDDA/TPPS), the sensor was exposed to Hg(II) concentrations in the range between 3.3 × 10−8 and 3.3 × 10−5 M. For higher concentrations, a longer time was required to reach equilibrium as a consequence of the adsorption process of the analyte within the films.

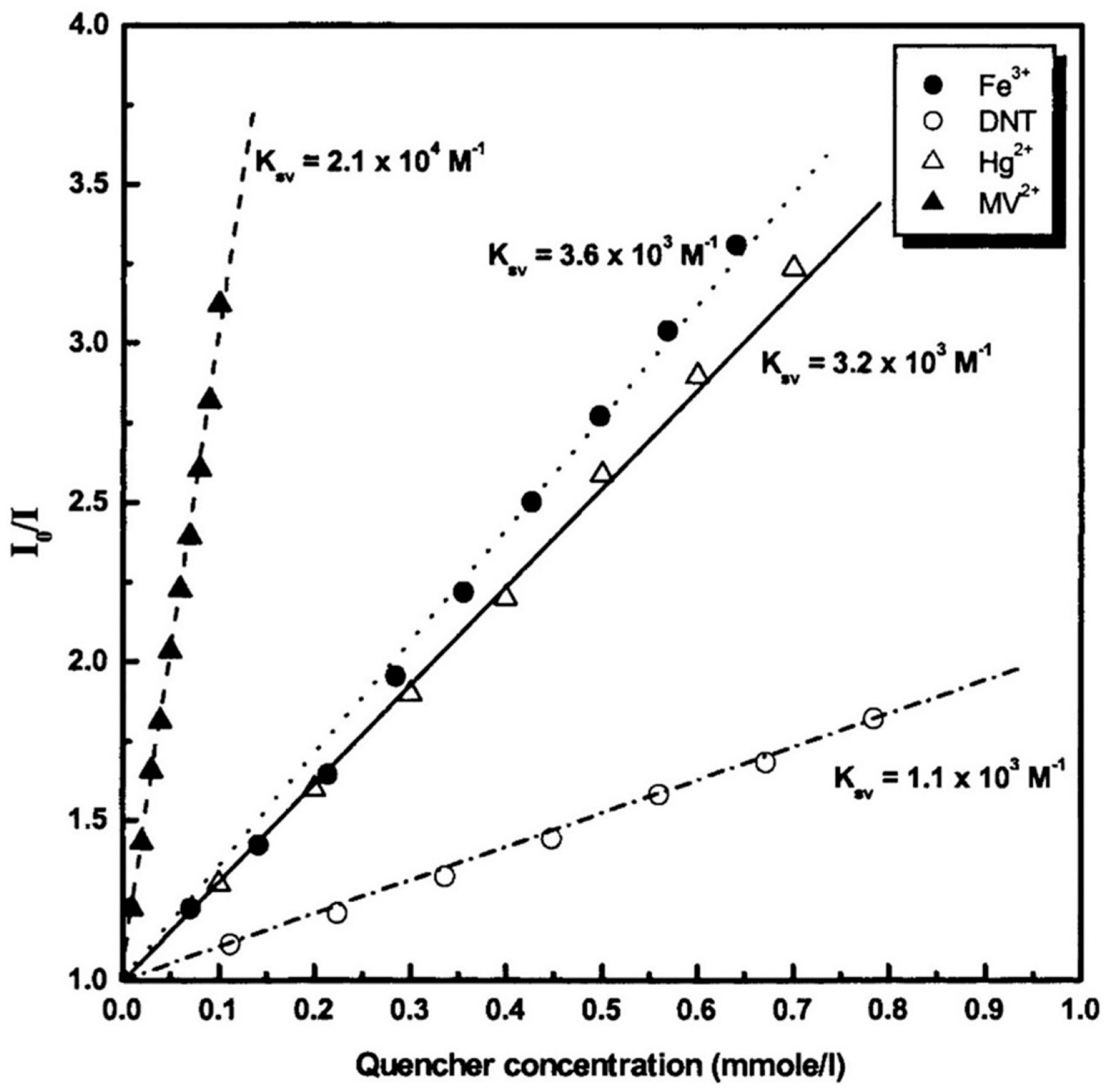

Fluoropolymers have also attracted interest for the development of optical sensors because of their high luminescence quantum yields. For instance, poly(9,9-bis(3′-phosphatepropyl)fluorenealt-1,4-phenylene) sodium salt (PFPNa) was synthesized and deposited with PDDA by means of the LbL [103]. The PFPNa polymer had absorption and luminescence peaks at 364 and 410 nm, respectively, whose intensities were proportional to the pH of the aqueous solutions. The latter was also inversely proportional to Fe3+ concentration. Furthermore, the sensor sensitivity was demonstrated to be almost independent of the number of bilayers (Figure 8a), so the 1-bilayer coating was employed as the sensing structure. In this case, fluorescence was quenched 400-fold for 10 µM of Fe3+ concentration (Figure 8b), and the detection limit for this metal ion was 10−7 M. Another thin-film sensor that employs a fluoropolymer for metal ion detection is reported in [104].

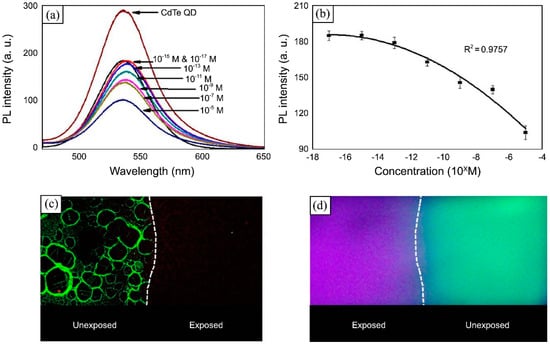

Negatively charged mercaptosuccinic acid (MSA) capped CdTe QDs have been assembled with the cationic polyelectrolyte PDDA onto quartz slides by means of the LbL technique. These QDs exhibited a luminescent peak centered at 589 nm, whose intensity decreased proportionally with the increment of Hg(II) for concentrations ranging from 0.01 μM to 1 μM [105]. Hg(II) removal from the sensing film was possible by adding glutathione (GSH) to the sample solutions, which also led to the recovery of the initial luminescent intensity. In subsequent research, this multilayer structure was employed to monitor Hg2+ and Cu2+ synchronously [106]: despite both ions having quenched the luminescent intensity, the quenching constant of Hg2+ was higher than that of Cu2+. Finally, by cross-linking the outermost layer of PDDA/CdTe QDs multilayers by bovine serum albumin (BSA) [107], a bi-color film was developed: it exhibited two luminescent peaks centered at 553 nm (green) and 657 nm (red), with green being the dominant color. In the presence of Hg(II), the intensity of the first peak decreased (as shown in Figure 9a) and, for Hg(II) concentrations higher than 10−6 M, it was totally quenched, which made the sensing film change color from green to red. This color change was detectable by the naked eye, as can be seen in Figure 9b.
Apart from CdTe QDs, carbon nanoparticles have also been employed for the fabrication of Hg(II)-sensitive luminescent films [108]. Their functionalization with PEG200 and N-acetyl-L-cysteine (NAC) enabled the carbon dots to be assembled with PEI onto the tapered tip of a 600 μm-core optical fiber by means of the LbL technique, as well as the detection of mercury ions. Although the fluorescence quenching mechanism of these sensors was not completely determined, it was likely to be due to the interaction between the –SH groups of NAC and Hg(II) ions. Sensing coatings from one to six bilayers of (PEI/carbon dots) were analyzed: all of them exhibited a reproducible and reversible behavior towards Hg(II) (see Figure 10 for the particular case of the six-layer structure), and it was found that an increase in the number of bilayers led to a decrease in the detection limit (0.1 μM Hg(II) for one bilayer and 0.01 μM Hg(II) for six bilayers) and an increase of the quenching constant. However, cross-sensitivity towards other metal ions was not studied.

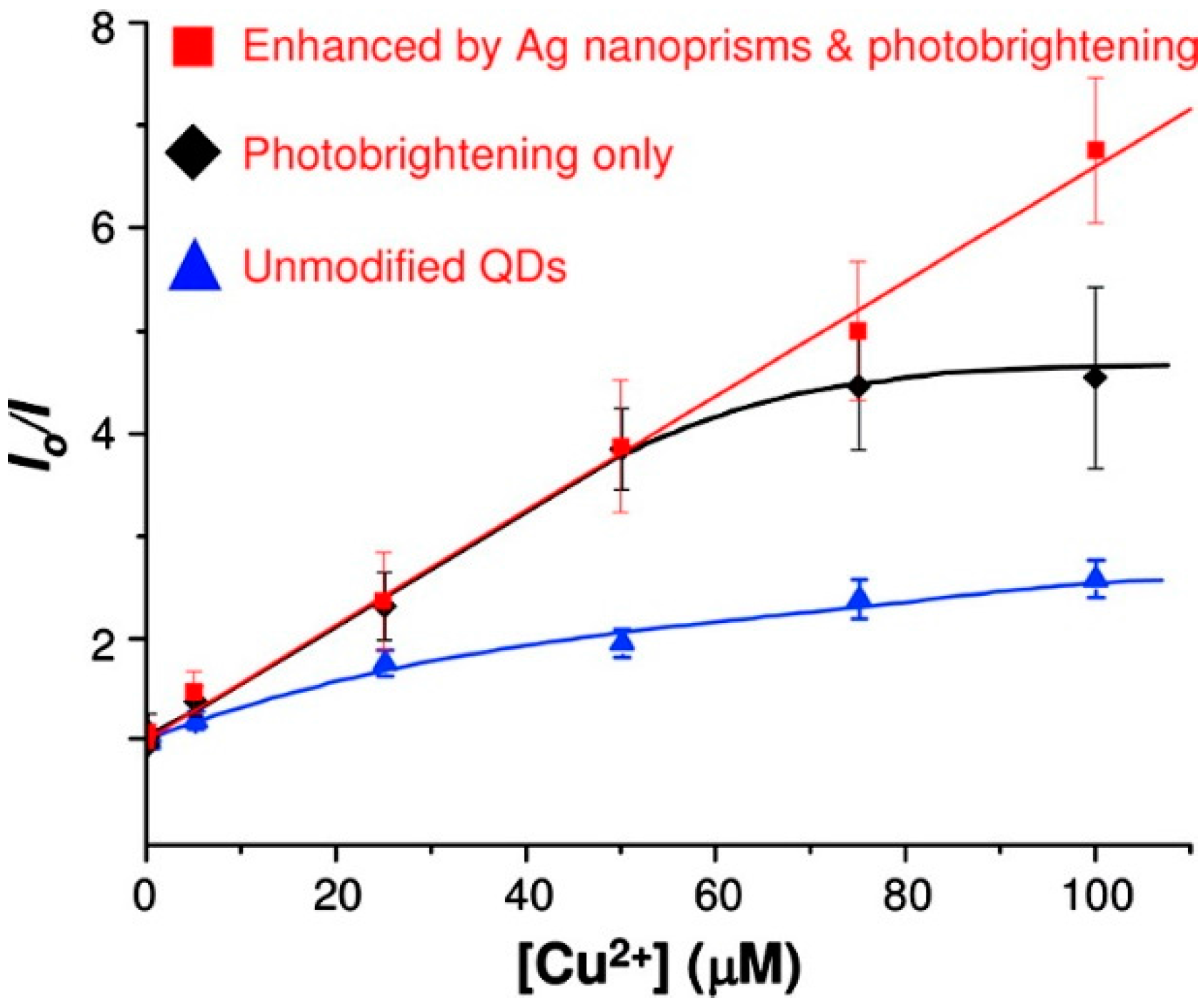

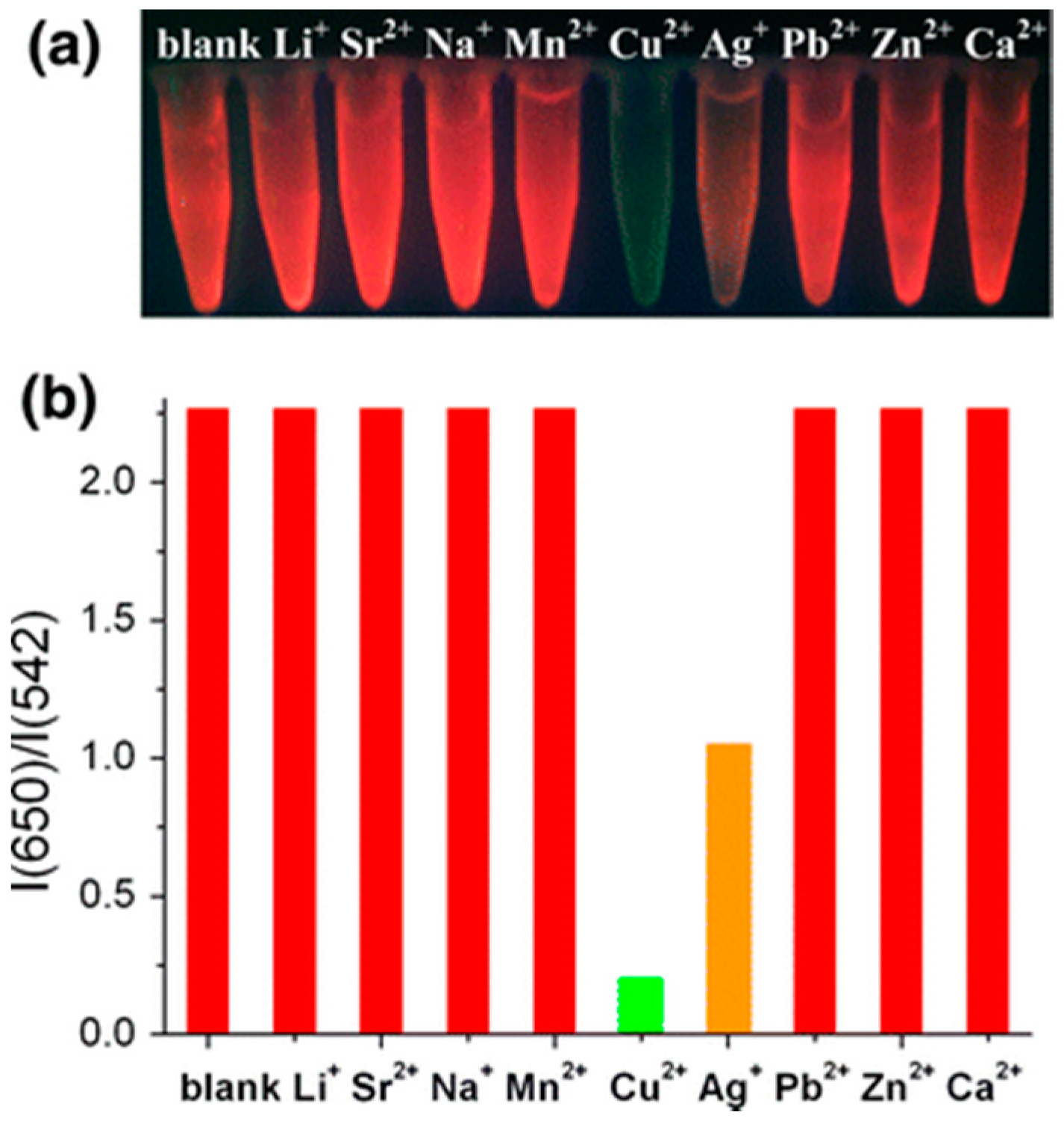

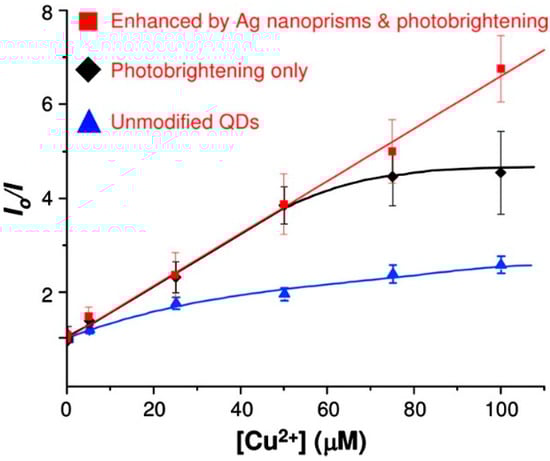

An ultrasensitive Cu(II) sensor was developed by taking advantage of the fluorescence enhancement produced by Ag nanoprisms onto 16-mercaptohexadecanoic acid (16-MHA) capped CdSe quantum dots (QDs) [109]. Si or glass slides were coated with a layer of silver nanoprisms, which was separated from the outer QDs layer by a (PDDA/PSS) spacer of the optimal thickness [110] fabricated by means of LbL. The Ag nanoprisms, together with a UV photobrightening process, enhanced the luminescence, which was selectively quenched by Cu2+ ions, with a detection limit as low as 5 nM. The enhancement produced by the photobrightening and the Ag nanoprisms is clearly observable in Figure 11.
Table 3 summarizes all the metal ion sensors analyzed in this section.

3.2. LbL Luminescent Coatings for Dissolved Oxygen Sensing

In neutral solutions singlet oxygen (1O2) reacts with ascorbate (AscH-) producing H2O2, which quenches the fluorescent emission of CdTe QDs [111]. Taking advantage of this reaction, a singlet oxygen sensitive coating was fabricated by means of the LbL technique [112]: first, a glass slide was coated with the base layers (PDDA/PAA)3/PDDA, onto which 10 bilayers of (CdTe QDs/PDDA) were deposited. With the aim of avoiding any interference between the CdTe QDs and the ascorbate, a spacer structure (PDDA/PAA)2/PDDA was introduced and, finally, two bilayers of PDDA/ascorbate were built. The sensing films were introduced in a phenylalanine solution, which produced singlet oxygen under UV illumination. Then, 1O2 reacted with ascorbate producing H2O2, which etched the QDs surface, giving rise to their luminescence quenching, as is shown in Figure 12. This sensing structure detected 1O2 concentration as low as 10−15 M. For each concentration, the intensity decreased for 5 min, when a steady stage was reached. This response time was thought to be due to the time required by H2O2 to etch the QDs [113].
Other dissolved oxygen sensors were developed by utilizing ruthenium porphyrins as sensitive materials. For instance, Grant and coworkers fabricated a self-referenced optical fiber sensor based on a polymer/polymer-dye multilayer structure, by combining the oxygen sensitive porphyrin bis(2,2′-bipyridine)′′-methyl-4-carboxybipyridine-ruthenium-N-succinimidyl-ester bis(hexafluoro-phosphate), Ru(bpy)2(mcbpy), with PAH and the reference dye, FITC, with the same cationic polyelectrolyte [114]. The multilayer architecture (PAH-Ru(bpy)2(mcbpy)/PSS)10 + {PAH-FITC/PSS)5 was built on the tip of a 400 μm-core optical fiber, which was connected to a two (200 μm) to one (400 μm) coupler. Under illumination at 450 nm, the sensing film exhibited two luminescent peaks, centered at 524 nm and 630 nm, which corresponded to the two dyes, FITC and Ru(bpy)2(mcbpy) respectively. The fluorescence peak ratio (I630nm/I524nm) changed from 0.82 to 0.75 under dissolved oxygen concentration variations from 0 to 1400 mM. In a subsequent study [115], the number of dye layers was increased up to 15, but no enhancement of the sensor performance was observed.
A study of the adsorption of Ru(bpy) onto planar substrates by LbL was performed in [116]: this porphyrin was attempted to be assembled from a pure dye solution as well as from solutions of different dye-polyion concentrations. In the first case, the multilayer structure PEI/(PSS/PDDA)2/(PSS/Ru(bpy))20 was deposited onto glass slides. Despite Ru(bpy) being positively charged, it was observed that it was barely adsorbed to PSS and, what is more, it was desorbed when the substrates were immersed in the anionic solution. When mixing Ru(bpy) with PSS, sensing coatings with the structure PEI/(PSS/PDDA)2/(PSS-Ru(bpy)/PDDA)20 and different ratios (1:80, 1:40 and 1:20) of Ru(bpy):PSS were analyzed. As the Ru(bpy):PSS ratio increased, so did the fluorescence intensity. The fluorescence quenching of the sensor fabricated with the 1:20 (Ru(bpy):PSS) ratio exhibited a Stern–Volmer trend, being able to detect changes of less than 3% of the dissolved oxygen concentration in the range between 0 and 12 mg/L. This fact made it suitable for monitoring oxygen concentrations within biological environments. However, a further investigation [117] concluded that the best approach for adsorbing the luminescent dye to the substrate was not polyelectrolyte-dye mixing, but their covalent linkage: this bond prevented any kind of dye desorption when the substrate was immersed into the oppositely charged solution.

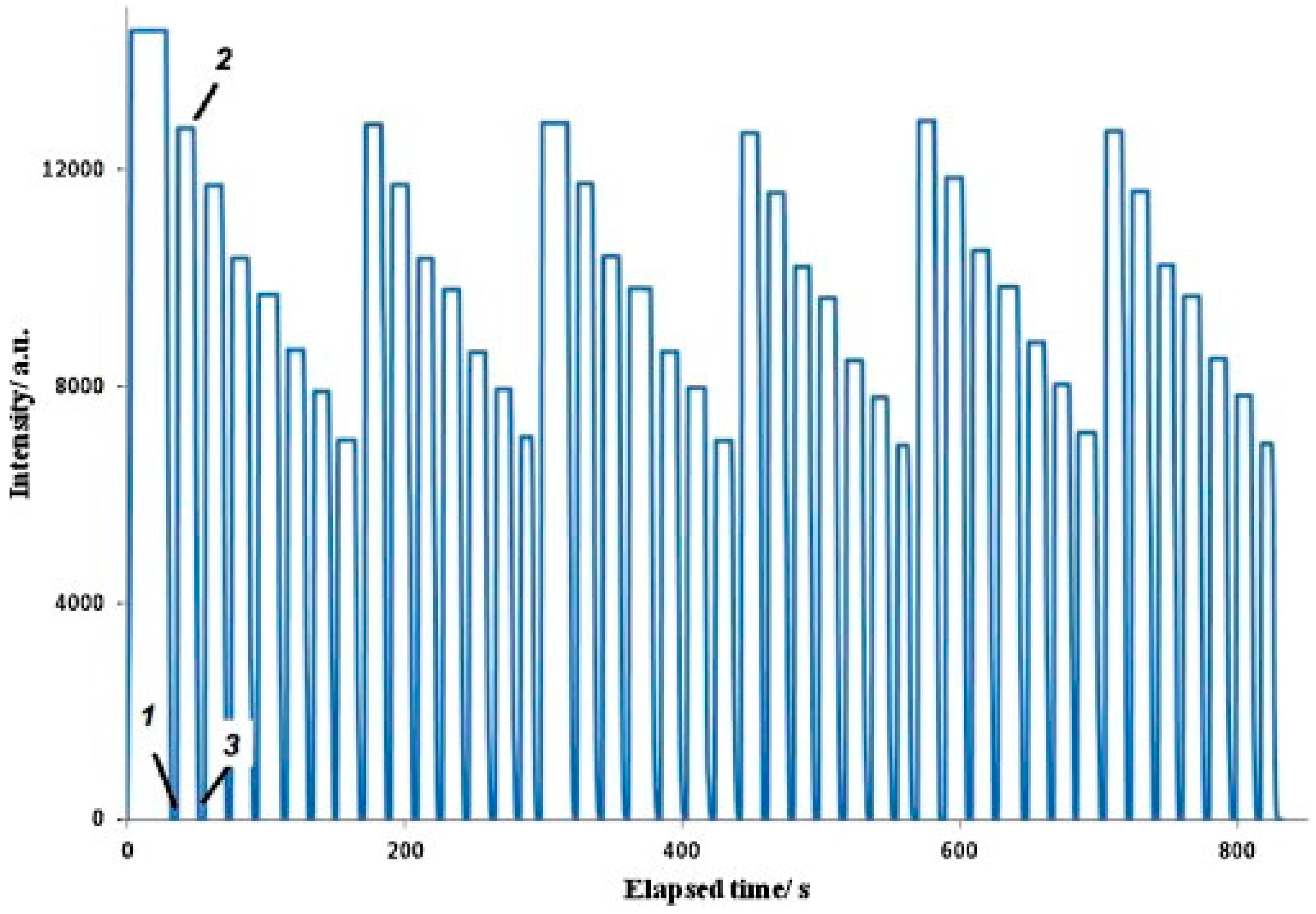

3.3. LbL Luminescent Coatings for Gaseous Oxygen Sensing

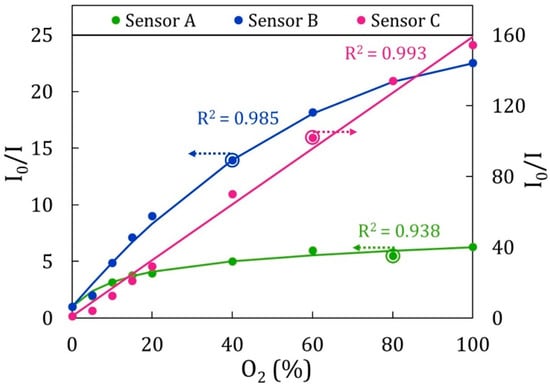

Another approach to immobilizing these ruthenium porphyrins into the multilayer structures consisted of the fabrication of the multilayer film and its further immersion in the dye solution, with the consequent diffusion of the indicator inside the coating. In [118], three kind of sensors were fabricated onto the tip of a 62.5 μm-core optical fiber. The first type consisted of a hygroscopic polymer membrane made of polyglutamic acid (PGA, anionic material) and poly-Lysine (cationic material). The second coating was a water absorbing polymer membrane composed of PAA (anionic polyelectrolyte) and PAH (cationic polyelectrolyte) and the third one, a porous composite membrane, was a multilayer structure of porous glass beads and PAH built onto a PAA layer. After the deposition of 50 bilayers of each structure onto the optical fiber tips, they were immersed in 80 mM Ru(bpy) solutions. When the sensors were illuminated at 450 nm, no phosphorescence was observed in the case of the water-absorbing polymer membrane, whereas the hygroscopic polymer membrane and the porous composite membrane exhibited a phosphorescent peak centered at 625 nm; the latter was the only one that was quenched when the sensor was exposed to 95–100% oxygen concentrations. Apart from the influence of the multilayer structure on the behavior of the sensors, the effect of the number of bilayers was also studied. It was found that a 125-bilayer structure did not show phosphorescence, which was attributed to the difficulty of introducing the ruthenium porphyrin in such a thick membrane. On the other hand, the five-bilayer sensor had a similar sensitivity to that of the 50-bilayers one, and it also demonstrated high resolution for low oxygen concentrations.
All the ruthenium porphyrins employed up to now are water-soluble, which facilitates their assembly by means of the LbL technique. As is well known, this construction method requires all the materials to be present in water solutions for their deposition onto the substrates, so the water-insolubility of certain porphyrins can be an inconvenience. To overcome this fact and facilitate their deposition by the LbL technique, there exists the possibility of entrapping them into micelles [119]. Taking advantage of this method, the water-insoluble platinum(II)-5,10,15,20-tetrakis-(2,3,4,5,6-pentafluorphenyl) porphyrin, Pt-TFPP, was immobilized for the first time, employing the LbL technique in [120]: PAH was used as cationic polyelectrolyte and Sodium Dodecyl Sulfate (SDS) micelles, into which Pt-TFPP was entrapped, were employed as anionic counterpart. The multilayer coating formed by (PAH/Pt-TFPPSDS)10 was built onto the tip of a 400 μm-core optical fiber, which was connected to a 200 μm-core bifurcated fiber. Under illumination at 390 nm, the intensity of the luminescence peak at 650 nm decreased as the oxygen concentration increased, exhibiting a linear Stern–Volmer plot in the whole range of oxygen concentrations. A comparative study of three different polymeric matrices was carried out in [49], where the structures (PDDA/Pt-TFPPSDS)10, (PEI/Pt-TFPPSDS)10, and (PAH/Pt-TFPPSDS)10 were analyzed in detail. It was shown that the sensitivity was determined by the morphology of the coatings: the rougher the sensing film, the more sensitive the sensor, and the higher the range of oxygen concentrations able to detect the sensor. What is more, the sensors fabricated with PDDA and PEI did not exhibit linear calibration curves; their Stern–Volmer plots had two different quenching constants, indicating that the luminophore was not homogeneously distributed in the matrix. This fact can be seen in Figure 13 and in Table 4, where the calibration curves and the quenching constants of each sensor are displayed.

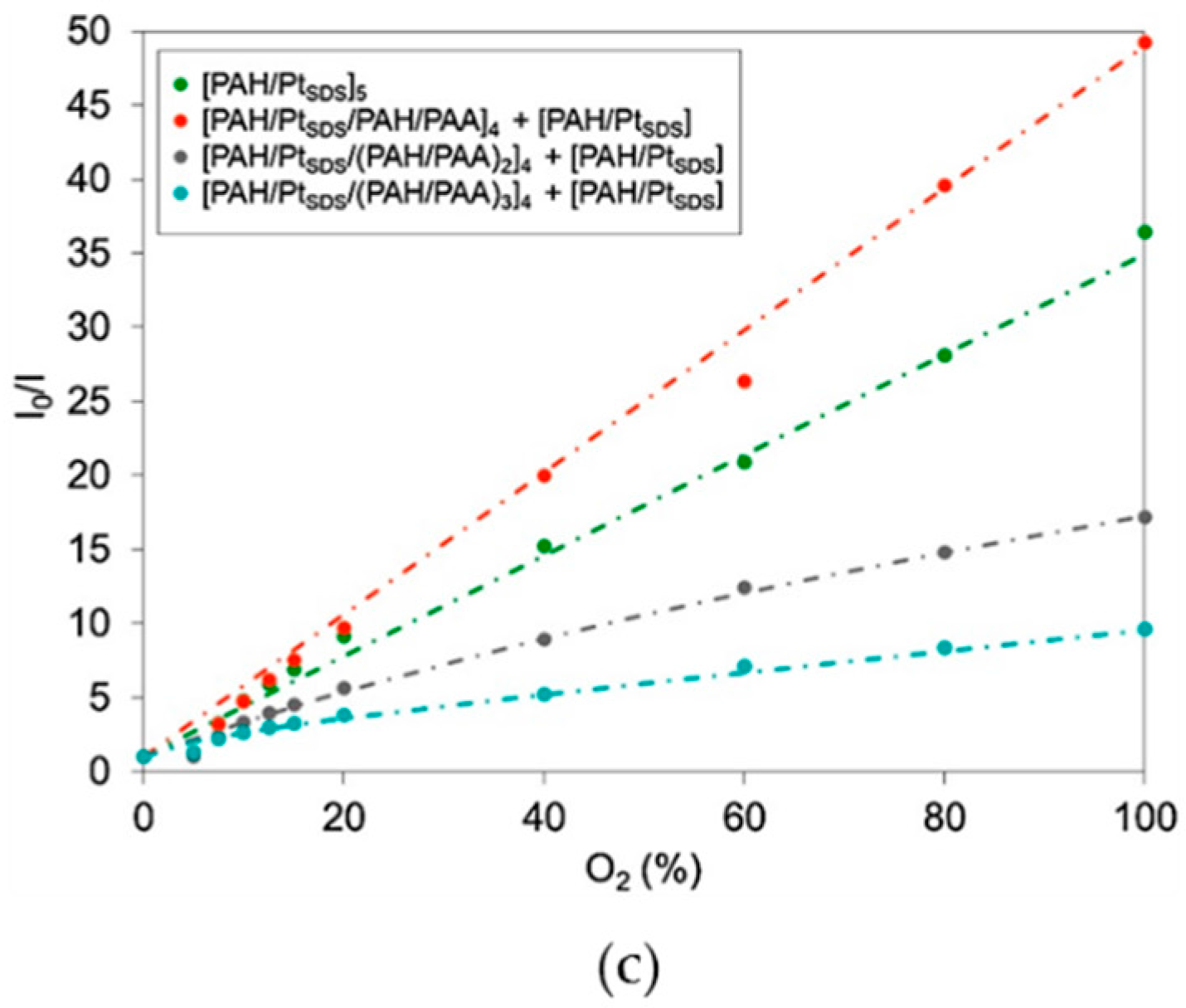

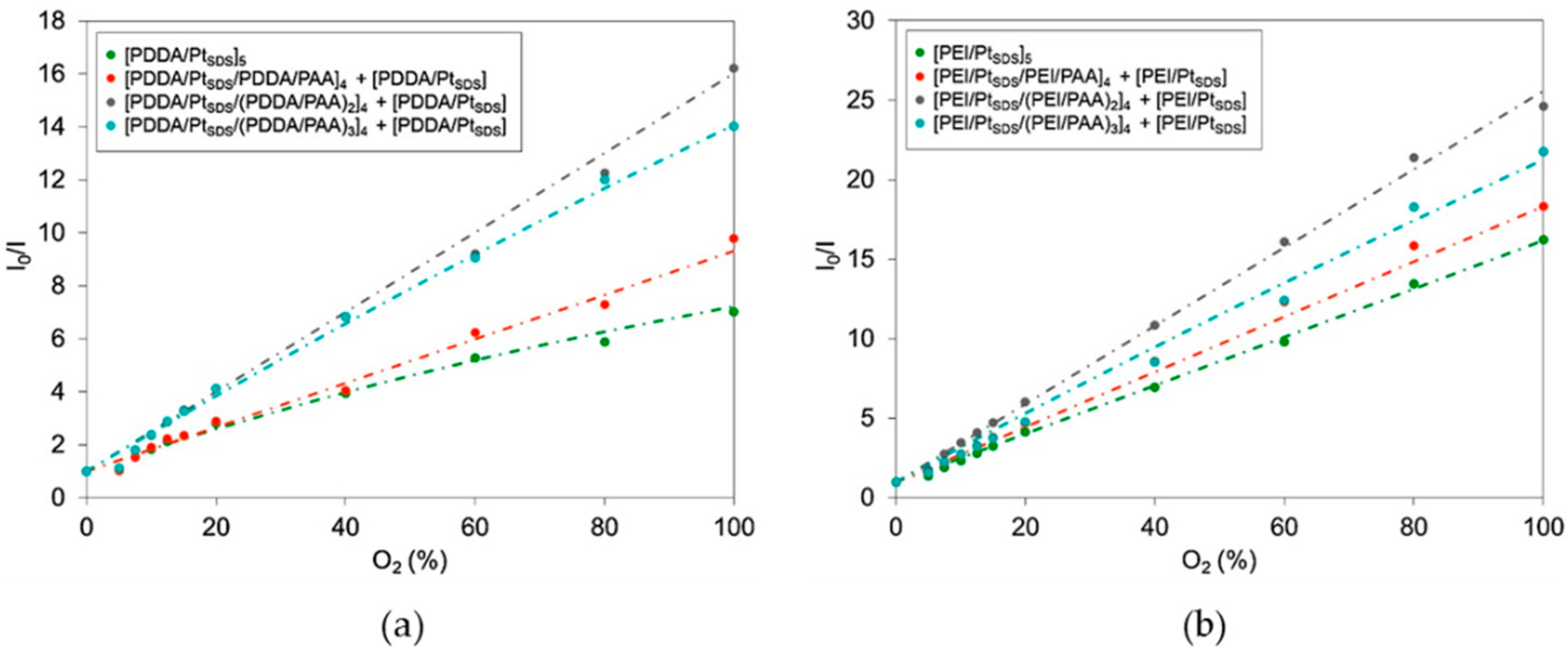

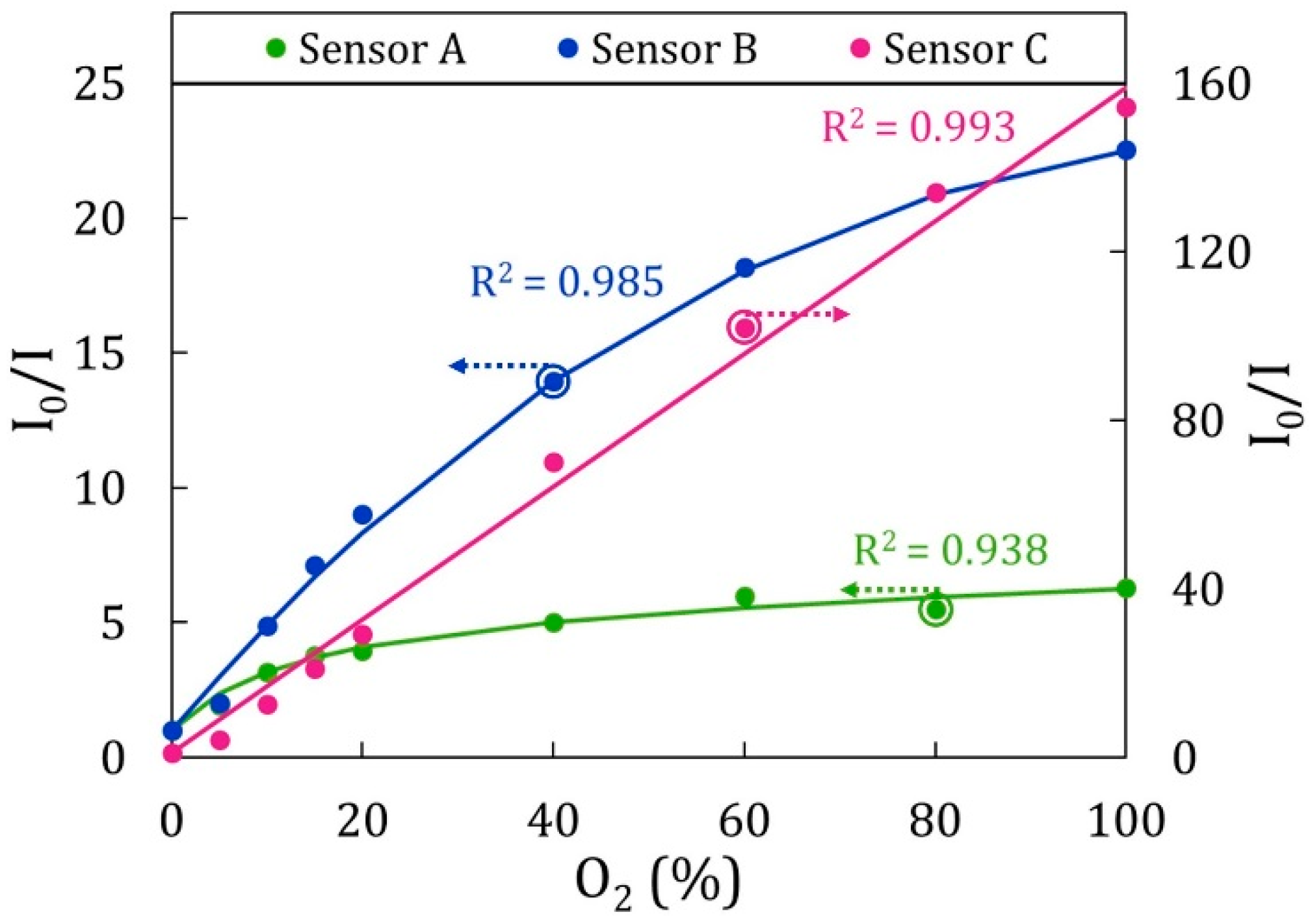

With the aim of avoiding self-quenching and enhancing the sensitivity of the sensors, the spacing distance between the luminescent films was increased by introducing PAA layers between the cationic ones [48]. This fact not only affected the sensitivities of the sensors, but also determined the distribution of the luminophores inside the multilayer structure. For instance, in the cases fabricating the sensors with PDDA or PEI, a higher number of spacing layers was needed than in the case of the sensors built with PAH to obtain linear calibration curves and the highest sensitivities. This is shown in Figure 14: for the sensors fabricated with PDDA or PEI, the highest sensitivities are obtained when the luminescent films (PtSDS) are separated by five layers, P(+)/PAA/P(+)/PAA/P(+), where P(+) are PDDA and PEI, respectively. In the case of the sensors fabricated with PAH, only three spacing layers, PAH/PAA/PAH, are enough to reach the maximum sensitivity.

3.4. LbL Luminescent Films for Biosensing Applications

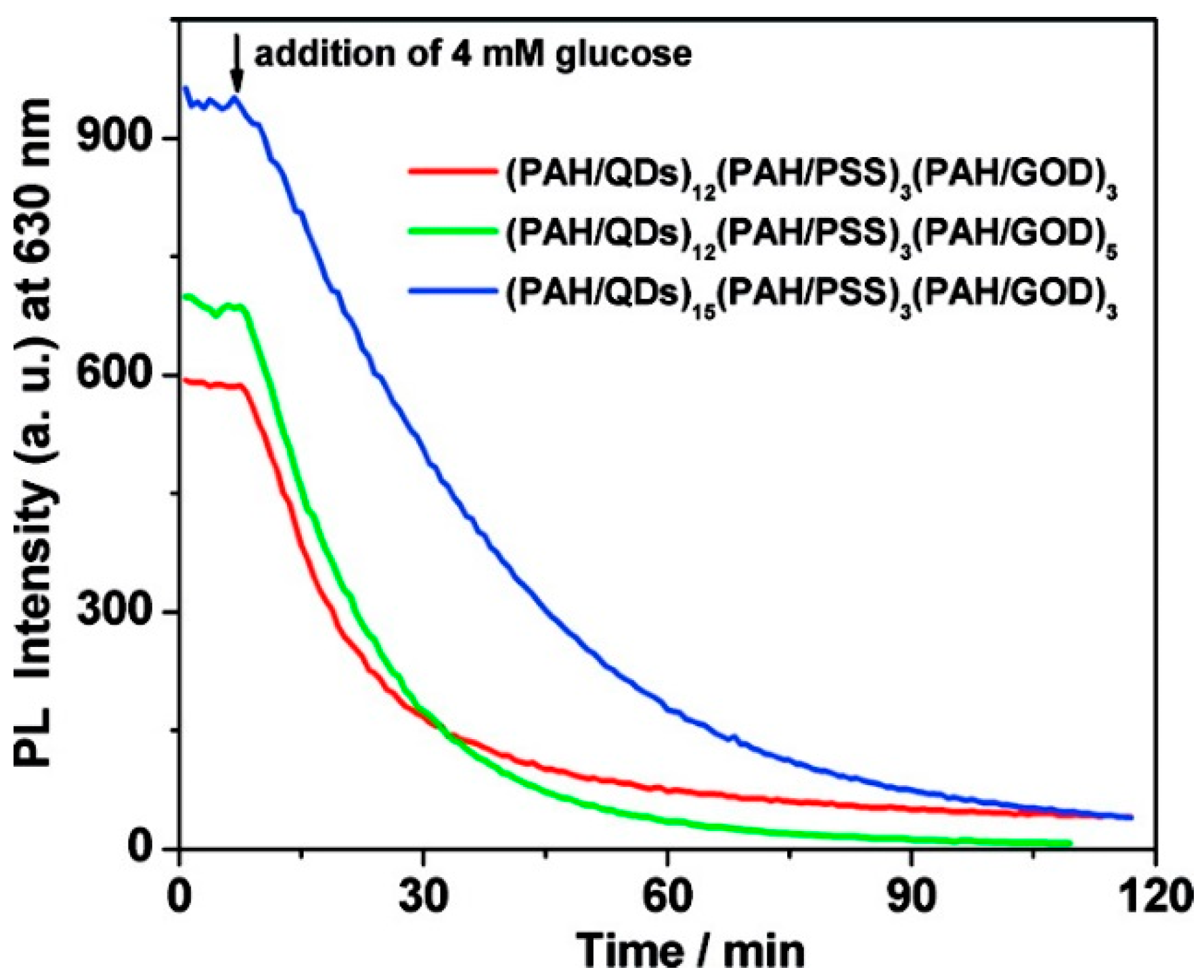

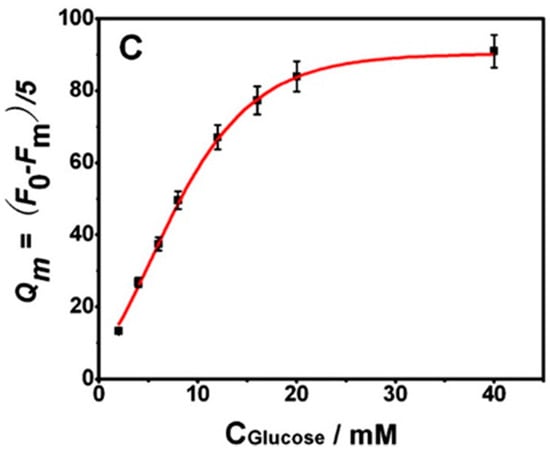

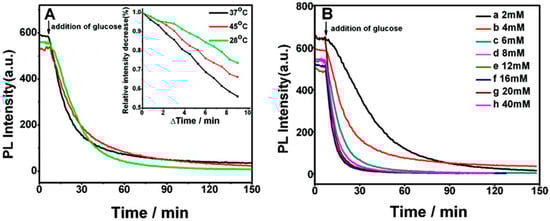

Li et al. used the multilayer structure (PAH/CdTe QDs)x(PAH/PSS)3(PAH/GOD)y to determine the concentration of blood glucose in real serum samples with good reproducibility and accuracy [113]; the GOD enzyme catalyzed the reaction between oxygen and glucose, producing H2O2, which generated defects on the surface of the QDs, quenching their luminescence. Under illumination at 380 m, the initial structure (PAH/CdTe QDs)12(PAH/PSS)3(PAH/GOD)3 showed a luminescence peak centered at 630 nm. The luminescent properties of this coating were analyzed for different temperature and pH values ranging from 28 to 45 °C, and from 6 to 9, respectively. In the case of temperature, the largest quenching rate was obtained for 37 °C, whereas a pH value of 7.4 was chosen as optimal. Figure 15 shows the luminescence quenching of that structure at different temperatures (A), upon different glucose concentrations (B), and the absolute quenching rate of this structure (C).
Under those conditions (37 °C and pH 7.4), the response upon addition of 4 mM glucose of three different structures (as shown in Figure 16) was studied with the aim of optimizing the number of PAH/CdTeQDs and PAH/GOD bilayers. For a given number of PAH/GOD bilayers (in this case, three), it was observed that the quenching rate of the sensor decreased when the increase in the number of QDs layers was limited to 12. For this number of PAH/CdTe QDs bilayers, the quenching constant increased linearly with the number of enzyme layers as a consequence of the good permeability of the GOD layers towards glucose. The PAH/PSS3 spacer was introduced in order to avoid any kind of influence of the GOD-glucose reaction on the QDs. The structure (PAH/CdTe QDs)12(PAH/PSS)3(PAH/GOD)5 was chosen as optimal for determining the blood glucose concentration in serum samples: it exhibited linear luminescence quenching in the glucose concentration range between 0.5 and 16 mM, with 0.5 mM being the detection limit. Furthermore, no sample pre-treatment was needed.
Since it was isolated, graphene and some related structures have been employed for diverse sensing applications [121]. Graphene oxide multilayer arrays were assembled by means of the LbL technique by Jung et al. [122] for the fabrication of aptasensor microarrays. These multilayers were prepared by assembling oppositely charged graphene oxide sheets: negatively charged ones (GO−) were prepared by introducing COOH groups, while positively charged sheets (GO+) were obtained thanks to the NH2 groups. An aminated glass slide was coated with 10 bilayers of (GO−/GO+), and then a FAM-labeled thrombin aptamer was immobilized on them. The FAM luminescence, centered at 530 nm, was quenched by graphene oxide due to the high energy transfer between the dye and graphene. In the presence of thrombin, fluorescence was recovered owing to the high affinity between aptamers and thrombin. On the other hand, other analytes such as bovine serum albumin (BSA), streptavidin (STA), glucose, and human immunoglobulin (IgG) antibody did not alter the quenched fluorescence of FAM-aptamer-labeled GO multilayers, probing the high specificity of the aptamer-based sensor. For the particular case of 10 bilayers of (GO−/GO+) and 2 μM aptamer concentration, the fluorescence intensity from FAM was quenched over 85% and the detection limit for thrombin was 0.001 nM, exhibiting 30-fold higher sensitivity than the solution-based graphene FRET aptasensor [123]. Furthermore, this sensor was reused four times by simply cleaning it with distilled water.

4. Conclusions

It is obvious that luminescence has become a powerful detection mechanism for biological and environmental applications. This sensing method also takes advantage of the wide variety of sensitive luminophores that exists: fluoropolymers, water-soluble and non-soluble porphyrins, or semiconductor quantum dots, among others. These materials can be encapsulated in multilayer shells for their utilization in solution-based probes, or they can be entrapped inside nanostructured films and used as solid-state sensors. In both cases, the LbL nano-assembly technique permits us to tailor the properties of the sensors at the nanometer scale, making feasible the fabrication of custom-made devices that not only exhibit good photostability, but also high selectivity and sensitivity for almost any kind of sensing applications.
The remarkable characteristics of the sensors exposed in this study suggest that the combination of luminescence and the LbL nano-assembly technique is a promising approach for the fabrication of sensing devices for real applications. Environmental and biosensing purposes are probably the most encouraging fields owing to the facility for fabricating arrays of sensor capable of detecting several analytes with a single measurement. Furthermore, a real solution for sensing applications in hazardous environments can be obtained by combining luminescence and the Layer-by-Layer technique with the unique properties of optical fibers.

Acknowledgments

This work was supported by the Spanish State Research Agency (AEI) through the TEC2016-79367-C2-2-R project and the European Regional Development Fund (ERDF-FEDER). Nerea de Acha would also like to acknowledge her pre-doctoral fellowship (reference BES-2014-069692) funded by the Spanish Ministry of Economy and Competitiveness through the TEC2013-43679-R project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, C.; Chen, Y.; Zhang, G.; Wang, F.; Liu, G.; Ding, J. Multipoint Remote Methane Measurement System Based on Spectrum Absorption and Reflective TDM. IEEE Photonics Technol. Lett. 2016, 28, 2487–2490. [Google Scholar] [CrossRef]
  2. Pasinszki, T.; Krebsz, M.; Tung, T.T.; Losic, D. Carbon nanomaterial based biosensors for non-invasive detection of cancer and disease biomarkers for clinical diagnosis. Sensors 2017, 17, 1919. [Google Scholar] [CrossRef] [PubMed]
  3. Tan, C.H.; Tan, S.T.; Lee, H.B.; Ginting, R.T.; Oleiwi, H.F.; Yap, C.C.; Jumali, M.H.H.; Yahaya, M. Automated room temperature optical absorbance CO sensor based on In-doped ZnO nanorod. Sens. Actuators B Chem. 2017, 248, 140–152. [Google Scholar] [CrossRef]
  4. Del Villar, I.; Arregui, F.J.; Zamarreño, C.R.; Corres, J.M.; Bariain, C.; Goicoechea, J.; Elosua, C.; Hernaez, M.; Rivero, P.J.; Socorro, A.B.; et al. Optical sensors based on lossy-mode resonances. Sens. Actuators B Chem. 2017, 240, 174–185. [Google Scholar] [CrossRef]
  5. Qazi, H.H.; Bin Mohammad, A.B.; Akram, M. Recent Progress in Optical Chemical Sensors. Sensors 2012, 12, 16522–16556. [Google Scholar] [CrossRef] [PubMed]
  6. Baldini, F.; Bacci, M.; Cosi, F.; Del Bianco, A. Absorption-based optical-fibre oxygen sensor. Sens. Actuators B Chem. 1992, 7, 752–757. [Google Scholar] [CrossRef]
  7. Miki, H.; Matsubara, F.; Nakashima, S.; Ochi, S.; Nakagawa, K.; Matsuguchi, M.; Sadaoka, Y. A fractional exhaled nitric oxide sensor based on optical absorption of cobalt tetraphenylporphyrin derivatives. Sens. Actuators B Chem. 2016, 231, 458–468. [Google Scholar] [CrossRef]
  8. Zhang, W.; Ye, W.; Wang, C.; Li, W.; Yue, Z.; Liu, G. Silver nanoparticle arrays enhanced spectral surface plasmon resonance optical sensor. Micro Nano Lett. 2014, 9, 585–587. [Google Scholar] [CrossRef]
  9. Rivero, P.J.; Urrutia, A.; Goicoechea, J.; Matías, I.R.; Arregui, F.J. A Lossy Mode Resonance optical sensor using silver nanoparticles-loaded films for monitoring human breathing. Sens. Actuators B Chem. 2013, 187, 40–44. [Google Scholar] [CrossRef]
  10. Marques, L.; Hernandez, F.U.; Korposh, S.; Clark, M.; Morgan, S.; James, S.; Tatam, R.P. Sensitive protein detection using an optical fibre long period grating sensor anchored with silica core gold shell nanoparticles. In Proceedings of the SPIE, Santander, Spain, 2–6 June 2014; Volume 9157. [Google Scholar]
  11. Payne, S.J.; Fiore, G.L.; Fraser, C.L.; Demas, J.N. Luminescence oxygen sensor based on a ruthenium(II) star polymer complex. Anal. Chem. 2010, 82, 917–921. [Google Scholar] [CrossRef] [PubMed]
  12. Bian, W.; Ma, J.; Liu, Q.; Wei, Y.; Li, Y.; Dong, C.; Shuang, S. A novel phosphorescence sensor for Co2+ ion based on Mn-doped ZnS quantum dots. Luminescence 2014, 29, 151–157. [Google Scholar] [CrossRef] [PubMed]
  13. Ferrari, L.; Rovati, L.; Fabbri, P.; Pilati, F. Disposable fluorescence optical pH sensor for near neutral solutions. Sensors 2013, 13, 484–499. [Google Scholar] [CrossRef] [PubMed]
  14. Lv, H.S.; Huang, S.Y.; Zhao, B.X.; Miao, J.Y. A new rhodamine B-based lysosomal pH fluorescent indicator. Anal. Chim. Acta 2013, 788, 177–182. [Google Scholar] [CrossRef] [PubMed]
  15. Ross, D.; Gaitan, M.; Locascio, L.E. Temperature measurement in microfluidic systems using a temperature-dependent fluorescent dye. Anal. Chem. 2001, 73, 4117–4123. [Google Scholar] [CrossRef] [PubMed]
  16. Song, C.; Zhi, A.; Liu, Q.; Yang, J.; Jia, G.; Shervin, J.; Tang, L.; Hu, X.; Deng, R.; Xu, C.; Zhang, G. Rapid and sensitive detection of β-agonists using a portable fluorescence biosensor based on fluorescent nanosilica and a lateral flow test strip. Biosens. Bioelectron. 2013, 50, 62–65. [Google Scholar] [CrossRef] [PubMed]
  17. Yoshihara, T.; Murayama, S.; Tobita, S. Ratiometric molecular probes based on dual emission of a blue fluorescent coumarin and a red phosphorescent cationic iridium(III) complex for intracellular oxygen sensing. Sensors 2015, 15, 13503–13521. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, H.; Zhang, G.; Xu, J.; Wen, Y.; Lu, B.; Zhang, J.; Ding, W. Novel highly selective fluorescent sensor based on electrosynthesized poly(9-fluorenecarboxylic acid) for efficient and practical detection of iron(III) and its agricultural application. Sens. Actuators B Chem. 2016, 230, 123–129. [Google Scholar] [CrossRef]
  19. Xu, K.X.; Xie, X.M.; Kong, H.J.; Li, P.; Zhang, J.L.; Pang, X.B. Selective fluorescent sensors for malate anion using the complex of phenanthroline-based Eu(III) in aqueous solution. Sens. Actuators B Chem. 2014, 201, 131–137. [Google Scholar] [CrossRef]
  20. Kuo, S.-Y.; Li, H.-H.; Wu, P.-J.; Chen, C.-P.; Huang, Y.-C.; Chan, Y.-H. Dual colorimetric and fluorescent sensor based on semiconducting polymer dots for ratiometric detection of lead ions in living cells. Anal. Chem. 2015, 87, 4765–4771. [Google Scholar] [CrossRef] [PubMed]
  21. Chang, J.; Li, H.; Hou, T.; Li, F. Paper-based fluorescent sensor for rapid naked-eye detection of acetylcholinesterase activity and organophosphorus pesticides with high sensitivity and selectivity. Biosens. Bioelectron. 2016, 86, 971–977. [Google Scholar] [CrossRef] [PubMed]
  22. Chao, M.R.; Hu, C.W.; Chen, J.L. Glass substrates crosslinked with tetracycline-imprinted polymeric silicate and CdTe quantum dots as fluorescent sensors. Anal. Chim. Acta 2016, 925, 61–69. [Google Scholar] [CrossRef] [PubMed]
  23. Hale, Z.M.; Payne, F.P. Fluorescent sensors based on tapered single-mode optical fibres. Sens. Actuators B Chem. 1994, 17, 233–240. [Google Scholar] [CrossRef]
  24. Shang, Z.B.; Wang, Y.; Jin, W.J. Triethanolamine-capped CdSe quantum dots as fluorescent sensors for reciprocal recognition of mercury(II) and iodide in aqueous solution. Talanta 2009, 78, 364–369. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, Y.; Chang, J.Y. Fabrication of a fluorescent sensor by organogelation: CdSe/ZnS quantum dots embedded molecularly imprinted organogel nanofibers. Sens. Actuators B Chem. 2016, 234, 122–129. [Google Scholar] [CrossRef]
  26. Wang, H.; He, Y. Recent advances in silicon nanomaterial-based fluorescent sensors. Sensors 2017, 17, 268. [Google Scholar] [CrossRef] [PubMed]
  27. Senkbeil, S.; Lafleur, J.P.; Jensen, T.G.; Kutter, J.P. Gold nanoparticle-based fluorescent sensor for the analysis of dithiocarbamate pesticides in water. In Proceedings of the 16th International Conference on Miniaturized Systems for Chemistry and Life Sciences, MicroTAS 2012, Okinawa, Japan, 28 October–1 November 2012. [Google Scholar]
  28. Gilliard, R.J., Jr.; Iacono, S.T.; Budy, S.M.; Moody, J.D.; Smith, D.W., Jr.; Smith, R.C. Chromophore-derivatized semifluorinated polymers for colorimetric and turn-on fluorescent anion detection. Sens. Actuators B Chem. 2009, 143, 1–5. [Google Scholar] [CrossRef]
  29. Hashemi, P.; Zarjani, R.A. A wide range pH optical sensor with mixture of Neutral Red and Thionin immobilized on an agarose film coated glass slide. Sens. Actuators B Chem. 2008, 135, 112–115. [Google Scholar] [CrossRef]
  30. Ensafi, A.A.; Amini, M. A highly selective optical sensor for catalytic determination of ultra-trace amounts of nitrite in water and foods based on brilliant cresyl blue as a sensing reagent. Sens. Actuators B Chem. 2010, 147, 61–66. [Google Scholar] [CrossRef]
  31. Magna, G.; Catini, A.; Kumar, R.; Palmacci, M.; Martinelli, E.; Paolesse, R.; di Natale, C. Conductive photo-activated porphyrin-ZnO nanostructured gas sensor array. Sensors 2017, 17, 747. [Google Scholar] [CrossRef] [PubMed]
  32. Chu, C.S.; Chuang, C.Y. Highly sensitive fiber-optic oxygen sensor based on palladium tetrakis (4-carboxyphenyl)porphyrin doped in ormosil. J. Luminescence 2014, 154, 475–478. [Google Scholar] [CrossRef]
  33. Roales, J.; Pedrosa, J.M.; Guillén, M.G.; Lopes-Costa, T.; Castillero, P.; Barranco, A.; González-Elipe, A.R. Free-base carboxyphenyl porphyrin films using a TiO2 columnar matrix: Characterization and application as NO2 sensors. Sensors 2015, 15, 11118–11132. [Google Scholar] [CrossRef] [PubMed]
  34. Nivens, D.A.; Zhang, Y.; Angel, S.M. A fiber-optic pH sensor prepared using a base-catalyzed organo-silica sol–gel. Anal. Chim. Acta 1998, 376, 235–245. [Google Scholar] [CrossRef]
  35. Sas, S.; Danko, M.; Bizovská, V.; Lang, K.; Bujdák, J. Highly luminescent hybrid materials based on smectites with polyethylene glycol modified with rhodamine fluorophore. Appl. Clay Sci. 2017, 138, 25–33. [Google Scholar] [CrossRef]
  36. Asadpour-Zeynali, K.; Mollarasouli, F. A novel and facile synthesis of TGA-capped CdSe@Ag2Se core-shell quantum dots as a new substrate for high sensitive and selective methyldopa sensor. Sens. Actuators B Chem. 2016, 237, 387–399. [Google Scholar] [CrossRef]
  37. Lu, D.; Yang, L.; Tian, Z.; Wang, L.; Zhang, J. Core-shell mesoporous silica nanospheres used as Zn2+ ratiometric fluorescent sensor and adsorbent. RSC Adv. 2012, 2, 2783–2789. [Google Scholar] [CrossRef]
  38. Properties and applications of proteins encapsulated within sol–gel derived materials. Anal. Chim. Acta 2002, 461, 1–36. [CrossRef]
  39. Guan, W.; Zhou, W.; Lu, J.; Lu, C. Luminescent films for chemo- and biosensing. Chem. Soc. Rev. 2015, 44, 6981–7009. [Google Scholar] [CrossRef] [PubMed]
  40. Ertekin, K.; Tepe, M.; Yenigül, B.; Akkaya, E.U.; Henden, H. Fiber optic sodium and potassium sensing by using a newly synthesized squaraine dye in PVC matrix. Talanta 2002, 58, 719–727. [Google Scholar] [CrossRef]
  41. Brolo, A.G.; Kwok, S.C.; Moffitt, M.G.; Gordon, R.; Riordon, J.; Kavanagh, K.L. Enhanced fluorescence from arrays of nanoholes in a gold film. J. Am. Chem. Soc. 2005, 127, 14936–14941. [Google Scholar] [CrossRef] [PubMed]
  42. McDonagh, C.; MacCraith, B.D.; McEvoy, A.K. Tailoring of Sol-Gel Films for Optical Sensing of Oxygen in Gas and Aqueous Phase. Anal. Chem. 1998, 70, 45–50. [Google Scholar] [CrossRef] [PubMed]
  43. Chu, C.-S.; Lo, Y.-L. Fiber-optic carbon dioxide sensor based on fluorinated xerogels doped with HPTS. Sens. Actuators B Chem. 2008, 129, 120–125. [Google Scholar] [CrossRef]
  44. Zhao, Z.; Lu, P.; Lam, J.W.Y.; Wang, Z.; Chan, C.Y.K.; Sung, H.H.Y.; Williams, I.D.; Ma, Y.; Tang, B.Z. Molecular anchors in the solid state: Restriction of intramolecular rotation boosts emission efficiency of luminogen aggregates to unity. Chem. Sci. 2011, 2, 672–675. [Google Scholar] [CrossRef]
  45. Decher, G. Fuzzy Nanoassemblies: Toward Layered Polymeric Multicomposites. Science 1997, 277, 1232–1237. [Google Scholar] [CrossRef]
  46. Elzbieciak, M.; Zapotoczny, S.; Nowak, P.; Krastev, R.; Nowakowska, M.; Warszyński, P. Influence of pH on the structure of multilayer films composed of strong and weak polyelectrolytes. Langmuir 2009, 25, 3255–3259. [Google Scholar] [CrossRef] [PubMed]
  47. Yang, Y.-H.; Haile, M.; Park, Y.T.; Malek, F.A.; Grunlan, J.C. Super Gas Barrier of All-Polymer Multilayer Thin Films. Macromolecules 2011, 44, 1450–1459. [Google Scholar] [CrossRef]
  48. De Acha, N.; Elosúa, C.; Matías, I.R.; Arregui, F.J. Enhancement of luminescence-based optical fiber oxygen sensors by tuning the distance between fluorophore layers. Sens. Actuators B Chem. 2017, 248, 836–847. [Google Scholar] [CrossRef]
  49. De Acha, N.; Elosúa, C.; Martínez, D.; Hernáez, M.; Matías, I.R.; Arregui, F.J. Comparative study of polymeric matrices embedding oxygen-sensitive fluorophores by means of Layer-by-Layer nanosassembly. Sens. Actuators B Chem. 2017, 239, 1124–1133. [Google Scholar] [CrossRef]
  50. Aslan, K.; Gryczynski, I.; Malicka, J.; Matveeva, E.; Lakowicz, J.R.; Geddes, C.G. Metal-enhanced fluorescence: An emerging tool in biotechnology. Curr. Opin. Biotechnol. 2005, 16, 55–62. [Google Scholar] [CrossRef] [PubMed]
  51. Ariga, K.; Hill, J.P.; Ji, Q. Layer-by-layer assembly as a versatile bottom-up nanofabrication technique for exploratory research and realistic application. Phys. Chem. Chem. Phys. 2007, 9, 2319–2340. [Google Scholar] [CrossRef] [PubMed]
  52. McShane, M.J.; Brown, J.Q.; Guice, K.B.; Lvov, Y.M. Polyelectrolyte Microshells as Carriers for Fluorescent Sensors: Loading and Sensing Properties of a Ruthenium-Based Oxygen Indicator. J. Nanosci. Nanotechnol. 2002, 2, 411–416. [Google Scholar] [CrossRef] [PubMed]
  53. Arregui, F.J. Sensors Based on Nanostructured Materials; Springer: New York, NY, USA, 2009; ISBN 978-0-38-777752-8. [Google Scholar]
  54. Duchesne, T.A.; Brown, J.Q.; Guice, K.B.; Lvov, Y.M.; McShane, M.J. Encapsulation and stability properties of nanoengineered polyelectrolyte capsules for use as fluorescent sensors. Sens. Mater. 2002, 14, 293–308. [Google Scholar]
  55. McShane, M.J. Potential for glucose monitoring with nanoengineered fluorescent biosensors. Diabetes Technol. Ther. 2002, 4, 533–538. [Google Scholar] [CrossRef] [PubMed]
  56. Bornhoeft, L.R.; Biswas, A.; McShane, M.J. Composite hydrogels with engineered microdomains for optical glucose sensing at low oxygen conditions. Biosensors 2017, 7, 8. [Google Scholar] [CrossRef] [PubMed]
  57. Rivera-Gil, P.; Nazarenus, M.; Ashraf, S.; Parak, W.J. PH-sensitive capsules as intracellular optical reporters for monitoring lysosomal pH changes upon stimulation. Small 2012, 8, 943–948. [Google Scholar] [CrossRef] [PubMed]
  58. Biswas, A.; Nagaraja, A.T.; McShane, M.J. Fabrication of nanocapsule carriers from multilayer-coated vaterite calcium carbonate nanoparticles. ACS Appl. Mater. Interfaces 2014, 6, 21193–21201. [Google Scholar] [CrossRef] [PubMed]
  59. Zhao, Q.; Rong, X.; Chen, L.; Ma, H.; Tao, G. Layer-by-layer self-assembly xylenol orange functionalized CdSe/CdS quantum dots as a turn-on fluorescence lead ion sensor. Talanta 2013, 114, 110–116. [Google Scholar] [CrossRef] [PubMed]
  60. McShane, M.; Ritter, D. Microcapsules as optical biosensors. J. Mater. Chem. 2010, 20, 8189–8193. [Google Scholar] [CrossRef]
  61. Antipov, A.A.; Shchukin, D.; Fedutik, Y.; Petrov, A.I.; Sukhorukov, G.B.; Möhwald, H. Carbonate microparticles for hollow polyelectrolyte capsules fabrication. Coll. Surf. A Physicochem. Eng. Asp. 2003, 224, 175–183. [Google Scholar] [CrossRef]
  62. Biswas, A.; Banerjee, S.; Gart, E.V.; Nagaraja, A.T.; McShane, M.J. Gold Nanocluster Containing Polymeric Microcapsules for Intracellular Ratiometric Fluorescence Biosensing. ACS Omega 2017, 2, 2499–2506. [Google Scholar] [CrossRef]
  63. Zhang, G.; Shu, F.P.; Robinson, C.J. Design and characterization of a nano-encapsulated self-referenced fluorescent nitric oxide sensor for wide-field optical imaging. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine and Biology, Lyon, France, 22–26 August 2007. [Google Scholar]
  64. Brown, J.Q.; Lvov, Y.M.; McShane, M.J. Nanoengineered polyelectrolyte microcapsules as fluorescent potassium ion sensors. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine and Biology, Houston, TX, USA, 23–26 October 2002; Volume 2. [Google Scholar]
  65. Lee, D.; Rubner, M.F.; Cohen, R.E. Formation of nanoparticle-loaded microcapsules based on hydrogen-bonded multilayers. Chem. Mater. 2005, 17, 1099–1105. [Google Scholar] [CrossRef]
  66. Marinakos, S.M.; Novak, J.P.; Brousseau, L.C., III; House, A.B.; Edeki, E.M.; Feldhaus, J.C.; Feldheim, D.L. Gold particles as templates for the synthesis of hollow polymer capsules. Control of capsule dimensions and guest encapsulation. J. Am. Chem. Soc. 1999, 121, 8518–8522. [Google Scholar] [CrossRef]
  67. Donath, E.; Sukhorukov, G.B.; Caruso, F.; Davis, S.A.; Möhwald, H. Novel hollow polymer shells by colloid-templated assembly of polyelectrolytes. Angew. Chem. Int. Ed. 1998, 37, 2201–2205. [Google Scholar] [CrossRef]
  68. Sadovoy, A.; Teh, C. Encapsulated biosensors for advanced tissue diagnostics. In Woodhead Publishing Series in Biomaterials; Meglinski, I., Ed.; Elsevier: Amsterdam, The Netherlands, 2015; pp. 321–330. ISBN 978-0-85-709662-3. [Google Scholar]
  69. He, C.; Hu, Y.; Yin, L.; Tang, C.; Yin, C. Effects of particle size and surface charge on cellular uptake and biodistribution of polymeric nanoparticles. Biomaterials 2010, 31, 3657–3666. [Google Scholar] [CrossRef] [PubMed]
  70. Sukhorukov, G.B.; Donath, E.; Lichtenfeld, H.; Knippel, E.; Knippel, M.; Budde, A.; Möhwald, H. Layer-by-layer self assembly of polyelectrolytes on colloidal particles. Coll. Surf. A Physicochem. Eng. Asp. 1998, 137, 253–266. [Google Scholar] [CrossRef]
  71. Bertrand, P.; Jonas, A.; Laschewsky, A.; Legras, R. Ultrathin polymer coatings by complexation of polyelectrolytes at interfaces: Suitable materials, structure and properties. Macromol. Rapid Commun. 2000, 21, 319–348. [Google Scholar] [CrossRef]
  72. Shiratori, S.S.; Rubner, M.F. pH-dependent thickness behavior of sequentially adsorbed layers of weak polyelectrolytes. Macromolecules 2000, 33, 4213–4219. [Google Scholar] [CrossRef]
  73. Mendelsohn, J.D.; Barrett, C.J.; Chan, V.V.; Pal, A.J.; Mayes, A.M.; Rubner, M.F. Fabrication of microporous thin films from polyelectrolyte multilayers. Langmuir 2000, 16, 5017–5023. [Google Scholar] [CrossRef]
  74. Zhang, G.; Shitole, P.S.; Pujari, R.A.; Charnani, V.S.; McShane, M.J.; Robinson, C.J. Intrinsic optical signal imaging of a ratiometric fluorescence oxygen nanosensor. In Proceedings of the 2005 3rd IEEE/EMBS Special Topic Conference on Microtechnology in Medicine and Biology, Oahu, HI, USA, 12–15 May 2005; Volume 2005. [Google Scholar]
  75. Guice, K.B.; Lvov, Y.M.; McShane, M.J. Nanoengineered microcapsules for the fluorescent sensing of oxygen. In Proceedings of the 2nd Joint Conference of the IEEE Engineering in Medicine and Biology Society and the Biomedical Engineering Society, Annual International Conference of the IEEE Engineering in Medicine and Biology, Houston, TX, USA, 23–26 October 2002; Volume 2. [Google Scholar]
  76. Zhi, Z.L.; Khan, F.; Pickup, J.C. Multilayer nanoencapsulation: A nanomedicine technology for diabetes research and management. Diabetes Res. Clin. Pract. 2013, 100, 162–169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Saxl, T.; Khan, F.; Matthews, D.R.; Zhi, Z.L.; Rolinski, O.; Ameer-Beg, S.; Pickup, J. Fluorescence lifetime spectroscopy and imaging of nano-engineered glucose sensor microcapsules based on glucose/galactose-binding protein. Biosens. Bioelectron. 2009, 24, 3229–3234. [Google Scholar] [CrossRef] [PubMed]
  78. Acquah, I.; Roh, J.; Ahn, D.J. Dual-fluorophore silica microspheres for ratiometric acidic pH sensing. Macromol. Res. 2017, 25, 950–955. [Google Scholar] [CrossRef]
  79. Afkhami, A.; Soltani-Felehgari, F.; Madrakian, T.; Ghaedi, H.; Rezaeival, M. Fabrication and application of a new modified electrochemical sensor using nano-silica and a newly synthesized Schiff base for simultaneous determination of Cd2+, Cu2+ and Hg2+ ions in water and some foodstuff samples. Anal. Chim. Acta 2013, 771, 21–30. [Google Scholar] [CrossRef] [PubMed]
  80. Duchesne, T.A.; Brown, J.Q.; Guice, K.B.; Nayak, S.R.; Lvov, Y.M.; McShane, M.J. Nanoassembled fluorescent microshells as biochemical sensors. In Proceedings of the SPIE—The International Society for Optical Engineering, San Jose, CA, USA, 23 May 2002; Volume 4624. [Google Scholar]
  81. Stouwdam, J.W.; Van Veggel, F.C.J.M. Near-infrared Emission of Redispersible Er3+, Nd3+, and Ho3+ Doped LaF3 Nanoparticles. Nano Lett. 2002, 2, 733–737. [Google Scholar] [CrossRef]
  82. Kömpe, K.; Borchert, H.; Storz, J.; Lobo, A.; Adam, S.; Möller, T.; Haase, M. Green-Emitting CePO4:Tb/LaPO4 Core-Shell Nanoparticles with 70 % Photoluminescence Quantum Yield. Angew. Chem. Int. Ed. 2003, 42, 5513–5516. [Google Scholar] [CrossRef] [PubMed]
  83. Xiang, Y.; Xu, X.-Y.; He, D.-F.; Li, M.; Liang, L.-B.; Yu, X.-F. Fabrication of rare-earth/quantum-dot nanocomposites for color-tunable sensing applications. J. Nanopart. Res. 2011, 13, 525–531. [Google Scholar] [CrossRef]
  84. Pujari, R.A.; Shitole, P.S.; Charnani, V.S.; McShane, M.J.; Robinson, C.J. Wide-field extrinsic optical signal imaging of fluorescence potassium sensors. In Proceedings of the 2006 3rd IEEE International Symposium on Biomedical Imaging: From Nano to Macro, Arlington, VA, USA, 6–9 April 2006; Volume 2006. [Google Scholar]
  85. Brown, J.Q.; Guice, K.B.; McShane, M.J. Internally-Referenced Chemical Transducers Using Molecular Probes Assembled on Fluorescent Nanoparticles. Proceedings of The IEEE SENSORS, Toronto, ON, Canada, 22–24 October 2003; Volume 2. [Google Scholar]
  86. Brown, J.Q.; McShane, M.J. Core-referenced ratiometric fluorescent potassium ion sensors using self-assembled ultrathin films on europium nanoparticles. IEEE Sens. J. 2005, 5, 1197–1205. [Google Scholar] [CrossRef]
  87. Kazakova, L.I.; Shabarchina, L.I.; Anastasova, S.; Pavlov, A.M.; Vadgama, P.; Skirtach, A.G.; Sukhorukov, G.B. Chemosensors and biosensors based on polyelectrolyte microcapsules containing fluorescent dyes and enzymes. Anal. Bioanal. Chem. 2013, 405, 1559–1568. [Google Scholar] [CrossRef] [PubMed]
  88. Guice, K.B.; Caldorera, M.E.; McShane, M.J. Nanoscale internally referenced oxygen sensors produced from self-assembled nanofilms on fluorescent nanoparticles. J. Biomed. Opt. 2005, 10, 064031. [Google Scholar] [CrossRef] [PubMed]
  89. Pickup, J.C.; Zhi, Z.-L.; Khan, F.; Saxl, T.E. Nanomedicine in diabetes management: Where we are now and where next. Expert Rev. Endocrinol. Metab. 2010, 5, 791–794. [Google Scholar] [CrossRef]
  90. Chinnayelka, S.; McShane, M.J. Competitive binding assays in microcapsules as “smart tattoo” biosensors. In Proceedings of the IEEE SENSORS, Irvine, CA, USA, 30 October–3 November 2005; Volume 2005. [Google Scholar]
  91. Zamarreño, C.R.; Bravo, J.; Goicoechea, J.; Matias, I.R.; Arregui, F.J. Response time enhancement of pH sensing films by means of hydrophilic nanostructured coatings. Sens. Actuators B Chem. 2007, 128, 138–144. [Google Scholar] [CrossRef]
  92. Chang-Yen, D.A.; Gale, B.K. An Integrated Optical Glucose Sensor Fabricated Using PDMS Waveguides on a PDMS Substrate. In Proceedings of the SPIE—The International Society for Optical Engineering, San Jose, CA, USA, 23 December 2003; Volume 5345. [Google Scholar]
  93. Chu, C.-S.; Chu, S.-W. Optical oxygen sensor based on time-resolved fluorescence. In Proceedings of the SPIE—The International Society for Optical Engineering, Jeju, Korea, 1 July 2015; Volume 9655. [Google Scholar]
  94. Chan, W.H.; Yang, R.H.; Wang, K.M. Development of a mercury ion-selective optical sensor based on fluorescence quenching of 5,10,15,20-tetraphenylporphyrin. Anal. Chim. Acta 2001, 444, 261–269. [Google Scholar] [CrossRef]
  95. Lee, D.; Jung, J.; Bilby, D.; Kwon, M.S.; Yun, J.; Kim, J. A novel optical ozone sensor based on purely organic phosphor. ACS Appl. Mater. Interfaces 2015, 7, 2993–2997. [Google Scholar] [CrossRef] [PubMed]
  96. Yusoff, N.H.; Salleh, M.M.; Yahaya, M. Enhanced the Performance of Fluorescence Gas Sensor of Porphyrin Dye by Using TiO2 Nanoparticles. Adv. Mater. Res. 2008, 55–57, 269–272. [Google Scholar] [CrossRef]
  97. Ali, R.; Lang, T.; Saleh, S.M.; Meier, R.J.; Wolfbeis, O.S. Optical sensing scheme for carbon dioxide using a solvatochromic probe. Anal. Chem. 2011, 83, 2846–2851. [Google Scholar] [CrossRef] [PubMed]
  98. Safavi, A.; Bagheri, M. Novel optical pH sensor for high and low pH values. Sens. Actuators B Chem. 2003, 90, 143–150. [Google Scholar] [CrossRef]
  99. Wencel, D.; MacCraith, B.D.; McDonagh, C. High performance optical ratiometric sol–gel-based pH sensor. Sens. Actuators B Chem. 2009, 139, 208–213. [Google Scholar] [CrossRef]
  100. Lee, S.-H.; Kumar, J.; Tripathy, S.K. Fluorescence quenching based thin film sensors employing electrostatic layer-by-layer self-assembly. In Proceedings of the Materials Research Society Symposium, Boston, MA, USA, Fall 2000; pp. 891–896. [Google Scholar]
  101. Lee, S.H.; Kumar, J.; Tripathy, S.K. Thin film optical sensors employing polyelectrolyte assembly. Langmuir 2000, 16, 10482–10489. [Google Scholar] [CrossRef]
  102. Caselli, M. Porphyrin-based electrostatically self-assembled multilayers as fluorescent probes for mercury(ii) ions: A study of the adsorption kinetics of metal ions on ultrathin films for sensing applications. RSC Adv. 2015, 5, 1350–1358. [Google Scholar] [CrossRef]
  103. Qin, C.; Cheng, Y.; Wang, L.; Jing, X.; Wang, F. Phosphonate-Functionalized Polyfluorene as a Highly Water-Soluble Iron(III) Chemosensor. Macromolecules 2008, 41, 7798–7804. [Google Scholar] [CrossRef]
  104. Li, Y.; Huang, H.; Li, Y.; Su, X. Highly sensitive fluorescent sensor for mercury (II) ion based on layer-by-layer self-assembled films fabricated with water-soluble fluorescent conjugated polymer. Sens. Actuators B Chem. 2013, 188, 772–777. [Google Scholar] [CrossRef]
  105. Li, Y.; Huang, H.; Li, Y.; Su, X. Sensitive Hg (II) ion detection by fluorescent multilayer films fabricated with quantum dots. Sens. Actuators B Chem. 2009, 139, 476–482. [Google Scholar] [CrossRef]
  106. Ma, Q.; Ha, E.; Yang, F.; Su, X. Synchronous determination of mercury (II) and copper (II) based on quantum dots-multilayer film. Anal. Chim. Acta 2011, 701, 60–65. [Google Scholar] [CrossRef] [PubMed]
  107. Yang, F.; Ma, Q.; Yu, W.; Su, X. Naked-eye colorimetric analysis of Hg2+ with bi-color CdTe quantum dots multilayer films. Talanta 2011, 84, 411–415. [Google Scholar] [CrossRef] [PubMed]
  108. Gonçalves, H.M.; Duarte, A.J.; Davis, F.; Higson, S.P.; da Silva, J.C.E. Layer-by-layer immobilization of carbon dots fluorescent nanomaterials on single optical fiber. Anal. Chim. Acta 2012, 735, 90–95. [Google Scholar] [CrossRef] [PubMed]
  109. Chan, Y.-H.; Chen, J.; Liu, Q.; Wark, S.E.; Son, D.H.; Batteas, J.D. Ultrasensitive Copper(II) Detection Using Plasmon-Enhanced and Photo-Brightened Luminescence of CdSe Quantum Dots. Anal. Chem. 2010, 82, 3671–3678. [Google Scholar] [CrossRef] [PubMed]
  110. Chan, Y.-H.; Chen, J.; Wark, S.E.; Skiles, S.L.; Son, D.H.; Batteas, J.D. Using patterned arrays of metal nanoparticles to probe plasmon enhanced luminescence of CdSe quantum dots. ACS Nano 2009, 3, 1735–1744. [Google Scholar] [CrossRef] [PubMed]
  111. Kramarenko, G.G.; Hummel, S.G.; Martin, S.M.; Buettner, G.R. Ascorbate reacts with singlet oxygen to produce hydrogen peroxide. Photochem. Photobiol. 2006, 82, 1634–1637. [Google Scholar] [CrossRef] [PubMed]
  112. Ahmed, S.R.; Koh, K.; Kang, N.L.; Lee, J. Highly Sensitive Fluorescent Probes for the Quantitative Determination of Singlet Oxygen (1O2). Bull. Korean Chem. Soc. 2012, 33, 1608–1612. [Google Scholar] [CrossRef]
  113. Li, X.; Zhou, Y.; Zheng, Z.; Yue, X.; Dai, Z.; Liu, S.; Tang, Z. Glucose biosensor based on nanocomposite films of CdTe quantum dots and glucose oxidase. Langmuir 2009, 25, 6580–6586. [Google Scholar] [CrossRef] [PubMed]
  114. Grant, P.S.; Kaul, S.; Chinnayelka, S.; McShane, M.J. Fiber Optic Biosensors Comprising Nanocomposite Multilayered Polymer and Nanoparticle Ultrathin Films. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine and Biology, Cancun, Mexico, 17–21 September 2003; Volume 4. [Google Scholar]
  115. Grant, P.; Barnidge, M.; McShane, M. Spectroscopic Fiber Probes for Chemical Sensing Based on LbL Self Assembled Ultra-Thin Films. In Proceedings of the IEEE SENSORS, Toronto, ON, Canada, 22–24 October 2003; Volume 2, pp. 895–898. [Google Scholar]
  116. Chang-Yen, D.A.; Lvov, Y.; McShane, M.J.; Gale, B.K. Electrostatic self-assembly of a ruthenium-based oxygen sensitive dye using polyion–dye interpolyelectrolyte formation. Sens. Actuators B Chem. 2002, 87, 336–345. [Google Scholar] [CrossRef]
  117. Grant, P.S.; McShane, M.J. Development of multilayer fluorescent thin film chemical sensors using electrostatic self-assembly. IEEE Sens. J. 2003, 3, 139–146. [Google Scholar] [CrossRef]
  118. Ban, S.; Hosoki, A.; Nishiyama, M.; Seki, A.; Watanabe, K. Optical fiber oxygen sensor using layer-by-layer stacked porous composite membranes. In Proceedings of the SPIE—The International Society for Optical Engineering, San Francisco, CA, USA, 18 April 2016; Volume 9754. [Google Scholar]
  119. Su, F.; Alam, R.; Mei, Q.; Tian, Y.; Youngbull, C.; Johnson, R.H.; Meldrum, D.R. Nanostructured oxygen sensor—Using micelles to incorporate a hydrophobic platinum porphyrin. PLoS ONE 2012, 7, e33390. [Google Scholar] [CrossRef] [PubMed]
  120. Elosua, C.; De Acha, N.; Hernaez, M.; Matias, I.R.; Arregui, F.J. Layer-by-Layer assembly of a water-insoluble platinum complex for optical fiber oxygen sensors. Sens. Actuators B Chem. 2015, 207, 683–689. [Google Scholar] [CrossRef]
  121. Tung, T.T.; Nine, M.J.; Krebsz, M.; Pasinszki, T.; Coghlan, C.J.; Tran, D.N.H.; Losic, D. Recent Advances in Sensing Applications of Graphene Assemblies and Their Composites. Adv. Funct. Mater. 2017, in press. [Google Scholar] [CrossRef]
  122. Jung, Y.K.; Lee, T.; Shin, E.; Kim, B.-S. Highly tunable aptasensing microarrays with graphene oxide multilayers. Sci. Rep. 2013, 3, 3367. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Chang, H.; Tang, L.; Wang, Y.; Jiang, J.; Li, J. Graphene fluorescence resonance energy transfer aptasensor for the thrombin detection. Anal. Chem. 2010, 82, 2341–2346. [Google Scholar] [CrossRef] [PubMed]
Sensors 17 02826 g001 550
Figure 1. Schematic of the encapsulation techniques.
Figure 1. Schematic of the encapsulation techniques.
Sensors 17 02826 g001
Sensors 17 02826 g002 550
Figure 2. Effect of the different metal ions on the RE–QD composites: (a) Cu2+ and Ag+ ions change the color of the RE-QD composites into green and orange, respectively; (b) The ratio I(650)/I(542) of the RE-QD composites only decreases in presence of Cu2+ and Ag+. Reprinted from [83] with permission from Springer.
Figure 2. Effect of the different metal ions on the RE–QD composites: (a) Cu2+ and Ag+ ions change the color of the RE-QD composites into green and orange, respectively; (b) The ratio I(650)/I(542) of the RE-QD composites only decreases in presence of Cu2+ and Ag+. Reprinted from [83] with permission from Springer.
Sensors 17 02826 g002
Sensors 17 02826 g003 550
Figure 3. SEM image of the nano-capsules after the dilution of the core (upper left), schematic representation of the encapsulated sensors (lower left) and luminescence spectra of the sensors when exposed to high and low dissolved oxygen concentrations (right). Reprinted with permission from [58]. Copyright: 2014, American Chemical Society.
Figure 3. SEM image of the nano-capsules after the dilution of the core (upper left), schematic representation of the encapsulated sensors (lower left) and luminescence spectra of the sensors when exposed to high and low dissolved oxygen concentrations (right). Reprinted with permission from [58]. Copyright: 2014, American Chemical Society.
Sensors 17 02826 g003
Sensors 17 02826 g004 550
Figure 4. (a) Relative fluorescence intensity upon the addition of different glucose concentrations. F and F0 represent the fluorescence intensities in the presence (F) and absence (F0) of glucose; (b) calibration curve of the sensor. Reprinted from [87] with permission from Springer.
Figure 4. (a) Relative fluorescence intensity upon the addition of different glucose concentrations. F and F0 represent the fluorescence intensities in the presence (F) and absence (F0) of glucose; (b) calibration curve of the sensor. Reprinted from [87] with permission from Springer.
Sensors 17 02826 g004
Sensors 17 02826 g005 550

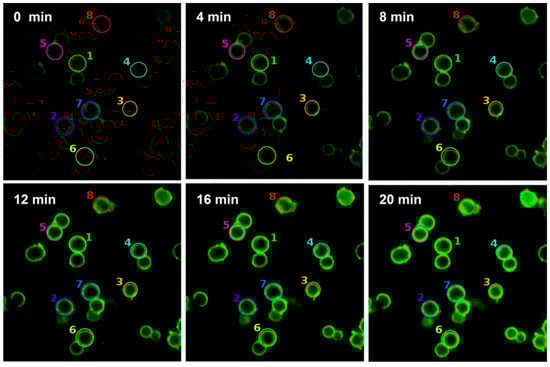

Figure 5. Сonfocal microscopy images of DHR123-labeled capsules containing lactate oxidase in the presence of 0.23 nM peroxidase and 4 mM lactate. Reprinted from [87] with permission from Springer.
Figure 5. Сonfocal microscopy images of DHR123-labeled capsules containing lactate oxidase in the presence of 0.23 nM peroxidase and 4 mM lactate. Reprinted from [87] with permission from Springer.
Sensors 17 02826 g005
Sensors 17 02826 g006 550
Figure 6. Schematic fabrication luminescent films: the non-neutral indicator is directly assembled into the film (left pathway), the neutral indicator is mixed, covalently linked, or entrapped into a charged material and then it is assembled into the coating (central pathway), or the fabricated film is immersed into a solution of the dye (right pathway).
Figure 6. Schematic fabrication luminescent films: the non-neutral indicator is directly assembled into the film (left pathway), the neutral indicator is mixed, covalently linked, or entrapped into a charged material and then it is assembled into the coating (central pathway), or the fabricated film is immersed into a solution of the dye (right pathway).
Sensors 17 02826 g006
Sensors 17 02826 g007 550
Figure 7. Stern−Volmer plots of multilayer films of PAH/PAA−HPTS as a function of different quencher concentrations. Reprinted with permission from [101]. Copyright © 2000, American Chemical Society.
Figure 7. Stern−Volmer plots of multilayer films of PAH/PAA−HPTS as a function of different quencher concentrations. Reprinted with permission from [101]. Copyright © 2000, American Chemical Society.
Sensors 17 02826 g007
Sensors 17 02826 g008 550
Figure 8. (a) Fluorescence response of (PDDA/PFPNa)n structures upon addition of 0.1 μM Fe3+; (b) quenching of the fluorescent peak when the sensor (PDDA/PFPNa)1 is exposed to different Fe3+ concentrations. Reprinted with permission from [103]. Copyright: 2008, American Chemical Society.
Figure 8. (a) Fluorescence response of (PDDA/PFPNa)n structures upon addition of 0.1 μM Fe3+; (b) quenching of the fluorescent peak when the sensor (PDDA/PFPNa)1 is exposed to different Fe3+ concentrations. Reprinted with permission from [103]. Copyright: 2008, American Chemical Society.
Sensors 17 02826 g008
Sensors 17 02826 g009 550
Figure 9. (a) Luminescence spectra of the bi-color film under exposure to different Hg2+ concentrations: 0 μM, 0.01 μM, 0.05 μM, 0.1 μM, 0.2 μM, 0.5 μM, 0.6 μM, 0.75 μM, and 1 μM. The inset shows the Stern–Volmer plot of the sensor; (b) Colors of the sensing films under exposure to different Hg2+ concentrations: 0 μM, 0.01 μM, 0.1 μM, 0.5 μM, 1 μM, 1.5 μM, and higher than 100 μM. Reprinted from [107] with permission from Elsevier.
Figure 9. (a) Luminescence spectra of the bi-color film under exposure to different Hg2+ concentrations: 0 μM, 0.01 μM, 0.05 μM, 0.1 μM, 0.2 μM, 0.5 μM, 0.6 μM, 0.75 μM, and 1 μM. The inset shows the Stern–Volmer plot of the sensor; (b) Colors of the sensing films under exposure to different Hg2+ concentrations: 0 μM, 0.01 μM, 0.1 μM, 0.5 μM, 1 μM, 1.5 μM, and higher than 100 μM. Reprinted from [107] with permission from Elsevier.
Sensors 17 02826 g009
Sensors 17 02826 g010 550
Figure 10. Steady-state fluorescence measurements over time (excitation 380 nm and emission 500 nm) of the dry optical fiber with six layers, followed by three cycles of Hg(II) aqueous solutions with the following concentrations: 0, 0.01, 0.05, 0.1, 0.799, 1.99, and 2.69 μM. (1) The fiber was immersed in water; (2) removed from water; and (3) immersed in Hg(II) 0.01 μM. Reprinted from [108] with permission from Elsevier.
Figure 10. Steady-state fluorescence measurements over time (excitation 380 nm and emission 500 nm) of the dry optical fiber with six layers, followed by three cycles of Hg(II) aqueous solutions with the following concentrations: 0, 0.01, 0.05, 0.1, 0.799, 1.99, and 2.69 μM. (1) The fiber was immersed in water; (2) removed from water; and (3) immersed in Hg(II) 0.01 μM. Reprinted from [108] with permission from Elsevier.
Sensors 17 02826 g010
Sensors 17 02826 g011 550
Figure 11. Stern−Volmer plot for the quenching of CdSe PL by Cu2+. The solid red squares (□), black diamonds (⧫), and blue triangles (▲) denote the CdSe QDs enhanced by both Ag nanoprisms and photobrightening, the photobrightened QDs, and the unmodified QDs, respectively. Note: the blue and black lines are added as a guide using fits to a third-order polynomial. The red line is a linear fit to the data. Reprinted from [109] with permission from Elsevier.
Figure 11. Stern−Volmer plot for the quenching of CdSe PL by Cu2+. The solid red squares (□), black diamonds (⧫), and blue triangles (▲) denote the CdSe QDs enhanced by both Ag nanoprisms and photobrightening, the photobrightened QDs, and the unmodified QDs, respectively. Note: the blue and black lines are added as a guide using fits to a third-order polynomial. The red line is a linear fit to the data. Reprinted from [109] with permission from Elsevier.
Sensors 17 02826 g011
Sensors 17 02826 g012 550
Figure 12. (a) Luminescent intensity of the film before and after incubation in solution of different phenylalanine concentrations; and (b) the corresponding calibration curve. After incubation and exposition to UV light, singlet oxygen is produced, which reacts with ascorbate, producing H2O2, which quenches the luminescence; (c) Microscopic image of the interface between a part exposed to phenylalanine (right) and a part unexposed (left); (d) UV image of the phenylalanine-exposed part (left), where only the UV light (excitation) is visible, and the unexposed part (right), where the luminescence (534 nm, green) is observable. Reprinted from [112] with permission from the Korean Chemical Society.
Figure 12. (a) Luminescent intensity of the film before and after incubation in solution of different phenylalanine concentrations; and (b) the corresponding calibration curve. After incubation and exposition to UV light, singlet oxygen is produced, which reacts with ascorbate, producing H2O2, which quenches the luminescence; (c) Microscopic image of the interface between a part exposed to phenylalanine (right) and a part unexposed (left); (d) UV image of the phenylalanine-exposed part (left), where only the UV light (excitation) is visible, and the unexposed part (right), where the luminescence (534 nm, green) is observable. Reprinted from [112] with permission from the Korean Chemical Society.
Sensors 17 02826 g012
Sensors 17 02826 g013 550
Figure 13. Calibration curves of (PDDA/Pt-TFPPSDS)10 (Sensor A), (PEI/Pt-TFPPSDS)10 (Sensor B), and (PAH/Pt-TFPPSDS)10 (Sensor C). Stern–Volmer plots of Sensors A and B are adjusted on the left axis, whereas that of Sensor C is adjusted on the right axis. Reprinted from [49] with permission from Elsevier.
Figure 13. Calibration curves of (PDDA/Pt-TFPPSDS)10 (Sensor A), (PEI/Pt-TFPPSDS)10 (Sensor B), and (PAH/Pt-TFPPSDS)10 (Sensor C). Stern–Volmer plots of Sensors A and B are adjusted on the left axis, whereas that of Sensor C is adjusted on the right axis. Reprinted from [49] with permission from Elsevier.
Sensors 17 02826 g013
Sensors 17 02826 g014a 550Sensors 17 02826 g014b 550
Figure 14. Stern–Volmer plots of the different sensors fabricated employing (a) PDDA, (b) PEI, and (c) PAH as cationic polyelectrolytes, and PAA as a spacer layer. In the cases of (a) PDDA and (b) PEI, the maximum of the sensitivity is achieved when luminescent layers are spaced by five layers of polyelectrolytes, whereas in the case of (c) PAH, only three layers of polyelectrolytes are necessary to achieve the maximum of the sensitivity. Reprinted from [48] with permission from Elsevier.
Figure 14. Stern–Volmer plots of the different sensors fabricated employing (a) PDDA, (b) PEI, and (c) PAH as cationic polyelectrolytes, and PAA as a spacer layer. In the cases of (a) PDDA and (b) PEI, the maximum of the sensitivity is achieved when luminescent layers are spaced by five layers of polyelectrolytes, whereas in the case of (c) PAH, only three layers of polyelectrolytes are necessary to achieve the maximum of the sensitivity. Reprinted from [48] with permission from Elsevier.
Sensors 17 02826 g014aSensors 17 02826 g014b
Sensors 17 02826 g015a 550Sensors 17 02826 g015b 550
Figure 15. (A) Quenching of the luminescence peak centered at 630 nm of the multilayer structure (PAH/CdTe)12(PAH/PSS)3(PAH/GOD)3 when it is exposed to a 4 mM glucose solution at different temperatures. The time-dependent luminescence intensity of that peak during the first 9 min of the reaction for each temperature is shown in the inset. (B) Luminescence quenching of the same film for different glucose concentrations: (a) 2, (b) 4, (c) 6, (d) 8, (e) 12, (f) 16, (g) 20, and (h) 40 mM over 150 min; (C) quenching rate (Qm) of the sensor over 5 min as a function of the glucose concentration. F0 and Fm correspond to the luminescence intensity in the absence (F0) and presence (Fm) of glucose. All measurements were carried out in a 20 mM phosphate buffer at pH 7.4. Copyright: 2009, American Chemical Society.
Figure 15. (A) Quenching of the luminescence peak centered at 630 nm of the multilayer structure (PAH/CdTe)12(PAH/PSS)3(PAH/GOD)3 when it is exposed to a 4 mM glucose solution at different temperatures. The time-dependent luminescence intensity of that peak during the first 9 min of the reaction for each temperature is shown in the inset. (B) Luminescence quenching of the same film for different glucose concentrations: (a) 2, (b) 4, (c) 6, (d) 8, (e) 12, (f) 16, (g) 20, and (h) 40 mM over 150 min; (C) quenching rate (Qm) of the sensor over 5 min as a function of the glucose concentration. F0 and Fm correspond to the luminescence intensity in the absence (F0) and presence (Fm) of glucose. All measurements were carried out in a 20 mM phosphate buffer at pH 7.4. Copyright: 2009, American Chemical Society.
Sensors 17 02826 g015aSensors 17 02826 g015b
Sensors 17 02826 g016 550
Figure 16. Luminescence quenching at 630 nm (λex = 380 nm) when different structures of (PAH/CdTe QDs)x(PAH/PSS)3(PAH/GOD)y were exposed to 4 mM glucose. All measurements were carried out at 37 °C in a 20 mM phosphate buffer at pH 7.4. Copyright: 2009, American Chemical Society.
Figure 16. Luminescence quenching at 630 nm (λex = 380 nm) when different structures of (PAH/CdTe QDs)x(PAH/PSS)3(PAH/GOD)y were exposed to 4 mM glucose. All measurements were carried out at 37 °C in a 20 mM phosphate buffer at pH 7.4. Copyright: 2009, American Chemical Society.
Sensors 17 02826 g016
Table
Table 1. Encapsulated sensors for ions detection.
Table 1. Encapsulated sensors for ions detection.
AnalyteSensitive IndicatorReference IndicatorCapsuleDetection RangeLODRef.
K+PBFI-(PSS/PAH)50–45 mM[64]
K+PBFIFluoSpheres(PAH/PSS)4PAH0–282 mM[84]
K+PBFI-2, 3, and 5 bilayers of {PSS/PDDA}0–45 mM-[80]
K+PBFIEuropium FluoSpheres(PAH/PSS)4PAH0–120 mM1 mM[85]
K+PBFIEuropium FluoSpheres(PAH/PSS)4PAH0–300 mM1.2 mM[86]
Na+SBFI-2, 3, and 5 bilayers of {PSS/PDDA}0–100 mM-[54]
Cu2+, Ag+CdSe/ZnSe QDsNaYF4:Ce,Tb rare-earth nanocrystalsPSS/PAH0–35 μM Cu2+ 0–90 μM Ag+-[83]
Pb2+CdSe/CdS QDs-chitosan/xylenol orange0.05–6 μM20 nM[59]
Table
Table 2. Encapsulated sensors for dissolved oxygen detection.
Table 2. Encapsulated sensors for dissolved oxygen detection.
Sensitive IndicatorReference IndicatorCapsuleDetection RangeLODRef.
Ru(dpp)green polystyrene FluoSpheres{PAH/PSS}30–1500 mM-[85]
Ru(dpp)carboxylate-modified nanospheres(PAH/PSS)3ON/OFF probe-[74]
Ru(dpp)-(PSS/PAH)4/PSS0–0.6 mM-[87]
Ru(bpy)FITC(PSS/PAH-FITC)5/PSS-[52]
Ru(bpy)FITC(PSS/PDDA)5/PSSON/OFF probe-[75]
[Ru(Ph2phen)3]2+carboxylate-modified FluoSpheres{PAH/PSS}30–1.5 mM-[88]
PdTCPPcarboxylate-modified FluoSpheres[PDDA/PSS]100–250 µM7.62 µM[58]
Table
Table 3. Luminescent films fabricated by LbL for ions detection.
Table 3. Luminescent films fabricated by LbL for ions detection.
AnalyteSensitive IndicatorSensing FilmDetection RangeLODCross-SensitivityRef.
Fe3+, Hg2+HPTS[PAH/PAA-HPTS]n0–0.5 mM Fe3+
0–1 mM Hg2+		1.28 ppm Fe3+
1.79 ppm Hg2+		-[100,101]
Hg2+TPPS(PDDA/PSS/PDDA/TPPS)0–3.3 × 10−5 M<3.3 × 10−8 MCd2+, Pb2+, Cu2+[102]
Hg2+PPESO3(PDDA/PPESO3)30–1 mM10−7 MFe3+, Al3+[104]
Fe3+PFPNa(PDAC/PFPNa)10–10 μM10−7 M-[103]
Hg2+MSA-capped CdTe QDs(PDDA/QDs)100–1 μM<10−8 MCu2+, Ag1+[105]
Cu2+, Hg2+MSA-capped CdTe QDs(PDDA/QDs)50–1 μM Cu2+
0–0.5 μM Hg2+		<10−8 M Cu2+
<5 × 10−9 M Hg2+		High concentrations of Ni2+, Cr3+, Au3+, Ag+[106]
Hg2+MPA-capped CdTe QDs(PDDA/QDs)5/PDDA/PSS/PDDA/(QDs)5/BSA0.01–1 μM4.5 × 10−9 M-[107]
Hg2+Carbon dots(PEI/Carbon dots)1-60.01–2.69 μM for (PEI/Carbon dots)610−8 M for (PEI/Carbon dots)6-[108]
Cu2+(16-MHA) capped CdSe QDsAg NPs/(PDADMAC/PSS)/QDs0–100 μM5 × 10−9 M-[109]
Table
Table 4. Quenching constants and calibration curves of the three oxygen sensors fabricated employing PDDA, PEI, or PAH as cationic polyelectrolytes. Data obtained from [48].
Table 4. Quenching constants and calibration curves of the three oxygen sensors fabricated employing PDDA, PEI, or PAH as cationic polyelectrolytes. Data obtained from [48].
Stern–Volmer ConstantsMathematical Model
f1KSV,1f2KSV,2
[PDDA/PtSDS]50.9570.08980.0430.0001 I 0 I = ( 0.957 1 + 0.0898 · [ O 2 ] + 0.043 1 + 0.0001 · [ O 2 ] ) − 1
[PEI/PtSDS]50.99390.15260.00610.085 I 0 I = ( 0.9939 1 + 0.1526 · [ O 2 ] + 0.0061 1 + 0.085 · [ O 2 ] ) − 1
[PAH/PtSDS]510.3400 I 0 I = 1 + 0.34 · [ O 2 ]

Share and Cite

MDPI and ACS Style

De Acha, N.; Elosua, C.; Matias, I.; Arregui, F.J. Luminescence-Based Optical Sensors Fabricated by Means of the Layer-by-Layer Nano-Assembly Technique. Sensors 2017, 17, 2826. https://doi.org/10.3390/s17122826

AMA Style

De Acha N, Elosua C, Matias I, Arregui FJ. Luminescence-Based Optical Sensors Fabricated by Means of the Layer-by-Layer Nano-Assembly Technique. Sensors. 2017; 17(12):2826. https://doi.org/10.3390/s17122826

Chicago/Turabian Style

De Acha, Nerea, Cesar Elosua, Ignacio Matias, and Francisco Javier Arregui. 2017. "Luminescence-Based Optical Sensors Fabricated by Means of the Layer-by-Layer Nano-Assembly Technique" Sensors 17, no. 12: 2826. https://doi.org/10.3390/s17122826

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
