Article

Measurement and Analysis of Shock Wave Pressure in Moving Charge and Stationary Charge Explosions

School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(17), 6582; https://doi.org/10.3390/s22176582
Submission received: 23 July 2022 / Revised: 25 August 2022 / Accepted: 29 August 2022 / Published: 31 August 2022
(This article belongs to the Special Issue Metrology of Shock Waves)

Abstract

:
Shock wave pressure is one of the most important parameters in an explosion. However, there have been few experimental and analytical investigations of moving charge explosions. In this article, we present an experimental method to measure the shock wave pressure from a moving charge explosion. Tests of stationary charges and moving charges with speeds of 580 m/s, 703 m/s and 717 m/s were carried out. The shock wave pressure curves and parameters at different measurement points were obtained and analyzed. The theoretical calculation of the shock wave overpressure was studied and compared with the experimental result. The differences between the stationary charge and moving charge explosions were investigated. The results showed that the shock wave pressure distribution of a moving charge had strong directionality. The shock wave pressure parameters (including overpressure, arrival time, duration and impulse) were influenced by the charge’s moving velocity, direction angle and distance from the blast point. The shock wave overpressure value was greater than that of a stationary charge explosion at angles between 0° and 90°. The correlation model based on the velocity vector superposition method could describe the relationship of overpressure between the stationary charge and moving charge explosions.

1. Introduction

The shock wave pressure induced by an explosion is one of the main damage parameters; it is usually applied to evaluate the damage range based on the blast overpressure criterion. At present, most of the research on explosion shock waves is based on stationary charge explosions. However, in actual combat, a charge, such as a missile, artillery shell, rocket and other weapons, usually explode during movement. In a stationary charge explosion, the test environment, conditions and spatial relationships are generally consistent and relatively ideal, and the damage parameters present good symmetry. However, the damage power of a moving charge explosion is influenced by the explosion point location, the charge’s moving velocity and orientation, and other factors. A stationary charge explosion experimental study cannot fully reflect the destructive capacity of actual explosion conditions, which is a long-standing problem that has not been addressed. With the development of high-speed weapons, the measurement and analysis of shock waves from moving charge explosions are becoming increasingly important.
A series of studies were conducted to reveal the free-field pressures generated by static explosions [1,2,3,4,5,6]. Many empirical formulae and curves were proposed to predict the overpressure attenuation as a function of the scaled distance and pressure time history of a shock wave. Baker, Brode and Henrych et al. proposed many classical formulae for bare spherical TNT charge explosions in infinite air based on the Sachs scaling law [7,8,9,10]. The measurement of the shock wave pressure of an explosion by using pressure sensors was studied by numerous scholars [11,12,13,14,15]. All the above investigations were aimed at studying the blast effect of stationary charge explosions, but few studies have been done on moving charge explosions.
In the 1950s, Thornhill and Hetherington [16] theoretically analyzed the influence of charge motion on an explosion shock wave. They predicted that close to the surface of a moving charge, the shock velocity, and thus, an inference of the peak pressure could be approximated using vector addition of the shock velocity for the stationary charge and the terminal velocity of the moving charge, but the evaluation of these theories required quantitative data. Subsequently, a series of experiments were carried out at the Ballistic Research Laboratories [17,18,19]. The BRL study focused on the shock wave overpressure of a spherical charge under ideal circumstances, ignoring other parameters, such as the arrival time and impulse.
In recent years, scholars began to carry out numerical simulation studies about moving charge explosions. G. Y. Zhang [20] put forward a method that combined theory with a computer simulation test to study the shock wave characteristics caused by the explosion of a moving charge at a certain height from the ground. They analyzed the distribution characteristics and overpressure time curves of the shock wave. However, this study only considered the shock wave overpressure peak from the charge in the forward and reverse directions. Shang-qing Li [21] studied the shock wave characteristics of an underwater moving explosive. They calculated the underwater peak overpressure in the direction of the explosive motion based on the Cole empirical formula by converting the kinetic energy of the explosive into an equivalent static dose. Yuan Nie [22] numerically investigated the dynamic blast overpressure field using SPEED software. They analyzed the contours of overpressure and peak pressure and established a model by introducing a correction factor that contained the charge’s moving velocity (V), azimuth angle (θ) and scaled distance (Z) to Baker’s formula. However, only the overpressure was studied, while the arrival time and impulse were not considered. At the same time, due to the meshing problem, we can observe that the pressure curve is too smooth and the peak pressure is reduced. Meir Mayseless and Eli Bar-on [23] conducted a numerical study to analyze the effect of a moving charge on a moving target. They focused on the reflected pressures and the overall force on the target. In general, the numerical investigations mentioned above were based on a bare spherical TNT moving charge explosion, where the approaches were overly idealistic and unsupported by experimental data.
Most investigations on shock waves focused on stationary charge explosions, while the studies on moving charge explosion shock wave pressure were mainly based on numerical simulations. Only a small number of reports were published in the open literature that describe the experimental research of a spherical moving charge explosion. The reports were mainly focused on the spherical charge explosion under ideal circumstances. In this study, we focused on the experimental investigation of a cylindrical charge explosion, which is closer to a real moving charge explosion situation. The objective of the study was to measure and analyze the shock wave of moving charge and stationary charge explosions accurately. The comparative analysis was adopted to study the differences and evaluate the power of a moving charge explosion. The correlation model method was proposed and verified using experimental data and was used to study the overpressure relationship between the stationary charge and moving charge explosions. It provided a theoretical analysis basis for the shock wave pressure of moving charge and stationary charge explosions.
This paper is organized as follows: in Section 2, we describe the arrangement of the whole experiment setup and the design of the pressure measurement system; in Section 3, the results of the experimental analysis and comparison with calculation results are given, and the difference between the stationary charge explosion and moving charge explosion is discussed. The conclusions and perspectives of this work are given in Section 4.

2. Experiment

The aim of the experimental setup was to measure the shock wave pressure parameters of a moving charge explosion and compare the results with a stationary charge explosion. A smoothbore cannon was used to load the charge horizontally in order to control the charge so that it burst at a given speed in a specific location. The different firing velocities were controlled by changing the propellant mass, and the loading time was adjusted according to the specific test. According to the relationship of propellant mass, initial velocity and terminal velocity of the moving charge, the location of the blast point was predetermined. To reasonably arrange the pressure sensors to measure a moving charge explosion, it was necessary to carry out stationary charge tests to obtain the blast wave pressure distribution. Combined with the stationary charge test data and the predicted blast point, the blast wave measuring points of a moving charge explosion could be set up. The experiment conditions were as follows: (a) the ambient temperature was 25 °C and (b) no wind.

2.1. Experimental Materials and Set-Up

In the experiments, cylindrical charges with the same structure were used in stationary charge and moving charge explosions, and a DHL explosive (which consisted of 80% desensitized RDX with 20% aluminum powder) was pressed inside the charges. The material of the charge casing was steel. The specific parameters of the charge are shown in Table 1.
In the static explosion experiment, a detonator and booster were used to initiate the charge. The charge was placed horizontally on a wooden base 2 m above the ground. The axis of the charge was required to coincide with the theoretical ballistic line of a moving charge explosion. Measurement points were arranged at 2 m, 3 m, 6 m, 8 m and 10 m distances from the blast point in 0°, 30° and 60° directions, as shown in Figure 1.
In the moving charge experiment, a smoothbore cannon was used to horizontally launch the charge at a certain velocity. The height of the fire line was 2 m, and the angle between the charge and the horizontal plane was 0°. Different from the stationary charge test, due to the uncertainty of the moving charge blast point, the array layout of the measurement points was more effective at obtaining the blast wave pressure. The predetermined blast center ground projection point was set as the coordinate origin. The positive direction of the charge movement was the 0° direction, and the reverse direction was the 180° direction. The nearest measurement point along the center was 6 m and the distance between two adjacent sensors of the same measurement line was 2 m, as shown in Figure 2.
The location of the blast center in the moving charge explosion needed to be determined again after the test. The layout of the measurement points in the stationary charge explosion experiment was not suitable for the subsequent comparative analysis. Therefore, we needed to conduct the stationary explosion test again using the moving charge explosion test site to facilitate the analysis of the pressure signal at the same distance measurement points.

2.2. Testing System

The shock wave pressure test system consisted of the following parts: shock wave pressure sensors, a data acquisition system, an external trigger and a low-noise coaxial cable. The shock wave pressure sensor was connected with the data acquisition system through a low-noise coaxial cable. The signals could be immediately conditioned, acquired and stored using the data acquisition system within the ICP signal conditioner. An external trigger was used to provide the zero-time signal of the explosion. In the experiment, one end of the trigger line was wound on the charge, and the other end was connected to the input of the external trigger. The output end of the external trigger was connected to the signal input end of the data acquisition system through a coaxial cable. The external trigger signal and pressure signal were collected at the same time, and the arrival time of the external trigger signal was taken as time zero. The experiment results were saved on a computer. Table 2 lists the devices and their parameters used in the experiments. The schematics of the test system and the photo of the experiment site are shown in Figure 3.

2.3. Experimental Results

The blast wave pressure signal usually contained trend terms, singularities and high-frequency noise; therefore, the signal was moderately filtered and smoothed in this study. In this study, we adopted the wavelet method to analyze the signal energy spectrum. The upper limit frequency of the signal was less than 40 kHz. After analysis of the signal, we used a Butterworth low-pass filter with an upper cut-off frequency of 40 kHz to eliminate noise [24]. Figure 4 shows the original and filtered overpressure time history curves in the stationary charge explosion experiment.

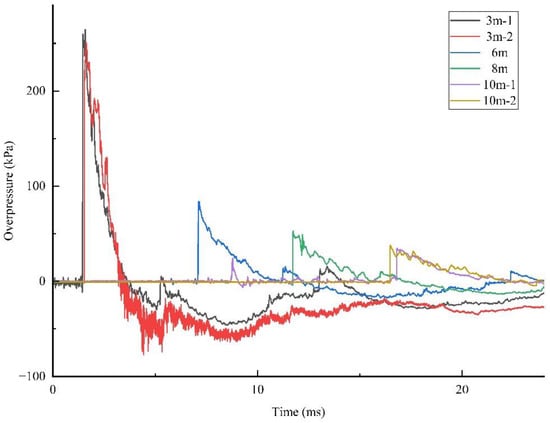

The typical blast wave pressure curves at different measurement points are shown in Figure 5. Some curves are not drawn here because they contained significant noise that interfered with the viewing of other curves. The shock wave parameters of one stationary charge explosion test are listed in Table 3. Other experimental data are listed in Table A1 in Appendix A. It can be seen that the values of the overpressure, arrival time and impulse were all similar for the same distance from different directions. The shock wave pressure distribution was uniform in the stationary experiment. The charge explosion produced a high number of fragments, and it was not easy to obtain shock wave impulse and duration data.
Moving charge explosion experiments were carried out with the same charge in the stationary charge experiment. A high-speed camera system was used to obtain the terminal velocity of the charge and the deviation of the actual blast point from the predicted blast center. The details of the high-speed camera were as follows: (1) resolution: 1280 × 800, (2) distance from the blast center: 150 m and (3) framerate: 5000 fps. Three experiments at different velocities were carried out, where the terminal velocity of the charge and the deviation were as follows: (1) the speed was 703 m/s and the deviation was −3 m (in the opposite direction of the charge’s motion), (2) the speed was 580 m/s and the deviation was +2 m (in the positive direction of the charge’s motion) and (3) the speed was 717 m/s and the deviation was +1 m. The shock wave overpressure distributions of different moving charge experiments are graphed in Figure 6. The experiment data of the moving charge explosions are presented in tabular form in Appendix A. Table A2, Table A3 and Table A4 include shock wave pressure parameters of the different moving charge tests. It can be seen that the shock wave overpressure of the moving charge explosion was influenced by distance and direction at the same time. In general, when the distance from the blast center increased, the overpressure value decreased. However, the shock wave overpressure values had a large difference at the same distance from different directions. The detailed analysis is discussed in Section 3.

3. Analysis

3.1. Analysis of the Shock Wave Pressure in the Stationary Charge Explosion Experiment

In order to calculate the shock wave pressure parameters using empirical formulas, the weight of the confined cylindrical charge was converted into the weight of the bare charge according to the relevant formula. After the calculation, the equivalent bare charge weight was substituted into the empirical formulas to calculate the shock wave pressure at different distances [25]. In this study, Henrych’s empirical formula was used to calculate the shock wave pressure at different distances [9]. It is generally believed that in the case of an infinite air explosion, the following formula is satisfied:
h ω e 3 0.35
where h is the height of the charge from the ground (m) and ω e is the TNT equivalent (kg); furthermore:
Δ p = 1.379 r ¯ + 0.543 r ¯ 2 0.035 r ¯ 3 + 0.0006 r ¯ 4 ( 0.05 r ¯ 0.3 ) Δ p = 0.607 r ¯ 0.032 r ¯ 2 + 0.209 r ¯ 3 ( 0.3 r ¯ 1 ) Δ p = 0.065 r ¯ + 0.397 r ¯ 2 + 0.322 r ¯ 3 ( 1 r ¯ 10 ) ,
where Δ p is the peak value of overpressure (MPa) and r ¯ = r / ω e 3 is the scaled distance (m/kg1/3), where r is the distance of the gauge point from the blast center (m).
The experimental shock wave overpressure value was taken as the average value of different directions. Table 4 lists the calculated values X i and the measured values of two tests.
The overpressure values of two stationary charge explosion experiments were graphed and analyzed, and the attenuation curves compared with the calculation are shown in Figure 7. In the two stationary charge explosion experiments, the average value of the overpressure values in different directions was used as the overpressure at this distance. The error bar was calculated using the deviation of the overpressure in three directions (0°, 30°, 60°) shown in Table 3. It can be seen that the pressure distribution of the two tests presented a relatively uniform law and the test data were in good agreement with the theoretical calculation. The theoretical calculation values were smaller than the test data, mainly because the equivalent used in the theoretical calculation was the TNT equivalent that was converted using the charge under the ideal condition. In general, Henrych’s empirical formula could describe the stationary charge blast wave pressure field within a certain range in this research.

3.2. Analysis of the Shock Wave Pressure in the Moving Charge Explosion Experiment

The shock wave pressure parameters of the moving charge explosions are listed in Table A2, Table A3 and Table A4 in Appendix A. From Figure 6, it can be seen that the shock wave overpressure of a moving charge explosion was influenced by the distance and direction at the same time. For example, in the moving charge experiment with a charge speed of 703 m/s, the overpressure values of measurement points #3 and #11 were 0.0625 MPa and 0.0396 MPa, respectively, and the gain was 57.83%; the overpressure values of measurement points #14 and #15 were 0.0418 MPa and 0.0665 MPa, respectively, and the gain was 59.09%. Differences also existed in the impulse and the duration. In the moving charge experiment of 580 m/s, there were multiple sets of measurement points at the same distance in different directions, as shown in Figure 8. It can be seen as the direction angle increased, the value of overpressure decreased; for example, the overpressure value of point #2 in the 0° direction was 35.69% higher than that of point #10 in the 90° direction at 6 m. Figure 9 shows the arrival time at different measurement points from a moving charge explosion. In general, the arrival time increased with the distance from the blast center. At those measuring points with a direction angle greater than 90° (marked in red in Figure 9), the arrival time was greater. This indicated that the movement of the charge affected the propagation of the shock wave. The results showed that the shock wave characteristics of different directions were influenced differently by the movement of the charge.
In this study, the theory of velocity vector superposition was adopted to study the shock wave characteristics. The velocity of the center of the blast wave could be predicted by applying the principle of conservation of linear momentum. Thus, the momentum of the explosive prior to detonation was set equal to the momentum of the explosion gases and air contained by the spherical blast wave. Neglecting the mass of air displaced by the explosive charge, the law of conservation of linear momentum is as follows:
m e ν 0 = ( m e + m a ) ν c = ( m e + 4 3 π ρ a r 3 ) ν c
where m e is the weight of the explosive, v 0 is the terminal velocity of the charge, m a is the weight of air contained within the spherical blast wave, v c is the velocity of the center of the blast wave, ρ a is the density of air and r is the radius of the spherical blast wave.
Since m e = 4 π ρ e a 3 / 3 , the velocity of the center of the shock wave is given as follows:
ν c = m e ν 0 m e + 4 3 π ρ a d 3 = ν 0 1 + ρ a ρ e r 3
where ρ e is the density of charge and a is the radius of the charge.
The distance r c that the center has traveled (in the direction of original charge motion) from the point of detonation at any time t is given by Equation (5). The velocity of the surface of the spherical blast wave produced by the moving charge is shown in Figure 10 and Equation (6).
r c = 0 t v c d t
U m = v c + U s

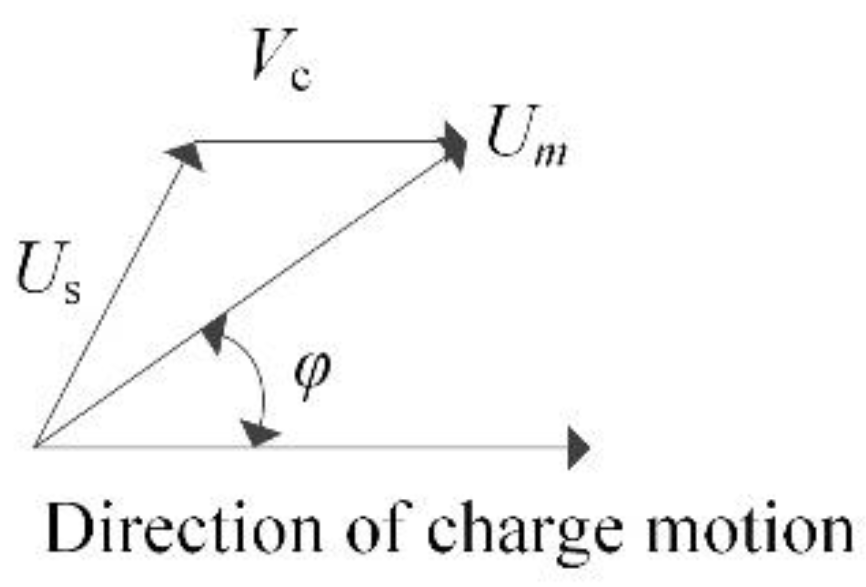

where U m is the shock wave velocity at distance r and angle φ, U s is the shock wave velocity for a stationary charge and φ is the angle from the line of flight for a moving charge (referred to as the center of the shock wave).

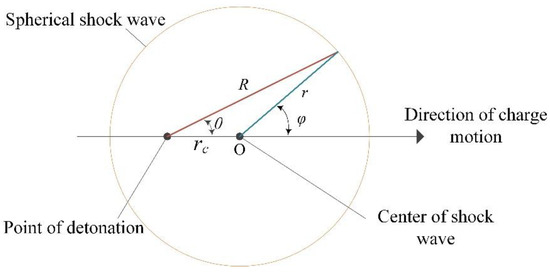

According to the assumptions of the moving charge explosion shock wave field, the shock wave model was established in Figure 11. The distance and angle from the center were as follows:
R = r c cos θ + ( r 2 r c 2 sin 2 θ ) 1 2 ,   sin φ = R r sin θ
According to the equation of Rankine–Hugoniot [26], there is a relationship between the shock wave velocity and shock wave overpressure, as given in Equation (8). The shock wave pressure of a moving charge explosion can be calculated by considering a stationary charge explosion and the shock wave velocity given by Equation (9):
P P 0 = 2 k k + 1 ( U 2 c 0 2 1 )
P m P s = U m 2 c 0 2 U s 2 c 0 2
where P and P 0 are the shock wave pressure and atmospheric pressure, respectively; k is the specific heat capacity of air; U is the shock wave velocity; c 0 is the air sound velocity of the shock wave front; P m and P s are the shock wave pressures of moving charge and stationary charge explosions, respectively; and U m and U s are the shock wave velocities of moving charge and stationary charge explosions, respectively.

3.3. Comparative Analysis of the Moving Charge and Stationary Charge Explosions

In order to analyze the difference in shock wave characteristics between moving charge and stationary charge explosions, the same experimental site and measurement points used in the moving charge experiment were used to carry out another stationary charge test. In order to ensure the same measurement distances in the two different experiments, we adopted a high-speed camera to determine the deviation of the actual blast point from the predicted blast center in the moving charge explosion experiment. Then, the stationary charge was detonated at the same blast center and measurement points were arranged at the same locations as in the moving charge explosion experiment. The blast center was set at the explosion center of the moving charge when the speed was 717 m/s and the deviation was +1 m. Figure 12 shows the shock wave pressure curves of moving charge and stationary charge explosions at the same measurement points.

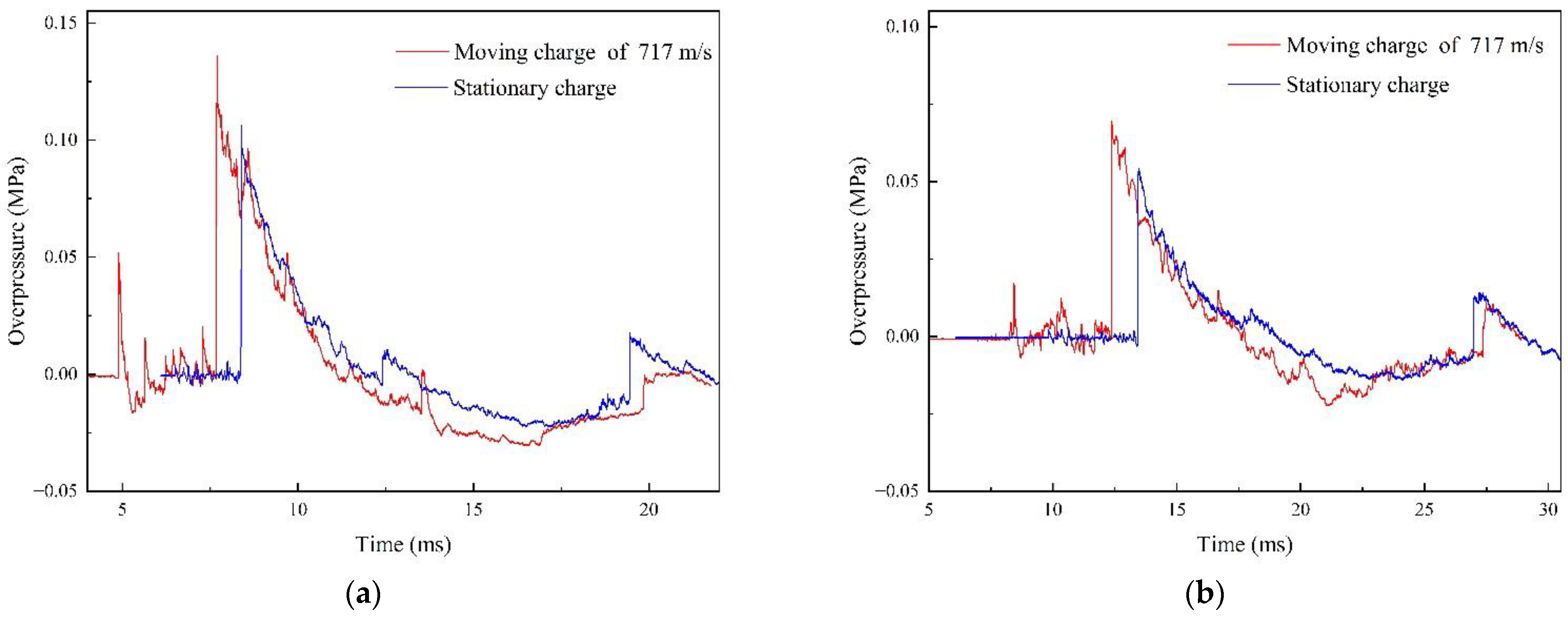

From the pressure–time history curves, we can see the following: (1) There existed secondary pressure peaks in the shock wave pressure at measurement points # 1 and # 4; and the main reason for this was that the afterburning reaction of aluminum powder released a certain amount of energy [27]. (2) The basic shape of the moving charge explosion shock wave curve was consistent with the stationary charge; however, before the arrival of the moving charge explosion shock wave signal, there was an obvious disturbance signal in the waveform. After the explosive expansion, the head of the ammunition was stung, the body expanded and deforms, cracks occurred and the windward area increased. At this time, an oblique shock wave or even a positive shock wave with a stronger air compression effect was generated at the ammunition head. The crack in the body also produced a strong disturbance to the supersonic incoming flow and generated a shock wave.
From the analysis of the shock wave pressure in Section 3.2, we can find that there was a relationship between the moving charge and stationary charge explosions. The small amount of experimental data was not enough to construct a valid engineering model. Instead, we adopted a correlation model between the moving charge and stationary charge explosions based on numerical simulation data referring to the investigation of Haiyan Jiang [28]:
P m = ( 1 + 0.3 1 + R ¯ v 0 c 0 cos θ ) 2 P s
where P m is the shock wave overpressure of moving charge explosion, R ¯ is the scaled distance, v 0 is the velocity of moving charge, c 0 is the air sound velocity of the shock wave front, and θ is the angle between measurement line direction and charge moving direction.
The shock wave overpressure values of the stationary charge experiment, moving charge experiment, moving charge calculation and the errors are listed in Table A5 in Appendix A. The overpressure values with the distance from the blast center are graphed in Figure 13. From the data in Table A5 and Figure 13, we can find that the peak overpressure of a moving charge at the same measurement point was greater than that of the stationary charge in the direction between 0° and 90°, and the values increased by 25%–60%. However, at measurement points #14 and #15 where the directions were 112° and 111°, the overpressure values were smaller than those of the stationary charge. This indicated that the influence of the moving charge explosion was different in different directions. It can be seen that the measured overpressure data and the model calculation results were in good agreement in addition to individual measurement points. The measured values and theoretical values were close, and the average error was 16.53%. The relationship was based on the simulation data of the TNT spherical bare charge under ideal conditions. When the model was applied to the experimental analysis, the type of explosives and the existence of the shell affected the calculation results, though the error was within acceptable limits. Therefore, the correlation model based on the velocity vector superposition method could describe the overpressure relationship between the stationary charge and moving charge explosions.

4. Conclusions

In this study, the shock wave pressures of explosions were studied using an experimental method. The experimental set-up and measurement system was designed for moving charge explosions and could ensure that the moving charge exploded at a certain velocity in the predetermined location. The shock wave pressure curves and parameters (overpressure, arrival time, duration, impulse) could be obtained accurately at different distances in different directions.
The shock wave pressure distribution of the moving charge explosions had a strong directionality, and the pressure parameters were influenced by the charge’s moving velocity, direction angle and distance from the blast center. The overpressure value of a moving charge was greater than that of a stationary charge at angles between 0° and 90°, where the values were 25–60% higher.
For the stationary charge explosion, Henrych’s empirical formula was used to calculate the shock wave pressure at different distances, which could describe the stationary charge shock wave pressure field. For the moving charge explosion, the correlation model based on a velocity vector superposition method could describe the overpressure relationship between the stationary charge and moving charge explosions, and the average error was 16.53%. The experimental data showed that the charge’s moving velocity had a large influence on the shock wave pressure parameters.

Author Contributions

X.M. and D.K. designed the experimental scheme and performed the relevant experiments. X.M. analyzed the experimental results. The first draft of the manuscript was written by X.M., and D.K. and Y.S. commented on previous versions of the manuscript. Conceptualization, X.M. and D.K.; data curation, X.M.; formal analysis, X.M. and Y.S.; funding acquisition, D.K.; investigation, X.M.; methodology, X.M. and D.K.; project administration, D.K.; resources, D.K.; software, X.M.; supervision, D.K.; validation, X.M., D.K. and Y.S.; writing—original draft preparation, X.M.; writing—review and editing, X.M. and D.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Basic Research Projects of the Foundation Strengthening Plan (grant number 2019-JCJQ-ZD-360-11).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Shock wave parameters of two stationary charge explosion experiments.
Table A1. Shock wave parameters of two stationary charge explosion experiments.
No.Distance (m)Direction (°)Overpressure (MPa)Arrival Time (ms)Duration (ms)Impulse (Pa·s)
Test 1Test 2Test 1Test 2Test 1Test 2Test 1Test 2
1200.48930.60541.92052.0638----
22300.53310.53201.8792.1975----
32600.6520-1.7312-1.0326-273.9726-
4300.27130.29413.15023.47051.98692.2384207.3613214.4894
53300.23370.29763.24183.57451.6782.0873227.7904224.1726
63600.24380.33383.14313.3208-2.0572-153.2446
760-0.0882-9.3054-4.867-121.0561
86300.08520.08168.79699.13153.8363.8277112.5334108.3134
9660--------
1080--13.6763-----
118300.05680.051313.422113.57033.7615.648480.645289.5161
128600.06400.048413.687313.7765----
131000.03960.035518.170218.73945.57625.70986.035788.8154
1410300.04190.041118.442318.65955.91996.117374.173969.9258
1510600.03470.046518.498118.61955.86085.192472.895968.7210
Table A2. Shock wave parameters of a moving charge explosion experiment (V = 703 m/s, x = −3 m).
Table A2. Shock wave parameters of a moving charge explosion experiment (V = 703 m/s, x = −3 m).
No.Distance (m)Direction (°)Overpressure (MPa)Arrival Time (ms)Duration (ms)Impulse (Pa·s)
19.00000.072913.7144.052685.9353
211.00000.036320.55185.564684.2359
39.220130.062516.4755.3599103.7210
411.180100.044421.12055.278881.6215
59.849240.048218.0445.614101.6906
611.705200.035922.42565.73980.6452
76.08399----
86.08381----
96.70863----
107.810500.065414.01494.57490.7206
119.220410.039617.00414.923180.3966
1210.817340.039721.0365.113868.5965
1312.530290.030825.2665.707167.7507
148.062970.041815.68944.903766.0066
158.062830.066515.718--
168.54469----
179.43458----
1810.630490.033920.23864.90572.7995
1912.042420.036523.34826.18760.6878
2013.601360.028327.5653--
Table A3. Shock wave parameters of a moving charge explosion experiment (V = 580 m/s, x = +2 m).
Table A3. Shock wave parameters of a moving charge explosion experiment (V = 580 m/s, x = +2 m).
No.Distance (m)Direction (°)Overpressure (MPa)Arrival Time (ms)Duration (ms)Impulse (Pa·s)
14.000 0 0.31664.9733.5723229.1607
26.000 0 0.10768.86893.4358-
34.472 27 0.1676.07493.4358-
46.325 18 0.09359.6754.5174136.0359
55.657 45 0.18348.4901--
67.211 34 0.056311.6964.6671114.2473
78.485 135 0.033218.2895.797166.7557
87.211 124 0.041314.31295.042884.8176
96.325 108 ----
106.000 90 0.079310.75113.671890.7206
116.325 72 0.071811.0868--
127.211 56 0.048312.70694.497982.3158
138.485 45 0.061515.24994.994388.0759
1410.000 127 0.027722.05495.649852.8053
158.944 117 0.033518.94594.338956.2667
168.246 104 ----
178.000 90 0.026614.85093.69226.9796
188.246 76 0.045715.1879--
198.944 63 0.067916.31195.080174.174
2010.000 53 0.051518.67395.949972.896
Table A4. Shock wave parameters of a moving charge explosion experiment (V = 717 m/s, x = +1 m).
Table A4. Shock wave parameters of a moving charge explosion experiment (V = 717 m/s, x = +1 m).
No.Distance (m)Direction (°)Overpressure (MPa)Arrival Time (ms)Duration (ms)Impulse (Pa·s)
15.000 0 0.12417.69243.4291171.8705
27.000 0 0.10811.6038--
35.390 22 0.0645---
47.280 16 0.070912.38645.175122.4323
56.400 39 ----
68.060 30 -14.1269--
77.810 130 ----
86.710 117 0.061513.17143.612156.5451
96.080 99 0.080111.6785--
106.080 81 0.081911.0933--
116.710 63 ----
127.810 50 0.049714.34345.202896.0351
139.220 41 0.061217.41363.827381.3008
149.430 122 0.033820.80344.65952.8053
158.540 111 0.03918.05944.100156.2667
168.060 97 0.042616.10124.313169.512
178.060 83 0.022915.12993.94126.9796
188.540 69 ----
199.430 58 0.055517.67375.440174.174
2010.630 49 0.049920.3965--

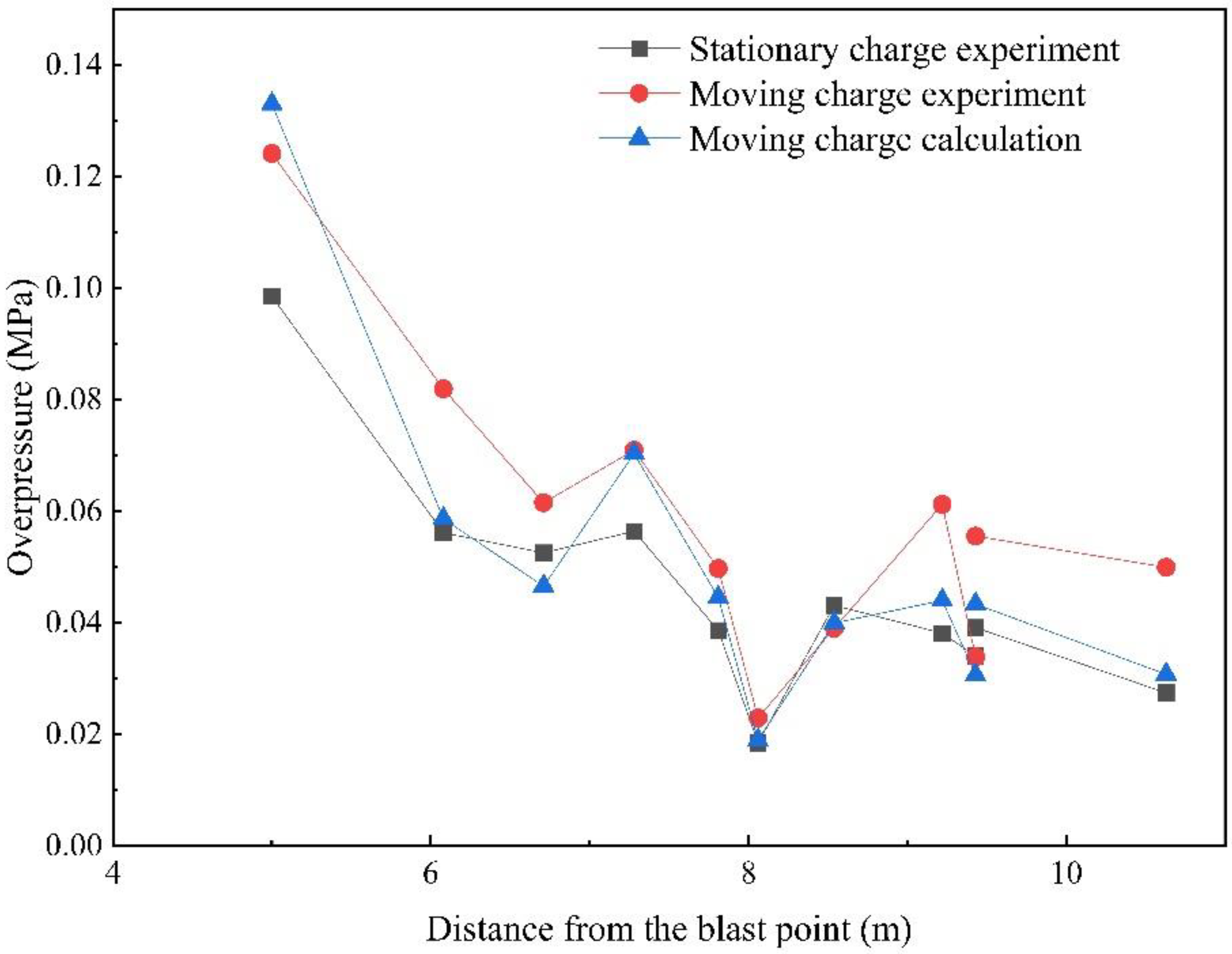

Table A5. Experimental and calculated shock wave overpressures.
Table A5. Experimental and calculated shock wave overpressures.
No.Distance (m)Direction (°)Overpressure of Stationary Charge Experiment (MPa)Overpressure of Moving Charge Experiment (MPa)Overpressure of Moving Charge Calculation (MPa)Error (%)
15.000 0 0.0985 0.12410.1330 7.20
47.280 16 0.0564 0.07090.0703 −0.84
86.710 117 0.0525 0.06150.0465 −24.36
106.080 81 0.0561 0.08190.0586 −28.47
127.810 50 0.0386 0.04970.0445 −10.49
139.220 41 0.0381 0.06120.0440 −28.02
149.430 122 0.0340 0.03380.0306 −9.57
158.540 111 0.0431 0.0390.0399 2.25
178.060 83 0.0184 0.02290.0189 −17.45
199.430 58 0.0391 0.05550.0433 −22.06
2010.630 49 0.0274 0.04990.0307 −31.14

References

  1. Rao, V.D.; Kumar, A.S.; Rao, K.V.; Prasad, V.S.R.K. Theoretical and Experimental Studies on Blast Wave Propagation in Air. Propellants Explos. Pyrotech. 2015, 40, 138–143. [Google Scholar]
  2. Dewey, J.M. An interface to provide the physical properties of the blast wave from a free-field TNT explosion. Shock Waves 2022, 32, 383–390. [Google Scholar] [CrossRef]
  3. Xiao, W.; Andrae, M.; Gebbeken, N. Air blast TNT equivalence concept for blast-resistant design. Int. J. Mech. Sci. 2020, 185, 105871. [Google Scholar] [CrossRef]
  4. Artero-Guerrero, J.; Pernas-Sánchez, J.; Teixeira-Dias, F. Blast wave dynamics: The influence of the shape of the explosive. J. Hazard. Mater. 2017, 331, 189–199. [Google Scholar] [CrossRef] [PubMed]
  5. Knock, C.; Davies, N. Blast waves from cylindrical charges. Shock Waves 2013, 23, 337–343. [Google Scholar] [CrossRef]
  6. Igra, O.; Falcovitz, J.; Houas, L.; Jourdan, G. Review of methods to attenuate shock/blast waves. Prog. Aerosp. Sci. 2013, 58, 1–35. [Google Scholar] [CrossRef]
  7. Baker, W.E. Explosion Hazards and Evaluation; Elsevier: Amsterdam, The Netherlands, 1983. [Google Scholar]
  8. Brode, H.L. Blast Wave from a Spherical Charge. Phys. Fluids 1959, 2, 217–229. [Google Scholar] [CrossRef]
  9. Henrych, J.; Major, R. The Dynamics of Explosion and Its Use; Elsevier: Amsterdam, The Netherlands, 1979. [Google Scholar]
  10. Kinney, G.F.; Graham, K.J. Explosive Shocks in Air; Springer: Berlin/Heidelberg, Germany, 1985. [Google Scholar]
  11. Cheval, K.; Loiseau, O.; Vala, V. Laboratory scale tests for the assessment of solid explosive blast effects. Part I: Free-field test campaign. J. Loss Prev. Process Ind. 2010, 23, 613–621. [Google Scholar] [CrossRef]
  12. Kong, X.; Wang, L.; Yu, T.; He, Z.; Luo, H.; Li, B. Free-field shock-wave test method for meteorological air cannons. Measurement 2022, 189, 110456. [Google Scholar] [CrossRef]
  13. Shi, Y.; Wang, N.; Cui, J.; Li, C.; Zhang, X. Experimental and numerical investigation of charge shape effect on blast load induced by near-field explosions. Process Saf. Environ. Prot. 2022, 165, 266–277. [Google Scholar] [CrossRef]
  14. Caçoilo, A.; Teixeira-Dias, F.; Mourão, R.; Belkassem, B.; Vantomme, J.; Lecompte, D. Blast wave propagation in survival shelters: Experimental analysis and numerical modelling. Shock Waves 2018, 28, 1169–1183. [Google Scholar] [CrossRef]
  15. Fouchier, C.; Laboureur, D.; Youinou, L.; Lapebie, E.; Buchlin, J.M. Experimental investigation of blast wave propagation in an urban environment. J. Loss Prev. Process Ind. 2017, 49, 248–265. [Google Scholar] [CrossRef]
  16. Thornhill, C.; Hetherington, R. Some Notes on Explosions of Moving Charges; Ballistic Research Laboratory: Harford County, MD, USA, 1953. [Google Scholar]
  17. Armendt, B.F.; Sperrazza, J. Air Blast Measurements around Moving Explosive Charges, Part III; Army Ballistic Research Lab Aberdeen Proving Ground Md: Harford County, MD, USA, 1956. [Google Scholar]
  18. Armendt, B.F. Air Blast Measurements around Moving Explosive Charges, Part II; Army Ballistic Research Lab Aberdeen Proving Ground Md: Harford County, MD, USA, 1955. [Google Scholar]
  19. Patterson, J.D.; Wenig, J. Air Blast Measurements around Moving Explosive Charges; Army Ballistic Research Lab Aberdeen Proving Ground Md: Harford County, MD, USA, 1954. [Google Scholar]
  20. Zhang, G.; Zhou, X.; Huang, Z. The Study of Analysis Method of the Shock-wave Characteristic of Moving Explosive. In Proceedings of the Fourth National Conference on Computational Explosion Mechanics, Beijing, China, 12 July–10 August 2008; pp. 282–287. [Google Scholar]
  21. Li, S.; Wang, Z.; Zhai, H. Numerical Simulation on Shock Wave of Underwater Moving Explosive. IOP Conf. Ser. Mater. Sci. Eng. 2018, 394, 042051. [Google Scholar] [CrossRef]
  22. Nie, Y.; Jiang, J.; Wang, S.; Li, M. Numerical Simulation of Spherical Charge Dynamic Blasting and Overpressure Field Calculation Model. In Proceedings of the 29th International Symposium on Ballistics, Edinburgh, Scotland, UK, 9–13 May 2016. [Google Scholar]
  23. Mayseless, M.; Bar-On, E. Air Blast from a Moving Charge on a Moving Target. In Proceedings of the 30th International Symposium on Ballistics, Long Beach, CA, USA, 11–15 September 2017. [Google Scholar]
  24. Shi, Y.; Kong, D.; Zhang, C. Research of a Sensor Used to Calculate the Dynamic Pressure of Chemical Explosions. IEEE Sens. J. 2021, 21, 27325–27334. [Google Scholar] [CrossRef]
  25. Wang, S. Terminal Effects, 2nd ed.; Science Press: Beijing, China, 2019; pp. 308–309. [Google Scholar]
  26. Dewey, J.M. The Rankine-Hugoniot Equations: Their Extensions and Inversions Related to Blast Waves. In Blast Effects: Physical Properties of Shock Waves; Sochet, I., Ed.; Springer: Cham, Switzerland, 2018; pp. 17–35. [Google Scholar]
  27. Bowen, J.R. Dynamics of Exothermicity: In Honor of Antoni Kazimierz Oppenheim; Gordon and Breach Publishers: Philadelphia, PA, USA, 1996. [Google Scholar]
  28. Jiang, H.; Li, Z.; Zhang, Y. Characteristics of Air Blast Wave Field for Explosive Charge Moving at Different Velocities. Chin. J. High Press. Phys. 2017, 31, 286–294. [Google Scholar]

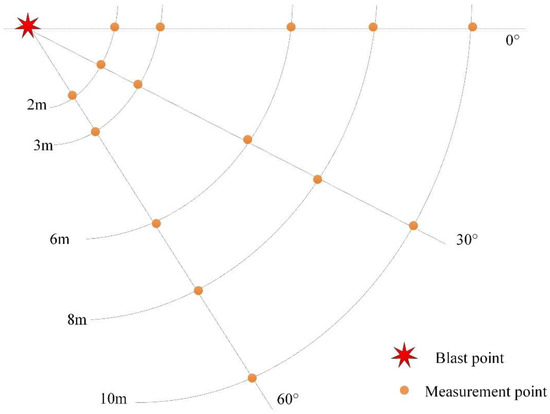

Figure 1. Schematic of the measurement points in the stationary charge explosion experiment.
Figure 1. Schematic of the measurement points in the stationary charge explosion experiment.
Sensors 22 06582 g001

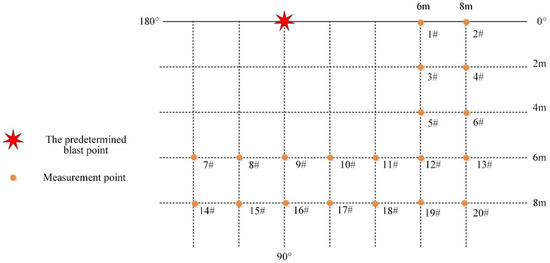

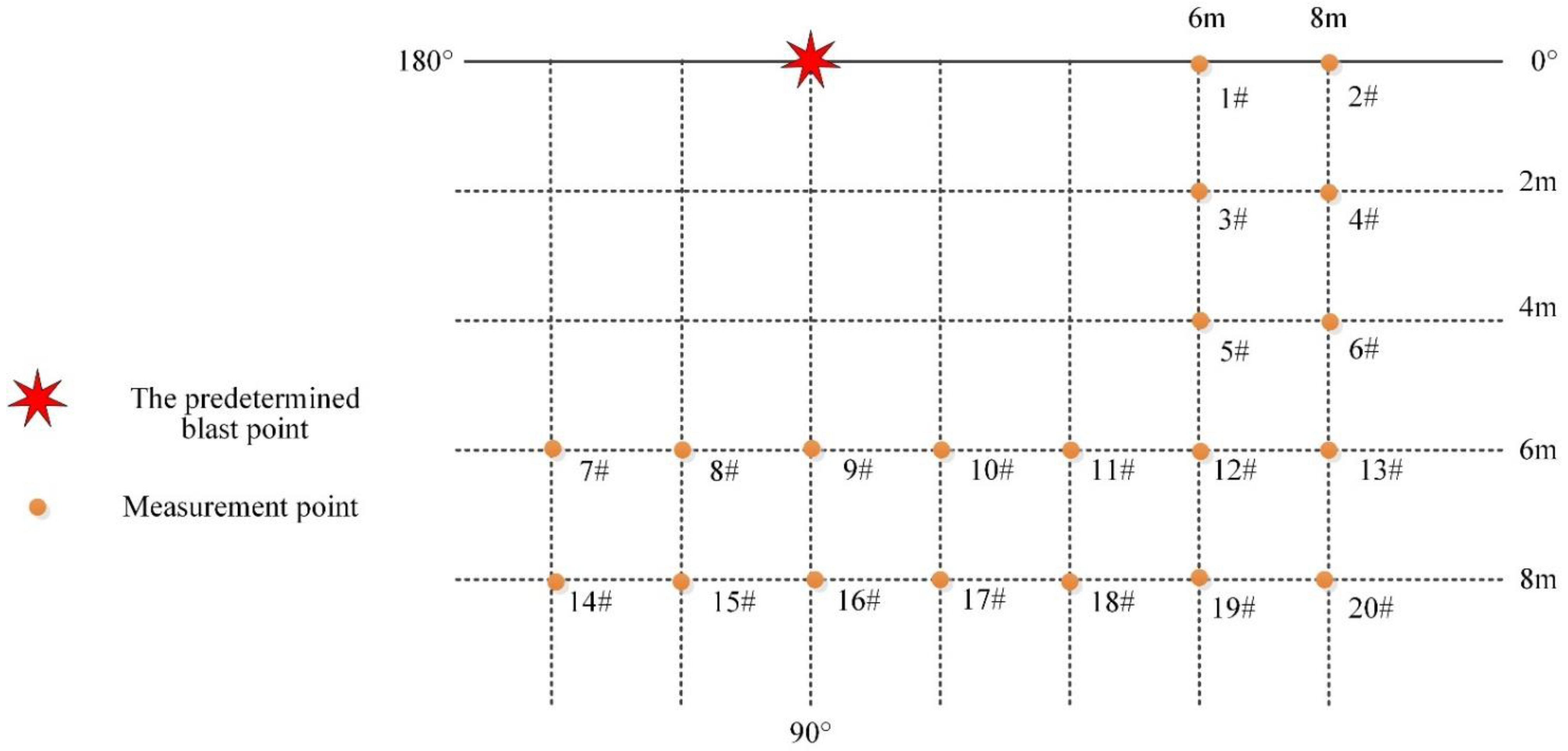

Figure 2. Schematic of the measurement points in the moving charge explosion experiment.
Figure 2. Schematic of the measurement points in the moving charge explosion experiment.
Sensors 22 06582 g002

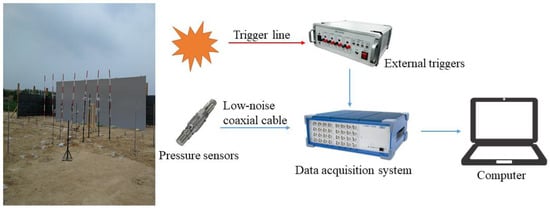

Figure 3. Schematics of the test system and a photo of the experiment site.
Figure 3. Schematics of the test system and a photo of the experiment site.
Sensors 22 06582 g003

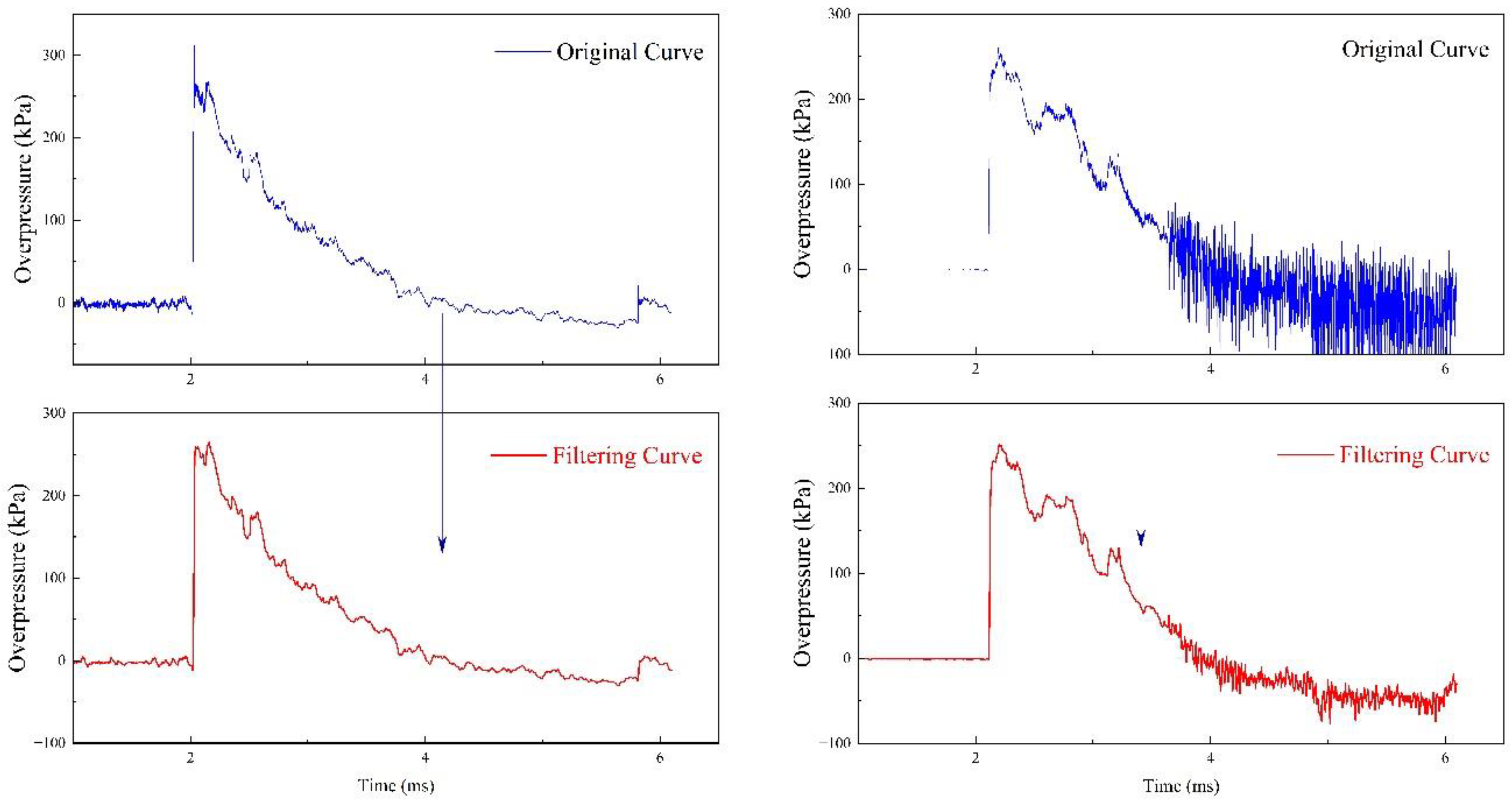

Figure 4. Original curves and filtered curves of the shock wave pressure.
Figure 4. Original curves and filtered curves of the shock wave pressure.
Sensors 22 06582 g004
Figure 5. Shock wave overpressure curves of a stationary charge explosion.
Figure 5. Shock wave overpressure curves of a stationary charge explosion.
Sensors 22 06582 g005

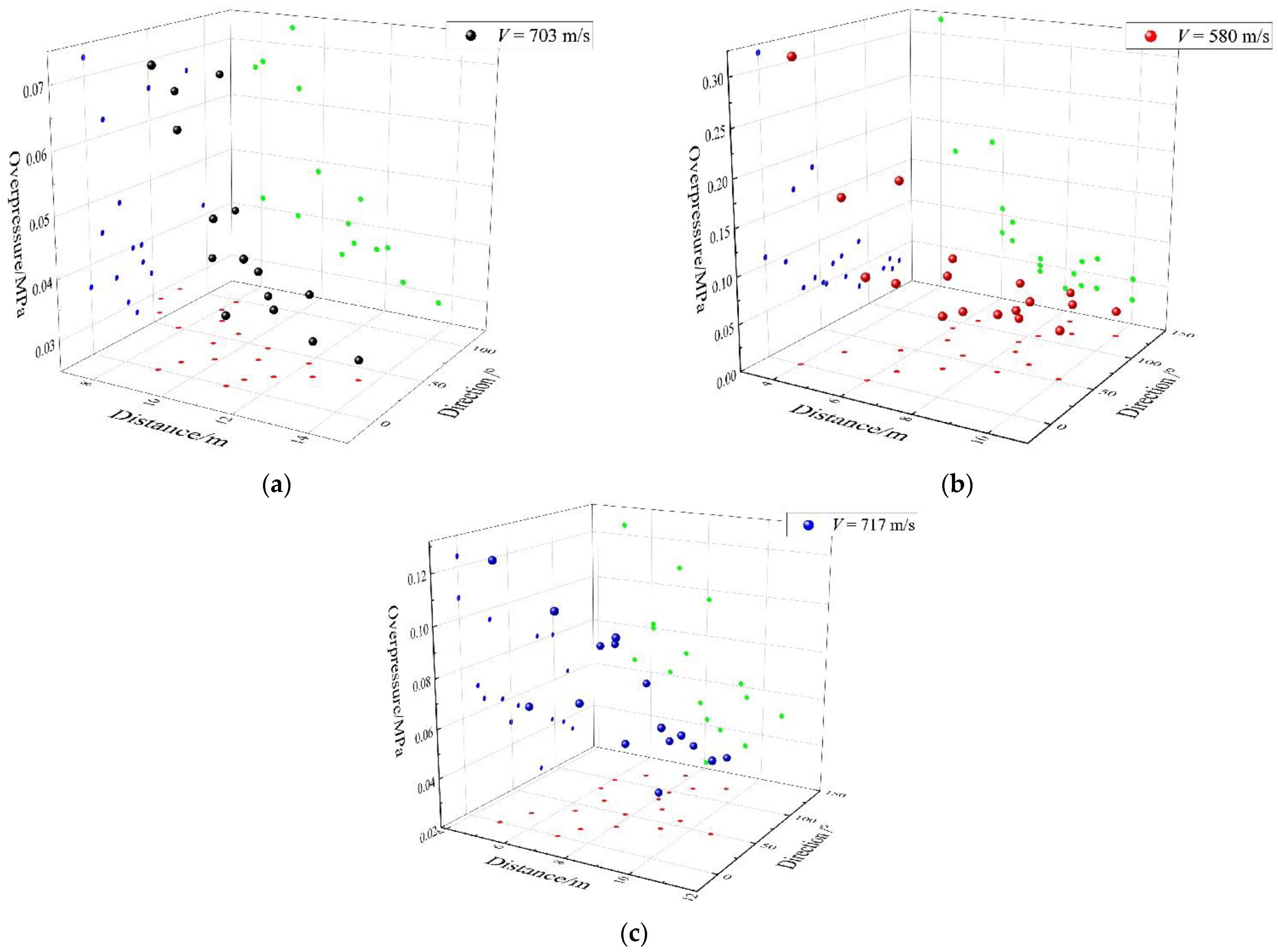

Figure 6. Distribution of the shock wave overpressure from moving charge explosions: (a) the speed was 703 m/s and the deviation was −3 m (in the opposite direction of the charge motion), (b) the speed was 580 m/s and the deviation was +2 m (in the positive direction of the charge motion) and (c) the speed was 717 m/s and the deviation was +1 m.
Figure 6. Distribution of the shock wave overpressure from moving charge explosions: (a) the speed was 703 m/s and the deviation was −3 m (in the opposite direction of the charge motion), (b) the speed was 580 m/s and the deviation was +2 m (in the positive direction of the charge motion) and (c) the speed was 717 m/s and the deviation was +1 m.
Sensors 22 06582 g006

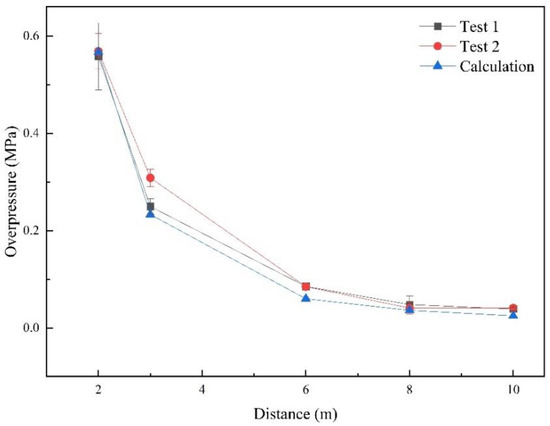

Figure 7. The relationship between overpressure and distance.
Figure 7. The relationship between overpressure and distance.
Sensors 22 06582 g007
Figure 8. Overpressure values of different directions in the moving charge explosion with a charge speed of 580 m/s.
Figure 8. Overpressure values of different directions in the moving charge explosion with a charge speed of 580 m/s.
Sensors 22 06582 g008

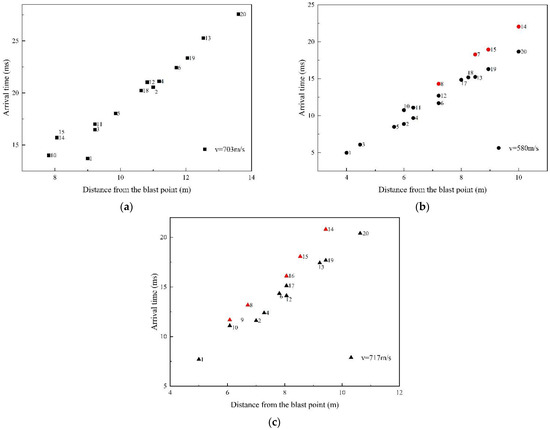

Figure 9. Arrival time at different measurement points from a moving charge explosion: (a) the speed was 703 m/s and the deviation was −3 m (in the opposite direction of the charge motion), (b) the speed was 580 m/s and the deviation was +2 m (in the positive direction of the charge motion) and (c) the speed was 717 m/s and the deviation was +1 m. The measurement points with a direction angle greater than 90° are marked in red.
Figure 9. Arrival time at different measurement points from a moving charge explosion: (a) the speed was 703 m/s and the deviation was −3 m (in the opposite direction of the charge motion), (b) the speed was 580 m/s and the deviation was +2 m (in the positive direction of the charge motion) and (c) the speed was 717 m/s and the deviation was +1 m. The measurement points with a direction angle greater than 90° are marked in red.
Sensors 22 06582 g009
Figure 10. Model of velocity vector superposition.
Figure 10. Model of velocity vector superposition.
Sensors 22 06582 g010
Figure 11. Shock wave model of a moving charge explosion.
Figure 11. Shock wave model of a moving charge explosion.
Sensors 22 06582 g011
Figure 12. Shock wave overpressure–time history curves of the moving charge and stationary charge explosions: (a) test point #1 at 5 m in the 0° direction and (b) test point #4 at 7.28 m in the 16° direction.
Figure 12. Shock wave overpressure–time history curves of the moving charge and stationary charge explosions: (a) test point #1 at 5 m in the 0° direction and (b) test point #4 at 7.28 m in the 16° direction.
Sensors 22 06582 g012

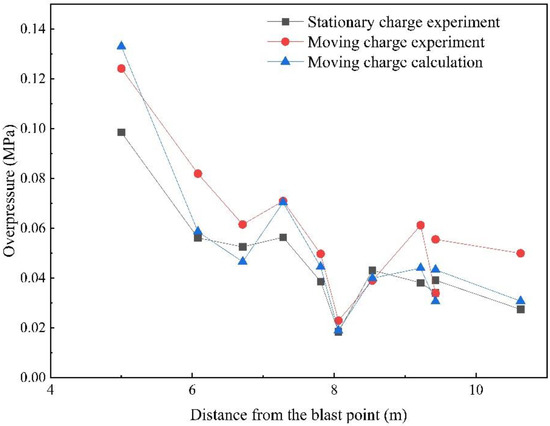

Figure 13. Overpressure values at different distances from the blast center for the stationary charge experiment, moving charge experiment and moving charge calculations.
Figure 13. Overpressure values at different distances from the blast center for the stationary charge experiment, moving charge experiment and moving charge calculations.
Sensors 22 06582 g013
Table 1. Parameters of the charge.
Table 1. Parameters of the charge.
Explosive TypeMass of the
Explosive (kg)
Power/TNT EquivalentMass of the Charge (kg)Charge–Weight
Ratio
DHL3.4148%22.50.15
Table 2. Parameters of the devices used in the experiments.
Table 2. Parameters of the devices used in the experiments.
DeviceCharacteristic Parameters
Pressure sensorsManufacturer and typePCB 113B
Measurement range50–500 psi
Resonant frequency≥500 kHz
Non-linearity≤1.0% FS
Data acquisition systemManufacturer and typeElsys TraNET FE
Maximum sampling rate20 MHz
External triggersResolution 16 bits
Manufacturer and typeSelf-developed
Synchronization time error<0.1 μs
Table 3. Shock wave pressure parameters of a stationary charge explosion.
Table 3. Shock wave pressure parameters of a stationary charge explosion.
r (m)236810
Arrival time (ms)1.92053.1502-13.676318.1702
30°1.8793.24188.796913.422118.4423
60°1.73123.1431-13.687318.4981
Overpressure (MPa)0.48930.2713--0.0396
30°0.53310.23370.08520.05680.0419
60°0.65200.2438-0.06400.0347
Duration (ms)-1.9869--5.5762
30°-1.6783.8363.7615.9199
60°1.0326---5.8608
Impulse (Pa·s)-207.3613--86.0357
30°-227.7904112.533480.645274.1739
60°273.9726---72.8959
Table 4. Comparison of the static explosion overpressure between the test and calculation results.
Table 4. Comparison of the static explosion overpressure between the test and calculation results.
r 236810
Δ p   (MPa)Test 10.55810.24960.08520.04800.0387
Test 20.56870.30850.08490.04980.0410
X i 0.5670 0.2332 0.0599 0.0361 0.0249
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ma, X.; Kong, D.; Shi, Y. Measurement and Analysis of Shock Wave Pressure in Moving Charge and Stationary Charge Explosions. Sensors 2022, 22, 6582. https://doi.org/10.3390/s22176582

AMA Style

Ma X, Kong D, Shi Y. Measurement and Analysis of Shock Wave Pressure in Moving Charge and Stationary Charge Explosions. Sensors. 2022; 22(17):6582. https://doi.org/10.3390/s22176582

Chicago/Turabian Style

Ma, Xuejiao, Deren Kong, and Yucheng Shi. 2022. "Measurement and Analysis of Shock Wave Pressure in Moving Charge and Stationary Charge Explosions" Sensors 22, no. 17: 6582. https://doi.org/10.3390/s22176582

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
