1. Introduction
Simulation is the main approach in presenting systems for which it is difficult and expensive to perform real experiments. The degree of correspondence between the real system and the simulation describes the validity of the model. The acceptability of the degree of correspondence depends on the purpose of the further experiments [
1].
Road traffic is one of the most intensive domains of simulation modeling due to the great interest in transport and the many pressing issues in this field. Road traffic simulation models are usually agent-based. This makes them suitable for dynamic enrichment, integration of complex behaviors, and modeling intelligent human behavior. The drawback is that the complexity of the model complicates maintenance [
1,
2].
Road traffic simulation models include many components: the road network, traffic load data, the choice of simulation tool (traffic simulator), the model of interaction between agents, and parameter settings. Model evaluation and calibration is often complex and goal-specific. The use of real input data increases the correspondence to the real world but complicates the validation process [
3,
4].
Fitting the input data to the simulator (traffic demand estimation) is one of the important tasks to solve. Traffic demand estimation converts input traffic information (lifestyle statistics and detector data) into single-trip routes using routing algorithms [
5,
6].
Another important component of the road traffic simulation model is the driver behavior model. This takes into account characteristics such as mood, fatigue, and responses to distracting conditions [
7,
8]. The relationships between external factors and the way drivers perform tasks, such as choices of headway during car-following, gap acceptance, overtaking, speed choice, and lateral and longitudinal control, can also be represented in the model [
9,
10,
11].
Table 1 presents studies reflecting different aspects of driver behavior.
In articles [
7,
12,
13], the importance of advanced real-time driver information systems is emphasized. The authors of [
7] provided the results of a field experiment that confirms the advances of the presented application: increased driver attention and pursuit of safe driving. The authors of [
12] prove the effectiveness of the proposed V2V-based information system via simulation. The conclusions of [
13] are ambiguous. The results of a two-stage survey and field experiment show that dynamic route recommendations do not always yield results.
Articles [
9,
10] investigate the effect of distraction during driving. While [
9] uses a traffic simulator to analyze the experimental data, [
10] compares two data sets: with and without distraction influences. The authors of [
9] reported a deterioration in traffic flow when texting and talking on the phone, while [
10] concluded that looking sideways for 2 s did not affect drivers’ reactions.
The authors of [
14,
15,
16] examine the factors of driver behavior that influence traffic accidents in different cultures. Based on the three studies, it can be concluded that the factors that affect traffic safety vary widely among different cultures.
Articles [
8,
11,
17] describe the application of machine learning techniques for driver behavior data. All applied methods—Kalman filter, linear regression, logistic regression, gradient boosting, and random forest—are suitable for analyzing driver behavior.
The current article proposes a methodology for choosing simulation model components that best reflect driver habits. The methodology is not tied to a specific simulation tool.
In
Section 2, the description of the methodology is presented. In
Section 3, an implementation of the methodology is proposed using SUMO road traffic simulator and video input data.
Section 4 describes parallel implementation of the methodology.
Section 5 presents experimental results using four car-following models and three routing algorithms with different parameters and input data sets.
2. Methodology Description
The proposed methodology aims to select the routing algorithm and car-following model and their settings that best reflect driving habits.
A car-following model is a function of position, speed, and acceleration. The most commonly used are micro models, as, with their many adjacent parameters, a higher degree of correspondence to the real system can be achieved. Examples of popular microscopic car-following models are Gipps, Krauss, and Widermann [
4,
5].
Routing algorithms are the main part of traffic demand estimation. They formalize networks as weighted graphs and compute routes. Examples of commonly used routing algorithms are Prim, Kruskal, and Dijkstra [
18,
19]. Routing algorithms take as input data the number of vehicles or the ratio between traffic flows in given locations. In cases where data are set for many locations, the routing algorithms may experience certain difficulties, and as a result, simulated values deviate from the specified values.
The proposed methodology selects a routing algorithm and a car-following model and their parameters that most closely correspond to driver habits by choosing the combination with the smallest deviation between the input and simulated values.
The simulation setup encompasses the road map, traffic light cyclograms, and traffic loads for road lines. Each vector of the Cartesian product of the possible values of the car-following model and routing algorithm and their parameters are input into the simulator. The discrepancy between the simulated data and the real load data shows how well the respective configuration matches driver behavior.

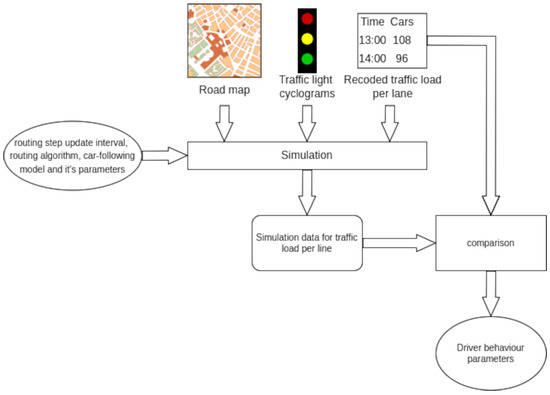

Figure 1 depicts the scheme of the methodology.
For example, the configuration (Krauss, minGap = 1 m, tau = 2 m, Dijkstra, step = 10 s) is an input vector for a simulation. This means that the simulation uses a Krauss car-following model with a minimum distance when stopped of −1 m, a minimum distance when moving of −2 m, and a Dijkstra routing algorithm with a route recalculation step of −10 s. After simulation execution, the information about the number of cars that passed through each lane is compared with the input data. The discrepancy between these two quantities in percent is calculated for each line. The average value of the discrepancies for the certain simulation is a metric for the validity of the configuration. the configuration with the lowest discrepancy is considered to best match driving habits.
3. Experimental Setup

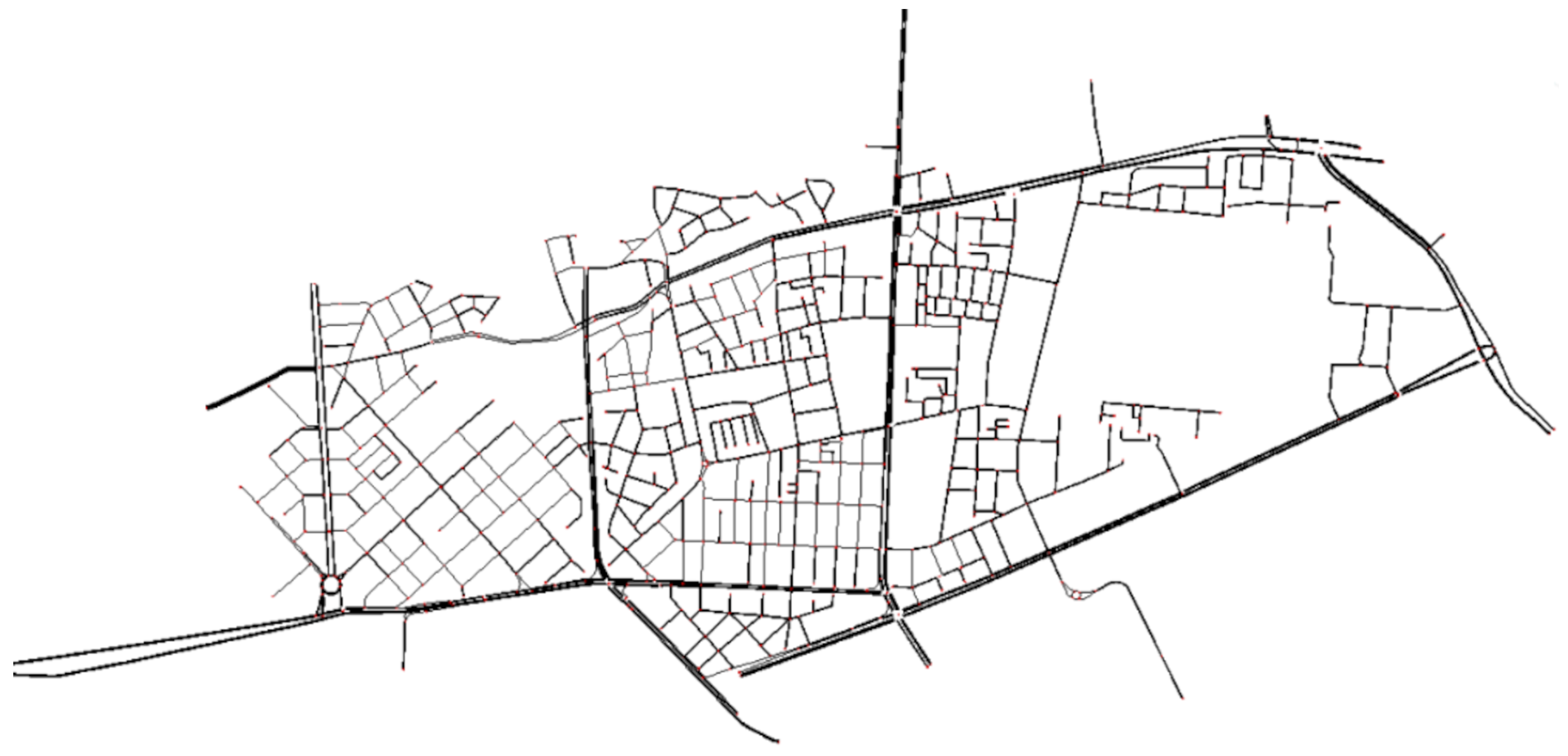

The part of the road network in the city of Plovdiv between “Ruski” Boulevard (to the east), “Osvobozhdenie” Boulevard (to the west), “Gladstone” Street and “Princess Maria Luisa” Boulevard (to the north), and “Hristo Botev” Boulevard and Saint Petersburg Boulevard (to the south) is integrated in SUMO (Simulator for Urban Mobility) (
Figure 2).
SUMO is an open-source multimodal traffic simulator created by the German Aerospace Center [
20]. SUMO offers variety of micro models (Krauss, Widermann, Wagner, Kerner, Intelligent Driver Model, and new models and modifications) and a meso model. Time representation is continuous. The traffic demand input also has variety of options: randomization, OD matrices, classical four-step approach, flow definitions, ratios, and using data from observation points. The output data for analysis can be aggregated data about traffic: the number of vehicles, speed, delays at certain points, emissions, floating car data, and traffic light configuration [
21,
22].
The data for the traffic loads in the experiment are obtained through virtual detectors built on the basis of road cameras. They are extracted from the database of the Municipality of Plovdiv in the form of Excel reports. Each report contains information about the number of vehicles that entered the line of a single intersection per hour. The available reports cover the periods from 15 January to 27 January 2021. Reports for the period 19 February–19 March 2021 for three of the junctions are added to other reports, and an additional set of simulations is performed with the extended data set.
As illustrated in [
23], a repeating pattern is observed on working days and on holidays. That is why the experimental part is divided in two: working days and holidays. Each data set is grouped by hour. An average value of each group is an input for a single road line of the simulation.
The actual duration of the traffic light cycles is used based on the municipality’s documentation.
For the purposes of the investigation, three routing algorithms and four car-following models and their configuration parameters are selected (
Table 2,
Table 3 and
Table 4). All three routing algorithms that are available in SUMO are investigated. All car-following models that have stable implementation and no more than six parameters are investigated. The set of studied parameters is chosen so that the default values should belong to the set and are not extreme.
Several Python scripts are implemented to prepare the simulation inputs, run the simulations, and process the output data.
The ControllerReports.py script converts the municipality reports into two CSV (comma-separated values) input files—working day (wCFG.csv) and holiday (hCFG.csv)—by calculating average values per hour for 24 h.
CallFlowrouter.py calculates set of routes and traffic flows from given detectors in the network. The script uses the SUMO tool flowrouter by setting different measurement intervals (values 10, 20, 30, 40, and 50 min are set).
TrafficDemand.py performs dynamic user assignment and runs the SUMO simulation. For dynamic user assignment, the SUMO tool duarouter is used. At this stage, the routing algorithm and car-following model and all their parameters are set. The result is a Dua.xml file that contains all the traffic information for the SUMO simulation. The output of each simulation and the configuration files are saved in a separate folder named after the configuration input.
CalculateDiscr.py compares the number of vehicles that passed each road line from the simulation to the input data in the corresponding CSV input file and calculates the average discrepancy for each simulation.
4. Parallel Implementation
The proposed methodology requires evaluation of many different simulation configurations: the Cartesian product of the possible values of the car-following model and routing algorithm and their parameters. All configurations have no data dependencies (neither in input nor in output values). Some authors [
24] show that the use of computing resources varies depending on the configuration. They measure the CPU, memory, and disk usage of SUMO and show that for the same road network, the usage may vary depending on the model. A resource-aware workflow for automated scheduling running multiple simulations simultaneously can provide many benefits, especially in reducing time to produce all results needed.
TraficSim implements the control logic for executing a single simulation. It generates the routes and configuration files, executes the simulation, and saves all outputs. This application with all of its dependencies is packaged inside Docker image. To automate and parallelize the execution of simulations with different input configurations, we used an Apache Airflow WMS instance running on a Kubernetes cluster inside a private cloud environment. Airflow is an open-source platform that can programmatically build, schedule, and monitor workflows. They are defined in a Python-based descriptor called a DAG (directed acyclic graph). Inside a DAG, the parameters, execution order, and level of parallelism of each group of simulations are configured as separate tasks. Airflow then uses the Kubernetes API to schedule a pod with the Docker image and configuration for each task in the DAG. Kubernetes scheduling is resource-aware and actively manages workloads. For each scheduled simulation, we set a “Resource request” based on the average of a couple of test runs, and “Resource limits” that restrict the maximum that can be used by a single simulation. All configuration files and the results of the simulation are saved to a cloud object storage bucket.
5. Results
A total of 7539 simulations were run; among them, 7103 were with simulation step of 1, and 36 were with smaller simulation steps. The big disadvantage of the more-precise simulation steps is that it requires much more computational resources and/or time [
25].
5.1. Working Day Data Set Simulations
All possible configurations for
Krauss (450) and
Wagner (450) car-following models over the working day data set are simulated. The
Wiedemann and
Modified Krauss car-following models are performed for, respectively, 828 and 825 simulations over the working day data set. Additional sets of simulations with different simulation steps and extended input data are performed in order to investigate the factors that influence discrepancy (
Table 5).
The minimum mean discrepancy between simulated and real values in the working day data set is 21.598% for Krauss and 21.599% for Wagner. In both car-following models, the minimum discrepancy is observed in all simulations with routing algorithm Contraction Hierarchies, the routing step, minGap, and tau do not affect the results. All simulations of Modified Krauss and Wiedemann car-following models over the working day data set are configured with the Dijkstra routing algorithm and show the same discrepancy −22.824%. The discrepancy between simulated and real values is the same with different values of minGap and tau.
An additional set of 368 simulation of the Modified Krauss car-following model over the working day data set are performed. They are all configured with the Contraction Hierarchies routing algorithm and constant values of minGap and tau. The discrepancies between simulated and real values are the same with different values of acceleration, deceleration, emergency deceleration, and sigma at −21.598%.
An additional 30 simulations are performed with simulation steps of 0.01 over the working day data set with the Contraction Hierarchies routing algorithm with steps of 50 s and the Krauss car-following model. All simulations show the same discrepancy of −32.700%.
An additional four simulations are performed with a simulation step of 0.001 over the working day data set with the Contraction Hierarchies routing algorithm with steps of 50 s and with the Krauss car-following model. The minimum discrepancy is 30.454%, and the deviation is 0.932%.
An additional two simulations are performed with a simulation step of 0.001 over the working day data set, the Dijkstra routing algorithm with steps of 10 s, the Wagner car-following model with minGap = 1, and tau, respectively, of 0.5 or 0.25. The minimum discrepancy in the two simulations is 27.11%, and the deviation is 4.32%.
An additional 90 simulations are performed over the extended working day data set with routing steps of 50 s and with the Krauss car-following model. The minimum discrepancy is 24.941%. This is observed with all simulations with a routing algorithm with Contraction Hierarchies.
An additional 90 simulations are performed over the extended working day data set with routing steps of 50 s and with the Wagner car-following model. The minimum discrepancy is 24.941%. This is observed with all simulations with a routing algorithm with Contraction Hierarchies.
A total of 3137 simulations over the working day data set are performed. The minimum discrepancy is 21.598%. This is observed in smaller data set with the Contraction Hierarchies routing algorithm and Modified Krauss and with the Krauss car-following models. The simulations over the extended working day data set show higher discrepancy.
5.2. Holiday Data Set Simulations
All possible configurations for
Krauss (450) and
Wagner (450) car-following models over the holidays data set are simulated. For the
Wiedemann and
Modified Krauss car-following models, we performed, respectively, 828 and 825 simulations over the holiday data set. Additional sets of simulations with different simulation steps, extended input data, and fixed parameters are performed in order to investigate the factors that influence discrepancy (
Table 6).
The minimum mean discrepancy between simulated and real values in the holiday data set is 46.990% with the Krauss model and 46.776% with the Wagner model. In both car-following models, the minimum discrepancy is observed in all simulations with the with the Dijkstra routing algorithm. The routing step, minGap, and tau do not affect the results.
All 1412 simulations of the Modified Krauss car-following model over the holiday data set are configured with the Dijkstra routing algorithm and return a discrepancy of 46.776%. The discrepancy between simulated and real values is the same with different configuration values.
All 1409 simulations of with the Wiedemann car-following model over the holiday data set are configured with with the Dijkstra routing algorithm. The minimum discrepancy is 46.776%. The discrepancy between simulated and real values is the same with different configuration values.
An additional set of 500 simulation with the Modified Krauss car-following model over the holiday data set are performed. They are all configured with the Dijkstra routing algorithm and constant values of minGap and tau. The discrepancy between simulated and real values is the same with different values of acceleration, deceleration, emergency deceleration, and sigma at −46.776%.
An additional 90 simulations are performed over the extended holiday data set with a routing step of 50 s and the Krauss car-following model. The minimum discrepancy is 22.649%. This is observed in all simulations with the routing algorithm Contraction Hierarchies.
An additional 90 simulations are performed over the extended holiday data set with a routing step of 50 s and the Wagner car-following model. The minimum discrepancy is 22.649%. This is observed with all simulations with the routing algorithm Contraction Hierarchies.
A total of 4402 simulations over the holiday data set are performed. The minimum discrepancy is 22.649%. This is observed with the extended holiday data set, the Contraction Hierarchies routing algorithm, and the Krauss and Wagner car-following models.
6. Discussion
A methodology for determining the components of road traffic simulations to describe driving habits is proposed. The methodology defines a car-following model and a routing algorithm and their parameters based on road detectors. Two implementations of the methodology via Python and SUMO are proposed: parallel and sequential. The results of the performed simulations prove the applicability of the methodology.
Currently, results of more then 7000 simulations are available, including configurations with four car-following models over the holiday and working day data sets in short and extended variants. The majority of the performed simulations are configured with the default routing step due to limitations in computational resources. The step of the routing algorithm and the additional car-following model parameters do not affect the discrepancy with simulation steps of 1 and 0.01. With simulation step 0.001, the configuration parameters affect discrepancy.
On working days, driver behavior is best described by the Contraction Hierarchies routing algorithm and the Krauss and Modified Krauss car-following models.The Wagner car-following model also shows good results. The smallest discrepancy is observed with the small data set (15–27 January 2021). When extending the data with reports for the period 19–21 February 2021, the discrepancy increases.
The probable reason for the worse performance of the routing algorithm with the extended data set is that the driver behavior pattern changes over time, and mixing data from different periods may lead to data contamination.
In the original holiday data set (15–27 January 2021), the Dijkstra routing algorithm and the Modified Krauss, Wagner, and Wiederman car-following models show the best performance. The minimum discrepancy in the holiday data set is observed in the extended data set with the Contraction Hierarchies routing algorithm and the Krauss and Wagner car-following models.
In the original holiday data set, there are only a few records. When adding the data for 19–21 February 2021 to the holiday set, discrepancy decreases significantly. The probable reason for this result is that in larger data sets, some of the measurement errors affect the averages less. The different performance of the routing algorithm on the holiday data set confirms the effectiveness of the Contraction Hierarchies routing algorithm under heavy loads.
The possible reason for the different results with the original and expanded data set is that driver behavior varies at different periods and depends on many preconditions. Another possible reason for the different results when expanding the data set is random measurement errors.
It can be concluded that the Contraction Hierarchies routing algorithm is suitable for heavy loads, while Dijkstra is suitable for lower loads or when data are missing. When using the default simulation step, the routing step and additional model parameters do not affect the final result. The results regarding the car-following model are the most contradictory. In the extended and shortened data sets, different models show minimal discrepancy. For working days, the Krauss and Modified Krauss models show the best results, while for holidays, Krauss and Wagner are the best.
7. Future Work
The described methodology suggests fitting the simulation parameters to real traffic data regarding the number of vehicles that pass on an hourly basis in order to reach a more realistic simulation model. This idea can be developed using more detailed data about traffic in the city: for example, the types of vehicles and their sizes, the purpose of the trip, the presence of public events, etc.
The described methodology offers to find the most suitable car-following model and routing algorithms and their parameters. It is possible to extend the methodology by adding more components to be tuned: for example, line-change model and its parameters.
Another option for extending the methodology is to look for simulation model components and parameters on an hourly basis instead of working days and holidays.
The proposed implementation via SUMO and Python is a good starting point for future research. The methodology realization with the same input data and different traffic simulators would help to evaluate the universality of the proposed approach. Repeating the experiments with the current implementation and data from other cities or different periods would help the completeness of the research.
The performed experiments may be a good starting point for setting up the SUMO road traffic simulator for future traffic studies in the city of Plovdiv. Based on the preformed experiments, it can be concluded that in future work it is appropriate to use the Contraction Hierarchies routing algorithm with the default routing step and the Krauss car-following model with the default configuration parameters.
Examining the selected road network with different sets of input data and a simulation step less than 0.001 and the exhaustion of all possible 484,200 configurations would be indicative of the components of the simulation model that best describe the behavior of drivers in the city of Plovdiv. This would require a massive amount of time or computing power. One of the possible future directions of work is finding heuristics and developing a feedback-based workflow.
