Dual-Responsive and Reusable Optical Sensors Based on 2,3-Diaminoquinoxalines for Acidity Measurements in Low-pH Aqueous Solutions

by
Elizaveta V. Ermakova
1,*,
Anastasia V. Bol’shakova
1,2 and
Alla Bessmertnykh-Lemeune
3,4,*
1
Frumkin Institute of Physical Chemistry and Electrochemistry, Russian Academy of Sciences, Leninsky Pr. 31-4, Moscow 119071, Russia
2
Department of Chemistry, Lomonosov Moscow State University, 1-3, Leninskie Gory, Moscow 119991, Russia
3
Institut de Chimie Moléculaire de l’Université de Bourgogne, CNRS UMR 6302, Université Bourgogne Franche-Comté, 9 Avenue Alain Savary, BP 47870, CEDEX, 21078 Dijon, France
4
Laboratoire de Chimie, CNRS UMR 5182, ENS de Lyon, 46 Allée d’Italie, CEDEX, 69364 Lyon, France
*
Authors to whom correspondence should be addressed.
Sensors 2023, 23(6), 2978; https://doi.org/10.3390/s23062978
Submission received: 15 February 2023 / Revised: 4 March 2023 / Accepted: 7 March 2023 / Published: 9 March 2023
(This article belongs to the Special Issue Colorimetric Sensors: Methods and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
This work is focused on the age-old challenge of developing optical sensors for acidity measurements in low-pH aqueous solutions (pH < 5). We prepared halochromic (3-aminopropyl)amino-substituted quinoxalines QC1 and QC8 possessing different hydrophilic–lipophilic balance (HLB) and investigated them as molecular components of pH sensors. Embedding the hydrophilic quinoxaline QC1 into the agarose matrix by sol-gel process allows for fabrication of pH responsive polymers and paper test strips. The emissive films thus obtained can be used for a semi-quantitative dual-color visualization of pH in aqueous solution. Being exposed to acidic solutions with pH in the range of 1–5, they rapidly give different color changes when the analysis is performed in daylight or under irradiation at 365 nm. Compared with classical non-emissive pH indicators, these dual-responsive pH sensors allow for an increase in the accuracy of pH measurements, particularly in complex environmental samples. pH indicators for quantitative analysis can be prepared by the immobilization of amphiphilic quinoxaline QC8 using Langmuir–Blodgett (LB) and Langmuir–Schäfer (LS) techniques. Compound QC8 possessing two long alkyl chains (n-C8H17) forms stable Langmuir monolayers at the air–water interface, and these monolayers can be successfully transferred onto hydrophilic quartz and hydrophobic polyvinylchlorid (PVC) substrates using LB and LS techniques, respectively. The 30-layer films thus obtained are emissive, reveal excellent stability, and can be used as dual-responsive pH indicators for quantitative measurements in real-world samples with pH in the range of 1–3. The films can be regenerated by immersing them in basic aqueous solution (pH = 11) and can be reused at least five times.

Graphical Abstract

1. Introduction

Luminescent materials attract living interest in both fundamental and applied science, holding great promise for the conversion of academic research into technological innovations [1,2,3]. Molecular materials are widely studied in this field because the structure of organic emitters can be adapted to target applications, among which sensorics are of particular interest. Luminescent properties of organic compounds are known to be highly sensitive to the environment of the luminophore. This limits the number of suitable solid supports and immobilization procedures appropriated for fabrication of emissive molecular materials. From a synthetic point of view, this restricted choice of fabrication methods often imposes laborious structural modifications of the molecular probe in order to prepare a suitable precursor of the desired emissive sensing material. Cutting-edge developments in sensing in aqueous media are focused on the development of multi-responsive sensors in which a luminescence response on the analyte binding is accompanied by signal transduction using another channel, e.g., variations of absorbance. Dual-responsive sensors allow for solving crucial problems in sensorics, such as increase in selectivity of the analyses, for instance.
Solid-state optical sensors based on organic molecules can be prepared by immobilization of chromogenic molecules into a polymer matrix or by grafting these molecules onto inorganic supports [4]. Another convenient synthetic approach to the sensory materials involves the preparation of Langmuir monolayers at the air–water interface followed by their assembling into Langmuir–Blodgett (LB) or Langmuir–Schäfer (LS) films [5,6,7,8]. This method allows for an aware control on the molecular orientation both in Langmuir monolayers and on solid surfaces. A consecutive deposition of monolayers on solid supports affords structurally organized films with a tunable thickness. When efficient transfer conditions are developed, the fabrication of sensors is easy and rapid and may be performed in an aqueous medium using a minimum amount of organic solvents and an expensive organic precursor. Additional benefits, such as an increase in selectivity, sensitivity, and shortening duration of analyses, can be achieved due to an appropriate supramolecular organization of the 2D systems (monolayers) and precise control on the number of monolayers deposited onto the solid surface [9].
Rapid and real-time monitoring of pH values is critical in clinical, industrial, and environmental situations, and most analyses should be performed in aqueous media [10,11,12,13]. Therefore, pH indicators suitable for a wide range of experimental conditions are required, which likely explains the constant research interest in the development of novel halochromic systems.
Quinoxaline derivatives absorbing the light in the visible region attract great attention as optical sensors. The ability of quinoxalines to change their optical properties when N-heterocycle is protonated was thoroughly investigated to obtain colorimetric and fluorescent pH chemosensors [14,15,16,17,18,19,20,21,22,23,24,25,26,27] because these compounds change the color in acidic media with pH < 4 in which many of pH indicators are insensitive [28,29,30,31,32]. Unfortunately, most of the quinoxaline derivatives reported elsewhere in the literature for pH monitoring can be used only in organic solvents or binary solvent mixtures and are inconvenient for real-world analyses. Water-soluble quinoxalines or solid-state devices (litmus strip, for instance) based on these compounds are required for practical usefulness. Surprisingly, halochromic materials based on quinoxalines are limited to chromogenic drop-cast films prepared by evaporation of chemosensor solutions on glass surfaces [18] and paper strips [20,22,24]. All these materials were used only for qualitative analyses of acidic vapors, with the exception of paper strips for a semi-quantitative determination of picric acid through fluorescence changes [20]. Despite Langmuir monolayers formed by quinoxaline derivatives [33] and cavitands [34], dendrimers [35] and polymers [36] bearing quinoxaline moieties were investigated, but they never attracted much attention in sensing likely due to quenching of their luminescence in Langmuir monolayers induced by strong π–π stacking of these heteroaromatic molecules [37].
Recently we reported that a water-soluble push–pull 2,3-bis[4-(methoxycarbonyl)phenyl]-6,7-bis[(3-aminopropyl)amino]quinoxaline (QC1, Figure 1) can be used as efficient dual-responsive optical (spectrophotometry and fluorescence) pH indicator in the pH range of 1–5 in real-life samples [38].
In this work, we investigated different strategies for preparation of pH-responsive materials based on 2,3-bis[4-(alkoxycarbonyl)phenyl]-6,7-bis[(3-aminopropyl)amine]quinoxalines to develop reusable sensors for visual semi-quantitative and quantitative instrumental pH analyses.
First, halochromic polymer films and paper test strips based on hydrophilic quinoxaline QC1 were prepared by a sol-gel process involving agarose. The pH indicators thus obtained allow for dual-color visualization of pH in the range of 1–5. Next, to increase the accuracy of measurements, the amphiphilic halochromic compound QC8 (Figure 1) was obtained and deposited onto solid supports using LB or LS techniques. Thin film sensors thus prepared can be used for visual dual-channel pH monitoring in the pH range of 1–3 and are also suitable for more accurate analyses using an appropriate instrumentation (spectrophotometer or fluorimeter). To our knowledge, this is the first example of preparation of emissive LB/LS films based on quinoxalines and their successful use as a sensor.

2. Materials and Methods

Synthesis of chemosensors QC1 and QC8 is reported in the Supporting Information.

2.1. Preparation of Polymer Films and Test Strips

A sol-gel process involving agarose was used for the preparation of polymer films and test strips from compound QC1. An aqueous solution (c = 0.2 mM) of quinoxaline QC1 (1.1 mg) was added to a solution containing agarose, type I-B (0.15 g), and glycerol (0.5 g) in deionized water (10 mL). This solution (Solution Q) was heated to 90 °C and then stirred at this temperature for 3 min.
Preparation of polymer films. A hot (90 °C) Solution Q (2 mL) was poured into a Petri dish and a flat glass disc was accurately placed on its surface so that the liquid was sandwiched between the bottom of the Petri dish and this glass disc. These special conditions of cooling the reaction mixture to room temperature allow for a control on the film thickness. The glass disk was removed after 1 h, and polymer films with approximately 2 mm thickness were cut out and deposited in dimples of a Teflon plate.
Preparation of test strips. Cellulose filter paper with 8–12 μm pore size (“Belaya lenta”, Bashkhimservice, Ufa, Russia) was chosen for the preparation of pH-indicator paper test strips. Paper strips (10 × 40 mm) were immerged for 20 s into a hot Solution Q (8 mL, 90 °C). Then, the strips were dried in air for 10 min, placed in a microwave (700 W) for 30 s, and then dried in air for additional 8 h.

2.2. Preparation of Monolayers and LB/LS Films

Computer controlled 1000-2 KSV Minitrough (l × w = 36.4 × 7.5 cm) model (KSV Instrument Ltd., Helsinki, Finland) with a Teflon trough and polyacetal barriers equipped with a platinum Wilhelmy plate (Sensitivity ± 0.01 mN m−1) was used for the preparation of Langmuir monolayers. All measurements were carried out at room temperature (25 ± 1 °C). Deionized water (18.2 MΩ cm, pH~5.5) produced by a Vodoley cartridge purificator (SPE Himelektronika, Moscow, Russia) was used as a subphase and cleanliness of its surface was checked in blank compression experiments (surface pressure after compression process should not exceed 0.3 mN m−1). Monolayers were formed by spreading a freshly prepared 0.1 mM chloroform solution of QC1 or QC8. The spreading solution was deposited in 2.5 µL portions using a Gilson “Distriman” micropipette (“Gilson S.A.S.”, Villiers-le-Bel, France). Delivered drops were uniformly distributed over a water surface in a checkerboard pattern. After spreading of 100 µL of this solution, chloroform was allowed to evaporate for 15 min, and the monolayer was compressed at a rate of 10 mm min–1.
Langmuir monolayers at the water surface with fixed pH were recorded under the same conditions using acidified (HCl) or basified (NaOH) water as a subphase. Each compression isotherm was recorded at least three times to ensure reproducibility of results.
LB films were deposited onto quartz slides, while the LS technique was used to prepare films on PVC and mica substrates. Transfers of monolayers were performed at the constant surface pressure of 20 mN m−1 by vertically immersing and withdrawing the solid substrate at the speed of 5 mm min−1 (LB films) or by horizontal deposition onto a solid substrate (LS films). The transfer ratio for the LB and LS films was no less than 0.95.

2.3. In Situ UV–Vis Absorption Spectroscopy of Langmuir Monolayers

In situ UV–vis absorption spectra of Langmuir monolayers at the air–water interface were recorded in the 200–750 nm wavelength range using an AvaSpec-2048 FT-SPU (Avantes, Apeldoorn, The Netherlands) fiber-optic spectrophotometer equipped with a 75 W DH-2000 deuterium–halogen light source and a CCD array detector. The UV–vis reflectometric probe with the fiber-optic diameter of 400 µm, combined with a 6-fiber irradiating bundle, was placed perpendicular to the studied surface at a distance of 2–3 mm. The signal reflected from the deionized water surface was used as a baseline.

2.4. UV–Vis Absorption and Fluorescence Measurements of Solutions and LB/LS Films

The UV–vis absorption spectra of solutions and LB/LS films deposited onto quartz and polyvinyl chloride (PVC) substrates were recorded on a Shimadzu-24 spectrometer (Kyoto, Japan) in a wavelength range of 200–900 nm. The fluorescence spectra of solutions and LB/LS films deposited onto solid substrates were recorded on a Shimadzu RF-5301 spectrofluorometer (Kyoto, Japan) in a wavelength range of 200–900 nm. Liquid samples were analyzed at 25 ± 1 °C in quartz cuvettes with an optical path length of 1 cm. All studied samples were irradiated at 420 nm.
Fluorescence quantum yields were measured at 25 °C by a relative method using fluorescein in ethanol (Φ = 92%) as a standard [39]. The following equation was used to determine the relative fluorescence quantum yield:
Φx = Φst ((Fx · Ast · ηx2)/(Fst · Ax · ηst2)),
where A is the absorbance (in the range of 0.01–0.1), F is the area under the emission curve, η is the refractive index of the solvents (at 25 °C) used for the measurements, and the subscripts x and st represent the studied and standard compounds, respectively. The following refractive index values are used: 1.362 for ethanol and 1.445 for chloroform. The quantum yields are given in Table S1.

2.5. Atomic Force Microscopy (AFM) Investigations

AFM measurements were performed on MultiMode Nanoscope V (Veeco, Plainview, NY, USA) operating in tapping mode. Noncontact polysilicon cantilevers with high aspect ratio were used (TipsNano, Estonia, resonant frequency—120 kHz, Q-factor—350). Image processing was performed using Gwyddion (Chechen) software (Version 2.62).

2.6. Visual Determination of pH in Aqueous Solutions

First, pH of studied solutions was measured using portative Ecotest 2000 pH-meter with combined ESK-10601/7 glass electrode (Econix, Moscow, Russia). The electrode was calibrated with commercial buffers (pH = 4.01, 6.86, and 9.18) beforehand to determine the pH of the studied solutions. A series of standard solutions with pH 1.0, 2.0, 3.0, 4.0, and 5.0 was prepared by addition of aqueous HCl to deionized water. Next, an aqueous solution containing 0.1 mM of K+, Na+, Mg2+, Ba2+, Ca2+, Zn2+, Co2+, Cd2+, Pb2+, Ag+, Ni2+, Cu2+, Hg2+, and Al3+ perchlorates (pH 4.52) was prepared. Three other studied samples were freshly prepared lemon and lime juices (pH 2.45 and 1.95, respectively) and a kefir whey acidified by HCl to pH 1.20.
Then, the acidity of these samples was determined using dual-responsive optical sensors developed in this work. The pH-induced color changes of QC1 in polymer films and test strips and of QC8 in LB/LS films were evaluated visually at daylight (absorption channel) or using 365 nm LED (emission channel). For polymer films deposited in the dimples of a Teflon plate, aqueous solutions with different pH (0.5 mL) were added by a Gilson “Pipetman P1000L” pipette, and color of solid sensor was controlled during 30 s. Test strips and LB/LS films were immersed in aqueous solutions with different pH for 30 s. The color changes of all pH indicators were observed immediately, but the exposition of sensors to analyzed solutions was continued up to 30 s to gain insight into stability of materials under experimental conditions. Decolorization of films was never detected, and obtained pH values were in excellent agreement with those determined by the pH-meter.

3. Results

3.1. Synthesis of Aminoquinoxalines

Aminoquinoxalines QC1 and QC8 were chosen for the solid sensor preparation. While chromophore QC1 is soluble in aqueous medium, QC8 is an amphiphilic compound with structural parameters fitting well with LB and LS techniques, owing to the presence of two hydrophobic alkyl chains attached to a planar heteroaromatic core and an opposite arrangement of hydrophilic and hydrophobic residues in the molecule.
Aminoquinoxaline QC1 was prepared according to the procedure previously reported by us (Scheme 1) [38]. Its homologue QC8 was synthesized using the reaction sequences shown in Scheme 1 and Scheme S1. First, 4,4′-bis(octyloxycarbonyl)benzil (1b) was prepared from methyl ester 1a according a two-step procedure involving sequential hydrolysis and esterification reactions (Scheme S1). Then, this compound was transformed in aminoquinoxaline QC8 using a synthetic strategy developed by us for the preparation of QC1, as shown in Scheme 1. The size of the carbon chain in the alkoxycarbonyl substituent did not influence on the courses of condensation and amination reactions, and compounds QC1 and QC8 were obtained in similar overall yields.
The newly synthesized compounds 1b, 3b, and QC8 were unambiguously characterized by NMR, IR, UV–vis, and HRMS (ESI) analysis (Figures S1–S15).
Electron absorption and emission spectra of QC1 and QC8 in chloroform were very similar, as shown in Figure S16 and summarized in Table S1. These compounds absorb and emit visible light, owing to the presence of a long and unsymmetrically substituted conjugated system in the molecules. Both compounds have proton-sensitive heteroaromatic nitrogen atoms (Figure 2) and are of interest for the development of pH-sensitive materials for measuring acidity of low-pH aqueous solutions.
Indeed, a stepwise addition of hydrochloric acid (up to pH 1) to aqueous solutions of QC1 induces bathochromic shifts of absorption and emission bands which are visible by the naked eye in daylight or under irradiation by 365 nm LED (a standard UV source in the laboratories), respectively (Figure 2 and Figure S2) [38]. The protonation constants and protonation sequence were determined by us previously [38]. The protonation proceeds in two steps, as shown in Figure 2. The spontaneous protonation of primary amine groups remoted from the quinoxaline core in aqueous solutions renders QC1 water-soluble below pH 8. Protonation of quinoxaline nitrogen atom is observed in the pH range of 1–5 and leads to large bathochromic shifts of both absorption and emission bands [38]. Thus, pH-induced color changes can be observed by the naked eye or monitored using appropriate instrumentation.
QC8 is insoluble in aqueous media and its protonation was briefly investigated in water–methanol (1:1, v/v) solution. Since the structures of QC1 and QC8 differ only in the size of alkyl substituents, the changes of electron absorption and emission spectra of QC1 and QC8 with pH were very similar (Figure S17). On the basis of these data, we concluded that QC8 is of interest to prepare layer pH-sensitive materials.

3.2. Polymer Films and Test Strips Based on Aminoquinoxaline QC1

Paper test strips are convenient for performing express analyses, in particular under “in field” conditions. Preparation of paper strips by dip coating is commonly used for immobilization of halochromic molecules. This is a rapid and economical method to fabricate pH indicators for performing qualitative or semi-quantitative analyses in aqueous media using hydrophobic dyes. However, water-soluble chromophores, such as aminoquinoxaline QC1, being immobilized by this approach are rapidly washed-off. In this regard, we investigated the preparation of polymer films and paper test strips based on aminoquinoxaline QC1 by sol-gel technique using agarose as a gelling agent. The polymer film thus prepared was deposited on the filter paper and in dimples of a Teflon plate.
Solid sensors thus prepared were brightly colored and exhibited a high stability in aqueous media. A high washing resistance of these pH indicators can be likely explained by formation of numerous intermolecular hydrogen bonds between the polysaccharide matrix (agarose) and the polar QC1 molecules which contain ten heteroatoms (N and O) suitable for hydrogen bonding with hydroxyl groups of the polysaccharide chains.
Both solid sensors changed their color immediately in the pH range of 1–5. The color changes observed in daylight and under illumination by 365 nm UV lamp in acidified deionized water (Figure 3 and Figure 4) were similar to those observed in these aqueous solutions employing water-soluble dye QC1 (Figure 2 and Figure S17). We assume that they are caused by protonation of the quinoxaline ring.
The colored response of the sensor did not change when deionized water was replaced by a solution containing 14 metal perchlorates (K+, Na+, Mg2+, Ba2+, Ca2+, Zn2+, Co2+, Cd2+, Pb2+, Ag+, Ni2+, Cu2+, and Al3+, 0.1 mM of each salt; pH = 4.52), which indicates that the pH measurements were not disturbed by metal ion binding likely due to a low affinity of protonated diaminopropane residues to metal ions (Figure 3 and Figure 4).
Moreover, these solid sensors can be used for the analysis of real-life samples, such as lemon and lime juices (pH 2.45 and 1.95, respectively) and a kefir whey (acidified by hydrochloric acid to pH = 1.20) (Figure 3 and Figure 4). Both colors (in daylight and under illumination at 365 nm) observed for lemon juice and kefir whey were in good agreement with the expectations. In contrast, pH of lime juice can be determined only in daylight because the fluorescent response of both polymer films and test strips was significantly disturbed.
Thus, the dual-color visualization can be useful to increase accuracy and precision, diminishing the influence of an individual color sensibility and occasional organic and inorganic compounds which are commonly present in real-world samples and may disturb the optical responses of the chromophores.
It is also worth noting that use of a porous paper sheet as a solid support also leads to an increase of accuracy and precision of visual analyses, in particular in the pH range of 1–5 because the color changes of paper strips covered by the polymer film are easily seen by the human eye (Figure 3 and Figure 4).

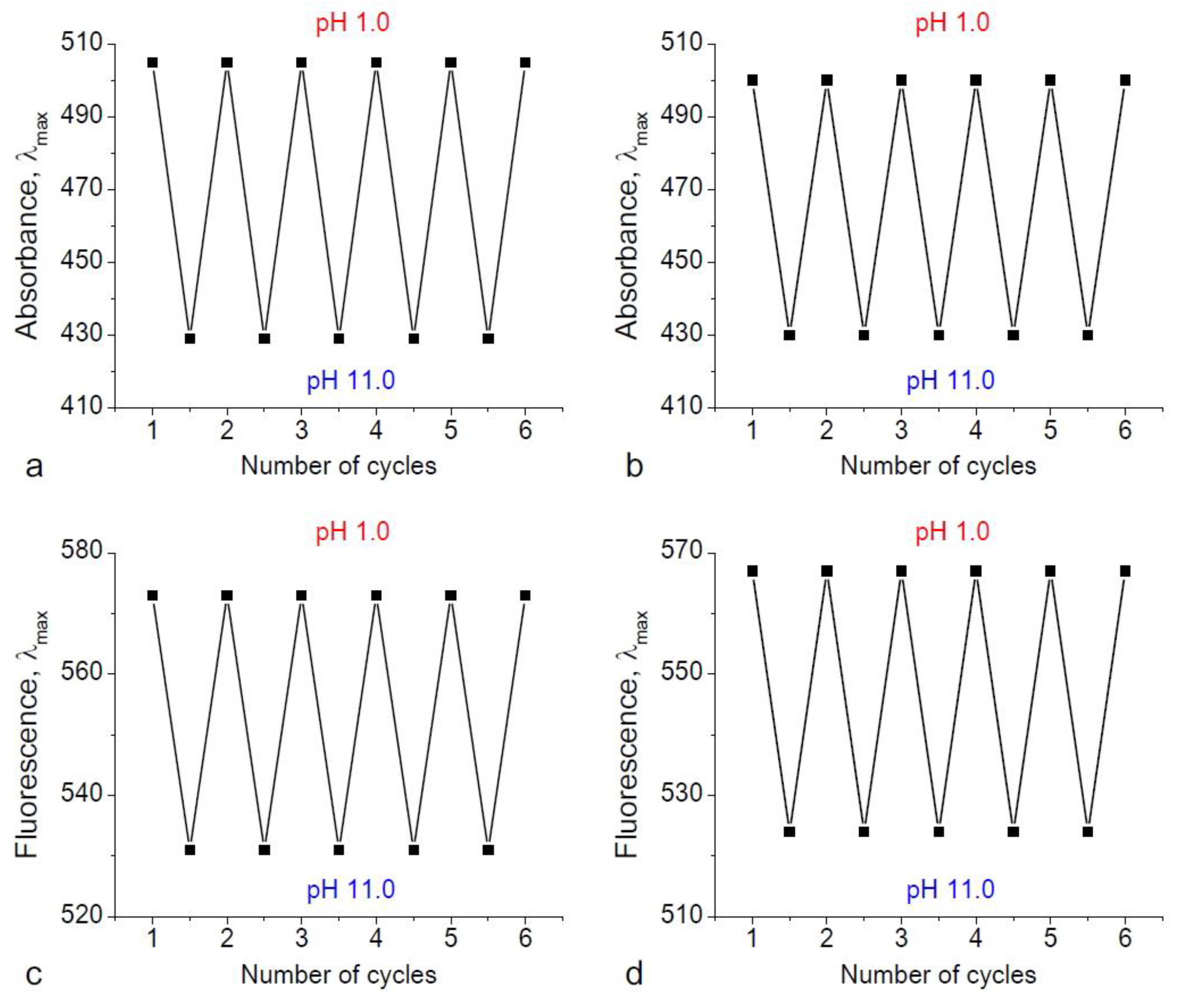

The sensors can be rapidly regenerated by simple dipping them in basic solution with pH 11.0 and can be reused for pH measurements at least five times without any decrease in color intensity and loss of their efficiency (Figure S18).
However, these pH indicators are suitable only for semi-quantitative analysis since accurate spectrophotometric pH measurements cannot be performed using these flexible films having a ruffled surface.

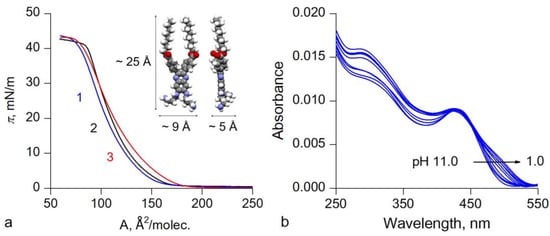

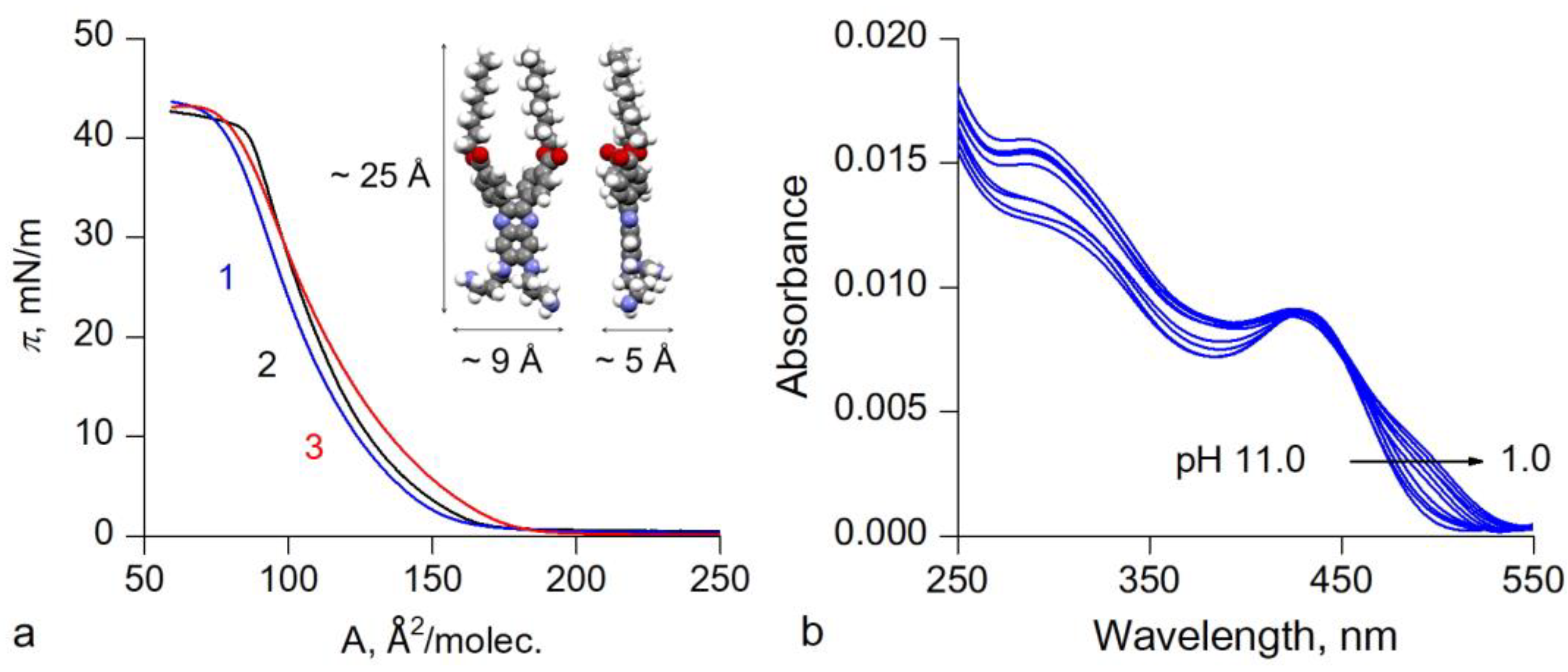

3.3. Monolayers of Amphiphilic Aminoquinoxaline QC8 at the Air–Water Interface and Their Transfer onto Solid Supports

To optimize the solid sensor fabrication and prepare thin films allowing for quantitative pH determination using spectrophotometric/fluorometric measurements, we investigated a deposition of aminoquinoxalines QC1 and QC8 onto solid surfaces through the formation of Langmuir monolayers at the air–water interface followed by their assembling into Langmuir–Blodgett (LB) or Langmuir–Schäfer (LS) films onto transparent solid supports. We have chosen this immobilization strategy because the thickness of LB and LS films can be precisely controlled by changing the number of transferred monolayers, which provides an opportunity to minimize the amount of chromophore required for obtaining stable instrumental and visible optical signals. Moreover, the transfer of the monolayers and optical properties of obtained films can be easily tuned, varying the nature of solid supports.
Our preliminary experiments demonstrated that compound QC1 did not form Langmuir monolayers at the air–water interface because of its high solubility in water. Amphiphilic aminoquinoxaline QC8 being deposited onto the surface of acidic and basic aqueous solutions (pH = 1.0–11.0) formed stable monolayers which could be compressed to the surface pressure of approximately 42 mN·m−1. Compression isotherms of QC8 on the surfaces of aqueous solutions with pH 11.0, 5.5 and 1.0 are depicted in Figure 5a. The extrapolated molecular areas corresponding to linear sections of isotherms equaled 140 Å2/molecule for the monolayer formed at pH 1.0 and 130 Å2/molecule on water subphases with pH 11.0 and 5.5. This likely indicates a structural similarity of all these monolayers. According to computational calculations based on minimum energy equilibrium geometry estimated within Spartan package [40] (Figure 5a, inset), a molecule of aminoquinoxaline QC8 should occupy approx. 225 Å2 being in the face-on orientation with respect to the surface and only approx. 45 Å2 when the perpendicular arrangement of molecules is observed. Thus, it appears that QC8 molecules adopt an inclined orientation in the monolayer or quinoxaline fragments lie parallel to the surface, while two hydrophobic octoxycarbonyl substituents are directed away from the water surface. The absorption bands observed in in situ UV–vis absorption spectra (Figure S19) were broadened, compared with those observed in chloroform solution, but the absorbance maxima displayed approximately the same positions. As shown in Figure S19, absorbance intensity is increased when the surface pressure is gradually raised. This spectrophotometric behavior indicates that π–π stacking of heterocyclic fragments in the monolayers is rather weak because such intermolecular interactions can be observed spectrophotometrically as a shift of absorption bands. It appears that the presence in this molecule of two aryl substituents twisted with respect the quinoxaline core and two linear polyamine substituents attached to another aromatic ring significantly decreases π–π stacking of aromatic rings in the monolayers. The shape of compression isotherms and in situ UV–vis absorption spectra recorded at different compression pressures also reveal the absence of structural reorganizations of studied monolayers during compression cycles.
Surprisingly, maxima of absorbance bands of these three monolayers were pH independent and appeared at 290 and 430 nm over the entire of pH range in contrast to that which was observed in water–methanol (1:1, v/v) solution (Figures S17 and S19). Similar results were obtained when in situ UV–vis absorption spectra of QC8 monolayer were recorded at the constant surface pressure of 10 mN m−1, with a gradual acidification of subphase from pH of 11.0 to pH of 1.0 (Figure 5b). In this experiment, two absorption bands were observed over the pH range of 11.0 to 3.0, and further acidification of the subphase led to the appearance of a small shoulder at 490 nm.
This low sensitivity of QC8 monolayers to pH changes likely revealed its lower basicity in the monolayer, as compared with that of QC1 and QC8 in aqueous solutions. This is easy to understand considering a less efficient solvation of charged protonated species on the water surface.
These results demonstrated that the fabrication of sensing films using the aminoquinoxaline monolayers is challenging because transfer of the monolayers onto solid supports should be performed controlling the acid–basic properties of self-assembled systems thus obtained. Therefore, we investigated the film preparation by vertical deposition (LB method) of monolayers onto hydrophilic quartz and by their horizontal deposition (LS method) onto hydrophobic polyvinylchloride (PVC) supports.
The deposition onto a quartz substrate by LB method was performed at a constant surface pressure of 20 mN m−1 from the surface of three aqueous subphases with pH 11.0, 5.5, and 1.0. Light absorption properties of the films thus obtained were investigated visually (Figure S20) and spectrophotometrically (Figure S21). It was observed both by the naked eye and instrumentally that QC8 monolayers formed on the subphase with pH = 1.0 cannot be transferred onto a quartz surface, likely due to electrostatic repulsion of triply positively charged species. A naked eye inspection of the LB film prepared at pH = 11.0 revealed that the film is inhomogeneous. The film of best quality was obtained using QC8 monolayer formed at the surface of deionized water (pH = 5.5). This film was uniformly colored and displayed the highest absorbance intensity among three studied films. Thus, this aqueous subphase was used for further investigations and for preparation of multilayer LB and LS films.

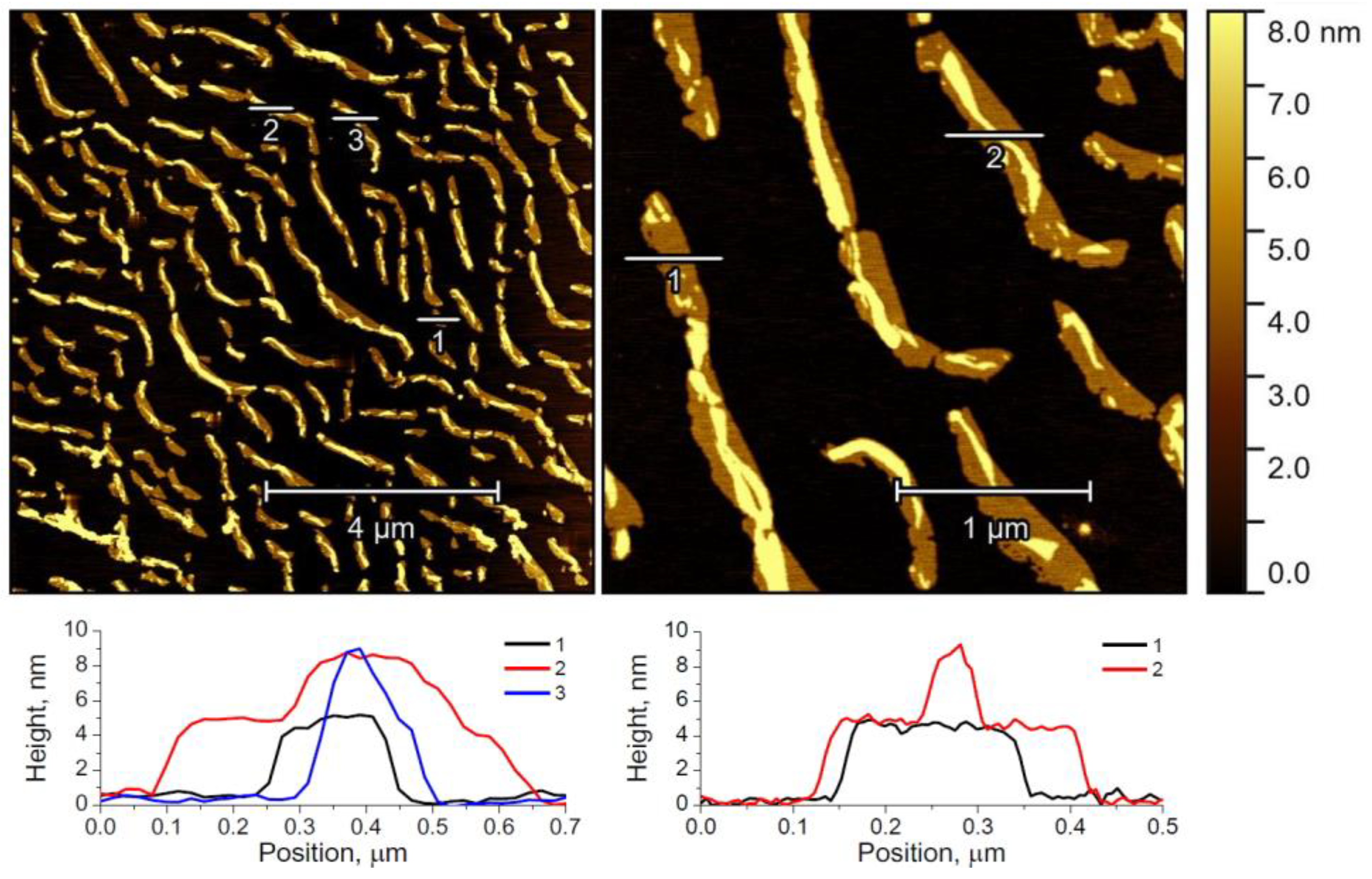

To gain insight into the morphology of one-layer films of QC8 by atomic force microscopy (AFM), QC8 monolayers were also deposited by LB and LS methods onto a mica surface. Good quality AFM images were obtained only for the film prepared by the LS method (Figure 6). The images reveal that the films thus obtained are homogeneous at the mesoscopic scale. They are composed of elongated species with the predominant height of 4.5 and 9 nm. This film thickness is higher than that which is expected for a QC8 monolayer (up to 2.5 nm for the film with perpendicular orientation of quinoxaline molecules; Figure 5a) and corresponds to the dimension of QC8 bilayer (4.5 nm) and aggregates formed by two bilayers (9 nm). The formation of bilayer films on a mica surface is currently not understood, and we cannot exclude that this deviation of the film height from the value expected for a monolayer is caused by the presence of strongly bonded hydroxyl anions and water molecules in the aggregates because the film formed under these conditions likely is composed of doubly protonated QC8 molecules (Figure 2). Noteworthy, amphiphilic porphyrins deposited onto a mica surface by LB method also formed films composed of individual nano-sized species, with a surface roughness that corresponded to a bilayer structure of the aggregates [41].
Such perforated films, with a tight surface coverage by halochromic molecules and easy accessibility of receptor to analytes, held promise for fabrication of photoactive multilayer sensing materials with a high surface area. Unfortunately, the film morphology is dependent on the nature of support, and films deposited onto practically important surfaces, such as quartz or PVC, for instance, cannot be analyzed by AFM technique.

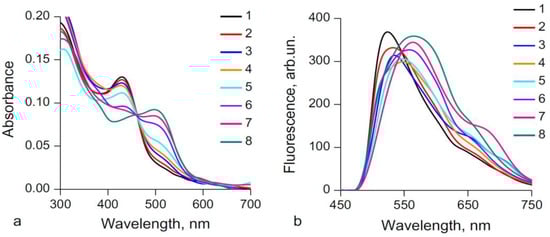

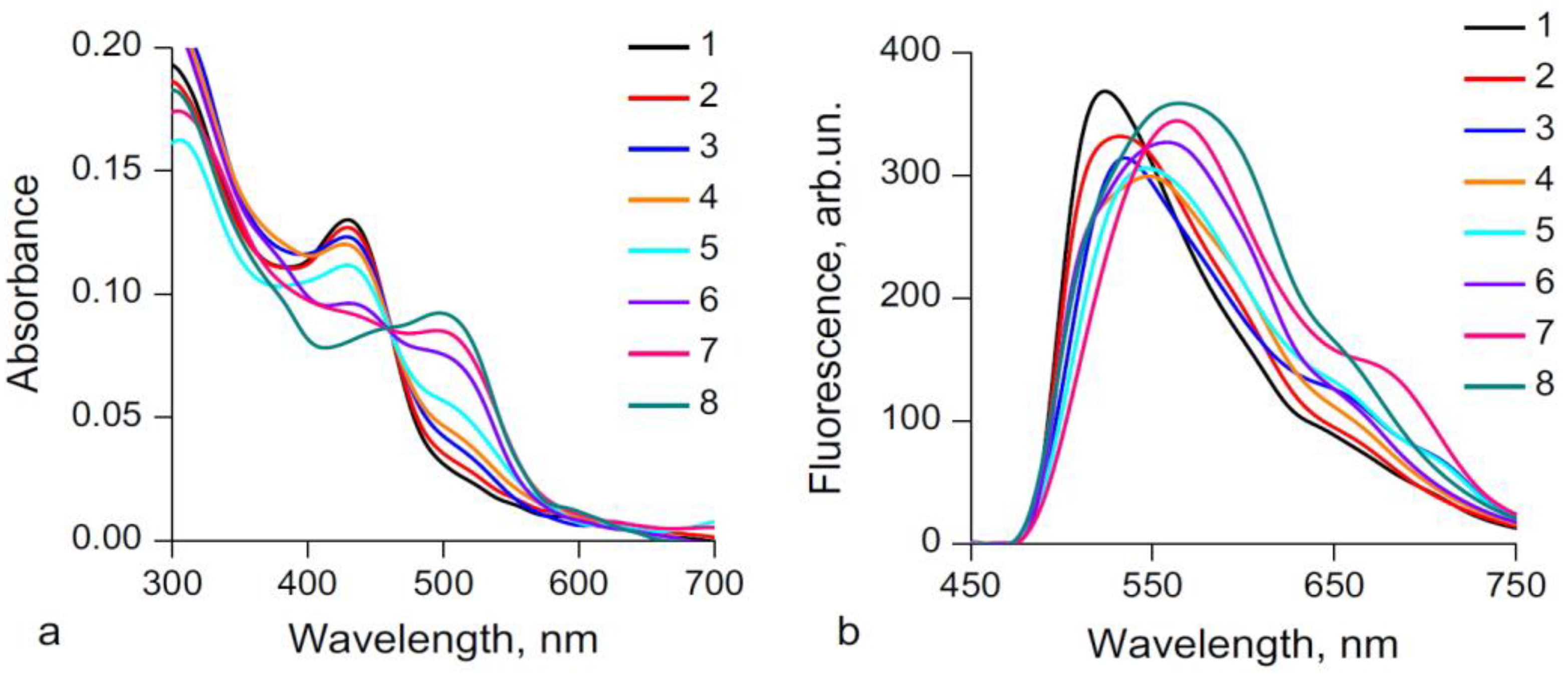

Next, 30-layer films were successfully prepared applying surface pressure of 20 mN m−1 on both hydrophilic (quartz) and hydrophobic (PVC) substrates, according to LB and LS techniques, respectively. The reproducibility of this fabrication method was successfully checked by measuring absorption of the transferred films in three independent experiments. The films were homogeneously colored and emissive, and their exposure to aqueous solutions with pH lower than 3 for 30 s led to large bathochromic shifts of both absorption and emission bands in the visible region (Figure 7 and Figure S22). Despite the difference in the solid supports, sensing properties of two types of films thus obtained were very similar, as shown in Figure 7 and Figure S22. A linear dependence of absorbance and emission on pH value allows for quantitative pH measurements using both pH indicators (Figure 8 and Figure S23). Immersion of both films in aqueous solution with pH 4.52 containing 0.1 mM of various metal cations (K+, Na+, Mg2+, Ba2+, Ca2+, Zn2+, Co2+, Cd2+, Pb2+, Ag+, Ni2+, Hg2+, Cu2+, and Al3+) does not induce any changes of absorption and emission of light, as compared with spectra obtained in deionized water acidified up to this pH (Figure S24). pH values obtained for all real-life samples (an acidified kefir whey and lemon and lime juices) using these calibration curves were in a good agreement with values measured by standard pH electrode (Figure 8). It is important to note that the analysis of lime juice can be performed using both spectrophotometric and fluorescent responses, which was not possible using sensors based on agarose matrix. The environmental influence on the fluorescence response in the analysis of lime juice is likely less important in these sensors due to closed molecular packing in LB and LS films.
These spectral changes can also be observed by the naked eye in daylight and under UV lamp (λ = 365 nm) (Figure 9) allowing for easy and rapid semi-quantitative pH measurements. Both types of pH indicators exhibit excellent stability in the entire pH range and can be easily regenerated by immerging in a basic aqueous solution (pH = 11.0) and reused, as shown in Figure 10.

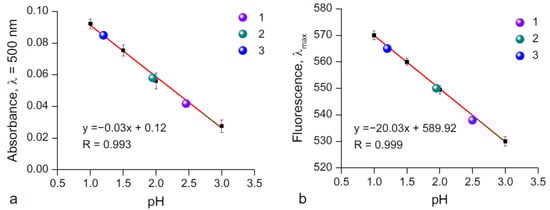

Comparing sensing properties of these pH indicators with those obtained by immobilization of quinoxaline QC1 in agarose polymer matrix (Figure 3 and Figure 4), one can conclude that all of them are efficient for dual-color visualization of pH, but they have distinct differences. Sensors obtained by immobilization of QC8 according to LB/LS methods allow one to perform quantitative pH monitoring in the pH range of 1–3, in which most known pH sensors are inapplicable. These techniques for the immobilization of quinoxalines provide a rational consummation of the chromogenic compound because the thin films containing only 30 layers can be used for reproductible pH measurements and can be regenerated more than six times.
In contrast, to perform visual semi-quantitative pH measurements, the immobilization of hydrophilic compound QC1 in agarose matrix is the best strategy because pH indicators thus obtained rapidly give a visual response in a large pH interval (1–5).

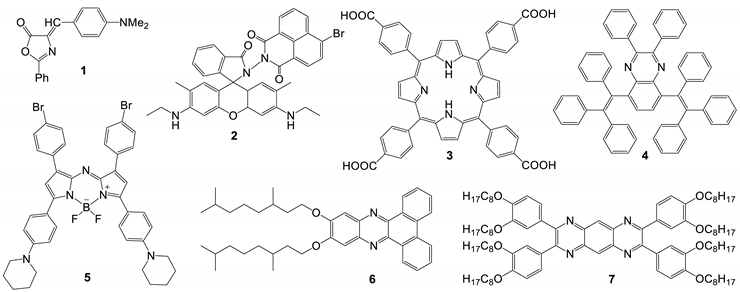

As shown in Table 1 and Table S2, development of pH-sensitive materials for acidic vapors and low-pH aqueous solutions has attracted considerable attention [18,20,22,24,27,42,43,44,45,46,47,48,49,50,51,52]. Many dyes were immobilized according to various strategies, but LB and LS techniques were not used in this field to our knowledge. Surprisingly, many of the solid-state sensors for pH measurements in the range of 1–6 reported elsewhere in the literature are suitable only for qualitative analysis (Table S2). It is also noteworthy that pH indicators were commonly used in the analyses of gaseous samples. pH measurements in aqueous solutions are more challenging because they can be performed using only washing-resistant materials. The dual-responsive naked-eye indicators reported previously gave low accuracy and were used for qualitative analysis of acidic vapors [24,27,42,45,48,49]. Our solid sensors are more precise and also should be less dependent on the environmental factors, compared with the pH indicators working through the single fluorescence intensity changes.

4. Conclusions

In this work, we report the preparation of pH-responsive quinoxaline-based materials for acidity measurements in low-pH aqueous solutions (pH < 5). Our molecular design is based on the introduction of (1) electron donating (3-aminopropyl)amino residues at six and seven positions of the quinoxaline core, and (2) voluminous aryl substituents at two and three positions to maintain emission in materials. According to these design principles, a water-soluble quinoxaline QC1 and amphiphilic compound QC8 were prepared and investigated as molecular components of solid pH sensors.
Immobilization of the hydrophilic QC1 into an agarose matrix allows us to prepare inexpensive polymer films and paper test strips for a semi-quantitative dual-color visualization of pH in aqueous samples with pH 1–5. Various (14 metal ions were tested) metal cations do not interfere with protons.
Next, focusing on quantitative pH measurements, we investigated the fabrication of nano-structured film materials based on quinoxalines. It was demonstrated that the introduction of long alkyl chains in the molecule is required for the fabrication of stable Langmuir monolayers at the air–water interface. The transfer of the QC8 monolayers onto hydrophilic quartz and hydrophobic PVC was carried out using LB and LS techniques, respectively. The films thus obtained were emissive likely because the presence of voluminous aryl substituents prevents strong π–π stacking neighboring quinoxaline molecules. These films were successfully used as dual-responsive sensors for quantitative analysis of acidity in the pH range of 1–3 by instrumental methods (spectrophotometry and fluorescence). It is also worth noting that in terms of consumption of organic compounds, ease of handling and automation this immobilization technique is very seductive because the film composed of only 30 monolayers gives reproductible sensing results, can be easily stored, and can be regenerated more than six times.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s23062978/s1, Scheme S1: Synthesis of octyl-substituted diester 1b; Figure S1: 1H NMR spectrum of 3a (DMSO-d6). Peak of CH2Cl2 (δH 5.69 ppm) is indicated with a star; Figure S2: 13C NMR spectrum of 3a (DMSO-d6); Figure S3: 1H NMR spectrum of QC1 (CDCl3/CD3OD 2:1, v/v). Peak of water (δH 4.45 ppm) is indicated with a star. Signals are broadened likely due to a partial protonation of the compound; Figure S4: 13C NMR spectrum of QC1 (CDCl3/CD3OD 2:1, v/v). Residual peaks of solvents (δC 77.32 ppm—CDCl3, δC 48.64 ppm—MeOD) are indicated with stars; Figure S5: 1H NMR spectrum of 1b (CDCl3). Residual peak of CHCl3 (δH 7.29 ppm) is indicated with a star; Figure S6: 13C NMR spectrum of 1b (CDCl3). A residual peak of CHCl3 (δC 77.02 ppm) is indicated with a star; Figure S7: 1H NMR spectrum of 3b (DMSO-d6). Residual peak of DMSO (δH 2.51 ppm) and a peak of water (δH 3.09 ppm) are indicated with stars; Figure S8: 13C NMR spectrum of 3b (DMSO-d6). Residual peak of solvent (δC 40.55 ppm) is indicated with a star; Figure S9: 1H NMR spectrum of QC8 (CDCl3/CD3OD 2:1, v/v). Peak of water (δH 4.32 ppm) is indicated with star. Signals are broadened likely due to a partial protonation of compound; Figure S10: 13C NMR spectrum of QC8 (CDCl3/CD3OD 2:1, v/v). Residual solvent peaks (δC 77.32 ppm—CDCl3, δC 48.64 ppm—MeOD) are indicated with stars; Figure S11: HR-ESI mass spectrum of 3a; Figure S12: HR-ESI mass spectrum of QC1; Figure S13: HR-ESI mass spectrum of 1b; Figure S14: HR-ESI mass spectrum of 3b; Figure S15: HR-ESI mass spectrum of QC8; Figure S16: Normalized [0; 1] UV–vis absorption (a) and fluorescence (b) spectra of QC1 (1) and QC8 (2) in chloroform solution, c = 0.1 mM, λex = 420 nm; Table S1: Photophysical data for aminoquinoxalines QC1 and QC8 in chloroform solution; Figure S17: UV–vis absorption (a,c) and fluorescence (b,d) spectra of QC1 (a,b) in an aqueous solution and QC8 (b,d) in water–methanol (1:1, v/v) solution upon pH titration (pH = 4.0–1.0). [QC1] = 0.112 mM (a) and 0.015 mM (b), [QC8] = 0.015 mM (b,d); λex = 420 nm. Inserts: pH-induced color changes of solutions in daylight (a,c) and under irradiation by LED (λ = 365 nm) (b,d); Figure S18: pH-induced color changes of polymer films (a,b) and test strips (c,d) based on QC1 in (a,c) daylight and (b,d) under irradiation by LED (λ = 365 nm) upon sequential exposure in aqueous solutions with pH 1 and 11 (recycling experiments); Figure S19: In situ UV–vis absorption spectra for the monolayer of QC8 on the pure water surface at pH (a) 11.0, (b) 5.5, and (c) 1.0 under compression; Figure S20: Photographs of 30-layer QC8 LB films transferred onto quartz substrate at 20 mN m−1 from surface of pure water subphase with pH 11.0, 5.5, and 1.0; Figure S21: UV–vis absorbance spectra of 30-layer LB film of QC8 transferred onto quartz substrate at 20 mN m−1 from surface of pure water subphase with pH 11.0 (1), 5.5 (2), and 1.0 (3); Figure S22: UV–vis absorption (a) and fluorescence (b) spectra of 30-layer LB film of QC8 (1) transferred onto quartz substrate, at 20 mN m–1 and immersed in aqueous solutions with pH 3.0 (2), 2.0 (3), 1.5 (4), and 1.0 (5) for 30 s, λex = 420 nm; Figure S23: Dependence of the absorbance intensity (a) and fluorescence λmax (b) on pH value for 30-layer LB film of QC8 transferred onto quartz substrate at 20 mN m−1; Figure S24: UV–vis absorption (a,c) and fluorescence (b,d) spectra of 30-layer LB (a,b) and LS (c,d) films of QC8 (1) transferred onto quartz or PVC substrates at 20 mN m−1 and immersed in 0.1 mM aqueous solution of metal cations (K+, Na+, Mg2+, Ba2+, Ca2+, Zn2+, Co2+, Cd2+, Pb2+, Ag+, Ni2+, Hg2+, Cu2+, and Al3+) for 10 min; Table S2: Halochromic materials for qualitative pH measurements in the range of 1–4. Reference [53] are cited in the supplementary materials.

Author Contributions

Conceptualization and methodology, A.B.-L. and E.V.E.; investigation, E.V.E.; AFM investigations, A.V.B.; writing—original draft preparation, E.V.E.; writing—review and editing, A.B.-L.; visualization, E.V.E.; project administration, E.V.E. and A.B.-L.; funding acquisition, E.V.E. and A.B.-L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Russian Foundation for Basic Research and Moscow city Government according to the project No 21-33-70003. Financial support from the CNRS, the Conseil Régional de Bourgogne (PARI IME SMT8 and PARI II CDEA programs), and the European Regional Development Fund (FEDER) is also acknowledged. E.V.E. is grateful to the French government and French embassy in Russia for the SSTE-2016 grant. This work was carried out in the frame of the International Associated French–Russian Laboratory of Macrocycle Systems and Related Materials (LIA LAMREM) of CNRS and RAS.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Penouilh Marie-José is warmly acknowledged for her technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, J.; Yang, Z.; Ye, B.; Zhao, Z.; Ruan, Y.; Guo, T.; Yu, X.; Chen, G.; Xu, S. A review of stability-enhanced luminescent materials: Fabrication and optoelectronic applications. J. Mater. Chem. C 2019, 7, 4934–4955. [Google Scholar] [CrossRef]
  2. Wang, H.; Liu, G. Advances in luminescent materials with aggregation-induced emission (AIE) properties for biomedical applications. J. Mater. Chem. B 2018, 6, 4029–4042. [Google Scholar] [CrossRef]
  3. Han, T.; Yan, D.; Wu, Q.; Song, N.; Zhang, H.; Wang, D. Aggregation-induced emission: A rising star in chemistry and materials science. Chin. J. Chem. 2021, 39, 677–689. [Google Scholar] [CrossRef]
  4. Uglov, A.N.; Bessmertnykh-Lemeune, A.; Guilard, R.; Averin, A.D.; Beletskaya, I.P. Optical methods for the detection of heavy metal ions. Russ. Chem. Rev. 2014, 83, 196–224. [Google Scholar] [CrossRef]
  5. Ulman, A. An Introduction of Ultrathin Organic Films from Langmuir–Blodgett to Self-Assembly; Academic Press: New York, NY, USA, 1991; 443p. [Google Scholar]
  6. Ulman, A. Formation and structure of self-assembled monolayers. Chem. Rev. 1996, 96, 1533–1554. [Google Scholar] [CrossRef] [PubMed]
  7. Petty, M.C. Film deposition. In Langmuir–Blodgett Films; Roberts, G., Ed.; Springer: New York, NY, USA, 1990; pp. 93–132. [Google Scholar] [CrossRef]
  8. Ariga, K. Don’t forget Langmuir–Blodgett films 2020: Interfacial nanoarchitectonics with molecules, materials, and living objects. Langmuir 2020, 36, 7158–7180. [Google Scholar] [CrossRef]
  9. Ermakova, E.V.; Koroleva, E.O.; Shokurov, A.V.; Arslanov, V.V.; Bessmertnykh-Lemeune, A. Ultra-thin film sensors based on porphyrin-5-ylphosphonate diesters for selective and sensitive dual-channel optical detection of mercury(II) ions. Dyes Pigm. 2020, 186, 108967. [Google Scholar] [CrossRef]
  10. Khan, M.I.; Mukherjee, K.; Shoukat, R.; Dong, H. A review on pH sensitive materials for sensors and detection methods. Microsyst. Technol. 2017, 23, 4391–4404. [Google Scholar] [CrossRef]
  11. Galloway, J.N. Acidification of the world: Natural and anthropogenic. Water Air Soil Pollut. 2001, 130, 17–24. [Google Scholar] [CrossRef]
  12. Falkenberg, L.J.; Bellerby, R.G.; Connell, S.D.; Fleming, L.E.; Maycock, B.; Russell, B.D.; Sullivan, F.J.; Dupont, S. Ocean acidification and human health. Int. J. Environ. Res. Public Health 2020, 17, 4563. [Google Scholar] [CrossRef]
  13. Steinegger, A.; Wolfbeis, O.S.; Borisov, S.M. Optical sensing and imaging of pH values: Spectroscopies, materials, and applications. Chem. Rev. 2020, 120, 12357–12489. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, P.; Baheti, A.; Thomas, K.J. Synthesis and optical properties of acidochromic amine-substituted benzo[a]phenazines. J. Org. Chem. 2011, 76, 6134–6145. [Google Scholar] [CrossRef]
  15. Jo, S.; Kim, D.; Son, S.-H.; Kim, Y.; Lee, T.S. Conjugated poly(fluorene-quinoxaline) for fluorescence imaging and chemical detection of nerve agents with its paper-based strip. ACS Appl. Mater. Interfaces 2014, 6, 1330–1336. [Google Scholar] [CrossRef]
  16. Aggarwal, K.; Khurana, J.M. Indeno–furan based colorimetric and on–off fluorescent pH sensors. J. Photochem. Photobiol. A 2015, 307, 23–29. [Google Scholar] [CrossRef]
  17. Mazumdar, P.; Maity, S.; Shyamal, M.; Das, D.; Sahoo, G.P.; Misra, A. Proton triggered emission and selective sensing of picric acid by the fluorescent aggregates of 6,7-dimethyl-2,3-bis-(2-pyridyl)quinoxaline. Phys. Chem. Chem. Phys. 2016, 18, 7055–7067. [Google Scholar] [CrossRef]
  18. Duffy, K.J.; Haltiwanger, R.C.; Freyer, A.J.; Li, F.; Luengo, J.I.; Cheng, H.-Y. Pyrido[1, 2-a]quinoxalines: Synthesis, crystal structure determination and pH-dependent fluorescence. J. Chem. Soc. Perkin Trans. 2002, 2, 181–185. [Google Scholar] [CrossRef]
  19. Bag, R.; Sikdar, Y.; Sahu, S.; Maiti, D.K.; Frontera, A.; Bauzá, A.; Drew, M.G.; Goswami, S. A versatile quinoxaline derivative serves as a colorimetric sensor for strongly acidic pH. Dalton Trans. 2018, 47, 17077–17085. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, L.; Cui, M.; Tang, H.; Cao, D. Fluorescent nanoaggregates of quinoxaline derivatives for highly efficient and selective sensing of trace picric acid. Dyes Pigm. 2018, 155, 107–113. [Google Scholar] [CrossRef]
  21. Park, J.S.; Tran, T.T.; Kim, J.; Sessler, J.L. Electrochemical amphotericity and NIR absorption induced via the step-wise protonation of fused quinoxaline-tetrathiafulvalene-pyrroles. Chem. Commun. 2018, 54, 4553–4556. [Google Scholar] [CrossRef]
  22. More, Y.W.; Padghan, S.D.; Bhosale, R.S.; Pawar, R.P.; Puyad, A.L.; Bhosale, S.V.; Bhosale, S.V. Proton triggered colorimetric and fluorescence response of a novel quinoxaline compromising a donor-acceptor system. Sensors 2018, 18, 3433. [Google Scholar] [CrossRef] [Green Version]
  23. Moshkina, T.N.; Nosova, E.V.; Lipunova, G.N.; Valova, M.S.; Charushin, V.N. New 2,3-Bis(5-arylthiophen-2-yl)quinoxaline Derivatives: Synthesis and Photophysical Properties. Asian J. Org. Chem. 2018, 7, 1080–1084. [Google Scholar] [CrossRef]
  24. Gupta, S.; Milton, M.D. Design and synthesis of novel V-shaped AIEE active quinoxalines for acidochromic applications. Dyes Pigm. 2019, 165, 474–487. [Google Scholar] [CrossRef]
  25. Wang, M.; Wang, S.; Song, X.; Liang, Z.; Su, X. Photo-responsive oxidase mimic of conjugated microporous polymer for constructing a pH-sensitive fluorescent sensor for bio-enzyme sensing. Sens. Actuators B 2020, 316, 128157. [Google Scholar] [CrossRef]
  26. Zhao, F.; Sun, T.; Wang, Y.; Zhan, Y.; Yang, W. Achieving dual-responsive fluorescence switching towards mechanical force and volatile acid vapor based on D–A type diphenylamine functionalized quinoxaline derivatives. Dyes Pigm. 2021, 196, 109763. [Google Scholar] [CrossRef]
  27. Vishwakarma, V.K.; Adupa, V.; Anki Reddy, K.; Ammathnadu Sudhakar, A. Experimental and theoretical investigations of acid sensing properties of pyrazino[2,3-g]quinoxaline derivatives. J. Mol. Struct. 2021, 1225, 129120. [Google Scholar] [CrossRef]
  28. Safavi, A.; Abdollahi, H. Optical sensor for high pH values. Anal. Chim. Acta 1998, 367, 167–173. [Google Scholar] [CrossRef]
  29. Tian, M.; Peng, X.; Fan, J.; Wang, J.; Sun, S. A fluorescent sensor for pH based on rhodamine fluorophore. Dyes Pigm. 2012, 95, 112–115. [Google Scholar] [CrossRef]
  30. Yang, M.; Song, Y.; Zhang, M.; Lin, S.; Hao, Z.; Liang, Y.; Zhang, D.; Chen, P.R. Converting a solvatochromic fluorophore into a protein-based pH indicator for extreme acidity. Angew. Chem. Int. Ed. 2012, 51, 7674–7679. [Google Scholar] [CrossRef]
  31. Li, H.; Guan, H.; Duan, X.; Hu, J.; Wang, G.; Wang, Q. An acid catalyzed reversible ring-opening/ring-closure reaction involving a cyano-rhodamine spirolactam. Org. Biomol. Chem. 2013, 11, 1805–1809. [Google Scholar] [CrossRef] [Green Version]
  32. Xu, Y.; Jiang, Z.; Xiao, Y.; Bi, F.-Z.; Miao, J.-Y.; Zhao, B.-X. A new fluorescent pH probe for extremely acidic conditions. Anal. Chim. Acta 2014, 820, 146–151. [Google Scholar] [CrossRef] [PubMed]
  33. Yin, M.; Gong, H.; Zhang, B.; Liu, M. Photochemical reaction, acidichromism, and supramolecular nanoarchitectures in the Langmuir−Blodgett films of an amphiphilic styrylquinoxaline derivative. Langmuir 2004, 20, 8042–8048. [Google Scholar] [CrossRef]
  34. Rozzi, A.; Pedrini, A.; Pinalli, R.; Massera, C.; Elmi, I.; Zampolli, S.; Dalcanale, E. Tuning the conformational flexibility of quinoxaline cavitands for complexation at the gas–solid interface. Chem. Commun. 2022, 58, 7554–7557. [Google Scholar] [CrossRef]
  35. Choi, S.; Lee, H.; Kim, H.K.; Lee, S.U.; Sohn, D. Two dimensional aggregation behaviors of quinoxaline dendrimers. J. Nanosci. Nanotechnol. 2015, 15, 1511–1514. [Google Scholar] [CrossRef] [PubMed]
  36. Ito, Y.; Miyake, T.; Suginome, M.; Katakura, R.; Mitsuishi, M.; Miyashita, T. Langmuir–Blodgett films of helical rigid-rod poly(quinoxaline-2,3-diyl)s. Polym. J. 2010, 42, 406–410. [Google Scholar] [CrossRef]
  37. Nagamura, T.; Fujita, T.; Takasaka, M.; Takeshita, H.; Mori, A.; Nagao, T. Assembling and optical properties of dicyclohepta[5, 6:b]pyrazino[2,3−g]quinoxaline-3,11-dione derivatives. Thin Solid Film. 1994, 243, 602–605. [Google Scholar] [CrossRef]
  38. Ermakova, E.V.; Cheprakov, A.V.; Bessmertnykh-Lemeune, A. Aminoquinoxaline-based dual colorimetric and fluorescent sensors for pH measurement in aqueous media. Chemosensors 2022, 10, 342. [Google Scholar] [CrossRef]
  39. Magde, D.; Wong, R.; Seybold, P.G. Fluorescence quantum yields and their relation to lifetimes of rhodamine 6G and fluorescein in nine solvents: Improved absolute standards for quantum yields. Photochem. Photobiol. 2002, 75, 327–334. [Google Scholar] [CrossRef]
  40. SPARTAN 14.V1.1.4., Wavefunction, Inc., 18401, Von Karman Avenue, Suite 370, Irvine CA 92612 USA. Available online: https://www.wavefun.com (accessed on 1 March 2023).
  41. Ghosh, A.; Mahato, P.; Choudhury, S.; Das, A. Comparative study of porphyrin derivatives in monolayers at the air–water interface and in Langmuir–Blodgett films. Thin Solid Film. 2011, 519, 8066–8073. [Google Scholar] [CrossRef]
  42. Black, H.T.; Pelse, I.; Wolfe, R.M.; Reynolds, J.R. Halochromism and protonation-induced assembly of a benzo[g]indolo[2,3-b]quinoxaline derivative. Chem. Commun. 2016, 52, 12877–12880. [Google Scholar] [CrossRef]
  43. Yuan, X.; Zhang, T.; Yan, J.; Chen, X.; Wang, L.; Liu, X.; Zheng, K.; Zhang, N. A simple acidic ‘turn-on’ fluorescent pH probe based on BOPYIN and its visual detection and cellular imaging. Dyes Pigm. 2020, 177, 108318. [Google Scholar] [CrossRef]
  44. Liu, T.; Huang, Z.; Feng, R.; Ou, Z.; Wang, S.; Yang, L.; Ma, L.-J. An intermolecular pyrene excimer-based ratiometric fluorescent probes for extremely acidic pH and its applications. Dyes Pigm. 2020, 174, 108102. [Google Scholar] [CrossRef]
  45. Ji, H.; Duan, W.; Huo, Y.; Liu, W.; Huang, X.; Wang, Y.; Gong, S. Highly sensitive fluorescence response of [2.2]paracyclophane modified D−A type chromophores to trace water, pH, acidic gases and formaldehyde. Dyes Pigm. 2022, 205, 110491. [Google Scholar] [CrossRef]
  46. Ertekin, K.; Alp, S.; Karapire, C.; Yenigül, B.; Henden, E.; İçli, S. Fluorescence emission studies of an azlactone derivative embedded in polymer films: An optical sensor for pH measurements. J. Photochem. Photobiol. A 2000, 137, 155–161. [Google Scholar] [CrossRef]
  47. Deibert, B.J.; Li, J. A distinct reversible colorimetric and fluorescent low pH response on a water-stable zirconium–porphyrin metal–organic framework. Chem. Commun. 2014, 50, 9636–9639. [Google Scholar] [CrossRef] [PubMed]
  48. Wu, L.; Li, X.; Huang, C.; Jia, N. Dual-modal colorimetric/fluorescence molecular probe for ratiometric sensing of pH and its application. Anal. Chem. 2016, 88, 8332–8338. [Google Scholar] [CrossRef] [PubMed]
  49. Isoda, K. Acid-responsive N-heteroacene-based material showing multi-emission colors. ChemistryOpen 2017, 6, 242–246. [Google Scholar] [CrossRef]
  50. Haldar, U.; Chaudhury, S.S.; Sharma, R.; Ruidas, B.; Patra, S.G.; Mukhopadhyay, C.D.; Lee, H.-i. A fluorimetric water-soluble polymeric pH chemosensor for extremely acidic conditions: Live-cell and bacterial imaging application. Sens. Actuators B 2020, 320, 128379. [Google Scholar] [CrossRef]
  51. Zhou, J.; Li, G.; Ling, J.; Zhou, Q.; Chu, C. A novel near-infrared colorimetric and fluorescent probe based on a piperidine-substituted aza-BODIPY photosensitizer for detection of extreme acidity. Anal. Methods 2021, 13, 4099–4104. [Google Scholar] [CrossRef]
  52. Zhou, J.; Jiang, B.; Gao, C.; Zhu, K.; Xu, W.; Song, D. Stable, reusable, and rapid response smart pH-responsive cotton fabric based on covalently immobilized with naphthalimide–rhodamine probe. Sens. Actuators B 2022, 355, 131310. [Google Scholar] [CrossRef]
  53. Petersen, M.H.; Gevorgyan, S.A.; Krebs, F.C. Thermocleavable low band gap polymers and solar cells therefrom with remarkable stability toward oxygen. Macromolecules 2008, 41, 8986–8994. [Google Scholar] [CrossRef]
Sensors 23 02978 g001 550

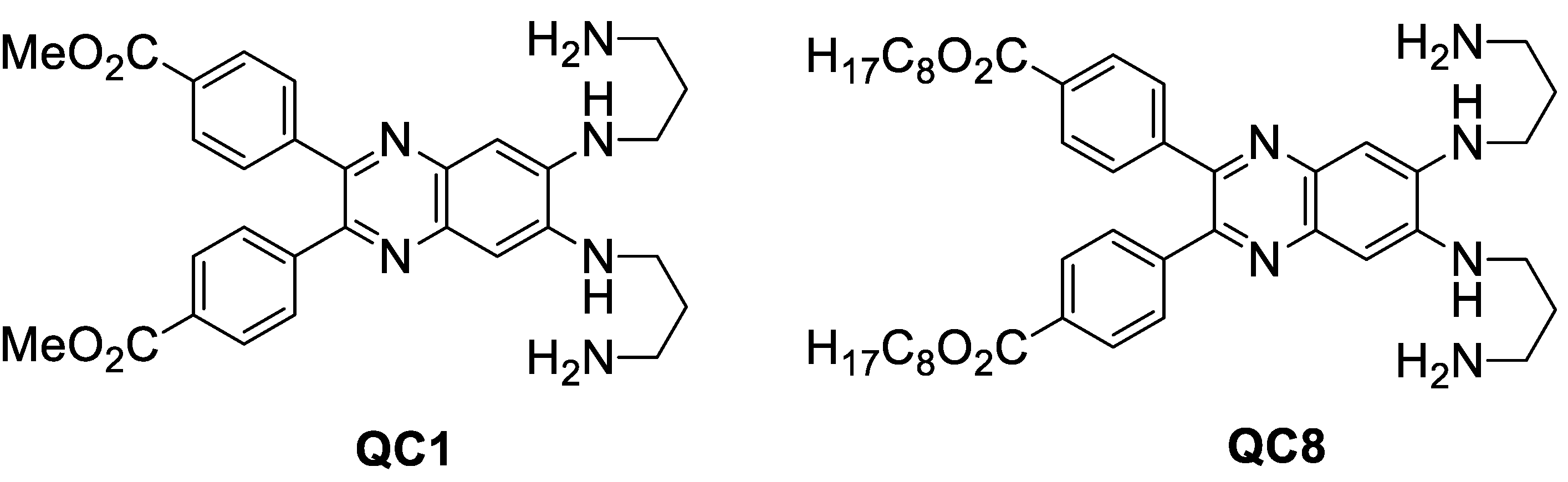

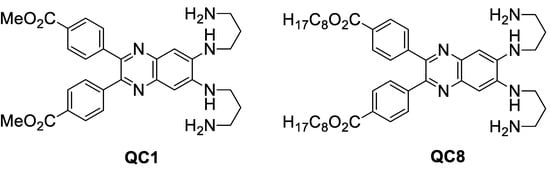

Figure 1. Structures of studied aminoquinoxalines QC1 and QC8.
Figure 1. Structures of studied aminoquinoxalines QC1 and QC8.
Sensors 23 02978 g001
Sensors 23 02978 sch001 550

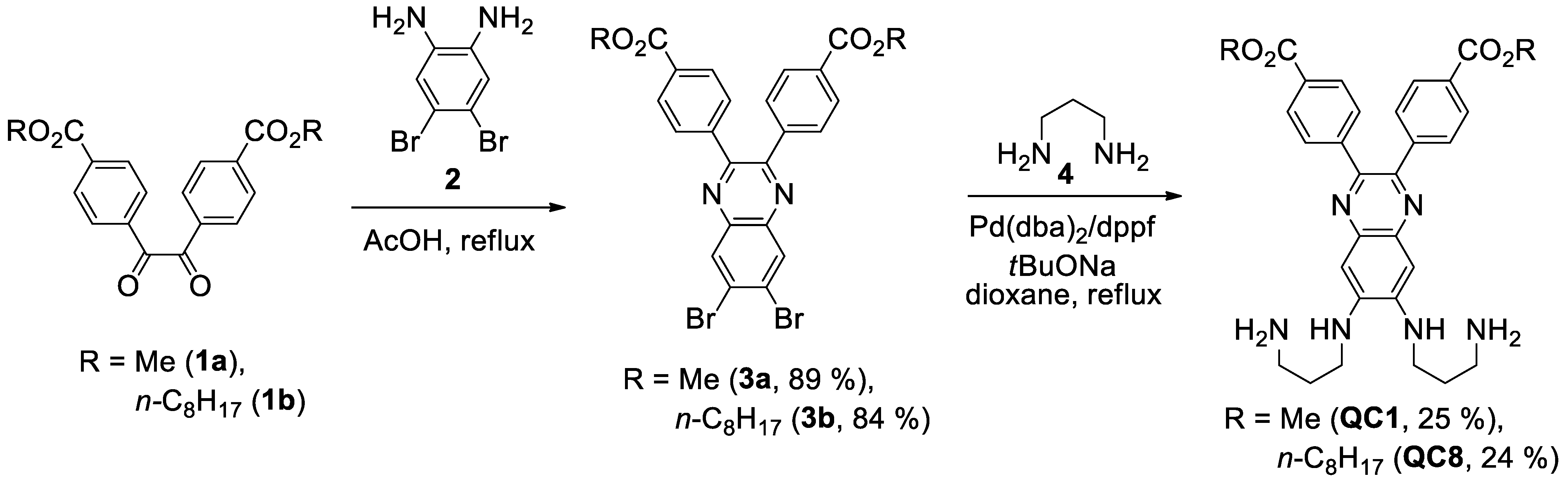

Scheme 1. Synthesis of aminoquinoxalines QC1 and QC8.
Scheme 1. Synthesis of aminoquinoxalines QC1 and QC8.
Sensors 23 02978 sch001
Sensors 23 02978 g002 550

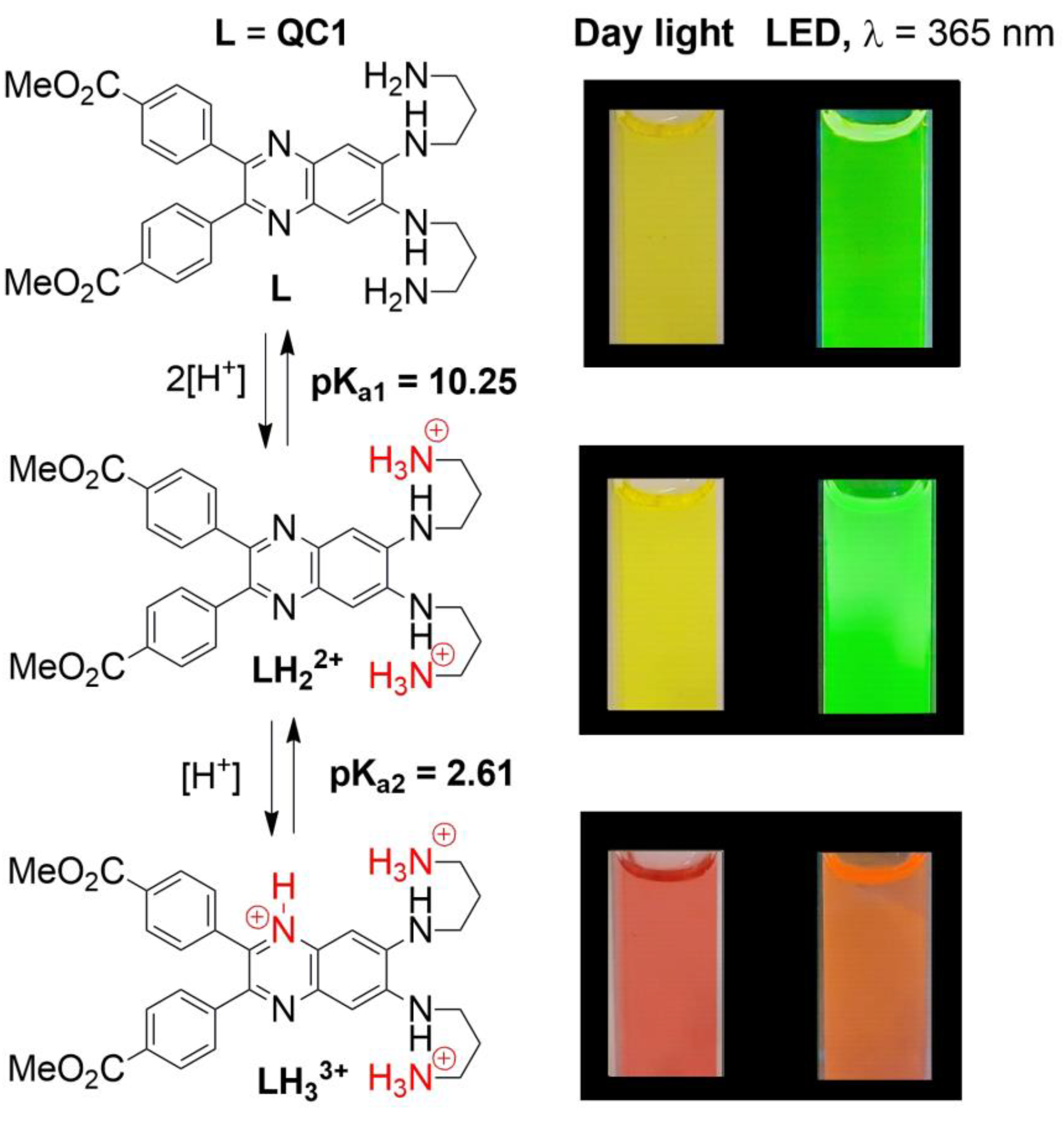

Figure 2. Protonation of QC1 and corresponding color changes observed in aqueous solution.
Figure 2. Protonation of QC1 and corresponding color changes observed in aqueous solution.
Sensors 23 02978 g002
Sensors 23 02978 g003 550

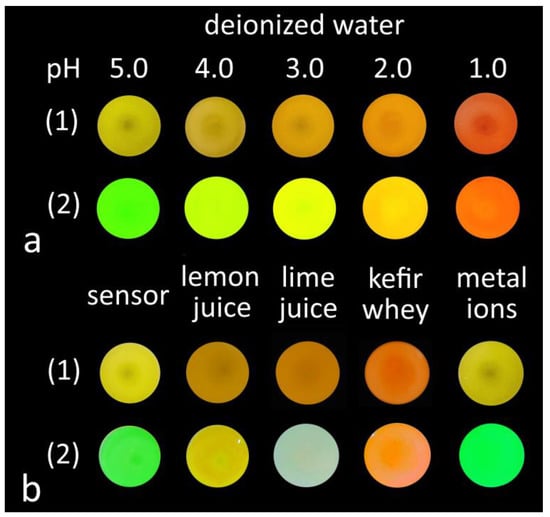

Figure 3. pH-induced color changes of polymer films based on QC1 (1) in daylight and (2) under irradiation by LED (λ = 365 nm) for (a) deionized water with different pH values and (b) for 3 real-life samples: lemon juice (pH = 2.45), lime juice (pH = 1.95), kefir whey (acidified to pH 1.20), and an aqueous solution with pH 4.52 and containing metal perchlorates (0.1 mM of 14 salts).
Figure 3. pH-induced color changes of polymer films based on QC1 (1) in daylight and (2) under irradiation by LED (λ = 365 nm) for (a) deionized water with different pH values and (b) for 3 real-life samples: lemon juice (pH = 2.45), lime juice (pH = 1.95), kefir whey (acidified to pH 1.20), and an aqueous solution with pH 4.52 and containing metal perchlorates (0.1 mM of 14 salts).
Sensors 23 02978 g003
Sensors 23 02978 g004 550

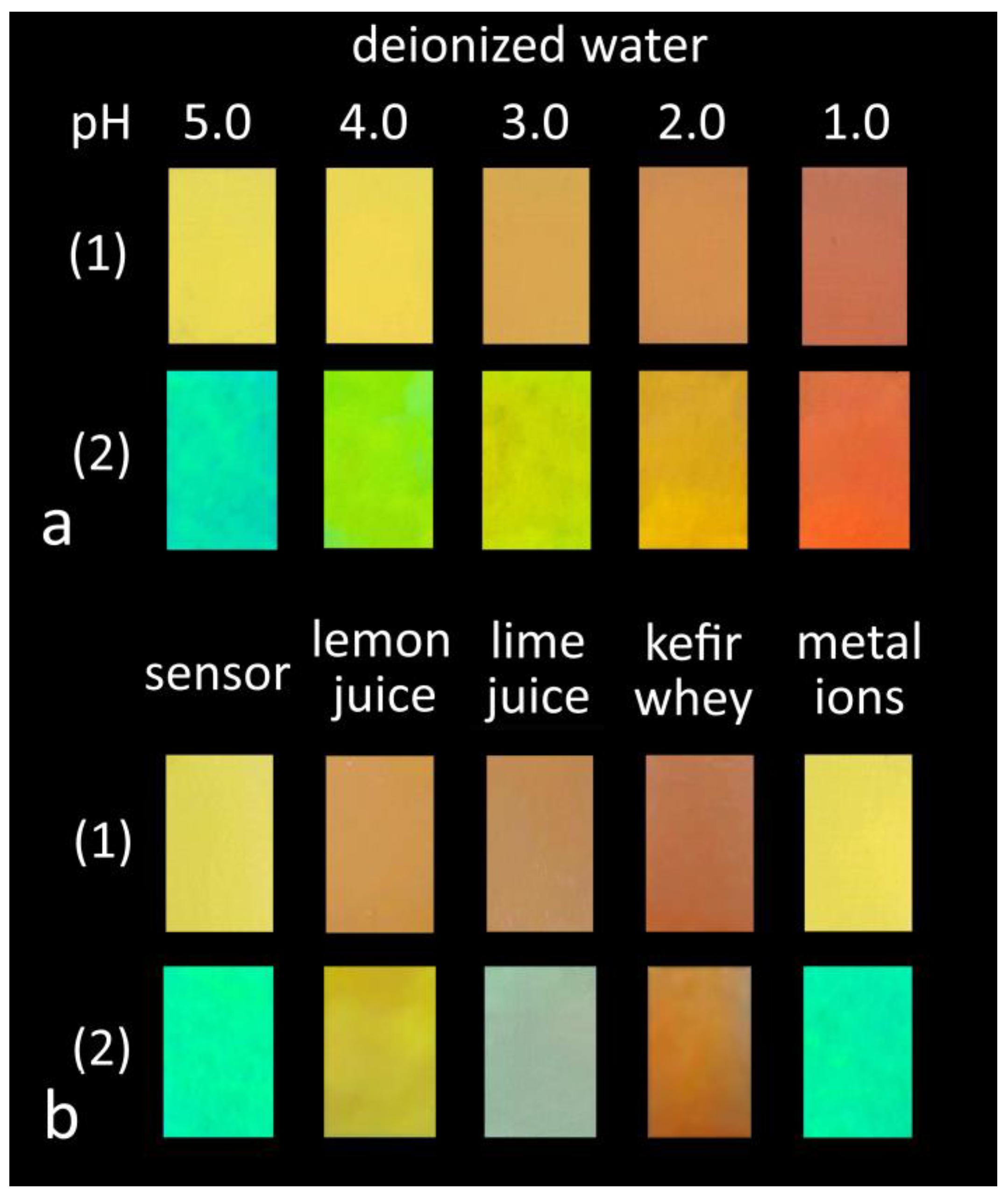

Figure 4. pH-induced color changes of paper test strips based on QC1 (1) in daylight and (2) under irradiation by LED (λ = 365 nm) for (a) deionized water with different pH values and (b) for 3 real-life samples: lemon juice (pH = 2.45), lime juice (pH = 1.95), kefir whey (acidified to pH 1.20), and an aqueous solution with pH 4.52 and containing metal perchlorates (0.1 mM of 14 salts).
Figure 4. pH-induced color changes of paper test strips based on QC1 (1) in daylight and (2) under irradiation by LED (λ = 365 nm) for (a) deionized water with different pH values and (b) for 3 real-life samples: lemon juice (pH = 2.45), lime juice (pH = 1.95), kefir whey (acidified to pH 1.20), and an aqueous solution with pH 4.52 and containing metal perchlorates (0.1 mM of 14 salts).
Sensors 23 02978 g004
Sensors 23 02978 g005 550
Figure 5. (a) Surface pressure vs. area isotherms of QC8 on the deionized water surface at pH 11.0 (1), 5.5 (2), and 1.0 (3). Insert shows spacefill model of QC8 molecule optimized by the semi-empirical PM6 method (SPARTAN 14.V1.1.4) [40]. (b) In situ UV-vis absorption spectra for the monolayer of QC8 on the pure water surface measured at 10 mN m−1 upon decrease in pH value from 11.0 to 1.0.
Figure 5. (a) Surface pressure vs. area isotherms of QC8 on the deionized water surface at pH 11.0 (1), 5.5 (2), and 1.0 (3). Insert shows spacefill model of QC8 molecule optimized by the semi-empirical PM6 method (SPARTAN 14.V1.1.4) [40]. (b) In situ UV-vis absorption spectra for the monolayer of QC8 on the pure water surface measured at 10 mN m−1 upon decrease in pH value from 11.0 to 1.0.
Sensors 23 02978 g005
Sensors 23 02978 g006 550
Figure 6. AFM images of one-layer LS film of QC8 deposited onto a mica substrate at a surface pressure of 20 mN m−1 from the deionized water surface and corresponding height profiles. The numbers 1–3 in the graph legends correspond to the regions shown in the images.
Figure 6. AFM images of one-layer LS film of QC8 deposited onto a mica substrate at a surface pressure of 20 mN m−1 from the deionized water surface and corresponding height profiles. The numbers 1–3 in the graph legends correspond to the regions shown in the images.
Sensors 23 02978 g006
Sensors 23 02978 g007 550
Figure 7. UV–vis absorption (a) and fluorescence (b) spectra of 30-layer LS film of QC8 (1) transferred onto quartz (LB) and PVC (LS) substrates, at 20 mN m−1 and immersed in aqueous solutions with pH 3.00 (2), lemon juice 2.45 (3), 2.00 (4), lime juice 1.95 (5), 1.5 (6), kefir whey 1.20 (7), and 1.0 (8) for 30 s, λex = 420 nm.
Figure 7. UV–vis absorption (a) and fluorescence (b) spectra of 30-layer LS film of QC8 (1) transferred onto quartz (LB) and PVC (LS) substrates, at 20 mN m−1 and immersed in aqueous solutions with pH 3.00 (2), lemon juice 2.45 (3), 2.00 (4), lime juice 1.95 (5), 1.5 (6), kefir whey 1.20 (7), and 1.0 (8) for 30 s, λex = 420 nm.
Sensors 23 02978 g007
Sensors 23 02978 g008 550

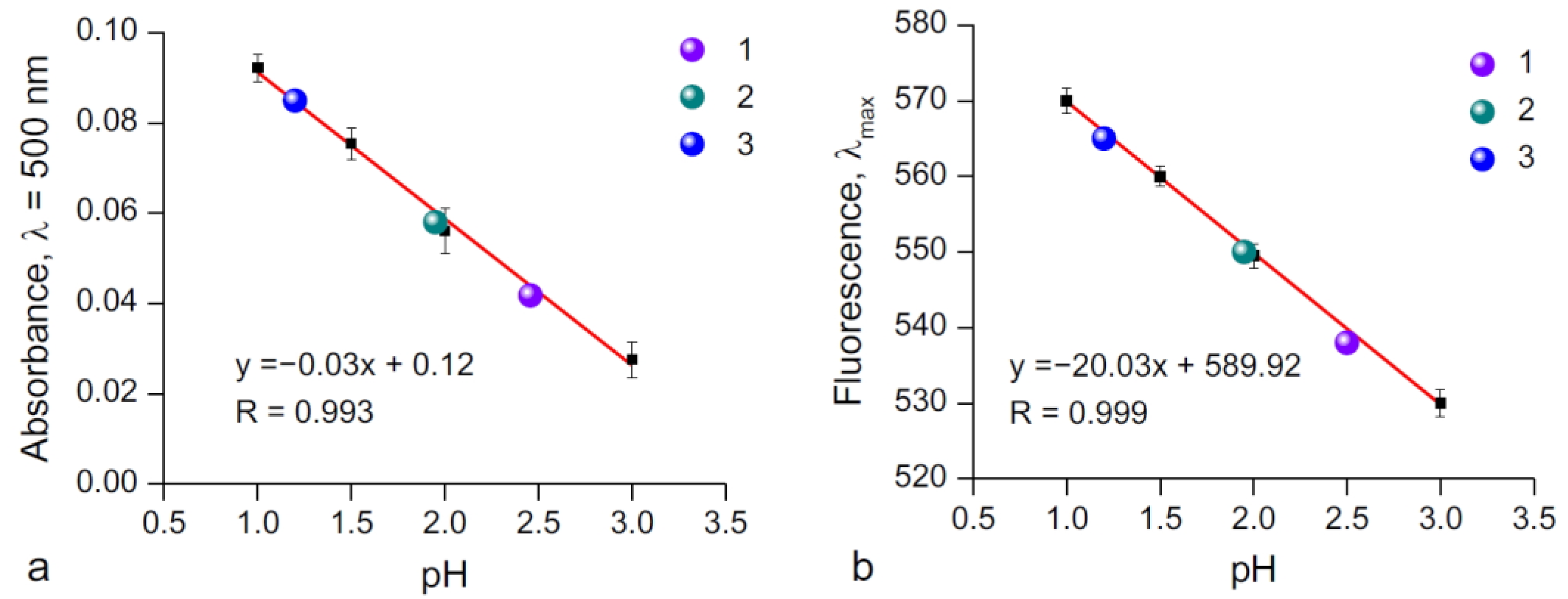

Figure 8. Dependence of the absorption intensity (a) and fluorescence λmax (b) on pH value for 30-layer LS film of QC8 transferred onto quartz substrate at 20 mN m−1: lemon juice pH 2.45 (1), lime juice pH 1.95 (2), and kefir whey pH 1.20 (3), λex = 420 nm. The error bars represent the standard deviation based on three measurements.
Figure 8. Dependence of the absorption intensity (a) and fluorescence λmax (b) on pH value for 30-layer LS film of QC8 transferred onto quartz substrate at 20 mN m−1: lemon juice pH 2.45 (1), lime juice pH 1.95 (2), and kefir whey pH 1.20 (3), λex = 420 nm. The error bars represent the standard deviation based on three measurements.
Sensors 23 02978 g008
Sensors 23 02978 g009 550
Figure 9. pH-induced color changes of 30-layer LB (a) and LS (b) films of QC8 (1) in daylight and (2) under irradiation by LED (λ = 365 nm).
Figure 9. pH-induced color changes of 30-layer LB (a) and LS (b) films of QC8 (1) in daylight and (2) under irradiation by LED (λ = 365 nm).
Sensors 23 02978 g009
Sensors 23 02978 g010 550
Figure 10. Changes of absorbance (a,b) and fluorescence (c,d) λmax during five consecutive measurements of pH = 1.0 and recycling of the indicator at pH = 11.0 in aqueous samples by 30-layer LB (a,c) and LS (b,d) films. The spectral data were recorded after immerging of the indicators during 30 s in the acidic and basic solutions.
Figure 10. Changes of absorbance (a,b) and fluorescence (c,d) λmax during five consecutive measurements of pH = 1.0 and recycling of the indicator at pH = 11.0 in aqueous samples by 30-layer LB (a,c) and LS (b,d) films. The spectral data were recorded after immerging of the indicators during 30 s in the acidic and basic solutions.
Sensors 23 02978 g010
Table
Table 1. Selected halochromic materials for pH measurements in the range of 1–6 1.
Table 1. Selected halochromic materials for pH measurements in the range of 1–6 1.
Sensors 23 02978 i001
EntryDyeSupportImmobilization TechniquepH Range or Specific Acidic Analyte (Response Time)Signal RegistrationAccuracy (Qualitative/Quantitative)Stability and ReusabilityRef.
11PVCPlasticization in the presence of dyepH = 1–7 (5 min)colorimetry
(daylight)
spectrophotometry
fluorescence		quantitativewas reused 3 times (recovery time is 30 min)[46]
22Cotton
textile		Covalent bindingpH = 2–6
(1–5 s)		spectrophotometryquantitativestable in aqueous HCl (pH = 2, 24 h); was reused 20 times[52]
33Zr-MOFSolvothermal synthesispH = 0–6colorimetry
(daylight)		semi-quantitativewas reused 7 times[47]
44Paper
strips		ImpregnationPicric acidcolorimetry
(LED 2)		semi-quantitativen/d[20]
55Paper
strips		ImpregnationpH = 1–4 (immediately)colorimetry
(daylight)		semi-quantitativen/d[51]
66n/dDrop-castingHCl (vapor)
(100 s)		colorimetry
(daylight, LED 2)		qualitativewas reused 1 time[49]
77Quartz
silica		Spin coating impregnationTFAcolorimetry
(daylight, LED 2)		qualitativewas regenerated[27]
8QC1Agarose
polymer		Sol-gelpH = 1–5
(30 s)		colorimetry
(daylight, LED 2)		semi-quantitativewas reused 5 timesThis work
9QC8PVC or quartzLB/LS techniquepH = 1–3
(30 s)		colorimetry
(daylight, LED 2)
spectrophotometry
fluorescence		quantitativewas reused 5 timesThis work
1 Abbreviations used in the table: MOF—metal–organic framework, Zr-MOF—MOF based on Zr clusters; LB/LS technique—Langmuir–Blodgett/Langmuir–Schäfer technique, PVC—polyvinylchloride, and n/d—not determined; dual-responsive materials are marked in bold. 2 illumination at 365 nm.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ermakova, E.V.; Bol’shakova, A.V.; Bessmertnykh-Lemeune, A. Dual-Responsive and Reusable Optical Sensors Based on 2,3-Diaminoquinoxalines for Acidity Measurements in Low-pH Aqueous Solutions. Sensors 2023, 23, 2978. https://doi.org/10.3390/s23062978

AMA Style

Ermakova EV, Bol’shakova AV, Bessmertnykh-Lemeune A. Dual-Responsive and Reusable Optical Sensors Based on 2,3-Diaminoquinoxalines for Acidity Measurements in Low-pH Aqueous Solutions. Sensors. 2023; 23(6):2978. https://doi.org/10.3390/s23062978

Chicago/Turabian Style

Ermakova, Elizaveta V., Anastasia V. Bol’shakova, and Alla Bessmertnykh-Lemeune. 2023. "Dual-Responsive and Reusable Optical Sensors Based on 2,3-Diaminoquinoxalines for Acidity Measurements in Low-pH Aqueous Solutions" Sensors 23, no. 6: 2978. https://doi.org/10.3390/s23062978

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
