A Sentinel Sensor Network for Hydrogen Sensing

Abstract

A wireless sensor network is presented for in-situ monitoring of atmospheric hydrogen concentration. The hydrogen sensor network consists of multiple sensor nodes, equipped with titania nanotube hydrogen sensors, distributed throughout the area of interest; each node is both sensor, and data-relay station that enables extended wide area monitoring without a consequent increase of node power and thus node size. The hydrogen sensor is fabricated from a sheet of highly ordered titania nanotubes, made by anodization of a titanium thick film, to which platinum electrodes are connected. The electrical resistance of the hydrogen sensor varies from 245 Ω at 500 ppm hydrogen, to 10.23 kΩ at 0 ppm hydrogen (pure nitrogen environment). The measured resistance is converted to voltage, 0.049 V at 500 ppm to 2.046 V at 0 ppm, by interface circuitry. The microcontroller of the sensor node digitizes the voltage and transmits the digital information, using intermediate nodes as relays, to a host node that downloads measurement data to a computer for display. This paper describes the design and operation of the sensor network, the titania nanotube hydrogen sensors with an apparent low level resolution of approximately 0.05 ppm, and their integration in one widely useful device.

Introduction

There is an ongoing need to accurately detect molecular hydrogen (H₂) for a variety of applications in industrial process control. Such applications include chemical and petroleum refining, rocket fuels, and electric power production via low-emission fuel cells to cite but a few examples. In the production of high-purity gases such as silane and nitrogen for the semiconductor manufacturing industry, or for production of kypton, xenon and neon for the lighting industry, hydrogen is often a contaminant that must be quantified to levels ranging from 0.1 ppm to 100 ppm. In the space industry, where hydrogen is used as a rocket fuel, H₂ leak detection is a critical safety concern.

Breath hydrogen is an important, clinically relevant parameter used as an indicator of lactose intolerance [1,2,3], fructose malabsorption [4,5,6,7,8], microbial activity [9], bacterial growth [10,11,12], fibromyalgia [13], diabetic gastroparesis [14,15,16], and neonatal necrotizing enterocolitis [17,18,19,20,21]. The pathogenesis of neonatal necrotizing enterocolitis (NEC), a devastating disease due to bacterial fermentation which causes necrosis of the intestinal walls of preterm infants, results in the production of hydrogen gas which accumulates as bubbles in the sub-mucosal area of the bowel wall as shown in Figure 1. Engel et al [18] used a micro-syringe to collect a gas sample from one of these bubbles and, on analysis, found that the gas in the bubble was 30% hydrogen.

Figure 1. a) Histopath slide of NEC with intact mucosa and large bubbles of hydrogen and nitrogen gas in the submucosal area. b) Histopath slide of advanced NEC with mucosal breakdown and hydrogen and nitrogen gas bubbles in the submucosal area.

Figure 1. a) Histopath slide of NEC with intact mucosa and large bubbles of hydrogen and nitrogen gas in the submucosal area. b) Histopath slide of advanced NEC with mucosal breakdown and hydrogen and nitrogen gas bubbles in the submucosal area.

Hydrogen is also absorbed into the blood stream and excreted via the lungs into the exhaled breath. Therefore an effective way to detect NEC is by continuously monitoring hydrogen concentrations in the exhaled gas from the infant [19,20,21]. For example Godoy et al [19] measured exhaled breath hydrogen levels in 25 preterm infants with documented NEC (presence of clinical symptoms and pneumatosis on abdominal radiographs) and compared them with levels drawn from similar infants with feeding intolerance, but no NEC. They found that 19 of the 25 infants with NEC had exhaled breath hydrogen levels equal to or greater than 20 ppm, while only 2 out of 16 infants with feeding intolerance had levels equal to or greater than 20 ppm. While breath concentration in exhaled breath could be a parameter of considerable clinical utility with current methodology it is difficult, time consuming and expensive to collect exhaled gas samples from preterm infants for hydrogen analysis, which requires collected breath samples to be taken to a laboratory for hydrogen analysis using typically a gas chromatograph. For monitoring of NEC in pre-term infants it appears a clinically useful hydrogen sensor must be capable of detecting hydrogen at levels of approximately 25 ppm to 1 ppm. Furthermore the packaged hydrogen sensor must be non-invasive since physically disturbing the preterm infants significantly hampers their physical and mental development processes.

In many instances practical application of hydrogen sensors would be significantly enhanced by development of an inexpensive, wide-area sensor network technology incorporating hydrogen sensors capable of real-time in-situ detection of 0.1 ppm to 1000 ppm H₂ detection. As a step towards that ultimate goal, in this work titania-nanotube hydrogen sensors [22,23] are incorporated into a wireless sensor network [24,25,26] to measure hydrogen concentrations from multiple sources, in real time. The sensor network consists of an array of nodes distributed throughout the area of interest, with a ‘host’ node connected directly to a computer that graphically presents the collected data. The main component of a sensor node is a microcontroller that oversees node operation, including transmission of node sensor information as well as relaying of information from distant nodes towards nodes closer to base. In this work each node has a RF transceiver integrated with the microcontroller for wireless communication between nodes; in earlier work we described acoustic-wave communication between nodes of an aqueous sensor network [27]. Interface circuitry is used to convert the response of the hydrogen sensor, a change in electrical resistance, to a voltage variation so it can be digitized and processed by the microcontroller. The host node also contains a serial interface to communicate with a computer via RS232 protocol.

The hydrogen sensor is comprised of a highly ordered thin film of titania nanotubes, made using an anodization technique [28,29], to which platinum electrodes are connected. Due to chemisorption of molecular hydrogen the electrical resistance of the titanium dioxide nanotubes is highly sensitive to hydrogen; for example, for 76 nm diameter nanotubes there is a variation in measured resistance of 10³ when cycling between nitrogen atmosphere and 500 ppm hydrogen at 290°C. The hydrogen sensor is also completely reversible, and has a response time of approximately 5 minutes and a recovery time of about 30 minutes. The sensitivity of the nanotubes to hydrogen is highly dependent upon nanotube diameter, with 22 nm diameter nanotubes (not considered here) being approximately 200 times more sensitive than 76 nm diameter nanotubes, although the smaller diameter nanotubes have a larger surface area by only 30%. The titania nanotube hydrogen sensors exhibit high selectivity towards hydrogen compared to reducing gases such as carbon monoxide, ammonia and carbon dioxide [30]. In oxygen the electrical resistance of the titania nanotube sensor is reduced by an approximate factor of two, from which it does not recover.

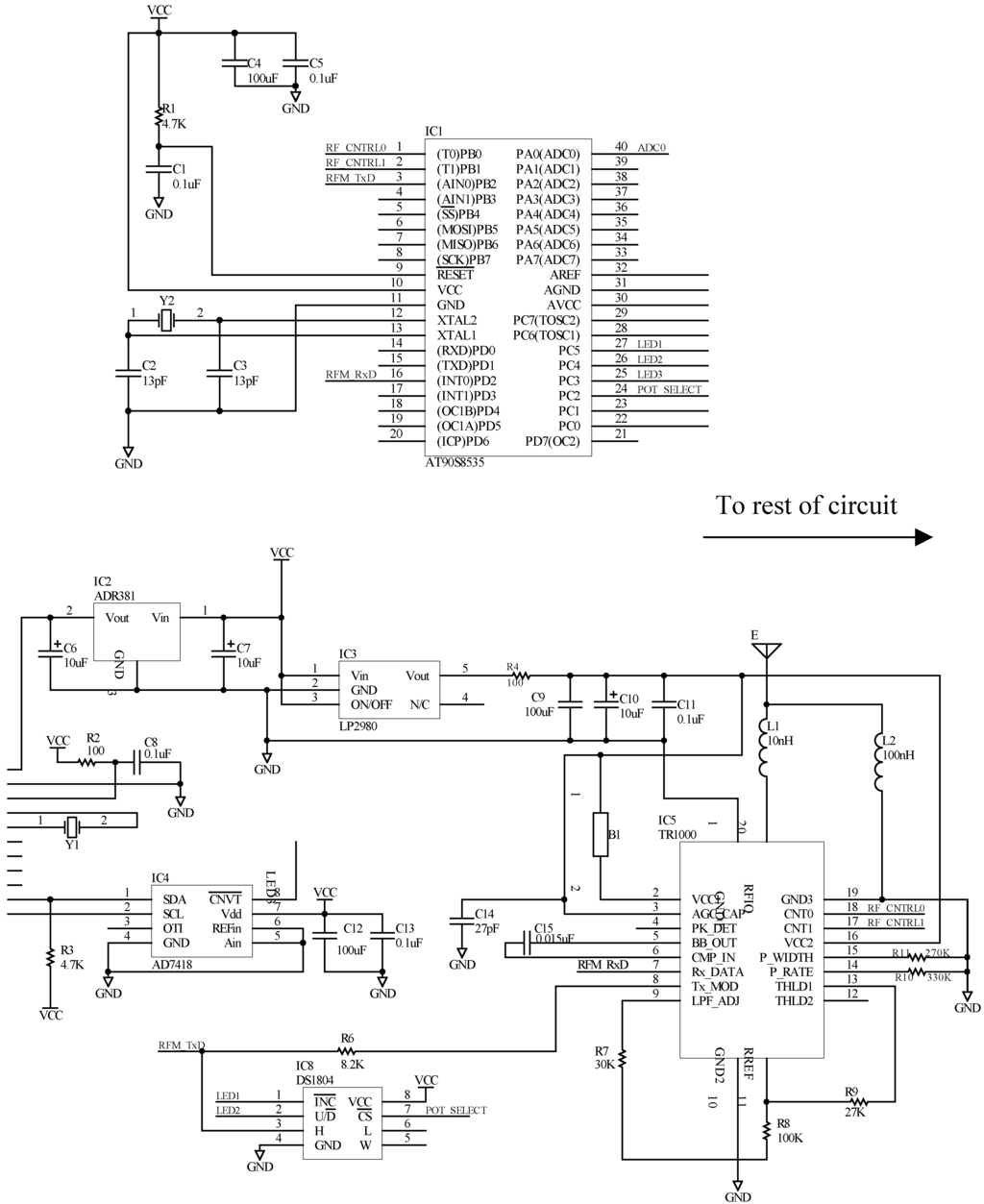

Figure 2. Circuit schematic of the sensor node. The ADC0 port (pin 40) of the microcontroller AT90S8535 is connected to the output of the sensor interface circuit.

Figure 2. Circuit schematic of the sensor node. The ADC0 port (pin 40) of the microcontroller AT90S8535 is connected to the output of the sensor interface circuit.

Design and Fabrication of Hydrogen Sensor Network

Wireless Sensor Network Design

Before a sensor node can transmit data it needs to know the identity of its ‘parent,’ that is the node it should relay its data to. To achieve this, the computer first instructs the host node to send a broadcast signal that contains its identity. When a nearby node receives the signal, it remembers the host node as its parent node, and in turn sends its own broadcast signal to other nodes. This process is repeated until all nodes in the network know their parent node identity. The broadcasting operation is important for the nodes in the network to initialize communication links, or re-establish communications after some nodes are damaged or removed. When relaying sensor information, all nodes transmit data to their parent nodes. This will ensure the data of all nodes will be eventually sent to the host node and downloaded to the host computer. Further details on communication protocols of the sensor network are detailed in an earlier work [27].

The circuit schematic of the sensor node is shown in Figure 2. The microcontroller (AT90S8535) is connected to a RF transceiver chip (TR1000) via its serial bus. The microcontroller oversees all operations of the node, including acquiring data from the sensor, transmitting sensor data, and relaying the data of other nodes [27]. A temperature sensor is included in each sensor node (Analog Devices AD7418). The resistance of the hydrogen sensor is converted to a voltage by a sensor interface circuit (see Figure 3). The converted voltage is sent to the analog-to-digital converter port (ADC0, pin 40) of the microcontroller to be digitized.

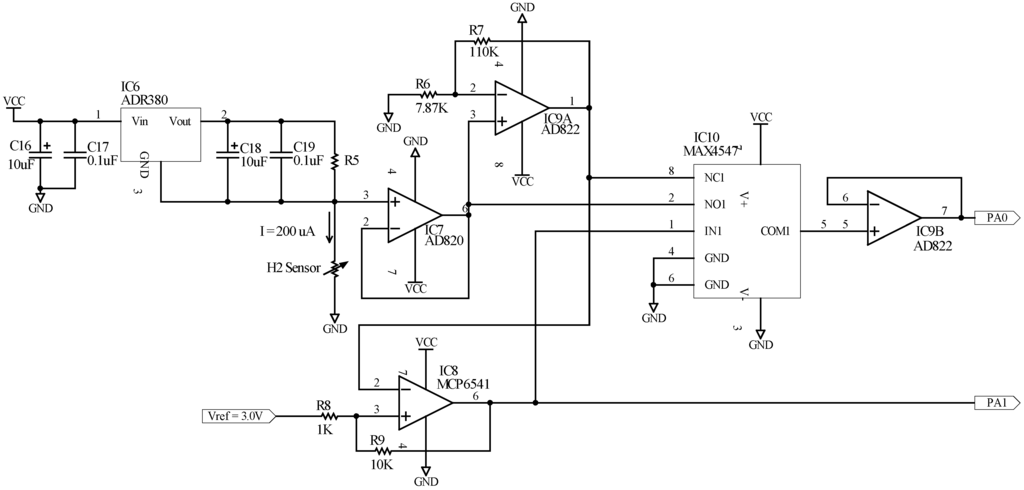

Figure 3. Circuit schematic of the sensor interface. The output (pin 6 of the op amp) is connected to the ADC0 port (pin 40) of the microcontroller AT90S8535 (see Figure 2).

Figure 3. Circuit schematic of the sensor interface. The output (pin 6 of the op amp) is connected to the ADC0 port (pin 40) of the microcontroller AT90S8535 (see Figure 2).

Figure 3 shows the schematic diagram of the hydrogen sensor interface circuit. The voltage reference IC6 (ADR380) provides a constant voltage of 2V across pin 2 and 3. When R5 is set to 10 kΩ, IC6 provides a constant current of 200 µA through the hydrogen sensor [31]. By Ohm’s law, the output voltage of the unity-gain op amp IC7 (AD820) V is proportional to the sensor resistance R_S:

V=R_S×200μA

(1)

The microcontroller has a 10 bit analog-to-digital converter with a maximum sampling voltage of 3 V. In other words, the sampling voltage from 0 to 3V will be linearly converted to a digital value of 0 to 1023, with a voltage resolution of about 3 mV. From Equation (1), a 3 mV voltage resolution leads to a resistance resolution of 15 Ω, which cannot accurately represent the resistance variation of the hydrogen sensor when the hydrogen concentration is larger than 100 ppm because the electrical resistance of the sensor becomes less than 60 Ω at 100 ppm. To increase the resolution, another op amp, IC9, with a gain of 15 is used to amplify the output voltage from IC7. The outputs from both IC9 (with gain of 15) and IC7 (with gain of 1) are sent to a switch (IC10), which is controlled by a comparator (IC8). When the output of IC7 is between 0 to 200 mV (corresponds to R_S of 0 to 1 kΩ), the comparator will send an output of 1 to Pin 1 of the switch so the switch can choose IC9 as its input. Conversely, when the voltage output of IC7 is larger than 200 mV, the switch will select IC7 as its input. With this design, the sensor interface circuit will generate a voltage of 200 mV to 3 V when the sensor resistance is from 1 kΩ to 15 kΩ, and 0 V to 3V when the sensor resistance is 0 to 1 kΩ. As a result, the resistance resolution increases to 1 Ω when the sensor resistance is less than 1 kΩ.

The output of the comparator is also sent to the I/O port of the microcontroller (PA1) and is included as a part of the data. When the host computer receives a data package from the sensor node, it will divide the measurements by 15 if the value of PA1 is 1. Doing so will ensure the measured voltage is linearly proportional to the resistance from 0 to 15 kΩ.

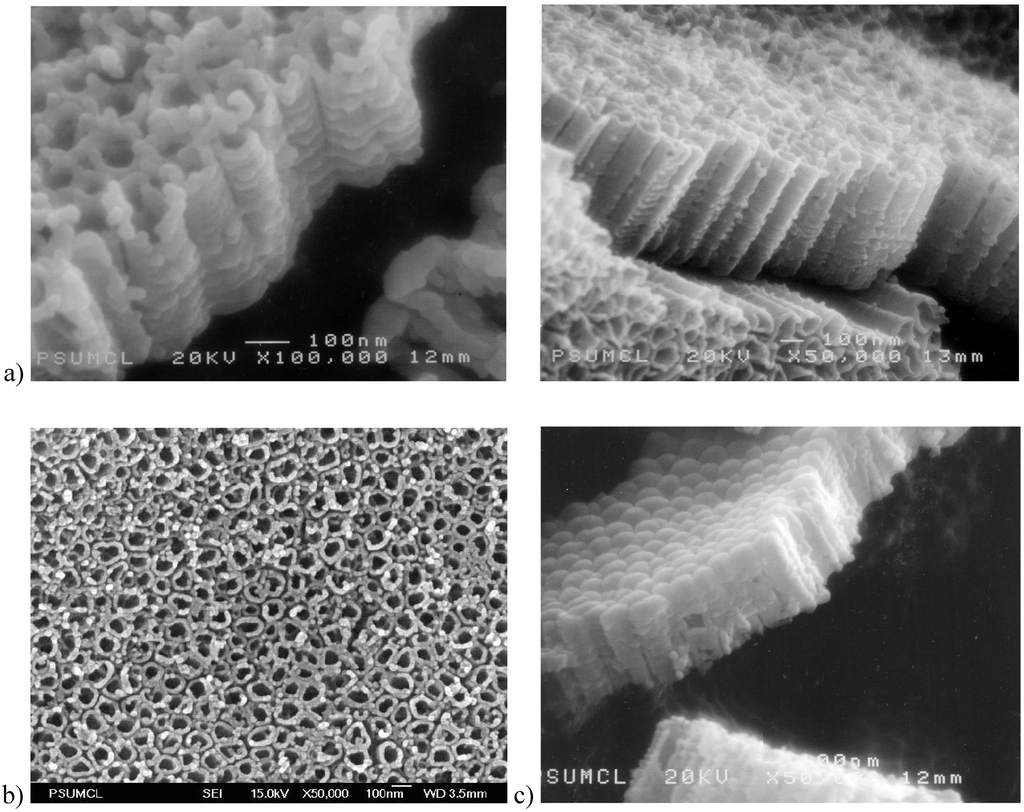

Figure 4. (a) (upper row) Side view of titanium nanotube films; nanotube length is approximately 650 nm. (b) (lower left) SEM image showing the top view of the titania nanotubes. The average tube diameter is 76 nm. (c) (lower right) SEM image showing the insulating barrier layer at the bottom of the nanotubes.

Figure 4. (a) (upper row) Side view of titanium nanotube films; nanotube length is approximately 650 nm. (b) (lower left) SEM image showing the top view of the titania nanotubes. The average tube diameter is 76 nm. (c) (lower right) SEM image showing the insulating barrier layer at the bottom of the nanotubes.

Fabrication of Titania Nanotube Hydrogen Sensor

The sheets of highly ordered titania nanotubes used as the hydrogen sensors are made by anodization of titanium foil (99.5% pure from Alfa Aesar, Ward Hill, MA, USA) of thickness 0.25 mm. The anodization is performed in an electrolyte medium of 0.5% hydrofluoric acid (J. T. Baker-Phillipsburg, NJ, USA) in water, using a platinum foil cathode. In this work 650 nm long nanotubes were prepared using 20 V-anodization voltage having inner diameters of 76 nm with standard deviation of 15 nm, wall thickness of 27 nm with standard deviation of 6 nm. The titanium foil was anodized for 45 minutes, resulting in uniform nanotube arrays grown atop the supporting titanium metal foil, with an electrically insulating barrier layer separating the nanotubes from the conducting titanium foil as shown in Figure 4. Energy dispersive x-ray analysis and thermogravimetric analysis indicated the as-fabricated nanotubes are amorphous and oxygen-deficient. Annealing studies in oxygen ambient showed no discernible variation in nanotube dimensions to 580°C, with crystallization in the anatase phase occurring at 280°C, and transformation to rutile beginning at 430°C [29]. Prior to electrical measurements the nanotubes were annealed at 500°C for six hours in an oxygen ambient to crystallize the tube walls and improve the stoichiometry. Two platinum contact pads, 10 mm × 2 mm spaced 2 mm apart, were deposited on the nanotube array with the electrodes connected to the sensor node to measure the electrical resistance change of the nanotubes.

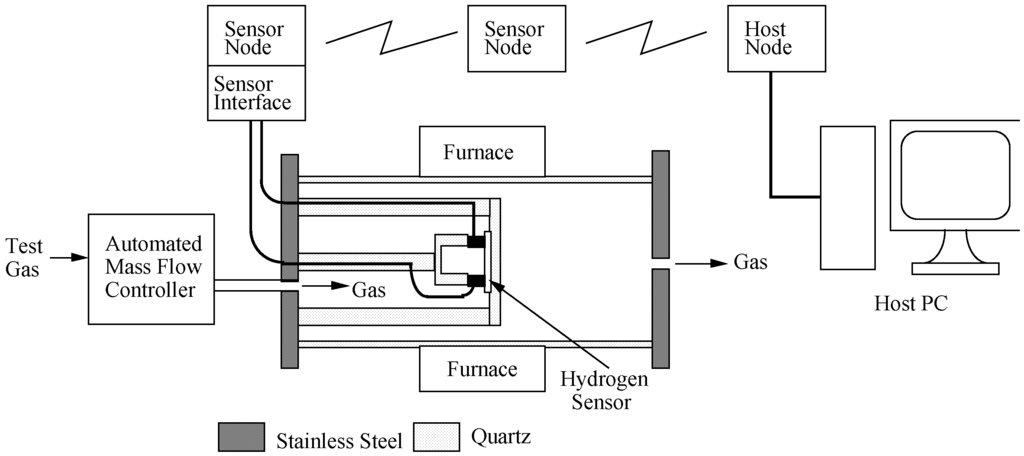

Figure 5. The experimental setup for testing the sensor response at various hydrogen concentrations. For room temperature measurements the sensor and sensor node are placed within the chamber; for elevated temperature measurements only the hydrogen sensor is placed within the test chamber, with an electrical connection passing to the interface circuitry. Using other sensor nodes as data relays the hydrogen measurements are sent to the host node, and there downloaded to the host PC for graphical presentation.

Figure 5. The experimental setup for testing the sensor response at various hydrogen concentrations. For room temperature measurements the sensor and sensor node are placed within the chamber; for elevated temperature measurements only the hydrogen sensor is placed within the test chamber, with an electrical connection passing to the interface circuitry. Using other sensor nodes as data relays the hydrogen measurements are sent to the host node, and there downloaded to the host PC for graphical presentation.

Experiments

The experimental setup used in these measurements is illustrated in Figure 5. The titania nanotube hydrogen sensor was placed within a 8 cm inner diameter 60 cm long quartz tube furnace that enabled precise control of both ambient temperature and atmosphere. A computer-controlled mass flow controller was used to regulate gas flow through the test chamber, which was kept at 1 atm throughout the experiment. Prior to data collection the test chamber was evacuated using a mechanical pump, whereupon nitrogen (99.999% pure) was passed while the sensor was heated to the desired temperature. The test gases examined, oxygen, carbon dioxide, ammonia, carbon monoxide and hydrogen, were mixed in appropriate ratios with nitrogen to create the desired test gas ambient.

The titania nanotube sensors show increasing hydrogen sensitivity with increasing temperature [22], therefore in this work all hydrogen measurements were conducted at 290°C. Figure 6a shows the change in measured electrical resistance of the 76 nm diameter nanotube arrays as the hydrogen gas concentration is cycled from 100 ppm to 500 ppm and then back to 100 ppm, in 100 ppm steps; note the lack of hysteresis. Figure 6b shows the measured hydrogen sensitivity of the 76 nm diameter nanotube array.

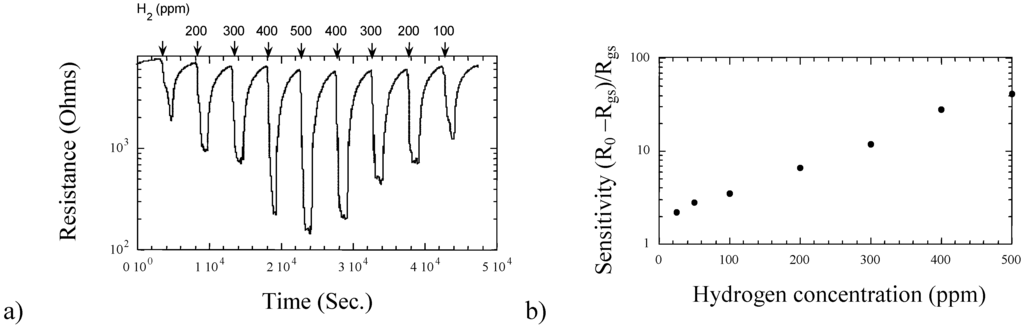

Figure 6. a) Measured electrical resistance of a 76 nm diameter titania nanotube hydrogen sensor when exposed to different concentrations of hydrogen at 290°C. The nitrogen-hydrogen mixture was passed for 1500 s; the chamber was then flushed with nitrogen for 3000 s before passing the nitrogen-hydrogen mixture again. b) The hydrogen sensitivity of a 76 nm titania nanotube sensor at 290°C for low hydrogen concentrations. R_o denotes the electrical resistance of the sensor in a nitrogen environment, R_gs denotes the steady-state value electrical resistance at the given hydrogen concentration.

Figure 6. a) Measured electrical resistance of a 76 nm diameter titania nanotube hydrogen sensor when exposed to different concentrations of hydrogen at 290°C. The nitrogen-hydrogen mixture was passed for 1500 s; the chamber was then flushed with nitrogen for 3000 s before passing the nitrogen-hydrogen mixture again. b) The hydrogen sensitivity of a 76 nm titania nanotube sensor at 290°C for low hydrogen concentrations. R_o denotes the electrical resistance of the sensor in a nitrogen environment, R_gs denotes the steady-state value electrical resistance at the given hydrogen concentration.

Figure 7 shows the nominal physical location of the four sensor nodes used in our experiments. Node 2, connected to the hydrogen sensor kept within the test chamber, transmitted the sensor information to Node 3 since it was the only node within the transmission range of Node 2. Similarly, Node 4 was the parent node of Node 3 due to its proximity, and Node 1 was the parent node of Node 4.

Results and Discussion

A 76 nm diameter titania nanotube hydrogen sensor was placed within the test chamber, held constant at 290°C, and repeatedly cycled between a pure nitrogen environment and nitrogen with 100 ppm hydrogen, see Figure 8a, and nitrogen to nitrogen with 50 ppm hydrogen as shown in Figure 8b. The pressure in the test chamber was kept constant at one atmosphere. Every two seconds, Node 2 converted the electrical resistance of the hydrogen sensor to voltage, and relayed the information to Node 1 using Node 3 and 4 as relays. The host PC downloaded measurement information from Node 1 every 6 seconds. The host computer also instructed the host node to send out a broadcast signal at every 5 minutes to re-established communication links between nodes (which tented to get moved around over the 10 hour measurement period).

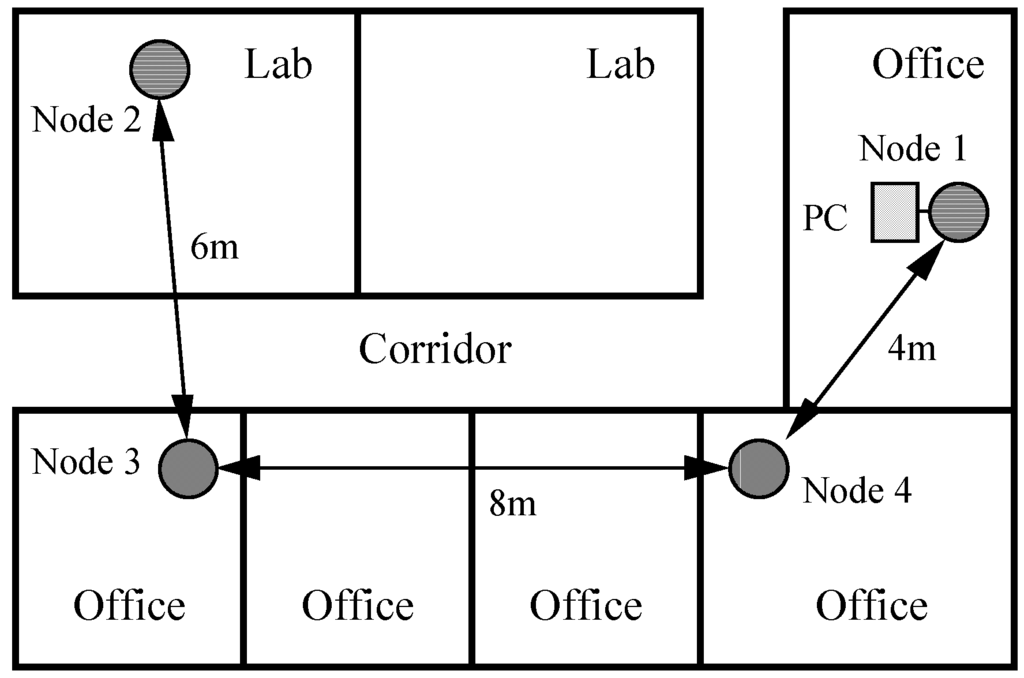

Figure 7. Nominal physical layout of hydrogen sensor network nodes. Node 2 is connected with the hydrogen sensor placed within the test chamber, Node 3 and Node 4 are relays, and Node 1 is the host node; the nodes can of course be re-located within the general area. The described configuration allows Node 3 to relay sensor information for Node 2 and Node 4 for Node 3; for this configuration the communication to Node 2 will be lost if either Node 3 or Node 4 is damaged.

Figure 7. Nominal physical layout of hydrogen sensor network nodes. Node 2 is connected with the hydrogen sensor placed within the test chamber, Node 3 and Node 4 are relays, and Node 1 is the host node; the nodes can of course be re-located within the general area. The described configuration allows Node 3 to relay sensor information for Node 2 and Node 4 for Node 3; for this configuration the communication to Node 2 will be lost if either Node 3 or Node 4 is damaged.

As the sensor is switched from a nitrogen to nitrogen plus 100 ppm hydrogen atmosphere there is a factor of 200 change in measured voltage, and approximately a factor of 60 change in voltage when cycled between nitrogen and nitrogen plus 50 ppm, the lower concentration limit of our mass flow controllers. It should be noted that the shape of the response curve in Figure 8b is determined to a significant but unknown degree by the hydrogen flow rate through the chamber; within practical measurement times we were not able to achieve a steady state response as the flow through the test chamber is non-linear at that low hydrogen concentration.

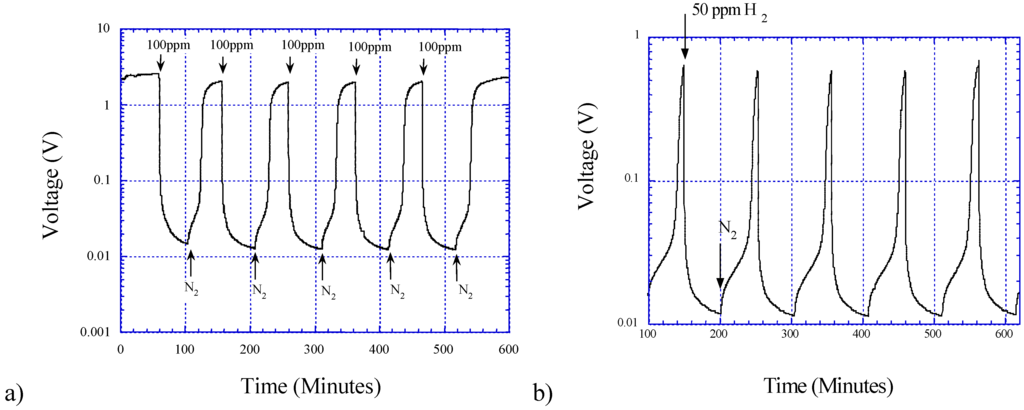

Figure 8. The voltages recorded by the sensor network when the hydrogen concentration is cycled between: (a –left) 0 and 100 ppm, and (b – right) 0 and 50 ppm. Note for the 50 ppm cycling the nitrogen atmosphere is switched to a nitrogen plus hydrogen atmosphere before a steady state reading is achieved due to inherent difficulties in propagating 50 ppm hydrogen through the test chamber.

Figure 8. The voltages recorded by the sensor network when the hydrogen concentration is cycled between: (a –left) 0 and 100 ppm, and (b – right) 0 and 50 ppm. Note for the 50 ppm cycling the nitrogen atmosphere is switched to a nitrogen plus hydrogen atmosphere before a steady state reading is achieved due to inherent difficulties in propagating 50 ppm hydrogen through the test chamber.

Figure 9a shows the voltage recorded by Node 2 as the concentration of hydrogen is varied from 50 ppm to 10₄ ppm (steady state values), with Figure 9b showing 50 ppm to 1000 ppm. The voltage ranges from 0.049 V to 2.046 V, linearly corresponding to sensor resistance of 245 Ω to 10.23 kΩ. The behavior of the sensor is consistent, recovering to its original resistance after repeated exposure to varying hydrogen concentrations. The sensor responds linearly to hydrogen concentrations to approximately 500 ppm, with an exponential response seen above 500 ppm.

Figure 8a shows a factor of 200 change in measured electrical impedance upon exposure to 100 ppm hydrogen. With respect to the ultimate sensitivity we can expect from titania nanotube hydrogen sensors, using resistive bridge circuits changes in electrical resistivity of 1% can be readily measured. However if we consider a 10% change in electrical resistance, and linear scaling between hydrogen concentration and electrical resistance as seen in Figure 9b for low hydrogen concentrations, a hydrogen resolution of 0.05 ppm appears readily achievable.

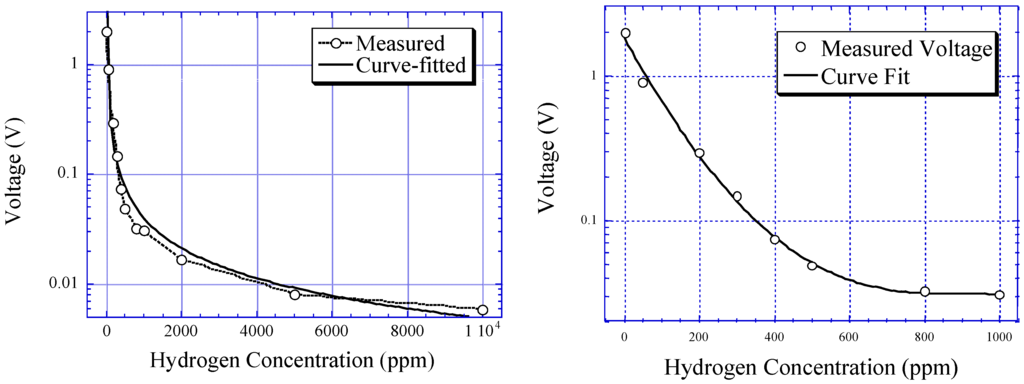

Figure 9. a) The sensitivity of the sensor towards hydrogen. The response is best fitted with a function V=11.98×h^-0.8375, where V is the measured voltage in Volts and h is the hydrogen concentration in ppm. Note: 10,000 ppm is equal to a 1% hydrogen atmosphere. b) The curve fit on the figure is: log V=C₁h³+C₂h²+C₃h+C₄ where V is the measured voltage in Volts, h is hydrogen concentration in ppm and C₁ = -1.22x10^-9, C₂ = 4.48x10^-6, C₃ = -5.04x10^-3, and C₄ = 0.271.

Figure 9. a) The sensitivity of the sensor towards hydrogen. The response is best fitted with a function V=11.98×h^-0.8375, where V is the measured voltage in Volts and h is the hydrogen concentration in ppm. Note: 10,000 ppm is equal to a 1% hydrogen atmosphere. b) The curve fit on the figure is: log V=C₁h³+C₂h²+C₃h+C₄ where V is the measured voltage in Volts, h is hydrogen concentration in ppm and C₁ = -1.22x10^-9, C₂ = 4.48x10^-6, C₃ = -5.04x10^-3, and C₄ = 0.271.

The change in sensor resistance is likely caused by the hydrogen molecules that are dissociated at the surface of the platinum electrode, which diffuse into the titania lattice where they act as electron donors [32,33] per the ‘spill over’ model of Roland et al [34]. This chemisorption driven process can change the electrical resistance considerably, and can make the nanotubes sensitive to hydrogen over a wide range of concentrations. Since the sensor completely regains its original resistance with hydrogen cycling it appears that the hydrogen diffusion is confined mostly to the surface layer.

To study the cross sensitivity of the titania nanotube hydrogen sensors they were exposed to oxygen, carbon monoxide, ammonia and carbon dioxide over a range of temperatures. The sensor were found to have no response towards carbon dioxide. The sensitivity of the nanotubes to carbon monoxide and ammonia were negligible compared to that of hydrogen. The resistance of the nanotubes increased in the presence of oxygen, and did not regain their original electrical conductivity even after several hours in a nitrogen environment.

The sensor network is a robust system, able to function if some of the nodes are damaged or removed. This was demonstrated by both relocating nodes within the network, and removing nodes from the network [35]. For example, Node 3 and Node 4 were arranged so both were within the communication range of Node 2, as shown in Figure 10. In the beginning of the experiment, Node 2 recognized Node 3 as its parent since it received the broadcast signal from Node 3 before Node 4. We also noticed Node 2 occasionally switched its parent nodes to Node 4 when the sensor nodes reestablished communications at every 5 minutes. When we turned off Node 3 in the middle of experiment, the host node stopped receiving data from Node 2 since the link was cut off. However, when the host node sent out another broadcast signal, Node 2 reconnected to the network again through Node 4, and the measurement continued. The power of a sensor network is that widespread communication can continue although one or more nodes are removed from the network.

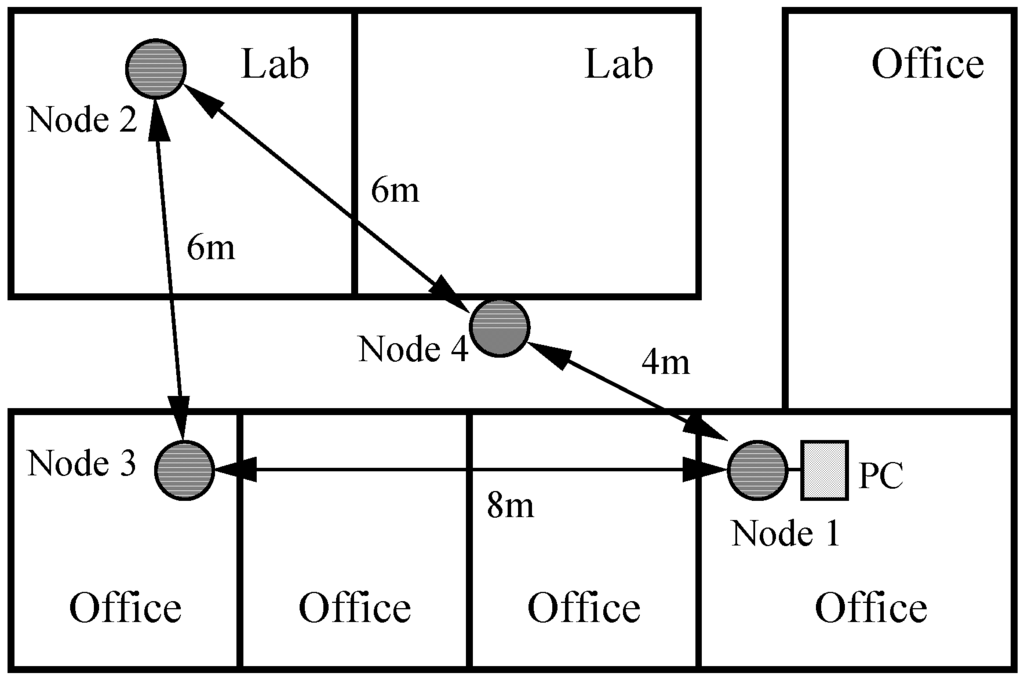

Figure 10. This configuration allows both Nodes 3 and 4 to relay sensor data for Node 2. Although shorter in communication range, the network can still function even if Node 3 or Node 4 is damaged.

Figure 10. This configuration allows both Nodes 3 and 4 to relay sensor data for Node 2. Although shorter in communication range, the network can still function even if Node 3 or Node 4 is damaged.

Conclusions

The application of a wireless sensor network for hydrogen monitoring is presented. The hydrogen sensor network consists of an array of sensor nodes distributed in the area of interest; information from each node is transmitted to a host node using other nodes as relays. A computer is connected to the host node to download and process the measurements of all nodes. The hydrogen sensor is made of titania nanotubes prepared using an anodization voltage of 20 V, resulting in titania nanotubes with inner diameters of 76 nm and 650 nm lengths. The sensor shows a resistance variation from 245 Ω to 10.23 kΩ when cycled between 500 ppm and 0 ppm hydrogen environments. When connected to the sensor node, the sensor-interface circuitry of the node translates the resistance variation of the hydrogen sensor to a voltage change of 0.049 V to 2.046 V. We have demonstrated the sensor network can still function even when one or more of the relay nodes are damaged, provided there is at least one working node to assume the roles of the damaged nodes.

In our current design, the sensor node can operate for over 100 hours on three AA batteries. In the future, the sensor node can become even more energy efficient by self-engaging low-power mode when idle, and turning on when it only needs to collect and transmit data. This can extend the lifetime of the sensor node to a few months or even years.

Beyond hydrogen monitoring, the sentinel sensor network can also be applied to other applications by integrating the nodes with different types of sensors. For example, with proper integration of the nodes with desired sensors, the network can be used to monitor for chemical or biological events in airports, theaters, and other public venues. The sensor network can also be used for monitoring of pollution levels, be they in industrial, medical, or household settings.
