Article

Four New Isocoumarins and a New Natural Tryptamine with Antifungal Activities from a Mangrove Endophytic Fungus Botryosphaeria ramosa L29

1
College of Materials and Energy, South China Agricultural University, Guangzhou 510642, China
2
School of Chemistry, Sun Yat-Sen University, Guangzhou 510275, China
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2019, 17(2), 88; https://doi.org/10.3390/md17020088
Submission received: 8 January 2019 / Revised: 18 January 2019 / Accepted: 22 January 2019 / Published: 1 February 2019
(This article belongs to the Special Issue Marine Microbial Diversity as a Source of Bioactive Natural Products)

Abstract

:
Four new isocoumarin derivatives, botryospyrones A (1), B (2), C (3), and D (4), and a new natural tryptamine, (3aS, 8aS)-1-acetyl-1, 2, 3, 3a, 8, 8a-hexahydropyrrolo [2,3b] indol-3a-ol (5), were isolated from a marine mangrove endophytic fungus Botryosphaeria ramosa L29, obtained from the leaf of Myoporum bontioides. Their structures were elucidated using spectroscopic analysis. The absolute configurations of compounds 3, 4, and 5 were determined by comparison of their circular dichroism (CD) spectra with the calculated data. The inhibitory activities of compound 1 on Fusarium oxysporum, of compounds 2 and 3 on F. oxysporum and Fusarium graminearum, and of compound 5 on F. oxysporum, Penicillium italicum, and F. graminearum were higher than those of triadimefon, widely used as an agricultural fungicide. Compound 5 was produced after using the strategy we called “using inhibitory stress from components of the host” (UISCH), wherein (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate, a component of M. bontioides with weak growth inhibitory activity towards B. ramosa L29, was introduced into the culture medium.

1. Introduction

Since the 1990s, marine-derived fungi including mangrove fungi have attracted considerable interest as a target source of bioactive natural products with chemodiversity [1,2,3]. Myoporum bontioides (Siebold and Zucc.) A. Gray (Scrophulariaceae) is one of the mangrove plants distributed along the coasts of Asian countries [4]. Our chemical investigations into this species have led to the discovery of various flavonoids, sesquiterpenoids, and phenylethanoids, among others [5]. Through our ongoing search for novel bioactive metabolites from the endophytic fungi of this plant [6,7,8,9], we have investigated the secondary metabolites of the fungus Botryosphaeria ramosa L29, the ethanolic extract of which was found to possess antifungal activity. Four new isocoumarin derivatives, named botryospyrones A (1), B (2), C (3), and D (4) (Figure 1) were isolated. However, under such a common cultural condition, the fungal strain faced no living stress from the environment. A plausible question is whether inhibitory stressors from components of the host under natural conditions might change the metabolites of the fungal strain. To provide an answer to this question, a strategy which we called “using inhibitory stress from components of the host” (UISCH) was used and prompted the endophyte to produce the novel natural product (3aS, 8aS)-1-acetyl-1, 2, 3, 3a, 8, 8a-hexahydropyrrolo [2,3b] indol-3a-ol (5) belonging to the tryptamine class.
Herein, we report the details of the isolation, structure elucidation, and antifungal activity of these compounds.

2. Results and Discussion

Compounds 14 were obtained from the fungus Botryosphaeria ramosa L29 grown in common autoclaved rice medium. Compound 5 was produced when using the UISCH strategy. The flavonoid (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate, a component of M. bontioides [10] which had been found by us to have 18.56% growth inhibition rate (0.25 mM) to the mycelium of the fungus Botryosphaeria ramosa L29, was added to the autoclaved rice medium. Under these conditions, compound 5 was generated and purified.
Compound 1 was isolated as a yellow powder. The high resolution electron spray ionization mass spectroscopy (HRESIMS) spectrum of 1 showed an ion peak at m/z 223.0608 ([M + H]+, calcd. for C11H11O5 223.0606), corresponding to the molecular formula C11H10O5. The infrared radiation (IR) bands of 1 at 3244, 1682, 1622, and 1615 cm−1 represented the hydroxyl, ester carbonyl, and aromatic ring groups, respectively. The 13C NMR (Table 1) and heteronuclear singular quantum correlation (HSQC) spectrum of 1 showed 11 carbon signals consisting of two methyl groups, one sp2 methine group, seven olefinic quaternary carbons, and one ester carbonyl carbon. The 1H NMR (Table 1) and HSQC spectra, along with the molecular formula of 1 indicated signals for one hydrogen-bond hydroxyl group (δH 11.18), two aromatic hydroxyl groups (δH 5.38 and 6.42), one olefinic proton (δH 6.38), and two methyl groups (δH 2.18 and 2.29). These characteristics suggested that compound 1 might be an isocoumarin [11] substituted with three hydroxyl and two methyl groups.
The heteronuclear multiple bond correlation (HMBC) correlations (Figure 2) from 8-OH to C-7, C-8 and C-8a, from 7-OH to C-6, C-7, and C-8, from 6-OH to C-5, C-6 and C-7, and from H-10 to C-5, C-6 and C-4a indicated the positions of 6-OH, 7-OH, 8-OH, and CH3-10. In addition, the HMBC correlations from H-9 to C-3 and C-4, and from H-4 to C-5 suggested that CH3-9 was located at C-3. Therefore, the structure of compound 1 was determined as 6, 7, 8-trihydroxy-3, 5-dimethylisocoumarin, as shown in Figure 1.
Compound 2 was obtained as a colorless powder, with the molecular formula C12H12O5 determined by the HRESIMS at m/z 237.0765 ([M + H]+, calcd. C12H13O5 237.0763). The NMR data (Table 1) and HSQC spectrum revealed that compound 2 shared the same isocoumarin skeleton as 1. However, the CH3 at C-5 in 1 was replaced by a methoxy group in 2, which was revealed by the HMBC correlations (Figure 2) from the proton of 5-OCH3 to C-5 and from H-4 to C-5. Moreover, the hydroxyl at C-7 in 1 was absent in 2, and the hydroxyl at C-6 in 1 was changed to a methoxyl in 2, which was supported by the HMBC correlations from H-7 to C-5, C-6, and C-8a, and from the proton of 6-OCH3 to C-6. Thus, compound 2 was elucidated as 8-hydroxy-5, 6-dimethoxy-3-methylisocoumarin (Figure 1).
The HRESIMS data of compound 3 at m/z 225.0757 ([M + H]+, calcd. C11H13O5 225.0757) established the molecular formula C11H12O5. Its 1H NMR spectrum displayed a singlet for an aromatic methyl group (δH 2.09, s), a doublet for another methyl group (δH 1.18 s) attached to a methine, two phenolic hydroxyl groups (δH 11.27, s and 9.42, s), and a singlet for an aromatic proton (δH 6.68, s). The 13C NMR spectrum (Table 2) exhibited the existences of a benzene ring moiety (δc 162.7, 155.0, 146.5, 110.7, 101.3, 104.1), an ester carbonyl group (δc 171.5), two methyl (δc 17.8, 6.9) groups, and two oxygenated methine (δc 84.2, 67.2) groups. These data indicated compound 3 was a dihydroisocoumarin derivative with great similarity to 4, 6-dihydroxymellein [12]. In view of the downfield chemical shift and the peak shape, the hydroxyl group at δH 11.27 must be attached to C-8 to form an intramolecular hydrogen bond with the carbonyl (C-1). Hence, the only difference between 3 and 4 is that 6-dihydroxymellein might be an additional methyl at C-7 in 3. This conclusion was confirmed by the HMBC correlations from CH3-10 to C-6, C-7, and C-8, from 8-OH to C-7, C-8 and C-8a, and from H-5 to C-6, C-7, and C-8a. The deduction that CH3-9 and 4-OH facing trans direction was revealed by the strong nuclear Overhauser effect (NOE) correlation between H-4 and CH3-9. The absolute configuration of 3 was concluded to be 3S, 4R, in that the calculated ECD curve of (3S, 4R)-3 had a good agreement with the experimental data (Figure 3).
The NMR features (Table 2) suggested that compound 4 was quite similar to 3, except for two aromatic hydroxyl groups in 3 being replaced by two methoxy groups (δH 3.96, δc 55.8, 6-OCH3; δH 3.99, δc 61.2, 8-OCH3) in 4, supported by the HMBC correlations from 6-OCH3 to C-6 and from 8-OCH3 to C-8, and by the molecular formula C13H16O5 according to HRESIMS at m/z 253.1078 ([M + H]+, calcd. C13H17O5 253.1076). The positions of 6-OCH3 and 8-OCH3 were further confirmed by HMBC correlations from CH3-10 to C-6, C-7, and C-8, and from H-5 to C-6, C-7, and C-8a. The NOE correlation between H-4 and CH3-9, together with the similar experimental and calculated ECD curves shown in Figure 3, suggested that compound 4 had the same absolute configuration as 3. Hence, compound 4 was elucidated as (3S, 4R)-4-hydroxy-6, 8-dimethoxy-3, 7-dimethyldihydroisocoumarin.
Compound 5 was obtained as a yellow solid. The molecular formula C12H14N2O2 (seven degrees of unsaturation) was established from HRESIMS at m/z 219.1127 ([M + H]+, calcd. C12H15N2O2 219.1128). The IR spectrum showed an absorption band at 3366 cm−1, corresponding to an amino-group. In addition, the bands at 1615, 1457, and 1413 cm−1 were indicative of the amido carbonyl group and aromatic ring system. The 13C NMR (Table 3) and HSQC spectra of compound 5 revealed the presence of an acetyl methyl carbon (δC 22.0), one carbonyl carbon (δC 170.5), two sp3 hybridized methene carbons (δC 36.4, 47.0), four aromatic methine carbons (δC 130.7, 123.4, 119.5, 110.2), one heteroatom substituted methine carbon (δC 81.6), one heteroatom attached quaternary carbon (δC 86.6), and two phenolic quaternary carbons (δC 149.6, 129.2). These data were almost identical to those of the known compound (3aR, 8aS)-1-acetyl-1, 2, 3, 3a, 8, 8a-hexahydropyrrolo [2,3b] indol-3a-ol isolated from Streptomyces staurosporeus fermentation with tryptamine [13], which suggested that compound 5 had the same planar structure as the known compound.
The deduction was further confirmed by detailed analysis of the HMBC correlations of 5 (Figure 2). Most chemical shifts of the 1H NMR data of 5 were also consistent with those of the known compound with differences ≤ 0.03 ppm in deuterated chloroform. However, the chemical shift of one of the H-3 protons at δH 2.70 in the latter was shifted upfield by 0.16 ppm to 2.54 ppm in the former (compound 5), suggesting that the absolute configuration at C-3a in compound 5 might be different from that of the known compound. Moreover, the specific rotations of the two compounds greatly differed in value (5, [ α ] D 25 23.06; the known compound, [ α ] D 25 72.00; in MeOH), suggesting that they were a pair of diastereoisomers. Furthermore, NOE correlations between one of the protons of H-3 at δH 2.54 and the proton at δH 5.28, together with no NOE correlations between H-8a (δH 5.32) and the proton at δH 5.28, suggested that the proton at δH 5.28 should be 3a-OH, which was opposite to H-8a. Thus, the relative configuration of 5 was different from that of the known compound. On the basis of this deduction, the theoretical ECDs were calculated. From Figure 3, the experimental curve of compound 5 matched well with that of the calculative (3aS, 8aS)-5 and greatly diverged from those of (3aR, 8aR)-5, (3aR, 8aS)-5, and (3aS, 8aR)-5, suggesting that the absolute configuration of 5 was 3aS, 8aS. Since 1-acetyl-1, 2, 3, 3a, 8, 8a-hexahydropyrrolo [2,3b] indol-3a-ol had been synthesized as a racemic mixture without specifying the relative configuration [14], it is impossible to judge whether compound 5 was a new compound or not. However, it can be concluded that this is the first report of 5 as a new natural product. Notably, as shown in the HPLC profiles (Figure S34), this new metabolite was produced after adding the ingredient (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate of the host [10], which exhibits weak antifungal activity against the research fungus L29, suggesting that the pressure to inhibit growth from the antifungal agent of the host changed the metabolic pathway of the fungus. To the best of our knowledge, this is the first example of a new natural product from plant endophytic fungus generated according to such a strategy.
Compounds 13 and 5 were evaluated in vitro for antifungal activity towards three phytopathogenic fungi: Fusarium oxysporum (F. oxysporum), Penicillium italicum (P. italicum), and Fusarium graminearum (F. graminearum) (Table 4). Compared to the positive control triadimefon, all of the compounds exhibited higher inhibitory activities against F. oxysporum and F. graminearum except for compound 1. This compound displayed good activity against F. oxysporum (minimum inhibitory concentration (MIC) value = 112.6 μM) and very weak activity towards F. graminearum (MIC value = 900.0 µM). The activities towards P. italicum for all compounds except compound 3 (inactive, MIC value > 900.0 µM), appeared to range between modest and high values (MIC values from 450.4 µM to 57.3 µM). It should be noted that compound 5 exhibited approximately twelve-, three-, and eighteen-fold stronger activities against F. oxysporum, P. italicum, and F. graminearum than triadimefon, respectively. Moreover, the activities on F. oxysporum for compounds 1 and 2, and on F. graminearum for compounds 2 and 3, were approximately three and two point five times higher than those of triadimefon, respectively. The activities of compound 4 were not assessed because the amount produced was too small.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were recorded using a P-1020 digital polarimeter (Jasco International Co., Ltd., Tokyo, Japan). Ultraviolet (UV) and IR spectra were obtained using a UV-2550 spectrophotometer (Shimadzu Corporation, Tokyo, Japan) and Nicolet iS10 Fourier transform infrared spectrophotometer (Thermo Electron Corporation, Madison, WI, USA), respectively. CD spectra were collected on Chirascan CD spectrometer (Applied Photophysics Ltd., London, UK). 1H and 13C NMR data were collected on an AVIII 600 MHz NMR spectrometer (Bruker BioSpin GmbH Company, Rheinstetten, Germany). The positive ion mode on a quadrupole-time of flight (Q-TOF) mass spectrometer (Thermo Fisher Scientific Inc., Frankfurt, Germany) was used for the measurement of HRESIMS. Semi-preparative HPLC was performed on a 1260 Infinity Series high performance liquid chromatography system (Agilent Corporation, Santa Clara, CA, USA). Common column and thin layer chromatography (TLC) was performed using a 200−300 mesh and G60, F-254 silica gel (Qingdao Haiyang Chemicals Co., Ltd., Qingdao, China), respectively. For gel filtration chromatography, a Sephadex LH-20 (GE Healthcare, Chicago, IL, USA) was used.

3.2. Fungal and Plant Material

M. bontioides was collected from a mangrove in Leizhou Peninsula, China, in May 2014. The strain L29 was obtained from its leaf and was identified as Botryosphaeria ramosa on the basis of molecular analysis methods [15]. These cultures are deposited in the College of Materials and Energy, South China Agricultural University. A BLAST research by NCBI showed that the internal transcribed spacer (ITS) sequence (No. MK370738 in GenBank) of the fungal strain was identical to that of Botryosphaeria ramosa CMW26167 (No. NR151841.1).

3.3. Cultivation, Extraction, and Isolation

The strain maintained on potato dextrose agar (PDA) medium at 28 °C for 3 days was put into the liquid medium (2% glucose, 2% peptone) and incubated at 28 °C for about 4 days. After that, the culture (6 mL) was transferred to an Erlenmeyer flask with the rice medium (70 mL H2O, 50 g rice, 0.25 g crude sea salt) treated either with (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate (0.25 mM) or without this compound (control), and was incubated for 28 days at room temperature. The flavanone was isolated from M. bontioides, the host of the fungus B. ramosa L29. It was shown to cause an 18.56% growth inhibition rate at the concentration of 0.25 mM to the mycelium of B. ramosa L29 by a petri plate mycelia growth rate method [16]. The media (20 bottles) were continuously extracted three times using 95% ethanol. The solvent was evaporated in vacuo and was extracted three times with ethyl acetate to obtain a dark brown crude extract (25.0 g). The EtOAc extracts of different conditions were analyzed by reversed-phase HPLC (Hypersil BDS C18 column, 150 × 4.6 mm, 5 µm) using a gradient of MeOH/H2O (20:80–80:20, 0–30 min; 80:20–100: 0, 30–45 min; 100: 0, 45–60 min) at a flow rate of 1.0 mL/min, and recorded at 254 nm. Then, the EtOAc extract was subjected to silica gel column chromatography eluted with a gradient of petroleum ether/EtOAc (90:10, 85:15, 75:25, 50:50, 25: 75, 15:80, v/v) to afford six fractions (Fraction 1–6). Fraction 1 was chromatographed on a silica gel column, eluted with a gradient system of petroleum ether/EtOAc (95:5, 90:10, 85:15, v/v) to provide Fraction 1.1–1.5; Fraction 1.2 was separated through a Sephadex LH-20 chromatograph (MeOH as eluent) to give Fraction 1.1.1–1.1.2, and Fraction 1.1.1 was purified through semi-preparative HPLC (MeOH/H2O,90:10, v/v; 2.0 mL/min) to yield compound 2 (3 mg, tR = 33.5 min). Fraction 2 was eluted with a gradient system of petroleum ether/EtOAc (90:10, 85:15, 80:20, 75:25, v/v) on a silica gel column to give Fraction 2.1–2.4; Fraction 2.2 was applied on semi-preparative HPLC (MeOH/H2O, 79:21, v/v; 2.0 mL/min) to provide compound 4 (1.5 mg, tR = 29.3 min). Then, Fraction 3 was fractioned by silica gel column chromatography using petroleum ether/ EtOAc (80:20, 75:25, 70:30, 60:40, 50:50, 40:60, 30:70,20:80, v/v) as eluents to afford Fraction 3.1–3.8; Fraction 3.4 was subjected to semi-preparative HPLC (MeOH/H2O, 68:32, v/v; 2.0 mL/min) to yield compounds 3 (2.8 mg, tR = 22.1 min) and 1 (2.5 mg, tR = 25.2 min). Further separation of Fraction 3.7 by semi-preparative HPLC (MeOH/H2O, 65:35, v/v; 2.0 mL/min) led to the isolation of compound 5 (2 mg, tR = 20.4 min).
Compound 1. Yellow powder; IR (KBr) νmax 3244, 2940, 1682, 1622, 1153, 1164, 1615, 834 cm−1; HRESIMS m/z 223.0608 ([M + H]+, calcd. for C11H11O5 223.0606); 13C NMR and 1H NMR (Table 1).
Compound 2. Colorless powder; HRESIMS m/z 237.0765 ([M + H]+, calcd. for C12H13O5 237.0763); 13C NMR and 1H NMR (Table 1).
Compound 3. Colorless powder; UV (CH3CN) λmax (log ε) 217 (1.97), 261 (0.68), 298 (0.22) nm; [ α ] D 25 16.80 (c 0.30, MeOH); HRESIMS m/z 225.0757 ([M + H]+, calcd. for C11H13O5 225.0757); 13C NMR and 1H NMR (Table 2).
Compound 4. Colorless powder; UV (CH3CN) λmax (log ε) 217 (0.90), 260 (0.31) nm; [ α ] D 25 16.00 (c 0.25, MeOH); HRESIMS m/z 253.1078 ([M + H]+, calcd. for C13H17O5 253.1076); 13C NMR and 1H NMR (Table 2).
Compound 5. Yellow solid; UV (CH3CN) λmax (log ε) 204 (2.26), 234 (0.97), 297 (0.17) nm; IR (KBr) νmax 3366, 2922, 1615, 1457, 1413, 1313, 1188, 1061, 752 cm−1; [ α ] D 25 23.06 (c 0.19, MeOH); HRESIMS m/z 219.1127 ([M + H]+, calcd. for C12H15O2N2 219.1128); 13C NMR and 1H NMR (Table 3).

3.4. ECD Calculations

Conformational analysis of the enantiomers of compounds 35 established by NOESY analyses were carried out via searching with the MMFF94s molecular mechanics force field using Spartan’10 software (Wavefunction Inc., Irvine, CA, USA) within 10 kcal/mol. The Gaussian 09 program (Gaussian Inc., Wallingford, CT, USA) was used to optimize by density functional theory (DFT) at the 6-31G (d, p) level (methanol as the solvent), and to calculate ECD on 6-311 + G(d, p) level by time-dependent density functional theory (TDDFT). Boltzmann statistics were performed for ECD simulations with a standard deviation of 0.3 eV. The softwares SpecDis 1.64 (University of Wurzburg, Wurzburg, Germany) and OriginPro 8.5 (OriginLab, Ltd., Northampton, MA, USA) were used to generate the ECD curves.

3.5. Antifungal Activity Assay

Three fungi including F. oxysporum, P. italicum, and F. graminearum used for bioassay were acquired from the College of Agriculture, South China Agricultural University. The antifungal effects were examined by the two-fold broth dilution method, as previously reported [17].

4. Conclusions

In this study, four new isocoumarin derivatives, which we named botryospyrones A, B, C, and D, along with a new natural tryptamine derivative, (3aS, 8aS)-1-acetyl-1, 2, 3, 3a, 8, 8a-hexahydropyrrolo [2,3b] indol-3a-ol, were isolated from an endophytic fungus B. ramosa L29, obtained from the leaf of M. bontioides. Compound 1 remarkably inhibited F. oxysporum, compounds 2 and 3 highly inhibited F. oxysporum and F. graminearum, and compound 5 significantly inhibited F. oxysporum, P. italicum, and F. graminearum. The compounds were more potent than triadimefon, revealing their potential to be used as new antifungal leads. Compound 5 was produced when using the “UISCH” strategy by adding (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate, a component of M. bontioides with weak growth inhibitory activity towards B. ramosa L29, into the medium, suggesting that this strategy could be applied to induce an endophyte to produce new bioactive molecules.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/2/88/s1, Figures S1–S34: the NMR and HRESIMS spectra for all the isolated compounds, UV spectra for compounds 35, IR spectra for compounds 1 and 5, HPLC profiles for B. ramosa L29 EtOAc extract cultured in autoclaved rice medium with/without 0.25 mM (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate.

Author Contributions

Conceptualization, W.D. and C.L.; methodology, W.D. and C.L.; formal analysis, Z.W., Z.S., W.D., and C.L.; investigation, Z.W., J.C., X.Z., Z.C., T.L., Z.S., W.D., and C.L.; data curation, Z.W.; writing—original draft preparation, Z.W. and W.D.; writing—review and editing, Z.W., W.D., and C.L.; supervision, W.D., Z.S., and C.L.; project administration, W.D. and C.L.; funding acquisition, C.L.

Funding

This research was funded by the Natural Science Foundation of Guangdong Province, grant numbers 2015A030313405 and 2018A030313582; the Science and Technology Project of Guangdong Province, grant number 2016A020222019; and the Science and Technology Project of Guangzhou City, grant number 201707010342.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blunt, J.W.; Copp, B.R.; Keyzers, R.A.; Munro, M.H.G.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2012, 29, 144–222. [Google Scholar] [CrossRef] [PubMed]
  2. Guo, W.Q.; Li, D.; Peng, J.X.; Zhu, T.J.; Gu, Q.Q.; Li, D.H. Penicitols A−C and Penixanacid A from the Mangrove-Derived Penicillium chrysogenum HDN11-24. J. Nat. Prod. 2015, 78, 306–310. [Google Scholar] [CrossRef] [PubMed]
  3. Yu, G.H.; Zhou, Q.L.; Zhu, M.L.; Wang, W.; Zhu, T.J.; Gu, Q.Q.; Li, D.H. Neosartoryadins A and B, fumiquinazoline alkaloids from a mangrove-derived fungus Neosartorya udagawae HDN13-313. Org. Lett. 2016, 18, 244–247. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, S.; Ding, W.; Li, C.; Cox, D.G. Two new cyclopeptides from the co-culture broth of two marine mangrove fungi and their antifungal activity. Pharmacogn. Mag. 2014, 10, 410–414. [Google Scholar] [PubMed]
  5. Li, X.Z.; Li, C.Y.; Wu, L.X.; Yang, F.B.; Gu, W.X. Chemical constituents from leaves of Myoporum bontioides. Chin. Tradit. Herbal Drugs 2011, 42, 2204–2207. [Google Scholar]
  6. Zhu, X.; Zhou, D.; Liang, F.; Wu, Z.; She, Z.; Li, C. Penochalasin K, a new unusual chaetoglobosin from the mangrove endophytic fungus Penicillium chrysogenum V11 and its effective semi-synthesis. Fitoterapia 2017, 123, 23–28. [Google Scholar] [CrossRef] [PubMed]
  7. Zhu, X.; Zhong, Y.; Xie, Z.; Wu, M.; Hu, Z.; Ding, W.; Li, C. Fusarihexins A and B: Novel cyclic hexadepsipeptides from the mangrove endophytic fungus Fusarium sp. R5 with antifungal activities. Planta Med. 2018, 84, 1355–1362. [Google Scholar] [CrossRef] [PubMed]
  8. Li, W.; Xiong, P.; Zheng, W.; Zhu, X.; She, Z.; Ding, W.; Li, C. Identification and antifungal activity of compounds from the mangrove endophytic fungus Aspergillus clavatus R7. Mar. Drugs 2017, 15, 259. [Google Scholar] [CrossRef] [PubMed]
  9. Huang, S.; Chen, H.; Li, W.; Zhu, X.; Ding, W.; Li, C. Bioactive chaetoglobosins from the mangrove endophytic fungus Penicillium chrysogenum. Mar. Drugs 2016, 14, 172. [Google Scholar] [CrossRef] [PubMed]
  10. Huang, L.L.; Li, J.W.; Ni, C.L.; Gu, W.X.; Li, C.Y. Isolation, Crystal Structure and Inhibitory Activity against Magnaporthe Grisea of (2R, 3R)-3, 5, 7-trihydroxyflavanone 3-acetate from Myoporum Bontioides A. Gray. Chin. J. Struct. Chem. 2011, 30, 1298–1304. [Google Scholar]
  11. Prompanya, C.; Dethoup, T.; Bessa, L.J.; Pinto, M.M.M.; Gales, L.; Costa, P.M.; Silva, A.M.S.; Kijjoa, A. New isocoumarin derivatives and meroterpenoids from the marine sponge-associated fungus Aspergillus similanensis sp. nov. KUFA 0013. Mar. Drugs 2014, 12, 5160–5173. [Google Scholar] [CrossRef] [PubMed]
  12. Takenaka, Y.; Hamada, N.; Tanahashi, T. Aromatic compounds from cultured Lichen mycobionts of three Graphis species. Heterocycles 2011, 83, 2157–2164. [Google Scholar]
  13. Yang, S.W.; Cordell, G.A. Metabolism studies of indole derivatives using a staurosporine producer, Streptomyces staurosporeus. J. Nat. Prod. 1997, 60, 44–48. [Google Scholar] [CrossRef] [PubMed]
  14. Kametani, T.; Kanaya, N.; Ihara, M. Studies on the syntheses of heterocyclic compounds. Part 876. The chiral total synthesis of brevianamide E and deoxybrevianamide E. J. Chem. Soc. Perkin Trans. 1981, 1, 959–963. [Google Scholar] [CrossRef]
  15. Chen, S.; Liu, Y.; Liu, Z.; Cai, R.; Lu, Y.; Huang, X.; She, Z. Isocoumarins and benzofurans from the mangrove endophytic fungus Talaromyces amestolkiae possess α-glucosidase inhibitory and antibacterial activities. RSC Adv. 2016, 6, 26412–26420. [Google Scholar] [CrossRef]
  16. Mohammedi, Z.; Atik, F. Fungitoxic effect of natural extracts on mycelial growth, spore germination and aflatoxin B1 production of Aspergillus flavus. Aust. J. Crop Sci. 2013, 7, 293–298. [Google Scholar]
  17. Wu, Z.; Xie, Z.; Wu, M.; Li, X.; Li, W.; Ding, W.; She, Z.; Li, C. New Antimicrobial Cyclopentenones from Nigrospora sphaerica ZMT05, a Fungus Derived from Oxya chinensis Thunber. J. Agric. Food Chem. 2018, 66, 5368–5372. [Google Scholar] [CrossRef] [PubMed]

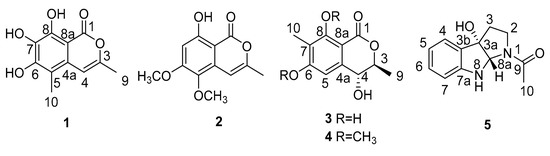

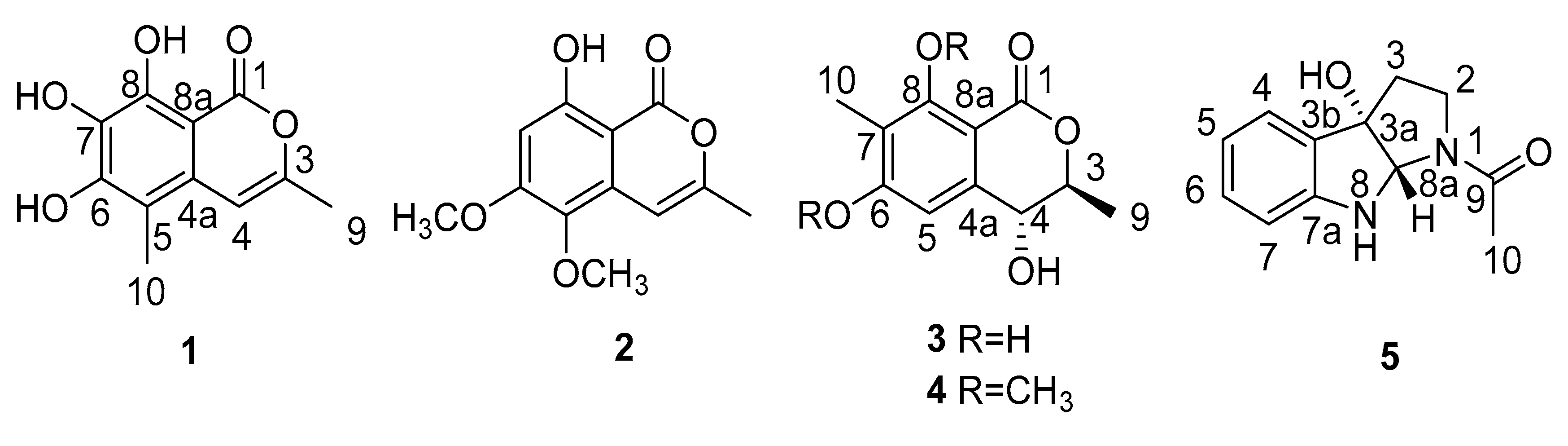

Figure 1. Chemical structures of the isolated compounds 15.
Figure 1. Chemical structures of the isolated compounds 15.
Marinedrugs 17 00088 g001

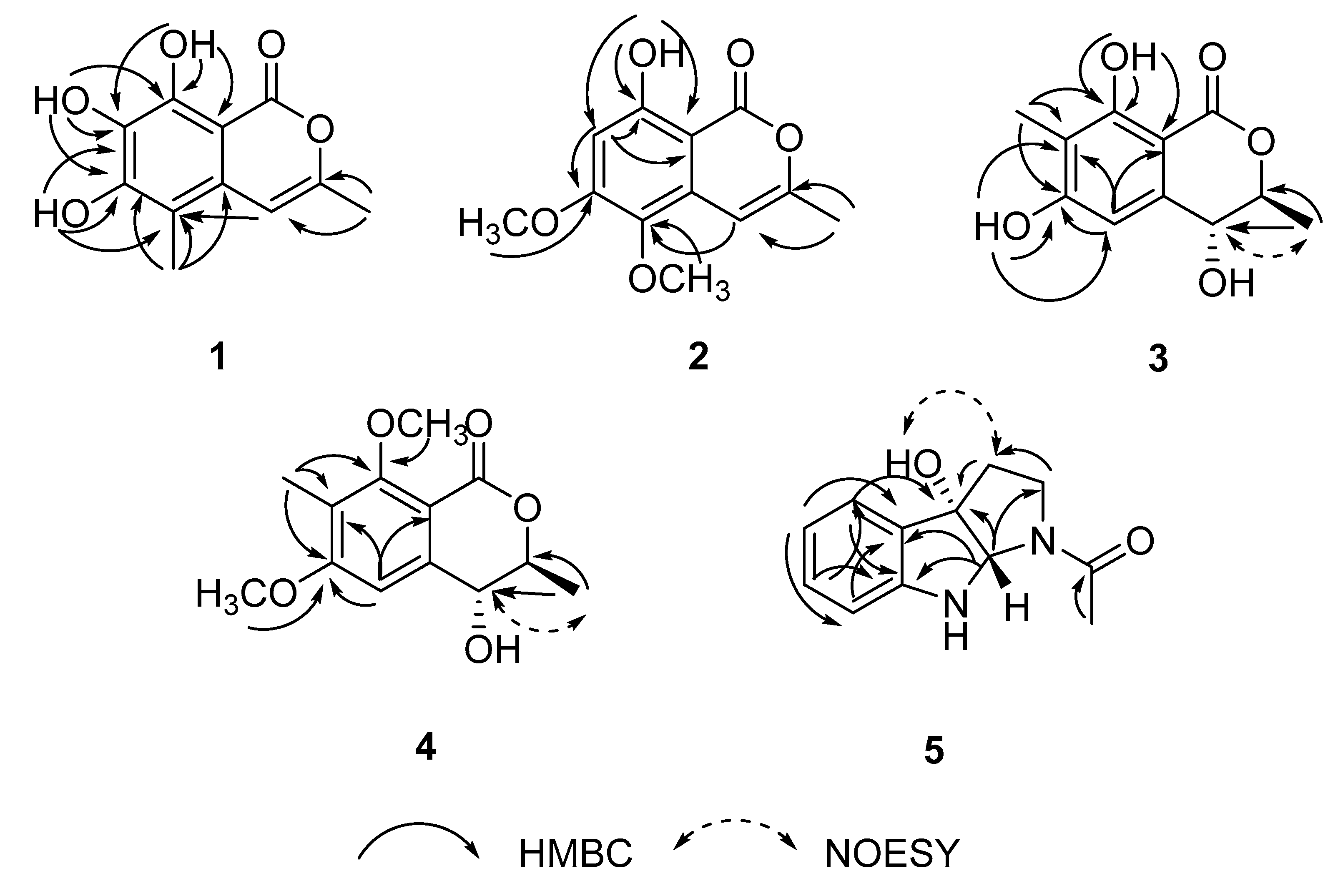

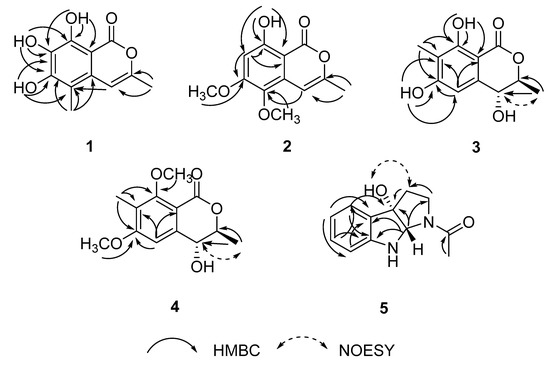

Figure 2. Key HMBC and NOESY correlations for compounds 15.
Figure 2. Key HMBC and NOESY correlations for compounds 15.
Marinedrugs 17 00088 g002

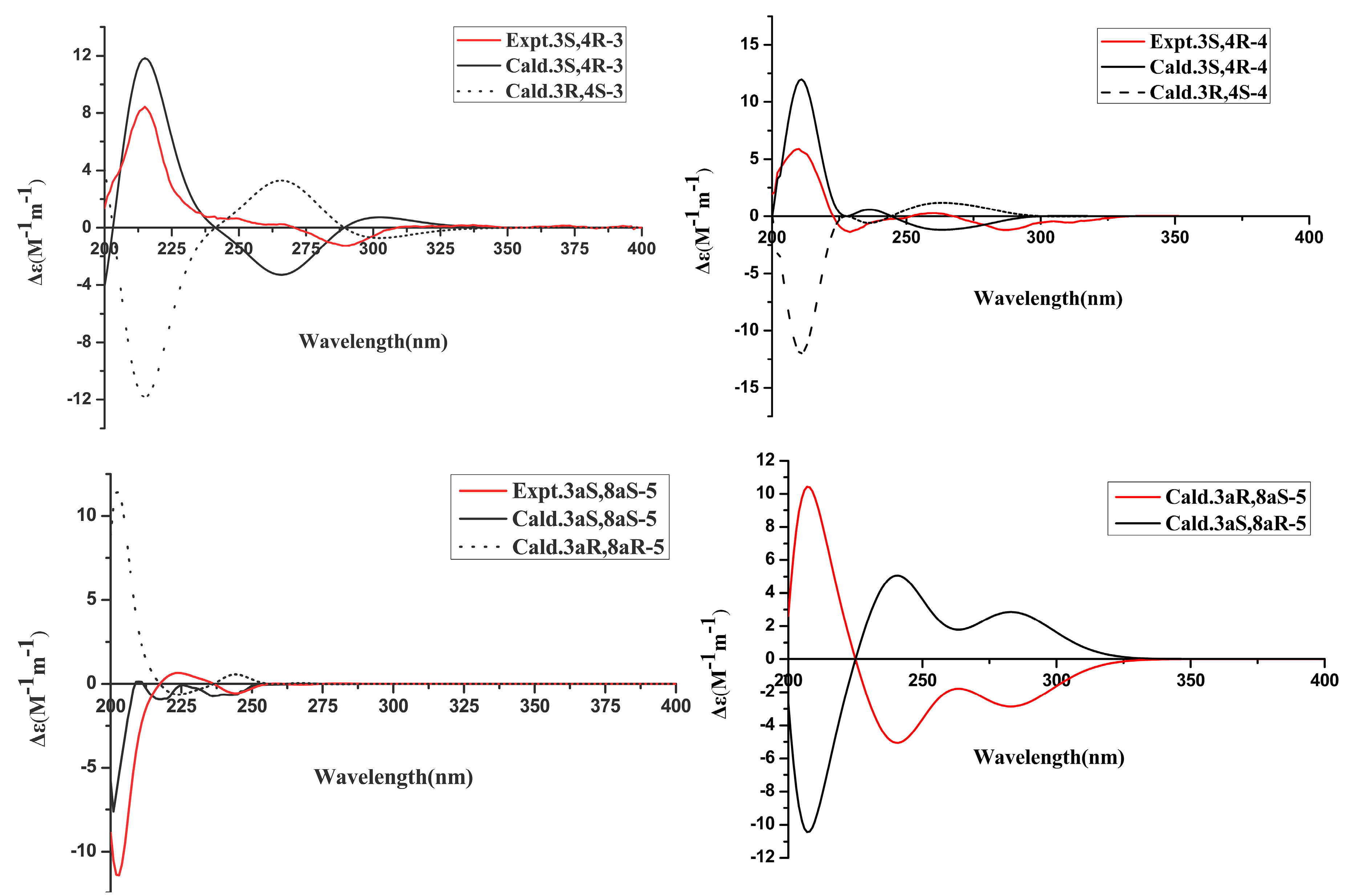

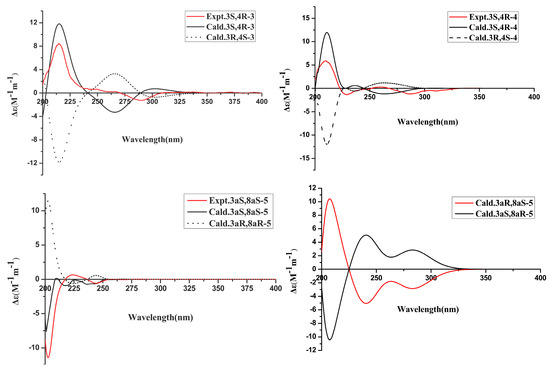

Figure 3. Calculated and experimental ECD spectra for compounds 3, 4 and 5.
Figure 3. Calculated and experimental ECD spectra for compounds 3, 4 and 5.
Marinedrugs 17 00088 g003
Table 1. 1H (600MHz) and 13C NMR (150MHz) data for compounds 1 and 2.
Table 1. 1H (600MHz) and 13C NMR (150MHz) data for compounds 1 and 2.
Position1 a2 a
δH, multi (J/Hz)δc (ppm)δH, multi (J/Hz)δc (ppm)
1 166.7 166.4
3 153.7 153.9
46.38,s101.66.51,d(1.0)99.0
4a 137.6 130.7
5 108.7 134.7
6 161.6 159.8
7 128.66.50,s98.6
8 161.4 160.0
8a 99.8 98.3
5-OCH3 3.93,s61.4
6-OCH3 3.78,s56.1
6-OH5.38,s
7-OH6.42,s
8-OH11.18,s 10.99,s
92.29,s19.62.27,d(1.0)19.6
102.18,s9.8
a Measured in CDCl3.
Table 2. 1H (600MHz) and 13C NMR (150MHz) data for compounds 3 and 4.
Table 2. 1H (600MHz) and 13C NMR (150MHz) data for compounds 3 and 4.
Position3 a4 a
δH, multi (J/Hz)δcδH, multi (J/Hz)δc
1 171.5 166.5
35.33,d(4.8)84.25.30,d(3.0)82.5
44.17,m67.24.29,m67.2
4a 146.5 149.8
56.68,s101.37.00,s99.8
6 155.0 163.8
7 110.7 119.5
8 162.7 157.1
8a 104.1 110.8
6-OH9.42,s
8-OH11.27,s
6-OCH3 3.96,s55.8
8-OCH3 3.99,s61.2
91.18,d(4.8)17.81.22,d(6.6)18.1
102.09,s6.92.11,s7.8
a Measured in (CD3)2CO.
Table 3. 1H (600MHz) and 13C NMR (150MHz) data for compound 5.
Table 3. 1H (600MHz) and 13C NMR (150MHz) data for compound 5.
Position5 a
δH, multi (J/Hz)δC
23.30,m(10.2,6.6) 47.0
3.71,m(10.2,3.0)
32.47,m36.4
2.54,m
3a 86.6
3b 129.2
47.30,d(7.2)123.4
56.81,dd (7.8,7.2)119.5
67.18,dd(7.8,7.2)130.7
76.64,d(7.8)110.2
7a 149.6
8-NH unobserved
8a5.32,s81.6
9 170.5
102.03,s22.0
3a-OH5.28,s
a Measured in CDCl3.
Table 4. Antifungal activity of compounds 1, 2, 3, and 5 measured as minimum inhibitory concentration (MIC) values.
Table 4. Antifungal activity of compounds 1, 2, 3, and 5 measured as minimum inhibitory concentration (MIC) values.
CompoundsF. oxysporumP. italicmF. graminearum
MIC, µM
1112.6450.4900.0
2105.8211.7211.7
3223.0>900.0223.0
528.657.328.6
Triadimefon a340.4170.2510.7
a Positive control towards the test fungi.
